RSLingo4Privacy Studio

A Tool to Improve the Specification and Analysis of Privacy Policies

André Ribeiro and Alberto Rodrigues da Silva

INESC-ID, Instituto Superior Técnico, Universidade de Lisboa, Lisbon, Portugal

Keywords: Privacy Policy, Requirements Specification, Domain Specific Language, Software Tool.

Abstract: Popular software applications collect and retain a lot of users’ information, part of which is personal and

sensitive. To assure that only the desired information is made public, these applications have to define and

publish privacy policies that describe how they manage and disclose this information. Problems arise when

privacy policies are misinterpreted, for instance because they contain ambiguous and inconsistent

statements, what results in a defective application of the policy enforcement mechanisms. The

RSLingo4Privacy approach aims to improve the specification and analysis of such policies. This paper

presents and discusses its companion tool, the RSLingo4Privacy Studio, which materializes this approach

by providing the technological support for users being able to specify, analyze and publish policies based on

the RSL-IL4Privacy domain specific language. We validated its feasibility using popular websites policies

such as Dropbox, Facebook, IMDB, LinkedIn, Twitter and Zynga. We conclude this paper with a discussion

of the related work, namely a comparative analysis of pros and cons of RSLingo4Privacy Studio with other

previous proposals.

1 INTRODUCTION

Popular web and mobile applications attract and

support a huge number of users. They collect data

from these users without ensuring traceability

between privacy policies and application design

decisions. A particular challenge for policy authors

and application developers is the need to use a

common language and companion tools that

supports translating important privacy policy

statements into actionable requirements. For

example, European Union and United States employ

privacy policies as “notices” to end users and, in the

U.S., these policies are often the sole means to

enforce accountability. Given the pressure to post

privacy policies and the pressure to keep policies

honest, companies must do more to align their

policies and practices. More should be accomplished

by enabling developers with new tools to better

specify their data needs while policy authors, who

are typically legal professionals, can work with

those specifications to create more accurate policies.

A privacy policy (or just “policy” for the sake of

brevity) is a technical document that states multiple

privacy-related requirements that a system should

satisfy. These requirements are usually defined as

ad-hoc natural language (NL) statements. NL is an

ideal medium to express these policies, because it is

flexible, universal, and humans are proficient at

using NL to communicate. Moreover, NL has

minimal adoption resistance as a requirements

documentation technique (Ferreira and Silva, 2012)

(Ferreira and Silva, 2013). However, NL has

intrinsic characteristics that become the root cause of

quality problems, such as incorrectness,

inconsistency and incompleteness (Pohl, 2010)

(Silva, 2015a).

Caramujo and Silva proposed the definition of a

domain-specific language for the specification of

privacy-aware requirements, called RSL-IL4Privacy

language (Caramujo and Silva, 2015). Recently this

language evolved for a more updated and consistent

version available as a technical report (Caramujo et

al, 2017). This language provides several constructs

such as statements, private data, recipients and

enforcement mechanisms, which are necessary to

specify and document privacy-related requirements.

The goal of the proposed approach is to use this

language as the necessary mechanism for the

specification of policies while providing features for

better analyzing and validating the corresponding

policies.

Ribeiro, A. and Silva, A.

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies.

DOI: 10.5220/0006310400520063

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 52-63

ISBN: 978-989-758-248-6

The adoption of this language was defined in the

RSLingo4Privacy approach by the integration of

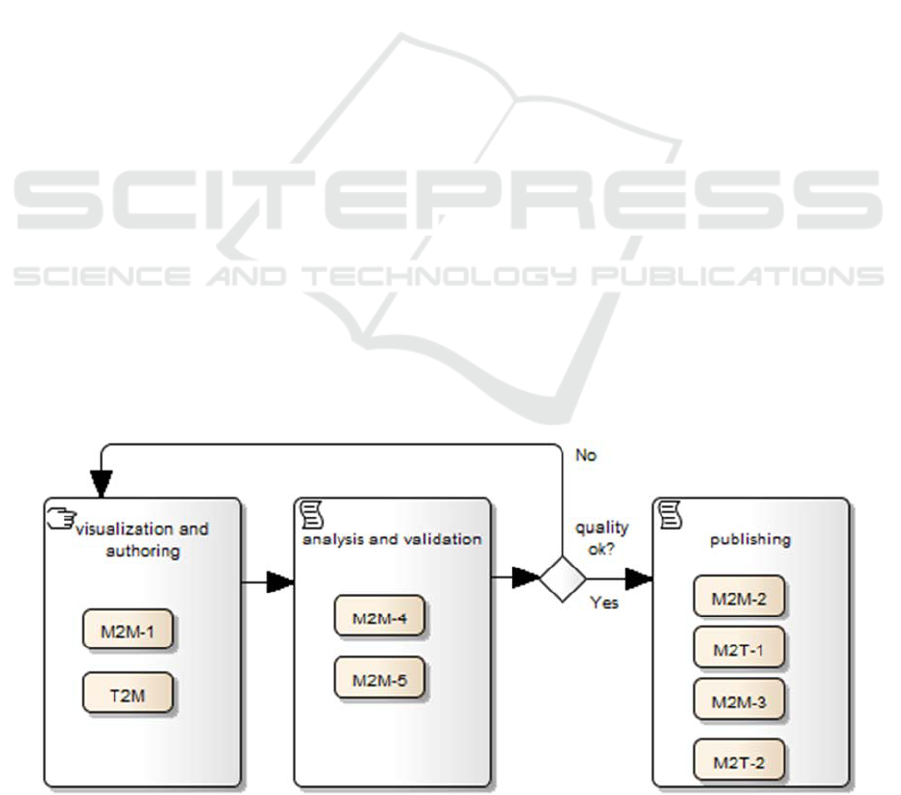

the following key processes (Silva et al., 2016): (i)

automatic classification, extraction and translation of

statements from policies written in NL into RSL-

IL4Privacy specifications; (ii) visualization and

authoring; (iii) analysis and validation; and (iv)

(re)publishing in a structured and both human and

machine-readable formats.

This paper extends that prior work with the

following novel contributions: description of a tool

(RSLingo4Privacy Studio) that materializes the

RSLingo4Privacy approach and uses RSL-

IL4Privacy as an intermediate language for the

specification of privacy policies, and an extensive

discussion on how this tool supports several

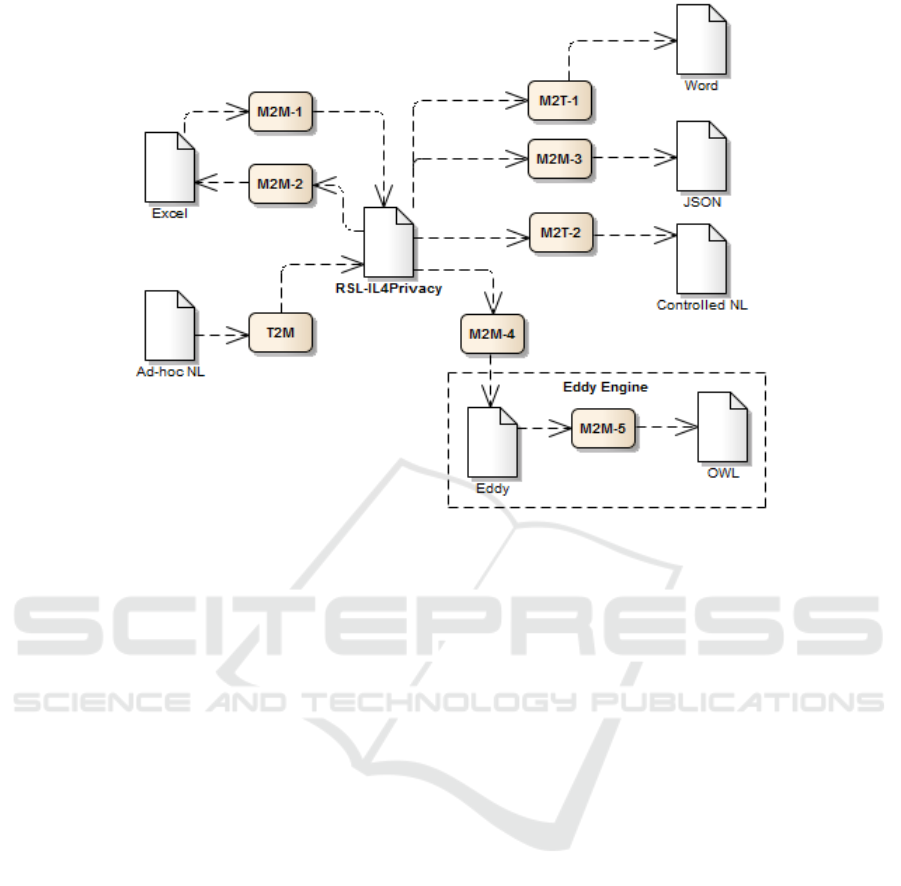

transformations to support the multiple policies

representations.

RSLingo4Privacy Studio is mainly targeted for

requirement engineers, policy authors and software

developers so they can edit, analyze and (re)publish

privacy policies in different formats using a single

tool. The major merit of this tool is that it allows

both technical and non-technical users to easily

author and analyze policies using a language close to

NL, but that is simultaneously readable and

executable by machines and so providing automatic

validation.

This work was validated using six privacy

policies extracted from popular web sites and social

networks (Dropbox, Facebook, IMDB, LinkedIn,

Twitter and Zynga). For the sake of brevity we only

consider here Dropbox’s policy to support the

discussion and exemplify the usage of

RSLingo4Privacy Studio.

The paper is organized as follows: Section 2

introduces the background, namely providing an

overview of the RSL-IL4Privacy language and

explains the scope of this research. Section 3

introduces RSLingo4Privacy Studio, highlighting its

principal features and technological aspects; and in

particular the transformations supported by this tool.

Section 4 refers and discusses the related work.

Finally, Section 5 presents the conclusion and future

work.

2 BACKGROUND

RSLingo is a long-term research initiative in the RE

area that recognizes that natural language, although

being the most common and preferred form of

representation used within requirements documents,

is prone to produce such ambiguous and inconsistent

documents that are hard to automatically validate or

transform. Originally RSLingo proposed an

approach to use simplified Natural Language

Processing (NLP) techniques as well as human-

driven techniques for capturing relevant information

from ad-hoc natural language requirements

specifications and then applying lightweight parsing

techniques to extract domain knowledge encoded

within them (Ferreira and Silva, 2012). This was

achieved through the use of two original languages:

the RSL-PL (Pattern Language) (Ferreira and Silva,

2013a), designed for encoding RE-specific linguistic

patterns, and RSL-IL (Intermediate Language), a

domain specific language designed to address RE

concerns (Ferreira and Silva, 2013). Through the use

of these two languages and the mapping between

them, the initial knowledge written in natural

language can be extracted, parsed and converted to a

more structure format, reducing its original

ambiguity and creating a more rigorous SRS

document (Silva, 2015a).

In the scope of the RSlingo initiative we have

developed a focused analysis of privacy policies to

discover common linguistics patterns found

throughout these policies. As a consequence, we

defined most of these patterns as a privacy-aware

profile based on software language technologies

(Mernik et al., 2005; Voelter et al., 2013; Silva,

2015; Ribeiro et al., 2016): the RSL-IL4Privacy

language.

RSL-IL4Privacy enables a more rigorous

specification of privacy requirements than writing in

just NL. The adoption of a language such as RSL-

IL4Privacy allows that its specifications become

simpler to read and understand which facilitates the

communication between the involved stakeholders

(Silva et al., 2016). Figure 1 depicts a partial view of

the RSL-IL4Privacy metamodel including its core

elements: Statement, Recipient, PrivateData, Service

and Enforcement.

Statement describes what rules or actions are

specified in a policy, thus it can be seen as a privacy

requirement. A policy comprises a set of statements.

Each statement can be classified into five

different categories, according to its features or

qualities: Collection defines which data is collected;

Disclosure defines which data is disclosed and to

what entities; Retention defines for how long data

will be stored; Usage defines what is the purpose of

having the data; and Informative is a statement with

just generic information. It is also noteworthy that

one statement may refer to multiple services and act

on different private data.

PrivateData represents the users’ data that is

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies

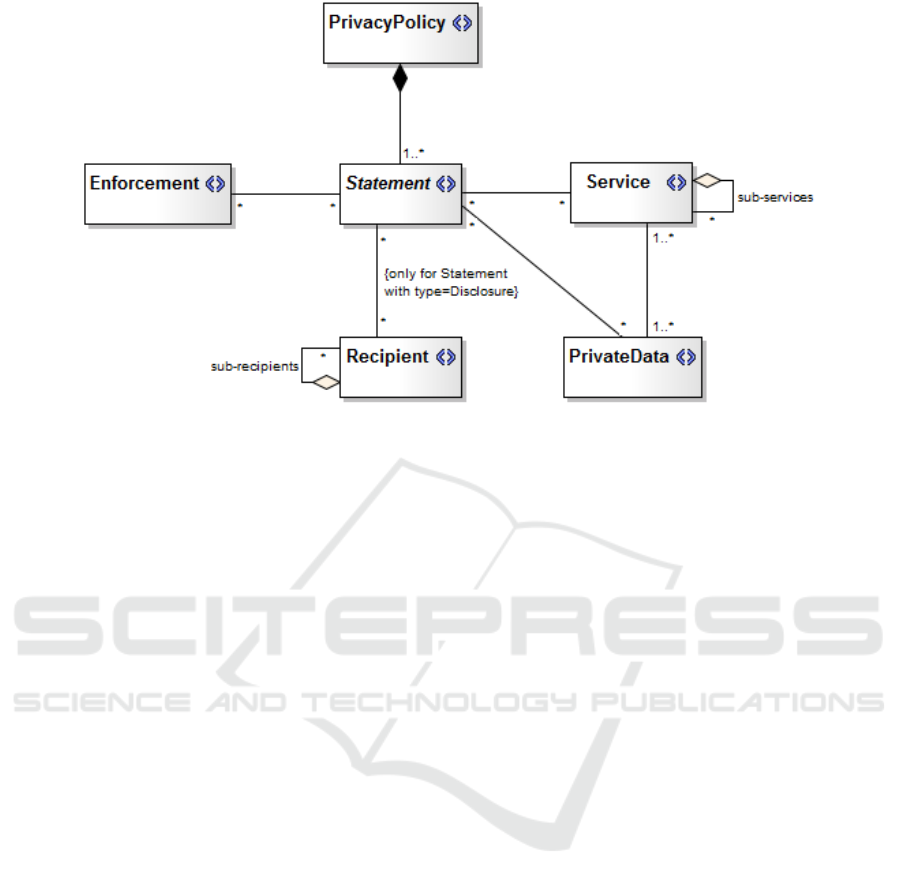

Figure 1: RSL-IL4Privacy metamodel (partial view).

collected and managed by the software application

(or service provider). A PrivateData can be defined

as personal or usage depending on the source of the

information: personal, if such information clearly

identifies a given user (e.g., name, email); or usage,

if the data is gathered based on the user’s activity on

the system (e.g., device specifications).

Service describes the multiple high-level services

that are provided through the users’ point of view. It

is important to point out the association between

Service and PrivateData because it makes possible to

track what personal information is being employed

in each service.

Finally, Enforcement element is particularly

useful because through the description of the

mechanisms and tools that are documented in a

policy, one can have some insight about how it can

be possible to enforce privacy requirements of such

privacy policies. On the other hand, it also

encompasses rules and specific actions with regard

to the use of the system that are important for the

enforcement of a given privacy policy.

The RSL-IL4Privacy language is implemented

with different technologies to provide multiple

representations depending on the respective

formality, namely: tabular, graphical, and textual

representation.

The tabular representation is supported by a

MS-Excel template that includes some predefined

sheets. For example, it includes a specific sheet with

the statements, other sheet with the private data, etc.

It might also include some analysis reports and

graphics on top of that source information.

The graphical representation is based on UML

tools, such as Sparx Systems Enterprise Architect

that has been used. In this case, RSL-IL4Privacy is

implemented as a UML profile and consequently we

can represent any policy as a UML package with its

associated elements and respective relations.

The tabular and graphical representations

provide a structured overview of the arrangements

among all the constructs that exist in a policy.

However, these representations do not easily support

integration with other types of requirements (such as

use case specifications) nor do they easily support

automatic validation of such requirements.

Therefore, the RSL-IL4Privacy language is also

formalized and defined with a rigorous and textual

representation using the Xtext framework (Bettini,

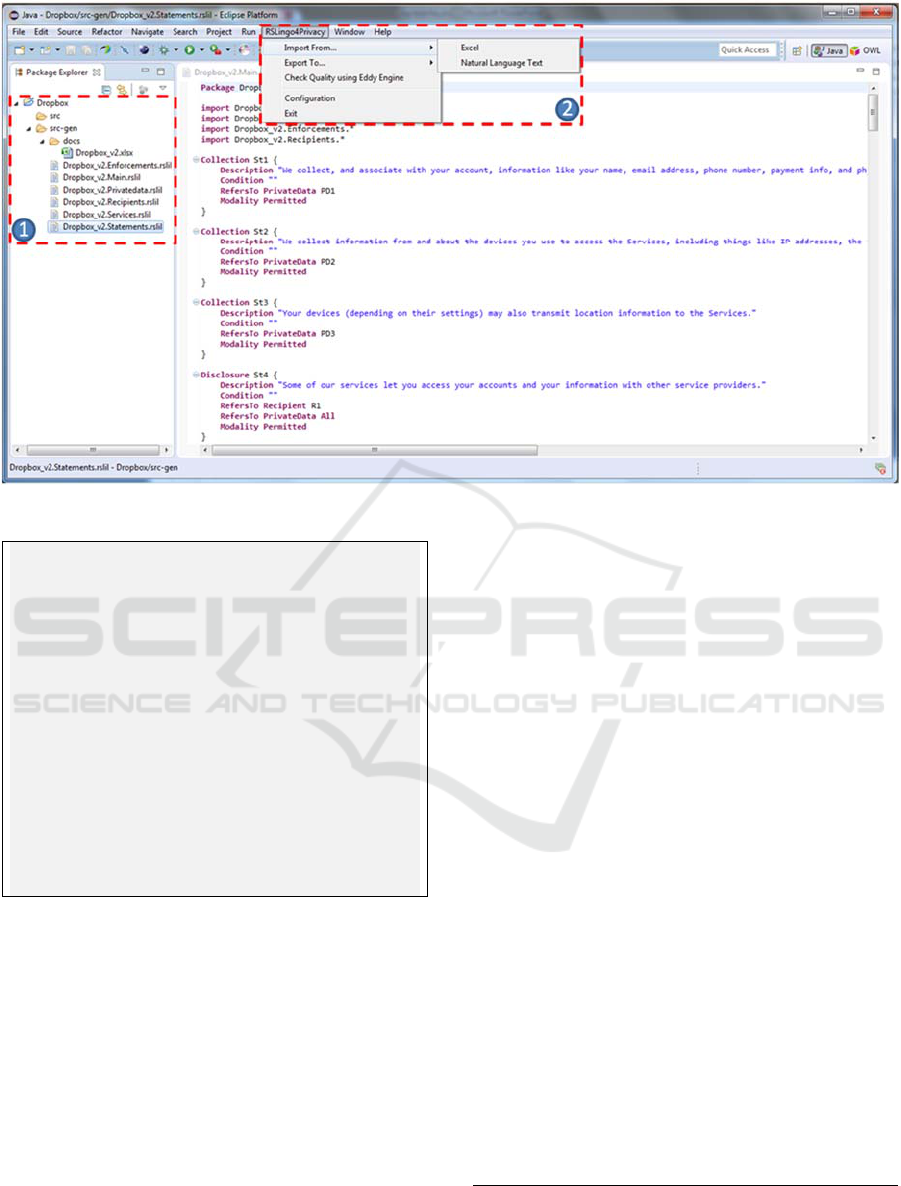

2016). Figure 2 shows an example of RSL-

IL4Privacy statements specified according to this

representation. On the other hand, Figure 3 shows

partially the Xtext grammar of RSL-IL4Privacy.

(From now on, whenever we refer “RSL-

IL4Privacy”, we mean this textual representation.)

3 RSL-IL4PRIVACY STUDIO

RSLingo4Privacy Studio (or simply “Studio” for the

sake of brevity) is a software tool that supports and

materializes the RSLingo4Privacy approach

providing the technological support for a user being

able to perform the processes proposed. Studio

allows a user to specify, analyze and publish privacy

policies into multiple formats. Studio is built on top

of the Eclipse IDE, more specifically leveraging the

Eclipse Modeling Framework (EMF). It relies on a

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

Figure 2: Structure of Dropbox RSLingo project (1) and RSLingo4Privacy Main Menu bar (2).

Enforcement:

'Enforcement' name=ID '{'

'Name' enforcementName=STRING

'Description' description=STRING

'Type'

type=('Action'|'Algorithm'|'Config'|'Process'|'Tool')

'}';

Service:

'Service' name=ID '{'

'Name' serviceName=STRING

('Description' description=STRING)?

('RefersTo PrivateData'

(refPrivateData+=RefPrivateData* | refPDAll='All'))?

('Service_Part' servicePart+=ServicePart*)? '}';

Recipient:

'Recipient' name=ID '{'

'Name' recipientName=STRING

'Description' description=STRING

('Recipient_Part' recipientPart+=RecipientPart*)?

'Scope'

scope=('Internal'|'External'|'Internal/External')

'Type'

type=('Individual'|'Organization'|'Individual/Organizati

on') '}';



Figure 3: Part of the Xtext grammar of RSL-IL4Privacy.

multi-transformation approach where the RSL-

IL4Privacy language acts as an intermediate

language used to represent the policies and then,

from that specification, being able to generate more

readable representations of these policies (e.g. Excel

or Word files) or to check their quality using the

Eddy engine.

Eddy is a formal language based on Description

Logics (DL) (Baader et al., 2003) that allows

specifying privacy requirements, actors, data, and

data-use purpose hierarchies based on the DL

subsumption. It also allows specifying the deontic

modality (i.e., permission and prohibition) of such

data purposes and then automatically detects

conflicts between what it is permitted and what it is

prohibited, and traces permissible, required and

prohibited data flows within the specification. Eddy

language is supported by the Eddy engine, which is

implemented using two OWL reasoners. Eddy’s

source code is available on GitHub

Subsection 3.2 provides a detailed description of

the model transformations involved, namely based

on three main features: Import, Export and Check

Quality. The Import feature allows a user to import

an Excel file or an ad-hoc natural language text file

containing the policy and produce its corresponding

RSL-IL4Privacy files. The Export feature allows

transforming a RSL-IL4Privacy file to other file

formats, namely Word, Excel, JSON, Eddy and Text

(controlled NL). The Check Quality feature is only

applicable to Eddy files and allows running the Eddy

engine to check if there are any conflicts in the

policy specified as an Eddy file. The output of this

process is a log file, containing the possible

conflicts, an OWL (Web Ontology Language)

(Bechhofer et al., 2004) file with the representation

of the rules used, and an image with the graphical

hierarchical representation of the equivalent

ontologies (produced using the OwlViz plugin

As an Eclipse-based tool, Studio takes advantage

https://github.com/cmu-relab/eddy

https://github.com/protegeproject/owlviz

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies

of Eclipse’s extension points

in order to offer

custom menus, commands and project wizards. It

provides a menu in the Main Menu bar, Context

Menus for RSL-IL4Privacy and Eddy files, and

wizards to ease the creation of RSL-IL4Privacy files

or RSLingo4Privacy projects. The Main Menu bar

option provides features such as (see Figure 2):

import of Excel files and generation of the

corresponding RSL-IL4Privacy files; transformation

of RSL-IL4Privacy files to all the supported formats;

and launch of the Eddy engine for the existing

equivalent Eddy files.

In addition, a Context Menu is shown by right-

clicking a RSL-IL4Privacy file or an Eddy file in the

Package Explorer View. The Context Menu of a

RSL-IL4Privacy file provides the options to export

that file to all the supported formats. This menu also

shows up when the user right-clicks inside the editor

of an open RSL-IL4Privacy file. The Context Menu

of an Eddy file allows to validate this file by

launching the Eddy engine.

The “New RSL-IL4Privacy file” wizard creates a

new file containing an example structure of a file

complying with the RSL-IL4Privacy grammar

defined in Xtext. The user can then freely edit this

file with all the capabilities offered by the RSL-

IL4Privacy editor. The “New RSLingo4Privacy

project” wizard allows the creation of a new project

with the Xtext nature with a source folder containing

one or more RSL-IL4Privacy files.

3.1 RSL-IL4Privacy Editor

Studio’s textual editor allows creating and editing

RSL-IL4Privacy files. This editor was developed

using the Xtext framework

. From a grammar

definition it is possible to automatically generate the

language infrastructure (e.g. parser and typechecker)

and a fully customizable Eclipse plugin containing

the DSL editor with helpful features like syntax

highlighting, error checking, auto-completion or

source-code navigation (Bettini, 2016). Xtext-based

DSLs have Ecore as metamodel. Since Xtext relies

on EMF, it can be combined with other popular

Eclipse plugins, like Xtend, Sirius or Acceleo. The

grammar of a Xtext-based language is composed of

rules that describe its key entities and their relations.

Figure 3 shows a fragment of the RSL-IL4Privacy

grammar definition for the Enforcement, Service and

Recipient elements.

http://goo.gl/jBRVuM

https://eclipse.org/Xtext

The RSL-IL4Privacy editor is able to deal with

two file structure modes to specify a privacy policy:

(1) single file; or (2) multiple files with one file per

element. In the single file mode, there is only one

file that contains all the privacy policy concepts.

This strategy is recommended when the privacy

policy is small, otherwise will be hard to maintain it.

In the multiple files mode, there is a main file

which is used to reference all the other files through

“import” statements. The main file also includes

metadata that describes the policy, like its name,

authors, version and date. This strategy can enhance

the maintenance of the policy specification, because

the different concepts are not mixed in a unique file,

but instead defined in separated and different files

with different purposes.

3.2 Transformations

This section must be in one column. Studio relies on

several transformations to support multiple

representations of a policy based on the common

and intermediate RSL-IL4Privacy language. Figure

4 summarizes this multi-transformation approach,

which involves T2M, M2M and M2T

transformations.

According to the proposed approach, Studio

deals with policies represented in multiple

representations, namely: ad-hoc and controlled NL

text, Excel, Word, JSON and Eddy. We considered

an Excel file as model, since it is a tabular and

highly structured representation. In contrast, we

considered that a Word file is similar to a NL text, in

the sense that it contains plain text, but with just

low-level formatting information. However, since it

is not that structured as an Excel file we considered

it as text and not a model (despite being both

internally organized in an archive of multiple XML

files). Below we describe each transformation type

and then we explain their implementation issues,

which are grouped by the technology used to support

them. For instance, JSON, Eddy and Text are

generated using Xtend

, while Word and Excel are

generated using the Apache POI library

T2M Transformations. Studio performs a T2M

transformation during the import process of an ad-

hoc NL text file. This transformation involves the

execution of automatic text classification and

extraction processes. The classification process

identifies the set of statements in the policy provided

http://www.eclipse.org/xtend

https://poi.apache.org

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

and classifies them into a set of five distinct

categories (Collection, Disclosure, Retention, Usage

and Informative). The second process extracts the

relevant elements from the original statements into

their equivalent representation in RSL-IL4Privacy.

These processes are implemented using

RapidMiner

, which is a popular open source

platform for predictive analytics and data mining

(Kotu and Deshpande, 2014). The implementation of

this transformation is a complex task that involves

the integration and tuning of feature models and

tools, and it is still a working in progress task.

M2M Transformations. M2M transformations are

used both during the import and export of a policy in

Studio. The import of an Excel file specifying a

policy (transformation M2M-1) generates its

corresponding RSL-IL4Privacy file(s), depending on

the file structure mode the user has selected (single

or multiple). M2M-1 is implemented using the

Apache POI library, which simplifies the processing

of Microsoft Office file formats. M2M-2 performs

the reverse transformation (from RSL-IL4Privacy to

Excel) and is also implemented using the Apache

POI library, but uses an Excel template file. The

remaining transformations consist in the export of a

JSON (M2M-3) and Eddy (M2M-4).

M2T Transformations. These transformations

occur when a RSL-IL4Privacy file is exported to

Word (transformation M2T-1) and controlled NL

text file (transformation M2T-2).

3.2.1 JSON and Text

The transformations from RSL-IL4Privacy into

JSON (M2M-3) and Text (M2T-2) are performed

using Xtend. Xtend is a general purpose high-level

programming language derived from Java that is

commonly used with Xtext to develop code

generators. More specifically, a code generator stub

written in Xtend is one of the artifacts that is

automatically generated from a Xtext grammar

definition and automatically integrated into the

produced Eclipse plugin. Xtend simplifies the usage

and maintenance of the code generator, because it

allows the definition of code templates. Code

templates are portions of code that contain dynamic

parts that change according to the Xtext-based

model given as input.

http://rapidminer.com

3.2.2 Word and Excel

The transformations from RSL-IL4Privacy into

Word (M2T-1) and Excel (M2M-2) are performed

using the Apache POI library and two companion

template files (one for each format). We use this

library with Java, because Apache POI highly

abstracts the complex XML structure that underlies

Microsoft Office files. Additionally, we used

template files to give more flexibility for a user to

customize the style and formatting of the generated

files.

Both Word and Excel templates have special tag

annotations that represent the dynamic part of the

template and identify which property should be

placed there during the generation. They are defined

using the style (e.g. font type, size or color) that

should be reflected in the generated file.

The Word template is a document organized in

sections, one for each concept of the RSL-

IL4Privacy language (e.g. Statements, Services and

Private Data) and contains subsections for the

Services and Recipients, which can contain Sub-

Services and Sub-Recipients, respectively. Each

section and subsection is delimited by a start tag and

an end tag. During the transformation, each section

is copied as many times as the number of elements

of that type that exist, and the tags are replaced by

the value of the respective property of each element.

The Excel template is a workbook organized in

sheets, one for each concept of the RSL-IL4Privacy

language. Each sheet name identifies the set of

elements that describes (e.g. Statements, Services

and Recipients) and contains a head row identifying

the content of each column and then an example row

containing the tags annotations.

During the transformation, the example row is

copied as many times as the number of elements of

that type that exist, and the tags are replaced by the

value of the respective property of each element. As

can be noted, this process is analogous to the one

applied for the sections in the Word template.

3.2.3 Eddy (and OWL)

The transformation from RSL-IL4Privacy into Eddy

(M2M-4) is performed using Xtend, similarly to

what is done for transformations M2M-3 and M2T-

2. Silva et al. provide a detailed description on how

RSL-IL4Privacy concepts are mapped into

equivalent Eddy concepts in what concerns the

transformation M2M-4 (Silva et al., 2016). In

addition, the transformation from Eddy into OWL

(M2M-5) is performed internally and at the

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies

Figure 4: RSLingo4Privacy Studio model transformations.

execution-time by the Eddy engine that we integrate

as a third-party tool. These Eddy statements are

mapped to action and roles in DL based on OWL

reasoners (Breaux et al., 2014).

In what respect the Dropbox case study, we

generated the corresponding Eddy file and then ran

it using the Eddy engine. The result of that execution

did not detect any conflicts; that means that there are

not any contradictory statements in what concerns

the deontic modality analysis. This can be explained

by the fact that Dropbox’s policy is relatively small

and simple (for instance, when compared to

Facebook’s policy) and so it is easier to maintain

manually by a person and to detect any contradiction

between each statement.

4 RELATED WORK

As far as we know from the literature analysis, there

are not any tool like RSL-IL4Privacy Studio that

addresses simultaneously the same goals and

provides the proposed features. Despite that, there

are some initiatives focused on security or privacy

policy specification and analysis. From our analysis

we identify three types of initiatives. First, initiatives

concerned with web and authorization privacy

policies. Second, semantic web approaches that

mainly allow specifying and validating privacy

policies based on ontologies and modal logic.

Finally, we still mention other relevant work.

Table 1 summarizes the RSLingo4Privacy

features and contrasted it with other approaches

taking into account their base languages and the tool

support they offer. With the exception of

RSLingo4Privacy, none of these approaches provide

a tool that simultaneously supports visualization and

authoring, multiple types of model transformations

(T2M, M2M and M2T) and publishing of policies.

Despite that, RSLingo4Privacy does not support

authorization enforcement. Adding the support to

this feature constitutes a possible future research

direction, namely by supporting the transformation

into languages used for that purpose or even

extending RSL-IL4Privacy with concepts commonly

used for policy authorization enforcement.

4.1 Web and Authorization Approaches

The commonly mentioned approaches for defining

website’s data privacy management and/or

authorization/access control policies are the ones

involving the standards P3P (Cranor et al., 2006),

XACML (OASIS, 2013) and EPAL (Ashley et al.,

2003). These languages appeared as an attempt to

automate the data management practices of a

website, due to their XML-based syntax that could

be more easily processed by computers. However,

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

their application domain is broader than the data

privacy domain, which is the focus in our work. For

instance, P3P is focused on the users’ privacy

preferences, while XACML and EPAL are focused

on access control aspects, i.e., authorization.

Therefore, they address slightly different concerns

comparing with RSL-IL4Privacy.

Several tools support the creation of policies

written in P3P, XACML and EPAL, but the majority

of them were discontinued. IBM P3P Policy Editor

is a proprietary tool that permits creating from a

template or editing a website’s privacy policy using

a drag-and-drop graphical user interface (GUI)

(Cranor, 2003). JRC Policy Workbench is an open-

source tool that provides a GUI for creating,

managing and testing P3P policies through a form-

based policy editor where the user configures and

fills some input fields by following wizards. This

editor provides other useful features like viewing the

corresponding XML structure in a tree view, a

human-readable summary of the policy and the

possibility to carry out tests with the default APPEL

(Cranor et al., 2002) configuration. The JRC Policy

Workbench provides an extendable API for building

editing and testing environments for other types of

XML-based privacy and access control policies like

XACML or EPAL. P3PEdit website

allows the

generation of a P3P policy by following a web-based

wizard. All these tools abstract the XML syntax, but

users still need to properly understand these

languages’ concepts and how these apply to their

website. For this reason these approaches are often

considered too complex and difficult to adopt in

practice. Also the fact that nor websites neither

browsers (only Internet Explorer used) are obliged to

use P3P, has contributed to its decreasing use.

4.2 Semantic Web Approaches

The commonly mentioned approaches for defining

website’s data privacy management

Semantic web

approaches are commonly used to both specify and

analyze privacy policies. The use of ontologies,

represented using formal knowledge representation

languages (e.g. OWL, DAML

, RDF

), allows the

use of reasoners that can determine if the privacy

policy is consistent and check if there are any

conflicts between its rules that typically adopt

deontic modal logic.

https://www.w3.org/P3P/imp/IBM

https://www.p3pedit.com

http://www.daml.org

https://www.w3.org/RDF

Eddy’s website

provides three examples using

an editor where the user can specify a privacy policy

in a free text area. Then, it is possible to run the

Eddy engine to analyze the policy for detecting any

possible conflicts or for tracing the flow and

showing it in a network chart. There is also an

option to export the equivalent OWL file resulting

from the analysis. The Eddy engine code and some

examples of its invocation using Java are publicly

available on Eddy’s GitHub repository.

KAoS (Uszok et al., 2003) is goal-oriented

software requirement language that can also be used

to express high-level goals of a privacy policy.

KAoS supports a formal specification based on

DAML. KPAT (KAoS Policy Administration Tool)

is a graphical tool that allows users to specify,

analyze, modify and test policies using KAoS.

KPAT also detects policy conflicts and allows

managing sets of ontologies. KPAT offers a set of

views of KAoS (e.g. Domains, Actor Classes,

Policies, Policy Templates). Since the policies are

specified using the GUI, the corresponding DAML

representations are generated automatically using a

generic template, avoiding the user to master

DAML. Other language-specific templates or

domain-specific templates for common classes of

policies can be defined. KPAT also offers a wizard

to guide the user throughout the policy creation

process.

The Rei policy language (Kagal et al., 2003) is

another logic-based language that relies on the

deontic concepts of rights, prohibitions, obligations

and dispensations. Beside the general purpose text

editors, there are three tools that support the

specification of Rei policies. The first tool is a

plugin for the Protégé-2000 ontology editor that

provides features for creating policies, rules, meta-

policies and queries through a custom tab and dialog

boxes. The second is a text-based editor for

specifying policies for Rei using the Notation3 (N3)

language (Berners-Lee, 2005), in order to make the

policies easier to read. This editor provides content

assistance and context information while a user is

typing a Rei policy. Finally, RIDE (Rei Integrated

Development Environment) (Shah, 2005) is an

Eclipse plug-in that uses a wizard-based approach.

The creation wizard guides the creation of a policy

and in the end automatically generates the

corresponding policy file in OWL, based on the user

input and selections. Once the policy file is created,

the user can launch the test wizard that provides an

https://gaius.isri.cmu.edu:8080/eddy

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies

Table 1: Comparison of privacy-aware specification approaches.

Approach Languages

Tool Support

Visualization &

Authoring

Transformations

Publishing

Authorization

Enforcement

T2M M2M M2T

Web and

Authorization

P3P/APPEL P3P/APPEL

Yes (IBM P3P,

JRC Policy

Workbench,

P3PEdit)

No No To HTML No No

XACML XACML

Yes (UMU

XACML Editor)

No No To HTML No Yes

EPAL EPAL

Yes (Privacy

Authoring Editor,

EPAL Editor)

No No To HTML No Yes

Semantic Web

Eddy Eddy

Yes (General-

purpose text editor)

No Yes No No No

KAoS DAML Yes (KPAT) No No No No Yes

Rei

Rei (OWL-

based)

Yes (Protégé-

Plugin, N3 text

editor, RIDE)

No No No No No

Other

Ponder Ponder

Yes (Ponder Policy

Editor)

No To XML To Java No Yes

PATRN

PATRN &

FORMULA

Yes (GME-based

editor)

No No To FORMULA No No

SPARCLE

NL or structured

form

Yes (Policy Editor) No To EPAL No No No

PRiMMA-Viewer Datalog

Yes (Datalog

editor)

No No No No Yes

RSLingo4

Privacy

RSL-IL4Privacy

Yes (Eclipse Xtext-

based Plugin)

Ad-hoc NL to

RSL-

IL4Privacy

Excel,

JSON and

Eddy

Word and

Controlled NL

Yes No

interface for testing the policy and querying the Rei

engine.

4.3 Other Approaches

Damianou described a set of tools for Ponder,

another goal-oriented language that can be applied in

the privacy policy domain (Damianou et al., 2002).

Han and Lei analyzed and compared eleven

policy languages grouped in two sets: network and

security management (Han and Lei, 2012).

Nadas presented a model-based policy authoring

framework called PATRN applied to the health

information systems domain. PATRN uses a

graphical DSL, defined using GME, for policy

authoring, and the FORMULA specification

language, based on logic programming, for policy

analysis (Nadas et al., 2014).

Karat proposed a privacy policy workbench

named SPARCLE to support privacy policy

authoring, implementation and compliance

monitoring. SPARCLE allows users to specify a

structured format (tabular and form-based). It

supports the transformation of privacy policies

written in natural language into the structured form

(and vice-versa), as well as the transformation to a

machine-readable format like EPAL (Karat et al.,

2005).

Wishart developed a tool called PRiMMA-

Viewer to support the collaborative specification of

privacy policies, specified in Datalog, for shared

content on Facebook (Wishart et al., 2010).

PRiMMA-Viewer uses an architecture aligned with

the Policy Core Information Model (PCIM) (Moore

et al., 2001).

5 CONCLUSIONS

This paper proposes RSLingo4Privacy Studio, a

software tool for better supporting the specification,

analysis and documentation of privacy-aware

requirements in the scope of privacy policies. This

work complements the current state-of-the-art by

providing a versatile tool designed around the RSL-

IL4Privacy language, with multiple representations

while taking into account the importance of having

requirements documented in a format as close to

natural language as possible. Studio is built on top of

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

the Eclipse IDE, and particularly leveraging and

integrating technologies such as: Xtext, Xtend,

Eclipse Modeling Framework (EMF), RapidMiner,

Eddy engine and Apache POI library.

The validation with six real-world policies

(Dropbox, Facebook, IMDB, LinkedIn, Twitter and

Zynga, available at the GitHub repository) shows the

potential of RSL-IL4Privacy as a rigorous language

for expressing privacy requirements and, in addition,

shows the relevance of the provided interoperability

features. Figure 5 shows the model transformations

that are performed in each process of the

RSLingo4Privacy approach.

First, T2M transformations intend to

automatically classify NL statements and extract

from them text snippets using text mining and text

extraction algorithms. The implementation of such

transformations is a complex task that involves the

integration and tuning of tools like RapidMiner, and

is still a working in progress research.

Second, M2T transformations produce a

consistent and easy-to-read version of a privacy

policy. These versions can be produced in multiple

formats, such as structured NL in Word, plain text or

even HTML.

Third, M2M transformations may include two

variants: M2M transformations that support multiple

representations of the RSL-IL4Privacy; for example,

from plain text format (defined with Xtext) into

tabular format in Excel, and vice-versa; and finally,

M2M transformations between RSL-IL4Privacy

with other languages and formats, such as JSON or

Eddy.

The major merit of Studio is that it allows both

technical and non-technical users to easily author

and analyze policies using a language close to NL,

but that is simultaneously readable by machines and

so providing automatic validation at both syntactic

and semantic levels. This fact permits RSL-

IL4Privacy to act as an intermediate language that

when supported by an environment that integrates

multiple representations of a privacy policy

addressing concerns of multiple stakeholders.

As future work we plan to conduct other case

studies and laboratory-controlled sessions with end-

users (e.g. software developers, policy authors and

requirement engineers).

In addition, we intend to apply and integrate

these privacy-related concerns with other concerns,

namely those defined in the original RSL-IL

language (Ferreira and Silva, 2013), or more

recently with RSLingo’s RSL (Silva, 2017), which

are related to requirements engineering in a broader

perspective. Consequently, these privacy policies

and respective requirements should be combined

with other security concerns such as authorization,

confidentiality, integrity, authenticity, and

accountability requirements (Haley et al, 2008).

Other interesting research directions are dealing

with modularity and variability aspects (e.g. using

OMG’s CVL (Haugen et al., 2012)) and with other

privacy-related aspects, like: domain-specific

privacy definitions for multiple domains (e.g.

healthcare, finance, government), accountability

mechanisms for detecting privacy violations,

mechanisms for tracking data flow and privacy and

authorization enforcement at application level

(Landwehr, 2016).

6 CALL FOR ACTION!

Download the ready-to-use Eclipse IDE version of

Figure 5: RSLingo4Privacy Approach versus the supported model transformations.

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies

RSLingo4Privacy Studio, that it is available at its

GitHub repository

Furthermore, the concrete artifacts of the RSL-

IL4Privacy representations for Dropbox, Facebook,

IMDB, LinkedIn, Twitter and Zynga privacy

policies, as well as the analysis of other case studies

under the scope of RSLingo4Privacy are available

and can be found on its GitHub repository

ACKNOWLEDGEMENTS

This work was partially supported by national funds

under FCT projects UID/CEC/50021/2013, and

CMUP-EPB/TIC/0053/2013.

REFERENCES

Ashley, P. et al., 2003. Enterprise Policy Authorization

Language 1.2 (EPAL) Specification, W3C. https://

www.w3.org/Submission/2003/SUBM-EPAL-

20031110.

Baader, F. et al., 2003. The Description Logic Handbook:

Theory, Implementation, and Applications. Cambridge

University Press.

Bechhofer, S. et al., 2004. OWL: Web Ontology Language

Reference. W3C Recommendation.

Berners-Lee, T., 2005. An RDF language for the Semantic

Web. https://www.w3.org/DesignIssues/Notation3.

Bettini, L., 2016. Implementing Domain-Specific

Languages with Xtext and Xtend. Packt Publishing

Ltd.

Breaux, T. D., Hibshi, H. and Rao, A. 2014. Eddy, a

formal language for specifying and analyzing data

flow specifications for conflicting privacy

requirements. Requirements Engineering. 19, 3, 281-

307.

Caramujo, J., Silva, A.R., 2015. Analyzing Privacy

Policies based on a Privacy-Aware Profile: the

Facebook and LinkedIn case studies. In Proc. of the

CBI conference. IEEE, 1, 77-84.

Caramujo, J., et al., 2017. A Domain-Specific Language

for the Specification of Privacy-Aware Requirements.

INESC-ID Technical Report.

Cranor, L., 2002. P3P Preference Exchange Language 1.0

(APPEL) Specification, W3C, https://

www.w3.org/TR/P3P-preferences.

Cranor, L., 2003. P3P: Making privacy policies more

useful. IEEE Security & Privacy. 1, 6, 50-55.

Cranor, L. et al., 2006. Platform for Privacy Preferences

1.1 (P3P) Specification, W3C, https://

www.w3.org/TR/P3P11.

https://github.com/RSLingo/RSLingo4Privacy-Studio

https://github.com/RSLingo/RSLingo4Privacy

Damianou, N. et al., 2002. Tools for domain-based policy

management of distributed systems. Network

Operations and Management Symposium. IEEE, 203-

217.

Ferreira, D., Silva, A. R, 2012. RSLingo: An Information

Extraction Approach toward Formal Requirements

Specifications. In Proc. of the 2

MoDRE workshop.

IEEE, 39-48.

Ferreira, D., Silva, A. R., 2013. RSL-IL: An Interlingua

for Formally Documenting Requirements. In Proc. of

the 3

MoDRE workshop. IEEE CS.

Ferreira, D., Silva, A. R. 2013a. RSL-PL: A Linguistic

Pattern Language for Documenting Software

Requirements, in Proceedings of RePa’13, IEEE CS.

Haley, C., Laney, R., Moffett, J., Nuseibeh, B., 2008.

Security requirements engineering: A framework for

representation and analysis. IEEE Transactions on

Software Engineering, 34(1), 133-153.

Han, W., Lei, C., 2012. A survey on policy languages in

network and security management. Computer

Networks. 56, 1, 477-489.

Haugen, Ø., Wasowski, A., Czarnecki, K., 2012. CVL:

Common Variability Language. In SPLC. ACM, 2,

266-267.

Kagal, L., Finin, T., Joshi, A., 2003. A policy language for

a pervasive computing environment. In Proc. of the 4

POLICY workshop. IEEE, 63-74.

Karat, J. et al., 2005. Designing natural language and

structured entry methods for privacy policy authoring.

Human-Computer Interaction - INTERACT 2005.

Springer, 671-684.

Kotu, V. and Deshpande, B., 2014. Predictive Analytics

and Data Mining: Concepts and Practice with

RapidMiner. Morgan Kaufmann.

Landwehr, C., 2016. Privacy research directions.

Communications. ACM, 59, 2, 29-31.

Mernik, M., Heering, J., Sloane, A. 2005. When and how

to develop domain-specific languages. ACM

Computing Surveys, 37(4):316-344.

Moore, B. et al., 2001. Policy Core Information 1.0

Specification, RFC 3060, http://www.ietf.org/

rfc/rfc3060.

Nadas, A. et al., 2014. A model-integrated authoring

environment for privacy policies. Science of Computer

Programming. 89, Part B, 105-125.

OASIS, 2013. eXtensible Access Control Markup

Language 3.0 (XACML) Specification. .http://

docs.oasis-open.org/xacml/3.0/xacml-3.0-core-spec-

os-en.pdf.

Pohl, K. Requirements Engineering: Fundamentals,

Principles, and Techniques. Springer, 2010.

Ribeiro, A., Sousa, L., Silva, A. R., 2016. Comparative

Analysis of Workbenches to Support DSMLs:

Discussion with Non-Trivial Model-Driven

Development Needs, in Proceedings of

MODELSWARD’2016, SCITEPRESS.

Shah, A.B., 2005. An integrated development environment

for policies. Master Thesis. University of Baltimore.

Silva, A. R., 2015. Model-Driven Engineering: A Survey

Supported by a Unified Conceptual Model, Computer

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

Languages, Systems & Structures 43 (C), 139–155.

Silva, A. R., 2015a. SpecQua: Towards a Framework for

Requirements Specifications with Increased Quality,

in Lecture Notes in Business Information Processing

(LNBIP), LNBIP 227, Springer.

Silva, A. R., et al., 2016. Improving the Specification and

Analysis of Privacy Policies: The RSLingo4Privacy

Approach. In Proc. of the 8

ICEIS conference.

SCITEPRESS, 336-347.

Silva, A. R., 2017. RSLingo’s RSL: Requirements

Specification Language Based on Linguistic Patterns.

INESC-ID Technical Report.

Uszok, A. et al., 2003. KAoS policy and domain services:

Toward a description-logic approach to policy

representation, deconfliction, and enforcement. In

Proc. of the 4

POLICY workshop. IEEE, 93-96.

Voelter, M., Benz, S., Dietrich, C., Engelmann, B.,

Helander, M., Kats, L. C., Visser, E., Wachsmuth, G.

2013. DSL engineering: Designing, implementing and

using domain-specific languages, dslbook.org.

Wishart, R. et al., 2010. Collaborative privacy policy

authoring in a social networking context. In Proc. of

the POLICY symposium. IEEE, 1-8.

RSLingo4Privacy Studio - A Tool to Improve the Speciﬁcation and Analysis of Privacy Policies
