PERCEPT Indoor Wayfinding for Blind and Visually Impaired

Users: Navigation Instructions Algorithm and Validation Framework

Yang Tao, Linlin Ding, Sili Wang and Aura Ganz

Electrical and Computer Engineering Department, University of Massachusetts, Amherst, MA 01003, U.S.A.

Keywords: Navigation, Blind and Visually Impaired, Navigation Instruction Validation, Unity Game Engine.

Abstract: This paper introduces an algorithm that generates indoor navigation instructions for Blind and Visually

Impaired (BVI) users as well as a validation framework that validates these instructions. The validation

framework which utilizes Unity game engine incorporates: a) a virtual environment that mirrors the physical

environment and b) a game avatar that traverses this virtual environment following action code sequences

which correspond to the navigation instructions. A navigation instruction from a source to a destination is

correct if the game avatar successfully reaches from the source to the destination in the virtual environment

following this navigation instruction. We successfully tested the navigation instruction generation algorithm

and the validation framework in a large two-story building with 66 landmarks and 1500 navigation

instructions. To the best of our knowledge this is the first automated generation instructions algorithm for

BVI users in indoor environments, and the first validation framework for navigation instructions in indoor

environments. This paper is a significant step towards the development of a cost effective indoor wayfinding

solution for BVI users.

1 INTRODUCTION

The World Health Organization reported that 285

million people are estimated to be visually impaired

worldwide: 39 million are blind and 246 million have

low vision (World Health Organization, 2016).

According to the report for the National Health

Interview Survey, 22.5 million adult Americans 18

and older reported experiencing vision loss

(American Federation for the Blind, 2016).

Independent navigation through unfamiliar indoor

spaces is beset with barriers for Blind and Visually

Impaired (BVI) users. A task that is trivial and

spontaneous for the visioned population has to be

planned and coordinated with other individuals for

BVI users. Although many improvements and aides

are available to assist the visually impaired to lead an

independent life, there has yet remain to be a

challenge to develop a system that combines

independence with scalability and affordability of

indoor navigation.

There have been a number of research projects

that aim to help BVI users navigate in unfamiliar

indoor environments. The authors in (Idrees et al.,

2015) introduce an indoor navigation application for

BVI users that uses QR codes. In (Riehle et al., 2015)

an inertial dead reckoning navigation system is

introduced which provided real-time auditory

guidance along mapped routes. NavCog (Ahmetovic

et al., 2016) is a smartphone-based system that

provides turn-by-turn navigation assistance based on

real-time localization. StaNavi (Kim et al., 2016) is a

navigation system that provides indoor directions

utilizing Bluetooth Low Energy (BLE) technology

and smartphone's built-in compass. The authors in

(Rituerto et al., 2016) report a smartphone-based

navigation aid which combines inertial sensing,

computer vision and floor plan information to

estimate the user's location. ISAB (Doush et al., 2016)

is an integrated indoor navigation system utilizing a

set of different communication technologies (WiFi,

Bluetooth and radio-frequency identification) to help

users reach destinations with a smartphone interface.

The authors in (Basso et al., 2015) present a

smartphone-based indoor localization system using a

set of sensors (accelerometer, gyroscope, electronic

compass). IMAGO (Jonas et al., 2015) is a vision-

based indoor navigation system utilizing smartphone

cameras.

PERCEPT system (Ganz et al., 2014), developed

at the University of Massachusetts 5G Mobile

Evolution Lab was developed with the cooperation of

Tao, Y., Ding, L., Wang, S. and Ganz, A.

PERCEPT Indoor Wayﬁnding for Blind and Visually Impaired Users: Navigation Instructions Algorithm and Validation Framework.

DOI: 10.5220/0006312001430149

In Proceedings of the 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2017), pages 143-149

ISBN: 978-989-758-251-6

143

the Massachusetts Orientation and Mobility division

from Massachusetts Commission for the Blind.

PERCEPT is deployed at Arlington subway station in

Boston, at Carroll Center for the Blind and at

University of Massachusetts administration building.

The system was successfully tested with over 50 BVI

users. PERCEPT generates landmark based

navigation instructions automatically for a specific

indoor environment. To the best of our knowledge,

PERCEPT is the only indoor navigation system for

BVI users that can generate navigation instructions

automatically. We will briefly introduce the

algorithm in this paper.

Since the number of navigation instructions

generated by the algorithm can be very large (e.g. for

a building with 80 destinations we generate over

10,000 instructions), the validation of these

instructions becomes a challenge. In this paper we

introduce a navigation instructions validation tool

using Unity game engine (Unity Technologies, 2016).

To the best of our knowledge this is the first attempt

to validate navigation instructions.

The rest of the paper is organized as follows: In

Section 2 we introduce PERCEPT navigation

instruction generation algorithm and in Section 3 we

present a tool that validates these instructions. In

Section 4, we provide a case study that shows the

navigation instructions along with their validation

process for a large indoor environment. Section 5

concludes the paper.

2 NAVIGATION INSTRUCTION

GENERATION ALGORITHM

For paper completeness we briefly introduce

PERCEPT system which was reported in (Ganz et al.,

2014). In PERCEPT system the user carries a

Smartphone (Android or iPhone) that runs PERCEPT

application that provides landmark based navigation

instructions helping the user navigate through indoor

spaces to a chosen destination. PERCEPT includes

three main modules: the vision free user interface

using Android and iPhone accessibility features, the

localization algorithm and the navigation instructions

algorithm. For localization purpose we deploy in the

indoor environment passive or active radio frequency

sensors. The passive sensors use Near Field

Communication (NFC) technology and are deployed

at specific landmarks in the environment such as

doors, elevators, escalators, etc. Using NFC

technology the user can be localized at these

landmarks only if he/she touches the sensor with the

Smartphone. Assuming the user can be localized at

each landmark, we introduced a landmark based

navigation instructions algorithm.

The input to the navigation instruction generation

algorithm includes the Blueprint and the landmarks

which include doors, elevators, stairs etc. The output

of the algorithm includes the navigation instructions.

The algorithm includes the following stages:

Stage 1: Generation of a directed graph in which

the nodes represent the landmarks. Each edge has a

weight that is proportional to the physical distance

between the two nodes. However, if there is an

obstacle between the nodes (landmarks) and/or its

unsafe to traverse this edge, the weight of the edge is

adjusted to a greater (infinite) value.

Stage 2: Generate navigation routes (shortest

paths) between source and destination landmarks

running Dijkstra's algorithm on the directed graph

generated in Stage 1. Obstacles will be avoided when

generating routes automatically since total weights of

the routes involving obstacles are higher than the rest.

Using the same logic, floor crossing preference, i.e.

starts, elevator, escalator, set by users can also be

accommodated by adjusting the weights of associated

links.

Stage 3: Generate navigation instructions using

the navigation routes generated in Stage 2. In

collaboration with Orientation and Mobility

instructors from Massachusetts Commission for the

Blind we developed the following vocabulary that is

used in the navigation instructions:

Orientation Adjustment Vocabulary

A. With the tag to your back

B. With the tag to your left/right side

C. Face the tag

D. With the (landmark) to your back

E. With the (landmark) to your left/right side

F. There is (landmark) to your certain

direction

Motion Vocabulary

A. Turn right

B. Turn left

C. Continue (Walk straight)

D. Cross (hallway)

E. Walk past (the opening)

F. Walk across (landmark) to your certain

direction

G. Go through (landmark)

H. Enter (landmark)

I. Reach (landmark) to your left/right side

J. Scan (NFC) tag to your left/right side

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

144

K. Press Prior/Next Instruction Button

L. Press End Journey Button

Travel-by Vocabulary

A. pass by obstacles or landmarks

B. hear certain sound/ smell in the route

passing by a certain landmark

C. trail/ follow certain texture (on your

left/right side)

D. keep certain landmark to the left/right side

Motion Stop Vocabulary

A. (Proceed) until reaching an intersecting

hallway

B. (Proceed) until reaching an intersecting

wall

C. (Proceed) until reaching an opening

D. (Proceed) until reaching a different texture

(metal gate)

E. (Proceed) until reaching a certain number

of doors/ openings/ recessed doorways

F. (Proceed) until passing a certain number of

firedoors

G. (Proceed) until reaching a certain landmark

H. (Proceed) until the wall angles out

Floor-cross Vocabulary

A. using elevator – press a certain button for

the destination floor

B. using stairs – go up/down certain number of

flights of stairs

An example of the navigation instructions is

provided in Section 4.

3 VALIDATION FRAMEWORK

In this section we introduce the navigation instruction

validation tool (NIVT). NIVT is a new approach to

automatically validate landmark-based navigation

instructions. It evaluates the navigation instructions

using a virtual reality environment by checking and

ensuring that each path in the virtual environment can

be traversed by following the corresponding

navigation instructions generated by the algorithm

introduced in the prior section.

NIVT was developed using Unity game engine

which is used to create a broad range of interactive

2D and 3D virtual environments which makes it an

ideal platform for virtualizing physical indoor

environments. NIVT includes three major parts (see

Figure 1): 1) a server database that includes the

navigation instructions generated by the algorithm

introduced in the previous section, 2) a virtual

environment that represents the physical space which

is traversed by the game avatar according to an action

code sequence (see Section 3.1) and 3) an instructions

parser which generates this action code sequence

from the navigation instructions (see Section 3.2).

We describe below the virtual environment, the

instruction parser and the testing process.

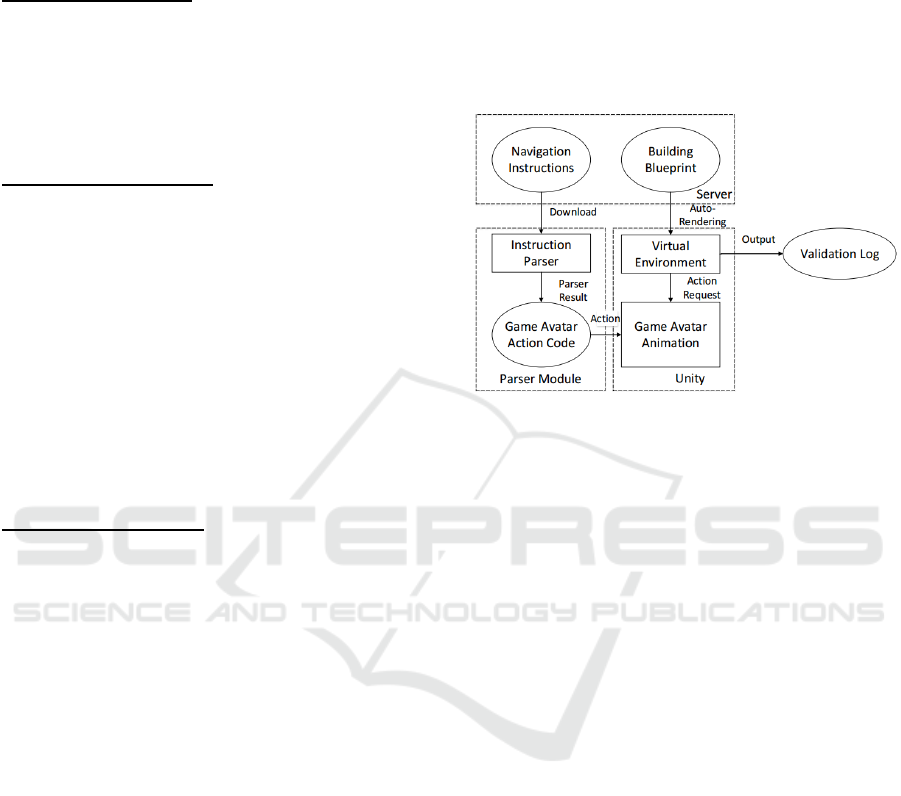

Figure 1: NIVT Architecture.

3.1 Virtual Environment

Using Unity game engine we generate the virtual

game environment that represents the indoor physical

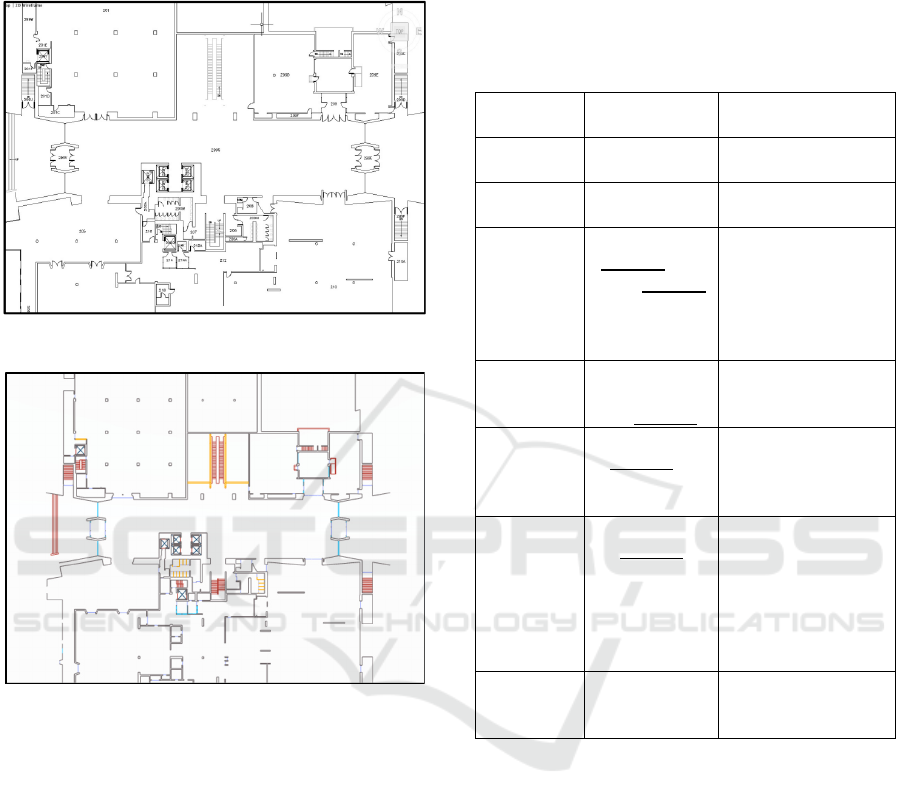

environment floor plan. In this virtual environment,

“tags” are used as markers to indicate landmarks,

such as doors, elevators, stairs that are located in the

physical space. Textures of landmarks like wood or

metal are also rendered and represented in the virtual

environment. To build a virtual environment we

proceed as follows:

Step 1: Classify objects in target building’s CAD

file by their different features (like wall, stairs,

elevator, etc.), and save them in different layers;

Step 2: Utilize Microsoft .netDxf API (Microsoft

.netDxf, 2016), a third-party library to read and write

CAD file, to get 3D location of each objects in

different layers;

Step 3: Create corresponding game objects in

virtual reality environment with the exact same

location in real building’s blueprint with .netDxf

tool’s 3D location output;

Step 4: Add collider for each game objects and

mark them with different tag according to their

features;

Step 5: Download landmarks information from

the web browser, convert their geometry location into

Unity 3D location, and add landmarks in 3D world.

PERCEPT Indoor Wayﬁnding for Blind and Visually Impaired Users: Navigation Instructions Algorithm and Validation Framework

145

Figure 2 shows the floor plan of the UMass Campus

Center (22,500 sqft), and Figure 3 shows the

corresponding virtual game environment.

Figure 2: Campus Center Blueprint.

Figure 3: Campus Center Virtual Environment.

3.2 Parser Algorithm

The input to the parser are the instructions generated

by the algorithm. For each instruction the parser

generates executable action code sequence for the

game avatar.

The parser includes the following steps:

Step 1: Retrieve a navigation instruction for a

specific source-destination

Step 2: Split instruction sentences into different

types. There is a container in the background, which

divides all instruction sentences into different types

according to the similarity of instructions. Table 1

lists some instruction types.

Step 3: Once the system figures out which type of

instruction the current instruction is, it will extract the

keyword and determine the action code to execute.

These key words are crucial for the game avatar to

locate landmarks inside the virtual environment.

A detailed example of the parser is provided in

Section 4.

Table 1: Instruction Type and Animation.

Instruction

Type

Instruction

Sentence

Avatar Animation

Type 1 Turn right/

turn left

Turn right/

left

Type 2 Continue/

Walk straight

Continue/

Walk straight

Type 3 Trail the

keyword until

reach keyword

Ray cast from avatar

to find the nearest

landmark

Trail the certain

landmark to trigger

next node

Type 4 Walk

across/past

the keyword

Walk straight to

trigger next node

Type 5 With the

keyword to

your back/

left/right

Find closest node to

avatar

Turn avatar back/

left/right to it

Type 6 Walk to

keyword

direction

Ray cast from avatar

to find the landmark

at the provided

direction

Walk straight in that

direction to trigger

next node

Type 7 You have

reached your

destination

Finish current task

Trigger next task

3.3 Testing

For each source-destination pair (s,d), the instruction

parser translates the navigation instructions into an

action code sequence which is used by the game

avatar to traverse the virtual environment from source

s to destination d. If the avatar reaches destination d

following these actions, the navigation instructions

for (s,d) are correct. Otherwise, the navigation

instructions for (s,d) are marked as incorrect. After

the navigation instructions are validated for all

source-destination pairs we generate a validation log.

We used NIVT to validate all the navigation

instructions generated for at the University of

Massachusetts, Amherst, Campus Center Building.

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

146

Figure 4: Campus Center Virtual Environment.

This is a two-story building with 66 landmarks and

1500 navigation instructions. NIVT has successfully

validated all instructions. We have intentionally

modified some of the instructions to render incorrect

instructions and they were all have been discovered

by NIVT. The test proves the validity of NIVT.

4 CASE STUDY

Now we will use an example to illustrate navigation

instructions, how they are parsed by the instruction

parser and how they are used by the game avatar to

traverse the virtual environment that represents

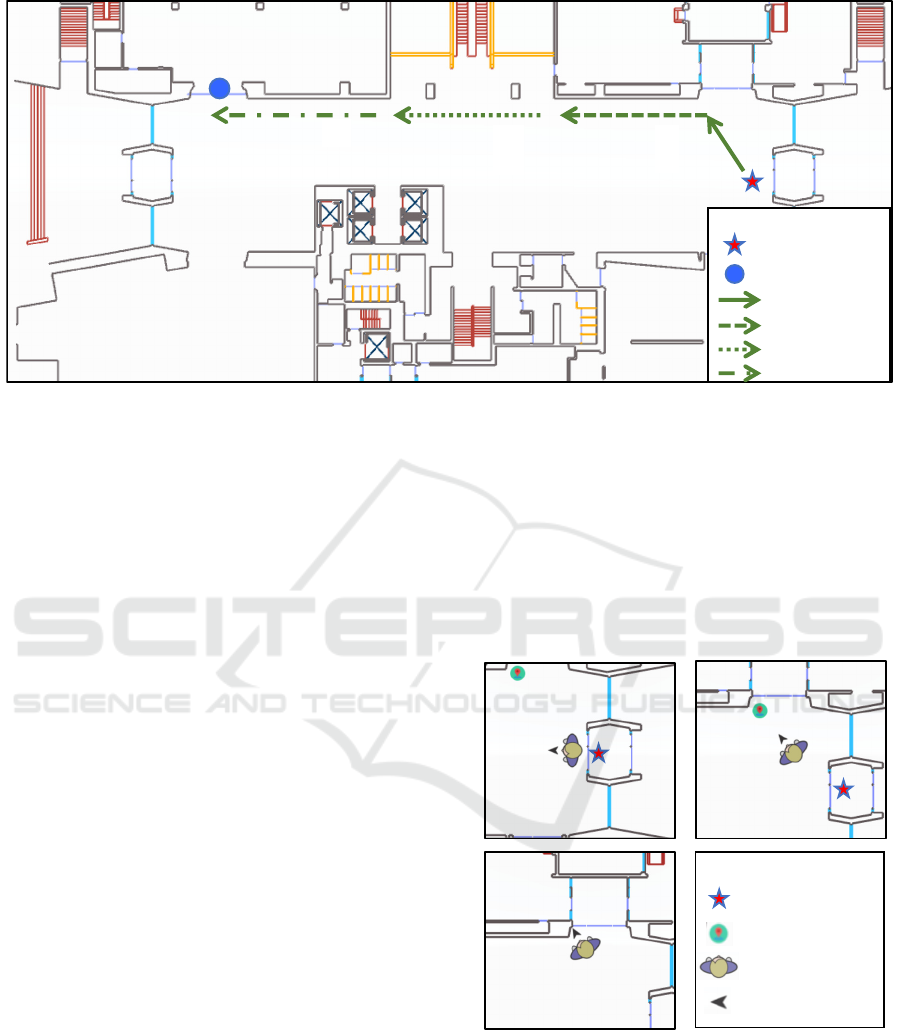

UMass Campus Center Building (See Figure 4). We

assume that the source is the East Entrance and the

destination is the UStore as marked in Figure 4. The

instructions are presented to the user in multiple

chunks of instructions. Next, we show step by step

how to the system generates and validates each

instructions chunk.

Step 1 (Chunk 1) – from East Entrance

(Source Point) to Harvest Market

Instructions chunk 1 generated by the navigation

algorithm: “Your current location is: East Entrance.

With the East Entrance to your back, there is Harvest

Market to your 2 o'clock direction, walk across to the

Harvest Market to your 2 o'clock direction, you will

reach: Harvest Market. Press next Instruction

Button.”

Action code generated by the instruction parser:

“back to East Entrance, walk to 2 o’clock, reach

Harvest Market”

The corresponding game avatar traversal is shown

in Figure 5. Following the action code, the game

avatar will go from East Entrance to Harvest Market

at 2 o’clock direction. Then the next chunk of

instructions is presented.

Figure 5: Step 1 Animation.

Step 2 (Chunk 2)– from Harvest Market to

opening

Instructions chunk 2 generated by the navigation

algorithm: “Continue, trail the wall on your right

side, until you reach an opening. Press next

Instruction Button”

234

East Entrance

UStore

Step 1

Step 2

Step 3

Step 4

Legend

234

Legend

Game Avat ar

Harvest Market

East En t ran ce

Body Orientation

Action Code 1

Back to East Entrance

Action Code 2

Walk to 2 o’clock

Action Code 3

Reach Harvest Market

PERCEPT Indoor Wayﬁnding for Blind and Visually Impaired Users: Navigation Instructions Algorithm and Validation Framework

147

Action code generated by the instruction parser:

continue, trail right wall, reach opening

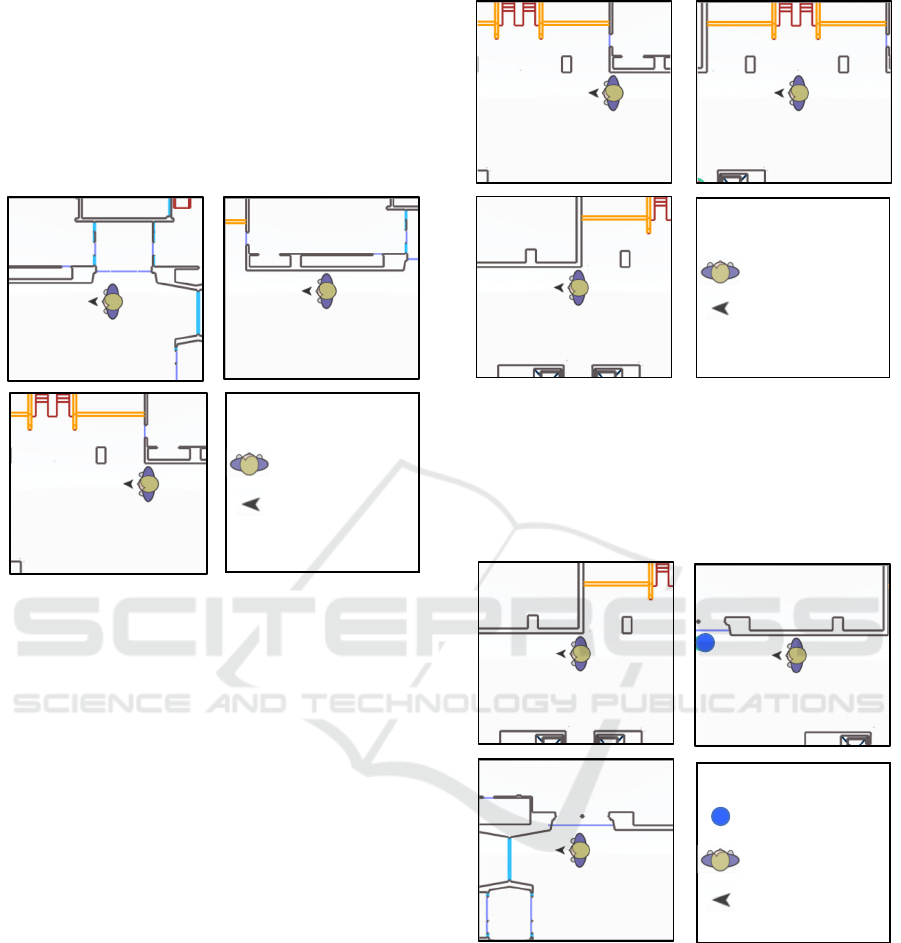

Game avatar traversal is shown in Figure 6.

Following the action code, the game avatar will go

from Harvest Market to an opening following the wall

on its right side. Then the next chunk of instructions

is presented.

Figure 6: Step 2 Animation.

Step 3 (Chunk 3) – walk past the opening

Instructions chunk 3 generated by the navigation

algorithm: “With the wall to your right, walk past the

opening. Press next instruction button”

Action code generated by the instruction parser:

right to wall, walk past opening, stop

Game avatar traversal is shown in Figure 7.

Following the action code, the game avatar will walk

past the opening and stop at that point. Then the next

instructions chunk is presented.

Step 4 (Chunk 4) – from opening to UStore

(Destination)

Instructions chunk 4 generated by the navigation

algorithm: “Continue, trail the wall on your right

side, until you reach the first door, you will reach:

UStore. Press finish button to end the journey.”

Action code generated by the instruction parser:

continue, trail right wall, reach door

Figure 7: Step 3 Animation.

Game avatar traversal is shown in Figure 8.

Following the action code, the game avatar will

continue walking and follow the wall on its right side

until it reaches a door. Then it will reach the

destination, which is UStore.

Figure 8: Step 4 Animation.

In this example we have shown that the game

avatar has successfully navigated from the source

(East Entrance) to the destination (UStore) following

the instructions. These navigation instructions from

the East Entrance to the UStore will be marked as

correct in the validation log.

Legend

Game Av atar

Body Orientation

Action Code 1

Continue

Action Code 2

Trai l ri g h t wal l

Action Code 3

Reach Opening

Le ge nd

Game Av atar

Body Orientation

Action Code 1

Right to wall

Action Co d e 2

Walk past opening

Action Code 3

Stop after opening

Legend

Game Av atar

Body Orientation

USto re

Action Code 1

Continue

Act i o n Code 2

Trai l ri gh t wal l

Action Code 3

Reach door

ICT4AWE 2017 - 3rd International Conference on Information and Communication Technologies for Ageing Well and e-Health

148

5 CONCLUSIONS

In this paper we introduced PERCEPT navigation

instruction generation algorithm and a validation

framework. We have tested the algorithm and

validated the instructions in a large building for which

we generated 1500 navigation instructions. The

results encourage us to proceed to our next research

agenda, which includes the development of tools that

will enable us to automate PERCEPT deployment and

testing in any indoor environment.

ACKNOWLEDGEMENTS

This project was supported in part by Grant 80424

from the Massachusetts Department of

Transportation. The content is solely the

responsibility of the authors and does not necessarily

represent the official views of the Massachusetts

Department of Transportation.

REFERENCES

Ahmetovic, D., Gleason, C., Ruan, C., Kitani, K., Takagi,

H., & Asakawa, C. (2016, September). NavCog: a

navigational cognitive assistant for the blind. In

Proceedings of the 18th International Conference on

Human-Computer Interaction with Mobile Devices and

Services (MobileHCI’16) (pp. 90-99). ACM.

American Fedration for the Blind. (2016). [Online].

Available at: http://www.afb.org/info/blindness-

statistics/adults/facts-and-figures/235/. [Accessed 19

Nov. 2016].

Basso, S., Frigo, G., & Giorgi, G. (2015, May). A

smartphone-based indoor localization system for

visually impaired people. In Medical Measurements

and Applications (MeMeA), 2015 IEEE International

Symposium on Medical Measurements and

Applications (pp. 543-548). IEEE.

Doush, I.A., Alshatnawi, S., Al-Tamimi, A.K., Alhasan, B.

and Hamasha, S. (2016, June). ISAB: Integrated Indoor

Navigation System for the Blind. Interacting with

Computers, (2017) 29 (2), (pp. 181-202).

Ganz, A., Schafer, J. M., Tao, Y., Wilson, C., & Robertson,

M. (2014, August). PERCEPT-II: Smartphone based

indoor navigation system for the blind. In 2014 36th

Annual International Conference of the IEEE

Engineering in Medicine and Biology Society (pp.

3662-3665). IEEE.

Idrees, A., Iqbal, Z., & Ishfaq, M. (2015, June). An efficient

indoor navigation technique to find optimal route for

blinds using QR codes. In 2015 IEEE 10th Conference

on Industrial Electronics and Applications (ICIEA) (pp.

690-695). IEEE.

Jonas, S.M., Sirazitdinova, E., Lensen, J., Kochanov, D.,

Mayzek, H., de Heus, T., Houben, R., Slijp, H. and

Deserno, T.M. (2015). IMAGO: Image-guided

navigation for visually impaired people. Journal of

Ambient Intelligence and Smart Environments, 7(5),

(pp.679-692).

Kim, J. E., Bessho, M., Kobayashi, S., Koshizuka, N., &

Sakamura, K. (2016, April). Navigating visually

impaired travelers in a large train station using

smartphone and bluetooth low energy. In Proceedings

of the 31st Annual ACM Symposium on Applied

Computing (pp. 604-611). ACM.

Microsoft .netDxf. (2016). [Online]. Available at:

https://netdxf.codeplex.com/. [Accessed 18 Feb. 2016].

Nakajima, M., & Haruyama, S. (2013). New indoor

navigation system for visually impaired people using

visible light communication. EURASIP Journal on

Wireless Communications and Networking, 2013(1),

(pp. 37).

Riehle, T. H., Anderson, S. M., Lichter, P. A., Whalen, W.

E., & Giudice, N. A. (2013, July). Indoor inertial

waypoint navigation for the blind. In 2013 35th Annual

International Conference of the IEEE Engineering in

Medicine and Biology Society (EMBC) (pp. 5187-

5190). IEEE.

Rituerto, A., Fusco, G., & Coughlan, J. M. (2016, October).

Towards a Sign-Based Indoor Navigation System for

People with Visual Impairments. In Proceedings of the

18th International ACM SIGACCESS Conference on

Computers and Accessibility (pp. 287-288). ACM.

Tao, Y. (2015). Scalable and Vision Free User Interface

Approaches for Indoor Navigation Systems for the

Visually Impaired.

Unity Technologies. (2016). [Online]. Available at:

https://unity3d.com/. [Accessed 19 Nov. 2016].

World Health Organization. (2016). [Online]. Available at:

http://www.who.int/mediacentre/factsheets/fs282/en/.

[Accessed 20 Nov. 2016].

PERCEPT Indoor Wayﬁnding for Blind and Visually Impaired Users: Navigation Instructions Algorithm and Validation Framework

149
