An Empirical Analysis of the Correlation between CK Metrics, Test

Coverage and Mutation Score

Robinson Cruso

e da Cruz

1,2

and Marcelo Medeiros Eler

School of Arts, Science and Humanities, University of S

ao Paulo–USP, S

ao Paulo, Brazil

Centro Universit

ario do Planalto de Arax

a–UNIARAX

A, Arax

a, Brazil

Keywords:

Testability, Testing, Metrics, CK, Code Coverage, Mutation Score.

Abstract:

In this paper we investigate the correlation between test coverage, mutation score and object-oriented sys-

tems metrics. First we conducted a literature review to obtain an initial model of testability and existing

object-oriented metrics related to testability. Thus we selected four open source system whose test cases were

available and calculated the correlation between the metrics collected and the line coverage, branches coverage

and mutation score. Preliminary results show that some CK metrics, which are strongly related to system’s

design, inﬂuence mainly line coverage and mutation score, thus they can inﬂuence systems testability.

1 INTRODUCTION

Software development can become very complex de-

pending on the characteristics and dimensions of the

software to be developed. Information systems very

often present low quality due to several problems that

can take place during their development, but mainly

because of a poor testing plan that fails to capture the

defects of the software. Nowadays, in such a com-

petitive market, delivering software with high quality

is not a competitive advantage anymore, but a basic

need (Tahir et al., 2014).

Testing is a key activity of the software deve-

lopment process that allows to discover faults in the

program and whether it complies with the level of

quality expected. The testing activity, however, may

be very elaborate as the complexity of the software

grows. Therefore, it is one of the most expensive

and time consuming activities of the software deve-

lopment process. The effort required to test a software

is known as testability. A program with high testabil-

ity is easier to test than a program with low testability.

Accordingly, studies have been conducted in the

academia and the industry to identify characteristics

of a software that can inﬂuence the effort required to

test a software (Abdullah and Khan, 2013). In partic-

ular, researchers have been trying to establish a cor-

relation between the metrics deﬁned by Chidamber

and Keremer (CK), which are strongly related to

the object oriented design, and the testability of a soft-

ware. According to Sneed (Sneed, 2010), there are

some features that distinguish object-oriented soft-

ware from procedural, such as: encapsulation, gen-

eralization, association and polymorphism.

In most studies, the test effort was given by the

number and the size of test classes (lines of code),

and by the number of assertions. Despite these previ-

ous efforts to correlate CK metrics and testability, we

believe that there is still room for more investigation

in this ﬁeld since most studies have focused only on

the test size and not in the quality of those test suites.

In this context, the propose of this paper is to present

an investigation we have conducted to correlate the

CK metrics with code coverage (lines and branches)

and mutation score. The main goal of this study is

to check the inﬂuence of the CK metrics on the qual-

ity of the test cases produced rather than the test size.

As the CK metrics are strongly related to the software

design, understanding such correlation may help de-

velopers to design more testable software. Four open

source software were analyzed and the metrics were

collected and correlated using the spearman’s rank-

order.

The remainder of this paper is organized as fol-

lows. Section 2 presents the basics concept of testa-

bility and metrics. Section 3 shows the related work.

Section 4 presents the design while Section 5 depicts

the results of our study. Finally, Section 6 discusses

the results and Section 8 presents some concluding

remarks and future directions.

Cruz, R. and Eler, M.

An Empirical Analysis of the Correlation between CK Metrics, Test Coverage and Mutation Score.

DOI: 10.5220/0006312703410350

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 341-350

ISBN: 978-989-758-248-6

341

2 SOFTWARE TESTABILITY

AND METRICS

Testability is a fundamental software quality attribute

that evaluates the complexity and effort required to

perform testing activities (ISO, 1991). It has been

deﬁned as the degree to which a system or compo-

nent facilitates the establishment of test criteria and

whether these tests could be performed (IEEE, 1990).

To test a component one must be able to control the

inputs and observe their outputs, as a software with

high testability enables analyzes to be carried out dur-

ing the tests.

There are several internal and external factors of

software that can be related to testability (Badri and

Toure, 2012; Bruntink and van Deursen, 2004). Soft-

ware size measures, code complexity, and coupling,

for instance, are internal factors. On the other hand,

documentation, testing tools and processes are exam-

ples of external factors. According to Binder (Binder,

1994), testability is a result of six primary factors,

which are depicted in Figure 1. Each of these factors

can facilitate or hinder the test in many ways: rep-

resentation, a representation is necessary to develop

test cases; implementation, implementation charac-

teristics determine the control and observation; built-

in Test, testing capacity can improve the control and

observation and disassociate testability of application

characteristics; test suite, a collection of test suite is

useful and necessary; test tools, testing tools are re-

quired for efﬁcacy testing; test process, without an

organized and effective approach to testing, testabil-

ity is irrelevant.

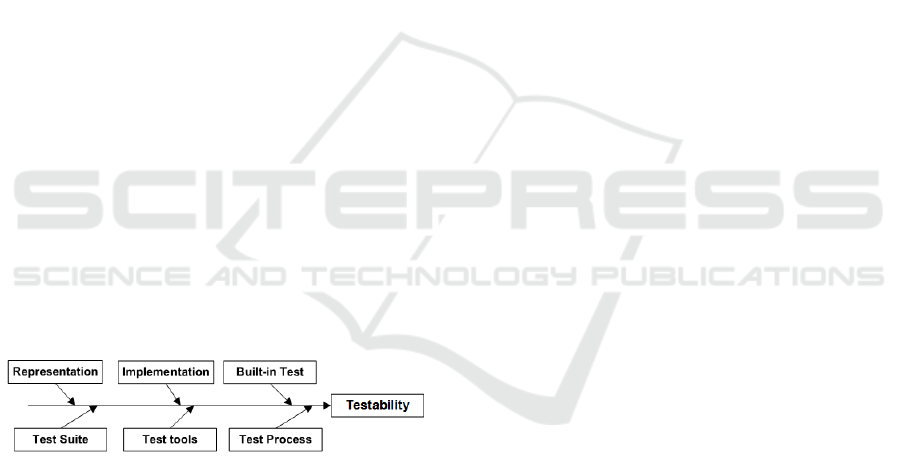

Figure 1: Six testability primary factors (Binder, 1994).

The factors that can inﬂuence testability can be ex-

pressed in terms of software metrics, which are inter-

nal and external measures of a software product that

can help in planning and software development (Li,

1999). A particular set of internal metrics proposed

by Chidamber and Kemerer in 1994 (Chidamber and

Kemerer, 1994), most known as the CK metrics, are

strongly related to the object oriented design of a soft-

ware and they have been used to calculate the testabil-

ity and the maintainability of a software. Those met-

rics are the following:

• CBO - Coupling between Object Classes: is the

number of classes in which the class is coupled.

Theoretically, an object is bound by another ob-

ject if one performs action on the other, for exam-

ple: when a class uses methods of other classes

or when a class uses instance variable to access

another class (Chidamber and Kemerer, 1994).

• DIT - Depth of Inheritance Tree: can be deﬁned

as the class of the position in the inheritance tree.

It is a measure of how an ancestor class can po-

tentially affect the class analyzed (Chidamber and

Kemerer, 1994).

• LCOM - Lack of Cohesion of Methods: is con-

sidered a measure that quantiﬁes the similarity of

the methods of a class. Two methods are cohe-

sive whether share the same class attributes. To

quantify this result, all methods of the class are

examined in pairs to quantifying the variables in

common classes (Chidamber and Kemerer, 1994).

• NOC - Number of Children: is the number of

subclasses of the class analyzed in the class hier-

archy. This deﬁnes how to analyze what are the

classes affected in the event of changes in class

analyzed (Chidamber and Kemerer, 1994).

• RFC - Response for a Class: is related to the

amount of methods that can be performed in re-

sponse to a message received by an object. This

is calculeted by the sum of the number of me-

thods of the class plus the number of external me-

thods used by methods of the analyzed class (Chi-

damber and Kemerer, 1994).

• WMC - Weighted Methods Per Class: this

metric has been proposed to measure the com-

plexity of a class (Chidamber and Kemerer, 1994).

The complexity can be measured by many ways,

for example by cyclomatic complexity proposed

by McCabe (McCabe, 1976).

3 RELATED WORK

Some researches have tried to explain whether exists

correlation between CK metrics and the effort of the

unit testing. Most of them were based on the source

code or the class diagrams of the software analyzed,

and the correlation was calculated between metrics of

the pair (C,C

), where C is a class to be tested and C

the correspondent testing class. The number of lines

of code of the testing class (T LOC) and the amount of

test cases (TAsserts) were correlated with CK metrics

of the class to be tested (C). The Spearman’s corre-

lation was the method most used to calculate the cor-

relation between metrics of C and C

. Table 1 shows

a list of published work in this ﬁeld and which met-

rics they have analyzed. Following there are distinct

characteristics of each of those work.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

342

Table 1: Related Work.

Paper CBO DIT NOC LCOM RFC WMC

A1 X - - - - -

A2 X X X - - -

A3 X X X X X X

A4 X X X X X X

A5 X

A6 X X X X X X

A7 X X - - - -

A8 X - - -

Sum 7 5 4 4 3 3

A1 (Khan and Mustafa, 2009) extracted three

class diagram level metrics: ENM (encapsulation

metric) which counts the number of all the methods

deﬁned in a class, REM (reuse inheritance metric)

which counts for a class the depth of its inheritance

tree in the design and the CPM (coupling metric)

which counts the number of classes that a class is re-

lated to. The Based Testability Model for Object Ori-

ented Design (MTMOOD) were proposed to measure

the testability.

A suite of six projects was developed by different

individuals for the study. These six projects were also

evaluated using the proposed metric suite. A group

of ten independent evaluators was assigned to study

the quality of the six projects in the validation suite.

All the evaluators had 8 to 12 years of experience in

commercial software development. All the partici-

pants analyzed each project design and assigned the

scores 1 to 6 based on a decreasing testability score

and the results were correlated with equation 1.

Testability = −0.08 ∗ Encapsulation + 1.12 ∗ Inheritance + 0.97 ∗Coupling

(1)

According to the authors, the proposed model is

more practical since quantitative data on testability is

of immediate use in the software development pro-

cess (Khan and Mustafa, 2009). The result obtained

in their study is a high correlation between evaluators

score on the testability of the six softwares and the

proposed calculation.

A2 (Khalid et al., 2010) extracted the metrics AHF

(Atribute Hiding Factor), that is computed by dividing

the attributes hidden to the total attributes deﬁned in

the class, MHF (Method Hiding Factor), that is com-

puted by dividing the methods hidden in the class to

total methods deﬁned in the class, and CK Metrics

DIT, NOC and CBO. Metrics were collected from

four projects using the class diagram. This work,

the metrics proposed were detailed and related be-

tween complexity, testability and different attributes

of object oriented software design by predicting class

level testability. According to the authors, “Predict-

ing complexity of design at class level helps to sim-

plify the design as much as possible. Object oriented

design metrics extended by the approach proposed in

this work helps to obtain the quantiﬁable results so

that complexity of design can be predicted.”

A3 (Bruntink and van Deursen, 2004),

A4 (Bruntink and van Deursen, 2006), A5 (Badri and

Tour, 2011) and A6 (Badri and Toure, 2012) analyzed

the correlation between CK metrics and code lines

(T LOC) and test cases asserts (TAssert) generated

in the unit testing. Table 2 shows the correlation

between CK metrics and test cases (TAssert) in these

work. Values set boldface in the results of correlation

means that there is statistically signiﬁcance. There is

correlation between TAssert and the metrics CBO,

LCOM, RFC and WMC, indicating that the higher

the value of these metrics, the higher the number

of test cases required (TAsserts). However, metrics

NOC and DIT seems to have insigniﬁcant impact

because there is no pattern in the results.

Table 2: Result of related work metrics (A3 to A6).

CK Metrics vs Test Case (TAsserts)

SYSTEM P. CBO DIT LCOM NOC RFC WMC

JFC

A4 0.424

A6 0.261 0.069 0.439 0.224 0.197 0.453

POI A6 0.280 -0.100 0.155 0.011 0.365 0.400

DOCGEN

A3 0.457 -0.059 0.207 0.002 0.526 0.460

A4 0.457 -0.059 0.207 0.002 0.526 0.460

ANT

A3 0.307 -0.020 0.382 -0.026 0.341 0.348

A4 0.307 -0.020 0.382 -0.026 0.341 0.348

A5 0.326

A6 0.135 -0.203 0.347 0.034 0.071 0.391

ZPC A4 0.240 -0.064 0.215 -0.022 0.455 0.511

Studies A3 and A4 used the metric FOUT(Fan

Out), wich is an adaptation of the CBO metric, since

they have only considered the number of classes used

by the analyzed class (Bruntink and van Deursen,

2006). However, in this study we considered it as

CBO to simplify the comparison with the results of

our work.

A7 (Kout et al., 2011) adapted the equation

1 (Khan and Mustafa, 2009) using the following met-

rics: NOO (number of operations in a class), DIT and

CBO. The equation 2 (MTMOOP) gives the compu-

tational formula used for assessing the testability of a

class at the source code level.

Testability = −0.08 ∗ NOO + 1.12 ∗ DIT + 0.97 ∗CBO

(2)

In experiments the authors collected metrics from

two open source Java software systems. The goal

of the study was to explore empirically the relation-

ship between the MTMOOP (equation 2) model and

testability (in terms of testing effort) of classes. The

MTMOOP calculation result of each class was corre-

lated with metrics extracted from the test cases and,

according to the authors: “the achieved results sup-

port the idea that there is a statistically signiﬁcant re-

An Empirical Analysis of the Correlation between CK Metrics, Test Coverage and Mutation Score

343

lationship between the model and the used test case

metrics” (Kout et al., 2011).

A8 (Tahir et al., 2014) analyzed two metrics: Dy-

namic Coupling (runtime method invocations/calls)

and Key Class (classes that have high execution fre-

quency at runtime). The two metrics were col-

lected from four systems at run time and related to

the number of lines of code (T LOC) and test case

(TAssert). According to authors, “the resulting evi-

dence indicates that there is a signiﬁcant association

between Dynamic Coupling and internal class testa-

bility” (Tahir et al., 2014).

The related work shows that there is a correlation

between design metrics such as CK metrics and test

effort. However, most studies focus only on test size

and number of test cases rather than the quality of

test cases. The number of test cases and their size is

important, but it is also important to know their ade-

quacy to test criteria such as line and branch coverage.

Only work A4 described the quality of the test suites

analyzed.

4 EXPERIMENTAL DESIGN

The general purpose of this paper is to evaluate

whether there is a correlation between the CK met-

rics and testability, when it comes to the adequacy

of the test suites produced. Differently from the re-

lated work found in the literature, we correlated the

CK metrics with code coverage (lines and branches)

and mutation score, which indicates the efﬁcacy of the

test cases in uncovering artiﬁcial faults introduced by

small changes in the original program (Offutt, 1994).

We believe that the number of lines of code of a test-

ing class and the number of asserts may be suitable

to evaluate the test effort, but as long as it is related

to some sort of evaluation of the test suite adequacy.

The next sections describes the experimental proce-

dure adopted to reach our results.

4.1 Sample Selection

We selected four open source Java system whose

test cases were available: APACHE POI, JABREF,

JFREECHART and MOEA. The Apache POI is a

tool to create and maintain Java APIs for manip-

ulation ﬁle based Ofﬁce open XML standars and

Microsofts OLE 2 Compound Document format

(OLE2). JABREF is a tool that provides features to

reference management support for the BibTeX ﬁle

format. JFREECHART(JFC) is a Java chart library

for development quality charts. MOEA is a Java-

based framework to development, experimentation

and optimization of algorithms.

These software were chosen because they are used

in several researches, including some related work

(Section 3).

4.2 Metrics and Tools

On the program under test side, we decided to collect

metrics related to the object oriented design of a sys-

tem. Therefore, we have based our analysis on the CK

metrics. We believe that discovering the correlation

between those metrics and testability may help devel-

opers on producing better and more testable designs.

On the testing classes side, we decided to collect in-

formation regarding the quality of the tests rather than

their size. Therefore, we resort to code coverage and

mutation score analysis.

Test coverage is ”the degree to which a given test

or set of tests addresses all speciﬁed requirements for

a given system or component” (IEEE, 1990). Cove-

rage analysis is used to provide quality manager with

information about the portions of their code or spec-

iﬁcation which are executed or not during tests. In a

white box approach, coverage is related with objec-

tive analyze what percentage of class that is covered

by test cases. There are several kinds of coverage,

however, in this research we use line and branch co-

verage:

• Line Coverage: is also known as statement co-

verage. The goal is executing all the line in the

program under test. A test set that satisﬁes this re-

quirement is considered to be adequate according

to the statement coverage criterion. Sometimes

the percentage of executed statements is calcu-

lated to indicate how adequately the testing has

been performed. The percentage of the statements

exercised by testing is a measurement of the ade-

quacy (Zhu et al., 1997).

• Branches Coverage: similarly, the branch cove-

rage criterion requires that all control transfers in

the program under test are exercised during test-

ing. The percentage of the control transfers exe-

cuted during testing is a measurement of test ade-

quacy (Zhu et al., 1997).

Mutation Testing generates different versions

(mutants) of a program under test by introducing

small changes that are suppose to be defects in the

code. The test cases of the program are thus exe-

cuted against these versions with goal of causing each

faulty version to fail. When the mutation version fails,

it is said that it is a killed mutant, when it does not

fail, it is considered a alive mutant. The test set are

then enhanced to reveal faults on the alive mutants or

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

344

the alive mutants, at some point, are deemed equiva-

lents, i.e., no fault has been introduced with the small

change (Offutt, 1994).

The mutation score is a measure that indicates

how efﬁcient a test set is to reveal faults in the faulty

versions (mutants), and it is calculated by the ratio of

dead mutants over the amount of mutants generated.

The mutation adequacy of a set of test data is mea-

sured by an adequacy score computed according to

the equation 3 (Zhu et al., 1997):

MC =

M − E

(3)

where D is the number of dead mutants, M is the total

number of mutants, and E is the total number equiv-

alent mutants. “Equivalent mutants are mutant pro-

grams that are functionally equivalent to the original

program and therefore cannot be killed by any test

case”(Offutt et al., 1996).

The following tools/plugins were used to col-

lect metrics and calculate code and mutation score:

Eclipse Metrics, EMMA, JHAWK, JUNIT and

PITEST. Eclipse Metrics

and JHawk

were used to

collect the CK metrics. JUnit

was used to execute

the test cases provided along with the open source

software while Emma

was used to calculate test co-

verage. PITEST

was used to perform mutation anal-

ysis and to generate the mutants we used the default

mutant generation option available in this tool.

4.3 Data Collection

Establishing the correlation between CK metrics and

testability based on the test cases provided along with

the open source software analyzed may bring some

risks. For instance, we have no information about

the time spent to create each testing class. Moreover,

we have no information about the test plan and objec-

tives, i.e., we do not know whether the testers had the

purpose of achieving high coverage on line or branch

criteria, for example. We are not sure whether the low

coverage of a class is due to its complexity or due to

the lack of interest of the testers on testing such class

more carefully.

To mitigate this issue, we have decided to perform

the analysis of the programs under test in different

settings. These settings are shown in Table 3. The

ﬁrst setting considers all classes, including those from

which no test cases is available. The second setting

http://eclipse-metrics.sourceforge.net

http://www.virtualmachinery.com

http://junit.org

http://emma.sourceforge.net

http://pitest.org/

considers all classes in which more than 66% of the

lines were executed, indicating that the testers have

put some effort to get it tested. The third setting con-

siders all classes in which the percentage of lines co-

vered is more than the mean considering all classes of

the project. Finally, the fourth setting considers only

classes in which more than 90% of the lines were co-

vered. This last setting aims to investigate the charac-

teristics of the classes that have been almost or fully

covered.

Table 3: Data Analysed.

Analysis Line Branch Mutation

1 > 0.0% >= 0.0% >= 0.0%

2 >= 66.0% >= 0.0% >= 0.0%

3 >= mean% >= 0.0% >= 0.0%

4 >= 90.0% >= 0.0% >= 0.0%

The ﬁrst setting considers all classes, even those

for which no test cases have been speciﬁed. Con-

sider, for example, two different classes: one sim-

ple and self contained class which has no dependency

that has not been covered at all (0% coverage), and

a very complex class with several dependencies that

has been 65% covered. A correlation analysis might

conclude that more complexity leads to higher cove-

rage, while less simple classes are more difﬁcult to

test because they haven’t been covered at all. It is in-

deed a simplistic example and the random nature of

the classes of each project may balance the analysis

up, but we still decided to perform separate analysis

for different settings.

We believe, therefore, that second and third set-

tings are more realistic, but we believe the fourth set-

ting is of interest as well because it is an indication

that this speciﬁc class has been thoroughly tested and

the difference between coverage measures might be

impacted by the different CK metrics. Table 4 shows

the amount classes that were analyzed in each soft-

ware considering the four settings.

Table 4: Classes analysed in the tests.

Analysis JABREF JFC MOEA POI Sum

1 318 411 359 694 1782

2 236 224 316 602 1378

3 210 242 250 444 1146

4 159 69 230 365 823

4.4 Statistical Analysis

We calculate the correlation between the CK metrics

and the coverage and mutation score using the Spear-

mans correlation coefﬁcient. Spearmans rank-order

correlation coefﬁcient is a measure of association be-

tween two variables where the result is a value range

An Empirical Analysis of the Correlation between CK Metrics, Test Coverage and Mutation Score

345

from -1 (perfect negative correlation) to 1 (perfect

positive correlation), and a value 0 indicates no corre-

lation. The correlation results statistical signiﬁcance

were also calculated considering α = 0.05. RStudio

tool was used to calculate the correlation and values

set boldface in the results of correlation means that

there is statistically signiﬁcance.

5 RESULTS

Table 5 shows the result of the data collected on

the execution of the test cases of each analyzed

project. Column 1 shows the name of the project

while columns 2, 3 and 4 show the mean value for

all classes of line coverage, branch coverage and mu-

tation score, respectively. It is important to notice,

however, that the correlation between the CK metrics

and the test measures is not calculated based on the

mean value of the whole project, but considering each

class individually.

Table 5: Coverage of Classes.

System Test Class Line Branches Mutation

JABREF 318 77.43% 52.00% 66.82%

JFC 411 62.45% 47.52% 42.70%

MOEA 359 87.22% 61.47% 26.63 %

POI 694 84.69% 54.51% 69.40%

In the next subsections the results of the correla-

tion between each CK metric and the test measures is

presented. All data are presented following the four

settings deﬁned in Table 3. The values set boldface in

the results of correlation means that there is statisti-

cally signiﬁcance(α = 0.05).

5.1 CBO Metric

Table 6 shows the results of the correlation between

CBO metric and test measures. The correlation be-

tween CBO and line coverage is a weak and nega-

tive correlation. A negative correlation means that the

higher the coupling between objects, the lower the

line coverage, while the positive correlation means

the opposite. The negative correlation in JABREF,

however, is moderate.

When it comes to branch coverage, it seems that

in some projects there are weak positive and nega-

tive correlation, or no correlation at all, since some

correlations is very close to 0. Regarding the muta-

tion score, except for the POI project, whose mean

mutation score is oddly low, the correlation seems to

follow the same pattern as the line coverage.

http://www.rstudio.com

Table 6: CBO vs Test Measures- Spearman’s ρ values.

CBO vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.420 -0.480 -0.490 -0.440

JFREECHART -0.160 -0.220 -0.210 -0.170

MOEA -0.170 -0.200 -0.170 -0.190

POI -0.110 -0.200 -0.190 -0.190

CBO vs BRANCHES COVERAGE

JABREF -0.150 -0.160 -0.170 -0.120

JFREECHART -0.050 -0.050 -0.050 -0.040

MOEA 0.110 0.100 0.120 0.160

POI 0.170 0.150 0.180 0.160

CBO vs MUTATION SCORE

JABREF -0.360 -0.400 -0.420 -0.370

JFREECHART -0.270 -0.340 -0.350 -0.320

MOEA 0.170 0.180 0.220 0.250

POI -0.080 -0.140 -0.080 -0.100

5.2 DIT Metric

The Table 7 shows the results of the correlation be-

tween DIT metric and test measures. The results show

that there may not be a pattern of correlation consid-

ering each project individually and code coverage. In

some projects there seems to be no correlation, or a

weak positive or weak negative correlation. The cor-

relation with mutation score seems to indicate a weak

negative relation. Could not get a standard result of

the system.

Table 7: DIT vs Test Measures- Spearman’s ρ values.

DIT vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.080 -0.030 -0.050 -0.140

JFREECHART -0.300 -0.180 -0.190 -0.230

MOEA 0.010 0.010 0.040 0.040

POI 0.280 0.260 0.200 0.200

DIT vs BRANCHES COVERAGE

JABREF -0.100 -0.090 -0.090 -0.100

JFREECHART -0.260 -0.280 -0.290 -0.320

MOEA 0.120 0.250 0.260 0.270

POI -0.300 -0.340 -0.380 -0.370

DIT vs MUTATION SCORE

JABREF -0.040 0.070 0.070 0.070

JFREECHART -0.310 -0.240 -0.250 0.060

MOEA -0.180 -0.150 -0.200 -0.200

POI -0.020 -0.090 -0.140 -0.150

5.3 LCOM Metric

The Table 8 shows the results of the correlation be-

tween LCOM metric and test measures. The results

seems to indicate that there is a weak negative cor-

relation between LCOM metric and line coverage and

mutation score. The correlation does not follow a spe-

ciﬁc pattern when it comes to branch coverage.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

346

Table 8: LCOM vs Test Measures - Spearman’s ρ values.

LCOM vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.300 -0.330 -0.300 -0.210

JFREECHART -0.120 -0.160 -0.150 -0.180

MOEA -0.240 -0.310 -0.290 -0.340

POI 0.040 -0.050 -0.040 -0.080

LCOM vs BRANCHES COVERAGE

JABREF -0.110 -0.100 -0.090 -0.040

JFREECHART 0.030 0.110 0.120 0.260

MOEA 0.090 0.070 0.100 0.110

POI -0.100 -0.140 -0.200 -0.200

LCOM vs MUTATION SCORE

JABREF -0.310 -0.360 -0.370 -0.380

JFREECHART -0.130 -0.170 -0.160 -0.180

MOEA 0.060 -0.070 -0.030 -0.020

POI -0.080 -0.130 -0.150 -0.150

5.4 NOC Metric

The Table 9 shows the results of the correlation be-

tween the NOC metric and test measures. Results in-

dicate that there is no correlation between the NOC

metric and the other measures in most of the cases.

There is a weak positive relationship between the

NOC metric and branch coverage, but the values are

not expressive.

Table 9: NOC vs Test Measures - Spearman’s ρ values.

NOC vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.230 -0.120 -0.120 -0.090

JFREECHART -0.130 0.000 0.010 -0.060

MOEA 0.010 0.000 -0.130 -0.090

POI -0.020 0.130 0.020 -0.010

NOC vs BRANCHES COVERAGE

JABREF -0.130 -0.050 -0.040 -0.090

JFREECHART 0.100 0.070 0.070 0.020

MOEA 0.190 0.190 0.170 0.200

POI 0.030 0.030 0.040 0.030

NOC vs MUTATION SCORE

JABREF -0.170 -0.020 -0.030 -0.070

JFREECHART 0.010 -0.110 -0.110 -0.170

MOEA 0.070 0.090 0.070 0.070

POI 0.020 0.050 -0.020 0.020

5.5 RFC Metric

The Table 10 shows the results of the correlation be-

tween the RFC metric and test measures. There is a

weak or moderate negative correlation between RFC

and line coverage and mutation score. When it comes

to branch coverage, however, there seems to be no

pattern of correlation.

Table 10: RFC vs Test Measures-Spearman’s ρ values.

RFC vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.440 -0.430 -0.420 -0.350

JFREECHART -0.110 -0.320 -0.300 -0.540

MOEA -0.400 -0.510 -0.550 -0.540

POI -0.120 -0.180 -0.170 -0.240

RFC vs BRANCHES COVERAGE

JABREF -0.100 -0.050 -0.040 0.020

JFREECHART 0.190 0.210 0.200 0.440

MOEA 0.110 0.070 0.120 0.150

POI 0.000 -0.030 -0.070 -0.050

RFC vs MUTATION SCORE

JABREF -0.450 -0.480 -0.500 -0.500

JFREECHART -0.080 -0.200 -0.210 -0.260

MOEA -0.130 0.140 0.090 -0.070

POI -0.230 -0.250 -0.220 -0.240

5.6 WMC Metric

Table 11 shows the results of the correlation between

the WMC metric and test measures. There is a mo-

derate negative correlation between the WMC metric

and line coverage, which means that the higher the

complexity, the lower the line coverage. Oddly, there

is a week positive correlation between the WMC

metric and branch coverage, which means that the

higher the complexity, the higher the branch cove-

rage. One possible causes for this phenomenon is that

the higher the complexity, the higher the number of

branches to be covered. The results also indicate a

weak negative correlation between WMC and muta-

tion score.

Table 11: WMC vs Test measures-Spearman’s ρ values.

WMC vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF -0.450 -0.460 -0.490 -0.430

JFREECHART -0.210 -0.320 -0.310 -0.590

MOEA -0.370 -0.500 -0.610 -0.600

POI -0.210 -0.330 -0.270 -0.360

WMC vs BRANCHES COVERAGE

JABREF 0.110 0.150 0.150 0.250

JFREECHART 0.140 0.240 0.230 0.590

MOEA 0.270 0.210 0.270 0.330

POI 0.550 0.220 0.220 0.230

WMC vs MUTATION SCORE

JABREF -0.370 -0.390 -0.420 -0.420

JFREECHART -0.160 -0.210 -0.220 -0.280

MOEA -0.020 -0.040 -0.040 -0.070

POI -0.170 -0.180 -0.090 -0.130

5.7 Other Analysis

Additionally, we have performed other analysis rather

than comparing design metrics with testing measures.

An Empirical Analysis of the Correlation between CK Metrics, Test Coverage and Mutation Score

347

We have decided to also analyze the correlation be-

tween code coverage and mutation score, which in-

dicates whether more coverage would help to reveal

more faults, or at least kill more mutants consider-

ing a mutation analysis approach. Table 12 shows

the results of the correlation between Line Coverage

and Mutant coverage. The results indicate a mode-

rate positive correlation between line coverage and

the mutation score since the mutation score increases

as the line coverage increases. The correlation for

project MOEA, however, indicates a weak positive

correlation. This can be explained by the low mean

mutation score 26.63% (Table 5). We noticed that

in software analysis with high coverage (>= 90%),

there is a weak negative correlation, indicating that

after some coverage has been reached, the number

of mutants killed as the line coverage is increased is

not so higher as when considering more low covered

classes.

Table 12: MUTANTION SCORE vs LINE COVERAGE-

Spearman’s ρ values.

MUTANT SCORE vs LINE COVERAGE

SYSTEM >= 0% >= 66% >= mean% >= 90%

JABREF 0.750 0.580 0.540 0.380

JFREECHART 0.730 0.520 0.540 0.310

MOEA 0.310 0.230 0.070 0.010

POI 0.460 0.390 0.380 0.350

Table 13 provides the correlations between each

CK metric, considering the results of this work and

related work A3 to A6 (Section 3). It is important

to notice that this is the mean correlation consider-

ing all projects and all classes. The goal of this com-

parison is to check whether there is a pattern of the

metrics collected in this research and in the related

work. The ﬁrst thing to notice is that the source code

metrics themselves are correlated. A second obser-

vation is that the results between this research and

related work are similar in (CBO vs DIT), (CBO vs

LCOM), (DIT vs LCOM),(LCOM vs NOC), (LCOM

vs WMC), (NOC vs WMC) and (RFC vs WMC).

We observe that the WMC metric strongly corre-

lates with the RFC metric for all systems. An expla-

nation is offered by the fact that for all systems, the

greater the complexity of a class, the greater the quan-

tity of external and internal methods used by method.

Between the WMC and CBO there is an important

correlation too, which can be explained by the fact

that high coupling brings more complexity to a class.

Finally, Table 14 shows an analysis of the impor-

tance of each metric with respect its impact on testa-

bility considering the results of this research and re-

lated work (Section 3), where I mean that the metric

was important, N when the metric was not important

Table 13: Analysis of Metrics - spearman’s ρ values.

Metric vs Metric Related Work Mean Mean this Work

CBO vs DIT 0.117 0.140

CBO vs LCOM 0.366 0.330

CBO vs NOC 0.040 0.250

CBO vs RFC 0.812 0.470

CBO vs WMC 0.658 0.480

DIT vs LCOM 0.145 0.120

DIT vs NOC 0.023 -0.040

DIT vs RFC 0.260 0.220

DIT vs WMC 0.030 0.080

LCOM vs NOC 0.105 0.120

LCOM vs RFC 0.210 0.540

LCOM vs WMC 0.432 0.460

NOC vs RFC 0.089 0.150

NOC vs WMC 0.144 0.120

RFC vs WMC 0.802 0.850

Table 14: Summary Importance of metrics in testability.

Paper CBO DIT NOC LCOM RFC WMC

This Work I N N I I I

A3 I N N I I I

A4 I N N I I I

A5 NA NA NA I NA NA

A6 I N N I I I

and NA when the metric was not analyzed. This result

shows similarity in the importance of metrics CBO,

LCOM, RFC and WMC in both this research and re-

lated work.

6 DISCUSSION AND

RECOMMENDATIONS

Table 15 summarizes the type of correlation there is

between CK metrics and the test measures. Notice

that there is no strong correlation between CK metrics

and test measures. This can be explained by the fact

that there are several factors that may inﬂuence testing

activities rather than just one factor. It is interesting

Table 15: Summary of the correlation between the CK met-

rics and test measures

Metric Line Coverage Branch Coverage Mutation Score

CBO weak negative inconclusive weak negative

DIT inconclusive inconclusive weak negative

LCOM weak negative inconclusive weak negative

NOC inconclusive inconclusive inconclusive

RFC weak/moderate negative inconclusive weak negative

WMC moderate negative weak positive weak negative

to notice that, for most case, the correlation between

CK metrics and branch coverage is inconclusive, i.e.,

there is no pattern according to our analysis. In some

cases the correlation coefﬁcient was almost zero, or

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

348

for some projects weak positive and for others weak

negative, which indicates no pattern. Line coverage is

more inﬂuenced by the RFC and the WMC method,

while CBO and LCOM seems to have a slight inﬂu-

ence on it. Mutation Score is also slightly inﬂuenced

by all metrics, except for NOC.

Our results seems to be in line with related work

which deemed metrics CBO, LCOM, RFC and WMC

to have some inﬂuence on the software testability.

However, their analysis were based on the number of

lines of the test classes and the number of asserts of

each testing class, while our study focused on code

coverage and mutation score.

Based on our analysis and in related work found

in the literature, we drew some recommendations to

software developers and architects when designing

more testable software:

• CBO: invest in keeping the design simple and less

coupled as possible. High coupling leads to more

complex unit and integration testing, which can

result in poor test cases depending on the bud-

get and time available for testing activities. The

higher the coupling, the lower the line coverage

and test effectiveness.

• LCOM: proper separation of concerns helps de-

velopers to create classes with high cohesion.

High cohesion leads to better designs and more

testable software. Classes with many different

functions also result in testing classes with differ-

ent purposes, which can jeopardize the systematic

testing.

• RFC: developers should organize classes writing

methods and analyze the need for external calls,

since it leads to more coupling during design and

runtime. It has been shown that this increases

the test effort and the quality of the test suites.

Analyze the possibility of merging methods and

classes according to refactoring patterns so it can

decrease the amount of calls between methods of

the same or different classes.

• WMC: write more simple methods and invest in

refactoring to get complex methods more simple.

Experienced developers and testers know that me-

thods and classes with complex logic are more dif-

ﬁcult to test, and recent studies have been con-

ducted to quantify the inﬂuence of characteris-

tics of programs on the testing activity (de Castro

et al., 2016). The more complex the method, the

less lines of code are covered.

7 THREATS TO VALIDITY

We have identiﬁed some threats that could affect the

validity of our ﬁndings. First, the number of appli-

cations analysed is not statiscally expressive. How-

ever, we selected those four applications because they

had been analysed by related work, therefore it would

be easy to compare our ﬁndings. Moreover, we do

not know how the test cases made available by the

developers of the analysed applications were gener-

ated. Accordingly, we are not aware of the reasons

why some classes has so low code coverage and con-

sequently mutation score. It is either because the class

is too complex or because the developers created just

a few test cases for them. To mitigate this issue,

we performed analysis considering different coverage

ranges. Finally, we have not performed further statis-

tical analysis that could show results related to distri-

bution of our data.

8 CONCLUDING REMARKS

We presented an analysis of four open source systems

with respect the correlation between the CK metrics,

which are strongly related to the design of object ori-

ented systems, and the quality and the adequacy of

the test suites available, which can be an indication

of the level of testability of such systems. Similarly

to the related work, which correlated the CK metrics

with test numbers and size, we have concluded that

metrics CBO, LCOM, RFC and WMC have moderate

inﬂuence on software testability. We believe a design

with low coupling, low complexity and high cohesion

can lead to a high level of testability.

The results obtained in this study may be easily

inferred by experienced designers and developers, but

we believe it is important to quantify the inﬂuence

of those metrics on the software testability. More-

over, we believe these results, along with the related

works’, can be used to derive equations and coefﬁ-

cient that can estimate or predict the level of testabil-

ity of a system. For example, design patterns are con-

stantly applied in software development. Sometimes,

before applying a pattern one may need to consider

the tradeoffs between the solution and its effect on the

overall design, which usually involves increasing co-

hesion but also increasing coupling, or vice versa. Co-

efﬁcients or equations to estimate the impact of such

decisions on the testability of a system could be very

useful since in complex systems it is very difﬁcult to

track the impact of different design decisions made by

different developers or architects.

In this perspective, we foresee some future di-

An Empirical Analysis of the Correlation between CK Metrics, Test Coverage and Mutation Score

349

rections for this work. We intend to analyse larger

programs and consider different languages to check

whether the correlations found for Java systems hold

for other languages. Conduct experiments to consider

not only testing metrics such as coverage and mu-

tation score, but also the effort with respect to time

spent to develop the test cases. We also intend to anal-

yse each CK metric individually by clustering classes

with a subset of similar metrics values to analyse the

isolated impact of a single metric on the test results

and metrics. Finally, as software testability is affected

by many different factors, it would be interesting to

use others suite of metrics, as the metrics proposed by

Abreu (e Abreu et al., ) and Lorenz and Kidd (Loren-

zen and Kidd, 1994).

REFERENCES

Abdullah, R. S. and Khan, M. H. (2013). Testability es-

timation of object oriented design:a revisit. Inter-

national Jounal of Advanced Research in Computer

and Communication Engineering, pages 3086–3090,

numpages = 5,.

Badri, L. and Tour, F. (2011). An empirical analysis of

lack of cohesion metrics for predictiong testability of

classes. International Journal of Software Engineer-

ing and its Application.

Badri, M. and Toure, F. (2012). Empirical analysis of

object-oriented design metrics for predicting unit test-

ing. Journal of Software Engineering and Applica-

tions, pages 513–526.

Binder, R. V. (1994). Design for testability in object-

oriented systems. Commun. ACM, 37(9):87–101.

Bruntink, M. and van Deursen, A. (2004). Predicting class

testability using object-oriented metrics. Source Code

Analysis and Manipulation, 2004. Fourth IEEE Inter-

national Workshop on, pages 136–145.

Bruntink, M. and van Deursen, A. (2006). An empirical

study into class testability. J. Syst. Softw., 79(9):1219–

1232.

Chidamber, S. and Kemerer, C. (1994). A metrics suite for

object oriented design. Software Engineering, IEEE

Transactions on, 20(6):476–493.

de Castro, C. F., de Souza Oliveira Jr, D., and Eler, M. M.

(2016). Identifying characteristics of java methods

that may inﬂuence branch coverage: An exploratory

study on open source projects. In Proceedings of the

35th International Conference of the Chilean Com-

puter Science Society (SCCC 2016). IEEE.

e Abreu, F. B., (inesc/iseg, O. B. E. A., Esteves, R., Goulo,

M., and (inesc/ist, R. E. Toward the design quality

evaluation of object-oriented software. International

Conference on Software Quality.

IEEE (1990). Ieee standard glossary of software engineer-

ing terminology. IEEE Std 610.12-1990, pages 1–84.

ISO (1991). International standard ISO/IEC 9126. informa-

tion technology:Software product evaluation: Quality

characteristics and quidelines for their use. ISO.

Khalid, S., Zehra, S., and Arif, F. (2010). Analysis of object

oriented complexity and testability using object ori-

ented design metrics. In Proceedings of the 2010 Na-

tional Software Engineering Conference, NSEC ’10,

pages 4:1–4:8, New York, NY, USA. ACM.

Khan, R. A. and Mustafa, K. (2009). Metric based testabil-

ity model for object oriented design (mtmood). SIG-

SOFT Softw. Eng. Notes, 34(2):1–6.

Kout, A., Toure, F., and Badri, M. (2011). An empirical

analysis of a testability model for object-oriented pro-

grams. SIGSOFT Softw. Eng. Notes, 36(4):1–5.

Li, W. (1999). Software product metrics. Potentials, IEEE,

18(5):24–27.

Lorenzen, M. and Kidd, J. (1994). Object-oriented soft-

ware metrics : a practical guide. Prentice Hall object-

oriented series, Englewood Cliffs, NJ. PTR Prentice

Hall.

McCabe, T. J. (1976). A complexity measure. In Proceed-

ings of the 2Nd International Conference on Software

Engineering, ICSE ’76, page 407, Los Alamitos, CA,

USA. IEEE Computer Society Press.

Offutt, A. J. (1994). A practical system for mutation testing:

help for the common programmer. In Test Conference,

1994. Proceedings., International, pages 824–830.

Offutt, A. J., Pan, J., Tewary, K., and Zhang, T. (1996).

An experimental evaluation of data ﬂow and mutation

testing. Softw. Pract. Exper., 26(2):165–176.

Sneed, H. M. (2010). Testing object-oriented software sys-

tems. In Proceedings of the 1st Workshop on Testing

Object-Oriented Systems, ETOOS ’10, pages 1:1–1:5,

New York, NY, USA. ACM.

Tahir, A., MacDonell, S. G., and Buchan, J. (2014). Under-

standing class-level testability through dynamic anal-

ysis. In Evaluation of Novel Approaches to Software

Engineering (ENASE), 2014 International Conference

on, pages 1–10.

Zhu, H., Hall, P. A. V., and May, J. H. R. (1997). Software

unit test coverage and adequacy. ACM Comput. Surv.,

29(4):366–427.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

350
