A Study on the Relationship between Internal and External Validity

Indices Applied to Partitioning and Density-based Clustering Algorithms

Caroline Tomasini, Eduardo N. Borges, Karina Machado and Leonardo Emmendorfer

Centro de Ci

encias Computacionais, Universidade Federal do Rio Grande – FURG,

Av. It

alia, km 8, 96203-900, Rio Grande, RS, Brazil

Keywords:

Cluster Evaluation, Validity Index, Regression.

Abstract:

Measuring the quality of data partitions is essential to the success of clustering applications. A lot of different

validity indices have been proposed in the literature, but choosing the appropriate index for evaluating the

results of a particular clustering algorithm remains a challenge. Clustering results can be evaluated using

different indices based on external or internal criteria. An external criterion requires a partitioning of the data

previously deﬁned for comparison with the clustering results while an internal criterion evaluates clustering

results considering only the data properties. In a previous work we proposed a method for selecting the most

suitable cluster validity internal index applied on the results of partitioning clustering algorithms. In this

paper we extend our previous work validating the method for density-based clustering algorithms. We have

looked into the relationships between internal and external indices, relating them through linear regression

and regression model trees. Each algorithm was run over synthetic datasets generated for this purpose, using

different conﬁgurations. Experiments results point out that Silhouette and Gamma are the most suitable indices

for evaluating both the datasets with compactness property and the datasets with multiple density.

1 INTRODUCTION

Clustering is an unsupervised data mining task based

on the similarity between the instances (Tan et al.,

2006). A cluster is a subset of instances that can be

treated collectively as one group (Han et al., 2006). A

clustering algorithm should maximize intragroup and

minimize intergroup similarity. Nowadays, data clus-

tering is widely used in several scientiﬁc or organi-

zational applications such as complex data analysis,

market research, image processing, test of hypotheses

and proﬁles discovery (Xu and Wunsch, 2009).

Several clustering algorithms have been proposed

in recent decades (Xu et al., 2005; Berkhin, 2006).

k-means (Hartigan and Wong, 1979) is based on cen-

troids and it requires that the user deﬁnes the k num-

ber of groups. Besides, k-means is not suitable for

discovering clusters with nonconvex shapes or clus-

ters of very different size. Other examples of parti-

tioning methods are k-medoids and CLARANS. DB-

SCAN (Ester et al., 1996) is another well-known algo-

rithm that grows regions with sufﬁciently high density

into clusters and discovers clusters of arbitrary shape

in spatial databases with noise. This algorithm re-

quires two user-deﬁned parameters: a neighborhood

speciﬁed by the radius ε and the minimum number

of points MinPoints in this neighborhood. Hierar-

chical methods work by grouping data objects into

a tree of clusters (dendrogram) that shows how ob-

jects are grouped together step by step. DIANA and

ROCK are examples of hierarchical algorithms (Han

et al., 2006). There are also grid-based clustering al-

gorithms which quantize the object space into a ﬁnite

number of cells that form a grid structure on which

all of the operations for clustering are performed.

An overview of many other clustering algorithms can

be found in the following surveys (Xu et al., 2005;

Berkhin, 2006).

Validation of clustering results is essential to the

success of clustering applications (Halkidi et al.,

2001a). The quality of partitions generated by differ-

ent algorithms can be evaluated using visual inspec-

tion and different indices based on external or inter-

nal criteria. Due to the high dimensionality and cardi-

nality of the datasets, visual inspection becomes im-

practicable. An external criterion requires previously

known data classes for comparison with the partition-

ing of the data resulted from the clustering algorithm

(Xu and Wunsch, 2009). However, the vast majority

of problems which require the use of grouping tech-

Tomasini, C., Borges, E., Machado, K. and Emmendorfer, L.

A Study on the Relationship between Internal and External Validity Indices Applied to Partitioning and Density-based Clustering Algorithms.

DOI: 10.5220/0006317000890098

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 89-98

ISBN: 978-989-758-247-9

niques do not have the data labelled a priori. There-

fore, a common way to evaluate the clustering results

is using indices based on internal criteria, which re-

gard only the data properties, looking for partitioning

with compact and well-separated clusters.

Several cluster validity indices have been pro-

posed in the literature (Xu and Wunsch, 2009; Rand,

1971; Fowlkes and Mallows, 1983; Davies and

Bouldin, 1979; Dunn, 1974; Rousseeuw, 1987; Baker

and Hubert, 1975; Vendramin et al., 2010; Hubert

and Levin, 1976). Each index focuses on a particular

property of the partitions, and many of them are in-

ﬂuenced by the impact of noise, density variation, or

the presence of subclusters. It is not possible to point

out a universally most reliable index (Liu et al., 2010;

Vendramin et al., 2010). For this reason, selecting

appropriate indices for evaluating the results of a par-

ticular clustering algorithm remains a challenge (Liu

et al., 2010).

In order to help in this process of selecting the

most suitable cluster validity internal indices we pre-

viously proposed a methodology based on the induc-

tion of regression models applied on the results of par-

titioning clustering algorithms (Tomasini et al., 2016).

Now in this paper we have extended our previous

work by adapting and validating the methodology for

density-based algorithms, which were performed over

synthetic datasets generated for this purpose, using

different conﬁgurations. Clustering results were eval-

uated by different internal and external indices gener-

ating the input for regression models. Each external

index is taken as the label attribute to be predicted,

and internal indices are the regression attributes. Ex-

periments results show the relationships between in-

ternal and external indices and point out that Silhou-

ette and Gamma are the most suitable indices for eval-

uating both the datasets with compactness property

using k-means and the datasets with multiple density

using DBSCAN.

This paper is organized as follows. In section 2,

we describe a set of cluster validity indices used in

this work. In section 3, we present our methodology

for choosing the most suitable cluster validity internal

index. In section 4, we give details on the performed

experiments and discuss the obtained results. Finally,

in section 5, we draw our conclusions and point out

some future work directions.

2 CLUSTERING VALIDATION

One of the most important issues in clustering analy-

sis is the evaluation of results to ﬁnd the partitioning

that best ﬁts the underlying data (Liu et al., 2010).

This procedure is known under the terms cluster-

ing validation (Tan et al., 2006) or cluster validity

(Halkidi et al., 2001a).

There are two criteria proposed for clustering val-

idation and selection of an optimal clustering scheme

(Berry and Linoff, 1996):

1. compactness – the members of each cluster should

be as close to each other as possible;

2. separation – the clusters themselves should be

widely spaced.

A common index of compactness is the variance (Han

et al., 2006), which should be minimized. The sepa-

ration can be measured by means of the distance be-

tween the clusters centers or between the nearest or

most distant members. There are many different clus-

ter validity indices that are very useful as quantitative

measures for evaluating the quality of data partitions.

Although several indices had been proposed, each

one focuses on a particular clustering property, and

they may not deal with some aspects such as varia-

tion of density or noise. These properties or aspects

turn each index able to outperform others in speciﬁc

classes of problems. Based on the above arguments,

choosing the appropriate validity index for evaluating

the results of a particular clustering scheme remains a

challenge.

Liu et al. (Liu et al., 2010) present a detailed study

of eleven internal cluster validity indices investigat-

ing their validation from the impact of monotonicity,

noise, density, subclusters and skewed distributions.

The performed experiments show that most of indices

have certain limitations in different application sce-

narios.

Vendramin et al. (Vendramin et al., 2010) pro-

posed a statistical methodology for comparing clus-

ter validity indices that is more robust than the tra-

ditional method used in the literature (Milligan and

Cooper, 1985). The authors compute the Pearson cor-

relation between internal and external indices in order

to identify relationships between them. The experi-

ments show that the larger the correlation value the

higher the capability of an internal index to unsuper-

visedly mirror the behavior of the external index and

properly distinguish between better and worse parti-

tions.

As proposed by Vendramin et al. (Vendramin

et al., 2010), our method described in section 3 dis-

cover the behavior and relationships between internal

and external indices. These relationships are learned

from linear regression models and regression model

trees. We have performed a set of experiments pre-

sented in section 4. These experiments show that

regression models can quantify the relationships be-

tween internal and external indices helping the user

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

to choose the most suitable cluster validity internal

index. The followings subsections describe a set of

indices used in this work.

2.1 External Indices

The external indices are typically used to compare the

cluster results with a previously known partitioning

(Xu and Wunsch, 2009). This partitioning can reﬂect

our intuition about the data structure, be suggested

by a domain expert or be deﬁned based on a match-

ing between the clusters found and the labels already

known.

Let P be a previously deﬁned partition of the

dataset X with n points. Let C be a clustering struc-

ture resulted from a clustering algorithm performed

on X. The evaluation of C by an external index is

achieved by comparing C to P. Considering a pair of

data points (x

, x

) ∈ {X × X}|1 ≤ i ≤ n, 1 ≤ j ≤ n,

one can compute the four different cases based on

how x

and x

are placed in C and P (Xu and Wun-

sch, 2009), i.e., the frequency of pairs x

and x

which

belong to:

a. the same group in C and the same category in P;

b. the same group in C, but different categories in P;

c. different groups in C, but the same category in P;

d. different groups in C and different categories in P.

In this work, we have applied the external indices

Jaccard (Xu and Wunsch, 2009), Rand (Rand, 1971)

and Fowlkes-Mallows (Fowlkes and Mallows, 1983).

These indices are based on the frequency of instance

pairs correct or incorrectly grouped according to one

of the cases a, b, c and d. The following subsections

specify each index.

2.1.1 Jaccard

Jaccard index J or Jaccard similarity coefﬁcient (Xu

and Wunsch, 2009) is a statistical measure used to

compare the similarity and diversity between datasets.

This index results in values that range in the close in-

terval [0, 1]. J returns a value closer to 0 when applied

to different partitions and closer to 1 when computed

on very similar partitions. The Jaccard index is de-

ﬁned by equation 1.

J =

a + b + c

(1)

2.1.2 Rand

So as Jaccard, Rand index R (Rand, 1971) measures

the similarity between two partitions P and C. This

index also results in values in the range [0, 1], where 0

suggests that C and P are very different and 1 means

highly similar partitions. Rand index is deﬁned by

equation 2.

R =

a + d

a + b + c

(2)

2.1.3 Fowlkes-Mallows

The value of this index is directly related to the simi-

larity between C and P, which means that higher the

returned value, higher is the similarity between the

partitions. Fowlkes-mallows index FM (Fowlkes and

Mallows, 1983) is deﬁned by equation 3.

FM =

a + b

a + c

(3)

2.2 Internal Indices

In practice, external information such as class la-

bels is often not available in many application scenar-

ios. Therefore, in the situation that there is no exter-

nal information available, internal validity indices are

the only option for clustering validation (Liu et al.,

2010). Typically, these indices are able to quantify

the quality of clustering results using only frequencies

and properties inherent to the dataset (Halkidi et al.,

2001a), e.g., considering only the proximity matrix.

In this work, we have applied the internal indices

DBI (Davies and Bouldin, 1979), Dunn (Dunn, 1974),

Gamma (Baker and Hubert, 1975; Vendramin et al.,

2010), C-index (Hubert and Levin, 1976; Vendramin

et al., 2010) and Silhouette (Rousseeuw, 1987). Since

we have applied the internal indices in different con-

ﬁgurations of the clustering algorithms in order to

better understand the behavior and the relationships

among this clustering validation methods, we have

used the internal indices as relative criteria. Accord-

ing to Xu et al. (Xu and Wunsch, 2009), relative crite-

ria compare clustering results generated by different

algorithms or the same algorithm but with different

input parameters, i.e., they evaluate a clustering re-

sult comparing it to other clustering schemes (Halkidi

et al., 2001a). The following subsections specify each

index cited previously.

2.2.1 DBI

The Davies-Bouldin index DBI (Davies and Bouldin,

1979) is the ratio between the sum of the internal dis-

persion of clusters and the distance between them.

Equation 4 deﬁnes DBI as

DBI =

∑

i=1

max

i6= j

+ σ

d(c

, c

)

(4)

A Study on the Relationship between Internal and External Validity Indices Applied to Partitioning and Density-based Clustering Algorithms

where n is the number of clusters, σ

is the average

distance of all points of the cluster i to its centroid c

is the average distance of all points in the cluster j

to its centroid c

and d(c

, c

) is the distance between

the centroids c

and c

It is clear for the above deﬁnition that DBI is the

average similarity between each cluster and its most

similar correspondent (Halkidi et al., 2001a). It is de-

sirable for the clusters to have the minimum possible

similarity to each other. Thus, smaller values of DBI

correspond to compact clusters which centroids are

distant from each other.

2.2.2 Dunn

The Dunn index D (Dunn, 1974) is calculated from

the ratio between the shortest intergroup distance and

longest intragroup distance. It returns values in the

range [0, ∞), where higher values attempts to identify

compact and well separated clusters (Halkidi et al.,

2001a).

Let d(C

, C

) be the distance between two clusters

and C

performed as the shortest distance between

a pair of objects x ∈ C

and y ∈ C

(equation 5). Let

diam(C

) be the diameter of C

calculated as the max-

imum distance between two of its members (equation

6). Dunn index is formally deﬁned by equation 7,

where k is the number of clusters.

d(C

, C

) = min

x∈C

,y∈C

(d(x, y)) (5)

diam(C

) = max

x,y∈C

(d(x, y)) (6)

D(k) = min

i=1,...,k



min

j+1,...,k



d(C

, C

)

max

l=1,...,K

(diam(C

))



(7)

The main disadvantage in relation to other indices

is the high quadratic computational complexity. Fur-

thermore, this criterion is very sensitive to noise.

2.2.3 Gamma

The Gamma index Γ (Baker and Hubert, 1975; Ven-

dramin et al., 2010) computes the number of concor-

dant pairs of objects S

, which is the number of times

the distance between a pair of objects from the same

cluster is lower than the distance between a pair of

objects from different clusters. This index also cal-

culates the number of discordant pairs of objects S

−

which is the number of times the distance between a

pair of objects from the same cluster is greater than

the distance between a pair of objects from different

clusters. Γ is deﬁned by equation 8.

Γ =

− S

−

+ S

−

(8)

This index varies in the range [−1, 1]. Better parti-

tions are expected to have higher values of S

, lower

values of S

−

and, therefore, higher values of Γ.

2.2.4 C-Index

The C-index (Hubert and Levin, 1976; Vendramin

et al., 2010) is deﬁned by Equation 9

C =

− min(d

)

max(d

) − min(d

)

(9)

where d

is the sum of distances over all pairs of in-

stances from the same cluster. Let j be the number

of pairs of instances in the same cluster, max(d

) and

min(d

) are the sum of the j largest and smallest dis-

tances, respectively, considering all pairs of distances.

Thus, this index should be minimized and it varies

within the range [0, 1].

2.2.5 Silhouette

The Silhouette index S (Rousseeuw, 1987) deﬁnes the

quality of clustering results based on the proximity

among objects of a particular cluster and the neigh-

borhood of these objects to the nearest cluster. Equa-

tion 10 computes this index for a single instance x,

member of the cluster j, where d(x, C

) is the average

dissimilarity between x and all the objects in j, h is

the cluster nearest to x.

s(x) varies within the range of [−1, 1]. The closer

to 1 the better the object allocation. After comput-

ing s for all data objects in the cluster j, the average

is calculated (equation 11). Finally, Silhouette in-

dex is computed for the entire partition as deﬁned by

equation 12, where n

is the number of objects in the

cluster j and k is the number of clusters.

s(x) =

d(x, C

) − d(x, C

)

max(d(x, C

), d(x, C

))

(10)

∑

i=1

s(x

)

(11)

S =

∑

j=1

(12)

3 PROPOSED METHOD

This section presents our proposed method to relate

internal and external cluster validity indices. It is split

into ﬁve steps presented in Figure 1.

The 1st step sets the datasets to be used. The in-

stances in this dataset must be labelled with prede-

ﬁned partitions that will be used in clustering valida-

tion external criteria. For this step we can select real

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

CrCrEC



 

selection or

generation

of datasets

data mining

clustering

evaluation

data

transformation

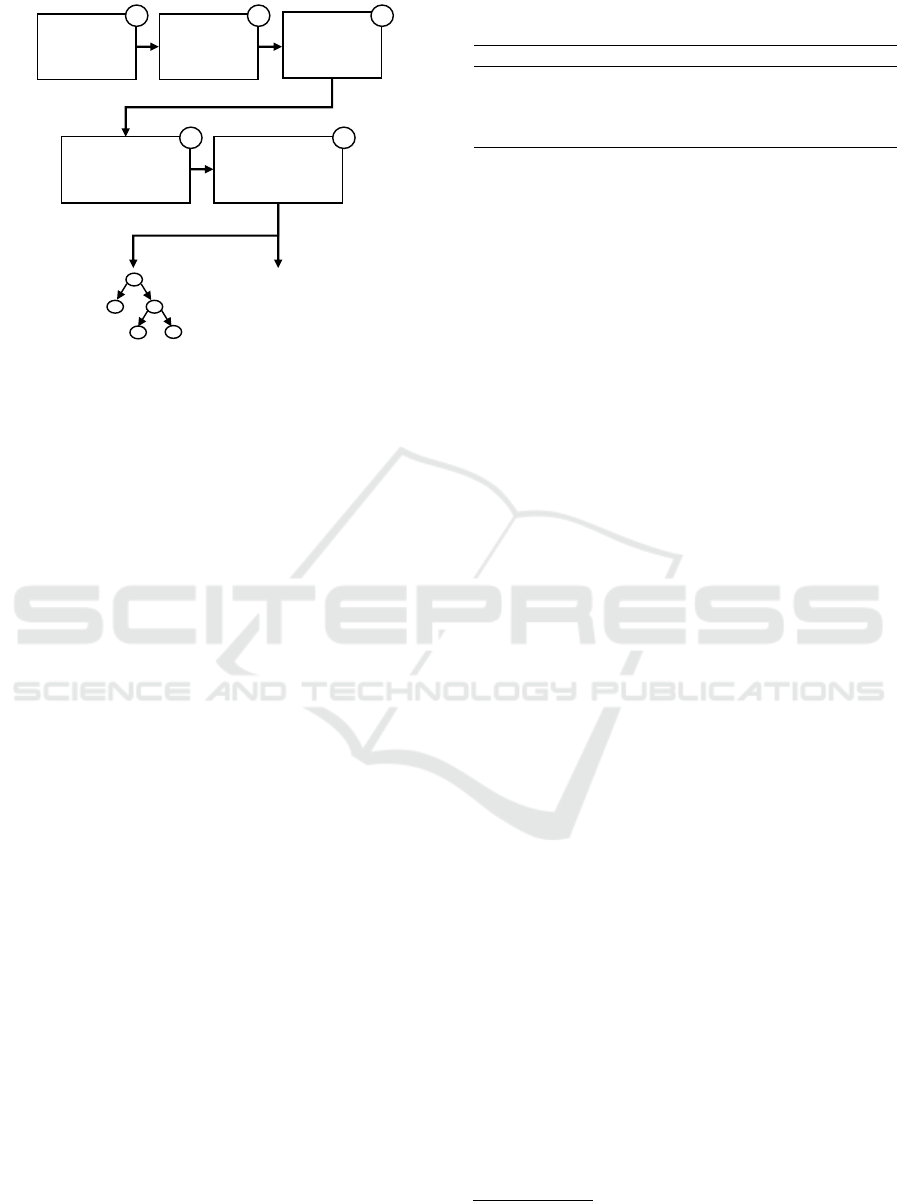

Figure 1: Proposed method to relate internal and external

cluster validity indices.

datasets or generate synthetic ones. We notice that

the use of synthetic datasets allows us the variation of

properties such as number of instances, features and

clusters, density, noise, and so on.

The 2nd step consists in selecting and applying

a clustering algorithm on the datasets generated or

selected in the previous step. This choice depends

on the data properties. For instance, we recommend

using a low computational complexity density-based

algorithm if the datasets are very large having clus-

ters of very different size with non convex shapes

and multiple densities. The algorithm should be per-

formed several times varying the input parameters

looking for different partitions.

The 3rd step computes a set of validity internal

and external indices for each clustering result, i.e., for

each partition returned in previous step. These indices

quantify the quality of clustering results.

In step 4, the index values previously computed

are transformed to be used as input for data mining.

Minimization criteria such as DBI and C-index are

inverted since most indices are maximization crite-

ria. Thus, for all transformed indices, compact and

well-separated clusters will return higher values. A

transformed index value t

is deﬁned by equation 13,

where v

is the index i value computed on the parti-

tion p and ¯v

is the average of index i values consider-

ing all partitions. In addition, all transformed values

are normalized in the interval [0, 1].



2 ¯v

− v

, if i is a minimization criterion

, otherwise

(13)

Following our method, given a set of n partitions

generated in 2nd step and their normalized internal

Table 1: An example of the training set with Jaccard (J) as

target attribute.

DBI S D Γ C J

1 0.759 0.793 0.357 0.723 0.487 0.410

2 0.763 0.697 0.314 0.624 0.211 0.410

...

n 0.871 0.753 0.247 0.675 0.401 0.417

index values computed in step 4, the performance of

each index on the assessment of the whole set of par-

titions is evaluated with respect to a normalized ex-

ternal index in step 5. Thus the quality of clustering

results are supervisedly quantify.

Table 1 shows an example of training set where

Davies-Bouldin, Silhouette, Dunn, Gamma and C-

index were taken as predictive attributes and the ex-

ternal index Jaccard was the target attribute. These

training sets are used as input of regression models

to estimate the external index values based on the

internal ones. The analysis of models helps to ver-

ify which internal index is most suitable for evalu-

ating the datasets generated or selected in ﬁrst step.

A good internal index will be able to rank the parti-

tions according to an ordering that is similar to that

established by an external index, since it relies on su-

pervised information about the data structure (known

clusters).

4 EXPERIMENTAL EVALUATION

This section describes the experiments we conducted

in order to empirically validate the method proposed

in Section 3 and evaluate the quality of the regression

models. Two hundred synthetic datasets were gen-

erated during the evaluation. These datasets contain

multiple distributions of points in a two-dimensional

space, which allows us to visually check the validity

of the results (Halkidi et al., 2001b). The experiments

were performed in a standard personal computer, us-

ing the statistical computing software R

in the steps

1 to 4. The last step was conducted using the data

mining software Weka

Experiments are divided into two different case

studies (CS), using:

1. datasets with compactness property and a parti-

tioning clustering algorithm;

2. datasets with multiple density and a density-based

clustering algorithm.

The following metrics were used to evaluate the ob-

tained models: correlation coefﬁcient and root rela-

http://www.r-project.org/

http://www.cs.waikato.ac.nz/ml/weka/

A Study on the Relationship between Internal and External Validity Indices Applied to Partitioning and Density-based Clustering Algorithms

tive squared error (Han et al., 2006). The experimen-

tal results point out that Silhouette and Gamma are the

most suitable cluster validity internal indices for eval-

uating the scenarios speciﬁed in both case studies.

4.1 CS1: Datasets with Compactness

Property and a Partitioning

Clustering Algorithm

In the 1st step of the proposed method we have gen-

erated 100 distinct datasets, in which 150 instances

was distributed in a two-dimensional space. We var-

ied the number of real clusters n

(classes) ranging

from 2 to 5. The number of instances for each cluster

was random always totaling 150. Half of the instances

follows a Gaussian distribution, in which the radius r

have been set from 1 to 10 and the standard deviation

sd = 0.33 r. The other half was randomly arranged

between the largest and the smallest coordinates of

the previously generated instances, simulating noise.

Figure 2 (up) shows an example of dataset with three

distinct classes identiﬁed by the color of the points.

After datasets generation, in 2nd step, we have

applied the k-Means clustering algorithm setting up

k = n

. In 3rd step the clustering results were eval-

uated using all the cluster validity indices described

in section 2. In step 4, for each partition, the clus-

ter validity indices were transformed and normalized.

Figure 2 (down) shows the partition returned when 3-

means was applied on the generated dataset (up).

In the step 5, we have trained a linear regression

model for each cluster validity external index using

the internal ones (Eq. 14-16). We have kept the Weka

default parameters.

J = 0.4691 S − 0.2766 Γ − 0.2447 C + 0.363 (14)

R = −0.1746 S +0.2492 Γ−0.0543 C + 0.508 (15)

FM = 0.581 S−0.3891 Γ−0.2563 C +0.5333 (16)

Observing the linear regression models, we notice

that DBI and Dunn were irrelevant to estimate all ex-

ternal indices because they were not used in any re-

gression. Silhouette had a positive impact on Jaccard

and Fowlkes-Mallows and a negative on Rand index.

The Gamma behavior was opposed because it posi-

tively affected only Rand. The C-index inﬂuence was

always negative.

We have also learned regression model trees us-

ing the M5 algorithm (Quinlan et al., 1992) to esti-

mate the same three external indices. We have set the

minimum number of instances to allow at a leaf node

M = 4. Figure 3 shows the regression tree for the Jac-

card index.

●

í í   

í í  

●

í í   

í í  

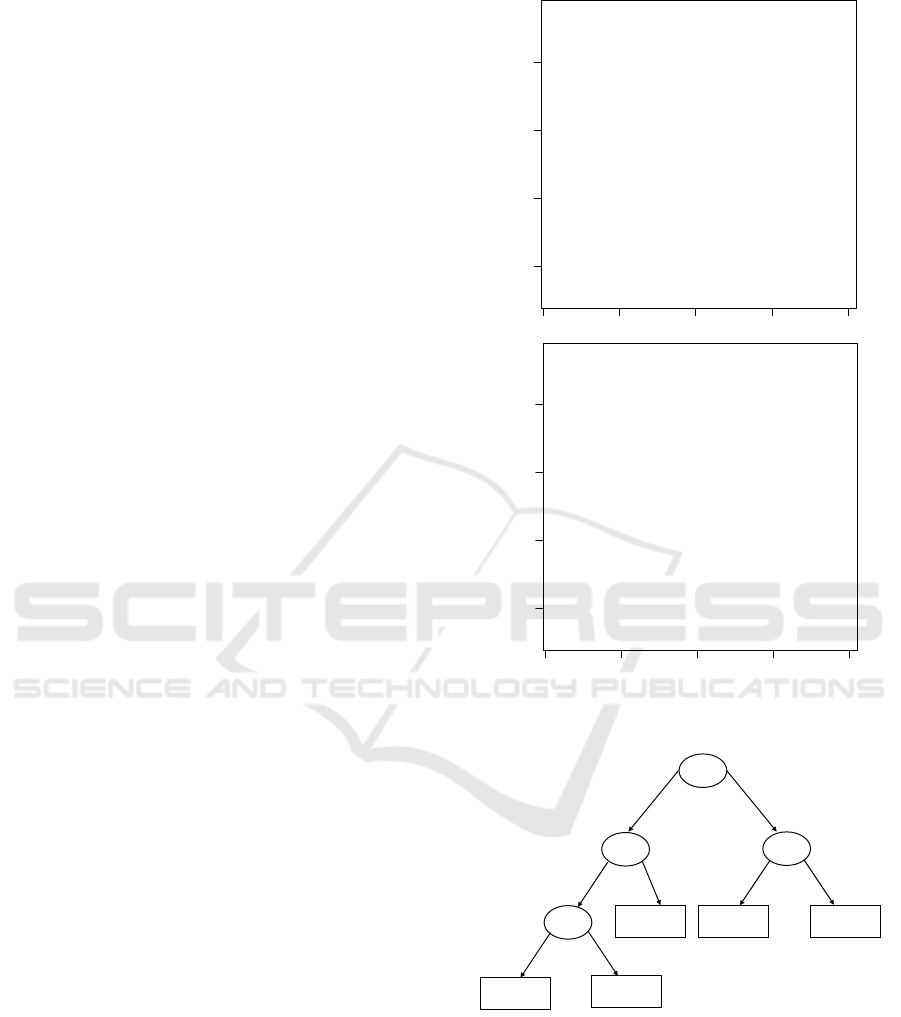

Figure 2: An example of generated dataset (up) and the par-

tition returned by k-means (down).



> 0.554



<= 0.554

LM 1

(14/2.595%)

<= 0.14

> 0. 4

LM 3

(5/3.419%)

> 0.513

<= 0.513

LM 2

(8/1.297%)

LM 4

(54/15.48%)

> 0.574

<= 0.574

LM 5

(19/15.82%)

Figure 3: Model tree using the Jaccard index as target at-

tribute.

Each leaf is a distinct linear regression model

(LM) constructed using a subset of instances, which

are selected using the rule deﬁned by the path between

the root and the leaf. These nodes present the num-

ber of instances and the prediction error of each LM.

Gamma was the most discriminatory attribute (root)

followed by Silhouette. Any other index helped to

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

Table 2: Regression evaluation using k-means.

Index Regression Correlation RRSE

linear 97.82 20.78

M5 98.75 15.83

linear 91.82 39.61

M5 96.60 25.91

linear 98.01 19.86

M5 98.01 19.86

build the tree, but all LM have a minimal inﬂuence

of DBI in addition to previously cited indices. For all

LM, Silhouette had a positive impact in the Jaccard

prediction while Gamma and DBI had a negative.

Regarding the use of the DBI as an internal node,

the regression tree for the Rand index did not pro-

duce signiﬁcant differences in the 10 LM (leaf nodes),

which were composed by the same indices including

Silhouette and Gamma. For the Fowlkes-Mallows in-

dex, M5 produced a single node tree with the same

LM presented in equation 16.

Table 2 compares the linear regressions with the

regression model trees. For each learned model it

shows two quality measures: correlation coefﬁcient

and root relative squared error (RRSE), both in per-

centages (Han et al., 2006). We notice that M5 per-

formed better than or equal to linear regression model.

The analysis of models allows us to verify that the

most suitable cluster validity internal indices for eval-

uating the datasets using k-means were Silhouette and

Gamma. These internal indices was strong related to

all three external ones, i.e. they were able to eval-

uate the vast majority of partitions in a very similar

way when compared to Jaccard, Rand and Fowlkes-

Mallows, as shown by the high values of correlation

and low error rates.

4.2 CS2: Datasets with Multiple Density

and a Density-based Clustering

Algorithm

In this second case study, we have applied the pro-

posed method to multiple density datasets (Handl

et al., 2005) and a density-based clustering algorithm.

In the 1st step we generated 100 distinct synthetic

datasets with 150 instances in each one distributed in

a two dimensional space. For these datasets we varied

the number of classes as follows: 25 datasets with 2

classes, 25 datasets with 3 classes and so on. The 150

points of each dataset were generated using a bivari-

ate Gaussian distribution (Goodman, 1963) deﬁned

by eq. 17, where µ

is the mean of x, µ

is the mean of

y, σ

is the standard deviation of x, σ

is the standard

deviation of y and ρ is the correlation.





∼ N













ρσ









(17)

We have decided to use the bivariate Gaussian dis-

tribution (Goodman, 1963) to generate datasets with

different shapes. To achieve these shapes we varied

the σ

and σ

randomly from 0.5 to 1.0 in each real

cluster. This assures a random variation of spread-

ing around x and y for each cluster. The variation

of density was obtained considering a random num-

ber of points in each real cluster. We established that

each cluster must have at least 2 points. Consider-

ing an example of dataset with two clusters, we have

Size

= random[2, 148], Size

= 150 − Size

. Fig-

ure 4 (up) shows an example of a dataset with 4 real

clusters. We can notice that these clusters have differ-

ent density and shape.

●

í í   

í í   

●

í í í   

í í   

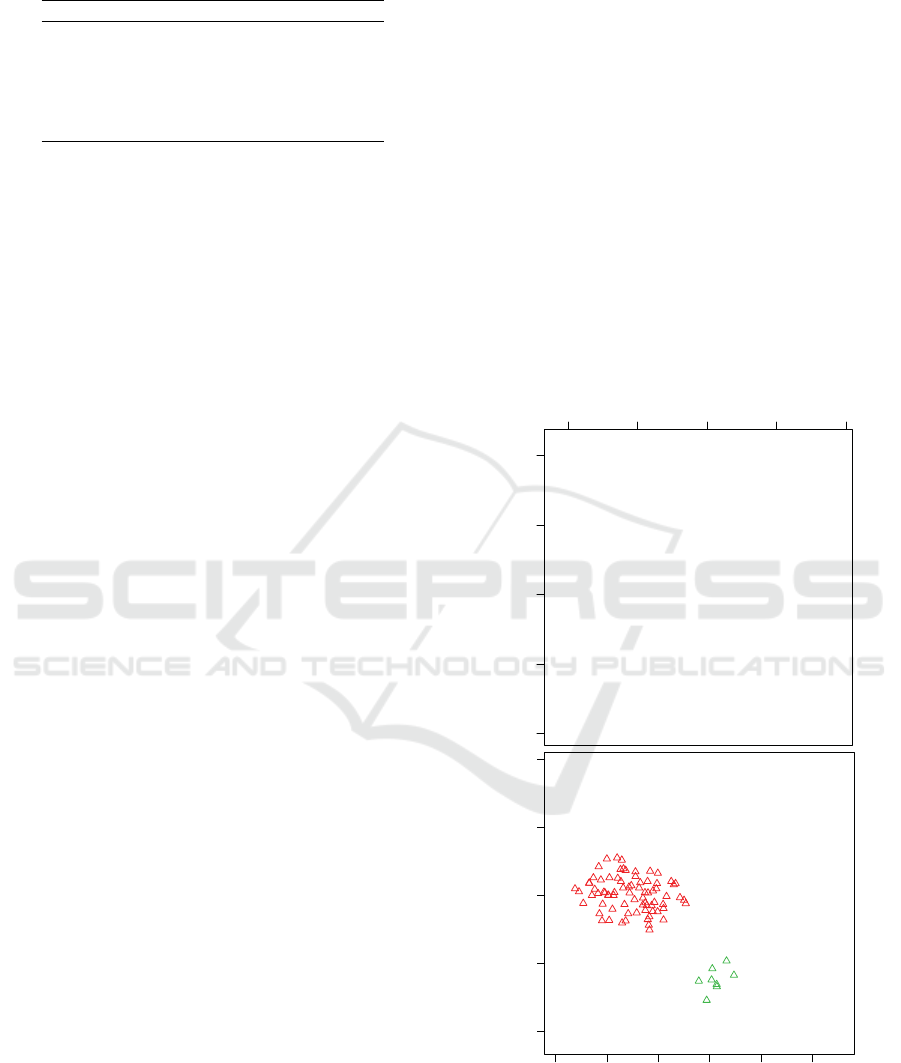

Figure 4: An example of generated dataset with 4 real clus-

ters (up) and the partition obtained after perform DBSCAN

(down) with 3 clusters.

The second step on our proposed methodology

consists in applying the DBSCAN algorithm to each

A Study on the Relationship between Internal and External Validity Indices Applied to Partitioning and Density-based Clustering Algorithms

generated dataset. A classic problem on density-

based clustering algorithms is to deﬁne the appropri-

ate values for the radius (ε) and minimum number of

points (MinPoints) to generate a good clustering re-

sult. Often this problem is solved by trial and error

(Chaimontree et al., 2010). However since we have

100 datasets we decide to adopt the strategy proposed

in (Zhou et al., 2012), which these parameters are

adaptive and self-adjusting without manual interven-

tion.

The approach to determine the parameters ε and

MinPoints for each dataset is divided into four stages

(Zhou et al., 2012):

i. Calculate the distance matrix for all data points

and sort the values of this matrix an ascending

order line by line. Compute the average of each

column (ε vector). So, ε vector[i] is the average

distance between a point and the i-th closer point.

ii. Calculate MinPoints using ε vector. Firstly we

verify how many points there are within ε con-

sidering the values of the distance matrix. For

instance, on the ﬁrst line of the distance matrix

we verify how many distances are smaller than

the ε vector[1], we apply the same for second

line and so on. These values compose the Min-

Points vector.

iii. Apply the DBSCAN algorithm using ε vector

and MinPoints vector as parameters. For each

pair ε vector[i], MinPoints vector[i] we perform

DBSCAN and store the number of resulted clus-

ters, composing the parameter matrix as exempli-

ﬁed on Table 3.

iv. Using the parameter matrix we can ﬁnd out when

the number of groups stabilizes and locate the op-

timal values of ε and MinPoints.

Following our method in the 2nd step we apply the

DBSCAN algorithm for the 100 generated datasets

considering the parameters ε and MinPoints calcu-

lated for each dataset as previously explained. Then,

Table 3: Example of parameter matrix generated to obtain

the values of ε and MinPoints for a dataset.

n ε MinPoints k Stability

1 0.00 -1 150 -

2 0.23 -1 81 69

3 0.34 1 49 32

4 0.42 3 10 39

5 0.50 4 6 4

6 0.55 6 5 1

7 0.60 7 3 2

8 0.65 8 4 -1

9 0.69 10 3 1

10 0.73 11 3 0

DBI

> 0.839

<= 0.839

LM 1

(29/112.796%)

LM 2

(71/50.888%)

Figure 5: Model tree using Jaccard as target feature ob-

tained on the second case study.

in 3rd step, the clustering results are evaluated using

all the cluster validity indices described in section 2.

In step 4, the cluster validity indices were trans-

formed and normalized to be used as input data for

data mining. Figure 4 (down) shows the partition re-

turned by DBSCAN applied on the original dataset

(up) considering ε = 0.493 and MinPoints = 6.

In step 5, we apply the linear regression algorithm

available on Weka for each cluster validity external

index using the internal ones, considering the same

parameter values used in case study 1 (Eq. 18-20).

J = 0.1927 S + 0.1712 Γ+0.0268 DBI +0.353 (18)

R = 0.5798 Γ + 0.2868 (19)

FM = 0.2585 S + 0.6064 (20)

We can notice that Silhouette has positive effect

on Jaccard and Fowlkes-Mallows external indices.

Gamma is also an important index for density-based

algorithms since it has positive effect on Jaccard and

Rand. The impact of C-index is insigniﬁcant since it

does not appear on these linear regression models.

We have also applied the M5 algorithm to ob-

tain regression model trees which estimate Jaccard,

Rand and Fowlkes-Mallows. For Rand and Fowlkes-

Mallows indices we obtain single node trees with lin-

ear models equals to the linear regression equations

19 and 20 respectively. For Jaccard we obtained the

model tree presented in ﬁgure 5. The LMs described

on equations 21-22 were obtained by inducing linear

regression models from the leaf nodes of this tree.

LM1

= 0.0657 S + 0.0584 Γ + 0.0091 DBI + 0.4464

(21)

LM2

= 0.0336 S + 0.2484 Γ + 0.0047 DBI + 0.353

(22)

From theses equations we can notice that C-index

was insigniﬁcant again since does not appear on the

LMs. DBI was important to split the instances in the

root but had insigniﬁcant contribution on the LMs.

Similar to linear regression Gamma index has posi-

tive contribution on the Jaccard value. Table 4 com-

pares the results of linear regression and model trees.

We can notice that Rand and Fowlkes-Mallows have

equal results for the two algorithms. The difference is

only for Jaccard results.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

Table 4: Regression evaluation using DBSCAN.

Index Regression Correlation RRSE

linear 65.48 75.58

M5 67.59 73.73

linear 72.59 68.78

M5 72.59 68.78

linear 64.29 76.59

M5 64.29 76.59

The analysis of models allows us to verify that the

most suitable cluster validity internal indices for eval-

uating the generated datasets using DBSCAN were

Silhouette and Gamma. The values of quality mea-

sures suggest a moderate correlation between them

and all three external indices.

5 CONCLUSION

In this paper we have investigated the relationships

between internal and external clustering validity in-

dices learning a set of regression models. The analy-

sis of these models allowed the inference of the most

suitable internal index for each method of clustering

algorithm. The experiments results point out that Sil-

houette and Gamma were the most suitable indices

for evaluating the datasets with compactness propri-

ety using k-means and the datasets with multiple den-

sity using DBSCAN.

Finally, our method can be seen as a template for

a general strategy for selecting an internal validity in-

dex in which speciﬁc clustering or regression algo-

rithms may be replaced by more effective or efﬁcient

ones in speciﬁc scenarios. As future work we high-

light the performance of new experiments using dif-

ferent clustering algorithms and real datasets.

REFERENCES

Baker, F. B. and Hubert, L. J. (1975). Measuring the power

of hierarchical cluster analysis. Journal of the Ameri-

can Statistical Association, 70(349):31–38.

Berkhin, P. (2006). A survey of clustering data mining tech-

niques. In Kogan, J., Nicholas, C., and Teboulle, M.,

editors, Grouping Multidimensional Data, pages 25–

71. Springer Berlin Heidelberg.

Berry, M. J. and Linoff, G. (1996). Data mining techniques

for marketing, sales and customer support. john willey

& sons. Inc., 1997, 454 P.

Chaimontree, S., Atkinson, K., and Coenen, F. (2010). Best

clustering conﬁguration metrics: Towards multiagent

based clustering. In Advanced Data Mining and Ap-

plications, pages 48–59. Springer.

Davies, D. L. and Bouldin, D. W. (1979). A cluster separa-

tion measure. IEEE Transactions on Pattern Analysis

and Machine Intelligence, PAMI-1(2):224–227.

Dunn, J. C. (1974). Well-separated clusters and optimal

fuzzy partitions. Journal of cybernetics, 4(1):95–104.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Kdd, volume 96,

pages 226–231.

Fowlkes, E. B. and Mallows, C. L. (1983). A method for

comparing two hierarchical clusterings. Journal of the

American statistical association, 78(383):553–569.

Goodman, N. (1963). Statistical analysis based on a cer-

tain multivariate complex gaussian distribution (an in-

troduction). Annals of mathematical statistics, pages

152–177.

Halkidi, M., Batistakis, Y., and Vazirgiannis, M. (2001a).

On clustering validation techniques. J. Intell. Inf.

Syst., 17(2-3):107–145.

Halkidi, M., Batistakis, Y., and Vazirgiannis, M. (2001b).

On clustering validation techniques. Journal of Intel-

ligent Information Systems, 17(2-3):107–145.

Han, J., Kamber, M., and Pei, J. (2006). Data mining, south-

east asia edition: Concepts and techniques. Morgan

kaufmann.

Handl, J., Knowles, J., and Kell, D. B. (2005). Computa-

tional cluster validation in post-genomic data analysis.

Bioinformatics, 21(15):3201–3212.

Hartigan, J. A. and Wong, M. A. (1979). Algorithm as 136:

A k-means clustering algorithm. Applied statistics,

pages 100–108.

Hubert, L. J. and Levin, J. R. (1976). A general statistical

framework for assessing categorical clustering in free

recall. Psychological bulletin, 83(6):1072.

Liu, Y., Li, Z., Xiong, H., Gao, X., and Wu, J. (2010). Un-

derstanding of internal clustering validation measures.

In Proceedings of the 2010 IEEE International Con-

ference on Data Mining, ICDM ’10, pages 911–916,

Washington, DC, USA.

Milligan, G. W. and Cooper, M. C. (1985). An examination

of procedures for determining the number of clusters

in a data set. Psychometrika, 50(2):159–179.

Quinlan, J. R. et al. (1992). Learning with continuous

classes. In 5th Australian joint conference on artiﬁcial

intelligence, volume 92, pages 343–348. Singapore.

Rand, W. M. (1971). Objective criteria for the evaluation of

clustering methods. Journal of the American Statisti-

cal association, 66(336):846–850.

Rousseeuw, P. J. (1987). Silhouettes: a graphical aid to

the interpretation and validation of cluster analysis.

Journal of computational and applied mathematics,

20:53–65.

Tan, P.-N., Steinbach, M., Kumar, V., et al. (2006). Intro-

duction to data mining, volume 1. Pearson Addison

Wesley Boston.

Tomasini, C., Emmendorfer, L., Borges, E. N., and

Machado, K. (2016). A methodology for selecting the

most suitable cluster validation internal indices. In

Proceedings of the 31st Annual ACM Symposium on

A Study on the Relationship between Internal and External Validity Indices Applied to Partitioning and Density-based Clustering Algorithms

Applied Computing, pages 901–903, New York, NY,

USA. ACM.

Vendramin, L., Campello, R. J., and Hruschka, E. R.

(2010). Relative clustering validity criteria: A com-

parative overview. Statistical Analysis and Data Min-

ing, 3(4):209–235.

Xu, R. and Wunsch, D. (2009). Clustering. IEEE Press,

Piscataway, NJ, USA.

Xu, R., Wunsch, D., et al. (2005). Survey of clustering

algorithms. Neural Networks, IEEE Transactions on,

16(3):645–678.

Zhou, H., Wang, P., and Li, H. (2012). Research on

adaptive parameters determination in dbscan algo-

rithm. Journal of Information & Computational Sci-

ence, 9(7):1967–1973.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems
