A Novel Clustering-based Approach for SaaS Services Discovery in

Cloud Environment

Kadda Beghdad Bey

, Hassina Nacer

, Mohamed El Yazid Boudaren

and Farid Benhammadi

Informatics Systems Laboratory, Ecole Militaire Polytechnique, Algiers, 16111, Algeria

MOVEP Laboratory, University of Science and Technology, USTHB, Algiers, Algeria

Keywords: Cloud Computing, Resource Allocation, Software as a Service (SaaS), Services Discovery, Web Service,

Multi-agents Systems, Clustering Methods, Matching.

Abstract: Cloud computing is an emerging new computing paradigm in which both software and hardware resources

are provided through the internet as a service to users. Software as a Service (SaaS) is one among the important

services offered through the cloud that receive substantial attention from both providers and users. Discovery

of services is however, a difficult process given the sharp increase of services number offered by different

providers. A Multi-agent system (MAS) is a distributed computing paradigm-based on multiple interacting

agents- aiming to solve complex problems through a decentralized approach. In this paper, we present a novel

approach for SaaS service discovery based on Multi-agents systems in cloud computing environments. More

precisely, the purpose of our approach is to satisfy the user’s needs in terms of both result accuracy rate and

processing time of the request. To establish the interest of the proposed solution, experiments are conducted

on a simulated dataset.

1 INTRODUCTION

Scientific applications are becoming increasingly

complex and distributed. They are faced with the

challenges of the information heterogeneity used and

the decentralization of processing and controls.

Thanks to the evolution of IT, especially the web and

virtualization, a new way has been created to offer IT

as a service in an economic context and, at the same

time, solve all computational and storage problems.

Cloud computing is proposing to be the most

appropriate solution. It is an internet-based

computing, where computing resources, softwares

and information hosted in an ultra secure data center

are provided to clients on demand.

In recent years, cloud computing has taken a

considerable step as a new paradigm for distributed

computing. It is becoming an ideal system for

distributed computing communities, thanks to the

advantages of the proposed services and the easy

access to the information without limitation nor place

or time. The deployment of cloud solution enables

users to develop their different services in a

distributed environment consisting of a large number

of computing problems free resources with a very low

operating cost. Services discovery remains however,

one of the most difficult and important problems that

Internet users meet, particularly due to the large

number of services published by different providers.

The diversity and evolution of services presented in

different levels, as well as the non-standardization of

the description languages of cloud services, search

services in a cloud environment is a very difficult task

in order to meet all client requirements (Parhi et al.,

2015). Moreover, Multi-Agent Systems (MAS)

propose a new metaphor based on social concept

which is the “agent” notion. They are a promising

paradigm for modeling, analysis and design applied

to many development and research areas such as

solving distributed problems. Multi-agent systems are

often used to solve complex problems based on

decentralized approach where a set of agents

contribute collectively to find a solution.

With the exponential growth in the number and

functionality of cloud services, as well as the diversity

of technologies used for their presentation, the

problem of determining a strategy for SaaS services

discovery in cloud has become a challenging issue

(Pirro et al., 2010). In this context, we present a new

SMAs-based approach to SaaS service discovery in

the cloud using two complementary modules. The

first is responsible for SaaS services publication

offered by providers that are organized in “clusters”,

546

Bey, K., Nacer, H., Boudaren, M. and Benhammadi, F.

A Novel Clustering-based Approach for SaaS Services Discovery in Cloud Environment.

DOI: 10.5220/0006328205460553

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 1, pages 546-553

ISBN: 978-989-758-247-9

in order to reduce the search space. For this purpose,

the new clustering algorithm is proposed based on

some Data mining techniques in order to resolve the

overlapping problem. The second one provides, on the

other hand, the selection of the most relevant SaaS

services based on a set of agent behavior, which

ensure an efficient management of cloud resources

and enable the matching algorithms execution.

The remainder of the paper is organized as

follows. Section 2 summarizes some previous works

related to SaaS services discovery in cloud system.

The definition and modeling problem of SaaS service

discovery are introduced in Section 3 where the

proposed SaaS service discovery system-based on

multi-agent are also presented. Simulation results and

related discussion are presented in Section 4. Section

5 concludes the paper.

2 RELATED WORKS

Developing efficient systems for services discovery

and composition has become an essential task. This is

mainly due to the evolution in number and

functionality of services and technologies of

development tools in distributed systems in general

and cloud computing in particular, in order to

determine and select the best services desired by

customers. Indeed, service discovery is becoming

increasingly critical in areas where the names or the

service description based on inputs/outputs are not

sufficient for service publication through different

providers or for services identification by users. The

success of SaaS services involved the adoption of this

technology by different service providers through the

cloud, which induces the increasing of SaaS number

and makes the discovery problem a tedious task. SaaS

services discovery is an emerging area of cloud

computing research which aims to automatically

detect the services consisting of a set of applications

and data components in a cloud.

In literature, plethora of solutions for SaaS

services discovery and research has been proposed

(Li and Chen, 2014) (Guerfel et al., 2015) (Fan et al.,

2015b). The aim of these discovery approaches in

cloud environment is to determine an optimal

resources allocation and to satisfy the user’s needs in

terms of results accuracy rate and the processing time

of the customers’ requests. (Fan et al., 2015b)

proposed an integrated SaaS-based personalization

framework to facilitate the preferences collection and

the corresponding SaaS services delivery. The

adapted approach by authors for the design and

development of this framework is based on the

synthesis principle of various models and techniques

in a novel way. This proposal is an extension of a

semantic client-side personalization approach

presented in (Fan et al., 2015a) by integrating Rich

Client and Semantic Web for SaaS-based

personalization in order to improve the efficiency in

gathering user profile data and reducing the overhead

of server-side computing.

The work by (Wu et al., 2011) presents a resource

allocation algorithm for SaaS providers in order to

minimize infrastructure cost and SLA violations. The

aim of this approach is to ensure that SaaS providers

are able to manage the dynamic change of customers,

mapping customer requests to infrastructure level

parameters and handling heterogeneity of Virtual

Machines. (Alfazi et al., 2014) proposed a novel

ontology-based approach for cloud service discovery.

The proposed approach has the capability to generate

the ontology semi-automatically using new concepts

from documents related to cloud services. (Chen and

Li, 2011) proposed a Cloud solution called SRC

(Service Registry on the Cloud), which represents an

extension of keywords based model but deployed as

an application on the cloud. The model SRC stores

semantic descriptions of Web services as well as the

evaluation of the state dynamic of QoS under the GFS

(Google File System) file in the Cloud, and use the

Map Reduce mechanism for dealing with these files.

GoDiscovery (Elshater et al., 2015) is a discovery

system that aims to present effective discovery

approach using statistical modeling and indexing

techniques. It generates Term Frequency-Inverse

Document Frequency (TF-IDF) model for corpus

Service, then it builds a tree index K-Dimensional for

the model search. On the other hand, a new approach

based on multi-agents system for ser- vices discovery

in cloud environment has been introduced by (Han

and Sim, 2010). The proposed prototype of Cloud

Services Discovery System (CSDS) consists of a

search engine and three agents: Query Processing

Agent that locates information resources by running

regular research engines, Filtering Agent which

relieves users of long and painful tasks, and Cloud

Service Reasoning Agent which consults the cloud

ontology for reasoning about the relationships

between cloud services. (Parhi et al., 2006) proposed

a framework based on multi-agent system to support

the description and discovery of cloud services. The

authors involve an artificial intelligence approach to

efficiently interpret the user requirements based on

both functional and nonfunctional demands and fuzzy

constraints. The main objective of this approach is to

reduce the search space due to implementation of

distributed service oriented architecture.

A Novel Clustering-based Approach for SaaS Services Discovery in Cloud Environment

547

3 SaaS DISCOVERY SYSTEM

As described in previous sections, SaaS services

discovery is an emerging area of research which

allows to automatically detecting services in a cloud

environment. This section describes the proposed

agent-based system for SaaS service description and

discovery in cloud which is a hybridation of two

approaches in order to meet the limits encountered by

the developers.

3.1 Definition and Modeling Problem

The Cloud represents today a new platform of

distributed computing where users search, discover

and share information. In this context, the cloud

service discovery process, in particular SaaS services

are fundamental and allow one to make the link

between information published by SaaS providers

and users queries. In general, such a process is based

on a “textual” or “keywords” research, but this type

of research cannot always identify the most relevant

services. So the challenge is to satisfy the user by

responding to his request with the suitable services

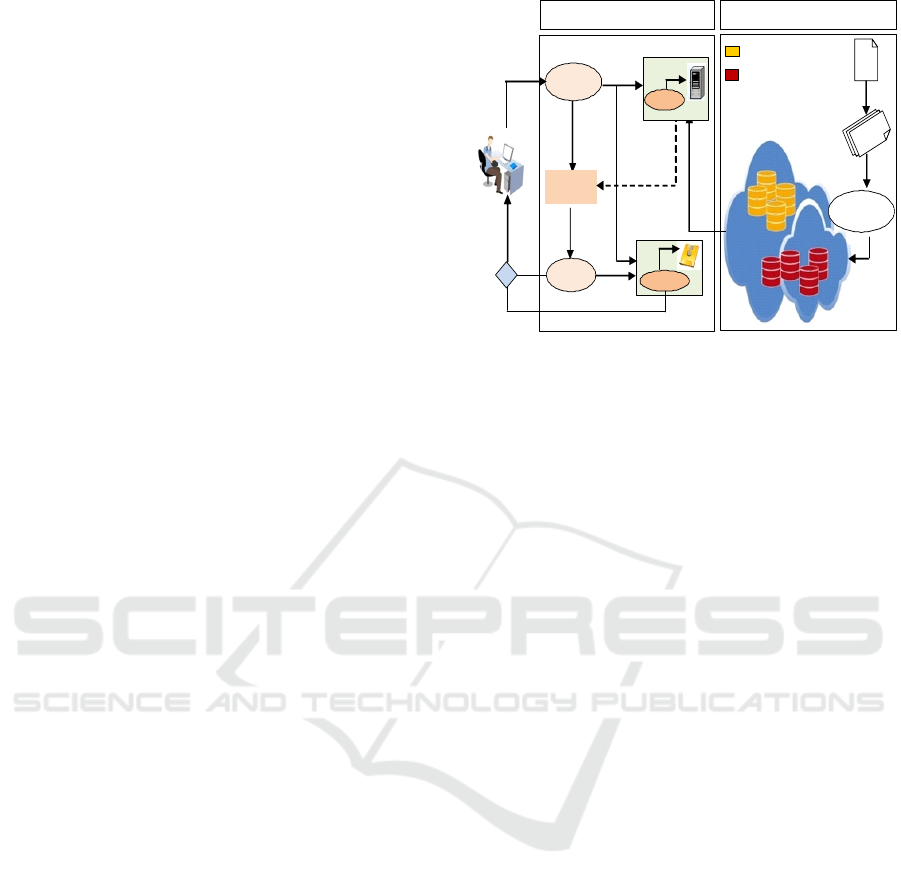

automatically. Figure 1 represents conceptual

diagram of the proposed SaaS service discovery

system in cloud environment. It comprises different

phases, including: Services collection, Service

description and clustering, Requests generation,

Matching process, Service Selection and

Personalization.

Despite the considerable number of proposed

SaaS services discovery solutions in the literature, the

discovery problem remains a very active area of

research. Several reasons have motivated the

scientists to propose other solutions to improve the

existing performances discovery systems. Thus, we

have explored this track to propose a new discovery

mechanism consisting of two main layers:

- Publication Layer: is responsible for the description

and organization of the proposed services by sup-

pliers on different clusters in an appropriate manner

in order to stock them in the services database after

validation;

- Discovery layer:

is the process that allows one to

find all the relevant services based on their

characteristics, in order to facilitate the services

search. The discovery process is responsible for the

generation of the user’s query and matching process

that compares the services description saved in a

services database with those of the user query to

identify services that are relevant.

Figure 1: Architecture of the proposed discovery system.

The system modeling was made by the multi-

agent system to have an intelligent and effective

management of cloud resources and each principal

task must be supervised and executed by a specific

agent. Furthermore, agents must cooperate and

collaborate, and their behaviors should be

harmonious to avoid possible conflicts in the dynamic

resource management. The last point is important for

the combination of two future technologies namely,

Agents and Cloud technology.

This combination allows the creation of a new

generation of service-oriented agents, which designed

to push limitations and capabilities of the resource

management, towards management systems more

intelligent and more appropriate to customer needs.

Figure 2 shows an overall view of the proposed SaaS

services discovery system modeled by the SMAs. The

five main SaaS service discovery agents are: Agent

administrator, agent interface, agent index, agent

matching and agent resource.

Interface Agent:

is responsible for transmitting client

requests to regeneration module of query for

translating them to SQL requests before sending them

to the Manager Agent. Moreover, it displays the

results of SaaS service discovery found by the Multi-

agents system to clients.

Manager

Agent: provides the following

functionalities: (i) the reception of the request after

regeneration and the creation of a customer file to

store the functional

and non-functional requirements

of each request; (ii) sends the request to search agents

namely cache agent, index agent and matching agent;

(iii) the reception of different services that are found

by the cache agent as well by the matching agent, and

sends the results to the interface agent.

Service

Classificatio

ublication La

Service

Service Description

St ockage cl uster

Computing cluster

Reque st

Disco

Ma t c h i ng

Services

Sorti ng

Key Word

Cl ust ers

Results

Cache

Index

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

548

Index Agent:

aims to find the appropriate cluster

index. It hosts the search mechanism after that

receives the manager request to find the appropriate

cluster. Then, it communicates with the agent

manager to confirm that finished the search in order

to send the identified cluster to the matching agent.

Matching Agent:

shuts off after identification of the

cluster found by the index agent and executes the

matching algorithm to sort the SaaS of the selected

cluster. Finally, it sends the final results concerning

the SaaS service found to the manager agent.

Resource Agent:

periodically finds the available

resources in the Cloud. When an agent wants to run

those appropriate algorithms, resource agent consults

the state of available processing resources for running

and distributing the different tasks in order to improve

the performance of SaaS service discovery systems.

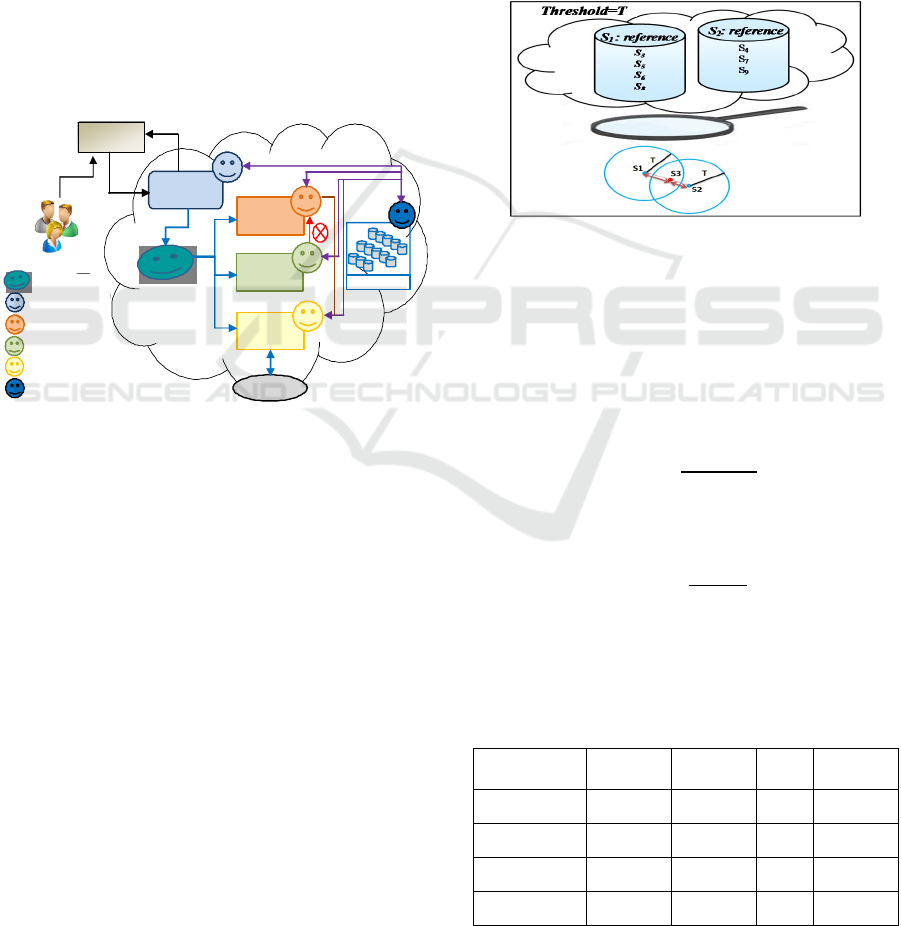

Figure 2: System architecture modeled by SMAs.

3.2 Proposed Clustering Algorithm for

SaaS Services Publication

The work by (Alfazi et al., 2015) proposes a

clustering algorithm for SaaS service based on

grouping by functionality. The principle is to choose

randomly from the SaaS services database one service

as a “reference service” for the first cluster. Then, it

calculates the similarity between this reference

service and other services of cloud sources. All

services with a higher similarity than a predefined

threshold “T” will be removed from the set of cloud

services source and added to the first cluster. This

procedure is repeated until all services are affected to

clusters (Alfazi et al., 2015). Although presented

algorithm achieves a good classification of SaaS

services, there are gaps in the choice of references for

each cluster services. Also, there may be an overlap

problem between clusters due to misallocation of

services.

Figure 3 illustrates this problem using this

clustering approach. To overcome this drawback, we

propose an improved algorithm by adding another

treatment between the ranked service as reference and

the already classified services in previous clusters.

This calculation is used to ensure a good affectation

of appropriate service to each cluster and each

similarity computation will be saved for comparison

with respect to the new reference service the

maximum will be chosen. Algorithm 1 describes in

detail the steps of services affectation to different

clusters according to our approach, which solves the

overlap problem.

Figure 3: Presentation of overlap problem.

Similarity Computing:

The “similarity” parameter

used in the previous algorithm, is calculated by

following the steps below:

Calculation of the number of occurrences of each

concept in each service, as shows in table 1.

Calculation of the frequency of each concept in

each service, using the following equation:





,



=



∑(





)





(1)

3. The similarity between two services S

and S

given by the following formula:

=



























(2)

Such as:





=

(



,



)

,

(



,



)

,

(



,



)

,...

(



,



)



Table 1: Calculation of the occurrences number for each

concept in each service.

Concept 1

)

Concept 2

)

……

Concept N

)

Service 1 (S

)

…… N

Service 2 (S

)

…… N

…

Service m (S

)

…… N

Interface

Request

Regeneration

Search in

index

Search in

Cache

Matching

Sorting

Set of clusters

Resource request

Request

Clients

Key Words

Manager Agent

Interface Agent

Index Agent

Cache Agent

Matchi ng Agent

Resource Agent

A Novel Clustering-based Approach for SaaS Services Discovery in Cloud Environment

549

Algorithm 1: Clustering algorithm for Cloud Saa

services.

Input: - A set of SaaS services S= {S

, S

, …….S

} ;

T= Threshold ;

// T is a fixed value of similarity threshold

Output: A set of Clusters C= {C

, C

, ……..C

};

K=1 ;

Affect S

to C

and remove it from S ;

while S ≠

Simil

max

= -1 ;

for m = 1 → k do

Compute Simil (S

, S

) ;

// S

is the reference service of cluster k

if (Simil > Simil

max

) then

Simil

max

← Simil

K' ← K

end if

end for

if (Simil

max

> T) then

Affect S

to C

k’

;

Remove S

from S ;

Save Simil (S

, S

rk’

) ;

else

Create new C

k+1

;

Affect S

to C

k+1

;

is S

rk+1

;

// reassignment of exist services in C

for (m=1, m<k, m++) do // number of cluster

j=2 ;

while (C

not end) do

Compute Simil (S

, S

) ;

if Simil > S

.Simil then

.Simil ; similarity between S

et S

Affect S

to C

k+1

;

Remove S

j from

;

Save the new similarity ;

end if

j=j+1 ;

end while

end for

K=k+1 ;

end if

end while

3.2 SaaS Services Discovery Approach

The proposed approach is composed of two parts: the

cluster identification component and the services

matching component. The first is responsible of

identifying the cluster functionally responding to the

user query. The second is based on the use of the

“cluster index” that simplifies and speeds up the

search operation. The index contains the functional

description of each cluster which is expressed by its

reference service. The search algorithm computes the

similarity between the reference services of each

cluster and the keyword vector of the user query and

chooses the maximum similarity in order to ensure

the desired functionality. Once the cluster is selected,

the role of the services matching component is to

select the services with high similarity to the user

preference using a matching algorithm based on

similarity between query concepts and all functional

description parameters of services expressed in the

WSDL document. This algorithm is applied to find,

among the cluster services, the most similar SaaS

services having greater probability to user’s

preference.

The primary problem of discovery approaches lies

in the choice of concepts matching techniques (i.e.,

similarity measures) and / or the matching algorithms

optimization. In the proposed discovery approach, we

have chosen to compute similarity with SimWP (Wu

and Palmer, 1994) that finds the most similar

concepts between two ontologies. It calculates the

semantic proximity between two concepts through

ontology arcs. The similarity measure depends only

on the concepts depths, and since most ontologies

have limited depths compared to the concepts

number, then the execution time of the measurement

is always acceptable. It was decided for the similarity

computing to use the semantic lexical database

WordNet. First, we calculate the similarity between

two concepts. The calculation principle is given by

formula (3):



(





,



)

2∗ℎ

(





,



)



ℎ

(





)

+ℎ

(





)



(3)

with: - Depth(C



) and(C



): is the number of arcs that

separate C



and (C



) to the ontology root O.

- SS(C





): is the Smallest Subsumption of C



and C



(i.e., the common ascendant between C



and C



farthest away from the root).

Having computed the similarity between two

concepts, we now calculate the SimWP similarity

between the user query and services, which are both

expressed by a set of concepts. A similarity

computing example using ontology is shown in

Figure 4. Let T

= (C

, C

, ..., C

) denote the request

concepts and T

= (C'

, C'

, ..., C'

) the service

concepts, based on the above computing, we

determinate a similarity matrix between T

and T

, as

follows:

=



∗



=

(



,′



)…(



,′



)

⋮⋱⋮

(



,′



)…(



,′



)



(4)

Then, we construct the MaxL sequence by

searching the existing maximum in the matrix and

removing the row and column to which this

maximum element belongs. The previous step is

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

550

repeated until the number of the matrix elements is

equal to zero:

=

(





,



,···,



)

(5)

Therefore, the SimWP similarity computing is

given by the following formula:

=

(

1/

)









(6)

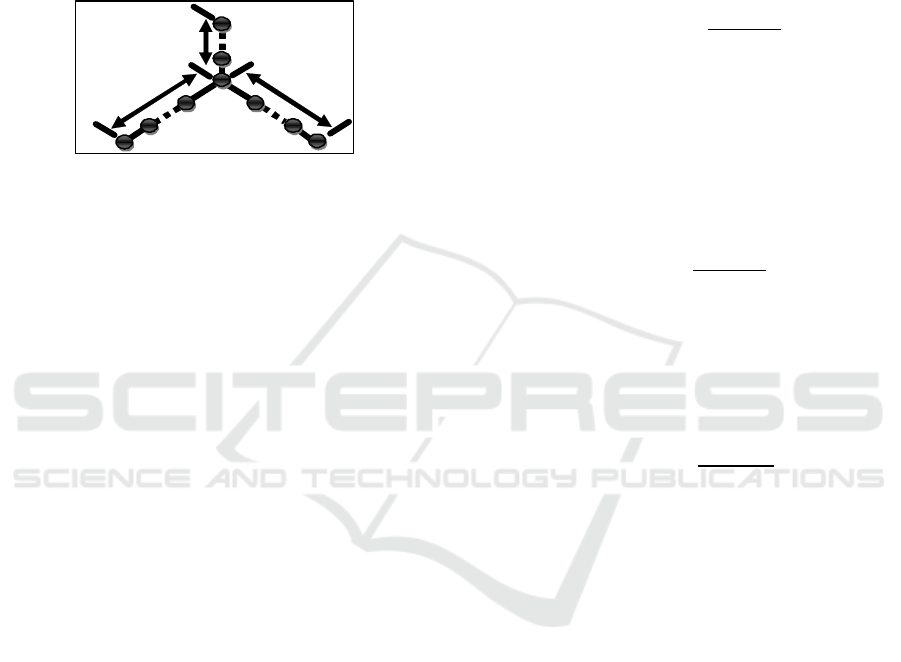

Figure 4: Example of SimComp measure computing.

4 SIMULATION RESULTS

In this section, we present an evaluation of the

proposed SaaS services Discovery system for cloud

environment. The proposed system is composed of

two complementary modules: Publishing and

Discovery SaaS service. Let us first present the test

environment in which our system will be developed.

We describe the used platform, the services data base

that will constitute the simulation data, and the

WordNet database as a calculation tool. WordNet is a

lexical database for the English language developed

by the cognitive science laboratory of Princeton

University. Its purpose is to list, classify and relate in

various ways the semantics and lexical content of the

English language. For the SaaS services database, we

used an open source corpus OWLS-TC4 version. This

database describes a set of services web through

OWLS documents, it contain 1083 web services

distributed in 7 classes according to the conceived

ontology. To evaluate the performance of the

proposed system, we conducted two measurement

experiments: the first part is devoted to evaluating to

the Clustering algorithm while the second one aims at

approving the discovery process using several types

of simulation. We evaluate the different algorithms

through a set of simulation tests.

4.1 Parameters Adjustment

To study and compare discovery systems, a measure

must be defined to evaluate their performance.

Different measures are used in the literature, which

makes comparisons often difficult. In this paper, we

choose two measures which are the precision rate and

the recall rate. Then, Accuracy is used to evaluate the

proposed Clustering algorithm. To evaluate the

discovery mechanism, we choose the Recall and

Accuracy rates, and the Execution Time. The

formulas of all such metrics are defined as following:

Accuracy (A): is the ratio between the correct

answers provided by the system and the total number

of responses:

=









+



with Tp (True Positive) being a correct result, and

considered as valid by the system; whereas Fp (False

Positive) is an erroneous result, but considered valid

by the system.

Recall (R): is the ratio between the correct answers

provided by the system and the actual number of

correct answers belonging to the data base:

=









+



with:

- Fn: False Negatives (a correct result, and

considered false by the system);

F-measure: is the harmonic means that takes into

consideration both Accuracy (A) and Recall (R):





∗∗

+

4.2 Clustering Parameters

The proposed clustering algorithm is based on two

parameters, which are the similarity threshold

between services and service description types. For

that, a study was carried out on the number of clusters

formed with different service samples (917, 647,

307,170 services), using three different types of

description: input, output and input + output. This

clustering computing is implemented with different

threshold values (0.4, 0.5, 0.6, 0.7). Table 2 illustrates

the obtained results for determining the similarity

threshold value and the service description type used

in our Clustering approach.

According to the results obtained, the number of

clusters described by the input and input + output

descriptions is proportional to the number of services

for the different thresholds values. Also, for the

services using the output description, the cluster

number is almost constant. This shows that there is

services diversity describing by input or input +

output, because with few services we have a limited

Depth (SS (C

, C

))

Root

Depth (C

)

Depth (C

)

A Novel Clustering-based Approach for SaaS Services Discovery in Cloud Environment

551

Clusters number of services. On the other hand,

increasing the number of services lead to two cases:

(i) with the input description, the clusters number

remains almost the same because the new services

will be classified in existing clusters; and, (ii) with the

input and input + output description, the clusters

number increases because there is no similarity

between the services and the existing clusters. Hence,

the output type is the best-suited description whereas

the best threshold value is 0.5 because the clusters

number is small and the services have been grouped

according to their objectives.

Table 2: Definition of the Clustering parameters.

Threshold Description

Services number

170 307 647 917

Number of clusters

0.4

Input

Output

In + Out

117

0.5

Input

Output

In + Out

112

198

135

0.6

Input

Output

In + Out

118

100

169

151

0.7

Input

Output

In + Out

151

100

101

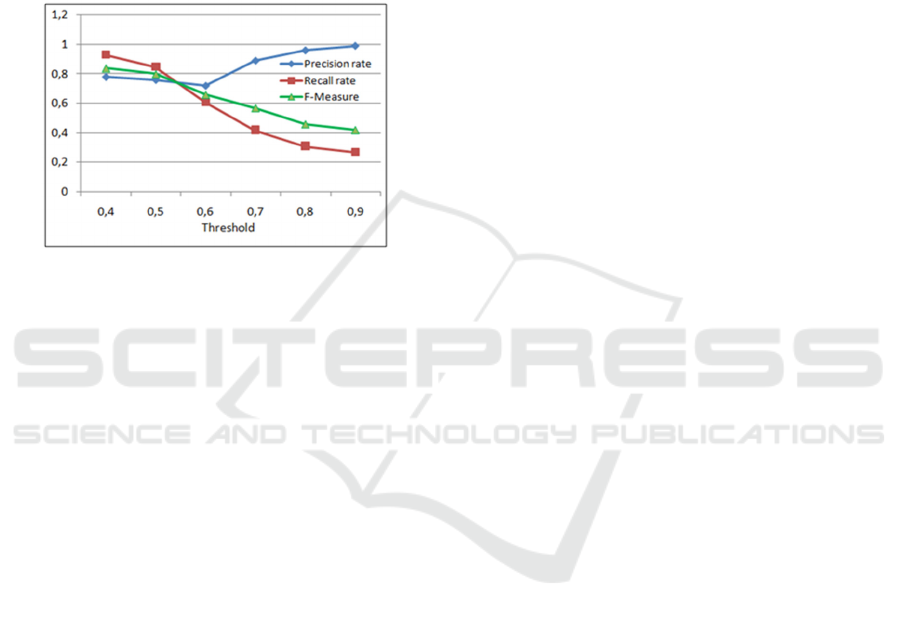

4.3 Performance Measurement

In order to evaluate the proposed clustering

algorithm, we conducted various experiments and

comparisons. For this, we have used a set of 548

services distributed in 8 classes according to the

conceived ontology (Klusch and Kapahnke, 2010).

However, it is necessary to randomly select the

services of each cluster and verify if the chosen

cluster by the indexing approach is the appropriate

one. Table 3 shows a sample of test results and

performance measure in terms of Precision and Recall

provided by our Clustering algorithm. As shown in

Table 3, the proposed clustering algorithm has higher

precision and recall for all identified cluster

categories. For instance, the maximum error rate of

our algorithm is 0.104 for the address information

category. This error is due to the informal query

processing which is a set of concepts.

Table 3: Performance measures of the proposed approach.

Cluster
