Software Testing Process in a Test Factory

From Ad hoc Activities to an Organizational Standard

Rossana Maria de Castro Andrade

1, ∗

, Ismayle de Sousa Santos

1, †

, Val

eria Lelli

athia Marc¸al de Oliveira

and Ana Regina Rocha

Federal University of Cear

a, GREat, Fortaleza, CE, Brazil

University of Valenciennes, LAMIH, CNRS UMR 8201, Valenciennes, France

Federal University of Rio de Janeiro, COPPE, Rio de Janeiro, RJ, Brazil

Keywords:

Software Testing, Test Factory, Test Process.

Abstract:

Software testing is undoubtedly essential for any software development. However, testing is an expensive

activity, usually costing more than 50% of the development budget. Thus, to save resources while performing

tests with high quality, many software development companies are hiring test factories, which are specialized

enterprises for the delivery of outsourced testing services for other companies. Although this kind of organi-

zation is common in the industry, we have found few empirical studies concerning test factories. In this paper,

we report our experience in the deﬁnition, use, and improvement of a software testing process within a test fac-

tory. To support the implantation of the test factory, we applied the PDCA (Plan-Do-Check-Act) cycle using

the lessons learned in the PDCA check phase to improve the testing process. As a result, we have decreased

the number of failures found after the software delivery and thus a higher value for DRE (Defect Removal

Efﬁciency) measure. We also present 12 lessons learned that may be applicable by other test factories.

1 INTRODUCTION

Software testing is one of the most expensive and

time-consuming activities during software develop-

ment (Shamsoddin-motlagh, 2012). The costs associ-

ated with this activity can reach more than 50% of the

total costs of producing software (Myers et al., 2011).

This high cost is because test requires time, knowl-

edge, planning, infrastructure, and skilled personnel

(Myers et al., 2011). Also, as the software often has

to be delivered as soon as possible, the time avail-

able for the testing activity is usually compromised.

Besides, the testing of particular kinds of applications

(e.g., mobile applications) can be challenging (Dantas

et al., 2009; Bezerra et al., 2014).

Currently, hiring testing services from indepen-

dent organizations, named test factories (Sanz et al.,

2009), has become common in the industry. Test fac-

tories can be seen as software factories specialized in

software testing. By leveraging test factories services,

a software development project can beneﬁt from tests

∗

Researcher Scholarship - DT Level 2, sponsored by

CNPq

†

PhD Scholarship (MDCC/DC/UFC) sponsored by

CAPES

with high quality and low cost since a software project

does not need to invest in its own test team. There-

fore, we decide to implement a test factory to provide

testing services not only for the Research and Devel-

opment and Innovation (R&D&I) projects executed

in our research group

but also to external companies.

With this belief in mind, we have been working in the

software testing process deﬁnition in a test factory

since 2013.

We highlight that test factories should work in a

close relation with their customers (other software or-

ganizations that develop the software system to be

tested) to be efﬁcient. Thus, the deﬁnition of roles, re-

sponsibilities and competencies should be clearly de-

ﬁned in both parties: the test factory and the customer

(software organization). Moreover, the control and

tracking of the correction of bugs detected should be

made to ensure traceability. Unquestionably, a soft-

ware process that deﬁnes all activities, roles, and arti-

facts (used and produced in the activities) is a good

Group of Computer Networks, Software Engineer-

ing and Systems (GREat) - http://www.great.ufc.br/

index.php/en/

http://fabricadetestes.great.ufc.br/

132

Andrade, R., Santos, I., Lelli, V., Oliveira, K. and Rocha, A.

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard.

DOI: 10.5220/0006333301320143

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 132-143

ISBN: 978-989-758-248-6

practice to address all these requirements. We ar-

gue that the deﬁnition and institutionalization of a

testing process should be performed on a continuous

improvement cycle mainly in the case where two or

more organizations should interact to assure the exe-

cution of the activities and their internalization in all

parties involved.

This paper presents how software testing activities

were continually integrated using a process continu-

ous improvement cycle based on the lessons learned

collected. So, the main contribution of this work is

to report our experience on a deﬁnition, use, and im-

provement of a standard test process within a test fac-

tory. We also present 12 lessons learned that can

be applicable by other test factories or in-house test

teams to improve their software testing process.

The paper is organized as follows. Section 2 re-

ports our experience in software testing process im-

provement from the ad hoc testing to the standard

test process. Section 3 discusses the results achieved.

Section 4 present the related work and, ﬁnally, Sec-

tion 5 presents our conclusion and future work.

2 SOFTWARE TESTING

PROCESS DEFINITION, USE

AND IMPROVEMENT IN

PRACTICE

To deﬁne software testing activities, we followed the

well-known cycle for process continuous improve-

ment proposed by Johnson (Johnson, 2002): the

PDCA (Plan-Do-Check-Act). The PDCA has four

steps. It begins with the planning and the deﬁnition

of improvement objectives. Next, the planning is exe-

cuted (Do) and then evaluated (Check) to see whether

the initial objectives are achieved. Actions are taken

based on what was learned in the check step. If the

changes are successful, they are included in the pro-

cess. If not, it is necessary to go through the cycle

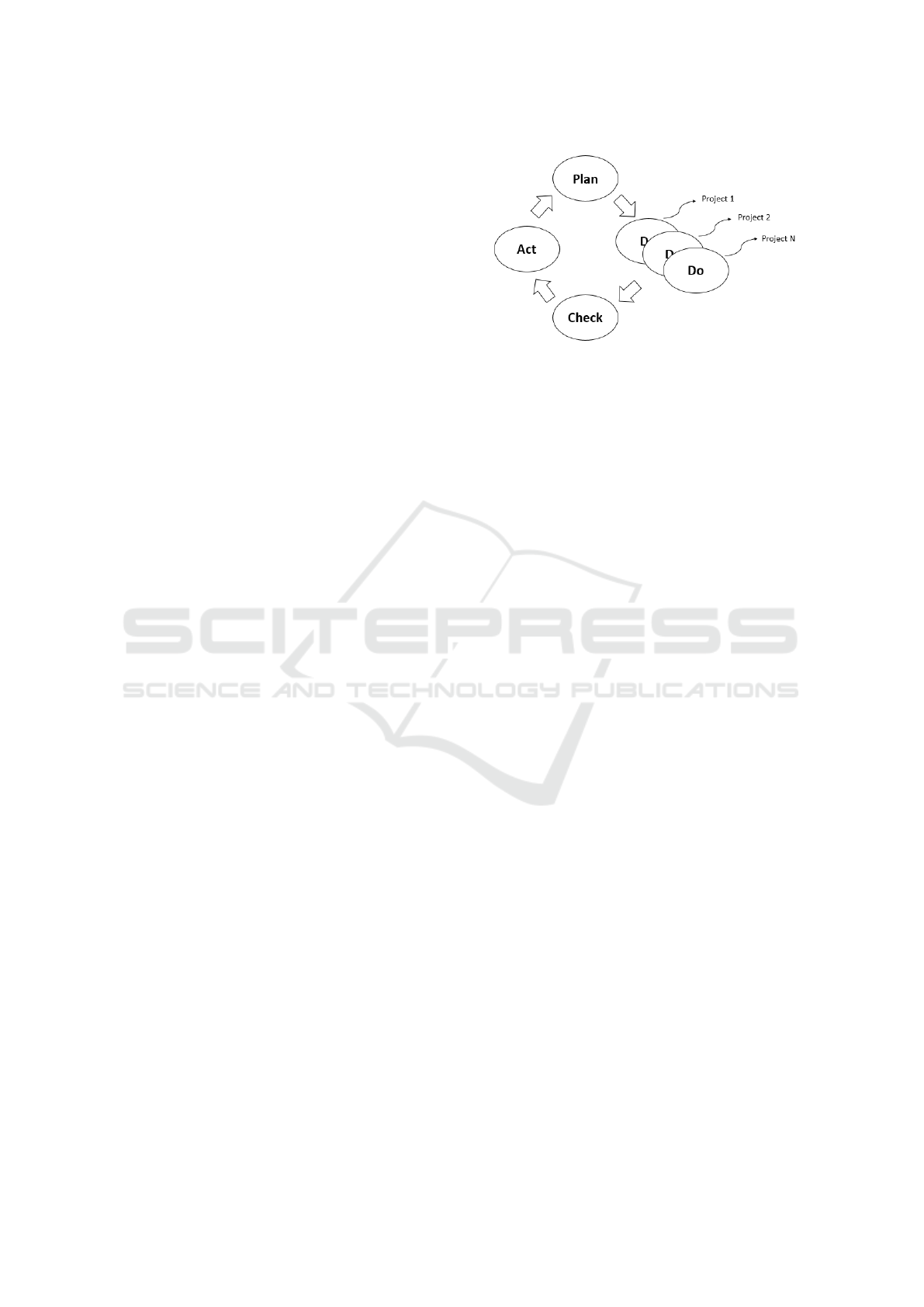

again with modiﬁcations in the original plans. Figure

1 shows the PDCA cycle used during the testing pro-

cess improvement described in this paper. We high-

light that the several Do in that ﬁgure represent the

application of the planning in more than one testing

project. We followed this strategy to acquire more

data to support the Check phase.

It is worth noting that we have applied our test-

ing process on several software projects (e.g., mobile

and web projects) from the same company, but they

have different product owners and/or project man-

agers. Thus, this scenario enabled us to collect feed-

back from several customer’s teams while we ran the

Figure 1: PDCA Cycle used in the testing process improve-

ment.

PDCA cycle.

Next section describes the study object, i.e., the

testing process used before the improvement. Then,

the following sections present the two cycles of the

improvement performed. Each cycle was started by

the deﬁnition of goal (planning), and ﬁnalized with

the deﬁnition of actions to be carried out in the next

cycle. These actions were deﬁned by the analysis of

lessons learned collected after the execution of the

planning in different projects.

2.1 Before the Test Factory: Ad hoc

Testing

The creation of our test factory was motivated by

the need of one mobile manufacturer company, our

main client, who does not have expertise in soft-

ware testing. Once this client worked with Scrum

methodology (Schwaber and Sutherland, 2016), we

have started by identifying how to integrate testing

activities as a service in its agile process. Scrum

works with the concept of sprint, a time boxed effort

during which a potentially releasable product incre-

ment is created, and with three roles (Schwaber and

Sutherland, 2016): (i) Product Owner, responsible

for maximizing the value of the product; (ii) Devel-

opment team, consisting of professionals who do the

work of delivering a potentially releasable increment

of “Done” product at the end of each sprint; and (iii)

Scrum Master, responsible for ensuring Scrum is un-

derstood and enacted.

In the Scrum, the testing (now “agile”) is inte-

grated with development efforts, being required tests

for each product backlog item (e.g., a software func-

tionality) (Myers et al., 2011). Thus, our initial goal

was to encourage our customer to incorporate more

test procedures in the software development. To do

so, a test analyst was allocated to work closely with

the software development team performing test activ-

ities as required. Following the Scrum, the test an-

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

133

alyst performed functional testing at the end of each

sprint. Furthermore, the developers created both unit

and system tests without planning or documentation.

One complete software project with eight developers,

named here P1, was developed and tested following

this structure. The duration of this project was about

ten months (August 2013 until May 2014). With re-

gard to the system tests, most of them failed (47%)

and the failures were classiﬁed as critical, i.e., bugs

that block the software. This high percentage of failed

tests and the delay to ﬁnd critical bugs motivated us to

investigate how to improve our test process to identify

the bugs as early as possible.

2.2 First Cycle: Establishing Test

Procedures

As mentioned in Section 2.1, the analysis of the re-

sults obtained from the ad hoc testing approach moti-

vated us to adopt some practices and to formalize our

testing process.

The ﬁrst practice is to allocate the test analyst to

support the implementation of both unit and integra-

tion tests performed by the developers. First, the test

analyst pointed out the basic tests scenarios, which the

developers should implement by using JUnit tool

. In

some cases, the test analyst also performed “Pair Test-

ing”

with each developer until they can create good

tests cases at both unit and integration level.

The second practice is regarding the validation of

the backlog items. For each activity from the sprint

backlog, it was added a validation with the test ana-

lyst to get the status “done”. We also included in this

backlog speciﬁc activities for creating unit tests, em-

phasizing their importance within the sprint. When

the development activity did not generate executable

code, a review of the application code was made. On

the other hand, if it is possible to execute the code,

then automated tests or manual tests were performed

to validate the functionality implemented in the ac-

tivity. For each development activity, 1 or 0.5 points

were added in the activity estimation for the valida-

tion of the product increment developed. Addition-

ally, it was also added in the sprint Backlog one activ-

ity for the system testing of all products developed in

the sprint.

The last practice concerns the test speciﬁcation.

The test scenarios were documented in spreadsheets

that were frequently updated by the test team and

shared among the client. For the sake of simplicity,

http://junit.org/junit4/

It is a kind of “Pair Programming activity (Zieris and

Prechelt, 2016) applied on the software testing.

the test case speciﬁcation in such spreadsheets con-

tains only three columns: test scenario, step-by-step

and results.

Regarding the testing process, it was deﬁned ac-

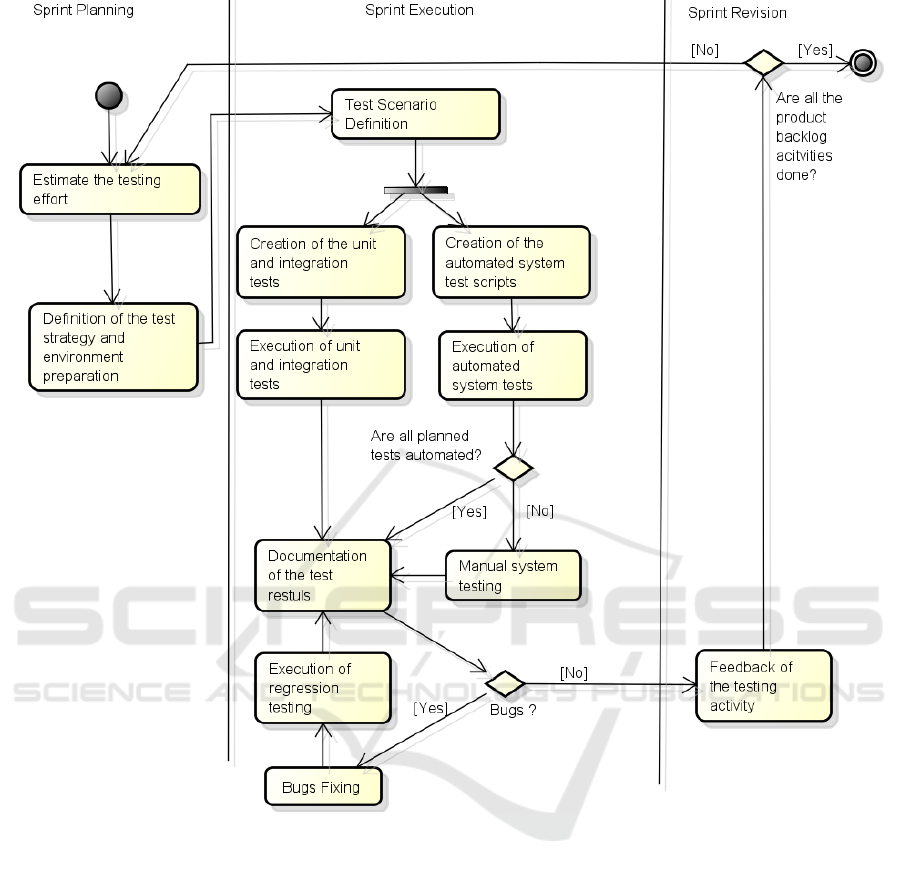

cording to the sprint phases of the Scrum. Figure 2

shows the test process deﬁned in the ﬁrst improve-

ment cycle. In the Sprint Planning phase, the test

team estimates the testing effort and deﬁnes the test

strategy according to the product requirements. Next,

in the Sprint Execution, the test analyst creates the

test scenarios, which are used: (i) by the developers

to create both unit and integration tests; and (ii) by

the testers to create automated tests scripts or perform

manual tests. After the execution of the tests, their re-

sults are documented. Once a bug is found and ﬁxed,

the regression tests should be run again. Finally, in

the Sprint Revision, the test team discusses the lesson

learned to improve the testing process.

We applied (Do phase from PDCA) the test pro-

cess deﬁned and the practices aforementioned in two

development projects, named here P2 and P3. The

project P2 was conducted between July 2014 and

September 2014 with 12 developers, while the project

P3 had 10 developers and occurred from September

2014 to December 2014.

In the project P2, the low failures rate (15% of

the total number of system tests) at the end of sprint

shown us the greater participation of all developers in

the product quality. It is worth mentioning that were

not implemented automated tests in P2. In project

P3, despite the failed test rate of 28%, none of them

were of the critical type, representing an improvement

comparing with the results obtained in project P1. We

highlight that in this project the test automatization

with tools (e.g., Robotium tool

) made easier the re-

gression testing.

Regarding the tests documentation, the test team

report that it is easier to document, plan and prioritize

the tests according to changes in the sprints and the

customer requests. Furthermore, they also reported

that a bug tracker is crucial to to follow the ﬁxed bugs

and thus perform the regression testing efﬁciently.

The main beneﬁts that we obtained in the ﬁrst im-

provement cycle are: (i) greater participation of all

developers in the product quality; (ii) greater integra-

tion between developers and testers; and (iii) greater

integration between the code and its test, once the test

has become a part of the development of a feature.

The main lessons learned from the execution of

Do phase of PDCA in two projects (P2 and P3) were:

• LL01: Test Documentation is essential. Our ex-

perience in the project P1 corroborates with our

http://robotium.com/

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

134

Figure 2: Test process deﬁned according to sprint phases.

feeling that the lack of test documentation makes

it difﬁcult to monitor, replicate and evaluate them;

• LL02: There is no need for specialized roles, but

it is essential both to follow a test process and to

have a team of experts. During the testing of P1,

where developers and testers do testing without

planning, many of the defects found at the end of

the sprint were critical. In projects P2 and P3, the

participation of an expert test analyst and the use

of a testing process enabled critical defects to be

identiﬁed in the early stages of development;

• LL03: It is not always possible to automate the

tests, but it is advisable. Automating tests is inter-

esting because it facilitates continuous feedback.

The planned use of a systems test automation tool

in P3 supported the fast defect identiﬁcation;

• LL04: Pair Testing is a good practice to exchange

experience between novices and expert testers.

The application of Pair Programming to imple-

ment tests during P2 had a very positive impact,

resulting in qualiﬁed developers involved with test

activities and better communication among testers

and developers;

• LL05: The client should be aware of the testing

activities. When the customer cannot participate

in a decision at some point, we realized as a good

practice to document the decisions taken concern-

ing the testing activity to conﬁrm them with the

customer afterward (e.g., regarding test prioriti-

zation). We employed this practice in the three

projects P1, P2, and P3 and we obtain a good feed-

back from the clients.

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

135

Based on the aforementioned lessons learned, the

next step (i.e., the Action phase in PDCA) is to deﬁne

a standard software testing process.

2.3 Second Cycle: Deﬁning a Standard

Software Testing Process

Based on the previous experience, we decided to

evolve the test procedures for a formal software test-

ing process that establishes activities, responsibilities,

roles, and artifacts to be used and produced. To that

end, several speciﬁc policies were created based on

the Reference Model for Brazilian Software Process

Improvement (MPS.BR) (SOFTEX, 2006)

For the test project management, we deﬁned the

following policies:

• The project planning of the test factory results in

the test plan and should be carried out by the test

factory manager;

• The test plan should have the approval by the

stakeholders and client aiming to establish com-

mitments to the project;

• The test factory manager should monitor the

project continuously, based on the test plan and

schedule;

• The ﬁnal phase constitutes project milestones;

• Any changes in the test plan and schedule can

only be implemented after obtaining new commit-

ments with the client and all involved in the test

factory.

For the requirements management, the policies es-

tablish that:

• All the testing requirements should be evaluated

by the client and the stakeholders of the test fac-

tory;

• Any change in the testing requirements should

have impact assessment before being approved;

• The plans, artifacts, and activities of the testing re-

quirements management process should be main-

tained to assure their consistency;

• The speciﬁcation of the testing requirements

should have the approval and commitment of all

stakeholders;

• The change requests in testing requirements must

be recorded in e-mail or meetings and should be

stored.

Finally, for the quality assurance, all the test fac-

tory projects should be audited for adherence to the

process and product quality, and the non-compliance

that are not resolved in deadlines (up to three days)

should be scaled to higher hierarchical levels.

The standard process is organized as a work

breakdown structure where phases are decomposed in

activities and those in their turn in tasks. Figure 3

gives an overview of the activities of our test factory

process. This process is based on the iterative and

incremental lifecycle. Three main phases (planning,

elaboration and execution) were deﬁned as follows.

1. Planning phase aims at starting a project and per-

forming the planning activities. The ﬁrst activity

“Initiate project” involves kick-off/initial meet-

ings to understand and review (if applicable) the

product requirements to be tested. In the “Plan

Project”, the test factory manager elaborates the

test plan with test requirements as agreed with the

client. Also, the SQA (Software Quality Assur-

ance) analyst must manage the adjustments, for

instance, if nonconformities related to the testing

process exist, such as a non-written conﬁrmation

that both parties agreed with the test plan, they

should be solved in an established period.

• The main artifacts produced in this phase are

minutes of the kickoff meeting, test plan with

schedule, process and product checklists for

phase 1, and project status report.

2. Elaboration phase aims at preparing the test ex-

ecution. This phase starts with an initial meet-

ing involving the test team to align the test plan.

Then, test scenarios and the test cases are spec-

iﬁed by the test analysts in the “Design Tests”

activity. This speciﬁcation is based on product

and test requirements provided by the client. To

be approved, the test speciﬁcation must be exam-

ined by another test analyst as a peer review task.

Other tasks carried out in this phase are the estab-

lishment of traceability matrix, the environment

conﬁguration, and the creation of automated test

scripts (if applicable).

• The main artifacts produced in this phase are

traceability matrix, test speciﬁcation with test

scenarios/cases, test environment with load test

mass (if applicable), checklists for phase 2

(change control, audit) and test artifacts eval-

uation reports, such as test cases evaluation re-

port.

3. Execution phase aims at carrying out the execu-

tion (manual or automated) of the tests artifacts

speciﬁed previously (e.g., test scenarios/cases).

Similarly, to the elaboration phase, the test team

attends an initial meeting. In the next activity, the

tests are executed, and their results are reported to

be evaluated. It is worth noting that, the tests can

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

136

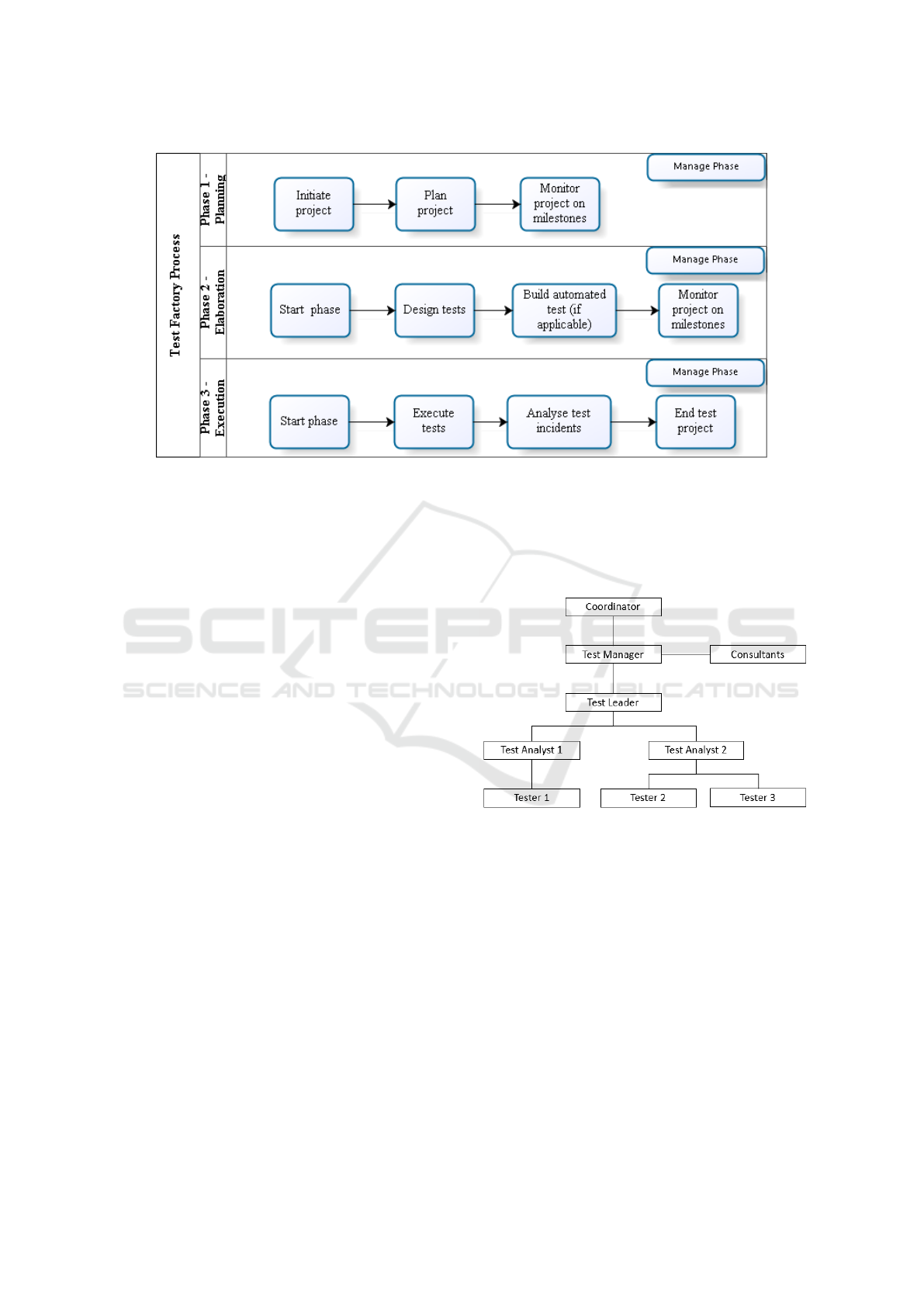

Figure 3: Overview of our test factory process.

be executed by a tester (e.g., a testing intern) but

the test leader must determine in the “Analyze test

incidents” activity whether the reported incidents

are actual bugs. Once the incident is conﬁrmed

as a bug, it is registered in a bug/issue tracking

tool. The Execution phase ends with a meeting

with those involved in the project to record lessons

learned.

• The main artifacts produced in this phase

are test incident reports, bugs/failures report,

checklists for phase 3 (audit, adherence to pro-

cess), lessons learned, and project closing state-

ment.

Our test factory process is adherent to the MR-

MPS-SW (Rocha et al., 2005) and includes the qual-

ity assurance process and activities related to conﬁg-

uration management and veriﬁcation. As depicted in

Figure 3, two management activities are presented in

all phases. The ﬁrst one is “Manage Phase” that is ex-

ecuted throughout the phase. The second one, “Mon-

itor project on milestones”, is the activity for moni-

toring the project in the ﬁnal milestone of the phase.

For example, this activity registers the project status,

stores the phase artifacts (e.g., test plan, project status

report) and audits the adherence of the process at a

phase following a speciﬁc checklist.

The organizational chart of our test factory is

shown in Figure 4. The factory test team is composed

of a high quality team with academic and professional

experience on software such as PhDs with exper-

tise in Software Testing, certiﬁed professional testers

(International Software Testing Qualiﬁcations Board

- ISTQB certiﬁcation), usability experts, software

quality experts, postgraduate and graduate students

of Computer Science/Software Engineering courses.

The roles and the main activities within the factory

test process are described in Table 1. Also, the ar-

tifacts that should be produced by each role are pre-

sented in this table.

Figure 4: Organogram of our test factory.

We have applied the second improvement cycle

on two projects (P4 and P5) that performed sev-

eral sprints. Both were developed under the Scrum

methodology and, therefore, we have considered a

release with one or more sprints as a whole testing

project. Indeed, the development process adopted

by the client is transparent and thus independent of

our test factory process. The main difference is the

kinds of artifacts that we have to produce. In a Scrum

project, we start by attending the planning meetings to

understand the functional requirements and to have an

overview of the test scenarios must be covered. Once

the test scope is deﬁned, the project manager elabo-

rates the test plan with the test requirements, sched-

ule, human resources, and risks.

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

137

Table 1: Roles, main activities and artifacts.

Role Main Activities Artifacts

Coordinator Coordinate the test factory project (decision making, fundraising, con-

ﬂict resolution); develop and/or review artifacts; organize, participate

and conduct meetings

Test project work

plans, budgets

Test Manager Apply the test factory process and deﬁne measures appropriate to col-

lect the test project status; elaborate process artifacts; plan and control

the team activities

Test plans, meeting

minutes, project sta-

tus reports

Consultants Conduct the research activities in test project; organize and conduct

training of advanced testing techniques; audit the adherence to the

process and the product quality; provide new testing techniques (qual-

ity measures or fault models) to be applied to advanced application

domains (ubiquitous/IoT domain)

Usability test re-

port, checklists,

technical/researcher

reports

Test Leader Ensure compliance with planning execution; disseminate the technical

information to the test team; evaluate test artifacts/deliverables

Test artifacts evalua-

tion reports

Test Analyst Elaborate test artifacts; support the test leader to verify technical prob-

lems raised by the client; report the impediments to the test leader;

validate the incidents reported by testers

Test speciﬁcation, test

scripts, failures report

Tester Execute the tests; report the test results (incidents) and submit to the

test analyst to be validated

Incidents report

We have faced several challenges in the imple-

mentation of the second cycle. Firstly, we have

worked on several maintenance projects, whose the

maintenance requirements are organized as a backlog

of users stories. In these projects, most of the func-

tional requirements are not speciﬁed or there is no

previous test speciﬁcation. To minimize the risks, we

have to deﬁne the test scenarios according to some test

criteria provided by the client and thus ensure mini-

mal test coverage.

Secondly, the phases deﬁned in the second cycle

require several test artifacts. Then, we have imple-

mented this cycle incrementally. We have started by

deﬁning the test templates that must be followed in

the elaboration/execution phases. Then, we have pro-

vided training sessions to explain the process and the

artifacts that must be produced. This task was crucial

since the test team of the previous cycles has a limited

experience in test case speciﬁcation.

As previously mentioned, we applied (Do phase)

the test process deﬁned and the practices aforemen-

tioned in the testing of two development projects,

named here P4 and P5. We conducted their test

projects in four months (March 2016 to June 2016).

The project P4 involved the development of three

software systems (A, B and C) and was organized in

ten sprints, while the project P5 concerns three other

systems (D, E, and F) developed in the total of six

sprints.

The application domains of projects P4 and P5

are mostly mobile and web, respectively. Thus, the

number of tests depends on systems requirements and

also their domains. For example, we have tested for

Software A and Software C, both the client (mobile)

and the server (web). However, they are simpler than

Software D, which is a game mobile that requires the

testers’ skills to play it, and also the tests must cover

the game rules. In some sprints, the tests only focus

on bug ﬁxed and their impact.

We highlight that these results do not cover the

unit and integration tests performed by the develop-

ers team and the acceptance testing executed by the

client test team (if applicable). We have experienced

in the second cycle a better control of our test activi-

ties since we have more tests documented and, there-

fore, we could leverage them for the next sprints, for

instance, to perform regression tests.

With the execution (Do phase of PDCA) in 16

software releases in projects P4 and P5, the main les-

son learned were:

• LL06: Process templates adjustment could be

needed to some speciﬁc client. Although we stan-

dardized the test documents used in our testing

process, in some cases new ﬁelds (e.g., indicating

if the test is for basic, alternative or exceptional

ﬂow of use cases) are added to meet the needs of

speciﬁc clients;

• LL07: The application of the test process should

be supported by the test team, which needs to be

trained ﬁrstly. We have adopted an implementa-

tion of our test process in a bottom-up way start-

ing by the test documents used daily (e.g., test sce-

nario/case speciﬁcation) to minimize the impacts.

Also, we have provided intensive training to bal-

ance the test team that had never done documen-

tation and regular evaluations of both test docu-

mentation and test scripts quality;

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

138

• LL08: The hierarchical structure and

roles/activities were essentials to centralize

and manage the demands for the test factory.

Besides, the inclusion of roles helps the team

focuses on its objectives (e.g., test manager moni-

tors all the activities, testers run tests speciﬁed by

test analysts);

• LL09: At the ﬁrst moment, the test process in-

creased the time spent and costs in the testing ac-

tivity. For instance, the test analyst took a longer

time to produce the test artifacts (e.g., test sce-

narios and their test cases) when we implemented

the Elaboration/Execution phases. We have ob-

served that the evaluation report took a meaning-

ful time (between 1 hour and 3 hours). More-

over, this activity works as a round trip process:

check-correct-check until the test speciﬁcation is

satisfactory. One improvement here is to provide

checklists to support this activity;

• LL10: In spite of the testing process that we fol-

low rigorously, we observed that the experience-

based testing (IEEE, 2015) is interesting for a ﬁrst

interaction with the application by using, for in-

stance, the exploratory testing. In our process, we

have started with this kind of testing when the re-

quirement speciﬁcations or user stories (in Scrum

projects) are not provided by the client. In such a

case, the client must provide at least the test ac-

ceptance criteria.

• LL11: Sharing the same database between tester

team and development team could lead to rework,

especially in the test documentation because the

test data deﬁned before could not be more avail-

able (e.g., if a developer deletes a database while

implementing some new feature). Such problem

also impacts on several test scripts that have to be

updated. Furthermore, the previous versions of

the application could be used as test oracle in the

regression testing and also to verify intermittent

bugs; and

• LL12: An emergency release called “Hot ﬁx” re-

quires a fast test feedback. We call “Hot ﬁx” the

time box for ﬁxing and testing critical bugs that

often have to be deployed to a client in less than

24h. In such releases, the test team usually does

not have time to run all the process as deﬁned, so

the team just creates the main test artifacts, for in-

stance, the test scenarios/cases speciﬁcation.

Currently, we have worked on the speciﬁc check-

lists deﬁned by the activities “Manage the phase”,

and “Monitor the project in the ﬁnal milestone of the

phase”.

2.4 Results

To evaluate the effectiveness of our test factory

process, we used a well-known metric called Defect

Removal Efﬁciency (DRE) (Jones, 1996), which is

given as follows:

DRE (%) =

TestFailures

TestFailures+ProductionFailures

× 100

TestFailures are the number of total failures

found by the test team before the software delivery.

ProductionFailures are the number of failures found

by clients and/or users after the software delivery.

Figure 5 shows the DRE results collected for three

software projects: software A, B, and C. We have

measured the DRE in the ﬁrst cycle (without the stan-

dard test process) and the second cycle (with the stan-

dard test process), with a total of 28 software releases:

13 without and 15 with the process. We did not dis-

tinguish the different software phases (e.g., require-

ments, design) to collect the DRE.

Table 2 gives an overview of the software size, to-

tal of failures, DREs, and standard deviations results

per software. The average DREs for the software A is

30,50% (ﬁrst cycle) and 30,72% (second cycle). The

average DREs for the software B is 15,58% (ﬁrst cy-

cle) and 35,08% (second cycle). The average DREs

for the software C is 11,67% (ﬁrst cycle) and 37,78%

(second cycle).

We can observe that the highest value of DRE was

37,78% (Software C) against the great value 95% sug-

gested by Jones (Jones, 1996). However, the DRE

values had increased for the three software when our

test factory process was implemented in the second

cycle. Also, the standard deviation value is low for

the Software A (8.62%) in the second cycle. By con-

trast, the deviation values have increased for the Soft-

ware B - from 18.31% (ﬁrst cycle) to 38.14% (sec-

ond cycle) and Software C - from 14.53% (ﬁrst cycle)

to 43.32% (second cycle). We believe that this re-

sult was affected by the small sample size (e.g., the

number of failures and releases) and also by the team

experience in applying the process as we discussed in

the next section.

Although the standard deviation was a little high

for Software B and C, we conclude that our testing

process had improved their quality since their DREs

had increased more than 100% in the second cycle.

3 DISCUSSION

The implantation of the test factory process has sev-

eral lessons learned as we presented in the previous

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

139

Table 2: Total of Failures, DREs, and Standard Deviations per Software.

Software Size Total of DRE (%) Std. Deviation(%) DRE (%) Std. Deviation(%)

ID (KLoC) Failures (#) without proc. without proc. with proc. with proc.

A 384 152 30.50 21.59 30.72 8.62

B 101 94 15.58 18.31 35.08 38.14

C 117 58 11.67 14.53 37.78 43.32

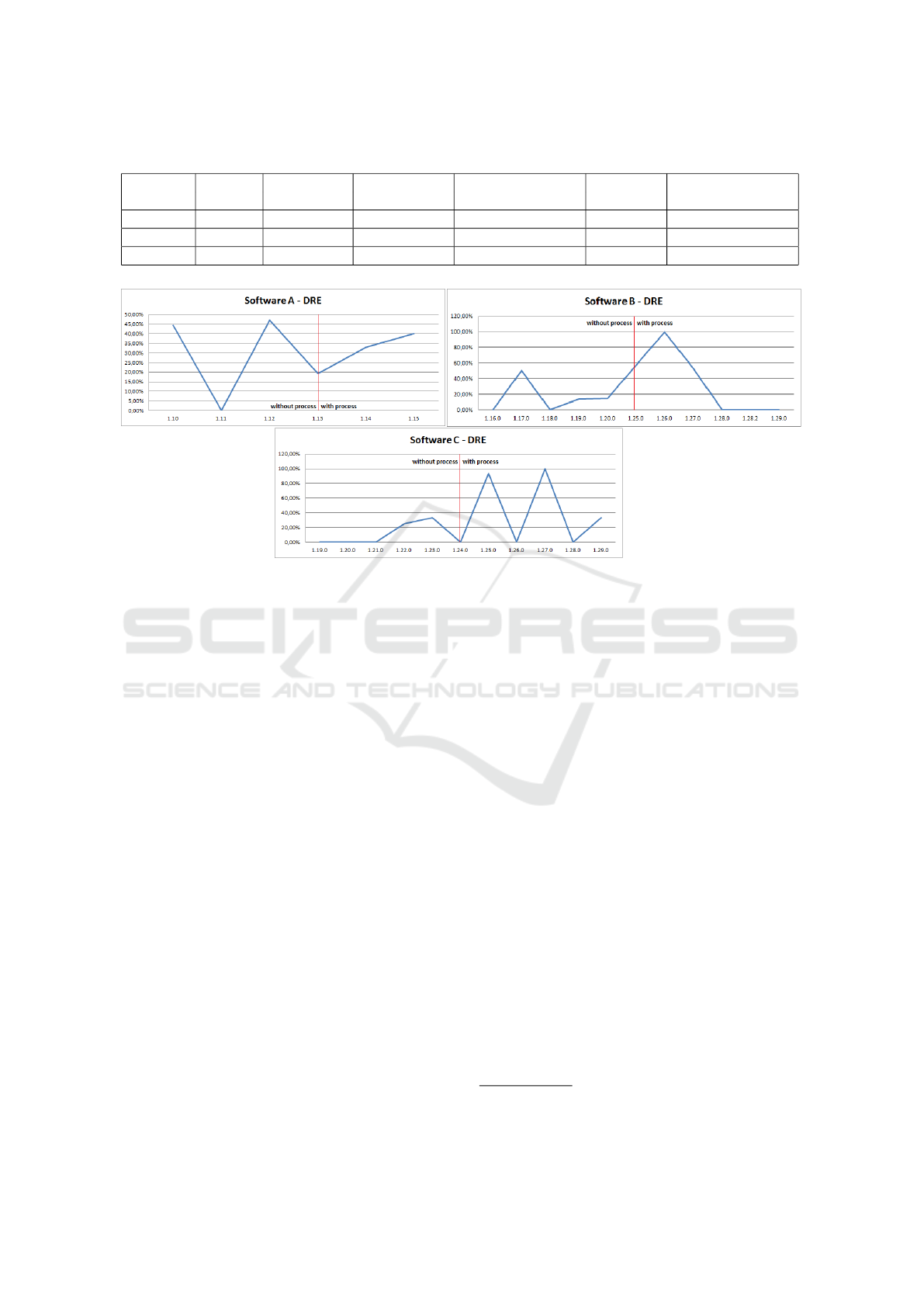

Figure 5: DRE results in the ﬁrst cycle (without process) and the second cycle (with process).

sections. Such lessons help us to evolve from ad hoc

testing activities to a standard testing process. We dis-

cuss some lessons below.

As we identiﬁed early (LL01), the test documen-

tation is crucial. When we introduced the standard

testing process and their artifacts, we have identiﬁed

several problems related to the test speciﬁcation such

as uncovered test scenarios, duplicated test cases, etc.

Furthermore, we have observed that the elaboration

of the test artifacts has impacted on the team pro-

ductivity (see LL09), mainly when the new test ar-

tifacts are introduced. To overcome this problem, we

analysed the artifacts elaborated by the test team and

also monitored the time spent to produce them. So,

we provided some adjusts in the documentation (see

LL06) to meet the needs of both the clients and the

test team. Also, we provided several training ses-

sions (see LL07) to ensure that some misunderstand-

ing does not impact on the team productivity.

Currently, we have used a simple spreadsheet to

specify the test scenarios/cases. Such speciﬁcation

contains: (i) test scenario (what is being tested); (ii)

test steps; (iii) expected output; and (iv) actual result.

However, we have observed that a spreadsheet is not

a good choice when we have several test cases (e.g.,

more than 50 longer test cases). Also, we cannot use

version control efﬁciently with spreadsheets. As a fu-

ture improvement, we intend to adopt a tool that al-

lows the test analysts specify the tests directly on it

and stores them on a server (e.g., TestRail

). With re-

gard to the failures, they are reported in both JIRA

software, which is shared with the development team,

and spreadsheets. Note that, only the bug repository

is shared with both teams. Our experience shows that

we have to clearly separate the development and test

environments (see LL11). In such a case, the conﬁg-

uration manager is responsible to handle the changes

in both environments. Moreover, the repository’s per-

missions are strictly managed, i.e., none of the team

have permission to delete bugs. For example, once a

bug is registered, it is analysed by the test analyst, if

the bug is invalid, only its state changes in that repos-

itory.

Another important point to be discussed is the

team qualiﬁcation (LL02). In the ﬁrst cycle, the test

team works together with the development team as a

“Pair Testing” approach (LL04). This kind of work

helped developers to create good unit and integration

tests. In the second cycle, we applied the “Pair Test-

ing” between the experienced test analysts and the

novices, and the results were also positive.

Furthermore, the hierarchical structure of the team

(LL08) by including the consultants is important to

improve the test factory process. For example, the

researchers are responsible for investigating new test-

ing techniques (e.g., test automation - LL03) or mea-

http://www.gurock.com/testrail/

https://www.atlassian.com/software/jira

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

140

sures while the test analysts are responsible for ap-

plying them. The other important role is the SQA

analyst who must ensure that the process is followed

by the test team. In some cases, the nonconformities

pointed out by the SQA analyst in early stages of the

testing process (e.g., a non-written conﬁrmation that

the client agreed with the test plan - see LL05) help

us to identify several problems that may compromise

the test quality.

We also would like to highlight that we could not

apply the standard testing process in Emergency Re-

leases (LL12). The most difﬁculty is to elaborate all

test artifacts and execute, for example, the functional

and regression tests within one working day. In such

a case, we only execute the tests already speciﬁed and

perform the exploratory testing. Indeed, this kind of

test plays a vital role in our testing process when the

requirement speciﬁcation is not provided (LL10). We

rely on such test to explore the application and thus

elaborate the test scenarios and their test cases.

The lesson learned presented above are not quan-

titatively measure. However, we leverage DRE mea-

sure to show the beneﬁts of the standard testing pro-

cess. We observed that the DRE results have in-

creased in the second cycle, but they do not achieve

the great value (e.g., 95%). We identiﬁed several rea-

sons as follows:

• The test team does not have any experience in ap-

plying testing process. Also, most of the team are

novices in the projects;

• The software (i.e., A, B, and C) that we ap-

plied the standard testing process are maintenance

projects, and most of them had no documentation.

In this case, we elaborated the test artifacts incre-

mentally according to the release plan. We per-

formed this cycle until the test documentation was

complete; and

• The whole test process have been not imple-

mented. We have adopted this process on March

2016, and incrementally the test artifacts are in-

troduced in the projects. So, we believe that when

all test artifacts can be produced, the DRE results

will be better. However, we have obtained good

results until the present moment.

4 RELATED WORK

We have found several test factories (CWI, 2017)(Cy-

ber:con, 2017) but none of them describe their testing

process in a literature. Thus, we also investigate pa-

pers related to testing processes. In this section, we

discuss the related work into two categories: Test Fac-

tory and Software Testing Process.

4.1 Test Factory

We have found several test factories that offer test ser-

vices for software development companies. For in-

stance, there are the CWI’s test factory (CWI, 2017),

Cyber:con’s test factory (Cyber:con, 2017) and FH’s

test factory (FH, 2017). The main characteristic of

these enterprises is to have a dedicated test team able

to provide specialized testing services (e.g., test case

speciﬁcation, test case execution). Those test facto-

ries, however, do not present their testing process in

scientiﬁc or white papers since they want to protect

their business from the competitors. Therefore, we

cannot do any relation between our testing process

and their test factory processes.

By contrast, we have found two papers (Sanz

et al., 2009; Cooper-Brown, 2015) that focus on only

the implantation of test factories. For example, Sanz

et al. (Sanz et al., 2009) deﬁne a process model to

create a test factory, determining the roles, capaci-

ties, and responsibilities for each speciﬁed process.

In their paper, Sanz et al. present succinctly 11 pro-

cesses (e.g., Testing Planning) that are classiﬁed into

three categories: Management, Technical and Sup-

port. Thus, this model provides the key elements of

the process of a test factory. In our work, we focus

on describing the experience for deﬁning a standard

testing process in an test factory from ad hoc testing

activities performed in-house.

Cooper-Brown et al. (Cooper-Brown, 2015)

present a process to setup a test factory. This pro-

cess is organized into three major phases: (i) Solution

Deﬁnition, in which the existing organizational test

processes are evaluated; (ii) Solution Design which

involves designing processes (e.g., related to test strat-

egy, organizational structure, etc.); and (iii) Solution

Implementation, which could be executed by steps or

by using a big bang approach. In our work, we fo-

cus on the deﬁnition, use and improvement of a test-

ing process to implement a test factory based on the

lessons learned.

Additionally, Xia et al. (Xia et al., 2015) inves-

tigate the challenges in test outsourcing. To do so,

the authors perform a empirical study through a sur-

vey with testers and interviews with SQA managers

and team leaders. In our paper, we report the expe-

rience by applying the test factory process in real-

world daily use involving several stakeholders (e.g.,

tester, client, research, SQA analyst). Furthermore,

the beneﬁts of our test factory are evidenced by the

positive results of DRE collected from industry soft-

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

141

ware projects.

4.2 Software Testing Process

Regarding the software testing practices, we have

identiﬁed several research studies in the literature, we

discuss them below.

Engstrom and Runeson (Engstr

om and Runeson,

2010), for instance, present the results of a qualitative

survey conducted by using focus group meeting with

15 industry participants and an online questionnaire

with 32 respondents. Based on this survey, the authors

identiﬁed weaknesses and strengths in regression test-

ing practices and also their good practices such as

“run automated daily tests on module level”. Collins e

Lucena Jr. (Collins and de Lucena, 2012) describe the

experience with the use of open source testing tools in

automation testing into two development projects us-

ing Scrum. Santos et al. (Santos et al., 2011) also

describe the use of testing practices in agile environ-

ments. In contrast to our work, they focus on speciﬁc

issues within the software testing process (e.g., the

use of testing tools) whereas we present an overview

of our testing process and how we evolve this process

over two years.

Ramler and Felderer (Ramler and Felderer, 2015)

propose a process for risk-based test strategy devel-

opment that consists of seven steps: (1) deﬁnition of

risk items, (2) probability estimation, (3) impact esti-

mation, (4) computation of risk values, (5) determina-

tion of risk levels, (6) deﬁnition of test strategy, and

(7) reﬁnement of test strategy. Our testing process

is not a risk-based test strategy. Instead, our process

is adherent to the MR-MPS-SW(SOFTEX, 2006) and

thus the risks are described in the test plan and man-

aged during all the process.

Afzal et al. (Afzal et al., 2016) present the re-

sults of a systematic literature review (SLR) which

identiﬁed 18 software test process improvement ap-

proaches. Furthermore, they perform an evaluation

with two of that approaches using an industrial case

study. In contrast to this work, our goal is to apply

PDCA (Plan-Do-Check-Act)(Johnson, 2002), which

is an process improvement approach, to establish a

standard testing process into a test factory.

5 CONCLUSIONS

Several development enterprises have hired services

of test factories to reduce the costs related to the soft-

ware testing activities. These test factories are then an

opportunity to reduce the costs and improve the qual-

ity of the tests. We presented in this paper our expe-

rience over two years by leveraging the PDCA cycle

to deﬁne a standard testing process into a test factory.

First, we identiﬁed the current ad hoc testing activi-

ties in Scrum projects and pointed out the main weak-

ness of our testing approach. Next, the improvements

were proposed based on the lessons learned to deﬁne

a standard testing process. This process is adherent

to the Brazilian Software Process Reference Model

(MR-MPS-SW) and it is independent of the software

development process. Last, we applied our standard

testing process on 15 industry software releases and

obtained good results for DRE.

We have also presented 12 lessons learned that can

help practitioners to improve their test process. As fu-

ture work, we aim to continuous improvement process

to perform an ofﬁcial CMMI appraisal for the test fac-

tory organization unit. Also, we aim at expanding the

services of our test factory to advanced domains (e.g.,

Ubiquitous and Internet of Things) focusing on the

human-computer interaction quality of such domains

(Carvalho et al., 2016)(Andrade et al., 2017)(Rocha

et al., 2017) and their advanced graphical user inter-

faces (Lelli et al., 2015b)(Lelli et al., 2015a).

ACKNOWLEDGEMENTS

We would like to thank the GREat’s test factory team

for the technical support on this work. The authors

thank the research groups involved in the CAcTUS

- Context-Awareness Testing for Ubiquitous Systems

project supported by CNPq (MCT/CNPq 14/2013 -

Universal) under grant number 484380/2013-3.

REFERENCES

Afzal, W., Alone, S., Glocksien, K., and Torkar, R. (2016).

Software test process improvement approaches: A

systematic literature review and an industrial case

study. Journal of Systems and Software, 111:1 – 33.

Andrade, R. M. C., Carvalho, R. M., Oliveira, K. M., Maia,

M. E. F., and Arajo, I. L. (2017). What changes from

ubiquitous computing to internet of things in inter-

action evaluation? In 5th International Conference

on Distributed, Ambient and Pervasive Interactions,

DAPI 2017. Held as Part of the 19th International

Conference on Human-Computer Interaction 2017.

Bezerra, C., Andrade, R. M. C., Santos, R. M., Abed, M.,

de Oliveira, K. M., Monteiro, J. M., Santos, I., and

Ezzedine, H. (2014). Challenges for usability test-

ing in ubiquitous systems. In Proceedings of the 26th

Conference on L’Interaction Homme-Machine, IHM

’14, pages 183–188, New York, NY, USA. ACM.

Carvalho, R. M., Andrade, R. M. C., Oliveira, K. M., San-

tos, I. S., and Bezerra, C. I. M. (2016). Quality char-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

142

acteristics and measures for human–computer interac-

tion evaluation in ubiquitous systems. Software Qual-

ity Journal, pages 1–53.

Collins, E. F. and de Lucena, Jr., V. F. (2012). Software

test automation practices in agile development envi-

ronment: An industry experience report. In Proceed-

ings of the 7th International Workshop on Automation

of Software Test, AST ’12, pages 57–63, Piscataway,

NJ, USA. IEEE Press.

Cooper-Brown, B.; Ludhani, C. C. S. (2015). Test factory

setup for sap applications. https://www.infosys.com/

IT-services/independent-validation-testing-services/

white-papers/Documents/test-factory-setup.pdf.

CWI (2017). CWI’s test factory. Available: http://www.cwi.

com.br/Services/TestFactory. [Online, Accessed: 19-

Feb-2017].

Cyber:con (2017). Cyber:con’s test factory. Available:

http://www.cybercon.de/en

GB/testing. [Online, Ac-

cessed: 19-Feb-2017].

Dantas, V. L. L., Marinho, F. G., da Costa, A. L., and An-

drade, R. M. C. (2009). Testing requirements for mo-

bile applications. In 2009 24th International Sympo-

sium on Computer and Information Sciences, pages

555–560.

Engstr

om, E. and Runeson, P. (2010). A qualitative survey

of regression testing practices. In Proceedings of the

11th International Conference on Product-Focused

Software Process Improvement, PROFES’10, pages

3–16, Berlin, Heidelberg. Springer-Verlag.

FH (2017). Fh’s test factory. Available: http://www.fh.

com.br/en/servicos/technology/software-development/

test-factory/. [Online, Accessed: 19-Feb-2017].

IEEE (2015). IEEE Draft International Standard for Soft-

ware and Systems Engineering–Software Testing–

Part 4: Test Techniques. ISO/IEC/IEEE P29119-4-

FDIS April 2015, pages 1–147.

Johnson, C. N. (2002). The beneﬁts of pdca. Quality

Progress, 35:120–121.

Jones, C. (1996). Software defect-removal efﬁciency. Com-

puter, 29(4):94–95.

Lelli, V., Blouin, A., and Baudry, B. (2015a). Classifying

and qualifying gui defects. In 2015 IEEE 8th Inter-

national Conference on Software Testing, Veriﬁcation

and Validation (ICST), pages 1–10.

Lelli, V., Blouin, A., Baudry, B., and Coulon, F. (2015b).

On model-based testing advanced guis. In 2015 IEEE

Eighth International Conference on Software Test-

ing, Veriﬁcation and Validation Workshops (ICSTW),

pages 1–10.

Myers, G. J., Sandler, C., and Badgett, T. (2011). The Art

of Software Testing. Wiley Publishing, 3rd edition.

Ramler, R. and Felderer, M. (2015). A process for risk-

based test strategy development and its industrial eval-

uation. In Proceedings of the 16th International

Conference on Product-Focused Software Process Im-

provement - Volume 9459, PROFES 2015, pages 355–

371, New York, NY, USA. Springer-Verlag New York,

Inc.

Rocha, A. R., Montoni, M., Santos, G., Mafra, S.,

Figueiredo, S., Albuquerque, A., and Mian, P. (2005).

Reference model for software process improvement:

A brazilian experience. In Proceedings of the 12th

European Conference on Software Process Improve-

ment, EuroSPI’05, pages 130–141, Berlin, Heidel-

berg. Springer-Verlag.

Rocha, L. C., Andrade, R. M. C., Sampaio, A. L., and

Lelli, V. (2017). Heuristics to evaluate the usability of

ubiquitous systems. In 5th International Conference

on Distributed, Ambient and Pervasive Interactions,

DAPI 2017. Held as Part of the 19th International

Conference on Human-Computer Interaction 2017.

Santos, A. M., Karlsson, B. F., Cavalcante, A. M., Correia,

I. B., and Silva, E. (2011). Testing in an agile product

development environment: An industry experience re-

port. In Latin American Test Workshop, pages 1–6.

Sanz, A., Garc

ıa, J., Salda

na, J., and Amescua, A. (2009). A

proposal of a process model to create a test factory. In

Proceedings of the Seventh ICSE Conference on Soft-

ware Quality, WOSQ’09, pages 65–70, Washington,

DC, USA. IEEE Computer Society.

Schwaber, K. and Sutherland, J. (2016). MPS.BR -

Melhoria de Processo do Software Brasileiro, Guia

Geral (v. 1.1). http://www.Scrumguides.org/docs/

Scrumguide/v1/Scrum-guide-us.pdf.

Shamsoddin-motlagh, E. (2012). Article: A review of auto-

matic test cases generation. International Journal of

Computer Applications, 57(13):25–29. Full text avail-

able.

SOFTEX (2006). The scrum guide - the deﬁnitive guide to

scrum: The rules of the game. http://www.softex.br/

mpsbr/.

Xia, X., Lo, D., Kochhar, P. S., Xing, Z., Wang, X., and Li,

S. (2015). Experience report: An industrial experience

report on test outsourcing practices. In 2015 IEEE

26th International Symposium on Software Reliability

Engineering (ISSRE), pages 370–380.

Zieris, F. and Prechelt, L. (2016). Observations on knowl-

edge transfer of professional software developers dur-

ing pair programming. In Proceedings of the 38th

International Conference on Software Engineering

Companion, ICSE ’16, pages 242–250, New York,

NY, USA. ACM.

Software Testing Process in a Test Factory - From Ad hoc Activities to an Organizational Standard

143
