Automatic Source Code Generation for Web-based Process-oriented

Information Systems

Jean Pierre Alfonso Hoyos and Felipe Restrepo-Calle

Department of Systems and Industrial Engineering, Universidad Nacional de Colombia, Bogot

a, Colombia

Keywords:

Fast Prototyping, Requirements, Natural Language Speciﬁcation, Compilers, Software Construction Automa-

tion, Restricted Natural Language, Web Applications, BPMN.

Abstract:

Software development life cycle (SDLC) activities include: requirements analysis, design, development, test-

ing and maintenance. The ﬁrst two steps have wide impact in the project success, and errors in these stages can

have large impact in the project duration and budget. To mitigate these problems, strategies like fast prototyp-

ing using natural language to specify software requirements have been proposed. These approaches can make

the SDLC faster. In this context, this paper presents an approach to automatically generate a web application

prototype running business processes using a restricted natural language speciﬁcation. A comprehensive case

study is presented to validate the proposal and demonstrate its applicability.

1 INTRODUCTION

Requirements elicitation tasks can have errors due

to incompleteness or ambiguities in the requirements

(Walia and Carver, 2009). The designer’s lack of

knowledge about the customer business operation and

limited communication with the stakeholders can also

introduce errors in software (Walia and Carver, 2009;

Fairley, 2009). Errors in this early phase can have

large impact in the project duration and budget (Walia

and Carver, 2009).

To mitigate some of these problems, various

strategies like fast prototyping and agile software de-

velopment methodologies have been proposed (Au-

gustine and Martin, 2005). However, these agile

methodologies are more suitable for small teams and

small-scale value-oriented software projects, and left

behind big scale or mission critical software (Githens,

2006; Fowler and Highsmith, 2001). Moreover, fast

prototyping approaches attempt to make SDLC faster,

less sensible to human errors and less sensible to nat-

ural language inherent ambiguities and speciﬁcation

incompleteness. Therefore, they can reduce produc-

tion costs, time to market delivery and prototyping

costs (Harris, 2012). Some examples of this fast pro-

totyping tools are: Bizzagi

, which uses graphical in-

teractions and speciﬁcation languages to create an in-

formation system; Justinmind

that creates interactive

https://www.bizagi.com/

https://www.justinmind.com/

UI prototypes of mobile applications and web pages;

OpenXava

that creates a web application form a set

of java classes. In addition, other approaches use a

speciﬁcation written in natural language (restricted or

unrestricted) to automate the construction of models

from texts (Ibrahim and Ahmad, 2010; Bhatia et al.,

2013). These approaches permit a fast validation of

the software and faster feedback from stakeholders

(Abbott, 1983; Nishida et al., 1991).

In this context, this paper presents an approach to

generate a web application prototype running busi-

ness processes automatically using a restricted natu-

ral language speciﬁcation. This new language is pre-

tended to be used by a designer in a live meeting

with the stakeholders, showing the results of the pro-

totype as a mean to validate the requirements of the

software in a fast and interactive way. To achieve

this goal, a restricted natural language is proposed.

It is based on two different transformations between

well-known design models (E-R diagrams and BPMN

models) and natural language (English). In addition,

the expressiveness of the proposed language permits

to describe tasks to generate functional prototypes.

The main contributions of this paper are:

• A speciﬁcation language for software require-

ments: restricted natural language.

• A fast prototyping method for web applications

running business processes using a restricted nat-

http://openxava.org

Hoyos, J. and Restrepo-Calle, F.

Automatic Source Code Generation for Web-based Process-oriented Information Systems.

DOI: 10.5220/0006333901030113

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 103-113

ISBN: 978-989-758-250-9

103

ural language speciﬁcation.

This paper is structured as follows. The second

section describes the related works. The third sec-

tion presents our proposal. The fourth section shows

the implementation details. Later, the ﬁfth section ex-

plores the results of a comprehensive case study. Fi-

nally, the sixth section summarizes some concluding

remarks and suggests the future works.

2 RELATED WORKS

Many work has been done on the software model ex-

traction from texts. Efforts have been focused on:

Design attributes mining from texts written in natural

language, the use of templates to write requirements,

and speciﬁcation languages inspired by natural lan-

guages.

In the ﬁrst case, the reviewed proposals are aimed

to extracting design information from textual speciﬁ-

cations written in unrestricted natural language. (Ab-

bott, 1983) and (Saeki et al., 1989) originally pro-

posed manual procedures back in the 80’s. Words

in the description matching certain parts of speech

and phrase structures were used to build a model.

This procedure latter was extended and automatized

using natural language processing tools. Some gen-

eral steps of this method include: Stemming, POS

tagging, Sentence splitting, Resolve references and

anaphoras, use ontologies to determine implicit re-

lations, use wordnet to ﬁnd synonyms and not ex-

plicit stated relations, rule based design information

extraction, and ﬁnally a production of a model (or

a set of models). Some works in this ﬁeld include:

(Bellegarda and Monz, 2015; Cambria and White,

2014; Chioac, 2012; Overmyer et al., 2001). In this

way, (Desai et al., 2016) recently proposed a transfor-

mation framework between natural language to do-

main speciﬁc languages (DSLs) using machine learn-

ing techniques to generate a set of possible programs.

This approach facilitates to any person the de-

scription of the desired functionality of software.

Even with a few writing errors, information still can

be used (Ibrahim and Ahmad, 2010). In the down-

side, it is necessary some predeﬁned knowledge (On-

tologies, Wordnet) in order to properly extract rela-

tions between terms (Popescu et al., 2008). Some-

times a training data set (Bellegarda and Monz, 2015)

and/or a set of ontologies (Zhou, X; Zhou, 2008)

might be needed to achieve acceptable results. More-

over, current NLP tools can be imprecise leading to

induce misinterpretations of the speciﬁcation (Belle-

garda and Monz, 2015). In addition, this method is

the slowest of the three approaches due to its high pro-

cessing requirements (Bellegarda and Monz, 2015).

Secondly, many have tried to restrict the way re-

quirements are written using templates. In this way,

key design information can be easily extracted from

requirements lists to generate a model or a software

prototype (Smith et al., 2003; Konrad and Cheng,

2005; Zapata, 2006; Videira et al., 2006; Ili

c, 2007;

Zeaaraoui et al., 2013; Dahhane et al., 2015).

Although using templates to write the speciﬁca-

tion of the software is more difﬁcult, when done, is

as easy to understand by the stakeholders as in the

ﬁrst approach (Selway et al., 2015). The use of tem-

plates facilitates processing tasks, making this ap-

proach faster than the ﬁrst one. However, its main dis-

advantage is that designers must be very careful writ-

ing requirements or some information may be lost. It

is necessary to deﬁne each template in order to extend

the proposed solution, and requirements not match-

ing any template will be discarded leaving informa-

tion outside of the ﬁnal model (Granacki and Parker,

1987).

Lastly, restricting the grammar of a natural lan-

guage such as English, can lead to overcome the am-

biguity and imprecision of such languages. For in-

stance, Attempto (Schwitter, 1996) is an executable

speciﬁcation language in which the English grammar

is restricted. In this way, writing requirements is very

similar to work with a programming language, which

avoids ambiguities and facilitates the processing ef-

fort (Bryant and Lee, 2002). Nonetheless, having

to learn an artiﬁcial language is an inconvenient for

the designers and the stakeholders (Schwitter, 1996).

This approach is slower generating code than the sec-

ond but faster than the ﬁrst one.

This paper proposes the use of templates within

the context of an speciﬁcation language, this is, a hy-

brid between the second and the third approaches ex-

plained before.

3 FAST PROTOTYPING OF WEB

APPLICATIONS RUNNING

BUSINESS PROCESSES

This work proposes a fast prototyping method for

web applications running business processes using a

restricted natural language speciﬁcation. To do so,

we use the model-view pattern, implementing a set

of business processes operating over a set of domain

classes, using only the restricted speciﬁcation.

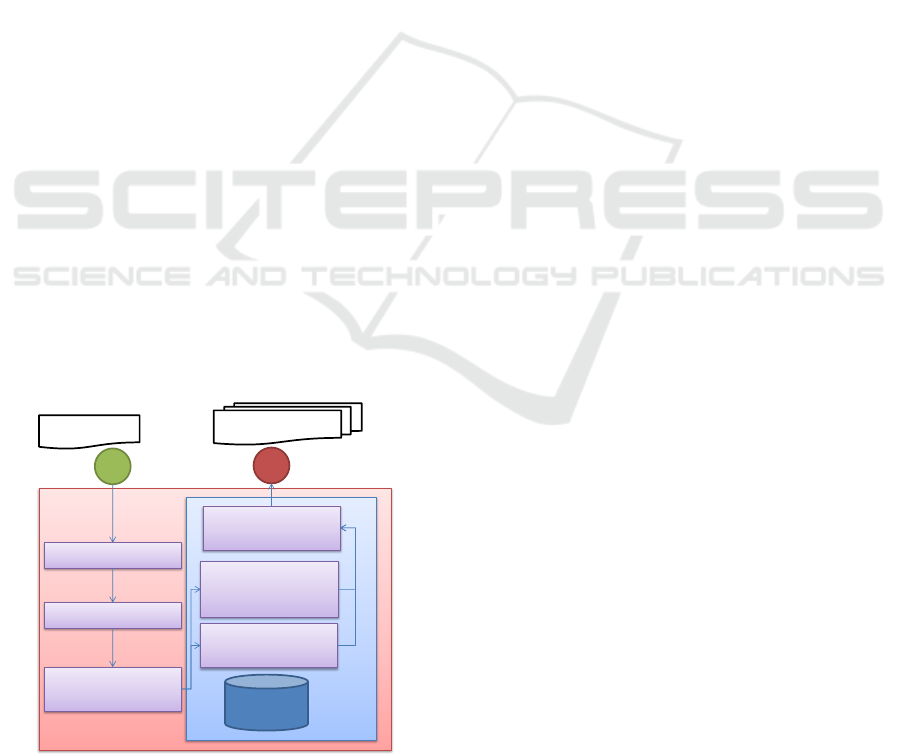

Fig. 1 presents a general schema of the proposed

workﬂow. Firstly, during a live meeting with stake-

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

104

holders, a designer writes down a software speciﬁca-

tion using the restricted English grammar, which is

proposed in this paper (restricted natural language).

Although the speciﬁcation in restricted natural lan-

guage could be understood by a non-technical user,

the target user of the proposed method is a designer

with technical background. This is needed because

the relations and concepts expressed with the re-

stricted language are not easy to understand to a non-

technical stakeholder. Secondly, our code generation

engine produces the source code of the web applica-

tion. Finally, the stakeholders are able to see and val-

idate the generated application prototype. If a modi-

ﬁcation is required then the speciﬁcation is changed,

the code is generated and validated again in an iter-

ative way. In this way, it is possible to obtain direct

feedback from the stakeholders and achieve fast vali-

dation of the software.

Live Protoyping Meeting

Designer

Code Generation

Tool

Stakeholder Group

Generate

Source Code

Write

Specification

Run Generated

Protoype

Comunicate

Requirements

Does The

Protoype Meets

Prototypable

Requirements?

Validate

Prototype

Yes

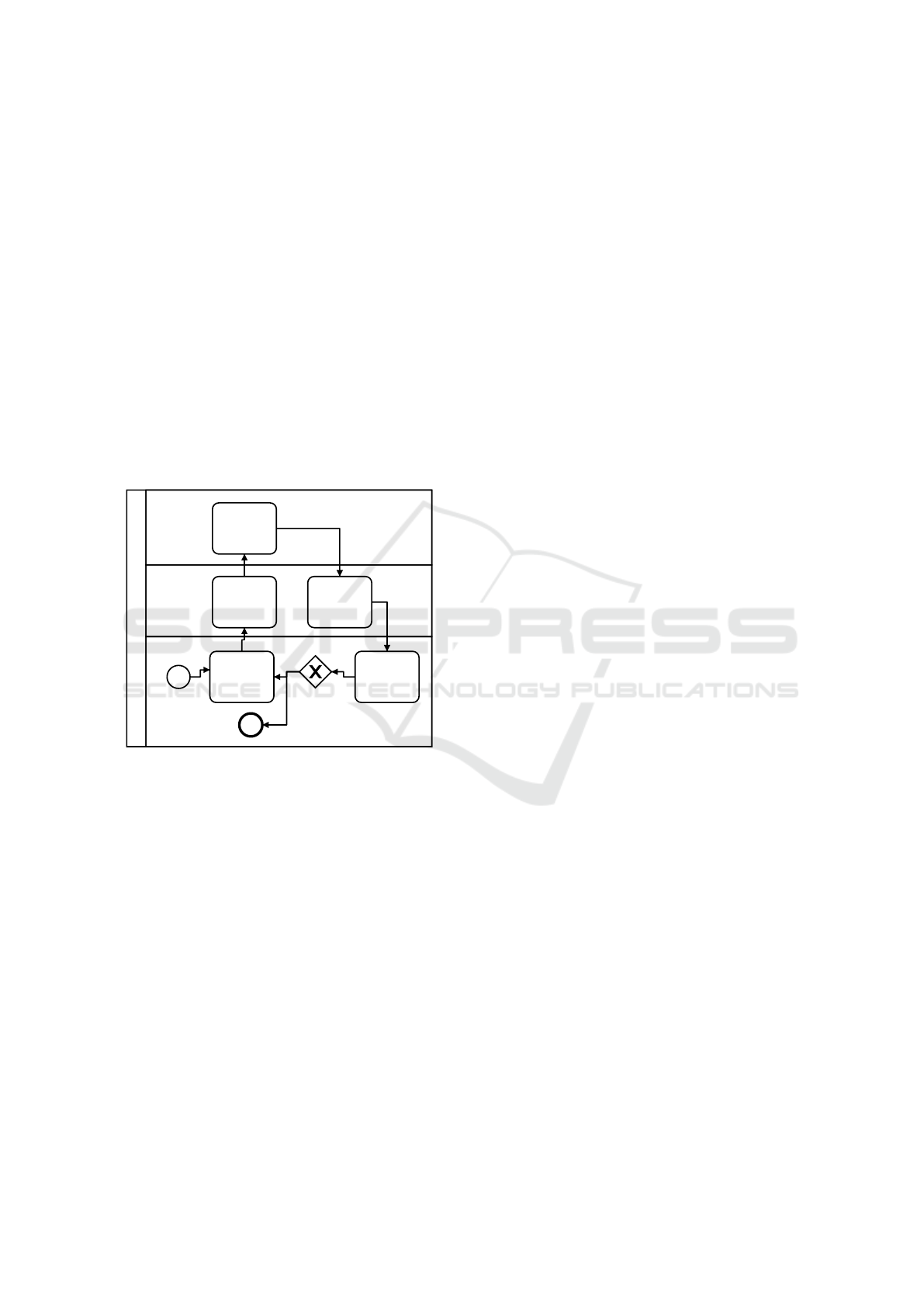

Figure 1: General workﬂow proposed for fast prototyping

of web applications.

3.1 Restricted Natural Language

To work with a restricted natural language to generate

web application prototypes without human interven-

tion, we focus only on the English constructs of inter-

est for this task. To do so, we ﬁrst consider two dif-

ferent transformations from commonly used software

design models, i.e. E-R diagrams and BPMN models,

to a restricted natural language. Next, we build a lan-

guage capable of deﬁning the operations and combine

the previous two speciﬁcations.

BPMN is a graphical speciﬁcation language de-

signed to show the ﬂow of activities, decisions and

events that occur in an organization in order to gener-

ate some form of business value.

Let b be a well constructed BPMN model, and

let f (b) a function that maps b to source code (s

);

now let t

be a restricted natural language speciﬁca-

tion such that g(t

) = b, where g is a function trans-

forming the input text t

into a BPMN model (Equa-

tions 1 and 2). The proposed functions can be seen as

a generalization of several works such as (Friedrich

et al., 2011; Steen et al., 2010).

f (b) = s

(1)

g(t

) = b (2)

Moreover, E-R diagrams are graphical speciﬁca-

tions that model the relationships between informa-

tion entities within a system and the information con-

tents of each one of these entities.

Similarly, let e be a well constructed E-R model,

h(e) a function that generates source code (s

); and let

be a restricted natural language speciﬁcation such

that j(t

) = e, where j is a function transforming t

into an E-R model (Equations 3 and 4). These func-

tions can be seen as a generalization of works like

(Geetha and Mala, 2013; Meziane and Vadera, 2004;

Geetha and Anandha Mala, 2014).

h(e) = s

(3)

j(t

) = e (4)

In this way, evaluation of functions f (g(t

)) and

h( j(t

)) will return source code from the restricted

natural language speciﬁcation. Note that t

and t

could also be unrestricted speciﬁcations, and the pre-

vious reasoning still applies. However, for the pur-

poses of this paper, we will restrict the natural lan-

guage constructs to avoid ambiguities and different

context-dependent interpretations.

Suppose that a pair of functions g

−1

(b) and j

−1

(e)

exists (e ∈ E − R, b ∈ BPMN), meaning that there

is a projection of the design models into natural lan-

guage (Equations 5 and 6). The construction of these

functions can be viewed as a ”design” process starting

from the model space to the natural language space.

−1

(b) = t

(5)

−1

(e) = t

(6)

These projections are not unique, but some subset

of natural language can be selected in a way that is not

ambiguous and can be used to transform both models

to a single common representation: restricted natural

language.

Having both models in the same space, it is pos-

sible to combine them in a way that exceeds the

code generation capabilities of both models sepa-

rately. Moreover, in this case we will introduce a set

of task deﬁnition non terminals and integrate those

with the previously deﬁned speciﬁcations. In ad-

dition, with no ambiguity restrictions, a traditional

Automatic Source Code Generation for Web-based Process-oriented Information Systems

105

terminal FID :

’ˆ’?(’A’..’Z’|’_’) (’a’..’z’|’A’..’Z’|’_’|’0’..’9’)*;

Identifier : parts+=FID (parts+=FID)*;

DefinitionItem: arity=(’a’|’an’|’many’) specName=Identifier

’named’ intanceName=Identifier ’with’

defaultName=Identifier ’as’ ’default’;

Definition: childname=Identifier ’is’ ’an’ specName=Identifier

(’which’ ’exist’ ’in’ contextName=Identifier)?

’and’ ’needs’ ’:’ definitions+=DefinitionItem

(’,’ definitions+=DefinitionItem)* ’.’;

Figure 2: Grammar for the restricted natural language rep-

resenting E-R diagrams.

parser can be used to process the natural language

speciﬁcation.

It is worth mentioning that unrestricted natural

language is not used because the process described in

section 2 will induce errors or generate more than one

system (Desai et al., 2016), making hard to validate

every possible system.

3.1.1 From E-R Diagrams to Restricted Natural

Language ( j

−1

(e))

To achieve a textual representation of an E-R model,

we propose to restrict the natural language constructs

as follows.

To deﬁne an entity an entity name (childname) is

required. Also a set of relations and a set of proper-

ties (DeﬁnitionItem) are deﬁned. Note that the entity

name can be in singular and plural forms, thus need-

ing a mechanism to identify them both as the same

noun. Fig. 2 shows the excerpt of the proposed gram-

mar for the domain classes. It can be used to gener-

ate a class diagram including properties, and relation-

ships.

Furthermore, notice that some defaults should be

conﬁgured including both data types and their respec-

tive memory size. For instance, properties having a

VARCHAR data type are assumed to be maximum of

255 in length.

3.1.2 From BPMN to Restricted Natural

Language (g

−1

(b))

In order allow our restricted natural language to rep-

resent business processes, we propose to use the fol-

lowing BPMN textual representations. Note that these

representations include the most common BPMN

constructs. Figure 3 shows the mappings from a

BPMN element to BNF rule written in Xtext

format.

Note that for the gateway and frontier event el-

ements the rule is spitted in two parts: one deﬁned

within task list rule and another deﬁned in a separated

paragraph. This allows the speciﬁcation to take more

than a paragraph. Finally note that returning to a pre-

http://www.eclipse.org/Xtext/

viously deﬁned task is done with a special rule ”go

back to”.

//------Process and Start Event------

Tasklist: taskList+=Asignedtask ((’,’ taskList+=Asignedtask)*

’and,’ taskList+=Asignedtask)? ’.’;

Process: ’the’ name=Identifier ’process’ ’starts’ ’,’ ’then’

’:’ taskList=Tasklist;

//------End Event------

EndEvent: ’the’ ’process’ name=’ends’;

//------Tasks------

SimpleTask: name=Identifier;

GotoJump:’go’ ’back’ ’to’ returnTo=Identifier;

Task:task=(SimpleTask|AfterEvent|WaitSignalEvent|

WaitMessageEvent|GotoJump|EndEvent|SubprocessendEvent|

SubprocessCall|JumpToAsk|QuestionRedirect|EventRedirect|

ParallelRedirect);

//------Exclusive Gateways------

QuestionRedirect: ’ask’ ’if’ redirectTo=Identifier;

QuestionControl : ’if’ ’the’ ’answer’ ’to’

questionName=Identifier ’is’ answer=FID ’then’ ’:’

taskList=Tasklist ;

//------Parallel Gateways------

ParallelRedirect: ’do’ ’at’ ’the’ ’same’ ’time’

’the’ redirectTo=Identifier ’tasks’;

ParallelControl: ’for’ redirectName=Identifier ’tasks’

(’also’)? ’do’’:’ taskList=Tasklist;

//------Event Gateways------

EventRedirect: ’check’ ’the’ redirectTo=Identifier ’event’;

EventControl : ’if’ ’the’ ’event’ eventName=Identifier ’is’

eventCatched=Identifier (’signal’|’message’|’timer’)

’then’ ’:’ taskList=Tasklist ;

//------Subprocess------

SubprocessCall:’the’ subprocessName=Identifier ’is’ ’made’;

Subprocess: ’the’ name=Identifier ’subprocess’ ’starts’ ’,’

’then’ ’:’ taskList=Tasklist;

//------Events------

WaitMessageEvent:’wait’ ’for’ ’the’ messageName=Identifier

’message’;

AfterEvent:’wait’ duration=INT

’minute’|’days’|’day’);

WaitSignalEvent:’wait’ ’for’ ’the’ signalName=Identifier

’signal’;

//------Lanes------

Asignedtask: task=Task (’(by’ asignee=Identifier ’)’)?;

//------Frontier events------

FronterEvent: ’if’ ’the’ name=Identifier

(’signal’|’message’|’timer’) ’arrives’ ’while’ ’doing’

task=Identifier (’stop’ ’it’|’wait’ ’to’ ’complete’)

’and’ ’then’ ’:’ taskList=Tasklist;

Figure 3: Element to rule mapping for BPMN.

3.1.3 Task Deﬁnition Language

Another part of the grammar involves the deﬁnition

of each task in each process to generate the views

and controllers for the desired system. This deﬁni-

tion must involve some sort of operations in some of

the deﬁned domain classes. This operation of course

must be one of the four CRUD (Create, Read, Update

or Delete) operations. In addition, two extra opera-

tions (”single selection” and ”multiple selection”) are

added. This operations solve problems like showing a

single instance (one must be selected beforehand) and

selecting a list of instances to operate over them.

Furthermore, operations like creation and edition

over multiple instances of the domain classes may be

useful. The grammar created to fulﬁll these require-

ments is shown in Figure 4.

Previous textual representations (E-R and BPMN

models) can be combined using this grammar frag-

ment. Here we use the domain classes information to

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

106

TaskRedefinition:taskName=Identifier ’is’ ’a’ ’task’ ’where’

’:’ partslist=ViewPartsList;

ViewPartsList: list+=AbstractOperation+;

AbstractOperation: operation=(Creation|MultipleView|

SingleView|FieldView);

FieldRestrictor : ’,’ ’only’ fields+=Identifier (’,’

fields+=Identifier)* ’are’ ’shown’;

Operations :’edition’|’deletion’|’multiple’ ’selection’|

’single’ ’selection’;

OperationAdition: ’,’ ’with’ permisions+=(Operations)

((’,’|’and’) permisions+=(Operations))* ’capabilities’;

Creation: ’-’ arity=(’multiple’|’a’) name = Identifier

(’are’|’is’) ’created’ (restriction=FieldRestrictor)? ’.’;

MultipleView: ’-’ ’all’ ’the’ child = Identifier

(’in’ parent = Identifier)? ’are’ ’shown’

(restriction= FieldRestrictor)?

(operations=OperationAdition)? ’.’;

SingleView : ’-’ ’a’ name = Identifier ’is’ ’shown’

(operations=OperationAdition)? ’.’;

FieldView : ’-’ ’the’ fields+=Identifier ((’,’|’and’)

fields+=Identifier)* ’in’ parent = Identifier ’are’ ’shown’

(operations=OperationAdition)? ’.’;

Figure 4: Grammar for task deﬁnition.

specify the data contained in the generated views and

actions to be performed in the controllers.

Overall, this restricted natural language permits to

specify not only structural information but also func-

tional requirements of the software. Thus, it allows

the designer to build a textual speciﬁcation of the re-

quired software in conjunction with the stakeholders.

3.2 Code Generation Approach

After the software speciﬁcation is written in restricted

natural language, the source code of the target web

application is generated as depicted in Fig. 5.

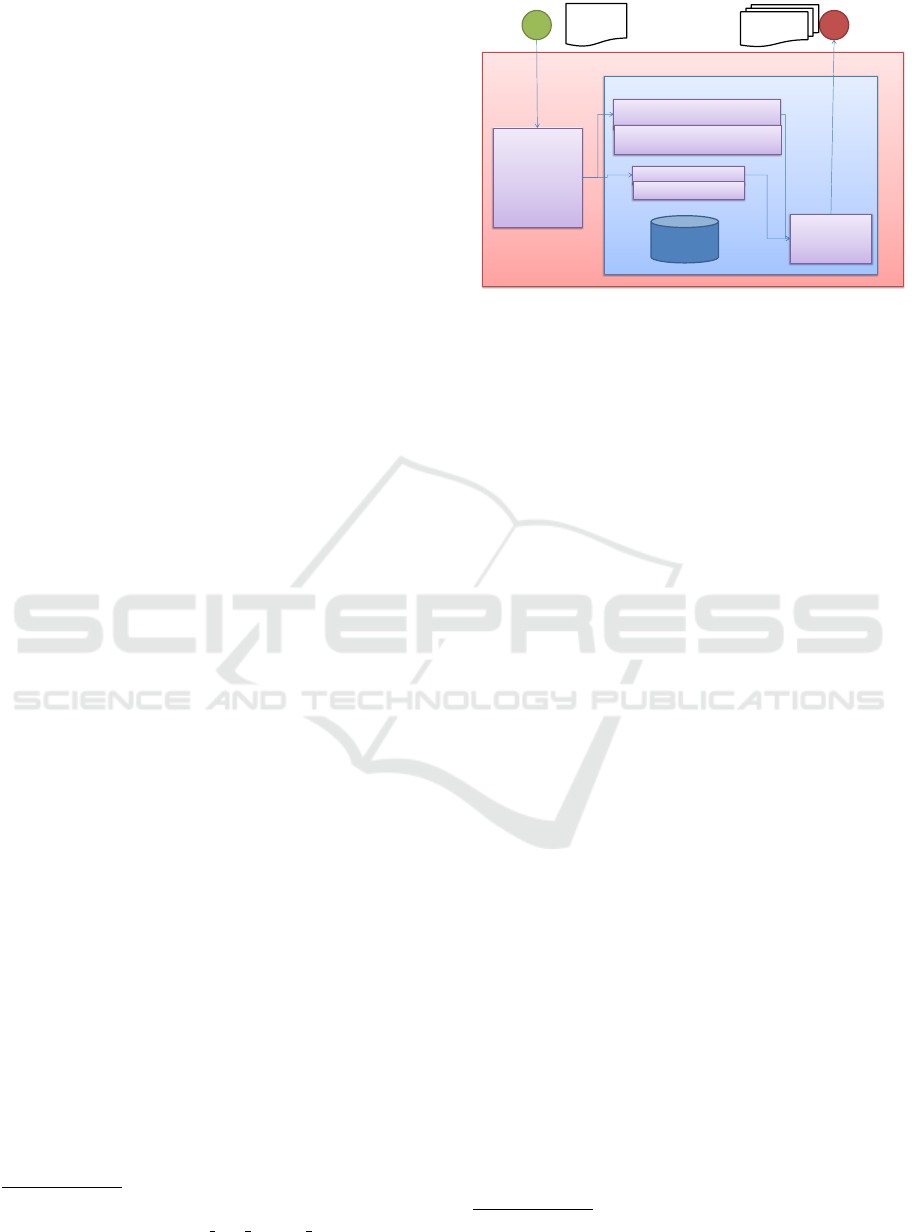

Code Generation

Parser

Design attributes

extraction

Domain classes and

Forms code

Process tasks

(views and

controllers) code

Code DB

Webapp template

placement

Lexer

Input .aku

WebApp code

Figure 5: Code generation process.

The input of the code generation process is a

ﬁle with the textual speciﬁcation of the software (In-

put.aku). The ﬁrst steps consist of traditional lexical

and syntactic analyses performed to the speciﬁcation.

Next, the phase of design information extraction is

performed where the names of the parts of the sys-

tem are extracted. Then, this information is used to

generate source code for the web application.

The source code generation is aided using a

database containing the source code of previously de-

ﬁned speciﬁcations. This speciﬁcations can include

deﬁnitions of the process helper views and tasks. Also

can include code to generate the domain classes, in-

put ﬁelds, HTML for the views and the ﬁnal template

where the generated code is placed.

Thanks to the restricted natural language, the

lexer, parser, and payload extraction phases can be

performed using a traditional top-down parser, avoid-

ing the inherent ambiguity of natural languages.

After this processing, the code for the domain

classes and forms is created. To match expected re-

lationships, we check for the following cases: (1) an

attribute has a known data type; (2) an attribute ref-

erences another class in the speciﬁcation; (3) a class

has an attribute of the form many; and (4) class has an

attribute of the form many and the another class has

the ﬁrst class referenced back in other attribute of the

form many.

In the ﬁrst case (1), we use the code database to

generate the desired ﬁeld; in the second case (2), we

assign the data type of the attribute to a foreign key

referencing the class. In third case (3), we understand

this as an one-to-many relationship, thus, we alter the

referenced class inserting a foreign key attribute ref-

erencing the class that has a set of the other class.

Finally, for the fourth case (4), this is interpreted as

a many-to-many relationship, therefore, we insert an

additional table referencing the two involved classes

and the respective foreign keys in each class.

Next, the code for the process is generated. For

each task a template in the database is fetched and

resolved, if the controller generated needs a view the

ﬁle is generated also. If the task is a SimpleTask then

the following process is performed:

1. Check for the deﬁnition in other paragraph of the

speciﬁcation

2. If the deﬁnition exist then resolve the controller

and view code.

3. If its not deﬁned use a default controller and view.

This SimpleTask deﬁnition methods use the

”TaskRedeﬁnition” non terminal to generate the code

for its view and controller. It uses code fragments de-

ﬁned in the database to generate only the needed code

to query, update, create or delete the domain classes

instances.

Automatic Source Code Generation for Web-based Process-oriented Information Systems

107

In addition, we decided that a process control

method is needed. This method will take the current

task and determine the next based on the workﬂow

deﬁned in the TaskList non-terminals across the para-

graphs in the speciﬁcation. This method will help to

resolve the gateways using the input given by the user

in the generated view or the events registered. It also

will help to determine the behavior of the tasks se-

quence related to cached frontier events.

The code for the exclusive gateways will be a

method where a snippet of HTML is rendered ask-

ing the deﬁned question. Then, after a POST request

to a controller, use the previously deﬁned controller

method do determine the task to be done next.

Finally, these pieces of code are placed in a tem-

plate prepared to execute the web application as de-

sired in the speciﬁcation.

4 IMPLEMENTATION

To implement the proposed solution we should make

ﬁrst a separation between the process to get the web

application and the application itself. Both of them

use different languages and tools to execute its re-

quired tasks. For the process we use a set of java

based tools and for the result we use a set of python

based ones.

For the process of generating the web application

we used the Xtext

toolkit including the Xtend lan-

guage, adding a database of speciﬁcations and code

templates using SqlLite and a micro ORM framework

called OrmLite

. Code templates are created using

the Freemarker

engine.

According to the process illustrated in Fig. 6,

which is the specialization of the general code gen-

eration process shown in Fig. 5. We use Xtext to gen-

erate the lexical analyzer, the parser, and the design

information extractor. We implement the previously

shown grammars. Also, Xtext creates a set of classes

containing the required design information from each

rule.

Prior to generate code for domain classes the ref-

erences in its arguments are resolved ﬁrst determining

the case they belong as described previously in this

paper. Notice that it is necessary to take into account

the respective transformations between the plural and

singular forms of the nouns (entity names). This can

be done having a predeﬁned set of rules and a dictio-

nary for irregular nouns.

http://www.eclipse.org/Xtext/

http://ormlite.com/sqlite java android orm.shtml

http://freemarker.org/

Code Generation

Xtext lexer, parser

and design

information

extraction

Sql Alchemy classes

Python Control method generation

Code DB

Webapp

template

placement

Input.aku

WebApp

code

Jinja views and Flask controllers

Wtforms Forms

Figure 6: Implementation work ﬂow.

When the references are determined, a set of pre-

viously written code templates is used to transform

the design information into the target code. For the

entities a SQLalchemy

(an ORM system) class, and

also to class in a WTForms

(a web forms processor).

Note that more than one code fragment can be gener-

ated in one template.

After this code is ready, the views and controller

methods for each task are created. Again using tem-

plates (but this time several of them), we generate

code for each of the non-terminals that are option of

the non-terminal ”Task”.

For most of these elements a simple template re-

placement formula is enough. For instance, the tem-

plate for ”go back to” tasks is shown in Figure 7.

@app.route(

’/${r"${procesname}"}/<pid>/redirect/

${data.returnTo.asMethodName()}’, methods=[’GET’]

)

def ${r"${procesname}"}_redirect_$

{data.returnTo.asMethodName()}(pid):

return

redirect(${r"${procesname}"}_resolve_next_task(

request.url_rule,pid,None

)

Figure 7: “Go back to” code template example.

The process of generating a view changes if there

is a redeﬁnition for a ”SimpleTask” non-terminal.

Then the process uses the information given in the

”TaskRedeﬁnition” non-temrinal. It uses the informa-

tion within its parse tree to determine the code result

in both controller and view. To do this we use tem-

plates to generate partial results of the source code of

the method and then merging them in a helper tem-

plate.

http://www.sqlalchemy.org/

https://wtforms.readthedocs.io/

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

108

Moreover, there must be templates used to gener-

ate edition controllers with or without selections and

only to show previously created elements. Following

the same idea we use templates to create the HTML

template that the web application needs as UI.

Also we iterate over the ”Process” non-terminal

instances again to create the helper method. This

task is done with recursive calls of the ”Tasklist” non-

terminal within the process and gateway deﬁnitions.

It generates a single method which takes as an input

the URL of the current task and returns the next task.

After all the source code is generated, using the

same template system, the resultant strings are placed

directly into a web application template assuming that

the needed imports and dependencies are resolved.

The template system used for the result web ap-

plication was Jinja2

. Moreover, a small database in

SQLite3

is used to deploy and test the result of the

proposed method.

In summary, the tool chain used for the imple-

mentation of our proposal is comprised of: Program-

ming languages: Python 2.7, Xtend; Parser generator:

Xtext; Template systems: Jinja 2, Freemarker; Web

framework: Flask; ORM systems: SqlAlchemy, Orm-

Lite; Web forms processor: WTforms; HTML, CSS,

and JS framework for developing responsive applica-

tions on the web: Bootstrap

, and the SB Admin 2

Bootstrap

admin theme; Database: SQLite3.

5 RESULTS AND DISCUSSIONS

In order to validate and demonstrate the applicability

of the proposal, this section includes the presentation

of the results of a case study, and the comparison of

this work to related works. The case study is titled:

Odoo Sales Clone.

5.1 Case Study: Odoo Clone

Odoo

is an open ERP and CRM system. For the

purpose of this work, some modules of this system are

developed using our restricted language. The selected

modules are: sales and projects. The selected version

of Odoo is 9.0.

The sales module has 5 processes. Each one of

them consists in a couple of tasks. There are three cre-

ation processes including: Client, Opportunity, and

http://jinja.pocoo.org/docs/dev/

https://www.sqlite.org/

getbootstrap.com/

https://startbootstrap.com/template-overviews/sb-

admin-2/

https://www.odoo.com/

Product; and two additional processes to list opportu-

nities and products, and select and edit them.

The project module consists in a series of projects,

each one with a set of associated tasks. Also there are

processes for the selection, presentation, and creation

of tasks and projects.

The resultant software requirements can be speci-

ﬁed using the restricted natural language as follows:

Language is an Domain Class and needs: a String named Name.

Contact Type is an Domain Class and needs: a String named

Type.

Contact is an Domain Class and needs: a Contact Type named

Type, a String named Name, a String named Address, a String named

Address2, a String named City, a String named State, a Number

named Zip Code, a String named Country, a Website named Home-

page, a String named Work Desk, a Phone named Personal Phone, a

Phone named Mobile Phone, a Phone named Fax, a Email named Per-

sonal Email, a String named Title and a Language named Language.

User is an Domain Class and needs: a String named Name and

an Email named Username.

Sales Team is an Domain Class and needs: a String named Name,

a Number named Code and a User named Team Leader.

Activity is an Domain Class and needs: a String named Message

Type, a Number named Number Of Days and a Sales Team named

Assigned Sales Team.

Opportunity State is an Domain Class and needs: a String named

Name.

Opportunity Phase is an Domain Class and needs: a String named

Name.

Opportunity is an Domain Class and needs: a String named De-

scription, a Number named Income, a Number named Probability,

a Contact named Client, an Activity named Next Activity, an Email

named Contact Email, a Phone named Contact Phone, a Date named

Provided Closing, a User named Seller, a Sales Team named Respon-

sible Sales Team, a Number named Rating, an Opportunity Phase

named Phase and a Opportunity State named State.

Product Type is an Domain Class and needs: a String named

Name.

Product is an Domain Class and needs: an Image named Photo, a

String named Name, a Product Type named Type, a String named Bar

Code, a Number named Price and a Number named Cost.

Project State is a Domain Class and needs: a String named Name.

Project is a Domain Class and needs: a String named Name, a

String named Task Label, a Contact named Client and a Project State

named State.

Task is a Domain Class and needs: a String named Name, a

String named Description, a Date named Limit Date, a User named

Assigned and a Project named Project.

the Client Creation process starts, then: Create Contact and, the

process ends.

Create Contact is a task where: -a Contact is created.

the Opportunity Creation process starts, then: Create Opportu-

nity and, the process ends.

Create Opportunity is a task where: -a Opportunity are created.

the Opportunity List process starts, then: Show Opportunities,

Show Opportunity and, the process ends.

Show Opportunities is a task where: -all the Opportunity are

shown, with single selection capabilities.

Automatic Source Code Generation for Web-based Process-oriented Information Systems

109

Show Opportunity is a task where: -a Opportunity is shown, with

edition capabilities.

the Product List process starts, then: Show Product List, Product

Detail and, the process ends.

Show Product List is a task where: -all the Products are shown,

only Name, Price are shown, with single selection capabilities.

Product Detail is a task where: -a Product is shown.

the Product Creation process starts, then: Create Product and, the

process ends.

Create Product is a task where: -a Product is created.

the Project Creation process starts, then: Create Project and, the

process ends.

Create Project is a task where: -a Project is created.

the Project List process starts, then: List Projects, Show Selected

Project and, the process ends.

List Projects is a task where: -all the Projects are shown, with

single selection capabilities.

Show Selected Project is a task where: -a Project is shown. -all

the Tasks in Project are shown.

the Task Creation process starts, then: Create Task and, the pro-

cess ends.

Create Task is a task where: -a Task is created.

the Task List process starts, then: List Tasks, Show Task and, the

process ends.

List Tasks is a task where: -all the Tasks are shown, with single

selection capabilities.

Show Task is a task where: -a Task is shown, with edition capa-

bilities.

Resulting in a set of views linked as shown in Fig.

10. These views contain the creation processes and

the two selection and posterior detail processes.

As an example of the generated code, the con-

troller for the “Show Selected Project” task is shown

in Fig. 8. This controller renders the view shown in

Fig. 9, which is also a template written to be com-

patible with the Jinja2 template system. In this view

each of the ﬁelds of the “project” domain class and all

the “tasks” associated with the selected “project” are

shown.

@app.route(’/projectList/<pid>/showSelectedProject’,

methods=[’GET’,’POST’])

def projectList_showSelectedProject(pid):

viewparams={}

data = get_instance_data(pid)

formdata = request.form.copy()

for file in request.files:

formdata[file] = request.files[file].filename

request.form = formdata

project = session.query(Project).filter(

Project.id==data.get("selected_Project",0)

).first()

viewparams[’project’]=project

task_list = session.query(Task).filter(

Task.project_id==data.get(’selected_Project’,0)

).all()

viewparams[’task_list’]=task_list

Figure 8: Example of a generated controller.

<div class="panel-heading">Show Selected Project</div>

{% for field in project.__table__.columns._data.keys()%}

<b>{{field}}</b><br /> {{project[field]}}

</div>

{% endfor %}

<tr>

{% for prop in task_list[0].__mapper__.columns.keys() %}

{% endfor %}

</tr>

{% for ent in task_list %}

<tr>

{% for prop in ent.__mapper__.columns.keys() %}

<td>{{ent[prop]}}</td> {% endfor %}

</tr>

{% endfor %}

</table></div></div></div>

Figure 9: Example of a generated view.

Some of the limitations of the generated prototype

include: the card-like layout of Odoo is lost in the

transcription, the same happens with its state based

card list; the images of the products are not shown but

they are uploaded; the project labels and their auto-

complete ﬁeld are omitted; and the labels of the form

ﬁelds are not conﬁgurable without editing the source

code.

On the other hand, the fast processing of the

speciﬁcation and its prototype generation allows the

stakeholders to see within seconds changes made to

the project. The textual speciﬁcation permits to the

designer a rapid speciﬁcation and its corresponding

validation after learning the restricted language con-

structs. Results can be seen in short time after a live

meeting starts with the stakeholders, and changes to

speciﬁcations at this stage are painless and economic.

Furthermore, some tools like auto-completion, high-

light syntax, and IDE integration can be used to make

this process even easier.

5.2 Comparative to Similar Works

Table 1 presents a comparative of related works, in-

cluding this proposal. The Table includes the main

differences with respect to the starting point of the

proposal, i.e., templates, (un)restricted natural lan-

guage, or speciﬁcation language. It also includes the

ﬁnal result of each work, e.g., executable program,

UML models, E-R diagrams, etc.

One can see that most related works manage some

form of natural language as starting point for the pro-

cess. Most of the works end up with a model con-

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

110

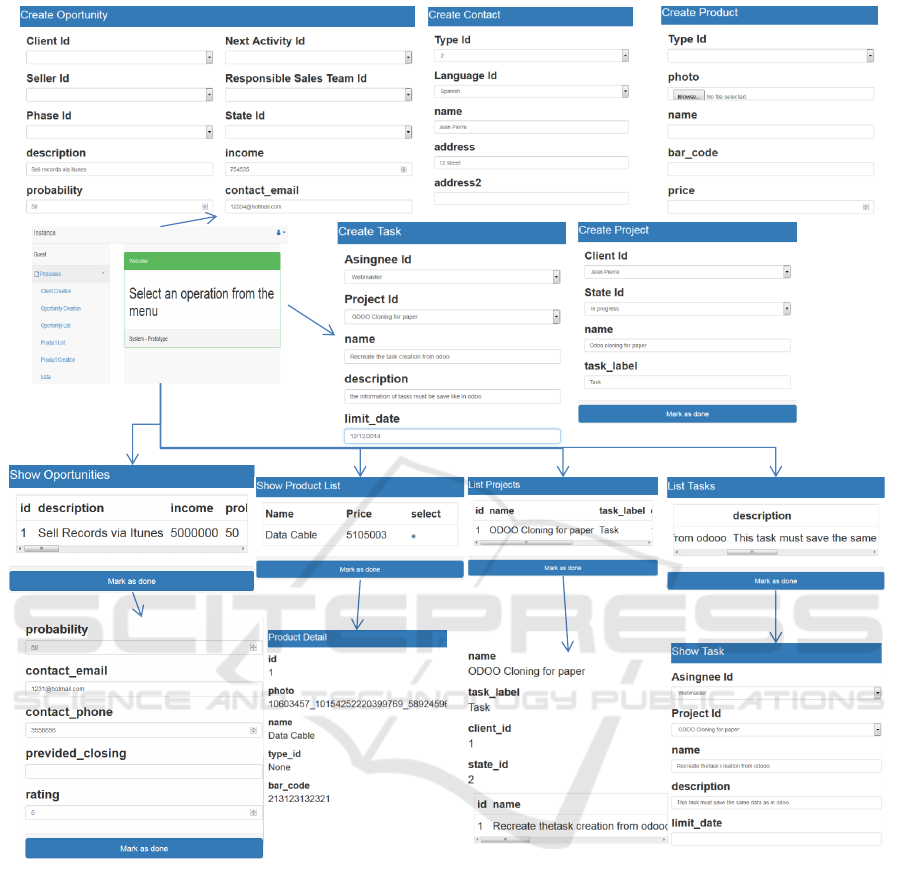

Figure 10: Odoo clone result views.

structed in some speciﬁcation language like BPMN,

UML (some subset of the possible diagrams), or E-

R. Further translations are limited for external tools

like Rational Rose or Visual Paradigm. Some of the

works also need a manual intervention of the user to

select the design attributes. In this work, we obtain

a working prototype closer to a ﬁnal product without

intervention from the user or external software.

Only a few proposals obtain executable programs

as an output. Among them, the work in (Abbott,

1983) involve a manual process, and the proposal in

(Schwitter, 1996) requires to work with previously

deﬁned code fragments in order to obtain a command-

line based program. Contrarily, in the proposed ap-

proach, the result is an executable web application

prototype.

6 CONCLUSIONS

This paper presented a fast prototyping method for

web applications running business processes using a

restricted natural language speciﬁcation. Two differ-

ent transformations were proposed between design

models (E-R diagrams and BPMN models) and nat-

ural language (English) to propose a new speciﬁca-

tion language (restricted natural language). The pro-

posed transformations based on previous speciﬁcation

languages maintain the expressiveness of the original

Automatic Source Code Generation for Web-based Process-oriented Information Systems

111

Table 1: Comparison to related works.

Work Start point Result

(Schwitter, 1996) Speciﬁcation lan-

guage

Executable

(Deeptimahanti and

Sanyal, 2011)

Unrestricted natural

language

UML diagrams

(Friedrich et al.,

2011)

Unrestricted natural

language

BPMN diagram

(Liu et al., 2004) Templates UML class and se-

quence diagrams

(Abbott, 1983) Unrestricted natural

language

ADA Executable

(manual process)

(Geetha and Mala,

2013) (Geetha and

Anandha Mala,

2014)

Unrestricted natural

language

E-R diagram

(Popescu et al.,

2008)

Templates UML class diagram

(Chioac, 2012) Unrestricted natural

language

OSMs

(Overmyer et al.,

2001)

Unrestricted natural

language

UML class diagram

(Desai et al., 2016) Unrestricted natural

language

DSLs

This Work Restricted natu-

ral language +

Templates

Executable Web ap-

plication prototype

languages in the new representation. The use of this

new language permits to overcome limitations in tra-

ditional speciﬁcation languages, improving the code

generation capabilities considerably.

This work opens up interesting paths for the au-

tomatic fast prototyping of web applications. How-

ever, there is more work to be done in the future.

This includes: to propose a sub-grammar/method for

automatic gateway resolution, and to extend the pro-

posed restricted natural language by including infor-

mation present in other design models besides E-R

and BPMN. Other limitations of the present work can

be addressed as well, such as: altering tasks execution

based on previous tasks; visualizations of data; ana-

lytics over the performed processes; geo-referencing

ﬁelds; ﬁelds with special visualizations; and special

restrictions in relationships between domain classes.

In exchange for these limitations, a fast prototyp-

ing scheme is obtained where results can be seen, ex-

ecuted, and altered in very short time allowing all of

this to occur during a live meeting with the stakehold-

ers. The changes made to the speciﬁcation can be

seen instantly thanks to code generation capabilities

and IDE integrations. The ﬁnal product of this proto-

typing scheme is a source code ready to be part of the

ﬁnal product. This reduces the problems associated

with the requirements elicitation and design stages.

REFERENCES

Abbott, R. J. (1983). Program design by informal En-

glish descriptions. Communications of the ACM,

26(11):882–894.

Augustine, S. and Martin, R. C. (2005). Managing agile

projects. Robert C. Martin series. Prentice Hall Pro-

fessional Technical Reference, Upper Saddle River,

NJ.

Bellegarda, J. R. and Monz, C. (2015). State of the art in

statistical methods for language and speech process-

ing. Computer Speech & Language, 35:163–184.

Bhatia, J., Sharma, R., Biswas, K. K., and Ghaisas, S.

(2013). Using Grammatical knowledge patterns for

structuring requirements speciﬁcations. 2013 3rd In-

ternational Workshop on Requirements Patterns, RePa

2013 - Proceedings, pages 31–34.

Bryant, B. R. and Lee, B. S. (2002). Two-level gram-

mar as an object-oriented requirements speciﬁcation

language. Proceedings of the Annual Hawaii In-

ternational Conference on System Sciences, 2002-

Janua(c):3627–3636.

Cambria, E. and White, B. (2014). Jumping NLP Curves:

A Review of Natural Language Processing Research

[Review Article]. IEEE Computational Intelligence

Magazine, 9(2):48–57.

Chioac, E. V. (2012). Using machine learning to enhance

automated requirements model transformation. Pro-

ceedings - International Conference on Software En-

gineering, pages 1487–1490.

Dahhane, W., Zeaaraoui, A., Ettifouri, E. H., and Bouchen-

touf, T. (2015). An automated object-based approach

to transforming requirements to class diagrams. 2014

2nd World Conference on Complex Systems, WCCS

2014, pages 158–163.

Deeptimahanti, D. K. and Sanyal, R. (2011). Semi-

automatic generation of UML models from natural

language requirements. Proceedings of the 4th In-

dia Software Engineering Conference on - ISEC ’11,

pages 165–174.

Desai, A., Gulwani, S., Hingorani, V., Jain, N., Karkare, A.,

Marron, M., R, S., and Roy, S. (2016). Program syn-

thesis using natural language. In Proceedings of the

38th International Conference on Software Engineer-

ing, ICSE ’16, pages 345–356. ACM.

Fairley, R. E. (2009). Managing and leading software

projects. IEEE Computer Society ; Wiley, Los Alami-

tos, CA : Hoboken, N.J.

Fowler, M. and Highsmith, J. (2001). The agile manifesto.

Software Development, 9:28–35.

Friedrich, F., Mendling, J., and Puhlmann, F. (2011). Pro-

cess Model Generation from Natural Language Text.

Lecture Notes in Computer Science, 6741:482–496.

Geetha, S. and Anandha Mala, G. S. (2014). Automatic

database construction from natural language require-

ments speciﬁcation text. ARPN Journal of Engineer-

ing and Applied Sciences, 9(8):1260–1266.

Geetha, S. and Mala, G. (2013). Extraction of key at-

tributes from natural language requirements speciﬁca-

tion text. In IET Chennai Fourth International Con-

ference on Sustainable Energy and Intelligent Systems

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

112

(SEISCON 2013), pages 374–379. Institution of Engi-

neering and Technology.

Githens, G. (2006). Managing Agile Projects by Sanjiv Au-

gustine. Journal of Product Innovation Management,

23(5):469–470.

Granacki, J. J. and Parker, a. C. (1987). PHRAN-SPAN: a

natural language interface for system speciﬁcations.

24th ACM/IEEE conference proceedings on Design

automation conference - DAC ’87, pages 416–422.

Harris, I. G. (2012). Extracting design information from

natural language speciﬁcations. Proceedings of the

49th Annual Design Automation Conference on - DAC

’12, page 1256.

Ibrahim, M. and Ahmad, R. (2010). Class diagram extrac-

tion from textual requirements using natural language

processing (NLP) techniques. 2nd International Con-

ference on Computer Research and Development, IC-

CRD 2010, pages 200–204.

Ili

c, D. (2007). Deriving formal speciﬁcations from in-

formal requirements. Proceedings - International

Computer Software and Applications Conference,

1(Compsac):145–152.

Konrad, S. and Cheng, B. H. C. (2005). Facilitating the

construction of speciﬁcation pattern-based properties.

13th IEEE International Conference on Requirements

Engineering RE05, (August):329–338.

Liu, D., Subramaniam, K., Eberlein, A., and Far, B.

(2004). Natural language requirements analysis and

class model generation using UCDA. Innovations in

Applied Artiﬁcial Intelligence, pages 295–304.

Meziane, F. and Vadera, S. (2004). Obtaining E-R diagrams

semi-automatically from natural language speciﬁca-

tions. pages 638–642.

Nishida, F., Takamatsu, S., Fujita, Y., and Tani, T. (1991).

Semi-automatic program construction from speciﬁca-

tions using library modules. IEEE Transactions on

Software Engineering, 17(9):853–871.

Overmyer, S., Benoit, L., and Owen, R. (2001). Concep-

tual modeling through linguistic analysis using LIDA.

Proceedings of the 23rd International Conference on

Software Engineering. ICSE 2001, pages 401–410.

Popescu, D., Rugaber, S., Medvidovic, N., and Berry,

D. M. (2008). Reducing ambiguities in require-

ments speciﬁcations via automatically created object-

oriented models. Lecture Notes in Computer Science

(including subseries Lecture Notes in Artiﬁcial Intel-

ligence and Lecture Notes in Bioinformatics), 5320

LNCS:103–124.

Saeki, M., Horai, H., and Enomoto, H. (1989). Software

Development Process from Natural Language Speci-

ﬁcation. Proceedings of the 11th International Con-

ference on Software Engineering, pages 64—-73.

Schwitter, R. (1996). Attempto-from speciﬁcations in con-

trolled natural language towards executable speciﬁca-

tions. Arxiv preprint cmp-lg/9603004.

Selway, M., Grossmann, G., Mayer, W., and Stumptner,

M. (2015). Formalising natural language speciﬁca-

tions using a cognitive linguistic/conﬁguration based

approach. Information Systems, 54:191–208.

Smith, R., Avrunin, G., and Clarke, L. (2003). From natu-

ral language requirements to rigorous property speci-

ﬁcations. Workshop on Software Engineering for Em-

bedded Systems (SEES 2003) From Requirements to

Implementation, pages 40–46.

Steen, B., Pires, L. F., and Iacob, M.-e. (2010). Automatic

generation of optimal business processes from busi-

ness rules. pages 117–126.

Videira, C., Ferreira, D., and Da Silva, A. R. (2006). A

linguistic patterns approach for requirements speci-

ﬁcation. Proceedings - 32nd Euromicro Conference

on Software Engineering and Advanced Applications,

SEAA, 2004:302–309.

Walia, G. S. and Carver, J. C. (2009). A systematic literature

review to identify and classify software requirement

errors.

Zapata, C. M. (2006). UN Lencep : Obtenci

on Autom

atica

de Diagramas UML a partir de un Lenguaje Contro-

lado. Memorias del VII Encuentro Nacional de Com-

putaci

on ENC’06, pages 254–259.

Zeaaraoui, A., Bougroun, Z., Belkasmi, M. G., and

Bouchentouf, T. (2013). User stories template for

object-oriented applications. 2013 3rd International

Conference on Innovative Computing Technology, IN-

TECH 2013, pages 407–410.

Zhou, X; Zhou, N. (2008). Auto-generation of Class Di-

agram from Free-text Functional Speciﬁcations and

Domain Ontology. (2):1–20.

Automatic Source Code Generation for Web-based Process-oriented Information Systems

113
