Combining Behaviour-Driven Development with Scrum for Software

Development in the Education Domain

Pedro Lopes de Souza

, Antonio Francisco do Prado

, Wanderley Lopes de Souza

Sissi Marilia dos Santos Forghieri Pereira

and Lu

ıs Ferreira Pires

Department of Computing, Federal University of S

ao Carlos, PO Box 676, 13565-905, S

ao Carlos, S

ao Paulo, Brazil

Department of Medicine, Federal University of S

ao Carlos, PO Box 676, 13565-905, S

ao Carlos, S

ao Paulo, Brazil

Centre for Telematics & Information Technology, University of Twente, PO Box 217, 7500AE, Enschede, The Netherlands

Keywords:

Software Engineering, Methodologies for System Development, BDD, Scrum, ICT in Education, PBL.

Abstract:

Most of the Brazilian universities employ teaching-learning methodologies based on classic frontal lectures.

The Medicine Programme of the Federal University of S

ao Carlos (UFSCar) is an exception, since it em-

ploys active learning methodologies. The Educational and Academic Management System for Courses Based

on Active Learning Methodologies (EAMS-CBALM) was built and it is currently used to support this pro-

gramme, and has been made available for other programmes as well. This system was developed using Scrum,

but during its development project it was often necessary to reconsider system behaviour scenarios, and con-

sequently the product backlog items, mainly due to poor communication between the Product Owner (PO)

and the development team. This paper discusses a case study in which Behaviour-Driven Development (BDD)

has been used in combination with Scrum to redesign some EAMS-CBALM components. The paper demon-

strates that the communication between the PO and the development team can be improved by using BDD as a

communication platform to unambiguously deﬁne system requirements and automatically generate test suites.

1 INTRODUCTION

Until recently, most universities still employed tradi-

tional teaching-learning methodologies based on clas-

sic frontal lectures (Weltman, 2007). The Medicine

Programme of the Federal University of S

ao Car-

los (UFSCar) has broken this trend, by introduc-

ing active learning methodologies in its curricu-

lum. This programme was established in 2006, and

follows a socio-constructivist educational approach,

has a competency-oriented pedagogical program,

and employs active learning methodologies, such as

Problem-Based Learning (PBL) (Rhem, 1998), and

Practice-Based Learning (Carlisle et al., 2009).

In order to provide computational support to these

active learning methodologies, the Ubiquitous Com-

puting Group (UCG) of UFSCar coordinated the de-

velopment of the Educational and Academic Man-

agement System for Courses Based on Active Learn-

ing Methodologies (EAMS-CBALM) (Santos et al.,

2016). EAMS-CBALM was developed using Scrum

(Schwaber and Sutherland, 2016), which prescribes,

amongst others, sprint reviews, which are meetings

involving the development team and Product Owner

(PO) to deﬁne the product backlog and evaluate the

sprint results. In this project, it was often necessary to

redeﬁne some system behaviour scenarios, and conse-

quently the product backlog items, due to misunder-

standing of the stories reported by the PO.

Behaviour-Driven Development (BDD) is an ap-

proach to software development that prescribes the

deﬁnition of usage scenarios (behaviour speciﬁca-

tions) upfront, as a way to better understand what the

software is supposed to do (its ‘behaviour’) (North,

2006). This paper discusses a case study in which

we combined BDD with Scrum in order to address

the problems mentioned before, in which we re-

designed some EAMS-CBALM components. This

paper demonstrates that the communication between

the PO and the development team can be improved

quite a lot by applying BDD in combination with

Scrum.

This paper is further structured as follows: Sec-

tion 2 introduces the UFSCar Medicine Programme,

Section 3 describes the original EAMS-CBALM ar-

chitecture, Section 4 presents the case study, Section 5

discusses the beneﬁts and drawbacks of our results,

Section 6 presents some related work and Section 7

Souza, P., Prado, A., Souza, W., Pereira, S. and Pires, L.

Combining Behaviour-Driven Development with Scrum for Software Development in the Education Domain.

DOI: 10.5220/0006336804490458

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 449-458

ISBN: 978-989-758-248-6

449

gives our conclusions.

2 UFSCar MEDICINE

PROGRAMME

The UFSCar Medicine Programme curriculum is

based on educational activities organised in three ed-

ucational units, as shown in Figure 1: Education Unit

of Simulation of Professional Practice (EUSPP), Edu-

cation Unit of Professional Practice (EUPP), and Ed-

ucation Unit of Elective Activities (EUEA) (UFSCar,

2007). Figure 1 also shows that simulation practice is

gradually replaced by professional practice through-

out the programme.

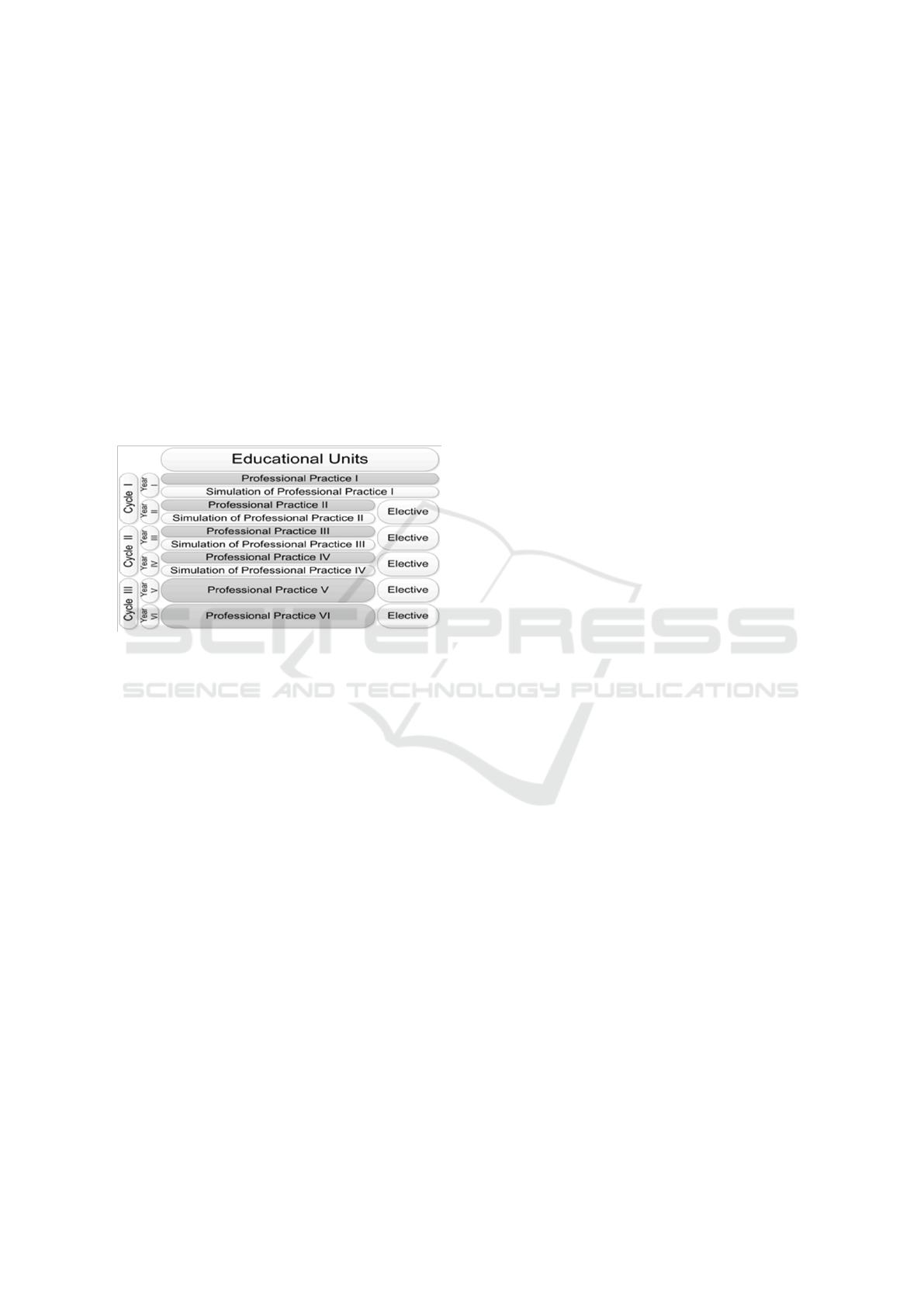

Figure 1: UFSCar Medicine Programme curriculum.

The educational activities of the UFSCar

Medicine Programme have learning triggers, which

are problems that simulate or portray the daily activ-

ities to be performed by the students. These triggers

activate the constructivist spiral (Tempski, 2014),

which encourages students to reﬂect and stimulate

them to develop their capacities. For each learning

trigger, the students traverse the constructivist spiral,

starting by identifying the problem, formulating

explanations, preparing learning questions, looking

for new information, building new meanings, and

ﬁnally evaluating the process.

3 EAMS-CBALM

The Educational and Academic Management System

for Courses Based on Active Learning Methodolo-

gies (EAMS-CBALM) (Santos et al., 2016) was de-

veloped by the UCG/UFSCar, in partnership with

the DMed/UFSCar, the Teaching and Research Insti-

tute (TRI) of the S

ırio-Liban

es Hospital (SLH), and

the TokenLab software house. EAMS-CBALM was

developed using Scrum (Schwaber and Sutherland,

2016).

3.1 Development Process

In Scrum, the units of work are divided in sprints,

which can last between a week and a month, period

in which the development team creates an increment

of the product to be delivered to the user. The devel-

opment team must have a Product Owner (PO), who

is designated by the client to follow the development

process, which in a nutshell consists of: sprint plan-

ning; product delivery at the end of each sprint; and

ﬁnal product delivery, properly deployed and tested.

Scrum emphasises the interactions between the

users and the development team, mainly when the re-

quirements are established and selected in user sto-

ries, in order to obtain a fast delivery and a satisfac-

tory quality of the product. Most of the clariﬁcations

and details regarding the product under development

are obtained during these interactions, allowing prod-

uct adaptations to be done quickly, thus avoiding bot-

tlenecks and delays and reducing the likelihood of un-

satisfactory results.

Throughout the one-year development of the

EAMS-CBALM, weekly meetings were held at To-

kenLab in S

ao Carlos-SP (Brazil) for the planning

and analysis of the different phases of this project, in-

volving the UCG/UFSCar coordinator, the coordina-

tor of the TokenLab development team, two POs des-

ignated by TRI/SLH and DMed/UFSCar (the product

clients), respectively, and a PhD student. Monthly

sprint review meetings were held at TRI/SLH in

ao Paulo-SP (Brazil) to present the products result-

ing from the sprints, involving the participants of

the TokenLab meetings and TRI/SLH members di-

rectly or indirectly related to the project. In addi-

tion, the PhD student participated in courses offered

by the DMed/UFSCar and the TRI/SLH to observe

the teaching-learning process of these courses.

During the TokenLab meetings, the POs reported

user stories informally in Portuguese, describing the

activities to be performed by the EAMS-CBALM

users. From these user stories, system requirements

were captured and speciﬁed also informally in Por-

tuguese. Using these requirement speciﬁcations, the

development team deﬁned system behaviour scenar-

ios and implemented the screen pages for these sce-

narios, which were presented and discussed at the

next meeting. A total of 109 hours have been spent

with these meetings, in which the CBALM teaching-

learning process was scrutinised, resulting in the deﬁ-

nition of the functional and non-functional system re-

quirements, and the overall system architecture.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

450

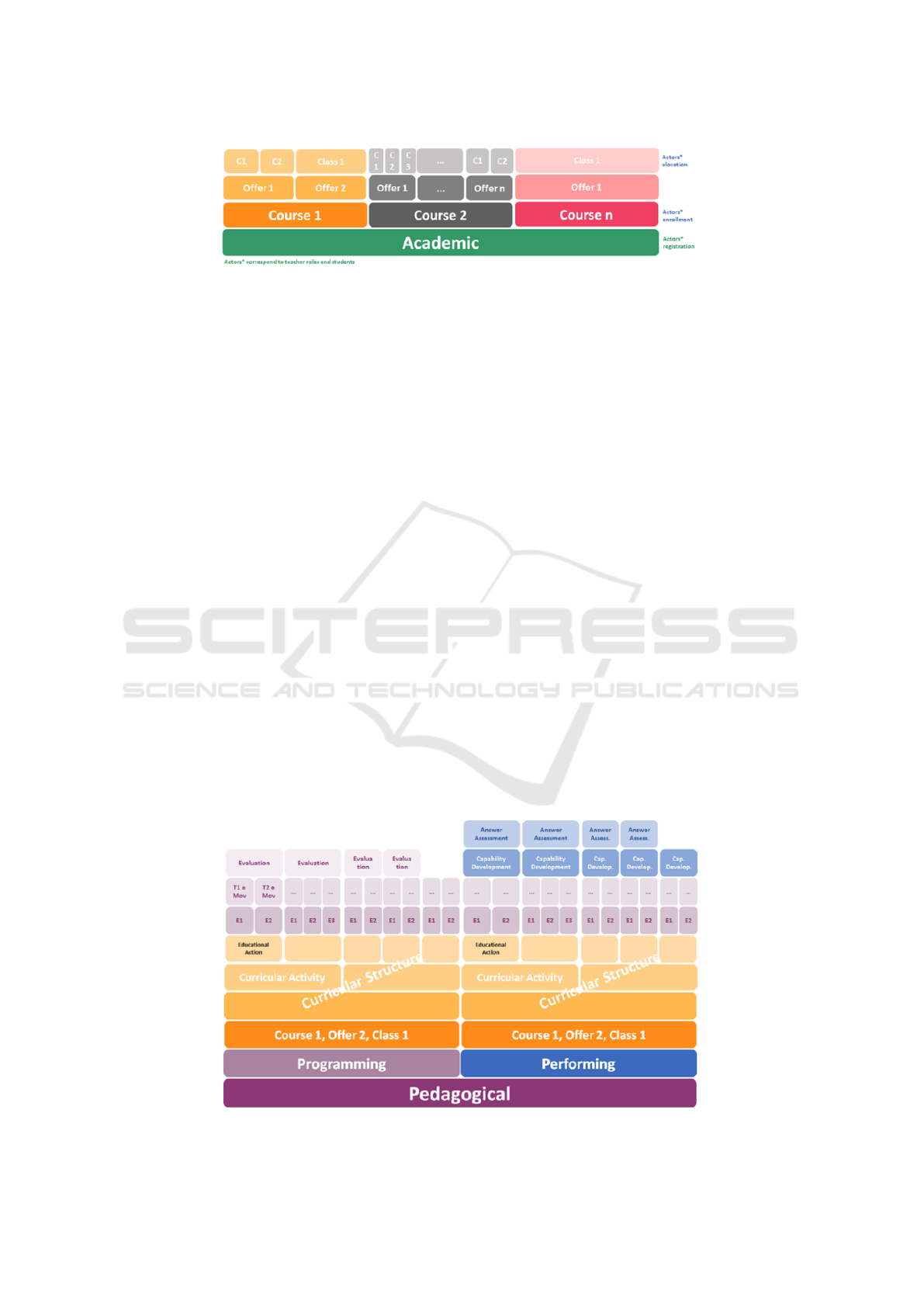

Figure 2: EAMS-CBALM academic module.

3.2 System Architecture

EAMS-CBALM has two main functional modules:

academic and pedagogical. The academic module,

shown in Figure 2, allows its users to deﬁne the pro-

gramme structure, the CBALM community, and the

curriculum. The programme structure is used for

creating courses, where each course can be offered

several times, and each course offer can have sev-

eral classes (like, e.g., ‘the class of 2016’). The

CBALM community consists of students and teach-

ers. A teacher can play the following roles: facilita-

tor in curricular activities, supervisor, preceptor, con-

sultant, appraiser, author of simulated practices and

of educational units, manager of educational units,

working groups or educational resources. Registered

students can be enrolled in courses, and then assigned

to groups. The curriculum is used to create a curricu-

lum structure with at least two and at most ﬁve hier-

archical levels. For example, the UFSCar Medicine

Programme curriculum, which is shown in Figure 1,

has ﬁve levels: cycles, years, educational units, cur-

ricular activities and educational actions.

The pedagogical module, shown in Figure 3, re-

ﬂects the curricular structure over each class of each

course previously recorded in the academic module.

The educational actions are programmed in the ped-

agogical module, giving rise to the educational envi-

ronment in which students and teachers perform and

record their activities. The planning of an educational

action starts with the meeting preparation, where each

meeting corresponds to a step of the constructivist spi-

ral, and ends with the evaluation preparation.

EAMS-CBLAM allows students to discuss

through forums, exchange text documents, images,

videos, and audios fragments, create individual or

collaborative documents, store and retrieve document

versions, and share the knowledge produced by other

students and teachers. All these resources contribute

to the student capabilities development leading to

knowledge production.

Another EAMS-CBALM feature regards data vi-

sualisation, since all educational content produced

during the teaching-learning process is provided by

means of a curricular trajectory. This content ranges

from the teaching contribution to the individual and

collaborative knowledge produced by the students.

The curricular trajectory can be viewed in a time-

line or be associated with an educational unit, allow-

ing students and teachers to visualise all developed

practices in the most adequate way at each moment.

In addition, the produced knowledge is indexed by

keywords, facilitating the search of any content cre-

ated throughout the teaching-learning process.

Figure 3: EAMS-CBALM pedagogical module.

Combining Behaviour-Driven Development with Scrum for Software Development in the Education Domain

451

4 CASE STUDY

During the EAMS-CBALM development the non-

functional requirements were deﬁned according to 5

qualitative design criteria: Performance, Interoper-

ability, Portability, Responsiveness and Security. The

functional requirements of this system were orga-

nized into 19 modules: Authentication, General Set-

tings, Access Proﬁles, Users, Course, User Registra-

tion in Class, Calendar, Programming, Groups, Ped-

agogical Planning, Evaluation Management, Trajec-

tory, Repository of Group Documents, Repository of

Individual Documents, Forums, Meetings, Frequency,

Evaluations, and Performance Record.

The Evaluation Management module generated

the most controversies between POs and developers,

since the CBALM student evaluation is different and

more complex than the traditional one. This module

is composed of 14 functional requirements, and al-

though the scenarios of Evaluation Instrument Reg-

ister requirement have been redone several times, its

ﬁnal implementation did not fully satisfy the POs.

Therefore, we selected this module in this case study,

by focusing on the CBALM student evaluation pro-

cess. Furthermore, one of the POs that was involved

in the EAMS-CBALM development participated in

this case study. By keeping regular meetings with this

PO, we developed new source code for the Evaluation

Instrument Register requirement by combining BDD

with Scrum. This new source code was presented to

the PO and compared with the implementation origi-

nally produced by TokenLab.

4.1 Behaviour-Driven Development

Test Driven Development (TDD) (Beck, 2002) is

a software evolutionary development methodology,

based on short development cycles, in which auto-

mated tests are described previously to the functional

code. Acceptance Test Driven Development (ATDD)

(Koskela, 2008) extends TDD by using acceptance

tests to represent stakeholders requirements.

Behaviour-Driven Development (BDD) is a soft-

ware agile development methodology, originally pro-

posed by Dan North (North, 2006) and considered

an evolution of TDD and ATDD, whose fundamen-

tal principle is: “stakeholders and developers should

refer to the same system in the same way”. For

achieving this goal, an ubiquitous language is re-

quired that is understandable by all those involved

in system development and that enables executable

granular speciﬁcations of the system’s behaviour and

testing (Diepenbeck and Drechsler, 2015).

Six main characteristics of BDD were identi-

ﬁed in (Solis and Wang, 2011): ubiquitous lan-

guage; iterative decomposition process; user story

and scenario templates; automated acceptance test-

ing with mapping rules; readable behaviour-oriented

speciﬁcation code; and behaviour-driven at different

phases. Using these characteristics, (Solis and Wang,

2011) also analyses seven of the main BDD tools:

NBehave (NBehave, 2014) and JBehave (JBehave,

2015); MSpec (MSpec, 2016) and RSpec (RSpec,

2016); StoryQ (StoryQ, 2010); Cucumber (Cucum-

ber, 2016); and SpecFlow (SpecFlow, 2016).

BDD is an evolving methodology that does not

have a clear deﬁnition and unanimous understanding,

and the existing support tools focus mainly on the im-

plementation phase, providing limited support to the

requirements gathering, analysis, and design phases

of software life cycle. Starting from (Solis and Wang,

2011), we did a systematic review of BDD-related

work, and an analysis of the current BDD toolkits.

Figure 4 shows the BDD process depicted using the

Structured Analysis and Design Technique (SADT)

diagrammatic notation.

The purpose of this case study has been to ex-

periment with the combination of BDD and Scrum,

aiming at exploiting the beneﬁts of this combina-

tion. During a Scrum sprint planning meeting in-

volving POs and the development team, requirements

are listed according to their priority and added as

user stories to the product backlog. The develop-

ment team then decides which stories are tackled

during the sprint, and creates a sprint backlog with

the tasks to be performed in the sprint. In order to

avoid rework, a clear understanding of these require-

ments and the corresponding functional behaviour is

necessary. According to (Chauhan, 2016) BDD can

be used for this purpose if it takes a central role in

some Scrum artefacts and rituals: the product back-

log and the sprint backlog; the daily scrum meeting;

and the sprint meeting. In addition, according to (Ma-

lik, 2013) BDD can also be applied in backlog reﬁne-

ment. In the sequel, we discuss how we combined

BDD and Scrum in our case study by discussing each

of the stages of the BDD process in Figure 4.

4.2 Ubiquitous Language

A ubiquitous language is essential in BDD. It must

have a structure derived from a business domain

model, offer a terminology that is understandable to

both clients and developers, be used in all system de-

velopment phases (Evans, 2004). Therefore, a ubiq-

uitous language had to be created for the communica-

tion between the POs and developers.

Most of the ubiquitous language terminology

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

452

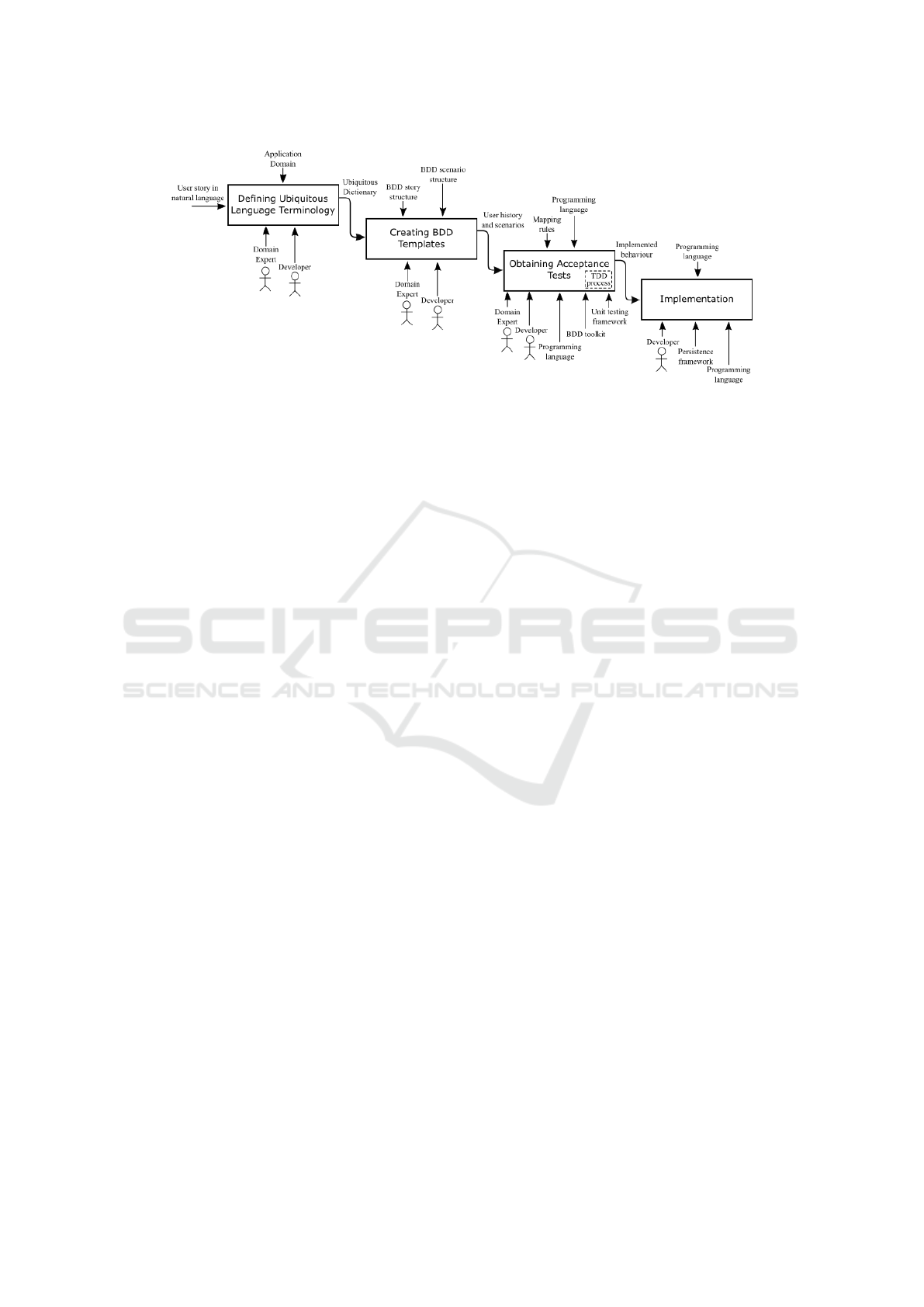

Figure 4: BDD process in SADT.

should be deﬁned in the analysis phase, but new terms

can be added at any time and at any phase. In the de-

sign and implementation phases, this terminology is

used to name classes and methods, making the code

clearer and better readable. BDD itself has a sim-

ple pre-deﬁned ubiquitous language for the analysis

phase, which is domain-independent. This language

is used to formulate the user stories and scenarios.

In the ﬁrst meetings with the PO we deﬁned the

terminology employed in the CBALM student eval-

uation process. Evaluations are performed by all in-

volved in CBALM activities, expressing their percep-

tions, indicating the relevant aspects, and aspects that

need to be improved, reworked or replaced. Two

evaluation types are supported, namely formative and

summative evaluations, and the possible results to

be received/given are ‘satisfactory’, ‘needs improve-

ment’ and ‘unsatisfactory’. The student who does not

reach a satisfactory result must undertake an improve-

ment plan proposed by the teacher, and then be re-

evaluated (UFSCar, 2007). Evaluations are consoli-

dated by applying a set of instruments, which are de-

scribed in the following story reported by the PO:

“In order for the course coordinator to carry out

a student evaluation, six instrument types have to be

previously registered. This requirement is needed be-

cause the evaluation form heading changes according

to the employed instrument. When registering an in-

strument, the system must keep the following infor-

mation: name, acronym and the relationship between

who responds to the evaluation, who evaluates and

who is evaluated. This last information is crucial be-

cause in conjunction with the curricular activity it de-

ﬁnes which form type is applied when registering an

evaluation. The six instrument types are:

(a) Performance Assessment of the Teaching-

Learning Process (acronym: PATLP) - It is

formative. Teacher evaluates student. The

Respondent is the teacher. A PATLP has 3 steps:

teacher evaluation, classmate evaluation, and

improvement plan if necessary. The PATLP

also allows a Self-Evaluation (SE). SE skills are

essential for the success of every professional in

maintaining professional competence according

to the teaching-learning process.

(b) Reﬂective Portfolio (RP) - It is formative and

summative. The monitoring of each student’s

portfolio by the teacher is part of the formative

assessments. The summative evaluation refers to

its preparation and presentation according to pre-

established delivery dates that must be recorded

into the system.

Each WE is composed of questions created by

the teacher, answered by the student, and then as-

signed by the teacher. Each question is individ-

ually analyzed in order to determine the student

progress. All question must have a ‘satisfactory’

result for the student to pass the WE. Questions

that failed to get a ‘satisfactory’ result are consid-

ered as progress deﬁcit and will be worked out in

the next WE.

(d) Progress Test (PT): It is formative and summa-

tive. A PT consists of multiple choice questions.

The teacher monitors the performance of each

student’s performance in a PT as part of the for-

mative assessments. A PT is also summative be-

cause the students presence at a PT gives them a

‘satisfactory’ result.

(e) Objective and Structured Evaluation of Profes-

sional Performance (OSEPP) - It is summative.

Instead of questions like WE, the students act in

clinical cases and are evaluated by the teacher.

The OSEPP evaluation is similar to the WE eval-

uation.

Combining Behaviour-Driven Development with Scrum for Software Development in the Education Domain

453

(f) Problems Based Exercise (PBE) - It is formative.

A PBE assesses the student’s individual ability to

study and identify health needs, formulate patient

problems, and propose a healthcare plan for a par-

ticular context and problem situation.”

Based on this user story, we deﬁned the main ubiq-

uitous language terminology for the CBALM student

evaluation process. Table 1 summarises the terminol-

ogy that has been employed in the development of the

Evaluation Instrument Register, showing the relation-

ships between the involved actors.

Table 1: Ubiquitous language terminology for Evalu-

ation Instrument Register.

Instrument

type

Respondent Appraiser Appraisee

PATLP Teacher Teacher Student

PATLP (SE) Student Student Student

RP / PT

WE / PBE

OSEPP

Student Teacher Student

4.3 BDD Templates

The BDD analysis phase starts by identifying the

most expected system behaviours, which are derived

from the business outcomes to be produced by the

system. Based on these business outcomes, feature

sets are deﬁned, where each feature set can contain

subsets, and indicates what should be accomplished

to achieve a speciﬁc business outcome. When com-

bining BDD with Scrum we prescribe that the POs

and the development team should agree on the feature

set, and ideally deﬁne it together.

Features are expressed through user stories, and

describe the interactions among a user and the system.

A user story must elucidate the users role in this story,

the feature desired by the user, and the beneﬁt gained

by the user if the system provides the desired fea-

ture. Due to different contexts, a user story may have

different versions that will lead to different story in-

stances, called scenarios, which should describe spe-

ciﬁc contexts and outcomes of this user story. When

using Scrum, this should be provided by the POs.

A scenario describes how the system that imple-

ments a given feature should behave when it is in a

main context with possible additional contexts that

could be represented by additional conditions. When

an event happens, e.g., a system entry, the scenarios

result can be one or more actions that change the state

of the system or produces some system output.

This initial analysis may be sufﬁcient for a ﬁrst

implementation, even if important system behaviours

are yet undisclosed. However, as new behaviours are

revealed, the whole process illustrated in Figure 6 can

be performed again, thus characterising the ”iterative

decomposition process” (Solis and Wang, 2011).

BDD user stories and scenarios follow the prede-

ﬁned templates described in (North, 2006) by em-

ploying a simple ubiquitous language. However,

BDD tools generally do not exactly follow these mod-

els. For example, JBehave supports a slightly dif-

ferent user story template than the one proposed in

(North, 2006), but the same scenario template. In ad-

dition, JBehave supports most of the BDD character-

istics presented in (Solis and Wang, 2011), it is well-

accepted and widely used in the BDD community, it

is open source software, and is frequently updated.

Those are the main reasons that have led us to choose

JBehave in this case study.

The JBehave user story template is as follows

Narrative: [story title]

In order to [benefit]

As a [role]

I want to [feature]

where Narrative:, optionally followed by a story ti-

tle, describes an activity to be performed by a user;

In order to describes the beneﬁt obtained by the user

once the activity is performed; As a deﬁnes the role

played by the user on that story; and I want to deﬁnes

the feature provided by the system that allows the user

to perform the activity.

The JBehave user story for our case study is the

following:

Narrative: Evaluation Instrument

In order to create the student

evaluation form header

As a course coordinator

I want to previously register all

instrument types into the system

The JBehave scenario template is as follows

Scenario: [scenario title]

Given [main context]

And [additional contexts]

When [specific event]

Then [main outcome]

And [additional outcomes]

where Scenario:, followed by a scenario title, de-

scribes how the system that implements a given fea-

ture should behave; Given deﬁnes the system main

context that could be represented by a system state;

And is an optional clause that deﬁnes additional con-

texts that could be represented by additional condi-

tions; When deﬁnes a speciﬁc event that could be

some system input; Then deﬁnes the main outcome,

which could be an action for changing the system

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

454

state; And is an optional clause that deﬁnes additional

outcomes that could be other actions, for example, to

produce system outputs. This template is similar to

an Extended Finite State Machine (EFSM) model (El-

Fakih et al., 2016).

There are six scenarios in our case study, one for

each instrument type. The JBehave scenario for the

PATLP instrument is the following:

Scenario: Register the PATLP fields

into the system

Given the name Performance Assessment

of the Teaching-Learning Process

And the acronym is PATLP

And the respondent and appraisee is a

student and the appraiser is a

teacher

When the user select register

Then the system register the

instrument

And the PATLP form header for student

evaluation is created

And the Evaluation Instrument list is

updated

4.4 Acceptance Tests

A BDD acceptance test is an executable speciﬁcation

of the system behaviour, which veriﬁes the interac-

tions or behaviours of objects rather than their states.

The produced scenarios are translated into tests that

guide the implementation. A scenario is composed of

several steps, where each step is an abstraction that

represents the three elements of a scenario: context,

event and action. The meaning of these elements is: in

a particular case of a user history or context C, when

the event X happens, the system response should be

Z. Each step is mapped to one test method, and the

scenario passes only if all its steps pass. Each step

follows the TDD’s process: red, green, and refactor-

ing to make it pass.

Since in BDD all scenarios must be executed

automatically, the acceptance criteria must also be

imported and analysed automatically. The classes

that implement the scenarios read their speciﬁcations,

which are written in the ubiquitous language, and exe-

cute them. Therefore, the mapping between scenarios

and testing code needs to be explicitly deﬁned.

There are six acceptance tests in our case study,

one for each scenario. The most relevant excerpts of

the JBehave acceptance test code for the PATLP sce-

nario are shown below

public class InstrumentRegisterSteps

extends Steps{

... // setting variables and methods to

// support the scenarios

@Given("the name is Performance Assessment

of the Teaching-Learning Process")

public void setInstrumentName(String

instrumentName){

... //set instrument name }

@Given("the acronym is PATLP")

public void setInstrumentAcronym(String

acronym){

... //set instrument acrynom }

@Given("the respondend and appraisee is

the student and the appraiser

is the teacher")

public void setRelationship(Boolean

sameRespondentAndAppraisee){

... //set relationship }

@When("the user select register")

public void addInstrument() {

... //perform action }

@Then("the system register the instrument")

public void saveInstrument() {

... //data persist }

@Then("the PATLP form header for student

evaluation is created")

public void instrumentHeader() {

... //creating and persisting headers }

@Then("the Evaluation Instrument list

is updated")

public void instrumentListUpdate() {

...//Evaluation instrument list updated }

... // next scenario }

JBehave uses the @Given, @When and @Then

annotations to relate scenario speciﬁcation clauses to

Java methods, and the Java class that implements

these methods should extend the Steps class. JBe-

have allows the scenario to be executed as a JUnit test

(JUnit, 2016). The link between JBehave’s executor

framework and the textual scenarios is provided by

the Embeddable class deﬁnitions. This class extends

class JUnitStory and its name can be mapped to the

textual story ﬁlename.

4.5 Implementation

In BDD the code must be readable, contain the spec-

iﬁcation, describe the behaviour of the objects and

be part of the system documentation. The classes

and methods names must be sentences, and the

names of the methods must indicate their function-

ality. Mapping rules assist in the production of read-

able behaviour-oriented code and ensures that classes

and methods names are the same as user story titles

and scenarios, respectively. In addition, these names

make use of the ubiquitous domain-speciﬁc language

deﬁned in the project. A behaviour-oriented code of

the JBehave implementation for the Evaluation In-

strument Register requirement can be seen below.

public class EvaluationInstrumentRegister{

// variables

public void setInstrumentName(String

instrumentName){

Combining Behaviour-Driven Development with Scrum for Software Development in the Education Domain

455

//set instrument name }

public void setInstrumentAcronym(String

acronym){

//set instrument acrynom }

public void setRelationship(Boolean

relationship){

//set relationship }

public void addInstrument() {

//perform action }

public void saveInstrument() {

//data persist }

public void instrumentHeader() {

//creating and persisting headers }

public void instrumentListUpdate() {

//Evaluation instruments list updated

} ... }

Since the EAMS-CBALM was implemented ac-

cording to the Model-View-Controller (MVC) pat-

tern, splitting the Model layer into a Business layer

and an Integration and Persistence layer, in our

case study we followed this same pattern and em-

ployed a similar architecture to be able to compare

both codes. These layers were implemented with

the Eclipse Communication framework services, and

PostgreSQL was used for persistence.

5 DISCUSSION

This case study exposed many beneﬁts of combining

the BDD process stages with Scrum. The use of a

ubiquitous language derived from the Education do-

main, and the deﬁnition of a CBALM terminology un-

derstandable to both PO and developers avoided mis-

interpretations of user stories, since they provided a

common language and vocabulary for better under-

standing user requirements. The use of the BDD user

story template for describing the Evaluation Instru-

ment Register requirement of the EAMS-CBALM,

and the BDD scenario template for describing the sce-

narios related to the instrument types of the CBALM

student evaluation process allowed to naturally trans-

form this requirement into software functional be-

haviour. Furthermore, JBehave enabled the automatic

generation of the BDD acceptance tests for the instru-

ment types of the CBALM student evaluation process,

and allowed to obtain clearly written and easily un-

derstandable tests to developers, which could also be

inspected by the PO, improving their communication.

Finally, JBehave facilitated the BDD implementation

of the Evaluation Instrument Register requirement, al-

lowing us to produce a readable behaviour-oriented

code to developers, which could also be understood

by the PO, improving their communication.

This case study also conﬁrmed that the BDD pro-

cess stages are beneﬁcial when employed in the some

Scrum artefacts and rituals (Chauhan, 2016). In the

product backlog and sprint backlog, we used the

CBALM ubiquitous language and terminology, the

BDD user story for the Evaluation Instrument Reg-

ister requirement, and the BDD scenarios for the in-

strument types of the CBALM student evaluation pro-

cess, which provided a common BDD platform to

transform this requirement into functional behaviour

in the product backlog, and to transform this func-

tional behaviour into a implementable speciﬁcation.

In the daily scrum meetings, this common BDD plat-

form improved the understanding of each activity in-

volved in the Evaluation Instrument Register devel-

opment, avoiding confusion and bridging the knowl-

edge gap among the developers, and resulting in a ﬁ-

nal implementation of this requirement that fully sat-

isﬁed the PO. Finally, in sprint meetings, since all de-

velopers and PO are committed to deﬁne the Evalu-

ation Instrument Register requirement, the produced

BDD documents became the reference to discuss the

behaviour that is required by the users of the Evalu-

ation Instrument Register product, improving in this

way the traceability of what was required, why it was

needed, and who has requested it.

All these beneﬁts and improvements to Scrum

were possible mainly due to the use of the ubiqui-

tous domain-speciﬁc language and BDD templates.

Although the developers needed to learn another lan-

guage and to deal with more documentation, the use

of this common platform during all BDD stages al-

lowed the PO to follow them in a better way, improv-

ing quite a lot the communication with developers.

In this case study, we performed a qualitative

comparison of Scrum and BDD in combination with

Scrum with respect to the communication between the

PO and the development team, since it is quite hard to

organise a formal experiment to compare this com-

munication in a quantitative way. Nevertheless, we

have the following evidence that our hypothesis that

communication has been improved holds: it took 03

meetings of around 03 hours each between the PO and

the Tokenlab developers for delivering the Evaluation

Instrument Register product, and it also took 03 meet-

ings but of only around 01h20min each between the

same PO and the developers of this case study for de-

livering the same product. This shows that the devel-

opment team could be more productive, thus it was

less disturbed by miscommunication overhead. How-

ever, we need to take into account that rebuilding the

same component has favoured the Scrum/BDD com-

bination, but the positive results obtained in this case

study have motivated the developers to apply BDD to

all the requirements of the EAMS-CBALM Evalua-

tion Management module.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

456

6 RELATED WORK

In (Lubke and Van Lessen, 2016) a platform is pre-

sented for integrating systems responsible for land

registration in Switzerland. The goal is to reduce

process execution time between systems and also the

communication time between POs. In order to model

executable integration processes between various sys-

tems and to develop test cases to validate these pro-

cesses, the authors used BDD and Business Process

Model Notation (BPMN) as the ubiquitous language

for the test case models (scenarios) construction. The

BPMN was chosen because this language is known

by the POs. By combining BDD with BPMN scenar-

ios, the authors found improvements in communica-

tion between developers, users and investors, which

contributed signiﬁcantly to the more agile develop-

ment of the platform.

In (Oruc¸ and Ovatman, 2016) a tool is proposed

to facilitate the creation of scenarios for web services

test. The tool uses BDD in conjunction with the ubiq-

uitous language Gherkin (Wynne and Hellesoy, 2012)

for dynamically generating test scripts. These scripts

are run in JMeter, a test tool for analysing and mea-

suring the performance of web applications (JMeter,

2016). The authors claim to achieve two beneﬁts with

this tool: because Gherkin is a domain-speciﬁc lan-

guage, it allows any domain expert to create and run

web services tests even without software knowledge;

and developers do not need to write unit tests manu-

ally since JMeter automates testing.

In (Silva et al., 2016) an approach based on BDD

is proposed to support the automated assessment of

artefacts along the development process of interactive

systems. A formal ontology model is deﬁned for de-

scribing concepts used by platforms, models and arte-

facts that compose the design of interactive systems,

allowing in this way a wide description of User Inter-

face (UI) elements and its behaviours to support test-

ing activities. In addition, the approach proposes im-

provements in how teams must write requirements for

testing purposes. Once described in the ontology, the

behaviours can be reused freely to write new scenar-

ios in natural language, providing test automation in

BDD and decreasing manual coding.

In (Soeken et al., 2012) a methodology is pre-

sented to assist developers carrying out the BDD

steps. It proposes a design ﬂow where the devel-

oper engages in a dialog with a computer program

in an interactive way. This dialog contains the user

history, and this program processes each spoken sen-

tence and generates the step deﬁnitions and code

blocks (classes, attributes and methods) of each sce-

nario. Some natural language processing tools are

explored and a case study illustrates the application.

Rather than going manually through the established

BDD steps, this methodology suggests some scenario

skeletons for tests reﬁnement and implementation.

The main difference between our work and the

ones above is that in addition to applying BDD in soft-

ware development our work also exposes the beneﬁts

of using BDD in combination with Scrum. Moreover,

our case study was developed for the Education do-

main, more speciﬁcally for courses based on active

learning methodologies, and to the best of our knowl-

edge the combination of BDD and Scrum in the devel-

opment of software systems for the Education domain

has not been addressed before in the literature.

7 CONCLUSIONS

In order to accomplish this work, ﬁrst we did a sys-

tematic review on BDD and its toolkits, and prop-

erly deﬁned the BDD development process. Then,

we conducted a case study, focusing on the Evalua-

tion Instrument Register requirement of the EAMS-

CBALM Evaluation Management module. By keep-

ing regular meetings with the same PO that was in-

volved on the EAMS-CBALM development, we gen-

erated a new source code for this requirement follow-

ing the BDD process. This new source code was pre-

sented to the PO and compared with the correspond-

ing one produced by the TokenLab software house.

This case study showed that the BDD process im-

proved the communication between the PO and the

developers with respect to the Scrum method em-

ployed in the EAMS-CBALM development. That was

mainly due to the use of a ubiquitous language for the

education domain together with the BDD scenarios

and acceptance tests, which allowed the PO to fol-

low and properly communicate with the developers

throughout the development process.

Furthermore, this case study also showed that

BDD needs more support for the requirements gath-

ering, analysis, and design phases of software life cy-

cle. As future work, we intend to develop formal sup-

port for the ubiquitous language terminology, for ex-

ample, by means of ontologies (Guizzardi, 2005), in

order to eliminate the ambiguities intrinsic to natural

languages as a BDD ubiquitous language. We also

intend to deﬁne a formal model based on EFSM (El-

Fakih et al., 2016) in order to improve the BDD it-

erative decomposition process. Finally, we intend to

evaluate this BDD formal support by applying it to

system development for the Education domain.

Combining Behaviour-Driven Development with Scrum for Software Development in the Education Domain

457

REFERENCES

Beck, K. (2002). Test Driven Development: By Exam-

ple. Addison-Wesley Longman Publishing Co., Inc.,

Boston, MA, USA.

Carlisle, C., Calman, L., and Ibbotson, T. (2009). Practice-

based learning: The role of practice education facili-

tators in supporting mentors. Nurse Education Today,

29(7):715–721.

Chauhan, R. (2016). Fusion of Agile-Scrum to

BDD. http://docplayer.net/28500425-Fusion-of-agile-

scrum-to-bdd.html. Accessed: 2016-12-19.

Cucumber (2016). Cucumber simple, human collaboration.

https://cucumber.io. Accessed: 2016-12-19.

Diepenbeck, M. and Drechsler, R. (2015). Behavior Driven

Development for Tests and Veriﬁcation. Springer

Fachmedien Wiesbaden, Wiesbaden.

El-Fakih, K., Yevtushenko, N., Bozga, M., and Bensalem,

S. (2016). Distinguishing extended ﬁnite state ma-

chine conﬁgurations using predicate abstraction. J.

Software Eng. R and D, 4:1.

Evans, E. (2004). Domain-driven Design: Tackling Com-

plexity in the Heart of Software. Addison-Wesley.

Guizzardi, G. (2005). Ontological foundations for struc-

tural conceptual models. PhD thesis, University of

Twente, Enschede.

JBehave (2015). JBehave - a BDD framework.

http://jbehave.org. Accessed: 2016-12-19.

JMeter (2016). JMeter graphical server performance testing

tool. http://jmeter.apache.org. Accessed: 2016-12-19.

JUnit (2016). JUnit - a framework to write repeatable tests.

http://junit.org/junit4. Accessed: 2016-12-19.

Koskela, L. (2008). Test Driven: Practical TDD and Ac-

ceptance TDD for Java Developers. Manning Pubs

Co Series. Manning.

Lubke, D. and Van Lessen, T. (2016). Modeling test cases

in bpmn for behavior-driven development. IEEE Soft-

ware, 33(5):15–21.

Malik, Z. (2013). Value of Behavior-Driven De-

velopment for Backlog Reﬁnement in Scrum.

https://www.scrumalliance.org/community/articles/

2013/march/value-of-behavior-driven-development-

for-backlog-r. Accessed: 2016-12-19.

MSpec (2016). MSpec - Context/Speciﬁcation framework.

https://github.com/machine/machine.speciﬁcations.

Accessed: 2016-12-19.

NBehave (2014). NBehave - a BDD framework. https://

github.com/nbehave/nbehave. Accessed: 2016-12-19.

North, D. (2006). Introducing BDD. https://dannorth.net/

introducing-bdd. Accessed: 2016-12-19.

Oruc¸, A. F. and Ovatman, T. (2016). Testing of web ser-

vices using behavior-driven development. In CLOSER

2016 - Proceedings of the 6th International Confer-

ence on Cloud Computing and Services Science, Vol-

ume 2, Rome, Italy, April 23-25, 2016., pages 85–92.

Rhem, J. (1998). Problem-based learning: an introduction.

www1.udel.edu/pbl/deu-june2006/supplemental/

NTLF-PBL-introduction.pdf. Accessed: 2016-12-19.

RSpec (2016). RSpec: behaviour driven development for

ruby. http://rspec.info/. Accessed: 2016-12-19.

Santos, H. d. F., de Souza, W. L., do Prado, A. F., and

Pereira, S. M. d. S. F. (2016). Augmented reality

approach for knowledge visualization and production

(arakvp) in educational and academic management

system for courses based on active learning method-

ologies (eams–cbalm). In Latiﬁ, S., editor, Infor-

mation Technology: New Generations: 13th Interna-

tional Conference on Information Technology, pages

1113–1123, Cham. Springer International Publishing.

Schwaber, K. and Sutherland, J. (2016). The deﬁni-

tive guide to scrum: The rules of the game.

http://www.scrumguides.org/docs/scrumguide/v2016/

2016-Scrum-Guide-US.pdf. Accessed: 2016-12-19.

Silva, T., Hak, J.-L., and Winckler, M. (2016). Testing pro-

totypes and ﬁnal user interfaces through an ontologi-

cal perspective for behavior-driven development. Lec-

ture Notes in Computer Science, 9856:86–107.

Soeken, M., Wille, R., and Drechsler, R. (2012). As-

sisted behavior driven development using natural lan-

guage processing. Lecture Notes in Computer Science,

7304:269–287.

Solis, C. and Wang, X. (2011). A study of the characteristics

of behaviour driven development. In Proceedings of

the 2011 37th EUROMICRO Conference on Software

Engineering and Advanced Applications, SEAA ’11,

pages 383–387. IEEE Computer Society.

SpecFlow (2016). SpecFlow - Cucumber for .NET.

http://specﬂow.org. Accessed: 2016-12-19.

StoryQ (2010). StoryQ - a bdd framework for .net 3.5.

https://storyq.codeplex.com/. Accessed: 2016-12-19.

Tempski, P. (2014). “Caderno do Curso Educac¸

ao na Sa

ude

para Preceptores do SUS”. Teaching and Research

Institute of the S

ırio-Liban

es Hospital (in Portuguese).

UFSCar (2007). Curso de Medicina - CCBS Pro-

jeto Pol

ıtico Pedag

ogico Medicina UFSCar.

http://www.prograd.ufscar.br/cursos/cursos-

oferecidos-1/medicina. Accessed: 2016-12-19.

Weltman, D. (2007). A Comparison of Traditional and Ac-

tive Learning Methods: An Empirical Investigation

Utilizing a Linear Mixed Model. University of Texas

at Arlington.

Wynne, M. and Hellesoy, A. (2012). The cucumber book

: behaviour-driven development for testers and de-

velopers. The pragmatic programmers. Dallas, Tex.

Pragmatic Bookshelf.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

458
