Security Requirements for Smart Toys

Luciano Gonçalves de Carvalho

1,2

and Marcelo Medeiros Eler

School of Arts, Sciences and Humanities, University of São Paulo, Brazil

FATEC Mogi das Cruzes, São Paulo State Technological College, Brazil

Keywords: Smart Toys, Toy Computing, Security, Security Requirements.

Abstract: Toys are an essential part of our culture, and they evolve as our technology evolves. Smart toys have been

recently introduced in our market as conventional toys equipped with electronic components and sensors that

enable wireless network communication with mobile devices that provide services to enhance the toy's

functionalities. This environment, also called toy computing, provides users with a more sophisticated and

personalised experience since it collects, processes and stores personal information to be used by mobile

services and the toy itself. On the other hand, it raises concerns around information security and child safety

because unauthorized access to confidential information may bring many consequences. In fact, several

security flaws in toy computing have been recently reported in the news due to the absence of clear security

policies in this new environment. In this context, this paper presents an analysis of the toy computing

environment based on the Microsoft Security Development Lifecycle and its threat modelling tool with the

aim of identifying a minimum set of security requirements a smart toy should meet. As result we identified

15 threats and 20 security requirements for toy computing.

1 INTRODUCTION

Toys have been around for a long time in our society,

either for leisure or for educational purposes. As they

are fundamentally used by children, they must be

designed to assure the safety of their users according

to their age. Toys that can be disassembled in small

parts, for example, may not be safe for babies or

toddlers. That is why most toys have a clear

indication of the age range they are appropriate for.

Looking forward to providing users with more

interactive and personalised experiences, toy

manufacturers have introduced the smart toys in the

market. A distinguishing characteristic of a smart toy

is that it usually has three components: a conventional

physical toy equipped with sensors and electronic

components to enable network communication; a

mobile device that provides the physical part with

mobile services; and a mobile application to interact

with the physical toy. This special association

between the physical toy and a mobile device has

been called toy computing by Rafferty and Hung

(2015).

There are other types of toys in the market that are

called smart toys. One of them refers to toys that are

intended to help children become smarter, such as

puzzles or logic games, for example. The other one

refer to toys embedded with electronic parts that can

react to environment stimuli, store data or even learn

patterns based on user interaction. Those are the

electronic toys (Rafferty and Hung, 2015). In the

context of this paper, we refer smart toys as those who

fall in the field of toy computing, which has an

association between a physical toy and a mobile

device and application.

By their nature, smart toys raise a different

concern beyond child safety: security. Smart toys

may manipulate confidential data such as private

information and localisation, for example. In

conventional systems, sometimes users may allow

third parties to access their private information for

marketing or customisation process. However,

children are considered vulnerable users that may not

make informed decisions about their own privacy

policies.

Although parental control mechanisms, such as

parents account and parents’ consent interfaces, can

mitigate relevant privacy issues, they aren’t able to

avoid attacks that compromise other security aspects,

including information theft and denial of service.

In fact, several articles from relevant sources such

as Forbes (Fox-Brewster, 2016), Fortune (Hackett,

144

Carvalho, L. and Eler, M.

Security Requirements for Smart Toys.

DOI: 10.5220/0006337001440154

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 144-154

ISBN: 978-989-758-248-6

2016) and PCWorld (Newman, 2015) have reported

security flaws in smart toys. Such flaws range from

private information leakages (bio information,

photos) to outsiders interacting with children via a

smart toy. This is a threat even to the children safety

since they can provide confidential information and

even unrestrictedly follow instructions given by the

toy. Such a scenario raises an important question:

how safe are the children around smart toys?

It is noticeable that there are only a few disclosed

policies related to the security policies and

requirements defined to address the issues related to

smart toys. Generally, solutions are disclosed after a

security flaw becomes public. Thus specific security

policies and requirements must be considered in this

scenario to assure the security of the information and

even the safety of the children.

Mobile applications have been used for a long

time in both personal and corporation environments,

hence policies and requirements have been proposed

to assure the security of mobile services and

applications (Biswas, 2012) (Zapata et al., 2014)

(Nagappan; Shihab, 2016). Nonetheless, defining

such policies and requirements for smart toys requires

a separate investigation since they usually run in a

less secure environment, e.g. with few security

controls.

The main difference between a typical mobile

application and a smart toy is that the latter has an

actual physical toy (a simpler device than a

smartphone or a tablet, controlled by the mobile

application) that may also collect, manipulate and

store information. Moreover, it has network features

to communicate with the mobile device and other

computational systems, which increases the attack

surface. The fact that smart toys are basically used by

children makes it even more challenging, since the

security policies must comply with children rights

and specific acts of each country or state.

This paper aims at analysing smart toys (or toy

computing) from a security perspective to identify

security requirements to mitigate the inherent security

risks of this environment. We used a Security

Requirements Engineering approach from Microsoft

called Security Development Lifecycle (SDL) and a

threat modelling tool to analyse the three components

of a smart toy and their interaction. Accordingly, 15

threats and 20 security requirements have been

identified and are presented.

The remainder of this paper is organised as

follows. Section 2 shows the basic concepts of smart

toys and toy computing. Section 3 presents the

concepts related to security requirements. Section 4

discusses the related work. Section 5 presents the

threats and the requirements identified as well the

procedure used to identify them. Finally, concluding

remarks and future directions are presented in Section

2 SMART TOYS

Toys have been part of our culture for a long time as

entertainment resources. According to specialists,

they are essential for children cognitive, motor and

social development. They are also used for

educational and therapeutic purposes. The growing

interest for technological gadgets from people of all

ages has promoted the development of high tech toys,

also known as smart toys.

Smart toys are composed of three parts: a

conventional physical toy (such as a car or a doll)

equipped with electronic components, sensors, and

software which enable wireless communication with

other computational systems via Wi-Fi, Bluetooth,

Near Field Communication (NFC); a mobile device

that provides the smart toys with mobile services to

enhance their functionalities; and a mobile

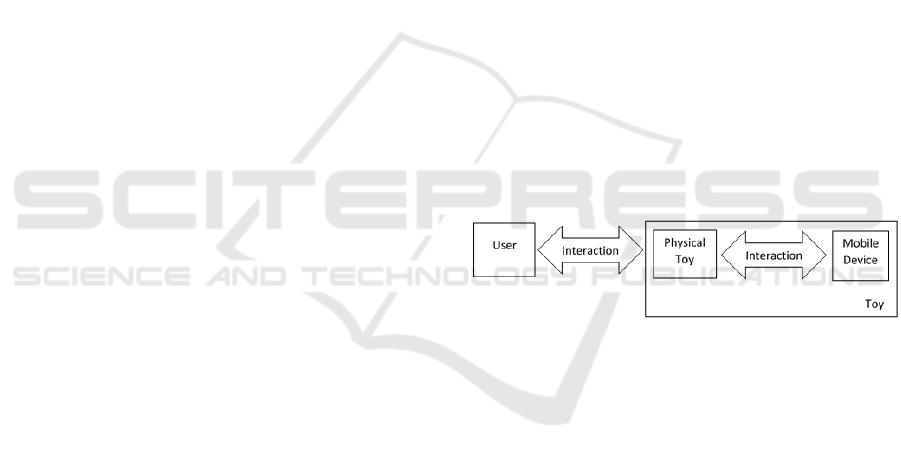

application that interacts with the physical toy. Figure

1 shows an illustration of this environment including

the user.

Figure 1: Toy computing environment.

Rafferty and Hung (2015) refer to this field of

study as toy computing, which associates the physical

computation (embed systems and sensors in a

traditional toy) with mobile services. Table 1 shows a

comparison among traditional toys, electronic toys

and smart toys.

2.1 Smart Toys Samples

There are few toys in the market that fit in the

concept of toy computing. Amiibo refers to action

figures of the famous characters of Nintendo video

games such as, for example, Mario Bros and the

Legend of Zelda. They use NFC technology to

communicate with the consoles also built by

Nintendo. Figure 2 presents an illustration of this

smart toy. Among other features, one Amiibo allows

the player to incorporate that character in a game, or

Security Requirements for Smart Toys

145

to use special features or receive a level upgrade, and

so forth.

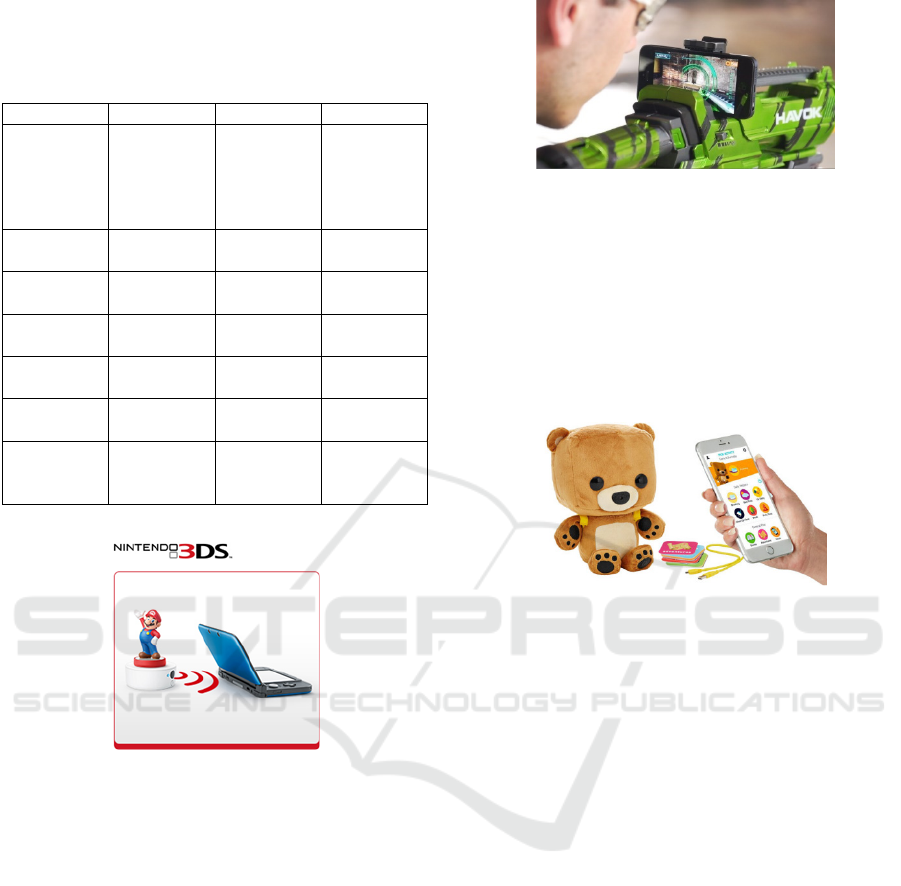

Table 1: Toys comparison.

Traditional Electronic Smart

Interaction Mechanical Mechanical

Sensor

Mechanical

Sensor

Visual

Auditory

Wireless

Data

collection

No Yes

Limited

Yes

Data

sharing

No Yes

Limited

Yes

Data

storage

No Yes

Internal

Yes

External

Processing

capabilities

No Yes

Limited

Yes

Network

capabilities

No Yes

Limited

Yes

Controlled

by Mobile

Devices

No No Yes

Note: Adapted from Rafferty and Hung (2015).

Figure 2: Super Mario Character Amiibo for Nintendo 3DS

console (Adapted from www.nintendo.com).

Sphero has created a robotic ball, also called

Sphero, that is controlled by a mobile application

installed on a tablet or smartphone via Bluetooth.

More than thirty applications are available for this

toy. They allow users to use basic controls or create

personalised programs to control the sphere.

The Tek Recon Hammer Head and Tech Recon

Havoc are high performance blasters developed by

Tech 4 Kids that along with a mobile device and a

mobile application provide users with a realistic battle

field game experience. Figure 3 presents the Havoc

model of this smart toy. The mobile application uses

the GPS technology provided by the mobile device to

track the users in real time. It also allows users to

communicate via voice message using Wi-Fi or 3G

technology.

Figure 3: Tech Recon Havok (Adapted from

www.tekrecon.com).

The Mattel Fisher-Price interactive learning smart

toys with voice and image recognition features are

capable to collect data to adapt to create personalized

playing. Figure 4 shows the Smart Toy® Bear.

Through the mobile app and a Wi-Fi connection, the

smart toy gets updates and the parents can unlock

bonus activities.

Figure 4: Smart Toy Bear (Adapted from http://fisher-

price.mattel.com).

Another Mattel smart toy, the Hello Barbie is a

doll equipped with a microphone, speaker and a

speech recognition feature, allowing a two-way

conversation when connected to a Wi-Fi network. A

mobile app is required for account set up and allow

parents to listen child’s conversation with the toy. To

improve conversation, the toy store conversations and

sent them to a server in the internet.

My friend Cayla, a smart toy doll, and I-QUE

Intelligent Robot, both from Genesis Toys, are smart

toys able to answer several questions and, to improve

user experience, connects to the Internet through a

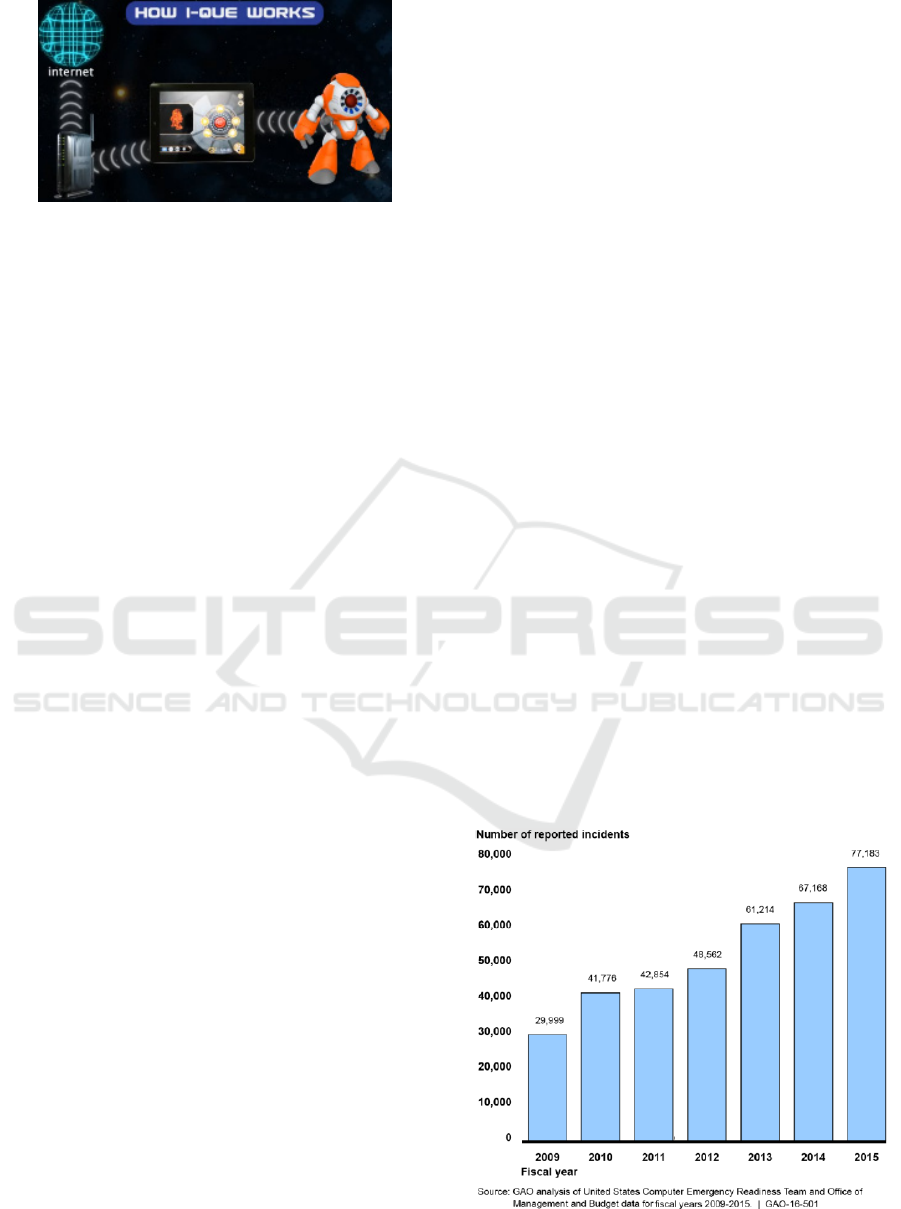

mobile device. Figure 5 shows I-QUE environment.

2.2 Some Smart Toy Security Flaws

Several mobile services, such as e-commerce, mobile

banking and location-based services (Broll et al,

2007), use context data to provide customers with

more personalized experiences. Examples of context

data are age, sex, localisation, and so forth. Such

information are usually stored in the mobile device

and may be collected voluntarily, when the user

informs personal data as required by the application;

observed, when data is collected by the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

146

Figure 5: I-QUE Intelligent Robot (Adapted from

http://ique-robot.co.uk/).

device's sensors; or inferred when some information is

derived from the data observed or collected.

Likewise, most of the smart toys collect, observe

or infer personal information to provide customers

with more personalized game experiences. The data

collected by the physical part of the smart toy are sent

to a mobile device through a wireless network. The

mobile application of the smart toy running in the

mobile device, in turn, gets mobile services provided

by Internet servers.

Data collection may be a problem when

appropriate security controls are missing because

private information could be exposed in a data

leakage. A quick search over the internet for security

issues in smart toys will reveal security flaws such as

private information leakages and outsiders interacting

with children via a smart toy, for example.

Genesis Toys, which makes the Cayla and I-QUE

products, was accused by consumer groups in the US,

among other things, of collecting children’s personal

data (Baraniuk, 2016). It was possible to connect to

the toys from any mobile device through Bluetooth.

The data exchange between physical toy and mobile

device can be easily intercepted. The Hello Barbie

doll app, for example, could automatically connect to

unsecured Wi-Fi networks and reveal confidential

information (Newman, 2015). Some Internet servers

may fail to authenticate users and expose data and

profiles. A Smart Toy® Bear vulnerability in the

backend systems enabled attackers to access private

information.

As this specific market grows, so does the

concerns around the security of smart toys, especially

because they are massively used by children.

Children are considered vulnerable and most of the

times incapable of making informed or rational

decisions, that is why they are usually covered by

specific acts and children’s rights depending on the

country or state they live. In such a scenario, it is

urgent a proper investigation of the possible threats

and security requirements a smart toy should meet to

assure a reasonable level of security for its users.

3 SECURITY REQUIREMENTS

Systems requirements are descriptions of the

functionalities that a system must provide and its

related constraints (Sommerville, 2011). They can be

classified as functional requirements, when they refer

to the features a system must have, usually related to

business rules, and non-functional requirements,

usually related to constraints over the systems

functions such as Service Level Agreement (SLA),

for example.

Security requirements aim at assuring the

confidentiality, integrity and availability of a system,

which are the fundamental principles behind

information security along with privacy and non-

repudiation. Security requirements are usually

referred as non-functional requirements as they

represent system constraints which may be

implemented in many ways. For example, a

redundant architecture to guarantee the availability of

the system, or access control to assure confidentiality.

But they may also be classified as functional

requirements when they must provide authentication,

for example.

For a long time, systems were developed almost

exclusively to meet functional requirements and

almost no attention was given to security

requirements. Security issues were basically met by

means of security patches released after the discovery

of a vulnerability (Tondel et al., 2008). Nowadays,

much more attention has been given to security

requirements as the number of security incidents has

been growing across the time. Figure 6 shows the

number of security issues reported to the United

States Federal Agencies (GAO, 2016).

Figure 6: Security Incidents Report (GAO, 2016).

Security Requirements for Smart Toys

147

The process of identifying, analysing and

documenting requirements is known as Requirements

Engineering. Handling security requirements

demands specific knowledge and practices, thus some

authors classified the process of managing security

requirements as Security Requirements Engineering

(SRE). There are several SRE approaches found in

the literature and used in industrial level, such as

Comprehensive, Lightweight Application Security

Process (CLASP), Security Quality Requirements

Engineering (SQUARE), and the Security

Development Lifecycle (SDL) from Microsoft, for

example. Following, we present the details of such

approaches.

3.1 CLASP

CLASP is composed of several security-related

activities that can be integrated into any software

development process, in order to build a security

requirements set. Security requirements are

formulated according to the following steps (Viega,

2004):

1. Identify system roles and resources.

2. Categorize resources into abstractions.

3. Identify resource interactions through the

lifetime of the system.

4. For each category, specify mechanisms for

addressing each core security services.

The requirements specifier, an important role in

that process, is responsible for detailing security

relevant business requirements, determining

protection requirements for the architectural

resources, and specifying misuse cases. Misuse cases

describe actors’ undesirable behaviour (Sindre;

Opdahl, 2005).

The main activities related to requirements

elicitation and performed by the requirements

specifier are (Secure Software, 2005):

• Specify operational environment.

• Identify global security policy.

• Identify resources and trust boundaries.

• Detail misuse cases.

3.2 SQUARE

SQUARE is a process that aims to integrate security

concerns into the systems development life cycle.

This process consider nine steps in order to elicit,

categorize and prioritize security requirements, as

follow (Mead; Hough; Stehney, 2005):

1. Agree on definitions.

2. Identify security goals.

3. Develop artifacts to support security

requirements definition.

4. Perform risk assessment.

5. Select elicitation techniques.

6. Elicit security requirements.

7. Categorize requirements as to level (system,

software, etc.) and whether they are

requirements or other kinds of constraints.

8. Prioritize requirements.

9. Requirements inspection.

The steps related to SRE are from 5 to 9, but the

steps from 1 to 4 are very important to the success of

this process (Mead, 2006). It is important to note that

crucial artifacts, such as misuse case scenarios and

diagrams, and attack trees, are created or assembled

in the step 3 in order to assist the requirements

elicitation process in the step 6. SQUARE can be used

either to an under development system or to a released

one.

3.3 SDL

Microsoft Trustworthy Computing SDL (Lipner,

2004) (Microsoft, 2011) stands for security software

development and it has the main following phases and

its security mandatory tasks:

1. Requirements: security requirements

establishment, quality gates and bug bars

definition and documentation (set security and

privacy minimum levels), and security and

privacy risk analysis;

2. Design: design requirements establishment,

attack surface analysis and threat modeling;

3. Implementation: approved tools utilization,

unsecure functions disable and static analysis

execution;

4. Verification: dynamic analysis and fuzzing

tests execution, and attack surface review;

5. Release: incident response plan elaboration,

final security review execution and software

release.

The SDL foresees its use in conjunction with both

conventional and agile software development

processes (Microsoft, 2011).

Requirements identification will occur in the first

two phases. In the requirements phase, minimum

security and privacy quality levels are established

through quality gates and bug bars whereas in the

design phase, security and privacy design

specification is built, which describe the security and

privacy features that will be exposed directly to the

user.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

148

During the design phase, performing a threat

modeling is considered a critical activity, since it is a

systematic process for identifying threats and

vulnerabilities. The following steps are essential in

threat modeling:

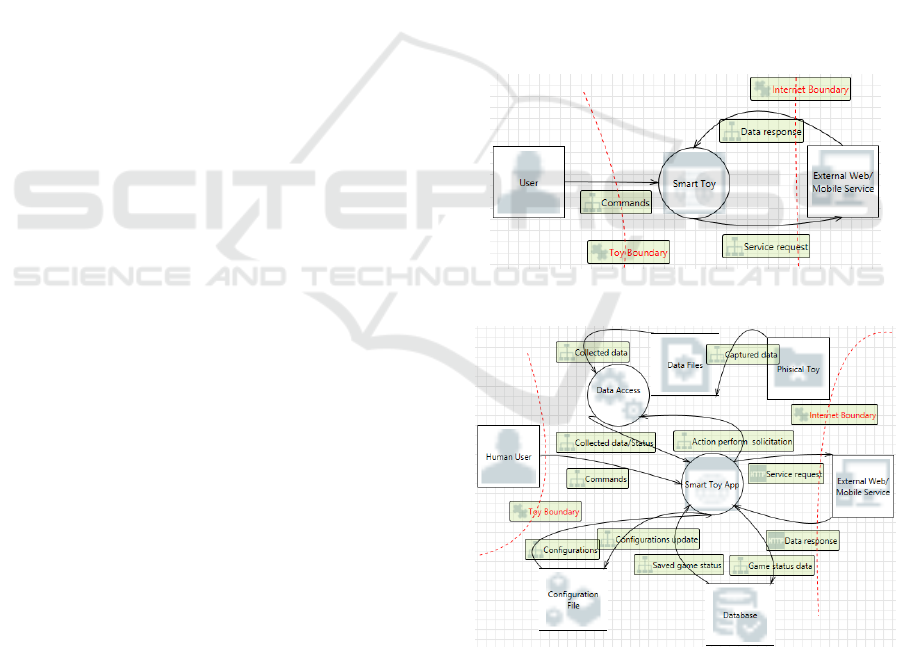

1. Diagram: system decomposition with Data

Flow Diagrams (DFD).

2. Identify threats: system threat identification

using the STRIDE (Spoofing, Tampering,

Repudiation, Information disclosure, Denial

of service and Elevation of privilege)

approach.

3. Mitigate: address each threat identified.

4. Validate: validate the whole threat model.

Microsoft have developed the SDL Threat

Modeling Tool to provide guidance on creating and

analysing threat models.

4 RELATED WORKS

Ng and his colleagues (Ng et al., 2015), aware about

security and privacy issues in the toys and mobile

apps union, present in their work two main security

and privacy concerns: location history and data

tracking, and encryption and data security. Mobile

devices connected to Internet through a mobile data

plan or a Wi-Fi network are susceptible to different

forms of attacks (denial of service, man in the middle,

spoofing, etc.). These devices usually log location

history that, when it is sent over the Internet, could be

intercepted, exposing motion patterns and the real

time individual location.

In order to provide security and privacy, the

communications must use secure protocol to ensure

identities and data encryption in the data exchange.

Rafferty and her colleagues through a formal privacy

threat model, developed by them and inspired by

well-known threat modelling techniques, have

investigated privacy requirements for toy computing

(Rafferty et al., 2015). The analyses consider a threat

architecture, illustrated in Figure 7, and they are

performed in five (5) steps:

1. Architecture overview: architectural

perspective of the toy computing application.

2. Assets and data flow: assets identification and

application decomposition.

3. Privacy threats: privacy threats identification

and mapping.

4. Methods of attack: privacy threat trees

determination and misuse case scenarios

creation.

5. Privacy requirements and Controls: privacy

requirements and control proposal.

According to the toy computing nature and threat

architecture, privacy are affected by the following:

• Child’s Identity: identity is associated with

collected data.

• Location Data: collection of location data and

probably association with identities.

• Networking Capabilities: collected data

sharing over a network.

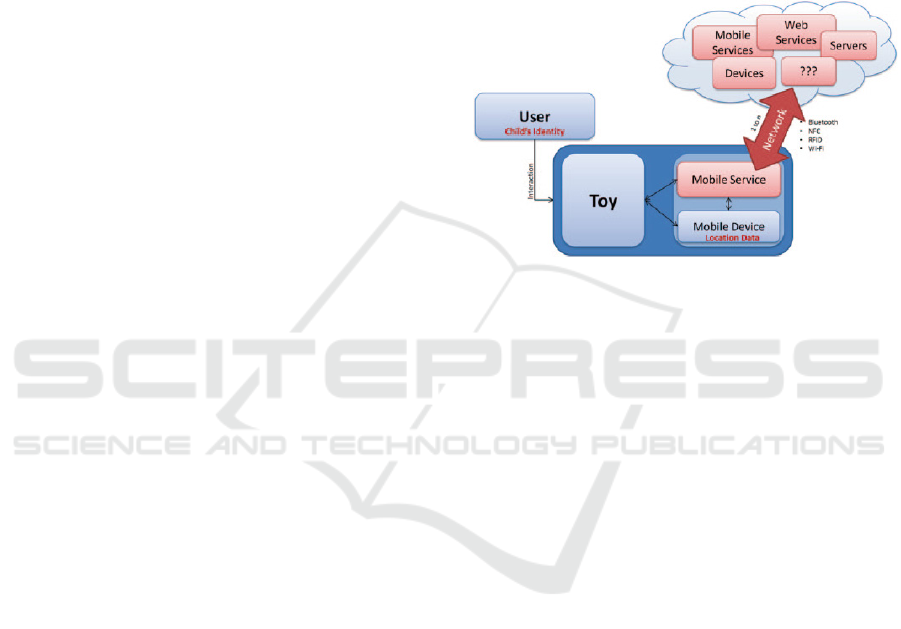

Figure 7: Threat Architecture (Rafferty et al., 2015).

As a result, they have compiled six (6) privacy

rights (privacy requirements):

• The right for a parent/guardian to request

restrictions on the use or disclosure of private

information of their child.

• The right for a parent/guardian to access, copy,

and inspect collected records on their child.

• The right for a parent/guardian to request

deletion of their child’s private data records,

or correction if records are inaccurate.

• The right for a parent/guardian to request

acknowledgements through a communication

channel when private information of their

child is collected.

• The right to file complaints to toy company.

• The right to find out where the child’s private

data has been shared for purposes other than a

game.

Although these work addresses security issues for

smart toys, they are restricted to privacy and

confidentiality problems that, while very important,

are not the only ones.

Rafferty and her colleagues also proposed a

privacy rule conceptual model where parents/legal

guardians are the owners of their child’s data and

provide consent to share the data collected through

access rules (Rafferty et al., 2017).

Security Requirements for Smart Toys

149

5 SECURITY REQUIREMENTS

FOR SMART TOYS

We used the phases Requirements and Design from

the Microsoft SDL process in order to identify

generic security requirements that could be used to

develop any smart toy. We also used the threat

modeling tool provided by Microsoft. We considered

a typical toy computing environment in this analysis:

a physical toy controlled by mobile applications

running in mobile devices and using mobile services.

5.1 SDL Requirements Phase

During the Requirements phase, the main sources of

information used to define the security requirements

were laws and regulations the toy industry must

comply with. As smart toys are massively used by

children, the COPPA was also an important source of

information. It defines, from the perspective of

information security, the following issues regarding

children information to be addressed:

I1. Provide notice about information collection,

use and disclosure practices.

I2. Obtain parental consent for personal

information collecting, using and disclosing.

I3. Not promote unnecessary personal

information disclosure.

I4. Protect personal information confidentiality,

integrity and availability.

In general, personal and confidential information

must be protected. Therefore, The Personal

Information Protection and Electronic

Documentation Act (PIPEDA) (Canadian Public

Works and Government Services, 2000) was also

considered during our analysis. It defines the

following issues to be addressed:

I5. Provide the same protection level for third

party information processing.

I6. Implement procedures to protect personal

information.

I7. Document the purposes for which personal

information is collected.

I8. Obtain individual consent for the personal

information collection, use or disclosure.

I9. Specify the type of personal information

collected.

I10. Retain personal information only as long as

necessary.

I11. Maintain personal information accurate,

complete and up-to-date as is necessary.

I12. Protect personal information against loss or

theft, unauthorized access, disclosure,

copying, use, or modification.

Although COPPA and PIPEDA cover many

important security aspects, they may not be sufficient

to meet all the requirements of all countries.

Therefore, other security issues may arise from the

analysis of specific rules and laws of some countries.

5.2 Design Phase

Based on the toy computing environment presented

on Figure 1 and the threat architecture presented on

Figure 7, the security analysis considered the context

diagram (high level DFD) showed on Figure 8 and

level 1 DFD showed on Figure 9.

In order to identify threats in this phase, we

consider the main following assets:

• Physical toy.

• Mobile device.

• Mobile application (app).

Figure 8: Toy Computing Context Diagram.

Figure 9: Level 1 Smart Toy Processes.

The mobile device through the mobile application

collects, stores and shares data, therefore, we consider

the following possible information assets:

• App database.

• Configuration files.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

150

• Data files (location, images, video, audio,

etc.).

The interaction between user, mobile device and

physical toy exposes some system’s entry points:

• Mobile app interface: user insert data into the

mobile interface.

• Sensors of the mobile device: mobile device

gets data by its sensors.

• Sensors of the physical toy: physical toy get

data by its sensors.

• Communication between physical toy and

mobile device: wireless network

communication using local area network

(LAN) or personal area network (PAN)

protocols like Wi-Fi, Bluetooth, Near Field

Communication (NFC), etc.

• Communication between mobile device and

mobile service providers: wireless network

communication using LAN and wide area

network (WAN) protocols like Wi-Fi, 3G, 4G,

etc.

5.3 Threats

The threats identified, through threat modeling

technique supported by STRIDE are:

T1. Spoofing:

T1.1. The children is not playing, but the

attacker (insider), who wants to discover

confidential information.

T1.2. An attacker is using another mobile

device to control the toy (Bluetooth

parallelization).

T1.3. The mobile service provider is fake.

T2. Tampering:

T2.1. Modification of the configuration file

of the mobile device (loads a configuration

file not suitable for the user).

T2.2. Modification of the information

exchanged through network

communication between the components

(physical toy x mobile device x access

point/router).

T2.3. Modification of the database in the

mobile device (changes the game points,

user's actions history etc).

T3. Repudiation:

T3.1. User denies purchases of services,

accessories etc.

T4. Information disclosure:

T4.1. Disclosure of personal information

stored in the database.

T4.2. Disclosure of information used to

request mobile services (localisation,

context data etc).

T4.3. Disclosure of information stored in the

mobile device (photos, video, text

messages etc).

T5. Denial of Service:

T5.1. A service inserts enough information

in the database to reach the full capacity of

the mobile device storage system.

T5.2. More than one device sends

commands to the physical toy making it

not able to provide the correct answer.

T5.3. An attacker denies access to mobile

services through the access point

T6. Elevation of privilege:

T6.1. An attacker watches the data

exchanged by the network communication

between the mobile device and the toy,

then changes it to access the toy.

T6.2. An attacker watches the data

exchanged by the network communication

between the mobile device and the mobile

services, then changes it to access the

mobile services.

5.4 Security Requirements

Based on the results from the SDL’s requirements and

design phases, the minimum security requirements

for smart toys in a toy computing environment that

addresses the twelve raised issues and fifteen threats

are:

SR1. The smart toy app must provide notice of

what information it collects and the further use and

disclosure practices.

SR2. The smart toy app must provide an specific

interface in order to identify user age and obtain

user consent before the personal information

collection and manipulation; in the case of child

user, obtain verifiable parental consent and parental

consent review.

SR3. The smart toy app must not ask for more

personal information in order to continue its

operation.

SR4. The smart toy app must authenticate users.

SR5. Communication between physical toy and

mobile device must use a protocol that allow

authentication and authorization mechanisms.

SR6. Mobile services providers must own digital

certificates allowing identity verification.

SR7. Configuration file integrity must be

maintained and verified in every mobile app play

session.

Security Requirements for Smart Toys

151

SR8. Every communication in toy computing

environment must use cryptographic mechanisms.

SR9. The Database Management Systems

(DBMS) must provide user authentication.

SR10. The DBMS must provide security

mechanisms against to external modification of

stored data.

SR11. The smart toy app must request

authentication renew before every financial

transaction.

SR12. The DBMS must provide data encryption

feature or allow data encryption by third-party

tools.

SR13. The smart toy app must encrypt personal

information accessed from others apps inside the

same mobile device.

SR14. The mobile app must not access

unnecessary files from others mobile apps inside the

same mobile device.

SR15. The mobile app must monitor and limit

database growth.

SR16. The physical toy must nor accept

commands from mobile devices outside the current

play session.

SR17. Every communication must use secure

protocol with cryptographic mechanisms.

SR18. The smart toy app must show the privacy

police when required.

SR19. The smart toy must delete every

unnecessary personal information collected.

SR20. The smart toy must maintain personal

information accurate, complete and up-to-date as is

necessary

Table 2 presents which security requirement

addresses witch security issues ant threats.

5.5 Results and Discussion

The twenty security requirements established in the

section 5.4 address security concepts like

confidentiality, integrity, availability, privacy, non-

repudiation and authenticity. Most of the security

issues are related to these six information critical

characteristics.

It is possible to perceive the effectiveness of the

security achieved when the proposed security

requirements are met taking into account, for

example, the recent security problems presented by

the Smart Toy® Bear, Hello Barbie, Cayla and I-QUE

Intelligent robot, all presented in the section 2.2 in

this paper.

Table 2: Security Requirements versus Issues and Threats.

Security Requirement Issues and/or Threats

SR1 I1 and I8

SR2 I2 and I8

SR3 I3

SR4 T1.1

SR5 I4, I12 and T1.2

SR6 I4, I5, I12, T1.3

SR7 I4, I12, T2.1

SR8 I4, I5, I6, I12 and T2.2

SR9 I4, I12 and T2.3

SR10 I4, I12 and T2.3

SR11 T3.1

SR12 I4, I6, I12 and T4.1

SR13 I4, I6, I12 and T4.2

SR14 I4, I12 and T4.3

SR15 I4 and T5.1

SR16 I4 and T5.2

SR17 I4, I6, I12, T6.1 and T6.2

SR18 I7 and I9

SR19 I10

SR20 I11

Security flaws in the Smart Toy® Bear caused by

the use of unsecured application programming

interfaces (APIs) (Hackett, 2016; Fox-Brewster,

2016) allowed attackers access personal information

and send commands to the physical toy. These

problems could be avoided by the implementation of

the security requirements SR4, SR5, SR6, SR7, SR8,

SR12, SR16 and SR17.

Several vulnerabilities was uncovered in the Hello

Barbie doll like communications interception,

personal information disclosure and connection to

unsecured Wi-Fi network (Newman, 2015). These

problems could be avoided by the implementation of

the security requirements SR5, SR6, SR7, SR8, SR12

and SR17.

The Cayla doll and I-QUE Intelligent Robot,

among other problems, allowed an attacker ask

children personal information and unauthorized

Bluetooth connections from any near mobile device

(Baraniuk, 2016). These security issues are solved by

the implementation of the security requirements SR3,

SR4 and SR5.

The security requirements identified in this work

cover the whole toy computing environment.

Therefore, future advances in the development of

smart toys that comply with this environment can also

benefit from this list of security requirements. The

results of this work can also serve as a basis for the

elaboration of security policies, since toy

manufacturers usually only have privacy policies,

which are less comprehensive, besides evidencing the

need to formally deal with information security,

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

152

which can be translated in the creation of future

security standards to be met by the toy industry.

6 CONCLUSIONS

Computer systems have been a target of cybernetic

attacks for a long time. Their association with

traditional toys has created a new type of product

called smart toy, which has also become a target for

attackers. In this paper, we presented the main

concepts and architectures behind this new

environment called toy computing and we discussed

the consequences of enlarging the attack surface by

introducing a physical toy equipped with sensors and

network communication and the vulnerabilities that

might be exploited in this scenario. The security issue

associated with the discussed scenario is aggravated

by the fact that children are the main users of this

technology and most of the time are not able to

perceive situations of risk. We thus presented an

analysis performed on the toy computing

environment using the Microsoft SDL process and its

threat modelling tool to identify the main

vulnerabilities, threats and consequently

the minimum security requirements that every smart

toy must meet, so it does not expose its users to

potentially harmful situations.

The identification of such security requirements is

important to allow the developers to plan how the

security mechanisms will be implemented during the

development life cycle of the smart toys. As each new

smart toy may have different characteristics and even

electronic components, enlarging the surface attack

and the potential threats, each new smart toy will

require a proper security requirements elicitation and

analysis in order to ensure that any new security

requirements can be identified and later included in

the general list of security requirements for smart

toys. Moreover, the security requirements identified

for toy computing can be used to derive security tests

for toy computing considering all vulnerabilities and

threats identified in different scenarios.

REFERENCES

Biswas, D., 2012. Privacy Policies Change Management for

Smartphones. In IEEE International Conference on

Pervasive Computing and Communications

Workshops, pages 70-75.

Canadian Public Works and Government Services, 2000.

Personal Information Protection and Electronic

Documents Act.

Baraniuk, C., 2016. Call for privacy probes over Cayla doll

and i-Que toys. BBC News, Technology, 6 Dec 2016.

Accessed 12 Dec 2016, available at

<http://www.bbc.com/news/technology-38222472>.

Broll, G., Hubmann, H., Prezerakos,G., Kapitsaki, G.,

Salsano, S., 2007. Modeling Context Information for

Realizing Simple Mobile Services. In Mobile and

Wireless Communications Summit, 2007. 16th IST, pp.

1-5.

Deloite, 2015. Global Mobile Consumer Survey: US

Edition - The rise of the always-connected consumer.

Accessed 22 May 2016, available at

<http:\\www.deloitte.com/us/mobileconsumer>.

Fox-Brewster, T., 2016. Hackers Could Have Turned

Vulnerable Smart Teddy Bear Into Demon Toy. Forbes,

Security, 2 Feb 2016. Accessed 08 Dec 2016, available

<http://www.forbes.com/sites/thomasbrewster/2016/0

2/02/fisher-price-hero-vulnerable-to-

hackers/#359130c71cfe>

GAO, 2016. United States Government Accountability

Office. Information Security – Agencies Need to

Improve Controls over Selected High-Impact Systems,

GAO-16-501. Accessed 24 May 2016, available at

<http://www.gao.gov/assets/680/677293.pdf>

Hackett, R., 2016. This FisherPrice Smart Toy Bear Had

Data-Leak Vulnerability. Fortune, Tech Internet of

Things, 2 Feb 2016. Accessed 08 Dec 2016, available

at < http://fortune.com/2016/02/02/fisher-price-smart-

toy-bear-data-leak/>

Lipner, S., 2004. The Trustworthy Computing Security

Development Lifecycle. Proceedings of the 20th

Annual Computer Security Applications Conference

(ACSAC’04), IEEE.

Mead, N., 2006. SQUARE Process. The Build Security In.

Software Engineering Institute, Carnegie Mellon

University. Accessed 03 Nov 2016, available at

<https://www.us-cert.gov/bsi/articles/best-practices/

requirements-engineering/square-process>.

Mead, N., Hough, E., Stehney, T., 2005. Security Quality

Requirements Engineering (SQUARE) Methodology.

CMU/SEI-2005-TR-009, Pittsburgh, PA: Software

Engineering Institute, Carnegie Mellon University.

Microsoft, 2011. Security Development Lifecycle, SDL

Process Guidance. Version 5.1, April 14. Accessed 24

Feb 2017, available at

<http://www.microsoft.com/sdl.>

Nagappan, M., Shihab, E., 2016. Future Trends in Software

Engineering Research for Mobile Apps. In IEEE 23rd

International Conference on Software Analysis,

Evolution, and Reengineering (SANER), Volume 5,

pages 21-32.

Newman, J. 2015. Internet-connected Hello Barbie doll can

be hacked. PCWorld, Security, News, 7 Dec 2015.

Accessed 12 Dec 2016, available at

<http://www.pcworld.com/article/3012220/security/intern

et-connected-hello-barbie-doll-can-be-hacked.html>

Ng, M., Chow, M., Salgado, A., 2015. Toys and Mobile

Applications: Current Trends and Related Privacy

Issues. Mobile Services for Toy Computing.

Security Requirements for Smart Toys

153

International Series on Computer Entertainment and

Media Technology, Springer, 2015, p. 51-76. ISSN

2364-947X.

Rafferty, L.; Hung, P., 2015. Introduction to Toy

Computing. Mobile Services for Toy Computing.

International Series on Computer Entertainment and

Media Technology, Springer, 2015, p. 1-7. ISSN 2364-

947X.

Rafferty, L., Fantinato, M., Hung, P., 2015. Privacy

Requirements in Toy Computing. Mobile Services for

Toy Computing. International Series on Computer

Entertainment and Media Technology, Springer, 2015,

p. 141-173. ISSN 2364-947X.

Rafferty, L., Hung, P., Fantinato, M., Peres, S., Iqbal, F.,

Kuo, S., Huang, S., 2017. Towards a Privacy Rule

Conceptual Model for Smart Toys. In Proceedings of

the 50th Hawaii International Conference on System

Sciences, HICSS, Jan 04.

Secure Software, 2005. The CLASP Application Security

Process. Secure Software, Inc. Accessed 16 Nov 2016,

available at

<https://www.ida.liu.se/~TDDC90/literature/papers/cl

asp_external.pdf>.

Sindre, G., Opdahl, A., 2005. Eliciting Security

Requirements with Misuse Cases. Requirements Eng.,

vol. 10, no. 1, pp. 34–44.

Sommerville, I., 2011. Software Engineering. 9th Edition,

Pearson Education.

Tondel, I., Jaatun, M., Meland, P., 2008. Security

Requirements for the Rest of Us: A Survey. IEEE

Software, vol. 25, Issue No. 1 – January/February.

United States Federal Trade Commission, 1998. Children’s

Online Privacy Protection Act of 1998. Accessed 27

Nov 2016, available at

<http://www.coppa.org/coppa.htm>.

Viega, J., 2005. Building Security Requirements with

CLASP. In Proceedings of the 2005 Workshop on

Software Engineering for Secure Systems & Mdash,

SESS’05, May 15-16, St. Louis, MO, USA.

Zapata, B., Niñirola, A., Fernández-Alemán, J., Toval, A.,

2014. Assessing the Privacy Policies in Mobile

Personal Health Records. In 36th Annual International

Conference of the IEEE Engineering in Medicine and

Biology Society, pages 4956-4959.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

154
