WFCF - A Workﬂow Cloud Framework

Eric K

ubler and Mirjam Minor

Institute of Informatics, Goethe University, Robert-Mayer-Str.10, Frankfurt am Main, Germany

Keywords:

Cloud Management, Case-based Reasoning, Workﬂow.

Abstract:

Using cloud resources for execution of workﬂows is common nowadays. However, there is a lack of concepts

for ﬂexible integration of workﬂow management tools and clouds for resource usage optimization. While

traditional methods such as running a workﬂow management tool monolithically on cloud resources lead to

over- and under-provisioning problems, other concepts include a very deep integration, where the options for

changing the involved workﬂow management tools and clouds are very limited. In this work, we present the

architecture of WFCF, a connector-based integration framework for workﬂow management tools and clouds

to optimize the resource utilization of cloud resources for workﬂow. Case-based reasoning is used to optimize

resource provisioning based on solutions for past resource provisioning problems. The approach is illustrated

by real sample workﬂow’s from the music mastering domain.

1 INTRODUCTION

Nowadays, cloud computing is more and more pop-

ular and the variance of offered services is increas-

ing. One of these services is workﬂow as a Service

(WFaaS) as introduced by (Wang et al., 2014; Ko-

rambath et al., 2014). The Workﬂow Management

Coalition (Workﬂow Management Coalition, 1999)

deﬁnes a workﬂow as “the automation of a business

process, in whole or part, during which documents,

information or tasks are passed from one participant

to another for action, according to a set of procedural

rules”. A task, also called activity, is deﬁned as “a de-

scription of a piece of work that forms one logical step

within a process. An activity may be a manual ac-

tivity, which does not support computer automation,

or a workﬂow (automated) activity. A workﬂow ac-

tivity requires human and/or machine resources(s) to

support process execution” (Workﬂow Management

Coalition, 1999).

The idea of WFaaS is to execute automated activ-

ities (also called tasks) within a cloud. For the user

or provider of workﬂows, this could be beneﬁcial, be-

cause a cloud offers nearly inﬁnite resources and is of-

ten cheaper than buying own infrastructure. However,

it is still difﬁcult to use the offered cloud resources

properly. If the user or the WFaaS provider rents more

resources than required (over-provisioning), he has to

pay more than necessary. On the other hand, espe-

cially for WFaaS provider, if he rents less resources

than required (under-provisioning), this can lead to vi-

olations of the service level agreement (SLA). A SLA

deﬁnes agreements between the provider and the cus-

tomer about different aspects of the quality of service.

Violations of a SLA can lead to high costs and loss of

reputation for the provider (Shoaib and Das, 2014).

Therefore, the management of resources is an impor-

tant aspect for cloud computing (Baun et al., 2011)

in general and also for WFaaS. It is required to ﬁnd

a good balance between over- and under-provisioning

of resources (Armbrust et al., 2010). To ﬁnd such a

balance is generally a problem. The simplest method

to provide resources is the static way. This means,

the system does not adjust itself to a changing sit-

uation. Obviously, this will lead to under- or over-

provisioning (Shoaib and Das, 2014). A more dy-

namic approach is required. The range for such ap-

proaches is great and spans from rather simple, rule-

based approaches such as observations on the num-

ber of open connections (Pousty and Miller, 2014)

to complex algorithms such as(Quiroz et al., 2009).

Another alternative could be case-based reasoning

(CBR). The idea of CBR is that similar problems have

similar solutions (Aamodt and Plaza, 1994). To re-

trieve similar problems (cases), a similarity function

determines the similarity between two cases. CBR

has two unique beneﬁts. Due to the fact that CBR only

requires the similarity function to receive other, sim-

ilar problems and their similar solution, the time and

computational effort should be relatively low. In ad-

518

Kübler, E. and Minor, M.

WFCF - A Workﬂow Cloud Framework.

DOI: 10.5220/0006346305460551

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 518-523

ISBN: 978-989-758-243-1

dition, because of the stored solutions, when WFCF is

otherwise idle, it can do a post-mortem analysis of the

stored solutions and improve them. The idea of using

CBR for cloud management is not new. The work of

Maurer et al. (Maurer et al., 2013) applies CBR to

implement automatic cloud management. A case in

cloud management records a cloud conﬁguration with

current services and SLA’s to be processed as a prob-

lem situation. A solution describes the optimal dis-

tribution of work on the optimal number and conﬁg-

uration of cloud resources while maintaining SLA’s.

Maurer et al. use a bag of workloads to schedule the

work, which makes it difﬁcult to predict future work-

loads and system behavior.

Another aspect of WFaaS is the integration of

workﬂow management tools with clouds. In this case,

integration means an exchange of information be-

tween the workﬂow management tool and the cloud

for an optimized resource usage. Without any inte-

gration, it is difﬁcult for any management approach

to determine the required resources. This easily leads

to over- or under-provisioning. In their work, Bala

and Chana (Bala and Chana, 2011) present a survey

of workﬂow scheduling algorithms for cloud com-

puting. However, most of the approaches have not

yet been implemented, three notable exceptions are

(Wang et al., 2014; Korambath et al., 2014; Liu et al.,

2010). They deeply integrate workﬂow and cloud

technology, i.e., they strongly depend on the used

cloud and workﬂow managent tools. Therefore, they

are very limited in their options to exchange either

the used cloud or workﬂow management tool or both.

A solution for this problem should be a shallow in-

tegration for ﬂexible integration of different work-

ﬂow management tools and clouds while not being

restricted to them, because of ﬂexible connectors and

an abstract representation of the used tools.

In this work, we present the architecture of WFCF,

a connector-based integration framework for work-

ﬂow management tools and clouds, to optimize the

resource utilization of cloud resources for workﬂow.

This follows a shallow integration approach. The goal

of the WFCF framework is to reduce over- and under-

provisioning via CBR and to allow the customer or

WFaaS provider to integrate workﬂow management

tools and cloud provider as wished. The basic idea

of WFCF is to have a set of never-changing compo-

nents, which work with a standardized sight of work-

ﬂow management tools and cloud layers and a indi-

vidual set of connectors to interact with the actually

used tools.

2 WFCF ARCHITECTURE

In this section, we will explain the architecture of

WFCF and its components. Starting with the over-

all architecture, we show the details of the monitoring

and management components and how they interact.

Figure 1 shows the overall architecture of the

WFCF, which we will explain in the following. The

architecture can be divided roughly in three parts: the

environment, the monitoring component and the man-

agement component. The environment are the cloud

and the workﬂow management tool that is used by the

customer. Ideally, WFCF will use the already offered

information and management methods of the tools, so

that additional changes are not necessary. Therefore,

WFCF will use offered log ﬁles, databases and API’s

for monitoring the environment and to conﬁgure the

cloud. CWorkload is the monitoring component. It

collects information from the environment and com-

bines data across the different layers (the cloud layer

and the workﬂow layer) to one status model of the

system. We had done initial tests for the cross layer

monitoring aspect of CWorkload in (K

ubler and Mi-

nor, 2015). The management component recognizes

current or upcoming problems within the system.

This could be for example violated SLA’s, violated

constraints or resource over-provisioning. If a prob-

lem occurs, the management component searches for

a solution and reconﬁgures the cloud. We will explain

this in more detail in section 2.2.

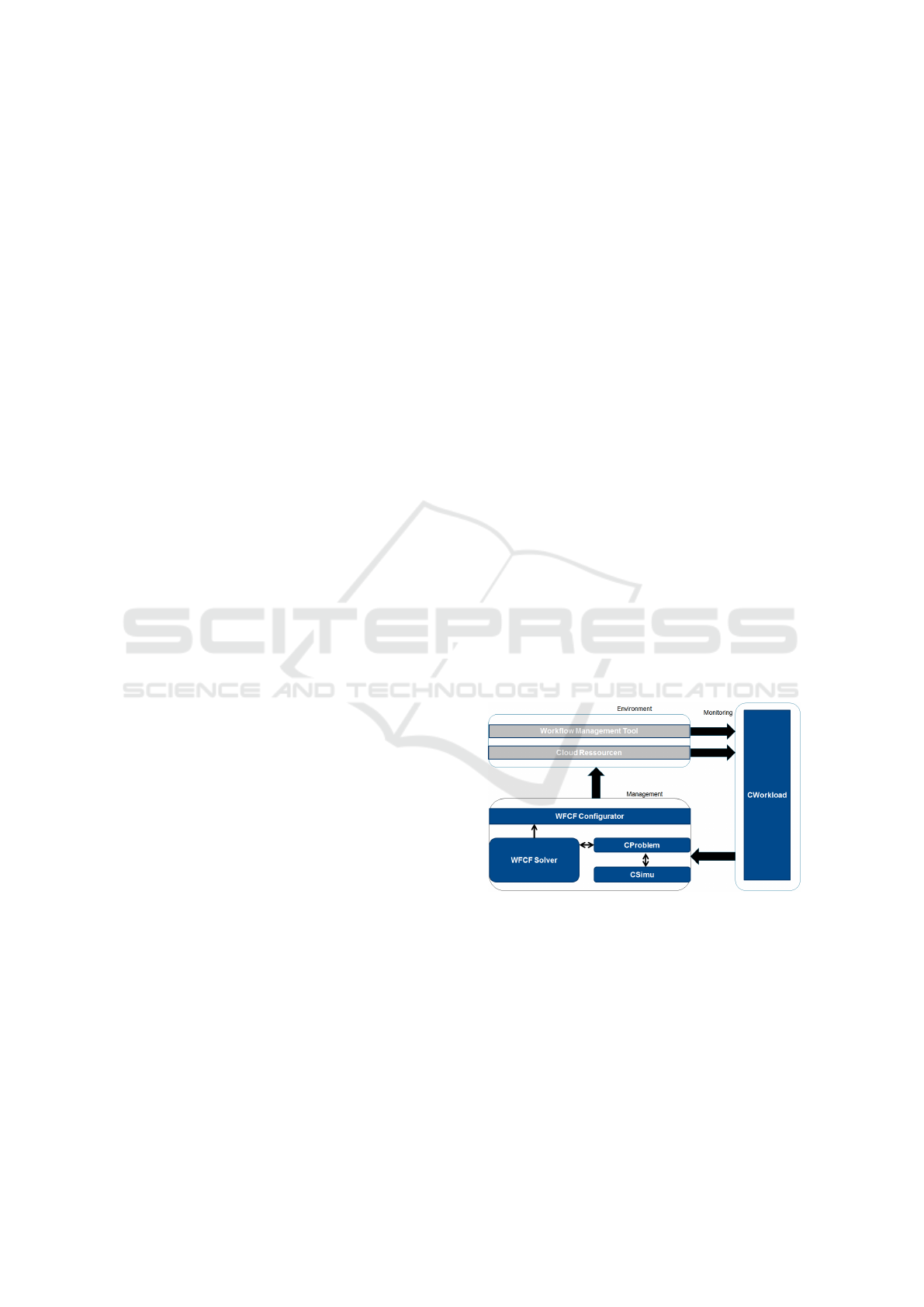

Figure 1: Architecture of WFCF.

2.1 Monitoring

The main components of WFCF work independent

from the actually used environment. To work prop-

erly, WFCF needs different information about the sta-

tus of the actually running workﬂow instances and the

resource utilization of the cloud. Figure 2 shows in

more detail the monitoring of WFCF.

There are three concentrators between the envi-

ronment and WFCF. A workﬂow deﬁnition is very

WFCF - A Workﬂow Cloud Framework

519

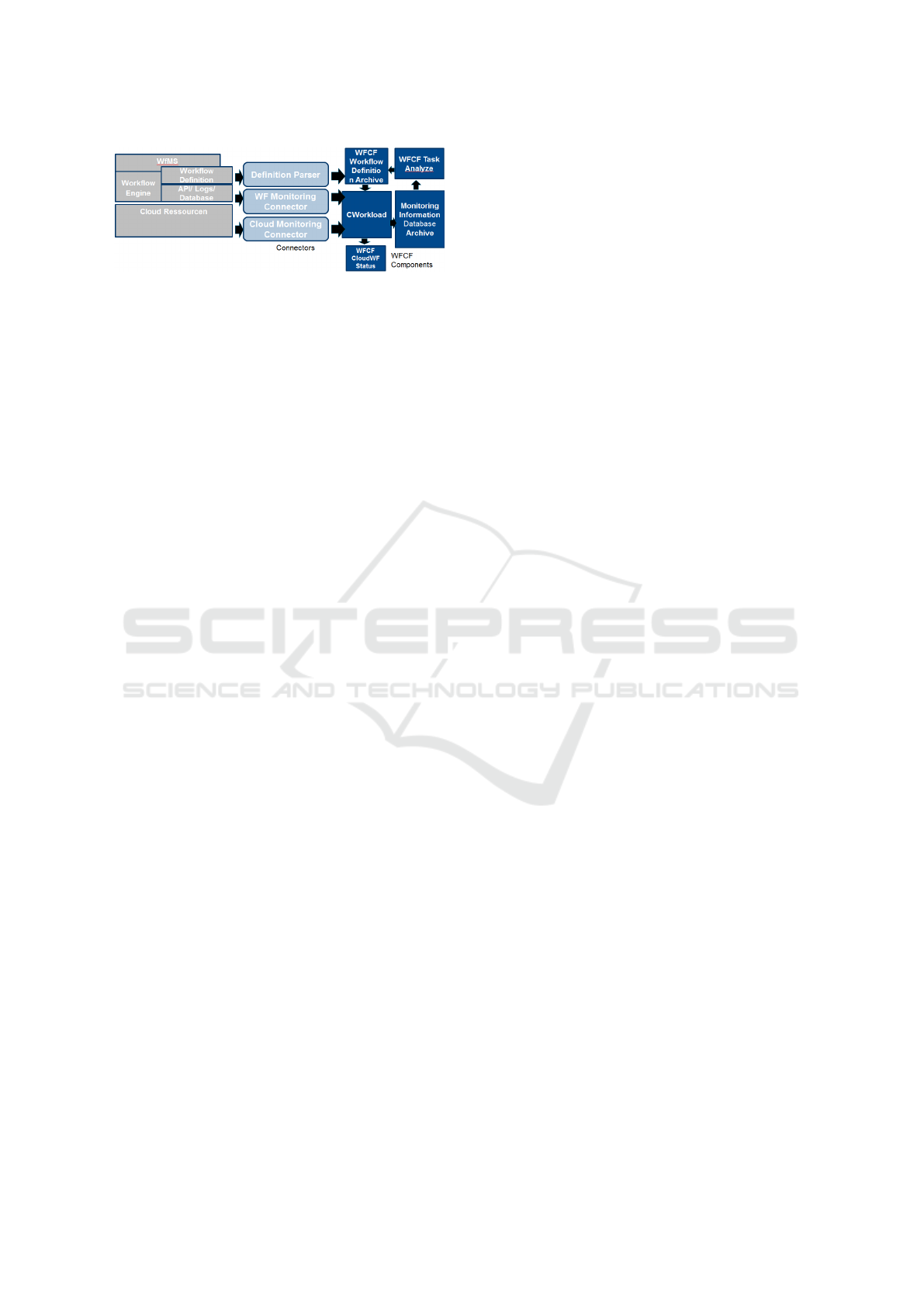

Figure 2: Monitoring of WFCF.

similar to a class in programming as that a workﬂow

deﬁnition is the schema of a workﬂow where an work-

ﬂow instance is an object of a workﬂow deﬁnition. A

workﬂow deﬁnition contains all information about the

structure of the workﬂow. For example, the name of

the tasks and their order. There are several formats to

deﬁne a workﬂow deﬁnition. These could be, for ex-

ample, BPMN or acyclic directed graphs. The Deﬁni-

tion Parser parses the workﬂow deﬁnition, transforms

it into a standardized format and stores it in the WFCF

Workﬂow Deﬁnition Archive. The archive will also

contain the service characterizations we introduced in

ubler and Minor, 2015). In short, the service char-

acterizations provide a hint as to how a web service

(or the tasks which call the web service) will utilize

the cloud resources. A characterization could be, for

example, long running, which means the service will

be executed for more than 30 minutes. Another exam-

ple could be compute intensive, which means that the

service has a high demand for CPU cycles. In addi-

tion, the archive also contains information about local

SLA and other constraints, for example, which task

requires which type of web service.

The WF Monitoring Connector gathers the infor-

mation about the current workﬂow instances. This

information could be from log ﬁles, databases or di-

rectly from the workﬂow engine via API. The infor-

mation contains the name and start-time of the exe-

cuted workﬂow and the start-, end-time and name of

individual tasks, as well as the URL or IP of the called

web service. This information should be offered in

one form or another by all commercial workﬂow man-

agement tools and most of the open source tools. Be-

cause of the great variety of workﬂow management

solutions, it is necessary to implement the WF Mon-

itoring Connector and the other two individually for

the used management tool. However, the workﬂow

management tool itself has not to be changed when

any kind of logging is enabled. So even when the

connector has to be reimplemented, the company has

not to change their already running systems.

The Cloud Monitoring Connector is the interface

between WFCF and the used cloud. This connector

monitors the resource utilization. For example, the

CPU and memory usage. Similar to the WF Mon-

itoring Connector, this connector can use log ﬁles,

API’s or databases for monitoring and has to be im-

plemented individually for each different cloud.

CWorkload is the core of the monitoring compo-

nent. It has two tasks. First, it builds the monitoring

model. This model is the WFCF CloudWF Status and

combines all information about the status of the cloud,

the currently running workﬂow instances and the in-

formation about the workﬂow deﬁnitions of these in-

stances. It also contains all information about local

SLA and constraints. The management component of

WFCF will use the WFCF CloudWF Status to iden-

tify current or upcoming problems. The second job

of CWorkload is to maintain the Monitoring Informa-

tion Archive. This archive stores information about

the duration, run time behavior and resource-usage of

the executed tasks. The WFCF Task Analyzer ana-

lyzes this information and updates the service char-

acterizations of tasks in the WFCF Workﬂow Deﬁni-

tion Archive. For example, if a task has been exe-

cuted several times and each time its execution time

was over 30 minutes, WFCF Task Analyzer will an-

notate this in the WFCF Workﬂow Deﬁnition Archive

as long running.

2.2 Management

Whereas the monitoring component observes the en-

vironment, the management component conﬁgures it.

This means, the management component starts and

stops virtual machines or PaaS container, scales re-

sources and migrates content. Figure 3shows the

management component in more detail.

After CWorkload has build the WFCF CloudWF

Status, CProblem is the part of WFCF which inves-

tigates the current status of the environment that is

modeled as the WFCF CloudWF Status. Besides the

CloudWF status, there is another archive, the Global

SLA // Constraint Archive, where global constraints

and SLA’s are stored. Other than the WFCF Workﬂow

Deﬁnition Archive that only contains local constraints

and SLA’s for individual workﬂows, the Global SLA

// Constraint Archive contains SLA’s and constraints

that are valid for all workﬂows of a user. There are

several different problems that can occur and which

CProblem will identify, e.g., violated SLA’s. We are

planning that CProblem does not only check the cur-

rent situation, but also do a forecast to identify up-

coming problems and over-provisioning. Through the

workﬂow deﬁnitions, for example, CProblem can rec-

ognize if a certain web service is going to be used in

the future by a currently running workﬂow instance.

If not, WFCF can shut down the VM or container to

save money. Another possible scenario could be that

currently, there is no violated SLA, but in the near

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

520

future, several tasks with high resource demand will

be started, which can probably lead to a SLA viola-

tion, so WFCF should scale up the resources to avoid

this problem. Forecasting SLA violations, however,

could be a difﬁcult task. To decide if the start of

some resource intensive tasks lead to a SLA viola-

tion is not as easy as to recognize if a web service

has not started yet. A simulations seems a proper

way to identify these kind of problems. Therefore,

CProblem interacts with CSimu. We are planning to

use CloudSim (clo, 2016) as the core of our simula-

tion part. CSimu will simulate the execution of the

tasks with the current cloud status and will show if

this will lead to a SLA violation. If any problem is

unidentiﬁed, CProblem extends the CloudWF status

with annotations about the problems. This new anno-

tated model is the WFCF CloudWF Problem. Such

annotations could be, for example, web service x is

not longer needed or SLA y is currently violated.

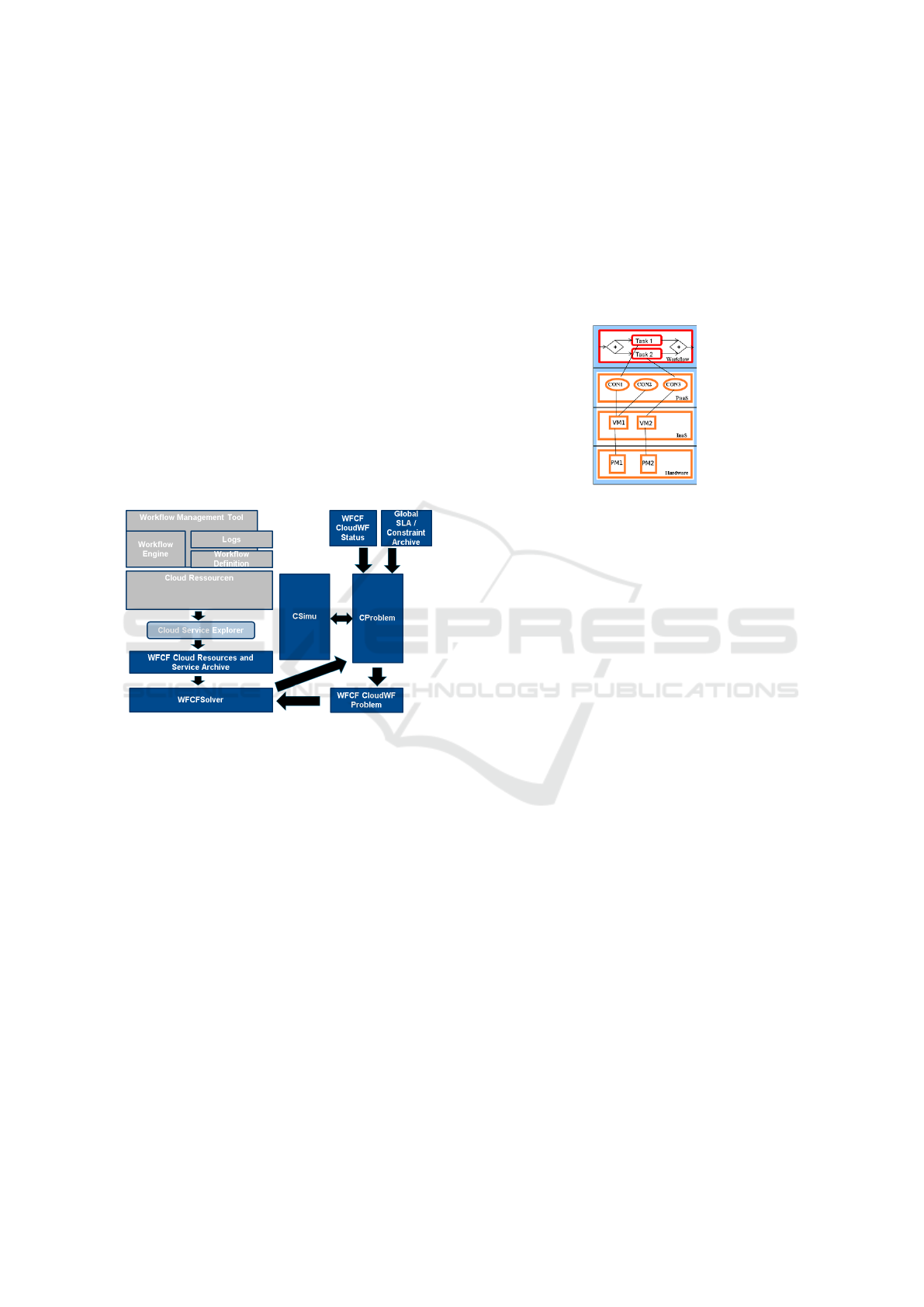

Figure 3: Management of WFCF.

Whereas CWorkload is the core of the monitor-

ing component, the WFCFSolver is the core of the

management. Similar to CWorkload, the solver has

two jobs. First, the solver searches for a new cloud

conﬁguration that solves the current problems. Then

it ﬁnds a reconﬁguration path from the current cloud

conﬁguration to the new solution. In the last step, the

solver sends the reconﬁguration steps to the WFCF

Conﬁgurator as shown in ﬁgure 1. The reconﬁgura-

tor then will do the reconﬁguration job. There are sev-

eral possible approaches to ﬁnd a new cloud conﬁgu-

ration. We will choose case-based Reasoning (CBR)

as our solving strategy. As in section 1 mentioned, the

idea of CBR is that similar problems have similar so-

lutions. In our case, a problem is a WFCF CloudWF

Problem. A case base is an archive of previous prob-

lems and their solutions. The case base is not included

in Figure 3, because it is part of the solving strategy

and not part of WFCF itself. The solver will search

the case base for similar problems in the past. In our

work (K

ubler and Minor, 2016), we had introduced

the idea of a similarity function for cloud conﬁgura-

tions. Figure 4 shows an example conﬁguration. It in-

cludes the container (CON1 to CON3), with the web

services for the tasks (Task1 and Task2), the place-

ment of the container to the virtual machines (VM1

and VM2) and the placement of the VM’s to the hard-

ware (PM1 and PM2). Future tests with human ex-

perts as reference were promising, but did not include

workﬂow similarities yet.

Figure 4: Example of a cloud conﬁguration.

The similarity function for the workﬂow aspect of

our approach is ongoing work. We are planning to

consider the currently active tasks as well as the tasks

that are to be started in the near future. The similar-

ity of two individual tasks is determined by its service

characterization and the size of its input data. Two

tasks are similar if they have the same characteriza-

tion (for example CPU intensive) and if the size of the

input data are similar. Each workﬂow instance has 0

to n active tasks. These are the tasks that are currently

executed. The set of active tasks is the set of all active

tasks from all workﬂow instances. To determine the

similarity of two sets of active tasks, we are planning

to implement one of the functions introduced in the

literature (Bergmann, 2002).

In addition, the knowledge of the workﬂow deﬁ-

nitions allows to build another set of tasks that will be

active in the near future. Figure 5 shows an example

workﬂow. If Task normalize is the currently active

task, we can say for sure, that task limiter will be exe-

cuted as soon as the normalization is ﬁnished. In some

cases, for example after a conditional fork, the next

task to executed can be unclear. However, in this case

we can make an assumption, based on the empirical

knowledge of the workﬂow, stored in the Monitoring

Information Archive, we introduced earlier. This can

be done for every active workﬂow instance to esti-

mate the tasks approaching soon. The result is a set

of possible future tasks. Since the size of the input

data of the next task can be approximated from the

ongoing task, the required amount of resources can

be roughly estimated. Due to the run time informa-

tion, from the past stored in the Monitoring Informa-

tion Archive and the service characteristics, WFCF

WFCF - A Workﬂow Cloud Framework

521

should be able to identify near future problems and

bottlenecks. Thus, we will also consider the similar-

ity of the future tasks in the problem part.

A solution is a cloud conﬁguration without prob-

lems. The solver will search for a similar problem

and use the solution for this old problem or the solu-

tion can serve as a starting point for a new solution.

Anyways, the solver will send the solution back to

CProblem to check if the solution comes up with new

problems. CProblem will check and simulate the so-

lution and give feedback to the solver. This will be

repeated until a solution is found or another condition

is reached. This could be, for example, a time limit.

In this case, the solution with the last signiﬁcant prob-

lem will be chosen. The usage of CBR also opens

the possibility for post-mortem analysis and improve-

ment of the stored solution, while WFCF is otherwise

idle. Beside the case base, there is the WFCF Cloud

Resources and Service Archive. This archive contains

information about the possibility of the cloud. For

example, possible sizes of containers, available im-

ages and web services. This archive helps the solver

to ﬁnd valid solutions. Similar to the connectors in

the monitoring part, the Cloud Service Explorer is a

connector to the cloud to discover possible sizes and

services and store them in the Resources and Service

Archive.

3 EXAMPLE

To demonstrate the idea of WFCF, we will give a run-

ning example. As our example domain, we chose mu-

sic workﬂows to mastering music. The purpose of

such a workﬂow is to transform and process a music

ﬁle. This includes to normalize and limit the volume

of the sound, increase or reduce the sample rate, con-

vert from mono to stereo or reverse and adding spe-

cial effects like fading and compressing the size of the

music ﬁle. Figure 5 shows an example workﬂow. The

workﬂow is modelled in BPMN (Chinosi and Trom-

betta, 2012). To simplify the image, ﬁgure 5 does not

show the input and output ﬁles of the web services.

The workﬂow starts with the Init Workﬂow Parame-

ter tasks to initialize the workﬂow by a human. The

user chooses some parameter for the later mastering.

The following two tasks are also human tasks require

along with the ﬁrst one no cloud resources.

The following tasks are all based on web services

and alter the music ﬁle each time. For example, the

task normalize normalizes the volume of the music

ﬁle, while the task fading adds a fade-out effect to the

end of the music. Let us assume we are a user who

runs jBPM (jbp, 2016) as a workﬂow management

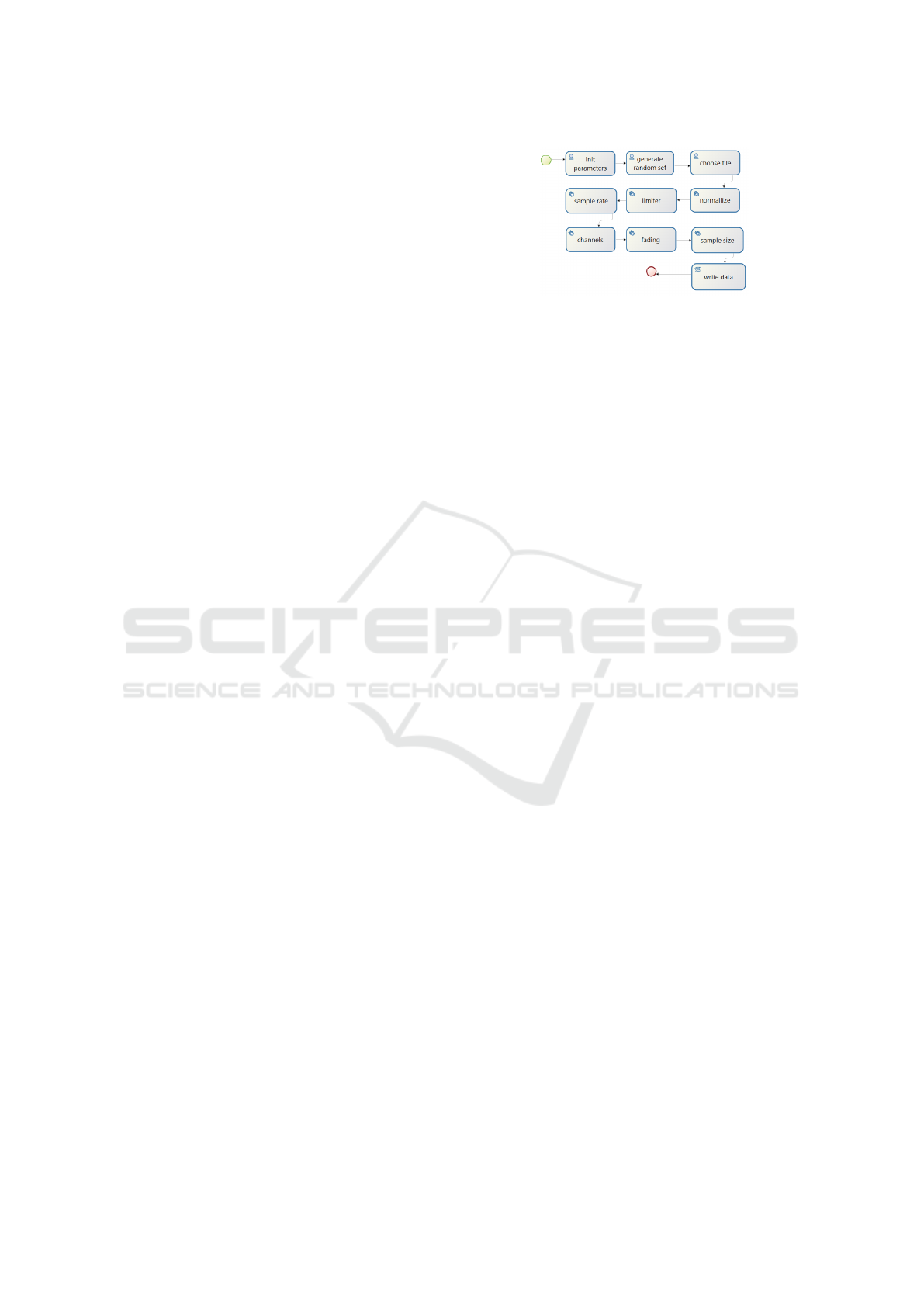

Figure 5: Sample workﬂow of mastering music.

tool and OpenShift (ope, 2016) (PaaS) and recently

created the introduced workﬂow. Before an instance

of this workﬂow is started, the Deﬁnition Parser de-

tects a new workﬂow deﬁnition and stores this new

deﬁnition in the WFCF Workﬂow Deﬁnition Archive.

The Information will be stored as XML or JSON and

will include, besides other information, the following:

Workﬂow-Deﬁnition = ”master music”, task name =

normalize, requires = ”normalize web service”, ser-

vice characterization = none. This means that the

name of the workﬂow deﬁnition is master music and

it has (among others) one task with the name normal-

ize. This task requires a normalize web service and

has no service characterization. When the user starts

an instance of this workﬂow, the Workﬂow Monitor-

ing connector registers the start and sends a message

along with pieces of information to CWorkload. The

information CWorkload receives is that an instance of

the master music workﬂow is started along with the

Init Workﬂow Parameter task. CWorkload will store

the start-time of the ﬁrst task in the Monitoring Infor-

mation Archive and will prepare a WFCF CloudWF

Status for CProblem. The WFCF Cloud Status con-

tains the information about the freshly started work-

ﬂow and the information about the current situation of

the OpenShift. Because the user has not executed any

Workﬂow at the moment, no container was started and

WFCF includes this information. Because the ﬁrst

three tasks do not require any cloud resources, there

is currently no problem. However, CProblem realizes

that in the near future, the task normalize will start.

This task requires the web service normalize web ser-

vice that is not available at the moment and this is

a problem. CProblem prepares the WFCF CloudWF

Problem and annotates that this web service is re-

quired. Because of the simple cloud conﬁguration and

because no SLA’s are involved, no simulation from

CSimu is needed. The WFCFSolver searches its case

base for a case where a web service is required and

no container is currently started. Let us assume that

the WFCFSolver ﬁnds such a solution and this solu-

tion includes to start a container with the needed web

service. The solver will send this solution back to

CProblem to check if the solution includes new prob-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

522

lems. This, however, is not the case. The solver can

now start to plan the reconﬁguration. After the solver

is done, the WFCF Conﬁgurator starts a container

with the web service.

4 CONCLUSION

In this paper, we introduced the architecture of

WFCF, a connector-based integration framework for

workﬂow management tools and clouds. The goal of

WFCF is to provide a way to integrate different work-

ﬂow management tools and clouds, while also opti-

mizing the resource utilization of the used cloud re-

sources. To achieve this goal, WFCF uses multiple

concepts. The connector’s concept allows in a modu-

lar way to integrate workﬂow tools and clouds by us-

ing their usual management and monitoring concepts

and without the need for special requirements to the

used tools. The monitoring component of WFCF an-

alyzes the run time behavior and resource usage of

tasks for a better understanding of their needs and

also combines information of the workﬂow manage-

ment tool and the cloud to a status model for future

analysis and forecast of problems. The management

component analyzes this status model for problems

by using a combination of simulation and static meth-

ods. When a problem occurred or can be forecasted,

the management component uses CBR to ﬁnd a simi-

lar problem in the past and solve the problem based

on the old solution. The goal of WFCF is a shal-

low integration of cloud and workﬂow management

tools for ﬂexible combination of tools and the opti-

mization of resource usage. Currently, we are work-

ing on a prototype of the architecture to evaluate the

concept in the future to the point where the prototype

offers reconﬁguration solutions for recognized prob-

lems. An open issue is to design the WFCF CloudWF

Status model in a universal way, without dependen-

cies of the actually used tools. Another future task is

the acquisition of a larger set of problems that should

be recognized and solved.

REFERENCES

(2016). The CLOUDS lab: Flagship projects - gridbus and

cloudbus.

(2016). jBPM. https://www.jbpm.org, 2016-12-08.

(2016). OpenShift. https://www.openshift.com/, 2016-12-

08.

Aamodt, A. and Plaza, E. (1994). Case-based reasoning:

Foundational issues, methodological variations, and

system approaches. 7(1):39–59.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., and Zaharia, M. (2010). A view of cloud

computing. 53(4):50–58.

Bala, A. and Chana, I. (2011). A survey of various work-

ﬂow scheduling algorithms in cloud environment. In

2nd National Conference on Information and Commu-

nication Technology (NCICT), pages 26–30. sn.

Baun, C., Kunze, M., Nimis, J., and Tai, S. (2011).

Cloud Computing - Web-Based Dynamic IT Services.

Springer.

Bergmann, R. (2002). Experience management: Founda-

tions, development methodology, and Internet-based

applications. Springer Verlag.

Chinosi, M. and Trombetta, A. (2012). BPMN: An intro-

duction to the standard. 34(1):124–134.

Korambath, P., Wang, J., Kumar, A., Hochstein, L., Schott,

B., Graybill, R., Baldea, M., and Davis, J. (2014). De-

ploying kepler workﬂows as services on a cloud in-

frastructure for smart manufacturing. 29:2254–2259.

ubler, E. and Minor, M. (2015). Towards cross-layer mon-

itoring of cloud workﬂows. In Helfert, M., Ferguson,

D., and Muoz, V. M., editors, CLOSER 2015 - Pro-

ceedings of the 5th International Conference on Cloud

Computing and Services Science, Lisbon, Portugal,

20-22 May, 2015, pages 389–396. SciTePress.

ubler, E. and Minor, M. (2016). Towards a case-based rea-

soning approach for cloud provisioning. In CLOSER

2016 - Proceedings of the 6th International Con-

ference on Cloud Computing and Services Science,

Rome, Italy 23-25 April, 2016, volume 2, pages 290–

295. SciTePress.

Liu, X., Yuan, D., Zhang, G., Chen, J., and Yang, Y. (2010).

SwinDeW-c: A peer-to-peer based cloud workﬂow

system. In Furht, B. and Escalante, A., editors, Hand-

book of Cloud Computing, pages 309–332. Springer

US.

Maurer, M., Brandic, I., and Sakellariou, R. (2013). Adap-

tive resource conﬁguration for cloud infrastructure

management. 29(2):472–487.

Pousty, S. and Miller, K. (2014). Getting Started with Open-

Shift. ”O’Reilly Media, Inc.”.

Quiroz, A., Kim, H., Parashar, M., Gnanasambandam, N.,

and Sharma, N. (2009). Towards autonomic workload

provisioning for enterprise grids and clouds. In Grid

Computing, 2009 10th IEEE/ACM International Con-

ference on, pages 50–57. IEEE.

Shoaib, Y. and Das, O. (2014). Performance-oriented cloud

provisioning: Taxonomy and survey. abs/1411.5077.

Wang, J., Korambath, P., Altintas, I., Davis, J., and Crawl,

D. (2014). Workﬂow as a service in the cloud: Archi-

tecture and scheduling algorithms. 29:546–556.

Workﬂow Management Coalition (1999). Workﬂow

management coalition glossary & terminology.

http://www.wfmc.org/resources 2016-12-15.

WFCF - A Workﬂow Cloud Framework

523
