Recognizing Buildings through Deep Learning: A Case Study on

Half-timbered Framed Buildings in Calw City

Konstantinos Makantasis

, Nikolaos Doulamis

and Athanasios Voulodimos

Technical University of Crete, Chania, Greece

National Technical University of Athens, Athens, Greece

Keywords:

Deep Learning, Building Recognition, Urban Cultural Heritage.

Abstract:

Automatic detection and recognition of speciﬁc types of urban buildings is extremely important for a variety

of applications ranging from outdoor urban reconstruction to navigation. In this paper we propose a system for

the automatic detection and recognition of urban buildings. Most of the existing work relies on the exploitation

of handcrafted features for recognizing buildings. However, due to their complex structure it is rarely a priori

known which features are important for the recognition task. Our method overcomes this drawback by exploit-

ing a deep learning framework, based on convolutional neural networks, which automatically construct highly

descriptive features directly from raw data. We evaluate the performance of our method on the recognition of

half-timbered framed buildings in Calw city in Germany.

1 INTRODUCTION

Urban buildings consist an integral part of cultural

heritage. They shape the sense of belonging some-

where, of social traditions, of cultural identity of a

history spanning centuries. Urban buildings are mate-

rial witnesses, which can be questioned and analyzed

over and over again. Therefore, automatic detection

and recognition of speciﬁc types of urban buildings

is extremely important for disseminating cultural her-

itage to general audience (Bres and Tellez, 2006; Olo-

jede and Suleman, 2015), for outdoor urban recon-

struction (Xiao et al., 2009; M

uller et al., 2007), nav-

igation (Schindler et al., 2008; Baatz et al., 2010) and

scene understanding (Singhal et al., 2003) applica-

tions.

Automatic detection and recognition of speciﬁc

urban building types can be seen as a classiﬁcation

problem. The detection task requires the classiﬁca-

tion of pixels into two different classes, i.e. class of

pixels that depict the object of interest and class of

pixels that depict something irrelevant.

Most of the existing works on automatic detection

and recognition of building types adopt the conven-

tional pattern recognition paradigm, which consists of

two separate steps; ﬁrstly, complex handcrafted fea-

tures need to be constructed, in order to accurately

describe the buildings, and, secondly, these features

are used to learn classiﬁers, which conduct the detec-

tion and/or recognition task.

The most common used features for describing

objects of interest, in our case buildings, rely on the

exploitation of local features, i.e. features that de-

scribe the local properties of objects of interest. Hav-

ing constructed local features that describe the objects

of interest, the detection and/or recognition of similar

objects in unseen images is conducted by detecting

similar features the same features in these images.

In the works of (Ali et al., 2007a; Ali et al., 2007b)

multi-scale Haar wavelet features are used to learn

a cascade classiﬁer, based on AdaBoost method, for

automatically recognizing building windows. The

authors of (Shechtman and Irani, 2007) propose a

method that exploits the local self-similarities to

match complex visual data. In particular, their method

correlates a patch centered at the point of interest

with a larger surrounding region and use the maximal

correlation values within log-polar bins as descriptor,

emphasizing this way the local shape properties of ob-

jects of interest. In the works of (Tell and Carlsson,

2000; Tell and Carlsson, 2002) a pixel intensity based

descriptor is utilized to described the local properties

of objects of interest and then a voting scheme is ex-

ploited to match the descriptors between different im-

ages. The work of (Wendel et al., 2010) extends the

works of (Tell and Carlsson, 2000; Tell and Carlsson,

2002) by extracting color intensity proﬁles for points

of interest that are lying on straight lines. These pro-

Makantasis K., Doulamis N. and Voulodimos A.

Recognizing Buildings through Deep Learning: A Case Study on Half-timbered Framed Buildings in Calw City.

DOI: 10.5220/0006347204440450

Figure 1: Half-timbered framed buildings in Calw.

ﬁles are used as descriptors that are being matched

using a kd-tree algorithm (Friedman et al., 1977).

Another common approach for describing the

local properties of objects of interest rely on the

exploitation of Scale Invariant Feature Transform

(SIFT) (Lowe, 2004). However, SIFT features and all

other methods that are based on the utilization of local

descriptors are problematic in urban scenes due to the

high degree of symmetry and repetition in these envi-

ronments. In particular, these factors impede ﬁnding

a geometrically consistent match between reference

and query images, which is crucial for the detection

and recognition of speciﬁc types of buildings. Fur-

thermore, due to the high diversity of visual content it

is rarely a priori known which features are important

for the building detection and/or recognition task.

In contrast to the aforementioned approaches,

which follow the conventional paradigm of pattern

recognition, we adopt a deep learning framework for

the recognition of speciﬁc types of buildings. Deep

learning models (Hinton and Salakhutdinov, 2006;

Hinton et al., 2006; Bengio et al., 2007) are a class of

learning machines that can learn a hierarchy of fea-

tures by building high-level features from low-level

ones, thereby automating the process of feature con-

struction for the problem at hand. Techniques based

on deep learning have already shown promising re-

sults both for the detection of particular objects, like

man-made ones (Mnih and Hinton, 2012; Makantasis

et al., 2015) or vehicles (Montavon et al., 2012).

In a similar way, we propose a deep learning

framework for the recognition of speciﬁc types of ur-

ban buildings. By following a deep learning approach

we are able to bypass the tedious, time consuming and

questionable task of constructing handcrafted features

for describing building characteristics.

In particular, we propose the exploitation of a

Convolutional Neural Network (CNN), which con-

ducts the task of high-level features construction and

a Multi-Layer Perceptron (MLP), which is responsi-

ble for the recognition task. Under such a formula-

tion, the developed system is able to automatically

construct high level features for describing the build-

ings, while at the same time achieves real-time pre-

dictions due to the feedforward nature of CNNs and

MLPs. The performance of the proposed approach

is demonstrated on the recognition of half-timbered

framed buildings in Calw city (see Fig. 1).

The rest of the paper is organized as follows; sec-

tion 2 presents the system requirements and section 3

presents the overview of the proposed system. Sec-

tion 4 describes the creation of the dataset for training

the proposed deep learning framework, whose archi-

tecture is presented in section 5. Section 6 presents

the experimental results regarding the performance of

the proposed system, while section 7 concludes this

work.

2 SYSTEM REQUIREMENTS

Our goal is to develop a vision based system able to

recognize speciﬁc type of buildings. We demonstrate

the performance of the proposed system on the recog-

nition of half-timbered framed buildings in Calw city

(see Fig. 1).

Such a system must fulﬁll the following require-

ments; (i) it should be able to recognize buildings

based exclusively on visual cues. This implies that no

textual or GPS data should be employed during the

recognition task. (ii) The developed system should

be scale and perspective invariant, i.e. it should be

able to recognize the speciﬁc type of buildings irre-

spectively of the buildings area on image plane and

their angle of view. Finally, (iii) the building recog-

nition task should be successful even on images that

have been taken on the wild; i.e. images that are cap-

tured by pedestrians and/or tourists and images that

are available over web repositories, such as Flickr, Pi-

casa, etc.

In the following we present our approach

overview, having in mind the aforementioned system

requirements.

(a) (b)

Figure 2: (a) Original and (b) manually annotated image.

3 APPROACH OVERVIEW

Having the aforementioned system requirements in

mind, we follow a learning based approach for

the recognition of half-timbered framed buildings in

Calw city. Every learning machine requires a labeled

dataset, whose samples should be described by high

discriminative features. This includes two different

things; ﬁrstly we have to obtain or create an image

dataset and secondly, we have to pre-process the im-

ages in order to construct features that accurately de-

scribe their visual content.

As mentioned before, we adopt a deep learn-

ing framework for the recognition of half-timbered

framed buildings. Due to the fact that deep learn-

ing models can automatically construct high level fea-

tures form low level ones, we are able to bypass the

data pre-processing task for constructing handcrafted

features.

Speciﬁcally, we exploit Convolutional Neural

Networks (CNN). CNNs consist a type of deep mod-

els, which apply trainable ﬁlters and pooling opera-

tions on the raw input, resulting in a hierarchy of in-

creasingly complex features. Although, it has been

shown that CNNs can achieve superior performance

on visual recognition tasks without relying on hand-

crafted features, due to their nature, they produce

global image features. This implies that CNNs can

respond whether or not a half-timbered frame build-

ing is present in a picture.

However, the recognition problem includes not

only the task for deciding if the objects of interest are

present in a scene but also their localization on image

plane. Due to this fact, instead of using the whole im-

age as input to the network, we feed the network with

image patches. This way, the CNN decides if an im-

age patch depicts the object of interest or some part

of it. We use this procedure along with sliding win-

dows to make a decision for every patch in the image.

Then, a voting mechanism based on patches classiﬁ-

cation results is used to classify image pixels.

4 DATASET CREATION

For recognizing objects of interest, in our case half-

timbered framed buildings, in an image, we classify

image patches. Successful classiﬁcation of patches is

based on the successful training of the deep learning

architecture i.e. the successful training of the CNN

and MLP. This requires the creation of a dataset for

training, which includes patches that depict (positive

samples) and not depict (negative samples) the object

of interest or some part of it.

For creating the dataset we used one hundred im-

ages captured in Calw city. These images were man-

ually annotated i.e. for each image a mask around the

object of interest was created (see Fig. 2).

Using the annotated images we croped a prede-

ﬁned number of square patches from each one of the

original images. These patches are labeled as posi-

tive if their centered pixel is located in the mask, i.e.

black pixel in annotated image, and the total num-

ber of masked pixels is larger than 66.6% of the total

number of pixels in the patch. Similarly, the patches

whose centered pixel is located outside of the mask

and the total number of unmasked pixels is larger than

66.6% of the total number of pixels in the patch are la-

beled as negative samples. Examples of positive and

negative samples are presented in Fig. 3.

As mentioned before, a predeﬁned number of pos-

itive and negative samples (patches) were cropped

from each image. In order to made our system scale

invariant the size of the patches was randomly vary-

(a) (b)

Figure 3: (a) Negative and (b) positive samples.

ing between 256 ×256 and 512 × 512 pixels. Finally,

all cropped patches were resized to 32 × 32 pixels in

order to be fed as input to the CNN.

5 DEEP LEARNING

ARCHITECTURE

In this work the learning machine that is respon-

sible for constructing features in order to describe

patches is a CNN. CNNs consist a type of deep mod-

els, which apply trainable ﬁlters and pooling opera-

tions on the raw input, resulting in a hierarchy of in-

creasingly complex features. On top of the CNN a

fully-connected feed-forward neural network (MLP),

whose input corresponds to the high-level features

constructed by the CNN, was placed to conduct the

classiﬁcation task.

The CNN consists of thee convolutional layers.

The ﬁrst convolutional layer consists of 9 trainable

ﬁlters of size 7 × 7, the second consists of 12 train-

able ﬁlters of size 5 × 5 and the third consists of 15

trainable ﬁlters of size 3 × 3.

Each convolutional layer is followed by a max-

pooling operator of size 2×2. Max pooling is done by

applying a max ﬁlter to non-overlapping sub-regions

of the initial representation, i.e. extracts the maximum

element of non-overlapping sub-regions of size 2 × 2

of the image that resulted by the application of the

trainable ﬁlters.

Finally, the fully-connected feed-forward network

contains one hidden layer with 45 neurons. This ar-

chitecture results in a network with 6491 trainable pa-

rameters. The architecture of the proposed deep learn-

ing system is schematically represented in Fig. 4.

5.1 Architecture Training

During the training of the architecture, we want to se-

lect a function f : ℜ

32×32

→ {0, 1}, i.e. a function f

that maps each image patch x ∈ ℜ

32×32

to object of

interest and non object of interest classes. The form

of the function f is the one that corresponds to the

aforementioned architecture and it can be fully iden-

tiﬁed by the set, w of trainable parameters.

Estimating the optimal set w of architecture pa-

rameters involves minimizing a loss function. In the

case of binary classiﬁcation, it is very common to use

the negative log-likelihood as the loss. This is equiva-

lent to maximizing the likelihood of the training data

set under the model parameterized by w.

The minimization task, and thus the parameter es-

timation, takes place by exploiting the back propaga-

tion algorithm and choosing the stochastic gradient

descent as the optimization method.

5.2 Early Stopping Criteria

The training phase is terminated either when a max-

imum number of training epochs is reached or when

early stopping criteria are met.

Early-stopping combats overﬁtting by monitoring

the model’s performance on a validation set. A vali-

C1:$ 9x26x26

S1:$9x13x13 C2:$ 12x9x9

S2:$12x4x4

C3:$ 15x2x2

S3:$15x1

CNN MLP

45$hidd en$

neurons

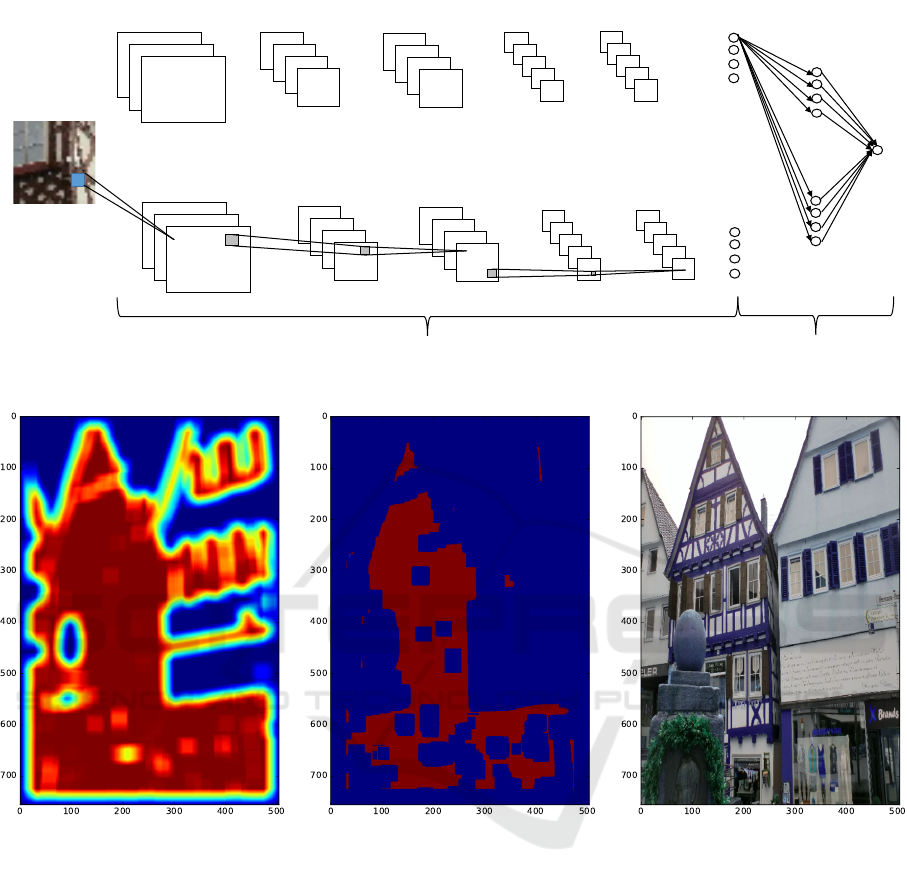

Figure 4: Deep learning model architecture.

Figure 5: (left) Output of the classiﬁer, (middle) thresholded output and (right) original image.

dation set is a set of examples that we never use for

stochastic gradient descent, but which is also not a

part of the test set. The validation examples are con-

sidered to be representative of future test examples.

We can use them during training because they are not

part of the test set. If the model’s performance ceases

to improve sufﬁciently on the validation set, or even

degrades with further optimization, then a decision

mechanism gives up on much further optimization.

Let us denote as l

(i)

the validation loss at the i

training epoch and as l

∗

v,i

= min

j=1...i

( j)

the mini-

mum validation error till the i

training epoch. For

deciding when the optimization process must end we

compute the quantity p

(i)

for each training epoch i.

If after the i

training epoch l

(i)

< l

∗

v,i−1

then p

(i)

max{p

(i−1)

, 2i}, otherwise p

(i)

= p

(i−1)

. The initial

value p

(0)

can be set to the number of training epochs

that we want the optimization algorithm to go through

regardless the evolution of the validation error. When

the quantity p

(i)

< i the decision mechanism termi-

nates the optimization process.

The quantity p can be seen as the ”patience” of

the decision mechanism before terminating the opti-

mization process. During the ﬁrst training epochs the

mechanism has a small amount of ”patience”, since

the validation error is expected to be decreased fast

enough. On the contrary, during later iterations the

amount of ”patience” is getting larger, since the im-

provement of validation error is slower due to the con-

vergence properties of the optimization algorithm.

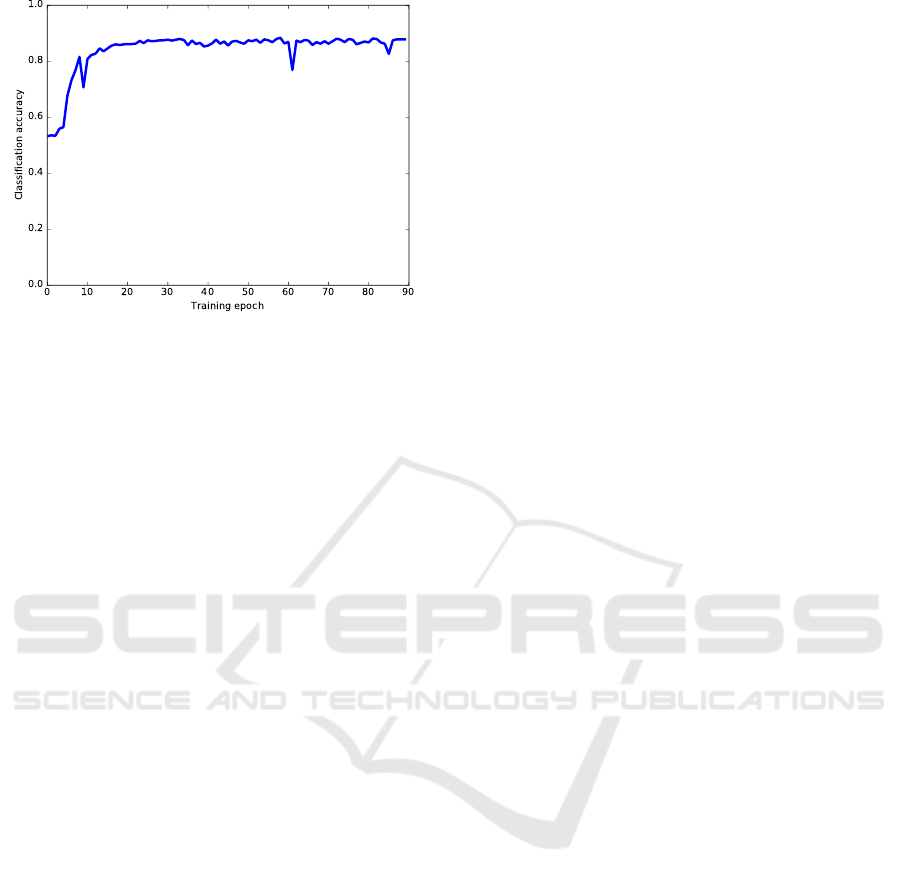

Figure 6: Classiﬁcation accuracy versus the number of

training epochs.

5.3 Building Recognition

After the training of the network, the proposed system

is able to recognize half-timbered framed buildings

on newly captured images. A new image is fed as

input to our system. Initially, this image is being split

into overlapping patches of 32 × 32 size. Each one of

the patches is classiﬁed by the deep learning model as

depicting or not some part of the building of interest.

Then, the label of the patch is assigned to every pixel

that belongs to it.

Due to the fact that we use overlapping windows,

most of the image pixels belong to more than one

patches and thus multiple labels are being assigned to

them. For this reason, the ﬁnal label of each pixel is

determined by utilizing a voting mechanism that uses

the average of the labels that have been assigned to a

speciﬁc pixel.

6 EXPERIMENTAL RESULTS

Experimental results were obtained by creating a

dataset that contains 3000 negative and 3000 posi-

tive samples. For training and evaluating the perfor-

mance of the proposed approach, we split the dataset

into train, test and validation sets, with splitting ratio

0.7 : 0.15 : 0.15. Finally, we set the maximum number

of training epochs to be equal to 400, while the initial

value for p was set equal to 50.

Fig. 6 presents the classiﬁcation accuracy on test

set versus the number of training epochs. The train-

ing phase is terminated after 90 epochs due to the em-

ployment of early stopping criteria, which are used to

avoid overﬁtting. Furthermore, due to early stopping

the computational requirements of the training phase

are being reduced.

After the training phase our learning model is able

to achieve around 85% accuracy in terms of patch

classiﬁcation on the testing set of patches. At this

point it has to be mentioned that, although the facades

of half-timbered framed buildings have the same kind

of patterns, their color and size may be different. The

ability of our proposed architecture to achieve around

85% classiﬁcation accuracy on the test set, implies

that it can successfully generalize to unknown data.

Fig. 5 presents a visualization of the results regard-

ing the recognition of half-timbered framed buildings.

The color in the output of the classiﬁer, Fig. 5(left),

corresponds to the probability a pixel to depict some

part of the object of interest. Blue color corresponds

to low probability, while red color corresponds to high

probability. The output of the classiﬁer was thresh-

olded, Fig. 5(middle), in order to select the pixels that

depict some part of the object of interest with proba-

bility at least 95%. As it can be seen, the proposed

approach is able to discriminate half-timbered framed

buildings than other types of buildings.

7 CONCLUSIONS

In this paper we proposed a deep learning based

approach for recognizing half-timbered buildings in

Calw city. The proposed approach acts as a proof of

concept that deep learning based approaches can be

used for recognizing speciﬁc types of urban buildings

without relying on sophisticated construction of hand-

crafted features. Furthermore, although the training

phase can be computationally expensive, due to the

feed forward nature of CNNs and MLPs the proposed

system can detect and recognize building very efﬁ-

ciently with low computational cost.

Finally, among the future perspectives is (i) the ex-

pansion of the developed framework for the detection

and recognition of multiple building types and (ii) a

thorough investigation on the effects of the network

parameters on the classiﬁcation accuracy.

ACKNOWLEDGEMENTS

This work is supported by the H2020 project: Trans-

forming Intangible Folkloric Performing Arts into

Tangible Choreographic digital Objects (TERPSI-

CHORE) funded by European Union under the grant

agreement 691218.

REFERENCES

Ali, H., Paar, G., and Paletta, L. (2007a). Semantic indexing

for visual recognition of buildings. In 5th Int. Symp.

on Mobile Mapping Technology. Citeseer.

Ali, H., Seifert, C., Jindal, N., Paletta, L., and Paar, G.

(2007b). Window detection in facades. In Image Anal-

ysis and Processing, 2007. ICIAP 2007. 14th Interna-

tional Conference on, pages 837–842. IEEE.

Baatz, G., K

oser, K., Chen, D., Grzeszczuk, R., and Polle-

feys, M. (2010). Handling urban location recognition

as a 2d homothetic problem. In European Conference

on Computer Vision, pages 266–279. Springer.

Bengio, Y., Lamblin, P., Popovici, D., and Larochelle, H.

(2007). Greedy layer-wise training of deep networks.

In Advances in NIPS 19, pages 153–160.

Bres, S. and Tellez, B. (2006). Localisation and aug-

mented reality for mobile applications in culture her-

itage. Lyon: INSA.

Friedman, J. H., Bentley, J. L., and Finkel, R. A. (1977).

An algorithm for ﬁnding best matches in logarithmic

expected time. ACM Transactions on Mathematical

Software (TOMS), 3(3):209–226.

Hinton, G., Osindero, S., and Teh, Y. (2006). A fast learning

algorithm for deep belief nets. Neural Computation,

18(7):1527–1554.

Hinton, G. E. and Salakhutdinov, R. R. (2006). Reducing

the dimensionality of data with neural networks. Sci-

ence, 313(5786):504–507.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Makantasis, K., Karantzalos, K., Doulamis, A., and

Loupos, K. (2015). Deep learning-based man-made

object detection from hyperspectral data. In Interna-

tional Symposium on Visual Computing, pages 717–

727. Springer.

Mnih, V. and Hinton, G. E. (2012). Learning to label aerial

images from noisy data. In Proceedings of the 29th In-

ternational Conference on Machine Learning, ICML

2012,. icml.cc / Omnipress.

Montavon, G., Orr, G., and Muller, K.-R. (2012). Neural

Networks: Tricks of the Trade. Springer Berlin Hei-

delberg.

uller, P., Zeng, G., Wonka, P., and Van Gool, L. (2007).

Image-based procedural modeling of facades. ACM

Transactions on Graphics (TOG), 26(3):85.

Olojede, A. and Suleman, H. (2015). Investigating image

processing algorithms for navigating cultural heritage

spaces using mobile devices. In International Con-

ference on Asian Digital Libraries, pages 215–224.

Springer.

Schindler, G., Krishnamurthy, P., Lublinerman, R., Liu, Y.,

and Dellaert, F. (2008). Detecting and matching re-

peated patterns for automatic geo-tagging in urban en-

vironments. In Computer Vision and Pattern Recog-

nition, 2008. CVPR 2008. IEEE Conference on, pages

1–7. IEEE.

Shechtman, E. and Irani, M. (2007). Matching local self-

similarities across images and videos. In 2007 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8. IEEE.

Singhal, A., Luo, J., and Zhu, W. (2003). Probabilistic spa-

tial context models for scene content understanding.

In Computer Vision and Pattern Recognition, 2003.

Proceedings. 2003 IEEE Computer Society Confer-

ence on, volume 1, pages I–235. IEEE.

Tell, D. and Carlsson, S. (2000). Wide baseline point match-

ing using afﬁne invariants computed from intensity

proﬁles. In European Conference on Computer Vi-

sion, pages 814–828. Springer.

Tell, D. and Carlsson, S. (2002). Combining appearance

and topology for wide baseline matching. In Euro-

pean Conference on Computer Vision, pages 68–81.

Springer.

Wendel, A., Donoser, M., and Bischof, H. (2010). Unsuper-

vised facade segmentation using repetitive patterns. In

Joint Pattern Recognition Symposium, pages 51–60.

Springer.

Xiao, J., Fang, T., Zhao, P., Lhuillier, M., and Quan, L.

(2009). Image-based street-side city modeling. ACM

Transactions on Graphics (TOG), 28(5):114.
