A Personal Analytics Platform for the Internet of Things

Implementing Kappa Architecture with Microservice-based Stream Processing

Theo Zschörnig

, Robert Wehlitz

and Bogdan Franczyk

2,3

Institute for Applied Informatics (InfAI), Leipzig University, Hainstr. 11, 04109 Leipzig, Germany

Information Systems Institute, Leipzig University, Grimmaische Str. 12, 04109 Leipzig, Germany

Business Informatics Institute, Wrocław University of Economics, ul. Komandorska 118-120, 53-345 Wrocław, Poland

Keywords: Personal Analytics, Internet of Things, Kappa Architecture, Microservices, Stream Processing.

Abstract: The foundation of the Internet of Things (IoT) consists of different devices, equipped with sensors, actuators

and tags. With the emergence of IoT devices and home automation, advantages from data analysis are not

limited to businesses and industry anymore. Personal analytics focus on the use of data created by individuals

and used by them. Current IoT analytics architectures are not designed to respond to the needs of personal

analytics. In this paper, we propose a lightweight flexible analytics architecture based on the concept of the

Kappa Architecture and microservices. It aims to provide an analytics platform for huge numbers of different

scenarios with limited data volume and different rates in data velocity. Furthermore, the motivation for and

challenges of personal analytics in the IoT are laid out and explained as well as the technological approaches

we use to overcome the shortcomings of current IoT analytics architectures.

1 INTRODUCTION

It is estimated that the number of Internet of Things

(IoT) devices will grow in huge quantities, to around

24 billion in the year 2020 (Greenough, 2016). This

ever-increasing number of IoT devices creates vast

opportunities for businesses and industry but also for

common individuals (Ruckenstein, 2014). In order to

gain meaningful insights, it is necessary to provide

analytics platforms which are able to process,

integrate and enrich the data from IoT devices.

Current research in the field of IoT analytics focuses

on different domains, such as health care, energy and

utilities and manufacturing (Stolpe et al., 2016). Yet,

in order to further enhance the usefulness of IoT

devices to consumers, it seems plausible to provide

powerful personal analytics.

During our research, we found that these kinds of

analytics have different challenges and technological

requirements compared to common IoT analytics

architectures and therefore need new approaches to be

handled. Against this background, we present an

architectural approach for an IoT analytics platform

in the context of personal analytics.

In this paper, we describe the motivation to conduct

this research and the challenges when designing

architectures for IoT personal analytics platforms but

also the opportunities they provide (Section 2). We

give an overview of the state of the art in IoT analytics

regarding technologies and architectures and show

that these are not fully suitable for personal analytics

(Section 3).

Further, this paper presents technological

approaches to resolve these issues and challenges

(Section 4). The main contribution of this paper, an

approach to build an analytics platform architecture

which is able to be used for personal analytics, is

described in Section 5. In conclusion, we provide

ideas to further the research in this field (Section 6).

2 MOTIVATION AND

CHALLENGES

The usage, adoption and impact of the IoT can be

categorized into levels of society, industry,

organization and individuals (Riggins and Wamba,

2015). With the growing number of IoT devices used

in everyday life, it is necessary to gather richer

insights in how to use the data not only on a high,

aggregated level. A smaller, more intimate scale and

use, by individuals, commonly referred to as personal

analytics (Choe et al., 2014) should also be looked

upon. Lacking a unanimous definition, we describe

Zschörnig, T., Wehlitz, R. and Franczyk, B.

A Personal Analytics Platform for the Internet of Things - Implementing Kappa Architecture with Microservice-based Stream Processing.

DOI: 10.5220/0006355407330738

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 733-738

ISBN: 978-989-758-248-6

733

personal analytics as analytics of data produced by an

individual. It can also be seen as analytics of data

from or linked to a specific individual. Therefore,

personal analytics call for user-friendly applications

which empower self-service capabilities. The types of

analytics used in this regard are descriptive,

predictive and prescriptive (Swan, 2012).

Since IoT topics like Smart Home and home

automation have become more popular in recent

years, but still struggle to gain broader acceptance

(Accenture, 2016), it seems plausible to extend the

field of personal analytics to these. This enables

consumers, for instance, to gain insights into their

own energy consumption and device usage in the

closed environment of their homes. Further, the

complex interaction of IoT devices as well as their

smart usage can be supported by the use of machine

learning, data mining, clustering and analytics

insights, enhancing the usage value of them to the

consumers.

Providing an analytics platform or tools to

consumers is usually part of IoT platforms (Mineraud

et al., 2015). They can be vendor-agnostic, third-

party-based or open source and omit the need for

consumers to build their own management and

control systems to use their IoT devices.

In the context of providing an IoT platform for

large numbers of consumers, IoT analytics platforms

face several architectural challenges. Semantics of the

data to be collected and analysed change frequently

over time and are sometimes unknown (Xu et al.,

2016). Also, the ability to save large volumes of

different kinds of structured and unstructured data

(Hasan et al., 2015), in a scalable, easy updatable

manner is important. Furthermore, they need to

process real-time data (Rozik et al., 2016) and

integrate it with historical data, extend data

processing capabilities without ease and provide the

gained insights to different endpoints (Cheng et al.,

2015). Lastly, they need to be able to combine events

of different IoT devices for meaningful information

and predict events based on the data (Rozik et al.,

2016).

In context of personal analytics, we found the

requirements for IoT analytics platforms to be

different. Major differences are data volume and

velocity to be analysed. Whereas common Big Data

technologies aggregate data from huge numbers of

data sources thus creating large volumes of data, the

number and therefore volume in personal analytics is

much smaller. Corresponding architectures still need

to be able to handle huge volumes and high velocity

of data, but only at the infrastructure level. Instead of

processing and computing a modest number of Big

Data problems, the analytics architecture has to

compute large numbers of smaller problems. Since

every consumer is able to define their own analytics

use cases, the resulting applications do not need the

same computational power as common Big Data

scenarios and, as a consequence, should be designed

in a flexible and lightweight way.

This shift leads to huge numbers of different

analytics scenarios in terms of data sources, data

processing and transformation needs as well as

insights gained. As a result, the architectures of the

platform must be able to provide large quantities of

processing and analysis algorithms which can be

easily replaced in user-created analytics pipelines.

Still, the already established architectural

requirements for IoT analytics platforms apply.

Looking at current solutions, these requirements

seem to have only been insufficiently met. Therefore,

we propose a new more flexible architecture which is

able to satisfy the needs of personal analytics,

especially in IoT platform environments.

3 STATE OF THE ART

As mentioned before, current IoT analytics platforms

research and solutions mainly employ Big Data

technologies in order to tackle the architectural

requirements of IoT analytics scenarios. Commonly

used are Big Data processing frameworks for batch

and stream processing, such as Apache Spark, Storm,

Samza, and Flink, to be composed in a Lambda

Architecture (Cheng et al.; Hasan et al., 2015; Rozik

et al., 2016). This architectural concept includes a

batch, stream and serving layer. The batch layer is

used to store all ingested data as well as compute

views on the data continuously. Since batch

processing huge data volumes creates high latency,

the speed layer is used to compensate this and create

incremental real-time views of the data. The real-time

views complement the batch views. This creates the

need to develop two data processing logics. In

addition, the development of processing algorithms

using processing frameworks is rather cumbersome

and has a steep learning curve for developers.

There have also been works which use Business

Intelligence applications (Chang et al.; Mishra et al.,

2015) to implement IoT analytics or related problem

fields for companies. In addition, Complex Event

Processing (CEP) is used to analyse events of IoT

devices and link them to external data sources

(Naqishbandi et al., 2015), but also add another level

of complexity to data processing and analysis.

IoT analytics in general are object of investigation in

a multitude of domains. This research, especially in

energy and utilities, mainly focuses on aggregated

insights of broad applications, such as smart cities

(Ramakrishnan and Gaur, 2016) or smart grid (Hasan

et al., 2015).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

734

However, none of the related works consider the

challenges for IoT analytics platforms which arise in

the context of personal analytics. This paper aims to

provide an architectural approach to fill this gap.

4 TECHNOLOGY

In this section, we describe the core technologies and

technological approaches we use to implement our

IoT personal analytics architecture.

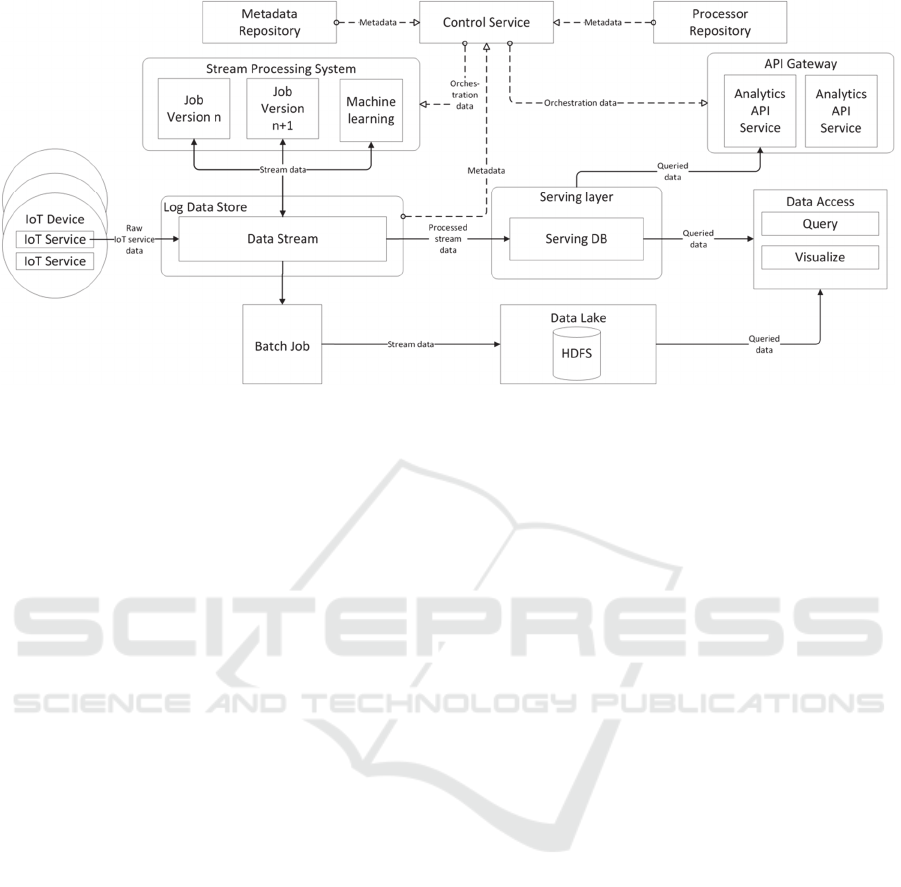

4.1 Kappa Architecture

The foundation of our approach to IoT stream

processing is the Kappa Architecture. It is derived

from the more commonly used Lambda Architecture

but tries to overcome its shortcomings. Comparing

both architectures, Stolpe (2016) points out that the

development of algorithms for both processing layers

of the Lambda Architecture, the batch and the stream

layer, is disadvantageous. Therefore, the main

concept of the Kappa Architecture evolves around the

idea to drop the batch layer and only use a stream

processing system (Wingerath et al., 2016). In case

the underlying logic changes, all historic datasets are

reprocessed (Kreps, 2014; Wingerath et al., 2016) and

the “old” output data tables of the serving layer are

dropped (Kreps, 2014). For this to work, usually the

data source is a (distributed) log data store, such as

Apache Kafka. Therefore, the Kappa Architecture, in

contrast to Lambda Architecture, allows for more

flexible adaption of changing processing and

analytics requirements since the overhead of a second

processing layer is mitigated.

Providing increased flexibility and reduced

overhead, the Kappa Architecture is not without

trade-offs. Especially, increasing data volumes

require more computational power or better data

compression, thus making the Kappa Architecture

only a viable approach in systems with either high

computational power, finite data retention rates or

sufficient data compression (Wingerath et al., 2016).

Looking at IoT data being dominantly time-series

data with rapidly changing, oftentimes unknown,

context and analytics concepts, the flexible and

lightweight nature of the Kappa Architecture enables

it to cope with the challenges these kinds of data

provide.

4.2 Microservices

In recent years, the use of microservices for building

flexible software architectures has become rather

popular. In environments with fast changing

requirements, microservice architectures offer a

variety of advantages over traditional approaches.

They are characterized as a set of small services,

developed along business requirements and are

completely independent from one another (Lewis and

Fowler, 2014). They are loosely coupled and focus on

a single task, and are therefore easily changeable or

even replaceable (Fetzer, 2016).

The microservice paradigm is closely linked to

the DevOps approach which advocates tight

collaboration between software development,

execution and maintenance as well as automated

software delivery. Microservices are often

implemented using operating-system virtualization or

container engines, such as Docker (Jaramillo et al.;

Ueda et al., 2016). This adds to their fast and flexible

deployment and also makes them easily transferable.

4.3 Stream Processing and Libraries

Stream processing is a major concept in an IoT

analytics architecture. Data is constantly emitted by

IoT devices thus creating the need to constantly

update and increment existing data views.

Stream processing libraries are software libraries

which are used to implement data extraction with task

and pipeline parallelism. To achieve this, they

leverage the functional capabilities of either a

programming language (RaftLib, Auto-Pipe,

WaveScript) or an application system, which usually

is some kind of data source (Kafka Streams) and

provide these for usage in stream processing

applications. The latter type of libraries is fairly new

and since they do not require the setup of complex

application architectures for processing jobs, they are

more lightweight than the usually used Big Data

processing frameworks.

After conducting a literature review, we found

that there is no substantial research on how they

actually compare to Big Data frameworks in terms of

computational speed and parallelism, especially

considering Big Data problems. Still, they are an easy

to learn alternative, showing lots of potential for use

in Kappa Architectures.

4.4 Data Lake

The concept of the Data Lake is often used, when it is

necessary to store large amounts of data without

knowing their context or later use. Therefore, it is

characterized as a data store, which does not employ

a specific storage technology implementation but

rather a set of typically NoSQL and In-Memory

databases complemented by relational databases

(Pasupuleti and Purra, 2015). It stores vast amounts

of structured as well as unstructured data in low cost

technologies (Fang, 2015) and supports flexible data

A Personal Analytics Platform for the Internet of Things - Implementing Kappa Architecture with Microservice-based Stream Processing

735

models and caters to data scientists and data

exploration instead of rigid business applications

(Pasupuleti and Purra, 2015). One of the major

benefits using the Data Lake concept is that it is not

necessary to transform or process data before its

actual use (Fang, 2015). The data in the Data Lake is

supposed to be open to further investigation to all

members of an organization (Fang, 2015). In order to

purposefully use the data in the Lake it is necessary

to build and maintain a metadata repository which

enables meaningful semantic connotation of all data

(Alrehamy and Walker, 2015).

5 SOLUTION PROPOSAL

Because of the limitations of existing Big Data

analytics architectures in general and IoT analytics

platform architectures more specifically, we designed

a new architectural approach for handling personal

analytics in IoT environments.

The platform architecture is based on the

previously introduced concept of the Kappa

Architecture and is shown in Figure 1. In the context

of the IoT, data sources can be categorized into

sensors, actuators and tags. They form the main data

sources which are relevant to the IoT analytics

platform. Still, it is possible to integrate other external

data sources to provide context, such as

meteorological data.

The data IoT devices emit is pushed into a log data

store. Whereas it is possible to use other alternatives,

we used Apache Kafka due to its rich feature set, easy

integration with other used technologies and its

architectural distribution capabilities. These are all

features which complement the overall requirements

of handling a huge number of heterogeneous data

streams. The actual data ingestion and push to the log

data store is achieved using IoT middleware, such as

Node-RED.

While it is possible to have all data from one IoT

device put into one topic in the log data store together,

a lot of devices offer a variety of IoT services which

in turn encapsulate different sensors or actuators. This

makes it more feasible to have topics based on IoT

services rather than devices. The topic is set by the

control service and the identification is saved as

metadata in an external device repository and is

associated to an actual IoT device. This metadata

repository is the basis for later reprocessing tasks as

it enables the platform to identify topics which

require reprocessing due to changed requirements.

The data in the log data store is processed using a

lightweight stream processing system. It needs to be

easily adaptable to changing data models and

analytics requirements. Also, the technological

overhead for implementation needs to be low, so

programmers can easily be introduced to enhance,

maintain and test existing or develop new processing

applications. A microservice architecture is suitable

to fulfil these requirements. Rather than using a full-

fledged stream processing framework, each

processing task is done by a single microservice. The

microservices access the data directly from the log

data store and transform it as needed using stream

processing libraries. The control service accesses the

metadata of different stream processing

microservices from a processor repository. This

information is used to start processing instances as

needed.

To utilize the full functionality of the distributed

log data store, we used Kafka Streams. The

microservice stream processing system can be scaled

horizontally in regard of single topics but also as a

whole system. Computation intensive

transformations can be scaled out by starting

additional microservices using the same processing

algorithm, and the system itself can be scaled out to

adequately compute huge amounts of topics. The

feasibility of this stream processing architecture relies

heavily on the nature of IoT personal analytics which

is to handle problems at a much smaller scale than in

common Big Data scenarios.

Processed data is pushed back into the log data

store as a new topic. At this point all data takes two

different paths of further usage. Since meaningful IoT

analytics applications rely heavily on near real-time

data, it is only natural, that all processed data is

pushed into an analytics data store which is the

serving layer of the Kappa Architecture. The data

store should be column-oriented or optimized for time

series data. Examples of time-series databases are

Graphite or InfluxDB. Using the serving layer, it is

possible to access and query all processed data in a

near real-time fashion. In addition, multiple

application programming interface (API) services are

used to serve analytics information to different

endpoints, thus creating the functional layer of an API

gateway which extends orchestration, routing and

authorization services.

The orchestration of new processing services as

well as API services, is handled by the control

service. This service can be accessed via an API and

has information regarding available services, as well

as already deployed services. It starts and stops

services and offers information about health and

performance. It is possible to subdivide this control

service into smaller less sophisticated services, hence

following the microservice paradigm with more

rigour.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

736

Figure 1: Solution proposal and data flows.

Although, IoT analytics are most powerful when

used in a near real-time environment, it is still

important to enable users to access historic data.

The log data store as embedded in our approach

should only allow data retention of a couple of weeks.

Otherwise, reprocessing data in case of changed

requirements or needed insights becomes too

cumbersome. More specific, it is advised to set

retention rates of topics depending on the data

ingestion velocity. To overcome data loss, when

longer data retention rates are necessary, we use a

Data Lake. In order to have the data pushed into it, a

batch job implemented as a high-level log data store

consumer is triggered at a regular time interval.

As a first step to evaluate the feasibility of our

approach, we implemented important parts of the

proposed platform architecture. The log data store is

provided using Apache Kafka in congestion with

Kafka Streams as stream processing library

embedded in microservices written in Java. The

serving layer consists of the column-oriented data

store Druid. Analytics API services are written in

Python also designed as microservices. Data

visualization is achieved using Metabase.

6 CONCLUSIONS AND

OUTLOOK

In this paper, we presented a solution architecture for

IoT analytics in the context of personal analytics. This

architecture is based on the concept of the Kappa

Architecture and uses microservices to enable

flexible lightweight stream processing as well as

analytics capabilities. Important parts of this

architecture have already been implemented but lack

automatic orchestration and creation of analytics

pipelines. We showed that current IoT analytics

architectures are not as well suited for huge numbers

of inherently different analytics jobs which change

frequently in requirements and semantics. The

proposed architecture was designed to overcome

these shortcomings. With the future implementation

of a Data Lake and the corresponding tools and

technologies, we are confident to also provide

analytics capabilities which enhance the current ones

to be able to handle Big Data problems in terms of

volume and velocity as well as variety. Also, the

Kappa Architecture itself, by being able to scale

processing jobs horizontally, should be beneficial for

Big Data real-time processing but needs to be

evaluated in this regard.

Further research in this field and more specific on

this new type of analytics architecture needs to focus

on how to automate data processing further in terms

of deployment of processing jobs and the alignment

of their inputs with IoT data structures. The use of

semantic technologies seems promising to do so and

some research has already been conducted (Qanbari

et al., 2015). Also, the efficient incorporation of

historic data analytics is a key aspect of future

research. Therefore, in our next research steps, we

will further design and develop the control service as

well as the Data Lake to achieve automatic

orchestration of data analytics pipeline components

on the one side and historic data persistence and

insights on the other. Moreover, innovative user

interfaces need to be developed to empower

consumers to map their own analytics scenarios to the

analytics architecture.

A Personal Analytics Platform for the Internet of Things - Implementing Kappa Architecture with Microservice-based Stream Processing

737

ACKNOWLEDGEMENTS

The work presented in this paper is partly funded by

the European Regional Development Fund (ERDF)

and the Free State of Saxony (Sächsische Aufbaubank

- SAB).

REFERENCES

Accenture. (2016). Igniting Growth in Consumer

Technology. Retrieved from https://www.

accenture.com/_acnmedia/PDF-3/Accenture-Igniting-

Growth-in-Consumer-Technology.pdf.

Alrehamy, H., & Walker, C. (2015). Personal Data Lake

With Data Gravity Pull. In 2015 IEEE Fifth

International Conference on Big Data and Cloud

Computing (BDCloud) (pp. 160–167).

Chang, H.-T., Mishra, N., & Lin, C.-C. (2015). IoT Big-

Data Centred Knowledge Granule Analytic and Cluster

Framework for BI Applications: A Case Base Analysis.

PloS one, 10(11).

Cheng, B., Longo, S., Cirillo, F., Bauer, M., & Kovacs, E.

(2015). Building a Big Data Platform for Smart Cities:

Experience and Lessons from Santander. In B.

Carminati (Ed.), 2015 IEEE International Congress on

Big Data (BigData Congress). New York, USA

(pp. 592–599). Piscataway, NJ: IEEE.

Choe, E. K., Lee, N. B., Lee, B., Pratt, W., & Kientz, J. A.

(2014). Understanding quantified-selfers' practices in

collecting and exploring personal data. In M. Jones, P.

Palanque, A. Schmidt, & T. Grossman (Eds.), The 32nd

Annual ACM Conference on Human Factors in

Computing Systems (pp. 1143–1152).

Fang, H. (2015). Managing data lakes in big data era:

What’s a data lake and why has it became popular in

data management ecosystem. In 2015 IEEE

International Conference on Cyber Technology in

Automation, Control, and Intelligent Systems (CYBER),

(pp. 820–824).

Fetzer, C. (2016). Building Critical Applications Using

Microservices. IEEE Security & Privacy, 14(6), 86–89.

Greenough, J. (2016). How the 'Internet of Things' will

impact consumers, businesses, and governments in

2016 and beyond. Retrieved from

http://www.businessinsider.com/how-the-internet-of-

things-market-will-grow-2014-10?IR=T.

Hasan, T., Kikiras, P., Leonardi, A., Ziekow, H., &

Daubert, J. (2015). Cloud-based IoT Analytics for the

Smart Grid: Experiences from a 3-year Pilot. In D. G.

Michelson, A. L. Garcia, W.-B. Zhang, J. Cappos, & M.

E. Darieby (Eds.), Proceedings of the 10th

International Conference on Testbeds and Research

Infrastructures for the Development of Networks &

Communities.

Jaramillo, D., Nguyen, D. V., & Smart, R. (2016).

Leveraging microservices architecture by using Docker

technology. In SoutheastCon 2016. (pp. 1–5).

Kreps, J. (2014). Questioning the Lambda Architecture.

Retrieved from https://www.oreilly.com/

ideas/questioning-the-lambda-architecture.

Lewis, J., & Fowler, M. (2014). Microservices: a definition

of this new architectural term. Retrieved from http://

www.martinfowler.com/articles/microservices.html.

Mineraud, J., Mazhelis, O., Su, X., & Tarkoma, S. (2015).

A gap analysis of Internet-of-Things platforms. arXiv

preprint arXiv:1502.01181.

Mishra, N., Chang, H.-T., & Lin, C.-C. (2015). An IoT

Knowledge Reengineering Framework for Semantic

Knowledge Analytics for BI-Services. Mathematical

Problems in Engineering, 2015(1), 1–12.

Naqishbandi, T., Sheriff, I. C., & Sama, Q. (2015). Big

Data, CEP and IoT: Redefining Holistic Healthcare

Information Systems and Analytics. International

Journal of Engineering Research & Technology, 4(1).

Qanbari, S., Behinaein, N., Rahimzadeh, R., & Dustdar, S.

(2015). Gatica: Linked Sensed Data Enrichment and

Analytics Middleware for IoT Gateways. In 2015 3rd

International Conference on Future Internet of Things

and Cloud (FiCloud) (pp. 38–43).

Pasupuleti, P., & Purra, B. S. (2015). Data Lake

Development with Big Data: Packt Publishing.

Ramakrishnan, R., & Gaur, L. (2016). Smart electricity

distribution in residential areas: Internet of Things (IoT)

based advanced metering infrastructure and cloud

analytics. In 2016 International Conference on Internet

of Things and Applications (IOTA) (pp. 46–51).

Riggins, F. J., & Wamba, S. F. (2015). Research Directions

on the Adoption, Usage, and Impact of the Internet of

Things through the Use of Big Data Analytics. In 2015

48th Hawaii International Conference on System

Sciences (HICSS) (pp. 1531–1540).

Rozik, A. S., Tolba, A. S., & El-Dosuky, M. A. (2016).

Design and Implementation of the Sense Egypt

Platform for Real-Time Analysis of IoT Data Streams.

Advances in Internet of Things, 06(04), 65–91.

Ruckenstein, M. (2014). Visualized and Interacted Life:

Personal Analytics and Engagements with Data

Doubles. Societies, 4(1), 68–84.

Stolpe, M. (2016). The Internet of Things: Opportunities

and Challenges for Distributed Data Analysis. ACM

SIGKDD Explorations Newsletter, 18(1), 15–34.

Swan, M. (2012). Sensor Mania!: The Internet of Things,

Wearable Computing, Objective Metrics, and the

Quantified Self 2.0. Journal of Sensor and Actuator

Networks, 1(3), 217–253.

Ueda, T., Nakaike, T., & Ohara, M. (2016). Workload

characterization for microservices. In 2016 IEEE

International Symposium on Workload

Characterization (IISWC) (pp. 1–10). IEEE.

Wingerath, W., Gessert, F., Friedrich, S., & Ritter, N.

(2016). Real-time stream processing for Big Data. it -

Information Technology, 58(4).

Xu, Q., Aung, K. M. M., Zhu, Y., & Yong, K. L. (2016).

Building a large-scale object-based active storage

platform for data analytics in the internet of things. The

Journal of Supercomputing, 72(7), 2796–2814.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

738
