Towards the Integration of Metaprogramming Services into Java

Ignacio Lagartos, Jose Manuel Redondo and Francisco Ortin

Computer Science Department, University of Oviedo, c/Calvo Sotelo s/n, 33007, Oviedo, Spain

Keywords: Java, Metaprogramming, Structural Intercession, Dynamic Code Evaluation, Static Typing, Early Type Error

Detection.

Abstract: Dynamic languages are widely used in scenarios where runtime adaptability is a strong requirement. The

metaprogramming features provided by these languages allow the dynamic adaptation of the structure of

classes and objects, together with the evaluation of dynamically generated code. These features are used to

build software capable of adapting to runtime changing environments. However, this flexibility is

counteracted with the lack of static type checking provided by statically typed languages such as Java. Static

type checking supports the earlier detection of type errors, involving a valuable tool in software development.

In this position paper, we describe the steps we are following to add some runtime metaprogramming services

to Java. We intend to provide the runtime flexibility of structural intercession and dynamic code evaluation

provided by most dynamic languages, without losing the robustness of the compile-time type checking of

Java. The metaprogramming services are provided as a library so, unlike other existing systems, any standard

virtual machine and language compiler could be used.

1 INTRODUCTION

Dynamic languages have turned out to be suitable for

specific scenarios such as rapid prototyping, Web

development, interactive programming, dynamic

aspect-oriented programming and runtime adaptive

software (Redondo, 2015). Most dynamic languages

provide metaprogramming services that allow

treating programs like data, and modify them at

runtime (Ortin, 2002). Fields and methods can be

added and removed dynamically from classes and

objects (structural intercession), and new pieces of

code can be generated and evaluated at runtime,

without stopping the application execution (Ortin,

2003). These services make it easier to develop

runtime adaptable software in dynamic languages

(Paulson, 2007).

In order to provide that runtime adaptability,

dynamic languages commonly implement a dynamic

type system, postponing type checking until runtime.

One limitation of this approach is that every type error

is detected at runtime. On the contrary, statically

typed languages such as Java and C# commonly

detect many type errors at compile time, when the

programmer is writing the code. This lack has been

recognized as one of the limitations of dynamically

typed languages (Meijer, 2004). The absence of

compile-time type information also involves fewer

opportunities for compiler optimizations, and the

extra runtime type checking commonly implies

performance costs (Ortin, 2014b).

In previous works, we have inferred type

information at compile time to provide early type

error detection in dynamically typed code (Garcia,

2016; Quiroga, 2016). In this work, we aim at

providing metaprogramming services to the statically

typed Java language. The objective is to increase the

runtime adaptability of Java, without loosing the early

type error detection and runtime performace of its

static type system.

The main contribution of this position paper is the

description of a Java library aimed at providing

metaprogrammning services, maintaining its static

type system. Particularly, we intend to add structural

intercession of classes and its existing objects at

runtime, allowing the dynamic modification of their

structure. We also provide the evaluation of

dynamically generated Java code. This is a work in

progress position paper.

Lagartos, I., Redondo, J. and Ortin, F.

Towards the Integration of Metaprogramming Services into Java.

DOI: 10.5220/0006355802770284

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 277-284

ISBN: 978-989-758-250-9

277

2 LIBRARY INTERFACE

The metaprogramming services are provided as a

library of the Java platform. We modify neither the

Java Virtual Machine (JVM) nor the language

implementation. Thus, unlike other approaches

(Würthinger, 2013; Redondo, 2008), any standard

JVM and Java compiler can be used.

To describe the interface of the library, this

section presents an example that dynamically

modifies the structure of the class shown in Figure 1.

At runtime, the code modifies the structure of the

existing class shown in Figure 1.

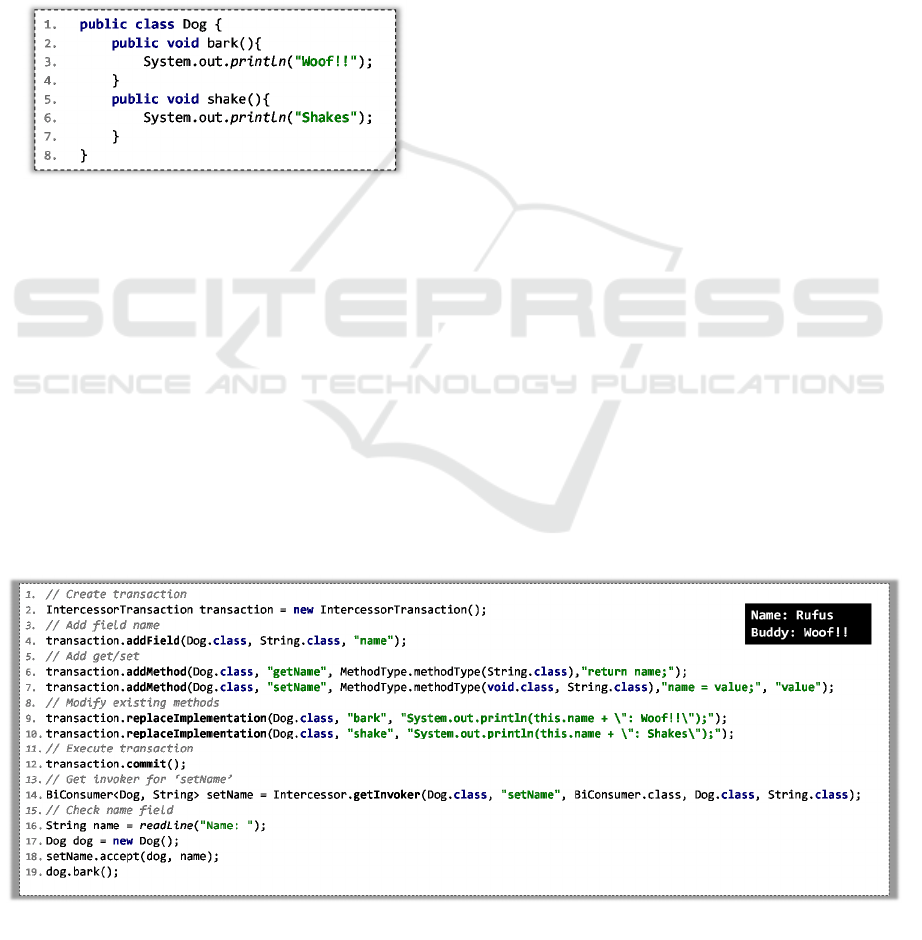

Figure 1: Example Java class.

The code in Figure 2 modifies the

Dog

class at

runtime using structural intercession (read and write

reflection) (Ortin, 2005). We add a

name

field to

every

Dog

instance at runtime, evolving the structure

of the class. Besides this new field, we also add two

new

getName

and

setName

methods. Moreover, the

implementation of the existing

bark

and

shake

methods are modified, so that they consider the new

name

field.

The proposed library allows performing the five

operations individually. Additionally, it also provides

the execution of all the operations at the same time

with the concept of transaction. Figure 2 creates one

transaction (line 2) with the five operations (lines 4 to

10). Then, the transaction is executed atomically in

line 12. If all the operations can be executed, the

program continues; otherwise, no operation is

performed. For example, if the body of

setName

has

a type error (line 7) a

CompilationFailedException

exception error

will be thrown and none of the five operations will be

executed.

If we want to invoke a newly added method (e.g.,

setName

), we should provide a new mechanism,

since that method is added later, when the application

is running. A direct invocation to

setName

will not

be compiled because that method does not exist at

compilation time. For this purpose, our library

provides the

getInvoker

method (line 14). It returns

the standard

BiConsumer

interface added to Java 8

(Oracle, 2017a). Its

method executes

setName

, which was added at runtime. Unlike the

Java reflection API, we generate statically typed code

(at runtime), so we expect to obtain a significant

performance benefit (Ortin, 2014a).

We have just shown how the library provides

structural intercession; we now describe how to

obtain dynamic code evaluation (i.e., the

eval

function in Lisp, Python and JavaScript languages).

Figure 3 shows this capability.

Line 21 first adds another implementation of the

bark

method. This line shows how to perform a

single intercesive operation without using a

transaction. It also shows that methods could be

overloaded at runtime, without breaking the rules of

the type system. The following statements in Figure 3

(lines 23 to 26) perform the dynamic evaluation of the

string “

dog.bark(nTimes)

”. It is important to

notice that the code is represented as a string, and

hence it can be built dynamically, depending on the

runtime environment. That is to say, the code is

Figure 2: Example adaptation of the Dog class using a transaction collecting 5 intercesive operations.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

278

evaluated dynamically (

dog

refers to the dynamic

state of the

dog

object created in line 19, the same as

nTimes

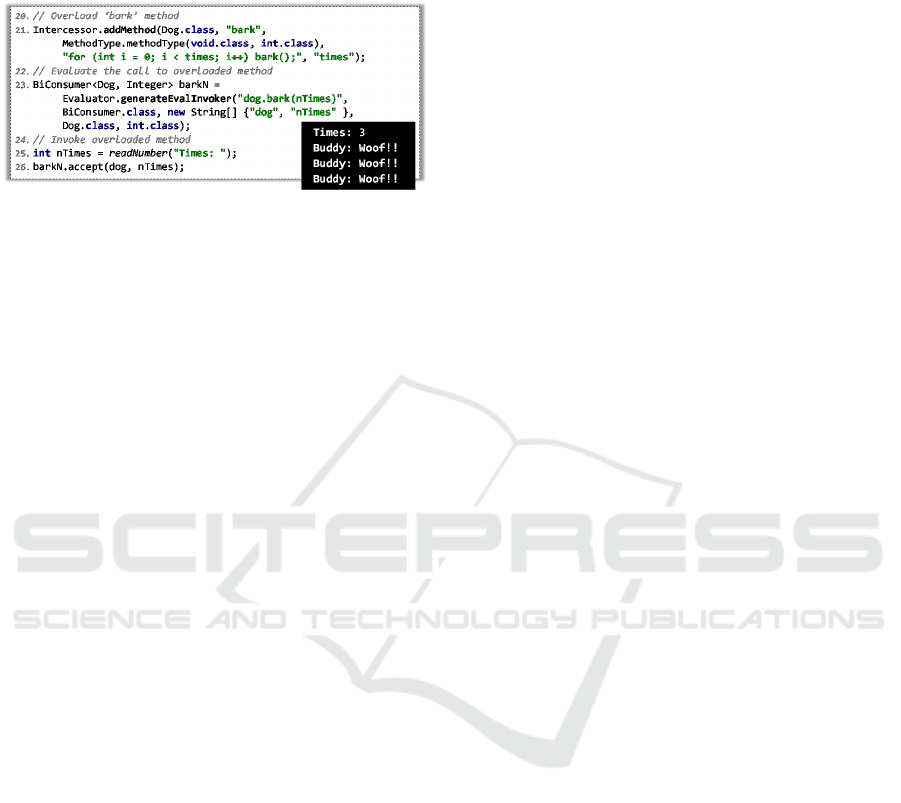

Figure 3: Dynamic evaluation of a single expression.

We have just seen how to evaluate an expression

dynamically. The proposed library also provides the

evaluation of multiple statements, and even the

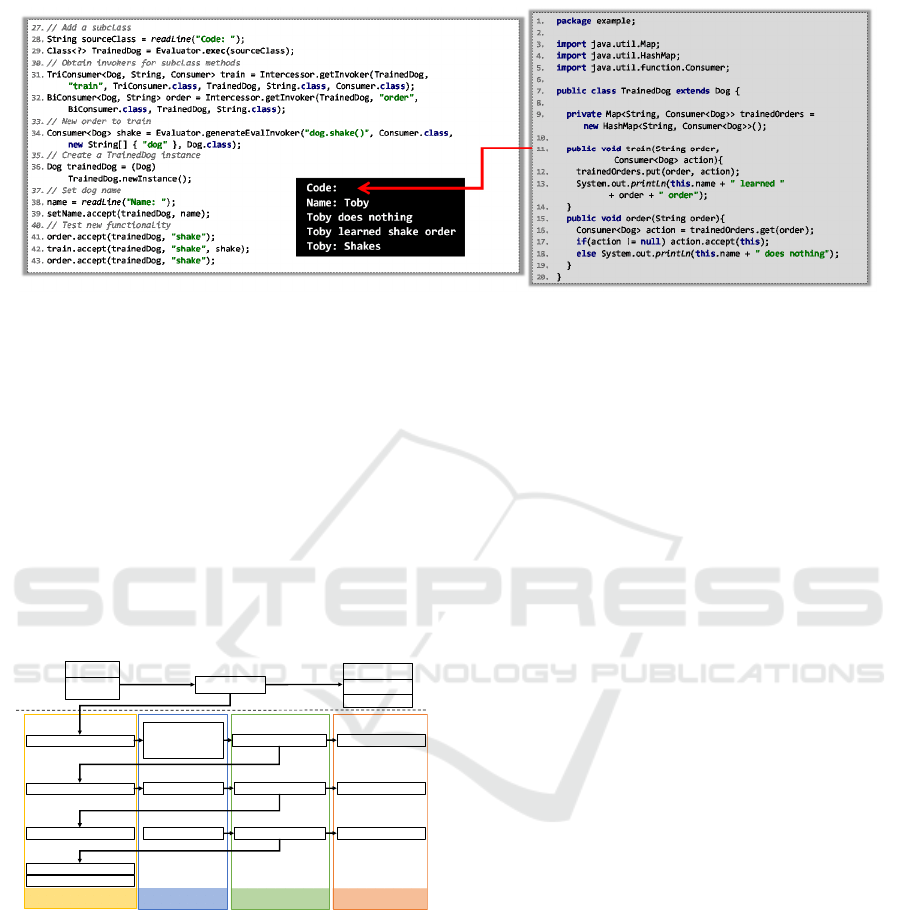

creation of a whole class. Figure 4 shows an example

of that. A new

TrainedDog

class is added at runtime

(line 29). This class extends the existing

Dog

class,

which was modified at runtime (Figures 2 and 3).

Line 28 in Figure 4 asks for the code to be

evaluated. The user dynamically writes the code with

gray background color, which generates the new

TrainedDog

class. This class implements the

train

method

that receives a function as a parameter (the

standard

Consumer

Java 8 interface allows passing

lambda expressions as arguments). Those functions

can later be asked to the trained dog with the

order

method.

Line 36 creates an instance of a trained dog, trains

it with the “shake” order (line 42) and orders it to

shake (line 43). The output in Figure 4 shows how the

actions of the dog depend on its training. It also shows

how a newly added class can extend another class

defined statically, which in turn was modified

dynamically.

All the metaprogramming operations are

statically typed. If the code has a type error, the

library dynamically throws a

CompilationFailedException

describing the

compiler error. Besides, the dynamically generated

code does not use reflection, so we avoid its runtime

performance cost (Conde, 2014).

3 ELEMENTS OF THE LIBRARY

3.1 Metaprogramming Services

After presenting an example, we detail the

functionalities of the proposed library. Regarding

structural intercession, we provide:

 Adding, deleting and updating fields of classes

and, thus, of all their running instances. The

update action means changing the field type.

 Replacing method implementations. Without

modifying their signature, the body of methods

(their code) is replaced with a new one.

 Adding, deleting and updating methods

(including their implementations). As with

fields, updating means changing the method

signature. Adding methods include

overloading their implementation (as in Figure

3).

 Additional methods to provide the access to

new fields and methods. It is similar to the

reflection API, but aimed at accessing the

members added at runtime.

These metaprogramming services are applied to

classes. Evolving a class implies the dynamic

adaptation of its instances. Since Java is a class-based

language (Redondo, 2013), we do not provide the

dynamic adaptation of a single object. That

possibility is not included in the Java type system and,

as mentioned, we want to take advantage of the

benefits of its static type system.

Regarding dynamic code evaluation, our library

provides the following services:

 Dynamic evaluation of expressions. This is the

traditional

eval

functionality provided by

most dynamic languages. Only one single

expression is evaluated, and its value is

returned. The expression may access any

element of the running application.

 Dynamic execution of Java code. We provide

the execution of either a sequence of statements

or the contents of a Java file. As before, the

code may depend on the runtime environment.

3.2 Runtime Adaptation

To describe the elements of the library, we explain

how the system behaves at runtime, when the

example in Section 2 is executed. Figure 5 shows the

runtime steps of our example.

One of the issues when implementing the

proposed library is that the JVM does not allow

reloading classes dynamically (Pukall, 2008). Once a

class is loaded into memory, its code cannot be

changed. The only exception is the capability of

modifying method implementations, added in Java 5

with the

instrument

package (HotSwap). For this

reason, we propose a system based on creating new

class versions at runtime.

Every time a class is modified with our library, a

new class version is created and loaded at runtime.

Towards the Integration of Metaprogramming Services into Java

279

The new class version holds all the changes made to

the previous version. If those changes are collected in

one transaction, only one new version is created

regardless the number of class modifications.

Every class should provide a link to its last

updated version, so we add a

_newVersion

private

field to all the classes (Figure 5). To perform this field

addition transparently to the user, we implement a

new Java

ClassLoader

and modify all the classes,

using the Java Agents API added to Java 5 (Oracle,

2017b). This process is done at load time, so there is

no runtime performance penalty when the JVM

reaches a steady state (Georges, 2007).

Figure 5: Runtime steps for adapting the Dog class.

The first prototype of our library requires the

source code of the applications (once it is mature

enough, we will work at the JVM binary code level).

Figure 5 shows how the source code of every class

version is stored. Using this source code storage,

changes to the classes are implemented by changing

the source code, recompiling and loading them into

memory.

When the user modifies the

Dog

class, a new

version

Dog_NewVersion_1

is generated. This new

class holds the last version of the original

Dog

class.

The

_newVersion

field of

Dog

instances will be

updated at runtime. This field update is performed

lazily, when the object is first accessed after class

adaptation. In that moment, the

_newVersion

reference is updated, and the object state is transferred

to the new class version (

Dog_NewVersion_1

). This

process consumes extra execution time, but it is

performed only once per instance.

One issue is how we manage to replace the

existing code accessing

Dog

fields with code that

accesses the corresponding fields in the last class

version. This is done by using the

invokedynamic

bytecode added to Java 7 (oracle, 2017c). Our

ClassLoader

replaces all the field access bytecodes

with

invokedynamic

. Therefore, we can change the

functionality of field access with Java 7

MutableCallSite

s. We use the J

INDY

API to

utilize

invokedynamic

from the Java language,

getting rid of writing JVM assembly code (Conde,

2014).

Another issue is how we manage to replace

method invocations with invocations to the new class

version (recall that the last version holds the actual

state of the objects, i.e. the appropriate

this

). We

first modify the implementation of every method in

Dog

, using the

instrument

Java 5 package. The new

code will simply invoke another method in

Dog_NewVersion_1

bark

calls

_bark_invoker

shake

calls

_shake_invoker

, and so on (see Figure

6). The purpose of those

invoker

methods is to

implement the lazy object state transfer and

_newVersion

update described above. After doing

this update (only once per instance), the last method

version (e.g.,

bark

and

shake

) is called in

Dog_NewVersion_1

. In this way, if a method in an

updated class is called, it will call the corresponding

invoker

in the last class version; if necessary, object

LoadTime

Execution Time

JavaAgent

Class load Instrumentation

Dog

+bark

+shake

Dog

+_newVersion

…

AddField(name)

AddMethod(getName)

AddMethod(setName)

…

Dog.java

Source Code Store

Library

JavaParser +Polyglot

JavaCompiler

Dog_NewVersion_1.class

AddMethod(bark)

Dog_NewVersion_1.java

Dog_NewVersion_2.class

Exec(TrainedDog)

Dog_NewVersion_2.java

TrainedDog.class

Dog_NewVersion_2.java

TrainedDog.java

Dog_NewVersion_1.java

Dog_NewVersion_2.java

TrainedDog.java

Figure 4: Dynamic evaluation of a Java file.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

280

state is transferred; and then the last method version

is called.

When the programmer adapts an already adapted

class (e.g., Figure 3) a new

Dog_NewVersion_2 is

created, compiled and loaded (Figure 5). The

_newVersion of both the original Dog and

Dog_NewVersion_1 will be lazily updated to the last

class version. Similarly, all the method bodies will be

replaced with direct invocations to the invokers in the

last class version. The purpose is that, once instance

states have been transferred, the runtime performance

cost does not depend on the number of class versions.

Figure 6 shows the runtime structure of classes after

performing the two class modifications in Figures 2

and 3. After updating all the instances of the first

version,

Dog_NewVersion_1 is useless –that is why

it is now shown in Figure 6.

3.3 Dynamic Code Evaluation

Figures 3 and 4 show how our library provides

dynamic code evaluation. If we just need the dynamic

evaluation of an expression (Figure 3), the library

creates a temporary class, with a method that

implements that expression. We need to provide a

mechanism to execute that dynamically generated

code, following the Java type system. For this

purpose, we make the dynamically generated class to

implement one of the “functional” interfaces added in

Java 8 (

function package) (Oracle, 2017a). In this

way, the interface provides the specific type of the

expression to be evaluated.

For evaluating a sequence of statements, we

follow a similar approach: the method body is the

code provided by the user, and

void is the returned

type. For a whole class (Figure 4), we just place the

code in a Java source file and compile it.

As mentioned, class adaptation is achieved by

modifying the application source code. However,

code manipulation is not an easy task. To distinguish

the elements in a program, code should be represented

with tree- or graph-based data structures such as AST

(Abstract Syntax Trees) (Ortin, 2007).

To manipulate classes (add, remove or update

fields and methods) we used the JavaParser tool

(Figure 5) (JavaParser, 2017). It allows us to take

Java code, obtain its AST, modify it, and regenerate

the output Java code. Then, we simply call the

JavaCompiler class added in Java 6.

In the dynamic evaluation of code, there is an

important issue that should be considered. When

programmers are writing code to be evaluated

dynamically, they are not aware of the different class

versions. Our library provides programmers the

abstraction that the

Dog class is being dynamically

changed. For example, the programmer may be

interesting in running the code

dog.setName("Rufus"). However, if this code is

evaluated, it will prompt a type error since

Dog has no

setName method (Dog_NewVersion_1 does).

Therefore, we need to perform some changes in

the code to be evaluated at runtime. Those changes

are related to the types: if the code is accessing a new

member added to a type, its last version must be used

instead. We, thus, need to know the type of every

expression to be evaluated dynamically (e.g.,

dog in

our example). At the implementation level, we just

replace

setName with setName_invoker, since the

latter method always class the last version.

To perform these changes to dynamically

evaluated Java code, we use the Polyglot front end

compiler for building Java language extensions

(Polyglot, 2017). Following the Visitor design pattern

(Gamma, 1994), we traverse the AST and replace the

method invocations which types have evolved.

Finally, we generate the modified code, compile it

and load it into memory.

Figure 6: Runtime structure of the existing class versions.

Dog

+_newVersion

+bark()

+shake()

Dog_NewVersion_1

+_newVersion

+name

+_name_fieldGetter(Dog)

+_name_fieldSetter(Dog,String)

+bark()

+_bark_invoker(Dog)

+shake()

+_shake_invoker(Dog)

+_creator(Dog)

TrainedDog

+trained

+train(String,Consumer)

+order(String)

Dog_NewVersion_2

+_newVersion

+name

+_name_fieldGetter(Dog)

+_name_fieldSetter(Dog,String)

+bark()

+_bark_invoker(Dog)

+bark(int)

+_bark_invoker(Dog,int)

+shake()

+_shake_invoker(Dog)

+_creator(Dog)

Towards the Integration of Metaprogramming Services into Java

281

4 RELATED WORK

There are different works aimed at adding some

metaprogramming features to Java. Most of them are

based on modifying the implementation of the JVM.

Würthinger et al. modify the JVM to allow the

dynamic addition and deletion of class members

(Würthinger, 2010). They also support changing the

class hierarchy at runtime. They ensure the type rules

of the Java type system, and they also verify the

correct state of the program execution. After the

adaptation, runtime performance is penalized by

15%, but this value converges to 3% when the JVM

reaches a steady state (Würthinger, 2013). This is

currently the reference implementation of the Hot

Swap functionality included in JSR 292, which was

not finally included in the standard platform (Oracle,

2011).

VOLVE is another implementation of the JVM to

support evolving Java applications to fix bugs and

add features (Subramanian, 2009). J

VOLVE allows

adding, deleting and replacing fields and methods

anywhere within the class hierarchy. They modify the

class loader, JIT compiler and garbage collector of the

JVM to provide those services. To adapt the running

applications, J

VOLVE stops program execution in a

safe point and then performs the update. Class

adaptation is controlled by transformer functions that

can be customized by the user.

Iguana/J extends the JVM to provide behavioral

reflection at runtime (Redmond, 2002). The

programmer may intercept some Java operations such

as object creation, method invocation and field

access. The new behavior is specified by the user, and

a Meta-Object Protocol (MOP) adapts the application

execution at runtime. When a MOP is associated to

an object, it handles the operations against that object

and provides the services to adapt its execution. Each

modifiable operation is represented with one MOP

class that the programmer has to extend to define the

expected runtime adaptations. The MOP classes and

objects are compiled following the Java type system.

Java Distributed Runtime Update Management

System (JD

RUMS) is a client-server system that

allows changing a runtime program and adding more

functionality to it (Andersson, 2000a). Servers

provide the update services to the clients, which run

in the JD

RUMS virtual machine. That virtual machine

is a JVM extension that provides distributed dynamic

updates (Andersson, 2000b). Those updates modify

the existing classes distributed as a deployment kit.

For each updated class, a new version is created.

Every time an instance of an old version is used, a

new instance of the new version is created, its state is

transferred to the new object, and the reference is

updated. Object migration is controlled by a class that

is included in the deployment kit.

In (Malabarba, 2000), class structures are

dynamically modified, by changing the

implementation of the JVM and creating a new

ClassLoader. That new class loader provides the

dynamic loading of modified classes, replacing the

existing ones (a functionality that is not included in

the standard JVM). The instances of the adapted

classes can evolve in three different ways: no instance

is modified, some of them are (depending on user-

defined criteria), and all of them are adapted.

The following works provide some runtime

adaptability with frameworks, without modifying the

JVM. Pukall et al. propose unanticipated runtime

adaptation, adapting running programs depending on

unpredictable requirements (Pukall, 2008). They

propose a system based on class wrappers and two

roles: caller (service clients) and callee (service

providers). A callee and class wrapper that provides

runtime adaptation. They provide services to access

the original class. The implementation of those

services are changed using the

instrument Java 5

package. The callers are aimed at replacing

invocations to an object with invocations to the

appropriate callee wrapper.

USC (Dynamic Updating through Swapping of

Classes) is a technique is based on the use of proxy

classes, requiring no modification of the runtime

system (Orso, 2002). As in the previous paragraph,

the main Java technology used is HotSwap to change

method implementation at runtime. D

USC performs

the static modification of classes to allow its later

adaptation (making them swapping-enabled). They

allow adding and deleting classes, but modified ones

must maintain their interface (

private methods and

fields can be modified). Another noteworthy

limitation is that non-public fields cannot be accessed

from outside the class.

Rubah is another framework for the dynamic

adaptation of Java applications (Pina, 2013). When a

new dynamic update is available, they load the new

versions of added or changed classes at runtime, and

perform a full garbage collection (GC) of the program

to modify the running instances. The JVM is not

modified. Instead, they implement an application-

level GC traversal using reflection and some class-

level rewriting. To update an application with Rubah,

the programmer has to specify the update points,

write the control flow migration, and detail the

program state migration.

JRebel is a tool to skip the time-consuming build

and redeploy steps in the Java development process,

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

282

allowing programmers to see the result of code

changes instantly, without stopping application

execution (JRebel, 2017). Modified classes are

recompiled and reloaded in the running application.

JRebel allows changes in the structure of classes.

Classes are instrumented with a native Java agent

using the JVM Tool Interface, and a particular class

loader. Each class is changed to a master class and

different support anonymous classes that are

dynamically JIT compiled (Kabanov, 2017). JRebel

does not check that the whole application has no type

errors. Thus, application execution crashes when

changes in a class imply errors in a program (e.g., a

method is removed and it is later invoked).

MetaML is a statically typed programming

language that supports program manipulation (Taha,

2000). It allows the programmer to construct,

combine and execute code fragments in a type safe

manner. In this way, dynamically evaluated programs

do not produce type errors. MetaML does not support

the manipulation of dynamically evaluated code; i.e.,

evaluation of code represented as a string, unknown

at compile time. Therefore, its metaprogramming

features cannot be used to adapt applications to new

requirements emerged after their execution.

5 CONCLUSIONS

The proposed library shows how, with the existing

standard Java elements, it is possible to include

structural intercession and dynamic code evaluation

services in the standard Java platform and language,

modifying neither of them. Although the runtime

adaptation mechanism proposed has an execution

performance penalty, the system has been designed to

reduce it when the JVM reaches a steady state after

application adaptation. These metaprogramming

services bring Java closer to the runtime adaptability

of dynamic languages, without losing the benefits of

its static type system.

We have a running proof-of-concept prototype,

which successfully executed all the examples shown

in this article. Currently, it requires the use of Java

source code, and its runtime performance has not

been heavily optimized.

We plan to added services for allowing the

runtime adaptability of class hierarchies. Then, apply

heavy optimizations to make its steady state

execution time close to Java. The last step of the

project is to allow the dynamic adaptation of running

applications that have been modified and recompiled.

The objective of this last step is not only to adapt

single classes but also whole applications.

ACKNOWLEDGEMENTS

This work has been funded by the European Union,

through the European Regional Development Funds

(ERDF); and the Principality of Asturias, through its

Science, Technology and Innovation Plan (grant

GRUPIN14-100). We have also received funds from

the Banco Santander through its support to the

Campus of International Excellence.

REFERENCES

Andersson, J., Ritzau, T., 2000. Dynamic code update in

JDrums. In Proceedings of the ICSE’00 Workshop on

Software Engineering for Wearable and Pervasive

Computing.

Andersson, J., 2000. A deployment system for pervasive

computing. In International Conference on Software

Maintenance. Proceedings, pp. 262–270.

Conde, P., Ortin, F., 2014. Jindy: a Java library to support

invokedynamic. Computer Science and Information

Systems 11(1), pp. 47-68.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1994.

Design patterns: elements of reusable object-oriented

software, Addison-Wesley Professional.

Garcia, M., Ortin, F., Quiroga, J., 2016. Design and

implementation of an efficient hybrid dynamic and

static typing language. Software: Practice and

Experience 46(2), pp. 199-226.

Georges, A., Buytaert, D., Eeckhout, L., 2007. Statistically

rigorous Java performance evaluation. In Object-

Oriented Programming Systems and Applications,

OOPSLA ’07, NY, USA, pp. 57–76.

JavaParser, 2017. Process Java code programmatically.

http://javaparser.org

JRebel, 2017. Zero Turnaround JRebel, Reload code

changes instantly.

https://zeroturnaround.com/software/jrebel

Kabanov, J., 2017. Reloading Java Classes 401: HotSwap

and JRebel — Behind the Scenes. Zero Turnaround.

https://zeroturnaround.com/rebellabs/reloading_java_c

lasses_401_hotswap_jrebel

Malabarba, S., Pandey, R., Gragg, J., Barr, E., Barnes, J.F.,

2000. Runtime Support for Type-Safe Dynamic Java

Classes. In Proceedings of the 14th European

Conference on Object-Oriented Programming, London,

UK, pp. 337–361.

Meijer, E., Drayton, P., 2004. Dynamic Typing When

Needed: The End of the Cold War Between

Programming Languages. In Proceedings of the

OOPSLA Workshop on Revival of Dynamic

Languages.

Oracle, 2011. JSR 292, supporting dynamically typed

languages on the Java platform.

https://www.jcp.org/en/jsr/detail?id=292

Towards the Integration of Metaprogramming Services into Java

283

Oracle, 2017. function package, Java Platform SE 8.

https://docs.oracle.com/javase/8/docs/api/java/util/func

tion/package-summary.html

Oracle, 2017. instrument package, Java Platform SE 8.

https://docs.oracle.com/javase/8/docs/api/java/lang/ins

trument/package-summary.html

Oracle, 2017. Java Virtual Machine Support for Non-Java

Languages.

http://docs.oracle.com/javase/7/docs/technotes/guides/

vm/multiple-language-support.html

Orso, A., Rao, A., Harrold, M.J., 2002. A technique for

dynamic updating of Java software. In Proceedings of

the International Conference on Software Maintenance,

pp. 649–658.

Ortin, F., Cueva, J.M., 2002. Implementing a Real

Computational-Environment Jump in order to Develop

a Runtime-Adaptable Reflective Platform. ACM

SIGPLAN Notices 37(8), pp. 35-44.

Ortin, F., Cueva, J.M., 2003. Non-restrictive computational

reflection. Computer Standards & Interfaces 25(3), pp.

241-251.

Ortin, F., Diez, D., 2005. Designing an Adaptable

Heterogeneous Abstract Machine by means of

Reflection. Information and Software Technology

47(2), pp. 81-94.

Ortin, F., Zapico, D., Cueva, J.M., 2007. Design Patterns

for Teaching Type Checking in a Compiler

Construction Course. IEEE Transactions on Education

50 (3), pp. 273-283.

Ortin, F., Conde, P., Fernandez-Lanvin, D., Izquierdo, R.,

2014. The Runtime Performance of invokedynamic: an

Evaluation with a Java Library. IEEE Software 31 (4),

pp. 82-90.

Ortin, F., Labrador, M.A., Redondo, J.M., 2014. A hybrid

class- and prototype-based object model to support

language-neutral structural intercession. Information

and Software Technology 56(2), pp. 199-219.

Paulson, L.D., 2007. Developers Shift to Dynamic

Programming Languages. IEEE Computer 40(2), pp.

12–15.

Pina L., Hicks, M., 2013. Rubah: Efﬁcient, General-

purpose Dynamic Software Updating for Java. In the

5th Workshop on Hot Topics in Software Upgrades.

Polyglot, 2017. A compiler front end framework for

building Java language extensions.

https://www.cs.cornell.edu/projects/polyglot

Pukall, M., Kästner, C., Saake, G., 2008. Towards

Unanticipated Runtime Adaptation of Java

Applications. In 15th Asia-Pacific Software

Engineering Conference, pp. 85–92.

Quiroga, J., Ortin, F., Llewellyn-Jones, D., Garcia, M.,

2016. Optimizing Runtime Performance of Hybrid

Dynamically and Statically Typed Languages for the

.Net Platform. Journal of Systems and Software 113,

pp. 114-129.

Redmond, B., Cahill, V., 2002. Supporting Unanticipated

Dynamic Adaptation of Application Behaviour. In

Proceedings of the 16th European Conference on

Object-Oriented Programming, London, UK, pp. 205–

230.

Redondo, J.M., Ortin, F., Cueva, J.M., 2008. Optimizing

Reflective Primitives of Dynamic Languages.

International Journal of Software Engineering and

Knowledge Engineering 18(6), pp. 759-783.

Redondo, J.M., Ortin, F., 2013. Efficient support of

dynamic inheritance for class- and prototype-based

languages. Journal of Systems and Software 86(2), pp.

278-301.

Redondo, J.M., Ortin, F., 2015. A Comprehensive

Evaluation of Widespread Python Implementations.

IEEE Software 32(4), pp. 76-84.

Subramanian, S. Hicks, M., McKinley, K.S., 2009.

Dynamic Software Updates: A VM-centric Approach.

In Proceedings of the 30th ACM SIGPLAN Conference

on Programming Language Design and

Implementation, NY, USA, pp. 1–12.

Taha, W., Sheard, T., 2000. MetaML and multi-stage

programming with explicit annotations. Theoretical

Computer Science 248(1-2), pp. 211-242.

Würthinger, T., Wimmer, C., Stadler, L., 2010. Dynamic

Code Evolution for Java. In Proceedings of the 8th

International Conference on the Principles and Practice

of Programming in Java, NY, USA, pp. 10–19.

Würthinger, T., Wimmer, C., Stadler, L., 2013.

Unrestricted and safe dynamic code evolution for Java.

Science in Computer Programming 78(5), pp. 481–498.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

284
