HIPAA Compliant Cloud for Sensitive Health Data
Valentina Salapura
IBM T. J. Watson Research Center, Yorktown Heights, NY, U.S.A.
Keywords: Cloud Computing, Electronic Health Records (EHRs), PHI, HIPAA, Regulatory Compliance.
Abstract: Cloud environments offer flexibility, elasticity, and low cost compute infrastructure. Electronic health
records (EHRs) require infrastructure which is regulated under several IT compliances with security and
data persistence and restore. To enable customers to bring sensitive medical data in the cloud, we enabled
the IBM Watson Health Cloud (WHC) for compliance with the U.S. federal electronic health record
regulation. This paper briefly outlines how we create HIPAA- (Health Insurance Portability and
Accountability Act) compliant cloud computing. We focus on the privacy and security rules for protecting
Protected Health Information (PHI) and use data encryption for data-in-motion and data-at-rest. To meet
HIPAA requirements for data persistence, we implement data back-ups, archiving service and disaster
recovery plan. In this paper, we discuss various challenges and lessons learned for implementing the diverse
set of compliance features required by HIPAA in the IBM WHC cloud.
1 INTRODUCTION
With cloud evolving from a compute-centric
infrastructure into a data-and-compute infrastructure,
more and more enterprises are moving into cloud
platforms. These enterprises are bringing in
terabytes of private data into the cloud platform in
order to reduce the total cost of ownership of
increasingly more demanding workloads. Such
enterprise data include sensitive healthcare data and
electronic health records (EHRs) that are governed
under several IT regulatory compliance regimes
such as HIPAA (U.S. Department of Health &
Human Services, 1996), FERPA (US Department of
Education, 1974), or GxP, to mention only a few.
Implementing regulatory compliance
requirements in the cloud is not an easy task. It
requires end-to-end compliance that puts additional
requirements on the cloud provider. Compliance
requirements range from defining processes for user
onboarding (for a range of different users), user
education and user access control, over data
persistence and data restore measures to disaster
recovery and to ensure business continuity, to
implementing numerous IT security measures. With
bringing highly sensitive data in the cloud, cloud
computing security becomes more important than
ever, as a single breach of such data can cause
enormous damage.
HIPAA compliance regulation defines
administrative controls, technical controls and
physical controls, and policies and documentation.
Administrative controls, for example, define how
long and where HIPAA-related documents can be
kept, how they can be accessed and modified, how
information is shared, and how users of sensitive
data are onboarded. Technical controls define how
user activity is monitored and logged for auditing
purposes, specify how user access is controlled, and
how virus scans and password management are
performed. It demands encryption of all sensitive
data while these data are transferred via network
(data-in-motion), or stored in computer memory and
storage (data-at-rest). Physical control requires
restrictions on physical access to servers and media
where data is stored, as well as how these media are
destroyed.
In this paper, we describe how we address
regulatory compliance requirements for HIPAA, and
implement them in IBM Watson Health Cloud
(WHC). We are analysing security measures to
further increase data security in the cloud to protect
sensitive health data. We share our experience and
give suggestions how to provide secure and
regulated cloud infrastructure for hosting PHI data,
and how to implement a HIPAA compliant cloud
workload.
568
Salapura, V.
HIPAA Compliant Cloud for Sensitive Health Data.
DOI: 10.5220/0006356705960602
In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 568-574
ISBN: 978-989-758-243-1
Copyright © 2017 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

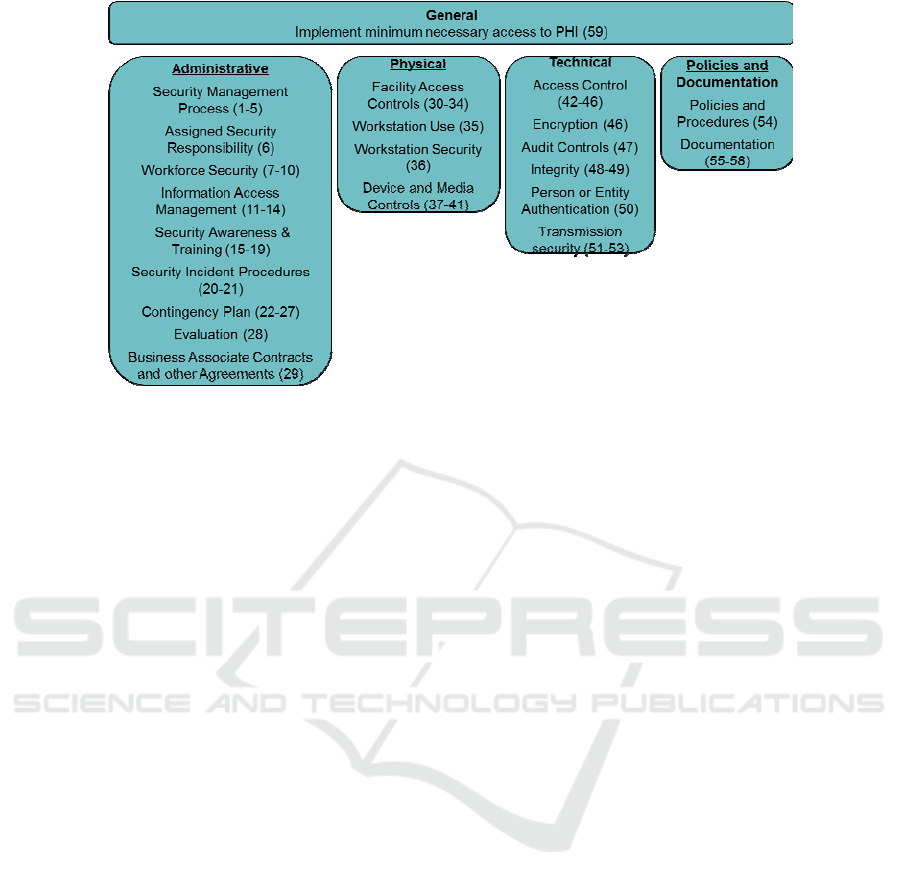

Figure 1: 59 HIPAA controls per category.
2 BACKGROUND
Cloud computing is being rapidly adopted across the
IT industry to reduce the total cost of ownership of
increasingly more demanding workloads. It is
becoming the new de facto environment for many
system deployments in a quest for more agile on-
demand computing with lower total cost of
ownership. Various enterprises, agencies and
institutions are quickly adopting cloud computing
which offers needed capacity and functionality
without major investment in infrastructure, or
operational expenses (Armbrust et al., 2010). To
take advantage of cloud computing, companies
handling electronic health records (EHR) demand to
bring their business into the cloud.
However, applications handling EHR are
constrained by federal regulatory legislation.
Privacy and security of protected health information
are regulated by the 1996 Health Insurance
Portability and Accountability Act (HIPAA) to
protect patient rights and allow them access to their
records. The regulation requires administrative,
physical, and technical protection measures to
ensure the confidentiality, integrity, security, and
access auditability of PHI data. Non-compliance
with the regulation is sanctioned with penalties and
fines. HIPAA requirements are defined in 59
controls, which are grouped into administrative
controls, physical controls, technical controls, and
policies and documentation, as presented in Fig. 1.
Handling sensitive medical data in the cloud
requires adding IT management services such as
user activity monitoring and auditing, data backup
and restore methods, high availability and disaster
recovery mechanisms, and methods for data
protection, confidentiality, and integrity. Such
features are typically offered by IT service providers
in strategic outsourcing (SO) engagements, a
business model in which the provider takes over
several, or all aspects of management of a
customer’s data center resources, software assets,
and processes.
This should be contrasted with unmanaged
servers provisioned using basic Amazon Web
Services (AWS) (Miller et al., 2010) and IBM’s
SoftLayer (SoftLayer) offerings, where the cloud
provider offers automated server provisioning. To
make servers managed, these cloud providers have
partnered with other service providers that
customers can engage to fill all the gaps up and
down the stack. While this enables the user to add
services to the provisioned server, the cloud provider
assumes no responsibility for their upkeep or the
additional services added. Therefore, it puts burden
on the customer to obtain a fully managed solution
for their sensitive workload rather than on the cloud
service provider.
Several authors (Armbrust et al., 2010),
(Schweitzer 2012), (Rodrigues et al., 2013)
addressed the issue of bringing sensitive medical
data into the cloud. These authors in general agree
that the cloud computing offers to eHealth systems
the opportunity to enhance their functionality and
lower cost, but that it also implies risks in terms of
the security and privacy of sensitive health records.
The papers make suggestions for health care and
cloud providers how to address security issues to
HIPAA Compliant Cloud for Sensitive Health Data
569

achieve acceptable privacy and security.
Another group of authors focus on implementing
automated compliance management (Rodrigues et
al., 2013), (Awad et al. 2015), (Khan and Bai, 2013).
In (Awad et al. 2015), the architecture is proposed
for business process compliance monitoring as a
service during the run time. The authors of
(Rodrigues et al., 2013) develop an approach to
verify health regulatory compliance in the cloud to
automatically check how the regulatory compliance
is met. They represent health regulations as rules,
and collect compliance related real-time data to
verify the rules.
The IBM’s Watson Health Cloud (WHC) (IBM
Corporation) is a cloud offering that supports
managed virtual and physical servers and provides a
large number of managed services that are on par
with the ones offered in high end SO contracts. It is
built on IBM SoftLayer public cloud, and it
implements managed services needed for regulated
cloud environment to host PHI. Examples of such
services are activity monitoring, security
compliance, data encryption and key management,
load-balancing, firewall services, resiliency, disaster
recovery, and data backup and archiving. The
installation, configuration, and run-time
management of these services are fully automated
and transparent to the user.
3 DATA LOCATION
Some of the biggest obstacles in ensuring regulatory
compliance in a cloud computing environment are
data location and user data isolation. While the use
of private and dedicated data centers allows the
detailed knowledge and control of computing
environment, location of the data, and data
protection method used, this control is not available
for many cloud computing services.
By nature, cloud computing does not provide
transparent information about the actual location of
data, and where the computation is physically
located. Thus, an application can be spread across
multiple physical servers in a data center processing
sensitive PHI data. This situation makes it difficult
to make sure that sufficient data protection is in
place to meet legal and regulatory compliance
requirements.
To ensure isolation of user processing and
sensitive data, dedicated physical servers can be
used, and run as bare metal servers. As an
alternative, to ensure isolation, private virtual
instances can be used. These instances use virtual
machines which are hosted on dedicated physical
servers. The hosting servers are dedicated to a single
account to ensure user and data isolation. IBM’s
SoftLayer cloud supports both these modes of
operation.
Additionally, for some countries data cannot
cross international borders. For the United States,
regulated protected data has to physically stay within
the legal jurisdiction (i.e., within U.S.). In these
cases, a cloud provider has to ensure that data stays
within the required geography, which limits how
cross-data center data replication for disaster
recovery or distributed computing is implemented.
4 DATA SECURITY RULES
The WHC is designed to host sensitive protected
data and PHI as defined by HIPAA regulation in a
secure and compliant manner. The methods for data
protection system and processes include network
security, data encryption for data-in-motion and
data-at-rest, encryption key management, data
confidentiality, data integrity, and user activity
monitoring.
WHC data protection system uses state-of-the art
technologies for protection from both external and
internal threats. Moreover, a threat monitoring
service monitors accesses to the data storage systems
as well as to the external service interfaces.
4.1 Data Integrity
A compliant cloud solution has to implement data
integrity measures to ensure that PHI data is not
altered or destroyed in an unauthorized manner.
Data integrity refers to the accuracy and consistency
of data stored in a database, data warehouse, data
mart or other data formats.
To assure data integrity of data-in-motion, WHC
employs SSL/TLS with hashes and HMACs. The
integrity of data-at-rest can be ensured by using
digital signature schemes and message
authentication codes HMACs. Each use of data leads
to verification of integrity in cryptographic manner
immediately after it is decrypted. Each new data
object is processed to compute its digital
signature/HMAC prior to its encryption and storage.
The integrity codes are stored along with the data.
4.2 Data Confidentiality
To ensure data confidentiality, PHI data are
CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
570

encrypted for both data-at-rest and during
transmission over public networks.
Data-in-motion: When data is transmitted from
an external client to an internal WHC service, two
steps are carried out: the data is encrypted using a
public key, and then the cipher-text of the data is
transmitted over an encrypted channel using
SSL/TLS. Such dual-encryption offers stronger
protection especially if SSL/TLS has weaknesses, or
when the key generated by the client device is not
cryptographically strong.
Data-at-rest: Data-at-rest has to be protected on
both externally accessible systems and on internally
accessible systems such as local storage. Externally
accessible systems, such as Object store and
Cloudant, accept data in encrypted form over an
encrypted channel. The storage service stores the
data in encrypted form without decrypting them.
Data-at-rest on internally accessible systems remains
always encrypted. Examples of such systems is
storage attached to VMs, and backup storage.
5 DATA PERSISTENCE AND
DISASTER RECOVERY PLAN
To be able to restore data to a prior valid value,
HIPAA demands implementation of data back-up.
Compliant workloads must have a contingency plan
to protect data in case of an emergency, and must
create and maintain retrievable exact copies of
electronic PHI.
SoftLayer offers several backup solutions. The
cloud storage-based solutions offer storage that can
persist independently from the workload instance
that created it, the virtual machine where it ran, or
even the whole data center. To align with HIPAA
guidelines, WHC uses automated data snapshots to
store data in cloud storage for long-term durability.
Backed up data is replicated to a distinct location to
provide isolation from failures of a single site. The
backup can be accessed at any time.
To ensure compliance with controlled data
location, data must not cross international borders.
WHC uses SoftLayer data centers within U.S. as
target location for cloud storage for data backup. At
any point in time, multiple copies of the PHI data
exist geographically distributed.
Some regulations demand that data is retained
over the long term, even after the contract between a
cloud provider and a user is terminated. Such a
regulation is FDA Title 21 CFR Part 11: Electronic
Records; Electronic Signatures. If PHI data are
required to be kept for a large number of years, an
archive solution for data should be considered.
Archiving services are implemented by using lower
tier storage, which is of lower cost than active
storage or backup storage. Archived data has to be
encrypted. In addition to data, the encryption keys
have to be preserved, in order to be able to decrypt
the data after a number of years. In case of auditing,
archived data has to be retrieved as well as their logs
documenting data modification over time.
A disaster recovery plan is required to protect
PHI data and infrastructure in times of a disaster. A
disaster is considered any unforeseen event, which
directly or indirectly impacts systems availability
beyond acceptable service levels that would result in
the decision to recover the systems at an alternate
site. Disaster includes situations in which the
systems are unusable or inaccessible.
WHC implements a disaster recovery plan for
workloads and PHI, as required by HIPAA. This
involves maintaining highly available systems, and
keeping both the data and system replicated off-site.
In the cloud environment, virtual server instances
can be started quickly, and the whole system can be
rebuilt quickly. A faster, more expensive recovery
solution implements stand by instances similar to the
primary site on a distinct site to create
geographically diverse, fault tolerant systems that
are highly resilient in the event of natural disasters.
WHC performs periodic DR tests and includes
various hosted workloads.
An alternative approach to DR is to implement a
distributed computing environment, where
applications are straddled across multiple data
centers. This architecture requires continuous data
replication between the data centers, and global
network balancing which is session aware to ensure
that all requests are distributed in accordance to
session affinity. While this architecture is more
complex to implement, it eliminates the need to
implement a disaster recovery plan. Instead,
disasters are avoided in a multi-active setup.
6 USER CONTROLS
To protect PHI as defined by HIPAA regulation in a
secure and compliant manner, the cloud environment
has to implement user access control, authorization
and monitoring processes, and to ensure that users
complete needed training.
HIPAA Compliant Cloud for Sensitive Health Data
571

6.1 User Access Control
WHC implements measures for fine-granular ID
management, authorization and access control
policies in the system to ensure that only authorized
users can access systems.
Role-based access control: WHC defines
multiple roles, and implements appropriate role and
ID lifecycle management policies to create, activate,
suspend, de-activate, and delete user IDs and roles.
Approvals: Obtaining access privileges requires
approvals to confirm the business need for accessing
the environment, as well as completing HIPAA
training. The user access rights are renewed yearly.
Separation-of-duties: The access control policy
ensures that systems hosting PHI data have separate
admins than systems hosting keys and credentials.
Additionally, hosted applications can implement
additional application-level user roles, and manage
their access at the application level.
Automatic log off: The access to the system is
automatically disconnected after predetermined time
of inactivity at all system levels - at the OS,
hypervisor and at the application levels. The time of
inactivity before disconnecting a user is typically set
to 15 mins or 30 mins for all user roles.
6.2 User on Boarding and Training
The team members working in a regulated
environment have to complete a HIPAA on-
boarding process. This typically encompasses
training to familiarize the users with PHI data and
significance of protecting them. All users who might
get in touch with PHI data need to complete HIPAA
training which must be renewed annually. The
proofs of training completion are to be kept for six
years for auditing purposes. Similarly, the regulation
defines off-boarding process for users leaving a
HIPAA regulated project.
The proof collection and approval process is
automated. Upon starting the on-boarding process,
the information is automatically sent to the relevant
parties, such as training links, or the approval links.
The created approvals and training certificates are
collected, and once all prerequisites are completed,
the access to the system is granted. The system also
implements yearly re-validation process.
6.3 User Activity Monitoring
When dealing with PHI, HIPAA requires that
privileged user access and activity is monitored.
Thus, we had to ensure that access are collected and
retained for 270 days, as required by HIPAA.
All solutions running on WHC are included in
the activity monitoring. Privileged user activities are
monitored at the OS, hypervisor and network level.
Each access to a system or query to retrieve PHI as
well as non-PHI data is logged with details of the
event – user ID, client IP address, time, type of
query and so on. Such logs are forwarded to
monitoring systems that analyse them in real time,
and provide threat monitoring intelligence. The audit
and security experts investigate anomalous and
unauthorized events.
All activity logs are required to be retained for
extended periods of time in case that an incident
needs to be investigated. WHC provides user access
monitoring logging and retention. Hosted workloads
use this log retention system, but they must generate
their own user activity logs for auditing purposes.
7 MORE RULES TO ENSURE
Additionally, physical control, policies, and more
administrative controls have to be in place, which
we briefly cover below.
7.1 Administrative and Legal Controls
Various regulations require respecting
administrative and legal requirements and defined
and described processes. For example, a HIPAA
regulated project requires to have a person assigned
with security responsibility who is responsible to
ensure that all controls as specified by HIPAA
regulation are covered. This person is approved by a
project executive, and his/her name is communicated
to the team.
The specified processes have to be documented.
Documentation contains information about policies
used, training proofs, and access approvals, and are
retained for the required time, typically a number of
years. The HIPAA regulation prescribes that this
information is shared with the team, which can be
done by using a wiki or a community web page.
From the legal point, all people who can access
PHI data need to be covered by an employment or
business associate contracts. Alternatively, other
arrangements for end users and business associates
need to be in place which will state that PHI
information will be appropriately safeguarded, and
that appropriate sanction policies are in place if he
does not.
CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
572

7.2 Physical Controls
HIPAA requires also several physical controls
regulating facility access and management. These
regulations define that only authorized users can
access the physical servers in a cloud data center.
Additionally, disposing of hard disks which were
used for storing PHI data has to be controlled. Not
only hard disks have to be cleared, but they also
have to be physically destroyed. These physical
aspects of ensuring compliance are carried out by
the cloud provider. In our case, we rely on IBM
SoftLayer HIPAA compliance (IBM Cloud
Softlayer) to ensure implementing these controls
when bringing sensitive patient records into the
cloud.
8 LESSONS LEARNED
During the work on implementing HIPAA
regulations for WHC, several points became
apparent. One insight is that typical failures when
hosting sensitive medical data from a non-cloud
deployment are also relevant in the cloud. An
example is a failure to implement timeout of a
session after 30 min of inactivity, or incorrectly set
permissions for a user that made data improperly
visible. Fortunately, standard protection methods,
such as data encryption or encrypted message
transmission, are equally effective in the cloud.
While the security threats are similar to those in a
large data center, cloud environment imposes
separation of responsibilities for security protection
between a cloud provider and application
developers. The cloud provider is responsible for the
physical security and the cloud user for the
application-level security.
Another observation was that bringing sensitive
medical data into the cloud requires modification of
how cloud resources are used. Some features which
are guaranteed in a private data center where an
administrator has full control of all resources,
require special handling in the cloud. For example,
WHC uses private virtual deployment where only
WHC virtual machines are hosted on dedicated
physical servers. Additionally, location of the PHI
data in the cloud has to be controlled to ensure
compliance with the regulation.
Implementing a HIPAA compliant cloud
demands data persistence and business continuity
techniques which increase cost. We implemented
data backup, created a disaster recovery plan, and
enabled data replication between multiple sites.
While these measures ensure that data can be
restored after an unforeseen event, or after
accidental or malicious deletion or corruption of
data, they increase cost of operation, and introduce
complexity into the management of the cloud.
Auditability of a HIPAA regulated cloud
includes a large amount of logging, tracking and
persisting access logs. Providing the auditing service
to track logs in centralized location is a more trusted
solution than logging built within an application.
9 CONCLUSIONS
In this paper, we describe how we implemented a
diverse set of compliance features required by
HIPAA to enable bringing sensitive medical data in
the IBM WHC cloud. The WHC cloud provides a
dedicated, secure and regulated cloud infrastructure
for hosting PHI data.
HIPAA demands conducting risk analysis,
specifying security policies and incident procedures,
limiting access to PHI data, servers and storage,
encrypting data at rest and in motion, ensure data
integrity, monitor system activity, and manage user
identity. We implement security measures such as
firewalls, intrusion prevention systems, anti-virus
software, encryption, activity monitoring, identity
and access management.
A cloud-specific multitenancy allows multiple
customers to share compute and storage
infrastructure. We isolate customers at the physical
server level, control data location, and ensure data
encryption and encryption key management. To
meet HIPAA requirements for auditing and data
persistence, we implement data back-up, disaster
recovery plan, and an auditing system.
REFERENCES
U.S. Department of Health & Human Services, 1996.
“Health Insurance Portability and Accountability Act”
HIPAA. [Online]. Available: https://aspe.hhs.gov/
report/health-insurance-portability-and-accountability-
act-1996.
US Department of Education, 1974. “Family Educational
Rights and Privacy Act (FERPA),” 1974. [Online].
Available: https://www2.ed.gov/policy/gen/guid/fpco.
/ferpa/index.html?src=rn.
Armbrust, M., Fox, A., Griffith, R., Joseph, A. D., Katz,
R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,
Stoica, I., and Zaharia, M., 2010. “A View of Cloud
Computing,” Communications of the ACM, vol. 53,
no. 4, 2010.
HIPAA Compliant Cloud for Sensitive Health Data
573

Miller, F. P., Vandome, A. F., and McBrewster, J., 2010.
Amazon Web Services. Alpha Press.
SoftLayer. [Online]. Available: http://www.softlayer.com/
Schweitzer, E. J., 2012. Reconciliation of the cloud
computing model with US federal electronic health
record regulations. Journal of the American Medical
Informatics Association vol. 19 no. 2.
Rodrigues, J. J., de la Torre, I., Fernández, G., López-
Coronado, M., 2013. “Analysis of the Security and
Privacy Requirements of Cloud-Based Electronic
Health Records Systems,” Journal of Meical Internet
Research, vol. 15, no. 8.
Awad, A., Sakr, S., Elgammal, A., 2015. “Compliance
Monitoring as a Service: Requirements, Architecture
and Implementation,” International Conference on
Cloud Computing (ICCC).
Khan, K. M., Bai, Y., 2013. “Automatic Verification of
Health Regulatory Compliance in Cloud Computing,”
15th International Conference on e-Health
Networking, Applications & Services, IEEE.
IBM Corporation, IBM Watson Health Cloud for Life
Sciences Compliance. [Online]. Available:
https://www.ibm.com/us-en/marketplace/cloud-for-
regulated-workloads.
IBM Cloud Softlayer, “Compliance.” [Online]. Available:
http://www.softlayer.com/compliance.
CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
574
