Architecture for Privacy in Cloud of Things

Luis Pacheco, Eduardo Alchieri and Priscila Solis

Department of Computer Science, University of Bras

ılia, Brazil

Keywords:

Privacy, Security, Internet of Things, Cloud Computing, Cloud of Things.

Abstract:

A large number of devices are connected to the internet through the Internet of Things (IoT) paradigm, re-

sulting in a huge amount of produced data. Cloud computing is a computing paradigm currently adopted to

process, store and provide access control to these data. This integration is called Cloud of Things - CoT and

is useful in personal networks, like residential automation and health care, since it facilitates the access to

the information. Although this integration brings beneﬁts to the users, it introduces many security challenges

since the information leaves the user control and is stored at the cloud providers. Particularly interesting, in

order for these technologies to be adopted, it is important to provide protocols and mechanisms to preserve

the users privacy when storing their data in the cloud. In this context, this paper proposes an architecture for

privacy in Cloud of Things, which allows the users to fully control the access to the data generated by the

devices of their IoT networks and stored in the cloud. The proposed architecture enables a ﬁne grained control

over data, since the privacy protocols and controls are executed at the IoT devices instead of at the network

border by a gateway, which also could represent a single point of failure or a component that could impair the

security properties of the system once it is compromised by a successful attack.

1 INTRODUCTION

The recent advances in the miniaturization of elec-

tronic components and in the wireless communica-

tions enabled the advent of the Internet of Things

(IoT). In the IoT paradigm, the most diverse things

(devices) of our everyday lives are connected to the

Internet, bringing a lot of beneﬁts to the popula-

tion (Chui et al., 2010). It is foreseen that the con-

nection of billions of things to the Internet that will

provide the most diverse types of information to the

users (Sundmaeker et al., 2010).

Wireless Sensor Networks (WSN) are composed

by several small devices that have a processing unit,

a sensor that enables the interaction with the phys-

ical world and an antenna for wireless communica-

tion (Akyildiz and Vuran, 2010). WSNs are seen,

among other technologies, to enable the Internet of

Things. Mostly WSN devices have constrained size

and energy source, therefore the network stack must

have a low processing cost. Several network proto-

cols, covering all network stack layers, were proposed

for WSN. The IEEE 802.15.4 Standard (Group, 2006)

covers the Physical (PHY) and Medium Access Con-

trol (MAC) layers, it was released in 2006 and up-

dated several times until now. This standard is cur-

rently used by most WSNs. However, protocols for

the upper layers are very fragmented, with different

proposes for different application areas, many times

requiring translation in order to communicate with the

Internet, which usually is achieved by the use of a

gateway (Zhu et al., 2010; Nadeem et al., 2013).

However, the Internet of Things can be greatly

beneﬁted by the direct communication among WSNs

or any IoT device with the Internet (without the use of

a gateway), because the user can access the informa-

tion coming from the devices directly (Granjal et al.,

2015). Currently, there are several studies whose ob-

jective is to adapt Internet protocols to WSNs, such as

6LoWPAN (Kushalnagar et al., 2007), a standard that

compresses and encapsulates IPv6 (Deering, 1998)

headers to ﬁt in IEEE 802.15.4 frames, and Con-

strained Application Protocol (CoAP) (Shelby et al.,

2014), which is a message exchange protocol for con-

strained devices and networks and, since it is very

similar to HTTP, it is very simple to translate mes-

sages from one standard to another.

The IoT limitations (e.g., storage and process-

ing) can be mitigated by the use of Cloud Comput-

ing paradigm. These technologies complement each

other, since IoT devices generate an huge amount

of data and the cloud is able to provide resources

to store and process it. This combination, called

Cloud of Things (CoT), is currently being widely

Pacheco, L., Alchieri, E. and Solis, P.

Architecture for Privacy in Cloud of Things.

DOI: 10.5220/0006357504870494

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 487-494

ISBN: 978-989-758-248-6

487

studied (Aazam et al., 2014; Botta et al., 2016).

The Cloud Computing paradigm can complement

the IoT paradigm in several ways, since the cloud

is able to store, process and present the data gener-

ated by the IoT devices. Applications can utilize the

virtually unbounded cloud resources to process and

present information acquired from the IoT devices

and stored in the cloud. Other cloud computing fea-

tures are also beneﬁcial for the IoT, such as the scal-

ability inherent to the cloud and the increased secu-

rity once the access control is performed in the cloud,

which has appropriate computational power to exe-

cute this task.

Although this integration brings huge beneﬁts, it is

important to provide protocols and mechanisms to en-

sure the security properties and, particularly interest-

ing in the case of personal IoT networks, to preserve

the users privacy when storing their data in the cloud.

In this context, this paper proposes an architecture for

privacy in Cloud of Things, which allows the users to

fully control the access to the data generated by the

devices of their IoT networks and stored in the cloud.

The proposed architecture enables a ﬁne grained con-

trol over data, since privacy protocols and controls are

executed at the IoT devices instead of at the network

border by a gateway, which also could represent a sin-

gle point of failure or a component that could impair

the security properties of the system once it is com-

promised by a successful attack.

The remaining of this paper is organized as fol-

lows. Section 2 discusses the main related works.

Section 3 details the proposed architecture for privacy

in Cloud of Things, specifying the mechanisms and

protocols necessary to allow the users access control

over the data generated by their IoT devices. A de-

tailed discussion about the proposed architecture is

presented in Section 4. Finally, this work is concluded

and future works are presented in Section 5.

2 RELATED WORK

The cloud computing service based approach can be

extended to enable the integration with Internet of

Things, in a way the features from the IoT can be

offered as services in the cloud. As an example, a

multitude of weather sensors can upload its data to

the cloud, where a cloud service provides a easy and

secure way of access to this data by the most varying

user types. Several studies proposed the integration of

IoT and Cloud Computing to provide services like this

one in an infrastructure called Cloud of Things. The

IoTCloud (Fox et al., 2012) is an open source plat-

form that utilizes the cloud to facilitate the manage-

ment of IoT devices, while Nimbits (Sautner, 2016)

offers a solution where IoT data is collected and pro-

cessed in the cloud. Since the Cloud of Things in-

volves many new elements in the process, it also in-

creases the complexity of the security solutions that

must be adopted (Roman et al., 2013). In personal IoT

networks, the storage of user data in the cloud brings a

privacy problem since now the data is outside the user

control sphere and therefore could be used for matters

that the user does not approve. In order to preserve the

user privacy, the data must by handled only by entities

previously authorized by the user. In this sense, the

SensorCloud project (Eggert et al., 2014) facilitates

the implementation and utilization of privacy features

in the Cloud of Things architecture. SensorCloud im-

plements a cloud based platform which integrates sen-

sor networks to the Internet. A layer based architec-

ture is proposed where WSNs connect to the cloud

through trusted points (gateways) that are responsible

for both (i) communication with the cloud and (ii) se-

curity enforcement. The architecture does not specify

the sensor network inner functioning, such as its pro-

tocol stack, it only deﬁnes the entities and protocols

starting from the gateway.

The User-driven Privacy Enforcement for Cloud-

based Services in the IoT (UPECSI) (Henze et al.,

2016) extends the SensorCloud platform, it imple-

ments a privacy wise user-developer integrated solu-

tion. A Privacy Development Language (PDL) was

conceived to facilitate the development of privacy

wise cloud services, with the PDL the developer can

provide detailed information about how the data is

handled by its application. This feature is then used

by the user to allow/deny the features of the appli-

cation based on its privacy wishes. The security be-

tween IoT networks and the cloud is achieved by

a multi-layered architecture where Privacy Enforce-

ment Points (PEP), that are gateways at the border of

the IoT, are responsible for security and privacy en-

forcement. This architecture enables the users to dy-

namically change the Privacy Policy (PP) according

to their wishes, which enables a great level of control

around their data stored on the cloud.

The Privacy Enforcement Point is the last entity

on the user control sphere, since it is not a constrained

device (as the IoT devices), it can apply robust secu-

rity mechanisms, such as the use of Transport Layer

Security (TLS) (Dierks, 2008) in the transport layer.

According to the privacy policy set by the user, the

PEP determines the data that can leave the user con-

trol sphere, and to which services the data can be sent.

The data sent to the cloud is encrypted with a sym-

metric algorithm and the key is periodically changed,

enabling the revocation of access to a given cloud ser-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

488

vice when desired. Public Key Infrastructure (PKI) is

used to encrypt the symmetric key for each authorized

cloud service. Finally, the encrypted data is sent to

the cloud platform and the encrypted keys are sent to

their respective cloud services. This scheme enables

the protection of the users data stored in the cloud,

giving access only to previously authorized cloud ser-

vices, not even the cloud platform can access the data.

That way that the cloud platform and the cloud

services handle the user data are also privacy require-

ments. For example, the deﬁnition of the duration and

the location where the data can be stored (Henze et al.,

2013a). The UPECSI architecture uses Data Handling

Annotations (Henze et al., 2013b) to enforce such re-

quirements, these annotations are sent along with the

data to the cloud platform indicating how the data is

supposed to be handled. The previously mentioned

PDL also generates data to enable auditing and mon-

itoring of the cloud services by the cloud platform.

3 ARCHITECTURE FOR

PRIVACY IN CLOUD OF

THINGS

This work extends the UPECSI architecture (Henze

et al., 2016) by specifying the mechanisms and pro-

tocols necessary to enable the direct communication

of IoT devices with the cloud. By enabling the IoT

devices with a network stack capable of direct com-

munication with the Internet, it is possible to transfer

the security and privacy enforcement responsibilities

from the Privacy Enforcement Points (gateways) to

IoT devices. Therefore this work also proposes the

PEP removal, although a gateway could still be used

for protocol translation or other tasks that do not re-

quire privileges over the data.

The proposed approach brings at least the follow-

ing advantages: (1) it improves the fault-tolerance of

the system since it removes the gateway, which is a

single point of failure, from the architecture; (2) it

improves the security of the system since it removes

a component that is responsible for all security tasks

and, consequently, could impair the security proper-

ties of the system once it is compromised by a suc-

cessful attack; and (3) by executing the security and

privacy enforcement at the IoT devices, it is possible

to implement a ﬁne grained control over the data since

each device could adopt a different security policy.

The UPECSI architecture covers a wide range of

aspects of the Cloud of Things, from the development

of a cloud service to the communication protocols be-

tween the border of the IoT network and the cloud

platform. Since this work focus on the IoT devices

communication schemes, what does not involve this

area is not mentioned in the remaining of this section,

such as the PDL mentioned in Section 2. A given

user can have several IoT networks under his or hers

control. The user binds the IoT devices to the cloud

platform, consequently the data generated by them is

stored in the cloud. The authorized cloud services can

then process the stored data and present it to the user.

A Trusted Third Party (TTP) audits and monitors the

cloud services, provides standard privacy policies (in-

tended to naive users) and executes some other secu-

rity tasks discussed later on this section.

The IoT devices store data they generate in the

cloud according to the Privacy Policy. To respect this

policy, it is possible that some data (1) can not be sent

to the cloud, (2) can be sent encrypted, or even (3)

can be sent without any encryption processing. Af-

terward, privacy requirements are held by the cloud

services since they have the keys necessary to access

only the data they are allowed to access. The re-

maining of this section describes the communication

schemes deﬁned in the proposed architecture.

3.1 Binding of IoT Devices to the Cloud

Platform

Users must ﬁrst register an account in order to use the

cloud service. After this, users can then bind their

IoT devices to store the generated data. The bind-

ing process is achieved by using the OAuth 2.0 proto-

col (Hardt, 2012), which is an open source and secure

authorization protocol. After the binding process, the

IoT devices can upload its data without the possessing

of the users credentials.

The OAuth 2.0 protocol requires a secure com-

munication in order to provide real secure authoriza-

tion. In the Internet this is achieved by the use of the

TLS protocol, which is used together with TCP. Since

TCP cannot be used in IoT networks another solution

must be employed. This area is currently under ac-

tive research and there are already many proposals for

security in IoT transport layer. Particularly interest-

ing, an adaptation of the Datagram Transport Layer

Security (DTLS) (McGrew and Rescorla, 2010) is

being studied by the DTLS In Constrained Environ-

ments (DICE) working group (Tschofenig and Fos-

sati, 2016). This work does not deﬁne a protocol for

secure communication, but requires the usage of one.

The user can bind one device at time or multi-

ple devices at once. The process of binding multiple

devices at once is only achieved when using a gate-

way, in this way all IoT devices will share the same

identiﬁcation, and thus the user will not be able to

Architecture for Privacy in Cloud of Things

489

Figure 1: Binding Scheme.

uniquely conﬁgure each device. OAuth’s Authoriza-

tion Code Grant permission is used, this permission

type requires user intervention only at the setup phase.

After authorized, devices can upload data to the cloud

without caring the user credentials.

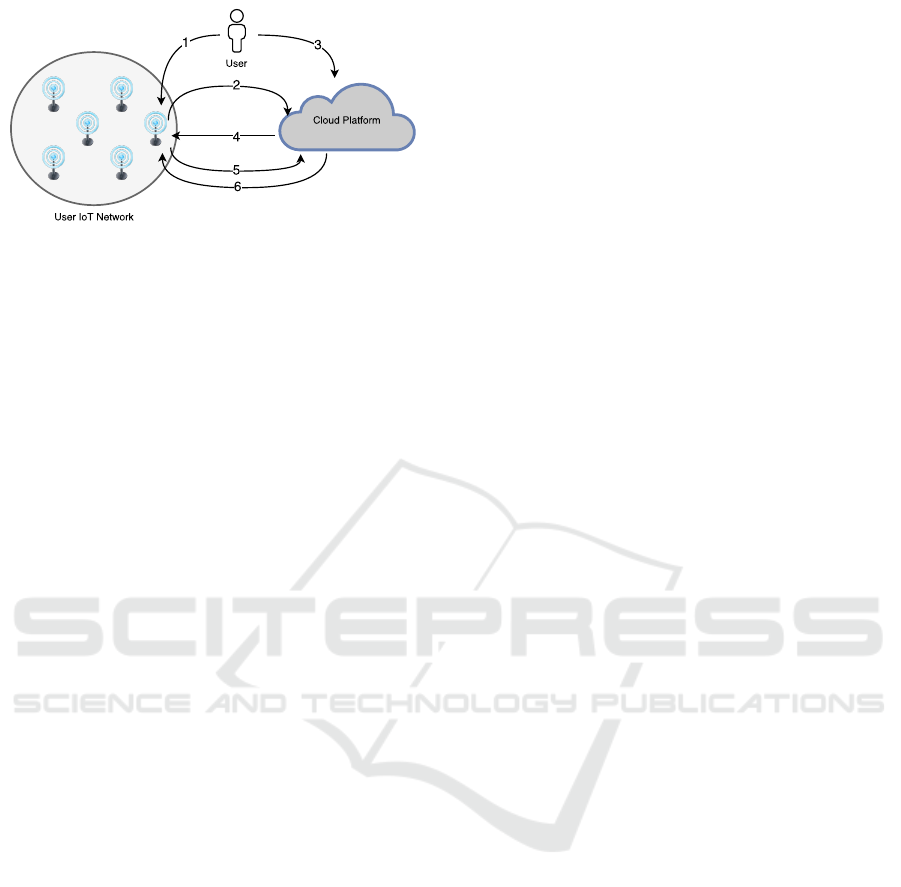

Figure 1 presents the binding process for one de-

vice at time, that is executed as following: 1 the user

starts the process as the Resource Owner by enter-

ing device’s binding web page; 2 the device requests

an Authorization Code for the cloud platform; 3 in

order to receive the Authorization Code, the user is

redirected to a login page; 4 after successfully receiv-

ing the user credentials, the cloud platform sends the

Authorization Code to the device; 5 in possession of

the Authorization Code, the device requests an Ac-

cess Token to the cloud; 6 the cloud platform delivers

the Access Token.

At the end of the binding process the device has an

Access Token that must be attached in every data sent

to the cloud, and the cloud platform has the device’s

identiﬁcation. The process is the same when binding

multiple devices at once, the only difference is that at

the end the gateway sends the received Access Token

to all devices, that is why, by using this method, the

user cannot identify which device generated a speciﬁc

data. After binding all devices, the user could create

logical networks at the cloud platform in order to eas-

ily manage them.

3.2 Privacy Policy Enforcement

A Privacy Policy (PP) deﬁnes whether some data can

be stored in the cloud, the way it is stored (encrypted

or not) and what is done with the user data by a cloud

service. Different from common Privacy Policies,

where the user can only accept or deny all of it, in

our architecture the user can change it over the time,

in this way the user can assume real control over the

data it sends to the cloud. A cloud service provides

an interface for users to see what data is used and for

what purpose, the users can enable or disable speciﬁc

features in order to restrict the access to their data.

As example, users could enable or disable their loca-

tion monitoring by a given cloud service, according

to their privacy desires.

The Privacy Policy is enforced every time an IoT

device sends data to the cloud. The enforcement is

done by the IoT device itself. The update process of a

trough the cloud service interface; 2 the cloud plat-

form send the updated PP to the Trusted Third Party

(TTP), which audits the information and generates a

Privacy Conﬁguration (CP); 3 the TTP sends the new

CP to all devices that provide data to the cloud service

and needs to update their policies.

3.3 Data Access Control

After binding devices to a cloud platform and setting

speciﬁc Privacy Policies for the authorized services,

it is necessary to ensure that IoT data is stored and

accessed only by authorized entities.

Data access control is achieved by a cryptography

scheme. As in the binding process, the communica-

tion between IoT devices and cloud must be secure,

which is achieved by a proper transport layer protocol

(this subject is further discussed in Section 4). The

IoT sensitive data is encrypted before being stored in

the cloud (no-sensitive data could be stored without

encryption), preventing access even by the cloud plat-

form. The keys necessary to its decryption are stored

in a key depot also in the cloud platform.

Before sending data to the cloud, an IoT device

must ﬁlter it according to the Privacy Conﬁguration,

deciding if data must leave the user control sphere.

The data then is encrypted with a symmetric algo-

rithm, the key used by the algorithm is, encrypted

with the public key of the authorized cloud service.

In case there are more them one cloud service autho-

rized to access the same data, the symmetric key must

be encrypted once for each service. The data is stored

only once in the cloud platform.

The symmetric key is updated regularly, prevent-

ing new services to access data stored previously to

its authorization or revoked services to continue to

access data. Past keys remain in the cloud, enabling

access to data previously stored when desired.

Cryptography operations can signiﬁcantly de-

crease the IoT network lifetime. To mitigate this

scenario we propose two different approaches to en-

sure data access control: in the ﬁrst one the IoT de-

vices manage cryptography keys (Section 3.3.1) and

in the second one these keys are managed by a Trusted

Third Party (Section 3.3.2). In the following these

approaches are presented and a discussion about the

costs and beneﬁts of each of them are further pre-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

490

sented in Section 4.

3.3.1 Keys Management by IoT Devices

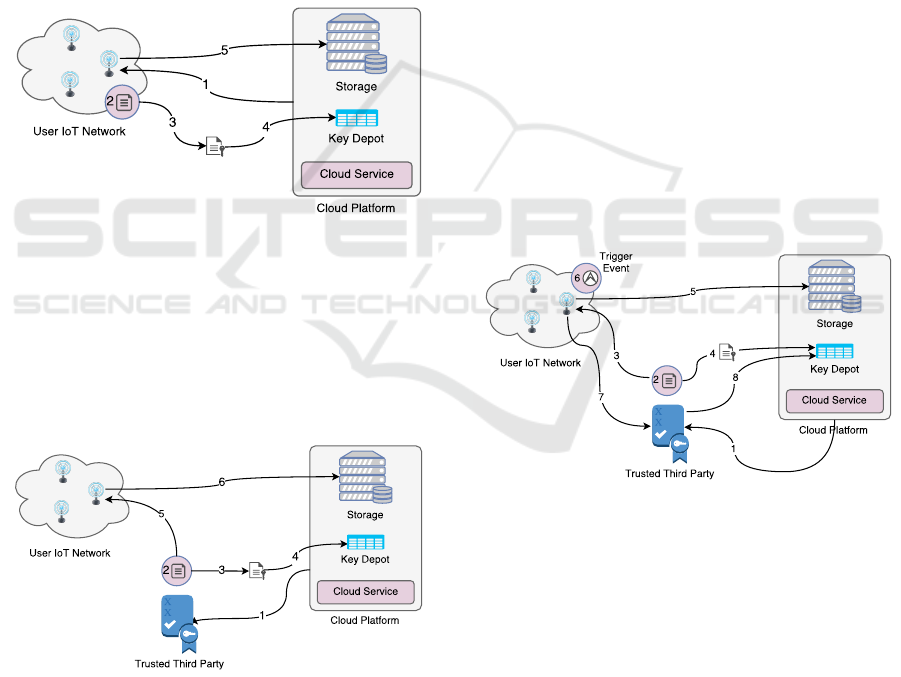

Figure 2 presents the approach where the device it-

self is responsible for generating symmetric keys, en-

crypt them with the cloud services public keys and

send them to the key depot in the cloud platform.

This approach is intended for IoT devices that

have enough computational and power capabilities to

execute the following tasks (Figure 2) without signif-

icantly decrease their lifetimes: 1 receive public keys

from cloud platform; 2 periodically generate symmet-

ric keys; 3 encrypt each new symmetric key once for

each authorized cloud service; 4 send the encrypted

symmetric key to the key depot; 5 send encrypted data

to the cloud platform.

Figure 2: IoT Device key Management.

3.3.2 Keys Management by a Trusted Third

Party

Figure 3 presents the second approach, where a

Trusted Third Party (TTP) is responsible for some

tasks related to data access control, relieving the con-

strained devices from some costly tasks.

Figure 3: TTP key Management.

This approach is useful for devices with con-

strained capabilities, where the tasks shifted to the

TTP would signiﬁcantly reduce the communication

delay and increase their lifetimes. This approach has

the following steps (Figure 3): 1 TTP: Receive ser-

vices public keys from cloud platform; 2 TTP: Pe-

riodically generate symmetric keys; 3 TTP: Encrypt

each new symmetric key once for each authorized

cloud service; 4 TTP: Send the encrypted symmet-

ric key to the key depot; 5 TTP/IoT Device: Securely

send the symmetric keys to the IoT devices; 6 IoT

Device: Send encrypted data to the cloud platform.

3.4 Flexible Privacy Policies

The data control scheme provided by the proposed ar-

chitecture enables only previously authorized entities

to handle the user data in the cloud. However, in some

exceptional situations, it is convenient to decrease pri-

vacy requirements in order to allow new entities ac-

cess to data. As an example, when a health moni-

toring IoT network detects an emergency, it could be

more beneﬁcial to the user if any medical personal

could have access to his data, increasing the chances

of getting assistance.

In order to attend the scenario above described,

this work proposes the use of Flexible Privacy Poli-

cies (FPP), which are secondary PPs only enabled

when a given event is detected. The user must pre-

viously set the thresholds that will trigger the FPP,

which can be based on IoT network generated data

or even in external events. FPPs are created following

the same scheme as common PPs (Section 3.2).

Figure 4: Flexible Privacy Policy Activation.

Figure 4 shows how FPPs are activated. The

scheme is similar to regular access control for com-

mon data, but in this case the public keys used to

encrypt symmetric keys are generated by the TTP

and cloud services can access user data only after

the FPP activation. The FPP processing has the fol-

lowing steps: 1 TTP receives services public keys

from cloud; 2 TTP generates symmetric keys (used by

IoT devices to encrypt their generated data) and pub-

lic/private pair keys (used by the TTP itself to manage

the data access), as follows: Symmetric keys, Pub-

lic/private key pair for each cloud service that will be

grant access; 3 TTP securely sends (using a transport

layer security protocol as discussed at Section 3.1)

Architecture for Privacy in Cloud of Things

491

the symmetric keys to IoT devices; 4 TTP sends the

symmetric keys encrypted with the public key (gener-

ated at previous step 2) to the key depot; 5 IoT device

sends encrypted data to the cloud; 6 IoT device de-

tects an event that activates the FPP; 7 IoT device sig-

nals the TTP; 8 TTP sends, through the key depot, the

private key to the cloud service that must gain access

to data, this private key is encrypted with the service

public key (received at step 1).

In order to prevent access to data generated after

FPPs are deactivated, the public/private key pair must

be recreated and new symmetric keys must be en-

crypted with new public key. The FPP scheme heavily

relies in TTP, since IoT devices have a intrinsic unre-

liable nature.

4 DISCUSSIONS

This section presents a discussion about aspects re-

lated to the proposed architecture. Firstly, the direct

communication among IoT devices and the Internet

is depicted, mainly the end-to-end security related to

it is discussed. Afterward, a discussion regarding the

schemes developed by this study is presented, indicat-

ing its limitations, advantages and disadvantages.

4.1 Direct Internet Communication in

IoT Devices

An important aspect of the proposed architecture is

the utilization of equivalent Internet protocols in IoT

devices, providing the ability of direct communi-

cation between devices and cloud. Based on UP-

ECSI (Henze et al., 2016), this work transfer the Pri-

vacy Enforcement Point features to the IoT devices,

adapting those features according to IoT devices con-

strained nature. Although devices communicate di-

rectly with the cloud, a gateway could still be used for

translating protocols. For example, the IEEE 802.15.4

packet size is 127 bytes but many Internet protocols

have headers and messages that would use much of

this size, leaving very little room for application data

(e.g., IPv6 header has a minimum of 40 bytes).

UPECSI deﬁnes communication schemes only be-

tween the gateway and the cloud, this work proposes a

secure architecture between IoT device and cloud, re-

garding only the application layer. However, here we

discuss security in transport layer, since it is a topic

currently being widely studied. Security in Link and

Network layers in IoT, although still with much room

for improvement, can be considered more mature,

since the IEEE 802.15.4, 6LoWPAN and RPL (Win-

ter, 2012) are already consolidated standards.

The overhead introduced in the processing and

message exchange caused by security protocols, spe-

cially in cryptography operations, is the main barrier

for its implementation in Internet of Things. Internet

security protocols use Public Key Infrastructure (Sa-

lomaa, 2013), that uses two keys for each entity.

Creating and exchanging these keys are expensive,

thus many IoT security protocols admits they are pre-

allocated in devices beforehand. This work assumes

that communications take place in a secure channel.

Although there are already many proposals (Sethi

et al., 2012; Hummen et al., 2014; Tschofenig and

Fossati, 2016), the IETF is still working to deﬁne a

standard for constrained device networks.

4.2 Proposed Architecture

This section discusses the schemes proposed in this

work, ﬁrst a discussion about the binding protocol is

presented, indicating its beneﬁts and possible difﬁcul-

ties of its implementation in IoT devices. Afterward,

we discuss how the Privacy Policy is enforced by IoT

devices, taking account of its constrained characteris-

tics. The data access control scheme is also debated

since it is the architecture protocol that most adds

load to devices. Finally, the Flexible Privacy Policy

scheme is discussed.

4.2.1 Binding Scheme

The load that the binding scheme adds to the network

can be neglected, since it is performed only once by

each network device. As stated, this scheme could

also be executed by a gateway, as in UPECSI, but in

this case all devices would share the same Access To-

ken. This feature speeds up the binding procedure, but

decreases the data access control granularity, since all

devices will be bound to the same cloud services, i.e.,

these services will have access to all data from the

devices.

The OAuth 2.0 assumes a secure channel is used

for communication, since it does not provide relia-

bility for exchanged messages. In order to provide

device speciﬁc binding, the user must access an in-

terface provided by each device (step 1 at Figure 1).

This kind of service should have an optimized imple-

mentation, in order to prevent too much load to the

constrained devices.

4.2.2 Privacy Policy Enforcement

The Privacy Policy Enforcement is performed as in

the UPECSI architecture, but instead of being exe-

cuted by the PEP (gateway) it is executed by each

IoT devices. Updating a Privacy Policy is achieved

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

492

through the respective cloud service, usually done

by a web interface or smartphone application. This

scheme only introduces the reception and enforce-

ment of Privacy Policies by the devices. The reception

is unlikely to occur very often and the enforcement is

implemented by simple conditional statements. Con-

sequently, these steps does not signiﬁcantly increase

the devices load.

4.2.3 Data Access Control

User privacy requirements are guaranteed by using

cryptography. Private data is stored encrypted in

cloud platforms, and only authorized cloud services

have the key to decrypt it. This method provides data

access only to allowed entities. As already discussed,

cryptography operations can be expensive for IoT de-

vices. Although IoT devices must encrypt data go-

ing to the cloud, some operations could be relieved

by shifting them to the Trusted Third Party. In this

approach the key management is performed by the

TTP, leaving the IoT devices only with the tasks of

receiving keys and encrypting data. This scheme is

recommended for IoT networks where devices have

constrained resources.

IoT devices can be responsible for managing sym-

metric keys, excluding the TTP from the process.

This method is more expensive to devices, which

must execute tasks with high computational costs:

symmetric key creation, asymmetric encryption of

symmetric keys and sending encrypted keys to ser-

vices. The encryption of symmetric keys is periodic

and performed once for each service authorized to ac-

cess the respective data, which means that these op-

erations can be quite expensive if there are many ser-

vices. This method must be used with cautious, if the

number of services and the periodicity of symmetric

key generation is high it can potentially compromise

the IoT network lifetime and responsiveness. The ad-

vantage of using this method is that the TTP will not

have the keys necessary to access data, therefore de-

creasing the surface of attack for the network.

In both schemes data will be encrypted twice,

once in the transport layer, by a protocol that ensures

a secure channel, and once in the application layer,

by the architecture proposed in this work. The en-

cryption performed at the application layer is always

necessary, since that is how data is stored in the cloud

platform. Consequently, to prevent data from being

encrypted twice, it is necessary to remove the encryp-

tion at the transport layer. The messages sent by the

devices contain the application encrypted data and the

Access Token, which now must be protected at the

application layer. This can be achieved simply by se-

curely sharing a key between cloud platform and IoT

device before it needs to send data. This process could

be done at the end of the binding process, which al-

ready uses a secure channel. In this way, IoT devices

can encrypt the Access Token with this shared key

and send both data protected, the Access token and

the devices generated data.

4.2.4 Flexible Privacy Policy

Flexible Privacy Policies were proposed to increase

the architectures adaptability. This scheme enables

the user to deﬁne boundaries, where some cloud ser-

vices can begin or stop to have access to private

data. This is specially useful in exceptional situa-

tions, where it is more beneﬁcial to give up privacy

then keep it.

Since the main purpose of FPPs are exceptional

situations, it may be the case where the IoT device it-

self ceases functioning, in this case it is only possible

to activate the FPP by an external agent. To ensure the

proper behavior in this situation the TTP is responsi-

ble for enforcing the FPP, managing keys and granting

access to services when necessary. This method adds

much more reliability to the scheme.

The load introduced by this feature is only related

to triggering the FPP by signaling the TTP when a

FPP must be activated, thus requiring very lower re-

sources for a very useful feature.

5 CONCLUSIONS

The Internet of Things and Cloud Computing inte-

gration certainly brings many beneﬁts for applica-

tions, since while the ﬁrst generates a huge amount of

data, the second has the power to store, process and

present it, including solutions for big data. Security

is an extremely relevant aspect in this integration. In

personal networks the user privacy must be specially

dealt with, since private data leaves the user control

sphere when stored in the cloud.

In order to prevent or at least mitigate this prob-

lem, this work proposed an architecture where users

have more control over access to their data when up-

loaded to the cloud. This architecture enables a ﬁne

grained control over data, since the privacy protocols

and controls are executed at the IoT device, not at the

network border by a gateway.

The proposed approach introduces more load at

devices, which could impact the network performance

and lifetime in scenarios where the devices have lim-

ited energy source such as WSNs. However, many

IoT devices have unlimited energy and, consequently,

this is not a constraint. As future work we intend to

Architecture for Privacy in Cloud of Things

493

deﬁne scenarios and evaluate the performance of the

proposed solutions.

ACKNOWLEDGEMENTS

Luis Pacheco is supported by CAPES (Brazil). This

work is partially supported by CNPq (Brazil) and

RNP/CTIC (Brazil) through projects FREESTORE

(457272/2014-7) and EUBrasilCloudForum, respec-

tively.

REFERENCES

Aazam, M., Khan, I., Alsaffar, A. A., and Huh, E.-N.

(2014). Cloud of things: Integrating internet of things

and cloud computing and the issues involved. In Pro-

ceedings of 11th International Bhurban Conference

on Applied Sciences & Technology, pages 414–419.

Akyildiz, I. F. and Vuran, M. C. (2010). Wireless sensor

networks, volume 4. John Wiley & Sons.

Botta, A., de Donato, W., Persico, V., and Pescap

e, A.

(2016). Integration of cloud computing and internet

of things: a survey. Future Generation Computer Sys-

tems, 56:684–700.

Chui, M., L

ofﬂer, M., and Roberts, R. (2010). The internet

of things. McKinsey Quarterly, 2(2010):1–9.

Deering, S. E. (1998). Internet protocol, version 6 (ipv6)

speciﬁcation. RFC 2460.

Dierks, T. (2008). The transport layer security (tls) protocol

version 1.2. RFC 5246.

Eggert, M., H

außling, R., Henze, M., Hermerschmidt, L.,

Hummen, R., Kerpen, D., P

erez, A. N., Rumpe, B.,

Thißen, D., and Wehrle, K. (2014). Sensorcloud: To-

wards the interdisciplinary development of a trustwor-

thy platform for globally interconnected sensors and

actuators. In Trusted Cloud Computing.

Fox, G. C., Kamburugamuve, S., and Hartman, R. D.

(2012). Architecture and measured characteristics of

a cloud based internet of things. In International Con-

ference on Collaboration Technologies and Systems.

Granjal, J., Monteiro, E., and Silva, J. S. (2015). Security

in the integration of low-power wireless sensor net-

works with the internet: A survey. Ad Hoc Networks,

24:264–287.

Group, W. W. (2006). Wireless Medium Access Control

(MAC) and Physical Layer (PHY) Speciﬁcations for

Low-Rate Wireless Personal Area Networks (WPANs).

IEEE Standard for Information Technology.

Hardt, D. (2012). The oauth 2.0 authorization framework.

RFC 6749.

Henze, M., Großfengels, M., Koprowski, M., and Wehrle,

K. (2013a). Towards data handling requirements-

aware cloud computing. In IEEE International Con-

ference on Cloud Computing Technology and Science.

Henze, M., Hermerschmidt, L., Kerpen, D., H

außling, R.,

Rumpe, B., and Wehrle, K. (2016). A comprehen-

sive approach to privacy in the cloud-based inter-

net of things. Future Generation Computer Systems,

56:701–718.

Henze, M., Hummen, R., and Wehrle, K. (2013b). The

cloud needs cross-layer data handling annotations. In

IEEE Security and Privacy Workshops (SPW).

Hummen, R., Shafagh, H., Raza, S., Voig, T., and Wehrle,

K. (2014). Delegation-based authentication and au-

thorization for the ip-based internet of things. In

Annual IEEE International Conference on Sensing,

Communication, and Networking.

Kushalnagar, N., Montenegro, G., and Schumacher, C.

(2007). Ipv6 over low-power wireless personal area

networks (6lowpans): overview, assumptions, prob-

lem statement, and goals. Technical report.

McGrew, D. and Rescorla, E. (2010). Datagram transport

layer security (dtls) extension to establish keys for se-

cure real-time transport protocol (srtp).

Nadeem, Q., Rasheed, M. B., Javaid, N., Khan, Z., Maq-

sood, Y., and Din, A. (2013). M-gear: gateway-based

energy-aware multi-hop routing protocol for wsns.

In Broadband and Wireless Computing, Communica-

tion and Applications (BWCCA), 2013 Eighth Inter-

national Conference on, pages 164–169. IEEE.

Roman, R., Zhou, J., and Lopez, J. (2013). On the features

and challenges of security and privacy in distributed

internet of things. Computer Networks, 57(10):2266–

2279.

Salomaa, A. (2013). Public-key cryptography. Springer

Science & Business Media.

Sautner, B. (2016). Nimbits. http://bsautner.github.

io/com.nimbits/. Accessed at 2017-01-19.

Sethi, M., Arkko, J., and Ker

anen, A. (2012). End-to-end

security for sleepy smart object networks. In IEEE

Conference on Local Computer Networks Workshops.

Shelby, Z., Hartke, K., and Bormann, C. (2014). The con-

strained application protocol (coap). RFC 7275.

Sundmaeker, H., Guillemin, P., Friess, P., and Woelfﬂ

e, S.

(2010). Vision and challenges for realising the internet

of things. Cluster of European Research Projects on

the Internet of Things, European Commision.

Tschofenig, H. and Fossati, T. (2016). Transport layer secu-

rity (tls)/datagram transport layer security (dtls) pro-

ﬁles for the internet of things. RFC 7925.

Winter, T. (2012). Rpl: Ipv6 routing protocol for low-power

and lossy networks. RFC 6550.

Zhu, Q., Wang, R., Chen, Q., Liu, Y., and Qin, W. (2010).

Iot gateway: Bridgingwireless sensor networks into

internet of things. In IEEE/IFIP 8th International

Conference on Embedded and Ubiquitous Computing.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

494
