Minimizing the Risks of Data Protection Infringement

Data Lifecycle Risk Assessment

Silvia Balaban

and Manuela Wagner

FZI Forschungszentrum Informatik, Haid-und-Neu-Str. 10-14, Karlsruhe, Germany

Center for Applied Legal Studies, Karlsruhe Institute of Technology,

Vincenz-Prießnitz-Str. 3, Karlsruhe, Germany

Keywords: Legal Challenges of Big Data in Multi-discipline Services, Privacy Impact Assessment, Anonymization,

Data-lifecycle-evaluation.

Abstract: In this paper, we propose an evaluation scheme which has the objective to permit the user to identify the

legal data protection obligations through a continuous data-lifecycle-assessment-method and to re-design

the data processing actively. To ensure the compliance with data protection principles under the European

law and thus preventing the risk of sanctions, it is necessary, especially in multi-discipline services, to con-

tinuously check during the complete data-usage-process whether personal data are given and which methods

of risk minimisation like the application of anonymization techniques are useful.

1 INTRODUCTION

Innovative research concerning predictive mainte-

nance or prediction of population behaviour is ex-

pected to contribute to major efficiency-

improvements especially in the areas of transport

and energy. Big Data analytics in multi-discipline

services increase the expectation of an improved

networking and cross-linking of information deriv-

ing from different sources. Those innovations might

conflict with fundamental principles of data protec-

tion law. As the EU General Data Protection Regula-

tion (GDPR) will be applicable from May 25th

2018, controllers (persons processing personal data

for own purposes) need to adapt their data processes

in order to comply with new GDPR-concepts and

avoid tighter sanctions. This emphasizes the need for

a practical guide for controllers without legal back-

ground. As the GDPR is not applicable in case of

anonymous data, it might be useful for controllers to

continuously check whether personal data are still

required. However, controllers must be aware of the

risks that datasets become personal as capabilities

identifying natural persons develop. We therefore

propose a risk-assessment-method, which permits

controllers to cope with the obligations of the GDPR

and simultaneously provides them the evidence of

fulfilling the duties. As legal obligations are not

negotiable, data protection risk management relates

to a balancing of risks and safeguards rather than

costs (Friedewald et al, 2016). This paper shows the

opportunities of a risk management, based on exist-

ing work on Privacy Impact Assessment (PIA). To

cope with typical Big Data challenges, we propose

risk minimization, pointing out hindrances and bene-

fits of anonymization. To estimate the necessity of

safeguards we conclude with a practicable Data

Lifecycle Risk Assessment.

2 RELATED WORK

Firstly, we present risk-assessment-methods and

focus on the privacy challenges of Big Data.

2.1 Privacy Impact Assessment

The GDPR obliges controllers to carry out a PIA

prior to the processing, only in cases when the pro-

cessing likely results in a high risk to the rights and

freedoms of the data subjects. PIA is an instrument

to recognize and evaluate the potential impacts and

risks caused by data processing and is a possibility

to reveal unintentional data protection risks (Frie-

dewald et al, 2016). The Britain Information Com-

missioner’s Office (ICO) released a generic, tech-

nology-neutral PIA-model (ICO, 2014), while the

Commission Nationale de l’Informatique et des

356

Balaban, S. and Wagner, M.

Minimizing the Risks of Data Protection Infringement - Data Lifecycle Risk Assessment.

DOI: 10.5220/0006358103560362

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 356-362

ISBN: 978-989-758-245-5

Libertés (CNIL) provided recommendations and

good practices (CNIL, 2015). The GDPR requires

for a PIA a processing description, an assessment of

necessity and proportionality in relation to envisaged

purposes, related risks to data subjects’ rights and

freedoms and countermeasures including safeguards

and security measures (Art. 35 para 7 GDPR). Addi-

tionally, the Standard Data Protection Model, which

extends the information security principles CIA with

data protection goals, provides evaluation schemes

but seems to assume that personal data are already

given (SDM, 2015). As this will be one of the key

questions for controllers, a simplified testing scheme

distinguishing personal and anonymous data would

be useful. Our paper focuses on how to prevent

privacy risks in the “legal grey area” between per-

sonal and anonymous data in context of Big Data.

2.2 Big Data Privacy Challenges

Although there is no fixed term for Big Data, the

legal debate is based on general assumptions like the

big scale of data collection including high variety

and detail of the collected data and the aim to com-

bine data from many different sources (Art. 29 WP,

2013). Based on this scenario several conflicts with

current and future data protection law have been

already pointed out. At this point, we describe the

typically assumed infringements with basic data

protection fundamentals.

2.2.1 Legitimation

Processing of personal data requires a legitimation,

which could be a legitimation by law or the data

subjects consent. The big scale of data collection

might conflict with the requirement of an individual

case-by-case-assessment, when balancing legitimate

interests between controller and data subject (Ulmer,

2013). A consent is considered as valid, if it is freely

given, specific, informed and unambiguous. Legal

experts claim that the capacity of discernment is

missing in regard of data processing in multi-

discipline domains and that declarations of consent

are often too indefinite (Kamp and Rost, 2013).

Without equivalent alternatives data subjects might

feel forced to give their consent in order to get a

relevant service (Brummund, 2014).

2.2.2 Purpose Limitation

Legitimate data processing must be based on speci-

fied, explicit and legitimate purposes and not further

processed in a manner that is incompatible with

those purposes. The greater the risks, the more spe-

cific purposes must be outlined beforehand (Art. 29

WP, 2013). This obligation is challenging if a com-

bination of data from different sources is envisaged

or if an exploratory analysis is conducted to develop

the research question (Bornemann, 2015). If Big

Data analysis is built on (cross-border) linking of

personal data from various contexts, the impacts and

inferences drawn from the data are hardly predicta-

ble (Raabe and Wagner, 2013). “Non-linkability”, a

principle presented in the Standard Data Protection

Model (SDM, 2015), clearly contradicts the idea of

re-using and connecting existing data through differ-

ent disciplines for new purposes (Weichert, 2013).

2.2.3 Storage Limitation, Data Minimisation

Personal data may only be processed, if necessary

and proportionate for attaining the specific legiti-

mate purpose (Bizer, 2007). This is the case, when

there is no less severe possibility, which is adequate

to reach the focused purpose. An assessment must be

made in each respective case to comply with privacy

by design and by default. It is assumed that dispro-

portionality is given, in the case of collecting and

storing as much data as possible to provide an exten-

sive basis for data mining also for potential future

purposes (Roßnagel, 2013).

2.2.4 Fairness, Transparency, Accuracy

Only with sufficient information data subjects can

understand and control decisions they are subject to

and decide autonomously about exercising their

rights (Art. 29 WP, 2013). Parties must be aware of

the processing purpose or context before the collec-

tion (Ohrtmann and Schwiering, 2014). In principle,

the right of information, correction and erasure or

restriction must be granted. Enforcing these rights

depends on determining the responsible controller(s)

and means to contact him/her. Concerning Big Data

in multi-discipline services with multilateral pro-

cessing chains the variety of controllers and proces-

sors lead to hardly bearable challenges especially

concerning the possibility to effectively enforce

rights (Raabe and Wagner, 2015). The combination

of information deriving from different sources might

also lead to unintentional findings. Personal data

must be kept up to date and incorrect data should be

erased or rectified without delay. Concerns were

raised that decisions based on data mining might be

inaccurate or discriminatory, as the algorithm draws

conclusions based on detected correlations. These

statistical inferences may perpetuate existing preju-

dices and stereotypes (Art. 29 WP, 2013).

Minimizing the Risks of Data Protection Infringement - Data Lifecycle Risk Assessment

357

2.2.5 Integrity and Confidentiality

Personal data must be processed by ensuring appro-

priate security. Expanding data volume might lead to

a rise of security threads (Weichert, 2013).

3 BENEFITS AND HINDRANCES

OF ANONYMIZATION

The presented potential conflicts between Big Data

scenarios and data protection principles does not

mean that Big Data is illegal in general. Besides the

fact, that a case-by-case legal assessment is always

necessary, there are possibilities to limit the contra-

dictions. One possibility to be excluded from the

scope of data protection law is to anonymize, alt-

hough the legal dispute how to distinguish personal

and anonymous data must be respected. Using anon-

ymization techniques is still beneficial to comply

with the GDPR by mitigating certain obligations.

3.1 Distinguishing Personal and

Non-personal Data

To ensure whether a planned data processing re-

quires a legitimation the controller should analyse if

personal data are given. The qualification when data

is considered as personal is highly controversial and

was subject to a recent decision by the European

Court of Justice (ECJ, 19. October 2016, C-582/14).

As the upcoming GDPR provides the utmost similar

wording like the current Data Protection Directive, it

is expected that the courts key considerations will

remain relevant (Kühling and Klar, 2017). The test-

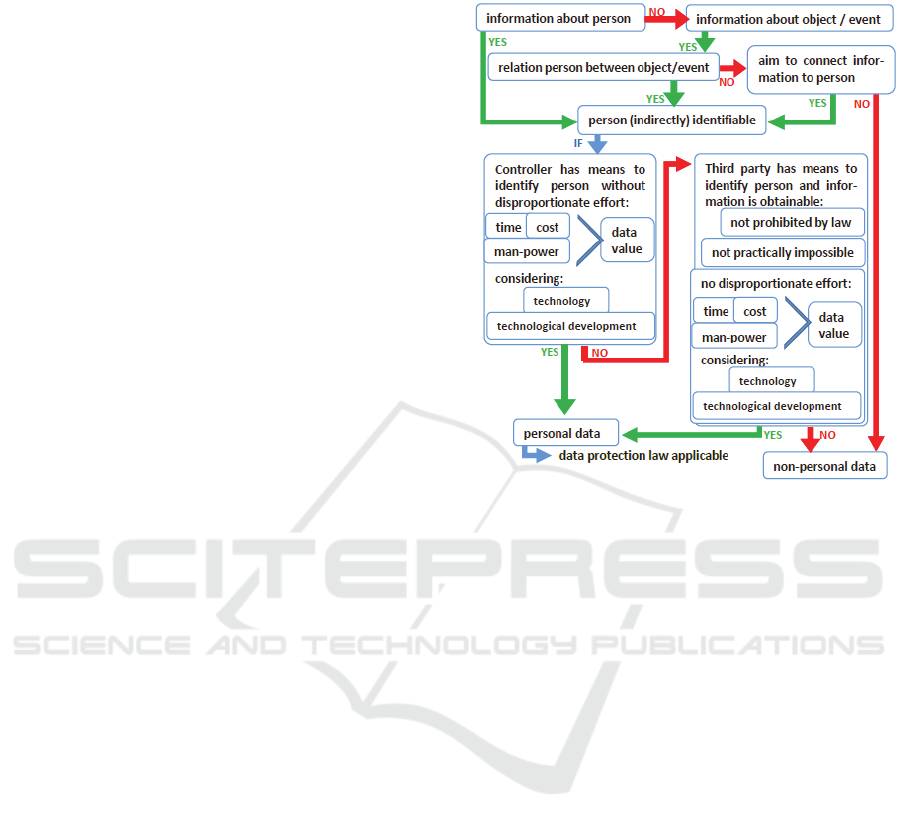

ing scheme shown in figure 1 helps the controller to

identify if his data are of personal nature. If the da-

taset contains information about a natural person, it

must be verified, whether this person is directly or

indirectly identifiable. If the data is primarily related

to objects (or events), it must be analysed whether

“multi-relations” to an object and a person are given:

depending on the proximity, information related to

the object might also provide information about the

person, who is e.g. using or owning the object (Art.

29 WP, 2007). A whole dataset might be “infected”

by reference information (Weichert, 2007). The

same situation occurs, when object-related-data is

collected with the aim to link them to a person

(Forgó and Krügel, 2010). Following this it has to be

checked whether the person is directly or indirectly

identifiable which means either the controller or a

third party is in the possession of means of identifi-

cation without disproportionate effort of time, cost

or manpower. In this regard, information of third

parties has only to be considered, if accessible for

Figure 1: Testing scheme for personal data.

the controller, which is not the case, if this is illegal

or impracticable. The question of estimating the

proportionality of identification effort is still subject

to legal discussion. Considering the court decision it

is unlikely that the individual value of identification

for the specific controller can be taken as differentia-

tion criterion as the ECJ bases the qualification of

personal data on relative and objective criteria

(Kring and Marosi, 2016). The term relative com-

prises the possibilities and accessible means of the

individual controller. To achieve a certain level of

certainty, an objective determination of the efforts

proportionality is preferable. Otherwise, the qualifi-

cation of personal data and applicability of a legal

framework depends on financial resources or eco-

nomic priorities of individual controllers. It can be

assumed that most data comprise a certain value.

Disproportionality is given, if the effort exceeds any

potential value of identification and an attempt of

identification cannot be expected under rational

circumstances (Weinhold, 2016). The risk of achiev-

ing additional identifying information by third par-

ties is considered insignificant, if impracticable

because of disproportionate effort or illegal. It is

subject to discussions whether data access possibili-

ties can be assumed in case of the theoretical exist-

ence of a legitimating norm (Kring and Marosi,

2016; Jensen and Knoke, 2016; Weinhold, 2016;

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

358

Kühling and Klar, 2017) or if the preconditions of

this legitimating exception must be fulfilled in the

specific case (Eckhardt, 2016; Kartheuser and

Gilsdorf, 2016). The better arguments plead for the

first opinion, as it must be predictable whether data

is personal or not. In the current ECJ-case, a cyberat-

tack or an infringement of copyrights would have

enabled the request to submit additional data. Then

random encounters will influence the applicability of

data protection law and already stored data might

change to personal data. (Kühling and Klar, 2017)

3.2 Technical, Organizational and

Contractual Measures

Anonymization might be a good procedure to avoid

data protection infringements. Due to technical in-

novations in the field of Big Data, anonymization is

hardly realizable as the risk of re-identification by

combining and analysing data from different sources

rises. Big Data for predictive maintenance focuses

on machine data, but still challenges occur in keep-

ing non-personal data anonymous. Terms like k-

Anonymity, l-Diversity or t-closeness focus on the

determination whether a dataset is anonymized but

without considering potential combinations with

additional information. By combining various data-

bases, it was possible to de-anonymize a k-

anonymized dataset (Narayanan and Shmatikov,

2008). When the data is still considered personal, the

processing is subject to data protection law, impos-

ing sanctions to controllers lacking the necessary

legitimation for the processing. Using further tech-

nical, organisational and contractual measures

(TOC) can impede the re-identification effort lead-

ing to disproportionality. Normally, technical and

organizational measures are undertaken to strength-

en security, but could also be focused on the exclu-

sion of identification. Examples for measures ensur-

ing anonymity are given in Table 1.

Table 1: Examples of measures to create or ensure dispro-

portionate effort of de-anonymization.

Technical

measures

- encryption

- data usage control

- adding noise

- availability, access control

- functional separation of data

- data obfuscation

Organizational

measures

- documentation

- training

- audits

Contractual

measures

- confidentiality / non-disclosure

agreements

- notification obligations

A first step is the selection of relevant data sources,

identification of obtainable additional information

and evaluation which safeguards can prevent identi-

fication. Contractual obligations alone can never be

considered as obstacle to identification as parties can

renounce the contract (Dammann, 2014). However,

in combination with technical and organizational

measures identification risks could be minimized.

This could guarantee the non-applicability of data

protection law. If the data are still considered per-

sonal, TOCs could have a positive effect as risk

minimizing safeguards to fulfill the data protection

obligations. The anonymization can be considered as

“partial” from a legal point of view.

3.3 Risk Minimisation

In the cases where anonymization is only partial this

still has an impact of the legitimacy of Big Data

scenarios as it can work as a safeguard compensat-

ing high risk data processing.

3.3.1 Legitimation

Art. 6 para 1 (f) GDPR can legitimate data pro-

cessing through balancing conflicting interests.

Safeguards like partial anonymization can mitigate

potential negative impacts of the processing and

therefore influence the balancing significantly.

3.3.2 Purpose Limitation

The GDPR provides the possibility to change pur-

poses if a compatibility assessment has been accom-

plished, concerning different aspects like reasonable

expectations of data subjects or potential impact.

The tests outcome of the test also depends on the

„existence of appropriate safeguards, which may

include encryption or pseudonymisation“ (Art. 6

para. 4 (e) GDPR). Safeguards can also be technical

and organisational measures, partial or full anony-

mization or aggregation of data to prevent any inap-

propriate impact on the data subjects. This factor

may compensate a change of purposes, which oth-

erwise would fail the compatibility assessment, or

compensate for a lack of clear specification of pur-

poses. (Art. 29 WP, 2013)

3.3.3 Storage Limitation, Data Minimisation

If partial anonymization limits the level of infor-

mation retrievable by processing personal data, con-

trollers could comply more easily with the require-

ments of necessity and proportionality. Art. 25

GDPR provides the concept of privacy by design/

Minimizing the Risks of Data Protection Infringement - Data Lifecycle Risk Assessment

359

default and mentions pseudonymisation and data

minimisation as potential measures. A partial anon-

ymization is also a way of data minimisation, as less

personal data are processed.

3.3.4 Fairness, Transparency, Accuracy

Art. 11 GDPR foresees a case where a controller is

not able to identify the data subject but meanwhile

personal data is given as the GDPR is applicable.

Meeting requirements of information would create

irresolvable problems for controllers, therefore the

data subjects’ rights of access, rectification, erasure,

restriction and data portability do not apply.

3.3.5 Integrity and Confidentiality

Art. 32 para. 1 (a) GDPR states pseudonymisation

and encryption as a risk minimizing possibility.

Partial anonymization might have the same effect

like pseudonymisation.

4 DATA LIFECYCLE RISK AS-

SESSMENT

These findings show the relevance of designing

privacy risks based on an overall risk assessment. As

every change of the envisaged processing operations

may have an impact on the outcome of the legal

evaluation, a frequently effectuated check of the

legal challenges concerning Big Data scenarios

should be foreseen. The PIA could be used as a

reference model. The first question arising is wheth-

er personal data are involved. So, we propose the

combination of the PIA with a first evaluation con-

cerning personal data and, if necessary, a legal eval-

uation of all data protection principles. One relevant

case for constant re-assessment is the case of poten-

tial personal data where the processing would com-

prise a high risk in the moment an identification of

natural persons is possible. A one-time assessment

only prior to collection would lead to the conclusion

that in absence of personal data no data protection

obligations occur. Most important to notice is the

fact, that the qualification of information as personal

data might change over time, as the obtainable

knowledge or the accessible technologies improve.

In this case, an anonymous database might be con-

sidered as containing personal data, even if no fur-

ther data is added to this database. A frequent analy-

sis of a data-lifecycle from collection to deletion is

therefore mandatory. An overall approach for Big

Data in multidiscipline sectors should combine a

continuous risk assessment concerning risks of iden-

tifying natural persons with the risk assessment

concerning the impact on these persons’ rights and

freedoms if the probability of identification is given.

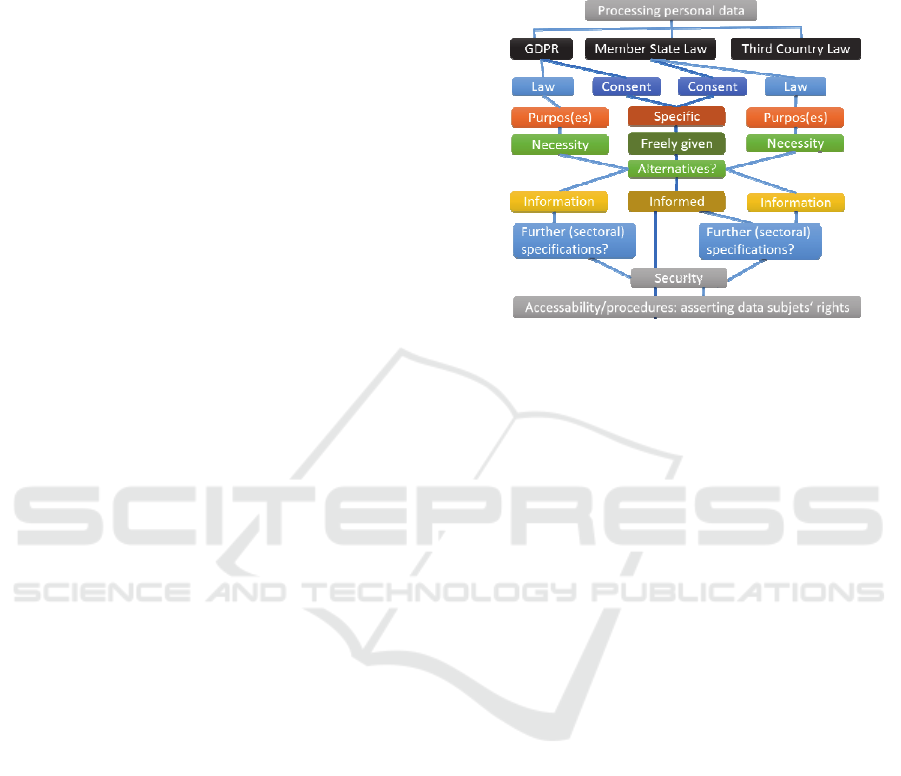

Figure 2: Generic overview of data protection obligations.

As already lined out in Section 2 the obligations

from data protection law merely stem from the data

protection fundamentals. To give an overview of the

legal challenges under the GDPR the first legal

evaluation might be based on data protection key

factors shown in figure 2 to assess the effort of com-

pliance or usefulness of anonymization. A re-design

of the envisaged lifecycle could be either aiming on

the avoidance of personal data or the fulfillment of

these general protection principles. Controllers

should use a systematic assessment order to docu-

ment and trace the undergone analysis following the

steps in figure 3:

Data-Lifecycle-Scenario-Identification: specify

the relevant scenario from the data collection to the

deletion and list involved parties.

Obtainable Information enables identification of

natural persons (data subjects)? An evaluation is

necessary if datasets contain personal data focussed

on the outlined lifecycle scenario and must be re-

peated frequently, especially with every new pro-

cessing step or new obtainable information.

Legal Overview: a first evaluation based on the

data protection principles shown in figure 2 provides

an overview of generic requirements and shows the

probability of infringements.

Lifecycle-Re-Design: to anonymize/prevent the

emergence of personal data or minimise risk to

comply legal requirements

Anonymization ensured? If a data processing

should not fall under data protection law a frequent

test of the probability of re-identification is recom-

mended to avoid infringements.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

360

Review legal Analysis: if personal data is given,

a full legal analysis must be done, additionally a PIA

is necessary in case of a high risk for the data sub-

jects’ rights and freedoms.

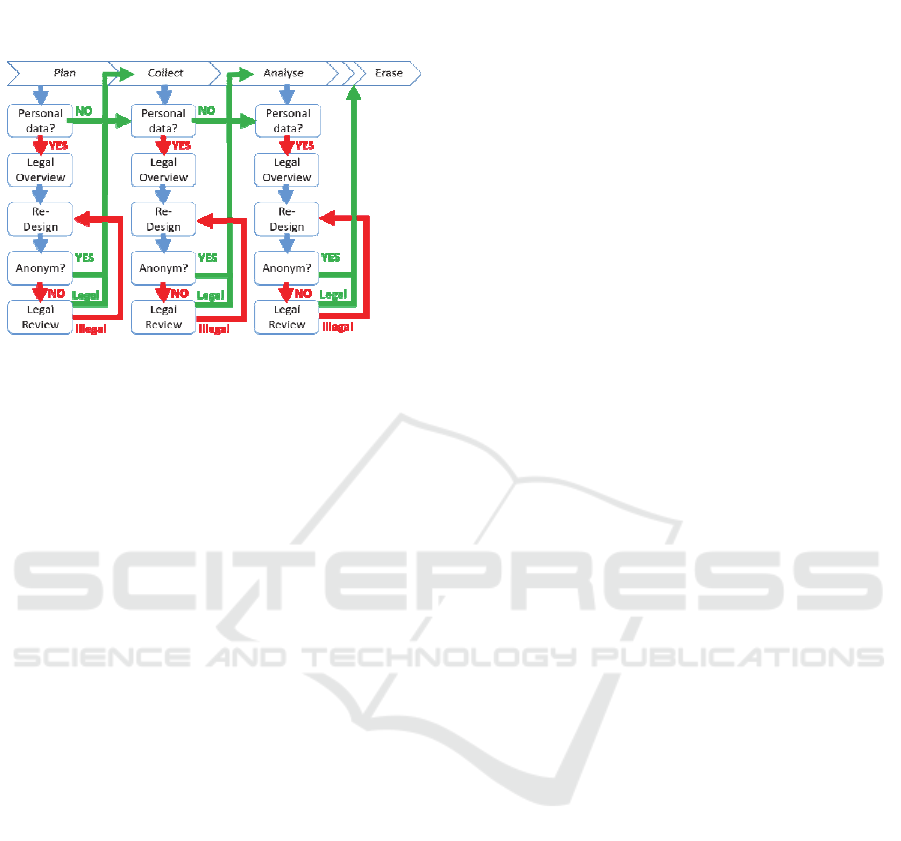

Figure 3: Approach of a data lifecycle risk assessment.

5 CONCLUSION

For Big Data scenarios conflicting with fundamental

data protection principles anonymization is one

solution, but the re-identification risks have to be

taken into account. Nevertheless also partial anony-

mization can be considered as safeguard compensat-

ing data protection risks and therefore might legiti-

mate big data scenarios in multi-discipline services.

By a lifecycle risk assessment controllers are able to

estimate whether their data is anonymous or which

risk minimizing efforts are necessary. Future work

should be focused on technical implementation. A

tool, which could automatize the testing scheme and

thus permit the controller to check whether anony-

mization is still given and show him corresponding

duties and respective safeguards would be therefore

highly valuable for future research.

REFERENCES

Art. 29 WP, 2007. Opinion 4/2007 on the concept of per-

sonal data. Available at: http://ec.europa.eu/justice

/policies/privacy/docs/wpdocs/2007/wp136_en.pdf.

Consulted on April 10 2017.

Art. 29 WP, 2013. Opinion 03/2013 on purpose limitation.

Available at: http://ec.europa.eu/justice/data-protection

/article-29/documentation/opinion-recommendation

/files/2013/wp203_en.pdf. Consulted on April 10

2017.

Bizer, J., 2007. Sieben Goldene Regeln des Datenschutzes,

Datenschutz und Datensicherheit, pp 350-356.

Bornemann, D., 2013. Big Data – Chancen und rechtliche

Hürden, Recht der Datenverarbeitung, pp. 232-235.

Brummund, A., 2014. Smartphones und Apps:

Datenschutzrechtliche Risiken und deren Begrenzung.

In GI-Jahrestagung. pp. 539–550.

CNL 2015. Privacy Impact Assessment. Available at:

https://www.cnil.fr/sites/default/files/typo/document/C

NIL-PIA-2-Tools.pdf. Consulted on April 10 2017.

Dammann, U., 2014. In Simitis Bundesdatenschutzgesetz,

Nomos, Frankfurt , 8

edition.

Eckhardt, J., 2016. Anwendungsbereich des

Datenschutzrechts – Geklärt durch den EuGH?,

Computer und Recht, pp. 786-790.

Friedewald, M. et Al., 2016. Datenschutz-

Folgenabschätzung, White Paper, Forum Privatheit.

Eggenstein, 2

edition.

ICO, 2014. Conducting privacy impact assessments code

of practice. Version: 1.0. Available at: https://ico.org

.uk/media/for-organisations/documents/1595/pia-code-

of-practice.pdf. Consulted on April 10 2017.

Forgó, N., Krügel, T., 2010. Der Personenbezug von

Geodaten – Cui bono, wenn alles bestimmbar ist?,

Multi Media und Recht, pp 17-23.

Kamp, M., Rost, M., 2013. Kritik an der Einwilligung.

Datenschutz und Datensicherheit, pp 80–84.

Kartheuser, I., Gilsdorf, F., EuGH: Dynamische IP-

Adressen können personenbezogene Daten sein, Multi

Media und Recht, 382533.

Knoke, F., Jensen, S., 2016. EuGH-Urteil zur

Personenbezogenheit dynamischer IP-Adressen: Quo

vadis, deutsches Datenschutzrecht?, ZD-Aktuell,

05415.

Kring, M., Marosi, J., 2016. Ein Elefant im Porzellanladen

– Der EuGH zu Personenbezug und berechtigtem

Interesse. Kunst und Recht, pp 773-776.

Kühling, J., Klar, M., 2017. EuGH: Speicherung von IP-

Adressen beim Besuch einer Internetseite, Anm.,

Zeitschrift für Datenschutz, pp 24-29.

Narayanan, A., Shmatikov, V. (2008). Robust de-

anonymization of large sparse datasets. In Security

and Privacy, 2008. IEEE Symposium, pp. 111-125.

Ohrtmann, J.-P., Schwiering, S., 2014. Big Data und

Datenschutz – Rechtliche Herausforderungen und

Lösungsansätze, Neue Juristische Wochenschrift, pp

2984-2989.

Raabe, O., Wagner, M., 2015. Verantwortlicher Einsatz

von Big Data, Datenschutz und Datensicherheit, pp. pp

434–439.

Roßnagel, A., 2013. Big Data – Small Privacy?,

Zeitschrift für Datenschutz, pp 562-567.

SDM, 2015. Das Standard-Datenschutzmodell, V.0.9.

Available at: https://www.baden-wuerttemberg.

datenschutz.de/wp-content/uploads/2015/10/SDM-

Handbuch_V09a.pdf. Consulted on April 10 2017.

Ulmer, C.-D., 2013. Big Data – Neue Geschäftsmodelle,

neue Verantwortlichkeiten?. Recht der

Datenverarbeitung, pp. 227-232.

Weichert, T. 2007. Der Personenbezug von Geodaten,

Datenschutz und Datensicherheit, pp 113-119.

Minimizing the Risks of Data Protection Infringement - Data Lifecycle Risk Assessment

361

Weichert, T. 2013. Big Data und Datenschutz, Zeitschrift

für Datenschutz, pp 251-259.

Weinhold, R., 2016. EuGH: Dynamische IP Adresse ist

personenbezogenes Datum – Folgen der Entscheidung

für die Rechtsanwendung, ZD-Aktuell, 05366.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

362
