Workflow for the Internet of Things

Debnath Mukherjee, Debraj Pal and Prateep Misra

TCS Innovation Labs, Tata Consultancy Services Limited, New Town, Kolkata, India

Keywords: Workflow, Internet of Things, IoT, SLA, KPI, Prediction.

Abstract: Business Processes are an important part of a business. Businesses need to meet the SLA (Service Level

Agreements) required by the customers. KPI (Key Performance Indicators) measure the efficiency and

effectiveness of the business processes. Meeting SLA and improving the KPIs is the goal of an organization.

In this paper, we describe the benefits of workflow technology for the IoT (Internet of Things) world. We

discuss how workflows enable tracking of the state of various processes, thus giving the business owner an

insight into the state of the business. We discuss how by defining IoT workflows, prediction of imminent

violation of SLA can be achieved. We describe how IoT workflows can be triggered by the low level IoT

messages. Finally, we show the architecture of an IoT workflow management system and present

experimental results.

1 INTRODUCTION

Workflow Management Systems implement

business processes which have both human

participants and automated tasks. Workflows capture

the state of a business process and enable state

transitions when a trigger is received. An example of

a trigger is: a workflow participant hits the “Submit”

button on a loan approval form to approve a loan.

Here the action of hitting the “Submit” button causes

the state of the loan approval workflow to e.g. move

from “Approve loan” to “Notify Loan Approval to

Applicant”. (A more formal definition of workflows

is given in Section 3).

In this paper, we discuss the relevance of

workflow technology in the context of the Internet

of Things (IoT). Workflows used in IoT are termed

in the rest of this paper as IoT workflow. In IoT

workflows, there could be both human triggered

state changes as well as triggers based on IoT

messages. For example, in the case of package

delivery by a courier, an IoT message “Package

Received” may be generated when the recipient of a

package signs on a hand-held device. This message

is sent to an IoT cloud infrastructure which changes

the state of the workflow to “Package delivered”.

Thus IoT workflows help in tracking the state of

various processes in the enterprise.

Another important issue in a business is to keep

track of Service Level Agreements (SLA) and Key

Performance Indicators (KPIs). KPIs are more about

organizational goals while an SLA is an agreement

between the service provider and a customer.

Example of a KPI could be “average cost of a

package delivery trip”. Example of SLA could be

“latest time of delivery of package”. We show in this

paper that it is possible to keep track of imminent

SLA violations (thus predicting the SLA violations)

and take appropriate action.

The various advantages of IoT workflows are as

mentioned below:

 IoT workflows will enable the users to get a

view of the state of the business processes in

real time

 It will enable the business to take action based

on the data made available

 Compared to traditional workflows, the IoT

workflows will give a granular view because it

is based on the low level IoT messages

 Data about the business process and alerts (such

as SLA violations) in the example can be stored

and mined to derive insights

 Constantly monitoring the KPIs and SLAs will

enable business benefits

 Predictions can be made in real time to avoid

SLA violations

The key contributions of this paper are to explain

how an IoT workflow system may be designed. It

also describes how SLA violation prediction feature

may be designed. It describes a scalability design for

Mukherjee, D., Pal, D. and Misra, P.

Workﬂow for the Internet of Things.

DOI: 10.5220/0006358607450751

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 745-751

ISBN: 978-989-758-248-6

745

the IoT workflow management system. Finally, it

presents performance results.

The rest of the paper is organized as follows:

Section 2 covers related work, Section 3 mentions

some necessary definitions, Section 4 presents a

motivating use case and lays down the design

challenges, Section 5 describes the design,

Experiments and Results are discussed in Section 6,

and Section 7 presents conclusions and future work.

2 RELATED WORK

In this section, we discuss related work on SLA

violations in workflows. Unfortunately, not much

scholarly work exists on IoT workflows at the time

of this writing.

(Emeakaroha, 2012) discusses the issue of

maintaining customer specified SLAs in Cloud

infrastructures. Cloud infrastructures need to be self-

managed to minimize user intervention. This is

achieved through timely detection of possible SLA

violations. The paper describes an architecture

(Detecting SLA Violation infrastructure (DeSVi)). It

uses a framework which maps low level metrics

(such as device uptime/downtime) to user specified

SLAs. This helps to manage and prevent SLA

violations. The DeSVi framework is validated in two

applications: an image rendering application, and a

web application running the TPC-W benchmark.

SLA violation prediction is achieved through

defining “threat thresholds” which are more

restrictive SLAs than the SLAs themselves.

(Leitner, 2010) discusses the PREvent

framework which monitors SLAs, predicts possible

SLA violations using machine learning techniques,

and takes necessary action to avoid the SLA

violation. Prediction of SLA values is done at

specific “checkpoints” using regression techniques

(mostly using multilayer perceptrons). To avoid the

predicted SLA violation, the framework uses an

adaptation actions database. This database contains

few actions that when applied singly or in

combination can avoid the violation. For this, the

framework knows in advance what is the impact of a

specific action; this is done by estimating the

improvement caused by a specific action – these are

termed improvement estimates.

(Wetzstein, 2012) discusses a strategy for

preventing KPI violations. Unlike (Leitner, 2010) it

uses decision trees to model the relationship between

low level metrics and higher level KPIs. The KPIs

are predicted at specific points called checkpoints,

similar to (Leitner, 2010). During the prediction,

“instance trees” are derived which show which

metrics need to be improved to reach specific KPI

goals. Then adaptation requirements are identified

based on the instance trees. Alternative adaptation

strategies are ranked based on “preferences and

constraints model” (Constraints must be met while

preferences should be optimized). Finally, the

adaptation strategy with the highest score is chosen

for execution. In our work, the workflow is

instrumented with domain specific code.

(Ivanovic, 2011) describes a scheme for SLA

Violation prediction. It constructs a model of

constraints that model both the states of SLA

conformance and SLA violation. Based on this

model it is able to predict when SLA may be

violated.

Our work discusses the concept of workflows in

IoT. Regarding SLA violation prediction, work such

as (Leitner, 2010) differs from ours in that we

instrument the workflow actions with prediction and

alerting code. Actions taken upon alerting are work

in progress, but the general direction (as explained in

this paper) is towards a rule based diagnosis

followed by a selection of best action.

3 DEFINITIONS

Most structured organizations have business

processes modelled as workflows hosted in a

workflow management system (WMS). Workflows

are formally modelled as a WFNet (Workflow Net).

In this section, we give some definitions regarding

workflows. The definitions 1 through 3 are based on

(Vander Aalst, 1998) while definitions 4 through 7

are added by this work.

Definition 1 (Petri Net) A Petri net is a triple

(P,T,F) where:

- P is a finite set of places,

-T is a finite set of transition,

-F ⊆ (P×T) ∪ (T×P) is a set of arcs

Places are conditions while transitions are tasks.

Arcs connect a place to a transition or a transition to

a place.

•t denotes the set of input places for a transition t.

Similarly p• is a set of all transitions from an input

place p.

Definition 2 (Strongly Connected) A Petri Net is

said to be strongly connected if for every pair of

nodes s and e there exists a path from s to e.(Nodes

are either places or transitions).

Definition 3 (WFNet) A Petri Net WF is a

WFNet iff:

 There are two special places i and o such that •i

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

746

= ϕ and o• = ϕ (Note : i is the start node and o

is the end node).

 If a transition τ is added between o and i (i.e.

such that o• = { τ } and •i = { τ }), then the WF

is strongly connected

Definition 4 (Trigger) A trigger T is a message

sent to a Workflow Management System, W which

causes the workflow to change state from its current

state at time t, S

,to state S

t+1

at time (t+1) , where

and S

t+1

are transitions of the WFNet.

Definition 5 (IoT message) A message M is an

IoT message if it is generated by a sensor, S, and

sent to the IoT platform, P.

Definition 6 (IoT message trigger) A trigger T

is said to be an IoT message trigger if T is an IoT

message and is a trigger.

Definition 7 (IoT workflow) An IoT workflow

is a WFNet where the set of triggers which causes its

state transitions must include at least one IoT

message trigger.

4 MOTIVATING USE CASE

Consider a courier company, Delivery Express,

which delivers packages every day. Each package

has to be delivered within a certain time – we call

this the Service Level Agreement. The delivery

trucks leave the package store in the morning and

deliver multiple packages along some routes. The

state of the package deliveries is tracked by a

workflow as depicted in Figure 1.

In the package delivery example, the state

transitions can be triggered manually by the delivery

personnel using e.g. a mobile application or can be

inferred from the GPS messages. There could also

be IoT messages triggering the workflows – e.g. a

signature on a handheld device can send a “Package

Delivered” IoT message to the workflow

management system.

Predictions have to be computed at each step.

For example, before step T4 starts (or even earlier),

it should be known if Package B’s SLA will be

violated, so that appropriate actions can be taken.

The key design issues to be handled are as

follows:

 How to model an IoT message triggering a

workflow state transition, and

 How to implement the SLA violation prediction

feature.

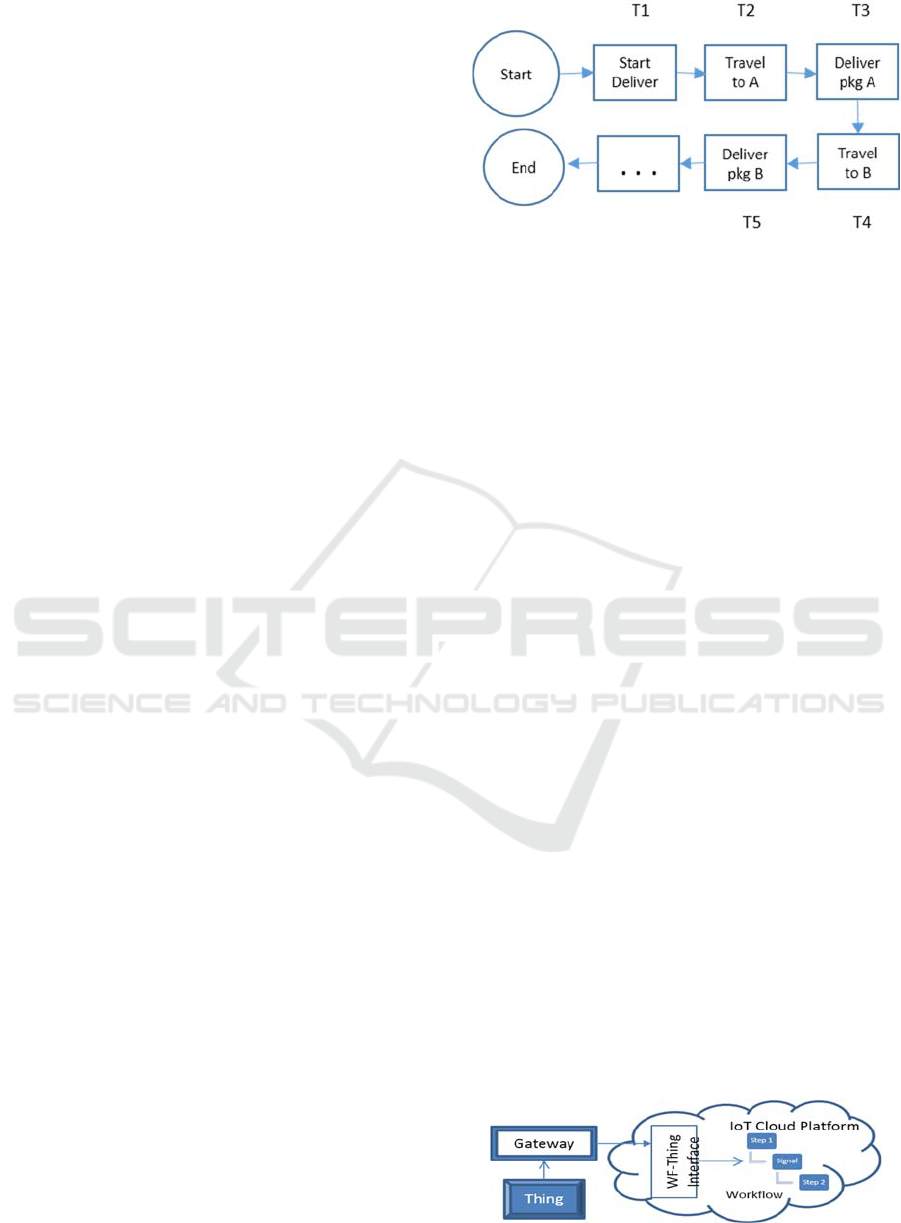

Figure 1: Package Delivery workflow.

5 DESIGN

In this section, we discuss the key design issues:

handling IoT message in triggering workflows, and

implementing prediction of SLA violation.

5.1 Handling IoT Messages in

Workflows

One of the main features of IoT workflows is their

ability to support IoT messages. The “things” send

messages to the cloud-hosted workflow engine.

These messages trigger state transition in the

workflows. One key difference between the standard

business workflows and the IoT workflows is the

ability of the latter to bridge the cyber-physical

divide. With the “things” now equipped with

sensors, their messages can be monitored thus

enabling their states to be tracked.

Our prototype IoT workflow system is WFMS.

The WFMS workflows support different types of

nodes (equivalent to transitions in WFNet). Different

types of nodes include “User Task” which handles

inputs from a human operator, and “Signal” which

waits for a signal of a particular type.

The “Signal” node can be used to support IoT

messages. To specify a Signal node, a signal “event

type” has to be specified by the “thing”. The

message payload can also be sent to the signal node

which can be used by the workflow in its

information processing in later steps. An architecture

diagram for the IoT message handling is shown in

Figure 2.

Figure 2: Handling IoT messages in a workflow.

Workﬂow for the Internet of Things

747

The architecture shown in Figure 2 depicts the

“Thing” sending sensor messages to a gateway

which transmits to the IoT Cloud Platform. The

sensor message is routed to a “WF-Thing Interface”

which extracts the message payload and the event

type and signals the workflow to change its state.

Note that the workflow will wait until the message

of the correct event type is sent to it.

One of the key design issues to be kept in mind

is how to integrate the workflow system with the IoT

messaging system. The IoT system sends messages

which have the following fields: <asset id> <asset

property> <current state> <message>. The asset id

identifies the asset (or entity) that is sending the

message. Asset property is the property of the asset

whose value has been changed as a result of an event

in the IoT world. The current state is the state of the

workflow that is known to the IoT event producer.

For example, for a user task, the event would be a

form submission by a user. The form contains the

current state of the workflow (it is passed onto the

form by the workflow system). The combination

(asset id, asset property, current state) may be

sufficient to identify the process instance that needs

to be triggered. As an example, the asset may be the

mobile phone of the driver of the courier delivery

truck, and its property may be an information field

that is associated with the workflow client mobile or

web application. Once the process instance is

identified, it is triggered based on the message field

– this field contains the type of event and this is

compared with the event(s) that the process instance

is waiting for. After this the workflow steps are run

and then the workflow waits for another event.

5.2 Detection and Prediction of SLA

Violation

In addition to providing tracking abilities, IoT

workflows can provide insights into the state of the

process. In particular it may be used to detect

whether an SLA violation has happened or is about

to happen.

At every step, or periodically (or continuously if

feasible), forecasting needs to be done to determine

if any KPI or SLA would be impacted. A forecast of

the parameters that could affect the SLA or KPI is

done. If it is so determined that a KPI or SLA is

affected then corrective measures would be needed

to address the threat.

For example the diagnosis may be that there was

a traffic jam and the best action could be to re-route

the vehicle.

Thus the predictions module goes through the

following methodology:

 Forecast the future values of the parameters that

affect KPIs / SLAs

 Detect threat to KPI / SLA

 Diagnose possible cause(s)

 Action after evaluating all possible options

An implementation of the prediction may be

done by instrumenting the IoT workflow with code

that predicts the SLA violation. The instrumentation

can be put into separate nodes (e.g. in “Script Tasks”

of BPMN).

In the package delivery example, the expected

time to travel and deliver packages is known based

on both internal and external knowledge. For

example, the typical package delivery time (once the

delivery truck has reached a destination) can be

known from the historical records of the courier

company. The expected time to travel can be known

from some external data providers like Google

maps. Expected time to complete various steps of

the workflow may be revised in real time based on

current situation, such as current traffic conditions.

The workflow also predicts whether the SLA for

package B is going to be violated. This could be

done through a check at the end of T2: ET(T2) +

E(T3) + E(T4) > SLA(B) (it could, in more

complex implementations, call a traffic prediction

service), where ET(X) is the end time of node X and

E(X) is the expected time for node X. For predicted

SLA violations the system issues an alert and gets

further guidance (such as “change routes” etc.).

Let us say that we have to predict the expected

time to complete item X which is introduced at step

start at time t

. X is to be completed in step finish.

Then the algorithm Predict_SLA_Violation predicts

whether the SLA of X, SLA(X) will be violated. The

prediction is computed at step s’ (which occurs

before finish and starts at t

s’

)

Algorithm Predict_SLA_Violation (item X, step

s’)

1) The predicted time of completion of X, p, is

computed as:

  







∈







,



ts’

where path(x,y) is the set of places and

transitions (or nodes) that lie along the path

from node x to node y.

2) For parallel paths existing between s’ and

finish, for each parallel path, the expected

time would be the expected time of the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

748

longest (slowest) path amongst the parallel

branches.

3) If p > SLA(X), then SLA will be violated,

otherwise not

One assumption in the above algorithm is that

the path selection decided in the decision nodes is

known beforehand, in case decision nodes are

present in the workflow.

5.3 The Workflow Management

System Design

A workflow management system, WFMS, has been

designed and implemented. Figure 3 shows the main

components of WFMS. It implements the BPMN

standard. IoT messages are handled through the

"intermediate catch event" nodes which wait for IoT

messages. Broadly the design includes the two

phases: parsing and execution. During parsing, the

process definition specified in BPMN XML format

is parsed and converted to Java objects. During

execution, state changes are performed based on IoT

messages received. In the case of human tasks

("User Task" in BPMN), the workflow transitions

from the sub-states :"initiated" (when the user task is

created) to "claimed" (when a BPMN "potential

owner" claims the task) to "started" (when a user

starts work on the user task) and finally

"completed", when the work is done and the

different variable values are submitted.

The workflow management system is currently

available as a web service (implementing RESTful

web services). The different services are: "create

process definition", where the BPMN XML process

definition is input along with process name and

version, the "initiate process instance" service where

the user inputs the process name and version and an

active instance of the process is created and the

process instance identifier is returned, the "list all

active instances" service where all active instances

with their process instance identifier, process

name/version and current state are returned. Finally

an "interact with process instance" service is offered

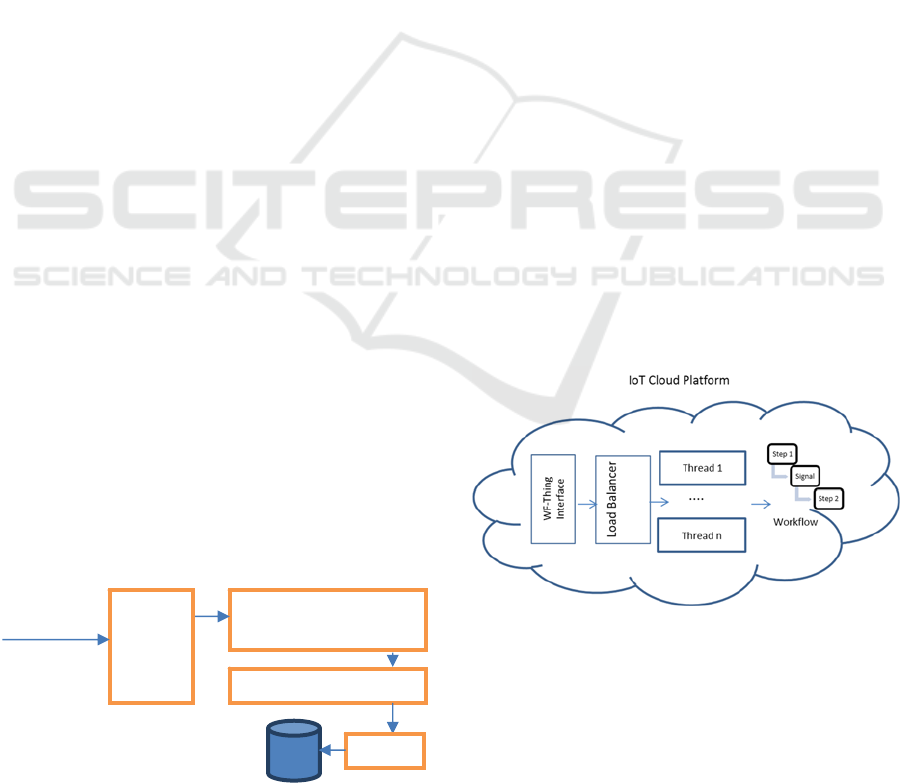

Figure 3: Architecture of WFMS.

which offers the following: a facility to send a signal

(event) to a process by providing as input the

process instance identifier, and the signal name, and

a facility to inspect the values of variables belonging

to a process instance. The WFMS also supports Java

based script tasks as automated activities.

The architecture of WFMS is shown in Figure 3.

The RESTful web services are implemented in the

Service Implementation layer. The persistence is

handled through Data Access Object layer and a

cache layer. At the present time, the database

interactions are not implemented and the WFMS is

an in-memory workflow management system.

5.4 Scalability Considerations

As there is expected to be a large number of users of

the workflow management system (henceforth

referred to as WMS), it is important for the system

to be scalable.

The system on which the WMS was targeted to

be deployed was a multi-core processor. So the

natural choice was to have the scalable system

implemented as a multi-threaded application. Each

process was assigned to a thread and all activities of

a workflow process instance were done in that

thread. To distribute the computation, there would

be a load balancer which equitably balances the state

change activities amongst the threads. We used

round-robin load balancing amongst the threads.

Whenever a request comes, it is mapped to the

thread handling the process associated with the

request. The scalable architecture is shown in Figure

Figure 4: Architecture for scalability.

Another option would be to have each thread

handle activities of multiple processes distributed

equitably amongst the threads. In addition to

distributing the processing via threads, distribution

across machines (e.g. using a cluster of machines) is

possible.

Restful

Web

Service

Layer

Serviceimplementation

layer

DataAccessOb

ect

IoT

messages,

Web

interaction

Cache

Workﬂow for the Internet of Things

749

5.5 How IoT Workflow Advantages

Are Achieved

We describe in this section how IoT workflows

achieve the advantages mentioned in the

introduction section.

To enable the business process owners to track

the processes, a dashboard containing the state of

each business process along with the relevant KPIs

and SLAs can be provided.

Based on the SLA violation alerts, the system

can take action and can diagnose the possible cause

of the alert. For example, the possible causes of an

SLA violation could be some malfunction within the

delivery vehicle (determined from the on board

diagnostics in the vehicle) or traffic congestions

along the route (determined from traffic feeds).

Rules can be designed considering the above causes,

and these rules trigger actions such as a command

sent to the vehicle operator to change routes.

IoT workflows enable the tracking of granular

activities. Since the IoT “things” are provided with

sensors, granular monitoring of activities is possible.

IoT workflows generate data about processes that

can be mined. For example, the SLA violation alert

data can be a useful source of insights. In the courier

example, it may be found that often SLAs were

violated when the vehicle was travelling on a

particular route segment. The action would be to

avoid the route segment, if feasible, or start earlier.

Constant monitoring (not missing a single alert)

helps the business stay on course to meet its KPIs.

Real time predictions can be very useful in

dynamic situations. In the courier example, if an

SLA is predicted to be violated, then a real time

action such as changing routes to avoid traffic, can

actually avoid the SLA violation.

6 EXPERIMENTS AND RESULTS

Since the IoT platform is used by multiple users, it is

expected that a large number of workflows will be

simultaneously active in the system. A large number

of state transitions and automated tasks will be

scheduled on the workflow management system.

Hence it is important to measure the performance of

the workflow engine.

The package delivery workflow was executed for

a number of processes. In an iterative (sequential)

fashion, each task of each process was triggered (the

first task of all the processes were executed, then the

second task and so on). The results for the JBPM

workflow engine (an open source workflow system)

and WFMS are as shown in Table 1.

Table 1: Performance for multiple processes.

Number of

processes

Time taken in

JBPM(seconds)

Time taken in

WFMS(seconds)

100 10.923 3.013

200 20.469 3.168

300 35.476 3.200

400 44.369 3.278

500 61.888 3.293

The better performance of WFMS could be due to

efficient data structures such as Maps used as well as

due to the fact that JBPM uses an in-memory

database whereas WFMS uses in-memory data

structures.

7 CONCLUSION AND FUTURE

WORK

In this paper, we have shown that workflows are

important in the context of IoT. Workflows help in

tracking of processes and also provide insights into

the business – such as whether there are any impacts

to the SLAs or KPIs. An implementation of IoT

workflow, which supports receiving IoT messages

and instrumentation of processes to predict SLA

violations, has been evaluated in experiments.

IoT workflows allow business users real time

visibility of the state of processes and enable

businesses to take action based on the data. IoT

workflows give a detailed view of the processes by

bridging the cyber-physical divide using sensor data.

In future we wish to implement scalability

related enhancements (see Section 5.4) and measure

the scalability of the workflow engine. We will add

a persistent data store for storing workflow state.

Also, a library of standard prediction methodologies

will be provided along with the workflow.

REFERENCES

Emeakaroha, V. C., Netto, M. A. S., Calheiros, R. N.,

Brandic, I., Buyya, R., De Rose, C. A. F.Moore, R.,

Lopes, J., 2012. Towards autonomic detection of SLA

violations in Cloud infrastructures. In Future

Generation Computer Systems. Elsevier Science

Publishers.

Ivanovic, D., Carro, M., Hermenegildo, M., 2011.

Constraint-Based Runtime Prediction of SLA

Violations in Service Orchestrations. In ICSOC’2011,

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

750

International Conference on Service-Oriented

Computing. Springer-Verlag Berlin, Heidelberg.

Wetzstein, B. et al. 2012. Preventing KPI Violations in

Business Processes based on Decision Tree Learning

and Proactive Runtime Adaptation. In Journal of

Systems Integration.

Leitner, P., Michlmayr, A., Rosenberg, F., Dustdar, S.

2010. Monitoring, Prediction and Prevention of SLA

Violations in Composite Services. In IEEE

International Conference on Web Services. IEEE

Computer Society.

Van der Aalst, W. M. P. 1998. The Application of Petri

Nets to Workflow Management. In Journal of

Circuits, Systems and Computers. World Scientific.

Workﬂow for the Internet of Things

751
