Data Cleaning Technique for Security Big Data Ecosystem

Diana Martínez-Mosquera

and Sergio Luján-Mora

Departamento de Electrónica, Telecomunicaciones y Redes de Información, Escuela Politécnica Nacional,

Ladrón de Guevara E11-253, Quito, Ecuador

Department of Software and Computing Systems, University of Alicante, Spain

Keywords: Data, Cleaning, Big Data, Security, Ecosystem.

Abstract: The information networks growth have given rise to an ever-multiplying number of security threats; it is the

reason some information networks currently have incorporated a Computer Security Incident Response Team

(CSIRT) responsible for monitoring all the events that occur in the network, especially those affecting data

security. We can imagine thousands or even millions of events occurring every day and handling such amount

of information requires a robust infrastructure. Commercially, there are many available solutions to process

this kind of information, however, they are either expensive, or cannot cope with such volume. Furthermore,

and most importantly, security information is by nature confidential and sensitive thus, companies should opt

to process it internally. Taking as case study a university's CSIRT responsible for 10,000 users, we propose a

security Big Data ecosystem to process a high data volume and guarantee the confidentiality. It was noted

during implementation that one of the first challenges was the cleaning phase after data extraction, where it

was observed that some data could be safely ignored without affecting result's quality, and thus reducing

storage size requirements. For this cleaning phase, we propose an intuitive technique and a comparative

proposal based on the Fellegi-Sunter theory.

1 INTRODUCTION

Every minute, thousands of activity events are

occurring and being registered into network

equipment. Monitoring and analyzing this digital

information is the important task performed by the

Computer Security Incident Response Team

(CSIRT), because they provide proactive and reactive

support to vulnerabilities and intrusions. However,

they are limited to a small time-frame, usually a few

days and the ever-overwhelming growth in

information size and complexity; due to this

drawback, the CSIRT cannot analyze historical

security events. Currently, the CSIRT’s main issues

are storage space constraints, code maintenance,

confidential and sensitive information processed by

third parties, cost associated with current solution,

etc.

Security data can be considered as Big Data, since

it complies with five Vs, the defining properties of

Big Data (Arputhamary and Arockiam, 2015):

1. Volume, for the high rate of produced

information when register all network

events.

2. Velocity, since data need to be processed

and analyzed as fast as possible in order to

detect, prevent and react to possible threats.

3. Variety, event logs are classified as semi-

structured data (Khalifa et al., 2016), since

they generally contain metadata to describe

their structure.

4. Veracity, security information and logs

proceed from trusted network elements.

5. Value, since it can alert the security team to

threats that can happen, or may be

happening, in the network.

In this paper, we propose a Big Data ecosystem

for security data based on an open source framework.

This choice is due to commercial solutions being

expensive, may not be adaptable to company's

requirements or peculiarities and code is not available

for analysis which may present a confidence liability.

The proposed ecosystem allows processing a high

data volume, customizing the code according specific

requirements, keeping the confidentiality and saving

costs (Cárdenas et al., 2013). During the initial

implementation phase, it can be noticed that one of

the main process is data Extract, Transform and Load

380

Martínez-Mosquera, D. and Luján-Mora, S.

Data Cleaning Technique for Security Big Data Ecosystem.

DOI: 10.5220/0006360603800385

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 380-385

ISBN: 978-989-758-245-5

(ETL). This is confirmed by Intel Corporation, which

mentions that data integration stands for 80% of

development effort in Big Data projects (Intel, 2013).

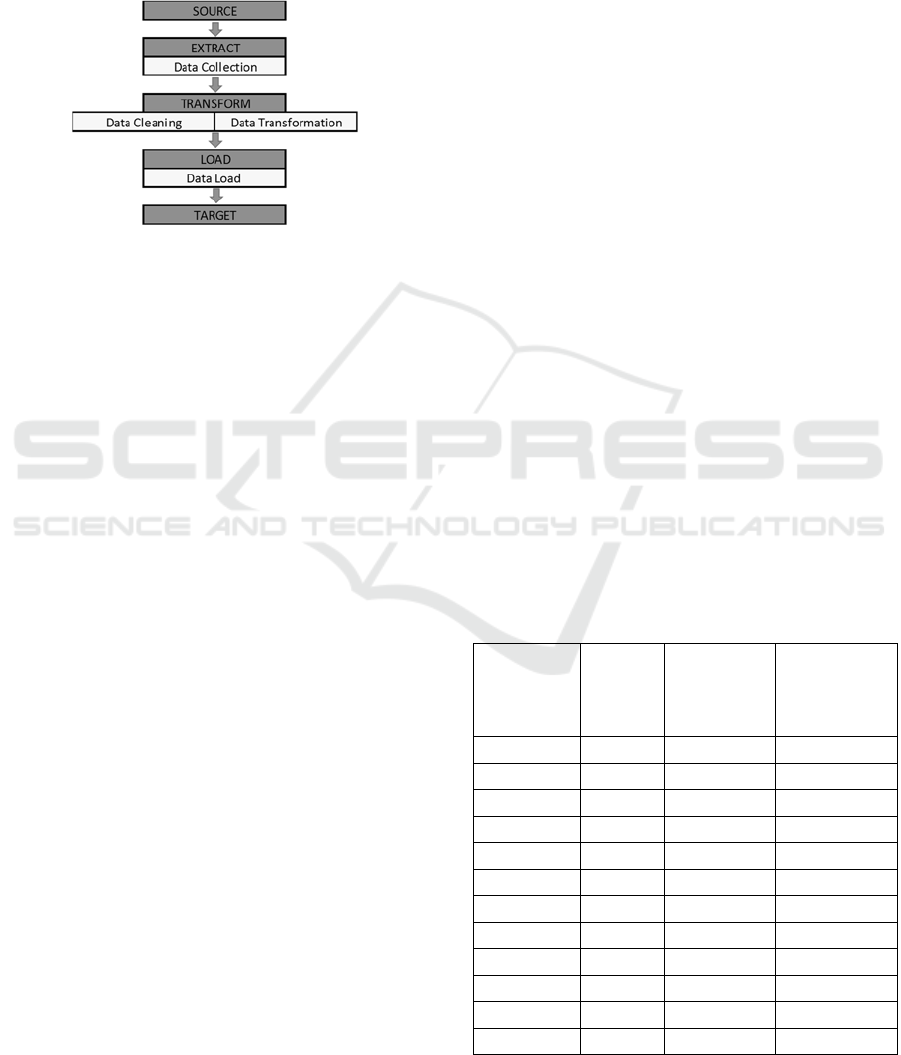

Extract task gathers data from external sources;

Transform task employs a variety of software tools

and custom programs to manipulate collected data,

cleaning is also addressed on this task to remove

unnecessary data; finally, Load task loads the data to

permanent storage.

The data integration process into the selected

framework has a slight variation and first there is

Extract, then Load and finally Transform (ELT).

However, and after observing raw data (possible due

to log information being plain text files) we

concluded that some information was irrelevant or

redundant, for instance, the producer name, domain

names that can be resolved by IP addresses, etc. Thus,

and with a simple test by manually removing the

irrelevant fields, the size of the information could be

reduced before the Load stage and more data could be

stored without quality loss.

This background suggested the development of an

intuitive algorithm for removing useless fields after

data extraction process. The attained results through

a developed script were satisfactory but important

scalability and flexibility issues need to be resolved,

due to human intervention requirement in changing

and maintaining said script.

Several data cleaning techniques and tools have

been developed, but the major part of them target data

deduplication while our requirements were the

useless data cleaning. In this article, we limit to

present a Security Big Data ecosystem testbed and an

intuitive data cleaning technique with some results

and improvement proposals, for instance, increase

data retention by at least 25%. This solution has been

tested with data provided by responsible for 10,000

university users.

One of the main challenges in this research is

adapting data cleaning techniques to security data in

Big Data ecosystems to overcome storage space

constraints and we intend to solve the following

questions:

 Is it possible to define a Big Data security

ecosystem?

 Is it possible to apply data cleaning

techniques to security data to reduce storage

space?

2 STATE OF THE ART

Commercially, there are several available solutions to

process Big Data, however, as we already mentioned

before, they are expensive and the inclusion of a third

party can introduce security and confidentiality

liabilities that are unacceptable to some companies. A

Big Data ecosystem must be based on the following

six pillars: Storage, Processing, Orchestration,

Assistance, Interfacing, and Deployment (Khalifa et

al., 2016). The authors mention that solutions must be

scalable and provide an extensible architecture so that

new functionalities can be plugged in with minimal

modifications to the whole framework. Furthermore,

the need for an abstraction layer is highlighted in

order to augment multi-structured data processing

capabilities.

Apache Hadoop is a free licensed distributed

framework that allows working with thousands of

independent computers to process Big Data

(Bhandare, Barua and Nagare, 2013). Stratosphere is

another system comparable to Apache Hadoop,

which, according to the authors, its main advantage is

the existence of a pipeline, which improves execution

performance and optimization; although being

released in 2013 it has not been as widely used as

Hadoop (Alexandrov et al., 2014).

To support the data cleaning process, statistical

outlier detection, pattern matching, clustering and

data mining techniques are some of the available

techniques to data cleaning tasks. However, a survey

(Maletic and Marcus, 2009) evidences that

customized process for data cleaning are use in real

implementations. Thus, there is a need for building

high quality tools.

In a work about data cleaning methodologies for

data warehouse, data quality is assured but there is not

a clear path on how these techniques can be adapted

to our interests (Brizan et al., 2006). BigDansing

technique is targeted to Big Data (Khayyat et al.,

2015), but, similarly to other techniques, its main

purpose is to remove inconsistencies on stored data.

MaSSEETL, an open-source tool, is used over

structured data and works on transforming stored data

when our research focus on extraction and cleaning

(Gill and Singh, 2014).

Data cleaning is often an iterative process adapted

to specific task’s requirements; a survey to data

analysts and industry's infrastructure engineers shows

that data cleaning is still an expensive and time-

consuming activity. Despite community's research

and the development of new algorithms, current

methodology still requires the existence of human-in-

the-loop stages and that both data and result be

evaluated repeatedly, thus several challenges are

faced during design and implementation. Data

cleaning is also a complex process that involves

extraction, schema/ontology matching, value

Data Cleaning Technique for Security Big Data Ecosystem

381

imputation, de-duplication, etc.; additionally, each of

these tasks encapsulates several specialized

algorithms such as machine learning, clustering or

rule based procedures. In this research, it is proposed

the idea of making an easy and fully automated data

cleaning process (Krishnan, Haas, Franklin and Wu,

2016).

Data cleaning methods allow duplicated data to be

found within files or group of files. It can be

explained through Fellegi-Sunter mathematical

model, which does not need trained data but do

requires optimal parameters estimation (Winkler,

2003).

Advanced methods like Bridging Files use a

master file maintained by a trustworthy unit that

contains exact and updated information, so that

comparisons can be made only against that file. For

structured information, it is considered a good

method; however, in the security context it may not

be adequate, as it would need to analyze IP addresses,

ports, every entities equipment, etc. Having a unit that

will hold this information is unlikely and said unit

would introduce human intervention in the loop

(Winkler, 2003).

Big Match Technology has been applied in de-

duplication between files A and B, where B contains

indexes that allow higher information volumes to be

processed with less resource. Although, it has been

applied in scenarios related to people and cities

information, no results are available in security

information field. There are related methods briefly

explained like:

1. Preprocessing and standard methods to

identify sub-fields.

2. Advanced chain comparators.

3. Analytic link methods.

The three methods focus on information de-

duplication, but we are intending to target them at

finding useful data while eliminating the unnecessary

(Winkler, 2003).

Our research was unable to reach a suitable

ecosystem for security Big Data; therefore, a specific

ecosystem was built and the first steps are the data

extraction and data loading.

3 METHOD

3.1 Security Big Data Ecosystem

Among the different available frameworks to build

Big Data ecosystems, we selected Apache Hadoop.

Apache Hadoop, being an open-source framework,

provides transparency and adaptability while also

being a proven cost-effective solution in several Big

Data scenarios. Apache Hadoop is included in several

products like Microsoft Azure HDInsight, Cloudera,

among others (Nehe, 2016).

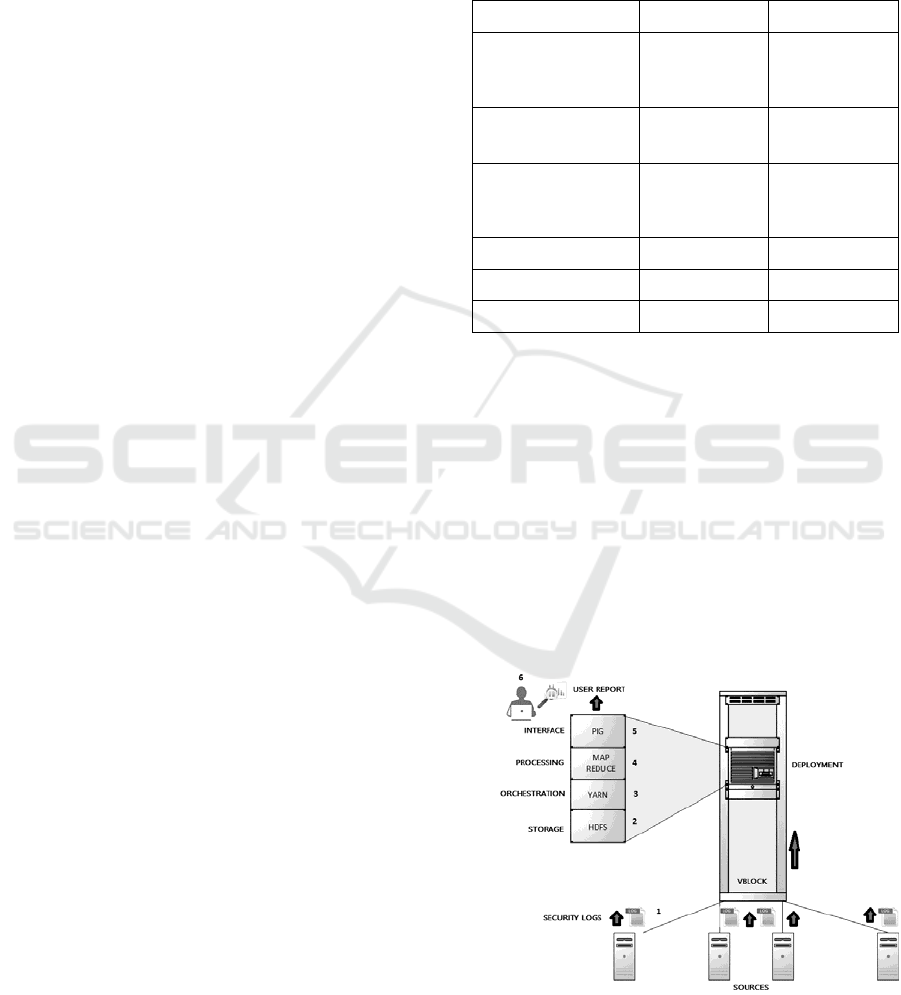

Table 1: Proposed Ecosystem.

TOOL ADVANTAGE

STORAGE

High

Distribution

File System

Store any data

format

High data

scalable

PROCESSING

Map Reduce Fault tolerant

No human

intervention

ORCHESTRATION

Yet Another

Resource

Negotiator

(YARN)

Increase

resource usage

ASSISTANCE

Help Pages Easy to develop

INTERFACE

Pig High flexible

DEPLOYMENT

VBlock Faster to setup

Based on the six mentioned fundamental pillars

Storage, Processing, Orchestration, Assistance,

Interfacing and Deployment, our proposed Security

Big Data Ecosystem is presented on Table 1, it

describes the used tools for each pillar and the main

advantages (Khalifa et al., 2016).

Figure 1 shows the logic topology of the

ecosystem, the source of the security log files

transfers the data to the Hadoop Distributed File

System (HDFS), YARN defines the abstraction layer

between HDFS and Map Reduce, the paradigm to

transform the data set in a pair key/value, and Pig is

used for analyzing large data sets.

Figure 1: Security Big Data Ecosystem.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

382

3.2 ETL Process

In order to implement a Big Data ecosystem, the first

steps are the data extraction and data loading. Here,

the ETL stages come to mind, Figure 2 describes the

three applied tasks in a traditional data warehousing

process (Arputhamary and Arockiam, 2015).

Figure 2: ETL Process.

In Hadoop, ETL process becomes Extract, Load

and Transform (ELT) targeting processing time

reduction; however, in practice, during data loading

step it was clear the existence of useless and

redundant fields and transformation process improves

if data is cleaned first, thus, we propose: Extract,

Cleaning, Load and Transform (ECLT). Extract task

will collect log files from the sources, Cleaning task,

will perform the data cleaning, Load will store the

data into the HDFS and Map Reduce will do

Transform step.

For testing the Cleaning task, security log files

from a firewall were used. This firewall, belonging to

university's CSIRT, produces around 30,000 rows of

log per hour.

3.2.1 Intuitive Proposal for Data Cleaning

For most systems, data cleaning process ignores data

for certain hours or equipment, thus, it is possible to

reduce the size of the data to be analyzed in a Big Data

ecosystem. However, security data cannot be ignored

since any time an attack can be present in any

equipment. Therefore, we proposed an intuitive

technique for security data cleaning in an ECLT

process. This intuitive technique requires human

intervention to analyse the relevant security data.

For instance, a sample of security log contains the

following header fields: Product Name, Severity,

Event Name, Start Time, Source Country, Source,

Destination Country, Destination, Service, Attack

Name, Attack Information, User, Verdict, Total

connections, Event ID. Security data analyst found

the fields that can be discarded during data cleaning

process: Product Name, Source Country, Destination

Country, User, Verdict and Event ID.

Through a bash script, it was possible to clean the

security log file, for example, the main code line:

cat LOG_BEFORE_CLEANING | cut -d "," -f

x,y,z > LOG_AFTER_CLEANING

Where x, y, z variables correspond to relevant

information to be preserved and we can differentiate

every one of them by the delimiter comma “,” since

as we mentioned before security log files are semi

structured data.

We tested the script for 32 security log samples,

10 minutes of data (around 5,000 lines), 100 minutes

of data (around 50,000 lines), 24 hours, a day of data

(around 720,000 lines), two, three, four until thirty

days. Some attained results are presented on Table 2,

there we can see for 10 minutes log file the size

decreased from 1.2 MB to 0.87 MB, therefore 27.5 %

less than the original file, for 100 minutes log file the

size decreased 29.2%, for a day log file the size

decreased 28.9% and so on.

As it can be observed in Figure 3, size reductions

between 25% and 30% can be achieved with this

mechanism and the results keep constant for the 32

tests, the attained average is 28.9%. With it, storage

costs can be reduced or data retention capability

increased by at least 25%. Comparing our attained

results with other researches, the main difference is

probably the nature of the data, since they propose to

discard data at row level (Aye, 2011), and we

consider important all the security log rows; for that

reason, our data cleaning proposal is based only in a

vertical dimension.

Table 2: Intuitive Method Results.

ORIGINAL

SIZE

[MB]

TIME

[days]

SIZE

AFTER

DATA

CLEANING

[MB]

REDUCTION

[%]

1.2 0.007 0.87 27.5

12 0.07 8.5 29.2

173 1 123 28.9

345 2 245 29.0

517 3 367 29.0

690 4 490 29.0

862 5 612 29.0

1100 6 734 33.3

1200 7 856 28.7

1400 8 979 30.1

1600 9 1100 31.3

1700 10 1200 29.4

Data Cleaning Technique for Security Big Data Ecosystem

383

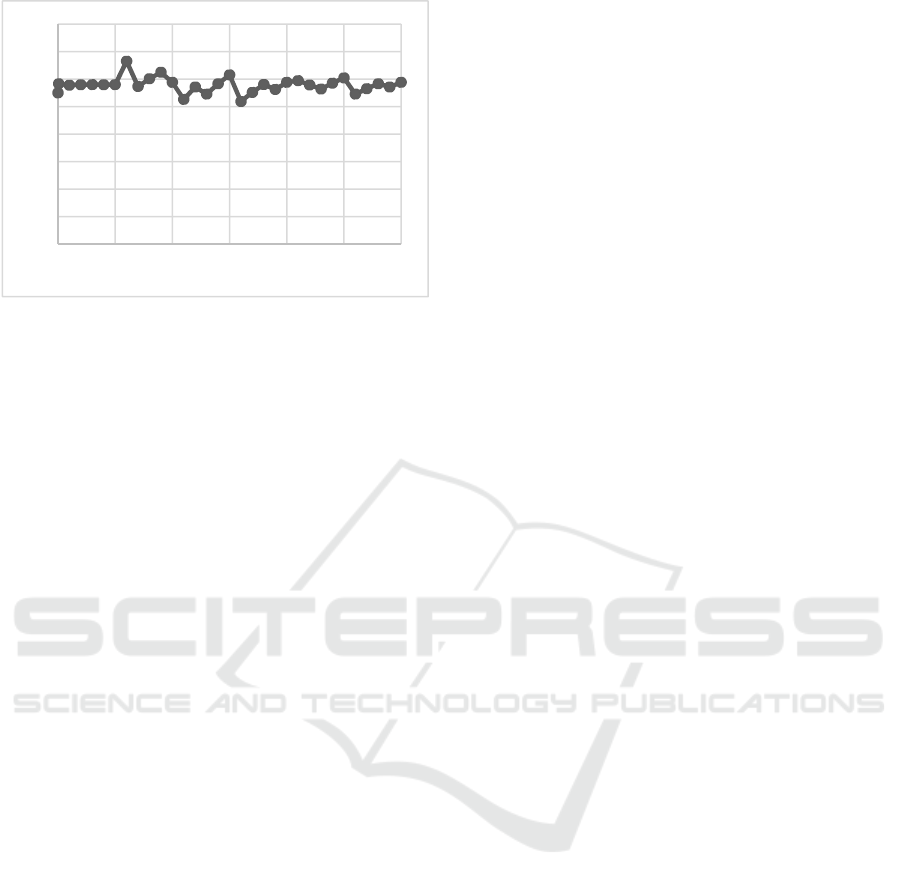

Figure 3: Time vs Reduction.

This intuitive solution is easily implementable

and gives good results, however, this proposal does

not fully comply some main characteristics to be

considered as a suitable solution (Arputhamary and

Arockiam, 2015): Reliability, Maintainability,

Freshness, Recoverability, Scalability, Availability,

Traceability, Auditability and Maintenance. For

instance, Scalability since the code lines for data

cleaning must be created in house according the

company’s requirements, automatic Recoverability

due to the need of the human intervention to restore

the data cleaning script. Hence, we need to avoid the

human intervention in the process (Krishnan et al.,

2016).

With this intent, some automatic data cleaning

techniques were analysed in security log scenarios,

but we were unable to find a suitable procedure that

would allow us to reach the intended goal. For this

reasons, the paper also presents a comparative

proposal based on a mathematic model to surpass the

mentioned constrains. The next section describes the

details of this comparative proposal.

3.2.2 Comparative Proposal based on

Fellegi-Sunter Theory

Data cleaning rules vary from organization to

organization according to their requirements, so we

are working in the development of a technique for

automatically creating these rules. For that, we need

to identify the useful fields to maintain and useless

ones to delete them from original log files. Fellegi-

Sunter model was selected since it describes a

mathematical theory for record linkage without the

need for data training. They offer a framework for

solutions focused on record recognition from two

files that can represent people, objects or events, the

last one being our point of interest (Fellegi and

Sunter, 1969).

Our main goal is to avoid the human intervention

in the data cleaning process, thus, the irrelevant data

to be removed could be identified comparing two

files, the original security log file and the final user

security report. This last one will have the useful data,

for instance, for horizontal, vertical and box scanning

reports, the useful fields are source and target IP

addresses, ports, domains and time.

Fellegi and Sunter defined three sets of elements,

A1, A2 and A3, where A1 corresponds to a match

between two files; A3 corresponds to a non-match

between two files and A2 to a possible match between

two files (Fellegi and Sunter, 1969). As A, we will

denote the set of header fields in the final user security

report. As B, we will denote the set of header fields

in the original security log file (Winkler, 1988).

According to Fellegi and Sunter notation, A1 will

correspond to matched elements between A and B,

therefore, A1 will contain the set of fields that must

be adding to the variables x, y, z into the data cleaning

script. If the algorithm cannot decide if the element

belongs to A1 or A3, the Fellegi-Sunter corollaries

will be used to determine the associated error level

(Fellegi and Sunter, 1969). We are working to

implement this comparative technique and present the

obtained results; the main challenge is to compare the

original log file and the final user report since they

have no similar header field names.

4 CONCLUSIONS

In this paper, we have presented a proposed security

Big Data ecosystem based on six fundamental pillars

Storage, Processing, Orchestration, Assistance,

Interfacing and Deployment. Moreover, we have

presented the initial findings from a data cleaning

technique in a Security Big Data Ecosystem designed

for a university with 10,000 users.

The data cleaning technique for security log files

is an intuitive one but, apart from the acceptable

results, size reductions between 25% and 30%, it is

not scalable since the code needs to change every time

we need to stablish new rules or adapt new scenarios.

With the use of a mathematical theory, defined by

Fellegi and Sunter, we propose to improve the

technique to automate data cleaning process,

gathering the useful fields from the user reports and

thus avoid the human in the loop problem.

Future work is still needed to implement the

developed comparative proposal between user final

report and security log file. Our solution is focused on

security data and the use of Big Data techniques on

this context, two topics that had not been deeply

0 5 10 15 20 25 30

Reduction[%]

Time[days]

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

384

studied together and we hope to take advantage of the

opportunities available in these systems.

ACKNOWLEDGEMENTS

We thank to the EPN’S CSIRT for the facilities to test

this data cleaning technique.

REFERENCES

Alexandrov, Bergmann R., Freytag S., Hueske F., Heise A.,

Kao O., Leich M., Leser U., Markl V., Naumann F.,

Peters M., Rheinländer A., Sax M., Schelter S., Höger

M., Tzoumas K., Warneke D., 2014. The Stratosphere

Platform for Big Data Analytics. In VLDB Journal, vol.

23, no 6, pp. 939–964.

Arputhamary B., Arockiam L., 2015. Data Integration in

Big Data Environment. In Bonfring International

Journal of Data Mining, vol. 5, no 1, pp. 1-5.

Aye, T. T., 2011. Web log cleaning for mining of web usage

patterns. In Third International Conference on

Computer Research and Development, vol. 2, pp. 490-

494.

Bhandare M., Barua K., Nagare V., 2013. Generic Log

Analyzer Using Hadoop Map Reduce Framework. In

International Journal of Emerging Technology and

Advanced Engineering, vol. 3, no 9, pp. 603-607.

Brizan, Guy D., Tansel, Uz A., 2006. Survey of Entity

Resolution and Record Linkage Methodologies. In

Communications of the International Information

Management Association, vol. 6, no 3, pp. 41-50.

Cárdenas A., Manadhata P., Rajan S., 2015. Big Data

Analytics for Security. In IEEE Security & Privacy, vol.

11, no 6, pp. 74-76.

Fellegi, I. P., Sunter A. B., 1969. A Theory for Record

Linkage. In Journal of the American Statistical

Association, vol. 64, no 328, pp. 1183-1210.

Gill R., Singh J., 2014. An Open Source ETL Tool-Medium

and Small Scale Enterprise ETL (MaSSEETL). In

International Journal of Computer Applications, vol.

108, no 4, pp. 15-22.

Intel white paper, 2013. Extract, Transform, and Load Big

Data with Apache Hadoop. Available at:

https://software.intel.com/sites/default/files/article/402

274/etl-big-data-with-hadoop.pdf. Intel Corporation.

Khalifa S., Elshater Y.,Sundaravarathan K., Bhat A.,

Martin P., Iman F., Rope D., McRoberts M., Statchuk

C., 2016. The Six Pillars for Building Big Data

Analytics Ecosystems. In ACM Computing Surveys,

vol. 49, no 2, pp. 33:1-33:35.

Khayyat Z., Ilyas I. F., Jindal A., Madden S., Ouzzani M.,

Papotti P., Yin S., 2015. Bigdansing: A System for Big

Data Cleansing. In ACM SIGMOD International

Conference on Management of Data, pp. 1215-1230.

Krishnan S., Haas D., Franklin M., Wu E., 2016. Towards

Reliable Interactive Data Cleaning: A User Survey and

Recommendations. In ACM SIGMOD/PODS

Conference Workshop on Human In the Loop Data

Analytics, p. 9.

Maletic, J. I., Marcus, A., 2009. Data cleansing: A prelude

to knowledge discovery. In Data Mining and

Knowledge Discovery Handbook. Ed. by Maimon, O.,

Rokach, L. US :Springer, pp. 19-32.

Nehe M., 2016. Malware and Log file Analysis Using

Hadoop and Map Reduce. In International Journal of

Engineering Development and Research, vol. 4, no 2,

pp. 529-533.

Winkler W. E., 1988. Using the EM Algorithm for Weight

Computation in the Fellegi-Sunter Model of Record

Linkage. In Proceedings of the Section on Survey

Research Methods, American Statistical Association

vol. 667, pp. 671.

Winkler W. E., 2003. Data Cleaning Methods. In

Proceedings of the ACM SIGKDD Workshop on Data

Cleaning, Record Linkage, and Object Consolidation.

Data Cleaning Technique for Security Big Data Ecosystem

385
