Helping Non-programmers to Understand the Functionality of

Composite Web Applications

Carsten Radeck and Klaus Meißner

Faculty of Computer Science, Technische Universit

at Dresden, Dresden, Germany

Keywords:

Mashup, Awareness, Inter Widget Communication, Generated Tutorials, End User Development, Assistance.

Abstract:

The mashup paradigm allows end users to build their own web applications by combining components in or-

der to fulﬁll speciﬁc needs. Mashup development and usage are still cumbersome tasks for non-programmers,

for instance, when it comes to understanding the composite nature of mashups and their functionality. Non-

programmers may struggle to use components as intended, especially if the latter provide capabilities in combi-

nation, and may lack awareness for inter-widget communication (IWC). Prevalent mashup approaches provide

no or limited concepts for these aspects, resulting in more or less successful trial and error strategies of users.

In this paper, we present our proposal for assisting non-programmers to understand and leverage the function-

ality of components and their interplay in a mashup. Based on annotated component descriptions, interactive

explanations and step-wise instructions are generated and presented directly in context of components’ user

interface (UI). In addition, active IWC is visualized to foster awareness of users. We describe the iterative

design which led us from early approaches towards our current solution. The concepts are implemented in

our mashup platform and evaluated by means of a user study. The results indicate that our solutions help

non-programmers to better understand the functionality of composite web application (CWA).

1 INTRODUCTION

Building up on the increasing number of web re-

sources and application programming interfaces, the

mashup paradigm allows re-use and lose coupling of

components in a broad variety of application scenar-

ios and use-cases. Universal composition approaches

enable platform-independent modeling of mashups.

They apply uniform description and composition of

components spanning all application layers, ranging

from data and logic services to UI widgets.

The mashup paradigm and end-user development

complement each other quite well, and together allow

to better meet the long tail of user needs. However,

it is still cumbersome for end-users to develop and

even use CWA, especially as non-programmers are

the target group. There are several challenging tasks

for non-programmers in CWA development and us-

age (Radeck et al., 2016; Chudnovskyy et al., 2013).

In this paper we speciﬁcally focus on the following

two:

1 understanding what single components are

capable of and what functionality they provide in in-

terplay, as well as 2 being aware of IWC.

Our platform adheres to universal composition

and aims at enabling non-programmers to build and

use situation-speciﬁc CWA. Non-programmers can

manipulate an application while it is executed , and

thus get instant feedback on their actions. Further,

they are guided by recommendations on composi-

tion patterns. Components are semantically annotated

with the capabilities they provide. Based on this, the

capabilities of arbitrary composition fragments are

automatically derived (Radeck et al., 2016). This al-

lows our mashup environment to offer a set of assis-

tance features with which we tackle the challenges

mentioned above. With the help of our reference sce-

nario, we illustrate both challenges in detail now.

Non-programmer Bob uses an existing mashup for

travel planning recommended by a friend. It consists

of two maps, a route calculator, a weather widget and

two widgets for searching points of interest and ho-

tels. Since he is neither familiar with the overall appli-

cation nor the single components utilized, Bob faces

several understanding problems of which functional-

ity the mashup provides and which not and how to

achieve it. For instance, Bob is not sure why there

are two maps, if the location in a map has effect in

other components, and if so, which kind of effect, and

how to ﬁnd hotels near the target location. While nor-

mally he would have to explore the mashup manually

Radeck, C. and Meißner, K.

Helping Non-programmers to Understand the Functionality of Composite Web Applications.

DOI: 10.5220/0006362301490159

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 149-159

ISBN: 978-989-758-246-2

149

in a trial and error style, the platform supports Bob

in gaining insight. First, there is an overview panel

displaying the mashup functionality, possibly com-

posed of several sub-functionalities. It allows Bob to

inspect what tasks he can solve with the application at

hand and which components partake in certain func-

tionalities. This way, Bob understands that one map

serves for selecting the start location, while the other

is used to select the target location for the route. Since

Bob has no clue about how to see a list of routes, he

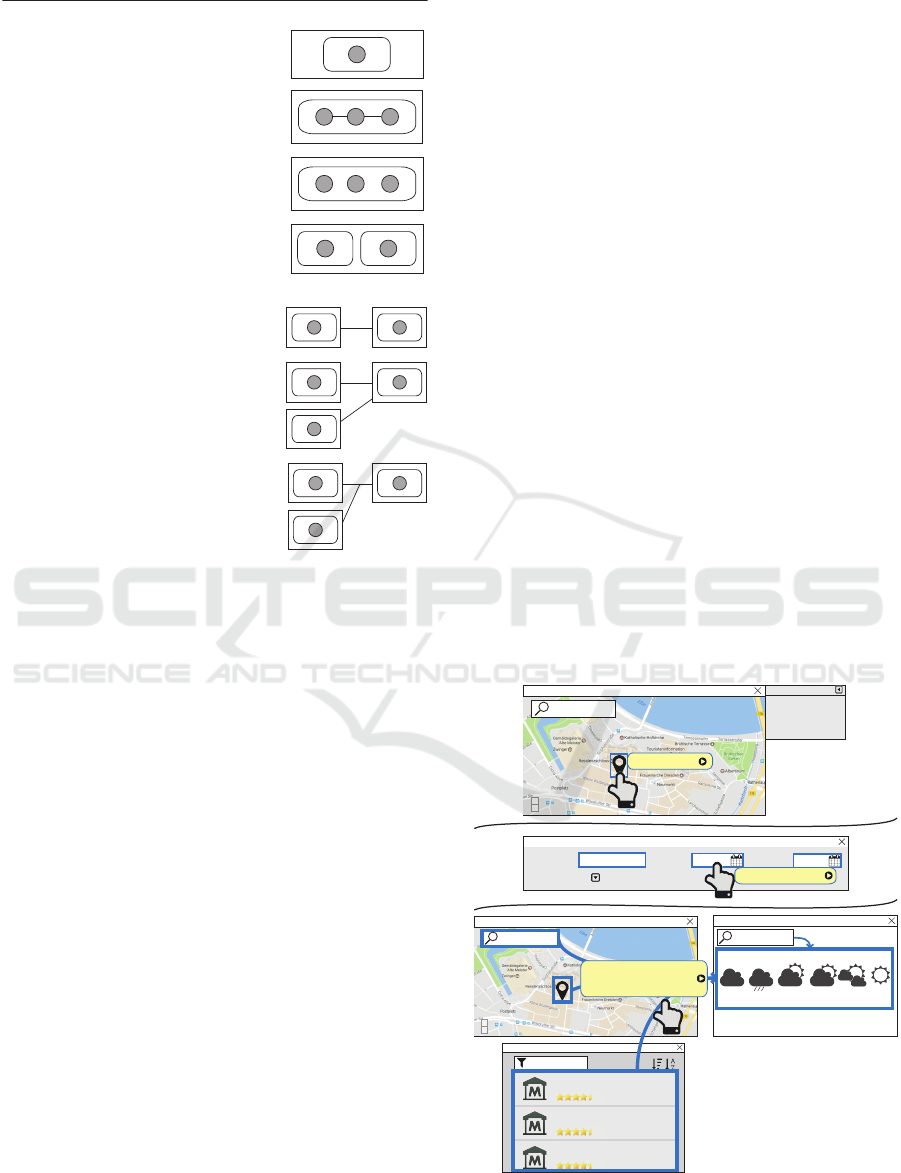

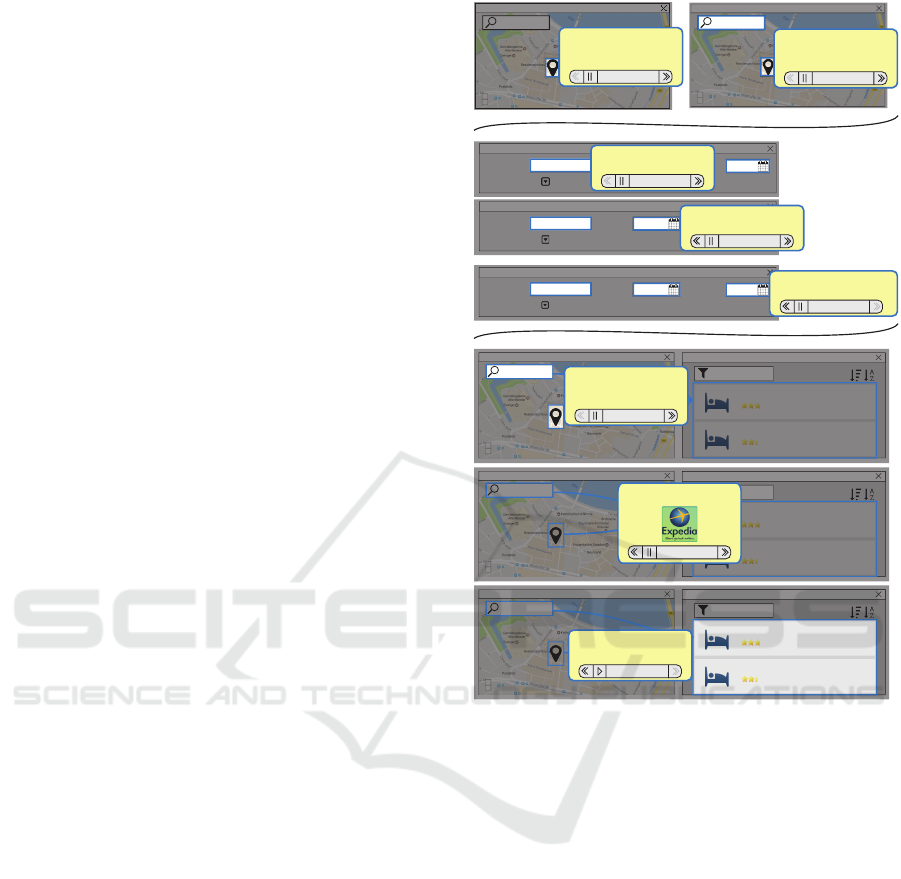

activates an explanation mode, which shows interac-

tive animations of necessary steps and interactions he

has to perform. It highlights elements of the com-

ponent UI, indicates sequential and parallel processes

and supplements this with textual descriptions of what

to do. Such explanations not only work for compo-

nent interplay, but for capabilities of single compo-

nents and how these are reﬂected on the component

UI, too. This helps Bob understand that he can move

a marker or type the location name in an input ﬁeld

of the map in order to select a location. Bob did not

yet notice the communication link between map and

weather widget, because these are positioned far away

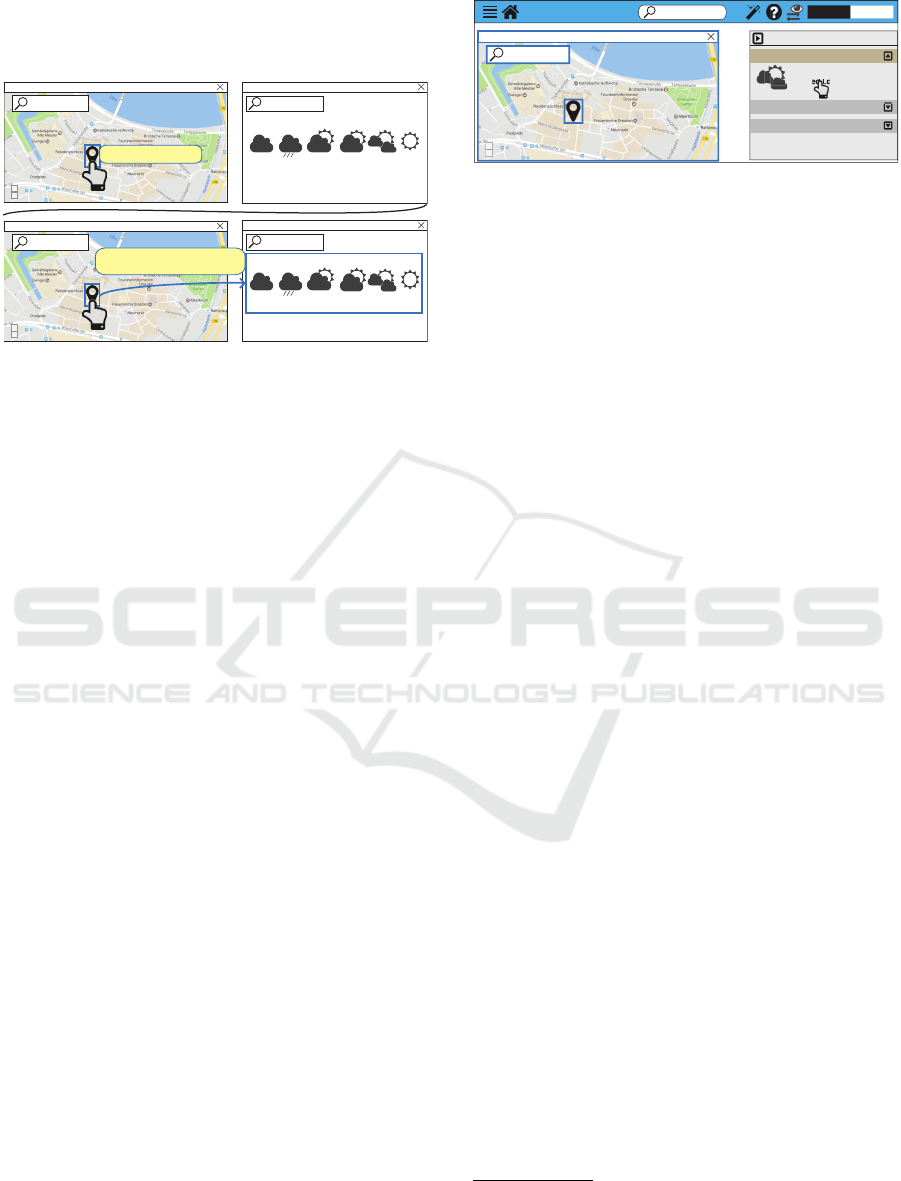

from each other on the screen. The platform offers

a feature that animates the data ﬂow when it occurs,

utilizing the same visualization techniques as in the

explanation mode. This way, Bob gets aware of data

transfer between map and weather widget.

In order to implement the reference scenario and

to tackle the challenges stated above, there are at least

the following foundational requirements:

• Mashup functionalities have to be explained to

non-programmers. While for single components

tutorials can be statically provided by developers,

this is an issue for CWA since end-users are the

developers and components are combined in un-

foreseen ways. Explanations should be optically

consistent for all CWA. Thus, it seems inappro-

priate to depend on component-provided tutorials

and combine them. Therefore, explanations have

to be provided automatically and have to support

arbitrary mashups. They should be interactive and

directly presented in the UI of components.

• There need to be mechanisms to foster awareness

for IWC when it occurs. They have to support ar-

bitrary communication channels. As pointed out

in (Tschudnowsky et al., 2014), such mechanisms

should directly be presented in the UI of compo-

nents, as this actually can help users.

While most mashup approaches support users

with visual composition paradigms and recommenda-

tions, assisting the understanding of a CWA at hand

and making users aware of IWC are neglected or very

limited so far. Traditional approaches like static help

pages and forums lack suitability, too. Thus, as a

main contribution of this paper, we introduce a set

of generic techniques for exploration, explanation and

awareness of the capabilities of arbitrary CWA. They

allow non-programmers to investigate the functional-

ity of single components and of the IWC of a mashup.

Based on component annotations, step-by-step tuto-

rials are generated, which textually and graphically

present instructions on how to achieve capabilities in

the component UI. Furthermore, we propose concepts

for awareness of IWC at runtime. The techniques

are especially valuable since they work for unforeseen

combinations of black box components. We evaluate

our concepts with the help of a user study.

The remaining paper is structured as follows. In

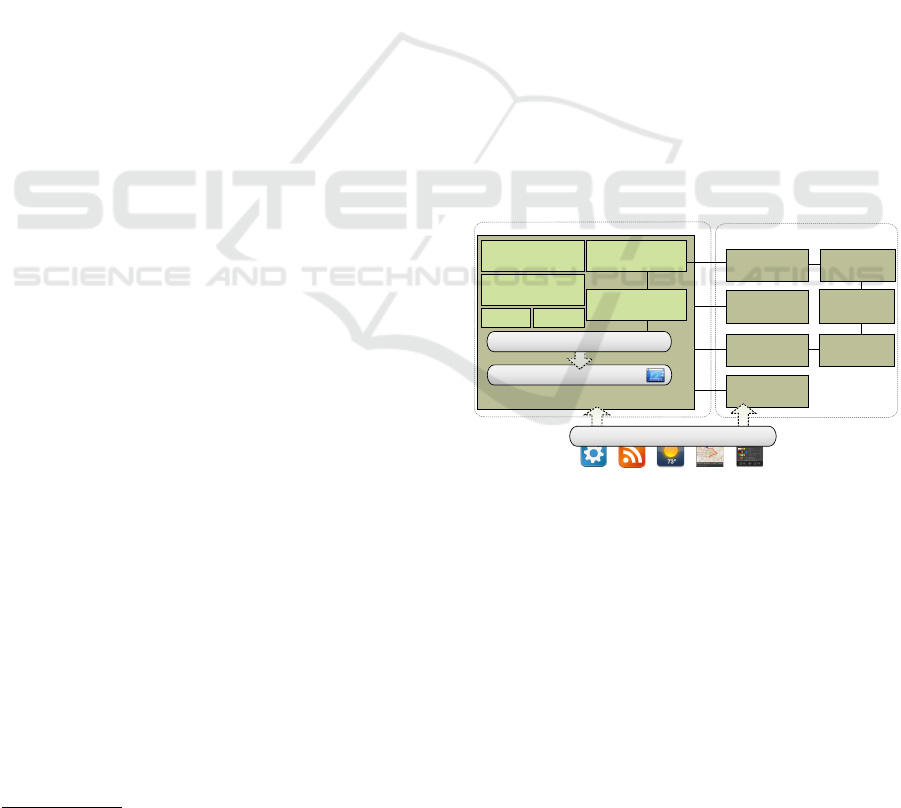

Section 2 we discuss related work. Next, we brieﬂy

outline our overall assisted end user development

(EUD) approach in Section 3. A requirements analy-

sis based on evaluation results of our early approaches

is subject of Section 4. Based on this, we introduce

our concepts for explanation and awareness of IWC

in Section 5. Results of a user study we conducted for

evaluation are presented in Section 6. Finally, Sec-

tion 7 concludes the paper and outlines future work.

2 RELATED WORK

According to (Gery, 1995), three types of perfor-

mance support can be distinguished. Intrinsic sup-

port is inherent to the system and thus seamlessly in-

tegrated with the UI and behavior of the system. As an

advantage there is no break in the workﬂow of users.

But such techniques are limited in extent since they

compete with the normal application for the UI space.

Extrinsic support is directly integrated with the sys-

tem as well, yet not in the primary workspace. It is

often contextualized regarding the user task and typ-

ically requires the user to invoke or accept it (Gery,

1995). Examples for this category include expla-

nations, demonstrations and wizards. Our approach

can be assigned to this category. External support

is not integrated with the workspace itself, for exam-

ple, forums, tutorials and help pages on the web. Due

to missing context speciﬁcity, users have to transfer

the knowledge to their current task context ad hoc.

External support is suited for extensive developer-

provided content, like components in our case, and

introductions to static content. However, in the case

of short-termed, situation-speciﬁc CWA with unfore-

seen combinations of components and dynamic appli-

cation context, they lack practicability and suitability.

The Idea Garden (Cao, 2013) aims at supporting

users to overcome design barriers. To this end, strate-

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

150

gic suggestions for problem solving are visualized in

an extrinsic manner. Suggestion also include step-

wise instructions on how to perform a strategy. How-

ever, suggestions are often generic and context-free

and there is no direct link to the component UI.

The Whyline (Ko and Myers, 2004) supports users

to debug their programs. In order to do so, develop-

ers construct “why did” and “why did not” questions

using menus and referencing objects involved in an

algorithm. Answers are presented using a graph visu-

alization of actions, which happened at runtime, and

arrows that indicate causality. This approach operates

on a more source code oriented level than our concept

and there is no visualization of active data transfer.

In the mashup domain, most EUD platforms pro-

vide at least external support. As we explicate in the

following, intrinsic and extrinsic techniques are miss-

ing or very limited so far. Some composition para-

digms and metaphors can also be used to explain what

should go on in a mashup. Usually a derivation of “if-

then” is employed, e. g., in IFTTT

, CapView (Radeck

et al., 2013), PEUDOM (Picozzi, 2013) and Natural-

Mash (Aghaee and Pautasso, 2014). In simple scenar-

ios, the resulting composition logic is suitable to also

explain functionality. However, a link to the actual

UI needs to be provided and missing in IFTTT and

CapView. In PEUDOM communication channels are

created or edited in a dedicated dialog by selecting an

event and an operation. Based on this, a short sen-

tence reﬂects the causal relation. However, there is

no means for explaining the overall functionality. In

a widget editor, the link between data schema and UI

can be established graphically. However, techniques

are not used to explain widget functionality later on.

NaturalMash (Aghaee and Pautasso, 2014) uses re-

stricted natural language to deﬁne composition logic.

Conceptually, when selecting text fragments, corre-

sponding UI elements are highlighted. However, de-

tails and an evaluation on this are unavailable. We

also utilize generated labels, but further support ani-

mations for complex composition fragments directly

within the UI of a CWA. In FAST-Wirecloud (Liz-

cano et al., 2016) semantically annotated widgets are

composed. Behaviors represent functionality parts of

a mashup and feature natural language descriptions.

They are used to ease the composition process, but

not to explain a mashup at runtime.

Within the OMELETTE project, a live develop-

ment mashup environment has been created. A dis-

tinct composition paradigm is followed, where per

default all possible communication channels between

widgets are established. This leads to challenges in

awareness and control of users (Chudnovskyy et al.,

https://ifttt.com/

2013). Thus, features fostering awareness for IWC

were proposed (Tschudnowsky et al., 2014). Commu-

nication relations of widgets are shown on the canvas

and data transfer is indicated by highlighting the in-

volved widgets. However, the authors point out, that

suitable visualization techniques are still an open re-

search question. In addition, there are no explanations

of the functionality communication relations provide.

The MashupEditor presented in (Ghiani et al.,

2016) highlights UI elements of widgets and visual-

izes arrows to indicate communication relations. We

use similar base techniques, but also present anima-

tions and textual explanations to the user.

In summary, none of the presented approaches ful-

ﬁlls all requirements. Thus, we propose generic tech-

niques for mashup platforms that explain CWA func-

tionality in a manner adequate for non-programmers.

3 THE CRUISE PLATFORM FOR

EUD OF MASHUPS

Now we brieﬂy outline the core characteristics and

necessary foundations of the CRUISE mashup plat-

form (Radeck et al., 2016) shown in Figure 1 and re-

late the concepts we present in this paper to it.

Mashup Runtime Environment

Pattern

Repository

Context

Service

Application

Repository

Component

Repository

CapView LiveView

Requirements

Composer

Explanation

Techniques

Adaptation

System

management and services

bind

composite web application

composition model (MCM)

composition and usage

universal description (SMCDL)

Meta Data

Indexer

Functionality

Analyzer

Pattern

Miner

Recommendation

System

Figure 1: Architectural overview of our platform.

The CRUISE platform follows a model-driven ap-

proach to create and execute mashups. Web resources

and services can be encapsulated as components. In

line with universal composition, components of all

application layers are uniformly treated as black-

boxes and share a generic component model. The lat-

ter characterizes components by means of several ab-

stractions: events and operations with typed parame-

ters, typed properties, and capabilities. The declara-

tive Semantic Mashup Component Description Lan-

guage (SMCDL) provides a concrete syntax for the

component model. It features semantic annotations to

clarify the meaning of component interfaces and ca-

pabilities (Radeck et al., 2013). All aspects of a CWA

Helping Non-programmers to Understand the Functionality of Composite Web Applications

151

are modeled with the help of the Mashup Composition

Model (MCM). This includes the components to be

integrated, application screens and their layout, and

the event-based communication.

Capabilities allow to model functional and be-

havioral semantics of composition fragments, i. e., of

components, applications as well as patterns. Ca-

pabilities describe what a composition fragment is

able to do or which functionality it provides, like dis-

playing a location or searching hotels. To this end,

capabilities essentially are tuples (activity, entity) –

denoted activity entity from now on – and ex-

press which activity or task is performed on or with

which domain object, e. g. search hotel. Refer-

ences to semantic concepts described in ontologies

back the description with formal semantics providing

domain-speciﬁc knowledge and allow for reasoning.

To achieve a capability, it may be necessary for the

user to partake and interact with the UI or not. There-

fore, UI and system capabilities are distinguished. To

establish hierarchical structures, capabilities can be

composite. The relation of children of a composite

capability is deﬁned by a connective, e. g., parallel

and sequential. In case of sequences, capabilities are

chained to deﬁne the order using next and previous.

As an example, the capability search route can be

described as a sequence of select start, select

destination, search route and display route.

View bindings are a concept particular for UI ca-

pabilities. They link the semantic layer and the UI

of a component. Basically, a view binding comprises

interaction steps, modeled as atomic, parallel or se-

quential operations. Atomic operations point to DOM

elements, using a selector language, e. g. CSS se-

lectors, can name the elements and deﬁne interaction

techniques, like click and sweep (see lines 3 and 6 in

Listing 1). To reduce complexity of annotating and

algorithmic processing, composite operations are re-

stricted to one layer of atomic operations. Each UI

capability can be equipped with multiple view bind-

ings, which are considered alternatives then, e. g., if it

is possible to select a location via typing something in

a text ﬁeld or double clicking a map (lines 2 and 5).

1 < capability ac t i v i t y = " S e l e ct " e n t i t y = " L o c a t ion " >

2 < v i e w b i n d i n g >

3 < a t omicop e r a t i o n e l e m ent = " inp u t [ id $= ’

ma p T e x tFie l d ’] " in t e r a c t i o n = " ty pe " / >

4 </ v ie w bi n d i n g >

5 < v i e w b i n d i n g >

6 < a t omicop e r a t i o n e l e m ent = " di v [ id $= ’

lo c a t i o n M arker ’ ] " e l e m e n t N a me =" map

ma r k e r " in t e r a c t i o n = " dr a g A n d D r o p " / >

7 </ v ie w bi n d i n g >

8 </ capability > . ..

Listing 1: Excerpt of a SMCDL descriptor.

Capability

Enty

Acvity

UI Capability

System

Capability

View Binding

Requirement

Composite

Capability

Connecve

2…*

next / previous

0..1

rdf:Resource

children

Acvity

Modiﬁer

Enty

Context

Domain

0..1

Associaon

Aggregaon

Inheritance

instanceOf

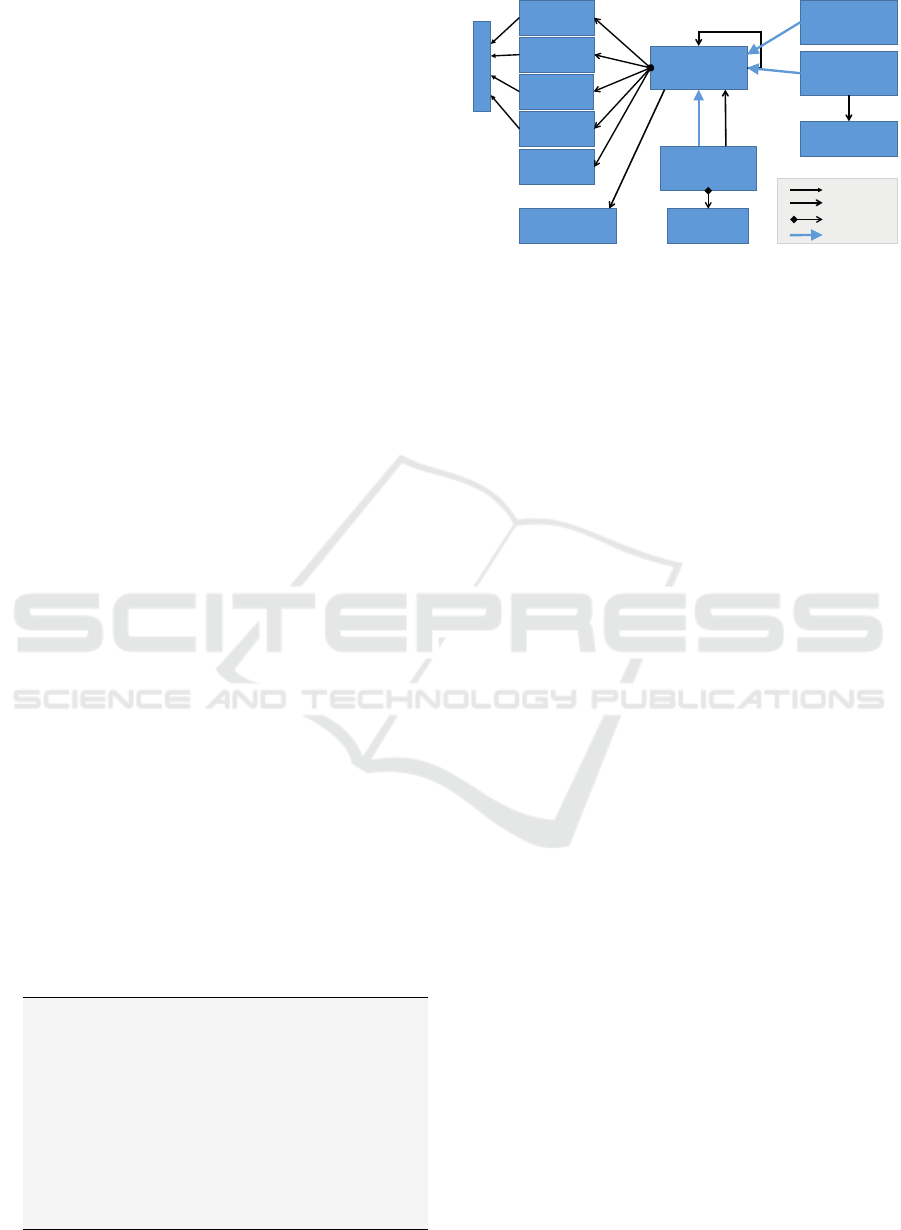

Figure 2: The capability meta-model.

The CRUISE mashup platform strives to enable

end users to build custom CWA. Thereby, we specif-

ically address domain experts without programming

knowledge. They typically know their problem and

possible solutions in terms of domain tasks to per-

form, but fail to map such solutions on technical re-

quirements or mashup compositions. A fundamen-

tal feature of our approach is that run time and de-

velopment time of a CWA are strongly interwoven.

Users can seemingly switch between editing and us-

ing an application. Composition model concepts and

other technical terminology are hidden to a high ex-

tent. Instead, communication with users takes place

on capability level and necessary mappings of com-

position steps to composition model changes are han-

dled transparently by the platform.

A mashup runtime environment (MRE) is

equipped with a set of tools and mechanisms. For ex-

ample, a recommender system gives advice on com-

position fragments to users. Deriving recommenda-

tions is based on patterns, which represent composi-

tion knowledge. An MRE provides different views on

the current CWA: The live view is mainly intended for

usage and thus only component UIs are visible to the

user. Complementing this, there are overlay views,

like the CapView (Radeck et al., 2013), that display

component and composition model details and mainly

serve for development purposes. Tools like the afore-

mentioned CapView and our novel explanation tech-

niques, which are subject to this paper, explain the

capabilities originating from components and their in-

terplay in a textual and visual manner.

Components, composition models and patterns

are managed by server-side repositories and analyzed

by several modules. For instance, the functional-

ity analyzer calculates the capabilities of composition

fragments (Radeck et al., 2016). The concepts we

present in this paper build up on the derived capability

models. Regarding CapView, we re-use its label gen-

erator, but provide explanation techniques directly in

the component UI rather than in an abstract view.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

152

4 FIRST APPROACHES AND THE

LESSONS LEARNED

As described in (Radeck et al., 2013), the CapView

not only allows to perform development tasks like

adding communication channels. It additionally pro-

vides basic means for inspection and navigation of

component capabilities. CapView is overlaying the

live view of CWA and positions capability represen-

tations above the components that provide them (see

Figure 3). It visualizes connection lines between ca-

pabilities in case there are communication channels.

Based on a set of rules and the ontology concepts re-

ferred to in capabilities, labels are generated. After

a capability is selected, the labels of all other capa-

bilities, with which it can be connected, are adapted

to form short sentences. This way, the functionality

provided by communication channels is explained to

users. Non-UI components are treated specially. In

CapView an icon representing the service is attached

to connections where it is involved. The live view fea-

tures a dedicated non-ui component panel. In both

cases, generated labels describe the functionality.

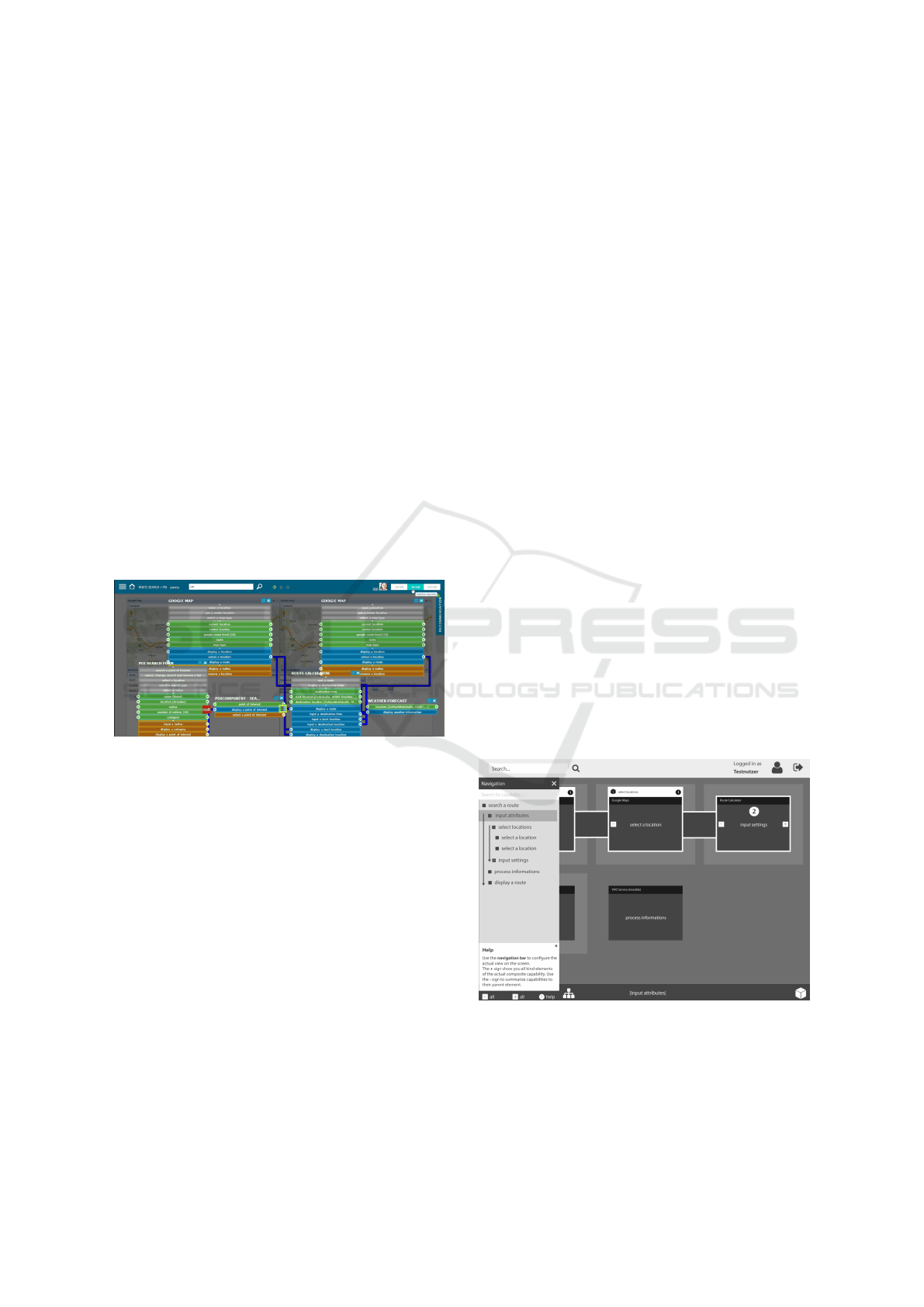

Figure 3: CapView prototype in a rather complex CWA.

To evaluate this ﬁrst iteration of concepts, we con-

ducted several small user studies. We found in the

user study presented in (Radeck et al., 2013), that this

approach, especially adaptive labels and positioning

capabilities above components, has potential. How-

ever, we also pointed out some drawbacks. For in-

stance, since CapView is designed as an overlay and

abstracts from instance data and component UI, users

had problems to understand how to achieve capabil-

ities. We conducted another small user study, in or-

der to deepen our problem understanding by identi-

fying conceptual and usability issues users face using

our composition environment. Five non-programmers

participated. They were brieﬂy introduced to the plat-

form and then asked to solve several tasks. Using

our prototype, different CWA, e. g., a route search

mashup with two maps and a route calculator, were

presented to the users. The tasks aimed at testing

if users understand component and application func-

tionality and if the existing tools are accepted and

usable. For instance, the participants were asked to

name the overall mashup capabilities, to identify com-

ponents contributing to the route search capability,

to list interacting components and the resulting func-

tionality, and to describe how to search points of

interest. Finally, the participants were encouraged

to freely use a third CWA and thereby mention under-

standing problems and suggest improvements.

The results of this user study were manifold. First,

we conﬁrmed some known and identiﬁed new is-

sues with CapView as a means to understand CWA.

Main problems we identiﬁed were switching into a

dedicated view and thus leaving the live-view, and

users struggling with realizing the connection be-

tween CapView and corresponding elements in the

component UI. Consequently, users experimented in

the live view rather than using CapView. Few users

were unable to cope with CapView at all. Generally,

it became evident that even in rather simple applica-

tions, users may face understanding problems when

using components or applications they are unfamiliar

with or which do not match with their expectations.

Some users misinterpreted the purpose components

serve for, since they expected that it is determined by

positioning on the canvas or the temporal sequence

they interact with components. Moreover users were

sometimes unaware of IWC, e. g., between map and

weather widget. In this point, we can conﬁrm the re-

sults of (Chudnovskyy et al., 2013). Also directed

data ﬂow caused confusion when a bidirectional syn-

chronization was assumed, e. g., between maps and

route calculator. The non-ui component panel was of-

ten ignored or misinterpreted as advertisement.

Figure 4: The discontinued CompCapView approach.

As another limitation, CapView does not give

hints about overall capabilities of a CWA at hand.

Thus, we developed CompCapView as an extension

that supports composite capabilities, see Figure 4. Ba-

sic principles are kept, e. g., it overlays the live view,

Helping Non-programmers to Understand the Functionality of Composite Web Applications

153

and capability representations are drawn above the

components, which offer these capabilities. Depend-

ing on the current position within the capability hier-

archy, representations of child capabilities are drawn

and connected to each other. In case of a sequential

relation of the capabilities, their order is denoted by

numbers. Initially, all root capabilities are displayed.

It is possible to zoom in and out within the hierarchy.

In addition, a panel displaying CWA capabilities in

a tree-like manner was created. As a main feature, it is

synchronized with the current view. In case of Comp-

CapView it propagates the currently selected capa-

bility which is focused and highlighted subsequently.

Within the live view, the components providing or

partaking at the selected capability are highlighted.

In order to evaluate these concepts, we conducted

a small user study. The evaluation was based on a

prototype of CompCapView and the capability panel

within our client-server MRE. Six persons partici-

pated, which were in average 23 years old and all

had no knowledge about mashups and programming.

They worked or studied in different sectors, like econ-

omy, medical engineering, social pedagogy and retail.

After a short introduction to the principles of

CompCapView, participants were asked to solve sev-

eral tasks that aimed at the core features of the Comp-

CapView. For example, they were asked to name the

overall capability of a given application and to de-

scribe in which sequence components are employed

to fulﬁll this functionality. Furthermore, we were for

instance interested in whether the navigation between

layers is understandable and usable and if participants

comprehend the meaning of connections.

All participants were able to determine the overall

mashup functionality and 5/6 stated correctly which

components actually contribute to mashup function-

ality. Most participants understood the layering con-

cept (4/6) as well as the relation of composite capa-

bility representations and the actual mashup compo-

nents (5/6). However, only half of the participants

identiﬁed sequential or parallel capabilities correctly.

Several remarks and comments address issues of the

prototype rather than conceptual ones. A crucial con-

ceptual problem was that connections of composite

capabilities were misinterpreted as an indicator for or-

der, which was further complicated by assumed read-

ing directions. The study revealed, that specially the

navigation panel was considered useful since it pro-

vides quick access to capabilities of a CWA. An av-

erage system usability scale (SUS) score of 66 indi-

cates acceptable, yet limited usability. In addition,

the results of the Task Load Index questionnaire show

medium mental demand and effort. Although the par-

ticipants considered time demand low and frustration

low to medium and were satisﬁed with their perfor-

mance, this underpins the ﬁnding, that the chosen

approach has potential but lacks suitability for non-

programmers.

In summary, from these ﬁndings and observations,

we amongst others conclude that:

• explanations techniques should operate directly

within the UI of components of the CWA at hand;

• visual connections of capabilities must carry an

intuitive semantics; and

• composite capabilities should be accessible via an

overview panel.

Next, we present our current approach that incor-

porates the lessons learned.

5 CURRENT APPROACH

In this section we go into details on our concepts

for assisting users to understand what functionality

a CWA provides and how to use it. This subsumes

several features, which serve different purposes, like

giving an overview on capabilities, providing detailed

stepwise instructions and making users aware of IWC.

5.1 Preliminaries

As described in Section 3, components are annotated

with capabilities. Each UI capability should carry

view bindings in SMCDL.

Capabilities of components serve as a founda-

tion for capabilities of arbitrary composition frag-

ments. Their connections deﬁned both within com-

ponents and by IWC can be analyzed to derive a ca-

pability graph as presented in (Radeck et al., 2016).

Such a graph consists of capability links as edges

and capabilities as nodes. Capability links represent

inter-component communication channels and intra-

component relations as deﬁned in SMCDL. Isolated

subgraphs which are coherent in themselves are called

capability chains. Starting from the capability graph,

a hierarchy graph is calculated per capability chain.

Thereby, composite capabilities representing higher

level functionalities provided by a CWA are derived.

In order to identify the interaction steps for a compos-

ite capability from the hierarchy graph, the hierarchy

has to be recursed until reaching atomic capabilities.

This leads to the corresponding capability chains, al-

lowing to apply the cases introduced above.

In light of the presented modeling concepts, sev-

eral constellations of capabilities and view bindings,

summarized in Figure 5, have to be considered by ex-

planation techniques based on capability graphs.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

154

One view binding with one

atomic operation

One view binding with one sequential

operation consisting of several atomic

operations, which have to be performed

in a specic order.

One view binding with one parallel

operation expressing that several

atomic opereations have to be

performed without specic order.

Several view bindings representing

alternatives. Cases 1-3 apply as well.

Single capability link between two

Capabililties. Cases 1-4 apply as well.

Multiple ingoing capability links

(OR Pattern): Data for a target

capability are provided by several

capabilities. Cases 1-4 apply as well.

Multiple ingoing capability links

(AND Pattern): Several capabilities

are required in conjunction for a

target capability.

Cases 1-4 apply as well.

Case ID Description

Schematic representation

Single UI Capability

Capability Chains

Figure 5: Main constellations to be considered.

5.2 Core Visualization Concepts

Explanation techniques directly operate within the UI

of components rather than in abstract views. To do so

in context of our black-box component model, view

bindings declaratively establish links between UI and

capabilities. To cover all cases outlined in Figure 5,

there are three basic visual element types, which we

consistently use within the explanation techniques.

View binding frames highlight UI elements refer-

enced by view bindings.

Arrows connecting view binding frames represent

capability links and indicate data ﬂow direction.

Description boxes are placed near view binding

frames or arrows and display textual explanations

of capabilities or interaction steps. The text is

context-sensitively generated utilizing capability

and view binding annotations.

Per default, a view binding frame is rendered for

all DOM elements referenced by the selectors of the

atomic operations of a capability c. If c is no UI ca-

pability or has no view binding, the whole compo-

nent panel is framed. In the special case of non-UI

components a description box is rendered and framed.

Further challenges are posed by UI elements refer-

enced by view bindings, which are invisible at the

time needed, e. g., if a component uses tabs. Al-

though it would be possible to make such elements

visible, e. g., via declarative instructions in SMCDL

or imperative implementations that are invoked by the

MRE. However, this results in high effort for compo-

nent developers and it is questionable whether such

solutions work generically. Thus, we employ a sim-

pliﬁed, generic solution. If a referenced element is

invisible, the whole component panel is framed and a

textual hint is shown in description boxes.

5.3 Assistance Features

Based on the capabilities described in SMCDL, the

capability and hierarchy graphs of a CWA, and the vi-

sual element types introduced above, we propose a set

of generic explanation techniques. These are: Capa-

bility panels listing capabilities of mashups and com-

ponents; a recommendation panel that shows recom-

mended patterns emphasizing their capabilities; the

inspection mode for exploring capabilities and capa-

bility links in the UI; the tutorial mode which pro-

vides step-by-step instructions; as well as the aware-

ness mode indicating data ﬂow at runtime.

The inspection mode allows users to explore the

functionality of components and CWA. Its main pur-

pose is to present capability chains of a mashup, de-

scribe their functionality and indicate relevant UI ele-

ments. This way, the inspection mode can be consid-

ered as a CapView integrated within the live view.

MAP

CAPABILITIES

Change Zoomlevel

Select Location

Display Route

Display Location

HOTEL SEARCH

Further criteria

Destination

Dresden

Arrival

Departure

05.02. 06.02.

Select a location

MAP

WEATHER

Today Tomorrow

6:00 12:00 18:00 6:00 12:00 18:00

12 °C 17 °C 16 °C 11 °C 19 °C 20 °C

Dresden, Germany

HOTEL LIST

Verkehrsmuseum Dresden

Augustusstraße 1, Dresden

OPEN

0.24 km

Neues Grünes Gewölbe

Residenzschloss, Taschenberg 2, Dresden

OPEN

0.26 km

Gemäldegalerie Alte Meister

Theaterplatz 1, Dresden

OPEN

0.38 km

Select a location in Map or

Hotel List to display weather

information in Weather

Dene search criteria

Figure 6: Exempliﬁed inspection mode.

Helping Non-programmers to Understand the Functionality of Composite Web Applications

155

From a dedicated menu button the inspection

mode can be activated and deactivated. Once it is

active, all inter-component capability links are visu-

alized by drawing view binding frames and arrows.

Intra-component links are hidden initially if they are

not transitively connected to inter-component links,

and are shown on demand. The rationale for this is to

avoid confusing appearance and that component ca-

pabilities are often known to users.

As soon as the user explores a component’s UI,

its capability panel appears. Further, view binding

frames become visible when the corresponding UI el-

ements are hovered as illustrated in the upper part of

Figure 6. In cases 2 and 3, all other elements refer-

enced in sister atomic operations are highlighted as

well, see middle part of Figure 6. Additionally, a de-

scription box appears. It provides access to the tu-

torial mode for that capability, indicated by a ”play

button”, and hosts a text which is derived from capa-

bilities using the concepts from (Radeck et al., 2013).

If the capability whose view binding is hovered is part

of a capability chain, all corresponding arrows and

frames are emphasized, respectively intra-component

chains become visible. Further, the description text

mentions all capabilities of a link. It explains cause

and effect by forming sentences based on the capa-

bilities and communication channels involved, pay-

ing attention to the link direction and the hovered ca-

pability. We extended the label generation facilities

to also include component names and to connect sev-

eral capability labels by “and” (case 7) and “or” (case

6). Hovering special text fragments, like component

names and capability labels, leads to highlighting of

component panel or view binding frame.

When selecting an arrow, it and all other arrows

and view binding frames belonging to that capability

link are emphasized and a description box appears as

shown in the lower part of Figure 6. Again, the user

can start a tutorial to learn in detail what to do.

The tutorial mode focuses on explaining interac-

tion steps rather than the full detail of capabilities.

Therefore, UI capabilities are of main interest and

serve to generate stepwise instructions. This mode

is accessible via buttons in capability panels and in

description boxes of the inspection mode.

When activated for a capability or a capability

chain, the tutorial mode shows and highlights the

view binding frames of the ﬁrst interaction step by

graying out the remaining CWA in order to direct user

attention, cf. Figure 7. A description box fades in,

featuring a generated text and a navigation bar. The

latter has controls to auto-play, close, pause, step for-

ward, step back in the tutorial. Generated description

texts consist of the interaction technique required, the

MAP

HOTEL SEARCH

Further criteria

Destination

Dresden

Arrival

Departure

05.02. 06.02.

MAP

HOTEL SEARCH

Further criteria

Destination

Dresden

Arrival

Departure

05.02. 06.02.

HOTEL SEARCH

Further criteria

Destination

Dresden

Arrival

Departure

05.02. 06.02.

MAP

LIST

Hotel Residenz

VACANCIES

0.24 km

49€

7.6 user rating

Hotel am Park

VACANCIES

0.4 km

52€

6.3 user rating

MAP

LIST

Hotel Residenz

VACANCIES

0.24 km

49€

7.6 user rating

Hotel am Park

VACANCIES

0.4 km

52€

6.3 user rating

MAP

LIST

Hotel Residenz

VACANCIES

0.24 km

49€

7.6 user rating

Hotel am Park

VACANCIES

0.4 km

52€

6.3 user rating

Step 1 of 2

Type in the location texteld or

move the map marker

to select a location.

Step 2 of 3

Hotels are searched

based on services of

Step 3 of 3

Hotels are displayed in

the results area in List

Step 1 of 3

Type in the destination eld ...

Step 2 of 3

...then type in the

destination eld ...

Step 2 of 3

... then type in the departure

date eld to dene search criteria.

Step 1 of 1

Move the map marker

to select a location in Map

Step 1 of 1

Type in the location texteld or

move the map marker

to select a location in Map

Figure 7: Exempliﬁed tutorial mode.

element name, the capability achieved and the com-

ponent name. Again, the sentence structure differs

slightly depending on the position of the capability in

a link in order to reﬂect cause and effect.

Examples for the cases 1 and 4 can be seen in the

upper part of Figure 7. In case 2 one tutorial step per

atomic operation exists, see middle part of Figure 7,

while in case 3 there is a single step and a text men-

tioning all atomic operations in conjunction. Simi-

larly, in case 6 all source capabilities of a link are ex-

plained in one step, with a description box per source

capability. In contrast, a constellation like in case 7

results in separate steps per source capability.

Tutorials incorporate non-UI components. To this

end, an additional step is included, which visualizes

a description box displaying the component’s name,

icon and capabilities provided in context of the capa-

bility chain to be explained. For an example, please

refer to the lower part of Figure 7.

The purpose of the awareness mode is to make

non-programmers aware of IWC when it occurs at

run time of an arbitrary CWA. To this end, it builds

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

156

upon the presented visualization concepts for inter-

component capability links. Via a dedicated button in

the menu bar, the mode can be activated.

MAP

WEATHER

Today Tomorrow

6:00 12:00 18:00 6:00 12:00 18:00

12 °C 17 °C 16 °C 11 °C 19 °C 20 °C

Dresden, Germany

MAP

WEATHER

Today Tomorrow

6:00 12:00 18:00 6:00 12:00 18:00

12 °C 17 °C 16 °C 11 °C 19 °C 20 °C

Dresden, Germany

You selected a location

Weather information is displayed

for the selected location

Figure 8: Exempliﬁed awareness mode for two instants.

As soon as an event is ﬁred on a communication

channel, the corresponding capability c is determined

and set as start capability c

. In case c is no UI capa-

bility and is linked with preceding capabilities, c

set to the ﬁrst UI capability from the predecessors if

there is such. Analogously c

is obtained at the tar-

get side of a capability link. An animation of con-

ﬁgurable duration is started then, ﬁrst displaying the

view binding frames of c

as illustrated in the upper

part of Figure 8. A description box with generated

text is presented to indicate the action. Next, an arrow

is shown, followed by the view binding frames of c

and a description box, see lower part of Figure 8. Case

7 requires particular consideration, where several in-

teractions are necessary in order to join all data before

can actually be performed. Thus, the last anima-

tion step is postponed and instead the view binding

frames of the required other capabilities are displayed

for a while, each complemented with a description

box pointing out necessary user actions. When all

input is provided, the animation continues with the

frames and description boxes of c

A capability panel provides insight on the capa-

bilities of the overall mashup or single components.

It represents the tree-like hierarchy graphs of a CWA

or lists the capabilities of components, as indicated in

Figure 6. Capabilities are textually described by gen-

erated labels. When selecting a capability, all partak-

ing components are highlighted. In addition, the tuto-

rial mode can be started for that capability. Synchro-

nization also takes place with the inspection mode:

When a user hovers a view binding there, affected ca-

pability panels highlight the corresponding capability.

Figure 9 depicts the recommendation panel

which lists recommended composition steps. A novel

two-step approach for visualizing recommendations

is applied and largely builds up on the capabilities of

the underlying patterns. As a prerequisite, clusters of

NEW MASHUP

LIVE VIEW CAP VIEW

RECOMMENDATIONS

DISPLAY WEATHER INFO

in Weather Forecast by the

selected Location from Map

selected Location from

SHOW ROUTES

SEARCH HOTEL

MAP

Figure 9: The recommendation menu.

recommended patterns according to their capabilities

are calculated. In a ﬁrst step, all clusters are presented

to the user with the help of generated labels, e. g.,

display weather info. After the user made his

choice, descriptions for each pattern from that cluster

are shown. Therein, besides component icons, addi-

tional text fragments complement the cluster label to

form a short sentence containing component names

and the corresponding capabilities. When hovering

these text parts, the component is highlighted or the

view binding frame appears. In the previous example,

a pattern-speciﬁc text extension may be "in Weather

Forecast by the location selected in Map".

In summary, we propose generic explanation tech-

niques which enable users to explore, learn how to

utilize and become aware of CWA capabilities.

6 EVALUATION

In this section, we go into detail on the prototype we

developed and how we validated our concepts.

6.1 Implementation

Our prototype extends the client-server runtime envi-

ronment of the CRUISE platform, mainly its client-

side part, which is implemented using technologies

like HTML5 and CSS. Several JavaScript frameworks

are employed. We utilize Bootstrap Popovers

for

rendering description boxes and jsPlumb

for draw-

ing arrows based on SVG. Bootstrap Tour

offers the

necessary features to implement step-by-step tutori-

als. The capability model of the current CWA, which

is derived by a dedicated web service and managed

by the MRE as JSON object, is analyzed in order to

setup corresponding data structures for the explana-

tion techniques. Thereby, capability chains are pro-

cessed in several ways: Intermediate system capabil-

ities, e. g. in case of non-UI components, are skipped

http://getbootstrap.com/javascript/

https://jsplumbtoolkit.com/

http://bootstraptour.com/

Helping Non-programmers to Understand the Functionality of Composite Web Applications

157

and information about composite capabilities, multi-

ple view bindings of a capability and parallel or se-

quential operations are used to derive all interaction

steps. Based on this, Tour objects are instantiated.

Once activated, the prototype of all three modes cre-

ates a transparent overlay div element per component.

It serves as canvas for rendering view binding frames,

description boxes and arrows. We also implemented

the CWA capability and recommendation panels.

6.2 User Study

Methodology. To validate the concepts presented

in Section 5, we conducted a user study. Ten non-

programmers with an average age of 31, ranging from

16 to 56, and from very different background and sec-

tors, e. g., forestry, mechanical engineering, photogra-

phy, economics, sale and medicine, participated.

We split the users in two groups of ﬁve each.

Group A used our mashup platform without, the other

group B with the explanation techniques. In line with

the think-aloud method, our participants were asked

to individually solve a set of tasks and thereby express

their thoughts about next necessary steps, expected

system behavior and how the actual system response

matches their expectations. The participants had to

solve multiple tasks of increasing complexity in con-

text of different CWA. In the simplest case, compo-

nent capabilities had to be identiﬁed and achieved.

Further, we tested if the users were able to identify

and perform capabilities provided by component in-

terplay, like searching a route or points of interest, and

if they are aware of IWC during mashup usage.

Besides creating the think-aloud protocols, we

measured the number of successfully solved tasks per

participant. In order to get a widely accepted and

comparable usability measure, we asked each person

to ﬁll out a SUS questionnaire. Finally, users were en-

couraged to comment on things they liked or disliked.

Our main goal was to show that the explana-

tion techniques help participants to gain insight about

given CWA and thus better perform the tasks, indi-

cated by the number of solved tasks. In order to do

so, we compared the results of both groups then.

Results and Discussion. Tables 1 and 2 illustrate

the resulting SUS score and the percentage of solved

tasks T

for group A respectively group B. As can be

seen, T

differs between both groups. Without the ex-

planation techniques, the participants of group A were

in average able to solve 50% of the tasks, ranging

from 36% to 59%. Group B was more successful, as

they reached an average of 79% with a minimum of

64% and maximum of 100%. Regarding the usabil-

Table 1: Results for group A (plain mashup platform).

P1 P2 P3 P4 P5 Avg.

55% 36% 55% 55% 59% 50%

SUS 60 48 58 65 53 57

Table 2: Results for group B (using our concept).

P6 P7 P8 P9 P10 Avg.

73% 64% 100% 73% 86% 79%

SUS 73 73 78 75 70 74

ity of our prototype we calculated the following SUS

scores: Group 1 in average 57, group 2 in average 74.

We interpret both as an indication, that our

approach seems useful and actually helps non-

programmers to better understand CWA they are un-

familiar with. A SUS score of 74 attests a decent

degree of usability, which we consider as a good re-

sult with regard to the preliminary status of our pro-

totype. From the comments and think-aloud proto-

cols we found potential for improvement especially

of our prototype. For instance, members of group B

repeatedly tried to directly perform steps when they

were shown in a tutorial, which however is impossible

due to the invisible div element. Further, there were

minor usability problems, like inadequate icons. Not

surprisingly, users did not pay much attention to the

capability list of components they are familiar with.

In addition, some users identiﬁed the limited support

of parallel sequences in our implementation. Such

shortcomings are subject to future work.

In summary, the results of our study are promis-

ing and show that the presented concepts can im-

prove users’ understanding of CWA functionality and

awareness of IWC. However, there are threads to va-

lidity. For instance, the rather small number of users

is suitable to identify usability problems (Nielsen,

2000), but larger-scale studies are needed to conﬁrm

our results. In addition there may be uninvestigated

side-effects from other platform features that may es-

pecially have hindered the participants of group A.

The presented concepts show limitations, e. g., our so-

lution for hidden elements is rather simplistic. Ad-

ditionally, annotations have to be provided, which

may be a demanding task, also due to different styles

allowed (amount and granularity of capabilities and

view bindings) leading to a multitude of options to

describe circumstances. However, in our opinion the

proposed approaches offer a lot of beneﬁts. They

work for black box components and arbitrary CWA.

The functionality of mashups can now be explored by

users within the component UI in a systematic and as-

sisted way, rather than in a trial and error style. Tuto-

rials are generated for CWA, lowering the effort for

component developers and resulting in a consistent

appearance for all components. In addition, tutori-

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

158

als provide contextualized instructions and operate in

component UI. As our study indicates, the proposed

explanation techniques help users to be aware of and

to understand the capabilities of mashups.

7 CONCLUSIONS

Development and usage of CWA are still cumber-

some tasks for non-programmers, for example, when

it comes to awareness of IWC and to understanding

the composite nature of the functionality of unfamil-

iar CWA. Prevalent mashup platforms offer no or very

limited assistance in this regard, resulting in trial and

error strategies of non-programmers.

Our model-driven mashup platform is character-

ized by interwoven runtime and development time

and a palette of EUD tools that aim to overcome lim-

itations of current mashup platforms. In this paper,

we describe the iterative design process of our novel

explanation and awareness techniques. It is based on

scenarios and insights gained from early concepts as

well as corresponding prototypes and user studies. As

a result, we introduce our generic approach for ex-

plaining the functionality of arbitrary CWA. Utilizing

component capabilities and their view bindings, we

visualize directly within the component UI what sin-

gle components are capable of and which interactions

users have to perform. This is the foundation for ex-

plaining the capabilities of a mashup, which are deter-

mined by component interplay through IWC. Besides

an overview panel of mashup capabilities, step-wise

tutorials are generated and are interactively and ani-

matedly presented to non-programmers. In addition,

we propose to re-use the visualization and interaction

techniques to make users aware of IWC when it oc-

curs at run time, and to allow them to investigate the

effects of recommendations. As we discussed, there

are limitations to our concepts. However, our evalua-

tion indicates that the proposed approach can actually

help non-programmers in understanding CWA.

Future work includes performing the next cycle in

our user-centered design process, i. e., to incorporate

feedback and lessons learned in the current prototype

and evaluate the next iteration on a larger scale. In

addition, we strive to use the live view for composi-

tion tasks, utilizing basic visualization concepts pre-

sented in this paper. Future research directions in-

clude a question answering system supporting non-

programmers to debug a composite web application.

ACKNOWLEDGEMENTS

The work of Carsten Radeck is funded by the Euro-

pean Union and the Free State of Saxony within the

EFRE program. Thanks to Johannes Pﬂugmacher and

Konrad Michalik for their valuable contributions.

REFERENCES

Aghaee, S. and Pautasso, C. (2014). End-user development

of mashups with naturalmash. Journal of Visual Lan-

guages & Computing, 25(4):414 – 432.

Cao, C. (2013). Helping End-User Programmers Help

Themselves – The Idea Garden Approach. PhD the-

sis, Oregon State University.

Chudnovskyy, O., Pietschmann, S., Niederhausen, M.,

Chepegin, V., Grifﬁths, D., and Gaedke, M. (2013).

Awareness and control for inter-widget communica-

tion: Challenges and solutions. In Web Engineering,

volume 7977 of LNCS, pages 114–122. Springer.

Gery, G. (1995). Attributes and behaviors of performance-

centered systems. Performance Improvement Quar-

terly, 8(1):47–93.

Ghiani, G., Patern

o, F., Spano, L. D., and Pintori, G. (2016).

An environment for end-user development of web

mashups. International Journal of Human-Computer

Studies, 87:38 – 64.

Ko, A. J. and Myers, B. A. (2004). Designing the whyline:

A debugging interface for asking questions about pro-

gram behavior. In Proceedings of the SIGCHI Confer-

ence on Human Factors in Computing Systems, CHI

’04, pages 151–158. ACM.

Lizcano, D., L

oez, G., Soriano, J., and Lloret, J. (2016).

Implementation of end-user development success fac-

tors in mashup development environments. Computer

Standards & Interfaces, 47:1 – 18.

Nielsen, J. (2000). Why you only need to test with

5 users. https://www.nngroup.com/articles/why-

you-only-need-to-test-with-5-users/. Last accessed

02.01.2017.

Picozzi, M. (2013). End-User Development of Mashups:

Models, Compositition Paradigms and Tools. PhD

thesis, Politecnico di Milano.

Radeck, C., Blichmann, G., and Meißner, K. (2013). Cap-

view – functionality-aware visual mashup develop-

ment for non-programmers. In Web Engineering, vol-

ume 7977 of LNCS, pages 140–155. Springer.

Radeck, C., Blichmann, G., and Meißner, K. (2016). Es-

timating the functionality of mashup applications for

assisted, capability-centered end user development. In

Proceedings of the 12th International Conference on

Web Information Systems and Technologies (WEBIST

2016), pages 109–120.

Tschudnowsky, A., Pietschmann, S., Niederhausen, M.,

Hertel, M., and Gaedke, M. (2014). From chore-

ographed to hybrid user interface mashups: A generic

transformation approach. In Web Engineering, vol-

ume 8541 of LNCS, pages 145–162. Springer.

Helping Non-programmers to Understand the Functionality of Composite Web Applications

159
