An Integrated Inspection System for Belt Conveyor Rollers

Advancing in an Enterprise Architecture

Richardson Nascimento

1,3

, Regivaldo Carvalho

1,3

, Saul Delabrida

, Andrea G. C. Bianchi

Ricardo Augusto Rabelo Oliveira

and Luis G. Uzeda Garcia

School of Mines, Federal University of Ouro Preto (UFOP/PROFICAM), Ouro Preto, Brazil

Department of Computing (DECOM), UFOP, Ouro Preto, Brazil

Instituto Tecnol´ogico Vale (ITV), Ouro Preto, Brazil

Keywords:

EA Integration, Maintenance Planning, Monitoring System, Conveyor Belt Rollers.

Abstract:

One of the most criti cal equipment used by mining companies i s the belt conveyor. Thousands of kilometers

of these elements are used for bulk material transportation. A belt conveyor system is composed of several

components, and the maintenance process is not trivial and usually reactive. Thousands of dollars are lost

per hour with the failure of a conveyor belt system. This occurs due to the lack of appropriate mechanisms

for efﬁcient monitoring and integration of this process to the enterprise systems. This paper presents a novel

monitoring and integration architecture for a Brazilian mining company. The challenge is to provide a mobile

control system and its integration with the current enterprise solutions. We also describe a set of restrictions

for the particular component (rollers) in order to identify methods for the integration. Preliminary r esults

demonstrate our solution is a feasible alternative for the case study.

1 INTRODUCTION

Belt conveyors are the most common m e ans used

to transport bulk material in the mineral industry.

Despite their im portance, there are still signiﬁcant

challenges to guaranteeing their op eration under re-

asonable and safe conditions. Part of the problem re-

fers to the equipment extent that ranges from a f ew

meters to several kilometers. A sm all num ber of com-

ponen ts is grouped on the head or the tail of the con-

veyor belt system, but most of them are sprea d al-

ong the belt conveyor extension , posing difﬁculties

to their monitor ing an d serv ic ing. One of the com-

ponen ts that requires particular attention is the rol-

ler. A small conveyor belt of 150 meters has nearly

450 carryin g rollers and 50 return rollers. Curre ntly,

the company has no solution to remotely evaluate the

condition of a roller and trig ger adequate actions on

enterprise systems, such as opening work orders o r

requesting the purchase of n ew rollers, so inspectors

manually input all the data resulting from inspecti-

ons on such systems. This lack of integration leads

to a wide range of problems, which vary from low-

consequence typing errors to serious situatio ns, where

a defective roller is no t replaced and may result in a

belt catching ﬁre. Therefore, the condition monito-

ring solution needs to be seamlessly integrated with

enterprise systems. In this context, this paper reviews

some of the available solutions to monitoring the sta-

tus of rollers in conveyor belt systems a nd proposes an

architecture to addre ss the main requirements related

to the integration of such solutions with enterprise sy-

stems used in the company. A Data Cap turing Layer

is proposed with the use of an Unmanned Aerial Vehi-

cle (UAV) carrying different sensors to obtain condi-

tion data from the rollers. On-ﬁeld preliminary tests

demonstra te that the utilization of the UAV is feasible,

as it can quickly get h igh-resolu tion images from se-

veral c ompon ents; thus, reducing inspectio n time and

increasing safety. Therefore, the main contributions

of this paper are:

• A review of the main techniques to monitor the

status of rollers and a discussion about some of

the solutions

• An architecture to integrate the condition monito-

ring of rollers to enterprise systems

This paper is structured as follows: Section 2 sta-

tes the main difﬁculties to monitor the condition of

rollers and the conseque nces of the lack of integra-

190

Nascimento, R., Carvalho, R., Delabrida, S., Bianchi, A., Oliveira, R. and Garcia, L.

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture.

DOI: 10.5220/0006369101900200

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 190-200

ISBN: 978-989-758-248-6

tion with enterprise systems. Section 3 describes key

aspects of the rollers status monitoring scheme and

discusses so me of the solutions and their applicability

as the Data Capturing layer of the integrated archi-

tecture. Sec tion 4 presents the main requir e ments of

related companies in the area and proposes a system

architecture to address them. Sectio n 5 reviews the

concept of Enterprise Service Bus (ESB) and its role

as a key component to integrate c ondition monitoring

with enterprise systems. Section 6 describes the on-

ﬁeld te sts performed with the UAV and related senso rs

to conﬁrm the feasibility of the Data Capturing lay er.

2 PROBLEM STATEMENT

Assets monitorin g can follow two different strate-

gies. One of the mode ls currently in use is based

on the type of inspection, in which tasks are split

into several teams, such as mechanical, ele ctrical,

and hydraulic. Each team walks through the en tire

port and assess equipment conditions without using

instruments. After that, they register the data in

the Compute rized Maintenance Management System

(CMMS) requesting to repair or replace the faulty

components through a Work Order (WO). This sen-

sory and subjective proced ure is known as sensitive

inspection. This type of inspection uses tacit kn o-

wledge of the operators to identify problems on the

components. Another approach is the so-called pre-

dictive inspection, in which tea ms use instruments to

collect data from vibration , noise, and temperature for

subsequen t analysis in a specialist software. If neces-

sary, a WO is manually cr eated in the CMMS.

Regardless of the inspection type, the lack of inte-

gration b e tween the collected da ta , the specialist sy-

stems and the CMMS presents several problems for

the compa ny. This is particularly critical in hetero-

geneous environments, such as th e Maritime Termi-

nal of Ponta da Madeira (TMPM), located in the S˜ao

Lu´ıs, the ca pital of Mara nh˜ao State. The po rt is the

end point of the logistical system that transports the

iron ore extracted in the Caraj´as mining complex to

load sh ips bound for Asia and Europe. This is the

biggest port for the export o f Brazilian iron ore and

one of the largest in the world (ANTAQ - Agˆencia

Nacional de Transporte Aquavi´arios, 2015). The fo-

recast is to embark 170 million tons (Mt) in 2017,

which pushes its extensive and complex infrastructure

to the limit. This infrastructure is composed by: 8

ship loader s, 8 car dumpers, 7 reclaimers, 5 stackers,

4 stacker-reclaimers, and 149 belt conveyor lines, to-

taling 120 kilometers of conveyor belts and arou nd

200,000 rollers, scattered on approximately 500 hec-

tares. Figure 1 shows the entire port area, which is

bounded by the red polygon .

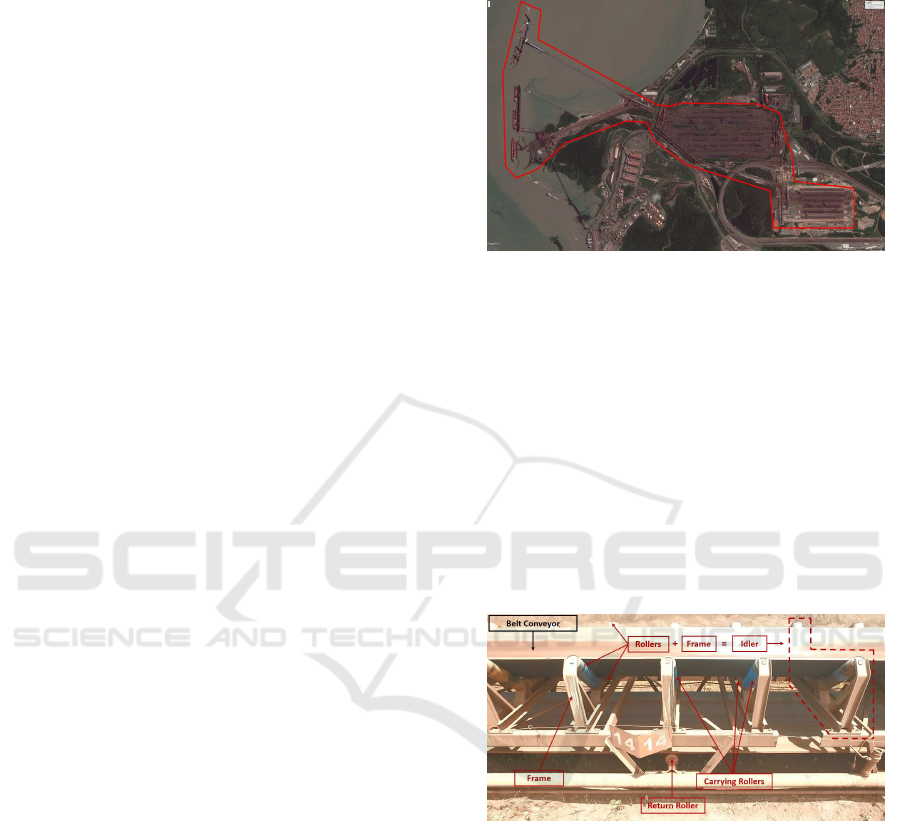

Figure 1: Maritime Terminal of Ponta da Madeira (TMPM).

Captured from Google Earth.

Although it is not complex equ ipment, the belt

conveyor lines are the p rimary asset of the port since

stopping o ne of them impacts an entire embark route.

The rollers are the most numerous and critical compo-

nents, whose function is to support the conveyor belt

and the material it carries, as well to receive the im-

pact of material that is transferred between belt c on-

veyors and the transfer points (i.e. chutes). Taking

into consideration the enormous quantity of rollers in

the mining industry, monitoring their condition beco-

mes a signiﬁcant challenge. Figure 2 shows some of

critical points to be monitored, includ ing rollers.

Figure 2: Section of a belt conveyor line.

Rollers suffer from severe wear and demands a

higher frequency of inspection. Usually, the TMPM

only uses sensitive inspection, where each one of the

rollers installed in the conveyor belts is ch ecked visu-

ally. Given that it is impossible to view the rollers on

the other side of the belt, both conveyor sides should

be covered. Given the large n umber o f rollers, the use

of a predic tive instrument to collect thermal, a c oustic,

or vibration data becomes pr ohibitive because of the

time it would take to collect such information manu-

ally for each roller. An other problem caused by the

lack of integration between the specia list systems of

instruments and the CMMS is the time required to

create a manual WO for each roller. Without externa l

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture

191

tools to measure data, defect location depends on in-

spector experience. Furthermore, the unc ertainty may

lead to the replacement of all three roller s of an idler,

resulting in unnecessary costs to the co mpany.

Given that the port’s resources and capacity to

execute maintenance are limited, prior planning of all

requested services must be carried out with mastery.

The Maintenance Planning and Control (MPC) is re-

sponsible for prioritizing the WO from different in-

spection groups and regular maintenance plans. Due

to a predominance of subjective criteria over several

sources of in formation, it is difﬁcult to deﬁne clear

policies for resource allocation, including human re-

sources. Therefore, the meetings with all stakehol-

ders to d etermine the prioritization may not a lways

achieve the b e st results since prioritization is deﬁned

by the persuasive power of the participa nts and not by

technical aspects. The consequence is that if a critical

task is not prioritized , the probability of equipment

breakd own dramatically increases and may cause un-

desired operatio nal shutdown resulting in a dditional

costs and production loss.

A remarkable occurrence of a critical case was the

ﬁre that occurred in the belt conveyor TR-315K-36.

Rollers were da maged and there was the loss of 300

meters of belt, as well as d amage to all the electri-

cal and automation systems. The ﬁre was caused by

a broken bearing of a roller of the catenary table. Fi-

gure 3 shows the damage caused by a maintenance

failure. In this case, a n inspection was performed a

few days earlier, but the problem was not identiﬁed or

the roller was not damaged at the time of in spection.

A higher inspection frequency could have detec te d the

problem, but due the large amount of equipment, and

the limited human resources available its impossible

to increase visiting frequency with the current in-

spection methods.

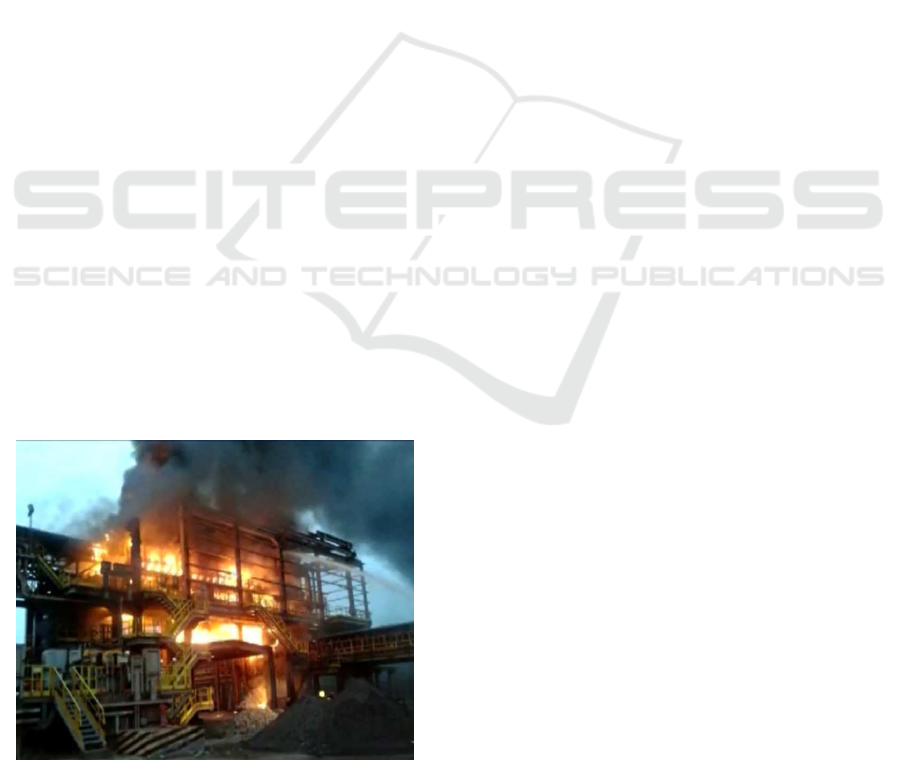

Figure 3: Fire on belt conveyor system TR-315K-36.

The ﬁre of the TR-315K-36 was not an unfortu -

nate coincidence, but a recurring problem w hose con-

sequence of the damage can be catastrophic. Data

extracted from company’s internal systems show that

between 2014 and 2016, only in the ports of Ponta

da Madeira (Norther n System) and Tubar˜ao (So uthe-

ast System), there was more than R$ 2.7 million in

material losses due to ﬁres caused by rollers failures,

accounting for 600 hours of operational stops.

The o c currence of a high number of undesirable

breaks can lead to a vicious cycle, since any unex-

pected breakdown causes the cancellation of a pre-

ventive service to attend the emergency service, and

failure to perform preventive tasks can generate fur t-

her breaks. Furthermore, it elevates the maintenance

cost and operating losses, as well as the exposure of

employees to risk.

Even with an autom a te d and assertive inspection

system, but without a robust integration between col-

lected data and enterprise systems leads the company

to face the same management and plannin g problems

previously mentioned. On the other hand, an auto-

mated inspection process integrated with such sys-

tems will contribute to a greater assertiveness in the

diagnosis of the failures, a llowing gre a te r inspec tion

frequency of the assets, and ﬁnally technical prioriti-

zation criteria to be used by the PCM. Such impro-

vements can contribute to new levels of equipment

reliability, reducing maintenance costs and increasing

production.

Considering that the belt conveyor rollers are the

most numerous components of the TMPM and they

present the bigge st challenges in its inspection, this

paper prop oses an architecture to address the pro-

blems related to the rollers’ data ac quisition and the

integration ﬂow to enterprise systems.

3 BACKGROUND

This section presents the techn iques to monitor the

condition of rollers and some of the available soluti-

ons, discussing wh e ther they can be adopted or not

regarding the data capturing layer on the study case.

3.1 Techniques for Rollers Condition

Monitoring

Before introducing the techniques to monitor the con-

dition of a roller, it is important to present a brief

explanation of its parts. A roller is composed of an

outer cylindrical surface (cladding) with a pair of be-

arings (left and right) mounted on a stationary shaft

(Reicks, 2008). With such stru cture, three prim a ry

defects can affect a roller: breaking, overheating, and

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

192

locking. While the latter affects only the bearings and

can lead to overheating, remaining failures affect both

the be a rings and the cla dding (Xiao-ping Jiang and

Guan-qiang Cao, 2015).

Since most o f the failures originate on the be-

arings, the rollers’ condition monitoring techniques

must be primarily capable of assessing their state. Li-

terature highlig hts three main monitoring methods ac-

cording to the signal used: a coustic (Xiao-ping Ji-

ang and Guan-qiang Cao, 2015), vib ration (Tan et al.,

2015) a nd thermal(Yang, 2014). Both acoustic and vi-

bration analysis rely on the principle detailed by (Gi-

rdhar and Scheffer, 2004 ) where freque ncies emitted

by the bearing depend on its construction chara c te -

ristics and faulty behaviors can be detected by unex-

pected freque ncies with speciﬁc signatures. In brief,

such techniques consist of signal capturing, treatment,

and the extraction of features that indicate current de-

fects or future failures. On the other han d, thermal

monitoring consists of obtaining the temperature of

the bearing at a speciﬁc in stant, given tha t tempera-

tures above a clear-cut threshold indicate that the id-

ler roll has to be replaced immediately. An important

consideration is that vibration and acou stic monito -

ring can detect failures at an early stage whereas ther-

mal monitoring is reactive, as tem perature r ises only

occur when the defect is already in a critical phase and

there is little reaction time (Hawksworth et al., 20 03).

This behavior refers to the discussion of o nline

monitoring versus periodic inspections, which are

performed in cycles deﬁned by assets criticality and

the availability of resources (human, tools, sensors).

Sensor position and installation characteristics, such

as ﬁxed, semi-ﬁxed/semi-mobile or mobile (Liu et al.,

2014) change the monitoring cycle a nd are decisive

in categorizing the system as online or periodic, as

demonstra te d in Figure 4. Fixed sensor s are conti-

nuously monitoring the system (online) while mobile

sensors (o r semi-ﬁxed) can monitor the system only

during the periodic inspection. Although online mo-

nitoring is preferable in most situ a tions, their adop-

tion for belt conveyor systems poses signiﬁcant is-

sues that cannot be overlooked, particularly becau se

of the following restrictions: a) the ability to obtain

data from multip le components without yielding add i-

tional maintenance, and b) the installation and main-

tenance costs c annot be proportional to the number of

monitored components.

This stu dy describes the background technologies

for the development of a solution integrated into the

architecture proposed in the Sectio n 4. This section

represents a guide to deﬁne the techno logies able to

provide the ﬁnal settlement for the Data Capturing

layer.

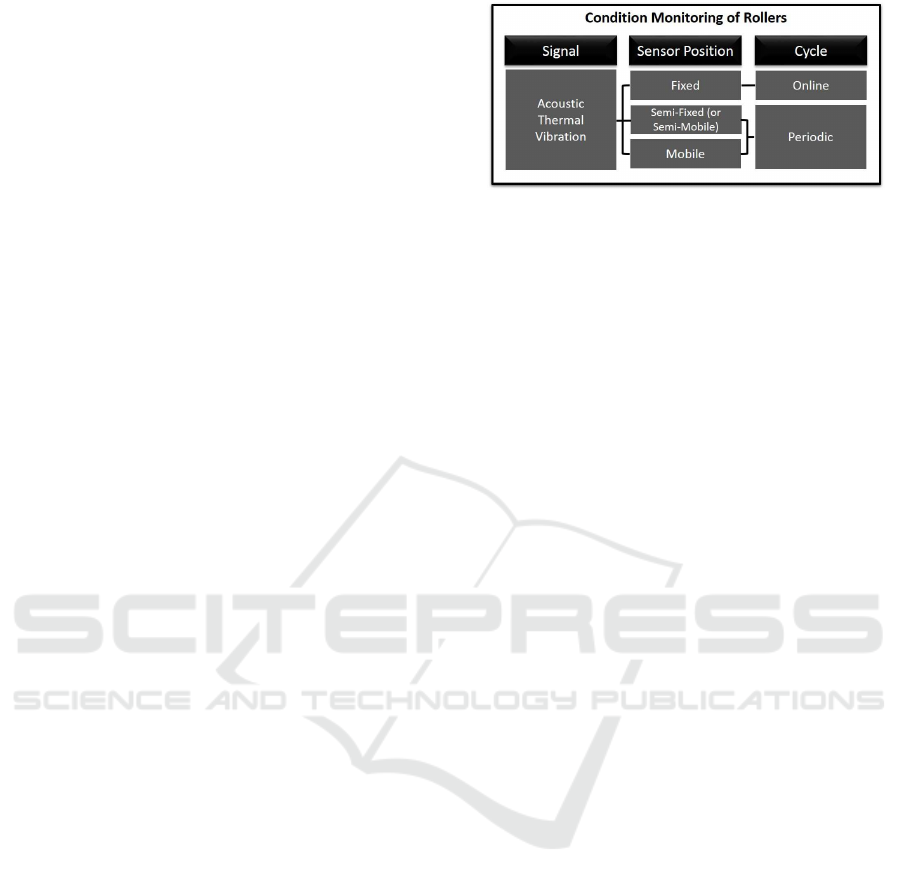

Figure 4: Diagram of the condition monitoring of rollers.

3.2 Available Solutions for Assessing a

Rollers’ Condition

One of the main discussed r estrictions is th e sensors

installation and main tenance costs that can be prohibi-

tive due to the huge volume present at the port of this

study case, which is close to 200,00 0 rollers. In this

scenario, the a doption of ﬁxed sensors must be ca-

refully appraised. Nevertheless, in 20 07, (Lodewijks

et al., 2007) proposed the concept of a ”smart idler”,

an Io T solution that consists of a roller embedded with

an electronic circuit containing a batter y power sup-

ply, a RFID identiﬁcation tag, a temperature sensor,

and a radio for data transmission. As a prototype on

early development stages, the author recog nizes that

the costs are forbidding (around 40% to 50% of th e

roller value) and requires battery replacement.

To ad dress some of these issues, (Pang and Lode-

wijks, 2011) presents an evolution, w here each roller

(with sensors) ha s an energy harvesting system and

roller-to-roller communication using self-healing net-

works. This strategy reduces the number of commu-

nication gateways and improves system’s reliability.

The autho rs do not detail the costs, but the incorpo-

ration of an energy harvesting system is prone to in-

crease acquisition price and to reduce sustaining c osts

since the battery is no longer requ ired. Some manu-

facturers, such as (Ing enuity, 2016; Vayero n Pty Ltd,

2016) already market similar technologies. The main

handicap is the requirement to replace each roller of

a conveyor system with a Smart m odel to obtain on-

line monitoring ; if a sin gle ro ller is not replaced, the

whole system is imp aired. Conceded that the average

lifetime of a roller is around 3 to 4 ye ars, new p ro-

jects ar e more likely to ad opt such technology since

it is hard to support scrapping the existing rollers to

install Smart ones.

Another approach using ﬁxed sensors, but which

aims to reduce the number of sensing elements, is de-

tailed by (Li et al., 20 13). The au thors p ropose to

install a limited number of accelerometers on the ou-

ter structure of the belt conveyor system to obtain the

vibration data of multiple rollers. They used Wavelet

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture

193

Packet Decomposition (WPD) (Coifman a nd Wicker-

hauser, 1992 ) to decompose the vibration signals and

determine the energy of each ban d as the feature of in-

terest. Finally, they adopted Support Vector Machine

(SVM) (Cortes and Vapnik, 1995) to cla ssify faulty

signals in different failure modes. The approach is

promising, but they had to install one sensor for each

three frames, corresponding to a distance of approxi-

mately 6 meters; what still means a signiﬁcant num-

ber o f sensors since some of the belt conveyor systems

can extend th e mselves fo r kilometers.

Still discussing ﬁxed sensors, (Hu et al., 2011)

performed tests in an underground coal mine of a rol-

ler’s temperature monitoring system based on optical

ﬁber. The Distributed Optical Fiber Sensor (DOFS)

uses optical ﬁbe r both as sensing and transmission

media for roller temperature; an interesting appro-

ach to reducing the total number of sensing elements.

The system is ca pable of self-diagnosis, detecting sig-

nal degradatio n and ﬁber disruption; another positive

characteristic du e to the ha rsh environment where it

is used and th e possibility of accidental damage du -

ring maintenance activities. (Yang, 2014) c onducted

a series of trials on a similar system and concluded

that the technology is indeed su itable to perform con-

dition monitoring on rollers, but requires a detailed

analysis to deﬁn e optical cable positioning in order to

enhance temperature detection a nd insulate environ-

mental inﬂuence (humidity, ambient temperature va-

riance, ventilation, dust, etc.) from the results. This

can pose a challenge to operations because of the di-

versity of belt conveyor systems and conditions found

on mining operations, even though some c ommercial

solutions w ith this technology are already available

(AP Sensing, 2017; Yokogawa, 2017).

(Yang et al., 2 016) describes an intermediate solu-

tion b etween ﬁxed and mobile sensing. Th e authors

developed a mobile robot that uses the existing struc-

ture of a belt conveyor system to perform inspections

using infrared thermography of different components

(rollers, pulleys, and mo tors). An inspection track

is attached to both sides of the belt conveyor frame

and vertically positioned between the carrying idlers

and lower b elt. The robot has an infrared camera

and employs the gear-and-rack method to move along

the track while con tinuously capturing images, which

are processed with a combination of pattern recogni-

tion algorithms to identify components of interest and

temperature. The use of the belt conveyor system’s

own structure can simultaneously be seen as the met-

hod’s main advantage and disadvantage. While long

belt conveyor systems can beneﬁt from having a con-

tinuous monitoring system as proposed, it may not

be economical to install one on all conveyor systems,

particularly the short ones. It is reasonable to employ

maintenan ce efforts to inspect and maintain a robot

that can autonomously monitor a 900-meter conveyor

system, but it is not feasible to d o the same for a 20-

meter belt conveyor line. Regardless of the extension,

the existing belt conveyor systems can also present

challenges regarding the required adaptions to instal-

ling the robot as proposed .

An alternative to installing sensors on each belt

conveyor system is the use of mobile sensors. In this

direction, the pe riodic inspections that mainte nance

personn el performs today can illustrate this method

as long as they use adequate tools to collect acou-

stic, therm al, or vibration signals. Due to the risks,

inefﬁciency, and other drawbacks alread y explained,

it is preferable to adopt an inspection method that mi-

nimizes the need for humans on the ﬁeld. Thereby,

the patent requested by (Yong et al., 2014) claims

the use of a multi-rotor UAV (i.e. d rone) to carry

out in spection missions. The m ain innovation is the

autonomous navigation system, which uses reﬂective

adhesives installed on the belt conveyor system and

other structu res to obtain the vertical and horizontal

orientation of the route and the a ctions to be perfor-

med at each point. The UAV is equipped with a high-

resolution camera for navigation, an infrared camera

for inspection, a RFID reader, and gas concen tration

sensors for the use in coal underground mines, where

methane can cause explosions. It also sends captured

data to ba se stations, wh ic h can perform signal pro-

cessing and retransmission. A similar solution is clai-

med by (ABB Technology AG, 2014), which propo-

ses the employment of ground-eng a ging vehicles and

cable drones for carryin g the sensor structure besides

UAV’s.

The main ad vantage of these proposals when com-

pared to the work of (Yang et al., 2016) is that the

vehicle, aerial or not, can be used to insp ect multiple

belt conveyor systems in an industrial plant since they

are not tied to one of them. On the other hand, an im-

portant q uestion that a rises is the limited battery au-

tonomy, particularly with the adoption of UAV’s. The

fact that the vehicles have to carry a sensor structure

and transmit data signiﬁcantly contributes to the pro-

blem. Such limitation can be mitig a te d by the use of

battery repla cements and rec harge stations, as discus-

sed in (Suzuki et al., 2012) and (Michini et al., 201 1).

Finally, althou gh online monitoring methods are

preferable, employing them on belt conveyor systems

is not trivial. Even techniques that do not require in -

stalling individual sensors demands adjustments and

individual assessment for each system to be monito -

red. Thus, we und e rstand that mobile sensing using

UAV’s is the best alternative to carrying out the tran-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

194

sition between status quo with a full dependence of

humans to p erform inspections at a whole new level

where rou tine inspection is automated. Moreover, the

proposed a rchitecture plans to deliver seamless com-

munication between the data capturing layer and other

systems in the organization, which seeks to address

several of the problems caused by the lack of inte-

gration. This can compensate some of the beneﬁts of

online monito ring, while the company prepares itself

to adopt fully monitored systems using ﬁxed sensors.

The next section describes in mor e detail the require-

ments and the proposed architecture to address them.

4 PROPOSED SOLUTION

This section describes current enterprise requirements

for belt c onveyor inspection systems and proposes a

new integration architecture between the new moni-

toring and existent enterprise systems.

4.1 System Requirements

System requirements were discussed together with

the technical staff of the enterprise, while some of the

authors have met the staff on site. Although techni-

cians report several kinds of problems relate d to the

belt conveyor system, roller monitoring was deﬁned

as the priority and focus o f this paper. Due to this

fact, Section 3 presents an evaluation of the kind of

problems and the state-of-the-art solutions p roposed.

This assessment was necessary for the desig n of the

integrated architecture.

A second req uirement of the c ompany is to reduce

the need for human interferenc e a nd presence in the

belt conveyor system while obtainin g technological

platforms for remote monitoring. This fact signiﬁ-

cantly reduces human risks.

Static sensors are not a choice to be considered al-

ong with the b elt conveyor system. T his approach in-

creases the demand for maintenance. For instance, if

cameras are placed on the belt conveyor system, they

should require periodic maintenance, as do the rollers.

In this case, the use of mobile sensors should be the

better solution.

Mobile Robots and Unmanned Aerial Vehicles

(UAV’s, i.e., drones) are alter natives for the monito-

ring system. On the other hand, these d evices bring

the challenge to integrate them with the enterprise sy-

stems. At the same time, a friendly user interface is

necessary fo r the specialist technicians to evaluate the

need of roller maintenance during remo te assessments

and to give support for the m on the inspection. The

board requested a software inter face that provides the

informa tion for the user in real time through an algo-

rithm that is able to make the analysis based on data

captured from the sensors. This module was name d

as Assistance Module (AM).

The next section presents the system architecture

as a proposal to solving the problem. The structure is

shown in layers and represents the integration of all

the monitoring process from the sensor equipment to

the strategic analysis. Although this paper focused on

the rollers, since they are the main assets of the port,

the architecture here proposed is generic and can be

adapted to address other industrial problems, such as

the inspection of transmission lines, wagons, conﬁned

spaces, and others.

4.2 System Architecture

Figure 5 shows th e propo sed architecture for an in-

tegrated monitoring system. All layers have a user

interface except the Data Capturing and Legacy Sy-

stem Integration layer. The user interface appears af-

ter processing the data collected by the sen sors on the

Sensors Data Extraction layer. The shaded area in

the Figure 5 represents the user interface level. The

dashed area represents the IoT components presented

on the architectu re. Both components are discussed in

the Section 4.3. Afterward, each layer and the co m-

ponen ts are described.

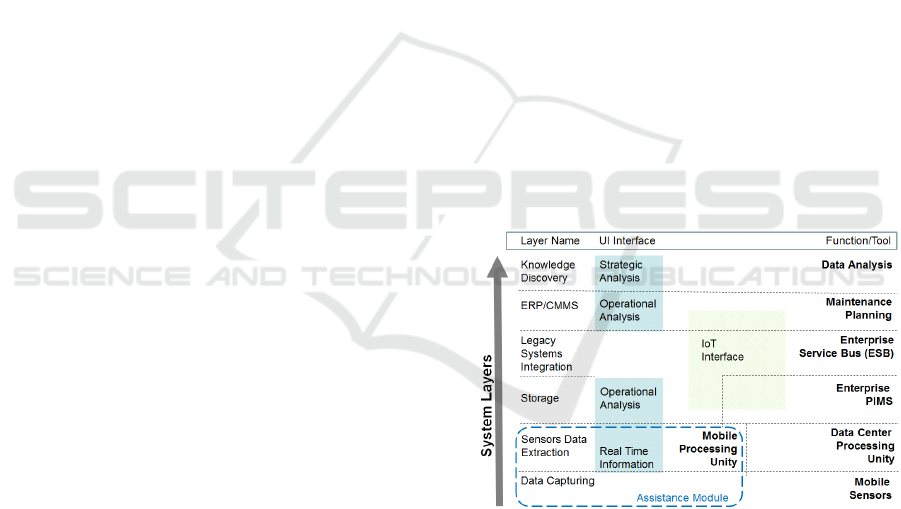

Figure 5: System Architecture.

Data Capturing: This layer represents the sen sors

used to ca pture data on the belt conveyor system. A

mobile sensor for monitoring should be utilized as

described in the system req uirements. We should use

many kinds of sensor s, according to what is shown

in the Section 3 when connecting to a robot and a

drone. For in stance, a drone c an use a cam e ra as a

sensor providing images or streaming videos for the

manual/au tomatic analysis. Besides, the video stream

should be processed in order to identify and notify

some anomaly to the operator. This procedure is exe-

cuted by the next layer and is described below.

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture

195

Sensors Data Extraction: processes the raw d a ta

captured on the previous layer. We deﬁne two

subclasses of pr ocessing unity on this layer: Mobile

Processing Unit, and Data Center Processing Unit.

The mobile proce ssing unit represents em bedded har-

dware with power computing capability connected to

the robots or UAVs. This component is necessary

due to the use of mobile platfor ms, and the raw data

collected by sen sors should be processed into MPU.

For instance, the stream obtained from a microphone

can be processed, and an unusual noise tha t repre-

sents a roller’s anomaly can be detected; then, an

event should be generated. The environment moni-

tored can have no con ditions for providing the con-

nection among the sensors and information techno-

logy (IT) infrastructure. The absence of this compo-

nent makes the assistance module an unfeasible al-

ternative. Algorithms unable to be executed on em -

bedded platforms have to be performed in data center

processing units. In this case, the data collected from

the sensors are stored in the secondary memory of the

mobile platform an d transferred wh en the mobile p la t-

form has a connection available.

Storage: This is the ﬁrst layer of the architecture

that demands integration with third-party systems.

The process information management system or plant

informa tion management system (PIMS) is a histo-

rical database that receives data from several sour-

ces. In a second phase, this data is used for the

production of statistical information provided by the

PIMS functionalities. The current version stores data

from many different in dustrial components an d the

data collecte d from the mobile sensors should also be

stored into PIMS. This way, the engineers and techni-

cians can make an operational analysis about the sta-

tus of the belt conveyor system.

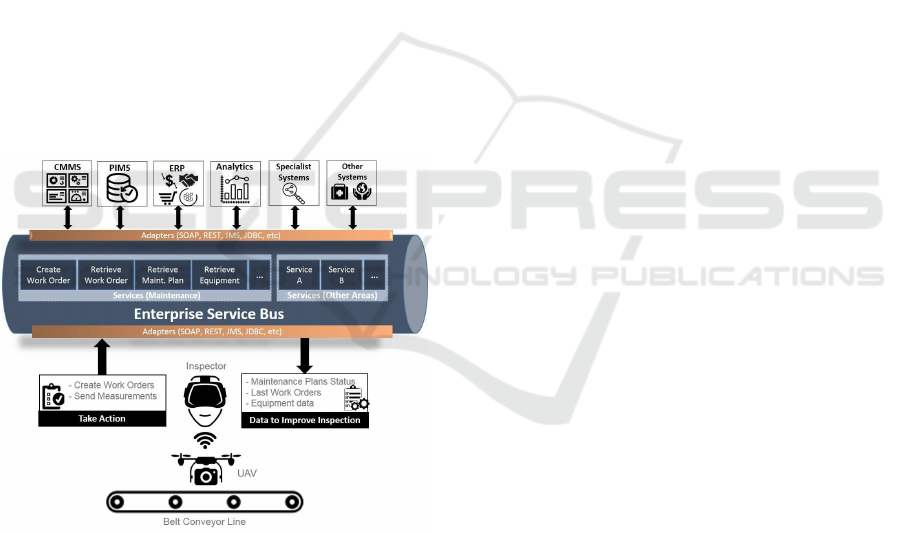

Legacy Systems Integration: The current systems

available in the company can re c eive data from legacy

systems using the concept of Service-Oriented Archi-

tecture (SOA). Several services are alre a dy available

on the Enterprise Service Bus (ESB) via API’s, web

services, message queues, etc. They can receive data

from bottom layers and provide it to enter prise sys-

tems, and can send information from such systems to

the layers below. Due to this feature , a Sensor Data

Extraction layer can release sensor data to these sys-

tems without creating additional services. This layer

is essential for the integration of the new components

of the monitoring system a nd the other systems avai-

lable in the company. Due to this fact, the Section 5

provides more details of th is layer.

ERP/CMMS: Layer of the integrated system used

for main te nance planning. The main bottleneck of the

current practice in the company is to rece ive data from

the systems contained in the previously mentioned

layers. In some cases, there are no sensors to iden-

tify maintenance deman ds and the process is wholly

dependent of human veriﬁcation. Currently, the com-

pany uses the SAP Plant Maintenance (SAP-PM) as

its CMMS system, which is part of the SAP ERP. No

further details can be discussed about the ERP and ot-

her systems due to company r estrictions.

Knowledge Discovery: This is an additional layer

compare d with the current version of the co mpany’s

enterprise system. This new layer uses da ta mining

and mach ine learning algorithms in order to identify

and extract new features and knowledge. Such re-

sults can be used in expert systems or modules at the

ERP/CMMS layer for ope rational analysis, making

decision-making smarter and more autonom ous.

4.3 User Interface and IoT Components

Besides the services that each layer provides, they

may interact with User Interface ser vices and IoT In-

terface services. This section describes these relati-

onships.

User Interface: Users can re c eive information

about the mainten ance status in distinct granularity.

This means that the architecture p rovides different le-

vels of analysis. Real Time Inform ation represents the

informa tion retrieved for the user while a conveyor

belt line is on inspection . Operational An a lysis pro-

vides information about the status of the compon ents

from a short p eriod of observation, and Strategic Ana-

lysis is information retrieved for the user related to

the long-term maintenance planning as well as new

informa tion generated by the use of data-min ing al-

gorithms.

All layers, except Data Capturing and Legacy Sy-

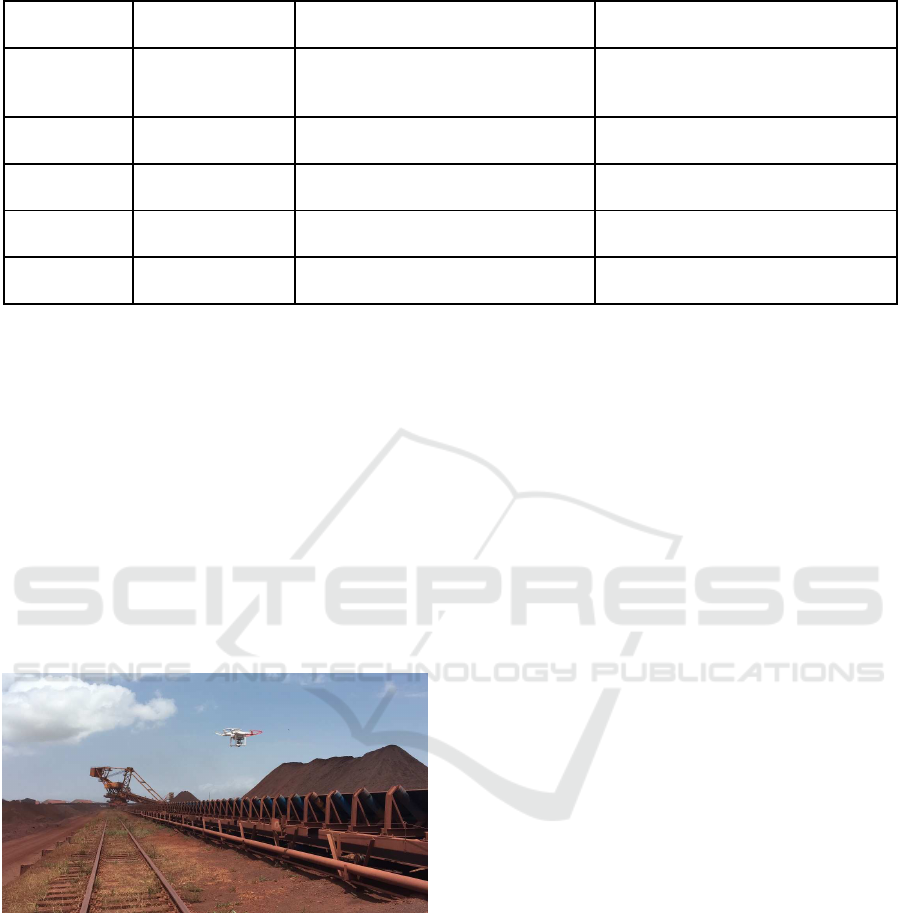

stems Integration, include a User Interface. Table 1

summarizes the relationship between each layer, the

type of hu man analysis, and a user inte rface example.

IoT Interface: Some components of the belt con-

veyor system have machine-to-machine communica-

tion and can perform an IoT application, such as the

smart-idlers, discussed on Section 3. Although it is

not the focus of this paper to incorporate these ele-

ments, they are represented in the architecture pro-

posed for further integration. Relevant information

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

196

should be delivered to the users, considering the ag-

gregation of the data collected fr om IoT components

and th e monitored rollers.

5 SYSTEMS INTEGRATION

As discu ssed on Section 2, a central contr ibutor to

the existing problems is the lack of effective integra-

tion between inspections and enterprise systems, thus

impairing the information ﬂow from different sour-

ces and jeop a rdizing maintenance planning, procure-

ment, and other processes. The company already has

in place an Enterp rise Service Bus (ESB) with diffe-

rent services that can be used to seamlessly integrate

the Sensor Data Extraction layer (at this moment, re-

ferred to as SDE) with corporate systems. The reuse

of existing services on the ESB brings several be ne-

ﬁts to the company: (i) the deployment of new tools is

faster and cheaper, considering that most of the inte-

gration capabilities can be delivered without creating

additional services and (ii) also facilitates commu ni-

cation with the use of adapters for different standards

and protocols.

Figure 6: U se of an ESB to integrate inspection to enterprise

systems.

Figure 6 presents a practical example of how the

proposed architecture takes a dvantage of the exis-

ting ESB. Some of the available services expose the

CMMS data, such as work orders, maintenance plans,

and master data of equipment. As the UAV inspects

the belt conveyor system, the SDE can use a combi-

nation of these serv ic es to display information to the

inspector, such as the status of the latest work order

created for the inspected roller combined with man u-

facturer information and the component’s installation

date. As the CMMS also exposes services that allow

external systems to manipulate its entities securely,

the SDE can send the current temperature of a rol-

ler and allow the inspector to create work orders right

from the user interface as soon as it detects a failure.

This set of possibilities reduc es rework an d give main-

tenance plan ners a view of the situation right from

the inspection, addressing most of the gaps d iscus-

sed. Such beneﬁts are n ot restricted to the CMMS

system and maintenance processes. The integration

with environmental monitoring systems ca n display

live information of weathe r forecasts, wind speed and

direction, aiding in UAV teleoper a tion avoiding pos-

sibly dangerous situations.

Finally, all the raw data captured during the in-

spection can be stored on PIMS using its services. La-

ter, specialists, along w ith a nalytics systems, can r ead

and analyze inspection results from PI MS. This redu-

ces the effort to deliver the architecture of Section 4,

as such systems also use the ESB to communicate

among them with several services alr eady available.

6 PRELIMINARY EVALUATION

In order to improve awareness of the difﬁculties fa-

ced by the inspector on the ﬁeld and to conﬁrm the

feasibility of the proposed Data Capturing Layer of

the architecture, some preliminary tests were execu-

ted. The equipment used to perform the evaluations

was composed of DJI 3 Professional UAV, equipped

with a full- HD camera mounted on a gimbal stabili-

zer, an UltraProbe 10000 for audio acquisition, and

an FLIR i5 th ermogra phic camera. As a preliminary

evaluation, each eq uipment was tested independently.

The integration of all components, data transmission

and integration with enterprise systems are not the fo-

cus of these speciﬁc tests an d they are planned as sub -

sequent steps of the project.

A c ertiﬁed an d experienced operator piloted the

UAV, keeping a constant altitud e while positioning the

UAV parallel to the belt conveyor line (BCL) and fo-

cusing the full-HD camera to obtain lateral images

of the BCL that contain central and lateral rollers.

Despite the wind, the oper a tor was able to make the

UAV follow the desired route, capturing high-quality

images o f the belt, the roller s (both central and late-

ral), and th e complete lateral structure of the BCL. A

second ﬂight obtained images of carrying and return

rollers. The simple execution of this test demonstrates

an imp rovement on operator safety as th e simulated

inspection was performed from a ﬁxed pilot location,

eliminating risks related to incidents with venomous

animals and drops. Besides, the total time spent to si-

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture

197

Table 1: User Interaction by layer.

Layer

Type of

Analysis

Description Interface Example

Sensors Data

Extraction

Real time/Online

data

Provided by embedded algorithms

Head Mo unted Displays, tablets,

smartphones with virtual reality

and augmented reality capabilities.

Storage

Operationa l

Analysis

Statistics information from PIMS Reports and graphics

ERP/CMMS

Operationa l

Analysis

Statistics information from

ERP/CMMS

Reports and graphics

Knowledge

Discovery

Strategic

Analysis

Resulting inf ormation data mining

and machine learning algorithms

Reports and graphics

User

Application

Strategic

Analysis

Use of the new information for

creation new expert systems

Experts systems

mulate the inspection was 3min 40s, with 456 rollers

ﬁlmed. Comparatively, an average walking along the

BCL at a walking speed of 1. 4m/s plus two second s

to assess each ro ller would take 17min 54s (Long and

Srinivasan, 2013). During the simulated inspection,

the pilot was not ﬂying at full speed and made several

stops, but the quality of images obtained shows that

no stop is required and the UAV could ﬂy at a hig her

speed, red ucing even more the inspection time . Ta-

king into account that the ﬂight was over 228 m and

the maximum speed is 16 m/s, the UAV used can co-

ver this distance in only 14.25 s. Figure 7 shows the

UAV per forming the ﬂight besides a belt conveyor on

a r eal production environment.

Figure 7: Simulated inspection with an UAV over a real

production environment.

The second test obtained audio signals from eight

lateral rollers. The average setup and recording time

using the Ultr aProbe 10000 for eac h roller was 20 se-

conds. During the tests, an e arly-stage defect on the

bearing of on e of the rollers was identiﬁed - so an

additional time of 4 0 seconds was spent to conﬁrm

which roller was originating th e signal. The defect

identiﬁcation depends on the experience of the in-

spector who needs to concentrate on the aud io repro-

duced by the headset. The instrument has an alarm,

but this does not reduce the required attention while

listening to the audio.

Finally, a thermal shooting was performed. The

thermographic camera allows to assess multiple rol-

lers at once, but the inspector needs some time to

identify the hottest p oint of the image and its tempe -

rature. Since the tests were perfo rmed on a hot day,

sometimes the came ra identiﬁed the soil in the back -

ground of the BCL as the hottest point. This is an

additional p roblem because sometimes the soil tem-

perature mixed with the bearing temperature, and the

inspector took lo nger to conﬁrm roller failure. For sa-

fety rea sons, to avoid stumbles and drops, the inspec-

tor needed to stop on each id le r to evaluate the imag e,

which increased the total time required fo r inspection.

According to the results of the individual evalua-

tion o f the sensors and the UAV, the Data Capturing

layer of the proposed architecture is feasible regar-

ding equipment. The merging of individual sensors

with the UAV, the adoption of algorithms to aid the in-

spection, and the integration with enterprise systems

will bring more accurate defects de te c tion, reduce re-

work, and improve the maintenance pla nning routine.

7 CONCLUSION

This paper presented several cha llenges related to the

data acquisition of rollers installed on belt conveyors

and how the lack of integration of such information

with enter prise systems a ffects the ma nagemen t and

maintenan ce activities. We proposed a mobile data-

capturing layer with the use of a UAV with embed-

ded sensors that seeks to bring more accuracy in de-

fects detection and reduce manual steps in the main te -

nance processes. We also proposed an Enterprise Ar-

chitecture to integrate the condition monitoring with

existing enterprise system s, improving the on-ﬁeld in-

spection and providing a holistic view of all belt con-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

198

veyors present in the port of the study case. A set of

preliminar y on-ﬁeld tests to evaluate individual equip-

ment d emonstrated that the feasibility of the mobile

data cap turing unity has promising results regarding

inspection time and assertiveness. Although, to em-

bed sensors in the UAV, to develop algorithms to pro-

cess and present data to inspectors are still challenges

to overco me. Therefore, futu re work will concentrate

on the following:

(i) Embed different sensors in the UAV and perform

on-ﬁeld testing to validate data acquisition

(ii) Create and e mbed algorithms in the UAV to ef-

ﬁciently d etect defects on rollers, integrating the

outputs with the user interface to improve in-

spection

(iii) Evaluate power consumption of UAV and sen-

sors, developing solutions to improve battery au-

tonomy

(iv) Develop API’s on the ESB to integrate the mo-

bile data capturing unity with enterprise systems

(v) Develop semi-autonomous and fully autonomous

navigation algorithms in the UAV

ACKNOWLEDGMENTS

The authors would like to thank the Federal Univer-

sity of Ouro Preto, Instituto Tecnol´ogico Vale, Vale

S.A., CNPq, Capes and FAPEMI G for support and

providing fun ding for the development of this work.

REFERENCES

ABB Technology AG (2014). Conveyor I nspection With

Unmanned Vehicle Carying Sensor Structure.

ANTAQ - Agˆencia Nacional de Transporte Aquavi´arios

(2015). Estat´ıstico Aquavi´ario da ANTAQ.

AP Sensing (2017). AP Sensing - Fire Detection.

https://www.apsensing.com/application/ﬁre-

detection/. Last accessed on January 11, 2017.

Coifman, R. R. and Wickerhauser, M. V. (1992). Entropy-

based algorithms for best basis selection. IEEE Tran-

sactions on Information Theory, 38(2):713–718.

Cortes, C. and Vapnik, V. (1995). Support-vector networks.

Machine Learning, 20(3):273–297.

Girdhar, P. and Scheffer, C. (2004). 5 – Machinery fault di-

agnosis using vibration analysis. In Practical Machi-

nery Vibration Analysis and Predictive Maintenance,

chapter 5, pages 89–133. Newnes, Oxford.

Hawksworth, S. J., Gummer, J., Davidson, J., and Williams,

M. (2003). Ignition from conveyor idler rollers. In

Proceedings 30th International Conference of Safety

in Mines Research Institutes, pages 461–470, Johan-

nesburg.

Hu, C., Wang, J., Zhang, Z., Yu, X., Gong, H., and Jin,

S. (2011). Applications S tudy of Distributed Optical

Fiber Sensor System in Coal Mine. 2011 Symposium

on Photonics and Optoelectronics (SOPO), (6):1–4.

Ingenuity (2016). Smart-Idler

. http://www.ingenuity-

design.com.au/portfolio-posts/smart-idler/. Last

accessed on January 13, 2017.

Li, W., Wang, Z., Zhu, Z., Zhou, G., and Chen, G. (2013).

Design of online monitoring and fault diagnosis sy-

stem for belt conveyors based on wavelet packet de-

composition and support vector machine. Advances

in Mechanical Engineering, 2013:10.

Liu, X., Lodewijks, G., and Pang, Y. (2014). Intelligent

Maintenance of Large-scale Belt Conveyor Idler Rolls

: State-of-the-art and Opportunities. Symposium on

Automated Systems and Technologies, pages 95–104.

Lodewijks, G., Duinkerken, M. B., de la C ruz, A. M. L.,

and Veeke, H. P. M. (2007). The application of RFID

technology in belt conveyor systems. Proceedings of

BeltCon, 14:1–17.

Long, L. L. and Srinivasan, M. (2013). Walking, run-

ning, and resting under time, distance, and average

speed constraints: optimality of walk–run–rest mix-

tures. Journal of The Royal Society Interface, 10(81).

Michini, B., Toksoz, T., Redding, J., Michini, M., How, J.,

Vavrina, M., and Vi an, J. (2011). Automated Battery

Swap and Recharge to Enable Persistent UAV Missi-

ons. Infotech@Aerospace 2011, (March):1–10.

Pang, Y. and Lodewijks, G. ( 2011). The application of

RFID technology in large-scale dry bulk material

transport system monitoring. In EESMS 2011 - 2011

IEEE Workshop on Environmental, Energy, and Struc-

tural Monitoring Systems, Proceedings, pages 5–9.

IEEE.

Reicks, A. (2008). Belt conveyor idler roll behaviors. In Al-

spaugh, M., editor, Bulk Material Handling by Con-

veyor Belt, chapter 1, pages 35–40. Society for Mi-

ning Metallurgy & Exploration, Littleton, Colorado,

7th edition.

Suzuki, K. A. O ., Kemper Filho, P., and Morrison, J. R.

(2012). Automatic battery replacement system for

UAVs: Analysis and design. Journal of Intelligent

and Robotic Systems: Theory and Applications, 65(1-

4):563–586.

Tan, J., Lu, W., An, J., and Wan, X. (2015). Fault diag-

nosis method study i n roller bearing based on wavelet

transform and stacked auto-encoder. In The 27th Chi-

nese Control and Decision Conference (2015 CCDC),

pages 4608–4613. IEEE.

Vayeron Pty Ltd (2016). Smart Idler Technology.

http://vayeron.com.au/tech/. Last accessed on January

13, 2017.

Xiao-ping Jiang and Guan-qiang Cao (2015). Belt conveyor

roller fault audio detection based on the wavelet neural

network. In 2015 11th International Conference on

Natural Computation (ICNC), pages 954–958. IEEE.

Yang, B. (2014). Fibre optic conveyor monitoring system.

PhD thesis, The University of Queensland.

Yang, W., Zhang, X., and Ma, H. (2016). An inspection

robot using infrared thermography for belt conveyor.

In 2016 13th International Conference on Ubiquitous

An Integrated Inspection System for Belt Conveyor Rollers - Advancing in an Enterprise Architecture

199

Robots and Ambient Intelligence (URAI), pages 400–

404, Xi’an. IEEE.

Yokogawa (2017). Fiber Optic Sensor.

https://www.yokogawa.com/solutions/products-

platforms/ﬁeld-instruments/ﬁber-optic-sensor/. Last

accessed on January 11, 2017.

Yong, R., Gong, W., Shen, M. Z., and Guoan, G. (2014).

Belt conveyor automatic inspection system and met-

hod based on multi-rotor unmanned aerial vehicle.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

200
