Component-wise Application Migration

in Bidimensional Cross-cloud Environments

Jose Carrasco, Francisco Dur

an and Ernesto Pimentel

University of M

alaga, M

alaga, Spain

Keywords:

Cloud Applications, Migration, Cross-cloud, Trans-cloud, Brooklyn, Standards, TOSCA.

Abstract:

We propose an algorithm for the migration of cloud applications’ components between different providers,

possibly changing their service level between IaaS and PaaS. Our solution relies on three of the key ingre-

dients of the trans-cloud approach: a uniﬁed API, agnostic topology descriptions, and mechanisms for the

independent speciﬁcation of providers. We show how our approach allows us to overcome some of the current

interoperability and portability issues of cloud environments to propose a solution for migration, present an

implementation of our proposed solution, and illustrate it with a case study and experimental results.

1 INTRODUCTION

In recent years, Cloud Computing (Armbrust et al.,

2010) has experienced a growth in the demand of

its services (Youseff et al., 2008). As an answer

to this demand, vendors have developed their own

cloud solutions, offering similar resources through

their own APIs, deﬁning their own non-functional re-

quirements, quality of service (QoS) speciﬁcations,

service level agreements (SLA), and add-ons. This

heterogeneity has derived into many interoperability

and portability restrictions, and provokes situations

where cloud developers are often locked-in speciﬁc

services from cloud providers.

Recent advances in the management of the con-

nections between components deployed using dif-

ferent technologies and vendors (Kritikos and Plex-

ousakis, 2015; Paraiso et al., 2012; Grozev and

Buyya, 2014) have solved most of the interoperabil-

ity issues. We have witnessed the development of

deployment platforms with the ability to distribute

modules of applications using services from different

providers, with the goal of using the better alterna-

tive for each of the individual components and for the

operation of our applications. The last step in this

direction is the possibility of deploying applications

combining services from IaaS and PaaS levels, possi-

bly by different vendors in trans-cloud environments

(Carrasco et al., 2016). The selection of the vendor

or service level to deploy an application from among

the multitude of cloud offerings is indeed a challenge

(see, e.g., (Androcec et al., 2015; Moustafa et al.,

2016; Brogi et al., 2014)). The decision is indeed

non-trivial, and the context and required knowledge

may change while applications are running.

Once an application is running, its management

requires mechanisms to ensure that the chosen cloud

providers are delivering the promised computing re-

sources (Qu et al., 2015; Zheng et al., 2014). For

example, developers may decide today to use a PaaS

provider for a particular module because it is more

cost effective, or because it requires less manage-

ment effort, but tomorrow they may decide to move

some component to IaaS level because their needs or

business model may require more control over vir-

tual machines (VM), e.g., for a better integration with

their enterprise’s infrastructure, or because they need

to increase the security level of their services. Un-

fortunately, moving an application’s component be-

tween different providers is problematic, and it is

more difﬁcult between different abstraction levels,

since changes in these decisions require some devel-

opment efforts (Petcu, 2011; Di Martino, 2014), in

order to adapt the components to new service require-

ments and their integration with other application’s

components, running in other providers.

A migration process requires the orchestration of

the entire cloud environment where the application

is running, to accomplish the correct movement of

components. This process is even more complicated

if the current cloud interoperability and portability

problems are taken into account. As a result, migra-

tion in the cloud opens a lot of new key issues re-

lated to cloud resources and applications’ components

Carrasco, J., Durán, F. and Pimentel, E.

Component-wise Application Migration in Bidimensional Cross-cloud Environments.

DOI: 10.5220/0006372302870297

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 259-269

ISBN: 978-989-758-243-1

259

control. In fact, migration is still an unresolved topic

which has been widespread studied by both academia

and industry (see, e.g., (Jamshidi et al., 2013a; Zhao

and Zhou, 2014)). There have been several propos-

als for what is usually called live migration of cloud

application’s components (Binz et al., 2011; Dur

and Sala

un, 2016; Boyer et al., 2013), where compo-

nents of an application, which are already running in

some providers, are moved to different vendors or lo-

cations. However, these proposals present signiﬁcant

restrictions, mainly due to the portability of the com-

ponents between different vendors, but also to their

interoperability, which forces to provide ad-hoc solu-

tions. Furthermore, these solutions are limited to one

speciﬁc service level (cf. (Dur

an and Sala

un, 2016;

Boyer et al., 2013; Zeginis et al., 2013)).

Migration of individual components or entire ap-

plications may indeed be unavoidable over time, be-

cause of changes in the offered services, prices, secu-

rity policies, or simply because a provider just stops

providing its services. Once developers can take ad-

vantage of the features of different kinds of services,

they will be interested as well in optimizing the cloud

resources usage and improve their applications’ per-

formance. We propose an orchestration algorithm

to reach migration of a component between different

providers in an agnostic way, what means that it is

not bound to any service level, either IaaS or PaaS,

of any particular provider. This allows developers to

deal with vendor lock-in issues, facilitating the adap-

tation of the running applications according to their

own needs, by moving just the necessary application’s

components to another services, independently of the

target abstraction level, IaaS or PaaS.

In order to ensure the agnosticity of our proposal,

the algorithm is built over trans-cloud (or bidimen-

sional cross-cloud) concepts (Carrasco et al., 2016).

Speciﬁcally, (Carrasco et al., 2016) uses the TOSCA

standard to model agnostic applications’ topologies,

which do not use any speciﬁcs of the target providers

over which they will be deployed. The information

related to the cloud service level, IaaS or PaaS, is

added by means of a mechanism independent of the

topology description: policies. The trans-cloud en-

vironment processes these speciﬁcations and uses an

homogeneization API, which uniﬁes IaaS and PaaS

services of different vendors, to orchestrate the de-

ployment of the application over the required cloud

services.

Our migration algorithm relies on the trans-cloud

infrastructure for the management of each applica-

tion module and the interaction with the used cloud

services, to stop, restart or move the necessary com-

ponents independently of the service level, IaaS or

PaaS, the cloud technology or any other dependen-

cies. In order to preserve the architecture consistency

and avoid unexpected situations during the migration,

a certain strategy has to be applied while the compo-

nents are being operated.

The rest of this paper is structured as follows. Pre-

liminaries about trans-cloud deployment and its cur-

rent implementation are presented in Section 2. The

proposed migration algorithm is described in Sec-

tion 3. Details on the implementation of the algorithm

are presented in Section 4, together with some experi-

mental results. In Section 5, we compare our proposal

to other related work. Finally, Section 6 conclude the

paper and presents some plans for future work.

2 AN OVERVIEW OF

TRANS-CLOUD

In this section we provide an overview of trans-cloud

and its main capabilities. These concepts are illus-

trated with a running case study, which will be later

used to show the use of the our proposal in Section 3

and to evaluate it in Section 4.

2.1 The Softcare Case Study

Softcare is an application for the social inclusion of

elderly people and for the management of their medi-

cal problems. The application was developed by Atos

Spain in the context of the SeaClouds project (Brogi

et al., 2015). Softcare is a cloud-based clinical, edu-

cational, and social application, based on state-of-the-

art technology.

As depicted in Figure 1, the application is com-

posed of seven modules: four web modules over

respective Tomcat servers, namely SoftwareDash-

board, SoftwareWS, Multimedia, and Forum (note the

Tomcat icons), and three MySQL databases, namely

SoftcareDB, MultimediaDB, and ForumDB (note the

database icons). The Softcare Dashboard compo-

nent provides the main graphical user interface, which

depends on the Forum, Multimedia and SoftcareWS

modules. Forum adds a forum service to the web plat-

form, Multimedia is responsible for managing the of-

fered multimedia content, and SoftcareWS contains

the application’s business logic. The databases Fo-

rumDB, MultimediaDB and SoftcareDB store, respec-

tively, the forum’s messages, the multimedia content,

and the rest of the application’s data.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

260

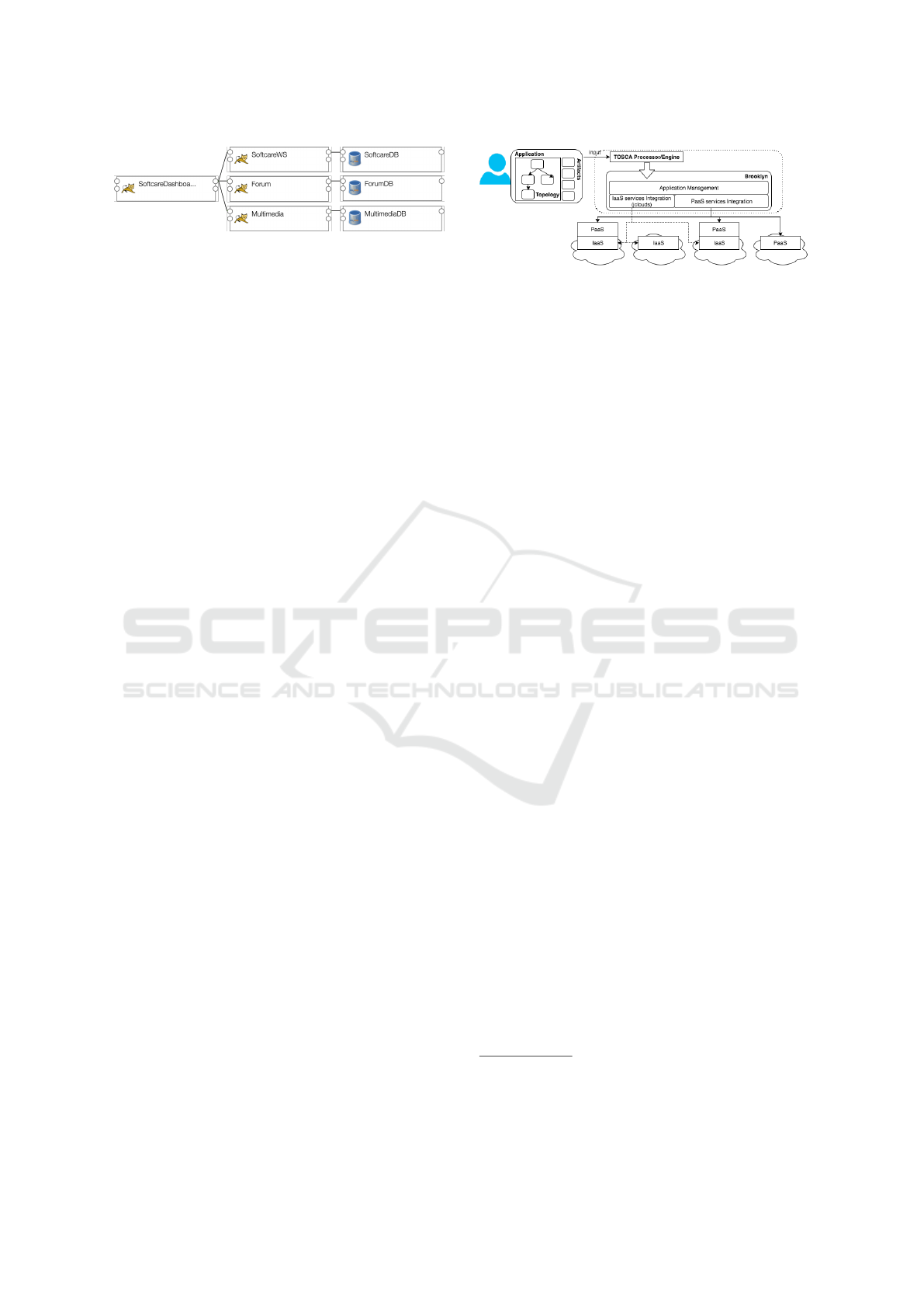

Figure 1: Brooklyn-TOSCA Softcare’s topology.

2.2 Trans-Cloud Concepts

The main goal of the trans-cloud management is to

allow developers to deploy their applications by us-

ing available services and resources offered by differ-

ent providers, at IaaS or PaaS levels, accordingly each

applications needs and preferences.

Trans-cloud reduces signiﬁcantly the portability

and interoperability related issues, liberating devel-

opers from the usual infrastructure limitations while

deﬁning their applications. The approach relies on

three main ideas:

Agnostic Topology Description. The knowledge

about applications’ components, conﬁgurations, in-

terrelations, etc. is speciﬁed using agnostic descrip-

tions, without details about cloud providers.

Target Services Speciﬁcation. Target providers

are speciﬁed independently of topologies, which al-

lows maintaining agnostic and reusable topology de-

scriptions. It provides a key ﬂexibility to deﬁne what

services, IaaS or PaaS, will be used to deploy each

speciﬁc component.

Uniﬁed API. Trans-cloud deﬁnes an homo-

geneization API where IaaS and PaaS services man-

agement is uniﬁed under a common interface. This

API mitigates the cloud heterogeneity and provides a

vendor general solution, without depending on tools,

frameworks or technologies to manage IaaS and PaaS

services. Then, once a topology has been deﬁned and

the target providers have been speciﬁed, the API uses

different mechanisms, clients, drivers, etc., to operate

with the selected services, IaaS or PaaS, to carry out

the application deployment.

These concepts are not just useful for enabling a

uniﬁed cloud management, they provides an essential

basis for carrying out the migration of components:

Target locations can be added in a later phase to an

application description, and the underlying API is in

charge of the management of the necessary resources

(using drivers for the cloud technologies and connec-

tors).

Figure 2: Trans-cloud approach.

2.3 A Trans-Cloud Implementation

The trans-cloud tool presented in (Carrasco et al.,

2016) is based on the TOSCA standard

for the de-

scription of agnostic topologies. Speciﬁcally, it builds

on the Brooklyn-TOSCA open project for enabling an

independent speciﬁcation of the used services, and on

the Apache Brooklyn project to provide a common

API for the uniﬁed management of IaaS and PaaS ser-

vices. Figure 2 shows an overview of the proposal in

(Carrasco et al., 2016).

The open-source Apache Brooklyn project is a

multi-cloud application management platform for the

management of the provisioning and deployment of

cloud applications. It provides a common API that

enables cross-computing features through a uniﬁed

API. Although the current ofﬁcial release of Brooklyn

only handles IaaS services, as can be seen in Figure 2,

Brooklyn’s API was extended in (Carrasco et al.,

2016) with new mechanisms for the management of

PaaS services. Behind its current API, we have al-

located the behavior to describe PaaS providers and

mechanisms to control application components on

them. Our extension to provide support for PaaS ser-

vices builds on the genericity and ﬂexibility of Brook-

lyns API, which has the independency between appli-

cation descriptions and cloud services used in their

operation as one of its goals. Initially, CloudFoundry-

based platforms, like Pivotal Web Services, IBM

Bluemix, etc., were integrated, to prototype the PaaS

support, and to allow components to be deployed us-

ing both IaaS and PaaS.

Brooklyn-TOSCA is an open project with the goal

of extending Brooklyn with the capability of deploy-

ing and managing applications and cloud resources

through TOSCA concepts. Brooklyn-TOSCA pro-

motes an initiative to build agnostic TOSCA topolo-

gies by means of expressing the target services using

TOSCA policies.

Listing 1 shows Softcare’s TOSCA YAML topol-

ogy schema, where just some elements are described

TOSCA (Topology and Orchestration Speciﬁcation for

Cloud Applications) is an OASIS standard for the descrip-

tion of cloud applications, the corresponding services and

their relationships.

Component-wise Application Migration in Bidimensional Cross-cloud Environments

261

to illustrate the agnostic-based application descrip-

tion. As we can see in lines 29–37, this deﬁnition fol-

lows the Brooklyn-TOSCA initiative that allows tar-

get cloud services to be speciﬁed by means of poli-

cies (brooklyn.location). In this case, we can see how

two groups have been deﬁned to be deployed on IaaS,

speciﬁcally on AWS (Ireland’s cluster) and SoftLayer

(London’s cluster). This mechanism allows the sepa-

ration between topology description and the providers

speciﬁcation. In fact, if we decided to re-deploy the

application, but using different providers, we would

just need to change the corresponding locations, with-

out modifying the original topology, as we can see in

Listing 2, where Pivotal (PaaS) is used to deploy some

of the components.

As we will see in the following section, the trans-

cloud approach provides a set of useful basic mecha-

nisms to build an agnostic algorithm to reach the mi-

gration of application’s component.

3 MIGRATION ALGORITHM

In this section, we present our algorithm for the ag-

nostic reconﬁguration of cloud applications’ compo-

nents. It effectively connects the components as re-

quired, stopping, starting, releasing and provisioning

necessary cloud resources and respecting the func-

tional dependencies.

3.1 Description of the Algorithm

Before presenting the algorithm itself in Section 3.2,

we provide in this section some insights into how the

algorithm works on our case study. Speciﬁcally, we

describe its operation step by step by looking at how

the Forum component of the Softcare case study can

be migrated.

Let us assume that the Softcare application has

been described and deployed following the trans-

cloud approach. That is, there is an agnostic descrip-

tion of it and its components, e.g., using TOSCA, as in

Section 2. In that description, the only reference to the

concrete locations on which the components were to

be deployed, or even whether they were using IaaS or

PaaS services, were given as policies in the speciﬁca-

tion of the groups of the components. The trans-cloud

infrastructure is in charge of hiding the management

of the application’s components and the vendors and

the abstraction levels. In fact, this infrastructure does

not only manage the module to be deployed or mi-

grated, but also the related cloud resources. It identi-

ﬁes interdependencies between components and is in

charge of handling them, both in the deployment

1 tosca deﬁnitions version:

tosca simple yaml 1 0 0 wd03

2 ...

3 topology template:

4 node templates:

5 SoftcareDashboard:

6 type: org.apache.brooklyn.entity.webapp.

tomcat.TomcatServer

7 ...

8 requirements:

9 − endpoint conﬁguration:

10 node: SoftcareWS

11 ...

12 − endpoint conﬁguration:

13 node: Forum

14 ...

15 − endpoint conﬁguration:

16 node: Multimedia

17 ...

18 SoftcareWS:

19 type: org.apache.brooklyn.entity.webapp.

tomcat.TomcatServer

20 ...

21 requirements:

22 − endpoint conﬁguration:

23 node: SoftcareDB

24 ...

25 SoftcareDB:

26 type: org.apache.brooklyn.entity.database.

mysql.MySqlNode

27 ...

28 ...

29 groups:

30 add compute locations:

31 members: [SoftcareDB, ForumDB,

MultimediaDB, Forum]

32 policies:

33 − brooklyn.location: aws−ec2:eu−west−1

34 add web locations:

35 members: [SoftcareDashboard, SoftcareWS,

Multimedia]

36 policies:

37 − brooklyn.location: softlayer:lon02

Code 1: Softcare’s TOSCA description.

and the migration process, ensuring the integrity of

the topology.

Given the deployment plan used for the Softcare

application in Section 2.3, let us assume that the Fo-

rum component is running in AWS EC2 (IaaS). Now,

assume we want to move it to Pivotal Web Services

(PaaS). The sequence of steps followed by the migra-

tion process are depicted in the diagram in Figure 3.

The diagram shows a Migration Orchestrator element

that receives a migration request to move the Forum

component to Pivotal Web Services, and is in charge

of controlling the migration process.

Once the migration request is received, the migra-

tion orchestrator stops all elements that have func-

tional dependencies with the Forum component—

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

262

1 ...

2 groups:

3 add compute locations:

4 members: [SoftcareDB, ForumDB,

MultimediaDB, Forum]

5 policies:

6 − brooklyn.location: aws−ec2:eu−west−1

7 add web locations:

8 members: [SoftcareDashboard, SoftcareWS,

Multimedia]

9 policies:

10 − brooklyn.location: pivotal−ws

Code 2: Adding new locations to web modules.

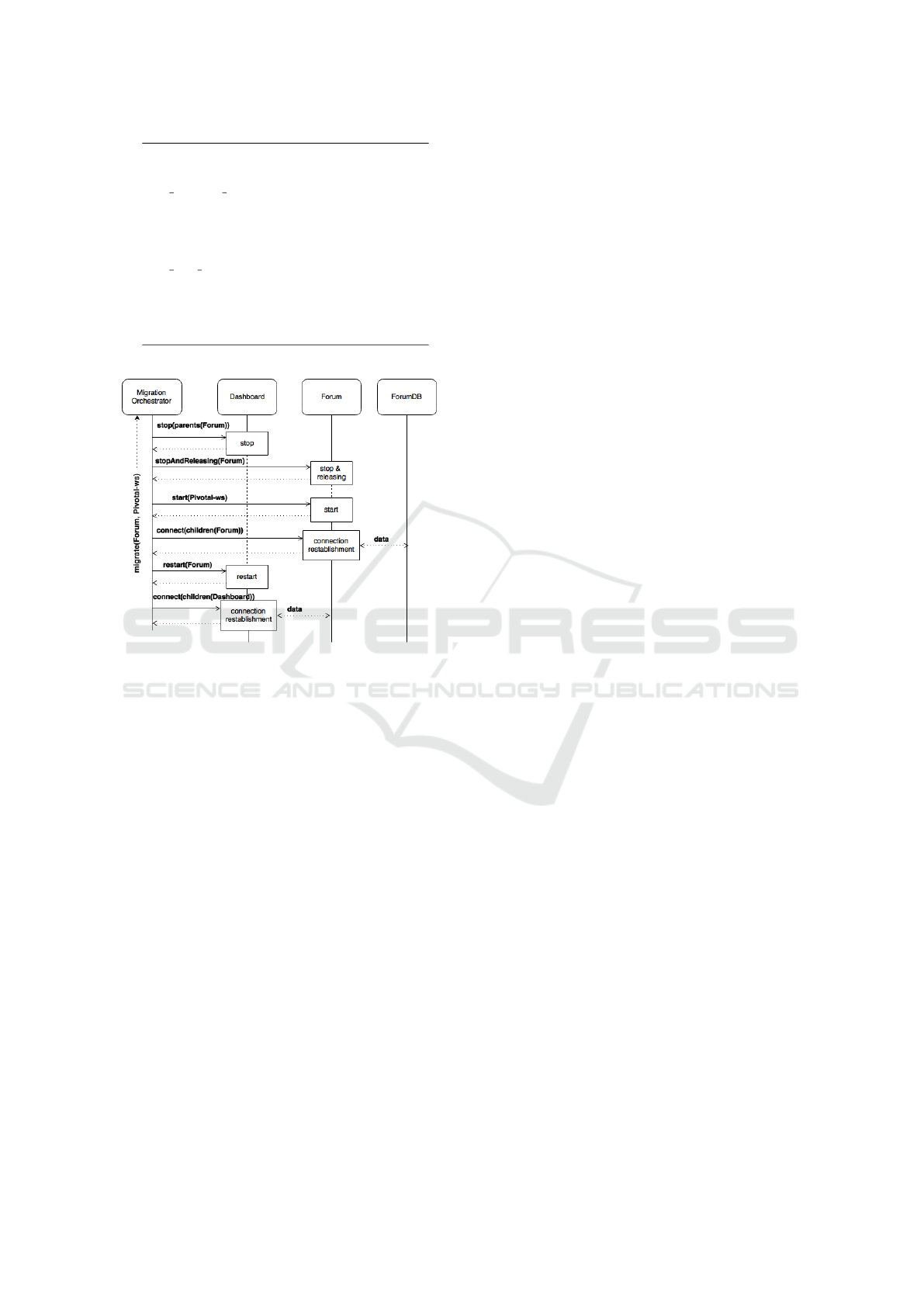

Figure 3: Forum migration process.

Forum’s parents—to avoid scenarios where a com-

ponent is working without some of its dependencies.

Finding all parents of a module might be a complex

and expensive task, since functionalities are deﬁned

as connections which are conﬁgured and stablished

using different mechanisms, for example, environ-

ment variables, conﬁguration ﬁles, etc. However, in

the trans-cloud approach, there is a complete descrip-

tion of the application’s topology, where all the rela-

tions and dependencies are speciﬁed.

Since each of the components of an application

may be running on services of different providers, ei-

ther IaaS or PaaS, an operation on them will be de-

pendent on its speciﬁc case. For example, to stop

a server that is running on a VM in IaaS, probably

a speciﬁc command should be executed on the VM

using ssh, or, if the piece of software is running on

a PaaS environment, a concrete REST web service

of the platforms API should be called to stop the

piece of software. However, thanks to its uniﬁed API,

which hides the cloud heterogeneity, the trans-cloud

approach greatly simpliﬁes the management of differ-

ent cloud services.

Once all parents have been stopped, the next step

is stopping the component that has to be migrated, the

Forum component in this case (Step 2 in Figure 3).

However, only stopping the component is not enough,

since the resources that are being used by the Forum

component in AWS will not be used again once the

component is moved to its new location, and there-

fore it is also necessary to release all the associated

resources. Again, the trans-cloud capabilities allows

our algorithm to be designed without worrying about

the risks of managing different providers, since it al-

lows us to stop the application component and release

the associated cloud resources independently of the

vendor or the abstraction.

Once the component is stopped, and the cloud re-

sources have been released, a new instance of the Fo-

rum component is started in the new location (Step

3). Once more, the trans-cloud mechanisms are key

to accomplish this task in a very straightforward way.

The agnostic topology of the application contains all

the information about the structure of the applica-

tion, which is used, together with the information on

the target providers, by the uniﬁed API, to deploy

the component: The description of any component

(Forum) is provided by the original topology, and the

new target location (Pivotal Web Service) is given as

an argument of the operation.

With the component started in its new location,

it is still necessary to re-establish the connections of

its functional dependencies to maintain the structural

integrity of the application (Step 4). In our exam-

ple, once the Forum component in running in Pivotal,

it is necessary to re-establish its connection with the

ForumDB component. The trans-cloud environment

is able to analyze the application topology, ﬁnd the

necessary relations for the newly migrated component

and re-establish the connections with the other com-

ponents in the topology independently of the cloud

environments where the components are running. For

our example, since Pivotal offers PaaS services, con-

nections between components are modeled using en-

vironment variables.

The last step consist in restarting all application’s

elements stopped in Step 1. The trans-cloud mecha-

nisms makes the restarting of the necessary compo-

nents and the re-establishment of their connections

(Steps 5 and 6) straightforward. The topology of the

application is analized and the parents of the Forum

component (Dashboard) are restarted. The new Fo-

rum component’s endpoint, which is provided now by

Pivotal Web Services, is used to re-establish the con-

nection.

Component-wise Application Migration in Bidimensional Cross-cloud Environments

263

3.2 Algorithm Speciﬁcation

As we have seen in the previous section, the trans-

cloud approach provides the necessary ingredients

for the deﬁnition of an agnostic migration algorithm,

where the diversity of the cloud and the complex man-

agement of applications’ components is delegated to

the different mechanisms provided by the trans-cloud

infrastructure.

Our migration algorithm is speciﬁed in Algo-

rithm 1. It is completely agnostic, it is just a process

orchestrator. Given an application, the component to

be migrated, and the target location for such com-

ponent, the migration orchestrator deﬁnes an opera-

tional plan for the migration process, delegating the

management of each concrete application’s compo-

nent and bound cloud resource to trans-cloud mech-

anisms.

Algorithm 1: Migration Algorithm.

Input: a : application

Input: c : component to migrate

Input: l : new location for the component

1: procedure MIGRATE(a, c, l)

2: for parent: parents(a, c) do

3: STOPPARENTS(a, parent)

4: stopAndReleaseResources(a, c)

5: start(a, c, l)

6: for child : children(a, c) do

7: restablishRelations(a, c, child)

8: for parent: parents(a, c) do

9: RESTARTPARENTS(a, parent)

10: procedure STOPPARENTS(a, c)

11: for parent: parents(a, c) do

12: STOPPARENTS(a, parent)

13: stop(a, c)

14: procedure RESTARTPARENTS(a, c)

15: restart(a, c)

16: for child : children(a, c) do

17: reestablishRelations(a, c, child)

18: for parent: parents(a, c) do

19: RESTARTPARENTS(a, parent)

The operation MIGRATE(a, c, l) receives as input

the application to operate on a, the component to be

migrated c, and the target location l. Before migrat-

ing a component, it is necessary to stop all its input

dependencies (lines 2-3). STOPPARENTS (lines 10-

13) is a recursive procedure that stops all the ances-

tors of a given component following a top-down strat-

egy, that is, it stops a component once all its parents

have been previously stopped. The stop(a, c) opera-

tion (line 15), provided by the trans-cloud infrastruc-

ture, stops an application’s component.

Once all parents have been stopped, the compo-

nent to be migrated is stopped and all bound resources

are released using the stopAndReleaseResources(a, c)

operation provided by the trans-cloud infrastructure

(line 4). Then, the target component is started in its

new location and all its connections are re-established

(lines 6–8). Thanks to the trans-cloud operations

start(a, c, l) and reestablishRelations(a, c, child), the

new component can be deployed and started in its lo-

cation, hiding the complexity of managing the differ-

ent services, and inspecting the application’s topology

to ﬁnd and manage the relations in order to accom-

plish the reconnection between the target component

and its children.

Finally, all components that were stopped in pre-

vious steps have to be restarted (lines 9–10). Again,

a recursive function, RESTARTPARENTS(a, parent)

(lines 17–22), which follows a bottom-up strategy to

avoid unexpected behaviors and wrong results, is in

charge of re-starting all the stopped ancestors. This

procedure ensures that all dependencies of a compo-

nent are available before restarting it, and thus con-

cluding the migration process.

4 THE TOOL IN PRACTICE

We explain in this section how our migration algo-

rithm has been integrated into our trans-cloud infras-

tructure as an effector of cloud entities. We evaluate

it by focusing in two aspects: the effort required for

moving one element to a new location and the times

taken by the execution of two different migration sce-

narios.

4.1 Algorithm Implementation

As explained in Section 3.2, our migration algorithm

is treated like an autonomous element inside the trans-

cloud approach. More speciﬁcally, Algorithm 1 has

been developed and integrated as a new part of the

customized Brooklyn described in Section 2.3. In

this way, the algorithm can be accessed as part of

the other available trans-cloud mechanisms, to man-

age providers and cloud resources, to operate indi-

vidually with application components and carrying

out operations like stopping, starting, restarting, etc.

The trans-cloud extended Brooklyn tool, its docu-

mentation and examples is available in github from

https://goo.gl/DzXcXr.

To be able to provide support for the manage-

ment of connections and dependencies, key for the

migration algorithm, our trans-cloud infrastructure

had to be extended to enable explicit management of

the functional relations of application’s components.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

264

Brooklyn, as well as the customized Brooklyn pre-

sented in Section 2.3, have a limited support on the

management of relations. They read the TOSCA re-

lationships speciﬁed in the topology of applications

and conﬁgure components, for example, using envi-

ronment variables, or conﬁguration ﬁles, to establish

the connection between them. However, the explicit

knowledge about the relations is not shared with the

trans-cloud API, which means that it does not of-

fer the operations to identify, and manage the rela-

tions and functional dependencies between applica-

tion’s component, e.g., for re-establishment the con-

nections, to ﬁnd all component which depend of an-

other (parents), or retrieve all the dependencies of one

of them (children), which are required to develop the

proposed algorithm.

In our extended implementation of Brook-

lyn, when TOSCA relationships are processed by

Brooklyn-TOSCA to conﬁgure the component’s re-

lations, this information is added to the trans-cloud

API. For that, we have added new mechanisms, based

on the ofﬁcial Brooklyn API, to enable the manage-

ment of relationships and to implement operations to

ﬁnd the parents and children of any component.

One of the key issues we have to solve when

implementing the support for functional dependen-

cies was the handling of Brooklyn’s composition rela-

tions. Composition relations are used, for example, to

model the relation between a cluster and the servers

it controls. For composition relations, a component is

in charge of the management of its sub-components.

Thus, for example, if an operation, like stopping or

starting, is applied to a cluster, it has to apply the same

operation (stop or start) to all its children, in order to

maintain the consistence of the topology. Then, com-

posed elements, like clusters or elastic components

can be understood and managed as a bundle, which

represent a set of sub-components. Fortunately, the

bundle behavior is perfectly compatible with our al-

gorithm, since, if an operation must be carried out on

a bundle, this one will ensure that the same operation

is applied to all its sub-components. For example,

if the migration algorithm requires to stop a cluster,

this cluster itself ensures that all the servers, which

compose it, will also be stopped. This maintains the

topology integrity during the process, and ensures that

the algorithm orchestration is delivered to all applica-

tion’s components.

4.2 On the Effort for Migration

Whereas the migration from on-premise applica-

tions to the cloud has been studied by many re-

searchers (Jamshidi et al., 2013b), not much work has

been published on changes in target providers for mi-

gration. Besides, although there is no consensus in the

literature on how to measure alternative deployments,

the one used in (Kolb et al., 2015) is, to the best of our

knowledge, possibly the most interesting so far. They

use their proposal to compare and analyze the feasi-

bility of the migration of an application using seven

different vendors in terms of portability and effort.

For an application composed of modules similar to

those used in our case study, in the analysis in (Kolb

et al., 2015), the deployment steps needed for a given

set of PaaS providers are very different. Although

these steps are semantically similar among vendors,

they are carried out by proprietary tools, which do

not permit them to be carried out in a standardized

way. Their experiments showed that, on average, a

migration may require an effort of 17 actions with a

maximum spread of 14 and a standard deviation of

5. A low number of steps is usually offset by a com-

plex conﬁguration of the initial code repository, and it

makes the initial deployment of an application a non-

elementary task.

Despite the differences in effort between the dif-

ferent alternatives shown in (Kolb et al., 2015), this

effort is reduced to 1 when the proposed algorithm

uses bidimensional cross-cloud approach to orches-

trate the migration and interact with the different

providers. This is true in our case also, not only

for migrations between the same kind of abstraction

livels, such as PaaS, but for any combination of IaaS

and PaaS vendors used for each of our application’s

modules, since the knowledge to interact with a spe-

ciﬁc provider and to handle application topologies,

like relations, is encapsulated inside the customized

Brooklyn. So, this allows the effort required for the

migration of an application component to be only 1.

Thus, the beneﬁt is obvious. We only need an ini-

tial effort to specify the topology of our application in

TOSCA, and bidimensional-based algorithm allows

any application’s component to be migrated between

different providers, which is comparable with—even

simpler than—the effort needed to do the orchestrate

the migration process by hand.

4.3 Deployment Times

A second important issue to be illustrated is as regards

the quantitative level. Comparing the performance or

reliability of providers or abstraction levels is not the

goal of this work, it would require a more exhaus-

tive analysis. However, our experiments show that

we have not lost performance or reliability by using

a trans-cloud deployment.

We have carried out experiments with two differ-

Component-wise Application Migration in Bidimensional Cross-cloud Environments

265

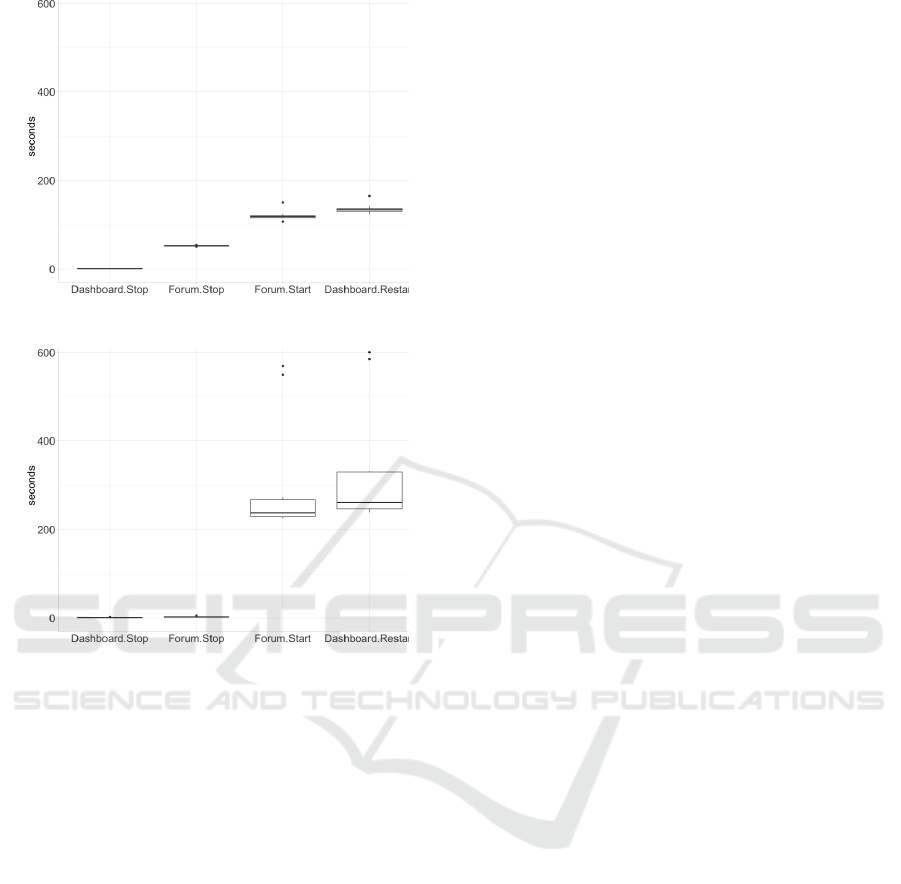

(a) Aws-to-Pivotal

(b) Pivotal-to-Aws

Figure 4: Forum migration process.

ent scenarios. Starting with the Softcare application

deployed with the trans-cloud approach using differ-

ent services, then the Forum component is migrated

between different providers:

Aws-to-Pivotal Forum is moved from AWS EC2 to

Pivotal Web Services.

Pivotal-to-Aws Forum is moved from Pivotal Web

Services to AWS EC2.

Each of these two migration scenarios has been

executed 10 times using our trans-cloud-based mi-

gration algorithm. The tool was instrumentalized to

gather information at each sub-task of the process for

each module. Speciﬁcally, and following the pro-

cess explained in Section 3.2, we identify in both

cases tasks Dashboard.stop, Forum.stop, Forum.start,

Dashboard.restart, and gather the times at which they

were completed (all time amounts are in seconds).

Charts in Figure 4a and 4b show box plots for

the migration times in scenarios Aws-to-Pivotal and

Pivotal-to-Aws, respectively. Both of them show sim-

ilar times for the Dashboard component stopping, but

we can see clear delays in the stopping and releas-

ing of the Forum component (Forum.stop). This de-

lay is explained by the different character of the kind

of the cloud resources used, since releasing of cloud

resources on IaaS (AWS EC2) (Figure 4a) is more ex-

pensive than releasing of PaaS services (Figure 4b).

The event Forum.start represents the re-

deployment of the Forum component in its new

location and the reconnection of its dependencies.

In Figure 4a the time values for Forum.start present

smaller values and smaller data dispersion than in

Figure 4b. The reason for this is that when the

Forum component is deployed on IaaS (AWS EC2), it

requires provisioning and conﬁguring a new VM, and

then executing the necessary commands to deploying

the component, etc. The process is much simpler in

PaaS.

Finally, the Dashboard component is restarted.

Although the component is running on AWS EC2 in

both cases, Dashboard.restart shows a greater delay

in Figure 4b due to the accumulated dispersion in pre-

vious steps. The restart operation is in charge of re-

connecting its dependencies.

5 RELATED WORK

There is some research on the study of the portabil-

ity and interoperability issues in cloud computing, but

not much speciﬁc on component migration. Indeed,

depending on what kind of services are involved and

how they are managed, we identify in the literature

different ways to understand the term migration (see,

e.g., (Jamshidi et al., 2013a; Zhao and Zhou, 2014)):

migration of legacy apps, VM migration, and the mi-

gration of app components.

The most common form of migration is the migra-

tion of legacy applications to the cloud, where an en-

tire application has to be moved to cloud environment

in order to take advantage of cloud features (Arm-

brust et al., 2010), such as elasticity and scalability,

payments strategies, or on-demand provisioning of

services. Several studies are focused on the adapta-

tion (Andrikopoulos et al., 2013) and the predictive

cloud selections (Brogi et al., 2014; Qu et al., 2015;

Vu and Asal, 2012) for the efﬁcient and robust deploy-

ment of legacy systems on cloud environments (Cai

et al., 2016; Papazoglou et al., 2007).

The second use of the term migration is in the con-

text of the management of virtualized resources on

IaaS contexts, like virtual machine migration (Clark

et al., 2005). VM migration enables the movement

from an online server to a new location, allowing

an efﬁcient usage and allocation of resources on-

demand, ensuring the accomplishment of SLAs and

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

266

minimizing costs. Some proposals have tried to mit-

igate these issues by providing algorithms (Kashyap

et al., 2014; Zhang et al., 2014; Lu et al., 2015), and

new metrics (Deshpande et al., 2014) for the evalua-

tion, optimization and scheduling of VM migration.

Finally, as a natural evolution of the previous mi-

gration scenarios, we identify a more abstract migra-

tion process, the live migration of cloud application’s

components. In this context, different algorithms for

the robust movement of components among clouds

are proposed (Dur

an and Sala

un, 2016; Boyer et al.,

2013). These solutions are limited to one speciﬁc

service level. For instance, the approach presented

in (Dur

an and Sala

un, 2016) focuses on IaaS, whereas

Cloud4SOA is devoted to the management of PaaS

environments.

Federated multi-clouds (Paraiso et al., 2012) de-

ﬁnes a PaaS federated platform to manage applica-

tions on IaaS and PaaS providers. It uses an OASIS

standard, the Service Component Arquitecture, en-

abling the management over IaaS and PaaS levels of

different providers. They also offer a standard-based

uniﬁed provider-management, and allow the descrip-

tion of application architectures. However, they do

not offer a robust uniﬁed modeling mechanism to

represent the knowledge about applications, which

makes the addressing of migration and elasticity more

difﬁcult.

Some research projects and initiatives, like

jClouds, COAPS (Sellami et al., 2013) or Nucle-

ous (Kolb and R

ock, 2016) have developed generic

APIs to manage services of different providers and

their own models to represent application components

and cloud services, in order to address the vendor

lock-in problem and facilitate the migration of com-

ponents. These approaches focus on the simpliﬁca-

tion of concrete abstraction levels, e.g., jClouds uni-

ﬁes IaaS services, and COAPS is centered on PaaS.

We provide a level-agnostic solution by using trans-

cloud’s homogeneization mechanisms.

Projects like Roboconf (Pham et al., 2015) and

SCALES (Ranabahu et al., 2015) provide frameworks

for distributed application orchestration to deﬁne ap-

plications and the target providers to manage applica-

tions in multi-cloud platforms. Like us, both of them

provide a generic and extensible DSL-based infras-

tructure where IaaS and PaaS providers can be inte-

grated. Unfortunately, to deploy an application, in

these solutions developers must provide a number of

additional elements, to specify the steps necessary to

manage the application over the target providers. Ap-

plication descriptions and target services are very in-

terdependent, which makes it very difﬁcult to modify

the target providers without affecting the application

models. Like all above-mentioned approaches, they

offer some early mechanisms to facilitate the migra-

tion of applications, but they do not formalize any al-

gorithm to orchestrate and automatize this process.

6 CONCLUSIONS

We have presented an agnostic algorithm to orches-

trate the migration process for application’s stateless

component. Since it is based on trans-cloud concepts,

the algorithm is vendor, technology and service-level

neutral.

The proposed algorithm takes advantage of these

capabilities, simplifying the management of the dif-

ferent cloud providers solutions, reducing the porta-

bility and interoperability issues related to vendor

lock-in. In fact, the algorithm is totally agnostic, and

it can be applied to any stateless application compo-

nent, either it is using IaaS or PaaS services to run.

The migration process is fully automated, the only re-

quired external intervention to carry out the migration

is just a migration request to initialize the process, in-

dicating the component which has to be migrated and

the target location. Indeed, it would be treated like an

autonomous element, because it cannot need be inte-

grated in the application modeling or its management

lifecycle. It can be described as a self-governing or-

chestrator, whether facilitate the implementation and

its integration in a trans-cloud system.

The current algorithm is intended for the migra-

tion of a single component of an application. We

will in the near future work on the migration of sev-

eral components of the same application, maybe all of

them, in parallel. Moreover, we plan to study the pos-

sibility of using ﬂexibility and scalability mechanisms

for the support of autoscaling techniques to improve

the reconﬁguration skills of the presented work.

ACKNOWLEDGEMENTS

We are grateful to our partners in the SeaClouds

project, and in particular to our colleagues Alex

Heneveld, Andrea Turli, and the rest of Cloud-

soft, and Francesco D’Andria and Roi Sucasas

from Atos Spain. This work has been partially

supported by MINECO/FEDER projects TIN2014-

52034-R and TIN2015-67083-R, and Universidad de

alaga, Campus de Excelencia Internacional An-

daluc

ıa Tech.

Component-wise Application Migration in Bidimensional Cross-cloud Environments

267

REFERENCES

Andrikopoulos, V., Binz, T., Leymann, F., and Strauch, S.

(2013). How to adapt applications for the cloud envi-

ronment. Computing, 95(6):493–535.

Androcec, D., Vrcek, N., and Kungas, P. (2015). Service-

level interoperability issues of platform as a service. In

World Congress on Services (SERVICES), pages 349–

356.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R., Konwinski, A., Lee, G., Patterson, D., Rabkin, A.,

Stoica, I., et al. (2010). A view of cloud computing.

Communications of the ACM, 53(4):50–58.

Binz, T., Leymann, F., and Schumm, D. (2011). Cmotion: A

framework for migration of applications into and be-

tween clouds. In Intl. Conf. on Service-Oriented Com-

puting and Applications (SOCA), pages 1–4. IEEE.

Boyer, F., Gruber, O., and Pous, D. (2013). Robust recon-

ﬁgurations of component assemblies. In Intl. Conf. on

Software Engineering (ICSE), pages 13–22.

Brogi, A., Carrasco, J., Cubo, J., Nitto, E. D., Dur

an, F.,

Fazzolari, M., Ibrahim, A., Pimentel, E., Soldani, J.,

Wang, P., and D’Andria, F. (2015). Adaptive man-

agement of applications across multiple clouds: The

SeaClouds approach. CLEI Electron. J., 18(1).

Brogi, A., Ibrahim, A., Soldani, J., Carrasco, J., Cubo, J.,

Pimentel, E., and D’Andria, F. (2014). SeaClouds: a

European project on seamless management of multi-

cloud applications. ACM SIGSOFT Sw. Eng. Notes,

39(1):1–4.

Cai, Z., Li, X., and Gupta, J. N. (2016). Heuristics for pro-

visioning services to workﬂows in XaaS clouds. IEEE

Trans. on Services Computing, 9(2):250–263.

Carrasco, J., Cubo, J., Dur

an, F., and Pimentel, E. (2016).

Bidimensional cross-cloud management with TOSCA

and brooklyn. In 9th IEEE International Conference

on Cloud Computing (CLOUD), pages 951–955.

Clark, C., Fraser, K., Hand, S., Hansen, J. G., Jul, E.,

Limpach, C., Pratt, I., and Warﬁeld, A. (2005). Live

migration of virtual machines. In Conf. on Net-

worked Systems Design & Implementation (NSDI),

pages 273–286.

Deshpande, U., You, Y., Chan, D., Bila, N., and Gopalan,

K. (2014). Fast server deprovisioning through scatter-

gather live migration of virtual machines. In Intl.

Conf. on Cloud Computing (CLOUD), pages 376–

383. IEEE.

Di Martino, B. (2014). Applications portability and services

interoperability among multiple clouds. IEEE Trans.

on Cloud Computing, 1(1):74–77.

Dur

an, F. and Sala

un, G. (2016). Robust and reliable re-

conﬁguration of cloud applications. J. of Systems and

Software, 122:524–537.

Grozev, N. and Buyya, R. (2014). Inter-cloud architec-

tures and application brokering: taxonomy and survey.

Softw., Pract. Exper., 44(3):369–390.

Jamshidi, P., Ahmad, A., and Pahl, C. (2013a). Cloud mi-

gration research: a systematic review. IEEE Trans. on

Cloud Computing, 1(2):142–157.

Jamshidi, P., Ahmad, A., and Pahl, C. (2013b). Cloud mi-

gration research: A systematic review. IEEE Trans.

on Cloud Computing, 1(2).

Kashyap, S., Dhillon, J. S., and Purini, S. (2014). Rlc-a

reliable approach to fast and efﬁcient live migration

of virtual machines in the clouds. In Intl. Conf. on

Cloud Computing (CLOUD), pages 360–367. IEEE.

Kolb, S., Lenhard, J., and Wirtz, G. (2015). Application

migration effort in the cloud. In Intl. Conf. on Cloud

Computing (CLOUD), pages 41–48.

Kolb, S. and R

ock, C. (2016). Uniﬁed cloud application

management. In World Congress on Services Com-

puting (SERVICES), pages 1–8.

Kritikos, K. and Plexousakis, D. (2015). Multi-cloud ap-

plication design through cloud service composition.

In Intl. Conf. on Cloud Computing (CLOUD), pages

686–693.

Lu, H., Xu, C., Cheng, C., Kompella, R., and Xu, D. (2015).

vhaul: Towards optimal scheduling of live multi-vm

migration for multi-tier applications. In Intl. Conf. on

Cloud Computing (CLOUD), pages 453–460.

Moustafa, A., Zhang, M., and Bai, Q. (2016). Trustwor-

thy stigmergic service composition and adaptation in

decentralized environments. IEEE Trans. on Services

Computing, 9(2):317–329.

Papazoglou, M. P., Traverso, P., Dustdar, S., and Leymann,

F. (2007). Service-oriented computing: State of the

art and research challenges. Computer, 40(11).

Paraiso, F., Haderer, N., Merle, P., Rouvoy, R., and Sein-

turier, L. (2012). A federated multi-cloud PaaS in-

frastructure. In Intl. Conf. on Cloud Computing

(CLOUD), pages 392–399.

Petcu, D. (2011). Portability and interoperability between

clouds: challenges and case study. In Towards a

Service-Based Internet, pages 62–74.

Pham, L. M., Tchana, A., Donsez, D., De Palma, N., Zur-

czak, V., and Gibello, P.-Y. (2015). Roboconf: a

hybrid cloud orchestrator to deploy complex applica-

tions. In Intl. Conf. on Cloud Computing (CLOUD),

pages 365–372.

Qu, L., Wang, Y., Orgun, M. A., Liu, L., Liu, H., and

Bouguettaya, A. (2015). CCCloud: Context-aware

and credible cloud service selection based on sub-

jective assessment and objective assessment. IEEE

Trans. on Services Computing, 8(3):369–383.

Ranabahu, A., Maximilien, E. M., Sheth, A., and

Thirunarayan, K. (2015). Application portability in

Cloud Computing: An abstraction-driven perspective.

IEEE Trans. on Services Computing, 8(6):945–957.

Sellami, M., Yangui, S., Mohamed, M., and Tata, S. (2013).

PaaS-independent provisioning and management of

applications in the cloud. In Intl. Conf. on Cloud Com-

puting (CLOUD), pages 693–700.

Vu, Q. H. and Asal, R. (2012). Legacy application migra-

tion to the cloud: Practicability and methodology. In

World Congress on Services (SERVICES), pages 270–

277. IEEE.

Youseff, L., Butrico, M., and Silva, D. D. (2008). Toward

a uniﬁed ontology of cloud computing. In IEEE Grid

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

268

Computing Environments Workshop (GCE), pages 1–

10.

Zeginis, D., D’Andria, F., Bocconi, S., Cruz, J. G., Martin,

O. C., Gouvas, P., Ledakis, G., and Tarabanis, K. A.

(2013). A user-centric multi-paas application manage-

ment solution for hybrid multi-cloud scenarios. Scal-

able Computing: Pract. and Exp., 14(1).

Zhang, W., Lam, K. T., and Wang, C. L. (2014). Adap-

tive live vm migration over a wan: Modeling and

implementation. In Intl. Conf. on Cloud Computing

(CLOUD), pages 368–375. IEEE.

Zhao, J.-F. and Zhou, J.-T. (2014). Strategies and methods

for cloud migration. Intl. J. of Automation and Com-

puting, 11(2):143–152.

Zheng, Z., Zhang, Y., and Lyu, M. R. (2014). Investigat-

ing QoS of real-world web services. IEEE Trans. on

Services Computing, 7(1):32–39.

Component-wise Application Migration in Bidimensional Cross-cloud Environments

269
