Self-learning Trajectory Prediction with Recurrent Neural Networks

at Intelligent Intersections

Julian Bock

, Till Beemelmanns

, Markus Klösges

and Jens Kotte

Institute for Automotive Engineering, RWTH Aachen University, Aachen, Germany

Forschungsgesellschaft Kraftfahrwesen mbH, Aachen, Germany

Keywords: Neural Networks, Machine Learning, Prediction, Intersection, V2x.

Abstract: We present the concept and first results of a self-learning system for road user trajectory prediction at

intersections with connected sensors. Infrastructure installed connected sensors can assist automated vehicles

in perceiving the environment in complex urban scenes such as intersections. An intelligent intersection with

connected sensors can measure the trajectories of road users using multiple sensor types and store the

trajectories. Our approach uses this information to collect a large dataset of pedestrian trajectories. This dataset

is again used to train a pedestrian prediction model with Recurrent Neural Networks. This model learns

intersection specific pedestrian movement patterns. Through a self-learning process enabled by the

measurements of connected sensors, the system continuously improves the prediction during operation while

keeping the dataset preferably small. In this paper, we focus on the prediction of pedestrian trajectories, but

as the approach is data-driven, the system could also predict other road users such as vehicles or bicyclists if

trained with the respective data.

1 INTRODUCTION

As automated driving and advanced driver assistance

systems will play a more and more important role,

anticipating the pedestrian’s future movements is a

valuable task for improving road safety and trajectory

planning (Brouwer et al., 2016; Keller and Gavrila,

2014). Human movement patterns are often uncertain

and depend on many individual influencing factors.

The movement of pedestrians is highly dynamic and

especially urban scenes require an accurate prediction

(Schneider and Gavrila, 2013) Due to the different

driving directions and diverse road participants,

intersections are among the most complex scenarios

for automated driving. Thus, it is a challenging task

to design a model that is able to forecast future

movements of pedestrian at intersections with long

time horizons.

For short-time pedestrian predictions, the head

orientation and arm movement are highly relevant

characteristics, while long-time predictions are rather

goal oriented (Rehder and Kloeden, 2015). Due to

their high relative velocity, vehicles typically monitor

a pedestrian only for a short time making it hard to

interfere the goal of the pedestrian. At an intersection,

connected stationary sensors allow long-time

observations of the pedestrian movement. Those

sensors not just allow a longer observation of a single

pedestrian, but also can be used for the generation of

datasets with large amounts of historical data. Using

this pedestrian historical data, position-dependent

movement patterns of this intersection can be learned

with machine learning approaches to implicitly model

pedestrian goals.

However, the position-dependent movement

patterns might change over time or rare situations

need to be considered, which are not be sufficiently

covered in the learned model. As the infrastructure

sensors are permanently monitoring the intersection,

new measurement data is permanently created. Our

proposed self-learning system is intended to

permanently improve the prediction by re-training the

models with these new measurements. In this re-

training process, the prediction error is considered.

The error of every prediction can easily be calculated

by comparing the prediction with the measurement

after the prediction time. With this continuous re-

training process, rare situations can be incorporated

and the prediction can adapt to changes at the

intersection.

346

Bock, J., Beemelmanns, T., Klösges, M. and Kotte, J.

Self-learning Trajectory Prediction with Recurrent Neural Networks at Intelligent Intersections.

DOI: 10.5220/0006374003460351

In Proceedings of the 3rd International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2017), pages 346-351

ISBN: 978-989-758-242-4

2 RELATED WORK

Our system builds upon a structure of locally

connected sensors together with a computing unit.

Thus, a short overview on the use of infrastructure

sensors is given first. The data collected by the

infrastructure sensors is processed with machine

learning algorithms for temporal data. This leads to

the current state of research on recurrent neural

networks with focus on sequence prediction.

Although the data-driven method makes it

exchangeable to any other type of road users, the

current state of pedestrian prediction models is

provided. Finally, approaches on continuous learning

are presented.

2.1 Infrastructure Sensors

Research projects such as Ko-FAS (Wertheimer and

others, 2014), I2EASE (I2EASE Consortium, 2016)

and the SADA (Consortium of Project SADA)

examine the use of infrastructure installed sensors for

e.g. cooperative perception. In I2EASE, the

information from stationary infrastructure sensors as

well as moving sensors carried by any road user are

sent via X2X communication to a central intersection

computer. The information from all sensors at the

intersection are combined to a fused list of road user

objects. Project SADA is working on a similar

approach to fuse the data from any sensor.

Just recently (The City of San Diego, 09.03.2017)

announced the installation of 3200 connected smart

sensors in the urban area of San Diego. At least a part

of those sensors will be installed at intersections. This

shows that networked infrastructure sensors are a real

future scenario.

2.2 Recurrent Neural Networks

Neural networks have shown to be capable of solving

many tasks superior to previous methods. While feed

forward neural networks are heavily applied on data

without time dependency, recurrent neural networks

are good for time dependent data through their

possibility to save information from previous steps

inside the network. In the early 90s, (Hochreiter,

01.01.1991) has shown, that there are issues on long-

time dependency information with recurrent neural

networks. A few years later, (Hochreiter and

Schmidhuber, 1997) proposed a method called long

short term memory (LSTM) extending RNNs for

handling longer sequence information.

Learning tasks, which take a sequence of

information over time as input with the goal to

generate again a sequence of information over time,

are called “Sequence to Sequence” learning. LSTMs

have shown to successfully solve Sequence-to-

Sequence problems for several problems such as

language translation (Sutskever et al.) and

handwriting speech recognition (Graves et al., 2013).

(Graves, 2014) used LSTMs for sequence

generating tasks with complex long-ranged time

dependencies. The LSTMs are trained with

handwriting sequences based on tracked pen-tip

trajectories. (Graves, 2014) showed, that the trained

model can generate handwriting samples or

computing the probability distribution of future pen

tip locations. This approach was one of the first

attempts of training X-Y positional data with a RNN-

LSTM inspiring the application of this methodology

to different problems and datasets.

2.3 Pedestrian Prediction

The prediction of pedestrian movement has been

studied for quite some time. Already in the early 90s,

first pedestrian models inspired by physical gas-

kinetics were developed (Helbing, 1990). One of the

first social-forces models was introduced by (Helbing

and Molnar, 1995). This model describes the social-

forces similar to energy potentials based on inter alia

the distance to other pedestrians with respect to the

sphere of privacy and an attraction effect. Helbing et

al. demonstrated in computer simulations, that their

model describes nonlinear interactions of pedestrians.

Furthermore, a recent publication (Brouwer et al.,

2016) introduced four categories of models for

pedestrian prediction, providing an overview of

existing work:

• Class I: Dynamics based pedestrian model

These models are using dynamic information

about the pedestrians such as position, velocity and

moving direction.

• Class II: Pedestrian model using physiological

knowledge

These models consider physiological constraints

of the pedestrian such as the human’s capabilities to

accelerate and change moving direction.

• Class III: Pedestrian model using pedestrian

head orientation information

These models are using head orientation

information of the pedestrian, which is being an

important indicator, whether a pedestrian will cross

the street.

• Class IV: Pedestrian model using environment

information

Self-learning Trajectory Prediction with Recurrent Neural Networks at Intelligent Intersections

347

These models rather focus on the environmental

influence than just information about the pedestrian

itself.

However, the pedestrian prediction problem

cannot be considered as solved. Many of the

pedestrian prediction models since 1990 are

handcrafted models. In the last few years, more data-

driven models were presented.

(Alahi et al.) proposed a data driven model for

predicting human movement with a so called “Social-

LSTM”. In their approach, they considered that the

movement of a person in a crowded scenario is

usually influenced by its direct neighbours. In

contrast to other social models they did not use

handcrafted social forces functions, but designed a

new end-to-end learning architecture that allows an

interaction between spatially proximal sequences

through a pooling layer. The pooling layer ensures

that a LSTM cell has access to the hidden-states of all

other LSTMs in a specific radius and this information

is used for the prediction of the next time step. The

model is evaluated on publicly available pedestrian

tracking datasets showing that their model can

anticipate future movements of individuals caused by

social interactions among them.

2.4 Continuous Learning

Neural networks are commonly trained on fixed

datasets. In the machine learning research

community, static publicly available datasets are used

to compare the performance of different net

architectures and to develop new models (Pellegrini

et al., 2009; Robicquet et al.). However, the human

brain learns continuously something new, since we

live in a permanently changing world (Käding et al.).

There are some studies on neural nets that are trained

with ongoing partially changing or growing datasets.

(Xiao et al., 2014) considered a convolutional

neural network for image classification with an

incrementally increasing dataset. In their approach,

an algorithm hierarchically expands the

convolutional network leading to bigger net

capacities.

A study on continuously learning neural nets with

incoming data streams was performed by (Käding et

al.). The researchers investigated the impact of

training parameters for newly added image data and

their corresponding labels. They found out, that the

effort of retraining a neural net with new data can be

decreased by reducing the number of weight update

iterations. Furthermore, (Käding et al.) state that

neglecting already known data during retraining leads

to overfitting of the new added data. Thus, robust

retraining in a continuous fashion should be

performed with a fraction of new and old data.

3 RESEARCH APPROACH AND

METHODOLOGY

The analysis of related work shows a large potential

in the prediction of road users using recurrent neural

networks. Furthermore, first planned installations

show that an intersection with several connected

sensors measuring the positions of road users is a

possible future scenario. We assume, that the

combination of recent machine learning approaches

such as LSTMs together with the on-going

measurement of connected stationary sensors, can

lead to highly accurate predictions in a local area

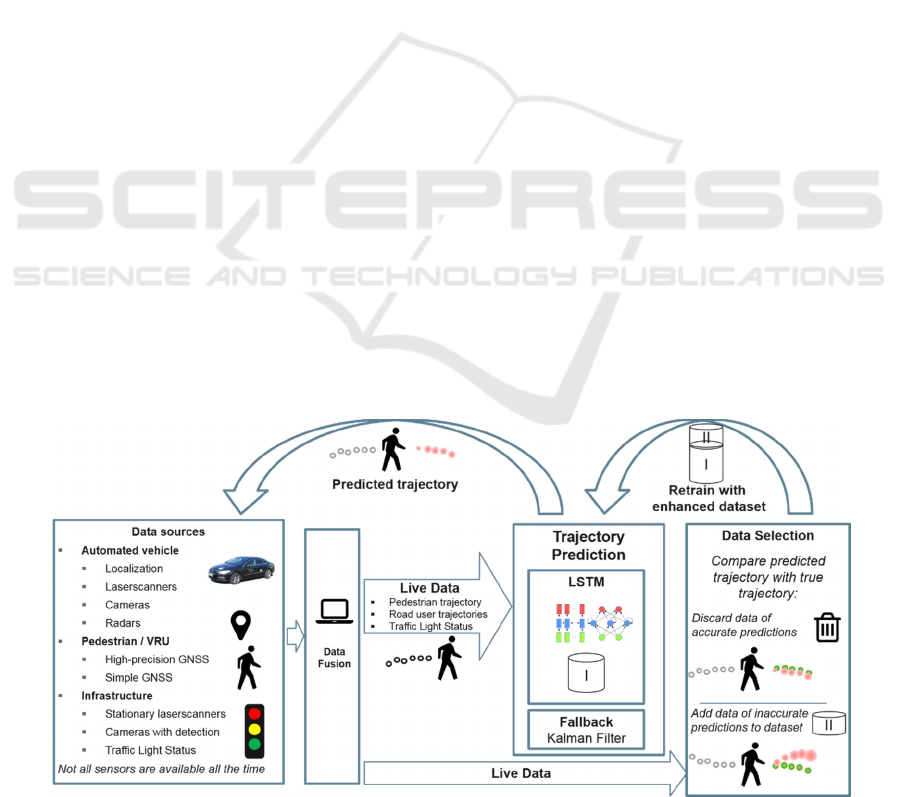

Figure 1: Continuously learning trajectory prediction system.

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

348

covered by the sensors. The accuracy can

continuously improve through a self-learning

process. Thus, we present here our concept for a self-

learning trajectory prediction using LSTMs.

Our concept is illustrated in Figure 1. The

proposed system can consider any type of sensor,

which is measuring the positions of pedestrians. An

automated vehicle could provide object lists from

typical sensors such as cameras, radars and

laserscanners. Pedestrians carrying devices with

localization capabilities could provide their position.

Infrastructure sensors such as laserscanners and

cameras could provide object lists. The information is

then sent via cellular X2X or 802.11p X2X to a local

intersection computer, which is collecting all sensor

data. This data is then fused to one description of the

intersection in form of an object list.

For an initial phase, the object lists are collected

at the local intersection computer to create a first

dataset. This dataset does not need to be based on a

consistent sensor setup if an object list is provided

with accuracies. This first dataset A is then used to

train an initial LSTM model LSTM.A. The model

learns to generate a sequence Y with fixed length

using the input sequence X with fixed length. As soon

as the training is finished, LSTM.A can be applied to

predict the future movement from a measured

sequence.

As the measurements at the intersection are

ongoing, the true trajectory of the pedestrian can be

recorded. This data can be used to enlarge the dataset

for the training of the LSTM model. However, due to

the continuous measurements, the dataset would

become exceedingly large if storing all positions

permanently. Thus, as soon as the prediction time has

passed, the predicted trajectory is compared with the

true trajectory giving an error measure for the

prediction. If the prediction error exceeds a certain

threshold, the trajectory is stored in a second dataset

B. After a certain time or size of dataset B, this dataset

B is then used for continued training based on

LSTM.A creating a LSTM.B model. From this

moment on, LSTM.B is applied in the regular

prediction of trajectories and the process is repeated

as just described.

Finally, our prediction concept considers a

fallback on a Kalman Filter. Models learned with

machine learning methods can provide very bad

results if a new situation is not sufficiently covered in

the training dataset and the model does not generalize

well on the data. Our proposed system shall detect,

whether the new input data is sufficiently covered by

the trained model and if not, the prediction of the

Kalman Filter is output by the system.

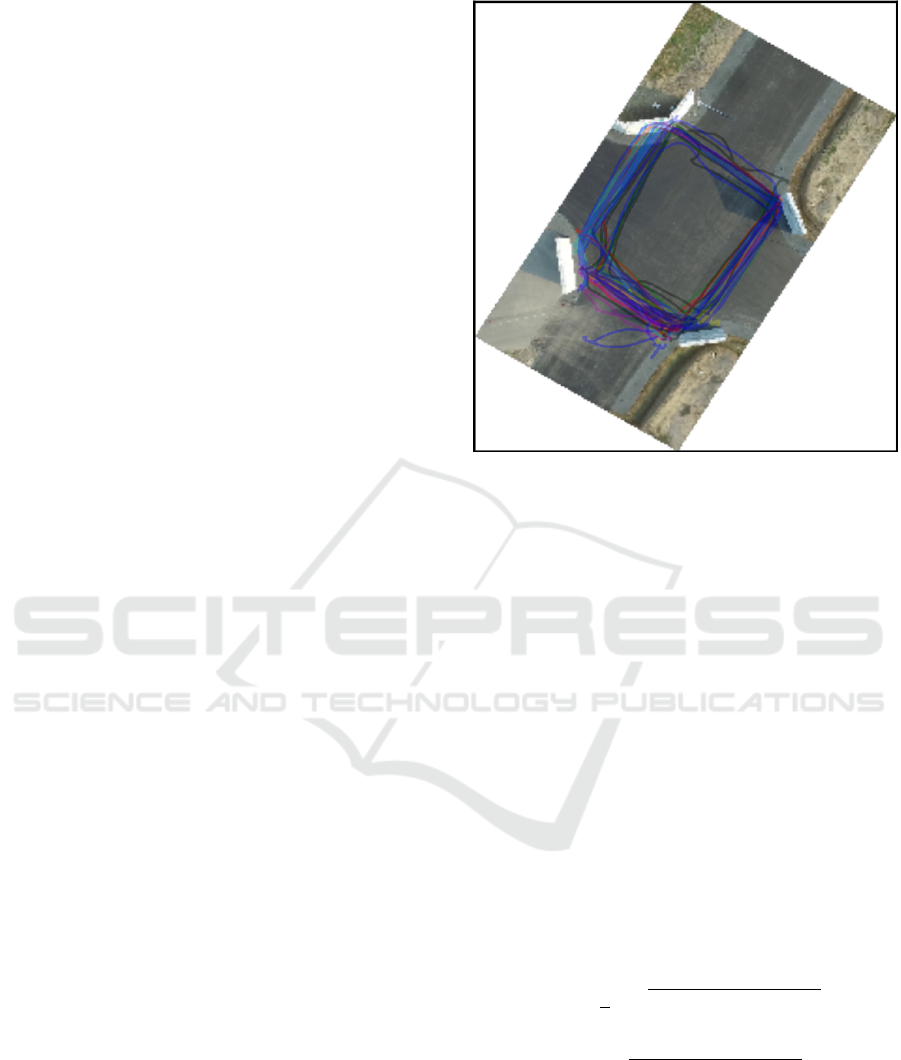

Figure 2: GNSS dataset on research intersection.

4 RESULTS

We implemented a LSTM learning system using the

framework Keras (Chollet, 2015) with Theano (Al-

Rfou et al., 2016) backend. For LSTM training, the

data is normed to a zero mean and unit variance. As

the settings in (Alahi et al.), we use a trajectory

observation time of 3.2 secs and prediction time of

4.8 secs at a sampling rate of 2.5 Hz. At the selected

sampling rate of 2.5 Hz, this results in 8 observation

points and 12 prediction points. We use the mean

displacement error (1) and final displacement error

(2) as criteria for the evaluation of the prediction. The

mean displacement error calculates the average

Euclidean distance between the predicted and

measured position over all time steps. The final

displacement error calculates the Euclidean distance

between the final predicted and measured position.





(



,)=







(







−







)



(







−





)







(1)





(



,)=

(







−







)



(







−





)



(2)

For first experiments, we created an own dataset

with a high-precision pedestrian GNSS positioning

device on a research intersection. This dataset

consists of 9980 positions with 2.5 Hz measurement

rate. The dataset contains the movement of a single

Self-learning Trajectory Prediction with Recurrent Neural Networks at Intelligent Intersections

349

pedestrian walking a distance of about 3.4 km. The

trajectories are visualized in Figure 2.

The results are compared to a Kalman Filter with

constant velocity model. Table 1 shows the results

achieved on the GNSS pedestrian dataset. On both

measurements, mean displacement error and final

displacement error, the LSTM model achieves error

rates similar to those in (Alahi et al.) and surpasses

the Kalman Filter.

Table 1: Results on GNSS pedestrian dataset.

Model









Kalman Filter 0.674 1.257

LSTM model

0.520 1.032

However, for the use of machine learning

methods, this dataset is quite small and by that not

appropriate for investigations on continuous learning.

Thus, we created two datasets with simulated

pedestrian movements using the traffic simulation

software PTV VISSIM. Both datasets are created

using the same intersection model with the only

difference, that in the second dataset one part of the

pedestrian walkway path is changed to a small curve.

This shall depict the change of the pedestrian path due

to an obstacle.

We evaluated based on mean displacement error

for the predicted trajectories depending on the

percentage of additional training data from the second

dataset. Our results show that with just the initial

dataset A, predicted trajectories on a split of dataset B

have high errors of more than 1.1 m. Adding five

percent of a disjoint split of dataset B already reduces

the error significantly to less than 0.1m. Further

adding data is still reducing the error but reaches

saturation at about 40% of the dataset. This shows,

that our method can adapt to changes in the

intersection’s structure and only a part of the new data

is needed for the major error reduction.

5 CONCLUSIONS

A system for self-learning pedestrian trajectory

prediction using LSTMs is introduced and developed.

The system relies on continuous measurements of

pedestrian’s positions at an intersection using

connected sensors. The system can learn local

pedestrian movement patterns at the intersection. The

mean prediction error is continuously reduced by

training the LSTMs again with additional data from

new measurements. The approach is independent of

the used sensor and can be applied to any road user,

for which the sensors deliver position measurements

over time.

Our results show, that the LSTM prediction model

is superior to a constant velocity Kalman Filter for

pedestrian prediction even on small datasets. We

showed that the prediction model can adapt to

changes in the pedestrian walking path using only a

small part of the new data. By that, the size of the

dataset can be kept rather small although depicting

the pedestrian’s movement patterns.

However, as we are currently missing a large real

dataset, our results still mainly rely on simulated data.

Thus, an important focus for future work lies in the

creation of real datasets. There are several

requirements on the datasets. First, the datasets need

to be larger with a duration of several hours. Second,

the datasets need to contain information about the

pedestrian’s dynamic environment and the traffic

light status. Third, the dataset must be a measurement

from an intersection in real traffic.

For the core prediction model, it is planned to

consider the pedestrians’ dynamic environment as

well as traffic light information as input for the

prediction. The self-learning process also needs to be

further enhanced with the goal to build up a good

compromise between adaptability and stability.

Finally, the prediction shall provide an area with

presence probability distribution depending on the

certainty of the measured trajectory.

ACKNOWLEDGEMENTS

This paper is part of the work in the project I2EASE

funded by the German Federal Ministry of Education

and Research based on a decision of the Deutsche

Bundestag.

REFERENCES

Alahi, A., Goel, K., Ramanathan, V., Robicquet, A., Fei-

Fei, L. and Savarese, S. ‘Social LSTM: Human

Trajectory Prediction in Crowded Spaces’ [online]

http://vision.stanford.edu/pdf/CVPR16_N_LSTM.pdf.

Al-Rfou, R., Alain, G., Almahairi, A., Angermueller, C.,

Bahdanau, D., Ballas, N., Bastien, F., Bayer, J.,

Belikov, A., Belopolsky, A., Bengio, Y., Bergeron, A.,

Bergstra, J., Bisson, V., Snyder, J.B., Bouchard, N.,

Boulanger-Lewandowski, N., Bouthillier, X.,

Brébisson, A.d., Breuleux, O., Carrier, P.-L., Cho, K.,

Chorowski, J., Christiano, P., Cooijmans, T., Côté, M.-

A., Côté, M., Courville, A., Dauphin, Y.N., Delalleau,

O., Demouth, J., Desjardins, G., Dieleman, S., Dinh, L.,

Ducoffe, M., Dumoulin, V., Kahou, S.E., Erhan, D.,

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

350

Fan, Z., Firat, O., Germain, M., Glorot, X., Goodfellow,

I., Graham, M., Gulcehre, C., Hamel, P., Harlouchet, I.,

Heng, J.-P., Hidasi, B., Honari, S., Jain, A., Jean, S., Jia,

K., Korobov, M., Kulkarni, V., Lamb, A., Lamblin, P.,

Larsen, E., Laurent, C., Lee, S., Lefrancois, S.,

Lemieux, S., Léonard, N., Lin, Z., Livezey, J.A.,

Lorenz, C., Lowin, J., Ma, Q., Manzagol, P.-A.,

Mastropietro, O., McGibbon, R.T., Memisevic, R., van

Merriënboer, B., Michalski, V., Mirza, M., Orlandi, A.,

Pal, C., Pascanu, R., Pezeshki, M., Raffel, C., Renshaw,

D., Rocklin, M., Romero, A., Roth, M., Sadowski, P.,

Salvatier, J., Savard, F., Schlüter, J., Schulman, J.,

Schwartz, G., Serban, I.V., Serdyuk, D., Shabanian, S.,

Simon, É., Spieckermann, S., Subramanyam, S.R.,

Sygnowski, J., Tanguay, J., van Tulder, G., Turian, J.,

Urban, S., Vincent, P., Visin, F., Vries, H.d., Warde-

Farley, D., Webb, D.J., Willson, M., Xu, K., Xue, L.,

Yao, L., Zhang, S. and Zhang, Y. (2016) ‘Theano: A

Python framework for fast computation of

mathematical expressions’, arXiv e-prints,

abs/1605.02688.

Brouwer, N., Kloeden, H. and Stiller, C. (2016)

‘Comparison and evaluation of pedestrian motion

models for vehicle safety systems’, pp.2207–2212.

Chollet, F. (2015) ‘keras’, GitHub repository.

Consortium of Project SADA ‘Project SADA’.

http://www.projekt-sada.de/ (Accessed 26 January

2016).

Graves, A. (2014) Generating Sequences With Recurrent

Neural Networks. http://arxiv.org/pdf/1308.0850v5.

Graves, A., Mohamed, A.-r. and Hinton, G. (2013) ‘Speech

recognition with deep recurrent neural networks’,

IEEE, pp.6645–6649.

Helbing, D. (1990) ‘Physikalische Modellierung des

dynamischen Verhaltens von Fußgängern (Physical

Modeling of the Dynamic Behavior of Pedestrians)’.

Helbing, D. and Molnar, P. (1995) ‘Social force model for

pedestrian dynamics’, Physical review E, Vol. 51,

No. 5, p.4282.

Hochreiter, S. (01.01.1991) Untersuchungen zu

dynamischen neuronalen Netzen, diploma thesis,

institut für informatik, lehrstuhl prof. brauer, technische

universität münchen.

Hochreiter, S. and Schmidhuber, J. (1997) ‘Long short-term

memory’, Neural computation, Vol. 9, No. 8, pp.1735–

1780.

I2EASE Consortium (2016) ‘I2EASE Project’.

http://www.cerm.rwth-aachen.de/i2ease (Accessed 26

January 2017).

Käding, C., Rodner, E., Freytag, A. and Denzler, J. Active

and Continuous Exploration with Deep Neural

Networks and Expected Model Output Changes.

http://arxiv.org/pdf/1612.06129v1.

Keller, C.G. and Gavrila, D.M. (2014) ‘Will the Pedestrian

Cross? A Study on Pedestrian Path Prediction’, IEEE

Transactions on Intelligent Transportation Systems,

Vol. 15, No. 2 [online]

http://ieeexplore.ieee.org/stamp/stamp.jsp?arnumber=

6632960.

Pellegrini, S., Ess, A., Schindler, K. and van Gool, L.

(2009) ‘You'll never walk alone: Modeling social

behavior for multi-target tracking’, pp.261–268.

Rehder, E. and Kloeden, H. (2015) ‘Goal-directed

pedestrian prediction’, pp.50–58.

Robicquet, A., Sadeghian, A., Alahi, A. and Savarese, S.

‘Learning Social Etiquette: Human Trajectory

Understanding In Crowded Scenes’, in , Computer

Vision – ECCV 2016.

Schneider, N. and Gavrila, D.M. (2013) ‘Pedestrian path

prediction with recursive Bayesian filters: A

comparative study’, Springer, pp.174–183.

Sutskever, I., Vinyals, O. and Le V, Q. Sequence to

Sequence Learning with Neural Networks.

http://arxiv.org/pdf/1409.3215v3.

The City of San Diego (09.03.2017) ‘Smart City San

Diego’.

https://www.sandiego.gov/sustainability/smart-city.

Wertheimer, R. and others (2014) ‘Ko-PER

Fahrerassistenz und präventive Sicherheit mittels

kooperativer Perzeption: Partnerübergreifender

Schlussbericht’, schlussbericht, Bundesministerium für

Wirtschaft und Technologie (BMWi).

Xiao, T., Zhang, J., Yang, K., Peng, Y. and Zhang, Z.

(2014) ‘Error-driven incremental learning in deep

convolutional neural network for large-scale image

classification’, ACM, pp.177–186.

Self-learning Trajectory Prediction with Recurrent Neural Networks at Intelligent Intersections

351
