Learning Concurrency Concepts while Playing Games

Cornelia P. Inggs, Taun Gadd and Justin Giffard

Computer Science, Dept. of Mathematical Sciences, Stellenbosch Univ., Private Bag X1, 7602 Matieland, South Africa

Keywords:

Concurrency, Game, Learning, Programming.

Abstract:

We think that people will ﬁnd it easier to learn concurrency concepts if they can play a game that challenges the

player to solve puzzles using the same techniques required by a programmer to develop concurrent programs.

This article presents two such games in which multiple threads of control are represented by multiple avatars

that can perform actions concurrently in a game environment. The player controls the avatars by specifying a

sequence of actions for each avatar to execute using a block-based visual syntax, independent of programming

language. The avatars execute their actions in the game environment, showing the effect of every action.

1 INTRODUCTION

People typically ﬁnd it more difﬁcult learning how

to develop concurrent programs than sequential pro-

grams. Many programmers start by learning how to

develop programs with one thread of control which

execute a sequence of instructions. Such sequential

programs may contain branching conditions, which

result in multiple possible execution sequences, but

during a particular run of a sequential program only

one sequence of instructions is followed, as deter-

mined by the input given to the program.

In a concurrent program multiple tasks or logical

threads of control can be in progress at any instant.

The instructions of the different threads of control can

be executed in parallel, i.e., simultaneously on sep-

arate execution units, or the instructions can be in-

terleaved and executed on a single execution unit as

a sequence of instructions, but in this case the par-

ticular sequence is not only determined by the input

given to the program. In a concurrent program the

order in which instructions are executed, whether si-

multaneous or in sequence, is nondeterministic and

is inﬂuenced by conditions outside of a user’s control,

such as the scheduler, the load of the system, and con-

tention for system resources.

This nondeterministic execution order of instruc-

tions, of which the effect is not immediately visi-

ble, and the large number of possible execution se-

quences that a concurrent program can have as a re-

sult, makes it difﬁcult to write error-free concurrent

code or to reproduce an error that occurs only for

some execution sequences. Concurrency related er-

rors occur when there are dependencies between in-

structions, which require sharing of information be-

tween different threads of control, which in turn re-

quires instructions to be executed in a certain order—

or not simultaneously with other instructions—to pre-

serve correctness.

Programmers that develop concurrent programs

therefore need to write code that will be correct for

any input data as well as any order in which instruc-

tions are executed. This requires an understanding,

not only of how to divide work between threads of

control, but also of how to share information between

threads of control and how to use synchronisation

techniques to share information safely—and without

introducing further errors such as deadlocks.

One way to learn a new concept is to learn the

same concept in the context of a familiar setting and

then transfer the knowledge to another setting. For

the introduction of sequential programming concepts,

a wide range of computer games have been developed

and are available online, from games that provides a

visual block-based syntax for specifying sequences

of actions (Google, 2015; MIT; Lightbot), to games

that require speciﬁcations in a programming lan-

guage (MIT, 2015; HopScotch, 2016; CodeCombat,

2016). Game-oriented tutorials for learning concur-

rency concepts have also been developed, but those

that were found available online require programming

language knowledge (Hude

cek and Pokorn

y, 2016).

We think a game with a visual block-based syntax

for specifying sequences of actions and visual feed-

back of their effect in the game would make it easier

for people to learn concurrency concepts. In fact, we

Inggs, C., Gadd, T. and Giffard, J.

Learning Concurrency Concepts while Playing Games.

DOI: 10.5220/0006374705970602

In Proceedings of the 9th International Conference on Computer Supported Education (CSEDU 2017) - Volume 1, pages 597-602

ISBN: 978-989-758-239-4

597

think it should be possible for a child of eight or nine

years old, mature enough to think abstractly, to learn

concurrency concepts.

2 RELATED WORK

A number of applications for teaching sequential pro-

gramming concepts have been developed. The appli-

cations most related to our work are those that use a

game-oriented approach and a visual syntax indepen-

dent of programming language. Blockly Games and

Lightbot are examples of such games and served as

inspiration for our game (Google, 2015; Lightbot).

Blockly Games is a set of games that has been

developed for children to learn sequential program-

ming concepts such as conditional and control-ﬂow

statements (Google, 2015). Users are provided with a

game environment that contains objects and Google’s

Blockly editor, which contains interlocking blocks

(Google, 2016). Users are given a problem to solve

or a task such as: move the turtle object a number

of steps forward to reach the patch-of-grass object.

The blocks represent coding concepts and, for a se-

quence of blocks, the Blockly library can return syn-

tactically correct code in the language chosen from

the supported list of languages.

Lightbot provides, similar to Blockly Games, a

game environment with an avatar and an editor with

action blocks (which represent conditional or control-

ﬂow statements) that can be placed in sequence to ma-

nipulate the avatar (Lightbot). It provides a sequence

of predesigned puzzles to solve, which increases in

difﬁculty and is divided into groups where each group

starts with the introduction of a new block (code con-

cept). Each puzzle only requires the use of blocks that

have been introduced in a previous group or at the

start of the current group. The simplicity of Light-

bot’s syntax places even more emphases on solving

problems using coding concepts (without having to

learn the syntax of a programming language) than the

interlocking block-based games.

There are also non-game-oriented programming

tools available that provide a block-based syntax sim-

ilar to Blockly Games, such as Scratch (MIT), App

Inventor for Android devices (MIT, 2015), and Hop-

scotch (HopScotch, 2016). These tools do not give

a user tasks to solve, but provide the user with an

empty execution environment, where they can create

their own programs by placing objects in the execu-

tion environment and sequences of blocks in the ed-

itor to control when and how to add or move objects

or when to play sound clips, for example.

On the other hand, games that require users to

write code in the syntax of a real programming lan-

guages also exist. Code Combat, for example, gives

users problems to solve or a task to complete in a

game setting, but requires the user to write the se-

quence of actions for the avatar to execute, in the

syntax of Python, JavaScript, HTML, CSS, jQuery,

or Bootstrap (CodeCombat, 2016).

There are three game-oriented approaches, de-

signed to teach concurrency concepts, that are related

to our work. The ﬁrst, Deadlock Empire, is the only

game-oriented application for teaching concurrency

concepts that we could ﬁnd available to play online

(Hude

cek and Pokorn

y, 2016). The Deadlock Em-

pire requires a user to complete a sequence of tuto-

rials/challenges; in each the player is presented with

two threads and the objective of the player is to sched-

ule the instructions of the threads such that the code

breaks; revealing, for example, a race condition or a

deadlock. This game is particular good at showing the

effects of nondeterminism and the errors that can re-

sult when an incorrect execution order is chosen, but

it is programming language speciﬁc: one has to be

able to read code similar to the C syntax.

The second is a series of activities that have been

designed to help students build an intuition about syn-

chronisation by managing ”railway semaphores” us-

ing an open source train simulation game (OpenTDD,

2014). It was designed to be a lab project; the students

download the OpenTDD simulator as well as a set

of three activities, which include OpenTDD scenario

ﬁles and game ﬁles and once they have installed the

required software, it typically takes them less than an

hour to complete the activities (Marmorstein, 2015).

The last is a proposal for an educational game that

could be used to teach concurrency concepts. A user

would be shown a rectangular grid with boxes, ob-

stacles, markers, and robots and would be required

to program the robots to move all the boxes to their

corresponding markers. An initial version with al-

phabet characters has apparently been implemented,

but the design is not complete and, as discussed in

the Conclusion, the authors still need to investigate

whether it would be possible to teach all the con-

currency concepts using their game (Akimoto and

de Cheng, 2003).

In the next section we’ll discuss the concepts that

a programmer needs to understand to develop concur-

rent programs and in the following section we discuss

two games that have been developed to teach these

concepts. The games require the players to solve puz-

zles using a simple set of blocks, independent of a

programming language, to specify the sequence of ac-

tions the avatars in the game should execute. When

the avatars execute their actions, the player has visual

SGoCSL 2017 - Special Session on Serious Games on Computer Science Learning

598

feedback on the effect of the actions; for example, one

can see when two avatars are in deadlock, waiting for

each other to execute an action before continuing.

3 CONCURRENCY CONCEPTS

As explained in the introduction, concurrency errors

due to nondeterministic orderings of instructions oc-

cur when threads of control share information. The

concepts that should be understood can therefore

be classiﬁed under three categories: dividing work

among multiple threads of control, sharing informa-

tion between the threads of control, and synchronising

the sharing of information.

Concepts related to the division of work include,

for example, whether tasks are assigned to threads of

control before execution starts (static load balancing)

or at runtime (dynamic load balancing) and the perfor-

mance impact of a particular division of work; a good

division of work into independent tasks can result in

speedup while a poor division of work can result in

load imbalance and therefore less than ideal speedup.

When the work can not be divided into indepen-

dent tasks, the threads of control need to share in-

formation, and programmers therefore need to under-

stand the different ways in which information can be

shared, i.e., via either synchronous or asynchronous

message passing or via access to shared memory.

The ﬁnal category includes all the concepts re-

lated to ensuring correct execution of multiple threads

of control that work together to solve a problem and

need to share information either regularly or occa-

sionally. Programmers need to understand the effect

of nondeterministic orderings, synchronisation tech-

niques, error behaviour due to the absence of syn-

chronisation (race conditions), error behaviour due to

incorrect synchronisation (deadlock, livelock, starva-

tion), and ﬁnally the performance impact of synchro-

nisation, e.g., waiting for a shared resource (such as a

lock).

4 THE GAME

Two games were implemented: Parallel Bots (see Fig-

ures 1 and 2) and Parallel Blobs (see Figure 3). Both

games consist of a game environment that contains

multiple avatars and an editor that provides a block-

based visual syntax independent of programming lan-

guage.

The game environment is set up with a challenge,

such as: program the two avatars to turn on all the

lights in the game environment as fast as possible.

The game environment of Parallel Bots is an isomet-

ric grid similar to LightBot; it renders the grid to a

JavaScript canvas, which can contain one or more ob-

jects such as light switches, boxes, machines, shelves,

walls, and avatars. The game environment of Par-

allel Blobs was created using Unity and consists of

one or more two dimensional rooms with walls be-

tween them and contains one or more objects, such

as mailboxes, keys, doors, walls, bridges, completion

pads, and avatars. The game environment is displayed

while a player speciﬁes a sequence of actions in the

editor for each avatar. When the play button is clicked

the avatars execute their actions until they are either

blocked or have completed their sequence of actions.

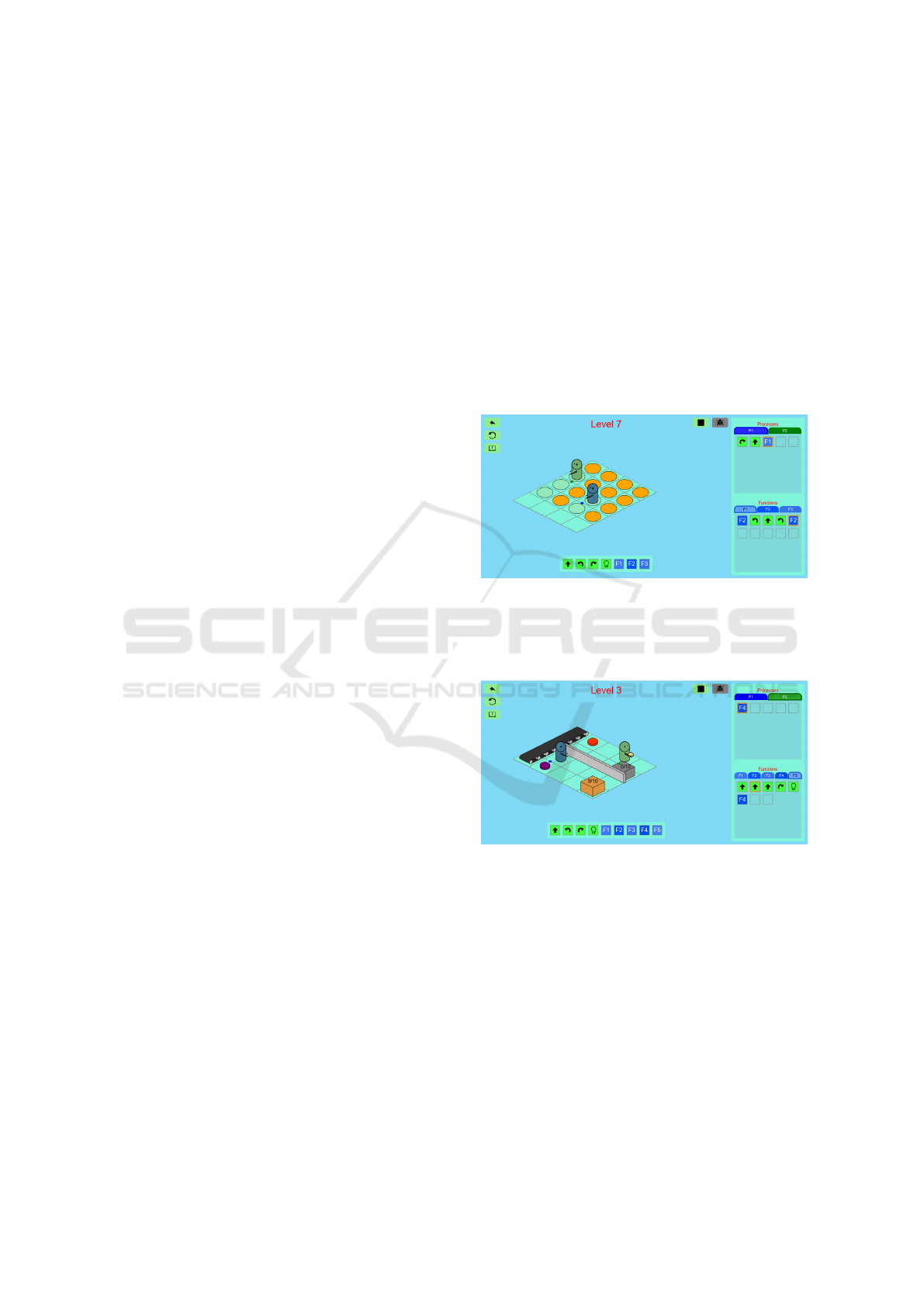

Figure 1: Parallel Bots. In this puzzle the avatars have to

execute the lightbulb action (toggle a switch) on each circle

in the game environment to turn its light on. The screen-

shot was taken while the avatars were busy executing their

actions.

Figure 2: Parallel Bots. In this puzzle the conveyor belt

is only active when both avatars are in position (on their

disks), the one wants to send an object on the belt, and the

other is waiting for an object.

The editor contains multiple windows: one for

each avatar—where a player can program an avatar

by specifying the sequence of actions for that avatar—

and extra function windows where a player can spec-

ify common sequences of actions than can then be

called from any of the other editor windows. Only two

editor windows are displayed at any time, the window

for the currently selected/executing avatar (blue/P1 in

Figure 1) and the window for the currently select-

ed/executing function (F1 in Figure 1). During ex-

ecution, the action being executed is highlighted in

Learning Concurrency Concepts while Playing Games

599

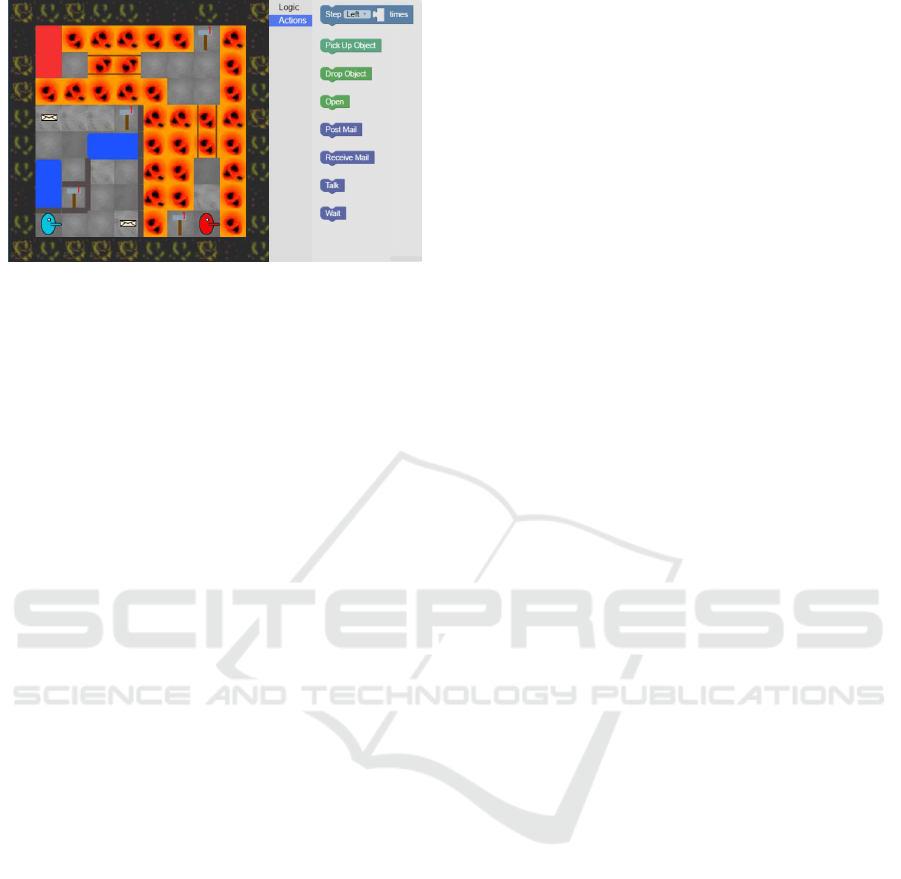

Figure 3: Parallel Blobs. This puzzle requires the avatars to

send messages to each other to draw bridges over the lava.

The editor is currently in block-choosing mode and all the

action blocks are shown.

yellow.

The sequence of actions for an avatar is speciﬁed

by using the blocks provided by the game. In Par-

allel Bots, a limited set of action blocks are provided

and each action is represented by only one block; they

are: walk forward, rotate 90

◦

, pick up/put down/tog-

gle the switch of the object on the facing block, or

lock/unlock the object on the facing block. Parallel

Blobs provides a Blockly editor that contains all the

core blocks plus new blocks that were created speciﬁ-

cally for Parallel Blobs: Step, Pick up/Drop an object,

Open a door, Send/Receive mail, Talk, and Wait (see

Figure 3). The block-based syntax of Parallel Blobs

is not as simplistic as that of Parallel Bots: there are

more blocks, many blocks can take parameters, and

some actions are represented by more than one block.

Both games have a series of challenges that in-

creases in difﬁculty. The challenges are divided into

groups where each group starts with the introduction

of a new action block (code concept). Each chal-

lenge can be solved using only known blocks, i.e.,

blocks that have been introduced in any of the pre-

vious groups or at the start of the current group.

The next section compares the concepts the play-

ers learn by solving the puzzles to the concepts that

a programmer needs to develop concurrent programs,

and compares the games with relevant approaches.

4.1 Comparison: Concepts Covered

4.1.1 Dividing Work

In both games multiple threads of control are repre-

sented by multiple avatars that can perform actions

concurrently. Like threads of control, the multiple

avatars can execute independently or share informa-

tion and they can execute the same sequence of ac-

tions or different sequences of actions.

For some of the puzzles currently provided each

avatar has speciﬁc tasks to execute and for others the

player can decide how to divide the tasks among the

avatars, but all the current puzzles requires the player

to assign speciﬁc tasks to avatars before execution

starts and program each avatar to complete only its

tasks; this is called static partitioning. Dynamic

partitioning allows the assignment of tasks during

execution based on current workload. A puzzle that

requires dynamic partitioning can be added by chang-

ing one of the current puzzles as follows: a box con-

tains objects of different sizes that need to be taken to

one of two other locations based on their size. Taking

the bigger objects to their location takes longer than

taking the smaller objects to their location and the

next object to be removed from the box is determined

by a random number generator. When the avatars are

programmed to take the next object as soon as they

have taken the previous object to its location, the par-

titioning of tasks would be clearly dynamic, because

the order in which the objects are removed is deter-

mined at runtime by the random number generator.

When work is divided among threads of control

and not all the partitions take the same amount of time

to execute, a load imbalance can occur. Load im-

balance is usually more of a problem when work is

statically partitioned than when it is dynamically par-

titioned during runtime, because during runtime the

current workload of a thread of control can be taken

into account.

The effect of load imbalance is clearly visible in

the game; in fact it is more visible than when you run

a concurrent program. When a concurrent program

executes you typically don’t know when threads have

completed their work and are idle, waiting for other

threads to complete their work; you often only know

when the last thread completes and the program ter-

minates. In the game, it is immediately obvious when

an avatar has completed its sequence of actions and

are waiting for another avatar to complete his.

On the other hand, a player can see the difference

in completion time (in number of time units) for a

particular puzzle if the puzzle is ﬁrst solved with one

avatar and then with more than one avatar that can di-

vide the work among them. If two avatars can divide

the work to solve a speciﬁc puzzle evenly between

them, they could take half the time that one avatar

takes to complete the puzzle; which would represent

ideal speedup.

Waiting for an avatar to complete a task does not

only happen when there is a load imbalance. It can

also happen when avatars need to share objects or in-

formation and one avatar has to wait for another avatar

to provide the object or information required.

SGoCSL 2017 - Special Session on Serious Games on Computer Science Learning

600

4.1.2 Sharing Information

Message passing can be performed asynchronously

or synchronously. Asynchronous message passing is

depicted by a mailbox in Parallel Blobs and a shelve

in Parallel Bots. It is asynchronous, because play-

ers can try to add objects to (or remove objects from)

the mailbox/shelve and then continue with other ac-

tions, whether the avatar with whom it is sharing the

object is busy executing something else or busy wait-

ing for an object at (or adding an object to) the mail-

box/shelve.

In Parallel Blobs synchronous communication is

represented by thin walls: two avatars can commu-

nicate if they stand on either side of a thin wall, but

if they stand further away or on either side of a thick

wall they can not hear each other. In Parallel Bots syn-

chronous communication is depicted by a conveyor

belt; an object can only be sent to another avatar via

a conveyor belt if the one avatar is standing on a disk

on the one side of the conveyor belt and trying to put

an object onto the conveyor belt and the other avatar

is standing on a disk on the other side of the conveyor

belt and trying to receive an object.

Shared Memory can also be used to share infor-

mation. In Parallel Bots, a box represents a shared

memory location in which light bulbs can be placed.

Avatars have to take turns to add objects to/remove

objects from a shared box; they should not access

the box simultaneously. In Parallel Blobs, shared

memory is represented by narrow tunnels and narrow

bridges, which should be used by only one avatar at a

time.

In both games mutual exclusive access to shared

objects are obtained via a shared key, which emulates

a lock (e.g., semaphore). In Parallel Bots a race con-

dition, which occur when access to a shared object is

not synchronised and simultaneous access is obtained,

is emulated by a light bulb shattering into pieces. In

Parallel Blobs, the absence of synchronising access to

a narrow bridge/tunnel, results in two avatars collid-

ing.

Two or more avatars are in deadlock if all of them

are waiting for an action to occur that can only be

caused by one of the other avatars in the set. In Par-

allel Blobs, two avatars will, for example, be in dead-

lock if they need the same two keys to complete a

task, the one avatar has picked up the one key, the

other avatar has picked up the other key, and each

is waiting for the second key to become available.

In Parallel Bots, two avatars will be in deadlock if

they’re on either side of the conveyor belt, which rep-

resent synchronous communication, and both want to

receive an object before they can continue.

Two or more avatars are in livelock if they repeat

the same sequence of actions over and over again, but

no progress is made. In the games this could occur,

for example, when two avatars indeﬁnitely hand an

object or send a message back and forth.

Finally, we need to discuss nondeterminism. Non-

determinism is present in the games, but it is mostly

determined by the order in which the player decides

to place actions and the order in which the Round

Robin scheduler executes the actions of the differ-

ent avatars; currently the avatars are executed using a

Round Robin scheduler where one action is executed

per time quantum. During the execution of concur-

rent programs on a real system other programs also

compete for memory bandwidth, cache usage, CPU

time, etc. We would like to increase the effect of non-

determinism in the games by adding other scheduling

options as well as a random number generator that

can inﬂuence the scheduler’s decisions, so that nonde-

terminism due to parameters outside of the program-

mer’s control can be emulated. The debug/step option

can also be adjusted to allow a separate step button

for each avatar to allow ﬁner grained control over the

possible interleavings during debugging.

4.2 Comparison: Relevant Approaches

The focus of The Deadlock Empire is to show the ef-

fect of different scheduling orders; it shows the effect

of the execution order a player chooses for two spe-

ciﬁc C code segments and the player is challenged to

ﬁnd an execution order that will result in an error. The

focus of Parallel Bots/Blobs is problem solving us-

ing concurrent programming techniques without any

knowledge of a programming language. Different se-

quences in Parallel Bots/Blobs may result in different

sequences, but with the current implementation a spe-

ciﬁc set of sequences will result in the same interleav-

ing if left unchanged between runs. The same single

step scheduling control as provided to a player of The

Deadlock Empire can be provided to a player of Par-

allel Bots/Blobs by changing the debug/step option so

that a separate step button is provided for each avatar.

The lab project described in (Marmorstein, 2015)

was designed to help students build an intuition about

synchronisation while Parallel Bots/Blobs were de-

signed to help the player build and intuition about all

the core concurrency concepts and, instead of follow-

ing the approach of a single lab project it follows the

approach of a game that provides challenges to solve.

The educational game proposed in (Akimoto and

de Cheng, 2003) seem to follow similar ideas as Paral-

lel Bots/Blobs, but since their robots only move boxes

to speciﬁed locations on a grid, it is not clear how they

Learning Concurrency Concepts while Playing Games

601

will support some of the concurrency concepts, such

as asynchronous message passing, for example.

5 CONCLUSION

We think that people will ﬁnd it easier to learn concur-

rency concepts if they can play a game that challenges

the player to solve puzzles using the same techniques

required by a programmer to develop concurrent pro-

grams; techniques for dividing work, sharing infor-

mation, and synchronising the sharing of information

among multiple threads of control.

Two games are presented in this article and in

both, multiple threads of control are represented by

multiple avatars that can perform actions concur-

rently. The player controls the avatars by specifying

a sequence of actions for each avatar to execute using

a block-based visual syntax (i.e., the player programs

the actions of the avatars instead of using game con-

trols) and the avatars perform their actions in a game

environment that has been set up with a puzzle.

A detailed comparison between the concepts a

player of the game learns when solving the puzzles

and the concepts a programmer needs to develop con-

current programs is included in the article; which

makes it clear that even advanced concurrency con-

cepts can be used to solve puzzles in the game en-

vironment. The main difference between a concur-

rent program’s threads executing instructions and the

avatars of the game executing their sequences of ac-

tions is the visibility of their effect. When a concur-

rent program has a race condition or is in deadlock, it

is often difﬁcult to detect what went wrong and when

it happened, while the effect of every action is clear in

the game environment. Such immediate visual feed-

back typically makes learning easier.

Another beneﬁt of the game environment and its

block-based syntax independent of programming lan-

guage, is that by providing puzzles at levels of in-

creasing difﬁculty, young children as well as older

students can enjoy solving them. The speed at which

players progress through the levels and the highest

level that can be completed will most likely differ for

players of different ages and backgrounds. We are in

the process of conducting a study to evaluate which

concepts people of different age groups can under-

stand and whether understanding the concepts in the

game settings does indeed make it easier to learn how

to develop concurrent programs.

Finally, two limitations that have been identiﬁed

are being addressed in the next version: the scheduler

will be updated so that it is adjustable from the exe-

cution environment and include a random option that

can emulate nondeterminism due to parameters out-

side of the programmer’s control; and a puzzle builder

will be added so that new puzzles can be added by

dragging and dropping objects onto an empty game

environment, instead of updating source code directly.

REFERENCES

Akimoto, N. and de Cheng, J. (2003). An educational game

for teaching and learning concurrency. In Proceed-

ings of the 1st International Conference on Knowl-

edge Economy and Development of Science and Tech-

nology, pages 34–39.

CodeCombat (2016). A classroom in-a-box for teaching

Computer Science. https://codecombat.com/. Ac-

cessed 2017-01-30.

Google (2016). Blockly: A library for building visual

programming editors. https://developers.google.com/

blockly/. Last updated 2016-10-14.

Google (2015). Blockly Games: Games for tomorrow’s

programmers. https://blockly-games.appspot.com/.

Last updated 2015-01-17.

HopScotch (2016). Coding made for you.

https://www.gethopscotch.com/. Last blog entry

2016-11-04.

Hude

cek, P. and Pokorn

y, M. (2016). The Dead-

lock Empire: Slay dragons, master concurrency.

https://deadlockempire.github.io/. Accessed 2017-01-

30.

Lightbot. Solve puzzles using programming logic.

https://lightbot.com/. Accessed 2017-01-30.

Marmorstein, R. (2015). Teaching semaphores using...

semaphores. Journal of Computing Sciences in Col-

leges, 30(3):117–125.

MIT. Scratch: Create stories, games, and animations.

https://scratch.mit.edu/. Accessed 2017-01-30.

MIT (2015). MIT App Inventor: A beginner’s

introduction to programming and app creation.

http://appinventor.mit.edu/explore/. Accessed 2017-

01-30.

OpenTDD (2005-2014). An open source simula-

tion game based upon Transport Tycoon Deluxe.

https://www.openttd.org/en. Accessed 2017-01-30.

SGoCSL 2017 - Special Session on Serious Games on Computer Science Learning

602
