Development of an Automatic Location-determining Function for

Balloon-type Dialogue in a Puppet Show System

for the Hearing Impaired

Ryohei Egusa

1,2

, Shuya Kawaguchi

, Tsugunosuke Sakai

, Fusako Kusunoki

Hiroshi Mizoguchi

, Miki Namatame

and Shigenori Inagaki

IPSJ Research Fellow, Tokyo, Japan

Kobe University, Hyogo, Japan

Tokyo University of Science, Chiba, Japan

Tama Art University, Tokyo, Japan

Tsukuba University of Technology, Ibaraki, Japan

Keywords: Puppet Show, People with Hearing Impairment, Dialogue Presentation, Balloons.

Abstract: People with hearing impairments have a tendency to experience difficulties in obtaining audio information.

They have difficult to watch puppet shows. In this study, we have undertaken the development of a dialogue

presentation function in a puppet show system for the hearing impaired. The dialogue presentation function

that was developed is an automatic location-determination system for balloon-type dialogue. The balloon-

type dialogue turns the lines of dialogue into text and displays it as balloons in the background animation of

the puppet show. This function automatically places the balloon-type dialogue in the vicinity of the locations

of the puppets. In the evaluation test, 24 college students with a hearing impairment were used as

participants, and a comparison was made between a system that implemented the automatic location-

determination function for balloon-type dialogue and a system that did not implement said function. These

results indicate the effectiveness of the location tracking function for balloon-type dialogue as a means for

ensuring access to audio information in puppet shows.

1 INTRODUCTION

In this study, we have undertaken the development

of a dialogue presentation function in a puppet show

system for the hearing impaired. The dialogue

presentation function that was developed is an

automatic location-determination system for

balloon-type dialogue. This function automatically

places the balloon-type dialogue in the vicinity of

the locations of the puppets.

Puppet shows are an important cultural form;

they are deeply rooted in the cultures of Europe,

Asia, Africa, South America, and Oceania (Los

Angeles County Museum. and Zweers, 1959;

Blumenthal, 2005).

People with hearing impairments have a

tendency to experience difficulties in obtaining

audio information, and the percentage who rely

primarily on visual information is higher among

such people than among people whose hearing is

unimpaired (Marschark and Hauser, 2012). Owing to

this, it is difficult for the hearing impaired to watch

puppet shows. One reason is that audio information

such as the lines of dialogue and background music

are important in understanding the story in puppet

shows. Another reason is that the facial expressions

and movements of puppets are limited compared to

those of humans, and less information can be

obtained from them. Despite this, studies of systems

that would ensure information access for the hearing

impaired are scarce in the field of puppetry.

Dialogue presentation is one technique for

ensuring that the hearing impaired has access to

information (Rander and Looms, 2010; Stinson et

al., 2014). Egusa et al. (2016) present authors have

undertaken the development of a puppet show

system that implements a dialogue presentation

function that facilitates the viewing of such shows

by the hearing impaired. In the puppet show system

in Egusa et al. (2016), a balloon-type dialogue

presentation function was implemented as a way to

340

Egusa, R., Kawaguchi, S., Sakai, T., Kusunoki, F., Mizoguchi, H., Namatame, M. and Inagaki, S.

Development of an Automatic Location-determining Function for Balloon-type Dialogue in a Puppet Show System for the Hearing Impaired.

DOI: 10.5220/0006377203400344

In Proceedings of the 9th International Conference on Computer Supported Education (CSEDU 2017) - Volume 2, pages 340-344

ISBN: 978-989-758-240-0

ensure information access. The balloon-type

dialogue presentation function turns the lines of

dialogue into text and displays it as balloons in the

background animation of the puppet show. The

balloons have been embedded beforehand in the

background animation and can be displayed using a

PC operation. The balloons are an effective dialogue

presentation method on the following two scores.

First of all, the lines that have been turned into text

are displayed in the vicinity of the puppets.

According to Fukamauchi et al. (2007), it is known

empirically that persons with a hearing impairment

actively utilize their peripheral vision during

communication. Owing to the fact that the balloons

are displayed in the vicinity of the puppets, it can be

expected that the movements of the puppets and the

lines can be viewed and heard simultaneously.

Second, the shape of the balloons connects the lines

with the puppet that is currently speaking. In venues

such as a seminar, where multiple speakers may be

talking in succession, the effectiveness of providing

dialogue in a form that indicates the respective

speakers has been confirmed (Wald, 2008; Hisaki,

Nanjo and Yoshimi, 2010). With regard to the

matching of the uttered content to a speaker, a

method by which the audio information that has

been turned into text is displayed in the vicinity of

the speaker as balloon-type dialogue is superior as it

can easily convey the connection between the

speaker and the utterance in a mere glance (Hong et

al., 2010; Hu et al., 2015). In puppet shows as well,

when several characters are speaking, it is important

that the character who is speaking is clearly

indicated visually.

In Egusa et al. (2016), it is clear that balloon-

type dialogue is effective as a method for ensuring

access to the information in a puppet show to

children with a hearing impairment. However, there

was still a need to improve the method whereby such

information was displayed. The reason for this is

that the location of the display of the dialogue has

been determined prior to the performance. The

puppeteer must change the location of the puppets

according to the location of the dialogue that is

displayed, and inevitably this results in a time lag in

positioning the puppets properly relative to the

dialogue. In addition, the locations of the dialogue

and the puppets appear different from the viewpoint

of the puppeteer and that of the spectators. Owing to

these reasons, there is a chance that the following

three kinds of information may be lost.

First, it is possible that information about the

movements of the puppets may be lost. When the

relative locations of the dialogue and puppets are far

apart, a spectator cannot keep both the puppets and

the dialogue display within his or her field of vision.

Owing to this, the movements of the puppets may be

missed while the spectator reads the dialogue text.

Second, it is possible that it may become unclear

to which character the lines of dialogue belong

owing to the fact that the relative locations of the

dialogue text of the speaker and the puppets are not

fixed.

Third, there is a possibility that the dialogue and

the characters may overlap, and it may not be

possible to read the lines from the spectator’s

position.

In order to reduce the possibility of the

information loss indicated above, it is necessary that

the following three conditions be maintained at all

times during the performance of a puppet show.

1) The location of the dialogue is displayed in the

vicinity of the puppets.

2) The display is in a location where the puppets

and the dialogue do not interfere with one another.

3) The dialogue is displayed in real time with the

speaking of the character.

In order to achieve these conditions, we adopted

the method of measuring the locations of the puppets

with a depth image sensor and automatically

determining the locations of the dialogue. By this

means, it is anticipated that the location of the

dialogue can be determined appropriately and in real

time, and the loss of information can be reduced.

In this article, we report about the development

of the automatic location-determination function for

balloon-type dialogue, the details of the system, an

overview of the evaluation test, and the preliminary

analysis results. The purpose of the evaluation test

was to assess the effectiveness of the automatic

location-determination function for balloon-type

dialogue in ensuring access to audio information. In

the evaluation test, 24 college students with a

hearing impairment were used as participants, and a

comparison was made between a system that

implemented the automatic location-determination

function for balloon-type dialogue and a system that

did not implement said function.

2 SYSTEM DESIGN

In order to achieve the three conditions described in

Section 1, we undertook the development of a

balloon-type dialogue presentation system for

puppet shows that employs a range image sensor.

First, we give an explanation of an overview of a

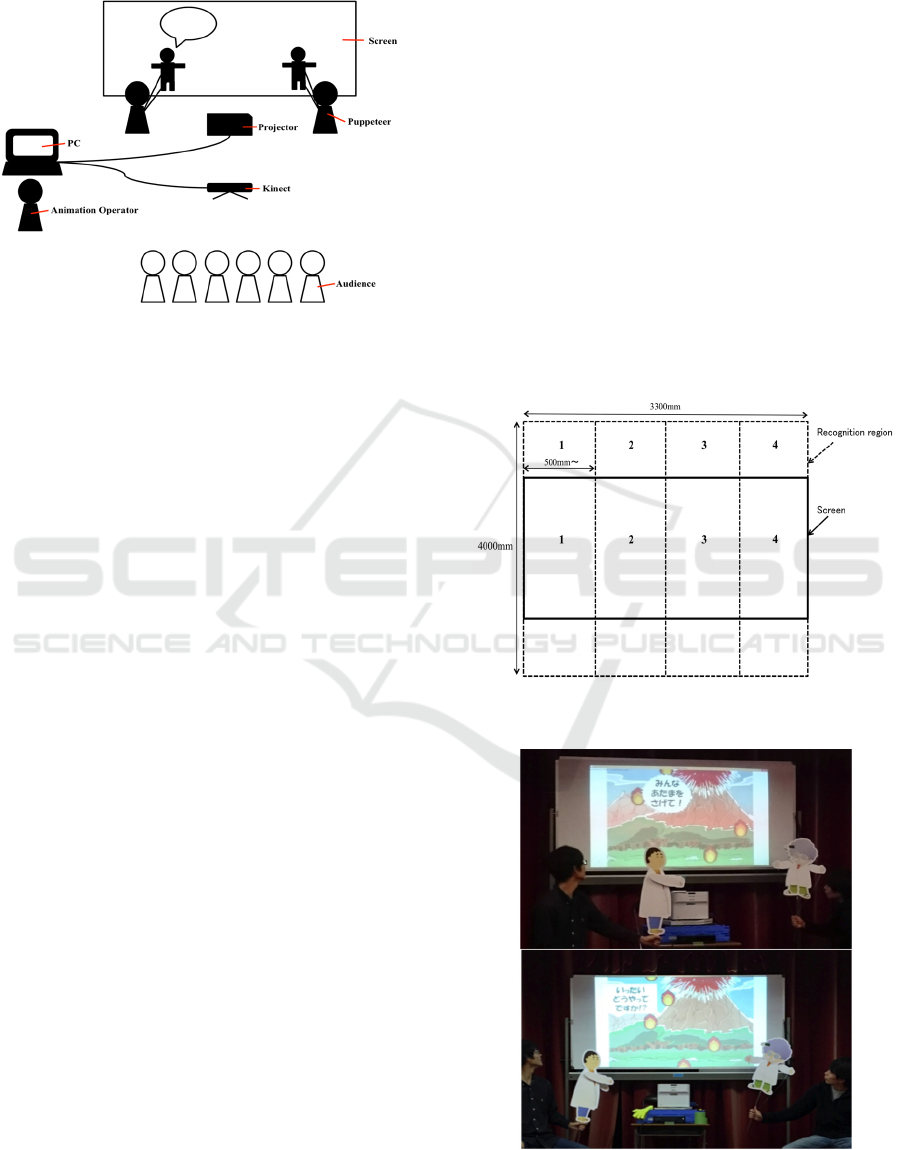

puppet show. Figure 1 shows the configuration of a

stage for a puppet show. The stage is composed of a

screen, projector, PC, and range image sensor. One

puppeteer operates one character. The animation

operator is in charge of the operation of the

Development of an Automatic Location-determining Function for Balloon-type Dialogue in a Puppet Show System for the Hearing Impaired

341

background animation and the control of the depth

image sensor by means of a PC. The background

Figure 1: The configuration of a stage for a puppet show.

animation is projected on the screen by the projector.

Next, we recount the details of the configuration

of the balloon-type dialogue system. Figure 2 shows

the settings of the automatic location-determination

function for balloon-type dialogue. Kinect V2 (made

by Microsoft) (hereinafter “Kinect sensor”) is

employed as the depth image sensor for the control

of the automatic location-determination function.

The region recognized by the Kinect sensor is 4,000

mm vertically and 3,300 mm horizontally from a

distance of 3 meters. The recognition region can be

divided into a user-specifiable number of

subregions. Numerical values can be selected for the

width and for the maximum number of subregions.

For this study, it was set as four regions with a

minimum width of 500 mm in order to minimize

unforeseen changes of the dialogue display location

resulting from shaking of the puppeteer’s

hands.

Lastly, we provide a description of the

mechanism of the automatic tracking function. First,

the Kinect sensor tracks the location of the hands of

the puppeteer within the recognition region. Next,

the Kinect sensor determines the location of the

puppeteer’s hands being captured in subregions 1–4.

Finally, on the background animation, the balloon-

type dialogue is displayed in the balloon display

region corresponding to the subregion where the

hands are. By this means, the three conditions are

satisfied at all times, and the location of the dialogue

is determined appropriately and in real time.

Figure 3 is the display of a dialogue in a stage

performance. In the venue shown in Figure 3 (top),

the dialogue is displayed in the part that is directly

above the location of the puppet in the center of the

figure. In the venue shown in Figure 3 (bottom), the

place of displaying dialogue is moved into the left

end of the screen in accordance with the puppet

moving.

3 EVALUATION

3.1 Method

Participants: 24 college students with a hearing

impairment (group 1: 10 students; group 2: 14

students).

Tasks: In the evaluation test, a new system with an

automatic location-determination function for the

dialogue and a conventional system with a line

projection function wherein the location of the

dialogue was determined beforehand were prepared,

and the authors had the participants observe these.

For the subjective evaluation, subjects evaluated

each of the systems individually for the puppet show

Figure 2: Specifications of the Automatic Tracking

Function.

Figure 3: The display of a dialogue in a stage performance.

CSEDU 2017 - 9th International Conference on Computer Supported Education

342

that was performed, and a comparative evaluation

was performed wherein subjects were asked at the

end of the show which of the two systems was

superior. In this article, we report the results of a

preliminary analysis of the subjects’ comparative

evaluation of the systems.

The data for the comparative system evaluation

were the subects’ answers to the question of which

was superior, the new system or the conventional

system, with regard to the following three aspects.

Aspect 1 is the understanding of the content of the

balloons, for which there were two items: “I could

understand the contents of the balloons better” and

“The balloons were easy to read.” Aspect 2 is the

ease of simultaneous recognition of the balloons and

of the behavior of the puppets, for which there were

two items: “The location of the balloons was just

right” and “I could see both the balloons and the

movements of the puppets.” Aspect 3 is the ease of

identifying the speaking character, for which there

was one item: “I could tell which character was

speaking.”

Procedure: We prepared five short scenes of a

puppet show. The scenes consisted of the elements

of two characters on stage, balloon-type dialogue of

5–6 phrases, background animation, and action

corresponding to the situation.

The participants viewed the same scenes of the show

performed with the new system and with the

conventional system. Each time they finished

watching a scene, the participants completed the

subjective evaluations by system for that scene. The

viewing order differed for each group: Group 1

viewed the scenes first by the conventional system

and then by the new system; Group 2 viewed the

scenes first by the new system and then by the

conventional system. This was done in order to

achieve a counterbalance. After the viewing of all of

the scenes was finished, the participants completed

the comparative evaluation of the systems.

3.2 Result

Table 1 summarizes the results of the comparative

evaluation. For all items, the number of affirmative

responses for the new system surpassed the number

of affirmative responses for the conventional system.

For the items related to the understanding of the

content of the balloons, “I could understand the

contents of the balloons better” and “The balloons

were easy to read,” the new system was positively

evaluated by 70% of the participants. This indicates

that acquisition of the lines of dialogue was easier

with the new system than with the conventional

system.

For the items related to the ease of simultaneous

recognition of the balloons and of the behavior of

the puppets, “The location of the balloons was just

right” and “I could see both the balloons and the

movements of the puppets,” more than 60% of the

participants selected the new system. This may be

the result of the fact that the loss of information

related to the behavior of the puppets was reduced

since

the location of the balloons relative to the

puppets was set appropriately.

Similarly, for the item related to the ease of

identification of the character speaking, “I could tell

which character was speaking,” 70% of the

participants selected the new system. This may be a

result of the fact that the loss of information related

to the identification of the speaking character was

reduced since the location of the balloons relative to

the puppets was set appropriately.

The participants’ responses were classified into

‘positive responses for new system’ (selected “new

system”) and ‘neutral and negative responses’

(selected “conventional system” or “neither” ). Then,

for each item, the difference between the positive

responses and the neutral/negative responses was

analyzed using Fisher’s exact test. It was found that

the number of positive responses exceeded that of

the neutral/negative responses for all item, and the

difference was statistically significant.

Table 1: Results of Subjective Evaluation by Hearing-Impaired College Students.

Item New system Conventional system Neither

I could understand the contents of the balloons better

17 2 5

The balloons were easy to read

16 5 3

The location of the balloons was just right

15 2 7

I could see both the balloons and the movements of the puppets

15 2 7

I could tell which character was speaking

17 2 5

New system: System incorporating an automatic tracking function.

Conventional system: System in which the location of the balloons is pre-set.

N = 24.

p < .01

Development of an Automatic Location-determining Function for Balloon-type Dialogue in a Puppet Show System for the Hearing Impaired

343

4 CONCLUSIONS AND FUTURE

WORKS

In this study, the development of an automatic

tracking function for balloon-type dialogue, whose

aim is the improvement of the usability of the

dialogue projection function, was undertaken. In the

analysis of the results of the evaluation test, it was

seen that the location tracking function for balloon-

type dialogue was positively evaluated with regard

to the understanding of the dialogue content, its

recognition simultaneous with that of the behavior of

the puppets, and identification of the character

speaking.

These results indicate the effectiveness of the

location tracking function for balloon-type dialogue

as a means for ensuring access to audio information

in puppet shows.

However, in the case of the aspect related to the

simultaneous recognition of the dialogue and of the

puppets’ behavior, about 60% of the participants

chose the new system, and no major difference

against the conventional system was observed. A

detailed analysis of the subjective system evaluation

for each scene can be noted here as one issue to be

addressed in the future. By this means, it is

anticipated that it will be possible to more clearly

identify the kind of situations for which the

automatic location-determination function for

balloon-type dialogue is particularly effective.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Number 26282061, 16K12382, and 15J00608.

REFERENCES

Blumenthal, E. (2005). Puppetry: A World history 1

Edition. Abrams, New York, NY.

Egusa, R., Sakai, T., Tamaki, H., Kusunoki, F., Namatame,

M., Mizoguchi, H. and Inagaki, S. (2016). Designing a

Collaborative Interaction Experience for a Puppet Show

System for Hearing-Impaired Children. In Computers

Helping People with Special Needs, ICCHP2016, Part

II, LNCS 9759, pp.424-432.

Fukamauchi F., Nishioka, T., Matsuda, T., Matsushima, E.

and Namatame, M. (2007). Exploratory Eye

Movements in Hearing Impaired Students − Utilizing

Horizontal S-shaped Figures −. In National University

Corporation Tsukuba University of Technology Techno

Report, 14, pp.177-181.

Hisaki, I., Nanjo, H. and Yoshimi, T. (2010). Evaluation of

Speech Balloon Captions for Auditory Information

Support in Small Meetings. In the 20th International

Congress on Acoustics. Sydney, Australia: Australian

Acoustical Society, pp.1-5.

Hong, R., Wang, M., Xu, M., Yan, S. and Chua, T-S.

(2010). Dynamic captioning: video accessibility

enhancement for hearing impairment. In the 18th ACM

international conference on Multimedia. Firenze, Italy:

ACM, pp.421-430.

Hu, Y., Kautz, J., Yu, Y. and Wang, W. (2015). Speaker-

Following Video Subtitles. In ACM Transactions on

Multimedia Computing, Communications, Applications,

11(2), Article 32, 17 pages.

Los Angeles County Museum. And Zweers, J. U., 1959.

History of Puppetry. Los Angeles County Museum.

L.A., CA.

Marschark, M. and Hauser, P. C. (2012). How Deaf

Children Learn. Oxford University Press, Inc., Oxford,

UK.

Rander, A. and Looms, P. O. (2010). The Accessibility of

Television News with Live Subtitling on Digital

Television. In the 8th International Interactive

Conference on Interactive TV & Video. Tampere,

Finland: ACM, pp.155-160.

Stinson, M. S., Francis, P., Elliot, L. B. and Easton, D.

(2014). Real-time Caption Challenge: C-print. In the

16th international ACM SIGACCESS Conference on

Computers & Accessibility. Rochester, NY, USA:

ACM, pp.317-318.

Wald, M. (2008). Captioning Multiple Speakers using

Speech Recognition to Assist Disabled People. In

Computers Helping People with Special Needs, ICCHP

2008, LNCS5105, pp.617-623.

CSEDU 2017 - 9th International Conference on Computer Supported Education

344
