Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

Manuel Huber, Julian Horsch, Junaid Ali and Sascha Wessel

Fraunhofer AISEC, Garching near Munich, Germany

Keywords:

Memory Encryption, Mobile Device Security, Data Conﬁdentiality, Operating Systems Security.

Abstract:

We present Freeze & Crypt, a framework for RAM encryption. Our goal is to protect the sensitive data the

processes keep in RAM against memory attacks, such as coldboot, DMA, or JTAG attacks. This goal is of

special signiﬁcance when it comes to protect unattended or stolen devices, such as smartphones, tablets and

laptops, against physical attackers. Freeze & Crypt makes use of the kernel’s freezer, which allows freezing a

group of processes by holding them ﬁrm in the so-called refrigerator. Inside, frozen processes inescapably rest

at a point in kernel space where they cannot access their memory from user space. We extend the freezer to

make arbitrary process groups transparently and dynamically encrypt their full memory space with a key only

present during en- and decryption. When thawing a process group, each process decrypts its memory space,

leaves the refrigerator and resumes normal execution. We develop a prototype and deploy it onto productively

used mobile devices running Android containers. With this application scenario, we show how our mechanism

protects the sensitive data in RAM against physical attackers when a container or device is not in active use.

1 INTRODUCTION

For decades now, the digital world has been ﬁnding

its way deeper and deeper into our business and pri-

vate lives. We leave behind the sensitive traces of

our actions not only in the cloud, or on our persis-

tent storage, but also in main memory. The data ap-

plications keep there, such as credentials, pictures,

passwords, or key material, usually remains in plain-

text (Apostolopoulos et al., 2013; Ntantogian et al.,

2014; Pettersson, 2007; Tang et al., 2012). Espe-

cially in sensitive corporate or governmental domains,

the reliable protection of valuable and possibly clas-

siﬁed data is an important topic. Memory attacks,

such as Joint Test Action Group (JTAG) (Weinmann,

2012), coldboot (Halderman et al., 2009; Huber et al.,

2016; M

uller and Spreitzenbarth, 2013), or Direct

Memory Access (DMA) attacks (Becher et al., 2005;

Boileau, 2006; Break & Enter, 2012; Devine and Vis-

sian, 2009), have proven effective in disclosing se-

crets in RAM.

To tackle this problem, we present a framework

for the Linux kernel, Freeze & Crypt (F&C), which

encrypts sensitive data in RAM to solidly protect

unattended devices or workstations. We design F&C

to comply with multiple platforms, kernel versions

and to incur only minimal changes sustaining the ker-

nel’s common operability. Our mechanism allows the

transparent and selective protection of the full pro-

cess space of arbitrary processes running on the sys-

tem. We introduce F&C into the kernel building upon

the existing control groups (cgroups) freezer subsys-

tem. The cgroups mechanism allows the dynamic

formation of groups of processes, also referred to

as cgroups. The different cgroups subsystems en-

force their own policies on cgroups in order to limit

their access to system resources. The freezer subsys-

tem, short freezer, allows the freezing and thawing of

cgroups, i.e., their suspension and resumption.

When freezing a cgroup, the kernel sends a signal

to the processes in the cgroup. Each of those pro-

cesses reacts to that signal by entering the so-called

refrigerator in kernel space. The refrigerator is a loop

which ensures that processes neither execute in user

space nor react to external events. When frozen, the

user space part of a process has no means to access

or alter its memory space. The refrigerator is thus a

proper place to temporarily alter the processes’ mem-

ory without side effects occuring on its user space

part. In particular, we make the processes en- and

decrypt the segments of their memory space, e.g., the

heap, stack, code and anonymous segments, on their

own and in parallel. This makes our approach es-

pecially on multi-core systems very efﬁcient. Upon

thawing a cgroup, the processes decrypt their memory

before we allow them to leave. For the parallelization,

Huber, M., Horsch, J., Ali, J. and Wessel, S.

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption.

DOI: 10.5220/0006378400170030

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 17-30

ISBN: 978-989-758-259-2

F&C synchronizes the processes and threads inside

the refrigerator, as they operate on shared resources.

The key we use for en- and decryption of a cgroup

is present only during freezing and thawing and may

change on each freeze.

We demonstrate the utility of our mechanism with

a working, real-life large scale application scenario in

productive use, which is a virtualization platform run-

ning multiple Android containers on one smartphone

(Andrus et al., 2011; Huber et al., 2015). With this

scenario, we show how to employ our mechanism to

protect the memory of Android containers against at-

tackers with full access to the devices, for example,

after theft. This platform is especially suitable, safely

accounting for key management with a Secure Ele-

ment (SE) to prevent brute-force attacks on the en-

cryption key. In particular, our contributions are:

• A generic concept for efﬁcient process memory

en- and decryption in the kernel based on process

groups.

• The development of a prototype and its integration

into a complex mobile device architecture with

key management to thwart physical attacks.

• The real-life application of the prototype on pro-

ductively used smartphones with real users.

• A thorough security and performance evaluation

to demonstrate the practical usability on mobile

devices.

The paper is organized as follows. We ﬁrst describe

the threat model in 2 before presenting related work

in 3. In 4, we present the design of F&C. We present

an overview of the mobile device architecture and our

extensions to leverage F&C in 5. Next, we elaborate

the implementation of our prototype in 6. Our perfor-

mance and security evaluations can be found in 7 and

8 before the conclusion in 9.

2 THREAT MODEL

We consider an attacker who aims at gaining sensi-

tive data from an unattended and non-tampered de-

vice under protection of F&C. The attacker obtains

physical access to the protected system, has sufﬁcient

time and the ability to access both volatile and persis-

tent memory. For accessing the memory, the attacker

exploits hardware and software vulnerabilities, such

as through DMA, JTAG or coldboot attacks. The at-

tacker is unable to execute evil maid attacks, i.e., to

covertly deploy backdoors on the device waiting for

the user to return. This implies that a device once tam-

pered with is not trusted again, e.g., after theft or loss,

or because the user notices the tampering attempt.

Regarding our application scenario, the adversary

may be in possession of the SE, but lacks knowledge

of the SE’s passphrase and is unable to unveil the se-

crets stored on the SE. Furthermore, the attacker has

no means to break cryptographic primitives.

3 RELATED WORK

In the following, we discuss previous work on mem-

ory protection. Several hardware-based memory en-

cryption architectures, such as Aegis or the XOM

memory architecture, have been proposed (Gutmann,

1999; Lie et al., 2003, 2000; Suh et al., 2007;

urstlein et al., 2016). Sensitive data of protected

processes is left unencrypted solely in the processor

chip, which is the single trusted component. These

hardware architectures are difﬁcult and expensive to

realize and usually not found on consumer devices.

There also exist processors with extensions to provide

secure enclaves, which can be leveraged to thwart

memory attacks, such as the ARM TrustZone, or Intel

SGX. These enclaves constitute hardware-protected

memory areas to which the OS can move sensitive

data, but are currently still limited, e.g., regarding the

size of the memory areas. Developers need to speciﬁ-

cally design enclave-aware, hardware-dependent soft-

ware and the underlying OS must support the proces-

sor extensions.

On the side of software-based implementations,

some methods only protect a speciﬁc key, e.g., for

Full Disk Encryption (FDE), in RAM from mem-

ory attacks. Approaches for x86 (M

uller et al.,

2010, 2011; Simmons, 2011), as well as for ARM

otzfried and M

uller, 2013) and hypervisors exist

uller et al., 2012). The approaches either store the

key in the CPU/GPU registers, or in the CPU cache,

and implement the cipher on-chip at the cost of per-

formance. These approaches leave all other assets in

RAM unprotected and are hence vulnerable to mem-

ory attacks. Concepts protecting the process space are

either runtime encryption techniques where process

memory is encrypted throughout process runtime, or

techniques which suspend processes in order to en-

crypt their memory, as is ours.

Cryptkeeper (Peterson, 2010) is an extension of

the virtual memory manager to reduce the exposure

of unencrypted data in RAM. The mechanism sepa-

rates RAM into a smaller unencrypted working set of

pages, called the Clear, and an encrypted area, the

Crypt. By the time the Clear ﬁlls up, pages are auto-

matically swapped into the Crypt and decrypted on

demand. As a runtime encryption technique, there

is a notable performance impact on the system and

SECRYPT 2017 - 14th International Conference on Security and Cryptography

the mechanism always keeps an undeﬁned amount

of RAM unencrypted. HyperCrypt (G

otzfried et al.,

2016a) and TransCrypt (Horsch et al., 2017) transfer

this idea into a hypervisor to transparently encrypt the

full memory of a guest OS.

RamCrypt (G

otzfried et al., 2016b) is an encryp-

tion approach on x86 Linux that transparently en-

crypts the memory of running processes. For key-

hiding, RamCrypt stores the memory protecting key

in processor registers. Therefore, deep interference

into the kernel’s page fault handler is necessary to en-

crypt pages and to decrypt them when accessed. Pro-

cesses to be protected have to be marked a priori by

setting a ﬂag inside the ELF program header. They

encrypt anonymous segments only and there also re-

main unencrypted pages in a so-called sliding win-

dow. The cost of encrypting pages on the ﬂy comes

with a notable performance impact. Another problem

common to runtime protection mechanisms is that a

physical attacker gaining privileges on the system can

simply request decryption of encrypted memory.

Hypnoguard (Zhao and Mannan, 2016) en-

/decrypts memory during OS suspension/wakeup.

The mechanism hooks into this procedure at stages

where the OS is not active. At this point, there is

no support for hardware devices, such as displays or

keyboards. Therefore, their design requires to im-

plement highly hardware-speciﬁc crypto routines for

hardware accelerators and for drivers to interact with

hardware devices, e.g., for passphrase input. The en-

cryption key is bound to a TPM and encryption is

executed in Intel’s TXT environment. This makes

the approach highly hardware speciﬁc and particu-

larly cumbersome for portability and when interact-

ing with different hardware devices. The approach in

(Huber et al., 2017) focuses on the same goal, but con-

stitutes a hardware-independent kernel mechanism,

which can be easily integrated into Linux systems.

Transient Authentication (Corner and Noble,

2003) is also an approach for x86 platforms to protect

processes transparently, but depends on the presence

of a hardware token. The token provides fresh crypto-

graphic keys. The concept comes with two protection

variants, the application-transparent and application-

aware protection. In the ﬁrst mode, the system sus-

pends and encrypts in-memory pages when the user

removes the token. The only processes that remain

running are tasks for transient authentication and OS

threads. In application-aware mode, the developer

can protect speciﬁc applications by utilizing a special

API. This allows to selectively protect chosen assets,

such as an application’s secret key. However, this re-

quires the modiﬁcation of existing applications.

Approaches speciﬁcally tailored to the mobile do-

main have also been developed. Sentry (Colp et al.,

2015) presents a concept for memory protection on

Android devices. The user has to mark sensitive apps

and OS subsystems in the settings menu. When the

device gets locked, the mechanism encrypts speciﬁc

memory of the chosen apps. For apps that run while

locked, Sentry reads encrypted memory pages from

RAM, decrypts and keeps them inside the ARM SoC

with cache line locking (Chen et al., 2008). Pages

are encrypted on a page-out before writing them back

to RAM. With increasing background activity and a

full cache, the performance strongly degrades since

the mapping of called-in pages to the cache trig-

gers costly page faults. The approach uses ARM

speciﬁc (legacy) mechanisms. Hence, the feasibil-

ity strongly depends on the architecture and platform

speciﬁc hardware features. Their prototype on the

mobile device does not support cache locking and

hence no runtime memory encryption.

CleanOS (Tang et al., 2012) is a mechanism in-

tegrated into the Android framework. This approach

only works in combination with trusted, cloud-based

services for key management to which the phone

needs connectivity. The idle eviction mechanism en-

crypts data that is not in active use. Afterwards, the

key is purged on the device and fetched on-demand

from the cloud. The main modiﬁcations were made

by the introduction of Sensitive Data Objects (SDOs),

which represent sensitive user data, and a special

garbage collector, eiGC. The latter searches and en-

crypts SDOs that were not used for a speciﬁc period

of time. Apps either implement an SDO API to add

and register SDOs, or the framework registers default

SDOs along with heuristics to identify SDOs. Not

only regarding key retrieval and availability concerns,

but also due to the heuristics and workload to adjust

apps, this mechanism represent no reliable scheme.

4 MEMORY PROTECTION

CONCEPT

We ﬁrst present an overview on F&C’s overall de-

sign and the involved OS components in 4.1. Subse-

quently, we elaborate the synchronization of the pro-

cesses during main memory encryption in 4.2. In the

following, the term encryption also applies for de-

cryption and we differentiate only where decryption

differs from encryption.

4.1 Design of Freeze & Crypt

Based on the Linux kernel’s cgroups freezer, F&C

allows the dynamic creation of cgroups containing

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

the processes and threads whose memory space we

encrypt. From here on, we subsume processes and

threads under the term task and only differentiate

when relevant. For every cgroup, we use an arbitrary

key for each encryption pass. We differentiate mem-

ory segments upon the following categorization:

text. The executable, read-only code of a task.

data. Writable, as well as read-only data belonging

to the task’s code.

bss. Zero-initialized, writable data.

heap. A task’s dynamically allocated memory.

stack. Local variables of functions and their parame-

ters, etc.

anonymous mappings. Large, dynamic memory

allocations a task can map into its process space and

share with others.

ﬁle mappings. Files that are mapped to memory. For

example, large writable ﬁles, but also read-only

ﬁles, such as shared libraries. We further make it

possible to choose between regular and non-regular

mappings, as well as between their access permis-

sions. Non-regular mappings are, e.g., memory-

mapped devices, DMA or Inter-Process Communi-

cation (IPC) resources.

special mappings. The timers, vectors, vdso and

vsyscall segments. They contain no conﬁdential

user data. The kernel manages these segments

as system-wide shared kernel resources providing

them to tasks as kernel interfaces.

Except for special mappings, a task can load or store

conﬁdential information in all other segments. F&C

thus allows to select all other segments for encryption

except the special mappings. Depending on the use

case, fewer segments can be critical and thus omitted

for encryption. We outline the critical segments for

our use case in 5.

4.1.1 States of a Cgroup

1 depicts the four different states of a cgroup along

with its tasks. On the system, we have an arbitrary

number of cgroups in any of the states, as well as non-

protected tasks which can potentially become part of a

freezer cgroup or form a new cgroup. F&C allows us

to create disjoint cgroups, to freeze or thaw multiple

cgroups at the same time, and to assign different keys.

Thawed. In the default state, multiple tasks are

running, such as Task

in 1, and the cgroup holds no

key. The cgroups mechanism ensures the inclusion

of future child tasks to the cgroup by default. The

arrows demonstrate that tasks execute their code in

user space, access their memory segments and possi-

THAWED

...

Task

Text

Stack

Data

Memory Mapping

Heap

BSS

Task

Running

.....

...

Task

Running

.....

Uninter-

ruptible

Task

.....

Uninter-

ruptible

Heap

Text

Stack

Data

Memory Mapping

Heap

BSS

Data

BSS

Task

.....

Waking

Heap

Data

BSS

Task

Waking

.....

Text

Stack

Data

Memory Mapping

Heap

BSS

...

Stack

FREEZING

THAWING

FROZEN

control flow

data access

kernel

space

FREEZE

THAW

user

space

Figure 1: The four states of the freezer along with the be-

havior of tasks in the different states.

bly jump between kernel and user space when making

system calls.

Freezing. After starting the freeze, the cgroup

goes into the state freezing and has an arbitrary en-

cryption key assigned. Tasks in the refrigerator go

into an uninterruptible state and dwell inside until the

cgroup is thawed. Task

already entered the refrigera-

tor and is currently encrypting its memory segments.

The arrow for the running Task

shows that it is just

jumping from its execution in user space to kernel

space into the refrigerator. In the refrigerator, the user

space part of a process has no means to access or al-

ter its memory. The tasks are agnostic of incoming

IPC or external events, such as kill signals, which they

process after thawing.

Frozen. After ﬁnishing the encryption, the cgroup

is frozen and does not hold any key. Its tasks are all

in the uninterruptible state, stuck in the refrigerator in

kernel space off the run-queue. Once scheduled, the

tasks immediately call the scheduler again to switch

to another task. All tasks have encrypted the previ-

ously speciﬁed memory segments.

Thawing. After starting the thaw, the cgroup is in

the state thawing and decrypts with the same key as

used for freezing. The cgroup brings its tasks into

a waking state. When scheduled, the tasks simul-

taneously decrypt their segments before leaving the

refrigerator. Task

is about to decrypt its segments,

while Task

has already ﬁnished. We retain Task

the refrigerator for synchronization until all tasks of

its cgroup ﬁnish decryption. This causes depending

tasks to be released simultaneously.

4.1.2 Extension of the Freezer

We extend the freezer’s initialization, freezing and

thawing functionalities to manage the protection of

cgroups. 2 illustrates these functionalities with a se-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

freezer subsystem

add tasks

specify segments

Freeze

provide

start FREEZE

Task

FREEZING freeze tasks

encrypt

process

FROZEN

purge

notify user space

Thaw

provide

start THAW

decrypt

process

THAWED

purge

notify user space

notify freezer

all frozen

all thawed

Task

...

enter

refrigerator

enter

refrigerator

encrypt

process

notify freezer

decrypt

process

leave

refrigerator

leave

refrigerator

notify freezer

THAWING

notify freezer

wake tasks

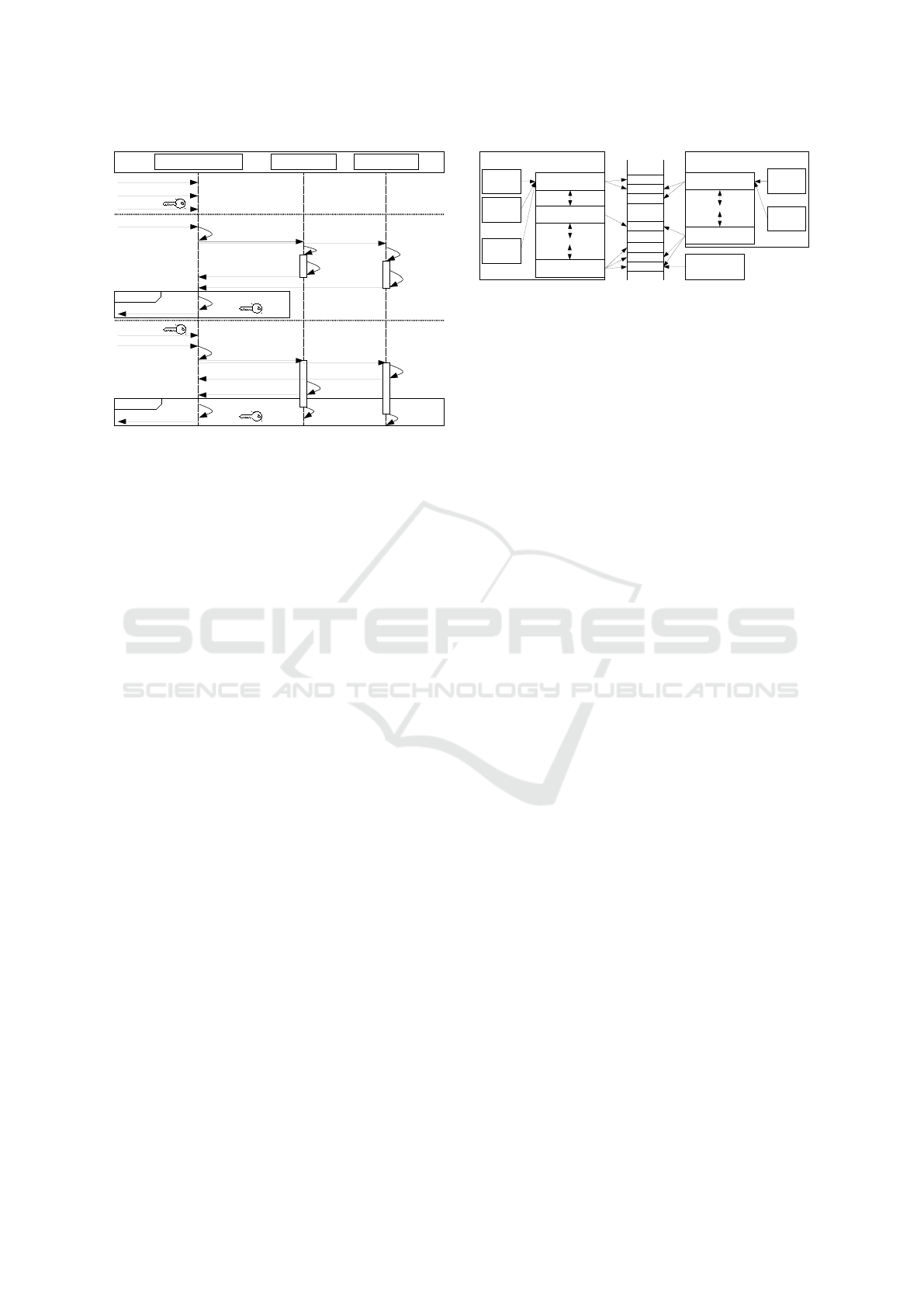

Figure 2: Extensions (bold) to the initialization, freezing

and thawing procedures of a cgroup with its tasks in F&C.

quence diagram. Bold elements stand for the new

functionality we introduce to the freezer.

Initialization of F&C. Privileged processes in

user space can manage the cgroups functionality via

an interface to the kernel, which allows for creating

cgroups and adding or removing tasks. To initialize a

freezer cgroup, a privileged process adds tasks to the

cgroup, here Task

and Task

. We extend the interface

by the option to associate the freezer with an arbitrary

key and the list of memory segments to be encrypted.

The concept intentionally leaves the key management

open to the speciﬁc use case F&C gets applied. The

key can, for example, originate from password deriva-

tion, a TPM or an SE, as described in our application

scenario in 5.

Freezing Procedure. As depicted in 2, a privi-

leged process starts the freeze and thaw of cgroups.

The freezer changes its state and signals its tasks to

enter the refrigerator. Every task notiﬁes the freezer

after ﬁnishing its encryption. When the freezer has

received all encryption notiﬁcations, the cgroup goes

into the state frozen and the freezer purges the en-

cryption key. To erase potentially remaining sensitive

remnants, the freezer also zeroes out pages freed by

running or terminated processes, as well as the used

cipher kernel structures and the relevant kernel stack

range in memory after the encryption. Finally, the

freezer notiﬁes user space about the terminated en-

cryption of the cgroup. The standard freezer only re-

veals and becomes aware of its state when user space

requests the actual state. In F&C, the subsystem ac-

tively manages its state to be able to purge the key and

other remnants as early as possible. We also actively

notify user space, e.g., entities managing the cgroups

encryption, about the change of state. We show the

usefulness of this feature in our application scenario.

Process A

Task

Memory Segment

...

Page 2

Page 3

Page 4

...

Page 1

Task

Virtual AS

Process B

Task

Memory Segment

...

Task

Virtual AS

Physical AS

Page 5

Page 6

Process C

...

Page 7

...

Figure 3: Relationship of processes and threads, their mem-

ory mappings and sharing of resources.

Thawing Procedure. Before triggering the thaw-

ing of a cgroup and therefore starting the decryption,

a privileged process passes the corresponding key to

the freezer. The freezer wakes every included task.

When scheduled, this normally causes a task to leave

the refrigerator. In our mechanism, the tasks ﬁrst

decrypt their previously encrypted memory segments

and notify the freezer. Unlike the original freezer, we

do not immediately switch to the state thawed, but

wait until the last task ﬁnishes decryption and notiﬁes

the freezer before switching states. Then, the tasks

safely leave the refrigerator when scheduled and re-

sume their execution. The freezer purges the decryp-

tion key, other remnants and notiﬁes user space. The

key is hence only present in the freezer during en- and

decryption.

4.2 Synchronization of Tasks

Since the tasks of a freezing cgroup enter the refrig-

erator in parallel and share resources, we synchro-

nize their concurrent encryption. The kernel’s mem-

ory management is responsible for resource sharing.

Shared resources can be Address Spaces (ASs) and

physical pages, as shown in 3. The virtual AS consists

of the different memory segments referring to physi-

cal pages in memory. Virtual ASs, i.e., processes, can

share physical pages. In the following, we ﬁrst focus

on the shared ASs before addressing shared pages.

4.2.1 Shared Address Spaces

A task can spawn threads and fork new processes.

The kernel assigns a forked process its own AS. When

spawning, the parent process shares its AS with the

spawned thread. 3 illustrates the sharing of ASs for

the tasks of process A and B. Our goal is to ensure that

every AS is encrypted by exactly one task to avoid

multiple encryptions of the same AS. Without syn-

chronization, sharing tasks would encrypt the same

AS repeatedly when entering the refrigerator.

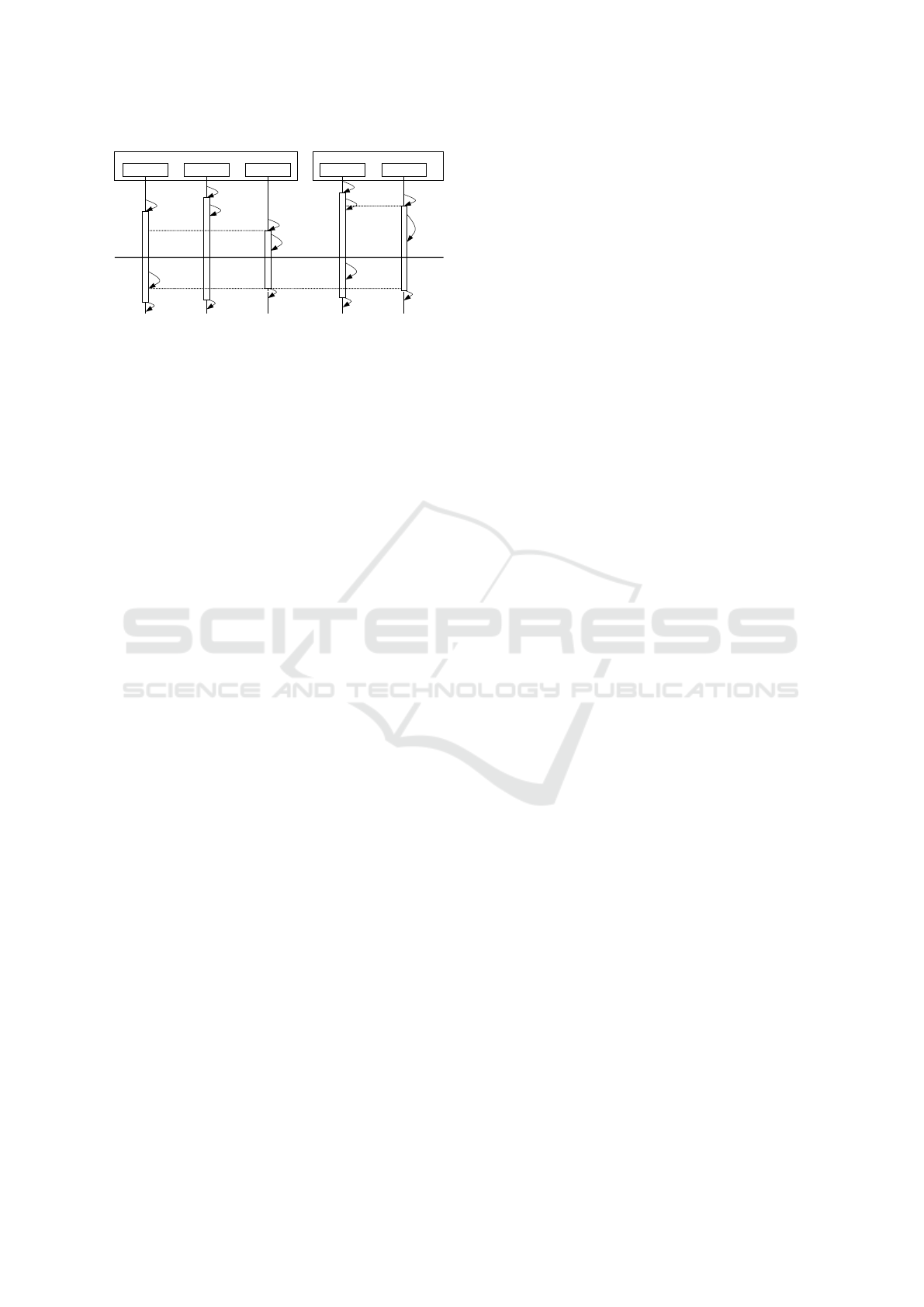

4 focuses on the chronological sequence tasks run

through in the refrigerator with process A and B be-

longing to the same cgroup. Upon freezing, the tasks

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

Task

...

Process A

Task

enter

refrigerator

enter

refrigerator

enter

refrigerator

identify

segments

encrypt

process

Process B

decrypt

process

leave

refrigerator

leave

refrigerator

leave

refrigerator

leave

refrigerator

Freeze

Thaw

Task

...

enter

refrigerator

leave

refrigerator

enter

refrigerator

identify

segments

encrypt

process

decrypt

process

Figure 4: Synchronization of tasks entering and leaving the

refrigerator during freeze and thaw.

enter the refrigerator at an undeﬁned point in time in

an order determined by the scheduler. The ﬁrst task

to enter the refrigerator, here Task

of process A and

Task

of process B, predetermines the segments to be

encrypted. The last entering tasks, Task

and Task

respectively, encrypt the previously identiﬁed mem-

ory segments. Only the last task can safely encrypt

the segments, because at that time all other tasks shar-

ing the AS have entered the refrigerator. The ﬁrst task

thus identiﬁes the segments for the last arriving task

to earliest possible start encryption. We ensure that

encryption does not start unless all segments are iden-

tiﬁed. As depicted in 4, Task

of process B encrypts

its AS in parallel to Task

. In reverse, only the ﬁrst

scheduled, waked task of a process decrypts the seg-

ments. Once all tasks have ﬁnished decryption, we

allow them to leave the refrigerator.

4.2.2 Shared Physical Pages

The tasks use virtual addresses during their encryp-

tion. However, the physical pages effectively en-

crypted can be shared between process boundaries

complicating the encryption process. Hence, we have

to determine whether the page to be encrypted is

shared before encrypting it in order to prevent the

corruption of other ASs. Shared pages are contained

in more than one AS and can be further categorized.

First, these can simply be pages intended to be read-

only for all tasks. Second, these can be writable

Copy-On-Write (COW) pages, which are shared be-

tween processes for the time they only read the page.

Third, shared pages can represent shared memory for

IPC, where distinct processes work on the same set

of physical pages. Fourth, pages could have been

merged via the kernel’s Kernel Samepage Merging

(KSM) mechanism, which searches identical pages in

process space and merges those pages to one shared

page to save memory. Before a task encrypts a shared

page, we ensure that the page is not referenced by

other tasks possibly not part of the cgroup or not yet

in the refrigerator. Our mechanism thereby ensures

encryptingthese shared pages only once and not du-

plicating them by COW. When thawing, an encrypted

page can always be decrypted as long as no other task

is currently decrypting it.

5 APPLICATION SCENARIO

We demonstrate the capability of F&C on mobile de-

vices in practical use. We use Nexus 5 smartphones

running multiple Android containers based on a virtu-

alization platform (Andrus et al., 2011; Huber et al.,

2015; Wessel et al., 2015). When the mobile device

is actively used, one Android container is in fore-

ground, while one or more containers run in back-

ground. We encrypt background containers and only

leave actively used containers unencrypted. After the

device is idle for a certain period, we ensure to en-

crypt all containers in order to protect all sensitive

data from memory attacks. Like on common smart-

phones, we require users to re-authenticate in order to

start or resume a suspended, encrypted container. The

architecture suits our mechanism, because it builds on

an SE with two-factor authentication for secure cryp-

tographic key management, e.g., a smartcard via NFC

or a microSD. Using an SE prevents brute force at-

tacks on the RAM encryption keys, but can weaken

usability when re-authenticating. However, the usage

of an SE was the preferred choice due to the high se-

curity requirements for our productive scenario. For

other use cases, our system can easily be adapted to a

less secure, but more usable scheme, such as PIN or

password based key derivations or swipe patterns.

We ﬁrst describe relevant components of the virtu-

alization platform and our extensions to leverage F&C

in 5.1. Then, we describe how we employ F&C to

protect the containers’ sensitive data in memory in

5.2. 5.3 details how we handle background events

for frozen containers, such as incoming phone calls

or alarms.

5.1 Components and Extension of the

Virtualization Platform

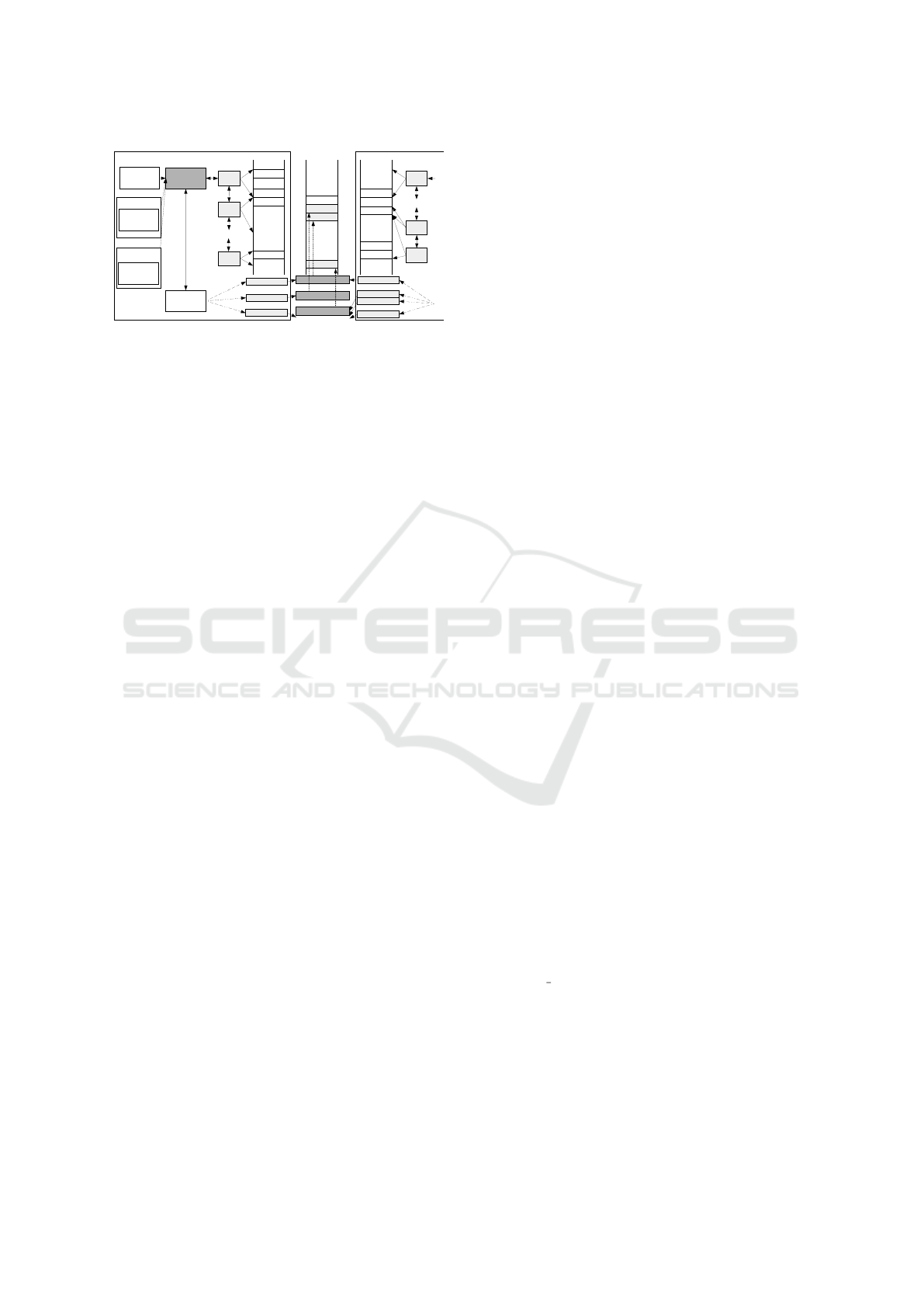

5 shows the relevant components of the virtualization

platform, including our extensions. The illustration

depicts a scenario with running containers C

0..X

top of trusted components in user and kernel space.

1..X

are isolated Android user containers with apps,

for example, a private and a business container. We

assume that incoming sensitive data for C

1..X

is en-

crypted and that encryption terminates inside C

1..X

is a minimal, hardened and trusted management

container providing functionality to virtualize hard-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Cgroups

Container Management

FDE

User

space

Linux

kernel

Trusted GUI

minimal

Android OS

Namespaces

...

App

Android OS

App

...

App

Android OS

App

...

0,1

FDE

0-X

FDE

1-X

RAM

CPU Mem

Freezer

RAM

...

IPC

PID

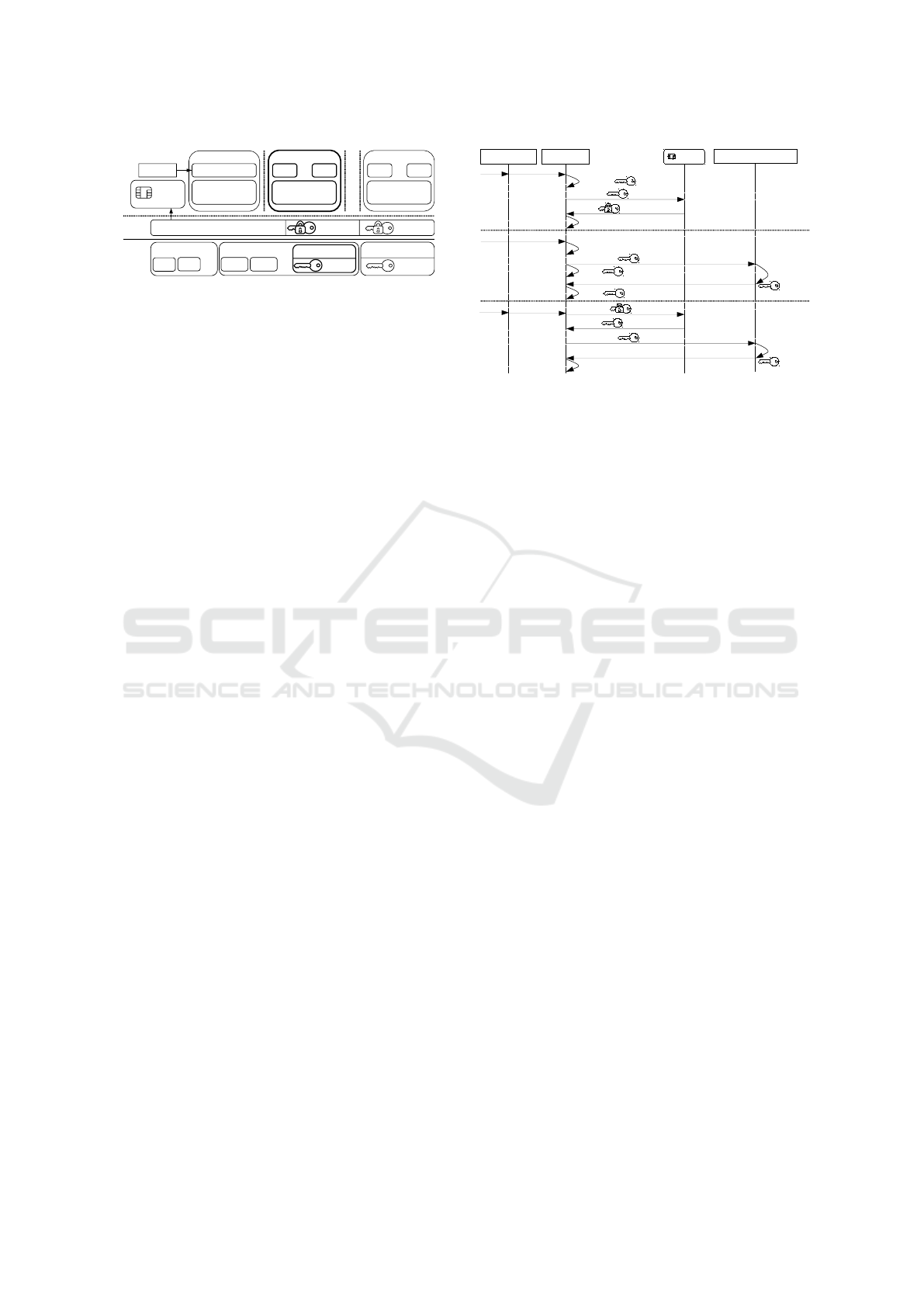

Figure 5: Most relevant components and extension of the

virtualization platform for mobile device.

ware devices for C

1..X

and not containing any sensi-

tive user data. Hence, we do not encrypt C

’s RAM

contents. C

has a Trusted GUI app where the user

provides the SE’s passphrase (PIN).

0..X

are embedded into separate namespaces on

kernel level. Linux namespaces provide processes

within a namespace with their own view on the sys-

tem’s resources, such as IPC, PID, or network names-

paces. This isolates processes from different names-

paces making them unaware of other namespaces and

IPC takes place through well-deﬁned channels only

(Huber et al., 2015). The Container Management

(CM) assigns each started C

0..X

to a different cgroup,

coherent to the distinct namespaces. The platform

uses the CPU, memory and devices cgroups subsys-

tems to regulate the containers’ access to hardware

resources. In user space, the CM manages the con-

ﬁguration, startup and switching of containers. Con-

tainers store their persistent data in images protected

with kernel-based FDE. Therefore, the platform uses

wrapped, persistent disk encryption keys C

1..X

FDE

that can only be unwrapped using the SE.

We extend the CM with functionality to conﬁg-

ure F&C and to generate, wrap and unwrap the RAM

encryption keys C

1..X

RAM using the SE. 5 depicts

the scenario where C

, in bold face, is in foreground,

while the other containers are in background. The il-

lustration shows the freezer using unwrapped key C

RAM, which indicates that the system has locked C

is about to switch to C

and encrypting C

in back-

ground. Meanwhile, the FDE module solely keeps

the unwrapped keys C

0,1

FDE. The kernel does not

require the keys C

2..X

FDE, because C

2..X

are frozen

and cannot access their ﬁlesystem. After freezing C

completes, the CM also removes C

’s key C

FDE

from the kernel. The scenario allows for omitting con-

tainers from RAM encryption, e.g., containers with-

out corporate secrets.

5.2 Container Protection and Key

Management

For the encryption of C

1..x

, we consider all selectable

memory segments described in 4.1 relevant for our

Trusted GUI CM

Start C

PIN, C

freezer subsystem

PIN,

RAM

start C

Freeze C

lock C

/switch to C

suspend C

switch to C

RAM, start FREEZE

notify user space

purge C

FDE

Thaw C

PIN, C

PIN,

RAM

RAM, start THAW

encrypt C

purge

RAM

notify user space

resume C

switch to C

generate C

RAM

purge C

RAM

decrypt C

purge

RAM

Figure 6: Chronological sequence for starting, freezing and

thawing containers along with key management operations.

scenario except the following:

Read-only Executable File-mapped Segments.

This is shared library code, which does not contain

sensitive user data in our system, but solely shared

constant data. Since each container features a full

userland, C

1..x

include separate libraries, e.g., libc.

The data segments of libraries do not fall in this

category and are hence encrypted.

Writable Non-regular File-mapped Segments.

These segments represent memory areas of

memory-mapped devices, IPC resources, or DMA

ﬁles where drivers share memory with hardware

devices. Encrypting such memory can corrupt the

memory space on most platforms, because, for

example, hardware devices are not aware of the

encryption.

All other segments must be protected, because pro-

cesses might store or load sensitive data there. The

diagram in 6 describes the procedure for protecting

1..X

’s sensitive data. The illustration shows the steps

of starting, encrypting and decrypting C

Start C

. To start C

, we enter the PIN of the

present SE in the Trusted GUI of foreground C

. The

GUI passes the information to start C

with the PIN

to the CM. The CM randomly generates a fresh key

RAM using the kernel random number generator

seeded with hardware entropy based on hardware ran-

dom numbers. The CM unlocks the SE and uses it to

wrap the generated key C

RAM. At this point, the CM

holds both the wrapped and unwrapped key C

RAM.

The unwrapped key is stored to be able to immedi-

ately encrypt C

without user interaction and without

the SE when locking or switching back to C

. Re-

versely, the wrapped key is stored for the next decryp-

tion pass of C

using the SE. Next, the CM starts C

foreground, which brings C

to background. There-

fore, the CM creates C

’s namespaces, conﬁgures its

cgroups and mounts its images. The CM also speci-

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

ﬁes the segments to be encrypted. Starting C

includes

unwrapping C

’s disk encryption key C

FDE using

the SE to provide the key to the FDE module for ac-

cessing the encrypted data image, omitted in 6.

Freeze C

. We freeze and hence encrypt C

’s

RAM when the user actively switches back to C

, or

when the user or the system locks C

, causing a switch

back to C

. According to 6, the CM then suspends C

and immediately switches to C

. The CM provides

the freezer with the stored, unwrapped key C

RAM

and starts C

’s freeze. This triggers F&C, which en-

crypts C

. In the meantime, the CM purges its stored,

unwrapped key C

RAM from user space. After the

encryption, the freezer purges its utilized key C

RAM

in the kernel and notiﬁes the CM. The CM then purges

the no longer required, unwrapped key C

FDE in user

and kernel space. We destroy the encryption keys by

overwriting them in RAM and by ﬂushing the corre-

sponding caches. After that, the CM stores only the

wrapped RAM and disk encryption keys, leaving no

trace of C

’s volatile and persistent data. All conﬁ-

dential assets in kernel memory are deleted and the

non-encrypted segments contain no conﬁdential in-

formation. In other use cases, the entity managing the

encryption can purge further assets in kernel at this

point if present, e.g., IPSec credentials (a kernel level

VPN mode).

Thaw C

. Only to start and to thaw C

, i.e., when

decrypting and putting C

to foreground, the user has

to provide the PIN of the SE to the Trusted GUI.

The CM unwraps the wrapped key C

RAM using

the SE and provides the freezer with the unwrapped

key C

RAM. Afterwards, the CM triggers the thaw.

The freezer decrypts C

, purges its utilized key in the

kernel and notiﬁes the CM. Then, the CM resumes

, switching it to foreground. To simplify matters,

6 omits that the CM also unwraps the wrapped key

FDE and provides it to the FDE module before

thawing C

. The CM keeps its user space copy of the

unwrapped key C

RAM for the next freeze. At this

point, the CM could also generate a new unwrapped

key C

RAM with a wrapped counterpart for the next

freeze. This would prevent replay attacks swapping

old portions of encrypted RAM. However, such sce-

narios are not part of our threat model and we consider

this threat negligible.

5.3 Background Activities

The CPU sleeps on suspended smartphones. For

background activities, devices sustain their connec-

tion to external sources via hardware components and

via interrupt controllers. In case of an event, e.g.,

causing a notiﬁcation, the CPU and hence processes

get woken. In our case, events for encrypted con-

tainers are similarly processed by the kernel and due

to the hardware device virtualization, events are for-

warded to the virtualization infrastructure. This en-

ables us to handle background activities for frozen C

Hardware devices are either virtualized in user

space or in the kernel on our platform. User space

virtualized devices, such as the radio interface, have

multiplexers in C

. We thus receive incoming short

messages and phone calls for possibly frozen C

via

. We extend the architecture by adding function-

ality to notify the user of events for frozen C

in C

using Android notiﬁcation intents. After thawing the

container, the user is able to take the call and to re-

ceive the message right after thawing. The same holds

for devices virtualized in the kernel, such as the alarm

or networking functionality. We track expired alarms

and incoming network trafﬁc for frozen C

in the ker-

nel and raise a notiﬁcation in C

In practice, only the notiﬁcation handling for in-

coming network trafﬁc is conﬁned on our proto-

type. Apps mainly use the Google Cloud Messag-

ing (GCM) infrastructure and receive data, such as

instant messages, only when the system reports back

to GCM. After thawing, the intended function of the

apps however continues seamlessly and apps quickly

receive their data. For full network notiﬁcation han-

dling, we could virtualize the connection manage-

ment for C

in C

. Another possibility is to use our

backend to which the CM connects. The backend

then notiﬁes the device and handles the remote con-

nections, e.g., to the GCM services. The trusted con-

nection would have to be established on behalf of C

in C

or in the backend. Our current solution keeps

the used connection credentials safe inside frozen C

6 IMPLEMENTATION

In this section, we describe the implementation of our

prototype for the Linux 3.4 up to recent ARM and

x86 kernel versions. We start with the management

of F&C from user space. Afterwards, we focus on

the extensions we make to memory management and

on the synchronization of tasks during freezing and

thawing. Then, we elaborate the procedure used by a

task to encrypt its memory space.

6.1 Interaction with User Space

In order to pass the key and the list of segments from

user space to the kernel, we create additional ﬁles in

the cgroups virtual ﬁlesystem. We read the key and

list of segments we receive from user space via ﬁle

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Process A

Memory

Descriptor

PGD

Process

Descriptor

VMA

Virtual AS

PTE

Page

Page Descriptor

Thread

Process

Descriptor

Thread

Process

Descriptor

...

Physical AS

Page

...

Process B

...

VMA

Virtual AS

PTE

Page

...

Page

PTE

...

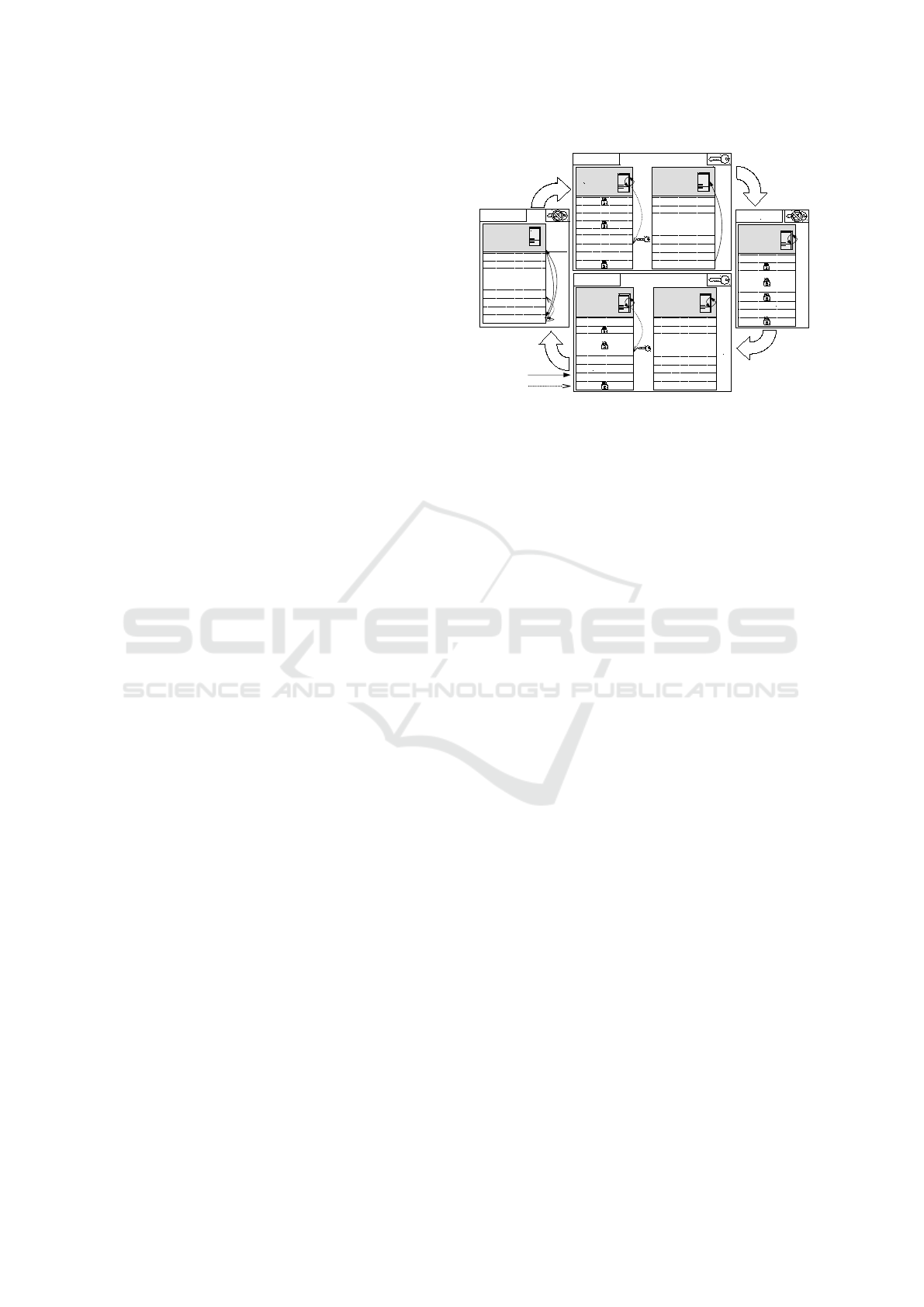

Figure 7: Linux memory management data structures and

modiﬁcations highlighted in gray colors.

handles similar to the existing freezer state change

functionality. However, getting notiﬁed in user space

about changes in ﬁlesystems (inotify) does not

work with the cgroups virtual ﬁlesystem’s pseudo

ﬁles. Instead, user space must periodically read

the state ﬁle to check whether the freezer changed

state. To avoid this polling, we use eventfd and

the cgroups notiﬁcation API to explicitly notify user

space when freezing and thawing terminates.

6.2 Memory Management

A process and its spawned threads share the kernel

structures which describe a task’s memory layout. 7

shows relevant components the Linux kernel uses for

memory management and how the tasks share re-

sources. The illustration outlines the sharing of re-

sources on the example of process A and B. Each

task has its own process descriptor for process man-

agement which contains, e.g., the name and PID. We

temporarily modify the light gray colored compo-

nents during encryption, like Virtual Memory Areas

(VMAs) and Page Table Entrys (PTEs). Medium-

gray colors denote components to which we newly

introduce functionality for handling shared resources.

The process descriptor points to a memory de-

scriptor, which describes the virtual memory layout of

a process. The memory descriptor tracks the number

of users it has, i.e., the number of threads that share

the memory descriptor with the parent process. We

extend the memory descriptor to additionally count

the number of frozen sharing tasks which are tasks

that have already entered the refrigerator. This way,

the tasks are able to determine whether they are the

ﬁrst or last one to enter the refrigerator. The mem-

ory the descriptor points to is reﬂected by a linked

list of VMAs representing the memory segments we

selectively encrypt. For the encryption, we make non-

writable VMAs temporarily writable.

The memory descriptor keeps a reference to a

Page Global Directory (PGD) used for translating a

process’ virtual addresses to corresponding physical

addresses. Based on a page walk from the PGD

traversing the Page Upper Directory (PUD) and Page

Middle Directory (PMD), we determine the PTE cor-

responding to a virtual address if mapped, i.e., if the

page exists in main memory. A PTE has several

values tracking the page’s state, e.g., if the page is

shared between processes, or if the process has ac-

cessed or written the page. By writing a physical

page, the kernel also possibly modiﬁes the PTE’s val-

ues. Before the encryption of a physical page, we

thus save the PTE’s values and restore them right af-

ter the page’s encryption. This especially prevents

ﬁle-backed pages accidentally being made persistent

through the page cache by not setting the dirty ﬂag.

A present PTE maps one physical page by refer-

encing a so-called page descriptor, which describes

one speciﬁc physical page in memory and which di-

rectly points to the page’s physical address. We set a

ﬂag in the page descriptor indicating a lock on phys-

ical pages in memory during encryption. By locking

the page, we make sure that the locking task obtains

exclusive page access. Furthermore, we extend the

page descriptor with the functionality to mark a page

as encrypted. With this functionality and page lock-

ing, we ensure that tasks encrypt pages only once. To

keep track of the entities referencing the page, the

page descriptor holds a reverse map to referencing

VMAs. Since VMAs have a back reference to their

memory descriptor, we are aware of all tasks, possibly

outside the cgroup, referencing the page described.

This allows us to determine whether the shared pages

a task references may be encrypted or not.

6.3 Synchronization of Tasks

A task entering the refrigerator ﬁrst saves its current

task state. We then increment a cgroup-wide barrier

we newly introduce, which counts the tasks enter-

ing the refrigerator. When thawing, the barrier forces

thawing tasks to wait in the refrigerator until decryp-

tion of the whole cgroup completes. In the next step,

we increment the frozen user count of the task’s mem-

ory descriptor. The ﬁrst user, i.e., the ﬁrst task, identi-

ﬁes the memory segments in the process space, which

were selected for encryption. After possibly identify-

ing the memory segments, a task goes as usual to the

state TASK UNINTERRUPTIBLE. If the process is not

yet encrypted, the task checks if it is the last entering

user of the memory descriptor. If yes, the task marks

the memory descriptor as encrypted and encrypts the

identiﬁed memory segments. After that, or in cases

where the task was not the last user of the memory

descriptor, the task notiﬁes the freezer about being

frozen. Then, the common freezer procedure executes.

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

The task ﬂags itself FROZEN and ends up in a loop,

checking if its cgroup is frozen or not. When sched-

uled, the frozen task executes the common function-

ality and indicates the scheduler to switch to another

task.

When thawing a cgroup, the freezer wakes the

cgroup’s tasks, leaves the frozen state, and each task

clears its FROZEN ﬂag. The tasks normally leave the

refrigerator and restore their previous process state.

However, our mechanism handles the decryption of

the tasks before leaving. For this purpose, thawing

tasks ﬁrst decrement the frozen user counter. This en-

sures that only the ﬁrst thawing task using the mem-

ory descriptor decrypts the associated memory space.

Otherwise, the task skips decryption. In the next step,

every task decrements the cgroup-wide barrier. The

last task about to leave the refrigerator completes the

barrier. All other tasks waiting at the barrier are ﬁ-

nally free to leave the refrigerator. The last task also

notiﬁes the freezer about the terminated decryption of

the whole cgroup.

6.4 Process Space Encryption

For the encryption in main memory with the ker-

nel crypto API, we apply the asynchronous bit-sliced

AES CTR implementation using NEON instructions

with a 256 bit key size. The CTR mode achieves

especially high performance on multi-core systems

through its parallelization. We use the physical page

addresses as Initialization Vectors (IVs), resulting in

distinct IVs for each encrypted block. During the

encryption, a task iterates over the previously iden-

tiﬁed VMAs of its memory descriptor. The task ﬁrst

checks the VMA’s write permissions. If a VMA is

not writable, the task makes the VMA writable. The

task then encrypts the VMA page by page. After en-

crypting the whole VMA, the task restores the VMA’s

write permissions, if necessary.

The page level encryption procedure starts by

checking if the physical page to be encrypted is

present in main memory. We skip non-present pages.

We hence do not encrypt swap, as swapped pages are

considered non-present. For the encryption of swap,

we refer to standard Linux swap encryption. On a

present page, the task tries to get our lock. Failing

indicates that the page is already being encrypted by

another task. Hence, the task skips the encryption of

this page. The next step differs depending on whether

we are in the en- or decryption process. Unlike in

the decryption case where we can continue to decrypt

a page right away, we are obliged to make sure the

page is ready for encryption. We ﬁrst check if the

page descriptor was already marked as encrypted. In

this case, the task releases the lock and skips the page.

If the page was not already encrypted, the task checks

if the page descriptor is referenced more than once.

Multiple references indicate that the page is shared.

If there is only one PTE referring to that page, the

task immediately considers the page ready for encryp-

tion. Otherwise, the task must speciﬁcally check the

page’s readiness for encryption, because it is shared

across AS boundaries. Another task of the cgroup

considering that page for encryption will ensure the

page’s encryption later if the page is exclusively used

by the cgroup. Simply encrypting a shared page with-

out further inquiries would cause COW, which repli-

cates that page and encrypts only the copy. On the

other hand, preventing the page fault triggering COW

would corrupt the AS of other processes if the page

is not ready. The task releases the lock on the page if

the page is not ready and skips it.

In case the page is ready, the task marks it as en-

crypted. Before writing the page, the task stores the

PTE’s ﬂags. These ﬂags indicate whether the page

is, e.g., writable, dirty, or young. The task checks

whether the page is writable or not, because writing

a read-only page implies COW in the triggered page

fault. Since the task made sure the page is only used

within the cgroup, it circumvents the page fault and

makes the PTE writable before encryption. In the next

step, the task encrypts the physical page and subse-

quently restores the PTE’s ﬂags. This ensures that

PTE ﬂags remain unaltered. The task ﬁnally unlocks

the page.

7 PERFORMANCE AND

STATISTICS

In this section, we present our performance results

and statistics on the tasks, VMAs, and pages en-

crypted with F&C in our application scenario. We

conﬁgured the platform to run two full-ﬂedged An-

droid 5.1.1 containers in addition to the management

container on top of a single Linux 3.4 kernel (4 KB

page size; as on stock Android, no swap or KSM).

This resembles a realistic scenario with a private and

business domain. For the evaluation, we intentionally

encrypt the both containers to challenge F&C with

multiple, large cgroups. For common use, encrypt-

ing only the business container processing corporate

secrets may be a more appropriate choice with higher

usability. We adhered to the selection of segments for

encryption as described in 5.1.

We identiﬁed six test users to productively utilize

F&C for one working week on their commonly used

Nexus 5 smartphones running the virtualization archi-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

50,000 75,000 100,000 125,000 150,000 175,000 200,000 225,000 250,000

500

1,000

1,500

2,000

2,500

3,000

3,500

4,000

4,500

Freeze Trend Freeze

Thaw Trend Thaw

Number of encrypted pages

Freeze/Thaw time [ms]

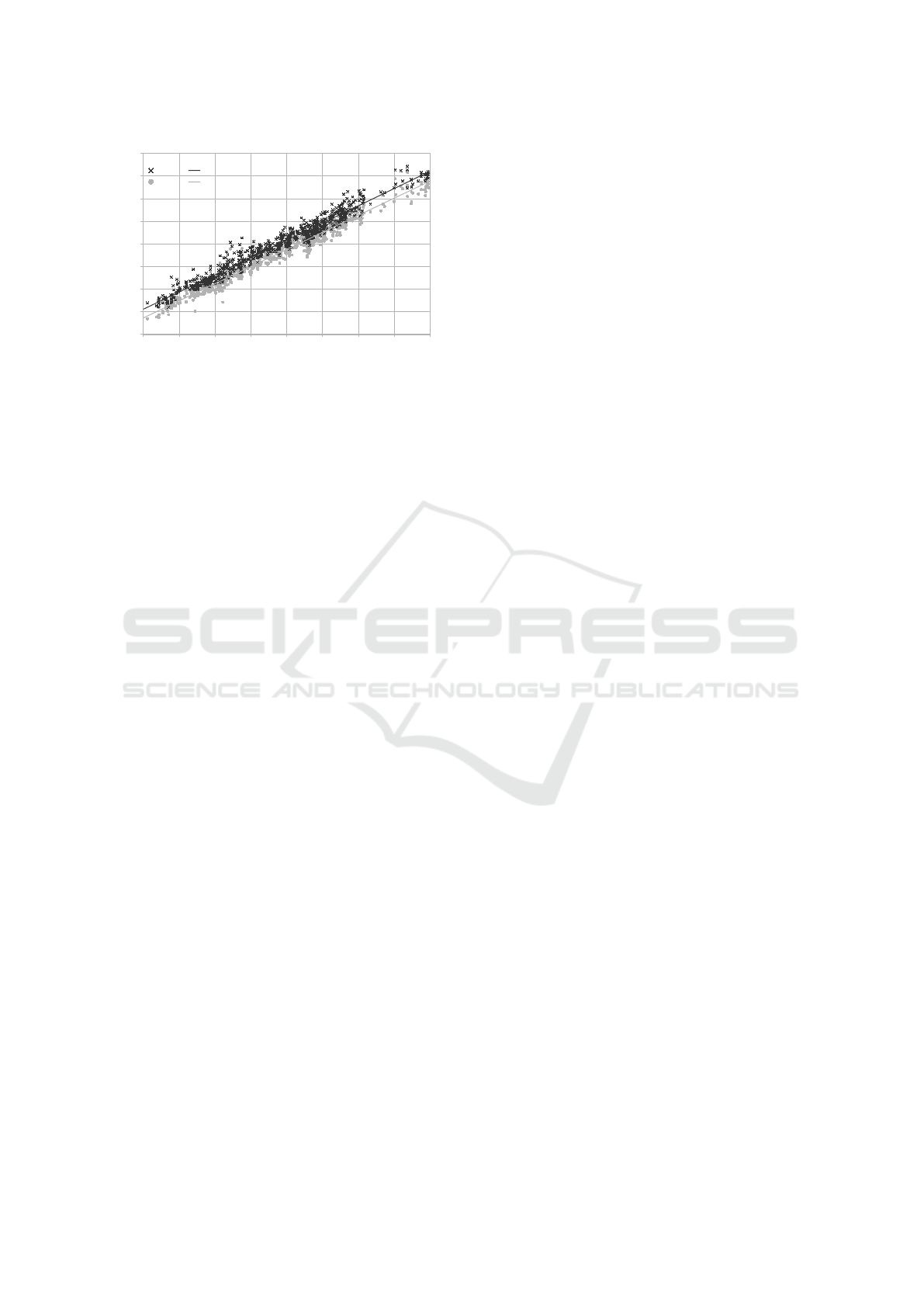

Figure 8: Performance of container freezes (crosses) and

thaws (circles) in relation to the number of encrypted pages.

tecture to generate our statistics (Quad-core 2.3 GHz

Krait 400 CPU). To deploy F&C on the phones, we

provided chosen users a remote update with our mod-

iﬁed kernel and virtualization layer. The users were

able to seamlessly continue utilizing their two con-

tainers with their data and dozens of apps, e.g., so-

cial, business, mail, or media apps. Thawed contain-

ers continued running stable, even after a long freeze.

The evaluation period also incorporated a number

of especially challenging test cases with background

events, where users stressed the memory limit or re-

ceived phone calls in a frozen container. With these

test cases, we veriﬁed that F&C reliably works even

when the system is under heavy load, that the phone is

still practically usable and that it remains fully stable.

To gather the statistics, we introduced a perfor-

mance proﬁling mechanism to F&C. We measured

the most important ﬁgures in the kernel during en-

cryption, such as the duration of the encryption or the

number of encrypted pages. 8 illustrates the measured

en- and decryption times in relation to the number of

pages. The black crosses and gray circles refer to con-

tainer freeze and thaw times in milliseconds. In total,

we have more than 730 container en- and decryption

samples where our users run arbitrarily many apps

on the smartphone for an indeﬁnite period of time.

The more apps run, the more pages are present, the

more pages we encrypt. On average, about 142,500

pages were encrypted in parallel on the four avail-

able cores requiring 2,468 ms for freezing and 2,266

ms for thawing. In extreme cases where the Android

low memory killer is triggered active and a container

exhausts all of its resources, the duration increases

roughly to fairly, still practicable, 4,000 ms. When

starting the freeze of C

, the CM directly and quickly

switches back to C

(Huber et al., 2015). This means

that a user intending to switch to another container

can start entering the SE’s passphrase in C

dur-

ing C

’s encryption in background. Since typing takes

some time, the additional cost of a switch usually

amounts to only the time required for thawing C

Both trendlines in 8 point out the linear growth in en-

cryption times and show that decryption is faster than

encryption. This is reasonable due to the additional

synchronization effort during encryption. The vari-

ance originates from the many different events and

processes that the kernel schedules in this complex

system. The measured encryption time comprises the

instant of writing to the freezer state ﬁle until user

space receives the notiﬁcation from the freezer. In be-

tween, the performance mainly depends on the syn-

chronization inside the cgroup and on the scheduler.

In sum, our solution is suitable for daily use in en-

vironments where protection of sensitive data plays a

crucial role.

1 shows further statistics. On an average en-

cryption cycle, 1,043 tasks were running, including

52 processes spawning 991 threads. This points out

the large size of the cgroups and that users were

running many apps. The second row shows that

during freezing, the 52 encrypting tasks identiﬁed

27,410 VMAs, where 13,391 were subject to en-

cryption. The remaining 14,646 VMAs represent

the non-sensitive segments. Freezing tasks altogether

had about 380,500 virtual pages mapped on aver-

age. When multiple PTEs point to the same physi-

cal page, there are numerous duplicate pages. This

is why the total number of encrypted physical pages,

about 142,500, is on average clearly smaller and many

pages, about 238,000, could be skipped. The average

number of encrypted pages accounts for about 560

MB of memory. The bottom row shows the classiﬁca-

tion of the encrypted pages into the different VMAs.

Most pages are either part of ﬁle-backed or anony-

mous segments. Only a small number of pages be-

long to the stack, heap, data and text segments. A

future improvement would thus be to zero out and un-

map ﬁle-backed segments instead of encrypting them.

This comes later at the cost of runtime performance,

but is probably only hardly perceptible and can clearly

improve suspension and resumption.

To measure the effects of F&C on power con-

sumption, we separately conducted power measure-

ments. The additional battery drain depends on the

frequency of suspending and resuming containers.

During the power measurements in the kernel, we au-

tomatically switched between the two user contain-

ers and the management container, suspending and re-

suming in 10s intervals for a 100 times. We indepen-

dently repeated that experiment 5 times with charged

phones, varying started applications and used a ﬁxed

key (to omit user-interaction). We measured a battery

drain of about 2.5% without and no more than 4.0%

with F&C. There is hence little perceptible effect on

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

Table 1: Statistics on the average number of tasks, VMAs,

pages and the types of encrypted pages.

Tasks Total Threads Processes

1,043 991 52

VMAs Total Skipped Encrypted

27,410 14,019 13,391

Pages Total Skipped Encrypted

380,545 238,090 142,455

Pages

Encrypted

File-

backed

Anony-

mous

Text/Data/

Stack/Heap

142,455 71,606 68,976 1,873

power consumption with normal phone use.

8 SECURITY EVALUATION

We ﬁrst discuss the security aspects of F&C itself

and then extend the considerations to our application

scenario. According to the threat model, we assume

that the attacker gains full access to all volatile mem-

ory. This enables the attacker to obtain and analyze a

full memory dump with the encrypted sensitive data.

F&C encrypts the pages of the selected memory seg-

ments in RAM using AES in CTR mode and uses

its unique physical address as IV for each page en-

cryption. Identical pages are consequently encrypted

with a different outcome and since the attacker can-

not break cryptographic primitives, encrypted pages

reveal no sensitive information. After encrypting a

cgroup, we purge the key used in the freezer, as well

as other AES remnants and freed pages. When the key

is removed in user space as well, the adversary has

no means to decrypt protected pages. This means that

the analyst can only attempt to obtain sensitive data in

non-encrypted pages and segments. F&C allows the

selection of all memory segments for encryption, ex-

cept the special segments containing no conﬁdential

information. For encrypted segments, we leave only

those pages unencrypted which are shared with unen-

crypted, running processes. When making sure that

processes which share sensitive data with other pro-

cesses are contained in the frozen cgroups, we leave

no sensitive pages unencrypted.

Regarding our application scenario, the goal of the

attacker is to obtain the containers’ conﬁdential data

both from persistent storage and RAM. The security

of the platform itself, e.g, for C

and the CM, was al-

ready discussed in (Huber et al., 2015). According to

2, an attacker obtains physical access to the mobile

device, implying that the adversary has the hardware,

software, and thus all memory under control. We en-

crypt containers when the user actively switches them

to background, locks the phone, or leaves it idle for a

speciﬁc time. The attack starts either when the device

with encrypted containers is left unattended or gets

stolen. Containers share no sensitive data with other

entities, because the memory usage of physical pages

is tied to container boundaries. Since we encrypt all

relevant memory segments (see 5), we fully cover the

containers’ sensitive data in RAM. F&C purges the

unwrapped RAM encryption key in the kernel. Persis-

tent memory is always encrypted due to FDE where

the kernel stores the unwrapped FDE key. In our ap-

plication scenario, the unwrapped FDE key in the ker-

nel and the unwrapped RAM encryption key in user

space are the only assets not protected through the en-

cryption. However, at the moment the container en-

cryption terminates, the CM purges these unwrapped

keys, preventing the attacker from decrypting any per-

sistent and volatile memory. The wrapped key com-

plements can only be unwrapped using the SE. The

attacker is possibly in possession of the SE, but lacks

knowledge of the passphrase and cannot brute-force

the SE. Hence, wrapped encryption keys are securely

stored in main memory. This means that we need no

special key storage, such as CPU registers. The CM

only keeps the unwrapped key counterpart in RAM

during encryption and when the container is unen-

crypted. Relocating the unwrapped key for that time,

e.g., to the ARM TrustZone, does not increase the se-

curity, as sensitive data is in plaintext anyway.

Smartphones are suspended most of the time

implying that the containers are already encrypted.

When actively used, background containers remain

encrypted and the foreground container gets either

suspended by the active user or the system after a

short idle-time. As evaluated in 7, the encryption pro-

cess terminates quickly even for full containers. This

means that the time frame to extract valuable data still

in plaintext is impractical even when the attacker al-

ready starts the attack while the device is locking. Be-

ing in possession of the device, the attacker can hence

only wait for incoming data, such as short messages

or network trafﬁc. Since sensitive data is generally

end-to-end encrypted and encryption terminates in-

side the container, the attacker has no means to deci-

pher that data. Unencrypted data, for example, short

messages, can already be intercepted before it reaches

the mobile device. In case of a violent offence, we as-

sume that the victim was actively using a container.

In this case, the background containers are protected

while the actively used container remains unprotected

if the system does not trigger the lock or if the victim

does not manage to lock the device. The adversary

SECRYPT 2017 - 14th International Conference on Security and Cryptography

has no inﬂuence on processes of frozen containers,

memory contents are not shared between containers

and the key to decrypt pages of frozen containers is

not present. A stolen device that was tampered with

in the absence of its unsuspecting owner, for exam-

ple, to intercept the key when the user returns, was not

part of our threat model. We assured to leave no sensi-

tive data behind by reading out process space as privi-

leged user and by analyzing memory dumps of locked

devices with the tool Volatility and with coldboot at-

tacks, such as in (Huber et al., 2016). On common de-

vices, we easily recovered lots of sensitive data, such

as exchange passwords, FDE keys and further creden-

tials. Even though in knowledge of the sensitive as-

sets, we had no means to detect any sensitive data on

devices protected by F&C.

9 CONCLUSION

We presented F&C, a novel mechanism for the en-

cryption of sensitive data in main memory along with

its successful application to protect mobiles device

from physical attackers. F&C builds upon the freezer

functionality of the Linux kernel making processes

en- and decrypt their memory efﬁciently in parallel

with a transient key. We synchronized the encrypt-

ing processes, ensured that frozen processes do not

touch their memory and that external events, such as

IPC, are deferred. The prototype we developed can be

employed throughout different platforms, kernel ver-

sions and allows the selection of keys, processes and

memory segments to be encrypted from user space.

We extended an existing mobile device platform that

runs multiple Android containers to integrate our pro-

totype on smartphones. The platform allowed us to

combine its virtualization and secure key manage-

ment infrastructure with F&C in order to realize a

fully functional system that thwarts physical attack-

ers. We encrypted the containers that are not in ac-

tive use and in order to maintain their full functional-

ity, we inform the user with notiﬁcations about back-

ground events. In our security and performance eval-

uation, we showed that the encryption provides strong

security for unattended devices and containers not in

use. The average en- and decryption time of less than

2.5 seconds makes the prototype practical for daily

use, especially in environments where the conﬁden-

tiality of data plays a major role. We seek to inte-

grate F&C into further scenarios on both embedded

and desktop systems, for example into hypervisors to

protect the full memory of different guest OSs.

REFERENCES

Andrus, J., Dall, C., Hof, A. V., Laadan, O., and Nieh,

J. (2011). Cells: A Virtual Mobile Smartphone Ar-

chitecture. In Proceedings of the Twenty-Third ACM

Symposium on Operating Systems Principles, SOSP

’11, pages 173–187. ACM.

Apostolopoulos, D., Marinakis, G., Ntantogian, C., and Xe-

nakis, C. (2013). Discovering Authentication Cre-

dentials in Volatile Memory of Android Mobile De-

vices. In Collaborative, Trusted and Privacy-Aware

e/m-Services, volume 399 of IFIP Advances in Infor-

mation and Communication Technology, pages 178–

185. Springer.

Becher, M., Dornseif, M., and Klein, C. N. (2005).

FireWire: All Your Memory Are Belong To Us. Pro-

ceedings of CanSecWest.

Boileau, A. (2006). Hit by a bus: Physical access attacks

with Firewire. Presentation, Ruxcon.

Break & Enter (2012). Adventures with Daisy in

Thunderbolt-DMA-Land: Hacking Macs through the

Thunderbolt interface.

Chen, X., Dick, R. P., and Choudhary, A. (2008). Operat-

ing system controlled processor-memory bus encryp-

tion. In Design, Automation and Test in Europe, 2008.

DATE’08, pages 1154–1159. IEEE.

Colp, P., Zhang, J., Gleeson, J., Suneja, S., de Lara, E.,

Raj, H., Saroiu, S., and Wolman, A. (2015). Pro-

tecting data on smartphones and tablets from mem-

ory attacks. In Proceedings of the Twentieth Interna-

tional Conference on Architectural Support for Pro-

gramming Languages and Operating Systems, pages

177–189. ACM.

Corner, M. D. and Noble, B. D. (2003). Protecting appli-

cations with transient authentication. In Proceedings

of the 1st international conference on Mobile systems,

applications and services, pages 57–70. ACM.

Devine, C. and Vissian, G. (2009). Compromission

physique par le bus PCI. In Procs. of SSTIC 09. Thales

Security Systems.

otzfried, J., D

orr, N., Palutke, R., and M

uller, T. (2016a).

HyperCrypt: Hypervisor-Based Encryption of Kernel

and User Space. In 11th International Conference

on Availability, Reliability and Security (ARES), pages

79–87.

otzfried, J. and M

uller, T. (2013). ARMORED: CPU-

Bound Encryption for Android-Driven ARM Devices.

In Availability, Reliability and Security (ARES), 8th

International Conf. on, pages 161–168. IEEE.

otzfried, J., M

uller, T., Drescher, G., N

urnberger, S., and

Backes, M. (2016b). RamCrypt: Kernel-based Ad-

dress Space Encryption for User-mode Processes. In

Proceedings of the 11th ACM on Asia Conference on

Computer and Communications Security, pages 919–

924. ACM.

Gutmann, P. (1999). The Design of a Cryptographic Se-

curity Architecture. In Proceedings of the 8th Con-

ference on USENIX Security Symposium - Volume 8,

SSYM’99. USENIX.

Freeze & Crypt: Linux Kernel Support for Main Memory Encryption

Halderman, J. A., Schoen, S. D., Heninger, N., and et al,

W. C. (2009). Lest We Remember: Cold-boot Attacks

on Encryption Keys. Communications of the ACM.

ACM, pages 91–98.

Horsch, J., Huber, M., and Wessel, S. (2017). TransCrypt:

Transparent Main Memory Encryption Using a Min-

imal ARM Hypervisor. In 2017 IEEE Trustcom/Big-

DataSE/ISPA.

Huber, M., Horsch, J., Velten, M., Weiß, M., and Wessel, S.

(2015). A Secure Architecture for Operating System-

Level Virtualization on Mobile Devices. In 11th In-

ternational Conf. on Information Security and Cryp-

tology - Inscrypt. Springer.

Huber, M., Horsch, J., and Wessel, S. (2017). Protecting

Suspended Devices from Memory Attacks. In Pro-

ceedings of the 10th European Workshop on Systems

Security, EuroSec’17, pages 10:1–10:6. ACM.

Huber, M., Taubmann, B., Wessel, S., Reiser, H. P., and

Sigl, G. (2016). A Flexible Framework for Mo-

bile Device Forensics Based on Cold Boot Attacks.

EURASIP J. Inf. Secur., pages 41:1–41:13.

Lie, D., Mitchell, J., Thekkath, C., and et al, M. H.

(2003). Specifying and verifying hardware for tamper-

resistant software. In Security and Privacy. Proceed-

ings. Symposium on, pages 166–177. IEEE.

Lie, D., Thekkath, C., Mitchell, M., Lincoln, P., Boneh, D.,

Mitchell, J., and Horowitz, M. (2000). Architectural

Support for Copy and Tamper Resistant Software. In

Proceedings of the Ninth International Conf. on Ar-

chitectural Support for Programming Languages and

Operating Systems, pages 168–177. ACM.

uller, T., Dewald, A., and Freiling, F. C. (2010). AESSE:

A Cold-boot Resistant Implementation of AES. In

Proceedings of the 3rd European Workshop on System

Security, EUROSEC ’10, pages 42–47. ACM.

uller, T., Freiling, F. C., and Dewald, A. (2011). TRE-

SOR Runs Encryption Securely Outside RAM. In

Proceedings of the 20th USENIX Conference on Se-

curity, SEC’11. USENIX.

uller, T. and Spreitzenbarth, M. (2013). FROST: Forensic

Recovery of Scrambled Telephones. In Proceedings

of the 11th Int. Conference on Applied Cryptography

and Network Security, pages 373–388. Springer.

uller, T., Taubmann, B., and Freiling, F. C. (2012). Tre-

Visor. In Applied Cryptography and Network Secu-

rity, Lecture Notes in Computer Science, pages 66–

83. Springer.

Ntantogian, C., Apostolopoulos, D., Marinakis, G., and Xe-

nakis, C. (2014). Evaluating the privacy of Android

mobile applications under forensic analysis. Comput-

ers & Security. Elsevier, pages 66 – 76.

Peterson, P. (2010). Cryptkeeper: Improving security with

encrypted RAM. In Technologies for Homeland Secu-

rity (HST), IEEE International Conference on, pages

120–126. IEEE.

Pettersson, T. (2007). Cryptographic Key Recovery from

Linux Memory Dumps. Presentation, Chaos Commu-

nication Camp.

Simmons, P. (2011). Security Through Amnesia: A

Software-based Solution to the Cold Boot Attack on

Disk Encryption. In Proceedings of the 27th Annual

Computer Security Applications Conference, ACSAC

’11, pages 73–82. ACM.

Suh, E. G., O’Donnell, C. W., and Devadas, S. (2007).

AEGIS: A single-chip secure processor. Design &

Test of Computers. IEEE, 24(6):570–580.

Tang, Y., Ames, P., Bhamidipati, S., Bijlani, A., Geambasu,

R., and Sarda, N. (2012). CleanOS: Limiting Mobile

Data Exposure with Idle Eviction. In Proceedings of

the 10th USENIX Conference on Operating Systems

Design and Implementation, OSDI’12, pages 77–91.

USENIX.

Weinmann, R. (2012). Baseband Attacks: Remote Ex-

ploitation of Memory Corruptions in Cellular Protocol

Stacks. In Proceedings of the 6th USENIX Conference

on Offensive Technologies. USENIX.

Wessel, S., Huber, M., Stumpf, F., and Eckert, C. (2015).

Improving mobile device security with operating

system-level virtualization. Computers & Security. El-

sevier.

urstlein, A., Gernoth, M., G

otzfried, J., and M

uller, T.

(2016). Exzess: Hardware-Based RAM Encryption

Against Physical Memory Disclosure. In Architecture

of Computing Systems–ARCS, pages 60–71. Springer.

Zhao, L. and Mannan, M. (2016). Hypnoguard: Protecting

secrets across sleep-wake cycles. In Proceedings of

the 2016 ACM SIGSAC Conference on Computer and

Communications Security, pages 945–957. ACM.

SECRYPT 2017 - 14th International Conference on Security and Cryptography
