An Automatic Tool for Benchmark Testing of Cloud Applications

Valentina Casola

, Alessandra De Benedictis

, Massimiliano Rak

and Umberto Villano

Universit

a “Federico II” di Napoli, Dipartimento di Ingegneria Elettrica e Tecnologie dell’Informazione, Napoli, Italy

University of Campania Luigi Vanvitelli, Dipartimento di Ingegneria dell’Informazione, Aversa, Italy

University of Sannio, Department of Engineering, Benevento, Italy

Keywords:

Cloud, Cloud Security, Security SLA, Performance.

Abstract:

The performance testing of cloud applications is a challenging research topic, due to the multiplicity of differ-

ent possibilities to allocate application services to Cloud Service Providers (CSPs). Currently available bench-

marks mainly focus on evaluating speciﬁc services or infrastructural resources offered by different CSPs, but

are not always useful to evaluate complete cloud applications and to discover performance bugs. This paper

proposes a methodology to deﬁne an evaluation performance process, particularly suited for cloud applica-

tions, and an automatic procedure to set up and to execute benchmark tests. The methodology is based on the

evaluations of two performance indexes, and is validated by presenting a complete case study application, de-

veloped within the FP7-EU-SPECS project. The analysis of the measurement results, produced automatically,

can help the developer to discover possible bottlenecks and to take actions to improve both the usability and

the performance of a cloud application.

1 INTRODUCTION

The use of virtualized resources hosted in large scale

data centers, which is one of the main features of the

cloud computing paradigm, has the side effect that the

performance of cloud applications, i.e., of the soft-

ware that runs orchestrating services offered in the

cloud, is often very hard to predict. It is well known

(Dejun et al., 2009) that infrastructure resources ob-

tained in the cloud may have very different perfor-

mance behaviors, even if they belong to the same

instance type offered by the Cloud Service Provider

(CSP). For example, inside the CSP data center, vir-

tual machines (VMs) of the same instance type can

be assigned to different physical machines, in differ-

ent physical locations and under different computing

and network load. From the Cloud Service Customer

(CSC) point of view, such performance differences

are an issue, which may have even an economical im-

pact, due to the pay-per-use paradigm (longer running

times may lead to higher leasing costs).

As a consequence, the adoption of benchmarking

services, like Cloud Harmony (Gartner, 2017), which

regularly execute standard benchmarks and provide

customers with average performance ﬁgures collected

over many different CSPs, is very useful for a coarse-

grain comparison of CSPs. However, these services

are of little use to predict and to optimize the perfor-

mance of a speciﬁc cloud application.

When the objective is to get insight on the perfor-

mance behavior of a given application, a possible so-

lution is to perform its benchmark testing (Aversano

et al., 2013). The results of the application bench-

mark testing often feed performance prediction tools,

based on simulation or analytic models, which make

it possible to predict the ﬁnal effect of multiple con-

ﬁguration and deployment options (Rak et al., 2015;

Cuomo et al., 2015; Li et al., 2011; Sharma et al.,

2011; Liew and Su, 2012) and to perform effective

application performance tuning.

Even if such benchmark-based approach has

proven to be fruitful, the complete benchmark test-

ing process can be costly and complex to be executed.

Setting up a complete benchmarking procedure for

each component of a complex cloud application can

be a long and stressing procedure. Moreover, exe-

cuting the benchmarks and collecting results is both

lengthy and expensive, due to the large amount of

cloud resources required for the execution in the cloud

of the benchmark applications.

In this paper, we propose a technique that makes

it possible to automate as much as possible the set-

up procedure and the execution of the benchmarks,

in order to reduce both the time spent in collect-

Casola, V., Benedictis, A., Rak, M. and Villano, U.

An Automatic Tool for Benchmark Testing of Cloud Applications.

DOI: 10.5220/0006379507290736

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 701-708

ISBN: 978-989-758-243-1

701

ing the measurements and the complexity of bench-

mark devising. To demonstrate the feasibility of

the approach, we have applied it to evaluate the

SPECS web container application (SPECS Consor-

tium, 2017d), which is a very complex cloud appli-

cation that brokers cloud services and automatically

conﬁgures them according to security Service Level

Agreements (SLA), exploiting the SPECS framework

(SPECS Consortium, 2017b; Casola et al., 2014).

The reminder of this paper is organized as fol-

lows. Section 2 summarizes the methodology adopted

to carry out performance tests on a cloud application.

Section 3 sketches the structure and high-level behav-

ior of the case study SPECS web container applica-

tion and summarizes the testing conditions and the re-

sults collected. Section 4 brieﬂy presents the state of

the art and the existing techniques adopted to bench-

mark and to evaluate the performance of cloud appli-

cations, illustrating the main differences compared to

the proposed approach. The paper closes with Section

5, where the conclusions are drawn and the future re-

search directions are discussed.

2 THE BENCHMARKING

METHODOLOGY

The benchmarking methodology we propose in this

paper aims at evaluating the performance of a spe-

ciﬁc cloud application deployment, as perceived by

the application customers, and the overall resource

consumption, as resulting from the actual cloud ap-

plication deployment. Since the cloud computing ter-

minology is still confusing, and even existing stan-

dards such as those proposed by ISO (International

Organization for Standardization, 2014), NIST (Mell

and Grance, 2011), and ETSI (ETSI, 2013) are some-

times contradictory, we brieﬂy introduce here the

main terms we will use throughout this paper.

We will use the locution cloud application to de-

scribe a collection of cooperating software compo-

nents (simply components, in what follows) offered

as-a-service. A component can be directly offered as-

a-service by a CSP, or by deploying a suitable soft-

ware artifact over a cloud service of infrastructure ca-

pability type (i.e., over a virtual machine).

We will use the locution cloud application de-

ployment to identify the mapping of components to

resources that leads to a running cloud application

by acquiring pre-deployed components provided by

a CSP, and/or by deploying custom components over

a set of leased virtual machines. As an example, let

us consider an application made up of a web applica-

tion W (i.e., a software that offers an HTTP interface)

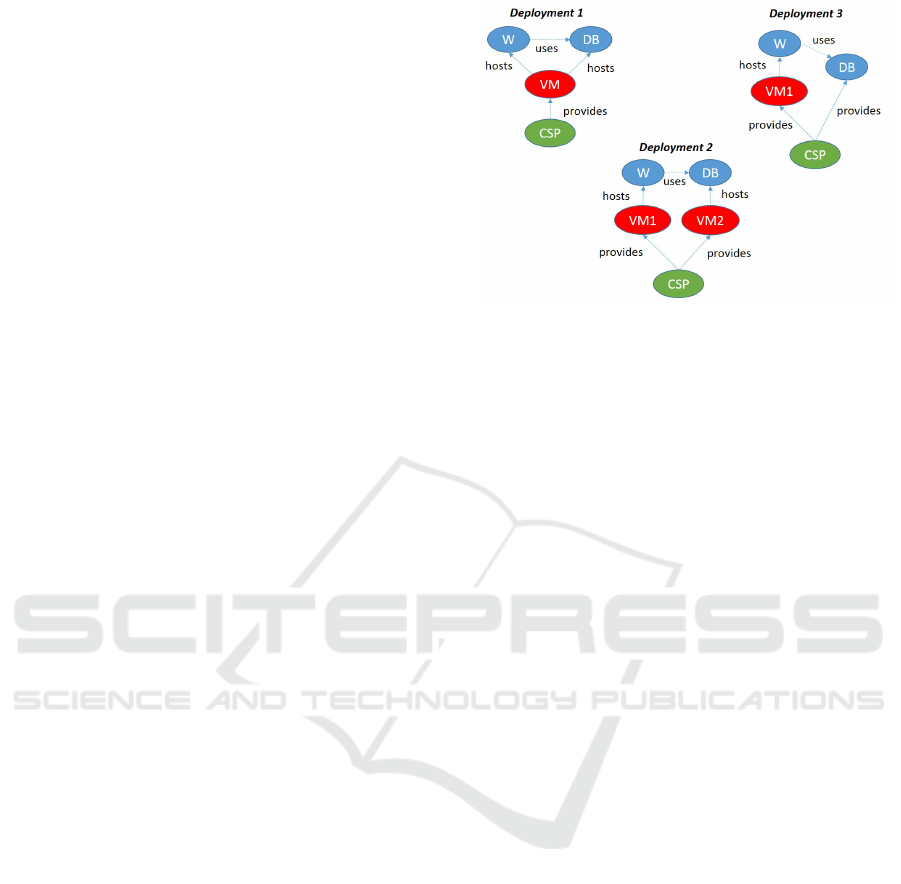

Figure 1: Deployment examples.

which uses a mySQL database DB. According to the

above-deﬁned terminology, W and DB are cloud ap-

plication components. As shown in Figure 1, a possi-

ble cloud application deployment can involve a single

virtual machine that executes both W and DB; an al-

ternative deployment requires two virtual machines,

hosting W and DB, respectively; a third alternative

can rely on a virtual machine hosting W, while the DB

is offered directly by the CSP (in this case, the num-

ber and location of the VM(s) used for running the

database service are usually unknown). Further de-

ployment options are linked to the possible tuning of

VM parameters (e.g., amount of available memory).

In general, we will assume that a running cloud

application has a single access point for its own cus-

tomers. Moreover, for simplicity’s sake we will as-

sume that all components interact through an HTTP

interface using RESTful APIs. Hence, in practice, all

components can be regarded as web applications. In

fact, this assumption allows to exploit an available

tool for stressing HTTP-driven components. How-

ever, this entails no loss of generality, as the bench-

marking method that will be proposed could also be

used in different contexts. We are simply interested

in identifying the limits in terms of performance of

each component of the cloud application. This will

make it possible for the application developer to iden-

tify possible bottlenecks and to compare different de-

ployments.

In the following subsections, we will discuss the

considered performance indexes and illustrate the

proposed benchmarking process.

2.1 Performance Indexes

As far as performance indexes are concerned, we can

roughly distinguish between two types of cloud appli-

cations. The ﬁrst type has the typical behavior of sci-

entiﬁc applications: their execution is launched after

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

702

the deployment phase, and ends after the production

of results. In the second case, instead, applications

are in continuous execution and offer services to cus-

tomers. The focus of our work is on the second type

of applications, which is by far the most common case

in the cloud computing context.

According to such considerations, in the following

we will consider two main performance indexes:

• Throughput: measured in requests/s, it is the

number of requests completed per second. In fact,

throughput is a measure of the ability of a system

to complete the assigned tasks given the amount

of available resources.

• Response Time: measured in milliseconds (ms),

it is the time elapsed between the request of a ser-

vice up to the end of the service (production of the

result). This index is directly related to the perfor-

mance perceived by end-users, and includes the

overhead introduced by the API adopted.

As shown in the next subsection, for each compo-

nent of the cloud application we will measure an in-

dex directly related to throughput (the MAR, deﬁned

later) and the response time, in order to discover pos-

sible performance-related criticalities. These may be

due, for example, to the particular deployment con-

ﬁguration that has been chosen for the application, or

even to bugs in its implementation. The analysis of

these parameters can help the developer to identify

where to operate, in order to improve both the usabil-

ity and the performance of the application.

2.2 Performance Evaluation Process

and Workload Modeling

The performance evaluation process is carried out by

injecting suitable workloads for the application, try-

ing to capture the behavior of the application in a

real operating environment. In order to automate the

performance analysis, we need to build up a set of

reusable benchmark tests that can be used to evaluate

a generic cloud application deployment. These should

suitably model the typical workload the target appli-

cation and its components are subject to, by means of

a set of synthetic workloads that can be possibly hard-

wired in a benchmarking script. As mentioned above,

we assume that cloud applications offer their service

through dedicated HTTP-based REST APIs exposed

by the involved components. As a consequence, all

performance tests will stress HTTP layers and will

have a request/response behavior.

The synthetic workloads have to stress the whole

application. In order to do so, we deﬁne a set of load

proﬁles for each REST API offered by the application

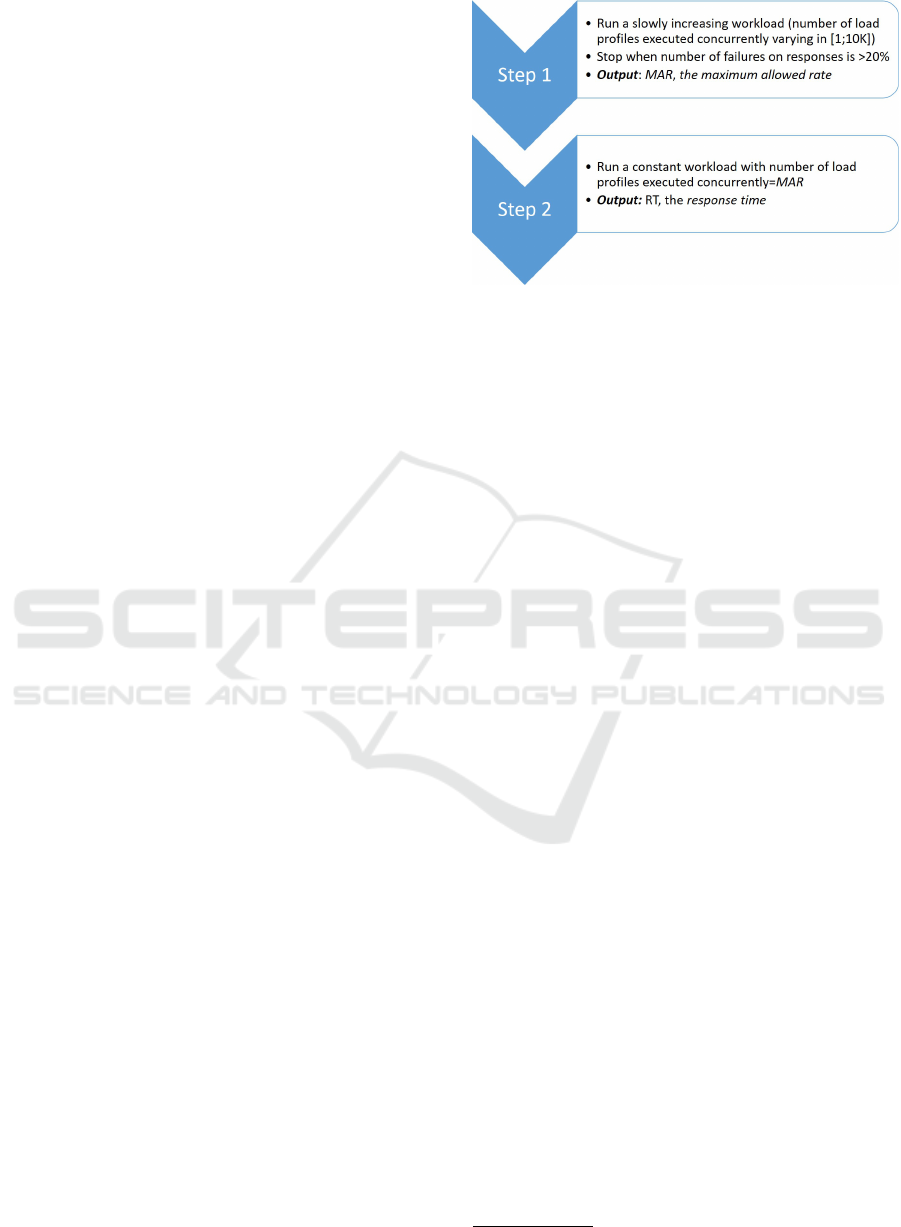

Figure 2: Deﬁnition of synthetic workloads.

components. A load proﬁle represents a way to stress

the component offering a speciﬁc API through the in-

vocation of an API call or through a sequence of API

call invocations that characterize the common behav-

ior of the component. Each load proﬁle includes all

the inputs needed for its execution. Once all the load

proﬁles have been built, each component is stressed in

isolation and the performance results collected. This

last step can be easily automated through a tool with

graphical interface, freeing the application developer

from the obligation of boring performance testing ses-

sions and data collection.

As an example, let us consider a component that

offers a REST API with two calls, which are com-

monly called in sequence: the ﬁrst one retrieves a list

of endpoints to objects, and the second one retrieves

a single object. A complete service involves the fol-

lowing sequence of requests:

1. Get the list of endpoints to objects.

2. Get one of the objects.

Such sequence of calls constitutes a load proﬁle

for the component API, and is a building block for the

associated workloads. A workload is represented by a

set of concurrent executions of a speciﬁc load proﬁle,

and is characterized by the number of load proﬁles

launched per second.

Figure 2 illustrates the process adopted to deﬁne

the synthetic workloads. In particular, we ﬁrst stress

the target component with an increasing workload

represented by a number of concurrent proﬁle execu-

tions per second that grows based on a ramp function

model (from one to ten thousand concurrent requests,

in our experiments), until the limit of correct behav-

ior of the target component is reached. Such limit is

reached when the rate of failure

for the requests ex-

ceeds a given threshold (the default threshold of 20%

can be changed through a conﬁguration parameter).

No response or HTTP response 5xx.

An Automatic Tool for Benchmark Testing of Cloud Applications

703

The ramp function adopted in this phase has a low

slope, to let the workload increase slowly. The request

rate that makes the component to reach the failure rate

threshold is the maximum allowed rate (MAR) of load

proﬁles per second. The actual rate of requests during

the normal operation of the component should never

exceed the MAR, as it would lead to a severe degra-

dation of performance. So, the MAR should be con-

sidered a limit load for the component; the response

time measured under this load rate correspond to the

worst performance in “acceptable” system behavior.

If request rates exceeding the MAR are foreseen in

the actual operating conditions of the component, a

deployment with multiple instances of the component

should be chosen.

In light of the above, it makes sense to measure

the response time under a load corresponding to the

MAR, which corresponds to the worst operating con-

ditions. So, in the second step, we stress the compo-

nent with a constant workload represented by a num-

ber of concurrent load proﬁles per second equal to the

MAR, submitted continuously to the component for a

given period of time. The component response time is

measured in these conditions.

Following this two-step procedure, we will obtain

two values per proﬁle (MAR and response time) for

each component. The ﬁnal performance indexes as-

sociated to the component will be the worst values

(i.e., the highest response time and the lowest MAR)

measured among all tests. As will be discussed in

the next section dealing with a complex case study

application, the knowledge of these two performance

values for each component of the application enables

a developer to compare different deployments and to

identify the application bottlenecks.

3 CASE STUDY: THE SPECS WEB

CONTAINER APPLICATION

In order to validate the proposed methodology, we

applied it to evaluate the performance of a complex

application developed in the context of the European

FP7 project SPECS (SPECS Consortium, 2017b).

The application is the SPECS web container (SPECS

Consortium, 2017d; Casola et al., 2015), available on

BitBucket at (SPECS Consortium, 2017c).

The SPECS web container application enables a

web developer to acquire a cloud-based web con-

tainer service for web application deployment. The

container service ensures the fulﬁllment of the appli-

cation developer’s security requirements, expressed

through a (security) Service Level Agreement (SLA).

The web container delivered through the application

is built by exploiting the services and tools offered by

the SPECS platform. It allows to automatically ac-

quire a web server, which is conﬁgured according to

security best practices thanks to the adoption of a set

of security mechanisms able to grant the requested se-

curity SLA.

A comprehensive presentation of the SPECS web

container application and the SPECS platform is out

of the scope of this paper. The interested reader is

referred to (Casola et al., 2014) and (Rak et al., 2013)

for the related details. However, in the following we

will brieﬂy summarize the basic concepts related to

the SPECS web container as a cloud application, in

order to understand how the automated benchmarking

process proposed in this paper works.

The SPECS cloud application is made up of ﬁve

modules, as shown in Figure 3: the Negotiation, En-

forcement and Monitoring modules are devoted to

manage the corresponding phases of the SLA life-

cycle (as deﬁned in the WS-Agreement standard (An-

dreieux, 2007)), the SLA Platform offers the func-

tionalities that enable the inter-operation of the three

above modules and to manage the SLA life-cycle, and

the Enabling Platform is responsible for the execution

of all the framework components on a cloud infras-

tructure.

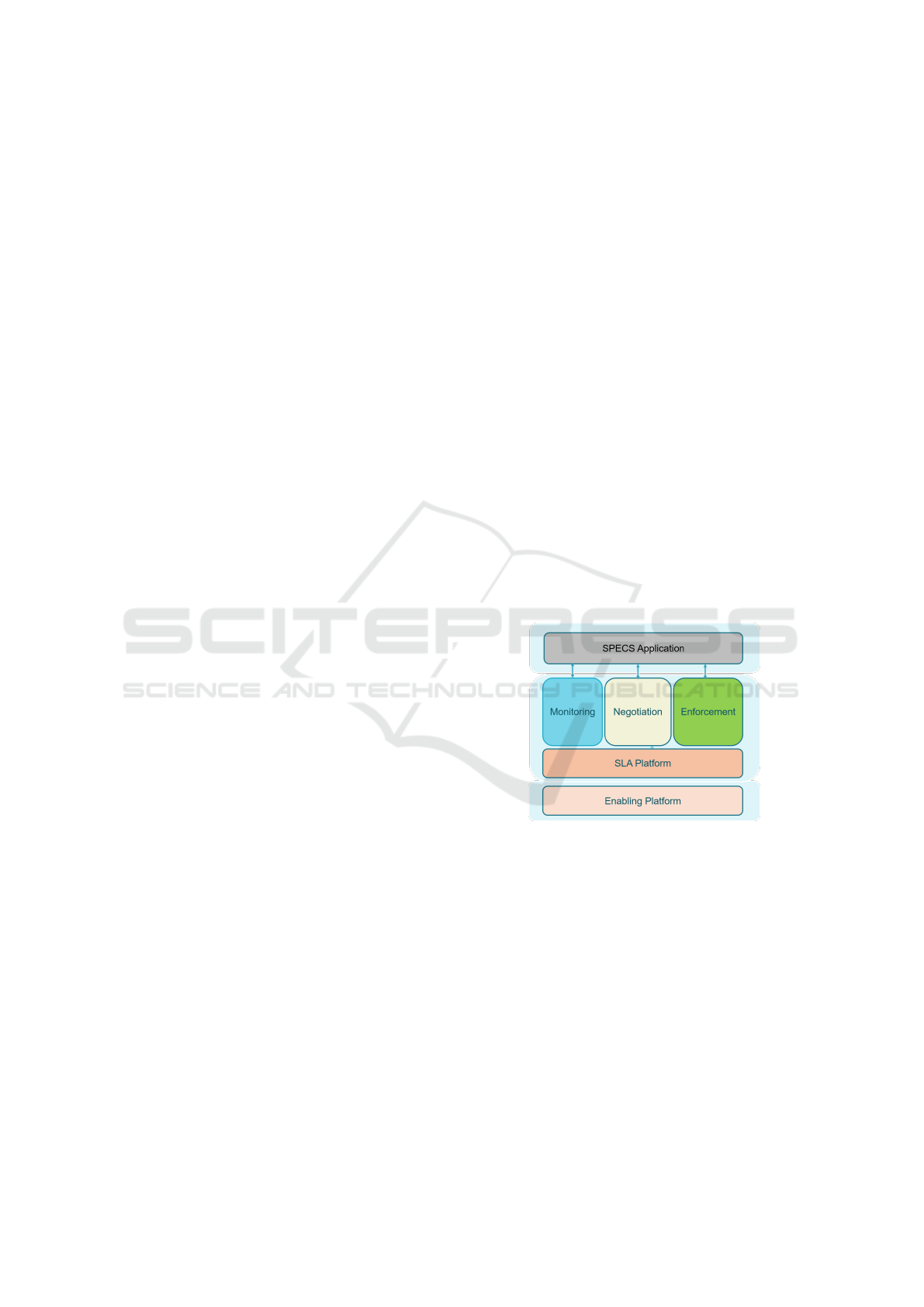

Figure 3: SPECS platform modules.

Each module offers services in the form of REST

APIs, and these services are orchestrated by the

SPECS web container application to provide the se-

cure web container to the end-users. The high-level

interactions involving the SPECS application, the

SLA Platform, and the Negotiation and Enforcement

modules are sketched in Figure 4 (we neglect here the

Monitoring module for simplicity’s sake).

The behavior described in the ﬂow represented in

Figure 4 is characterized by all the issues discussed

in the previous sections, as each module affects both

the usage of cloud resources (virtual machines hosting

the SPECS modules) and the performance perceived

by the end-users. Performing an evaluation of a given

SPECS deployment, in order to compare it with other

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

704

Figure 4: SPECS platform high-level module interactions.

possible distributions of components and/or to min-

imize the costs in terms of services acquired by a

CSP, is a very complex task. In fact, it should be also

considered that acquiring two virtual machines of the

same type may result in different performance due to

their actual distribution on physical resources.

It is worth noting that, independently of the spe-

ciﬁc behavior of the application under analysis and

of its complexity, the methodology proposed in the

previous section allows to get insight on the ﬁnal per-

ceived performance and the load each component is

actually able to manage. Moreover, the whole bench-

marking process can be easily automated. This can

help the developer, for example, to understand if the

performance offered to the customer is satisfactory,

or whether it is advisable to choose an alternative de-

ployment.

3.1 Performance Testing Environment

To perform the performance testing, we devised a

set of scripts to implement the benchmarking pro-

cedure described above and to collect its output in-

dexes. These scripts rely on Gatling (Gatling Corp,

2017), a load testing tool particularly suited to per-

form load testing on HTTP servers. Gatling supports

the generation of test scripts by means of a Recorder,

which makes it quite straightforward to build the test

sequences (i.e., our load proﬁles) through a graphi-

cal interface. The scripts generated for the SPECS

platform performance evaluation, representing the

SPECS benchmark, are available online in the SPECS

Bitbucket repository at (SPECS Consortium, 2017a).

All scripts have been executed on the SPECS Testbed,

a small-sized Eucalyptus cluster that emulates well a

typical private cloud or a small CSP.

Figure 5 illustrates the execution environment

adopted for the performance tests. It includes (i) the

Testing Terminal Node, based on the Gatling tool, and

the (ii) SPECS Node, which includes all the compo-

Figure 5: Benchmarking testbed organization.

Figure 6: The SPECS cloud application deployment model.

nents of the cloud application under test (the SPECS

web container application). As for the cloud applica-

tion deployment, we assume that all cloud application

components (i.e., the SPECS modules and the web

container application) run on the same CSP and on

a single VM, according to the deployment scenario

shown in Figure 6. The Testing Terminal Node runs

on a separate VM. The features of the VMs used for

the testing environment deployment are summarized

in Table 1.

Table 1: The VM characteristics.

Node VM features

Testing Terminal Node VMtype=1.1xlarge,

Core=1,

RAM=1024MB,

HDD=20GB

SPECS Platform Node VMtype=1.1xlarge,

Core=1,

RAM=1024MB,

HDD=20GB

The main results obtained for the application are

presented in the next section. The complete report

of results is available on the Bitbucket repository

(SPECS Consortium, 2017a).

An Automatic Tool for Benchmark Testing of Cloud Applications

705

3.2 Benchmarking Set-up and

Execution

The load proﬁles for the SPECS web container appli-

cation were built by exploiting the Gatling tool for

all components exposed to the end-users (the web-

container and its web interface), and manually for the

other REST APIs (in fact, even this step could be fully

automated). It should also be pointed out that, due to

the limitations of the adopted testbed, it was not pos-

sible to include in the proﬁles the steps of the SLA

implementation process that involve the acquisition

(brokering) of virtual machines.

Figure 7 shows as an example the test results for

one of the proﬁles built for the SLA Platform module

(in this case, the load proﬁle stresses the API to get

SLAs from the platform). As was to be expected, the

throughput grows linearly with the rate of proﬁles un-

til requests start to fail. From the knee of the curve

onward, the throughput still grows, but slowly, due

to the high ratio of failure responses. The MAR for

the default rate of faults (20%) is reached at about

110 proﬁles/s. Accordingly, the response time mea-

sured stressing the component at MAR for few min-

utes turns out to be about 95 ms.

Figure 7: SLA Platform Run Results.

This test was repeated for all the proﬁles devised

for each module. For example, Figure 8 shows the

results obtained for a second proﬁle of the SLA Plat-

form module, stressing its API calls for service man-

agement. Table 2 summarizes the cumulative results

obtained for all the tested modules, reporting only the

worst values obtained (our benchmark indexes). Ac-

cording to such results, the application can manage

about 3 user requests per second (i.e., about 180 re-

quests per minute). It should be noted that this ap-

parently low value is mostly acceptable for the man-

agement of a cluster able to deliver few hundreds of

VMs.

The measurements presented above make it possi-

Figure 8: Service Manager Run Results.

Table 2: Single-VM deployment benchmark results.

Component MAR

(reqs/s)

Response

Time (ms)

SLA Platform module 9 73

Negotiation module 50 215

Enforcement module 130 180

Web Container module 3 3891

ble to discuss how the proposed benchmarking pro-

cess can be used in practice. The examination of

Table 2 induces the suspect of the presence of two

bottlenecks, namely in the SLA Platform and in the

Web Container module (their MARs are much lower

than those of the Negotiation and Enforcement mod-

ules). The information of the unexpectedly low per-

formance of the SLA Platform proved to be very use-

ful. It turned out that it was due to a (performance)

bug, linked to the use of a list method (long queries

due to a missing cut on the number of results returned

in a single listing). This implementation issue was

easily corrected, aligning the SLA Platform module

performance to that of the other modules.

As for the second suspected bottleneck, our suc-

cessive analyses showed that in the tested deployment

the Web Container module, due to its complexity, is

intrinsically slower that the other application mod-

ules. As these are orchestrated by the “slow” Web

Container, they will be never stressed near to their

limits. This issue strongly suggests to adopt an al-

ternative different deployment model, where the Web

Container can proﬁt from additional resources. For

example, it can simply be hosted on a dedicated VM.

Due to space constraints, the measurements relative to

this second deployment are not reported in this paper.

4 RELATED WORK

As already mentioned in Section 1, the problem of

benchmarking cloud services is a well-known open

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

706

research topic. A ﬁne-grained performance evalu-

ation of cloud services can enable a cost-reduction

policy, but it is hard to perform, due to the elastic-

ity that is a characteristic feature of cloud environ-

ments. At the state of the art, most of existing work

focuses on infrastructure-as-a-service (IaaS) bench-

marking, ﬁnalized at the comparison of the infrastruc-

ture resources to be leased to execute the applications.

In 2009, the authors of (Binnig et al., 2009) ad-

dressed the problem of benchmarking in the cloud by

focusing on database services. The paper main goal

was to demonstrate the limits of existing benchmarks

when applied to the cloud environment. In particu-

lar, the paper proposed to adopt new metrics (scala-

bility, cost, peaks, fault tolerance) as indexes for the

benchmarks, in order to address the limits of existing

solutions.

The work presented in (Li et al., 2010) was one

of the ﬁrst attempts of building cloud benchmarks.

The authors proposed a cloud-speciﬁc benchmark

aimed at comparing performance and cost of different

CSPs, called CloudCmp. CloudCmp collects a set of

standard benchmarks and automates their execution,

which is carried out in user-space (i.e. the customer

acquires the resources and executes the benchmarks).

In order to manage the different choices, (Haak

and Menzel, 2011) presented an approach based on

the theory of optimal stopping that enables an auto-

mated search for an optimal infrastructure service as

for performance-per-price-ratio, while reducing costs

for benchmarking. The performance indexes they

considered are network latency and CPU and RAM

usage.

The authors of (Scheuner et al., 2014) proposed

Cloud Work Bench (CWB), a web-service-based tool

providing support for the deﬁnition of reusable and

representative benchmarks, enabling the automatic

execution of these benchmarks for comparing IaaS

services. In (Scheuner et al., 2015), Cloud Work

Bench was used to demonstrate the complete cycle

of benchmarking an IaaS service with SysBench, a

cross-platform standard benchmark suite for the eval-

uation of several OS parameters.

(Kunde and Mukherjee, 2015) proposed to bench-

mark the performance of big-data analytics applica-

tions by using Hadoop. The paper focused on param-

eters of interest such as turnaround time and through-

put. The main goal was to offer a support for the

choice of the infrastructure services best suited for

a particular application. For what concerns perfor-

mance indexes, the paper focused on job execution

time and throughput, computed by using a simple

workload model based on the map-reduce approach.

(Uhlir et al., 2016) proposed a novel methodology

for benchmarking CSPs, based on latency measure-

ments collected via active probing, that could be tai-

lored to speciﬁc application needs. The benchmark

focuses mainly on the latency measured to access the

CSPs. The mentioned paper also proposes a proce-

dure to collect and rank the measurements and, ac-

cordingly, the CSPs.

From the analysis of the existing literature on

cloud benchmarking, two main aspects emerge as fun-

damental issues, namely the automation of the bench-

marking execution (which must be repeatable in order

to address cloud unpredictability and elasticity fea-

tures) and the capability of deﬁning custom bench-

marks based on the target application to be run. The

approach presented in this paper addresses both as-

pects. Moreover, at the best of the authors’ knowl-

edge, no other currently available solution allows to

deﬁne dynamically and to execute benchmarks which

are both simple (we propose the measurement of just

two indexes per application component) and effective

to help identify bottlenecks and to compare different

deployments for a generic application.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we have illustrated a methodology to

devise custom benchmarks aimed at evaluating the

performance of a cloud application with different de-

ployment conﬁgurations of its components. Under

the assumption that the application components of-

fer RESTful APIs and communicate with one another

by the HTTP protocol, the benchmarking process can

be easily automated and can take advantage of exist-

ing testing tools for the generation and submission of

workloads. As a matter of fact, a tool with graphi-

cal interface has been implemented to drive the tests

and to collect the results. The main advantage of the

proposed benchmarking methodology is that it relies

on the evaluation of just two indexes (MAR and re-

sponse time) for each component and does not re-

quire extensive testing. Such indexes are measured

by stressing the components with suitable synthetic

workloads that take into account their common usage

patterns. As demonstrated for a case study applica-

tion, the collected results can allow to identify possi-

ble bottlenecks, so as to take actions in order to im-

prove performance and usability.

As a future development, we plan to validate our

methodology under more complex deployments and

by exploiting multiple (public and private) providers.

Moreover, inspired by the ongoing work on the

MUSA project, we plan to extend the benchmark-

An Automatic Tool for Benchmark Testing of Cloud Applications

707

ing methodology to evaluate multiple providers si-

multaneously, in accordance with the multi-cloud

paradigm.

ACKNOWLEDGEMENTS

This research is partially supported by the EC FP7

project SPECS (Grant Agrmt. no. 610795) and

H2020 project MUSA (Grant Agrmt. no. 644429).

REFERENCES

Andreieux, A. (2007). Web services agreement speciﬁca-

tion. https://www.ogf.org/documents/GFD.107.pdf.

Aversano, G., Rak, M., and Villano, U. (2013). The mO-

SAIC benchmarking framework: Development and

execution of custom cloud benchmarks. Scalable

Computing: Practice and Experience, 14(1).

Binnig, C., Kossmann, D., Kraska, T., and Loesing, S.

(2009). How is the weather tomorrow? Proceed-

ings of the Second International Workshop on Testing

Database Systems - DBTest ’09.

Casola, V., A. De Benedictis, Rak, M., and Villano,

U. (2014). Preliminary Design of a Platform-as-a-

Service to Provide Security in Cloud. In Proceedings

of CLOSER 2014, Barcelona, Spain, April 3-5, 2014,

pages 752–757.

Casola, V., De Benedictis, A., Rak, M., and Villano, U.

(2015). SLA-based secure cloud application devel-

opment: The SPECS framework. In Proceedings of

SYNASC 2015, pages 337–344.

Cuomo, A., Rak, M., and Villano, U. (2015). Performance

prediction of cloud applications through benchmark-

ing and simulation. International Journal of Compu-

tational Science and Engineering, 11(1):46–55.

Dejun, J., Pierre, G., and Chi, C.-H. (2009). EC2 perfor-

mance analysis for resource provisioning of service-

oriented applications. In Proceedings of the 2009 Int.

Conf. on Service-oriented Computing, pages 197–207.

ETSI (2013). Cloud standards coordination. Technical re-

port.

Gartner (2017). Cloud Harmony Web Site.

https://cloudharmony.com/.

Gatling Corp (2017). Gatling documentation.

http://gatling.io/docs/2.2.3/.

Haak, S. and Menzel, M. (2011). Autonomic benchmark-

ing for cloud infrastructures. Proceedings of the

1st ACM/IEEE workshop on Autonomic computing in

economics - ACE ’11, pages 27–32.

International Organization for Standardization (2014).

ISO/IEC 17788:2014. Information Technology–

Cloud computing–Overview and vocabulary.

Kunde, S. and Mukherjee, T. (2015). Workload characteri-

zation model for optimal resource allocation in cloud

middleware. Proceedings of the 30th Annual ACM

Symposium on Applied Computing - SAC ’15, pages

442–447.

Li, A., Yang, X., Kandula, S., and Zhang, M. (2010). Cloud-

Cmp: Comparing Public Cloud Providers. In Pro-

ceedings of the 10th annual conference on Internet

measurement - IMC ’10, pages 1–14.

Li, A., Zong, X., Kandula, S., Yang, X., and Zhang, M.

(2011). Cloudprophet: towards application perfor-

mance prediction in cloud. In Proceedings of the ACM

SIGCOMM 2011 conference, pages 426–427.

Liew, S. H. and Su, Y.-Y. (2012). Cloudguide: Help-

ing users estimate cloud deployment cost and perfor-

mance for legacy web applications. In Cloud Comput-

ing Technology and Science (CloudCom), 2012 IEEE

4th Int. Conf. on, pages 90–98.

Mell, P. M. and Grance, T. (2011). Sp 800-145. the

NIST deﬁnition of cloud computing. Technical report,

Gaithersburg, MD, United States.

Rak, M., Suri, N., Luna, J., Petcu, D., Casola, V., and

Villano, U. (2013). Security as a service using an

SLA-based approach via SPECS. In Cloud Comput-

ing Technology and Science (CloudCom), 2013 IEEE

5th Int. Conf. on, volume 2, pages 1–6.

Rak, M., Turtur, M., and Villano, U. (2015). Early predic-

tion of the cost of HPC application execution in the

cloud. In Proceedings of SYNASC 2014, pages 409–

416.

Scheuner, J., Cito, J., Leitner, P., and Gall, H. (2015). Cloud

workbench: Benchmarking IaaS providers based on

Infrastructure-as-Code. In Proc. of the 24th Int. Conf.

on World Wide Web, pages 239–242.

Scheuner, J., Leitner, P., Cito, J., and Gall, H. (2014).

Cloud work bench–infrastructure-as-code based cloud

benchmarking. In Cloud Computing Technology and

Science (CloudCom), 2014 IEEE 6th International

Conference on, pages 246–253.

Sharma, U., Shenoy, P., Sahu, S., and Shaikh, A. (2011).

Kingﬁsher: Cost-aware elasticity in the cloud. In 2011

Proceedings IEEE INFOCOM, pages 206–210.

SPECS Consortium (2017a). SPECS Performance tests.

https://bitbucket.org/specs-team/specs-performance-

benchmark.

SPECS Consortium (2017b). The SPECS project web site.

http://specs-project.eu/.

SPECS Consortium (2017c). The SPECS Secure

Web Container Application - Bitbucket Repos-

itory. https://bitbucket.org/specs-team/specs-app-

webcontainer-rev2.

SPECS Consortium (2017d). The SPECS Secure Web

Container Application Description. http://www.specs-

project.eu/solutions-portofolio/secure-web-

container/.

Uhlir, V., Tomanek, O., and Kencl, L. (2016). Latency-

based benchmarking of cloud service providers. In

Proceedings of the 9th Int. Conf, on Utility and Cloud

Computing, UCC ’16, pages 263–268.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

708
