Service-oriented Architecture: Describing Benefits from an

Organisational and Enterprise Architecture Perspective

Hatitye Chindove, Lisa F. Seymour and Francois I. van der Merwe

Department of Information Systems, University of Cape Town, Rondebosch, Cape Town, South Africa

Keywords: Service-oriented Architecture, SOA Benefits, Enterprise Architecture, Service Orientation.

Abstract: Software architecture models describe the technical structure, constraints, and characteristics of software

components and the interfaces between them. Service-Oriented Architecture (SOA) is a recent software

architecture style with many benefits if used in the right context. Business agility, customer satisfaction, faster

time to market, ease of partnering and lower business costs are some promised benefits. Yet SOA has not

always benefitted organisations. One reason given is a misunderstanding of the relationship between SOA

and enterprise architecture (EA). Therefore, this study in a large retail organisation in South Africa describes

SOA benefits and classifies them into the various EA domains. SOA benefits are also classified into six broad

categories namely: strategic, organisational, operational, managerial, maintenance and governance. The study

comprises three cases from one organisation that deployed different architectures. SOA benefits are contrasted

with benefits from other approaches. Organisational benefits not described before include greater

collaboration amongst SOA participants enabling better learning opportunities. The results should assist IT

management in preparing SOA business cases and in managing SOA deployments to ensure benefits are

achieved.

1 INTRODUCTION

Organisations need to constantly change to keep up

with market competition (MacLennan and van Belle,

2014). Yet change is greatly dependent on

information technology (IT) and business

infrastructure (Krafzig, Banke and Slama, 2005)

which needs to be flexible enough to accommodate

strategic changes and reflected then timeously and

efficiently within the organisation. Enterprise IT is

closely coupled with internal organisation, process

and business models of the organisation. Therefore

enterprise IT establishes system integration, agility

and change which requires a focus on system design

(Hoogervorst, 2004). System design in turn requires

a set of statements and models that describe the

solution component and the assigned functionality of

those components (Krafzig et al., 2005; Valipour et

al., 2009) which can be referred to as software

architecture. Software architecture artefacts or

models describes system components and includes

the technical structure, constraints, and

characteristics of the components and the interfaces

between them (Reyes-Delgado et al., 2016; Valipour

et al., 2009).

Service-Oriented Architecture (SOA) promises

business agility and is defined as a software

architecture style and a technical and organisational

framework enabling the development of platform-

independent business functionality through using

services (Malekzadeh, 2010; Singh and Tyagi, 2015).

A ‘service’ is described as a self-contained web based

application capable of completing tasks on its own

and able to discover and engage other services to

complete higher level transactions (Stojanović and

Dahanayake, 2005). Services are viewed as blocks

and therefore SOA has component orientation that

incorporates loose coupling and process control into

its design (Hau et al., 2008).

Whilst SOA may seem to be the ideal architecture

to tackle most business requirements other

architectures such as Event-Driven Architecture or a

combination of SOA and other architectures can be a

better choice (Malekzadeh, 2010). Yet limited case

studies of SOA in different industries exist

(MacLennan and van Belle, 2014; Joachim, 2011).

There are concerns that the risks and costs around the

implementation and use of SOA design principles

could make SOA projects run longer and become

more expensive without yielding immediate benefits

(Hau et al., 2008). Companies also struggle to

Chindove, H., Seymour, L. and Merwe, F.

Service-oriented Architecture: Describing Beneﬁts from an Organisational and Enterprise Architecture Perspective.

DOI: 10.5220/0006383604830492

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 483-492

ISBN: 978-989-758-249-3

483

measure SOA return on investment (Malekzadeh,

2010). The SOA approach is described as less

successful than anticipated with many challenges and

SOA success stories are noted to be rare (Alghamdi,

Potter and Drew, 2016). Therefore, there is a call to

study these as case studies (Joachim, 2011; vom

Brocke et al., 2010). Hence, the research question

posed here is “What benefits are organisations

achieving from adopting SOA?” Researchers have

also noted the lack of a model for classifying SOA

benefits (Viering, Legner and Ahlemann, 2009) and

therefore we describe benefits using two frameworks,

the first being Enterprise Architecture (EA).

2 ENTERPRISE ARCHITECTURE

AND SOA

Services used in SOA are often described with

characteristics and attributes that include; interface

orientation, autonomy, loose coupling,

standardization, reusability, business orientation and

compassable (MacLennan and van Belle, 2014;

Malekzadeh, 2010). Although SOA is grounded in IT,

it does not mean it should be IT driven but it needs to

also be driven by business (Alghamdi et al., 2016;

MacLennan and van Belle, 2014). A view of how

SOA is understood from an organisational

perspective can be critical to its implementation. EA

is an architecture that assists in understanding the

business and IT perspective (Kistasamy et al., 2010).

In as much as EA and SOA are different, they

share a number of objectives and SOA without EA is

compromised (Alghamdi et al., 2016). EA can be

viewed as a structured and aligned set of plans which

provide integrated modelling of the enterprise’s

business and technology landscape, in past, current

and future states (Simon, Fischbach and Schoder,

2013). The models form the central deliverable of the

EA practice. When EA evolution is not managed and

aligned at the modelling level, misrepresentation and

occasionally even failures result (Alwadain et al.,

2016).

EA can be considered as a collection of the

constituent Business, Information, Application and

Technology architectures with inter-relationships

among them, with their joint properties being

essential to the entire architecture (Rohloff, 2011).

Business systems should be agile to maintain

business-IT alignment and EA has become an

important enabler (Harishankar and Daley, 2011;

Sasa and Krisper, 2011).

Business architecture artefacts can come from

organisation initiatives such as strategic business

planning and business process redesign (Harishankar

and Daley, 2011). Therefore, business architecture

should determine the technology architecture

(Rohloff, 2011). Both SOA and EA share the

objective of achieving business and IT alignment

(Kistasamy et al., 2010). SOA can impact EA

frameworks, methodologies, governance and tools

(Alwadain, Fielt, Korthaus and Rosemann, 2016). To

align EA models with the corresponding real world,

enterprise architects need to be aware of changes in

the enterprise (Alwadain et al., 2016).

However due to misunderstanding the

relationship between SOA and EA, organisations

have failed to benefit from their combined use

(Alwadain et al., 2016; Kistasamy et al., 2010). There

are no empirical studies describing how EA evolves

due to SOA. Therefore, researchers have called for

studying their integration (Alwadain et al., 2016).

EA and SOA both co-exist equally to ensure that

technology solutions support business processes and

SOA touches all EA domains. SOA brings more

agility to EA practice, increases EA acceptance and

usability (Zhao, 2013). EA provides SOA practice

with enterprise views (Zhao, 2013). SOA and

business architecture both enable business agility.

SOA uses business architecture to develop artefacts

such as the component business model as input to

business services (Harishankar and Daley, 2011).

SOA is also a methodology optimised to the

application architecture domain (Kistasamy et al.,

2010). Table 1 shows the mapping of EA domains

with the relevant SOA solution stack.

Table 1: Mapping EA and SOA domains (Kistasamy et al.,

2010).

SOA solution stack EA Domain

Business Process Business architecture

Services and components Application architecture

Integration Architecture Technology architecture

Data Architecture Information architecture

Quality of Service, monitoring

and infrastructure

Technology architecture

3 EVALUATION OF SOA

Evaluation of SOA should consider the costs, risks

and benefits of its adoption. Power relations between

firms in a specific industry play an influential role in

SOA adoption and lead to variations of adoption in

different industries (Ciganek, Haines and Haseman,

2009). Therefore, SOA needs to be evaluated and

studied in different contexts. A driving factor for

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

484

adopting a methodology is cost. SOA adoption has

significant hardware and network infrastructure costs,

deployment costs (including application migration,

integration, and database conversions), support and

maintenance costs, especially in the early adopting

stages, and performance costs (Rabhi et al., 2007).

The most important project risks are reliability,

security and performance (MacLennan and van Belle,

2014). Other risks include implementation

challenges, SOA expertise, development governance,

service design, technical systems health and project

time constraints (Koch, 2007; Komoda, 2006;

MacLennan and van Belle, 2014; Rabhi et al., 2007).

Depending upon the project, SOA can introduce

conflict such as when certain SOA design principles

make the project longer and more expensive without

yielding immediate benefits (Hau et al., 2008). The

benefits of SOA also vary depending on the maturity

levels of SOA adoption. SOA adoption can move

from initial services, architected services, business

and collaborative services, measured business

services and finally optimized business services

(Soni, 2005). Given that many organisations are

failing to achieve return from SOA investments

(Malekzadeh, 2010; vom Brocke et al., 2010), it is

important to more clearly describe benefits of SOA.

This paper aims to do this. SOA benefits identified in

the literature are described in more detail in the

findings section of this paper.

4 RESEARCH METHOD

The purpose of this study is to explore and describe

the benefits derived by the use of the SOA

architectural style versus those derived through other

software architectural styles. This research is

qualitative and interpretive in nature using a multiple

case study (Yin, 2012) of three departments

responsible for application development and

application support (C1-C3) in a single large South

African retail organisation where SOA and non-SOA

architectural styles are used. Interpretive studies

include second-order constructs of the researcher’s

interpretation of interviewees’ first-order constructs

(Walsham, 2006). The case study approach is useful

for descriptive and explanatory approaches going

well beyond exploratory research (Yin, 2012). Semi

structured interviews were performed during 2015,

supported by observation notes. Additional data

sources include the extract of support calls and

change requests from the service management

system. The thirteen respondents were selected using

judgement sampling across various roles in the

software development process including:

 2 project managers (C1 and C2);

 3 enterprise architects (C1, C2 and C3);

 3 solution developers / support personnel (C1,

C2 and C3);

 1 solution testers (C1); and

 2 business analysts (C1 and C2).

A combined deductive and inductive thematic

analysis was performed (Fereday and Muir-

Cochrane, 2006) by validating themes identified in

the literature, uncovering new themes and describing

the meanings the social actors attached to benefits of

the architecture style used. Each text excerpt or

empirical observation for each theme was counted

and then totalled. Data validation was achieved

through triangulation between multiple independent

data sources.

C1 with 5 respondents had adopted SOA as its

software architecture style across the entire

department. C1 supported multiple systems to deliver

merchandise to customers and subscribers of their

systems and was responsible for managing customer

information. The C1 application portfolio comprised

15 in-house applications and interactions with other

third party applications. C1 had 10 employees, had

existed for 2 years and had 9 other third party

partners.

C2 with 6 respondents was not making use of

SOA but followed an approach focusing on

application design principles and using point to point

integration and enterprise integration. C2 supported

systems for inventory management, internal

merchandise logistics and merchandise planning for

the retailers of the organisation. Their application

portfolio comprised 17 systems of mostly

applications developed and licensed by third party

vendors but also some custom built applications. C2

had 50 employees, had existed for over 10 years and

had 20 other third party partners.

C3 with 2 respondents made partial use of the

SOA architectural style in some aspects of its

architecture but also applied other application design

principles to achieve enterprise integration with

different departments. C3 supported internal

enterprise integration and integration with external

partners. Their application portfolio of 60 systems

comprised mostly applications developed in-house

and other third party applications. C3 had 8

employees, had existed for 10 years and had 30 other

third party partners.

Service-oriented Architecture: Describing Beneﬁts from an Organisational and Enterprise Architecture Perspective

485

Table 2: Summary of Benefits with counts of text excerpts per case.

Categorised Benefit References C1 C2 C3

Strategic Benefits 26 6 6

Improved Agility (Joachim, 2011; Komoda, 2006; Malekzadeh, 2010) 6 1

Opportunity for agile development (Malekzadeh, 2010) 6

Improved Change Effect Size 3

Domain Driven Development (Bukhsh, Sinderen and Singh, 2015) 1

Leveraging Legacy IT Assets (Lewis et al., 2005; Rabhi et al., 2007) 3 1

Reuse opportunity (Bukhsh et al., 2015; Rabhi et al., 2007) 8 6 3

Operational and Maintenance

Benefits

28 5 14

Reduced Maintenance Effort (Carey, 2008) 7 2

Improved Operations Support (Hau et al., 2008; Joachim, 2011) 4

Reduced Development Time (Rabhi et al., 2007; Yoon and Carter, 2007) 4 1

Improved Flexibility

(Bukhsh et al., 2015; MacLennan and van Belle,

2014)

5 1 4

Reduced Testing effort 1

Increased Issue Isolation 1

Improved Refactoring Opportunity 1 2 1

Improved Standardization (MacLennan and van Belle, 2014) 3 2

Improved Interoperability (Lewis et al., 2005) 2 1 1

Improved Self Documentation 1

Reduced Maintenance Costs (Hau et al., 2008; Joachim, 2011) 1

Ability to handle large data volumes (Yoon and Carter, 2007) 1

Incremental Development

Opportunity

Organisational Benefits 17 1 4

Improved Collaboration 3

Improved Learning Opportunity 6 2

Increased Opportunity to Innovate 4 2

Improved System Understanding 4

Improved Team Dependencies 1

Managerial Benefits 4 4

Ease of Integration (Joachim, 2011; Yoon and Carter, 2007) 1 1

Improved Data Visibility (The Open Group, 2009) 1

Opportunity to measure cost savings 1

Separation of Concerns 1 3

Governance Benefits 6

Improved Application Control (Hau et al., 2008) 1

Improved Change Control 4

Improved Compliance Management 1

Key: Unique to SOA Not Unique to SOA Not in SOA

5 FINDINGS AND DISCUSSION

In this section, we will for brevity purposes refer to

the SOA architectural style simply as SOA. In this

case study respondents described some of the benefits

as being either unique to SOA, achieved through SOA

but not uniquely and not achieved through SOA. The

findings are presented in Table 2 with the count of

empirical observations or text excerpts from all

interviews. Note that in some cases a respondent

could have mentioned one benefit more than once. A

benefit framework for SOA covering strategic,

operational and technical dimensions has been called

for (Viering et al., 2009) and therefore these

categories were used and extended. Due to space

limitations, only the benefits seen as unique to SOA,

are described and contrasted with the relevant

literature.

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

486

5.1 Strategic Benefits

SOA has the capacity to assist with developing a

sustainable, IT-based plan to achieve strategic goals.

Six themes emerged, namely: improved agility,

improved opportunity for agile software

development, improved change effect size, domain

driven development opportunity, reuse opportunity,

and leveraging legacy IT assets.

Agility refers to the ability of the organisation to

sense and respond to market opportunities and

changes in its local environment. Krafzig et al. (2005)

state that the main motivation around SOA is to

deliver agility and enable rapid development and

modification of software through service

composition. Within the SOA case, new system

development time was reduced by means of reuse as

demonstrated in the following quote: “so the time and

effort to fulfil all those capabilities now when you

plug in a new sales system is far easier and quicker.

So that gives the business the agility” (R4-C1).

With agile development, software evolves

through collaboration between self-organizing, cross-

functional teams with adaptive planning,

evolutionary development and rapid and flexible

responses to change. A software architecture design

artefact is expected to be expanded during the design

phase of a software engineering process which is

represented by a software development methodology

(SDM) and can thus be considered as a well-

structured process for elaborating a software system

(Reyes-Delgado et al., 2016). The separation of

concerns is used as a principle in both agile software

development and SOA which can be considered in

terms of component orientation thereby supporting

loose coupling and ultimately flexibility and agility of

the solution. Separation of concerns positively

influenced the development process and delivery time

allowing for agile development practices. Agile

software development was a major theme that was

only evident in C1. “In terms of delivery… no matter

where you have to work, you kind of know where to

find everything... You will know exactly what piece of

code to look at when maintaining” (R3-C1).

Improved change effect size measures the benefit

of a single change on one component across

applications. This emerged as a minor theme in C1

where SOA was adopted and changes to a service

resulted in a cascading effect on all other components

making use of the updated component. “so it might

not be quicker to implement the change but when you

implement the change everyone benefits immediately

from that change so we have seen that going quite

well” (R1-C1).

Domain driven development is a software

development approach where the implementation is

tied to an evolving model with the main focus being

on a core domain and domain logic. SOA provides an

opportunity to categorize service provisions at a

domain level within an organisation and provides the

organisation more opportunities to reuse their assets

and develop new functionality where ownership and

standards reside with the owners of the services for a

domain. The ownership derived from the domains

will also improve collaboration in the cases where

reuse is required. This was evident in C1 and C3.

“Also the nice thing we are seeing coming from SOA

is you know the term called domain driven

development. Each company or division owns that

domain of the business. …so with our approach and

moving towards SOA, basically it comes down to the

people who own that domain they will provide

services around those domains” (R8-C3).

5.2 Operational and Maintenance

Benefits

Operational benefits in this study refer to operational

activities performed by the relevant case departments

enabled by SOA as well as the actions taken to

prevent, diagnose, update, replace and repair IT

infrastructure. We describe five benefits unique to

SOA, namely, reduced maintenance effort; improved

operations support; reduced development time;

flexibility; and reduced testing effort.

Maintenance effort was reduced through the reuse

of existing capabilities to develop applications in

response to support calls. This confirms the literature

(Carey, 2008). Figure 1 shows that over a period of a

year when support calls for the SOA infrastructure

increased there was not a significant increase in

changes implemented to resolve the calls.

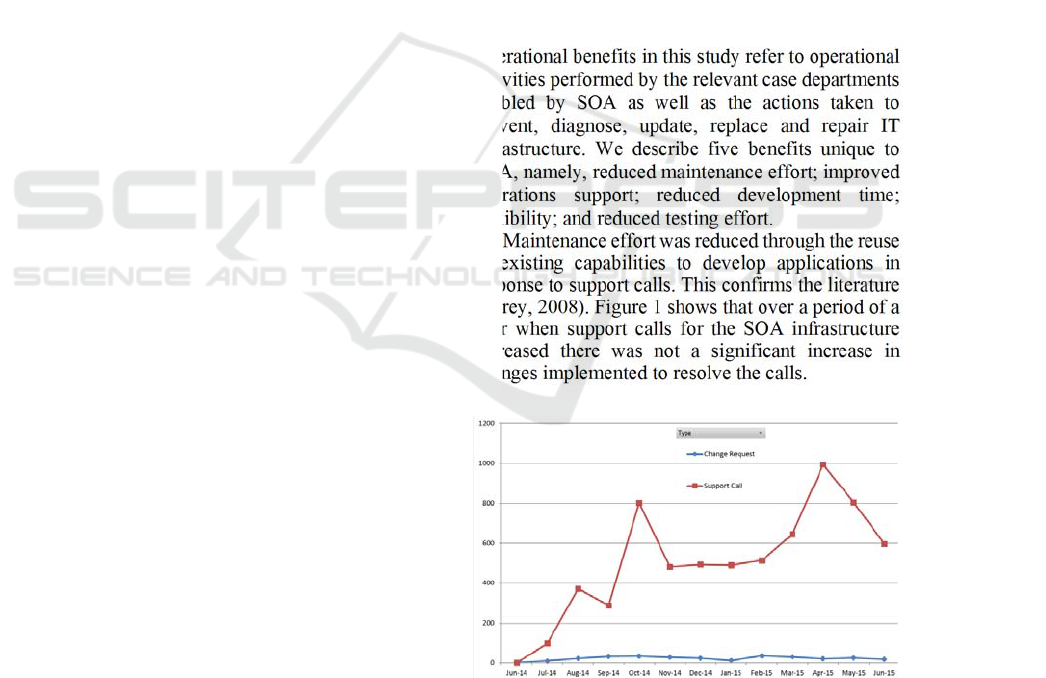

Figure 1: Support calls and resultant change requests.

Improved operations support only appeared as a

theme in C1. SOA made operation work more

manageable and simpler in the cases where

investigations have to be conducted due to the use of

Service-oriented Architecture: Describing Beneﬁts from an Organisational and Enterprise Architecture Perspective

487

asset wrapping for vendor applications. Figure 2

shows that in C1 the ability to resolve support calls

within agreed service delivery agreement parameters

improved with SOA when introduced in 2015 and

even when there was a spike in calls. “whereas with

this one now you can kind of say, if something is going

wrong with somebody’s order when it is not being

delivered they you know ‘okay it is in this area’ so you

can go and look exactly in that area” (R11-C1).

Literature has noted that SOA improves the

automation and management of business processes

(Joachim, 2011).

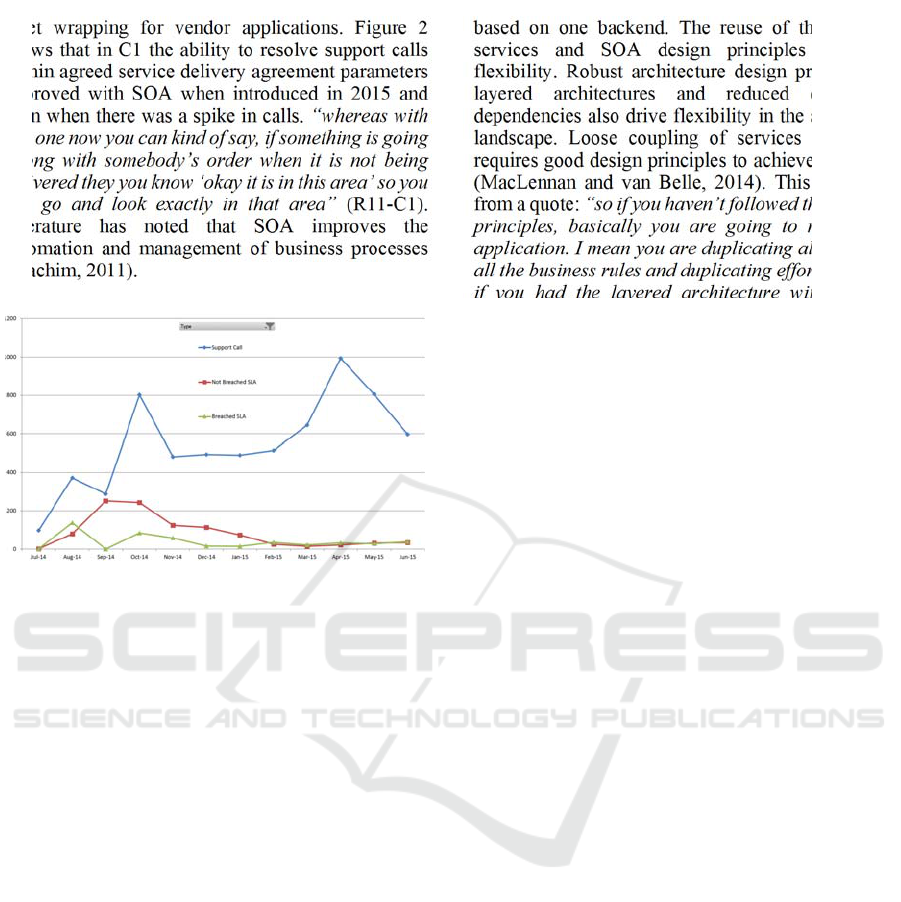

Figure 2: C1 support calls and service level agreements.

Reduced development time (Yoon and Carter,

2007) is enabled by reduced component

dependencies. SOA is component based (The Open

Group, 2009) and also due to the composability of

services component dependencies are minimal. The

reduced component dependency influences flexibility

and testing effort whilst it is dependent on

composability of the service. Four respondents

mentioned this as a SOA benefit: “with the services

we were able to agree on what data we were going to

transmit between each other through a service layer

first and each one of us could write dummy endpoints

that we could then code against and test against.

When we were both ready we simply took off the

dummy points and pointed at each other and it would

work. That saved us a lot of time as that meant we

could develop our work in parallel... we could keep it

quite segregated” (R1-C1). Development effort for

new services replacing legacy applications also

reduced with SOA. The creation of asset wrappers for

legacy applications enabled tests to compare legacy

applications with new services.

Flexibility in system designs allows high design

adaption with external changes and is a valued SOA

benefit (MacLennan and van Belle, 2014). Flexibility

appeared across all cases but was more evident in C1

and C3. Composability and interoperability improve

flexibility. SOA increased flexibility allowing a

number of application frontends to be developed

based on one backend. The reuse of the backend

services and SOA design principles improved

flexibility. Robust architecture design principles of

layered architectures and reduced component

dependencies also drive flexibility in the application

landscape. Loose coupling of services with SOA

requires good design principles to achieve flexibility

(MacLennan and van Belle, 2014). This is evident

from a quote: “so if you haven’t followed these design

principles, basically you are going to rewrite the

application. I mean you are duplicating all the logic,

all the business rules and duplicating effort. Whereas

if you had the layered architecture with the OO

principles and the SOA principles, you will be in a

position where all your business rules and all your

business logic is encapsulated into your service layer

and then you really get a light-weight front end. So

your front-end really does nothing except interact

with the user” (R4-C1).

Reduced testing effort emerged as a minor theme

appearing once in C1. Through service composition,

testing in single functional areas was much simpler.

There was a better view of dependencies in the

landscape enabling directed testing and less testing

effort. “I think it has made it a lot much quicker

because things are so much compartmentalised, …so

you really won’t need to do the whole regression

testing and all that kind of stuff because it hasn’t

really touched those areas” (R11-C1).

5.3 Organisational Benefits

Organisational SOA benefits refer to benefits in the

IT employee’s view of the organisation and its

environment. These included improved collaboration,

improved learning opportunity, increased opportunity

to innovate, and improved system understanding.

Collaboration is the action of working together on

a joint intellectual effort. This theme appeared in two

C1 interviews and showed that SOA enabled

collaboration in solving problems. Different teams

would work together to deliver solutions and assist

each other in problem solving. It is argued that with

SOA using layered service components, people with

different skills can work in different layers providing

flexibility in skills management (Zhao, 2013).

Participants using SOA were seeing more

learning opportunities coming from using this

architectural style as it enabled quick initial

contributions without having a full understanding of

the business processes: “no matter where you have to

work, you kind of know where to find everything…

which brings down the learning curve” (R3-C1).

Innovation is the process of translating an idea

into a product or service that creates value to its

consumers. This was a minor theme with respondents

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

488

mentioning that there were more opportunities to

innovate using SOA. Given the opportunity to reuse

existing services, there are opportunities to innovate

how a service is delivered to consumers such as

through mobile or web based solutions.

Improved system understanding refers to the

ability to comprehend the linked tasks of delivering a

service. C1 respondents described how the

architectural view allowed a better understanding of

the application portfolio from a development

perspective. At a glance one could better understand

how the application portfolio is arranged and also

how the low level parts of the landscape are

organized. “it is a lot simpler because you … see at a

glance what is happening. It is not like everything is

this huge complicated and everything is thrown

together like the old legacy systems” (R11-C1).

5.4 Managerial Benefits

Managerial benefits incorporate those related to the

control and monitoring of organisational resources.

Three themes unique to SOA in the cases studied are:

ease of integration; improved data visibility, and

opportunity to measure cost savings.

Integration refers to joining together subsystems

into a single system. Ease of integration appeared as

a minor theme but it has a significant influence on the

other benefits of SOA. Ease of integration enabled

development without bottlenecks arising at

integration stages as standards of interoperability had

been agreed to. Due to ease of integration, a range of

potential solutions existed for new requirements. A

literature review identified multiple papers

supporting integration as a SOA benefit (Joachim,

2011).

Data visibility through messaging and the ability

to measure cost savings through metrics appeared as

minor themes in the data, and were only evident in

C1. Measurement metrics were applied to costs in the

SOA application landscape as demonstrated by the

following quote: “if you take each capability …

determine effort in providing a solution … and look

at how many times you reuse that capability. You can

determine the cost savings” (R4-C1).

5.5 Governance Benefits

Governance benefits relate to the processes that help

to ensure efficient and effective use of IT in enabling

organisational goals. Three themes emerged in this

investigation namely: Improved application control,

improved change control and improved compliance

management in software development.

Literature refers to improved application control

as a new SOA world that can be easily controlled and

adapted (Hau et al. 2008). The presence of domain

boundaries improves application control improving

the governance of processes and compliance. "Where

services help is for example if your services is

returning a clear text ID number… you can mask it at

your service level so that every system that is

subscribing gets a masked ID number… makes every

(system) POPI compliant in one go” (R1-C1). In this

case POPI refers to the Protection of Personal

Information Act in South Africa.

Improved change control refers to managing

software changes, ensuring that unnecessary changes

aren’t made, that services are not unnecessarily

disrupted and that resources are used efficiently.

Responsive change management can be considered a

technical architecture principle. This theme was only

evident in C1 and was derived from SOA through

flexibility, composability and separation of concerns

governed by agile software development principles.

“In terms of the web service and the windows services

using the same block of code, refactoring is quite

simple. Like most of the code sits in one place and you

know where to go find it and is relatively simple” (R3-

C1). “This model gives you the capabilities to adapt

and control new changes” (R5-C3).

Compliance management in software

development refers to complying with rules, which

may be organisational standards or legislation. This

theme appeared as a minor theme in case C1 where

SOA had improved compliance management.

Through the increased change effect size, changing

selective components of services to be compliant

resulted in all systems making use of the relevant

service becoming compliant. With SOA compliance

management can be at a domain level of services.

This eases domain application and ownership of

compliance.

5.6 Summary of SOA Evaluation

The relationship between SOA and EA has been

misunderstood resulting in organisations failing to

benefit from their combined use (Alwadain et al.,

2016; Kistasamy et al., 2010). Researchers have

therefore called for studying their integration

(Alwadain et al., 2016).

To assist in the understanding, the benefits

identified in this study are summarised from an EA

perspective in Figure 3 and show how SOA is

contributing towards all four EA domains. The

explanation of the categorisation and the definition of

Service-oriented Architecture: Describing Beneﬁts from an Organisational and Enterprise Architecture Perspective

489

Categorised Benefits

Business Architecture

Info / Data Architecture

Technology Architecture

Application Architecture

Strategic Benefits

Improved Agility x

Opportunity for agile

development

Improved Change Effect Size x

Domain Driven Development x

Operational and Maintenance Benefits

Reduced Maintenance Effort x

Improved Operations Support x

Reduced Development Time x

Improved Flexibility x

Reduced Testing effort x

Organisational Benefits

Improved Collaboration

Improved Learning

Opportunity

Increased Opportunity to

Innovate

Improved System

Understanding

Managerial Benefits

Ease of Integration x

Improved Data Visibility x x

Opportunity to measure cost

savings

Governance Benefits

Improved Application Control x

Improved Change Control x

Improved Compliance

Management

Figure 3: Benefits of SOA classified from an EA

Perspective.

the domains from TOGAF (The Open Group, 2011)

follows.

Application Architecture describes the structure

of software applications, their inter-relations and

relationships with key business processes. As

expected, the majority of SOA benefits are within the

application architecture domain.

Business Architecture describes the structure and

relationships between business strategy, governance,

functions, and key business processes. The benefits

improved agility and domain driven development fall

under this domain. Improved agility is a business

strategy and supports key business processes so falls

in the Business Architecture domain. The concept of

a business domain can be viewed as how an

organisation draws its competitive boundaries or

functions.

Data Architecture describes the structure and

relationships between the organization's data sources,

logical and physical data assets and data management

resources. Four benefits are considered data

architecture benefits Improved change effect size has

an impact on data and cascading changes to all

existing applications as the data is tightly coupled

with the service that manages it. The measurement of

cost saving is possible through the data architecture

which can expose and enumerate data that was not

previously evident. Compliance is not possible unless

the data / information architecture allows for its

specific measurement, evaluation and management.

Data visibility can be considered in terms of

data/information architecture in that you need to

define the messages, their attributes etc. which

benefits the information architecture.

Technology Architecture describes the the

technology building blocks from which that IT

system will be constructed using the logical software

and hardware capabilities, such as networks and

standards that support the other architectures. Four

benefits are included under technology architecture

because of their impact on the underlying

infrastructure. Improved flexibility and ease of

integration is achieved through services which reduce

component dependencies. When considered from an

ITIL perspective, change control is the governance of

the technical process of implementing and managing

the software change. Finally data visibility is also

considered from its technical implementation through

messaging and hence is also within the technical

architecture domain.

Some of the benefits also had associated cost and

risk implications that were not be described here and

are required for a complete evaluation. The

practitioners noted that improved reuse opportunities

resulted in implications on backward compatibility,

maintenance effort, testing challenges and increased

testing costs. The more a single service is reused

across a number of different applications, the greater

the effort required to modify the service. This in turn

influenced service composition and reuse opportunity

where greater focus on the design was required to

meet the disparate change requests.

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

490

5.7 Limitations

This study has limitations in that some respondents

failed to fully comprehend several benefits and in C2

there were very few respondents. The study also

limited its scope to benefits even though the

respondents referred to the risks and costs of SOA.

The categorisations used for grouping the benefits

were derived from interpretive thematic analysis and

to an extent are exploratory. Further studies could

validate the classification.

6 CONCLUSION

Researchers have called for more studies of

successful SOA cases and a better understanding of

the SOA business case. In response, this study

describes SOA benefits within a large successful

retail organisation in South Africa. The benefits of the

SOA architectural style are classified into five broad

categories in an organisation and in terms of the EA

domains. These benefits will be useful for

practitioners when making SOA business cases and

when trying to ensure that benefits are obtained. The

study also explores the connections between EA and

SOA from a practioner perspective, an area that

requires further research. Benefits impacted all EA

domains which to some extent supports the

perception of SOA as an EA style (Zhao, 2013).

The respondents described how the SOA

approach enabled them to improve themselves and

the organisation as a whole. Organisational benefits

arising from the use of SOA have not been described

before and include greater collaboration across teams

and improved learning opportunities. This resulted in

better engagement of the staff and better involvement

in their workspace.

During the study it became apparent that there is

still a gap in knowledge in terms of the levels of

stakeholder involvement in SOA projects that needs

study. Future work can also focus on gaining more

understanding of the causal costs and risks around

adopting SOA. Future work could therefore apply a

different research approach such as grounded theory

to provide more information around the phenomena

of SOA. This can assist in having a more defined

business case for SOA in organisations. A future

longitudinal study could also identify additional SOA

benefits and understand which benefits are achieved

as an organisation goes through different levels of

SOA maturity.

REFERENCES

Alghamdi, B., Potter, L. E., Drew, S. 2016. Identifying Best

Practices in Organisational SOA Governance

Adoption: Case Study of Saudi Arabia’s E-Government

Programme. PACIS 2016 Proceedings, 365.

Alwadain, A., Fielt, E., Korthaus, A., Rosemann, M. 2016.

Empirical insights into the development of a service-

oriented enterprise architecture. Data & Knowledge

Engineering, 105, pp. 39-52.

Bukhsh, Z. A., van Sinderen, M., Singh, P. M. 2015. SOA

and EDA: A comparative study: Similarities,

differences and conceptual guidelines on their usage. In

e-Business and Telecommunications (ICETE), 2015

12th IEEE International Joint Conference on, (2), pp.

213-220.

Ciganek, A., Haines, M., Haseman, W. 2009. Service

Oriented Architecture Adoption: Key Factors and

Approaches, Journal of Information Technology

Management (20:3), pp. 42-54.

Carey, M. J. 2008. SOA what?, IEEE Computer (3:41), pp.

92-94.

Fereday, J., Muir-Cochrane, E. 2006. Demonstrating Rigor

Using Thematic Analysis: A Hybrid Approach of

Inductive and Deductive Coding and Theme

Development, International Journal of Qualitative

Methods, pp. 80-92.

Harishankar, R., Daley, S.K. 2011. Actionable Business

Architecture, in IEEE 13th Conference on Commerce

and Enterprise Computing (CEC), pp. 318-324.

Hau, T., Ebert, N., Hochstein, A., Brenner, W. 2008. Where

to Start with SOA: Criteria for Selecting SOA Projects,

in Proceedings of the 41st Annual Hawaii International

Conference on System Sciences, (314), pp. 1-9.

Hoogervorst, J. 2004. Enterprise architecture: Enabling

integration, agility and change, International Journal of

Cooperative Information Systems, (13:03) pp. 213-233.

Joachim N. 2011. A literature review of research on service-

oriented architectures (SOA): characteristics, adoption

determinants, governance mechanisms, and business

impact. AMCIS 2011 Proceedings, 339.

Kistasamy, C., van Der Merwe, A., De La Harpe, A. 2010.

The relationship between service oriented architecture

and enterprise architecture, in 2010 14th IEEE

International Enterprise Distributed Object Computing

Conference Workshops, pp. 129-137.

Koch, C. 2007. How to get the most from SOA, CIO,

(20:22), pp. 53-60.

Komoda, N. 2006. Service Oriented Architecture (SOA) in

Industrial Systems, IEEE International Conference on

Industrial Informatics, 2006, pp. 1-5.

Krafzig, D., Banke, K., Slama, D. 2005. Enterprise SOA:

Service Oriented Architecture Best Practice. New

Jersey: Pearson Education Inc.

Lewis, G., Morris, E. J., Smith, D. B., Wrage, L. 2005.

Service-Oriented Architectures as an Interoperability

Mechanism, News at SEI, Carnegie Mellon University.

Retrieved

http://www.sei.cmu.edu/library/abstracts/news-at-

sei/eyeonintegration20052.cfm

Service-oriented Architecture: Describing Beneﬁts from an Organisational and Enterprise Architecture Perspective

491

MacLennan, E., van Belle, JP. 2014. Factors Affecting the

Organisational Adoption of Service-Oriented

Architecture (SOA), Information Systems and e-

Business Management, (12:1), pp. 71-100.

Malekzadeh, B. 2010. Event-Driven Architecture and SOA

in collaboration, Masters Thesis. University of

Gothenburg.

Rabhi, F.A., Yu, H., Dabous, F.T. Wu, S.Y. 2007. A

service-oriented architecture for financial business

processes, Information Systems & e-Business

Management, (5:2), pp. 185-200.

Reyes-Delgado, P.Y., Mora, M., Duran-Limon, H.A.,

Rodríguez-Martínez, L.C., O'Connor, R.V. and

Mendoza-Gonzalez, R. 2016. The strengths and

weaknesses of software architecture design in the RUP,

MSF, MBASE and RUP-SOA methodologies: A

conceptual review, Computer Standards & Interfaces,

(47), pp. 24-41.

Rohloff, M. 2011. Integrating Innovation into Enterprise

Architecture, in Wirtschaftinformatik Proceedings, pp.

776-785. Association for Information Systems.

Sasa, A., Krisper, M. 2011. Enterprise architecture patterns

for business process support analysis, Journal of

Systems and Software, (84:9), pp. 1480-1506.

Simon, D., Fischbach, K., Schoder, D. 2013. An

Exploration of Enterprise Architecture Research,

Communications of the Association for Information

Systems (32), pp. 1-72.

Singh, N., Tyagi, K. 2015. A Literature Review of the

Reliability of Composite Web Service in Service-

Orientated Architecture, ACM SIGSOFT Software

Engineering Notes, (40:1), pp. 1-8.

Soni, B. 2005. A New Service-Oriented Architecture

(SOA) Maturity Model, White Paper, Sonic Software

Corporation, Amber Point Inc. Retrieved

http://soa.omg.org/Uploaded%20Docs/SOA/SOA_Ma

turity.pdf.

Stojanović, Z., Dahanayake, A. (Eds.). 2005. Service-

oriented software system engineering: challenges and

practices. IDEA Group, Hershey.

The Open Group. 2009. Service Oriented Architecture.

Retrieved https://www.opengroup.org/soa/source-

book/soa/index.htm

The Open Group. 2011. TOGAF® Version 9.1 Chapter 2

Core Concepts. Retrieved

http://pubs.opengroup.org/architecture/togaf9-

doc/arch/chap02.html

Vom Brocke, J., Becker, J., Braccini, A.M., Butleris, R.,

Hofreiter, B., Kapočius, K., De Marco, M., Schmidt,

G., Seidel, S., Simons, A. Skopal, T., 2011. Current and

future issues in BPM research: a European perspective

from the ERCIS meeting 2010, Communications of the

Association for Information Systems (28), pp. 393-414.

Valipour, H., Amirzafari, B., Maleki, K., Daneshpour, N.

2009. A brief survey of Software Architecture and

Service Oriented Architecture, in 2nd IEEE

International Conference on Computer Science and

Information Technology, pp. 34-38.

Viering G, Legner C, Ahlemann F. 2009. The (lacking)

business perspective on SOA-critical themes in SOA

research. Wirtschaftsinformatik.

Walsham, G. 2006. Doing interpretive research. European

Journal of Information Systems, 15, pp. 320- 330.

Yin, R. K. 2012. A (very) brief refresher on the case study

method. Applications of case study research, pp. 3-20.

Sage.

Yoon T, Carter P. 2007. Investigating the antecedents and

benefits of SOA implementation: a multi-case study

approach. AMCIS 2007 Proceedings. 195.

Zhao Y. 2013. Enterprise Architecture and SOA.

ArchiTech Consulting LLC. Retrieved

http://www.architechllc.com/uploads/Publications/EA-

SOA.pdf

AEM 2017 - 1st International Workshop on Advanced Enterprise Modelling

492
