Meaning of Cause-and-effect Relations of the Topological

Functioning Model in the UML Analysis Model

Erika Nazaruka

Department of Applied Computer Science, Riga Technical University, Sētas iela 1, LV-1048, Riga, Latvia

Keywords: System Modelling, System Analysis, Topological Functioning Model, Cause-and-Effect Relations,

Associations, UML.

Abstract: Topological Functioning Model specifies functional and structural characteristics of a system in the holistic

manner. Cause-and-effect relations link cause and effect functional characteristics of the system, illustrating

causality in it. The Unified Modelling Language (UML) provides its own relationship kinds among

elements. Traditionally, a use of UML relationships depends on analyst’s experience in UML and

knowledge about the system. However, after TFM transformation meaning of cause-and-effect relations in

UML model is not always clear. The paper summarizes research results on this matter and provides

mapping guidelines from TFM causal relations to often used UML relationships. These guidelines can be

applied in further (manual or automated) refinement of UML diagrams.

1 INTRODUCTION

Principles of Model Driven Architecture (MDA) has

opened a very interesting perspective of automated

software model transformations from analysis

models to code. In MDA terms analysis and design

models are called platform independent and platform

specific models correspondingly. There are plenty

researches of code generation from platform specific

models and transformations from platform

independent to platform specific models. But the

question about automated transformation of domain

knowledge to the analysis/design model, i.e. from a

computation independent model to a platform

independent or platform specific one is still open.

According to (Miller and Mukerji, 2001), a

computation independent model (CIM) represents a

system in a form of domain models, business

models, domain vocabulary, or system requirements.

Usually, it is expressed as structured or unstructured

text or semi-formal modelling languages (Singh and

Sood, 2010; Siqueira and Silva, 2012) such as

Unified Modelling Language (UML) and Business

Process Model and Notation (BPMN) that could

cover several or all viewpoints on the system, i.e.

static, behavioural, and functional (Kriouile et al.,

2013).

Speaking about dedication of the CIM to

software development, one of its major goals is to

bridge a real (business, problem) domain with its

corresponding software solution. Achievement of

this goal is difficult (but not impossible), since

requires a use of formal languages or formal models

instead of semiformal models and text at the very

beginning of development. This goal could be

achieved by using a Topological Functioning Model

(TFM) that bridge the problem and solution domains

via formalism provided by the algebraic topology

and system theory, it is discussed in detail in (Osis et

al., 2007a).

The TFM is a formal mathematical model that

allows modelling and analysing functionality of the

system (Osis and Asnina, 2011c). The system could

be a business system, software, biological system,

mechanical system, etc. The TFM represents its

functionality as a digraph



, Θ



, where X is a set of

inner functional characteristics (called functional

features) of the system, and Θ is a topology set on

the characteristics in a form of a set of cause-and-

effect relations. TFM models can be compared for

similarities using continuous mapping mechanism

(Asnina and Osis, 2010).

The open question is about transformation of

cause-and-effect relations into associations between

classes in analysis/design models, since as it is

illustrated in (Osis and Asnina, 2011c; Donins et al.,

336

Nazaruka, E.

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model.

DOI: 10.5220/0006384403360345

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 336-345

ISBN: 978-989-758-250-9

2011; Asnina et al., 2013) the causality semantics is

of many forms that create two types of a flow,

namely, a control flow and a data flow. The

continuous mapping mechanism can drive

discovering of structural relationships between

domain objects.

This paper summarizes several research results

and gives guidelines on transformation of cause-and-

effect relations to control flows and structural

relationships between domain objects modelled

using UML types of relationships.

Section 2 describes the related work in CIM to

PIM transformations. Section 3 discusses findings in

transformation of cause-and-effect relation within

Topological Functioning Modelling for MDA

(TFM4MDA), TopUML and Integrated Domain

Modelling (IDM) approaches, and provides mapping

guidelines from TFM causal relations to UML

relationships. At the end, conclusions and further

directions for research are outlined.

2 RELATED WORK

The CIM can be presented in the form of Data Flow

Diagram (DFD) and transformed to use case

diagrams, activity diagrams, sequence diagrams and

domain diagrams, which are the base for further

obtaining of class diagrams (Kardoš and Drozdová,

2010). In this research, the transformation to

behaviour diagrams allows correct mapping to

control flows between activities, messages between

objects, but a mapping to domain diagrams is

incomplete. It allows defining concepts and

navigations among them, but information about

structural relationships and multiplicity must be

added by the modeler.

The authors in (Kriouile et al., 2013) have

investigated results of several research papers on

CIM to PIM transformations. The presented results

showed that transformation to class diagrams

requires additional refinements, since usually after

the transformation it provides “a first sketch of the

system structure” and lacks such important details as

class operations, multiplicities in associations,

structural relation types as well as relations. The

authors underline that the CIM must cover all three

aspects of the system, namely, behavioural,

functional and static. Their research of

transformation from the BPMN model to use cases

(Kriouile et al., 2015) to behavioural and domain

classes models resulted in complete acquisition of

control flows and message flows, however, the

domain classes model contains only aggregation

relationships obtained from the BPMN pools and

lanes (Kriouile et al., 2014). The same source and

target models are presented in (Bousetta et al.,

2013), and the transformation to the domain classes

model is supported by using of structural business

rules that allow keeping knowledge about terms and

facts, as well as relations among them. This allows

getting necessary static knowledge such as names of

classes, compositions and aggregations among them,

generalization/specialization relationships,

navigations, and multiplicity in associations in semi-

automatic way. Additionally, the knowledge about a

list or a set of some terms can be expressed as a

constrain in Object Constraint Language (OCL). The

business rules are presented using a subset of natural

languages, thus trying to avoid ambiguity.

Authors in (Rhazali et al., 2015; Rhazali et al.,

2016) transform CIM represented in form of use

case and activity diagrams to the class diagram,

where control flows of the activity diagrams are

transformed to bidirectional navigations with many-

to-many multiplicity in the class diagram. Further

refinement requires human participation.

Transformation from BPMN diagrams to UML

class diagrams and state diagrams for each class

presented in (Mokrys, 2012) also requires additional

participation of a modeler in order to refine

relationships among classes.

Authors in (Kherraf et al., 2008) have proposed

application of patterns to structure of a CIM and a

set of four archetypes that drive generation of a PIM.

In their approach, a CIM model consists of the

business process model (manual and automated) and

the requirements model that specifies activities that

should be automated to support the business

activities. The business process model contains also

data objects. The requirements model is a model of

use cases expressed by means of UML activity

diagrams. A use case is transformed into a process

component that is linked with various entity

components. Links are bidirectional without any

additional information but roles. The roles are

presented as four archetypes: Moment-Interval that

usually corresponds to a process component, and

PPT (Party, Place, Thing), Role and Description that

correspond to an entity component.

The authors in (Essebaa and Chantit, 2016)

similarly to (Bousetta et al., 2013) formalize

business rules and requirements that allow them

getting constraints in OCL, but instead of a subset of

a natural language they use SBVR (Semantic of

Business Rules and Vocabulary) standard. The CIM

consists of a use case model extended with data

objects and business rules in SBVR. The static

viewpoint of the PIM is represented by a class

diagram, however elements in it are linked with

bidirectional associations, and requires additional

refinement.

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model

337

Summarizing results of related work, the

conclusion is that static viewpoint of the system

represented as a [domain] class diagram in many

approaches proposed is limited with relationships

obtained from control flows at the CIM level. It is

possible to derive aggregation and composition

(from BPMN models), and (intuitive) bidirectional

navigation between domain classes. More advanced

characteristics such as a specific navigation,

multiplicity and roles in associations as well as

generalization/specialization must be added

manually or explicitly defined in business rules

specified in formalized natural language, i.e. by

using a predefined subset of a natural language or in

the form of SBVR statements.

3 MEANING OF CAUSE-AND-

EFFECT RELATIONS

3.1 Topological Functioning Model

The TFM is a formal mathematical model that has

been first introduced by Janis Osis in 1969 at Riga

Technical University (RTU), Latvia (Osis, 1969).

Several decades this model has been dedicated for

mathematical specification of functionality of

complex mechanical systems (Osis and Asnina,

2011c), but since 1990s it is being elaborated for

software development (Solomencevs, 2016).

The TFM represents system functionality in a

holistic manner as a CIM (Asnina and Osis, 2011). It

describes the functional and structural aspects of the

software system in the form of a directed graph

(X, Q), where a set of vertices X depict functional

characteristics of the system named in human

understandable language, while Q is a set of edges

that depict causal relations (topology) between them.

Such specification is more perceived, precise and

clearer then the large textual descriptions. The TFM

is characterized by the topological and functioning

properties (Osis and Asnina, 2011b). The

topological properties are connectedness,

neighbourhood, closure, and continuous mapping.

The functioning properties are cause-and-effect

relations, cycle structure, inputs, and outputs. The

composition of the TFM is presented in (Osis and

Asnina, 2011c).

Rules of composition and derivation processes

within TFM4MDA from the textual system

description is provided by examples and described in

detail in (Asnina 2006b; Osis et al. 2007b; Osis et al.

2008). The TFM can also be generated automatically

from the business use case descriptions, which can

be specified in the IDM toolset (Šlihte and Osis,

2014). It also can be manually created in the TFM

Editor from the IDM toolset.

Speaking about TFM element, a functional

feature represents some system’s functional

characteristic, e.g., a business process, a task, an

action, or an activity (Osis and Asnina, 2011b). It

can be specified by a unique tuple (1) (Osis and

Asnina, 2011c).

<A, R, O, PrCond, PostCond, Pr, Ex> (1)

Where (1):

 A is object’s action,

 R is a set of results of the object’s action (it is an

optional element),

 O is an object that gets the result of the action or

a set of objects that are used in this action,

 PrCond is a set of preconditions or atomic

business rules,

 PostCond is a set of post-conditions or atomic

business rules,

 Pr is a set of features providers, i.e. entities

(systems or sub-systems) which provide or

suggest an action with a set of certain objects,

 Ex is a set of executors (direct performers) of the

functional feature, i.e. a set of entities (systems

or sub-systems) which enact a concrete action.

The cause-and-effect relations between functional

features define the cause from which the triggering

of the effect occurs.

The formal definition of the cause-and-effect

relations and their combinations are given in (Asnina

and Ovchinnikova, 2015). It states that a cause-and-

effect relation is a binary relationship that links a

cause functional feature to an effect functional

feature. In fact, this relation indicates control flow

transition in the system (

Figure 1).

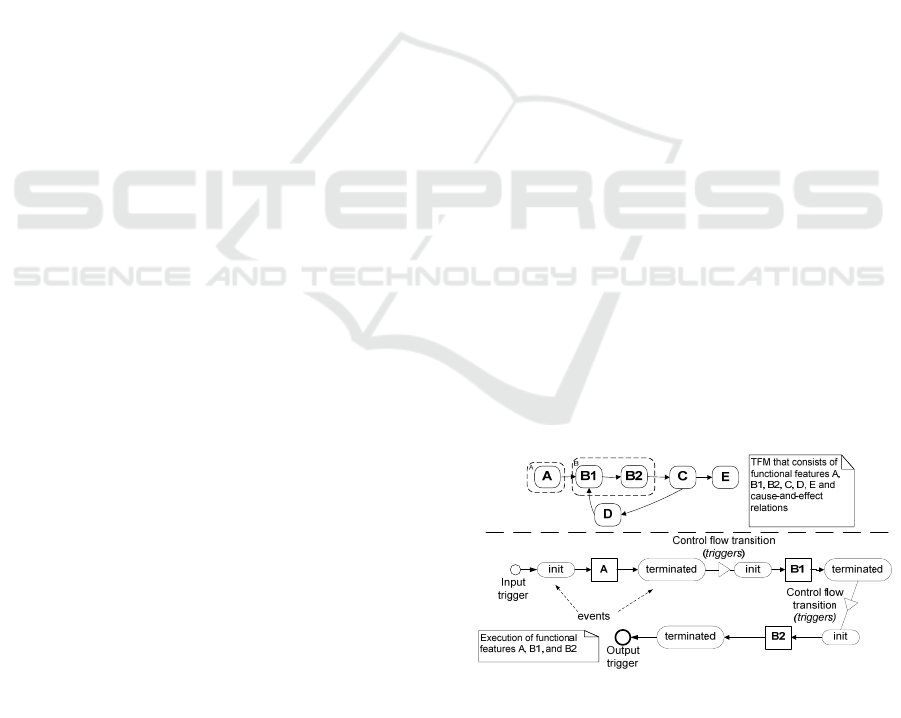

Figure 1: The execution of the functional feature instance

(Nazaruka et al., 2016).

The cause-and-effect relations (and their

combinations) may be joined by the logical

operators, namely, conjunction (AND), disjunction

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

338

(OR), or exclusive disjunction (XOR). The logical

relation denotes system execution behaviour (e.g.,

decision making, parallel or sequential actions).

The TFM can be manually (but according to the

precise rules) transformed into most used UML

diagram types: use cases (Osis and Asnina, 2011a)

and others (Donins et al., 2011).

3.2 Cause-and-Effect Relations in

TFM4MDA, TopUML and IDM

The TFM4MDA has been developed as an approach

for computation independent modelling within the

MDA. The main idea is that the TFM can serve as a

foundation for domain knowledge modelling,

software requirements verification according to

them, and identification of a use case model and a

conceptual class diagram (Osis et al., 2008).

The TFM4MDA gives a set of characteristics of

a cause-and-effect relation (Asnina et al., 2013;

Asnina & Osis 2010): time dimension, causal

connections allow exceptions in operation,

sufficiency and necessity for generation of effects, a

series of parallel or serial factors involved, and the

universality.

During transformation from the TFM to a use

case model, cause-and-effect relations of the TFM

are transformed to control flows between activities

in UML activity diagrams that serve as use case

specifications (Osis and Asnina, 2011a).

The TFM4MDA provides also transformation to

a conceptual class diagram. However, the conceptual

diagram holds relations between classes, but it is

assumed to be bidirectional. In order to make these

relations more accurate, the topological graph can be

transformed into a sketch (a special form of

representation for Universal Categorical Logic

(Diskin et al., 2000)), then refined, and represented

as a refined conceptual class diagram.

Such transformation also indicates possible

inheritance relations among types and common

operations, which can be further transformed into

interface classes (Osis nd Asnina, 2008). The

underlying logic is discussed in (Asnina, 2006a),

where it is stated that while refining simplified

functional features of the topological functioning

model G(X, ) to the specialized ones of the G*(X*,

 *) the following significant case can occur: “If a

functional feature x

of the G (X, ) is continuously

mapped onto functional features x

*, …, x

* of the

G*(X*, *), they specify the same action over

objects of different types and do not have cause-and-

effect relations between them, then this case

indicates a possible inheritance relation between an

object of the x

and objects of the specialized

functional features x

*, …, x

*”.

For example, if there is a part of the TFM for

some actions on the report (

Figure

2) that has a

functional feature 2 “Generate a report” with action

“generate” on an object of type “Report”. During

modelling, functional feature 2 is continuously

mapped onto both functional features 2.1 “Generate

a UserReport” and 2.2. “Generate a AdminReport”

in the refined TFM (

Figure

3). Feature 2.1 and 2.2.

do not have cause-and-effect relations among them.

Therefore, it could be assumed that types

UserReport and AdminReport are subtypes of the

type Report.

Figure 2: The TFM for modelling some actions on reports.

Figure 3: The refined TFM for modelling some actions on

reports.

Otherwise, if there are functional features x

, …, x

of the G(X, ) which specify the same action over

objects of different types and may have cause-and-

effect relations between them, then this case

indicates a possible interface class that can be

realized by objects of these types. For example, if

only the TFM in

Figure

3 exists, then objects of types

UserReport and AdminReport could realize the same

interface class with operation generate().

In the TFM4MDA, the decision about other

structural relations (aggregations, dependencies,

directed associations) among object classes must be

made by an analyst in accordance with the problem

domain description and some additional analysis.

The sketch approach that implements the Universal

Categorical Logic can serve as a formal background

for that decision making. For example, in case of the

TFM defined in two levels of abstraction (

Figure

and

Figure

3), the produced class diagram would

look like in

Figure

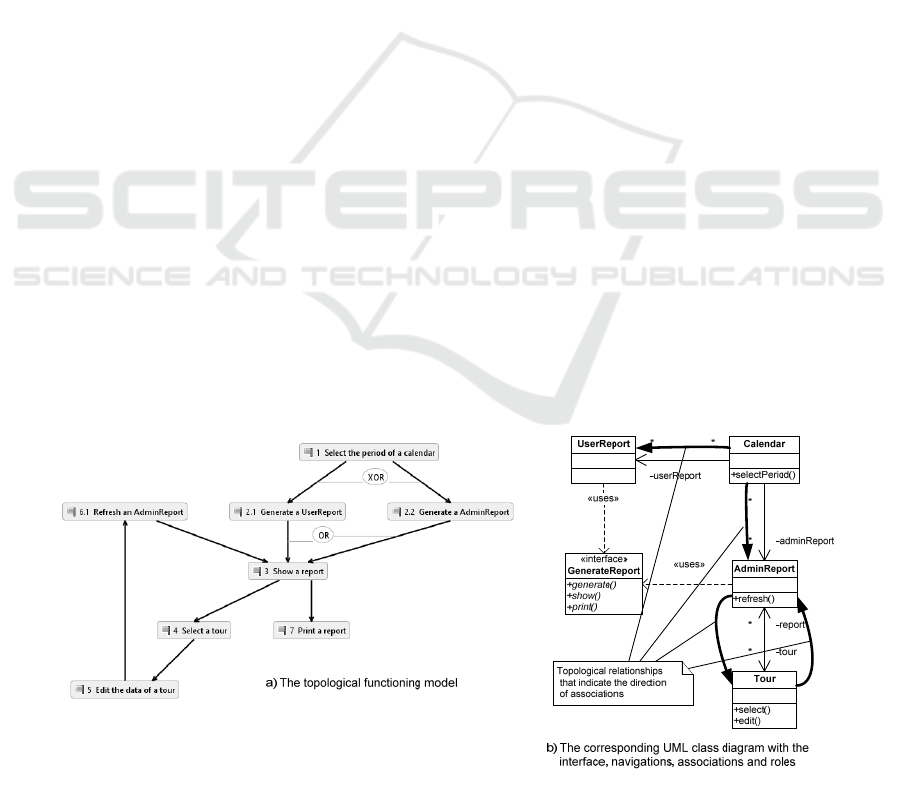

The Topological UML (TopUML) is a language

that extends UML metamodel with the concept of a

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model

339

topological relation and a topological functioning

model, and modifies a use case diagram and a class

diagram to the topological use case diagram and

topological class diagram correspondingly. The

TopUML approach explicates the idea of getting

behavioural and structural diagrams from the TFM

and uses TopUML language for modelling the

system in the prescribed order (Donins, 2012).

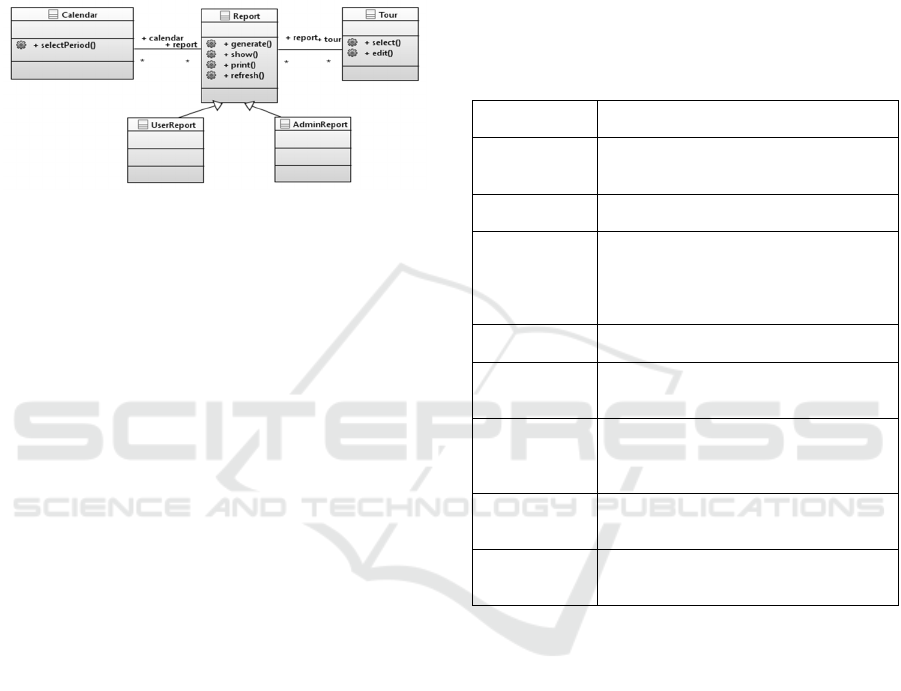

Figure 4: The produced class diagram within the

TFM4MDA.

In contrast with the TFM4MDA, the TopUML

considers that cause-and-effect relations in the TFM

are not equal to associations in the UML class

diagram (Table 1). The TopUML extracts a

topological relation as a separate type of relations

between UML constructs (Donins et al., 2011;

Donins et al., 2012). Table 1 summarizes how

topological relations are defined in TopUML

diagrams in comparison with the UML diagrams as

it is stated in (Donins, 2012). It approves the

statement made in the TFM4MDA that a topological

relation should be mapped to the control flow (a

control flow, a message, and a transition) when

analyse behaviour of the system. The topological

relation in the use case diagram indicates the

direction in which triggering occurs. The unclear is

how to define meaning of the topological relation in

the class diagram.

Let us consider definitions of the topological

relationship and operation stated in (Donins, 2012):

 The topological relationship is “a binary

relationship that shows a cause-and-effect

relation between two elements – the source

element and the target element. A topological

relationship is assertion that indicates that the

effect element can be triggered only by the cause

element thus showing that effect element is

executed only after the cause element executes”.

 Topological operation is a “behavioural feature

of classifier that specifies the name, type,

parameters, and constraints for invoking an

associated behaviour, and related functional

features and topological relationships for

specifying cause-and-effect relations within

system, thus allowing cause-and-effect relations

to be modelled within the system by means of

behavioural”.

The TopUML author distinguishes UML and TFM

relationship objectives, so “the topological

relationship defines the causality within Topological

class diagram while association defines the structure

of … classes” (Donins, 2012). However, as related

work shows, some structural characteristics depend

on interaction between elements.

Table 1: Cause-and-effect relations in UML and TopUML.

TopUML

Diagram

Extension to UML Diagrams

Topological

class diagram

Topological relationship is introduced for

modelling cause-and-effect relations

between classes

Activity

diagram

Topological relationship is mapped to the

control flow from one node to another

Topological use

case diagram

Topological relationship is introduced to

show “formally defined communication

between a use case and an actor, showing

who is triggering the communication”

(Donins, 2012)

State diagram

Topological relationship is mapped to the

transition relationship between states

Sequence

diagram

Topological relationship is mapped to a

message sending from one lifeline to

another

Communication

diagram

Topological relationship is mapped to a

message sending from one lifeline to

another (the same construct as in the

sequence diagram)

Interaction

overview

diagram

Topological relationship is mapped either

to the control flow or to the message

between lifelines

Timing

diagram

Topological relationship is mapped to the

message sent between lifelines that cause

changes in their states or conditions

Integrated Domain Modelling (IDM) is an

approach that explicates the TFM4MDA and

TopUML approaches (Šlihte and Osis, 2014). The

main idea is to generate the TFM from structured

text fragments, i.e. textual use case specifications,

and validate knowledge obtained from use cases

against domain ontology (Fernández Céspedes et al.,

2015). Ontology must represent declarative domain

knowledge in the form suitable for computer

processing.

The IDM also provides guidelines for

transformation from the TFM to the UML class

diagram, however, this approach avoid defining any

kind of relationships between classes (Solomencevs

and Osis, 2015).

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

340

3.3 Mappings from Cause-and-effect

Relations to UML Relationships

Summarizing results from all the three approaches,

namely, TFM4MDA, TopUML and IDM, the

following guidelines for determination of meanings

of cause-and-effect relations in UML diagrams can

be stated.

UML behavioural diagrams (the behavioural

view on the system):

 Activity Diagram – a direct mapping to the

control flow as it is defined in the TopUML;

 State Diagram – a direct mapping to the

transition relationships as it is defined in the

TopUML;

 Sequence Diagram – a direct mapping to the

messages between lifelines as it is defined in the

TopUML;

 Communication Diagram – a direct mapping to

the messages between lifelines as it is defined in

the TopUML;

 Interaction Overview Diagram – a direct

mapping to the messages between lifelines or to

the control flow as it is defined in the TopUML;

 Timing Diagram – a direct mapping to the

message sent between lifelines that causes

changes in their states or conditions as it is

defined in the TopUML;

 Use case diagram (in some approaches it is

considered as the functional view on the system)

– here the topological use case model can serve

as an intermediate model or transformation step

that could help in determining a direction of

communication between an actor and a use case

as well as to identification of extensions and

inclusions.

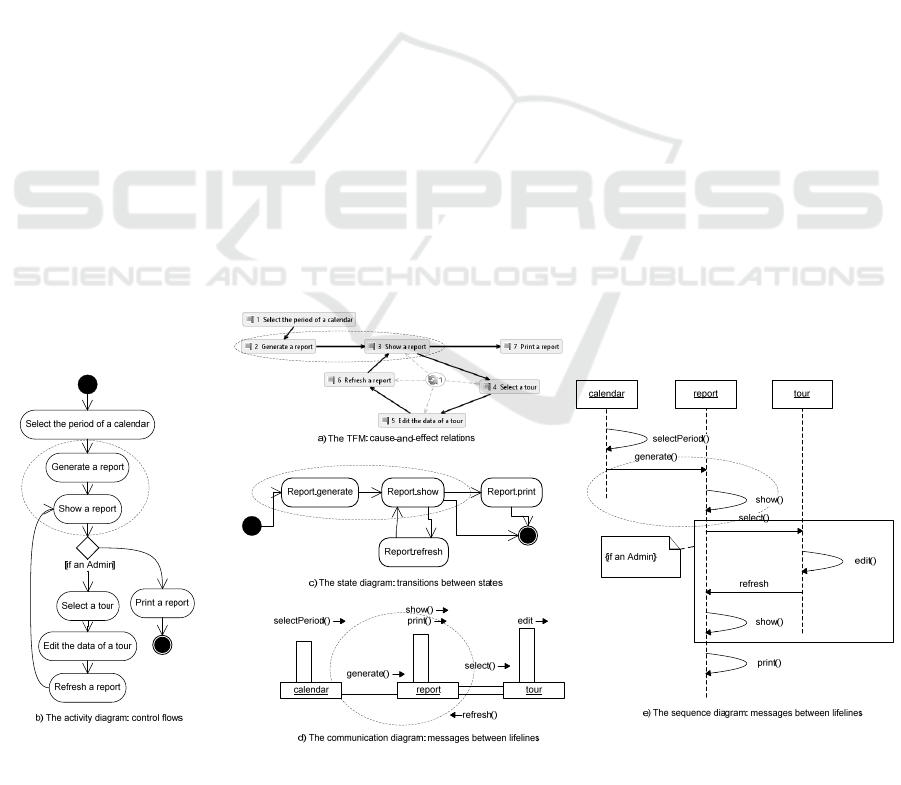

The transformation from the TFM in Figure 2 to the

first four behavioural diagrams is illustrated in Figure

. Fragments in ellipses show how a cause-and-

effect relation from functional feature 2 “Generate a

report” to functional feature 3 “Show a report” (part

a) is transformed to the control flow between

activities “Generate a report” and “Show a report” in

the activity diagram (part b); to the transition

relationship between two states of the object Report,

namely, “generate” and “show” (part c); to the

messages between lifelines calendar:Calendar and

report:Report in the communication diagram (part d)

and in the sequence diagram (part e).

The UML class diagram (the structural view on

the system):

 Generalization/Specialization – a structural

relationship that can be defined in case if there is

a set of specialized functional features, which

actions specify the same action over objects of

different types as a functional feature at the

higher level of abstraction does for its object and

they do not have cause-and-effect relations

between themselves (as it is stated in the

TFM4MDA). The illustrating example was

discussed in Section 3.2.

Figure 5: Transformation from the TFM to the activity, state, sequence and communication diagrams.

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model

341

 Realization between classes and interfaces – it

comes from the determination of

generalization/specialization. If several

functional features at the same level of

abstraction have the same action for different

types of objects, then this action can be extracted

to the interface class. However, if these

functional features are continuously mapped to

the functional feature at the higher level of

abstraction, then this indicates rather on different

implementations of the superclass operation (the

refined guideline stated in the TFM4MDA).

 Navigation and Association – a kind of

behavioural relationship that can be obtained

from the analysis of directions of cause-and-

effect relations among functional features with

the object of the concrete type and functional

features with the objects of other types: in case if

all cause-and-effect relations among the

mentioned functional features have the same

direction, this indicates the navigation;

otherwise, it is the association. This statement is

based on the results that come from the

TopUML, namely, these two relationships

indicates on calls of the operations which in case

of sequence and communication diagrams are

direct mappings from the cause-and-effect

diagrams to the messages between object

lifelines.

 Roles – a characteristic that may come either

from the domain knowledge or be just

automatically created based on the domain object

type (class name) and some automatic

incremental number generator.

 Aggregation and Composition – a structural

relationship that should be obtained from the

domain knowledge (as further elaboration of the

idea proposed in the IDM).

 Dependency – a kind of behavioural relationship

for event-driven system, where an event is a

special case of action. Thus, “event” is a

characteristic of the action that may come from

the domain knowledge (as further elaboration of

the idea proposed in the IDM).

 Multiplicity – a characteristics that should be

obtained from the domain knowledge (as further

elaboration of the idea proposed in the IDM).

In case of realization of interfaces, determination of

navigations, associations and, partially, roles, the

necessary knowledge can be obtained from the TFM

as illustrated in Figure 6.

Here we have two object types UserReport and

AdminReport (part a) that are transformed to two

classes with the same names (part b). Functional

features 3 and 7 of the TFM are feature sets that

holds functionality for both these objects. Therefore,

it is possible to extract this functionality to the

interface class with operations generate(), show(),

print(). However, operation refresh() can be

assigned only to AdminReport. Certainly, further

analysis can lead to including this operation to the

same interface class.

Bold arrows denote directed cause-and-effect

relations between classes. Their direction is applied

to associations by indicating navigable ends of them,

i.e. in case of topological relationship from Calendar

to UserReport it is possible to map it to a navigation

from Calendar to UserReport. In the presented

example (Figure 6, part b) roles are generated from

the names of classes related to each other by

association or navigation.

Figure 6: The UML class diagram (b) obtained from the TFM (a).

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

342

Other structural characteristics of relationships

between domain objects, i.e. aggregation,

composition, multiplicity and dependencies, are pure

declarative knowledge. Therefore, the idea of

keeping them in domain ontology that could be

proceeded during transformation is very promising.

Summarizing, the abovementioned mappings

illustrate that it is possible to get most of the often-

used types of UML relationships when transforming

from the TFM to the analysis model. In case of

structural relationships and characteristics of objects

or actions, the declarative knowledge on the domain

should be used. This knowledge can be represented

as ontology according to the idea provided in the

IDM.

4 CONCLUSIONS

The overview of the related work showed that in

many proposed approaches the transformation to the

behavioural diagrams is mostly successful, however

structural diagrams are limited with the aggregation

and composition obtained from the BPMN model for

several data objects (mainly representing pools and

lanes within it), and intuitive associations between

domain classes. Other relationships that represent

generalization/specialization, specific navigations,

multiplicities and roles must be added manually or

predefined in business rules.

The overview of three approaches, namely,

TFM4MDA, TopUML and IDM, that make

transformations to and from the TFM showed that

there is the same weakness regarding to structural

diagrams. Generalizations/specializations between

classes and realizations between classes and

interfaces can be generated after analysis of TFM

abstraction levels. Besides that, transformation from

the TFM to the class diagram suggests keeping the

cause-and-effect relations between classes. Thus,

navigations and associations could be obtained by

analysis of directions of cause-and-effect relations.

To get other structural information, there is a

necessity to hold declarative knowledge about the

domain in some computational format, e.g.

ontology. The ontology should be useful for

automated generation of aggregations, compositions,

dependencies, multiplicities as well as roles that

depend on the context.

The future research is dedicated to

implementation and validation of automation of the

proposed guidelines and domain ontology to get the

more complete class diagram that should be in

conformity to other (behavioural) diagrams of the

system under consideration.

REFERENCES

Asnina, E., 2006a. Formalization of Problem Domain

Modeling within Model Driven Architecture. Riga

Technical University.

Asnina, E., 2006b. The Computation Independent

Viewpoint: a Formal Method of Topological

Functioning Model Constructing. Applied computer

systems, 26, pp.21–32.

Asnina, E. & Osis, J., 2010. Computation Independent

Models: Bridging Problem and Solution Domains. In

Proceedings of the 2nd International Workshop on

Model-Driven Architecture and Modeling Theory-

Driven Development. Lisbon: SciTePress - Science

and and Technology Publications, pp. 23–32.

Asnina, E. & Osis, J., 2011. Topological Functioning

Model as a CIM-Business Model. In Model-Driven

Domain Analysis and Software Development. Hershey,

PA: IGI Global, pp. 40–64.

Asnina, E., Osis, J. & Jansone, A., 2013. Formal

specification of topological relations. In Frontiers in

Artificial Intelligence and Applications. Amsterdam:

IOS Press, pp. 175–188.

Asnina, E. & Ovchinnikova, V., 2015. Specification of

decision-making and control flow branching in

Topological Functioning Models of systems. In

ENASE 2015 - Proceedings of the 10th International

Conference on Evaluation of Novel Approaches to

Software Engineering. Lisbon: SciTePress, pp. 364–

373.

Bousetta, B., Beggar el, O. & Gadi, T., 2013. A

methodology for CIM modelling and its

transformation to PIM. Journal of Information

Engineering and Applications, 3(2), pp.1–21.

Available at: www.iiste.org [Accessed February 17,

2017].

Diskin, Z. et al., 2000. Universal Arrow Foundations for

Visual Modeling. In V. H. M. Anderson, P. Cheng, ed.

Diagrams’2000: Proc. 1st Int. Conference on the

theory and application of diagrams, Edinburgh

(Scotland), UK, Sept. 1-3, 2000. LNAI#1889. Springer,

pp. 345–360. Available at:

http://www.cs.toronto.edu/~zdiskin/pubs-in-

ChronOrder.htm [Accessed February 21, 2017].

Donins, U. et al., 2012. Formal analysis of objects state

changes and transitions. In ENASE 2012 - Proceedings

of the 7th International Conference on Evaluation of

Novel Approaches to Software Engineering. Lisbon:

SciTePress, pp. 249–256.

Donins, U., 2012. Topological Unified Modeling

Language: Development and Application. Riga

Technical University.

Donins, U. et al., 2011. Towards the refinement of

topological class diagram as a platform independent

model. In A. Čaplinskas et al., eds. Proceedings of the

3rd International Workshop on Model-Driven

Architecture and Modeling-Driven Software

Development, MDA and MDSD 2011, in Conjunction

with ENASE 2011. Vilnius: Žara, pp. 79–88.

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model

343

Essebaa, I. & Chantit, S., 2016. Toward an automatic

approach to get PIM level from CIM level using QVT

rules. In 2016 11th International Conference on

Intelligent Systems: Theories and Applications (SITA).

Mohammedia: IEEE, pp. 1–6. Available at:

http://ieeexplore.ieee.org/document/7772271/

[Accessed February 17, 2017].

Fernández Céspedes, K.V., Osis, J. & Alksnis, G., 2015.

Lessons Learned by using the Integrated Domain

Modeling Toolset. In Proceedings of the 10th

International Conference on Evaluation of Novel

Approaches to Software Engineering. SCITEPRESS -

Science and and Technology Publications, pp. 352–

363. Available at: doi=10.5220/0005477703520363

[Accessed February 21, 2017].

Kardoš, M. & Drozdová, M., 2010. Analytical method of

CIM to PIM transformation in model driven

architecture (MDA). Journal of Information and

Organizational Sciences, 34(1), pp.89–99.

Kherraf, S., Lefebvre & Suryn, W., 2008. Transformation

from CIM to PIM Using Patterns and Archetypes. In

19th Australian Conference on Software Engineering

(aswec 2008). IEEE, pp. 338–346. Available at:

http://ieeexplore.ieee.org/document/4483222/

[Accessed February 17, 2017].

Kriouile, A. et al., 2014. Getting the static model of PIM

from the CIM. In 2014 Third IEEE International

Colloquium in Information Science and Technology

(CIST). Tetouan: IEEE, pp. 168–173. Available at:

http://ieeexplore.ieee.org/document/7016613/

[Accessed February 17, 2017].

Kriouile, A., Addamssiri, N. & Gadi, T., 2015. An MDA

Method for Automatic Transformation of Models from

CIM to PIM. American Journal of Software

Engineering and Applications, 4(1), pp.1–14.

Available at: doi=10.11648/j.ajsea.20150401.11

[Accessed February 16, 2017].

Kriouile, A., Gadi, T. & Balouki, Y., 2013. CIM to PIM

Transformation: A Criteria Based Evaluation.

Int.J.Computer Technology & Applications, 4(4),

pp.616–625.

Miller, J. & Mukerji, J., 2001. Model Driven Architecture

( MDA ), Available at: http://www.omg.org/cgi-

bin/doc?ormsc/2001-07-01.

Mokrys, M., 2012. Possible transformation from Process

Model to IS Design Model. In ICTIC -

PROCEEDINGS IN CONFERENCE OF

INFORMATICS AND MANAGEMENT SCIENCES.

EDIS - Publishing Institution of the University of

Zilina, pp. 71–74.

Nazaruka, E. et al., 2016. Verification of BPMN Model

Functional Completeness by using the Topological

Functioning Model. In Proceedings of the 11th

International Conference on Evaluation of Novel

Software Approaches to Software Engineering.

Portugal: SCITEPRESS - Science and and Technology

Publications, pp. 349–358. Available at:

doi=10.5220/0005930903490358 [Accessed February

20, 2017].

Osis, J., 1969. Topological Model of System Functioning

(in Russian). Automatics and Computer Science, J. of

Academia of Siences, (6), pp.44–50.

Osis, J. & Asnina, E., 2011a. Derivation of use cases from

the topological computation independent business

model, Hershey, PA: IGI Global.

Osis, J. & Asnina, E., 2008. Enterprise Modeling for

Information System Development within MDA. In

Proceedings of the 41st Annual Hawaii International

Conference on System Sciences (HICSS 2008).

Waikoloa, USA: IEEE, pp. 490–490. Available at:

http://ieeexplore.ieee.org/document/4439190/.

Osis, J. & Asnina, E., 2011b. Is Modeling a Treatment for

the Weakness of Software Engineering? In Model-

Driven Domain Analysis and Software Development:

Architectures and Functions. Hershey, PA: IGI

Global, pp. 1–14.

Osis, J. & Asnina, E., 2011c. Topological Modeling for

Model-Driven Domain Analysis and Software

Development : Functions and Architectures. In Model-

Driven Domain Analysis and Software Development.

Hershey, PA: IGI Global, pp. 15–39.

Osis, J., Asnina, E. & Grave, A., 2007a. Computation

Independent Modeling within the MDA. In IEEE

International Conference on Software-Science,

Technology & Engineering (SwSTE’07). IEEE, pp.

22–34. Available at:

http://ieeexplore.ieee.org/document/4384082/.

Osis, J., Asnina, E. & Grave, A., 2008. Formal Problem

Domain Modeling within MDA. In J. Filipe et al., eds.

Software and Data Technologies: Second

International Conference, ICSOFT/ENASE 2007,

Barcelona, Spain, July 22-25, 2007, Revised Selected

Papers. Berlin, Heidelberg: Springer Berlin

Heidelberg, pp. 387–398. Available at:

http://dx.doi.org/10.1007/978-3-540-88655-6_29.

Osis, J., Asnina, E. & Grave, A., 2007b. MDA oriented

computation independent modeling of the problem

domain. In ENASE 2007 - Proceedings of the 2nd

International Conference on Evaluation of Novel

Approaches to Software Engineering. Barcelona:

INSTICC Press, pp. 66–71.

Rhazali, Y., Hadi, Y. & Mouloudi, A., 2016. CIM to PIM

Transformation in MDA: from Service-Oriented

Business Models to Web-Based Design Models.

International Journal of Software Engineering and Its

Applications, 10(4), pp.125–142. Available at:

http://dx.doi.org/10.14257/ijseia.2016.10.4.13

[Accessed February 16, 2017].

Rhazali, Y., Hadi, Y. & Mouloudi, A., 2015. Disciplined

approach for transformation CIM to PIM in MDA. In

Model-Driven Engineering and Software Development

(MODELSWARD), 2015 3rd International Conference

on. IEEE, pp. 312–320. Available at:

http://ieeexplore.ieee.org.resursi.rtu.lv/xpls/icp.jsp?arn

umber=7323113 [Accessed February 17, 2017].

Singh, Y. & Sood, M., 2010. The Impact of the

Computational Independent Model for Enterprise

Information System Development. International

Journal of Computer Applications, 11(8), pp.21–26.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

344

Siqueira, F.L. & Silva, P.S.M., 2012. Analyzing CIM to

PIM Transformations Using the WRSPM model.

Infocomp, 11(1), pp.41–50.

Solomencevs, A., 2016. Topological Functioning Model

for software development within MDA (Survey). In

ENASE 2016 - Proceedings of the 11th International

Conference on Evaluation of Novel Software

Approaches to Software Engineering. pp. 315–326.

Solomencevs, A. & Osis, J., 2015. The Algorithm for

Getting a UML Class Diagram from Topological

Functioning Model. In Proceedings of the 10th

International Conference on Evaluation of Novel

Approaches to Software Engineering. SCITEPRESS -

Science and and Technology Publications, pp. 341–

351. Available at: doi=10.5220/0005474303410351

[Accessed February 21, 2017].

Šlihte, A. & Osis, J., 2014. The Integrated Domain

Modeling: A Case Study. In Databases and

Information Systems: Proceedings of the 11th

International Baltic Conference (DB&IS 2014).

Tallinn: Tallinn University of Technology Press, pp.

465–470.

Meaning of Cause-and-effect Relations of the Topological Functioning Model in the UML Analysis Model

345
