Tool Support to Automate Transformations between CIM and PIM

Levels

Imane Essebaa and Salima Chantit

Computer Laboratory of Mohammedia (LIM), Faculty of Sciences and Technics Mohammedia,

Hassan II university of Casablanca, Mohammedia, Morocco

Keywords:

CIM, PIM, Model Transformations, SBVR, UML Diagrams, Eclipse Plug-in.

Abstract:

The Model Driven Architecture is a speciﬁc variant of Model Driven Engineering that aims to separate differ-

ent areas of concerns. This architecture is deﬁned by three levels of abstraction, i.e. Computation Independent

Model (CIM), Platform Independent Model (PIM) and Platform Speciﬁc Model (PSM) that deﬁnes the archi-

tecture of the generated code. The transition between these levels is realized throw Model Transformations

which are the core of MDA. In this paper we will focus on the highest level of abstraction of MDA which is

represented by Computation Independent Model and its transformation into the Platform Independent Model.

Our approach is based primarily on OMG standards: UML diagrams (Uniﬁed Modeling Languages) and

SBVR (Semantic Business Vocabulary and Business Rules). We represent the CIM level by an extension of

Use Case Diagram to support Data Object elements, and SBVR standard, while after transformation the PIM

level is modeled by Business Class Diagram and System Sequence Diagrams. The paper presents also the im-

plementation of our approach which is an eclipse plug-in that allows to automatically transform models from

CIM to PIM. We furthermore illustrate our approach with a case study of a car rental agency management

application.

1 INTRODUCTION

To stay competitive, companies seek more and more

to increase their productivity and their effectiveness.

They are in permanent quest of reliable tools that will

cover the most features. In this context, the OMG pro-

posed their initiative called MDA (Model Drive Ar-

chitecture), which has for objective the elaboration of

sustainable models that are independent from techni-

cal details and executions platforms (JEE, PHP, .net),

in order to develop more rapidly software system and

generate automatically source code in the chosen plat-

form . The MDA approach is a speciﬁc variant of

Model Driven Engineering (MDE) which is an alter-

native approach of system information development.

The concept behind this approach is to create source

models in the highest level of abstraction and trans-

form them to multiple levels until generating automat-

ically source code. It aims to automate the process

of software development which is done manually by

specialists. The MDA is the most important variant of

MDE, indeed it describes the architecture that ensures

the main objective of MDE which is the separation of

system requirements from their implementation in a

speciﬁc platform.

The MDA approach is deﬁned by several models

and meta-models, that serve as the ﬁrst step to model

the application, and then to generate source code by

successive model transformations. These models are

classiﬁed into three levels of abstraction to reach the

main objective of MDA which is the separation of

concerns(Soley, 2000):

• CIM (Computation Independent Model): This

level is used by Business Manager and Business

Analysts that model the system requirements and

describe the business activities to meet the busi-

ness objectives.

• PIM (Platform Independent Model): This level

describes the Business Logic of the system re-

gardless of technical platform.

• PSM (Platform Speciﬁc Model): that adds to PIM

the technological aspects of the target platform. It

is called also the model of code.

The transition from one level to the next is real-

ized through successive transformation rules. In this

context, we limited our focus to the highest levels of

abstraction: CIM and PIM levels. This paper presents

Essebaa, I. and Chantit, S.

Tool Support to Automate Transformations between CIM and PIM Levels.

DOI: 10.5220/0006388703670378

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 367-378

ISBN: 978-989-758-250-9

367

our approach on how to model each level and deﬁnes

transformation rules that allow the automatic gener-

ation of the PIM from the CIM. We also describe

an eclipse plug-in conception that implement our ap-

proach.

This paper is organised as follow: In the second

section we describe the context of our research. Sec-

tion 3 presents the previous works made on this con-

text, while section 4 presents our approach to trans-

form the CIM to the PIM level. Then the following

section (section 5) describes tools used to implement

our approach. In section 6, we apply the approach

on a case study to illustrate results of our transforma-

tions, and we ﬁnish by a conclusion and some future

works.

2 OVERVIEW OF CONCEPTS

2.1 Model Driven Architecture

Model Driven Architecture (MDA) was published by

the OMG (Object Management Group) in 2000. This

standard is intended to provide a new way to de-

sign applications by separating the business logic of

the company from any technical platform. Indeed,

the business logic and technologies are in current

changes. It is, therefore, obvious to separate the two

to deal with the growing complexity of information

systems and strong technological migration costs.

This separation allows the capitalization of soft-

ware knowledge and the know-how of the company.

At this level, the object and the component ap-

proaches did not keep their promises. It was becom-

ing increasingly difﬁcult to develop software based on

these technologies. The use of additional processes,

such as design patterns or aspect oriented program-

ming, was necessary.

The standard MDA offers also the possibility to

stop the stack of technologies that requires keeping

special skills to bring together various systems. This

is enabled through the passage from an interpreta-

tive approach to a transformational approach. In the

interpretative approach, human has an active role in

the construction of information systems while in the

transformational approach, it has a simpliﬁed and

reduced role thanks to the automated construction.

(Miller and Mukerji, 2003)

2.2 Model Transformations

The transition from one level to another is realized by

applying transformations to source elements, to gen-

erate target elements.

Model Transformation is the key of MDA ap-

proach, it aims to generate automatically the source

code of the application from successive automatic

transformations; CIM to PIM, PIM to PSM, then PSM

to source code. Each transformation adds necessary

information to generate source code, and ensures the

traceability link between MDA models that guarantee

the quality of software.

There are two types of model transformations;

model to model transformation which is from CIM

to PIM, and from PIM to PSM, the second type is

model to text which is the generation of source code

from PSM (PSM to Code). In this work we will focus

on model to model transformation, specially between

CIM and PIM.

The next section, we present different works and

approaches proposed on this context.

3 RELATED WORKS

Model Transformations are considered as the main re-

search area of the MDA approach Several works were

realized in this context. However, most of them fo-

cused on the generation of the source code from PSM

level which is the result of transformations from PIM

level. In our research, we focused on transformations

from CIM to PIM level on which few studies has been

conducted. In this section we present our analysis of

previous works in this context which is based on the

different aspects deﬁned by OMG for CIM and PIM

levels and the logic between models.

N.Addamssiri and al. modeled in their approach

(N.Addamssiri et al., 2014) CIM level by Business

Process Modeling and Notation (BPMN) and then

through horizontal transformations Use Case Dia-

gram and SBVR are generated. The PIM level in

this approach is represented by System Sequence Di-

agram which is the result of vertical transformations

from CIM. We note that this approach covers all CIM

aspects (Functional, Behavioral and static) while the

structural aspect of PIM level was not covered as the

System Sequence Diagram covers just PIM behav-

ioral aspect. We also note that the CIM level was

very detailed as recommended by OMG, while PIM

level contains less details about the system. Indeed

the BPMN diagram is more detailed than System Se-

quence Diagram.

In their paper (Kherraf et al., 2008), Kherraf and

al. propose to model the CIM level by the UML Ac-

tivity Diagram, which is detailed by requirements and

transformed to System Components Diagram in PIM

level. We note that this approach does not cover all

aspects of both CIM and PIM levels. Indeed the Ac-

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

368

tivity diagram covers only the behavioural aspect of

CIM, while the Component Diagram covers the struc-

tural aspect of PIM.

Kriouile and al. (A.Kriouile, 2015) modelled the

CIM level by two diagrams: Business Process Model

Diagram and Use Case Diagram, while the PIM level

is represented by Domain Class Diagram and Se-

quence Diagram which are generated using transfor-

mation rules between CIM and PIM levels. It is true

that this method covers all the MDA aspects but we

note that the deﬁned rules to generate PIM level from

CIM are not complete. For example there is no as-

sociations between classes. We have to note also that

CIM level is more detailed than PIM level by the use

of BPM Diagram in CIM level.

In their method (Kardo and Drozdov, 2010),

Kardo and al. modelled the CIM level using Data

Flow Diagram (DFD) while the PIM level was mod-

elled using four UML diagrams: Use Case Diagram,

Activity Diagram, Sequence Diagram and the domain

models. This method does not cover all aspects of the

CIM level as the behavioural aspect was neglected.

Wu and al. Method (Wu et al., 2007) describes

how to get PIM level from CIM one, and the trans-

formation of PIM into PSM. In this method CIM is

represented by Use Case Diagram, Activity Diagram

and robustness diagram, while the PIM one was rep-

resented by Sequence Diagram and Class diagram.

Even if this method covers all aspects of MDA lev-

els, the deﬁned rules are not complete as they do not

allow to generate all diagrams elements in PIM level.

In our ﬁrst work we chose to model the CIM level

by Use Case Diagram and Activity Diagram, and

through transformation rules we generate PIM level

which is represented by Business Class Diagram and

System Sequence Diagram. While testing this ap-

proach, we deduce that we can not generate all di-

agrams elements in PIM level such as associations

and their cardinality. To resolve this problem, in our

second work, we used the OMG standard SBVR to

express relations between elements, which is trans-

formed into OCL constraints. Thus CIM level was

represented by the Use Case Diagram, Activity Dia-

gram, SBVR standard and OCL constraints and the

mapping in this approach was realized through QVT

rules which mean that transformations were not au-

tomated. We note that the use of Activity Diagram

in CIM level gives more details in this level as rec-

ommended by the OMG. In the current paper we will

present an amelioration of previous methods to auto-

mate transformations and to optimize the use of mul-

tiple diagrams.(Essebaa and Chantit, 2017) (Essebaa

and Chantit, 2016)

In their paper, Bouseta and al.(B. BOUSETTA,

2013) describes a method to construct CIM level and

transform it (semi-) automatically to PIM level. In

this approach, CIM level is modeled by BPMN dia-

gram to cover both static and behavioral aspects, and

Usecase diagram to cover functional aspect. These

diagrams are used to generate the PIM level which

is represented by Domain Class Diagram (DCD) that

deﬁne the structural aspect and System Sequence Di-

agram that cover the Dynamic aspect. This approach

covers all CIM and PIM levels aspects previously

cited but does not allow the automatic generation of

PIM level from CIM. We also note that using BPMN

in CIM level gives more detailed information of the

system than System Sequence Diagram used in PIM

level, that do not meet the standards of abstraction re-

quired by the OMG. In addition, using BPMN and

Usecase diagram in the same level leads to a redun-

dancy of information.

Furthermore, there exist several studies where au-

thors propose just to model CIM level without deﬁn-

ing transformation rules to get PIM level.(Shariﬁ and

Mohsenzadeh, 2012)

The analysis that we did on previous works al-

lows us to deduce that transformation rules proposed

are not completely deﬁned and not automatic. Based

on this analysis, we conclude that previous methods

may be classiﬁed into two categories: researchers

that did not cover all the various aspects of CIM and

PIM levels (Kardo and Drozdov, 2010),(Kherraf et al.,

2008) and researchers that cover the different aspects

of CIM and PIM but did not deﬁne complete transfor-

mation rules(B. BOUSETTA, 2013),(Wu et al., 2007),

(A.Kriouile, 2015),(N.Addamssiri et al., 2014).

In the second part of this section, we will present

previous works made on the context of transformation

of SBVR to UML.

In their paper (Afreen et al., 2011), H. Afreen

and al. proposed an approach to extract manually the

Object-Oriented information from SBVR then to gen-

erate Class model. The paper proposes a conception

of an eclipse plug-in called SBVR2UML that may

generate Class model but it does not contain any de-

scription on how the link is made between these ele-

ments. We also note that this approach does not auto-

mate transformation between SBVR and UML Class

Model, indeed the Oriented-Object information are

generated manually. Moreover the paper deﬁnes just a

conception of an eclipse plug-in called SBVR2UML.

We note also that this approach does not deﬁne how

to generate other diagrams such as Sequence Diagram

or Activity Diagram.

A.Raj and al. present in their paper (Raj et al.,

2008) an approach to transform SBVR into several

UML diagrams: Class Diagram and Activity Dia-

Tool Support to Automate Transformations between CIM and PIM Levels

369

gram. We note that this approach describes for each

generation the algorithm to follow in order to get

UML Diagrams, but this generation is still limited as

it does not for example deﬁne how to get parameters

of Class operation. Furthermore, in order to gener-

ate Activity Diagram, the approach takes in account

just if then conditions but does not explain how it will

be transformed and how the diagram is generated. In

this paper, authors consider the SBVR standard in the

CIM level of MDA, while generated UML diagrams

(Class Diagram, Activity Diagram and Sequence Di-

agram) represent the PIM level. We also note that the

Activity Diagram contains the same information as

the Sequence Diagram modeled differently and their

use in the same level does not add more information.

It exists another type of approaches that focuses

on modeling CIM level and its transformation to PIM

level, these approaches are basically based on Topo-

logical Functionning Modeling ”is a model developed

by Janis Osis at Riga Technical University (RTU,

former Riga Polytechnic Institute) in 1969” (J.Osis,

1969), these approaches have a Mathematical back-

ground which proved the formalism aspect used in

higher level of abstraction of the MDA (Solomencevs,

2016) (Ovchinnikova and Nazaruka, 2016).

4 PROPOSED APPROACH

In this section we present our proposed approach to

automate transformations between CIM and PIM lev-

els, our approach consists on:

• Modeling system’s requirements by an extended

use case diagram in CIM level.

• Describing Business Vocabulary and Business

Rules of the system using SBVR standard in CIM

level

• Applying transformation rules implemented in an

eclipse plug-in to generate automatically Business

Class Diagram and System Sequence Diagrams

that represent PIM level.

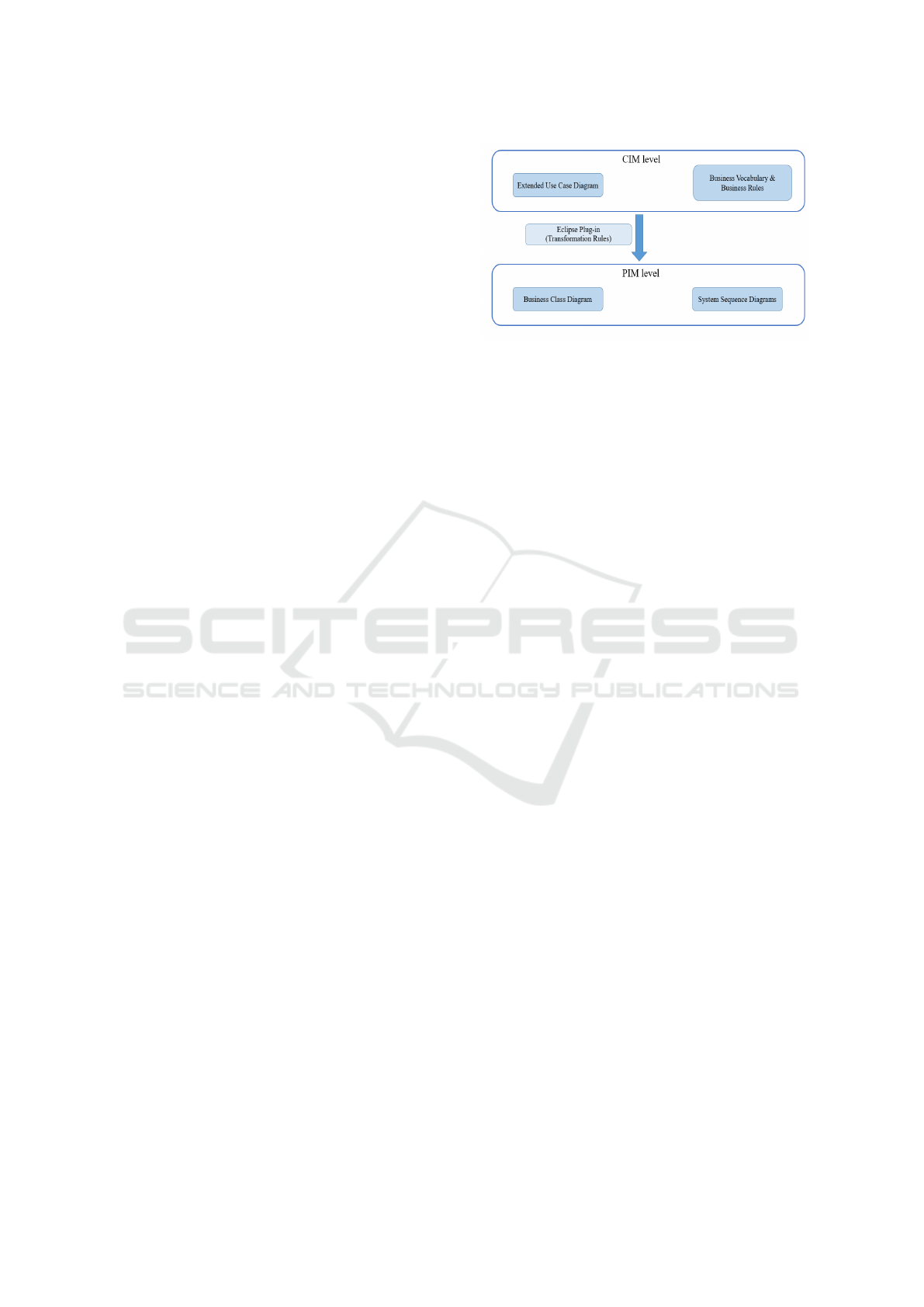

Figure 1 below describes this approach:

4.1 CIM Level in Our Approach

The CIM level is the most abstract level in MDA ap-

proach. This level is considered as the most important

because it models system requirements, and from this

model we can generate all the other levels of MDA;

other models are affected if any changes is made in

CIM level.

To well represent and cover all the system require-

ments in CIM level the OMG recommends, the CIM

Figure 1: Overview of our proposed approach.

level should cover three aspects as deﬁned by Kriouile

and al in their paper (A.Kriuouile, 2013); Functional,

Behavioral and Static, but does not present any con-

sensus or recommendation about how the CIM level

should be represented or even how many models or

which of them we have to use.

In order to respect OMG recommendations and to

cover all the aspect of CIM level, we propose to rep-

resent it by an extended Use Case Diagram and OMG

standard SBVR.

In this paper we present an improved version of

our previous proposed approaches, that express con-

straints using only Business Rules of SBVR standard,

We minimize horizontal transformations in CIM level

to get OCL constraints from SBVR we eliminate the

Activity Diagram and propose to deﬁne the behavioral

aspect of the system using Business rules, we opti-

mized our approach in order to respect the abstrac-

tion required for the CIM level and also make our tool

more simple to use.

4.1.1 UML use case Diagram

OMG (Object Management Group) deﬁnes a Use

Case as: the speciﬁcation of a set of actions per-

formed by a system, which yields an observable re-

sult that is, typically, of value for one or more actors

or other stakeholders of the system”. (OMG, 2011)

The choice of using UML Use Case Diagram is

due to its simplicity to express system requirements

and the link between actors in the system and func-

tionalities, Use Case Diagram is such a bridge that

covers the gap between the simple user of the system

and the software designer, indeed it gives a general

view of the system.

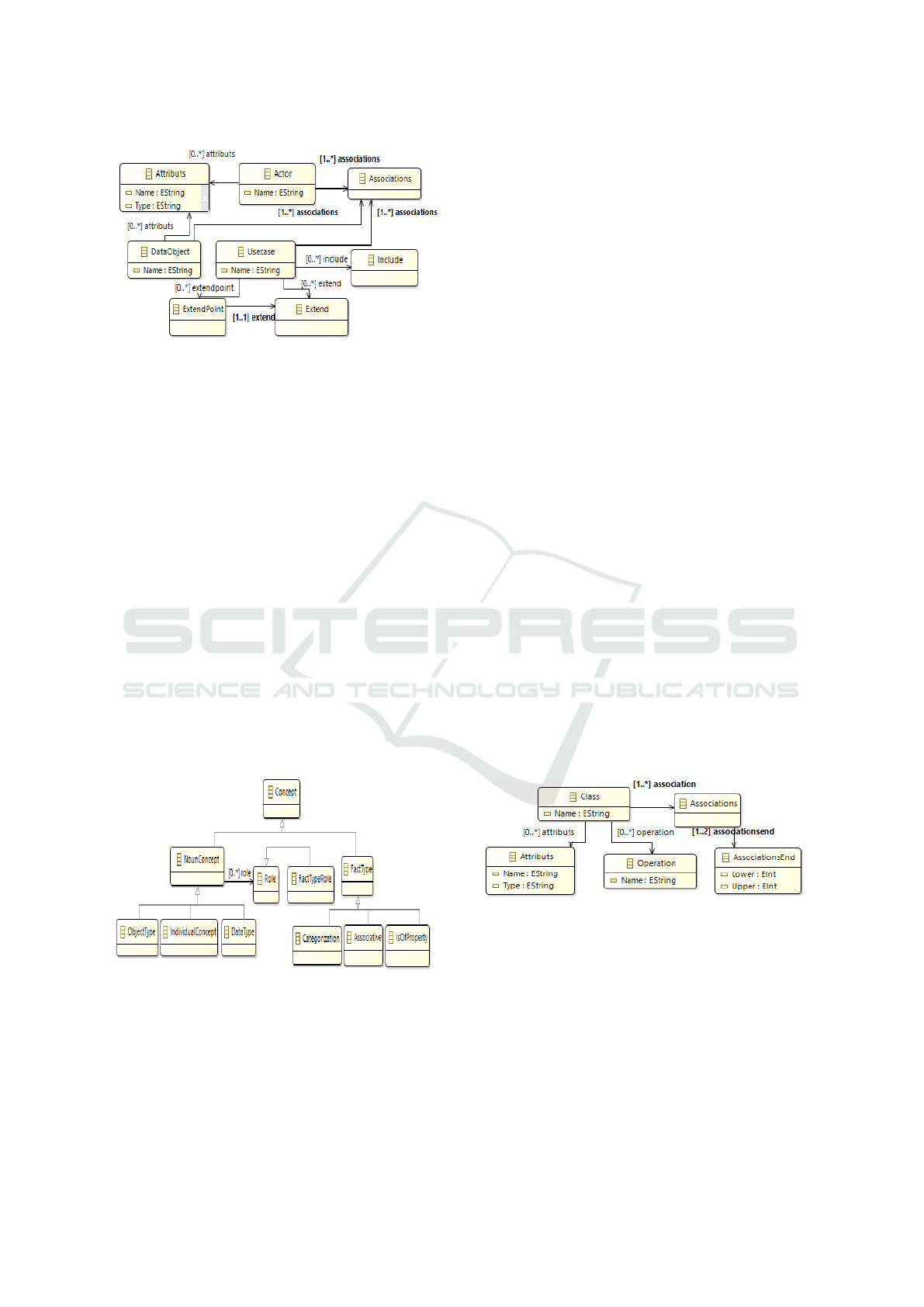

A simpliﬁed version of the metamodel of the Busi-

ness Use Case Diagram is represented in the ﬁgure 2:

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

370

Figure 2: Main fragments of Use Case Diagram Meta-

model.

4.1.2 Semantic Business Vocabulary and

Business Rules

The OMG standard Business Vocabulary and Busi-

ness Rules (SBVR), is a speciﬁcation that was ac-

cepted by the OMG in 2005. The basic idea behind

SBVR is to express the requirements in a structured

language. It allows the business analyst or a business

person to express system requirements using struc-

tured English instead of using its own language.(SBV,

2008) Using SBVR to express business requirements

affect a semantic to business rules and business vo-

cabulary.

SBVR is used in our approach at the CIM level to

complete UML Use Case Diagram and gives more de-

tails about the system, such as Business Management

Rules that describes the interaction between system

elements.

A meta-model diagram of main fragments of

SBVR is presented in the ﬁgure 3:

Figure 3: Main fragments of Sematic Business Vocabulary

and Business rules Meta-model.

4.2 PIM Level in Our Approach

Platform Independent Model; PIM level, called also

the model analysis and design describes the ”What”

of the system independently of any technical infor-

mation about the execution platform. It deﬁnes the

business logic of the system regardless of their tech-

nical details.

The PIM level must be generated automatically,

through many transformation rules, from CIM level.

As many aspects are deﬁned for CIM level, the

PIM level has aspects that must be covered to well

model the PIM level: Structural and Dynamic aspects

(A.Kriuouile, 2013).

In our approach, we represent the structural aspect

by the Business Class Diagram, while the dynamic

aspect is modeled by System Sequence Diagrams.

4.2.1 ”Business” Class Diagram

In UML, the class diagram is used to present the do-

main model. It provides an overview of the target sys-

tem by describing objects and classes that exists in the

business environments and describes the relationships

between them.

We use Class Diagram in PIM level in order to

cover the structural aspect of this level, in our ap-

proach we use a ”Business” Class Diagram which is

an optimised Class Diagram that describes less infor-

mation than the standard Class Diagram, the use of

”Business” Class Diagram in this level respects the

abstraction required by the MDA approach.

The Business Class Diagram in our approach gen-

erated automatically from the CIM level by applying

several transformations applied on Use Case Diagram

and SBVR standard.

Figure 4 shows main fragments of UML Business

Class Diagram meta-model:

Figure 4: Main fragments of Business Class Diagram Meta-

model.

4.2.2 System Sequence Diagram

The Sequence diagram is an interaction diagram that

shows how objects operate with one another and in

what order. It shows object interactions arranged

in time sequence and depicts objects and classes in-

volved in the scenario with the messages sequence

exchanged between objects needed to carry out the

functionality of the scenario.

Tool Support to Automate Transformations between CIM and PIM Levels

371

Sequence diagrams are typically associated with

use case in the Logical View of the system under de-

velopment.

In our approach, we propose to use System Se-

quence Diagram to represent the dynamic aspect of

PIM level and to respect the platform independence

criteria of PIM level.

This diagram will be generated using automatic

transformations from Use Case Diagram and SBVR

standard that model the CIM level.

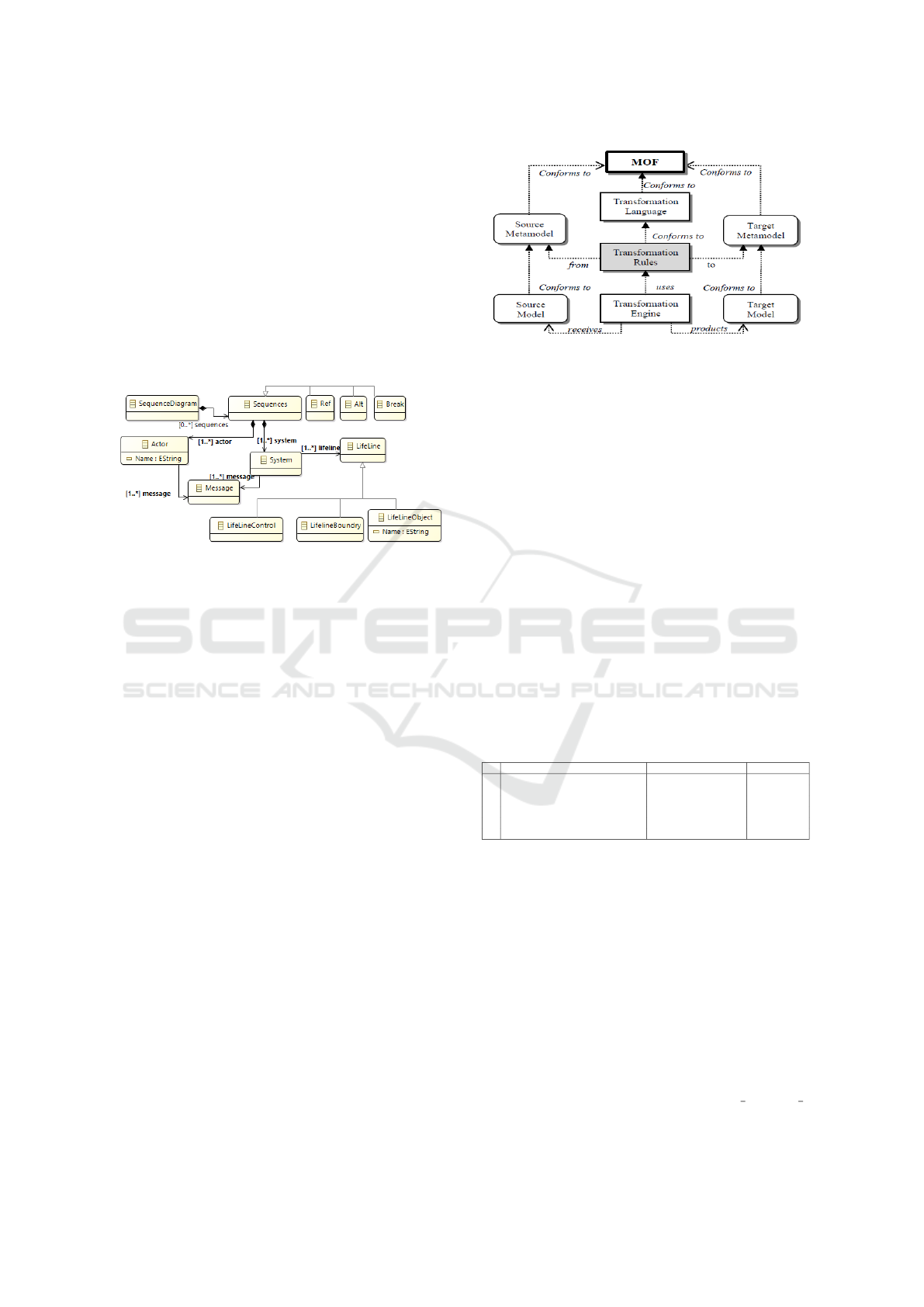

Figure 5 represents the meta-model of sequence

diagram.

Figure 5: Main fragments of System Sequence Diagram

Meta-model.

4.3 Transformation Rules

In this section, we will deﬁne different transforma-

tion rules that allow the automatic generation of PIM

level from CIM level. The transformation process

proposed takes as input source models, applies trans-

formation rules, and generate target models. This

process is conform to MOF (Model Object Facility)

(MOF, 2009)which is an OMG standard that allow de-

scribing metamodels and their manipulation. The ﬁg-

ure 6 illustrates the process of model transformation.

A model transformation is like a function that takes as

input parameters a set of models and returns in output

another set of models. Those models, input and out-

put, are structured by meta-models that specify the

model transformation executed on models. There are

two types of transformations:

• M2M: Model to Model transformation which is

deﬁned at the highest levels of MDA approach and

aims to transform models to another models that

contain more information.

• M2T: Model to Text transformation which is ded-

icated to the code generation. It is executed to the

PSM level to generate source code.

In this paper, we will focus on the ﬁrst type of trans-

formations, Model to Model (M2M), that we divided

in two main sets of transformations:

Figure 6: Relationship between the model transformation

and meta-models.

• UCD&SBVR2BCD (Use Case Diagram and

SBVR to Business Class Diagram): Transforma-

tions that allow the generation of Business Class

Diagram from Use Case Diagram and SBVR.

• UCD&SBVR2SSD (Use Case Diagram and

SBVR to System Sequence Diagram): Transfor-

mations that allow the generation of System Se-

quence Diagram from Use Case Diagram and

SBVR. Next sections will present in details each

of these sets of transformations.

4.3.1 UCD&SBVR2BCD Transformations

UCD&SBVR2BCD is a vertical transformation that

aims to generate a Business Class Diagram from both

a Use Case Diagram and the OMG standard SBVR.

The table 1 describes these transformations:

Table 1: Transformation rules to get Business Class Dia-

gram from UCD and SBVR.

N Rules Source Model Target Model

1 Actor2Class Actor Class

2 DataObject2Class DataObject Class

3 isOfPropertyFactType2Attribute isOfPropertyFactType Attribute

4 associativeFactType2Association AssociativeFactType Association

5 structuralBusinessRule2Cardinality StructuralBusinessRule Cardinality

6 operativeBusinessRule2Operation OperativeBusinessRule Operation

Transformation rules deﬁned in the table above

can be described as follow:

• Transformations from Use Case Diagram:

1. Actor2Class: The Actor element in Use Case

Diagram is turned into a Class element in Busi-

ness Class Diagram.

2. DataObject2Class: The DataObject element in

Use Case Diagram is turned into a Class ele-

ment in Business Class Diagram.

• Transformations from Semantic Business Vocab-

ulary and Business Rules:

3. isOfPropertyFactType2Attribute:”is property of”

fact type element is transformed to an Attribute

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

372

of a Class, this element is expressed by

”is property of” or by ”has”, as described in

the following ﬁgure 7.

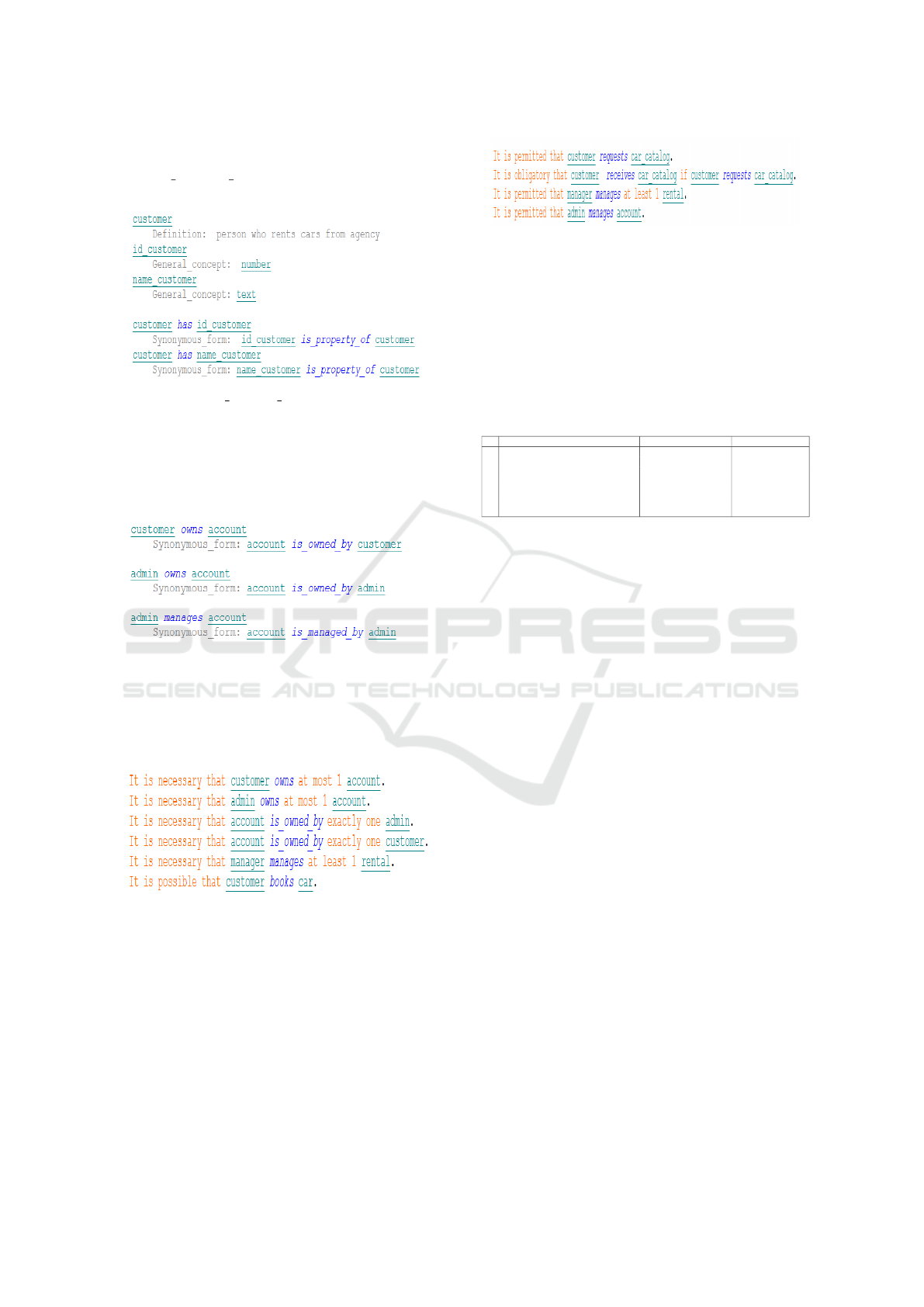

Figure 7: is property of fact type example.

4. associativeFactType2Association : the asso-

ciation fact type, which is expressed by verb,

is turned into an association with the same

verb between classes, the ﬁgure 8 describes an

example of associative fact type.

Figure 8: Associative fact type example.

5. structuralBusinessRule2AssociationsEnd:

structural business rules formulated by a neces-

sity or a possibility are turned into Cardinality

as shown in ﬁgure 9 below:

Figure 9: Cardinality example.

6. operativeBusinessRule2Operation: operative

business rules formulated by an obligation or

a permission are turned into operations of the

class.The name of the operation is the verb

of the fact type on which the business rule is

based, while parameters are generated from the

two concept types linked by the verb used in

the fact type, we mention that concept types in

our approach are linked to Actor and DataOb-

ject elements in Usecase Diagram, as described

in ﬁgure 10:

Figure 10: Class operation example.

4.3.2 UCD&SBVR2SSD Transformations

UCD&SBVR2SSD is a vertical transformation that

aims to generate System Sequence Diagram from

both Use Case Diagram and OMG standard SBVR.

The table 2 describes these transformations:

Table 2: Transformation rules to get System Sequence Dia-

gram from UCD and SBVR.

N Rules Source Model Target Model

1 UseCaseDiagram2SystemLifeLine Actor SystemLifeLine

2 Actor2ActorLifeLine Actor ActorLifeLine

3 DataObject2DataObjectLifeline DataObject DataObjectLifeline

4 UseCase2Message UseCase Message

5 Extend2OptFragment Extend OptFragment

6 Include2RefFragment Include RefFragment

7 GeneralizationUseCase2AltFragment GeneralizationUseCase AltFragment

Transformation rules deﬁned in the table above,

allow to generate all elements of System Sequence

Diagram from Use Case Diagram while links between

them are extracted from SBVR standard:

1. UseCaseDiagram2SystemLifeLine: The Use

Case Diagram is turned into a SystemLifeLine in

the System Sequence Diagram generated.

2. Actor2ActorLifeline: The Actor element in Use

Case Diagram is turned into an ActorLifeLine ele-

ment in the System Sequence Diagram generated.

3. DataObject2DataObjectLifeline: The DataObject

element in Use Case Diagram is turned into a

DataObject Lifeline element in the System Se-

quence Diagram generated.

4. UseCase2Message: A UseCase element is trans-

formed to message between elements of System

Sequence Diagram. There are several types of

messages, but at this stage of our approach, we

need just two types; created message and reply

message . The difference between them is de-

duced from SBVR.

5. Extend2AltFragment : An extend association be-

tween Use Case elements is transformed into an

optional fragment (Opt) in the SSD generated.

6. Include2RefFragment: An include association be-

tween Use Case elements is transformed into a

reference fragment (Ref to other sequence dia-

gram) in the SSD generated.

7. GeneralizationUseCase2AltFragment: the gener-

alization association between Use Case elements

Tool Support to Automate Transformations between CIM and PIM Levels

373

is turned into an alternative fragment (Alt) in the

SSD generated.

The synchronization between messages can be ex-

tracted from Business vocabulary and Business rules,

indeed we can easily express this with conditions and

different Business rules deﬁned by SBVR and based

on associative fact type in Business vocabulary; when

an actor sends request to the system, the system an-

swers according to the request previously received,

the ﬁgure 11 describes ans example of interaction be-

tween an actor and the system.

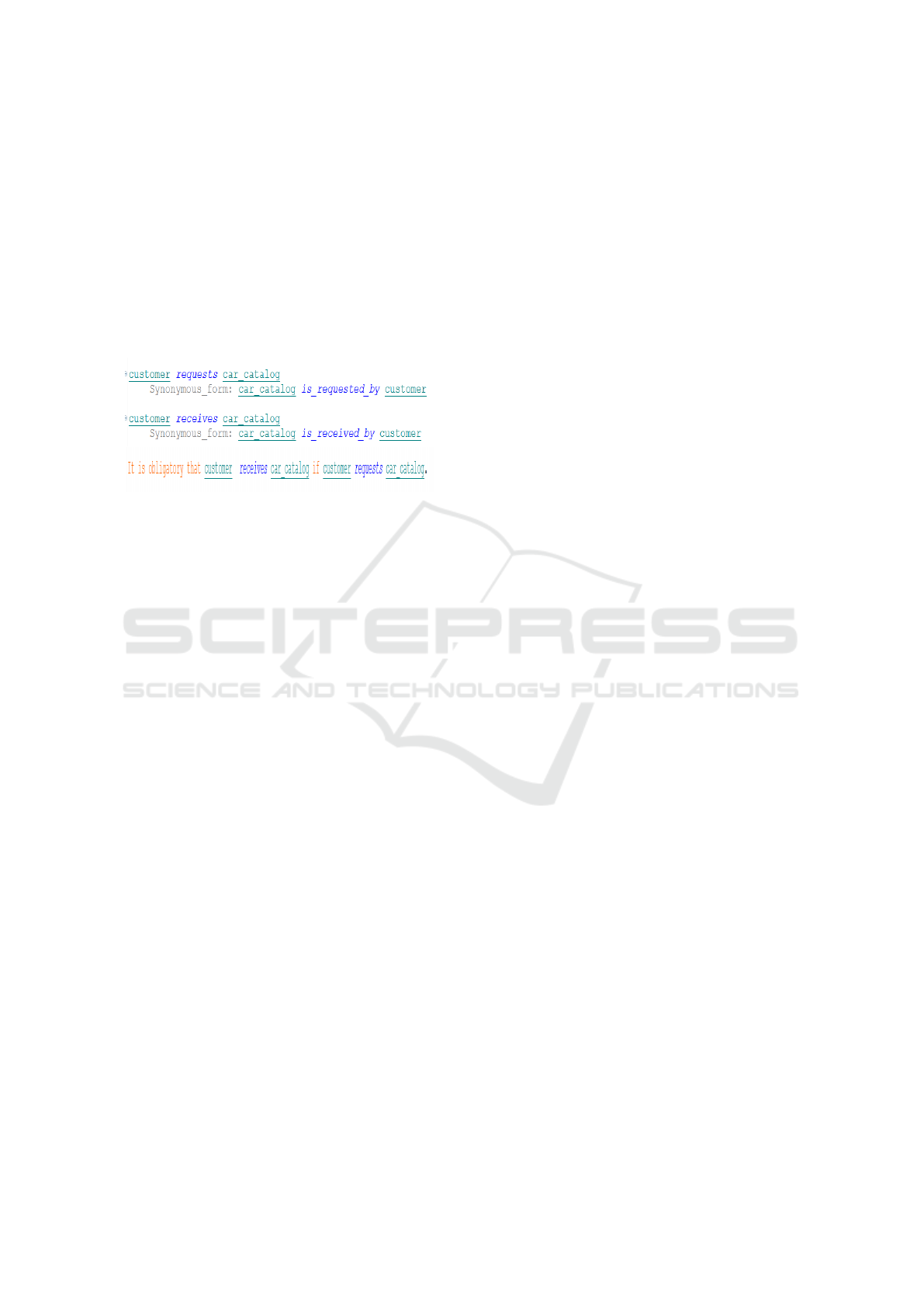

Figure 11: Example of actions synchronization using Busi-

ness rules.

In the ﬁgure above we describe an example on

how actions will be synchronized in sequence dia-

gram. For example, the customer receives catalog

after sending the request. In our approach we aim

to generate for each Use Case element a System Se-

quence Diagram. For every Use Case element we de-

ﬁne automatically elements in links with it: Actors,

DataObjects, and other Use Case elements through

different types of associations (extend, include, gener-

alization) which deﬁne the interaction between differ-

ent fragments of System Sequence Diagrams. More-

over we separate two types of Use Case elements:

Use Case elements that deﬁne functionalities allowed

for an actor, this type is linked through an association

with Actor, and transformed into Sequence Diagram

(System Sequence Diagram). The second type con-

tains Use Case elements that describe how the ﬁrst

type of Use Case elements is realized. It deﬁnes se-

quence diagram that is linked to the ﬁrst one accord-

ing to the type of association that linked them (In-

clude, Extend, Generalization) in Use Case Diagram

as we mention before.

Usecase elements that are transformed to mes-

sages ensure the interaction between Sequence Dia-

gram elements. There are several types of messages,

but according to our approach we use the following:

• ”Synchronous Message” which is a simple mes-

sage between lifeline elements.

• ”Message Create”: this type of message creates

a new lifeline in the diagram, in our approach it

is used to generate a DataObject which is linked

with a simple association with a Usecase element.

• ”Reply Message”: this kind of message are gener-

ated to reply to previous message, it is generated

from business rule that contains an if condition

and is based on Associative FactType.

5 IMPLEMENTATION OF OUR

APPROACH

To implement our approach we need tools that allow

to create input elements (UML diagrams and SBVR).

After analyzing and testing existing tools, we found

that those which allow to create diagram doesnt offer

an SBVR editor. The unique tool that support SBVR

is an eclipse plug-in called Vetis which was imple-

mented for an old version of Eclipse to support SBVR

standard. Other components of input elements can

be realized through different designer eclipse plug-in.

In our case, we choose Papyrus because it supports

all UML diagrams elements. According to this, we

choose to implement our solution as an eclipse plug-

in to beneﬁt from the existing tools and also to facili-

tate the use of our implemented solution by designers

and developers.

5.1 Papyrus Modeling Tool

Papyrus is an Open Source UML tool based on

Eclipse. It was developed by the Laboratory of Model

Driven Engineering and Embedded Systems and can

be used as a standalone tool or as an Eclipse Plug-in.

Papyrus is designed to be easily extensible because it

is based on UML proﬁle.(Papyrus, 2010)

In our approach we used Papyrus as an Eclipse

plug-in that we extend to support DataObject ele-

ments in Use case Diagram. As papyrus is based

on EMF (Eclipse Modeling Framework) tool that al-

lows creating UML diagrams, we start by extending

the EMF plug-in to deﬁne DataObject element and its

speciﬁcations to be used by Use Case Diagram, and

then we conﬁgure Papyrus in order to add DataOb-

ject element in Use Case Diagram, so that it can be

accessible from the palette menu.

5.2 Vetis Plug-in

Vetis tool was implemented to support transforma-

tions from SBVR to UML&OCL. It was based on

Eclipse platform 3.4.1 and it supports UML 2.0, and

SBVR 1.0 and ATL, in our approach we use Vetis

plug-in to recognise SBVR elements and their struc-

ture.(Nemuraite et al., 2010)

Using Vetis plug-in in our approach was to beneﬁt

from the editor of SBVR standard.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

374

5.3 Our Eclipse Plug-in

Plug-in is a software component used in computing

that adds a speciﬁc functionalities and features to an

existing computer program. The plug-in we have de-

veloped, deﬁnes transformations rules based on QVT

(Query View transformation). These rules are auto-

matically executed from a Java program.

The plug-in takes as input a Papyrus Project that

contains one or more UML Use Case Diagrams mod-

eled using Papyrus tool and Business Vocabulary and

Business Rules expressed using SBVR standard. The

Transforms feature added in the menu, allow the ex-

ecution of transformations deﬁned automatically. As

result of transformations an out folder is created in

the Papyrus Project that contains the output generated

diagrams: Business Class Diagram and System Se-

quence Diagrams.

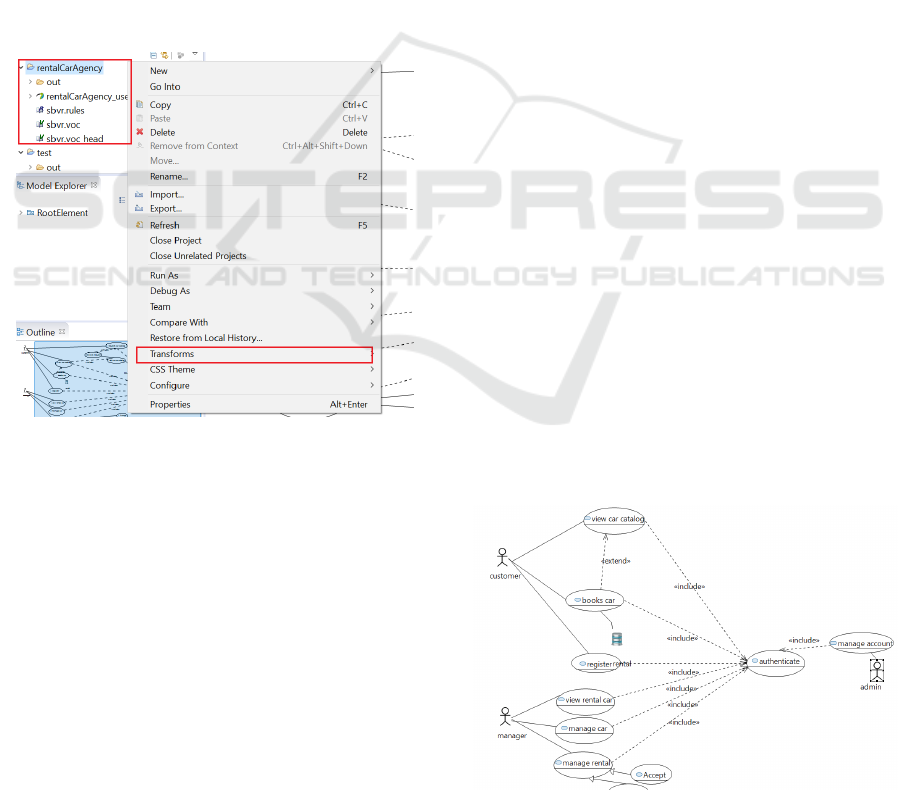

The ﬁgure 12 below shows the transforms menu

and the architecture of Papyrus project.

Figure 12: Papyrus project architecture and ”Transforms”

menu.

6 CASE STUDY

In order to illustrate our approach and the transfor-

mation rules deﬁned, this section shows how to apply

the approach on a RentalCarAgency application. The

example is described as follow: The application to re-

alize must guarantee the following services:

• Visualization of available cars.

• Customers subscription.

• Booking of cars.

• Visualization of reservations.

• Management of reservations (accept/decline).

• Management of cars.

• Management of customer accounts.

• Management of accounts Managers.

The application have three users proﬁles that have dif-

ferent privileges :

• customer: Person who can view the cars avail-

able in the agency, rates and promotions and may

subscribe. Once registered, the visitor becomes a

client of the Agency. A client must authenticate in

the system to search for available cars and book a

car by indicating the reservation date and time.

• Manager: A Manager must also authenticate to

view all cars, add, edit or remove cars and view

the bookings made by customers waiting for vali-

dation to decide to accept or refuse them.

• Administrator: Once authenticated into the sys-

tem, the administrator has the privilege of modify-

ing and deleting a customer account, as well as the

management of managers account (add, change or

delete).

We can deﬁne some management rules as below:

• A customer can rent several cars.

• A car can be rented by or several customers.

• A manager can manage 1 or more cars.

• A car is managed by 1 or more managers.

• An administrator can manage 1 or several cus-

tomer accounts.

• An administrator can manage 1 or more account

managers.

After analyzing the application requirements, the

user have to model those requirements in CIM level of

MDA by an Extended Use Case Diagram, we present

our conception of the Use Case Diagram of the appli-

cation in the ﬁgure 13

Figure 13: Papyrus project architecture and ”Transforms”

menu.

Tool Support to Automate Transformations between CIM and PIM Levels

375

In the same level of MDA; CIM designer must de-

scribes all requirements vocabulary and their corre-

sponding transformation rules, we present in follow-

ing ﬁgures 14 and 15.

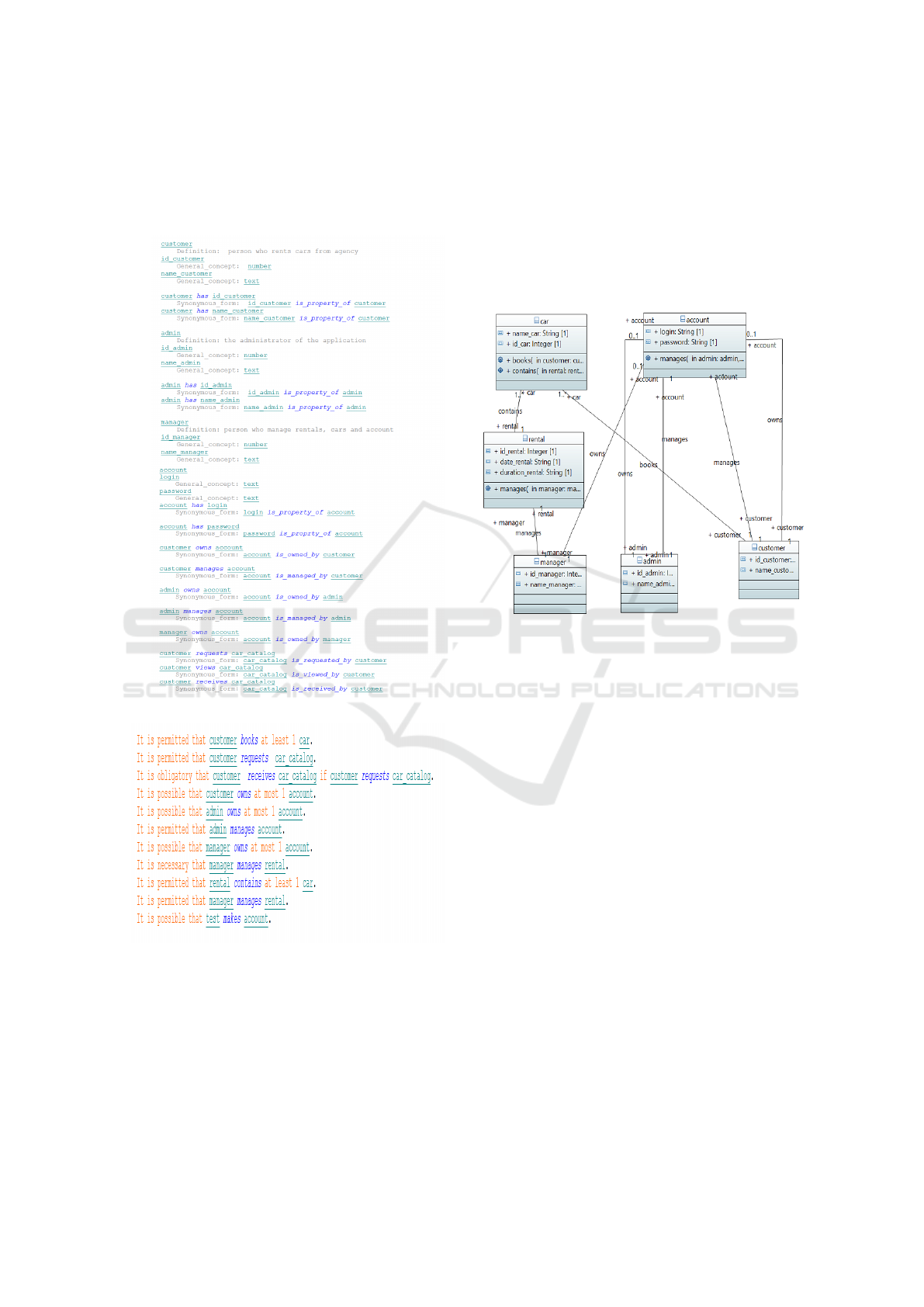

Figure 14: Business Vocabulary of RentalCarAgency.

Figure 15: Business rules of RentalCarAgency.

The PIM level of MDA is generated automatically,

this level is represented by two diagram: Class Di-

agram (Business Class Diagram) that represents the

Structured aspect of the PIM and the several Sequence

Diagrams (System Sequence Diagrams) for each Use-

Case element to cover the dynamic aspect of MDA.

Structured Business Rules are deﬁned by two spe-

ciﬁc terms; Possible and Necessary, in our approach

each business rule, deﬁned as a possibility or a neces-

sity based on a speciﬁc associative fact type, allows

to generate association ends for the association gen-

erated from the associative fact type.

Executing transformation rules, we generate Busi-

ness Class Diagram of the system, the ﬁgure 16 repre-

sents the result automatically generated from previous

diagrams.

Figure 16: Generated Business Class Diagram of Rental-

CarAgency.

Comparing the generated Class Diagram pre-

sented in the ﬁgure 16 and the table 4 we conclude

that our tool generate all the elements of class dia-

gram (Classes, attributes,operation, association, ...).

The same execution generates also different Sys-

tem Sequence Diagrams for each UseCase element, as

we explained before we separate two types of Usecase

element, in the following we will detail some Use-

Case element from RentalCarAgency example, we

choose ”view car catalog” to detail different concepts;

extend with ”‘book car”’ and include with ”Authenti-

cate”, we will also generate ”Authenticate” sequence

diagram to clarify the interaction between actor and

system, and ﬁnally we chose ”manage rental” to rep-

resent in order to show the integration of generaliza-

tion association in the diagram.

Executing transformation rules, we generate dif-

ferent Sequence Diagram of the system, ﬁgure 17, 18,

19 represent the result automatically generated from

previous diagrams of ”Authenticate”, ”View car cata-

log” and ”Manage rental”.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

376

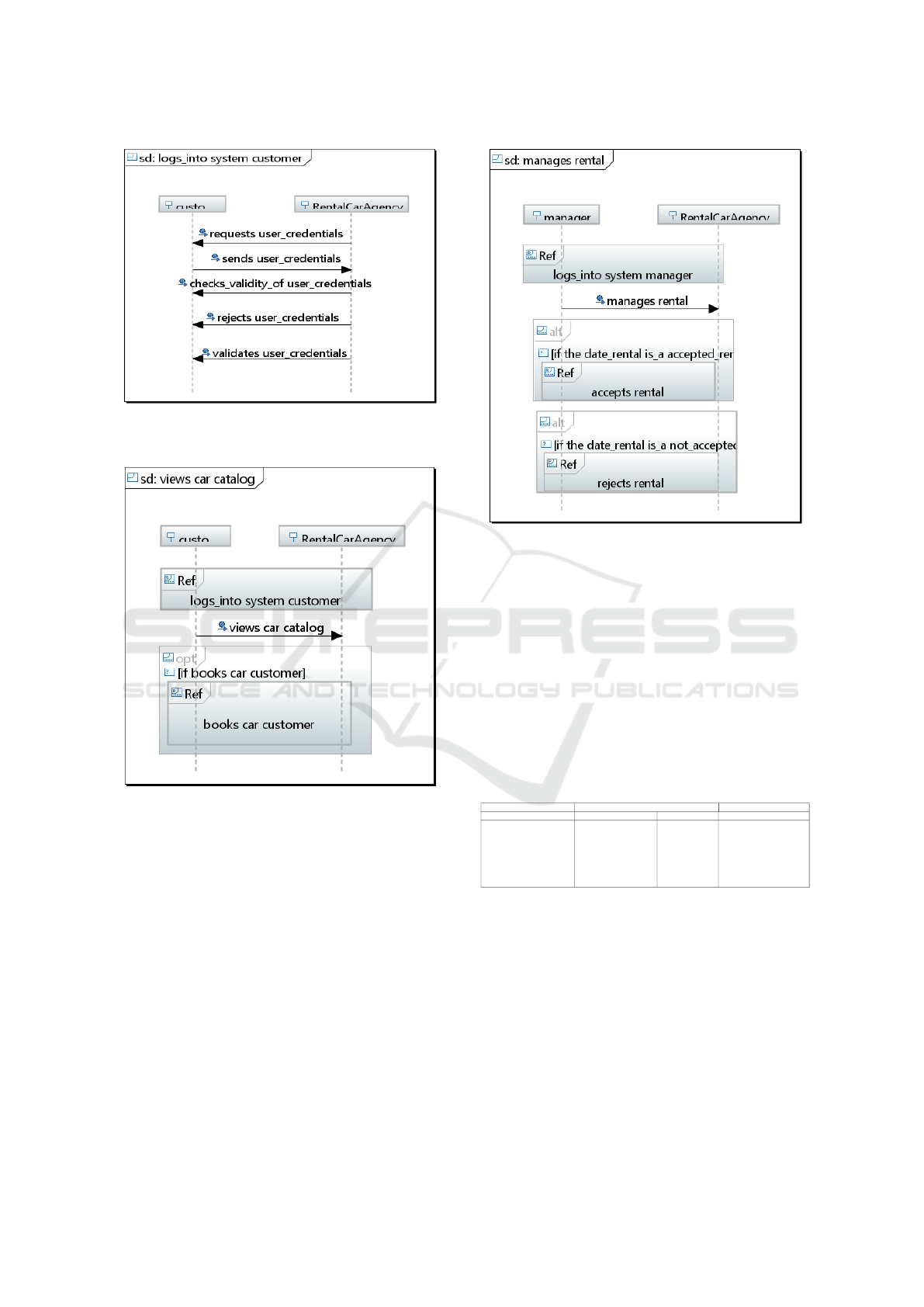

Figure 17: Generated ”Authenticate” Sequence Diagram of

RentalCarAgency.

Figure 18: Generated ”View Catalog” Sequence Diagram

of RentalCarAgency.

7 ANALYSIS AND DISCUSSION

To evaluate our approach we devote this section to

make a comparison between results of existing ap-

proach and ours, the comparison is made according

two areas; Model transformation of CIM to PIM and

transformation of SBVR to UML diagrams.

For the ﬁrst area; CIM to PIM transformations, the

comparison is made according to proposed transfor-

mation rules, automation of transformations and their

traceability. The second area, the comparison is made

according to transformations rules and their automa-

tion.

We present in the Table 5 below a summary of

Figure 19: Generated ”Manage Rental” Sequence Diagram

of RentalCarAgency.

the analysis done on our approach and the existing

methods ,previously presented in related works sec-

tion of this paper. For each work, we study if it cov-

ers or not all CIM level aspects (Functional, Static

and Dynamic), all PIM level aspects(Structured and

Dynamic), and for the transformations between CIM

and PIM levels, if rules are provided (P for partially,

Y for Yes and N for No) but also their automation

and traceability. As shown in Table 5, even if (Kri-

Table 3: Analyse and discussion of different approach of

CIM to PIM transformations.

Methods CIM level PIM level CIM to PIM transformations

Functional Static Dynamic Structured Dynamic Rules Automation traceability

Addamssiri and al. Y Y Y N Y P N P

Kherraf and al. N N Y Y N P N N

Kriouile and al. Y Y Y Y Y P N N

Kardo and al. N N N Y Y N N N

Wu and al. Y Y Y Y Y P N N

Raj and al. Y N Y Y Y P N N

Bousetta and al. Y Y Y Y Y P P P

Essebaa and al. (Current Approach) Y Y Y Y Y Y Y Y

ouile and al.) and (Wu and al.) approaches cover all

CIM and PIM aspects, they partially deﬁne transfor-

mations from CIM to PIM and do not provide automa-

tion neither traceability. Our approach is the unique

one that besides covering CIM and PIM aspects, pro-

vide transformation rules between CIM and PIM, au-

tomate them and allow their traceability.

In the next Table 6, we summarize the analysis

done on our approach and previously existed one that

transform SBVR to UML diagrams. We study if pro-

posed methods ensure transformation rules to gener-

ate UML form SBVR and if these rules are imple-

Tool Support to Automate Transformations between CIM and PIM Levels

377

mented automatically.

Table 4: Analyse and discussion of different approach of

SBVR to UML transformations.

Methods SBVR to UML transformations

Rules Automation

Arfeen and al. P N

Raj and al. P N

Nemuraite and al. P N

Essebaa and al. (current approach) Y Y

As we show in the Table 6 all presented approach

even if they partially deﬁne transformation rules but

they didn’t ensure their automation. Our approach

provides transformation rules to generate two UML

diagrams; Class Diagram and Sequence Diagram, and

implements these rules in an eclipse plug-in to ensure

their automation

8 CONCLUSION

The primary objective of this paper is to propose

an approach that covers all the OMG aspects of the

highest levels of abstraction in the MDA approach,

CIM and PIM, and automate transformations between

them. Indeed in our approach we model the CIM level

by a Use Case Diagram and OMG standard SBVR.

Those models cover all the aspects of CIM: func-

tional, static and dynamic. The PIM level in our ap-

proach is generated automatically from CIM and it

is represented by Class Diagram to cover the CIM

structured aspect and different Sequence Diagrams to

cover the dynamic aspect.

In this paper, we also present transformation rules

that were implemented in an Eclipse plug-in in order

to ensure the automatic generation of the PIM level

from the CIM level. The proposed tool is based on

Papyrus eclipse plug-in that allows the design of dif-

ferent UML diagrams, and Vetis plug-in that offers an

SBVR editor which recognize all SBVR elements.

The present paper proposes an optimized and ex-

tended approach of our previous works and we aim in

our future works to cover other MDA levels Transfor-

mations: From PIM to PSM and then from PSM to

code in order to develop a tool that automate all these

transformations. We also plan to apply our approach

on more projects in order to evaluate the developed

tool.

REFERENCES

(2008). Toward an automatic approach to get pim level from

cim level using qvt rules. In Semantics of Business

Vocabulary and Business Rules (SBVR).

(2009). Omg, meta object facility

(mof)2.0query/view/transformation speciﬁcation.

In http://www.omg.org/spec/QVT/1.0/PDF.

(2011). In OMG Uniﬁed Modeling LanguageTM (OMG

UML), Superstructure.

Afreen, H., Bajwa, I. S., and Bordbar, B. (2011). Sbvr2uml:

A challenging transformation.

A.Kriouile, N.Addamssiri, T. (2015). An mda method for

automatic transformation of models from cim to pim.

volume 4.

A.Kriuouile, T.Gadi, Y. (2013). Cim to pim transformation:

A criteria based evaluation. In Int.J.Computer Tech-

nology and Applications, pages 616–625.

B. BOUSETTA, EL BEGGAR Omar, G. T. (2013). A

methodology for cim modelling and its transforma-

tion to pim. In Journal of Information Engineering

and Applications.

Essebaa, I. and Chantit, S. (2016). Toward an automatic ap-

proach to get pim level from cim level using qvt rules.

In 2016 11th International Conference on Intelligent

Systems: Theories and Applications (SITA), pages 1–

Essebaa, I. and Chantit, S. (2017). QVT Transformation

Rules to Get PIM Model from CIM Model, pages 195–

207. Springer International Publishing, Cham.

J.Osis (1969). Topological model of system functioning. In

Automatics and Computer Science., pages 44–50.

Kardo, M. and Drozdov, M. (2010). Analytical method of

cim to pim transformation in model driven architec-

ture (mda). volume 34, pages 89–99.

Kherraf, S., Lefebvre, E., and Suryn, W. (2008). Transfor-

mation from cim to pim using patterns and archetypes.

Miller, J. and Mukerji, J. (2003). Mda guide version 1.0.1.

N.Addamssiri, A.Kriouile, Y.Balouki, and T.Gadi (2014).

Generating the pim behavioral model from the cim us-

ing qvt.

Nemuraite, L., Skersys, T., Sukys, A., Sinkevicius, E., and

Ablonskis, L. (2010).

Ovchinnikova, V. and Nazaruka, E. (2016). The validation

possibility of topological functioning model using the

cameo simulation toolkit. pages 327–336.

Papyrus (2010). In Papyrus.

Raj, A., Prabhakar, V., T., Hendryx, and Stan (2008). Trans-

formation of sbvr business design to uml models.

pages 29–38. ACM.

Shariﬁ, H. R. and Mohsenzadeh, M. (2012). A new method

for generating cim using business and requirement

models. volume 2, pages 8–12.

Soley, R. (2000). Model driven architecture (mda). In

http://www.omg.org/cgibin/doc?omg/00-11-05,.

Solomencevs, A. (2016). Topological functioning model for

software development within mda (survey). ENASE

2016, pages 315–326.

Wu, J. H., Shin, S. S., Chien, J. L., Chao, W. S., and Hsieh,

M. C. (2007). An extended mda method for user inter-

face modeling and transformation. pages 1632–1641.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

378
