Joint Usage of Frames and the Topological Functioning Model for

Domain Knowledge Presentation and Analysis

Vladislavs Nazaruks and Jānis Osis

Department of Applied Computer Science, Riga Technical University, Sētas iela 1, LV-1048, Riga, Latvia

Keywords: System Modelling, Frames, Knowledge Base, Topological Functioning Model.

Abstract: Joint usage of frames and Topological Functioning Model (TFM) provides proper analysis of knowledge in

the domain under study. The main issue in domain knowledge analysis is completeness of discovered

knowledge. Formal representation of the knowledge in frames allows automated construction and validation

of the TFM, thus allowing to discover white places in knowledge. Analysing TFM metamodels, the structure

of the frame system for generation of the TFM is proposed. The frame system leads to highlighting structural

knowledge, while validation of the generated TFM shows white places in behavioural knowledge. Validation

of the TFM does not guarantee the complete identity of obtained knowledge to the domain, since the

knowledge is based on expert opinions. Thus, analysis of the problem domain is shifted from the separate

investigation of dynamic and structural aspects of the system to holistic understanding of domain phenomena.

The presented results should be refined if other derived models are added.

1 INTRODUCTION

Complex business domain logic that is necessary for

software development can be and must be discovered

during systems analysis and specified by models as

accurate as possible. The goal of systems analysis is

not only to discover some limited knowledge about

the domain and requirements to the software, but also

to make implicit domain knowledge clear and

unambiguous, thus raising the probability of its

completeness.

The more formal is a model, the higher is its

accuracy. The suggested technique uses formal

models for knowledge representation, modelling and

analysis, namely a Topological Functioning Model

(TFM) and knowledge frames. But the question is

how both these formal means can be jointly used to

lead to the more complete discovering of knowledge.

There are many formats for knowledge

representation, e. g. knowledge frames, ontology,

product rules, first-order predicate logic, high-order

predicate logic, fuzzy logic, modal logic, etc. Every

format has its own limitations and benefits (Okafor &

Osuagwu 2007). Some of them (e. g. ontology, logic-

based structures) are dedicated to representation of

declarative domain knowledge, while other (e. g.

product rules) are dedicated to representation of

procedural domain knowledge.

Due to evolution of web technologies, the

ontology has gained the greater popularity. There are

many domain ontologies, knowledge of which can be

used, and can enhance other knowledge bases.

From one point of view, the ontology can

supplement the TFM well, since the model is focused

more on the functionality and domain object

participation in it than on the structural relationships

among objects. However, the construction of the

TFM requires analysis of domain information and

extraction of both (procedural and declarative)

knowledge, but here the functional view on the

system is the primary one. During transformation of

the TFM into software analysis and design models,

this view must be changed. The functional view on

the system must be assigned to the structural view on

the system. The ontology, compared to the knowledge

frames, cannot hold procedural knowledge together

with the declarative one. Therefore, the proposed

approach foresees the use of the knowledge frames.

However, it does not mean that it cannot use

ontologies for some specific tasks.

The research describes the related work (Section

2), the common vision of the proposed technique

(Section 3) of a joint use of the frame system and the

TFM (Section 4), and illustrates it by a small example

Nazaruks, V. and Osis, J.

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis.

DOI: 10.5220/0006388903790390

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 379-390

ISBN: 978-989-758-250-9

379

(Section 5). Conclusions (Section 6) highlight some

benefits and limitations of the proposition.

2 RELATED WORK

The most common way of entering knowledge into

the frame system is manual, i. e. a knowledge

engineer enters facts and assertions about the domain

based on results of interviews with domain experts

and other information about the domain (Beltrán-

Ferruz et al. 2004; Shiue et al. 2008; Bimba et al.

2016; Detwiler et al. 2016). Only in case of text

analysers automated entering is applied, but the

amount of human participation in this process is not

clear (Grigorova & Nikolov 2007; Xue et al. 2010;

Xue et al. 2012; Corcoglioniti et al. 2016).

Frame-based representation of declarative and

procedural knowledge has a wide application, but the

last decade tendency is health care and biomedicine

(mostly for ontologies of terms) (Beltrán-Ferruz et al.

2004; Bimba et al. 2016), forecasting (Kim et al.

2008; Bimba et al. 2016) and text/natural language

processing (Kramer & Kaindl 2004; Marinov 2004;

Marinov 2008; Gennari et al. 2005; Tettamanzi 2006;

Grigorova & Nikolov 2007; Xue et al. 2010; Xue et

al. 2012; Rector 2013; Sim & Brouse 2014; Bimba et

al. 2016; Al-Saqqar et al. 2016).

Limitations mentioned by authors are inadequate

representation of knowledge (Kramer & Kaindl

2004), greater expressiveness that can lead pure

ontologies to the loss of information in case of

transformation into them (Gennari et al. 2005; Bimba

et al. 2016; Detwiler et al. 2016), necessity to work

with the completely known characteristics and static

knowledge domain (Grigorova & Nikolov 2007),

representation of the procedural knowledge as

programming code inside frames (Grigorova &

Nikolov 2007), and the fact that complex structures

can decrease the performance of the system inference

and execution (Shiue et al. 2008; Xue et al. 2010).

There could be integration with other knowledge

representation systems such as product rules and

business constraints (Hernández & Serrano 2001),

OWL (Hernández & Serrano 2001; Corcoglioniti et

al. 2016; Detwiler et al. 2016), fuzzy logic

(Tettamanzi 2006), and modal logic (Al-Saqqar et al.

2016).

The related work illustrates that frame systems are

still in use. There are made optimistic attempts to

adapt this knowledge representation format to new

technologies, which allows integrating frame-based

knowledge systems with already existing ontologies

and other knowledge representation techniques.

This means that frame systems can be applied also

for our purpose considering enumerated limitations

and possibilities.

3 JOINT USAGE OF FRAMES

AND TFM

The TFM is a formal model which describes the

functioning of a system. Its fundamentals are

published in (Osis 1969). The TFM can be specified

as a topological space



, Θ



, where  is a finite set

of functional features of the system under

consideration, and Θ is a topology on . A functional

feature is “a characteristic of the system (in its general

sense) that is designed [for] and necessary to achieve

some system’s goal” (Osis & Asnina 2011). It can be

specified by a unique tuple

〈

, , , , , , 

〉

, where:

  is an action linked with an object,

  is a result of the action ,

  is an object (objects) that gets the result of

the action or an object (objects) that is used

in this action,

  is a set of preconditions or atomic

business rules,

  is a set of postconditions or

atomic business rules,

  is a set of responsible entities (systems or

subsystems) that provide or suggest an

action with a set of certain objects,

  is a set of responsible entities (systems or

subsystems) that enact a concrete action

(Osis & Asnina 2011), (Nazaruka et al.

2016).

A TFM is valid when it satisfies topological and

functioning properties (Osis & Asnina 2011). The

topological properties are: connectedness,

neighbourhood, closure and continuous mapping.

The functioning properties are: cause-and-effect

relations, cycle structure, inputs and outputs. The

possibility of validation of the TFM using execution

model simulation is discussed in (Ovchinnikova &

Nazaruka 2016), where decision making is based on

results presented in (Asnina & Ovchinnikova 2015).

In this research, three approaches for complex

system modelling are considered, namely

TFM4MDA, TopUML and IDM.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

380

Figure 1: General vision of joint usage of TFM and frame system.

The Topological Functioning Modelling for

Model Driven Architecture (TFM4MDA) approach

defined in (Osis & Asnina 2008b) is intended for

problem domain analysis and modelling in the

context of MDA. It makes possible to use a formal

TFM as a Computation Independent Model (CIM).

The TopUML approach proposed in (Donins

2012) combines TFM and its formalism with

elements and diagrams of the TopUML modelling

language, which is a specially developed profile of

the Unified Modelling Language (UML). The

TopUML modelling method “covers modelling and

specification of systems in computation independent

and platform independent viewpoints” (Donins

2012).

The Integrated Domain Modelling (IDM)

approach is proposed in (Slihte 2015); the goal of this

approach is “to provide an efficient way to acquire a

domain model based on declarative and procedural

domain knowledge”. The approach “suggests using

common system analysis and artificial intelligence

practices to capture the domain knowledge and then

transform these into a corresponding domain model”

(Slihte 2015).

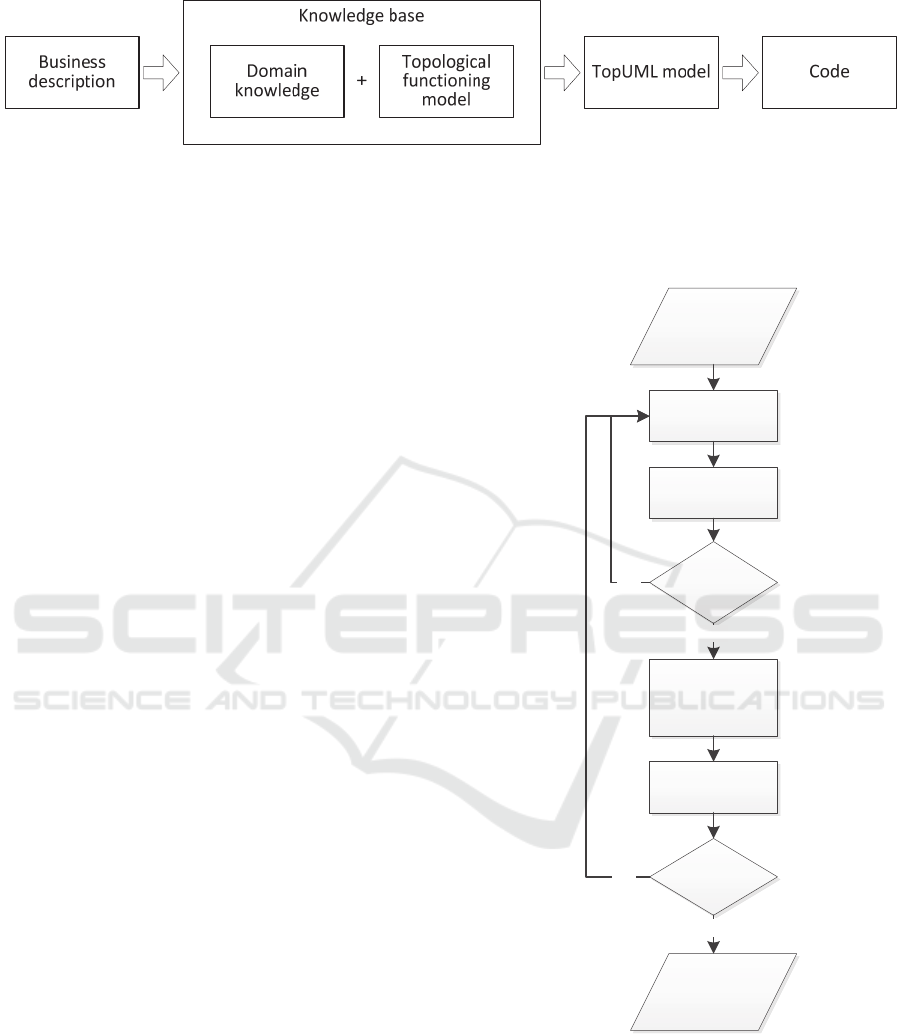

Figure 1 illustrates the general vision of how the

TFM and frame-based knowledge base can be used

for software development. The main idea is to

represent knowledge of the domain under study as a

knowledge frame system. The system holds also

knowledge that is specific to the TFM, such as causal

dependencies, cycles, inputs, and outputs. Using this

knowledge base, the TFM can be generated

automatically. The TFM itself and other knowledge

in the frame system serve as a source for constructing

a design model in TopUML. The TopUML model is

planned to be transformed to the source code of the

software. Reverse engineering from UML sequence

diagrams to the TFM is considered in (Ovchinnikova

& Asnina 2015).

The presence of the knowledge base lets store the

knowledge in a structured and formal manner, while

allowing to check it for inconsistencies.

The closure of the topological space over a set of

system’s inner functional features, as well as the TFM

representation as a graph, could allow a modeller to

find these inconsistencies. The joint use of the frame

system and the TFM for this purpose is illustrated in

Figure 2.

Business

description

Fill in frames

Generate the

topological space

Is the

topological

space valid?

Indicate system’s

inner functional

features

Generate the TFM

Is the TFM valid?

The TFM of

the system

under

research

[yes]

[no]

Figure 2: The process of checking the inconsistencies.

The idea is that generation and further validation

of the TFM in compliance with its metamodel would

allow seeing places where the business knowledge is

implicit. The valid topological space is a requirement

for generating the TFM. However, it does not

guarantee that the generated TFM will be valid. For

example, let us consider the situation shown in Figure

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis

381

3. Here, the topological space is valid (Figure 3, part

A): all functional features are connected, and it does

have a cycle, inputs and outputs. After the closure of

the set of system’s inner functional features (vertices

labelled with S), the TFM has been separated into two

parts. This indicates lost cause and effect relations

between system’s functional features. The graphical

representation allows seeing the possibly related

functional features (Figure 3, bold-lined vertices in

part B).

(a)

(b)

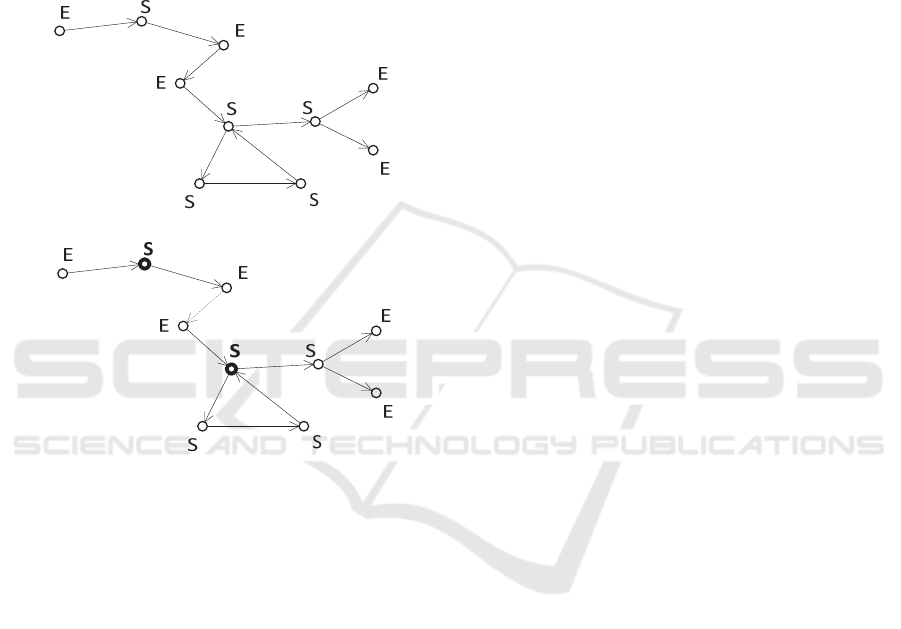

Figure 3: The invalid abstract TFM generated from the

valid topological space.

4 DOMAIN KNOWLEDGE

PRESENTATION

To understand what knowledge is to be kept in frame

system, let us consider what is needed for

construction of the TFM. First, let us compare

knowledge units that are kept in TFM from its

metamodel perspective, and then from viewpoint of

functional feature definitions.

4.1 Comparison of TFM Metamodels

At the present, there are three TFM metamodels, each

developed for a concrete TFM application:

TFM4MDA (Asnina 2006; Osis et al. 2007),

TopUML (Osis & Donins 2010b; Donins 2012) and

IDM approach (Osis et al. 2012; Slihte 2015). The

analysis of them showed the following common

elements (Table 1): the topological functioning model

(row 1), the functional feature (row 2), the cycle (row

4), the actor (row 9), the logical relationship (row 21),

and the topological relationship (row 22), as well as

two enumerations “Subordination” (row 14) for

functional feature subordination within the system

and “LogicalOperation (row 20) for specification of

logical operation on the set of topological

relationships. Other elements are specific for each

approach. In case of TFM4MDA they are required for

transformation from TFM to use case specifications

(rows 9–13), in case of TopUML for transformation

to TopUML diagrams (rows 15–19), and in case of

IDM approach the TFM is a target of the

transformation (therefore, the metamodel of use

cases, the source of the transformation, is not

considered here).

The frame system suggested here is based on (but

not limited to) the elements necessary to generate the

TFM without logical operations among cause-and-

effect relationships. It represents domain ontology but

does not specify scripts for frame instance generation.

4.2 Comparison of Functional Feature

Definitions

The definition of a functional feature of the TFM in

the form of a n-ple has been introduced and

elaborated by several authors, its historical aspects

are discussed in more detail in (Solomencevs 2016).

Here we want to understand what knowledge and for

what artefacts functional feature’s n-ple may contain.

The results of this analysis will be applied to the

frame system to separate knowledge that are

necessary to the pure TFM, and knowledge that can

be related to the previous one to infer some additional

knowledge, e. g. necessary for generating software

analytical diagrams, or for checking software

functional requirements for incompleteness.

Table 2 illustrates elements of n-ples and

corresponding artefacts. Elements that are necessary

for the pure TFM are A, R, O, PrCond, E, PostCond,

S, Pr; and will be presented in the suggested frame

system. The bold font indicates sets of elements.

Other elements may be generated from these.

Artefacts such as the TDM and analytical diagrams

use all the elements presented.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

382

Table 1: Comparison of metaclasses and datatypes of the three TFM metamodels (Asnina 2006; Donins 2012; Slihte 2015),

where domains are denoted as P for the problem domain and S for the solution domain, as well as artefacts are TFM for the

topological functioning model, REQ for functional requirements, and APL for application analytical diagrams.

N. TFM4MDA metamodel 2006 TFM metamodel 2012 TFM metamodel

2015

Domain Artefacts

1 TFMTopologicalFunctioningModel TopologicalFunctioningModel TFM P, S TFM

2 TFMFunctionalFeature FunctionalFeature FunctionalFeature P, S TFM

3 TFMFunctionalFeatureSet P, S TFM

4 TFMCycle TopologicalCycle Cycle P, S TFM

5 TFMCorrespondence P, S TFM,

REQ

6 TFMUserGoal S REQ

7 TFMUserSystemGoal S REQ

8 TFMUserBusinessGoal S REQ

9 TFMUserRole Actor Actor P, S TFM,

REQ

10 TFMBusinessActor S REQ

11 TFMBusinessWorker S REQ

12 TFMFunctionalRequirement S REQ

13 Enumeration “Benefit” S REQ

14 Enumeration “Subordination” Enumeration “Subordination” Enumeration

“Subordination”

P, S TFM

15 ActionResult S APL

16 Class S APL

17 State S APL

18 Condition S APL

19 TopologicalOperation S TFM,

APL

20 Enumeration “RelationType” Enumeration

“LogicalOperation”

P, S TFM

21 LogicalRelationship LogicalRelationship P, S TFM

22 TopologicalRelationship Topological

Relationship

P, S TFM

Object O has the responsibility to execute action

A to get the outcome — result R. Therefore, there is

a single object type that could represent also a set of

objects (e.g. a collection).

Result R of action A can be defined as “a thing

that is caused or produced by something else; a

consequence or outcome” (Oxford University Press

2013), “expressed in client-valued terms” (Luca

2002). Therefore, in the frame system, the result can

be represented by any type. This statement is not in

contradiction with the assumption that the result can

be an attribute of a class or another class made in

(Donins 2012). Thus, topological operation Op of

class Cl (equals to object O) should be named as a

union of names of action A and result R. For example,

in case of functional feature “Calculating the

maximum per year for sales”, the topological

operation of object collection Sales will be

Sales::calculateMaximumPerYear() and result R will

be derived attribute Sales::/maximumPerYear of

some numerical type.

Creating explicit assignments between frames of

functional features and objects gives the possibility to

look at the functionality of the system from the

structural viewpoint, as well as to consider causal

dependencies among objects from the functioning

viewpoint.

4.3 The Frame System

According to the information defined in previous

sections, the following frame classes have been

developed:

 CauseAndEffectRelation (Table 3) — for

knowledge on cause-and-effect relations

generated from instances of frame

FunctionalFeature;

 FunctionalFeature (Table 4) — for facts about

the functional features;

 Object (Table 5) — for objects that participate

in the functional feature execution;

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis

383

Table 2: Use of elements of n-ples of a functional feature for artefacts that are denoted as TFM for topological functioning

models, TCD for topological class diagrams, SD for state diagrams, CD for communication diagrams, SeD for sequence

diagrams, AD for activity diagrams, TUCD for topological use case diagram.

N. Element Description References Artefacts

1 A The action (Osis & Asnina 2008b;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM, AD, SD

*necessary to

TCD

2 R The result of action A (Osis & Asnina 2008b;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM, TCD

3 O The object that gets result R or that is used in action

(Osis & Asnina 2008b;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM

*necessary to

TCD

PrCond

The set of preconditions or atomic business rules (Osis & Asnina 2008b;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM, AD, SD

5 E The entity that is responsible for execution of action

(Osis & Asnina 2008b;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM, TUCD

PostCond

The set of postconditions (Osis & Asnina 2008a;

Osis & Donins 2010a;

Donins et al. 2012; Slihte

2015)

TFM

7 S Subordination of the functional feature, i.e. its

location in relation to the system under the study:

inner or external

(Osis & Asnina 2008a;

Donins et al. 2012; Slihte

2015)

TFM

8 Cl The class which will represent object O in static

viewpoint of the system

(Osis & Donins 2010a;

Donins et al. 2012)

TCD, CD, SeD

*is equal to

object O

9 Op The operation of the class Cl (Osis & Donins 2010a;

Donins et al. 2012)

TCD, CD, SeD

*is equal to

action A with

its result R

10 St The new state of object O after execution of action A (Donins et al. 2012) SD

11 Es The indicator that execution of action A can be

automated

(Donins et al. 2012) SD

13 Pr A set of responsible entities that provide or suggest

action A with or for object O

(Osis & Asnina 2011) TFM

 Property (Table 6) — for domain object

properties;

 TopologicalOperation (Table 7) — for

knowledge about the operations that will

implement actions of the functional features;

the instances of this frame class are to be

generated based on the values of frame

FunctionalFeature values;

 TopologicalCycle (Table 8) — for holding

facts about functional feature participation in

cycles of functionality.

Each frame class is identified by its name, it

contains slots, fillers and facets. Now, frame classes

hold only static knowledge on the domain, i. e.

ontology. Further, integration with the product

(business) rules must be implemented.

There are several frame classes which slot values

must be set and updated automatically. The first one

is CauseAndEffectRelation, which slot values are

generated based on the facts that the cause is

predefined by using a precondition, while the effect is

specified by using a postcondition (Donins 2012). So,

the frame instance is created and filled in when there

is a case of the equal precondition and a

postcondition.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

384

Table 3: Frame class for cause-and-effect relations

(generated).

Class: CauseAndEffectRelation

identifier

causeFeature FunctionalFeature

effectFeature FunctionalFeature

preCondition

postCondition

Table 4: Frame class for functional features (filled in).

Class: FunctionalFeature

identifier

action

result

anyType

object Object

preConditionSet

postConditionSet

provider Object

(role=provider)

executorSet collection of

Object

(role=executor

OR actor)

subordination {inner,

external}

Table 5: Frame class for objects (filled in and generated).

Class: Object

identifier

name

role {none, executor,

actor, provider}

state enumeration

currentState

properties Collection of Property

topologicalOperations Collection of

TopologicalOperation

Table 6: Frame class for properties (filled in).

Class: Property

name

type anyType

value

Table 7: Frame class for topological operations (generated).

Class: TopologicalOperation

name

owner Object

returnType anyType

Table 8: Frame class for topological cycles (filled in and

partially generated).

Class: TopologicalCycle

identifier

isMain

order

functionalFeatures collection of 2 and more

FunctionalFeature instances

The second one is frame TopologicalOperation,

where the name must be set as a union of values of

slots action and result of FunctionalFeature. The slot

owner gets his value based on the value of slot object

in FunctionalFeature frame, but the slot returnType

by a type of the value of slot result.

Frames whose slot values are partially generated

are Object (the value of slot topologicalOperation),

and TopologicalCycle (the value of slot

functionalFeatures). The latter is possible since in all

the metamodels the topological cycle is represented

as a set of functional features that are involved in

some closed path.

Identifiers in all frames are to be also

automatically generated.

This frame system represents only facts about the

domain, not scripts or daemons.

5 ILLUSTRATIVE EXAMPLE

Description of the business domain is as follows. “A

criminal case is initiated by an investigator when a

criminal act is stated. The criminal act may be stated

when a criminal person has committed a criminal act

and it was discovered or a victim or witness has

submitted a claim about it. After the criminal case

was initiated, the investigator conducts investigative

actions. As the result of this, the indicted person is

found. After the investigation is completed, the

criminal case is sent to a prosecutor. If the criminal

act is misdemeanour, the prosecutor can draw up a

penal order. If the indicted person agrees with the

accusation presented and the penalty the prosecutor

offered, then the criminal case is terminated and the

convicted person serves the punishment. Otherwise,

the prosecutor sends the case to the court. The

criminal case is terminated when the court adjudicates

in the case. The Chief of Department assigns an

investigator to a stated criminal act, and then the

investigator initiates a new criminal case. The

decision is based on the availability of investigators,

since each investigator informs Chief when the

criminal case is sent to the prosecutor.”

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis

385

Having this knowledge about the system, a

modeler can fill in frame instances for functional

features and objects (see Table 9 and Table 10). The

corresponding generated topological space of the

system functional features is shown in Figure 4. The

topological space is valid, it contains no isolated

vertices, has inputs, outputs, and a cycle structure.

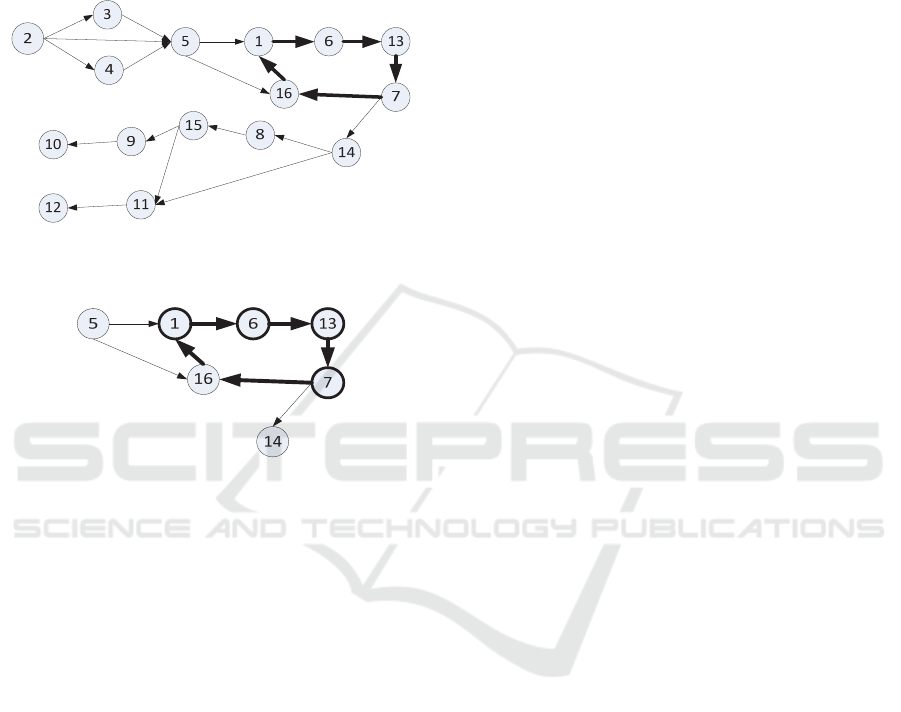

Figure 4. The topological space obtained from the facts in

the frame system.

Figure 5. The TFM obtained after closuring.

The next step is to indicate system’s inner

functional features. Let us imagine that we need to

generate the TFM of the investigator work. Then the

inner functional features are 1, 6, 7, and 13. The value

of slot “subordination” of frame instances of them

should be set to “inner”. After the closuring, the

corresponding TFM (Figure 5) is obtained.

Though the model is small, it is valid, namely, it

does contain input (functional feature 5), output

(functional feature 14), the functioning cycle (1-6-13-

7-16-1), and has no isolated functional features.

6 CONCLUSIONS

In this paper, three existing TFM metamodels were

compared with each other, and common elements

were discovered. At the present, the frame system

contains only static information; some frame

instances can be filled in with fully or partially

generated knowledge. This structure is sufficient to

generate TFM from it; however, the generated TFM

does not represent any logical operations on cause-

and-effect relations, since now the suggested frame

system does not hold the required constructs.

A joint use of the knowledge frame system and the

TFM has the following benefits. First, the nature of

the knowledge frame system as a closed system does

not allow infering ambiguous statements, i. e. if

something is not stated as true in the system, then this

means that it is false. In case if this proposition does

not correspond to the real phenomena, it would lead

to further investigation of the domain phenomena and

rules. Second, the structure of the frame system is

similar to the object-oriented way of thinking. This

allows software developers to operate with elements

of the frame system in the known way. Third,

principles that lie in the topological functioning

modelling lead to the more complete discovering of

knowledge. The sequential validation of the

topological space and the topological model of the

system functioning could help in discovering

potential “holes” in the presented knowledge. Fourth,

The TFM supplemented with the declarative and

procedural knowledge from the frame system serves

as the formal root view on the system at the very

beginning of the development.

However, there are limitations, too. One of the

difficulties in development of frame instances of

functional features is to define the proper client-

valued result of the action and the corresponding

object. Another one is handling business rules and

logical operators on cause-and-effect relations. The

third one is the implementation of the frame system

and a use of proper inference engine. The fourth,

integration with already existing ontologies that use

an open world paradigm, thus allowing to infer

potentially untrue statements.

The future research will be related to extending

the frame system with procedural knowledge, i. e.

logical operations on cause-and-effect relations,

scripts that will set and update values of the

corresponding slots with facts about the domain, and

business rules definitions separately from the frame

classes to provide its greater flexibility and

maintainability.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

386

Table 9: Frame instances for FunctionalFeatures.

ident

ifier

action result object preConditionSet postConditionSet provider executor-

Set

1. Initiating [new] Criminal

Case

a criminal act is stated AND

an investigator is assigned

a criminal case is

initiated

State Police Investigator

2. Committing [new] Criminal

Act

a criminal act is

committed

Criminal-

Person

3. Discovering [new] Criminal

Act

a criminal act is committed a criminal act is

discovered

State Police

4. Submitting [new] ClaimOn

Criminal

Act

a criminal act is committed a claim about a

criminal act is

submitted

State Police victim,

witness

5. Stating [new] Criminal

Act

a criminal act is committed

AND (a criminal act is

discovered OR a claim about

a criminal act is submitted)

a criminal act is

stated

6. Conducting inves-

tigative

Acti-

ons

Criminal

Case

a criminal case is initiated an indicted person

is found

State Police

7. Sending toPro-

secutor

Criminal

Case

an investigation is completed a criminal case is

sent to prosecutor

State Police Investigator

8. Drawing up penal-

Order

Criminal

Case

a criminal act is

misdemeanour OR a criminal

act is average gravity

a penal order is

drawn

Prosecution

Office

Prosecutor

9. Terminating Criminal

Case

an indicted person agrees

with the penal order

a criminal case is

terminated

Prosecution

Office

Prosecutor

10. Serving Punish-

ment

a criminal case is terminated Prisons

Administra-

tion

Convicted-

Person

11. Sending to the-

Court

Criminal

Case

NOT(an indicted person

agrees with the penal order)

OR a criminal act is grave

NOT (a criminal

case is

terminated) AND

a criminal case is

sent to the court

Prosecution

Office

Prosecutor

12. Adjudicating Criminal

Case

NOT (a criminal case is

terminated) AND a criminal

case is sent to the court

a criminal case is

terminated

Court

13. Completing inves-

tigative

Acti-

ons

Criminal

Case

an indicted person is found an investigation is

complete

State Police Investigator

14. Assessing gravety Criminal

Act

a criminal case is sent to

prosecutor

a criminal act is

misdemeanour

OR a criminal act

is average gravity

OR a criminal act

is grave

Prosecution

Office

Prosecutor

15. Signing agree-

ment

Penal-

Order

a penal order is drawn an indicted person

agrees with the

penal order OR

NOT(an indicted

person agrees

with the penal

order)

Prosecution

Office

Indicted-

Person

16. Assigning investi-

gator

Criminal

Case

a criminal case is sent to

prosecutor OR a criminal act

is stated

an investigator is

assigned

State Police Chef of

Department

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis

387

Table 10: Frame instances for Object.

identif

ier

name role state currentState properties topologicalOperations

CriminalCase none isInitiated,

isTermina-

ted

initiate[new]();

conductInvestigative-

Actions();

sendToProsecutor();

drawUpPenalOrder();

terminate();

sendToCourt();

adjudicate();

assignInvestigator()

2 Investigator executor/actor

3 CriminalAct none isStated,

isCommit-

ted,

isMisde-

meanour

gravety =

{misdemeanour,

average, grave}

commitNew();

discoverNew();

stateNew();

assessGravity()

4 CriminalPerson executor/actor

5 ClaimOnCriminalAct none isSubmitted submitNew()

6 InvestigativeActions none

7 Investigation none isComple-

ted

8 Prosecutor executor/actor

9 Victim executor/actor

10 Witness executor/actor

11 IndictedPerson none

12 PenalOrder none isDrawn accusation,

penalty

signAgreement()

13 Accusation isPresented

14 Penalty isOffered

13 Punishment none serve()

14 ConvictedPerson executor/actor

15 Court none

16 ChefOfDepartment executor/actor

REFERENCES

Al-Saqqar, F., Bentahar, J. & Sultan, K., 2016. On the

soundness, completeness and applicability of the logic

of knowledge and communicative commitments in

multi-agent systems. Expert Systems with Applications,

43, pp.223–236. Available at: http://dl.acm.org/

citation.cfm?id=2840535 [Accessed December 17,

2016].

Asnina, E., 2006. Formalization of Problem Domain

Modeling within Model Driven Architecture. Riga

Technical University.

Asnina, E. & Ovchinnikova, V., 2015. Specification of

decision-making and control flow branching in

Topological Functioning Models of systems. In ENASE

2015 - Proceedings of the 10th International

Conference on Evaluation of Novel Approaches to

Software Engineering. Lisbon: SciTePress, pp. 364–

373. Available at: https://www.scopus.com/inward

/record.uri?eid=2-s2.0-

84933575203&partnerID=40&md5=8d49b05925e036

2f60cb6f1528714891.

Beltrán-Ferruz, P.J., González-Calero, P.A. & Gervás, P.,

2004. Converting Mikrokosmos frames into description

logics. Proceeedings of the Workshop on NLP and XML

(NLPXML-2004): RDF/RDFS and OWL in Language

Technology, pp.35–42.

Bimba, A.T. et al., 2016. Towards knowledge modeling and

manipulation technologies: A survey. International

Journal of Information Management, 36(6), pp.857–

871. Available at: http://linkinghub.elsevier.com/

retrieve/pii/S026840121630336X [Accessed December

17, 2016].

Corcoglioniti, F., Rospocher, M. & Aprosio, A.P., 2016. A

2-phase frame-based knowledge extraction framework.

In Proceedings of the 31st Annual ACM Symposium on

Applied Computing - SAC ’16. New York, New York,

USA: ACM Press, pp. 354–361. Available at:

http://dl.acm.org/citation.cfm?doid=2851613.2851845

[Accessed December 17, 2016].

Detwiler, L.T., Mejino, J.L.V. & Brinkley, J.F., 2016. From

frames to OWL2: Converting the Foundational Model

of Anatomy. Artificial Intelligence in Medicine, 69,

pp.12–21. Available at: http://www.aiimjournal.com

/article/S0933-3657(16)30152-X/abstract [Accessed

December 17, 2016].

Donins, U., 2012. Topological Unified Modeling

Language: Development and Application. Riga

Technical University.

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

388

Donins, U. et al., 2012. Using functional characteristics to

analyze state changes of objects. In CEUR Workshop

Proceedings. Databases and Information Systems.

Tenth International Baltic Conference on Databases

and Information Systems: Local Proceedings,

Materials of Doctoral Consortium. Vilnius: Žara, pp.

94–106.

Gennari, J.H., Mork, P. & Li, H., 2005. Knowledge

transformations between frame systems and RDB

systems. In Proceedings of the 3rd international

conference on Knowledge capture - K-CAP ’05. New

York, New York, USA: ACM Press, p. 197. Available

at:

http://portal.acm.org/citation.cfm?doid=1088622.1088

666 [Accessed December 17, 2016].

Grigorova, D. & Nikolov, N., 2007. Knowledge

representation in systems with natural language

interface. In Proceedings of the 2007 international

conference on Computer systems and technologies -

CompSysTech ’07. New York, New York, USA: ACM

Press, p. 1. Available at:

http://portal.acm.org/citation.cfm?doid=1330598.1330

670 [Accessed December 17, 2016].

Hernández, J.Z. & Serrano, J.M., 2001. Knowledge-based

models for emergency management systems. Expert

Systems with Applications, 20(2), pp.173–186.

Available at:

http://linkinghub.elsevier.com/retrieve/pii/S09574174

00000579 [Accessed December 17, 2016].

Kim, K. et al., 2008. A frame-based probabilistic

framework for spoken dialog management using dialog

examples. In Proceedings of the 9th SIGdial Workshop

on Discourse and Dialogue. Columbus, Ohio:

Association for Computational Linguistics,

Stroudsburg, PA, USA, pp. 120–127.

Kramer, S. & Kaindl, H., 2004. Coupling and cohesion

metrics for knowledge-based systems using frames and

rules. ACM Transactions on Software Engineering and

Methodology, 13(3), pp.332–358. Available at:

http://portal.acm.org/citation.cfm?doid=1027092.1027

094 [Accessed December 17, 2016].

Luca, J. De, 2002. Feature Driven Development. Feature

Driven Development Processes. Available at:

http://www.featuredrivendevelopment.com/node/449

[Accessed January 8, 2017].

Marinov, M., 2008. Using frames for knowledge

representation in a CORBA-based distributed

environment. Knowledge-Based Systems, 21(5),

pp.391–397. Available at: http://linkinghub.elsevier

.com/retrieve/pii/S0950705108000154 [Accessed

December 17, 2016].

Marinov, M., 2004. Using XML to represent knowledge by

frames. In Proceedings of the 5th international

conference on Computer systems and technologies -

CompSysTech ’04. New York, New York, USA: ACM

Press, p. 1. Available at:

http://portal.acm.org/citation.cfm?doid=1050330.1050

350 [Accessed December 17, 2016].

Nazaruka, E. et al., 2016. Verification of BPMN Model

Functional Completeness by using the Topological

Functioning Model. In Proceedings of the 11th

International Conference on Evaluation of Novel

Software Approaches to Software Engineering.

Portugal: SCITEPRESS - Science and and Technology

Publications, pp. 349–358. Available at:

http://www.scitepress.org/DigitalLibrary/Link.aspx?do

i=10.5220/0005930903490358 [Accessed February 20,

2017].

Okafor, E.C. & Osuagwu, C.C., 2007. Issues in Structuring

the Knowledge-base of Expert Systems. Journal of

Knowledge Management, 5(3), pp.313–322.

Osis, J., 1969. Topological Model of System Functioning

(in Russian). Automatics and Computer Science, J. of

Academia of Siences, (6), pp.44–50.

Osis, J. & Asnina, E., 2008a. A Business Model to Make

Software Development Less Intuitive. In 2008

International Conference on Computational

Intelligence for Modelling Control & Automation.

IEEE, pp. 1240–1245. Available at: http://ieeexplore

.ieee.org/document/5172803/.

Osis, J. & Asnina, E., 2008b. Enterprise Modeling for

Information System Development within MDA. In

Proceedings of the 41st Annual Hawaii International

Conference on System Sciences (HICSS 2008).

Waikoloa, USA: IEEE, pp. 490–490. Available at:

http://ieeexplore.ieee.org/document/4439190/.

Osis, J. & Asnina, E., 2011. Topological Modeling for

Model-Driven Domain Analysis and Software

Development : Functions and Architectures. In Model-

Driven Domain Analysis and Software Development.

Hershey, PA: IGI Global, pp. 15–39.

Osis, J., Asnina, E. & Grave, A., 2007. Formal computation

independent model of the problem domain within the

MDA. In CEUR Workshop Proceedings.

Osis, J. & Donins, U., 2010a. Formalization of the UML

Class Diagrams. In Evaluation of Novel Approaches to

Software Engineering. 3rd and 4th International

Conferences, ENASE 2008/2009, Funchal, Madeira,

Portugal, May 4-7, 2008 / Milan, Italy, May 9-10, 2009.

Revised Selected Papers. Springer Berlin Heidelberg,

pp. 180–192. Available at: http://link.springer

.com/10.1007/978-3-642-14819-4_13 [Accessed

January 8, 2017].

Osis, J. & Donins, U., 2010b. Platform Independent Model

Development by Means of Topological Class

Diagrams. In Model-Driven Architecture and Modeling

Theory-Driven Development : Proceedings of the 2nd

International Workshop on Model-Driven Architecture

and Modeling Theory-Driven Development (MDA &

MTDD 2010). Lisbon: SciTePress, pp. 13–22.

Osis, J., Slihte, A. & Jansone, A., 2012. Using Use Cases

for Domain Modeling. In Proceedings of the 7th

International Conference on Evaluation of Novel

Approaches to Software Engineering (ENASE 2012),

Poland, Wrocław, 29-30 June. Lisbon: SciTePress, pp.

224–231.

Ovchinnikova, V. & Asnina, E., 2015. The algorithm of

transformation from UML sequence diagrams to the

Topological Functioning Model. In ENASE 2015 -

Proceedings of the 10th International Conference on

Joint Usage of Frames and the Topological Functioning Model for Domain Knowledge Presentation and Analysis

389

Evaluation of Novel Approaches to Software

Engineering. Lisbon: SciTePress, pp. 377–384.

Ovchinnikova, V. & Nazaruka, E., 2016. The Validation

Possibility of Topological Functioning Model using the

Cameo Simulation Toolkit. In Proceedings of the 11th

International Conference on Evaluation of Novel

Software Approaches to Software Engineering.

SCITEPRESS - Science and and Technology

Publications, pp. 327–336. Available at: http://www

.scitepress.org/DigitalLibrary/Link.aspx?doi=10.5220/

0005926003270336 [Accessed February 22, 2017].

Oxford University Press, 2013. Oxford Dictionaries.

Oxford Dictionaries. Available at: https://en.

oxforddictionaries.com/definition/result [Accessed

January 8, 2017].

Rector, A., 2013. Axioms and templates: distinctions and

transformations amongst ontologies, frames, and

information models. In Proceedings of the seventh

international conference on Knowledge capture - K-

CAP ’13. New York, New York, USA: ACM Press, p.

73. Available at: http://dl.acm.org/citation.cfm?

doid=2479832.2479840 [Accessed December 17,

2016].

Shiue, W., Li, S.-T. & Chen, K.-J., 2008. A frame

knowledge system for managing financial decision

knowledge. Expert Systems with Applications, 35(3),

pp.1068–1079. Available at: http://linkinghub.elsevier

.com/retrieve/pii/S0957417407003247 [Accessed

December 17, 2016].

Sim, W.W. & Brouse, P., 2014. Towards an Ontology-

based Persona-driven Requirements and Knowledge

Engineering. Procedia Computer Science, 36, pp.314–

321. Available at: http://www.sciencedirect.com/

science/article/pii/S1877050914013489 [Accessed

October 7, 2016].

Slihte, A., 2015. The Integrated Domain Modeling: an

Approach & Toolset for Acquiring a Topological

Functioning Model. Riga Technical University.

Solomencevs, A., 2016. Topological Functioning Model for

Software Development within MDA (Survey). In

Proceedings of the 11th International Conference on

Evaluation of Novel Approaches to Software

Engineering (ENASE 2016). SciTePress, pp. 315–326.

Tettamanzi, A.G.B., 2006. A Fuzzy Frame-Based

Knowledge Representation Formalism. In Di Gesú V.,

Masulli F., Petrosino A. (eds) Fuzzy Logic and

Applications. WILF 2003. Lecture Notes in Computer

Science, vol 2955. Springer Berlin Heidelberg, pp. 55–

62. Available at: http://link.springer.com/10.1007

/10983652_8 [Accessed December 17, 2016].

Xue, Y., Ghenniwa, H.H. & Shen, W., 2010. A Frame-

based Ontological view Specification Language. In The

14th International Conference on Computer Supported

Cooperative Work in Design. IEEE, pp. 228–233.

Available at: http://ieeexplore.ieee.org/document

/5471972/ [Accessed December 17, 2016].

Xue, Y., Ghenniwa, H.H. & Shen, W., 2012. Frame-based

ontological view for semantic integration. Journal of

Network and Computer Applications, 35(1), pp.121–

131. Available at: http://linkinghub.elsevier.com/

retrieve/pii/S1084804511000488 [Accessed December

17, 2016].

MDI4SE 2017 - Special Session on Model-Driven Innovations for Software Engineering

390
