Lightweight Multilingual Software Analysis

Damian M. Lyons

, Anne Marie Bogar

and David Baird

Department of Computer and Information Science, Fordham University, New York NY, U.S.A.

Bloomberg L.P., New York NY, U.S.A.

Keywords: Software Engineering, Programming Languages, Software Systems and Testing, Software and Systems

Quality.

Abstract: Large software systems can often be multilingual – that is, software systems are written in more than one

language. However, many popular software engineering tools are monolingual by nature. Nonetheless,

companies are faced with the need to manage their large, multilingual codebases to address issues with

security, efficiency, and quality metrics. This paper presents a novel lightweight approach to multilingual

software analysis – MLSA. The approach is modular and focused on efficient static analysis computation

for large codebases. One topic is addressed in detail – the generation of multilingual call graphs to identify

language boundary problems in multilingual code. The algorithm for extracting multilingual call graphs

from C/Python codebases is described, and an example is presented. Finally, the state of current testing on a

database of programs downloaded from the internet is detailed and the implications for future work are

discussed.

1 INTRODUCTION

Companies with a large software base often face the

challenge of having to manage software architectu-

res and libraries in different languages to enforce

security, efficiency, and quality metrics (Mushtak

and Rasool, 2015) (van der Storm and Vinju, 2015)

(Lakos, 1996). Software development environments

such as Eclipse tend to be language specific – a

multiple language project would be developed in a

set of Eclipse IDEs for each language and a common

project. However, to address questions such as

refactoring for efficiency, it is necessary to be able

to analyse the entire existing code base, and existing

software tools are weaker in this cross-platform

aspect of multilingual systems (Strien, Kratz, and

Lowe, 2006) (Hong and al, 2015).

Although automatic software analysis tools can

be of great value in software engineering, their

widespread use is limited by many factors

(Christakis and Bird, 2016). Rather than proposing a

common language model or metalanguage and

complex IDE for cross-platform software

engineering – a top-down solution - we take the

approach of developing a set of simple, open source

tools to support static analysis of a multilingual code

base from the bottom-up. We present an overview of

our toolset, which we will call MLSA (MultiLingual

Software Analysis: pronounced Melissa) in this

paper, and also present our solution to one key issue

in making multlingual call graphs.

In the next section we briefly overview the

current literature and our motivation. Section 3

introduces the MLSA approach and architecture, a

bottom-up, lightweight perspective on static analysis

tools. Section 4 motivates and delves into detail on a

specific topic of importance, generating multilingual

call graphs. Our results are summarized and future

directions charted in the final section.

2 PRIOR LITERATURE

Heterogeneous or multilingual code bases arise in

many cases because software has been developed

over a long period by both in-house and external

software developers. Libraries for numerical

computation may have been constructed in

FORTRAN, C and C++ for example, and front-end

libraries may have been built in JavaScript.

A multilingual codebase gives rise to many

software engineering issues, including

• Redundancy, e.g., procedures in several

different language libraries for the same

Lyons, D., Bogar, A. and Baird, D.

Lightweight Multilingual Software Analysis.

DOI: 10.5220/0006392502010207

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 201-207

ISBN: 978-989-758-262-2

201

functionality, necessitating refactoring (Strien,

Kratz, and Lowe, 2006).

• Debugging complexity as languages interact in

unexpected ways (Hong and al, 2015).

• Security issues relating to what information is

exposed when one language procedure is called

from another (Lee, Doby, and Ryu, 2016).

Although multilingual code is common,

development tools tend to be language specific, with

some cross-platform functionality. As one example

among many, Checkmarx

offers static analysis

(Christakis and Bird, 2016) for a wide range of

languages individually. One approach to handling

the issues of multilingual systems is to instead use a

versatile monolingual environment (Heering and

Klint, 1985), but of course this is not too useful an

approach for existing multilingual codebases. A

more ‘reverse engineering’ friendly approach is to

leverage a metalanguage, e.g., Rascal (van der Storm

and Vinju, 2015), which provides tools with which

program analysis algorithms can be written for

different languages. Of course, this does not

specifically address the problems that arise due to

the language boundaries.

Our approach here is more directed and more

‘bare bones’ – targeted primarily at the language

interface and using little extra infrastructure. In the

next section, we will describe the architecture for

MLSA, a set of lightweight open source tools for

multilingual software analysis. There are many

important software metrics and analyses for large

software architectures (Lakos, 1996). In the

subsequent section, we delve into one specific

analysis: call-graph generation for multilingual code

bases using C/Python programs as an example.

3 THE MLSA ARCHITECTURE

User directed static analysis of a multilingual code

base is carried out in MLSA by the application of

pipelines of small filter programs, producing and

consuming CSV (comma separated value) table

files. The initial filters consume a monolingual AST

(abstract syntax tree) generated by the appropriate

monolingual parser. This lightweight, open source

architecture is shown in Figure 1; The MLSA

Software Architecture

is shown in Fig. 1(a), and an

http://www.checkmarx.com.

http://goo.gl/5tFQ7t.

example of a dataflow for an MLSA analysis is

shown in Fig. 1(b).

Static analysis in MLSA begins with the

monolingual layer in Fig. 1(a), where a language

specific parser generates the AST for each

monolingual program component in the multilingual

codebase. Currently our implementation covers C,

Python and JavaScript. The AST for the C programs

is generated by Clang-Check, those for Javascript

using SpiderMonkey, and a Python library function

generates the Python AST.

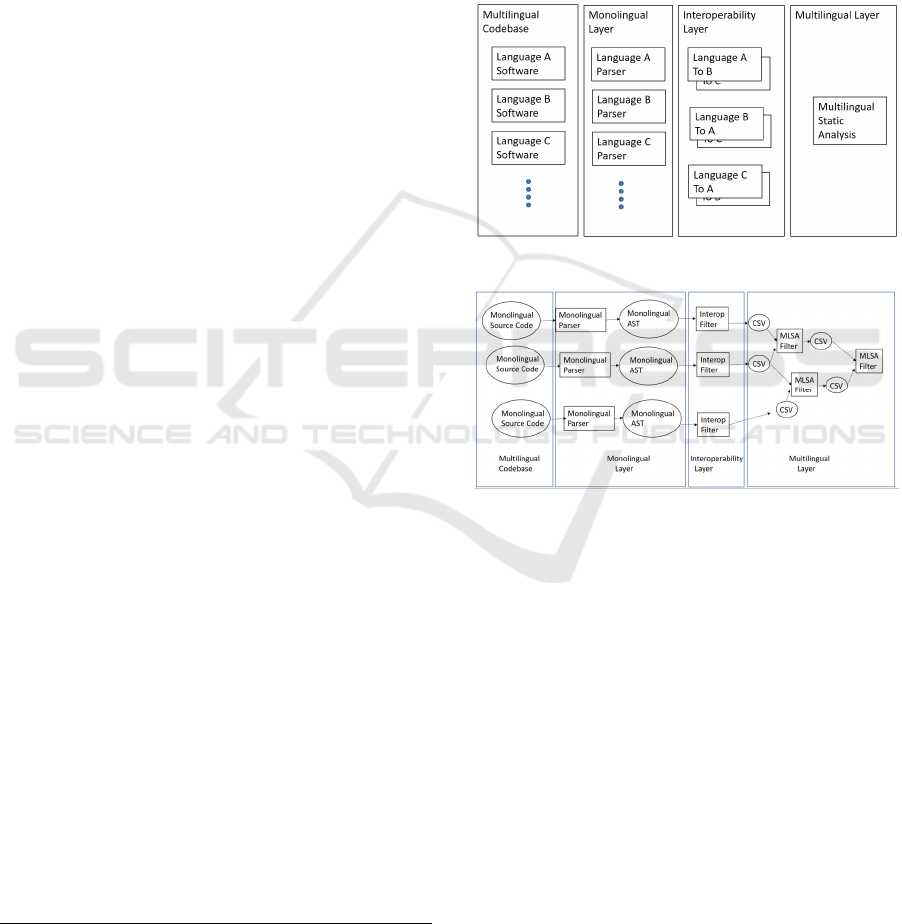

(a) MLSA Software Architecture

(b) Example MLSA Dataflow

Figure 1: MLSA Architecture.

Because each language AST differs, the

programs that consume the monolingual ASTs to

process interoperability APIs must be also language

specific; this happens in the interoperability layer. A

small set of interoperability APIS is currently

handled, but the addition of more is relatively

modular and contained within the interoperability

layer.

In the final layer, all the program data has been

transformed to multilingual, and procedures in

different languages can be related to one another. An

example of this processing is presented in the next

section.

ICSOFT 2017 - 12th International Conference on Software Technologies

202

3.1 Modularity

Example multilingual layer MLSA filter programs

include the generation of the forward and reverse

control flow, the identification of variable use and of

variable assignment, the allocation of heap memory,

the identification of procedure calls and so forth.

Consider an illustrative example of such a pipeline:

A Reaching Definitions Analysis (Nielson, Nielson,

and Hankin, 2005) (RDA) filter.

A monolingual AST filter CASN inputs the (C)

AST and generates a CSV file of variable

assignments locations. Another filter CRCF

generates the reverse control flow as a CSV file. A

multilingual filter RDA takes both as input and

calculates reaching definition for each assignment.

The MLSA architecture promotes modularity.

In the RDA example of the previous section:

1. Adding extra languages just requires adding new

monolingual filters for the language. For

Python, these are the PASN and PRCF filters.

2. Modifying analyses just requires reconfiguration

of the analysis pipeline: for example,

substituting the CSV output of CCON containing

condition locations for that of CASN would

perform RDA for the condition statements.

The architecture also supports open source

interactions. It is relatively easy to specify and build

new filters, or replace filters with more efficient

ones.

3.2 Computational Efficiency

The MLSA architecture was also designed with

computational efficiency in mind. The policy of

dividing the analysis into pipelines was chosen with

the objective of making parallelism and dependency

explicit. For relatively small multilingual codebases,

a static analysis network (as in Figure 1(b)) could be

distributed among multiple cores. The parallelism

and dependency can be derived directly from the

pattern of AST and CSV file use.

For a large codebase, in a realistic large company

scenario with a widely-distributed set of code

developers and contractors, a static analysis network

might need to function continually (a daily basis for

example) on cloud computing, regenerating and

updating CSV file components across the network.

In this scenario, the architecture also promotes a

‘just in time’ efficiency where CSV files are only

recalculated when needed by code changes, with

dependency information from the CSV files.

3.3 Multilingual Analysis

Call graph analysis (CGA) is a useful software

engineering tool (Ali and Lhotak, 2012). In

particular, for multilingual code, the call graph can

be used to investigate the boundary line between

languages, a boundary that is opaque in many tools.

For example, a C program may call a Python

procedure in addition to many C procedures.

Consider that one such C procedure OpenPort

exposes a security risk and needs to have its

invocations pass a security review. Just looking at

the call graph of the C procedures, some of which

may invoke the Python procedure, can give the false

security that it shows all the call sequences for the

program. However, the Python code may itself call

OpenPort or may call other procedures in that

same C program that in turn call OpenPort.

In the next section, we present one specific

problem we are addressing with MLSA – the

construction of multilingual call graphs – with the

objective of eliminating issues with the opacity of

language boundaries.

4 MULTILINGUAL CALL

GRAPH ANALYSIS

Call Graph for the program S is defined

CG(S

)=(V

, E

) consisting of a set of nodes:

• V

={(pname,parglist)} where pname

∈

Procs(S

)

is a procedure name within the program S

, and

parglist is the argument list in the procedure

call;

• E

⊆

links a node v to node u iff some

execution of v.pname calls u.pname with

arguments u.parglist.

For imperative language without first class functions

constructing a CG is not challenging. For functional

languages and OO languages, the issue of dynamic

dispatch complicates the construction, and a

technique such as Control-Flow Analysis (CFA)

(Nielson, Nielson, and Hankin, 2005) must be used.

Calling a cross-language procedure may be almost

trivial (in the C/C++ case) or may involve a cross-

language API as in the case of JNI (C/Java) or

Python.h (C/Python) and others. A monolingual

call graph analysis will yield leaf nodes that are the

cross-language API calls. We restrict the call graph

CG to be a tree for ease of display, with recursive

calls as leaf nodes.

Lightweight Multilingual Software Analysis

203

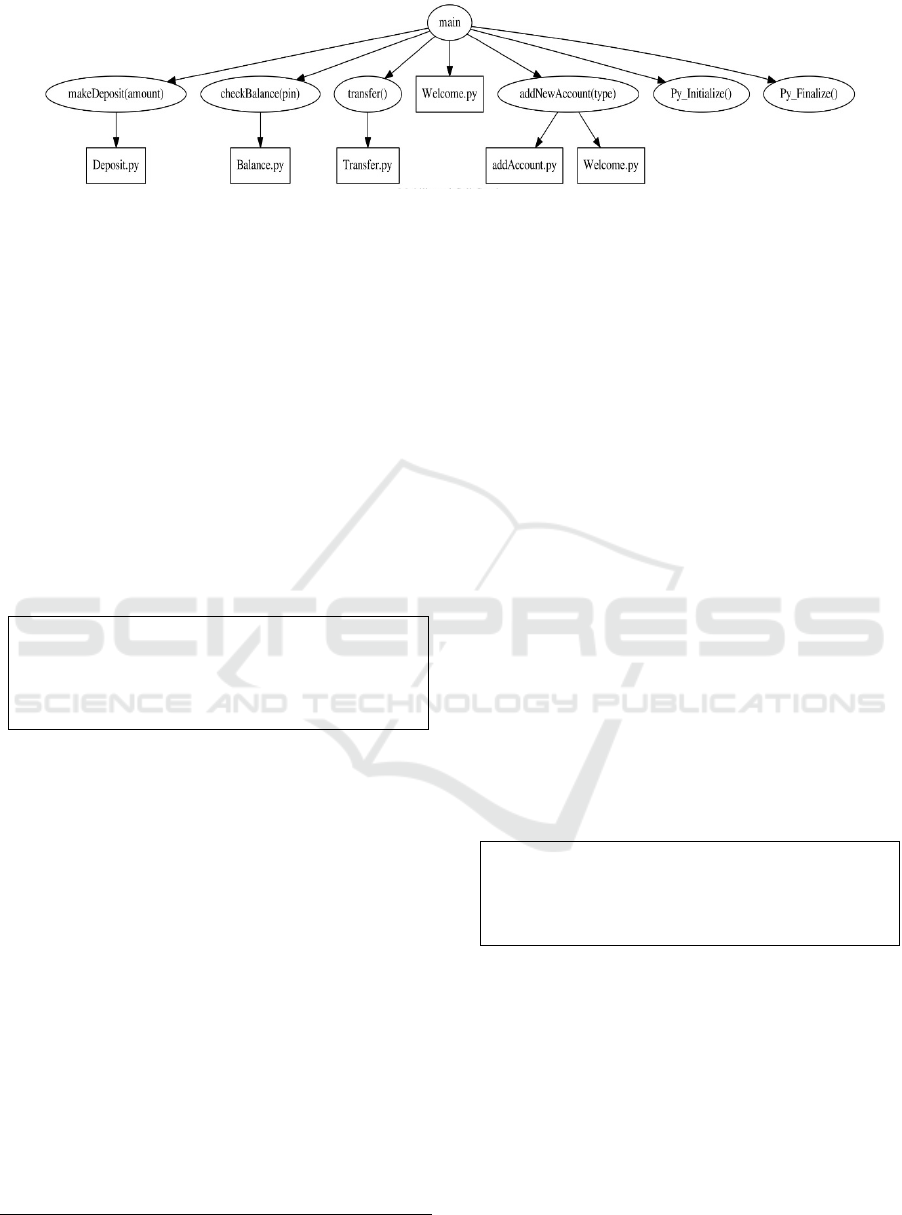

Figure 2: Example C Call Graph.

4.1 MLSA CG Construction

The MLSA approach is to develop a set of filters, one

per language, that ‘disambiguates’ the cross-

language API so that the name of called cross-

language procedure and its arguments are directly

visible. If this can be done, then the construction of

the multilingual call graph is not difficult.

For example, consider a C program S.c that calls

some Python procedures defined in S.py. The Python

call graph filter generates a call graph CG

from its

source input S.py, Py-CG(S.py)= CG

and the C call

graph filter similarly generates C-CG(S.c)= CG

The multilingual call graph CG is constructed as

follows:

1. CG=CG

2. For each leaf v∈V

if v.pname

∈

{u.pname|u

∈

}

copy the subtree with root u

to CG with root v.

The more difficult step is the disambiguation of the

cross-language API to generate the monolingual call

graphs above.

Consider the C/Python boundary API

(

Python.h

): Python code can be called from C

non-interactively in the following ways (each of

which have several variants and may require setup

code):

• PyRun_SimpleString(pyCodeString)

• PyRun_SimpleFile(filePtr, fileName)

• PyObject_CallObject(pFunc,pArgs)

The first just executes whatever code is in

pyCodeString. The second executes whatever

code is in

fileName. The last executes the python

function

pFunc with arguments pArgs (where the

python module needs to have been loaded a-priori

using

PyImport_Import()).

While the first can be treated simply as an

unnamed python procedure call, the other two are

https://docs.python.org/2/extending/embedding.html.

more challenging because the name of the python

procedure to be called is given by an argument

value. If the argument is a variable or expression,

then this is a constrained version of the dynamic

dispatch problem. Our approach is to use a Reaching

Definitions Analysis (RDA) to determine the set of

possible values (Nielson, Nielson, and Hankin,

2005) for the arguments of the cross-language API

call.

4.2 MLSA Language Boundary Filters

Let us consider the program S

to be a set of (ℓ,b)

basic block b (elementary statement) with line

number ℓ. MLSA extracts this information from the

language AST file. The set B of elementary

statements includes a procedure call statement, and

for (ℓ,b), b

∈

B procedure call, we define:

• target(b): name of the called procedure

• arg(b)=a

,…,a

: arguments of the call

Finally, we define RDA(p,X, ℓ) = {(x, ℓ’)|x

∈

X} to be

the line number ℓ’ of the last assignment in

procedure p for each variable x. The API call (and

its variants)

PyRun_SimpleFile is processed as:

If (ℓ,b), b

∈

B, target(b)=PyRun_SimpleFile

For (x,ℓ’)

∈

RDA(p,{a

},ℓ), with arg(b)=a

,…,a

Calculate y=Eval(x, ℓ’), and if y

≠∅

Add (y,

∅

) to V

and ((p,

),(y,

∅

)) to E

The RDA analysis determines the line ℓ’ that the

first argument to the API call was last assigned. The

Eval function determines if the value can be

statically evaluated. Not all values can, of course.

So, in the case that it is not possible, this is marked

using

∅

. In fact, finding that a C program is calling

a Python program whose name can only be

determined by run time calculations is itselfa

software engineering concern, and should be flagged

for review.

If the value can be statically determined, then the

name of the Python procedure is added to the call

graph. The subtree for the called procedure will be

ICSOFT 2017 - 12th International Conference on Software Technologies

204

added to the multilingual call graph when the C and

Python call graphs are merged.

The

PyObject_CallObject API call (and

variants) is processed as follows:

If (ℓ,b), b

∈

B, target(b)=PyObject_CallObject

For (x

,ℓ’)

∈

RDA(p,{a

},ℓ), with arg(b)=a

i=0..n

Calculate y

=Eval(x

, ℓ’), and if all y

≠∅

Add (y

,…,y

) to V

, ((p,

),(y

,…,y

)) to E

This is an extension of the processing for the file

API call to include an RDA analysis of all the

arguments for the cross-language procedure call. In

the strictest implementation, the call graph can be

completed only if the procedure name and all the

arguments’ values can be statically determined.

However, a more reasonable approach might be to

insist only that the cross-procedure name be

statically determined, since it is reasonable that the

values of the arguments to the procedure might only

be determined at run time.

5 IMPLEMENTATION

As an example, consider a C program with a call

graph as shown in Figure 2. The C program uses the

Python.h interface to call some Python scripts (using

PyRun_Simplefile) for the user interactions. In

a monolingual analysis, these are the leaves of the

call graph (recall we have restricted this to a tree).

We have implemented the language boundary

filters and call graph construction methods in section

4.2 with some restrictions. For each function call,

the parsing programs retrieve the name of the

function called, the scope of the function call

(whether the function was called inside a function

definition, the main function, or even another

function call), and the arguments of the call. The

arguments can be literals (such as a character, string,

integer, double, or Boolean) or variables. For now,

the variable’s name can be retrieved, but the value of

the variable is not available unless it is specifically

stated in the function call. That is, the RDA analysis

has not been added. The output of the call graph

filter is a CSV file which has a series of rows, one

per call, containing:

• Parent procedure name

• Called procedure name

• Argument strings for the call

The C filter also replaces the

PyRun_Simplefile call with the name of the

python file being called, treating the file name as a

function – the first step in eliminating the opaque

boundary.

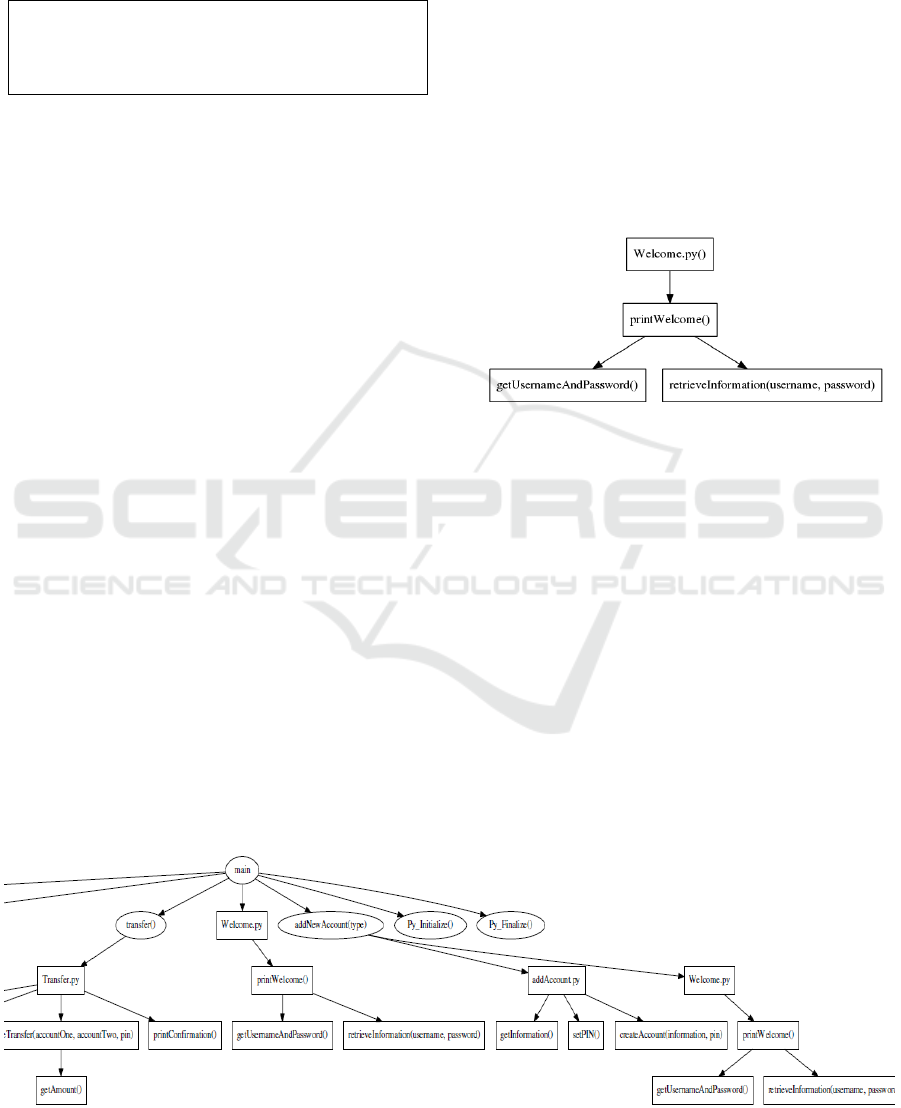

Figure 3: Example Python Call Graph.

The Python call graph in Figure 3 shows a root node

called Deposit.py: The monolingual python filter

creates this as a ‘main’ procedure for the python file,

and it consists of any executable code not

encapsulated in procedures. Using the cross-

language file name as the cross-language procedure

call name simplifies the final stage of processing,

matching the leaves and roots in monolingual call

graph CSV files and producing a combined CSV file

showing both C and Python calls.The resulting CSV

file is then processed to create a dot file that, through

Graphviz, will generate a call graph diagram like the

ones in Figures 2-4. The program represents

function calls in C programs by an oval node and

function calls in Python programs by a rectangular

node, thereby making the multilingual aspect of the

Figure 4: Multilingual Call Graph (Cropped for size).

Lightweight Multilingual Software Analysis

205

call graph visually apparent.

The call graph, as seen in Figure 4 (cropped for

size), depicts procedures in both the C and Python

languages to visually represent their mutual call

relationships. Note that the same Python procedure

(Welcome.py) called from different points in the

C program produces a different subtree. However,

because the RDA module was not implemented in

the filter that generated Figure 4, the argument

values are not visible.

To test the programs in the pipeline, a small

codebase of 35 Python and 30 C/C++ programs was

built to ensure that the MSDA software could handle

code of potentially unfamiliar style (to us). The

programs were collected by Internet browser search.

The first 30 C/C++ and Python programs that were

returned from search that were shorter than 100 lines

of code were selected. (In fact, 35 Python programs

were added due to the calling relations between

some of the programs.)

Of the 35 Python programs collected, 8 were

successfully processed and did not encounter any

errors when creating the CSV file. The pressing

problem with the monolingual filter for the Python

files is that it cannot handle keyword arguments or

lambda arguments. Other less pressing issues with

the software developed are as follows: cannot handle

dictionary structures; only works for calls and

arguments that are expressed using binary

operations; cannot handle dynamic dispatch; cannot

handle function calls with attributes that have

arguments; cannot handle list operations as

arguments.

Of the 30 C/C++ programs collected, 22 did not

encounter any errors while the CSV file was being

created. The main issues that the C/C++

monolingual filter program cannot handle include:

python calls other than

PyRun_SimpleFile;

redefinitions as functions (functions with the same

name as functions in standard libraries); definitions

in external C files.

In addition to the C/C++ and Python programs

used for testing, 5 C/C++ programs that call Python

programs, along with those Python programs, were

also collected to test combining CSV call graph files

and to create a multilingual call graph. All 5 C/C++

and Python combinations were successful.

6 CONCLUSIONS

This paper has introduced a lightweight approach to

multilingual software analysis – MLSA. This work

addresses the issues faced by companies that must

manage software architectures and libraries in

different languages to enforce security, efficiency,

and quality metrics. Because many existing software

engineering tools are monolingual, even though

multilingual code is widespread, issues that relate to

the language boundaries may get overlooked.

We propose an architecture comprised of

monolingual filter programs that analyse single

language AST and identify the cross-language

boundary. The filters generate language independent

information in CSV format. Additional multilingual

filters operate on the CSV files in pipelines. This

architecture has advantages of modularity and

efficiency and is open-source friendly (to add

additional language or analysis filters for example).

We focus on one specific problem, the

generation of multilingual call graphs and develop a

detailed approach for this. The C/Python interface is

used as an example throughout. Finally, we present

an example multilingual call graph analysis in

overview, and describe the current status of the work

based on a database of 75 C and Python programs

downloaded from the Internet.

Two areas of work on this project concern the

monolingual filters and the completion of the RDA

analysis. The current monolingual filters directly

parse AST text files and many of the trivial errors

recorded in testing relate to this parsing. One

solution is to move to a JSON AST format and

leverage existing libraries to parse the files. While

the completion of the RDA analysis allows argument

values to be variables and expressions, determining

the value of these expressions is a separate concern

limited by the scope of static techniques.

While the argument of computational efficiency

from design is argued here, current work includes

collecting performance statistics to support this as

well as to expand the small codebase used. The call

graphs generated by MLSA are similar in

representation to those generated by the Eclipse

IDE, and future work will include a more detailed

comparison of the MLSA call graph filters with

other available tools.

ACKNOWLEDGEMENTS

The authors acknowledge the contributions of Bruno

Vieira, Sunand Raghapathi and Nicholas Estelami in

developing MLSA tools. The authors are partially

supported by grant DL-47359-15016 from

Bloomberg L.P.

ICSOFT 2017 - 12th International Conference on Software Technologies

206

REFERENCES

Ali, K., and Lhotak, O. (2012). Application-only

Call Graph Construction. Ecoop'12 Proceedings of the

26th European conference on Object-oriented

Programming. Beijing.

Christakis, M., and Bird, C. (2016). What developers want

and need from program analysis: an empirical study.

31st IEEE/ACM Int. Conference on Automated

Software Engineering. Singapore.

Heering, J., and Klint, P. (1985). Towards monolingual

programming environments. ACM Trans. on Prog.

Languages and Systems LNCS, 174.

Hong, S., and al, e. (2015). Mutation-Based Fault

Localization for Real-World Multilingual Programs.

30th IEEE/ACM Int. Conference on Automated

Software Eng.

Lakos, J. (July 20, 1996). Large-Scale C++ Software

Design. Addison-Wesley; 1 edition .

Lee, S., Doby, J., and Ryu, S. (2016). HybriDroid: static

analysis framework for Android hybrid applications.

31st IEEE/ACM Int. Conference on Automated

Software Engineering. Singapore.

Mushtak, Z., and Rasool, G. (2015). Multilingual source

code analysis: State of the art and challenges. Int.

Conf. Open Source Sys. and Tech.

Nielson, F., Nielson, H., and Hankin, C. (2005). Principles

of Program Analysis. Springer.

Strien, D., Kratz, H., and Lowe, W. (2006). Cross-

Language Program Analysis and Refactoring. 6th Int.

Workshop on Src Code Analy. and Manipulation .

van der Storm, T., and Vinju, J. (2015). Toward

Multilingual Programming Environments. Science of

Comp. Prog.; Special issue, New Ideas and Emerging

Results in Understanding Software, 97, 143-149.

Lightweight Multilingual Software Analysis

207
