Towards Firmware Analysis of Industrial Internet of Things (IIoT)

Applying Symbolic Analysis to IIoT Firmware Vetting

Geancarlo Palavicini Jr, Josiah Bryan, Eaven Sheets, Megan Kline and John San Miguel

US Department of Defense, SPAWAR Systems Center Paciﬁc, San Diego, California, U.S.A.

Keywords:

Industrial Internet of Things, Firmware Vetting, Internet of Things, Cybersecurity, Vulnerability Research,

Embedded Systems, Security, Malware, Emerging Threats, Binary Analysis, Virtualization.

Abstract:

Embedded systems and Industrial Internet of Things (IIoT) devices are rapidly increasing in number and com-

plexity. The subset IIoT refers to Internet of Things (IoT) devices that are used in manufacturing and industrial

control systems actively being connected to larger networks and the public internet. As a result, cyber-physical

attacks are becoming an increasingly common tactic employed to cause economic and physical damage. This

work aims to perform near automated ﬁrmware analysis on embedded systems, Industrial Control Systems (fo-

cusing on Programmable Logic Controllers), Industrial Internet of Things devices, and other cyber-physical

systems in search of malicious functionality. This paper explores the use of binary analysis tools such as angr,

the cyber reasoning system (CRS) ’Mechanical Phish’, American Fuzzy Lop (AFL), as well as virtualization

tools such as OpenPLC, ﬁrmadyne, and QEMU to uncover hidden vulnerabilities, ﬁnd ways to mitigate those

vulnerabilities, and enhance the security posture of the Industrial Internet of Things.

1 INTRODUCTION

Embedded systems and Industrial Internet of Things

(IIoT) devices are rapidly increasing in number and

complexity. Industrial Internet of Things devices are

a part of a large family of Internet of Things (IoT) de-

vices, which are simply non-traditional devices that

are now being connected to the public Internet. The

subset IIoT refers to IoT devices that are used in man-

ufacturing and industrial control systems. As a re-

sult, cyber-physical attacks are becoming an increas-

ingly common tactic employed to cause economic

and physical damage (Sadeghi et al., 2015). Paired

with the lack of efﬁcient cyber security analysis, in-

creased connectivity, sloppy programming, and speed

to market pressures, cyber-physical attacks have cre-

ated a dangerous climate for Operation Technology

(OT) networks and Internet of Things devices.

As embedded technology and capabilities in-

crease, the ﬁrmware for these systems becomes in-

creasingly difﬁcult to analyze in search for mali-

cious functionality. Our goal is to perform near au-

tomated ﬁrmware analysis on embedded systems, In-

dustrial Control Systems (focusing on Programmable

Logic Controllers), Industrial Internet of Things de-

vices, and other cyber-physical systems in search of

malicious functionality. Our work adapts UC Santa

Barbara’s binary analysis framework called ’angr’

(Shoshitaishvili et al., 2016), as well as compo-

nents from their cyber reasoning system (CRS) called

’Mecanical Phish’ to perform semi-automated analy-

sis on IIoT systems. This paper makes the following

contributions:

• Leverages proven open-source technologies and

approaches for tradtional software / ﬁrmware

analysis for use on IIoT ﬁrmware

• Extends the work of Shoshitaishvili et al. to in-

corporate custom architecture backends for non-

standard and propritary architectures to the angr

framework

• Lays out a proposed approach for automating por-

tions of our ﬁrmware analysis approach

This paper is organized as follows. Section 2 dis-

cusses the current state of the art for IoT binary anal-

ysis. Section 3 dives into the approach taken to ana-

lyze IIoT devices in search of vulnerabilities and the

effort to automate the processes, as well as challeges

and mitigations. Section 4 discusses the initial results

and ﬁndings of applying dynamic symbolic execution

and symbolic assisted fuzzing to analyzing IIoT de-

vice ﬁrmware. Section 5 summarizes the paper with

the conclusion and Section 6 closes out the work pre-

sented in this paper with a glance toward future work.

470

Jr, G., Bryan, J., Sheets, E., Kline, M. and Miguel, J.

Towards Firmware Analysis of Industrial Internet of Things (IIoT) - Applying Symbolic Analysis to IIoT Firmware Vetting.

DOI: 10.5220/0006393704700477

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 470-477

ISBN: 978-989-758-245-5

2 RELATED WORK

The runtime-monitoring framework presented by

(Janicke et al., 2015) addresses subtle changes to crit-

ical system behavior through semantic attacks. Tra-

ditional protection systems such as Intrusion Detec-

tion Systems (IDS) have difﬁculty identifying such

classiﬁcations of attacks. These subtle changes create

states in program execution that could result in ma-

chinery violating safety requirements such as a drill

being used on a product that does not exist at the lo-

cation that drilling occurs. The state execution of the

machinery speciﬁes the current state of the system,

and the behavior that should be exhibited from the

next state. Behavior outside of this speciﬁcation is

determined to be outside of the normal execution, and

thus malicious.

Cruz et al., present Shadow Security Unit (SSU)

in (Cruz et al., 2015) as an in-line network moni-

tor. The lightweight device sits in parallel to a PLC

or RTU and passively collects communications and

control data to detect active attacks in a live environ-

ment. This is presented as a solution to the speciﬁc

challenge of sensitivity to timing that is present with

ICS and SCADA systems and it is a contibution to

the larger work the CockpitCI project as described

in (Cruz et al., 2014). SSU is a minimally invasive

behavior monitor and correlation engine for anomaly

detection and foucses on live run-time environments.

The work most closely related to ours is that of

Almgren et al., under the CRISALIS Consortium

(Almgren et al., 2015). They are working on au-

tomated vulnerability discovery for Critical Infras-

tructure (CI) environments. Their approach includes

application-level protocol fuzzing, emulation and dy-

namic analysis of embedded devices, and security

testing prioritization by means of vulnerability indi-

cators. They outlines 5 challenges to large scale

vulnerability analysis of embedded ﬁrmware, namely

’building a representative dataset’, ’ﬁrmware identi-

ﬁcation’, ’unpacking and custom formats’, ’scalabil-

ity and computational limits’, and ’results conﬁrma-

tion’ (Costin et al., 2014). Our work aims to ease two

of those challenges, namely the ’unpacking and cus-

tom formats’, as well as ’results conﬁrmation’. We’re

tackling the ’unpacking and custom formats’ chal-

lenge through the development of custom architecture

backends for the angr framework, and as much as pos-

sible, automating our extraction process. We are also

easing the challenge of ”results conﬁrmation’ through

our emulation of ﬁrmware to verify the exploitability

of discovered vulnerabilities. A major difference in

our approach stems from our leveraging of static, dy-

namic, and symbolic analysis of the ﬁrmware samples

with the angr framework, as well as symbolic-assisted

fuzzing through Driller’s AFL/angr hybrid approach.

Mclaughlin et al., introduce the Trusted Safety

Veriﬁer (TSV) in (McLaughlin et al., 2014) which

supports control system security by reducing the

trusted computing base for safe process execution

throughout the entire system. TSV is deployed as an

in-line device that uses an instruction list lifter and

translates it to Instruction List Intermediate Language

(ILIL) for ease of processing. It is designed to han-

dle PLC speciﬁc features, like function blocks, timers,

counters, master control relays, data blocks, and edge

detection in order to detect potential for data injection

attacks and PLC ﬁrmware exploitation.

3 APPROACH

Our proposed approach for automated ﬁrmware anal-

ysis focuses on three major tasks preparation of the

ﬁrmware image for loading into the angr framework,

emulation for veriﬁcation of discovered vulnerabili-

ties, and analysis of the ﬁrmware sample ’angr style’.

Once loaded in the framework, we can beneﬁt from

the angr’s reliance on the python programming lan-

guage to further automated the process. The stages of

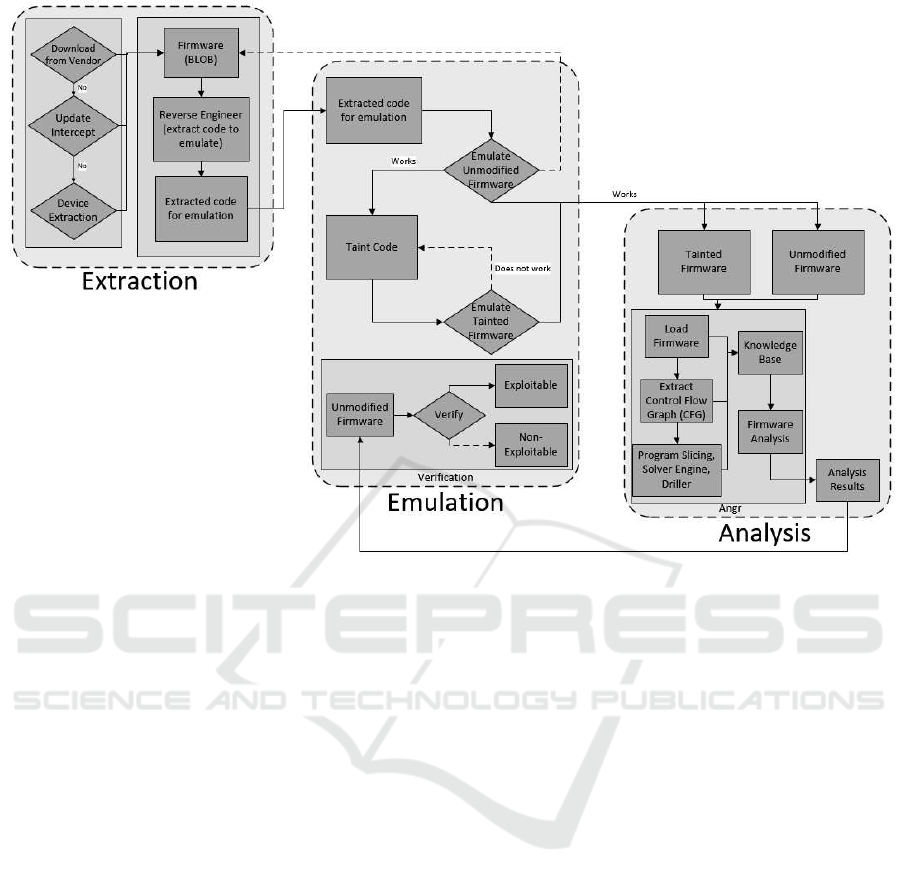

our approach are as follows (Figure 1 shows a graph-

ical representation of this process):

• Extraction and cleanup;

• Emulation;

• Analysis angr style.

The ﬁrmware must ﬁrst be extracted and loaded

into the angr framework. For the extraction portion

we will make use of tools such as binwalk (devttys0,

2016a) and ﬁrmware-mod-kit (Collake and Heffner,

2013) to extract the packaged ﬁrmware.

Once the ﬁrmware is extracted we will run our

own developed software to add or remove content

from the binary to prepare it for efﬁcient analysis.

Cleaning up the packaged ﬁrmware is extremely im-

portant for utilizing many of the resource intensive

analyses in angr. An example of this is the Symbolic

Execution portion, which is prone to path explosion

while analyzing complex binaries, which we will fur-

ther discuss in section 3.5.

Once the ﬁrmware has been successfully extracted

and cleaned up, we will emulate the ﬁrmware using

OpenPLC (for PLC emulation) (Alves et al., 2014),

QEMU (Bellard, 2017), and/or Firmadyne (Chen

et al., 2016). After these initial steps, it will be time

to load the ﬁrmware into angr using the framework’s

default loader CLE or utilizing IDA’s binary loader.

Once the binary is loaded we can use a combination

Towards Firmware Analysis of Industrial Internet of Things (IIoT) - Applying Symbolic Analysis to IIoT Firmware Vetting

471

of various binary analysis techniques (E.G. fuzzing

and symbolic execution) to discover the functionality

and identify malicious behavior such as backdoors,

information leakage, or botnet code.

To aid the analysis, we will be adding vendor spe-

ciﬁc conventions and libraries to the knowledge base

that angr populates after recovering a Control Flow

Graph (CFG) of the ﬁrmware. Angr’s knowledgebase

is a shared repository of information discovered by

the angr frameworkas it progresses through the analy-

sis of a particular sample(Shoshitaishvili et al., 2016).

3.1 Firmware Extraction

Extraction of ﬁrmware from IIoT devices makes it

possible to replicate the device’s behavior through

emulation.

Three techniques are explored, which include

downloading the ﬁrmware from the vendor’s website

or additional sources, capturing it during a device up-

date, and extracting from the device.

Accessing ﬁrmware images through vendors can

be a trying process, due to protection mechanisms im-

plemented by manufacturers. Given the vast number

of devices to analyze, this method is not feasible, as

it suffers a lack of scalability. The remaining feasible

options are constrained by physical possession of the

IIoT device.

IIoT ﬁrmware updates are almost exclusively ap-

plied automatically, which can lead to hurdles in

ﬁrmware retrieval based on how the updates are

pushed to the device. The challenge of extracting a

working ﬁrmware image from the device is not an

uniform process and in many instances unique to the

speciﬁc device.

Potential interfaces to extract the ﬁrmware consist

of JTAG, UART, and in-circuit serial programming

(ICSP). Vendors take steps to block debug interfaces

such as the ones listed above; however, dumping the

ﬂash chip directly may be the only option.

With the ﬁrmware image extracted, the task turns

to extracting the core components: boot loader, ker-

nel image, and ﬁle system. There is a wide spectrum

of vendors with no explicit standard on how ﬁrmware

images should be structured. The consequence is hav-

ing to reverse engineer and analyze each component

to determine what is pertinent to the system for emu-

lation.

Luckily, Linux provides utilities and tools to aid

in this endeavor. The Linux ﬁle utility will ver-

ify the contents of the image to either be a com-

pressed ﬁle or data. Running further Linux utilities

strings

and

hexdump

can reveal insightful informa-

tion such as ﬁrmware version, operating system, and

boot loader. The information provided by these utili-

ties contributes to a preliminary blueprint of the oper-

ation of an IIoT device.

Binwalk, a ﬁrmware analysis tool (devttys0,

2016a), can be executed against the ﬁrmware image

to identify embedded ﬁles, executable code, and per-

form recursive ﬁle system extraction. Two Linux

ﬁle systems commonly associated with IIoT device

ﬁrmware are squashfs (devttys0, 2016b), a com-

pressed read-only ﬁle system, and jffs2 (Gupta, 2016)

(OWASP, 2016), a long-structured ﬁle system for use

with ﬂash memory devices.

There are two open-source projects, sasquatch

(devttys0, 2016c) and jefferson (sviehb, 2016) respec-

tively, that add modiﬁcations to existing decompres-

sion utilities for the ﬁle systems. The ﬁle system is

composed of binaries and initialization scripts that

can be used to investigate disassembly for static anal-

ysis and emulate behaviors of the IoT device for dy-

namic analysis.

In addition, vendors modify ﬁle systems to pre-

vent them from being extracted. ’Firmware modiﬁca-

tion kit’ is designed to attempt the extraction of un-

traditional squashfs and cramfs ﬁle systems that have

been modiﬁed from ﬁrmware using TRX or uImage

headers. This tool is critical to the extraction process

due to its ability to rebuild what has been disassem-

bled. Alterations can be made to exhibit malicious in-

tent for the exploitation of the rebuilt device ﬁrmware.

The tool has the capability to re-ﬂash the IIoT device

with the malicious rebuilt binaries, and can be veriﬁed

through emulation.

3.2 Firmware Emulation

Firmware emulation provides an operational environ-

ment separated from device hardware. QEMU is a

machine emulator and virtualization platform, that in-

cludes capabilities for full system and user-mode em-

ulation (Bellard, 2017). This is achieved by QEMU

through hardware virtualization capable of emulating

CPUs with dynamic binary translation. Various CPU

architectures are supported for emulation including

IA-32, x86-64, MIPS, and ARM. QEMU is the stan-

dard emulation tool for ﬁrmware binaries and images,

and can be leveraged for deep analysis of ﬁrmware

behavior. Understanding the disparity in behaviors

of non-malicious and malicious binaries is essential

to determining potential vulnerabilities in ﬁrmware.

With increased popularity of IIoT devices, assurance

in non-malicious behavior is vital in securing these

devices from adversaries requiring emulation of the

underlying ﬁrmware for veriﬁcation of any discov-

ered vulnerability.

WICSPIT 2017 - Special Session on Innovative CyberSecurity and Privacy for Internet of Things: Strategies, Technologies, and

Implementations

472

Figure 1: Approach: Extraction & cleanup, Emulation, Analysis angr style.

3.2.1 Emulating PLCs

Due to the nature of PLC deployments as ’off-

network’ devices, security was not an area of focus

for Programmable Logic Controllers (PLCs), the con-

trol unit for ICS. This phenomenon of merging physi-

cal devices such as PLCs with the internet has been

coined the Industrial Internet of Things. The con-

cept of IoT complements the functionality of a PLC

by controlling other machines including sensors and

other devices across a network with the desire to be

autonomous. The main test subjects for this research

are PLCs, both commercially available PLC devices,

as well as open-source technologies and PLC virtual-

ization platforms.

OpenPLC is a fully functional, standardized,

open-source PLC (Alves et al., 2014), capable of

supporting all 5 of the programming laguages in the

IEC-61131-3 speciﬁcation (ST, IL, LADDER, FBD

and SFC). It allows research to be done on physical

hardware and processes in conjunction with an envi-

ronment for emulation such as Linux. The project

includes a Modbus/TCP communication capability

that can interface with any human machine inter-

face (HMI) software that supports Modbus/TCP, it

includes a nodeJS environment for interfacing Open-

PLC with the hardware. Modbus is a serial communi-

cation protocol designed by Modicon, and commonly

used for PLC communication (Modbus, 2012).

3.3 angr Framework

The angr framework will be used for its unique abil-

ity to combine static, dynamic, and symbolic anal-

ysis. This research leverages angr’s capabilities ap-

plied towards Programmable Logic Controller (PLC)

ﬁrmware, with the goal of discoveringany hidden vul-

nerability in the underlying software controlling the

hardware, known as the ﬁrmware. Although angr’s

loader (CLE) can handle most common hardware ar-

chitectures, PLC ﬁrmware images can pose interest-

ing challenges with respect to this task. Therefore,

before we can leverage the binary analysis capabili-

ties of the angr framework, we must ﬁrst overcome

the challenge of loading the PLC ﬁrmware image into

angr for further processing.

The angr framework is a python based tool for an-

alyzing binaries developed by researchers from UC

Santa Barbara. It is a product of the Defense Ad-

vanced Research Project Agency’s (DARPA) Vetting

Commodity IT Software and Firmware (VET) pro-

gram and further enhanced through DARPA’s call for

autonomous cybersecurity systems known as the Cy-

ber Grand Challenge (CGC) (DARPA, 2016). The

angr development team ﬁnished in the top three for

the CGC ﬁnal competition. The goal of the CGC

Towards Firmware Analysis of Industrial Internet of Things (IIoT) - Applying Symbolic Analysis to IIoT Firmware Vetting

473

was to achieve autonomous systems capable of test-

ing for vulnerabilities, exploiting the vulnerabili-

ties found, generating security patches, and applying

those patches.

UCSB’s cyber reasoning system (CRS), Mechan-

ical Phish (Shellphish, 2016), implemented angr

with American Fuzzy Lop (AFL) (lcamtuf, 2017) to

achieve the challenges set forth by DARPA. The abil-

ity of angr to employ automation of a collection of

analyses makes it an ideal tool for analysing ﬁrmware

behavior.

Angr is comprised of four main components:

CLE, VEX, Claripy, and Simuvex. The framework in-

corporates a binary loader, CLE, responsible for mak-

ing the binary easy for angr to analyze, whether static,

dynamic, or symbolic analysis is to be performed.

Loaded binaries are converted to an intermediate

representation (IR), Valgrind’s IR ’VEX’. This con-

version abstracts away differences in architecture to

allow a single analysis to be run on all loaded bina-

ries.

The solver engine, Claripy, is used for constraint

solving of concrete and symbolic expressions which

are necessary for symbolic execution.

The ﬁnal component, the simulation engine Simu-

vex, provides a semantic understanding of VEX IR

in combination with program state in order to accom-

plish static, dynamic, and symbolic analysis.

These four components are fundamental to allow-

ing angr to perform dynamic symbolic execution and

various static analysis on binaries with an easy to use

extensible framework.

3.3.1 Firmware Loading with angr

Correctly loading the ﬁrmware into angr is the ﬁrst

and arguablymost important part in our process of an-

alyzing embedded systems. By default angr’s loader

CLE can load most common architectures including

ARM, MIPS, x86, AMD, AARCH, and PPC (Shoshi-

taishvili et al., 2016).

If the binary we are analyzing is not one of these

architectures (for example a binary blob), we can ex-

tend CLE to perform more ﬁne grained entry point

discovery where we can begin analysis. This will re-

quire us to both develop and integrate our own soft-

ware and other open source tools to aid CLE.

One technique that angr currently supports is mak-

ing use of IDA’s loader to load binaries that CLE can-

not, and leveraging the feedback from IDA to begin

analysis. Any vendor speciﬁc information that we

ﬁnd when loading binaries will be added to the knowl-

edge base to aid future loading and entry point discov-

ery efforts.

3.3.2 Firmware Analysis angr Style

Angr offers many different analysis techniques that

can be performed on a loaded binary. For our pur-

poses we will focus on Control Flow Graph (CFG) re-

covery, Program Slicing, the solver engine, AFL, and

Symbolic Execution (Shoshitaishvili et al., 2015).

Without a CFG most of the other analysis will not

work, and recovering a CFG from complex binaries

can be quite difﬁcult. This further stresses the impor-

tance of narrowing down our areas of interest within

a binary, creating a comprehensive ﬁrmware knowl-

edge base, summarizing as much code as possible

(such as Standard C Libraries), and removing unnec-

essary content.

Once we have extracted the CFG we will per-

form fuzzing and symbolic execution. For this por-

tion we will leverage Driller, which augments fuzzing

with symbolic execution to discover paths within the

program which lead to an authenticated state, while

recording the constraints required to reach that state.

Driller switches back and forth between fuzzing and

symbolic execution to work its way through a pro-

gram (Stephens et al., 2016). The fuzzing portion is

handled by AFL, while the symbolic execution is han-

dled by angr.

For example, if a backdoor existed within the

ﬁrmware of a smart plug, driller could be used to

ﬁnd the backdoor along with the constraints required

to reach that authenticated state, and use the built-in

solver engine to ﬁnd the input required to access the

backdoor based on those constraints.

Another feature of angr that we plan to make use

of is program slicing. Program slicing is a subset of

statements from the original program. While analyz-

ing embedded systems, there are certain parts of the

system that we are more concerned with than others,

which is where program slicing comes in. This gives

us the ability to focus exclusively on a particular piece

of the program.

3.3.3 Driller

In this section we givea briefdescription of the hybrid

symbolic-assisted fuzzing approach implemented by

UC Santa Barbara in Driller (Stephens et al., 2016), it

must be noted that we do not take any credit for their

implementation.

Driller uses an instrumented fuzzing engine to

drive the dynamic symbolic execution, once the

fuzzer reaches a point where it cannot ﬁnd any other

paths, it switches to angr’s symbolic execution engine

to leverage its ability to ﬁnd the values needed to sat-

sify the constraints of the branches that the fuzzer can-

not solve. It then switches back to the AFL fuzzer

WICSPIT 2017 - Special Session on Innovative CyberSecurity and Privacy for Internet of Things: Strategies, Technologies, and

Implementations

474

with the new inputs need to get through the next por-

tion of the binary. This process takes place as many

time as needed to reach a program crash point.

One of the strengths of driller’s fuzz-guided sym-

bolic execution is that it does not require test cases

to be supplied at the start of the analysis, although it

speeds up the analysis if you supply AFL with ini-

tial test cases. It can generate its own input test cases

leveraging angr’s symbolic execution engine.

The concept of combining fuzzing with symbolic

execution is not novel, but Driller’s ability to auto-

matically test portions of the code to replace them

with the symbolic summaries without user interven-

tion is a novel approach that we are leveraging to aid

in automating the analysis of IIoT ﬁrmware. Interest-

ingly, this approach deals with both the path explosion

challenge as well as the challenge of automating any

and all possible portions of our approach, which we’ll

cover in the next subsection.

3.4 Challenges and Mitigations

There are two overarching challenges faced by our

current approach. The ﬁrst challenge is inherent in

any solution based on dynamic symbolic execution,

namely the path explosion problem. The second chal-

lenge stems from the lack of automation in both ex-

traction and analysis of ﬁrmware images. We’ll cover

both of these challenges and the chosen mitigations in

the following subsections.

3.4.1 Path Explosion

The path explosion problem is a well-known limita-

tion of concolic execution or dynamic symbolic exe-

cution approaches(Shoshitaishvili et al., 2016). Any-

time the analysis engine reaches a branch, it solves the

constraints required to take both sides of the branch.

As the analysis engine discovers an ever-growing

number of branches (and solves the constraints re-

quired to take both paths of each branch), the number

of paths begins to grow at an exponential rate (Shoshi-

taishvili et al., 2016). Several approaches have been

proposed in the literature to mitigate the path explo-

sion problem, such as program slicing (?), instru-

menting the symbolic analysis engine (Stephens et al.,

2016), path merging, under-constraint symbolic exe-

cution (Shoshitaishvili et al., 2016).

We are investigating the efﬁcacy of program slic-

ing and fuzz-guided symbolic analysis provided by

the angr framework and the driller hybrid approach

developed by UCSB (Stephens et al., 2016), as well

as reducing complexity and the amount of code ana-

lyzed with symbolic summaries.

Symbolic summaries are not a new concept in bi-

nary analysis (Stephens et al., 2016). They are man-

ual descriptions of the state changes cause by a given

function to a particular program execution. They

summarize the expected output and end result of ex-

ecuting the function, expressed to the analysis engine

in similar form to a binary instruction, thus allowing

the analysis to skip that particular function’s code. In-

stead of having to analyze the entire function to reach

that changed state, the summary is supplied to the

analysis engine.

Symbolic summaries help the analysis by simpli-

fying the amount of code to be analyzed, reducing the

complexity of the analysis. It enables the analysis to

drive deeper into the program and aids in mitigating

some of the path explosion issues inherent in sym-

bolic execution based approaches.

The one drawback from symbolic summaries is

that since those portions of code are not analyzed, it’s

possible that a ﬂaw in that summarized portion of the

code will be missed. This is a trade-off that we accept

in order to reach into deeper portions of the ﬁrmware.

The other technique relied upon by our work is the

use of automated fuzz-guided symbolic analysis ap-

proach, or symbolic-assisted fuzzing, embodied by

the Driller solution developed by UC Santa Barbara

for the DARPA VET and CGC programs (DARPA,

2016) [discussed in section 3.3.3].

3.4.2 Process Automation

As we discussed in section 3, ﬁrmware extraction can

be a difﬁcult and at times an extremely manual pro-

cess. Part of the challenge of automating this pro-

cess is due to the fact that PLC ﬁrmware can come

in many different specialized architectures, and pro-

prietary implementations that can complicate extrac-

tion, emulation and analysis e.g., Asymmetric Multi

Processing architecture, specialized instruction set ar-

chitecture, ARM-Cortex. Although the angr frame-

work’s loader (CLE) can load binaries from several

different architectures, including ARM, it can have

problems loading custom ﬁrmware samples. The

framework has little to no support for SPARC, PIC

or AVR, among other specialized embedded systems

architectures.

One of our approaches to mitigating this challenge

is through the development of additional architecture

support for the angr framework. The use of the frame-

work in itself allows us to develop python scripts to

automate our process. In combination with the AFL

fuzzer, as it is implemented in, the framework further

automated the discovery of vulnerabilities, which we

leverage to further our automation efforts. As such,

we are in the early stages of development of custom

Towards Firmware Analysis of Industrial Internet of Things (IIoT) - Applying Symbolic Analysis to IIoT Firmware Vetting

475

architecture backends for extending angr’s ability to

load PLC ﬁrmware easily and as automated as possi-

ble.

For this task we are focusing on the following

steps: (angr, 2017)

1. Adding the architecture information to the appro-

priate ﬁles in the angr framework.

2. Adding an intermediate representation (IR) trans-

lation to work with VEX IR. This may be either

an extension to PyVEX, producing IRSBs,

3. If your IR is not VEX, add a simuvex.SimEngine

to support it.

4. Adding a calling convention (simuvex.SimCC) to

support SimProcedures (including system calls)

5. Adding or modifying an angr.SimOS to support

initialization activities.

6. Creating a CLE backend to load binaries, or ex-

tending the CLE ELF backend to know about the

new architecture if the binary format is ELF.

The other approach involves developing modules

and scripts for as much of the process in our manual

extraction of ﬁrmware images. Our exploration and

use of the ﬁrmadyne solution by (Chen et al., 2016)

attempts to leveraging previous solutions aimed at au-

tomating this difﬁcult task. As we continue to explore

the automation of PLC ﬁrmware extraction and analy-

sis, we will continue pursuing the potential expansion

of ﬁrmadyne to further automate the tools and extend

its capabilities.

4 INITIAL RESULTS

A prototype system was developed in order to per-

form early analysis of Programmable Logic Con-

troller ﬁrmware vetting utilizing the angr framework.

The prototype system leverages the OpenPLC (Alves

et al., 2014) project on a Raspberry PI 3 Model B.

The OpenPLC project can be used to emulate a simi-

lar process running on a Siemens S7-1200 PLC.

The prototype process is composed of the emu-

lated PLC, running a ladder logic program that con-

trols the on/off functions of a fan, as well as the speed

that the fan operates under. We performed an angr-

base analysis of both the extracted ﬁrmware image

and the ladder logic program controlling the process.

We successfully extracted the PLC’s ﬁrmware.

Recalling, from our discussion on our use of emula-

tion in section 3, that the purpose of the emulation

step, in our approach, is to aid in the veriﬁcation of

any discovered vulnerability, and to help us determine

the viability of exploiting the vulnerabilities found.

Given that we already have the emulated process, we

will rely on this process to verify the exploitability of

any discovered vulnerabilities.

Once the ﬁrmware is extracted, we loaded the

ﬁrmware sample image into the angr framework for

analysis. We conducted analysis on the sample, in-

cluding dynamic symbolic execution analysis. Us-

ing the angr framework, we extracted and added to

the framework’s knowledge base, a data dependency

graph, and a Control Flow Graph recovery including:

- function list

- node list

- predecessors list

- successors list

We also identiﬁed the locations of the ladder logic

program, within the ﬁrmware image, that controls the

fan speed (in the OpenPLC/Raspberry Pi prototype).

The analysis showed a lack of stack protection mech-

anisms, such as Data Execution Protection (DEP) or

Address Space Layout Randomization (ASLR). This

lack of protection mechanisms makes the class of

stack protection vulnerabilities, such as overﬂows, a

possible attack vector.

The second major observation from the analysis

results was the existence of a authentication bypass

vulnerability similar to the Siemens SIMATIC S7-

1200 PLC Systems Replay Security Bypass and De-

nial of Service Vulnerabilities (Cert, 2014) (Beres-

ford, 2011). In terms of this vulnerability, we can

conclude that any process that writes to the mod-

bus coil will be accepted as valid input (allowing

changes to the fans operations and speed). Specially

crafted packets (in our case modbus packets) would

allow an attacker to send packets to the program and

change values in the registers, and the process would

be changed based on the false values provided by the

attacker.

There are some differences between our emulated

process and an S7 PLC that we would like to point

out. OpenPLC uses modbus as its communication

method, whereas the public exploits for the S7 oper-

ate against the iso-tsap protocol for communications.

Thus, Siemens PLCs with older ﬁrmware version are

vulnerable to replay attacks over iso-tsap, whereas

OpenPLC is vulnerable to replay attacks over mod-

bus.

5 CONCLUSION

This work leverages the binary analysis framework

’angr’, portions of the cyber reasoning system (CRS)

’Mechanical Phish’ (Shoshitaishvili et al., 2016)

WICSPIT 2017 - Special Session on Innovative CyberSecurity and Privacy for Internet of Things: Strategies, Technologies, and

Implementations

476

(Shoshitaishvili et al., 2015) (Shellphish, 2016), as

well as ﬁrmware extraction and modiﬁcation tech-

niques and tools to automate the discovery of vulner-

abilities in IIoT devices. We have chosen to use PLCs

as our initial IIoT test subject.

Our approach includes extraction and emulation

of PLC ﬁrmware, as well as analysis using angr, AFL,

and Driller. This approach has helped us uncover vul-

nerabilities, enabling us to devise solutions to mitigate

those vulnerabilities in order to enhance the security

posture of the Industrial Internet of Things. We have

some early results that have been able to discover vul-

nerabilities in Industrial Internet of Things emulated

in our laboratory environment, namely lack of stack

protection and authentication bypass. As more anal-

yses are conducted and veriﬁed, we will update the

community on ﬁndings and proposed mitigations to

the discovered vulnerabilities.

6 FUTURE WORK

Given the early result discussed in the paper, we have

begun expanding our analysis of PLC ﬁrmware on

several brands of controllers. We have started to an-

alyze a few versions of the Siemens S7 controller,

as well as several different models of Allen Bradley

PLCs. We are also exploring the potential to improve

the performance of angr through the use of symbolic

summaries. We are working towards expanding the

angr framework’s ability to load other architectures

speciﬁc to PLC manufacturers, and exploring the po-

tential to extend the ﬁrmadyne tool to further auto-

mate the analysis of PLC ﬁrmware.

REFERENCES

Almgren, M., Balzarotti, D., Stijohann, J., and Zambon,

E. (2015). Runtime-monitoring for industrial control

systems. Electronics, 4(3):995 – 1017.

Alves, T. R., Buratto, M., de Souza, F. M., and Rodrigues,

T. V. (2014). Openplc: An open source alternative

to automation. In Proc. IEEE Global Humanitarian

Technology Conf. (GHTC 2014), pages 585–589.

angr (2017). angr-docs. Contributing to the framework.

Bellard, F. (2017). Qemu.

Beresford, D. (2011). Siemens simatic s7-1200 plc systems

replay security bypass and denial of service vulnera-

bilities.

Cert, I. (2014). Siemens s7-1200 plc vulnerabilities.

Chen, D. D., Egele, M., Woo, M., and Brumley, D. (2016).

Towards automated dynamic analysis for linux-based

embedded ﬁrmware. In ISOC Network and Dis-

tributed System Security Symposium (NDSS).

Collake, J. and Heffner, C. (2013). Firmware modiﬁcation

kit.

Costin, A., Zaddach, J., Francillon, A., Balzarotti, D., and

Antipolis, S. (2014). A large-scale analysis of the se-

curity of embedded ﬁrmwares. In USENIX Security,

pages 95–110.

Cruz, T., Barrigas, J., Proenc¸a, J., Graziano, A., Panzieri, S.,

Lev, L., and Sim˜oes, P. (2015). Improving network se-

curity monitoring for industrial control systems. In In-

tegrated Network Management (IM), 2015 IFIP/IEEE

International Symposium on, pages 878–881. IEEE.

Cruz, T., Proenc¸a, J., Sim˜oes, P., Aubigny, M., Ouedraogo,

M., Graziano, A., and Yasakhetu, L. (2014). Improv-

ing cyber-security awareness on industrial control sys-

tems: The cockpitci approach. In 13th European Con-

ference on Cyber Warfare and Security ECCWS-2014

The University of Piraeus Piraeus, Greece, page 59.

DARPA (2016). Darpa cyber grand challenge.

devttys0 (2016a). Binwalk. Firmware Analysis Tool.

devttys0 (2016b). Reverse engineering ﬁrmware: Linksys

wag120n. SquashFS common ﬁle system for IoT.

devttys0 (2016c). Sasquatch. Set of patches to the standard

unsquashfs utility.

Gupta, A. (2016). Firmware analysis for iot devices.

Janicke, H., Nicholson, A., Webber, S., and Cau, A. (2015).

Runtime-monitoring for industrial control systems.

Electronics, 4(3):995 – 1017.

lcamtuf (2017). American fuzzy lop.

McLaughlin, S. E., Zonouz, S., Pohly, D., and McDaniel, P.

(2014). A trusted safety veriﬁer for process controller

code. In NDSS, volume 14.

Modbus (2012). MODBUS Protocol Speciﬁcation. Modi-

con, v1.1b3 edition.

OWASP (2016). Iot ﬁrmware analysis.

Sadeghi, A. R., Wachsmann, C., and Waidner, M. (2015).

Security and privacy challenges in industrial internet

of things. In Proc. 52nd ACM/EDAC/IEEE Design

Automation Conf. (DAC), pages 1–6.

Shellphish, U. (2016). Mechanical phish. Cyber Reasoning

System for DARPA Cyber Grand Challenge.

Shoshitaishvili, Y., Wang, R., Hauser, C., Kruegel, C., and

Vigna, G. (2015). Firmalice - Automatic Detection

of Authentication Bypass Vulnerabilities in Binary

Firmware. In Proceedings of the 2015 Network and

Distributed System Security Symposium.

Shoshitaishvili, Y., Wang, R., Salls, C., Stephens, N.,

Polino, M., Dutcher, A., Grosen, J., Feng, S., Hauser,

C., Kruegel, C., and Vigna, G. (2016). Sok: State of

the art of war: Offensive techniques in binary analysis.

In IEEE Symposium on Security and Privacy.

Stephens, N., Grosen, J., Salls, C., Dutcher, A., Wang, R.,

Corbetta, J., Shoshitaishvili, Y., Kruegel, C., and Vi-

gna, G. (2016). Driller: Augmenting fuzzing through

selective symbolic execution. In Proceedings of the

2016 Network and Distributed System Security Sym-

posium.

sviehb (2016). Jefferson. JFFS2 ﬁlesystem extraction tool.

Towards Firmware Analysis of Industrial Internet of Things (IIoT) - Applying Symbolic Analysis to IIoT Firmware Vetting

477
