A Model-driven Approach for Empowering Advance Web Augmentation

From Client-side to Server-side Support

Matias Urbieta

1,2

, Sergio Firmenich

1,2

, Pedro Maglione

, Gustavo Rossi

1,2

and Miguel Angel Olivero

Facultad de Inform

atica, Universidad Nacional de La Plata, calle 50 y 120,1900, La Plata, Buenos Aires, Argentina

CONICET, La Plata, Argentina

Web Engineering and Early Testing Group, Computer Languages and Systems Department,

University of Seville ETSII, Avda. Reina Mercedes S/N, 41012, Seville, Spain

Keywords:

Model-driven Web Engineering, Augmentation, End-user Development, Separation of Concern.

Abstract:

Websites augmentations have been adopted as a mean for improving the User Experience of applications

that often are not owned by the user. The augmentations alter the page in order to add, modify and even

remove its content pursuing the satisfaction of a user’s need. However, these augmentations are limited to

page modiﬁcation or transcluding content from another site on Internet. Moreover, advance server-side based

augmentations have been released only by developers because of the required technical skill for the task. In

this work, we have presented a novel approach for designing Web Augmentation coping client-side and server-

side using a Model-Driven Web Engineering approach. The approach rises the abstraction level for server-

side developments allowing end-users to design, and even implement the new functionalities. Additionally,

the approach uses advance separation of concern principles thus we provide a set of tools for designing the

composition of the core application and the augmentation. We show as running example an augmentation that

introduces a site community’s review support upon an agriculture e-commerce site.

1 INTRODUCTION

Web applications are often designed and developed

considering a small subset of stakeholders (managers,

internal users, product owners, and developers) with-

out an active listening of the crowd’s feedback and

awareness of their needs. The emergence of Web

personalization allowed introducing improvements to

an application that runs as a black box just consid-

ering those perceivable behaviors by the end-user.

Personalization usually is tied to recommender sys-

tems, which basically recommend information items

to users according to their user proﬁles (Brusilovsky

et al., 2007). However, beyond the information dis-

played, other approaches adapt the User Interface

(UI), such as the Adaptive Navigation Support de-

ﬁned by Brusilosky (Brusilovsky, 2007). When these

mechanisms are chosen directly by users, then some

authors called them customizations (Aoki and Naka-

jima, 1999), that basically are systems allowing users

to customize how the application displays contents

and functionalities. In spite of which mechanisms

(personalization, customization, etc.) that a particu-

lar application supports, it is not realistic to determine

that the application idealized by a product owner cov-

ers every single users need. In this sense, users may

have unsatisﬁed requirements. To tackle this problem

a mechanism, very used nowadays, is to alter Web

page once these are loaded on the client-side. By

manipulating the Web site’s Document Object Model

(DOM), the user would perceive a variation of the

Website that may add, remove or change both con-

tents and functionalities. This technique, called Web

Augmentation (D

ıaz and Arellano, 2015), is very pop-

ular and is commonly deployed as Web browser ex-

tensions that package software artifacts able to access

these DOMs and altering it by using its interface.

For the sake of understanding, consider the exam-

ple of a simple but real augmentation artefact, called

Magic Actions for Youtube

. Magic Actions is a

browser extension (with more than one hundred thou-

sand users) designed to augment Youtube with func-

tionalities that originally are not supported by this ap-

plication, such as adaptive layout, volume control by

Magic Actions for Youtube https://goo.gl/AkFnOj

444

Urbieta, M., Firmenich, S., Maglione, P., Rossi, G. and Olivero, M.

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support.

DOI: 10.5220/0006394604440454

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 444-454

ISBN: 978-989-758-246-2

scrolling, etc. Note that, at this point, we are in-

troducing the idea of adapting or customizing third-

party Web applications. Web augmentation has an

interesting combination of real use from part of the

users crowd of Web applications and some research

works aiming at conducting this activity promoting

good software development practices, such as reuse

(Garrido et al., 2013), robustness (D

ıaz et al., 2010),

etc.. Most of these approaches rely on client-side,

i.e. without the need of a back-end application for

performing the augmentation effect. However, since

this architecture limits the power of the augmentation

because it does not proﬁt from collaborative features

(nowadays a de facto requirement) and the limited

resources provided by the browser (i.e. processing

power, storage alternatives, etc.), other approaches

have a traditional client-server architecture, allow-

ing, for instance, the synchronization of devices to

support distributed user interfaces (Firmenich et al.,

2016c), the use of complex services that cannot be de-

ployed only on client-side (such as the use of a recom-

mender system (Wischenbart et al., 2015)), and social

Web content management tools, such as Diigo (Di-

igo, 2017). The reader must note that all these back-

end counterparts are dedicated applications speciﬁ-

cally designed and deployed for the particular kind

of augmentation, but, to our knowledge, there are not

approaches considering both client and server sides

in a more generic way. That is, the end-user only

contribute designing client-side improvements keep-

ing him-self excluded from contributing complex be-

havior at server-side because the lack of coding skills

that let him face technical challenges (e.g. Database

access, complex algorithms design and coding, and

User Interfaces component deﬁnition).

Current trends in agile software development

(Martin, 2003) rely on quick prototyping since it helps

to validate easily whether a new requirement meets

the users’ needs. For example, agile approaches pro-

mote the incremental development of Minimum Vi-

able Product (MVP) (Bosch et al., 2013; Torrecilla-

Salinas et al., 2015) delivered in a few Sprints con-

sidering the value-based contribution to the business.

Web augmentation approaches give support partially

if a development team wants to obtain a running ex-

ample of a User Experience improvement or the re-

sult of transcluding other website’s content. By using

Web pages’ augmentations it is possible to perform

advance A/B testing without the need of branching

current version of an application, coding a new fea-

ture, and build and release the application. This pa-

per presents a Web Augmentation modeling approach

contemplating a client-server application that hides

the back-end complexity to users. Existing studies

shows that end-users are able to create some simple

artifacts using client-side Web technologies (HTML,

CSS, and JavaScript) (Scafﬁdi et al., 2006), but there

are not similar reports for managing the logic on the

server-side. One manner to reduce the associated

complexity to this task is to rise up the level of ab-

straction required to specify this logic. With this in

mind, we propose the use of existing Web modeling

languages that may be used in a dedicated server to

create Web augmentation back-end counterparts in-

creasing abstraction level and reducing development

effort (DDway, 2016). On client-side, we propose

a specialized end-user development tool that allows

them to recreate an object model of the target appli-

cation (the one being augmented) by abstracting Web

contents. As we will discuss later, applications own-

ers could use our ideas and supporting tools also in

order to weave new functionalities without the need

of modifying the applications core. In this paper, we

present a novel approach to implement complex Web

augmentation based on client-side improvements sup-

ported by server-side developments. The main contri-

butions of our approach are: (1) a Model-driven ap-

proach for modeling augmentation that is not already

available on the Internet, (2) a full support for the

seamless introduction of augmentation, and (3) a de-

velopment process that combines WOA tool and We-

bRatio (WebRatio, 2017) platform for supporting our

approach . The paper is organized as follows. Section

2 describes the background. Then, the Section 3 in-

troduces the related works. Section 4 is an overview

of the approach. Section 5 shows a comprehensive ex-

ample. And Section 6 concludes and talks about the

future works.

2 BACKGROUND

2.1 Web Application Augmentation

As we mentioned before, Web augmentation is ac-

tually used by the users crowd. Besides of Web

browser stores, where thousands of extensions for

adapting existing Web content may be found, there

are some of these tools supported by communities

where end-users and other stakeholders with pro-

gramming skills interact in the creation, sharing and

improvement of artifacts. For instance, in the user-

styles community (http://userstyles.org) users share

artifacts that augment Web sites by adding further

CSS designs that may change any aspect of Web sites

content presentation. Similarly, in repositories be-

hind userscripts communities (such as greasyfork -

https://greasyfork.org/) artifacts written in JavaScript

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support

445

may be found. In these cases beyond simple content

presentation (such as the achieved with userstyles),

Web sites may be augmented with new functionali-

ties, given the power of JavaScript. In these commu-

nities, in spite of the artifact kind, there is a depen-

dency between users with and without programming

skills. Then, some research works proposed End-User

Development (EUD) approaches to let users specify

their own augmentation artifacts, these are discussed

in the related work section.

2.2 Model-driven Web Engineering

Approaches

In most mature Web design approaches (Rossi et al.,

2008) , such as UWE, WebML, UWA, Hera, OOWS

or OOHDM, a Web application is designed with

an iterative process comprising at least conceptual

and navigational modeling. According to the state-

of-the-art of model-driven Web engineering tech-

niques (Arag

on et al., 2013; Dom

ınguez-Mayo et al.,

2014), these methods produce an implementation-

independent model that can be later mapped to dif-

ferent run time platforms. For the sake of clarity, we

will concentrate on the conceptual, navigational and

interface models as they are rather similar in different

design approaches.

2.2.1 Conceptual Design

The conceptual model of a Web application (a.k.a.,

application, domain, or content model) is focused on

deﬁning the contents of the application with their at-

tributes and associated behavior. When it is deﬁned

using the OOHDM method (or others such as UWE),

this model is an object-oriented model described with

UML and comprised of classes, with their attributes

and methods, and associations between classes.

2.2.2 Navigational Design

The navigational design of a Web application is aimed

at deﬁning views, access structures and navigation

paths to contents in order to enable the user easily ac-

cessing and navigating them. Most of the Web engi-

neering methods base their navigational model on two

modeling primitives, namely Node and Link. IFML

(Brambilla and Fraternali, 2014) is no exception to

this, as it deﬁnes Pages as logical views on application

model classes and links as the hypermedia realization

of application model associations that deﬁnes either

browsing capabilities or triggering system behavior.

2.2.3 Abstract Interface Design

In OOHDM, the user interface is speciﬁed using Ab-

stract Data Views (ADVs) (Vilain et al., 2000) which

support an object-oriented model for interface ob-

jects. An ADV is deﬁned for each node class, to

indicate how each node attribute or sub-node (if it

is a composite node) will be presented to the user.

An ADV can be seen as an Observer (Gamma et al.,

1995) of the node expressing its perception proper-

ties, in general, as nested ADVs or primitive types

(e.g. buttons). Using a conﬁguration diagram (Vilain

et al., 2000) we express how these properties relate

with the node attributes and operations.

ADVs are also used to indicate how interaction

will proceed and which interface effects take place

as the result of user-generated events. These behav-

ioral aspects are speciﬁed using ADV-charts (Vilain

et al., 2000), a kind of statecharts representing states

and states transitions for a given ADV. ADV-charts

are useful when we need to model rich interface be-

haviors such as that of Rich Internet Applications

(RIA) (Niederhausen et al., 2009). ADV-Charts are

state machines diagrams that allow expressing inter-

face transformations occurring as the result of the user

interaction on a given ADV. ADV-Charts describe

interface behaviours through Event-Condition-Action

rules.

3 RELATED WORKS

3.1 Web Application Augmentation

End-User Development (EUD) was explored in the

ﬁeld of Web Augmentation in order to let users with-

out advanced programming skills to specify their

own augmentation artifacts (D

ıaz and Arellano, 2012;

Bosetti et al., 2017). In previous work we presented

some WOA (Web Object Ambient) tool that allows

users to recreate an object model of Web sites on the

client-side (Firmenich et al., 2016d), however, since

we are focused on supporting complex augmenta-

tion applications that could not be work just on the

client-side, at the same time that with some mod-

eling skills, they can create the back-end counter-

part of these augmentations. This generic back-end

support will empower augmentation artifacts, given

that further features could be contemplated such as

more complex business logic, storage, social aspects.

Although several aspects about augmentation have

been addressed through modeling activities, such as

requirement speciﬁcation (Firmenich et al., 2016a),

these usually aim to model the presentation layer,

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

446

something that is not enough to represent the back-

end logic of the application. In this sense, this pa-

per propose an integration between our tool for ex-

tracting a model object from existing Web pages (Fir-

menich et al., 2016d) with an application that is mod-

eled using existing Web modeling languages. Web

Augmentation could be considered a foreign client-

side application mechanism, i.e. adapting existing

and third-party Web sites on the client-side. However,

Client-Side adaptation could be also be considered as

a core concern during application design. An inter-

esting approach that considers this aspect was pre-

sented before [Model-Driven Design of Web Applica-

tions with Client-Side Adaptation], focusing the use

of this mechanism in an e-learning system. However,

although this work also propose a modeling layer for

the client-side adaptation layer, it is not used from the

augmentation point of view, but that is deﬁned by ap-

plication owners, and one more time, this could be

part of what end-users would like to change.

3.2 Separation of Concern in MDWE

Several existing Model-Driven Web Engineering

(MDWE) allows to seamlessly compose Web ap-

plications’ concerns such as our previous work to

tackle Volatile Functionalities in Web Applications

(Urbieta et al., 2012b; Frajberg et al., 2016), mod-

elling sepparation of concerns in Workﬂows (Urbieta

et al., 2012a), and supporting separation of Web-GIS

concerns in Web applications (Urbieta et al., 2014).

Additionally, other approaches support evolutive re-

quirements such as WebComposition Process Model

(Gaedke and Gr

af, 2001), Distributed Concern De-

livery (Cerny et al., 2015) or, more general princi-

ples, such as refactoring (Fowler et al., 1999) and pat-

terns (Gamma et al., 1995). However, all of these ap-

proaches are focused to compose concerns at server

side only when the developer has access to the core

application which is not the case of Web augmenta-

tion’s purpose. Web

4 OUR APPROACH IN A

NUTSHELL

Our approach is based on the idea that even the sim-

plest functionality (e.g., a new community comment

feature) should be considered as a ﬁrst-class func-

tionality and, as such, designed accordingly. At the

same time, their design and implementation have to

be taken separated from the host site (from now on

core application) and as much as possible decoupled

from that of core and stable functionalities which the

augmentations can not be introduced because the aug-

menter analyst is not part of the Application Webmas-

ter team. Building on the above ideas, our approach

can be summarized with the following design guide-

lines, which are shown schematically in Figure 1:

1. We decouple the augmentation from core appli-

cation by introducing a design layer (called Aug-

mentation Layer), which comprises a conceptual

model, a navigational model, and an interface

model.

2. We capture the basic conceptual model by tagging

data in host application pages using (Firmenich

et al., 2016d). The lack of access to the host appli-

cation’s underlying models requires the perceiv-

able conceptual model extraction. In this process,

data elements in the page are tagged and grouped

into an entity deﬁnition by an Augmentation ana-

lyst in such a way a simpliﬁed conceptual model

is obtained. The augmentation analyst is a skilled

end-user with advance knowledge of Web Appli-

cation who has as goal to improve the core ap-

plication. In further steps, the model instantia-

tion in a particular user session will be used for

giving contextual information to the augmentation

engine by providing model instances information

when triggering the augmentation.

3. Augmentation requirements are modeled using

Web engineering notations (e.g., use cases, user

interaction diagrams, etc.) and separately mapped

onto the following models using the heuristics de-

ﬁned by the design approach (See for example

(Popovici et al., 2002)). Notice that, as shown in

Figure 1, augmentation requirements are not inte-

grated into the core requirements model, therefore

leaving their integration to further design activi-

ties.

(a) New behaviors, i.e. those which belong to

the Augmentation layer, are modeled as ﬁrst

class objects in the Augmentation conceptual

model. It deﬁnes all the objects and behavior

corresponding to the new requirements. Ad-

ditionally, this model may include core appli-

cation conceptual classes (captured in step 2)

perceivable by the end-user allowing deﬁning

relationships between augmentation business

model and the core application. Notice that this

strategy can be applied to any object-oriented

method, i.e., any method using a UML-like

speciﬁcation approach.

(b) Nodes and links belonging to the augmenta-

tion navigational model may or may not have

links to the core navigational model. The core

navigational model is also oblivious to the aug-

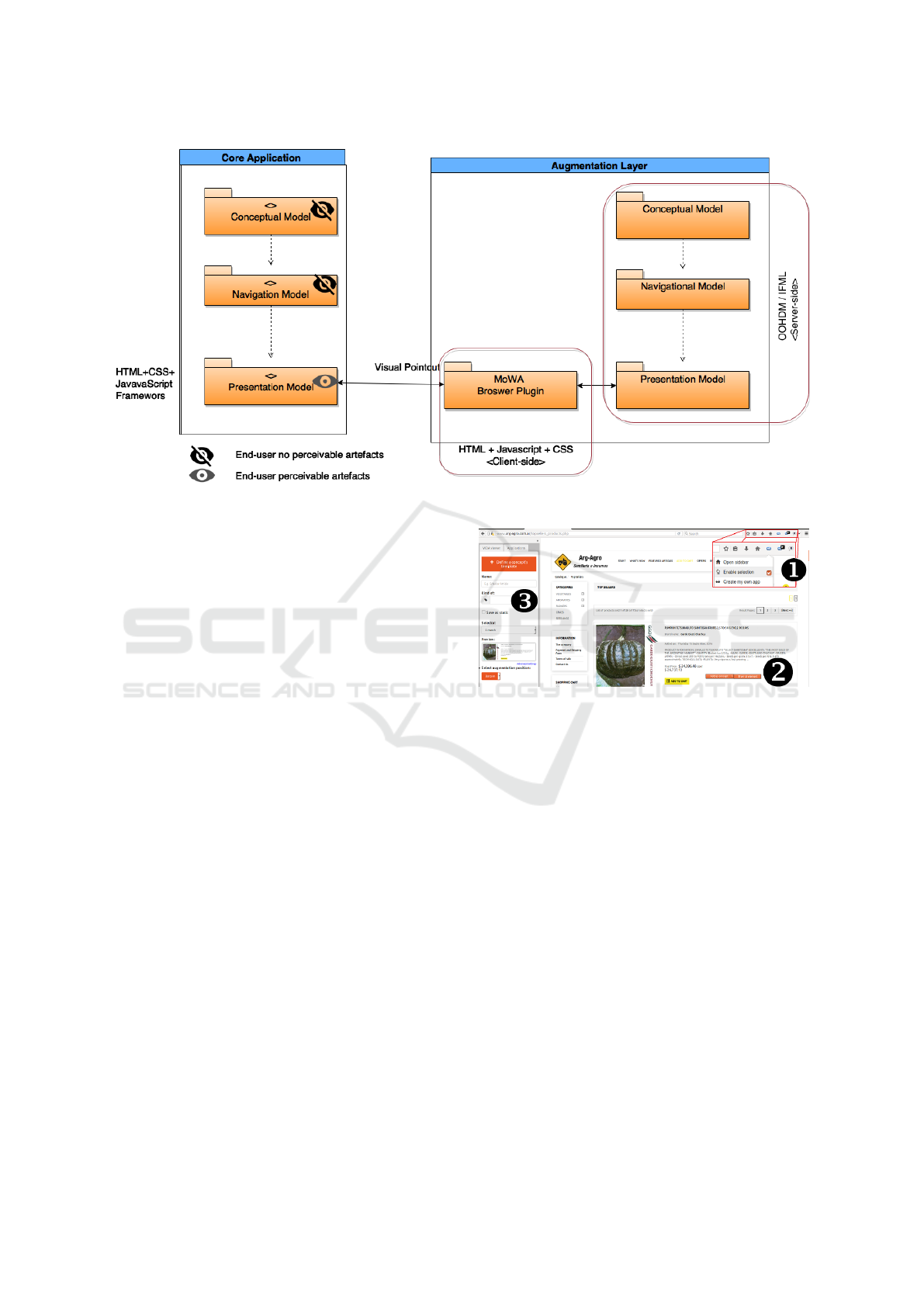

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support

447

Figure 1: Approach schema.

mentation navigational classes, i.e., there are no

links or other references from the core to the

augmentation layer. This principle can be ap-

plied in any Web design approach.

specify the connection between core and aug-

mentation nodes. As we show later in the paper,

the integration is achieved at run time as part of

a client side weaving engine. In other model-

driven approaches, the integration can be per-

formed during model transformation by imple-

menting the corresponding transformations.

(d) We design (and implement) the interfaces cor-

responding to each concern (core and augmen-

tation) separately; the interface design of the

core classes (described in OOHDM using Ab-

stract Data Views (ADV) (Vilain et al., 2000))

are oblivious with respect to the interface of

augmentation concerns. As in the navigational

layer, this principle is independent of the design

approach.

4. Core and augmentation interfaces (at the ADV

and implementation layers) are woven by execut-

ing an integration speciﬁcation, which is realized

using DOM transformations. Again, the idea of

model weaving is generic and therefore the same

result can be obtained using other technical solu-

tion.

Once the augmentation requirements are modeled in

Step 3, the augmentation of another site will be quite

straightforward requiring to ﬁnd and map the virtual

classes (Step 2) and to specify how to wave the aug-

mentation UI artifacts (Step 4).

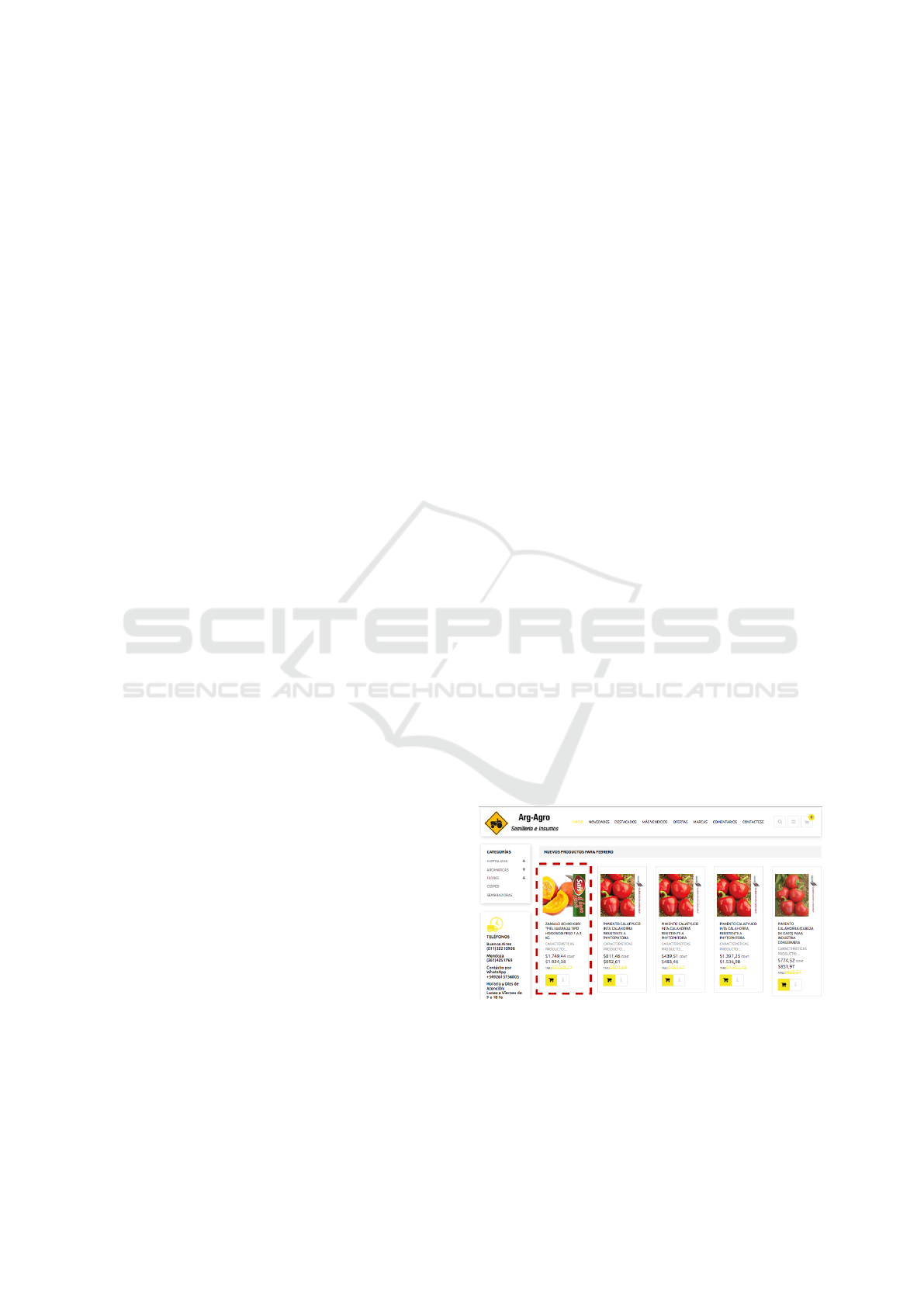

Figure 2: Concept deﬁnition.

We next explain how these principles have been

put into practice in the OOHDM approach.

4.1 Core application Conceptual Model

extraction (Step 2)

Our approach is based on the creation of objects that

are speciﬁed by abstracting Web pages contents (Fir-

menich et al., 2016b).

In order to do it, we developed a visual program-

ming tool that allows users to select a DOM element

from which the abstraction process starts. For this

DOM element, the user must deﬁne which is the con-

ceptual class, which are the properties of that class

and also to select from which children DOM elements

are the values for these properties taken from. This

process is shown in Figure 2, our tool adds the neces-

sary controls that let users creating objects, no matter

what Web resource has been loaded in the browser.

The ﬁrst step is enabling the DOM selection (Step

1). By clicking this option, every DOM element is

highlighted on a mouse-over event, so the user can

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

448

clearly appreciate what is the current target element to

collect. Then, as shown in step 2, he can access via a

context menu to the options for extracting an element

in the current DOM. Once the DOM element is se-

lected, an UI form is opened at the sidebar, which lets

the user selecting a name for the concept, a seman-

tic tag, etc. Concerning the different instances that

could be extracted from a single Class, a combo is

ﬁlled with different XPaths applicable to the selected

element and allows to unequivocally reference it or

to reference a set of similar elements instead. Then,

the user may choose one or more elements, according

to his needs. Then to select one of the possible se-

lectors in the DOM, so, e.g. he can choose multiple

DOM elements by changing the selector. Properties

can be added in the same way; the only difference is

the addition of a combo for linking such property to

an existing concept. The result of this process is the

deﬁnition of a set of classes speciﬁcations which al-

low obtaining one or multiple instances according to

the selector the user has chosen during the authoring

process: if it refers to a single element in the DOM or

to several of them Once ﬁnished the abstraction pro-

cess, users may see the collected classes and instances

viewer panel, from where the use may also export the

speciﬁcations in JSON format. Further aspects of the

abstraction of Web contents as domain object may be

found in previous work (Firmenich et al., 2016d).

4.2 Augmentation Layer Modelling

The augmentation request is triggered by a page ac-

cess of core application. To provide the enhancement,

an application server runs application models (Con-

ceptual, Navigational and Interface) in order resolve

the request. Next, we introduce the guidelines for de-

signing each model.

4.2.1 Conceptual Model (Step 3a)

Augmentation functionalities like customized recom-

mendation systems or complex concern may involve

brand new content classes (e.g., the class modeling

a Comment from a user) or the enhancement of ex-

isting core application classes and application behav-

iors. In our approach, a class diagram is designed

deﬁning new classes and the enrichments for virtual

classes extracted in Step 2. The new classes are new

pieces of information and behavior that must be in-

troduced whereas the virtual classes are representa-

tions of the information actually perceivable by the

end-user which are enhanced with new attributes (e.g.

a Product may be enriched with an ) or relationships

with other virtual classes or augmentation ones. Any

new feature of virtual classes will be woven automati-

cally and must be considered as a Decorators (Gamma

et al., 1995) because it allows adding new features

(properties and behaviors) to an application in a non

intrusive way. In our approach, augmentation func-

tionalities might be new behaviors which are added

to the conceptual model (and which might encompass

many classes) or full-ﬂedged navigation models, con-

taining new nodes, links and even relationships with

conceptual classes. Each augmentation functionality

is treated as a self-contained sub-system and modeled

using the OOHDM method. The notation is similar

to symmetric approaches for separation of concerns

such as the one described in (Rossi et al., 2008).

4.2.2 Navigational Design (Step 3b)

At the navigational layer, Augmentation and core nav-

igational components are connected using an integra-

tion speciﬁcation which indicates, for example, if the

augmentation features are inserted in the core node or

if they are connected with a hyperlink. This speciﬁca-

tion also includes a query indicating which core nodes

will contain the extension. Nodes matching the query

are affected by (or enhanced with) the augmentation

functionality and represent the Afﬁnity of the aug-

mentation functionality. It is possible to deﬁne one or

more afﬁnities for the same augmentation functional-

ity, i.e., the same functionality might be incorporated

in different parts of the application, by following dif-

ferent rules. The afﬁnities of an augmentation func-

tionality are speciﬁed with the same query language

used in OOHDM to deﬁne nodes (Rossi et al., 2006).

The language is based on object queries. Using this

query language the deﬁnition of an afﬁnity assumes

the following form:

AFFINITY: AffinityName

FROM C1..Ci

WHERE Predicate

INTEGRATION: Extension | Linkage(V1..Vi)

In it, AfﬁnityName is the name associated with the

afﬁnity, C1..Ci indicate core node classes involved in

the query, Predicate is a logical expression deﬁned

in terms of properties of model objects which deter-

mines the instances of the core node classes C1..Ci

that will be affected by the augmentation functional-

ity, and Extension / Linkage indicate the way the aug-

mentation functionality is integrated into core nodes

through the augmentation nodes V1..Vi. An extension

indicates that the core nodes are enhanced to contain

the new functionality information (and operations). In

a linkage integration, the core nodes just allow navi-

gation towards the augmentation nodes V1..Vi which

actually contain the augmentation functionality, and

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support

449

therefore does not support new behaviors. In the case

of linkage integration, we can also specify additional

features such as attributes or anchors that have to be

added to the extended node (e.g., to make navigation

more clear).

4.2.3 Structural Weaving of Augmentation

(Step 3d)

As a consequence of inserting augmentation func-

tionalities into the conceptual model or the naviga-

tional model, new interface elements must be added

into the interface model, therefore introducing new

ﬁelds with data or control interface objects (anchors,

buttons, etc.). Though we described this process in

(Ginzburg et al., 2009), we brieﬂy review it here for

completeness and readability reasons. Each concern

(core and augmentation) will comprise ADVs for its

corresponding nodes. During the interface design

stage and when a node should exhibit some augmenta-

tion functionality, we indicate the look and feel of the

ﬁnal page by specifying how the augmentation inter-

face will be inserted into the core ADV. More specif-

ically, we indicate the relative position of the added

interface objects with respect to the core interface ob-

jects. To express the integration, we have deﬁned a

simple speciﬁcation language which allows indicat-

ing point-cuts and insertions at the abstract interface

level, i.e. the position where the augmentation ADV

has to be inserted in the core ADV. The speciﬁcation

generalizes the idea of point-cuts in aspect-orientation

to the two dimensional space of Web interfaces. A

point-cut and the corresponding insertion are speci-

ﬁed using the following template:

Integration: IntegrationName

Target: ADVTargetName

Add: ADVSourceName | InsertionSpecification

Relative to: ADV name

Position: [above | bottom | left | right]

The ﬁeld Integration is an identiﬁcation for this

speciﬁcation. It may refer or not to a navigational

afﬁnity since the same User Interface (UI) integra-

tion speciﬁcation can be used with many navigational

afﬁnities. The ﬁeld Target indicates the names of the

ADVs (one or more) which will host the augmenta-

tion interface code. Inner ADVs may be speciﬁed us-

ing a . notation. As an example, we will write Prod-

uct.Reviews to indicate that the insertion will take

place in the ADV Reviews, which is a part of the

Product ADV. The Add ﬁeld indicates which elements

must be inserted in the target, either an ADV or an

immediate speciﬁcation which is used when the in-

serted ﬁeld is simple enough to avoid the speciﬁca-

tion of another (auxiliary) ADV. Finally, we indicate

the insertion position by using the Relative and Posi-

tion ﬁelds. It is worth to notice that the speciﬁcation is

still abstract, thus leaving space to ﬁne tuning during

implementation.

5 A COMPREHENSIVE

EXAMPLE

In this section, we show and describe an augmenta-

tion example performing all the steps proposed in the

approach. For example, we expect to improve a Web-

site that sells seeds for agriculture proposes. The ap-

plication lacks an end-user community reviews fea-

tures that let the end-users share their experience with

a given product. In following steps we detail our ap-

proach in practice.

5.1 Extracting Conceptual Model from

Core Application

The ﬁrst step in the approach is to capture the under-

laying model perceivable by the end-user that will be

used later to be enhanced. For instance, in Figure 3

we highlight a particular part of the DOM that con-

tains information about an instance of the class Prod-

uct. Also, we can see that there other DOM elements

presenting other instances of the same class. All of

these instances seem to present similar information

responding to different properties of the Product vir-

tual class, such as the name, the price and a small

description. The main idea is to deﬁne the class Prod-

uct and its properties and how they are matched to

existing DOM elements to extract concrete values for

concrete instances.

Figure 3: Concept and instance identiﬁcation in existing

Web content.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

450

5.2 Modeling Augmentation Layer

In order to give support to the augmentation aspects

that need to be performed on the server, we have de-

signed a Web application using IFML which com-

prises Conceptual, Navigational and Interface mod-

els. The application gives backend support to the

whole Augmentation experience.

Once the Virtual Classes are extracted, we design

the conceptual model that documents how Augmen-

tation enriches the core application model. In our

example, a Product will be enriched with a set of

Comments that represent community’s reviews. In

IFML, the ﬁrst step is the description of conceptual

mode using Entity/Relationship modeling. In Figure

4, we show how a Product will be associated with its

comments. The Product virtual class which has doted

lines is augmented with a reference multi-valuated to

Comment entity. It is noteworthy that Comment en-

tity does not need to state all the information available

on the page; indeed, the basic set of information (e.g.

any information that identify the object such as an id

or a name) that let a basic lookup implementation is

required.

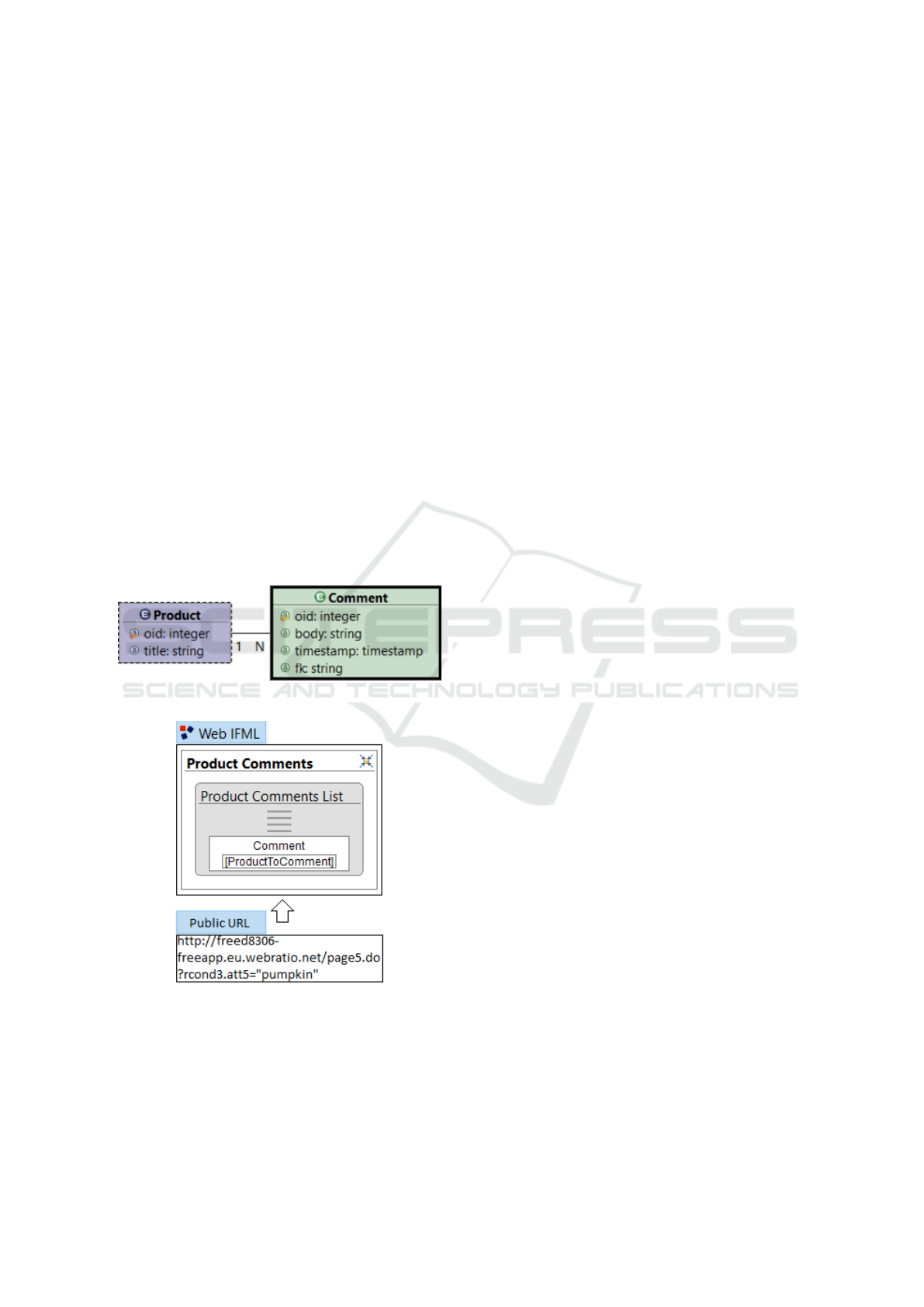

Figure 4: Entity relationship model.

Figure 5: Service represented on Web IFML.

Actions on client-side require, in addition to

the conceptual model enhancement, improvements

at navigational models to describe application be-

haviour. This is modeled using units, components,

and links as part of an IFML site view. In Figure 5

a Page is deﬁned listing all available Comments for a

given product. Furthermore, a product’s id is required

for resolving the comments by browsing the relation-

ship depicted in Figure 5. At the bottom of Figure 5

there is an URL responsible of triggering the server-

side behaviour which sends the required id

pankins

Actually, the URL is triggered by the Augmentation

plugin running in the browser once the user access

the target page. The next step in the augmentation

design is the speciﬁcation of how to achieve the com-

position the core application navigational model with

the augmentation. For such task, we use the afﬁni-

ties (introduced in Section 4.2.2). In the following

speciﬁcation, the afﬁnity points out that the Product-

Detail node (the one perceived by the end-user) must

include all the behavior required for listing Product’s

comments:

AFFINITY: IncludeProductComment

FROM ProductDetail

WHERE Predicate

INTEGRATION: ProductComments

Finally, the designer must study the best experi-

ence to the end-user regarding the Comment list’s pre-

sentation. The visual point-cut is speciﬁed using inte-

gration rules (presented at Section 4.2.2 ):

Integration: Community review

Target: ProductDetail

Add: ProductComments

Relative to: ProductTitle

Position: bottom

This determines the user interface point-cut and

corresponding transclusion position to be done. Each

time a user access a page, the captured augmentation

model instance, in this case a Product, is sent to the

server for its processing and output rendering. The

outcome will be transcluded into the core application

page using the conﬁguration set. As result of aug-

mentation execution on client-side, the web page is

modiﬁed listing the product’s comment as expected.

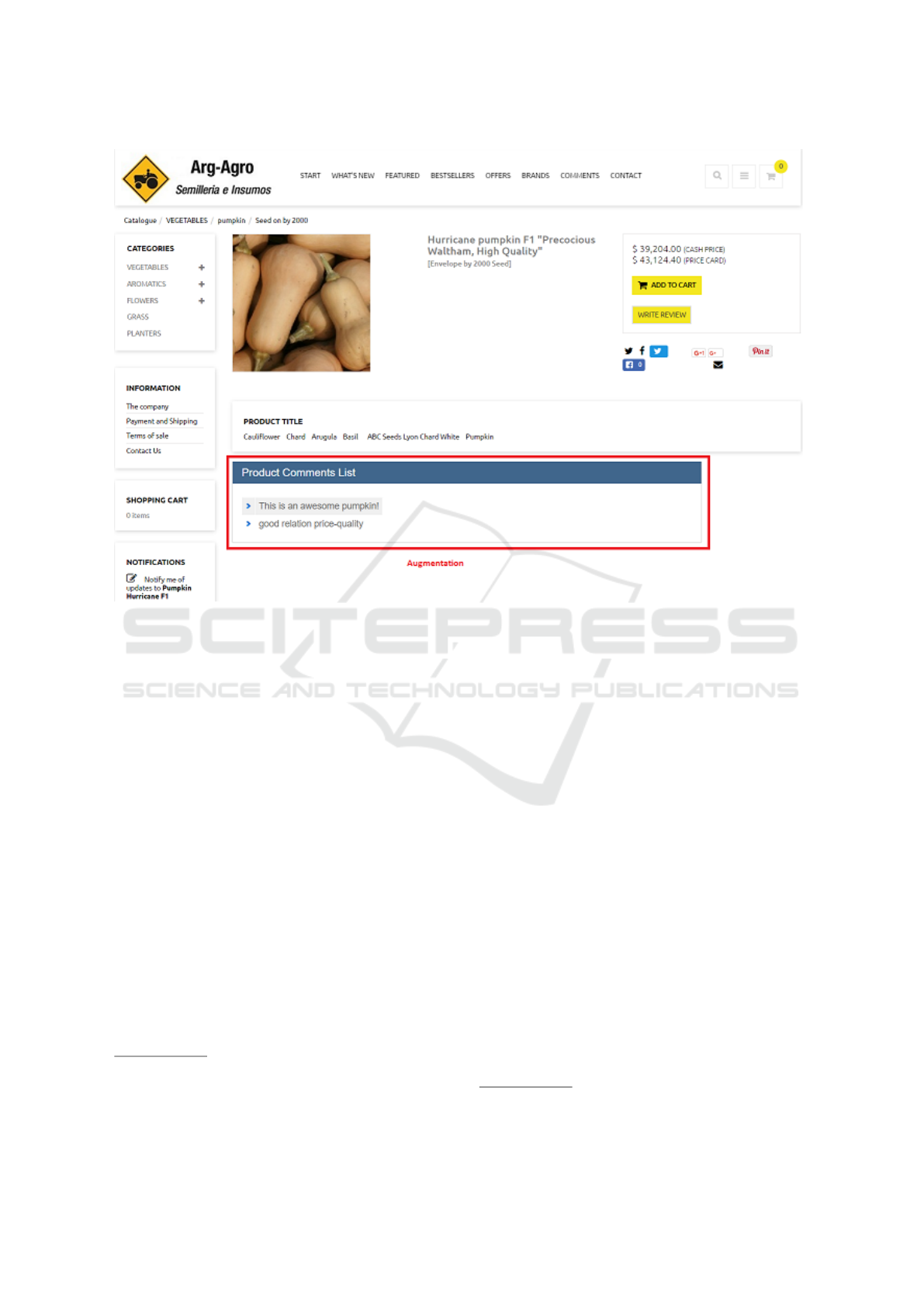

In Figure 6, the reader can appreciate how the the

comment block is inserted above product title. The

weaving of pages content is achieved by means of the

Web Object Ambient (WOA) Web browser extension

(Firmenich et al., 2016b) which will be who calls the

service and perform the augmentation on the client-

side based on users conﬁguration. It is important to

highlight that special care must be taken in client side

object identiﬁcation for matching with persisted ob-

ject, otherwise, you run the risk of not ﬁnding any

result and augmentation ends without effect.

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support

451

Figure 6: Augmentation result.

5.3 Implementation

The architecture is composed of two parts, on one

hand there is a Web service which is intended to be

public showing how to interact with it, specifying in

and out parameters, and designed by WebRatio IDE

to take advantage of the beneﬁts it brings on the ease

of its use for end user. This service should be part

of the communitys available augmentation options to

make it richer and create a collaborative context.

There are some client-side restrictions that have

been taken into account. One is Cross-origin resource

sharing (CORS)

because it can not be assumed that

its allowed to make a call to other domain from the

web where extension is running on. To resolve that

problem, a proxy is used which wraps the call adding

headers to enable cross domain calls by the insertion

of request headers, that way calls can be made to

bring augmentation services data. Furthermore, the

script is programmed in basic JavaScript to not have

dependencies in any possible client side library, like

Cross-origin resource sharing is a mechanism that al-

lows restricted resources (e.g. fonts) on a Web page to be

requested from another domain outside the domain of which

the ﬁrst resource was served.

jQuery

6 CONCLUSIONS

In this work we have presented a novel approach for

designing Web Augmentation coping with client-side

and server-side behaviors. The augmentations are

modeled using IFML but our approach can be in-

stantiated with other approaches (Rossi et al., 2008)

such a UWE and OOHDM. The approach relies on

the separation of concerns principles thus we provide

the composition mechanism for each model (Concep-

tual, Navigational and User interface). We used as

running example the design of a Community review

feature instantiated, but not restricted to, at an agri-

culture e-commerce site. The new feature gives in-

formation to the decision making activities. We plan

to perform an evaluation for assessing the end-user

perception about the augmentation and how it im-

proves his site’s experience. On the other hand, we

will study how to improve the reuse of the augmen-

tations. We also consider to evaluate the approach

based on a quality framework for MDWE approaches

jQuery is a cross-platform JavaScript library designed

to simplify the client-side scripting of HTML.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

452

(Dom

ınguez-Mayo et al., 2012). This will help to

improve our approach’s processes that let applying

and designing efﬁciently. Finally, we will study the

use of Model-Driven Web Augmentation in diverse

business domains such as Financial, Banking, Logis-

tic,etc.. Additionally, we instantiate our approach us-

ing OOHDM and UWE among other approaches.

ACKNOWLEDGEMENTS

Authors of this publication acknowledge the contribu-

tion of the Project 691249, RUC-APS: Enhancing and

implementing Knowledge based ICT solutions within

high Risk and Uncertain Conditions for Agriculture

Production Systems (www.ruc-aps.eu), funded by the

European Union under their funding scheme H2020-

MSCA-RISE-2015.

Additionally, this research has been partially sup-

ported by the POLOLAS project (code TIN2016-

76956-C3-2-R) of the Spanish Ministry of Science

and Innovation

REFERENCES

Aoki, Y. and Nakajima, A. (1999). User-Side Web Page

Customization. In Human-Computer Interaction: Er-

gonomics and User Interfaces, Proceedings of {HCI}

International ’99 (the 8th International Conference

on Human-Computer Interaction), Munich, Germany,

August 22-26, 1999, Volume 1, pages 580–584.

Arag

on, G., Escalona, M. J., Lang, M., and Hilera, J. R.

(2013). An analysis of model-driven web engineering

methodologies.

Bosch, J., Olsson, H. H., Bj

ork, J., and Ljungblad, J.

(2013). The Early Stage Software Startup Develop-

ment Model: A Framework for Operationalizing Lean

Principles in Software Startups. Lean Enterprise Soft-

ware and Systems, pages 1–15.

Bosetti, G., Firmenich, S., Gordillo, S. E., Rossi, G., and

Winckler, M. (2017). An End User Development Ap-

proach for Mobile Web Augmentation. Mobile Infor-

mation Systems, 2017:1–28.

Brambilla, M. and Fraternali, P. (2014). Interaction Flow

Modeling Language: Model-Driven UI Engineering

of Web and Mobile Apps with IFML. Morgan Kauf-

mann.

Brusilovsky, P. (2007). Adaptive Navigation Support. In

The Adaptive Web, Methods and Strategies of Web

Personalization, pages 263–290.

Brusilovsky, P., Kobsa, A., and Nejdl, W. (2007). The Adap-

tive Web, Methods and Strategies of Web Personaliza-

tion, volume 4321 of Lecture Notes in Computer Sci-

ence. Springer.

Cerny, T., Macik, M., Donahoo, M. J., and Janousek, J.

(2015). On distributed concern delivery in user inter-

face design. Computer Science and Information Sys-

tems, 12(2):655–681.

DDway (2016). Calculation of the Functional Size and

Productivity with the IFPUG method (CPM 4 . 3 . 1).

The DDway experience with WebRatio, http://www.

webratio.com/website/documentation/Case Study Pr

oductivity with WebRatio.pdf. Last accessed March

29, 2017.

ıaz, O. and Arellano, C. (2012). Sticklet: An End-

User Client-Side Augmentation-Based Mashup Tool.

In Web Engineering - 12th International Conference,

{ICWE} 2012, Berlin, Germany, July 23-27, 2012.

Proceedings, pages 465–468.

ıaz, O. and Arellano, C. (2015). The Augmented

Web: Rationales, Opportunities, and Challenges on

Browser-Side Transcoding. TWEB, 9(2):8.

ıaz, O., Arellano, C., and Iturrioz, J. (2010). Interfaces for

Scripting: Making Greasemonkey Scripts Resilient to

Website Upgrades. In Web Engineering, 10th Inter-

national Conference, {ICWE} 2010, Vienna, Austria,

July 5-9, 2010. Proceedings, pages 233–247.

Diigo (2017). Diigo, https://www.diigo.com/. Last ac-

cessed March 29, 2017.

Dom

ınguez-Mayo, F., Escalona, M., Mej

ıas, M., Ross, M.,

and Staples, G. (2012). Quality evaluation for Model-

Driven Web Engineering methodologies. Information

and Software Technology, 54(11):1265–1282.

Dom

ınguez-Mayo, F. J., Escalona, M. J., Mej

ıas, M., Ross,

M., and Staples, G. (2014). Towards a Homogeneous

Characterization of the Model-driven Web Develop-

ment Methodologies. J. Web Eng., 13(1&2):129–

159.

Firmenich, D., Firmenich, S., Rivero, J. M., Antonelli, L.,

and Rossi, G. (2016a). CrowdMock: an approach

for deﬁning and evolving web augmentation require-

ments. Requirements Engineering, pages 1–29.

Firmenich, D., Firmenich, S., Rivero, J. M., Antonelli, L.,

and Rossi, G. (2016b). CrowdMock: an approach

for deﬁning and evolving web augmentation require-

ments. Requirements Engineering, pages 1–29.

Firmenich, S., Bosetti, G., Rossi, G., and Winckler, M.

(2016c). Flexible Distribution of Existing Web In-

terfaces: An Architecture Involving Developers and

End-Users. In Current Trends in Web Engineer-

ing - {ICWE} 2016 International Workshops, DUI,

TELERISE, SoWeMine, and Liquid Web, Lugano,

Switzerland, June 6-9, 2016, Revised Selected Papers,

pages 200–207.

Firmenich, S., Bosetti, G. A., Rossi, G., Winckler, M., and

Barbieri, T. (2016d). Abstracting and Structuring Web

Contents for Supporting Personal Web Experiences.

In Web Engineering - 16th International Conference,

{ICWE} 2016, Lugano, Switzerland, June 6-9, 2016.

Proceedings, pages 77–95.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: Improving the Design of Ex-

isting Code. Addison-Wesley Professional.

A Model-driven Approach for Empowering Advance Web Augmentation - From Client-side to Server-side Support

453

Frajberg, D., Urbieta, M., Rossi, G., and Schwinger, W.

(2016). Volatile Functionality in Action: Meth-

ods, Techniques and Assessment. In Bozzon, A.,

Cudre-Maroux, P., and Pautasso, C., editors, Web

Engineering: 16th International Conference, ICWE

2016, Lugano, Switzerland, June 6-9, 2016. Proceed-

ings, pages 59–76. Springer International Publishing,

Cham.

Gaedke, M. and Gr

af, G. (2001). Development and Evolu-

tion of Web-Applications Using the WebComposition

Process Model. In Web Engineering, volume 2016,

pages 58–76.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (1995).

Design patterns: elements of reusable object-oriented

software.

Garrido, A., Firmenich, S., Rossi, G., Grigera, J., Medina-

Medina, N., and Harari, I. (2013). Personalized Web

Accessibility using Client-Side Refactoring. {IEEE}

Internet Computing, 17(4):58–66.

Ginzburg, J., Distante, D., Rossi, G., and Urbieta, M.

(2009). Oblivious integration of volatile functionality

in web application interfaces. Journal of Web Engi-

neering, 8(1):25–47.

Martin, R. C. (2003). Agile software development: princi-

ples, patterns, and practices. Prentice Hall PTR.

Niederhausen, M., Sluijs, K., Hidders, J., Leonardi, E.,

Houben, G.-J., Meißner, K., Van Der Sluijs, K., Hid-

ders, J., Leonardi, E., Houben, G.-J., Meißner, K.,

and Matthias Niederhausen, Kees Van Der Sluijs, J.

H. E. L. G.-j. H. K. M. (2009). Harnessing the

power of semantics-based, aspect-oriented adaptation

for AMACONT. In Gaedke, M., Grossniklaus, M.,

and D

ıaz, O., editors, Web Engineering, chapter Har-

nessing, pages 106–120. Springer, Berlin, Heidelberg.

Popovici, A., Gross, T., and Alonso, G. (2002). Dy-

namic Weaving for Aspect-oriented Programming. In

Proceedings of the 1st International Conference on

Aspect-oriented Software Development, AOSD ’02,

pages 141–147, New York, NY, USA. ACM.

Rossi, G., Nieto, A., Mengoni, L., Lofeudo, N., Silva,

L. N., and Distante, D. (2006). Model-Based De-

sign of Volatile Functionality in Web Applications.

In 2006 Fourth Latin American Web Congress, pages

179–188.

Rossi, G., Pastor, s., Schwabe, D., and Olsina, L. (2008).

Web Engineering: Modelling and Implementing Web

Applications, volume 12. Springer-Verlag London.

Scafﬁdi, C., Ko, A., Myers, B., and Shaw, M. (2006).

Dimensions characterizing programming feature us-

age by information workers. In Visual Languages

and Human-Centric Computing, 2006. VL/HCC 2006.

IEEE Symposium on, pages 59–64. IEEE.

Torrecilla-Salinas, C., Sede

no, J., Escalona, M., and Mej

ıas,

M. (2015). Estimating, planning and managing Ag-

ile Web development projects under a value-based

perspective. Information and Software Technology,

61:124–144.

Urbieta, M., Oliveira, A., Ara

ujo, J., Rodrigues, A., Mor-

eira, A., Gordillo, S., and Rossi, G. (2014). Web-

GIS models: accomplishing modularity with aspects.

Innovations in Systems and Software Engineering,

10(1):59–75.

Urbieta, M., Retschitzegger, W., Rossi, G., Schwinger, W.,

Gordillo, S., and Luna, E. R. (2012a). Modelling

adaptations requirements in web workﬂows. Proceed-

ings of the 14th International Conference on Informa-

tion Integration and Web-based Applications & Ser-

vices - IIWAS ’12, page 72.

Urbieta, M., Rossi, G., Distante, D., and Ginzburg, J.

(2012b). Modeling, Deploying, and Controlling

Volatile Functionalities in Web Applications. Inter-

national Journal of Software Engineering and Knowl-

edge Engineering, 22:129–155.

Vilain, P., Schwabe, D., and de Souza, C. S. (2000). A

Diagrammatic Tool for Representing User Interaction

in UML. In Evans, A., Kent, S., and Selic, B., edi-

tors, International Conference on the Uniﬁed Model-

ing Language, volume 1939 of Lecture Notes in Com-

puter Science, pages 133–147. Springer.

WebRatio (2017). WebRatio Platform, http://www.webrat

io.com/site/content/en/web-application-development.

Last accessed March 29, 2017.

Wischenbart, M., Firmenich, S., Rossi, G., and Wimmer,

M. (2015). Recommender Systems for the People -

Enhancing Personalization in Web Augmentation. In

Proceedings of the Joint Workshop on Interfaces and

Human Decision Making for Recommender Systems,

IntRS 2015, co-located with {ACM} Conference on

Recommender Systems (RecSys 2015), Vienna, Aus-

tria, September 19, 2015., pages 53–60.

APMDWE 2017 - 2nd International Special Session on Advanced practices in Model-Driven Web Engineering

454
