Forensic Analysis of Communication Records of Web-based Messaging

Applications from Physical Memory

Diogo Barradas, Tiago Brito, David Duarte, Nuno Santos and Lu

ıs Rodrigues

INESC-ID, Instituto Superior T

ecnico, Universidade de Lisboa, Portugal

Keywords:

Digital Forensics, Instant-messaging, Memory Forensics, Web-applications.

Abstract:

Inspection of physical memory allows digital investigators to retrieve evidence otherwise inaccessible when

analyzing other storage media. In this paper, we analyze in-memory communication records produced by

web-based instant messaging and email applications. Our results show that, in spite of the heterogeneity of

data formats speciﬁc to each application, communication records can be represented in a common application-

independent format. This format can then be used as a common representation to allow for general analysis

of digital artifacts across various applications, even when executed in different browsers. Then, we introduce

RAMAS, an extensible forensic tool which aims to ease the process of analyzing communication records left

behind in physical memory by instant-messaging and email web clients.

1 INTRODUCTION

Instant-messaging (IM) and email applications such

as Facebook’s chat and Gmail clients, respectively,

are widely used communication services that allow

individuals to exchange messages over the Internet.

Given the nature of the exchanged data, digital arti-

facts left by such applications may hold highly rele-

vant forensic value. This is particularly true if, from

such artifacts, it is possible to recover communication

records of past conversations providing information

about the content of exchanged messages, identity of

communicating parties, or time-related information.

To assist forensic analysts in recovering such ar-

tifacts, we aim to develop a forensic tool for extrac-

tion of conversation records left by web-based mes-

saging applications in physical memory dumps. As

opposed to their native counterparts, web-based ap-

plications run inside a browser and are becoming in-

creasingly popular because users do not need to in-

stall them on their computers; all they need to do is to

open a browser and visit a URL. By focusing on phys-

ical memory analysis, our goal is to complement the

functionality of existing forensic tools which focus on

the analysis of persistent state, e.g., local logs (Yang

et al., 2016; Al Mutawa et al., 2011), and to address a

latent need for the analysis of high-level data present

in such memory dumps (Simon and Slay, 2009).

Although some prior work employs memory

forensic techniques on messaging applications, ex-

isting tools tend to be highly application-dependent.

For example, Wong et al. present techniques that al-

low for the recovery of digital artifacts for the Face-

book messaging service (Wong et al., 2011). How-

ever, the proposed techniques cannot directly be ap-

plied to multiple other applications due to the het-

erogeneity of data formats implemented by each ap-

plication. Furthermore, the fact that web-based ap-

plications run inside a browser may interfere with

the durability of applications’ artifacts in memory,

for example due to the memory management pol-

icy implemented by the browser. Existing works on

browser forensics concentrate only on the extraction

of browser-speciﬁc artifacts (e.g., browsing history,

web cache) leaving aside the recovery of application-

speciﬁc artifacts (Ohana and Shashidhar, 2013).

In this paper we make three key contributions.

First, we present a digital forensics study aimed

to systematically analyze the digital artifacts left

in memory by several popular IM and email web-

applications when executed on various browsers. We

successfully identiﬁed and retrieved IM communica-

tion records from web-applications such as Facebook,

Twitter and Skype, as well as email records from

Outlook and a generic Roundcube email web-client.

Our study helps to characterize how the communi-

cation records of web-based messaging applications

are typically represented and to identify how browser-

speciﬁc mechanisms may affect the durability of such

records in memory (Section 2).

Barradas, D., Brito, T., Duarte, D., Santos, N. and Rodrigues, L.

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory.

DOI: 10.5220/0006396100430054

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 43-54

ISBN: 978-989-758-259-2

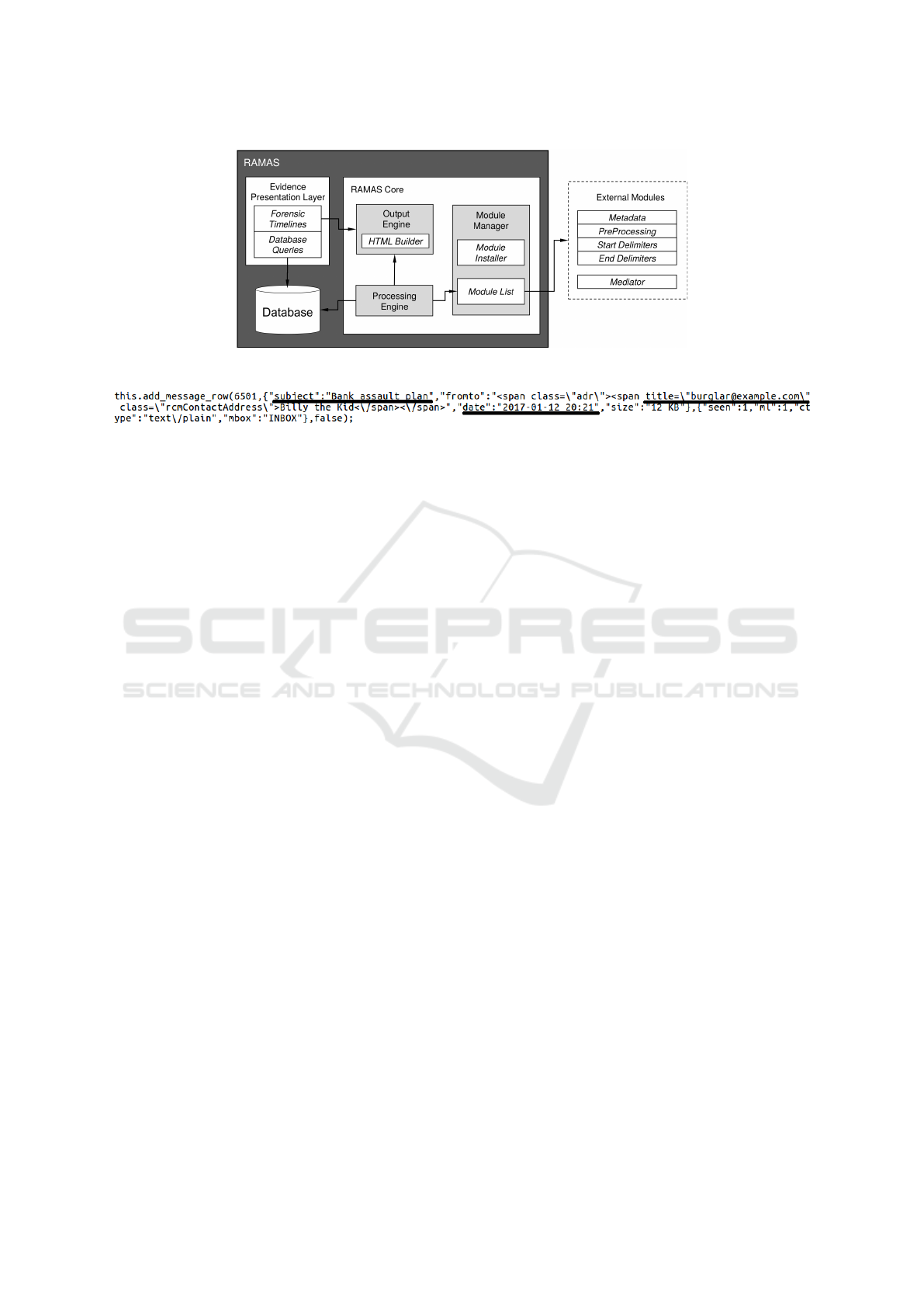

Second, we introduce the design and implementa-

tion of a forensic tool called RAMAS, which consists

of a collaborative and extensible framework for anal-

ysis of communication records from volatile memory.

RAMAS is able to extract such records from mul-

tiple web-based messaging applications and display

the extracted records on a user-friendly timeline. RA-

MAS is designed in a modular fashion so as to accom-

modate an ever-growing number of applications and

allow collaborative development and maintenance of

the system by independent forensic analysts. This

goal is achieved through the implementation of ex-

traction modules: each module contains a set of (sim-

ple) rules that allow RAMAS to extract the records of

a speciﬁc application and represent them on a com-

mon application-independent format (Section 3).

Lastly, we present an experimental evaluation

of our framework. To this end, we used RAMAS

for conducting analysis over the data extracted from

memory chips with sizes typically found in commod-

ity hardware. Our evaluation shows that RAMAS is

efﬁcient, e.g., it can process communication records

spawning from six different applications, in an 8 GB

memory dump, in roughly about three minutes. We

also enact a use case for demonstrating the usefulness

of our framework’s evidence presentation capabilities

which may help digital investigators in uncovering so-

phisticated correlations among evidence from several

applications or across memory images (Section 4).

2 DIGITAL FORENSICS STUDY

This section presents the digital forensics study that

we carried out in order to assess the existence of com-

munication records in physical memory produced by

web-based messaging applications. This study lays

the ground for the subsequent development of a foren-

sic tool for automatic extraction of such records.

2.1 Goals of the Forensics Study

More concretely, the goal of this study is to check

whether and in which conditions communication

records can be obtained from memory dumps. In par-

ticular, our research is driven by two key questions:

How are messages represented in memory? The

programmers of web-based messaging applications

are free to implement them using a range of differ-

ent technologies. Some design decisions comprise the

choice of front-end and back-end programming lan-

guages (ex. Javascript, PHP), others involve select-

ing the data representation format of communication

records (ex. JSON, XML, binary). This heterogeneity

in data representation and platforms may impact the

way communication records are loaded into memory

and contribute for the absence of a common model of

the structure of communication records among differ-

ent implementations of browsers and operating sys-

tems. This implies that a tool developed for analyz-

ing this kind of evidence would exhibit the additional

complexity of having to take into account such differ-

ences between record structures, even when analyzing

a single application. We aim to assess whether there is

a common model which allows for the interpretation

of textual web-application data lingering in memory.

How long do messages persist in memory? The

persistence of in-memory data structures may be af-

fected by the browser where the web-based messag-

ing application runs. First, we must ascertain whether

the browser runtime environment imposes limitations

on the ability to recover communication records from

physical memory. In particular, to provide the inter-

action with web-applications, web-browsers rely on

different layout engines (ex. Blink, Gecko) which af-

fect the way a browser hosts, renders or executes web

content. Similarly, several implementations of oper-

ating systems target different platforms (ex. worksta-

tion, mobile) and are expected to apply disparate low-

level mechanisms for performing memory manage-

ment. Furthermore, different user interactions may

trigger the erasure or replacement of potential evi-

dence in volatile memory. For instance, data pertain-

ing to a given web-application may be evicted shall a

user navigate to a different browser tab or terminate

her browsing session. Finally, modern browsers im-

plement private browsing execution modes which en-

ables users to browse the web while disabling both the

browsing history and web cache. This feature is im-

plemented by popular browser vendors and is known

under different aliases, such as Incognito, InPrivate or

PrivateBrowsing. We must evaluate whether the use

of private browsing may compromise the existence of

digital artifacts lingering in memory.

2.2 Experimental Methodology

To investigate whether and in which conditions mes-

sages can be obtained from memory, we performed

an experimental study of several web-based messag-

ing applications. In particular, we analyzed digi-

tal artifacts concerning IM records for Facebook’s

chat, Facebook Messenger’s chat, Skype, Twitter’s

Direct Messages, Google Hangouts, WhatsApp, Tele-

gram, and Trillian. We also analyzed communication

records of three email web-clients: Outlook, a generic

Roundcube email client, and Gmail.

These applications were tested on different brow-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Table 1: Feasibility of recovering web-based messaging application records from different browsers.

Web-Application Browser

Google Chrome

v55.0

Mozilla Firefox

v50.0.1

Opera

v42.0

Microsoft Edge

v38.14393.0.0

Facebook 3 3 3 3

Messenger 3 3 3 3

Skype 3 - 3 3

Twitter 3 3 3 3

Hangouts - - - -

WhatsApp - - - -

Telegram - - - -

Trillian - - - -

Outlook 3 - 3 3

Roundcube 3 3 3 3

Gmail - - - -

sers: Google Chrome, Mozilla Firefox, Opera, and

also Microsoft Edge. Tests for each browser were

conducted for both private and non-private browsing

sessions. For our tests, every web-application was

used in a freshly generated browser tab. We have con-

ducted our experiments in two widely used desktop

operating systems: Windows 10 and Ubuntu 16.04.

Both operating systems were deployed in VirtualBox

5.1.8 virtual machines with 1GB of RAM. Memory

dumps of both systems are acquired through atomic

virtualization-aided methods. Each virtual machine

was restarted between separate test runs.

For each individual test, we conducted a prede-

ﬁned set of actions that capture real world usage of

each web-application:

• Instant-Messaging test run: A user performs lo-

gin in an IM web-application and sends two mes-

sages to a given recipient. The user also browses

through existing contacts and inspects the current

conversation, as well as past conversations (by

navigating back and forth between conversations

or by opening different chat windows inside the

same browser tab). The aim of this set of actions

is to retain relevant data in memory, while simu-

lating a typical use of this kind of applications.

• Email test run: A user performs login in her web-

mail client and browses her inbox and outbox.

This allows us to simulate a common use-case for

these applications and later check which digital

artifacts were retained in memory.

Simulated User Interactions. Investigators may

miss the opportunity to access the target machine

while a suspect is still logged in a given account. We

assess four different sequences of actions a user may

perform after concluding a session within the web-

application, before we have the opportunity of acquir-

ing a memory dump of the system. We consider the

following sequences of actions, sorted in an increas-

ing fashion according to their expected intrusiveness

level (IL) with the artifacts we are concerned with:

• (IL1) Logout;

• (IL2) Logout and navigate to a webpage in a dif-

ferent browser tab;

• (IL3) Logout and navigate to a webpage in the

same browser tab;

• (IL4) Logout and close the tab/browser.

We contemplate these degrees of intrusiveness ac-

cording to the inner architecture of existing browsers.

In all tested browsers, each tab runs in a separate pro-

cess which is responsible for rendering a page’s con-

tent. As an example, we refer to the recent Mozilla’s

Electrolysis project (Mozilla, 2015). In this setting,

the browser’s parent process manages tabs and the

core browser functionality. This architecture brings

several advantages, such as providing inter-tab data

security, isolate crashes in individual tabs, and main-

taining the overall browser’s responsiveness (Charlie

Reis, 2008). According to this description, we ex-

pect IL1 and IL2 sequences to be the least intrusive

ones, since the tab state after logout is expected to

be preserved. In contrast, the IL3 sequence may af-

fect the content of the memory allocated to the tab

where the messaging service was used, possibly caus-

ing the eradication of evidence. Lastly, we expect

the IL4 sequence to be the most intrusive one, since

the OS shall reclaim the memory associated to the

tab/browser process, possibly wiping out any artifact

that could have been left behind by the application.

Extraction Methodology. To assess whether a given

communication record was retained in memory and to

pinpoint metadata structures surrounding it, the mes-

sages sent in each test run act like keywords for en-

abling posterior search. To look for these keywords,

we begin by extracting the strings contained in the

memory dump with the strings command-line util-

ity, followed by a grep search to match the strings

which contain a chosen keyword. Similarly, we at-

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory

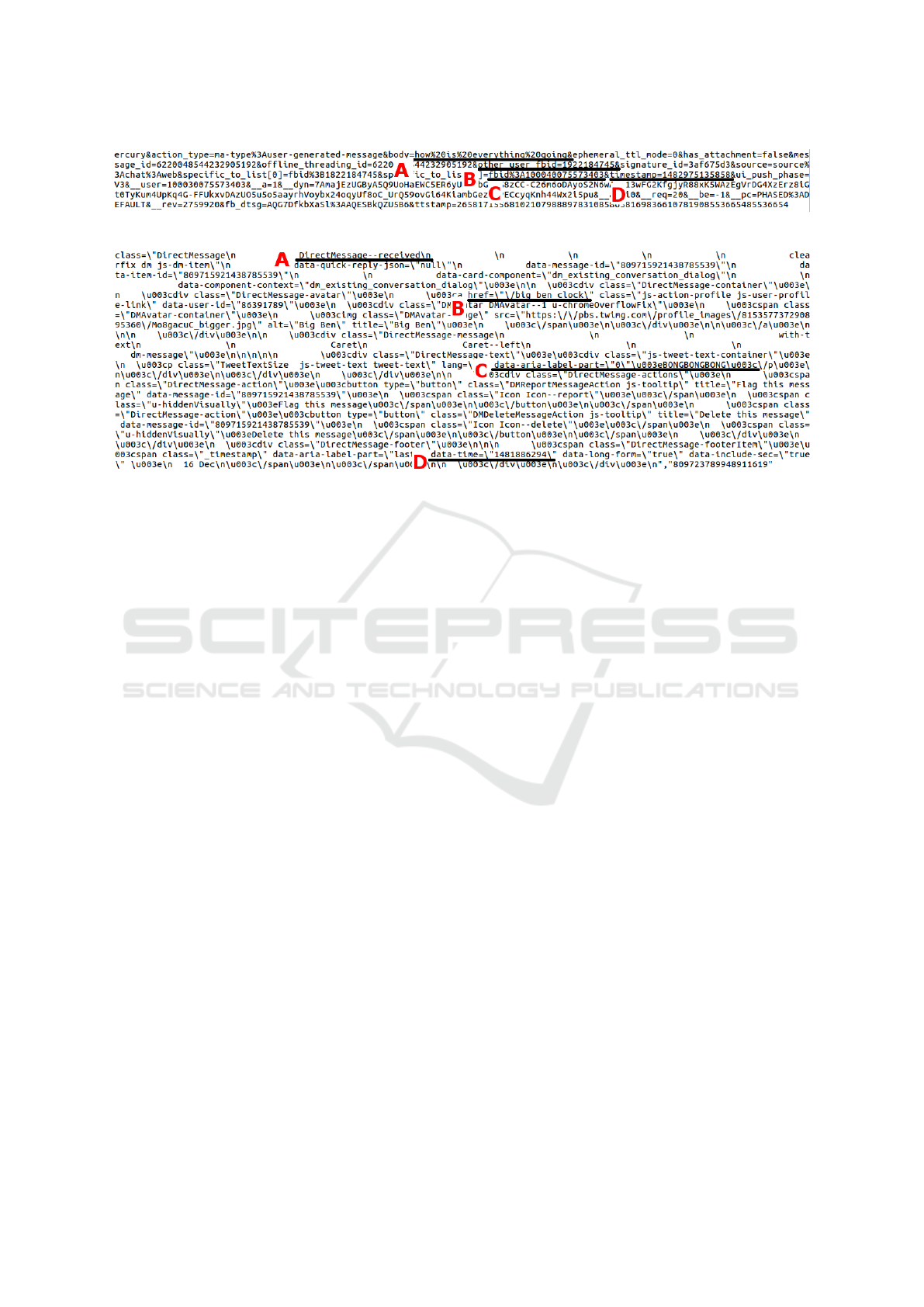

Figure 1: Facebook recently sent message data ﬁelds.

Figure 2: Twitter received message data ﬁelds.

tempt to match email records by searching email ad-

dresses known to be present in the client’s inbox/out-

box. A communication record is retrieved if the iden-

tiﬁed metadata enables for the collection of the tuple

hTimestamp, Author, Recipient, Messagei, at least.

Below, we present our main ﬁndings of our study.

2.3 Message Representation

Table 1 depicts a summary of our analysis for several

popular web-applications and web-browsers. Results

show that it was not possible to retrieve any structured

communication record from Gmail, Hangouts, What-

sApp and Telegram, which leads us to conjecture that

these applications may make use of a binary data rep-

resentation format which can not be directly recov-

ered in the form of strings.

For all the remaining applications under test we

were able to ﬁnd messages with accompanying high-

level metadata structures in the form of strings. For

instance, we can observe in Figure 1 and Figure 2

two digital artifacts left in memory by Facebook chat

and Twitter Direct Messages. In these cases, enclos-

ing metadata was found either in the form of JSON

or HTML, respectively. Albeit the metadata struc-

tures lingering in memory use a different data for-

mat and exhibit different ﬁelds, both follow a simi-

lar model which may be used to reconstruct the tu-

ple hTimestamp, Author, Recipient, Messagei which

we consider a communication record. In the case of

Facebook chat, the metadata ﬁelds present in Figure 1

allow us to easily reconstruct the full hTimestamp, Au-

thor, Recipient, Messagei tuple, where 1.A corre-

sponds to Message, 1.B to Author, 1.C to Recipient

and 1.D to the message Timestamp.

The example in Figure 2 helps to identify an edge-

case on the reconstruction of communication records.

While 2.C can be easily matched with Message ﬁeld

and 2.D to the message Timestamp, 2.B does not pro-

vide enough information to state whether the identi-

ﬁed Twitter alias corresponds to either Author or Re-

cipient. However, 2.A clearly speciﬁes the direction

of the message. Thus, the record in Figure 2 suggests

it refers to a message where 2.B speciﬁes its Author.

The message Receiver would then consist of the ac-

count which the suspect has logged-in to and which

can be known either by previously gathered intel or

other data structures residing in memory. We experi-

mentally veriﬁed that, for outbound messages, the 2.A

ﬁeld would mark the Twitter Direct Message as sent.

Additionally, we found that the structure of ob-

tained communication records remains the same for

each web-application even across different browsers

and operating systems. This observation reinforces

our conjecture that the leakage of high-level data into

memory is caused by the way web-applications are

built, as the structure of high-level records present in

memory is not tied to the particular implementation

of a browser or an operating system’s inner workings.

2.4 Message Durability

We now ascertain how the use of different browsers

and operating systems, as well as the execution of in-

trusive actions affects the recovery of communication

records. As shown in Table 1, we were able to retrieve

communication logs with all tested browsers. How-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

ever, we note that, for experiment IL1, we collected

a smaller amount of messages when using Firefox or

Edge rather than when using Chrome or Opera. A

possible explanation for this fact is that both Chrome

and Opera are based on Chromium’s codebase and

may share implementation details which favour the

preservation of a tab’s resources in memory.

Browsers may implement different mechanisms

for refreshing the contents of volatile memory, evict-

ing the resources of background tabs and favouring

those of the foreground tab. To check whether this

fact affects the recovery of communication records,

we conducted experiment IL2. Our results show that

Chrome and Opera still retain communication records

in memory while Firefox and Edge have eliminated

all remnants of communication records belonging to

the tab where the web-application test run has oc-

curred. These results are congruent with experiment

IL1, where Firefox and Edge were also less amenable

to retain artifacts in memory.

Since modern browsers spawn a process for man-

aging each tab, our intuition was that by closing

a tab or by killing the browser, the opportunity to

gather communication records would cease to exist.

As it stands, for experiment IL4, we were not able

to retrieve any communication record when testing

over Windows 10. Upon closing a tab or killing

the browser process, the operating system swiftly

reclaimed the process memory back, thwarting our

high-level data inspection. Interestingly, when con-

ducting the same experiments over Ubuntu 16.04, we

were able to retrieve communication records from

memory after executing such intrusive actions.

Opposed to our initial expectations, navigating to

different webpages in a given tab has triggered the

most changes on volatile memory contents. Albeit

we were able to recover a small number of high-level

records in Ubuntu 16.04, no records were recovered

when conducting experiment IL3 in Windows 10. In

fact, the sequence of actions performed in experi-

ment IL3 fosters the replacement of older resources

kept in memory in favour of more recent data. Thus,

possibly useful evidence is discarded more promptly.

Taking into account the outcomes of experiments IL3

and IL4, Linux Ubuntu’s memory management thus

seems more favourable to conduct memory analysis

in the context of our work rather than Windows 10.

Additionally, we experimentally veriﬁed that the

use of private browsing in all tested browsers does not

affect the collection of targeted high-level data. No

visible changes have been observed either in the struc-

ture or the overall amount of communication records

recovered in each test. Hence, our ﬁndings sug-

gest that some privacy preserving properties of private

browsing can be nulliﬁed through memory forensics.

Lastly, results show that the existence of com-

munication records in memory appears to be loosely

dependent on the browser/operating system in use,

which leads us to infer that our results arise from the

technologies and programming methodologies used

by application/browser developers with respect to the

loading and presentation of data. Two concrete cases

are those comprising the recovery of Skype and Out-

look logs, which can be performed for all browsers

tested except Firefox when run over Windows 10.

2.5 Summary

The results of our study indicate that the recovery of

communication records from physical memory is a

viable path for uncovering otherwise ephemeral evi-

dence. We were able to retrieve high-level data from

some of the most popular web-applications used to-

day, which motivates the need to develop specialized

tools to recover evidence for the unfolding of digi-

tal investigation cases. In particular, given the het-

erogeneity of data structures found in memory, digital

investigators would be burdened with the task to build

and maintain a wealth of pattern matching expres-

sions so as to be able to automatically extract avail-

able evidence from memory dumps.

3 RAMAS FRAMEWORK

This section presents RAMAS, a forensic tool for the

extraction of communication records from memory

dumps of web-based messaging applications

3.1 Design Goals

We built RAMAS according to four design goals:

Simple Design of Extraction Modules. The de-

sign of new extraction modules (composed of string

matching patterns) should be easy to perform. Prac-

titioners should be able to contribute to the RAMAS

framework without the need of being familiar with a

particular programming language.

Simple Sharing/Update of Extraction Modules.

Developed modules should be easily upgradable,

without the need to change RAMAS’ core function-

ality. It should be straightforward for practitioners to

share and advertise newly developed modules.

Organized Case Management. The number of

seized machines in computer forensics cases may

scale to large numbers. To manage data pertaining

RAMAS stands for “RAM Analysis System”

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory

Figure 3: RAMAS architecture.

Figure 4: Roundcube inbox entry data ﬁelds.

to several cases, RAMAS should provide an inte-

grated way to organize the collected memory images

and store the retrieved high-level data.

Simple Inspection of Results. RAMAS should pro-

vide a simple interface to visualize extracted com-

munication records, support queries on the recovered

data, and aid investigators in disclosing more complex

correlations among different pieces of evidence.

3.2 Architecture

We implemented a RAMAS prototype for Linux.

Our prototype was written in Python and leverages

a SQLitev3 database for holding memory analysis re-

sults. Figure 3 shows the several components that im-

plement the core functionality of the system, the man-

agement of extraction modules, and the evidence pre-

sentation layer. Additionally, we deployed RAMAS

as a GUI desktop application as a further effort in

making the system attractive to users without com-

promising any of its functionality.

Our framework is based on a carving approach to

retrieve matching records present in memory images.

RAMAS matches communication records by explor-

ing their structure, retrieving all meaningful data held

between well deﬁned delimiters. Upon the collection

of digital artifacts containing communication records,

RAMAS processes the metadata associated to these

artifacts to isolate the sole components which con-

vey useful evidence to the investigator. This allows

for the discard of application dependent ﬁelds which

are useless for high-level inspection of records, such

as application versions. Furthermore, other kinds of

data forming the structure of a record can also be dis-

carded. A relevant example comprises verbose HTML

wrapper artifacts that compose the structure of the

communication record but offer no value from the

point of view of the analysis (see Figure 2).

Analysis in RAMAS is conducted by running a

selection of the available extraction modules over the

strings obtained from a given memory dump. Af-

ter analysis, RAMAS stores the recovered data in a

database and offers a simpliﬁed visualization of the

recovered records, organized by modules.

3.3 Extraction Modules

The forensic study conducted in Section 2 suggests

that the internal representation of messaging web

clients is different for each application. Considering

the ever-growing number of web applications, there

is not an obvious number of extraction modules that

should be integrated into RAMAS before-hand. Thus,

users should be able to develop and install new extrac-

tion modules without the need for changing the sys-

tem’s core or to be familiar with a speciﬁc program-

ming language. We used Python’s ConfigParser

conﬁguration ﬁles for implementing extraction mod-

ules. These easily allow us to deﬁne groups of named

values which sufﬁce for delimiting an existing record,

as well as individual ﬁelds within the record.

Listing 1 provides the extraction module for re-

covering Roundcube’s inbox email records, depicted

in Figure 4. The ﬁrst section of a module is named

Info and contains general information about the

module, namely its name and a short description. The

second section of a module is called PreProcess and

contains a single Keyword parameter, the content of

which shall be used to restrict the pool of strings upon

which record matching will be applied. In our exam-

ple, we retain all strings which contain the sub-string

SECRYPT 2017 - 14th International Conference on Security and Cryptography

add message row, since this keyword appears in the

metadata structure of the records we aim to extract.

The two next sections declare the start and end de-

limiters of the whole record as well as the individual

ﬁelds that should be extracted and recorded in RA-

MAS’ database. As RAMAS attempts to sequentially

match the declared record ﬁelds, the corresponding

delimiters must be declared in the order they appear

within the record. We note that this restriction must

be enforced by the module developer. Lastly, the

Mediator section contains a hint on how to interpret

the date representation so as to convert it to a common

date representation shared among all modules.

Listing 1: Extraction Module for Roundcube inbox records.

[Info]

Name: roundcubeInbox

Description: Roundcube’s inbox record fetcher.

[PreProcess]

Keyword: add_message_row

[StartDelimiter]

Record: this.add_message_row

Content: {"subject":"

Author: title="

Date: date":"

[EndDelimiter]

Record:;

Content: ","from"

Author: " class

Date: ",

[Mediator]

Date: yyyy-mm-dd hh:mm

Module Update. Application providers are free to

update the internal representation of data. To ensure

the retrieval of communication records, investigators

must update extraction modules accordingly. Hence,

the update of extraction modules should be straight-

forward. Due to the modular design of RAMAS, the

task of updating a module only comprises changes on

the module itself, not affecting any other component

of RAMAS’ core functionality. Similarly to the de-

velopment of new modules, updates are performed by

changing the required ﬁelds on the conﬁguration ﬁle.

This process may encompass the addition/removal of

some metadata ﬁeld that has became available/dep-

recated, or it may just involve the minor updates in

ﬁelds already declared in the conﬁguration ﬁle.

Module Sharing. To avoid repeated work due to con-

current endeavours by digital investigators, we envi-

sion the creation of a centralized repository for help-

ing a module’s creator and other practitioners to up-

date existing modules while keeping track of changes.

Additionally, RAMAS can check the repository on

start-up and update installed modules to their most

recent version. While the implementation of such a

repository is deferred to future work, the codebase re-

sulting from our work already allows for the manual

install and update of extraction modules.

3.4 Dealing with Heterogeneous Data

Due to the heterogeneity between applications, build-

ing a database of all recovered records represents a

challenge. We refer to classical problems in data in-

tegration. Firstly, we encounter a schema-matching

problem, where the same concept may be identi-

ﬁed in different applications by differently named

ﬁelds. Secondly, we may encounter a semantic-

matching problem, where even ﬁelds with the same

name can refer to data with distinct underlying mean-

ings. Moreover, the metadata available in some ap-

plication may be richer than that available in others.

Thus, the identiﬁcation of the minimal set of ﬁelds

that can be successfully used for unveiling correla-

tions between collected evidence is crucial for allow-

ing RAMAS to execute data integration routines for

providing better query support.

The ﬁelds extracted by each module can repre-

sent semantically equivalent metadata, although it is

named differently in distinct applications, e.g., a mes-

sage timestamp may be identiﬁed by ﬁelds with dif-

ferent names (date vs time). To offer a single database

schema which supports queries over records extracted

with different modules, RAMAS performs data inte-

gration to provide users a uniﬁed view of the commu-

nication records coming from different sources. Each

conﬁguration ﬁle declares the mapping between the

heterogeneous schema of different modules and the

global RAMAS database schema.

RAMAS still faces a semantic integration prob-

lem where, for different modules, the same con-

cept may express different meanings. As an exam-

ple, for any two different modules, author may be a

user’s name in some application and an application-

dependent identiﬁer on another. Even with such a lim-

itation, RAMAS can still maintain a global timeline of

all application activity conducted by a suspect. When

ordering records which use different representations

for time, the conﬁguration ﬁle can contain a hint on

how to convert a particular timestamp representation

to a common representation such as UNIX time.

3.5 Memory Dump Processing Pipeline

The strategy we followed in the creation of modules

ensures a ﬂexible independence between these and the

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory

core functionality of RAMAS. We now describe how

RAMAS processes a memory dump with base in such

modules. We assume that RAMAS receives as in-

put a ﬁle containing strings, instead of the raw mem-

ory image acquired by ﬁrst responders. To produce

such a ﬁle, investigators may resort to the standard

command-line utility strings which ﬁnds and prints

text strings embedded in binary ﬁles.

The strings ﬁle obtained from the raw memory im-

age can be analyzed simultaneously by a set of mod-

ules. To this end, RAMAS dispatches a batch of mod-

ules to a pool of threads. Threads ﬁlter the initial list

of strings obtained from the memory image, generate

regular expressions by gluing together the delimiters

of the ﬁelds declared in each module, and perform the

actual evidence extraction work.

The initial pre-processing of the strings ﬁle with a

keyword is justiﬁed by performance reasons. We dis-

cuss in Section 4 the advantages of this preliminary

ﬁltering step. After ﬁltering the strings dump, the

backend of RAMAS applies a regular expression over

the remaining strings, further restricting the existing

digital artifacts to the strings comprising a full com-

munication record. In this second processing stage,

RAMAS introduces a countermeasure against the in-

jection of delimiters in the content of messages. If

RAMAS allowed for such an injection, a miscreant

would be able to inject an end-delimiter of a message

among the written text and hide incriminating mes-

sages after this artiﬁcial delimiter. To thwart this at-

tack on the inner workings of our system, RAMAS

applies a ﬁnd-and-replace method on each individual

record. RAMAS searches for the start delimiter of the

message ﬁeld of a record starting from the far left and

scans the end delimiter of the same ﬁeld from the far

right. When found, these delimiters are replaced by a

pseudo-random nonce which will now act as start/end

delimiter for the message ﬁeld. Thus, the only way an

attacker would have to interfere with the correct re-

covery of the message content would be to guess this

nonce and place it before his incriminating message.

In the third processing stage, RAMAS builds

a second regular expression which scans every re-

maining record and retains data according to each

of the declared ﬁelds in the module conﬁguration

ﬁle. Lastly, RAMAS saves the obtained records in

a database for further analysis. Details over the evi-

dence presentation layer are detailed next.

3.6 Evidence Presentation Layer

Upon completing the analysis of the high-level data

contained in a selected memory dump, RAMAS

builds a set of simple forensic timelines for presenting

Table 2: Time elapsed (in seconds) in extracting printable

characters out of differently sized memory images.

Raw Memory Strings File Size Time Elapsed

1 GB 82 MB 27.205s

2 GB 157 MB 53.148s

4 GB 255 MB 108.459s

8 GB 233 MB 193.539s

the extracted communication records. A timeline is

built for each of the modules used for analysis. Time-

lines are rendered by RAMAS GUI.

Apart from analyzing the results for each mem-

ory image in an isolated fashion, RAMAS updates its

global database schema, adding the newly discovered

hTimestamp, Author, Recipient, Messagei tuples. This

global schema allows investigators to pose queries at

the database of recovered records, enabling the cor-

relation of evidence obtained from the use of several

modules over a single memory image, or across dif-

ferent memory images pertaining to a case. An exam-

ple of this scenario is presented in Section 4.2.

4 EVALUATION

We evaluated the performance of RAMAS by con-

ducting several experiments over the time it takes to

complete a forensic analysis. Particularly, we tested

the impact of the number of extraction modules ap-

plied, as well as the impact of the memory image size

on the forensic analysis performance.

In our experiments, we have exchanged messages

on four web-applications in order to conduct forensic

analysis: Facebook chat, Skype, Twitter and Round-

cube. Each web-application was operated in a differ-

ent tab of Google Chrome running over a Windows 10

virtual machine. For the experiments reported in this

section, we have used the sequence of user actions

with intrusiveness level IL1.

The analysis of communication records using RA-

MAS was conducted on a 64-bit Ubuntu 16.04 LTS

virtual machine equipped with four 2.6GHz Intel i7-

6700HQ virtual CPUs, and 4GB of RAM.

4.1 Measuring Analysis Time

Finding Printable Characters. The strings ﬁle used

as input for RAMAS is indeed smaller than the total

size of the raw memory image under analysis. Ta-

ble 2 depicts the time spent in reducing a raw mem-

ory dump to its printable characters in a default execu-

tion of the strings utility. We note that strings can

be further instructed to ignore sequences of characters

less than a given size constant, which may further re-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

duce the time elapsed during the pre-processing step.

Table 2 also shows us a counter-intuitive result

comprising the amount of printable characters found

in 4GB and 8GB raw memory images. Interestingly,

the size of the strings ﬁle obtained from the 4GB

memory image (255MB) was larger than that ob-

tained from saving the strings contained in the 8GB

memory image (233MB). We veriﬁed our results by

acquiring six new memory images using the same

procedure. For all the acquisitions, the amount of

printable characters found in a 4GB memory image

was larger than that found in an 8GB memory image.

Varying Memory Image Size. We studied the im-

pact of the memory image size on the elapsed time

to complete a forensic analysis with RAMAS. In this

test, we ﬁxed the use of a single module while we vary

the size of the memory dump (respectively, the size of

the produced strings ﬁle). Without loss of generality,

we selected a module for identifying Facebook com-

munication records depicted in Figure 1 and extract

the hTimestamp, Author, Recipient, Messagei tuple.

Figure 5 presents the elapsed time for ﬁve execu-

tions of our test without employing the pre-processing

stage described in Section 3.5. Conversely, Figure 6

presents the elapsed time for a similar experiment in

which we employ the pre-processing stage.

In a general way, our results suggest that the size

of the memory image negatively affects the time it

takes to complete a forensic analysis. The results de-

picted in Figure 5 show that omitting a pre-processing

step over the initial high-level data artifacts slows

down the analysis time considerably. For an 8GB

memory dump, scanning for evidence lasts for about

eight seconds, threefold the time it takes for analyzing

the strings contained in a 1GB raw memory dump.

Figure 6 shows that pre-processing the initial

strings ﬁle brings a whole lot of improvement to the

performance of the forensic analysis conducted by

RAMAS. Indeed, reducing the set of strings that a

module must be matched against to the data related

to the search domain drastically decreases the analy-

sis elapsed time. This performance improvement is of

several orders of magnitude, being noticeable when

analyzing the biggest memory images under test.

The attentive reader may notice the similarity in

the time spent while analyzing a 4GB and an 8GB

memory image, either applying pre-processing or not.

In fact, the analysis performed over the strings col-

lected from the 4GB memory image is slower than

the analysis for the strings of an 8GB memory image.

This is due to the fact that, albeit the 4GB raw image

is smaller than the 8GB raw image, we were able to

ﬁnd a larger amount of strings in the former.

Varying the Number of Modules. A different exper-

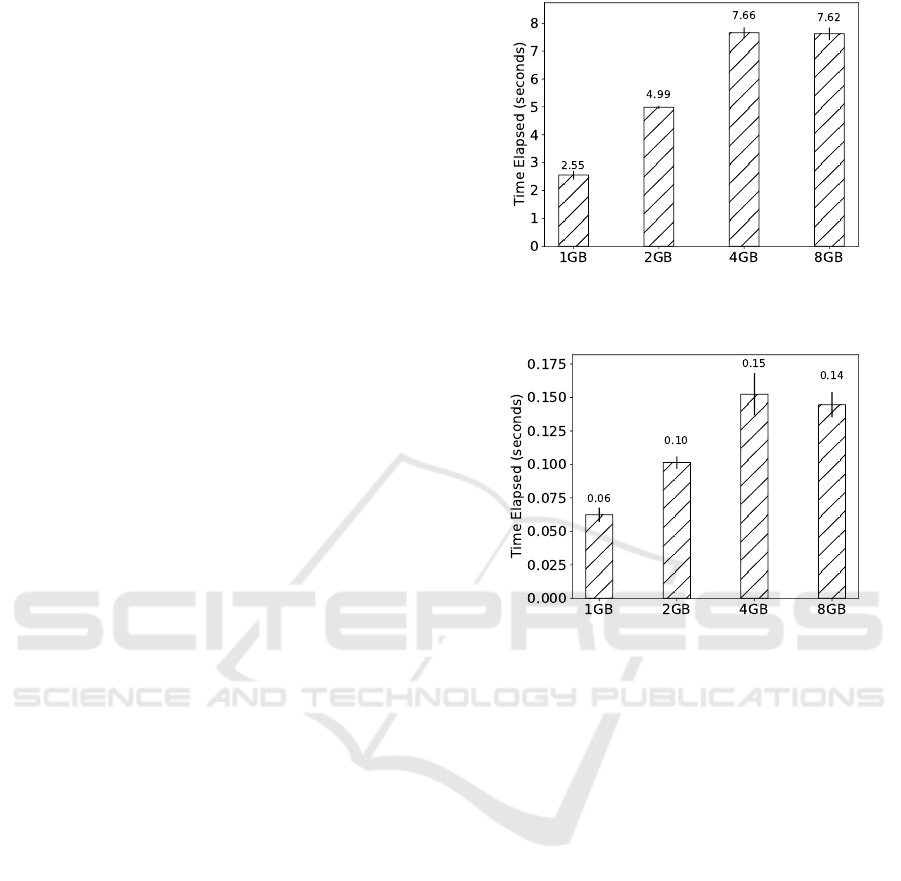

Figure 5: Time elapsed on the forensic analysis of differ-

ently sized memory images with Facebook recent messages

module - no pre-processing.

Figure 6: Time elapsed on the forensic analysis of differ-

ently sized memory images with Facebook recent messages

module - with pre-processing.

iment aims to understand the impact of the number

of applied modules on the elapsed time to complete

a RAMAS analysis. In this test, we ﬁxed the size

of the memory dump in 8GB, a reasonable amount

of RAM widely deployed in commodity hardware.

For conducting this experiment, we attempted the ex-

traction of communication records from all of the

different Facebook, Skype and Roundcube Inbox ar-

tifacts we identiﬁed in our forensic study in Sec-

tion 2. Accordingly, we developed the correspond-

ing extraction modules for each of the corresponding

web-application’s digital artifacts, spawning a total of

six modules. Figure 7 presents the elapsed time for

ﬁve executions of our test.

The results of our experiments show that running

several modules in parallel results in a sub-linear time

for the completion of the forensic analysis. In fact,

an analysis comprised of six modules has completed

in nearly double the time of the time spent conduct-

ing an analysis with a single module. Our study sug-

gests that the most expensive operation consists in the

extraction of high-level data in the form of strings.

When compared to this preliminary effort, the actual

forensic analysis of the obtained data is several orders

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory

of magnitude smaller, even when applying multiple

extraction modules. This suggests that RAMAS can

be deemed a practical tool for aiding digital investi-

gators as its performance allows for evidence to be

quickly obtained, raging from seconds to a few min-

utes, depending on the size of each memory image.

In this experiment, we have recovered 17 Round-

cube Inbox, 1 Skype and 26 Facebook records, where

5 of the latter were duplicates and 3 were corrupted

(application-level data was included beyond a partial

message itself). We discuss possible causes for the

corruption of recovered records in Section 4.3.

4.2 Use Case

We enacted a use case for showing the beneﬁts of

maintaining a global database schema which investi-

gators can query in order to unveil more sophisticated

correlations among data fetched from different mod-

ules/memory images.

An example of such a scenario is the identiﬁ-

cation of a chain of command in a criminal orga-

nization. Let us assume that law-enforcement sus-

pects one individual (S

) to be involved in a crimi-

nal organization. While investigating this case, law-

enforcement storms through S

’s household and ac-

quires the volatile memory of the hardware operated

by the suspect. Upon analyzing the memory image

in search of hTimestamp, Author, Recipient, Messagei

message tuples, investigators recover the chat records

depicted in Listing 2.

Listing 2: Records extracted by several modules.

#Records recovered with Twitter Direct Messages

module

1482949701, S_3, S_1, I have revised the plan,

lets do it at 4pm.

1482949712, S_3, S_1, Ok boss, I’ll tell

Pinkman.

#Records recovered with Skype messages module

1482949730, S_1, S_2, Hey, Heisenberg has

revised the plan, lets rob the bank at 4pm

#Global Timeline

---------------------------------------------

1482949701, S_3, S_1, Twitter, I have revised

the plan, lets do it at 4pm.

1482949712, S_3, S_1, Twitter, Ok boss, I’ll

tell Pinkman.

1482949730, S_1, S_2, Hey, Heisenberg has

revised it, we strike at 4pm.

This example sequence of messages allows inves-

tigators to draw the following conclusions:

• S

was a surrogate in the organization. Investiga-

tors now have digital evidence about the fact.

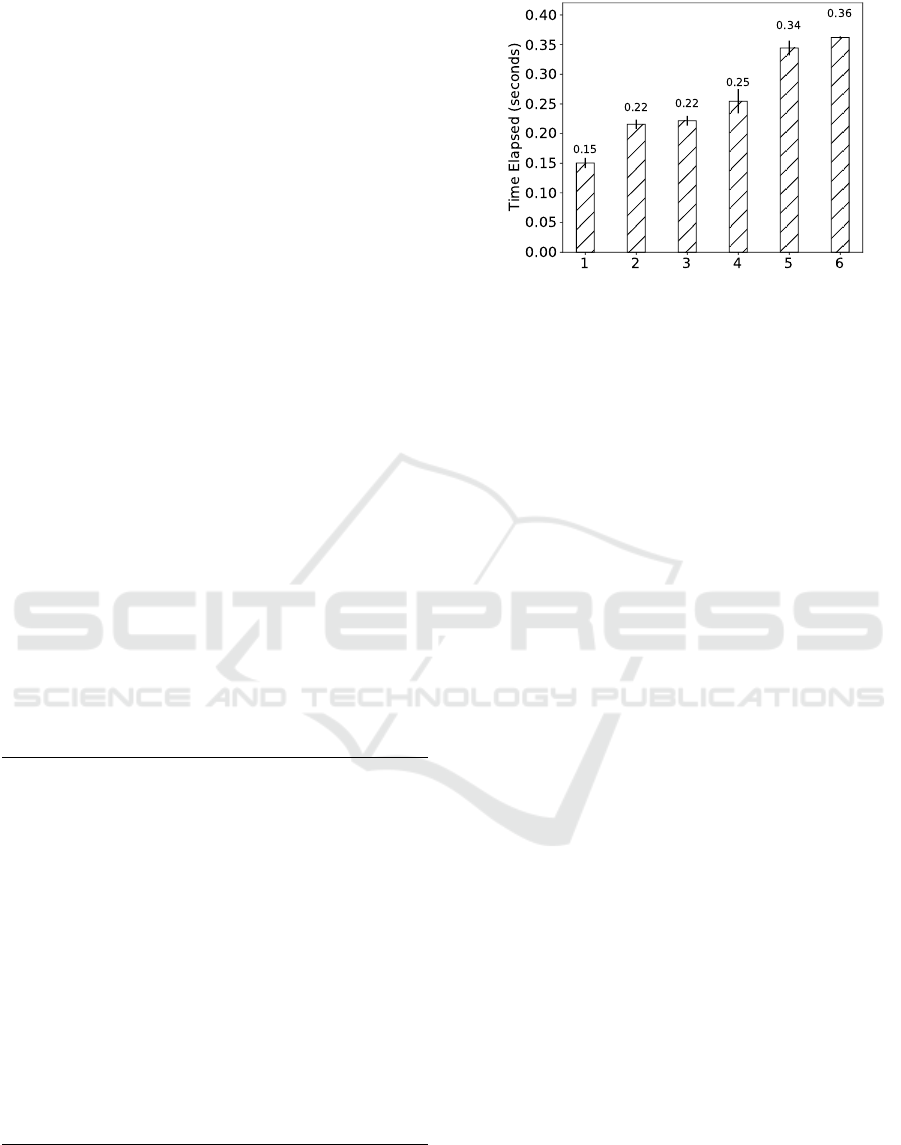

Figure 7: Time elapsed on the forensic analysis of an 8GB

memory image with increasing number of modules.

• S

represents a person in the organization that au-

thorities were not aware of. He was not the head

of the criminal organization, but authorities now

have a new lead to follow.

• S

seems to be the organization’s mastermind.

Moreover, Heisenberg appears to be his name.

Although we present a simple example, we expect

the number of records to be recovered in actual set-

tings to be much larger and harder to digest. By ana-

lyzing modules’ output in an isolated fashion, investi-

gators could not be able to directly reach the conclu-

sion presented in the last bullet. The connection be-

tween the name and organization rank can only be es-

tablished by joining and contextualizing the evidence

recovered from both modules. Albeit this example

sufﬁces to show the need for a global timeline for cor-

relating data across modules, the beneﬁts of maintain-

ing a single global timeline can be further noticeable

when attempting to correlate data obtained from sev-

eral different memory images, collected in the scope

of a single case.

4.3 Limitations and Future Work

Due to the nature of volatile memory, metadata struc-

tures may be only partially available when scanning

for evidence. If RAMAS is unable to ﬁnd the start/end

delimiters of a record, it will either ignore a partial

record or capture data beyond the expected limits, re-

spectively. To overcome this limitation, an improved

version of RAMAS may attempt to match the end of

a record and backtrace to fetch existing metadata, as

well as use heuristics for the record expected size and

limit overruns in adjacent artifacts.

Additionally, miscreants with knowledge about

RAMAS’ analysis procedure may refresh the browser

tabs used to conduct illegal activity often. This be-

havior may cause communication records to be re-

placed/evicted, eliminating traces of criminal activity.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

5 RELATED WORK

This section describes related literature regarding

memory collection procedures and the analysis of

high-level data present in physical memory.

5.1 Memory Acquisition

The proper collection of evidence is a crucial step in

any computer forensics investigation. Typical com-

puter investigations targeted the hard drive of a sus-

pect’s machine, ignoring all of the data kept in volatile

memory. Today, the analysis of both static media and

physical memory allows digital investigators to have

a better picture of the original state of the system and

recover otherwise ephemeral data (V

omel and Freil-

ing, 2012). Although the choice of a memory ac-

quisition procedure should take into account the par-

ticularities of the case at hand, there are three main

memory acquisition methods used by ﬁrst responders,

which are based on hardware, software and virtualiza-

tion (V

omel and Freiling, 2011).

Hardware-based methods take advantage of DMA

(Direct Memory Access) requests through hardware

cards and allow for the collection of memory content

while having little impact in the system. However, the

target system must be equipped with specialized hard-

ware, and this technique may lead to system crashes

which poses reliability issues in memory collection.

Virtualization-based methods allow for a sound

extraction of memory by either collecting a ﬁle where

the physical memory of the virtual machine is kept

or by dumping it with the virtualization software.

Clearly, this is only interesting if malicious activ-

ity is being conducted on top of a virtual machine.

Nonetheless, the growing importance of Internet-

hosted services is expected to impose a partial shift on

the focus of digital investigations to virtual machines.

Software-based methods for dumping physical

memory are widely available. Still, some of these

tools require special access privileges and cannot gen-

erally offer a full copy of the memory at a given time.

Kernel level acquisition tools overcome some of the

limitations imposed by user level collection tools, but

are still unable to provide a completely atomic mem-

ory image due to the activity of concurrent processes.

Despite this shortcoming, software-based collection

is often applicable in practice since it does not require

a speciﬁc system conﬁguration to be set in advance

nor does it rely on specialized hardware.

5.2 Memory Analysis

Contrary to the analysis of static media, the analysis

of physical memory typically presents a harder chal-

lenge due to the lack of a completely deterministic or-

ganization. It should be noted that many of the efforts

dedicated to the analysis of physical memory focus

on the recognition and inspection of OS-dependent

low-level memory structures (Simon and Slay, 2009;

omel and Freiling, 2011). Conversely, high-level

memory inspection strategies are typically bound to

the search of strings in the acquired dump.

Analysis approaches based on the search of strings

containing pertinent keywords related to a case ex-

hibits several drawbacks. In the one hand, investi-

gators may be presented with thousands of matching

records when analyzing large amounts of data (Beebe

and Dietrich, 2007). To make it worse, only few of

those records may be directly related to the case it-

self. In the other hand, if the terms contained in mem-

ory slightly deviate from the keyword list used by the

investigator, some evidence will fail to be recognized.

A previous approach (Beebe et al., 2011) has ad-

dressed some of these drawbacks by improving string

searching through neural networks which learn a list

of terms related to the case beforehand. Analysis re-

sults are ordered according to their relevance, allow-

ing the investigator to inspect the most pertinent data

ﬁrst. Although the prototype yields good results with

respect to the obtained recall, the neural network takes

a non-negligible time to learn the terms and is not able

to provide any context about the matched keywords.

A different technique based on the use of regu-

lar expressions has been successfully applied in order

to extract evidence from strings accompanied by syn-

tactically structured metadata (Simon and Slay, 2010;

Wong et al., 2011; Yang et al., 2016). This metadata

provides context about a given artifact, allowing dig-

ital investigators to reason about the contextual rel-

evance of the data (Raghavan, 2013). For instance,

providing that the metadata contains a timestamp, in-

vestigators can build a timeline and reconstruct a se-

quence of actions took forth by a suspect.

However, this line of research has some draw-

backs. Firstly, prototypes are developed indepen-

dently without enabling regular expression sharing or

providing evidence visualization interfaces; extrac-

tion capabilities are merely seen as proofs-of-concept.

Secondly, string matching works only as long as regu-

lar expressions match the syntax of the application ar-

tifacts left in memory. Since the artifact structure may

change due to application implementation decisions,

investigators must take the burden of updating regular

expressions accordingly. RAMAS aims to tackle the

Forensic Analysis of Communication Records of Web-based Messaging Applications from Physical Memory

Table 3: Comparison of RAMAS with different memory forensic tools. * Tool requires plugins to provide the functionality.

Forensic Tool Memory

Acquisition

Multiple OS

Target

Live Analysis Extensibility Investigation

Workﬂow

Open-Source High-Level

Analysis

RAMAS - 3 - 3 3 3 3

Volatility - 3 - 3 - 3 -

Redline - - - - 3 - 3

Memoryze 3 - 3 - - - -

FATkit - 3 - 3 - - -

VAD Tools - - - - - 3 -

EnCase 3 3* - 3 3 - 3

Rekall 3 3 3 3 - 3 -

IEF 3 3 - - 3 - 3

aforementioned issues by fostering the collaboration

of digital investigators on maintaining a platform for

the analysis of high-level data residing in memory.

To better lay RAMAS in the space of existing

memory forensic analysis tools, Table 3 depicts a

comparison of several properties exhibited by our sys-

tem with those of well-known memory forensic anal-

ysis software. We can observe that RAMAS presents

itself as the only open-source tool that provides an

investigation workﬂow (including case management

and evidence visualization) and is extensible, while

focusing on the recovery of high-level data. Com-

paratively, although EnCase can be extended through

plugins, it remains a proprietary and expensive foren-

sic tool, while Rekall focuses on low-level analysis

and fails to provide a proper investigation workﬂow.

6 CONCLUSION

This paper described a forensic study over the digi-

tal artifacts left behind in memory by popular web-

applications. Our study concludes that it is possible to

retrieve communication records from IM/email appli-

cations, in various settings and system conﬁgurations.

Motivated by the ﬁndings above, we have intro-

duced RAMAS, a framework for the extraction of

instant-messaging and email client data from volatile

memory. Our evaluation suggests that RAMAS can

efﬁciently extract and report the existence of commu-

nication records. RAMAS code is publicly available

and has been released as an open-source tool

ACKNOWLEDGMENTS

This work was partially supported by the EC through

project H2020-645342 (reTHINK), and through

Fundac¸

ao para a Ci

encia e a Tecnologia (FCT) with

reference UID/CEC/50021/2013 (INESC-ID).

RAMAS repository - https://tiagolb.github.io/CSF/

REFERENCES

Al Mutawa, N., Al Awadhi, I., Baggili, I., and Marring-

ton, A. (2011). Forensic artifacts of Facebook’s in-

stant messaging service. In International Conference

for Internet Technology and Secured Transactions.

Beebe, N. and Dietrich, G. (2007). A new process model

for text string searching. In IFIP International Con-

ference on Digital Forensics. Springer.

Beebe, N. L., Clark, J. G., Dietrich, G. B., Ko, M. S., and

Ko, D. (2011). Post-retrieval search hit clustering to

improve information retrieval effectiveness: Two dig-

ital forensics case studies. Decision Support Systems.

Charlie Reis (2008). Multi-process Architecture.

https://blog.chromium.org/2008/09/multi-process-

architecture.html.

Mozilla (2015). Electrolysis - Mozilla Wiki.

https://wiki.mozilla.org/Electrolysis.

Ohana, D. J. and Shashidhar, N. (2013). Do private and

portable web browsers leave incriminating evidence?:

a forensic analysis of residual artifacts from private

and portable web browsing sessions. EURASIP Jour-

nal on Information Security.

Raghavan, S. (2013). Digital forensic research: current state

of the art. CSI Transactions on ICT.

Simon, M. and Slay, J. (2009). Enhancement of foren-

sic computing investigations through memory foren-

sic techniques. In International Conference on Avail-

ability, Reliability and Security.

Simon, M. and Slay, J. (2010). Recovery of skype appli-

cation activity data from physical memory. In Inter-

national Conference on Availability, Reliability, and

Security.

omel, S. and Freiling, F. C. (2011). A survey of main

memory acquisition and analysis techniques for the

windows operating system. Digital Investigation.

omel, S. and Freiling, F. C. (2012). Correctness, atom-

icity, and integrity: deﬁning criteria for forensically-

sound memory acquisition. Digital Investigation.

Wong, K., Lai, A. C. T., Yeung, J. C. K., Lee, W. L.,

and Chan, P. H. (2011). Facebook Forensics.

https://www.fbiic.gov/public/2011/jul/facebook

forensics-ﬁnalized.pdf.

Yang, T. Y., Dehghantanha, A., Choo, K.-K. R., and Muda,

Z. (2016). Windows instant messaging app forensics:

Facebook and skype as case studies. PloS ONE.

SECRYPT 2017 - 14th International Conference on Security and Cryptography
