Automatic Lesser Kestrel’s Gender Identiﬁcation using Video Processing

Javier M. Mora-Merchan

, Enrique Personal

, Diego Francisco Larios

Francisco Javier Molina

, Juan Carlos Tejero

and Carlos Leon

Escuela Polit

ecnica Superior, University of Seville, Spain

Escuela T

ecnica Superior de Ingenier

ıa Inform

atica, University of Malaga, Spain

{

Keywords:

Video Processing, Pattern Recognition, Animal Surveillance, Gender Classiﬁcation.

Abstract:

Traditionally, animal surveillance is a common task for biologists. However, this task is often accompanied

by the inspection of huge amounts of video. In this sense, this paper proposes an automatic video processing

algorithm to identify the gender of a kestrel species. It is based on optical ﬂow and texture analysis. This

algorithm makes it possible to identify the important information and therefore, minimizing the analysis time

for biologists. Finally, to validate this algorithm, it has been tested against a set of videos, getting good

classiﬁcation results.

1 INTRODUCTION

Nowadays, it is easy to ﬁnd in the literature a lot

of work in which biologists follow new systems to

gather information from natural environments, e.g

(Larios et al., 2013a). In this sense, one of the main

research lines is focused on animal behavior, such

as: anurans (Luque et al., 2016), birds (Larios et al.,

2013b), etc. Speciﬁcally for birds, there exists sev-

eral studies focusing on distinguish between the dif-

ferent species (e.g. (Zottesso et al., 2016) which im-

plements a bird classiﬁcation using imaging process-

ing over graphic representation of the audio spectro-

gram of their songs, or (Pang et al., 2014) that uses

computer vision techniques for bird specie discrimi-

nation based on the difference in features of the birds’

parts). However, in bird observation, it is typical to

watch their inner nest activity, it being useful to dis-

tinguish between male and females behavior inside of

it. Obviously, in order to make this distinction, it is

necessary that there exist some kind of distinguish-

able visual features between them.

In the case of some birds, like the Lesser Kestrel

(Falco naumanni), this difference can be found in its

plumage (see Figure 1).

Speciﬁcally, as can be seen in Figure 1, the Lesser

Kestrel is a small falcon. The male has a bluish

gray head, uniform rusty back, but the breast and

belly have black spots. It has uniform rusty scapu-

lars, gray band on greater wings coverts and black

primary feathers. Additionally, its tail is gray with

Figure 1: Lesser Kestrels (Gray, 2016) (two females and a

male).

a black sub-terminal band. Conversely, female and

younger ones have a more uniform appearance (typi-

cal in other common falcon), rusty with black barring

and streaking, and being paler underneath.

These characteristics are typically exploited by bi-

ologists to distinguish visually between males and fe-

males of this falcon species more easily. However,

breeding behavior study does not refer to an isolated

identiﬁcation. It requires a continuous video observa-

tion of the inner nest activity for each individual (dis-

tinguishing by gender). Obviously, it is a tedious task,

especially for huge amount of videos, in which it is

necessary to discard great amount of useless informa-

tion, with hours of bird inactivity or directly with the

empty nest. Additionally, this problem is accentuated

for a colony, where this study must be repeated for

several nests. Therefore, an automation of this video

Mora-Merchan, J., Personal, E., Larios, D., Molina, F., Tejero, J. and Leon, C.

Automatic Lesser Kestrel’s Gender Identiﬁcation using Video Processing.

DOI: 10.5220/0006397000580063

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 5: SIGMAP, pages 58-63

ISBN: 978-989-758-260-8

analysis is a great help for biologists allowing them to

save time.

In this sense, computer vision is proposed as an

excellent solution for this task. Proof of this fact is

the algorithm proposed in this paper, which is able

to identify the gender of cited bird specie through

a background identiﬁcation algorithm and a texture

classiﬁcation.

Speciﬁcally, this paper is organized as follows:

Section 2 describes the proposed algorithm to Kestrel

gender identiﬁcation. A video analysis and its re-

sults are shown in Section 3 as a case study. Finally,

Section 4 sums up the conclusions, ﬁnal remarks and

presents future work.

2 PROPOSED SOLUTION

As has been mentioned previously, there are two vi-

sual characteristics that allow experts to classify be-

tween male and female kestrels:

• Color Analysis: Male individuals show gray and

reddish brown tones not present in the female in-

dividuals. In this sense, a hue histogram study

would make gender identiﬁcation possible.

• Texture Roughness Analysis: Male individuals

have a plumage of plain colors while the females

have one with black barring and streaking. It is

translated into a more rough texture, or what is

the same, with high frequency components.

The ﬁrst of these options, in spite of being simpler,

would require color images. However, color video

sensors generally require a good illumination to work

adequately. Unfortunately, the illumination in the nest

is very limited and forces the use of monochromatic

sensors (see Figure 2). This choice makes color anal-

ysis not useful and leads to texture analysis as the

most suitable solution.

This is why we opted for texture analysis. Thus,

the images are taken frontally from an elevated po-

sition. Due to this, it is possible to assume that the

kestrels will be recorded with the wings folded, while

they are inside the nest.

(a) Male (b) Female

Figure 2: Inner nest Lesser Kestrel video captures.

Based on these constraints, the proposed iden-

tiﬁcation system has been divided into four stages;

bird location, Kestrel’s back extraction, energy analy-

sis of different frequency bands and comparison with

models in each of which the following tasks are per-

formed:

2.1 Kestrel Location

In this ﬁrst stage, the goal is to determine the bird po-

sition in each video frame. Assuming that each one is

composed by a static background (the nest) and mov-

ing elements (the kestrels), the proposed strategy ex-

tracts the background and to estimate the movement

centroid later.

In this sense, a basic background extraction al-

gorithm consists of comparing each frame with the

background (nest frame without any bird). Any dif-

ference between both would be considered as a move-

ment. However, this approach would be very sensitive

to changes at illumination (if a stable light source is

not available) or camera noise.

As an alternative to this problem, an adaptive

gaussian mixture model for background subtraction

(Zivkovic and van der Heijden, 2006), (Zivkovic,

2004) was applied. It establishes a statistical model

with the probability that each pixel of a frame is part

of the background. This fact makes it possible that

this model ﬁts variation in lighting conditions (with

slow dynamics), not being affected by moving objects

(foreground, with faster dynamics).

Once all pixels with movement of the video frame

(mobile pixels) are obtained (as part of a bird), the

centroid calculation of them is the next step. It is cal-

culated through the general moment expression (de-

ﬁned by equation 1), in which IMG is a binary image

of the object (movement points) to be analyzed.

∑

(IMG(x,y) ·x

·y

) (1)

Calculating ﬁrst moment of area (m

and m

and assuming that m

is equal to the number of pix-

els associated with the movement, the centroid posi-

tion is deﬁned by ¯x and ¯y coordinates, both calculated

according to:

¯x =

, ¯y =

(2)

An example of this centroid can be seen in Figure

3, where it is on a male kestrel.

To improve the robustness, an additional con-

straint has been added to this estimation to validate it.

Speciﬁcally, the number of mobile pixels (m

) must

be between two limits. On the one hand, the lower

limit (n

) make it possible to ﬁlter situations of low

Automatic Lesser Kestrel’s Gender Identiﬁcation using Video Processing

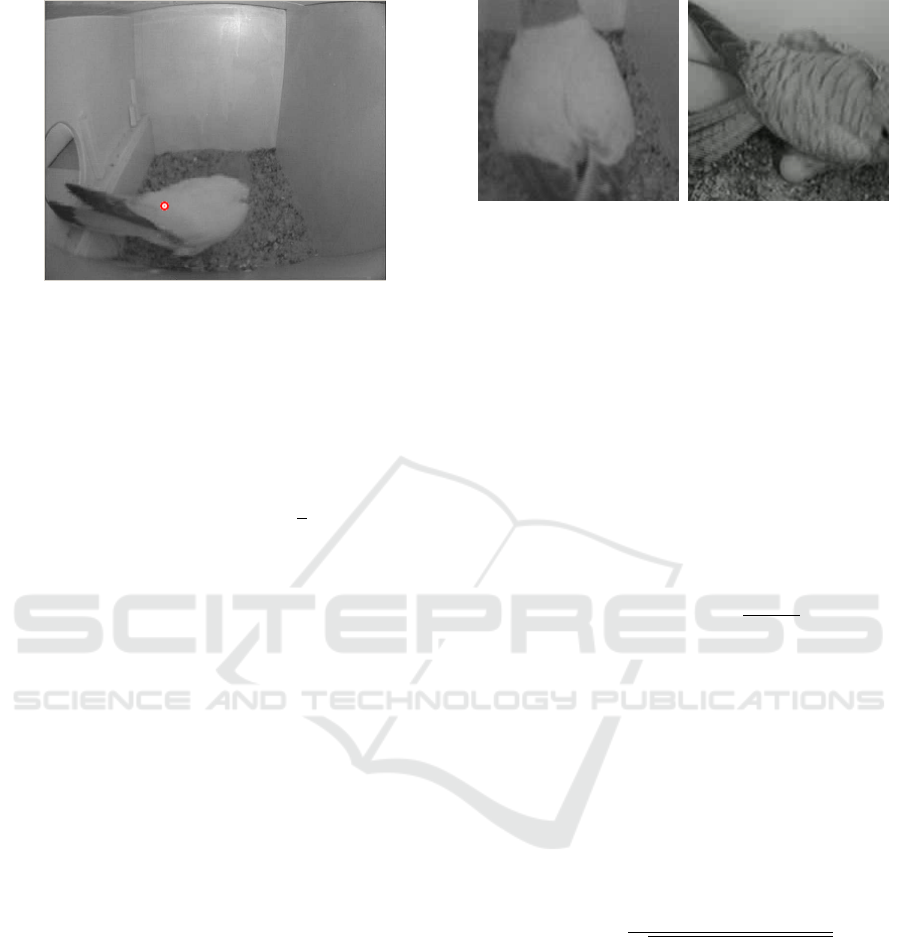

Figure 3: Centroid of a movement.

movement or variations due to the sensor noise. On

the other hand, the upper limit (n

) ﬁlters situations

in which the large part of a frame is motion (typical

in the camera iris adjustment phenomena, when the

luminance changes, or at the beginning of the analy-

sis process). These limits were set to 0.5% and 25%

of frame pixels respectively, using a 3σ approxima-

tion, which is based on a statistical study of mobile

pixels over the valid image set (with n = 12.53% and

σ = 4.02%). Out of these limits, the frame is dis-

carded because it is considered unreliable.

2.2 Kestrel’s Back Extraction

Once the kestrel position has been identiﬁed, the next

step is to search a part of them in which there exist

a clear difference between male and female texture.

In this sense, based on the previous described Lesser

Kestrel appearance, and assuming that the video is

captured from an elevated position, the upper parts

(mainly neck and back) are a good representation for

this purpose (see Figures 1 and 2).

Thus, an alternative had been to apply an algo-

rithm that accurately determined the kestrel shape

around the calculated centroid (and even the existence

of any bird around it). Instead, it has been empiri-

cally demonstrated that for this application, a square

of 200 pixels centered on the centroid (2/7 of a frame

approximately) captures the desired information ac-

curately. It is possible mainly because of the depth of

the nests is small and so that, the diminution in the

kestrels size by perspective effects can be neglected.

An example of this fact is can be seen in Figure 4,

where representative parts of both genders have been

correctly captured by the camera.

Obviously, this clipping technique may capture

fragments of the nest wall and ﬂoor. However, as

will be seen later, this fact does not signiﬁcantly af-

fect to the classiﬁcation results. Additionally, in this

sense, some models of images without any kestrel will

(a) Male (b) Female

Figure 4: Lesser Kestrel’s back clip.

been included in the next classiﬁcation stage. This

fact makes it possible to strengthen this classiﬁcation,

discarding those regions in which there is suspicion

of a bad detection.

2.3 Energy Analysis of Different

Frequency Bands

The Two-Dimensional Fourier Transform of an image

(FT ) is an excellent tool to evaluate the importance

of repetitive patterns in it. Focus on the module infor-

mation (



(u,v)



), each point of this transformation

(deﬁned by u,v) informs about three different aspects

of these patterns:

• The distance to the origin (

√

+ v

) depicts the

spacial frequency value (higher distance implies

higher frequency).

• The direction to the origin (arctan(v/u)) indi-

cates the orientation of the pattern.

• The FT value itself (



(u,v)



) indicates pattern

relevance in the original image.

Speciﬁcally, this work uses the Normalized

Fourier Transform (NFT, see equation 3), which has

the advantage of being invariant with linear changes

in illumination (Nixon and Aguado, 2012).

NFT

(u,v)

∑

|FT

(u,v)

−|FT

(0,0)

(3)

However, it must be taken into account that seek-

ing patterns are not strictly regular, the barred females

not always being at the same distance. Additionally,

the direction of these is not constant and depends di-

rectly on the individual and its orientation.

Therefore, to minimize these problems, the pro-

posed system considers adjacent frequency bands (or

spectrum representation areas) instead of singular

points in it. Furthermore, to make this analysis in-

variant against direction changes, an axial symmetry

from the origin has been applied. It deﬁnes concen-

tric annulus centered on the origin as representative

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications

Figure 5: Spectrum representation and frequency bands;

ideal (red) and real (blue).

regions for each frequency band (delimited areas by

red circles in Figure 5), regardless of their orientation.

In this sense, the energy of a band (e, deﬁned by

equation 4) is an excellent descriptor to determine the

importance (or how much presence does it have) of

each frequency band.

e =

∑

∀(u,v)∈band



NFT

(u,v)



(4)

In order to increase the system discrimination ca-

pacity, instead of focusing on the speciﬁc frequency

band of relevant information (seek patterns), the anal-

ysis of multiple bands has been preferred. A proﬁle of

energy bands provides more information than a single

value.

Additionally, the high correlation in gray values

leads to higher energy values in low frequency bands

(Theodoridis and Koutroumbas, 2008). Due to this,

an exponential increase in the frequency band widths

(or radius of red circles) has been chosen, in order

to keep the energies in a similar order between them.

Speciﬁcally, each decade has been divided into. Ad-

ditionally, NFT

(0,0)

value has also been excluded, be-

cause this point represents the average gray value,

which is irrelevant in the purposed texture analysis.

As a last consideration, efﬁciency considerations sug-

gest the substitution of circular bands limits (in red in

Figure 5) by concentric squares with the same area (in

blue in Figure 5). This change simpliﬁes the compu-

tational cost of energy band calculation. Obviously,

the modiﬁcation results in directional distortion. The

energy partially is now partially sensitive to texture

orientation. However, that for the proposed applica-

tion this distortion is not signiﬁcant. Nevertheless, the

better computational efﬁciency compensate this draw-

back.

Figure 6 shows an example of several energy pro-

ﬁles. As has been commented throughout this section,

Energy

0.7

0.6

0.5

0.4

0.3

0.2

0.1

100

Band diameter/pixels

Empty

Male

Female

Figure 6: Examples of energy proﬁles for classes.

the result of this stage is an energy proﬁle per frame,

which will be used in the next classiﬁcation state to

distinguish the kestrel gender.

2.4 Classiﬁcation

This ﬁnal stage analyzes the energy proﬁle of each

frame and retrieves an estimation of the kestrel gen-

der. In this sense, a k-Nearest Neighbors (k-NN) al-

gorithm (Cover and Hart, 1967) implements this esti-

mation. This method consists in comparing each en-

ergy proﬁle under study with a set of reference pro-

ﬁles (or models) related to the different target classes.

This classiﬁer is a lazy supervised learning with an

easy and efﬁcient implementation. It can re-use erro-

neously classiﬁed data to improve the model perfor-

mance.

For this algorithm, it is necessary to deﬁne a met-

ric, which characterizes the likeness to each pattern

proﬁle. Based on energy distribution in proﬁles (see

Figure 6), χ

(deﬁned by Equation 5) is proposed as a

metric. It represents the weighted euclidean distance

with each pattern (m).

∑

i=bands

test,i

−e

m,i

)

m,i

(5)

where i represents each frequency bands. It is im-

portant to consider that this classiﬁer offers an esti-

mation per video frame where a movement has been

detected. Therefore, to analyze a full video it is nec-

essary to obtain a ﬁnal estimation from the whole ana-

lyzed frames. This global classiﬁcation uses a simple

estimator, choosing the ﬁnal result as the most fre-

quent estimation of the frame analysis set. Notwith-

standing, only a video is cataloged as a valid class,

if the difference between the majority class and the

rest of classes appearances is less than 50% of the

total frames. Otherwise, the video is cataloged as

“undetermined”. This simple analysis increases the

robustness of the classiﬁcation, because it can work

correctly, even if some video frames are not clear and

offer an incorrect classiﬁcation.

Automatic Lesser Kestrel’s Gender Identiﬁcation using Video Processing

3 STUDY CASE

As has been previously mentioned, the goal of this

work is to facilitate the tedious tasks of viewing large

sets of video. This help can be translated directly into

two actions; automatic identiﬁcation of useful videos

(non-empty nest detection) and automatic determina-

tion of the adult bird gender.

For the test, a sample of 150 videos from the

HORUS (Do

nana Biological Station, 2009) project

(recorded in monochrome, with a resolution of

704x576 px) was chosen. In this sense, following the

two goals mentioned above, this study was divided

into two parts:

3.1 Identiﬁcation of Useful Videos

Table 1 shows the comparison of all cases whether the

nest was empty or not, with the estimation made by

proposed algorithm (localization of the kestrel, sec-

tion 2.1).

The ﬁrst information obtained from this analysis is

the high percentage of empty nests (88%). This fact

indicates that the automatic recording system does not

work properly. These false detections are mainly due

to the high noise presence in conditions of low lumi-

nosity.

In order to verify the quality of this estimation,

the Yates’ χ

test (Yates, 1934) (a correction in χ

of Pearson for cases with a low occurrence) has been

applied.

= 82.3 ; d f = 1 ; P < 0.001

These values indicate that the probability of ob-

tained result was due to chance is less than 0.1%. Fur-

thermore, the λ index of Goodman-Kruskal (Good-

man and Kruskal, 1979) has been also calculated.

λ = 0.6 ; (σ = 0.1633)

This λ value indicates an improvement of 60%

when this classiﬁer is applied (instead of not apply-

ing any). Based on these studies, it is possible to say

that the estimated probability of a correct prediction is

96%. Therefore, the theory that this analysis is suit-

able for this application was validated.

Table 1: Useful videos identiﬁcation analysis.

Estimated

Empty nest Kept nest

Real

Empty nest 132 3

Kept nest 3 12

3.2 Identiﬁcation of Kestrel Gender

From the last study, it is easy to note that there are

only 15 videos of kept nests in complete video set

(150 samples). Due to this, only the kestrel gender

algorithm evaluation have been used, minimizing the

effects of high percentage of empty nest images, in

front of the reduced number of cases in which the dis-

crimination between male and female is done.

Thus, this small amount of elements for this anal-

ysis makes the showed results should be considered

with a high error margin.. Table 2 shows the compari-

son between real and estimated result by the proposed

kestrel gender identiﬁcation algorithm (see sections

2.1–2.4). In this case, the classiﬁer may determine

that the kestrel’s gender may be male, female, or un-

determined.

The evaluation techniques have been the same as

the previous section.

= 8.58 ; d f = 2 ; P = 0.0137

Speciﬁcally, this ﬁrst analysis indicate that the

probability of obtained result was due to chance is less

than 1.5%.

λ = 0.6 ; (σ = 0.2722)

For this study, λ value indicates an improvement

of 66.6% when this classiﬁer is applied, and the es-

timated probability of a correct prediction is 86.6%.

Therefore, the theory that this analysis is suitable for

this application was validated.

As in the previous section, both tests show that the

proposed algorithm is suitable for this application.

3.3 Time Execution Analysis

As discussed previously, one of the main advantages

of this application is to release the biologists from

monotone and tedious observation. However, this is

not the only advantage, its execution speed being an-

other one.

Speciﬁcally, from Tables 3, it is easy to note that

the systems have an analysis rate of 0.074 (less than

Table 2: Gender identiﬁcation analysis.

Estimated

Male Undetermined Female

Real

Male 4 1 1

Female 0 2 7

Table 3: Processing time analysis.

Total time of videos 1800 sec.

Average processing time

∗

133 sec.

∗

Using single core of a Intel



Core

i5-5200

SIGMAP 2017 - 14th International Conference on Signal Processing and Multimedia Applications

1). While it can not explicitly guarantee real-time

work. This makes it possible to organize a pipeline

structure (see Figure 7), which can acquire the video

and estimate it associated information (nest occupa-

tion and bird gender) in the same act.

In addition, this task segmentation is also easily

scalable, so that the nest analysis can be performed at

the same time, accelerating the analysis process even

further. This fact improves the work quality of the

biologist, who usually had to watch all the videos one

by one.

Record

vid1

Proc.

vid1

Record

vid2

Proc.

vid2

Figure 7: Pipeline structure for video processing.

4 CONCLUSIONS

As previously discussed, any tool that allows the biol-

ogist to reduce or facilitate monotonous observation

tasks is useful in environmental monitoring. In this

paper, video processing algorithm has been proposed

for kestrel gender identiﬁcation in a breeding envi-

ronment (the nest). This algorithm has been tested

over a video sample set, validating its correct opera-

tion for this application. In this sense, improvements

in the ease and time analysis are directly obtained

by biologists, allowing them to register bird activi-

ties automatically, without the need to inspect them

directly. Thus, other improvements in storage needs

can also be signiﬁcant, being able to eliminate non-

useful recordings (empty nest), typically abundant in

this applications.

ACKNOWLEDGEMENTS

This work has been supported by the Consejer

ıa de

Innovaci

on, Ciencia y Empresa, Junta de Andaluc

ıa,

Spain, through the excellence project eSAPIENS (ref-

erence number P10-TIC-5705). The authors would

like to thank Javier Bustamente from Do

nana Biolog-

ical Station (CSIC) for his collaboration and support.

REFERENCES

Cover, T. and Hart, P. (1967). Nearest neighbor pattern clas-

siﬁcation. IEEE Transactions on Information Theory,

13(1):21–27.

nana Biological Station (2009). HORUS project.

http://horus.ebd.csic.es/wphorus/ [last visited

2017.01].

Goodman, L. A. and Kruskal, W. H. (1979). Measures of

Association for Cross Classiﬁcations. Springer New

York.

Gray, N. (2016). Male and female lesser kestrels.jpg.

Wikimedia Commons, https://commons.wikimedia.

org/wiki/File:Male and female Lesser Kestrels.jpg

[last visited 2017.01].

Larios, D. F., Barbancho, J., Sevillano, J., Rodr

ıguez, G.,

Molina, F., Gasull, V., Mora-Merchan, J., and Le

on,

C. (2013a). Five years of designing wireless sensor

networks in the do

nana biological reserve (spain): An

applications approach. Sensors, 13(9):12044–12069.

Larios, D. F., Rodr

ıguez, C., Barbancho, J., Baena, M.,

Angel, M., Mar

ın, J., Le

on, C., and Bustamante, J.

(2013b). An automatic weighting system for wild an-

imals based in an artiﬁcial neural network: How to

weigh wild animals without causing stress. Sensors,

13(3):2862–2883.

Luque, J., Larios, D. F., Personal, E., Barbancho, J., and

on, C. (2016). Evaluation of MPEG-7-based audio

descriptors for animal voice recognition over wireless

acoustic sensor networks. Sensors, 16(5):717.

Nixon, M. and Aguado, A. S. (2012). Feature Extraction

& Image Processing for Computer Vision. Elsevier

Science Publishing Co Inc.

Pang, C., Yao, H., and Sun, X. (2014). Discriminative fea-

tures for bird species classiﬁcation. In Proceedings

of International Conference on Internet Multimedia

Computing and Service - ICIMCS14. ACM Press.

Theodoridis, S. and Koutroumbas, K. (2008). Pattern

Recognition. Elsevier LTD, Oxford.

Yates, F. (1934). Contingency tables involving small num-

bers and the χ

test. Supplement to the Journal of the

Royal Statistical Society, 1(2):217.

Zivkovic, Z. (2004). Improved adaptive gaussian mixture

model for background subtraction. In Proceedings of

the 17th International Conference on Pattern Recog-

nition, 2004. ICPR 2004. Institute of Electrical and

Electronics Engineers (IEEE).

Zivkovic, Z. and van der Heijden, F. (2006). Efﬁcient adap-

tive density estimation per image pixel for the task of

background subtraction. Pattern Recognition Letters,

27(7):773–780.

Zottesso, R. H. D., Matsushita, G. H. G., Lucio, D. R., and

Costa, Y. M. G. (2016). Automatic segmentation of

audio signal in bird species identiﬁcation. In 2016

35th International Conference of the Chilean Com-

puter Science Society (SCCC). IEEE.

Automatic Lesser Kestrel’s Gender Identiﬁcation using Video Processing
