Using Runtime State Analysis to Decide Applicability of Dynamic

Software Updates

Oleg

Selajev

and Allan Gregersen

University of Tartu, Faculty of Computer Science, Tartu, Estonia

ZeroTurnaround, Tartu, Estonia

Keywords:

Dynamic Software Update, Runtime Phenomena, State Analysis, Reliability, Availability.

Abstract:

Updating application code while it is running is a popular approach to the dynamic software update problem.

But in many cases the behavior of the updated application bears side effects of the update in the form of a

runtime phenomena that breaks application state assumptions leading to unwanted complications. We present

a runtime state analysis system, Genrih, that enhances a dynamic system update solution and automatically

decides if the state transformation functions of a DSU solution are sufﬁcient for the given update. Genrih

analyzes the atomic changes in the updated code compared to the already running version and based on these

changes automatically determines whether updating the system’s runtime state will lead to the observable

runtime phenomena. The designed system does not break the update procedure, but observes the state and

produces notiﬁcations for enhanced analysis and crash management. The practical evaluation shows that the

designed system imposes acceptable overhead and can help the developer be aware of several kinds of runtime

phenomena.

1 INTRODUCTION

Software evolves, and existing applications inevitably

have to be updated with newer versions. The Dy-

namic Software Update (DSU) problem deals with

updating running software without interrupting their

behavior. The general motivation for solving the DSU

problem is raised by the fact that mission critical

applications cannot tolerate maintenance downtime,

which makes updating them non-trivial.

Updating applications while they run is a com-

plex task consisting of two main parts: ensuring that

the new behavior that the new version of the program

speciﬁes is ready and linked into the running process,

and transforming the existing runtime state of the ap-

plication to accommodate the needs of the new pro-

gram version.

The ﬁrst problem has been approached by making

the programming languages runtimes aware of pos-

sible dynamic updates (Erlang, 2017) (W

urthinger,

2010), employing architectures that make dynamic

updates easier (Hayden et al., 2012b), or enhancing

the existing runtime platform to add the support for

dynamic updates (Gregersen and Jørgensen, 2009)

(Kabanov and Vene, 2014) dynamically.

The latter problem is a more complex issue, which

has been shown (Gupta et al., 1996) to be unsolvable

automatically in the general case. Transforming the

runtime state to conform to the structure the new ver-

sion of the program expects is tedious work. The cur-

rent state-of-the-art way to handle necessary change

to the runtime state at the update time is to manually

specify state transformation functions that will con-

vert the existing runtime state into a representation

suitable for the new version of the program. Since the

safety of mission-critical systems is paramount and

we do not know how to automate the state transforma-

tion fully the DSU systems cannot risk employing au-

tomatic state transfer solutions (Hayden, 2012). How-

ever, deﬁning these state transformation functions is

not easy, time consuming, and error-prone. However,

requiring the manual intervention of the programmer

is not always appropriate. For example, applying

dynamic updates in the development environment to

avoid long pauses

In this paper, we limit ourselves to investigating

DSU of Java applications. Java represents a popular

member of the family of the statically typed object-

oriented programming languages and has multiple

DSU solutions available.

The current state of the art DSU systems that do

not require manual actions from the developers stat-

Šelajev, O. and Gregersen, A.

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates.

DOI: 10.5220/0006400900380049

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 38-49

ISBN: 978-989-758-262-2

ically analyze the code to determine when it can be

updated (Zhao et al., 2014).

In this paper we look at the alternative method for

safely updating the Java application without requiring

the developer to specify the safe points in the code

at which the DSU can update the application without

breaking the runtime state.

The goal of this paper is to propose a system that

automatically decides at runtime if the automatic state

mapping of a given update mechanism is sufﬁcient

for the update. The proposed system is orthogonal to

the DSU solution used for the updates. The practical

evaluation is performed on a prototype which is built

with JRebel updating functionality in mind.

2 REQUIRING

TRANSFORMATIONS

If we look at the changes that can be induced on

Java application classes, some of them can poten-

tially lead to runtime phenomena occurrences if ap-

plied without concern, (Gregersen, 2011), (Gregersen

and Jørgensen, 2011). However, if the DSU system

applies changes deterministically, the outcome of ap-

plying the change between the old and the new class

is determined only by the DSU and the current run-

time state. This means that every change can poten-

tially cause only a limited number of runtime phe-

nomena. For example, the uninitialized ﬁeld, can only

cause NullPointerException, which is an example of

the absent application state phenomena. It cannot lead

to other types of runtime phenomena, like for exam-

ple ”phantom objects” phenomena or any other from

the list below. In the paper describing runtime phe-

nomena, (Gregersen and Jørgensen, 2011), Gregersen

et al. have mapped certain observed phenomena to

the individual class changes that were responsible for

them.

Below we list possible changes to the Java code

and the related runtime phenomena that we will use

throughout this paper. The deﬁnitions of the runtime

phenomena are taken from the work conducted by

Gregersen et al., (Gregersen and Jørgensen, 2011).

Phantom Objects. Are live objects whose classes

have been removed or invalidated by a dynamic up-

date, (Gregersen and Jørgensen, 2011). Changes that

can introduce phantom objects are for example, re-

moving a class, adding modiﬁer abstract to the class

deﬁnition, replacing a class with an interface. Indeed,

if the update adds a modiﬁer abstract to a deﬁnition of

a class or replaces it with the interface, it means that

in the new version of the application, no instances of

that class can be instantiated. Any instances of this

class that exist prior the update become phantom ob-

jects that have no place in the correctly behaving Java

application.

Absent State. Is deﬁned as the situation in which ob-

jects or classes having been created in a previous ver-

sion, once migrated to the new version, lacks a por-

tion of the expected state, (Gregersen and Jørgensen,

2011). Adding an instance or static ﬁeld added to

class, which might not be initialized during the up-

date is probably the most straightforward example of

introducing the absent state phenomena. There are

several types of changes to the code that can cause

an absent state phenomena. For example, adding a

new subclass with an intent to differentiate between

object using polymorphism can cause it. Since no

objects existing prior the update can be of the added

subclass, differentiating fails despite the fact it might

succeed during a fresh run. If a superclass of a class is

changed, the existing objects are not reconstructed, so

the ﬁelds they extend from the new superclass might

not be initialized. Removing modiﬁer static from an

inner class means that it gets an implicit out ﬁeld that

should point to an outer class instance. However, it

might not be possible to provide it during the update

so the value of the ﬁeld will stay absent.

Lost State. Takes place when an existing state that

can be used to differentiate between objects is lost.

For example, when an instance ﬁeld is removed or the

type of the ﬁeld is changed the information held in the

ﬁeld prior to update gets completely inaccessible by

the virtue of being removed or overwritten with the

default value of the new type. Changes that lead to

the loss state phenomena are thus removing instance

or static ﬁeld or changing the ﬁeld type.

Oblivious Update. Phenomenon is the absence of an

expected runtime effect that would have occurred if

the system was started from scratch. For example, a

change in constructor has no effect on the previously

initialized objects, (Gregersen and Jørgensen, 2011).

Constructor code change as well as instance or static

initializer changes lead to oblivious update phenom-

ena being observable.

There might be other runtime phenomena that are

observable after updates, but in this paper we focus on

these four phenomena being described and analyzed

in the prior work by Gregersen et al. (Gregersen and

Jørgensen, 2011). The description of the runtime phe-

nomena given above maps the runtime phenomena to

individual changes that cause them. Naturally, if we

reverse the mapping, then we can map changes to all

potential application level phenomena, these changes

can produce if applied by a given DSU solution.

The phenomena listed in the Gregersen’s work

does not depend on the exact approach used by the

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates

dynamic update system and are solely dependent on

the runtime state of the application. These phenom-

ena occur only when the application state satisﬁes cer-

tain conditions, which can be expressed as the queries

to the runtime state that evaluate if a phenomena dic-

tated by the changes might be observed. The non-

determinism of the phenomena and their dependency

of the runtime state is analyzed in the same work

which introduced them, (Gregersen and Jørgensen,

2011).

Here is an example of a query to the runtime phe-

nomena to occur. If a phenomenon reveals itself on

the access to the instances of a given class initialized

prior the update, the phenomenon is observable if the

query ”are instances of the class or any of its sub-

classes present in the application?” returns true given

the runtime state at the update moment.

The similar query tells if the following runtime

phenomena might be observed: phantom objects be-

cause of the class removed, phantom objects because

of adding abstract modiﬁer to a class, or changing a

class to an interface. Lost state phenomenon is also

described by the similar query: “are instances of the

class or any of its subclasses present in the applica-

tion?”, however it can be specialized further to ana-

lyze if the ﬁeld of those object instances can be used

to differentiate them.

Oblivious update caused by changing the con-

structor code can be predicted by the same query,

however, if it is caused by changing a static initial-

izer of a class, then a simpler query whether the class

is loaded into the JVM or not is sufﬁcient, since static

initializers are not executed for every object instance.

By describing the queries to determine runtime

phenomena, we implicitly presented a mapping be-

tween the runtime phenomena and the changes that

cause them. The reverse mapping of possible runtime

phenomena caused by the changes to the classes of

the applications can serve as a good ﬁrst approxima-

tion for the mapping database approach for verifying

the update safety. The further work can improve the

mappings and include more changes to effects map-

pings to cover more updates. The exact implementa-

tion of the mapping that was used in the evaluation of

the approach is discussed further in the paper.

Note, that it is be possible to derive less conserva-

tive queries for speciﬁc runtime phenomena, but for

this paper we used the most straightforward ones, usu-

ally saying that the phenomenon is possible to occur

if the instances of the changed class exist on the heap.

The approach described in the Static Analysis for

Dynamic Updates tool paper, (Oleg

Selajev and Ka-

banov, 2013) is capable of discovering the atomic

changes that were found to be responsible for the

above-mentioned phenomena during the experiment.

The tool compares application classes one by one and

returns the list of individual changes in them. In this

paper we present a runtime state analysis engine that

provides an insight into the runtime state of the appli-

cation and is capable of serving the queries mentioned

above. This runtime state analysis engine forms the

last component of the system required to establish if

an update can lead to the observable runtime phenom-

ena.

The dynamic software update solution that is ca-

pable of discovering the changes that occurred be-

tween the application versions under the update, a

database to map these changes to the corresponding

runtime phenomena, and an analytic engine to inspect

the runtime state can provably establish if the update

is safe from introducing these unwanted effects into

the updated application.

3 A SYSTEM FOR PREDICTING

RUNTIME PHENOMENA

Deciding if the state transformation functions are ad-

equate for a given update is equivalent to analyzing

whether the update will produce runtime phenomena.

The system implementing the dynamic state analysis

to predict if a given update can result in observable

runtime phenomena is orthogonal to the actual DSU

solution performing the update. The architecture of

the integration with DSU solutions is quite straight-

forward. It requires the access to the original and

changed versions of the classes involved in the up-

date before the actual update happening; then it will

run the analysis of the application state on the heap

and determine if applying the update is safe or if any

application level phenomena can be observable after-

ward.

The system to predict a potential faultiness of

a dynamic update consists of the following compo-

nents: an runtime state analysis engine that is able

to respond to queries about the current runtime state;

a class diff tool that determines which changes has

occurred between two versions of the application

classes; a mapping between the changes into the pos-

sible runtime phenomena caused by these changes,

and a world stopper that can pause the JVM to en-

sure that the analysis is sound and the application state

does not change between the analysis and the applica-

tion of the update by the DSU solution.

The overall architecture of the designed system, is

depicted by Figure 1.

Such a system is developed as a standalone com-

ponent separate from both application code and the

ICSOFT 2017 - 12th International Conference on Software Technologies

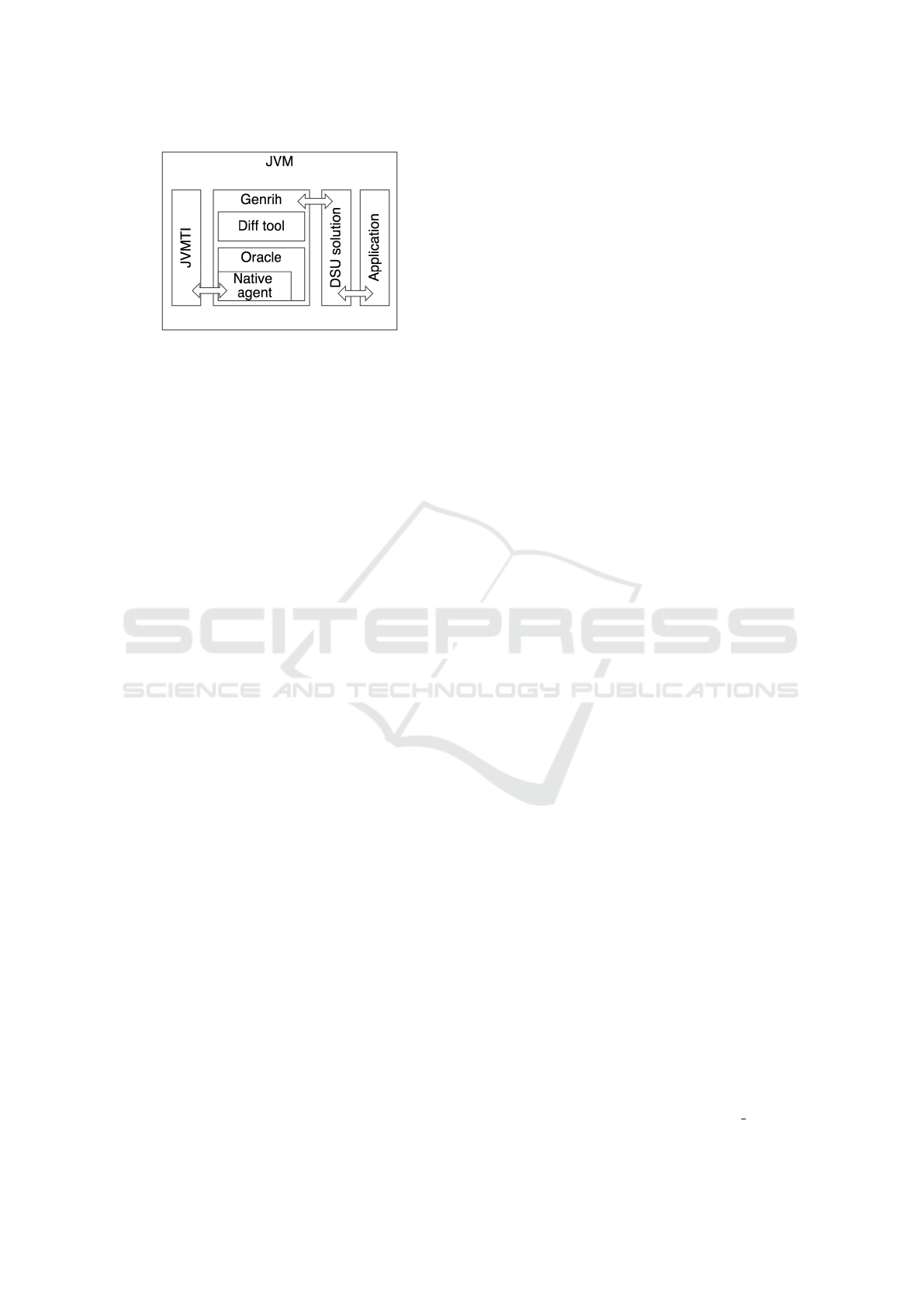

Figure 1: Architechture of runtime analysis system.

DSU solution that performs updates. It embeds both

the diff tool to compare class ﬁles and the runtime

state analysis engine, which uses JVM native agent

capabilities to inspect the runtime state. The arrows

on the Figure 1, show the main communication pat-

terns between the components. Genrih does not act

upon the application itself, but rather integrates with

the DSU solution to obtain changed classes and no-

tify about the update safety. The native agent inside

the system uses the Java Virtual Machine Tool Inter-

face (JVMTI), (Oracle, 2017) to gain access to the

runtime state that is not otherwise possible to obtain

from just the Java code. Note that the capabilities of

non-native javaagent or application level code are not

enough to perform the analysis of the Java heap to the

extent necessary.

The rest of this section describes responsibilities

and a possible implementation of each component and

how they all come together to predict the faultiness.

3.1 State Analysis Engine

JVM stores objects on the heap. The memory on

the heap is managed: memory for new objects is

allocated automatically, reachable objects are often

moved around, unreachable instances are garbage

collected and the memory claimed by them can be

reused.

As we saw above the most of the queries to de-

termine the possibility of a phenomena consist of two

questions: 1) is class T loaded into the JVM and 2)

are there initialized and not yet garbage collected in-

stances of the class T, sometimes including its sub-

classes.

Luckily, we can answer both of these questions

for a given class T by leveraging the JVM tool inter-

face (JVMTI) and a native agent. JVMTI provides a

way to inspect the state of the running JVM program

and inﬂuence its execution. Determining if a class is

loaded in the JVM can be done from the JVM itself,

especially if we are not interested in the class load-

ing details and can query just the system class loader.

We can use the ﬁndLoadedClass method of the Class-

Loader class to obtain this information.

To count the number of the instances of a class T,

we can make use of JVMTI’s “iterate through heap”

function that takes a class which instances to iterate

and a callback function to call for every instance. For

our purposes, the callback function just increments a

counter for every found instance. If after the invoca-

tion of the “iterate through heap” with the given class

argument the result is non-zero, there are instances of

the given class.

The native agent approach to leverage iterating

through heap is general enough to cover more com-

plex queries that might be necessary to introduce for

the future enhancements of the system. For example,

if one needs to investigate a removal of the ﬁeld and

the possibility of lost state phenomenon, a more com-

plex callback that inspects every instance found by the

iterate through heap function to determine if the ﬁeld

in question has a distinguishing value or not. If all the

objects have the ﬁeld initialized to the default value

for the ﬁeld type, removing the ﬁeld does not actually

lose any data.

The discussion section contains more details about

which queries were implemented in the prototype of

the described system and why.

3.2 Class Diff Tool

The DSU solution must have access to the new ver-

sions of the classes to update the deﬁnitions in the

JVM. We can use a simple cache mechanism to store

the bytecode of the loaded classes by the class name.

To reduce the memory footprint we can potentially

ask the DSU solution if the class in question is reload-

able, meaning if there is a possibility that the bytecode

for that will change and avoid storing the bytecode

for classes that won’t be updated. Alternatively, the

caching scheme to disk can be employed, which can

introduce additional performance overhead, which

might not be desirable. However, this becomes an en-

gineering challenge, so for the purposes of this paper

we implement the approach that is just functional.

The class diff tool, (Oleg

Selajev and Kabanov,

2013), consumes two sets of classes: old and new; and

produces a list of events that describe how the classes

in the new set differ from their respective counterparts

in the old set.

For the class deﬁnitions that are different in the

old version and the new version there are three main

results of the diff analysis: old class does not exist,

new class does not exist and both classes exist. First

two cases are naturally mapped to the class

added and

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates

class removed changes respectively. If both class def-

initions exist, class diff tool analyzes them for the dif-

ferences. The class diff tool described in the Static

Analysis for Dynamic Updates paper, (Oleg

Selajev

and Kabanov, 2013) does exactly that, it takes two

deﬁnitions of a class and returns a list of the events:

new instance ﬁeld added, new static method event,

etc. Each individual change event has a reference to

the class and the class member: method, ﬁeld, initial-

izer, that were affected changed.

The analysis engine can run the diff tool on every

class for which both the old and the new versions are

present and obtain the list of exact changes between

them. Then these lists of changes are mapped to the

possible runtime phenomena they might produce and

fed to the runtime state analysis component to deter-

mine the possibility of the phenomena given the cur-

rent runtime state of the application.

3.3 Changes to Phenomena to Runtime

State Queries

We need to map the exact changes that occurred be-

tween the old and the new versions of the classes in-

volved in the dynamic update. During an update we

have the class deﬁnitions for both old and new ver-

sions of the application. The output of the class diff

tool described above is the list of change events that

are found between these versions.

In the current work we investigate the following

changes that were previously found to be causing

the runtime phenomena, (Gregersen and Jørgensen,

2011). The ﬁrst column of the Table 1 speciﬁes

the changes, the second lists the runtime phenomena

they can produce, and the third column describes the

queries, which reveal whether the phenomena might

be observable.

Out of the all changes that can lead to runtime phe-

nomena effects and that are recognized by the sys-

tem we designed, we handpicked a subset for the

showcase. While other changes are also interest-

ing,these have been previously recognized to lead to

the runtime phenomena described above, (Gregersen

and Jørgensen, 2011).

In the future research the mapping for the changes

can be more thorough, however, being able to predict

the faultiness with respect to the runtime phenomena

observation after the dynamic update containing these

changes is a useful result in itself.

The mapping provided above can be directly

translated to the code via a series of if-else statements,

where the class T is the class currently being diffed.

When the queries that correspond to the possibility of

observing the runtime phenomena are obtained, the

Table 1: Changes to phenomena to queries table.

Change type Phenomena Analysis queries

Class T

made abstract

change

Phantom objects: in-

stances of class T are

on the heap

Class T is loaded and in-

stances of T are on the

heap

Class T re-

moved change

Phantom objects: in-

stances of class T or

subclasses are on the

heap

Class T is loaded and

instances of T or sub-

classes are on the heap

Constructor

of class T

changed

Oblivious update: ex-

isting instances have

run previous version

of constructor

Class T is loaded and

instances of T or sub-

classes are on the heap

New instance

ﬁeld change in

class T

Absent state: old in-

stances of T won’t

have the new ﬁeld ini-

tialized

Class T is loaded and

instances of T or sub-

classes are on the heap

New static

ﬁeld change in

class T

Absent state: static

ﬁeld might not be ini-

tialized

Class T is loaded

Static initial-

izer changed in

class T

Oblivious update:

new version of static

initializer is not

executed

Class T is loaded

Super class

of class T

changed

Absent state: in-

stances of T or

subclasses might not

have ﬁeld of the new

superclass initialized

Class T is loaded and

instances of T or sub-

classes are on the heap

or the hierarchy from the

new superclass to Ob-

ject does not declare any

ﬁelds.

Modiﬁer static

removed from

inner class T

Absent state: implicit

ﬁeld out on instances

of T is not initialized

Class T is loaded and

instances of T or sub-

classes are on the heap

runtimestate analysis engine evaluates them using the

queries it knows how to answer. The result shows

whether the update is safe from the application level

runtime phenomena, with respect to the phenomena

and the changes that we analyze.

3.4 World Stopper

A JVM embodies a multithreaded environment where

different threads, like the garbage collector mutate the

global state all the time. The direct consequence of

this is that to ensure the soundness of the analysis,

we have to synchronize the analysis and the update

with the JVM activities external to the DSU solution

at hand. One way to do this is to rely on the JVM

pausing its work for the internal bookkeeping. How-

ever, this might not be utterly portable, so the more

direct solution is to use the JVMTI thread suspend-

ing functionality and iterate over all threads that are

not involved into the dynamic update. Stopping the

threads for the analysis bears an obvious performance

overhead, which we measure in the practical part of

the current research.

Stopping the JVM for the analysis adds the beneﬁt

ICSOFT 2017 - 12th International Conference on Software Technologies

of knowing exactly what methods are currently ac-

tive on the stack. If a method body or its signature

have been changed in the update and the method is

currently running, applying the update can lead to

various unwanted side-effects. For example, if the

update removed a method which currently executing

code tries to call, the best the system can do is to

throw a NoSuchMethodErrors to communicate inabil-

ity to locate the method in the updated code. Stopping

the world for analysis allows the system to inspect if

methods that have been changed are currently active.

Such runtime check alone can simplify the type safety

of the update process by preventing the updates that

modify the currently active methods from being ap-

plied. However, in the spirit of not intervening with

the update process, one can emit a notiﬁcation that a

currently active method is changed and possible side-

effects including among others exceptions about class

members not found.

3.5 A Prototype to Enhance JRebel

We implemented a prototype of the system to predict

runtime phenomena after update is applied dynami-

cally. We call the prototype Genrih and it is integrated

with JRebel dynamic updating functionality.

The general workﬂow of performing a dynamic

update with the runtime state analysis is illustrated in

the Figure 2.

The runtime state analysis system marked as Gen-

rih in the Figure 2 receives a request from the DSU so-

lution that an update is available and the list of classes

that are going to be involved in the current update.

These classes are diffed to obtain the exact changes in

the update. The system then stops all the activity in

the JVM using the world stopper described above. At

this moment no state can be mutated in the applica-

tion, so we run the analysis of the heap by evaluating

the queries that are mapped to the changes. The dy-

namic update proceeds as follows, if the update is run-

time phenomena free at the current point in time, we

signal the DSU solution to continue with the update

and replace the class deﬁnitions involved. After this

process ﬁnishes, we can resume the paused threads

and report that the update has successfully ﬁnished.

Otherwise, Genrih still resumes the threads, but

schedule the analysis after a small random delay up to

500 ms hoping that the runtime state of the application

will have changed by then, removing the objects that

are responsible for the possible phenomena after the

update. If the following analysis runs show that the

state has not changed enough, and the runtime phe-

nomena are still possible, Genrih emits a notiﬁcation

for the developer saying what runtime phenomena is

possible and what change is causing it and if known,

which objects contain the state leading to the observ-

able difference in behavior.

In the actual system which enhances the existing

development time DSU solutions, after showing the

notiﬁcation, Genrih should allow the system to pro-

ceed with the update, not to stall the development pro-

cess.

The exact details of how the DSU solution we in-

tegrate with is performing the update are orthogonal

to the safety evaluation. Thus, we can treat it as a

black box. The only integration points that we are in-

terested in are:

• a signal that the update is available;

• a list of the classes involved in the update;

• the functionality to signal if Genrih determined

whether the update is safe to apply.

These requirements are relatively humble, and the

integration with an existing DSU solutions is not com-

plex.

Genrih implements the runtime state analysis en-

gine, the mapping functionality of class changes to

potential side effects, the integration with JRebel, and

the use of a class diff tool.

The next chapter describes the experiment of up-

dating a real-world game application with the run-

time analysis system capable of predicting runtime

phenomena occurring because of these changes to the

code.

4 EXPERIMENT

We have evaluated the designed system on the update

scenarios of a Space Invaders game that Gregersen

et al. have used to prove the existence of the run-

time phenomena, (Gregersen and Jørgensen, 2011).

The choice of the application for the experiment is

inﬂuenced by the lack of the systematic benchmarks

or analysis of the development time DSU solutions.

Also, reusing a code base that certainly contains

several versions of the application different enough

to produce runtime phenomena after the updates, is

more relevant to the current work than performing the

experiment on an arbitrary code.

The performed experiment was designed to pro-

vide information about two hypotheses:

1. The system can predict that an update will not

cause side effects or provide an immediately qual-

iﬁed feedback regarding possible runtime phe-

nomena.

2. When or if the runtime state at the update time

will not lead to the side effects, the system carries

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates

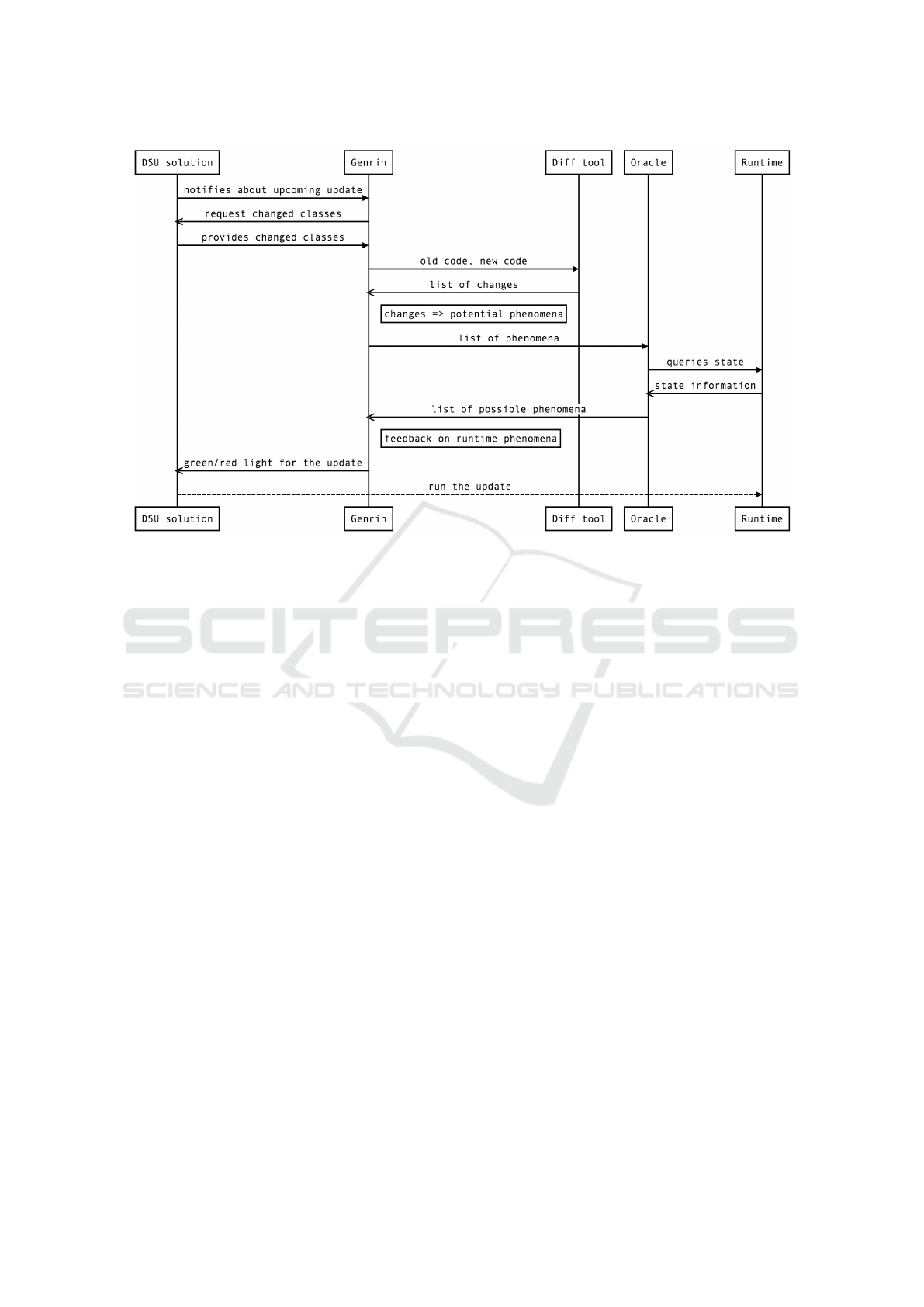

Figure 2: Update process with Genrih.

the update out without the considerable overhead.

The experiment process follows the given proce-

dure. Two versions of the Space Invaders game are

manually investigated to ﬁnd out the changes that cor-

respond to the update. Both versions of the game are

started to determine what is the expected behavior of

the program.

After some state is reached using the old version

of the code, we update the code base to the new ver-

sion and build the application without stopping the

use of it. If the update is successful, we try to observe

the runtime phenomena predicted by the manual code

analysis. If we observe the side effects, we consult the

output of Genrih to verify that the phenomena were

predicted, and the notiﬁcation of its effects is present.

Although the experiment procedure is not auto-

mated and relies on manually constructing pre-update

runtime state, it does mimic typical application devel-

opment scenarios, which are the main interest of this

work.

The ﬁrst part of the experiment determines that

updating an application with JRebel without consid-

ering the runtime phenomena can indeed crash the ap-

plication. The application under test is the Space In-

vaders game, the versions of which differ in how they

assign the color of the Shot object. In the old version,

the color is a constant Color.YELLOW returned from

a shot.getColor() method.

In the new version of the code, Shot class has

an instance ﬁeld: Color color that is initialized to

Color.GREEN at the end of the only constructor for

the class and returned from the getter. The default

value for the color ﬁeld is null and all objects initial-

ized within the new version of the game running have

the ﬁeld Initialized during the regular constructor exe-

cution. If the color ﬁeld happens to be null, at the mo-

ment the redrawing routine asks for it, the NullPoint-

erException is thrown and the program crashes. Both

versions of the game work if they start from scratch,

and the shot objects ﬂying through the screen have

correct colors: yellow and green respectively.

When there are no shots visible on the screen

when JRebel updates the application, the update suc-

ceeds. The shots that are ﬁred afterward are green.

However, if the shots are visible on the game ﬁeld

during the update, the game crashes with the Null-

PointerException, because the shots do not have the

color initialized.

If this update is triggered with Genrih performing

runtime state analysis, it correctly logs the possibil-

ity of the absent state phenomenon on the pre-update

shots instances. This feedback together with the ex-

ception stack trace is sufﬁcient to identify the update

of the crash reasonably.

The next phase of the experiment involved signiﬁ-

cantly updating Space Invaders code, going to another

major revision of the game. The functional changes in

the update add barrier entities that have to be drawn

on the ﬁeld and make the aliens move and shoot back.

Updating from the initial version of the game to

ICSOFT 2017 - 12th International Conference on Software Technologies

the new shooting version of the game with JRebel

brings no visible runtime phenomena. The game pro-

ceeds as expected, having the new behavior in place.

However, updating the game back to the old version

of the code, which has no information about aliens be-

ing able to shoot, crashes the program with a NoSuch-

MethodError, because the method Aliens.ﬁre(), called

from the main game loop is not present anymore.

With the runtime analysis system, the update for-

ward to the shooting version of the code goes in the

following fashion. The forward update determines the

new instance ﬁelds in the Game class with the follow-

ing declarations.

private Shots alienShots = new Shots();

private Barriers barriers = new Barriers();

The runtime analysis shows that there is one Game

object on the heap, so the update is postponed due to

possible absent state on the Game object after the up-

date. However, since after the update, the application

does not crash this false positive feedback is easily

ignored.

The downgrade from the shooting version of the

game to the basic one crashes with the NoSuchMeth-

odError and the notiﬁcation from Genrih: “Threads

are currently running method Game.gameLoop() that

is changed. Unpredictable update can happen”. To-

gether with the NoSuchMethodError stack trace, that

originates in the Game.gameLoop() method, this in-

formation is sufﬁcient to consider the DSU being re-

sponsible for the crash, not the application logic.

An important additional observation is that, how-

ever, most of the time some thread is executing the

Game.gameLoop() method, there is a small window

of time, during the game tick, when it is not on the

stack. Then the update proceeds without triggering

errors. The dependency of the updates on the current

runtime state and given that Genrih can predict if the

update will cause no runtime phenomena opens pos-

sibilities to stall the update process until the runtime

state changes so the runtime phenomena are impossi-

ble. We discuss such advancements of Genrih in the

discussion section.

The following updates to even more complicated

Space Invaders versions occurred in the similar fash-

ion. Without the runtime analysis, adding features

and state to the code are handled by existing JRebel

well. The downgrades often result in the NoSuch-

MethodErrors caused by calling methods that no

longer exist in the new version from the old version

of the method still running during the update. Which

is the result of not checking the if the updated code is

currently actively executed on in the program.

The experiment shows that the designed system

provides immediate feedback on the runtime phenom-

ena using an existing stock DSU solution. This feed-

back and the nature of errors originated in the runtime

phenomena clearly indicate that these errors are due

to updating the application rather than the code itself.

Debugging the issue with such feedback that strongly

suggests the origin of these errors in the updating pro-

cess is more straightforward than without it.

More detailed analysis of the experimental results

is presented later in the discussion section.

5 PERFORMANCE ANALYSIS

This chapter describes the performance overhead of

automatically determining the applicability of the

state transfer functions of a DSU during the dynamic

update. The designed system:

• requesting the list of classes involved in the up-

date,

• running the diff on the old and the new version of

the classes to ﬁnd the exact changes,

• querying the runtime state analysis engine about

the current runtime state for possible runtime phe-

nomena caused by the changes (for every changed

class).

Requesting the changed classes and difﬁng the re-

sult can be done in parallel with running the applica-

tion so the impact of these actions is negligible and

the complexity of the operations is linear in the num-

ber of classes changed.

Performing the state analysis is more complex.

First of all, it must happen when the application is

paused so that the state will remain unchanged be-

tween the analysis and the actual moment of the up-

date.

The runtime state analysis engine offers the fol-

lowing API for the queries:

boolean isClassLoaded(String className)

boolean hasInstances(String className)

boolean hasFieldInitializer(Class klass,

String fieldName)

boolean hasNonDefaultFieldValues(

String className,

String fieldName)

boolean isMethodRunning(String classname,

String methodName)

This chapter focuses on analyzing the perfor-

mance of the implementation of the runtime state

analysis engine used in the experiment. The main

measurements indicate how much time do individual

calls to these methods take and the results can be ex-

trapolated to estimate how much time can a single

analysis run take. Given that the number of possible

queries are limited and is linear in the number of

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates

changed classes, the extrapolation is straightforward.

The machine where the benchmarks were run has

the following conﬁguration: MacBook Pro (Retina,

13-inch, Early 2013) with the 2,6 GHz Intel Core

i5 processor, 8 GB 1600 MHz DDR3 memory, and

a ﬂash storage hard drive. Java version ”1.8.0”,

Java(TM) SE Runtime Environment (build 1.8.0-

b132), Java HotSpot(TM) 64-Bit Server VM (build

25.0-b70, mixed mode) was used to perform the ex-

periments.

The benchmark was run from a JVM process with

the heap size of 1GB. During the benchmark, about

70% of the heap was ﬁlled with the objects of dy-

namically generated classes to model the real world

performance. We also started 32 background threads

to provide the load for the isMethodRunning query

comparable to a real world use.

To perform benchmarks we utilized Java Mi-

crobenchmark Harness (JMH), (Shipilev, 2017). The

benchmark was conﬁgured to measure the average

time of the execution of an operation based on 10

sample properly warmed runs. Table 2 shows the out-

put of a random run of the benchmark using 10 itera-

tions.

Table 2: Runtime queries benchmark.

Benchmark Score Error Units

isClassLoaded 0.001 ± 0.000 ms/op

ﬁeldInitializer 0.761 ± 0.062 ms/op

hasInstances 1.430 ± 0.343 ms/op

nonDefaultFields 1.513 ± 0.306 ms/op

isMethodRunning 0.099 ± 0.014 ms/op

The time growth is linear of the number of the in-

stances the system has to traverse. For a million of

active object instances, it takes consistently under 60

ms. Varying heap size did not inﬂuence the timing on

the heap sizes up to 3 GB.

The results suggest that the overhead of running a

performance check on an incrementally small update

to the application code is sub-second. During the ex-

periment with the Space Invaders game, the updates

were postponed by 500 ms if the runtime state does

not allow to perform it immediately. The analysis did

not noticeably slow down the user experience.

6 DISCUSSION

The current research concentrates on the design of a

runtime state analysis system for the JVM that can au-

tomatically determine if the state transformation func-

tions of a given DSU solution can satisfy a given up-

date. It does so by analyzing the individual changes

that the update consists of and querying the runtime

state to verify if the declared capabilities of the DSU

can handle the scenario at hand.

The proposed system tackles foremost the updates

in the development, where the changes to the applica-

tion are frequent and typically smaller than the dif-

ference between two releases of the application. The

main beneﬁt of such system is that the developer af-

ter introducing the change would likely run the exact

piece of code that was changed to verify the correct-

ness of the introduced functionality. As such, any in-

compatibilities in the runtime state representations in

the old and new code have a much higher chance of

being stumbled upon and producing a runtime phe-

nomena of the update.

Sometimes the inability to apply an update dy-

namically can be noticeable. The incomplete update

can lead to application errors or crashes. Others, how-

ever, are subtle and have less obvious consequences.

The errors require developers to investigate the code

base to determine the cause of the occurring behav-

ior. That is counterproductive to the core idea of

the DSU for the development environments, which is

save time.

In the previous section, we showed a series of dy-

namic updates of a sample Java application, the Space

Invaders game, that illustrated two things. First, the

runtime phenomena occur during the dynamic up-

dates, and the updating systems can lack the sophisti-

cation to distinguish a safely applicable update from

those that will result in a system crash or invalid run-

time state of the application. Since the problem of

automatic state transformations is not solvable in the

general case, (Gupta et al., 1996), any system not re-

quiring manual intervention of the programmer has

blind spots for the particular changes and will break

the update. This also one can always design an ap-

plication whose behavior after being updated differs

from the behavior of a clean run of the new version.

One straightforward way to do this is to rely on the

application level data to differentiate between the be-

haviors. For example, to kill the application process if

a certain marker class is already loaded. The old ver-

sion of the code will then load the class, and proceed

to wait for the user input. The new version of the ap-

plication checks if the marker class is already loaded

and decides whether to kill itself. The only way to

solve issues like that is to specify the state transforma-

tion functions manually. However, it is imperative to

avoid the manual intervention from the developer dur-

ing the updates, since it removes all the time-saving

beneﬁts of the dynamic updates.

Second, that our proposed state analysis engine

can predict the applicability of the update by query-

ICSOFT 2017 - 12th International Conference on Software Technologies

ing the runtime state efﬁciently.

Without the runtime analysis system, even a mi-

nor update can result in application crashes as the ex-

periment section showed in the example of dynamic

updates applied with JRebel.

The non-deterministic nature of such errors, due

to runtime phenomena being dependent on the run-

time state at the moment of the update complicates

debugging and makes veriﬁcation of code correctness

time-consuming work.

Using the runtime analysis and feedback system

described in this paper, can signiﬁcantly decrease the

frustration of encountering unexpected behavior in

the updated application.

Indeed, as the experiment showed, we can deter-

mine that the state transformation functions do not

satisfy the update at hand. Additionally due to the

knowledge of what changes the update consists of and

which objects are on the heap or active methods on

the stack might produce the runtime phenomena, we

preventively notify the developer about the upcoming

errors, reducing how unexpected these are.

The list of runtime phenomena the system can pre-

dict covers the changes to Java programs previously

identiﬁed to be capable of producing runtime phe-

nomena: adding or removing static and instance ﬁelds

of the objects, changing actively running methods or

the hierarchy of the loaded classes. The updates per-

formed during the experiment show several signiﬁ-

cant runtime phenomena types and show we can apply

the knowledge of the capabilities of the state transfor-

mation functions of a particular DSU solution with

regards to these.

To utilize the described system with an arbitrary

DSU, one needs information regarding which individ-

ual class changes are supported by the default state

transformations of the DSU.

Additionally, the system can potentially be con-

ﬁgured to postpone the updates from happening un-

til the runtime phenomena are not possible: until the

runtime state transformations are manageable by the

DSU at hand.

This approach will use the runtime analysis to de-

termine if the update might lead to the phenomena and

apply only safe updates. Otherwise, the update is not

continued and rescheduled after a short delay. When

a window of opportunity appears when the runtime

state changes and the state transformation capabilities

of the DSU ﬁt it better.

The exact details of such a setup require more re-

search. Using the proposed system to analyze the

practical data for applying development time DSU so-

lutions will provide the necessary experimental data

for the research of the production systems.

The ability to predict the runtime phenomena by

observing the current runtime state of the applica-

tion allows us to make the daunting task of devel-

oping DSU friendly applications easier. Moreover,

the ability to identify updates that are complicated

for the DSU solutions can be used to collect a corpus

of update scenarios for a comprehensive DSU bench-

mark for Java programs. The existing research of the

uniﬁed DSU benchmarks concentrates on the updates

of the production systems written in lower level lan-

guages.

Dynamic Software Update is a complex problem,

so any advancement in making it more widespread is

a good step forward. Which makes the current work

of enhancing the availability of DSU solutions that

provide essential information about the predictability

and applicability of an update signiﬁcant.

7 RELATED WORK

Here we summarize prior work on dynamic software

updates focusing on alternative DSU approaches or

on the work emphasizing the safety of the updates to

provide the context for this paper.

The ﬁeld of analyzing the safety of the dynamic

updates is not particularly new, but the work is mostly

focused on safeguarding the updates to the production

and mission critical systems. Such goal requires rig-

orous proof of the safety criterias and is not focusing

on making the updating system easy and fast to use.

Gregersen et al. have identiﬁed which changes to

the Java programs can lead to observable runtime phe-

nomena (Gregersen and Jørgensen, 2011).

Bazzi et al. research the state mapping problem

for DSU and try to limit that to make practical auto-

matic solutions possible, (Bazzi et al., 2009).

Zhao et al. devise an automated static analysis

system, (Zhao et al., 2014), that suggests safe points

to developers, which can be run on the arbitrary appli-

cations without prior speciﬁcation of the original safe

points.

There also exist multiple dynamic software up-

date solutions for the JVM programs, (Subramanian

et al., 2009), (Gregersen and Jørgensen, 2009). For

example, one of the newer ones, Rubah uses bytecode

rewriting to enable dynamic update on the stock JVM,

(Pina et al., 2014). The state is transformed either ea-

gerly leveraging the parallelism of the JVM to achieve

a speedup or lazily after the update. However, Rubah

requires programmers help to make applications up-

datable, which makes it less attractive for the devel-

opment time updates.

Then there is JRebel, a state-of-the-art DSU solu-

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates

tion for JVM capableof reloading all changes to the

application, (Kabanov and Vene, 2014). However,

JRebel does not implement any non-trivial measures

to ensure runtime phenomena free updates, which

made JRebel a perfect candidate for a stock DSU so-

lution to be enhanced with Genrih.

Rather than trying to devise a generic solution ca-

pable of updating the running application at any mo-

ment of time, another approach to sanitizing dynamic

updates, is to allow developers to specify the ”qui-

escence” safe points in the application code. For

some application architectures, like the event-driven

systems, such approach, is incredibly straightforward

and does not require extensive changes to the appli-

cation architecture. Hayden et al. integrated multi-

threaded quiescence into Kitsune and experimented

with updating a real life event driven system to evalu-

ate the performance of the approach. The results sug-

gest that in an event-driven system it is relatively easy

and fast to catch all the threads into a safe point, (Hay-

den et al., 2012b).

Another Hayden et al. work focuses on techniques

for establishing the correctness of the dynamic up-

dates, (Hayden et al., 2012a). They present a method-

ology for automatically verifying the correctness of

dynamic updates using speciﬁcations provided by de-

velopers. The main approach lies in the provably cor-

rect merge transformation of the old and new versions

of the code into a merged entity; that is later analyzed

both statically and using a symbolic executor for the

correctness of the dynamic update.

Giuffrida et al. introduced a system for live up-

dates that uses time-travelling snapshot techniques to

maintain the balance and transfer the runtime state

back and forth between two versions of the code,

(Giuffrida et al., 2013). Their approach also trades

the time for an update for its safety, and not particu-

larly applicable to the development time DSU.

The main focus of the existing research on DSU is

concentrated either on making the production system

updates more timely and safe by introducing manu-

ally or statically determined safe points, or encourag-

ing to create the DSU aware applications by follow-

ing a certain programming approach. However, to the

best of our knowledge, inspecting runtime state of a

statically typed object-oriented runtime to determine

if an update is safe has not been previously discussed

in details.

8 CONCLUSION

In this paper, we investigated an approach to the

safety of the dynamic software update of the statically

typed object-oriented programs. Previous research

has determined that applying updates to the running

code on the ﬂy can result in the visible application-

level side effects due to the runtime phenomena oc-

curring after the update. The main reason for the phe-

nomena to occur is breaking application assumptions

about the runtime state because the update cannot au-

tomatically convert all the runtime state.

The main contribution of the current research

work is the design and the implementation of a run-

time analysis system that can automatically decide if

the state transformation functions of the given DSU

is sufﬁcient for the current update. It is orthogonal

to the actual solution performing the dynamic update

and depends on just a handful of information about

the update mechanics. The analysis system takes into

account the exact changes an update consist of and

the current runtime state to determine what runtime

phenomena can be observed if the update is applied

immediately.

We provided a construction of a mapping for the

types of changes to a Java program that has been iden-

tiﬁed as capable of breaking the update by introducing

an observable runtime phenomena. We implemented

a prototype of the system that is capable of predict-

ing the possibility of these phenomena occurring. The

system prototype was integrated with JRebel dynamic

updating functionality for the Java applications.

The main result of the system work is that it qual-

iﬁes the DSU friendliness for the particular updates.

At the same time, it provides preemptive feedback de-

scribing the runtime phenomena possibly caused by

the update. Together these function can eliminate a

major time waste the existing dynamic software up-

date solutions for the development environment are

susceptible to – debugging errors introduced by the

runtime phenomena of the dynamic updates.

REFERENCES

Bazzi, R. A., Makris, K., Nayeri, P., and Shen, J. (2009).

Dynamic software updates: the state mapping prob-

lem. In Proceedings of the 2nd International Work-

shop on Hot Topics in Software Upgrades (HotSWUp

’09). ACM, , NY, USA, , Article 7 , 2 pages. DOI=.

Erlang (2017). Erlang reloading documentation.

http://www.erlang.org/doc/reference manual/

code loading.html. Accessed: 2017-05-17.

Giuffrida, C., Iorgulescu, C., Kuijsten, A., and Tanenbaum,

A. S. (2013). Back to the future: fault-tolerant live

update with time-traveling state transfer. In Proceed-

ings of the 27th USENIX conference on Large Installa-

tion System Administration (LISA’13), pages 89–104,

Berkeley, CA, USA. USENIX Association.

ICSOFT 2017 - 12th International Conference on Software Technologies

Gregersen, A. R. (2011). Implications of modular systems

on dynamic updating. In Proceedings of the 14th in-

ternational ACM Sigsoft symposium on Component

based software engineering (CBSE ’11). ACM, , NY,

USA,. DOI=10.1145/2000229.2000254, pages 169–

178.

Gregersen, A. R. and Jørgensen, B. N. (2009). Dynamic up-

date of java applications - balancing change ﬂexibility

vs. programming transparency. J. Softw. Maint. Evol.,

21(2):81–112.

Gregersen, A. R. and Jørgensen, B. N. (2011). Run-time

phenomena in dynamic software updating: causes

and effects. In Proceedings of the 12th Interna-

tional Workshop on Principles of Software Evolu-

tion and the 7th annual ERCIM Workshop on Soft-

ware Evolution (IWPSE-EVOL ’11). ACM, , NY, USA,.

DOI=10.1145/2024445.2024448, pages 6–15.

Gupta, D., Jalote, P., and Barua, G. (1996). A formal

framework for on-line software version change. IEEE

Trans. Softw. Eng, 22(2):120–131.

Hayden, C. M. (2012). Clear, correct, and efﬁcient dynamic

software updates. Ph, 3543.

Hayden, C. M., Magill, S., Hicks, M., Foster, N., and

Foster, J. S. (2012a). Specifying and verifying

the correctness of dynamic software updates. In

tools, e. V. S. T. T. E. ., Joshi, R., M

uller, P., and

Podelski, A., editors, Proceedings of the 4th inter-

national conference on Veriﬁed Software: theories,

pages 278–293. Springer-Verlag, Berlin, Heidelberg,.

DOI=10.1007/978-3-642-27705-4 22.

Hayden, C. M., Saur, K., Hicks, M., and Foster, J. S.

(2012b). A study of dynamic software update quies-

cence for multithreaded programs. In 12). IEEE Press,

Piscataway, NJ, USA, pages 6–10. Proceedings of the

4th International Workshop on Hot Topics in Software

Upgrades (HotSWUp.

Kabanov, J. and Vene, V. (2014). A thousand years of

productivity: the jrebel story. Softw: Pract. Exper.,

44:105–127.

Oleg

Selajev, R. R. and Kabanov, J. (2013). Static analy-

sis for dynamic updates. ACM, New York, NY, USA.

Proceedings of the 9th Central & Eastern European

Software Engineering Conference in Russia (CEE-

SECR ’13).

Oracle (2017). Jvmti documentation.

http://docs.oracle.com/javase/8/docs/platform/jvmti/

jvmti.html#whatIs. Accessed: 2017-05-17.

Pina, L., Veiga, L., and Hicks, M. (2014). Rubah:

Dsu for java on a stock jvm. In Proceedings

of the 2014 ACM International Conference on Ob-

ject Oriented Programming Systems Languages &

Applications (OOPSLA ’14). ACM, , NY, USA,.

DOI=10.1145/2660193.2660220, pages 103–119.

Shipilev, A. (2017). Java microbenchmark harness.

http://openjdk.java.net/projects/code-tools/jmh/. Ac-

cessed: 2017-05-17.

Subramanian, S., Hicks, M., and McKinley, K. S. (2009).

Dynamic software updates: a vm-centric approach.

SIGPLAN Not, 44(6):1–12.

urthinger, T. (2010). Wimmer. In 10). ACM, New York,

NY, USA,. DOI=, pages 10–19, L Dynamic code evo-

lution for Java. In Proceedings of the 8th International

Conference on the Principles and Practice of Program-

ming in Java (PPPJ. C. and Stadler.

Zhao, Z., Ma, X., Xu, C., and Yang, W. (2014). Auto-

mated recommendation of dynamic software update

points: an exploratory study. In Proceedings of the

6th Asia-Paciﬁc Symposium on Internetware on Inter-

netware (INTERNETWARE 2014). ACM, , NY, USA,.

DOI=10.1145/2677832.2677853, pages 136–144.

Using Runtime State Analysis to Decide Applicability of Dynamic Software Updates
