Multi-robot Control Architecture for Hospital Delivery Service in

Unstable Network Environment

Seohyun Jeon and Jaeyeon Lee

Human Machine Interaction Research Group,

Electronics and Telecommunications Research Institute (ETRI), Daejeon, Korea

Keywords:

Hospital, Logistics, Delivery, Robot, Unstable, Network.

Abstract:

This paper describes the problem about controlling multiple robots in a real world when the network con-

nection is unstable. Robots are deployed at the hospital for delivery service. Robots navigate autonomously

through the hospital-wide hallway while delivering items from point to point. The delivery task is assigned

and sent to the robot by the server via wireless network. To increase the performance of using ﬂeet of robots,

online task assignment and ﬂeet optimization is required. However, the robots are frequently disconnected

with the network since the robot continuously moves and the mission area covers multiple ﬂoors. The online

communication cannot be guaranteed at all times. Therefore, this paper proposes a control architecture to cope

with such unstable network connectivity. The server has a speciﬁc message board to communicate with the

robot. Task assignment of the server or status report of the robot are transferred through this message board.

In general, the server uses a ﬁxed IP address, whereas a robot uses a dynamic IP address. Therefore, the

connection is always initiated from the robot’s side by the heartbeat message. With this architecture, the com-

munication between the server and the robot can be achieved in a partially online network environment. And,

the delivery performance of the ﬂeet of robots can be increased by the scheduler assigning the task online.

1 INTRODUCTION

An autonomous navigating mobile robot has drawn

attention for its applicability for the wide area deliv-

ery services. One of the emerging application is the

hospital delivery. A lot of various materials are trans-

ferred inside a hospital such as laboratory samples,

medicines, medical supplies, food and linen.(Ali Gur-

can Ozkil, 2009) Systems have been developed to au-

tomate these delivery, for example, pneumatic tube,

conveyor track, dumbwaiter, and automated ground

vehicle (AGV). However, these systems needs to be

installed through construction and are not easy to

modify their tracks once installed. Due to their low

ﬂexibility, many of the materials are still delivered

by the human porter in conventional hospitals. Un-

like these systems, implementation of an autonomous

mobile robot does not require special construction,

and robots can move through a human-existing en-

vironment. Therefore, hospitals are now adopting

mobile robots for the delivery service. Tug



from

Aethon and RoboCourier



from Swisslog are ma-

jor autonomous mobile robots which are developed

for the hospital delivery (Niechwiadowicz and Khan,

2008). An example of the delivery service robot can

be seen in Figure 1.

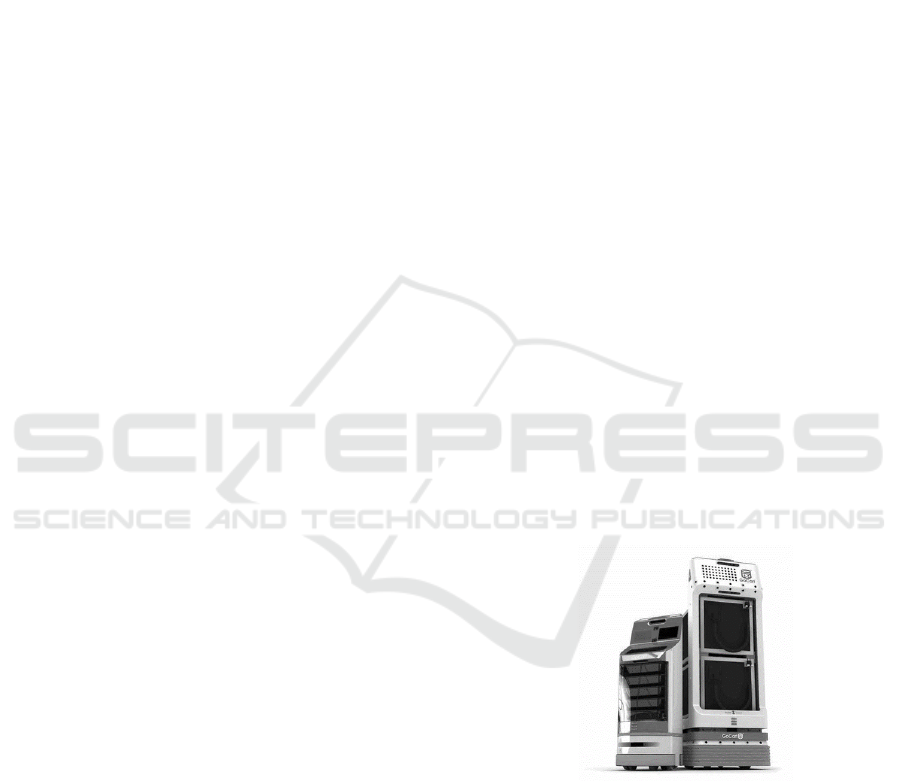

Figure 1: A delivery robot. GoCart



from Yujin Robotics

Inc.

Several hospitals adopted a ﬂeet of robots for such

delivery purpose as meals, drugs, lab results, med-

ical equipment and supplies. (Bloss, 2011) How-

ever, these robots are able to deliver only one task

at a time which is the single-task allocation (STA).

It means when a robot leaves the base station, it can-

not add more task while moving. However, if a robot

is connected to the wireless network while moving

and can receive more tasks online, the delivery per-

formance can be increased by ﬁnishing multiple de-

270

Jeon, S. and Lee, J.

Multi-robot Control Architecture for Hospital Delivery Service in Unstable Network Environment.

DOI: 10.5220/0006410502700277

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 2, pages 270-277

ISBN: Not Available

livery tasks at once. For example, if a robot is deliver-

ing a task A and a new task B within a close distance

has been requested, the robot can ﬁnish both task A

and B with not much effort for performing both tasks.

This kind of task allocation is called ’online’ multi-

task allocation (on-MTA) which a robot can receive

more tasks while moving and increases delivery per-

formance. Previous research about the online multi-

task allocation is done in (Jeon and Lee, 2016) and it

shows that the on-MTA increase the performance of

using ﬂeet of robots than STA.

To achieve on-MTA, the robot should be con-

nected to the network at all times. However, when

operating robots in real-world, maintaining the net-

work connectivity of a moving robot at all times is a

challenge job. Even though access points (APs) of the

wireless network are densely installed hospital-wide,

the network is frequently disconnected due to han-

dover of APs of the moving robot. Also, the robot’s

IP addresses can be changed when connected to a new

AP. This unstable network environment can be a criti-

cal problem for ﬂeet management since real-time po-

sitions and task statuses of robots affect overall opti-

mality of task allocation.

Many of the previous researches about control-

ling the multi-robot system assumes robots have

ﬁxed IP addresses with online connectivity.(Ren

and Sorensen, 2008)(Harrisson Fischer, 2016) There

is an approach of designing the control archi-

tecture for the hospital delivery robots assigning

a task via network communication, but it over-

looks the importance of asynchrony and unreli-

able network condition.(Yasuhisa Hirata and Kosuge,

2015) There is a research about the control archi-

tecture of non-communicative environment, but it

has a supervisor which monitors the behavior of

robots.(Alessandro Marino, 2013) However, in our

approach, there is no such supervisor that monitors

the robot’s status.

This paper proposes a control architecture of the

multi-robot system that achieves online connectivity

of robots although online connection is not guaran-

teed. In this architecture, the server has a speciﬁc

module called the ’message board (MB)’ to commu-

nicate with the robot. With this architecture, robots

can report their positions and status to the server, and

the server receives the robot’s information through

MB. The server assigns a delivery task of a robot by

posting it on MB, and the robot receives the task mes-

sage from MB. With this module, IP address of the

robot is negligible since the communication is always

initiated from the robot’s side.

Another emerging issue when operating robots in

real-world is the case when robots use common re-

sources such as an elevator. Many of the conventional

hospital allows one or two elevators for the robot-

dedicated use. In this case, the resource controller

should organize the usage when there are multiple re-

quests from different robots. Similar concept is ap-

plied for a narrow corridor and an automatic door.

Two robots cannot cross-over in a narrow corridor,

and the automatic door should maintain opened un-

til a robot completely passes-by. This kind of com-

mon resource management should be performed by

the server in an unstable network environment. The

handshaking process of the message to use the re-

source is explained in section 4.3.

The proposing architecture can cope with the real

world problem which network connectivity is unsta-

ble and the deadlock situation of multiple request

from robots to use the common resource.

2 DELIVERY SERVICE

2.1 Network Environment

In this project, the multiple robots work in a spe-

cial environment that is wide and the network is fre-

quently disconnected. When a robot moves, the han-

dover of the access point (AP) occurs and the robot

loses connection from time to time. Also, the IP ad-

dress of the robot can be changed, in case of dynamic

assignment (DHCP) of AP. Thus, the online connec-

tion between a robot and the server cannot always be

guaranteed.

On the other hand, since the server uses a ﬁxed

IP address, a robot can access to the server’s IP ad-

dress at any time when connected. Therefore, in this

delivery service architecture, the communication is

always initiated from the robot’s side. The connec-

tion is not always online, but, at least, we know that

some time the robot will be connected to the server

and receive messages. So, many of the decisions are

made by the robot itself, for example, planning the

path between delivery positions, avoiding obstacles,

controlling movements, and deciding the human in-

teraction behavior at each states. Network connection

is mandatory only when receiving the new task and re-

questing for usage of common resources. In general,

the robot reports its status to the server when possible.

To enable such communication method, the ’mes-

sage board’ concept is introduced in the server.

Whenever a robot is connected to the network, the

robot sends the heartbeat message to the server’s ﬁxed

IP address and the heartbeat includes information of

the robot about its position and status. The returning

message of the heartbeat is any message that is posted

Multi-robot Control Architecture for Hospital Delivery Service in Unstable Network Environment

271

on the ’message board’. The server uses the message

board to assign a new task and to allow resource us-

age. The detail will be discussed in Sec. 3.1.3.

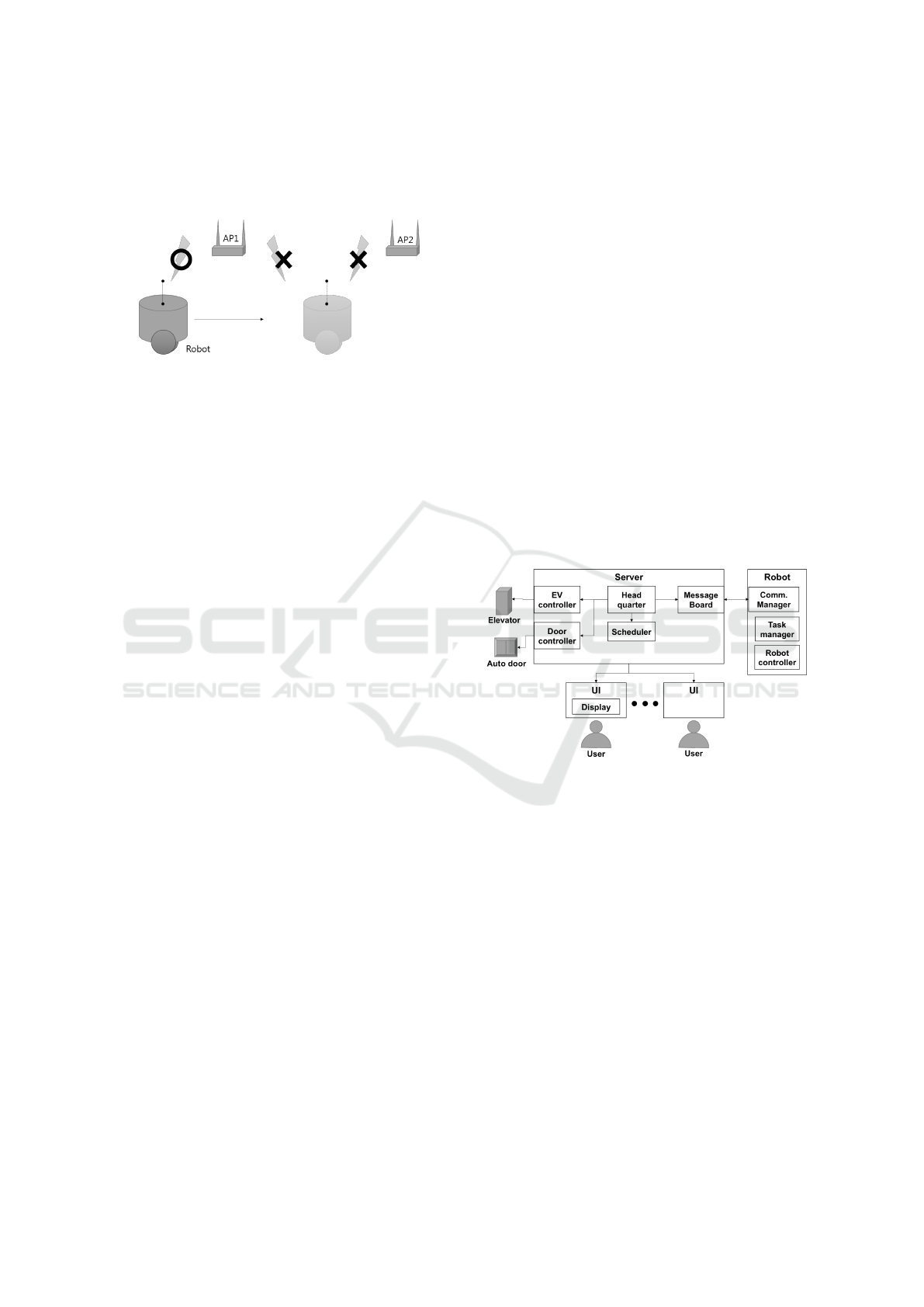

Figure 2: Network disconnection due to AP handover.

2.2 Delivery Service Scenario

The delivery contents in a hospital can be laboratory

samples, medicines, and medical supplies. Users of

the delivery service are nurses and staffs. They call

the delivery request from all around the hospital, for

example, nurses at wards on every ﬂoor, pathologists

at the laboratory, or staffs at the supply storage. They

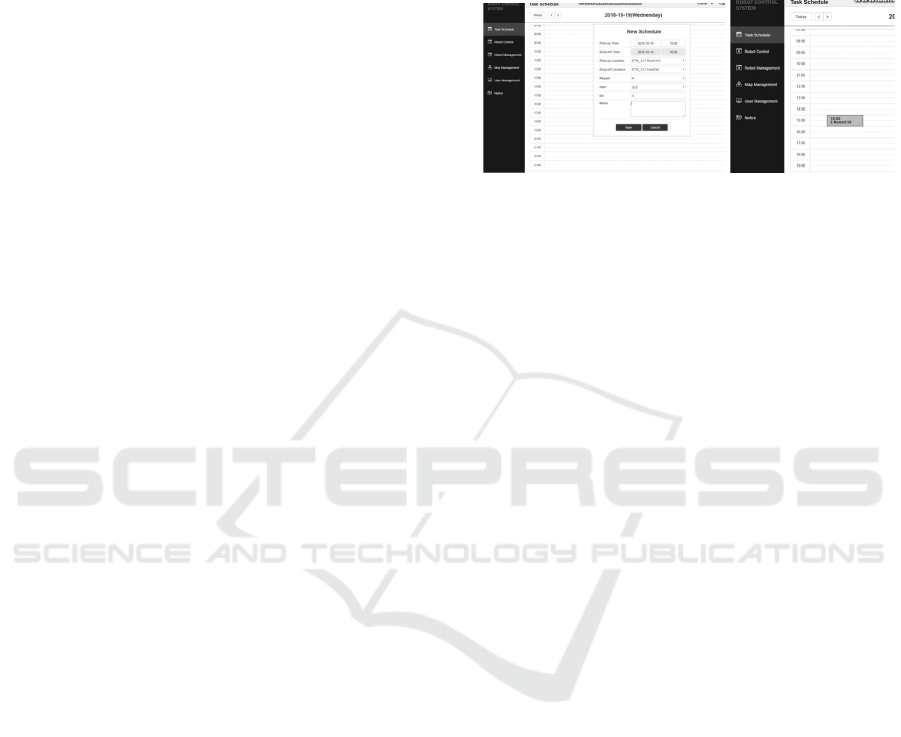

will access on a web page on their computers or an

application of mobile devices to order a delivery ser-

vice. When a user enters a delivery task through the

web site, the delivery task is sent to the server and

stored in the server’s delivery task queue. When the

requested time has reached, the robot comes at the

user to load the item and brings it to other place.

Delivery Task. The delivery task is consisted of

time, contents and pick-up and drop-off positions.

The delivery request can be either periodic or on-

demand. The delivery waypoints can be one-to-

one, one-to-many, or many-to-one places. A user

can select these delivery type by the request.

The moment when the requested time has reached,

the server calls the scheduler module inside the server

to ﬁnd an appropriate robot for the requested task.

The robot selection algorithm affects the total deliv-

ery performance and is discussed in (Jeon and Lee,

2016) and explained in Sec. 3.1.2. To sum up, the

scheduler reviews the current positions and task sta-

tus of all robots, and ﬁnds the robot that consumes

minimum cost for adding the new task.

When a robot is selected, the server assigns the

task to the robot, and the robot adds the new task in its

task queue. Assigning a delivery task to the robot are

performed based on the following sequence. When

the selection of a robot is ﬁnished by the scheduler,

the headquarter posts the task on the message board

of the selected robot ID such as ’Robot 3: Task 1,

Way points: A-B-C-D’. Whenever the 3rd robot sends

the heartbeat to the server, it receives the task as the

returning value of the heartbeat. Then, the robot gen-

erates the path between the waypoints of the task by

itself and starts delivery. The robot autonomously

moves to the pick-up point and waits for the user to

load items. When the user pushes button notifying

ﬁnished loading, the robot moves to the drop-off po-

sition and waits for unloading. If the unloading task is

ﬁnished, the robot moves to the next waypoint. This

task is repeated for the robot all day.

While delivering, there are common resources of

a building that robots use. Some of the resources can-

not be used by two robots at the same time. They

are an elevator, an automatic door and a narrow corri-

dor. These places are stored separately and managed

by the server to avoid conﬂict. When a robot arrives

at the places, the robot requests the usage of the re-

sources to the server. The server checks availability

and assigns the robot for the usage. The detail of the

resource usage procedure is explained in Sec. 4.3.

3 CONTROL ARCHITECTURE

Figure 3: The architecture of the multi-robot control system

for hospital delivery.

The proposing multi-robot control architecture for the

hospital delivery service in an unstable network en-

vironment is depicted in Figure 3. It is consisted of

a server, a UI, and a group of robots. Each agents

are connected through the network. The server man-

ages all data of robots, posts and receives messages

from robots, and controls resources such as the eleva-

tor and the automatic door. The UI is for the user to

order the delivery task from remote scattered places.

The data from UI is transmitted to the server to orga-

nize the task. A group of robots receives delivery task

from the server online and navigates the hospital au-

tonomously to perform the delivery task. A robot can

deliver more than one task at a time to increase the

delivery efﬁciency. Each agents consisting the system

is explained in detail as following sections.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

272

3.1 SERVER

3.1.1 Headquarter

The headquarter (HQ) manages all events while op-

erating robots. The updated information of robots

is managed here. It receives delivery requests from

UI and saves the delivery request in the task queue.

When, the server’s time meets the requested time, HQ

calls the scheduler and selects an appropriate robot

for the task. Then, the task is posted on the message

board. When there is a request from a robot to use a

common resource, such as an elevator or an automatic

door, HQ passes the request to the resource controller

to organize its usage.

3.1.2 Scheduler

The scheduler allocates the delivery task to an appro-

priate robot. If there is a standby robot, the sched-

uler assigns the task to the standby robot. If not, one

robot has to add the new task into its existing task

list. Which robot to add the new task is decided by

the scheduler. The inputs of the scheduler are all task

statuses and positions of robots, and the task schedule

from HQ’s task queue. The output of the scheduler

are the selected robot’s ID and its task sequence. The

task allocation algorithm selects the best robot for per-

forming the task.

The main concern of allocating a task to a robot is

minimizing the total travel distance and time. Thus,

the variables of the cost function becomes the dis-

tance. The best selected robot is the one which pro-

vides the minimum distance for performing the task

among all robots. The remaining battery and con-

tainer capacity act as constraints.

Difference in strategy of the task allocation algo-

rithm affects overall delivery performance. In this

project, we used the brute-force search method in the

algorithm to ﬁnd the minimum cost of a robot. (Jeon

and Lee, 2016) That is, the scheduler generates all

possible combinations of pick-up and drop-off posi-

tions of the task list and calculates each combination’s

distance costs. By sorting the cost, the minimum cost

is selected, and the corresponding combination be-

comes the best task sequence of the robot. By com-

paring costs of all robots, the best robot and its task

sequence is selected.

3.1.3 Message Board

The unique feature of this multi-robot system that dis-

tinguishes with other robotic system is the message

board (MB). This is a part of the server that posts

all messages from HQ and robots. And, both HQ

and robots communicate by reading the posted mes-

sage. Unlike Blackboard architecture that has been

used for years, (Rudenko and Borisov, 2007) which

serves as a database for knowledge-based decision

making, MB exist only for posting messages. Once

the message is taken by the client, it is deleted from

MB. In many of the robotic system, the communica-

tion is conducted by the server sending the message

directly to the robot’s IP address, however, in our ap-

proach, the message is transmitted indirectly via MB.

In the real operating environment, the robot’s IP

address and its network signal is vague from the

server’s point of view. On the other hand, from the

robot’s point of view, the server is apparent and uses

the ﬁxed IP address. Therefore, in this structure, the

server does not directly send a message to the robot

but only posting it on MB. Both the server and robots

communicate through this MB, regardless of the IP

address of a robot or unstable network environment.

When a robot sends the heartbeat to the server, it

receives the posted message as the returning value of

the heartbeat. The heartbeat message from the robot

includes the current position, status, task completion

status, and resource usage request. The message from

the server’s side includes the new task and permission

for the common resource usage. If a robot has to use

the elevator, the robot posts the request on the mes-

sage board. Then, the server checks MB frequently,

and passes this message between the resource con-

troller and robots. The messages are managed accord-

ing to the robot’s ID. This way online task allocation

in an unstable network environment become possible.

3.1.4 Resource Controller

Since this is a multi-robot system that covers multiple

ﬂoors, multiple requests from different robots can be

made to use the elevator. However, an elevator cannot

be used by two robots at the same time. Therefore,

the resource controller (RC) organizes these multiple

requests by either permitting the usage of the resource

or submitting the request on the queue and let the

robot to wait until the next permission. Several re-

quests can be made at the same time, however, RC

blocks other requests and permits only one usage at a

time. This way the robots can avoid deadlock situa-

tion when trying to use the resource simultaneously.

The common resources for the multi-robot system

includes an elevator, an automatic door, and a nar-

row corridor where two robots cannot move toward

each other at the same time. RC manages the entry of

robots to these resources. These common resources

are previously set during the installation of robots by

marking the resource area on the map and appointing

the waiting area in front of the resource place. The

Multi-robot Control Architecture for Hospital Delivery Service in Unstable Network Environment

273

waiting area is for the robot to wait before it is per-

mitted to enter.

3.2 Robot

3.2.1 Robot Controller

The robot controller manages general autonomous

navigation of the robot. The delivery task is a series

of waypoints. When a task is assigned to a robot, the

robot generates its path between waypoints and fol-

lows the path avoiding obstacles. It recognizes its po-

sition by sensory data. It performs the delivery task

sequence including the state change, such as move-

wait(load)-move-wait(unload). If a robot has to use

the elevator, it asks the server for the usage. Until

there is a permission from the server, the robot waits

on the waiting area. The control sequence of the re-

source usage is explained in Sec. 4.3.

3.2.2 Communication Manager

The communication manager (CM) of a robot exist

not only to send a message from a robot to the server,

but also to check whether the robot is connected to the

network. Since the working area of the robot cannot

guarantee online connectivity of the network, the CM

continuously checks the connectivity by sending the

heartbeat to the server periodically. The contents of

sending message of the heartbeat is generated by the

message handler. The returning message of the heart-

beat is anything that is posted on MB, which includes

the delivery task.

3.2.3 Message Handler

The message handler (MH) of a robot generates mes-

sages to send to the server and dispatches the message

received from CM. Any events that should be reported

to the server is managed in this module. The sending

message contains the robot’s position, status and task

completion status. When there is a need of a robot

to use the common resource, MH generates a request

message for the resource usage. The robot’s position

and status messages are refreshed to new data contin-

uously, whereas task status should obtain past history

since the last connection with the server.

MH dispatches the message received by the

server, and passes to the robot controller to behave

according to the message. If the received message is

a task, the robot performs the delivery. If the message

is permission for the resource usage, the negotiation

process for usage of resource is followed thereafter

as explained in Sec. 4.3. If there exist a returning

message of the heartbeat, which means the network

is connected and the message is sent, the MH erases

the past task completion status, and collects new task

history.

3.3 UI

(a) Task request on the web GUI (b) Schedule table

Figure 4: A screenshot of the task requesting web page.

The delivery service is requested from all around the

hospital, for example, nursing station of each ﬂoor,

supply storage, kitchen, laboratory, or anywhere the

user exists. Therefore, the user interface (UI) is sep-

arated from the server to satisfy the accessibility. UI

is an independent module that generates the task and

sends it to the server. It is preferred to be a web-page

style or a mobile application since these can be eas-

ily implemented in any system used by the hospital.

A user inputs a delivery request on UI, and the input

data is sent to the server and saved in the task sched-

ule. The example view of the web-based user inter-

face (UI) is in Figure 4. The user inputs time, user’s

and receiver’s name, contents, and pick-up and drop-

off positions.

4 COMMUNICATION

PROCEDURE

4.1 Task Assignment

When a user inputs a delivery request through UI, the

delivery task is sent to the task schedule of the server.

When the delivery time is reached, the server selects

a robot for performing the task through the scheduler,

and posts the delivery task on the message board with

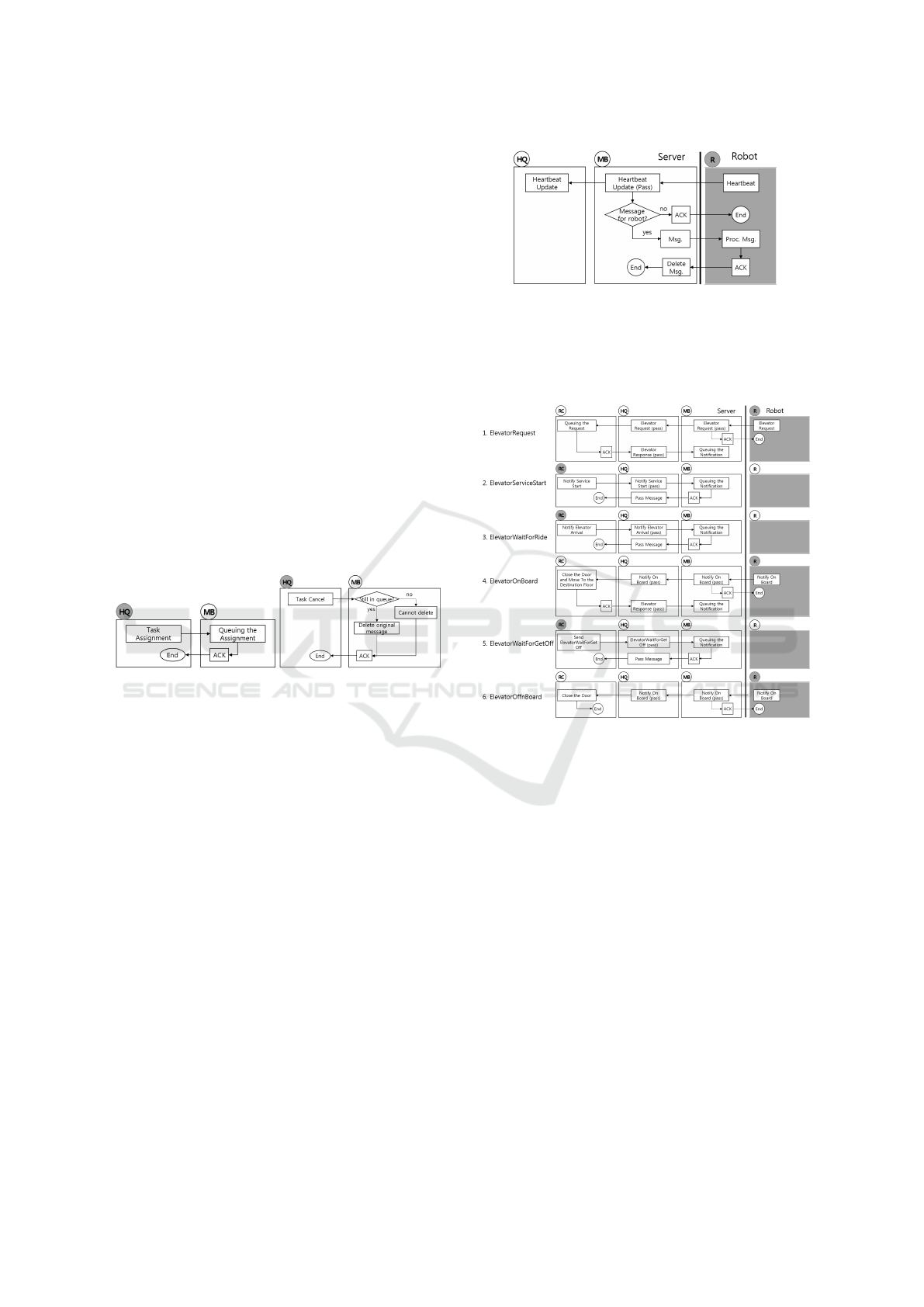

the selected robot’s ID. This procedure is depicted in

Figure 5(a).

Since the delivery task is consisted of a pick-up

and a drop-off positions, the waypoints of the task

is the list of these visiting positions. If the delivery

task includes multi-ﬂoor task, the waypoints are seg-

mented including the waiting position of the elevator.

The server provides the list of waypoints for robot,

and robot plans path between waypoints.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

274

After posting the task message on the MB, the HQ

periodically checks whether the robot has received the

task. If the robot did receive the message, the robot

returns the ’received’ acknowlegement as the return

value of the heartbeat. Unless the acknowledgement

is received, the messages is regarded as ’not received’

by the robot. If the task message is not acquired by

the robot, the server can cancel the assignment with

the timeout option to prevent stuck delivery task.

When there is a need to cancel the assigned task

from the server’s side, the server checks whether the

robot has received the task. If the robot has not re-

ceived, the server can simply retreat the assigned task

by deleting the posted message. The procedure for

canceling the task from the server’s side is depicted in

Figure 5(b). However, if a robot has already received

the task, canceling the assigned task can be compli-

cated. There is a way to retreat the assigned task at the

robot’s side by letting the robot cancel and regenerate

its task sequence by itself and reporting the cancelled

result to the server. Since this can cause confusion,

enabling robot to cancel the task by itself should be

decided by the policy.

(a) Task assignment (b) Task cancel

Figure 5: Task messages from the headquarter to the mes-

sage board.

4.2 Heartbeat from Robot to Server

When operating the robot, all communication be-

tween the server and the robot is initiated from the

robot’s side. The heartbeat message is depicted in

Figure 6. MH maintains the current information of

a robot and binds the message for sending. CM pe-

riodically sends the heartbeat message to the server

containing the information generated from MH. Since

the server maintains the ﬁxed IP address, the heart-

beat is directly sent to the server’s IP address. When

the network is connected, the information of the robot

is updated on MB. The new message on MB from the

server to the robot is received as the return value of the

heartbeat. The returning message can be a new task,

or a message related for the usage of the resource.

Figure 6: Heartbeat messages from the robot to the server.

4.3 Communication Procedure for

Using the Common Resource

Figure 7: The negotiation procedure for the usage of the

elevator.

When there is a need of a robot to use the common re-

source, the robot arrives at the waiting area and sends

the request message. The request message is posted

on MB. The HQ periodically checks MB, and when

there is a request for use the resource, HQ passes

the message to the corresponding RC. RC checks the

availability and if available, the RC sends permission.

HQ passes this permission to MB, and when the robot

receives the message from MB, the robot uses the re-

source.

Take an elevator for example, the negotiation pro-

cedure for the resource usage is depicted in Figure

7. Similar sequence is performed for other resources

such as the automatic door or the narrow corridor.

Multi-robot Control Architecture for Hospital Delivery Service in Unstable Network Environment

275

5 EXPERIMENTS

5.1 Testing Envoronment and Scenario

The proposing architecture is implemented in the

robotic system for delivery service and is tested in

the hospital. The robot is developed by ROS, and

the server is developed with web-based javascript on

Node.js. The robot and the server communicate via

RESTful. The testbed is in the Eulji hospital, Dae-

jeon, Korea. The server and UI is connected through

the wired network, and the robot is connected via

wireless network. The robotic system accessed the

hospital’s intra-network. The testing environment and

the pathway is depicted in Figure 8 and the scenario

is as follows.

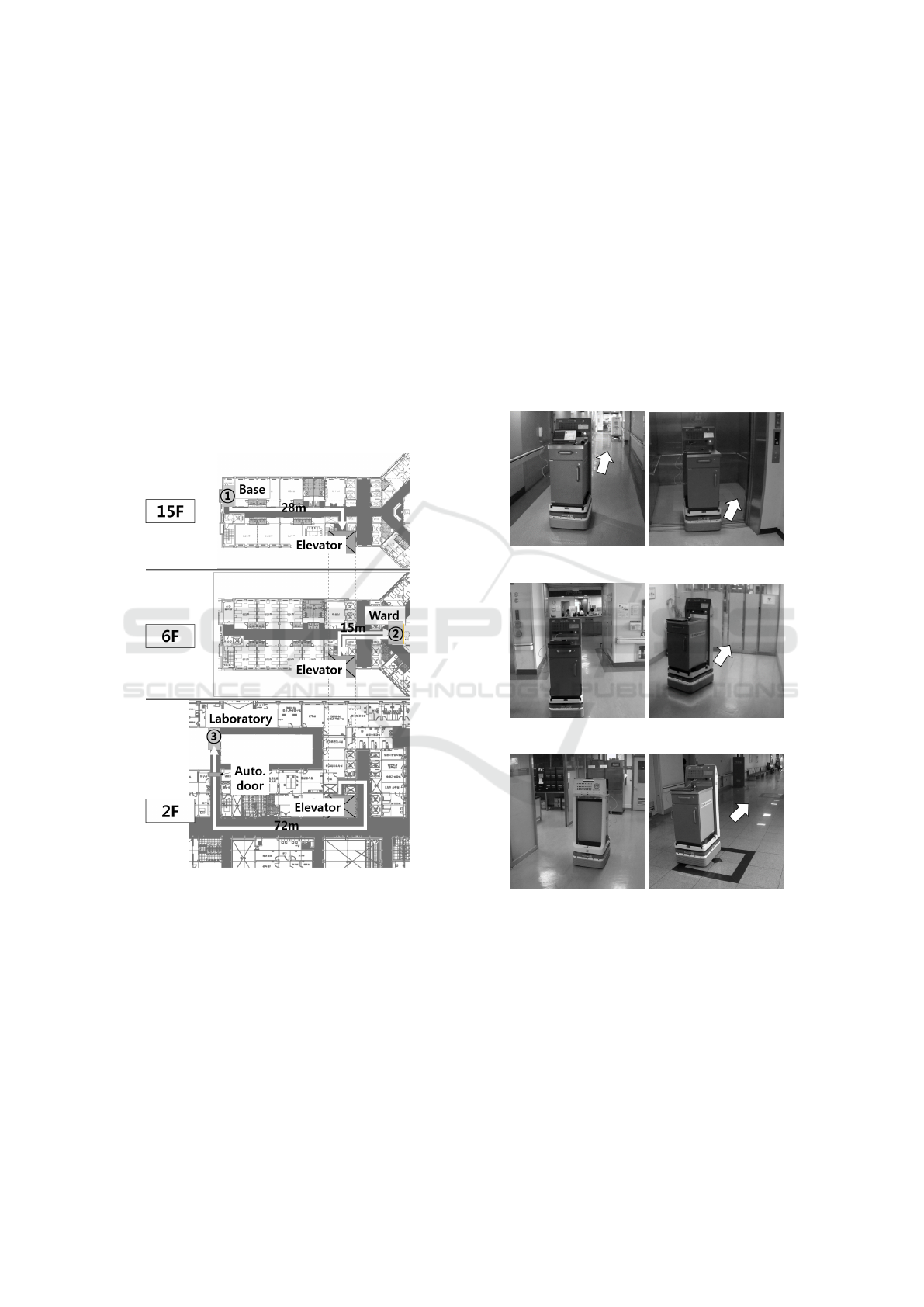

Figure 8: The testing scenario for the hospital delivery ser-

vice. The nurse at 6th ﬂoor calls the robot to deliver the

sample to laboratory at 2nd ﬂoor. The base station is at 15th

ﬂoor.

1. The delivery request is made from the ward on 6th

ﬂoor.

2. The robot starts from the base station at 15th ﬂoor.

3. The robot calls and rides the elevator, and moves

to 6th ﬂoor.

4. It arrives at the ward and loads blood samples.

5. Then, it again calls and rides the elevator to the

2nd ﬂoor.

6. It moves to the laboratory on 2nd ﬂoor by passing

through the automatic door.

7. It arrives at the drop-off station of the laboratory

and unloads the item.

8. After ﬁnishing the task, it rides the elevator and

goes back to the docking station at 15th ﬂoor.

Due to the limited number of robots, we were able

to test only with one robot. However, the proposing

network architecture was able to be tested, and the

result shows that the network communication while

moving the wide area was conducted successfully.

Additional group of robots will be tested as the ex-

tension of this research.

(a) Moving to the eleva-

tor (15F)

(b) Riding the elelvator

(15F)

the ward (6F)

(d) Passing through the

automatic door (2F)

(e) Arriving at the lab-

oratory and unloading

(2F)

(f) Moving back to the

base (2F)

Figure 9: The experiment at Eulji hospital. Sequence from

(a) to (f).

5.2 Discussion About Floor Change

Detection

While testing, we found out that recognizing the ﬂoor

change of a robot when using the elevator is surpris-

ingly challenging problem for a robot. Unlike human,

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

276

a robot cannot read the numbers in the elevator. Thus,

the robot cannot exit the elevator because the robot

is not sure that the elevator has arrived at the desired

ﬂoor. Several methods are tried to solve this problem.

One approach is the robot waits for the connection

to the network when the door is open and receives the

ﬂoor information from the server. However, connect-

ing to the network took as long as 1 minute, according

to our experiment.

Posting a marker in front of the elevator and de-

tecting with the vision sensor can be another ap-

proach. However, in this case, the marker should be

placed in the visible area where there is no obsta-

cle, and the marker should not be damaged. How-

ever, we couldn’t ﬁnd an appropriate position to place

the marker in front of the elelvator since the wall is

far and the hospital didn’t want to place any artiﬁcial

mark on the building.

Third method we tried is using the wiﬁ signal as

the ﬁngerprint of the ﬂoor. (Lee and Kim, 2016) Since

this procedure of sensing the wiﬁ signal is not for con-

nection but for matching the histogram of the obtained

signal, the result is converged in very short time, less

than 3 seconds after opening the door of the elelvator.

This way the robot can recognize the ﬂoor change as

well as save time for delivery.

6 CONCLUSIONS

This paper describes the problem about the multi-

robot control system within the unstable network en-

vironment. A ﬂeet of robots are used in the hospital

for the delivery service. To enhance the performance

of using multiple robots, online task allocation is nec-

essary. However, since the online connectivity of the

network is not guaranteed, the server cannot directly

connect to the robot. Therefore, this paper proposes

a control architecture, used in such unstable network

environment. The proposing architecture applied the

message board on the server to communicate with the

robot. All messages from both the server’s and the

robot’s sides are posted on the message board. When

a robot is connected to the network, it sends the heart-

beat to the server containing robot’s information. The

robot receives the message from the server by the re-

turning value of the heartbeat. Always, the connec-

tion is initiated from the robot’s side. This way the

robot can communicate with the server not only to re-

ceive the new delivery task, but also to request the

usage of the common resources such as the elevator.

This architecture is tested in the real hospital environ-

ment, and the communication between the robot and

the server was performed successfully. This system

will be tested with more robots with the ﬂeet opti-

mization algorithm in the future.

ACKNOWLEDGEMENTS

This material is based upon work supported by the

Ministry of Trade, Industry & Energy(MOTIE, Ko-

rea) under Industrial Technology Innovation Program.

No.10051155, ’The Development of Robot Based Lo-

gistics Systems Applicable to Hospital-wide Environ-

ment’.

REFERENCES

Alessandro Marino, Lynne E. Parker, G. A. F. C. (2013).

A decentralized architecture for multi-robot systems

based on the null-space-behavioral control with appli-

cation to multi-robot border patrolling. Journal of In-

telligent and Robotic Systems, 71(3–4):423–444.

Ali Gurcan Ozkil, e. a. (2009). Service robots for hospitals:

A case study of transportation tasks in a hospital. In

International Conference on Automation and Logis-

tics (ICAL), pages 289–294. IEEE.

Bloss, R. (2011). Mobile hospital robots cure numerous lo-

gistic needs. Industrial Robot: An International Jour-

nal, 38(6):567–571.

Harrisson Fischer, Philippe Vulliez, J.-P. G. S. Z. (2016).

An industrial standard based control architecture for

multi-robot real time coordination. In International

Conference on Industrial Informatics (INDIN), pages

207–212. IEEE.

Jeon, S. and Lee, J. (2016). Multi-robot multi-task alloca-

tion for hospital logistics. In International Conference

on Advanced Communication Technology (ICACT),

pages 339–341. IEEE.

Lee, Y.-C. and Kim, J. (2016). Multi-ﬂoor localization

method for mobile robots using elevator. In Inter-

national Conference on Control, Automation and Sys-

tems (ICCAS), pages 869–872. IEEE.

Niechwiadowicz, K. and Khan, Z. (2008). Robot based lo-

gistics system for hospitals-survey. In IDT Workshop

on interesting results in computer science and engi-

neering.

Ren, W. and Sorensen, N. (2008). Distributed coordi-

nation architecture for multi-robot formation control.

Robotics and Autonomous Systems, 56(4):324–333.

Rudenko, D. and Borisov, A. (2007). An overview of black-

board architecture application for real tasks. Scientiﬁc

Proceedings Of Riga Technical University, 5:50–57.

Yasuhisa Hirata, Y. S. and Kosuge, K. (2015). Control

architecture of delivery robot for supporting nursing

staff. In International Symposium on System Integra-

tion (SII), pages 345–351. IEEE/SICE.

Multi-robot Control Architecture for Hospital Delivery Service in Unstable Network Environment

277
