Clink

A Novel Record Linkage Methodology based on Graph Interactions

Mahmoud Boghdady and Neamat El-Tazi

Faculty of Computers and Information, Cairo University, Giza, Egypt

Keywords:

Record Linkage, Proﬁle Matching, Graph Theory, Data Quality, Call Data Record, Social Interactions, Online

Social Networks.

Abstract:

With the advent of the big-data era and the rapid growth of the amount of data, companies are faced with more

opportunities and challenges to outperform their peers, innovate, compete, and capture value from big-data

platforms such as social networks. Utilizing the full beneﬁt of social media requires companies to identify

their own customers against customers as a whole by linking their local data against data from social media

applying record-linkage techniques that differ from simple to complex. For large sources that have huge data

and fewer constraints over data, the linking process produces low quality results and requires a lot of pairwise

comparisons. We propose a study on how to calculate similarity score not only based on string similarity

techniques or topological graph similarity, but also using graph interactions between nodes to effectively

achieve better linkage results.

1 INTRODUCTION

Linking scattered data that may or may not share a

common identiﬁer requires sources to be joined to-

gether. This can be achieved by applying record-

linkage techniques that vary from simple matching,

where the common identiﬁer is available in both

sources, to complex matching, where the common

identiﬁer is missing, and it becomes more and more

complex depending on the scale and the degree of het-

erogeneity among the sources.

Since the early 1940s, scientists have been trying

to identify the record-linkage process. (Dunn, 1946)

described the foundations of modern record linkage,

also called entity resolution or de-duplication, which

is simply the process of ﬁnding records in a data

set that refer to the same entity across other data

sources. Today, with the advance of computer sys-

tems, record linkage is used in many applications,

such as customer relationship management, fraud de-

tection, data warehousing, law enforcement, proﬁle

matching, medical record linkage, and government

administration (L. Gu and Rainsford, 2003).

In this paper, we investigate the problem of link-

ing corporate local data with social networks. Our

contribution in this paper is a matching framework

able to calculate the similarity score based on com-

mon attributes and the interactions among the users

within each other with no need to further explore the

graph based features (mutual friends, mutual friends

of friends). The set of experiments and tests con-

ducted with our proposed similarity score shows a

lot of enhancements in comparison with current ones.

The remainder of the paper is organized as follows. In

Section 2, we present some related works. In Section

3, we present our proposed framework on how to en-

hance the linkage. In Section 4, we discuss the results

of the conducted experiments. Finally, we conclude

in Section 5 and describe future works in Section 6.

2 RELATED WORK

Record-linkage techniques differ from simple if then

methods to complex probabilistic methods that com-

pare each pair of records to detect whether there is a

match or not, and assign a matching score (Blakely

and Salmond, 2002).

Matching can either be an exact match, which is

based on using a common key identiﬁer in the two

data sets, or it can be calculated by applying determin-

istic record linkage, which is a match based on a set of

identiﬁers using multiple criteria to establish a match

or by using probabilistic record linkage. This is true

when two records satisfy the linkage rule and the sim-

ilarity measure is above a certain threshold (D. Dey

and Liu, 2011).

Boghdady, M. and El-Tazi, N.

Clink - A Novel Record Linkage Methodology based on Graph Interactions.

DOI: 10.5220/0006416001650171

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 165-171

ISBN: 978-989-758-255-4

165

Using Networks to link data emerged as (M. Bil-

gic and Shneiderman, 2006) presented (D-Dupe) a

tool that uses networks to perform linkage. It was

applied in scientic publications domain to use the re-

lation between authors to detect duplicates. If the

authors share very similar names and their articles’

names are also similar, then these authors are identi-

ﬁed as the same author.

(Bhattacharya and Getoor, 2007) used relation-

ships between individuals as well as the information

about attributes. For example, if two records have the

same relation (wife) of the same person this informa-

tion can affect the likelihood that the two records refer

to the same entity.

Research papers (Jupin and Shi, 2015; D. Zhang

and Gemmell, 2015; S. Randall and Semmens, 2014)

investigated the use of relations between entities to

enhance the linkage quality using the fact that if one

of two matched nodes is connected to another node,

then the connected node has a higher possibility that

it is connected to those nodes. This is called relational

similarity or collective entity resolution (Kalashnikov

and Mehrotra, 2006), which links records that share

string attribute similarities and common neighbor

nodes. For example, in a movie matching example,

movies from different sources could be matched if

they have the same featured actors.

Some researchers used private data to link pro-

ﬁles (M. Balduzzi and C.Kruegel, 2010) For example

data from Friend Finder system, while some use pub-

licly available data (G. You and Wen, 2011) based on

features extracted from the user proles (proﬁle name,

age, etc.).

(L. Ding and Joshi, 2005) used FOAF (Friend of a

Friend which is a machine-readable ontology describ-

ing persons, their activities and their relations to other

people and objects) to link the proﬁles. For example,

to match two proﬁles they must have a common email

address, full name, etc. to be linked to the exact same

person.

In (Rowe and Ciravegna, 2008) the use of social

circles of the users was explored which represent a

group of people linked to a central person using a

common relation.

(Veldman, 2009) used two models to solve the

linkage problem across two social networks. ﬁrst,

he compared all proﬁles from ﬁrst network against

all proﬁles from second network to assign a similar-

ity score, and the higher this score, the higher the

possibility that these proles related to the same per-

son. Then he calculated a network similarity based on

network topological features (mutual friends, mutual

friends of friends). This was done by determining the

overlap in the networks. The more the networks over-

lapped, the higher the network similarity score was.

(T. Iofciu and Bischo, 2011) used tags to link

users’ proﬁles, (S. Vosoughi and Roy, 2015) utilizes

users’ activity patterns (linguistic and temporal) to

match users’ accounts across diffrent social networks.

(J. Mugan and Coffman, 2014) used behaviors to

identify relationships between users and activities in

their social groups to calculate similarity.

(Goga, 2014) deﬁned (ACID) attributes availabil-

ity, consistency, non-impersonality and discriminabil-

ity to match accounts using users posts.

(S. Liu and Krishnan, 2014) introduced a HYDRA

framework which can link user accounts of the same

user across different social network platforms that uti-

lize unlabeled data.

(Y. Wang and Ren, 2015) proposed a method to

link accounts of individuals on social network sites

and online shopping sites, using accounts’ proﬁles

and user’s historical behaviors.

(O. Peled and Elovici, 2015) presented a method

to match user proﬁles across multiple OSNs. They

used a variety of features which is a combination of

name based features, user information based features

and network topological based features. They evalu-

ated their approach using real life data collected from

two OSNs, Facebook and Xing.

On our approach, we expand the linkage using

users’ activities introducing block rank (interactions

between users and each others) according to a com-

mon user in the source graphs to assign block rank

against the total interactions of this common user that

will be used to calculate the similarity score, to further

reﬁne the matching process.

3 PROPOSED FRAMEWORK

Our goal is to link social proﬁles to corporate cus-

tomers’ local data that refer to the same person. Clink

(cyclic linking) is inspired from the TF-IDF (numeri-

cal statistic that is intended to reﬂect how important a

word is to a document in a collection), which means

the more the items are referenced together, the more

related they are.

For example, in the movies data sets to investigate

the impact of block rank based on the frequency/ re-

latedness between the entities. We used the movie se-

quel Back to the Future as an example. This movie

has its information listed in two different websites

IMDB (

) and allmovie (

). Considering that the cast

members’ names are sorted in descending order based

http://www.imdb.com/

http://www.allmovie.com/

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

166

on their participation, the ﬁrst main actor has more

featured minutes (frequency) than the second main

actor as in Figure 1.

Figure 1: Movies data sets.

We assumed a block rank to contain two nodes at

a time, and higher blocks (based on the participation

on the movie) have a higher impact on the connection,

then the overall score is the number of matched names

within the block multiplied by the block rank. If we

have four blocks, then the high-rank block weight is

four, and the lowest would be one. This application

is a great way to solve the matching even for movie

sequels (movies that might have similar names) or for

movies that have missing names.

Using the two samples from the two data sources,

the probability that a movie from A dataset is matched

with a movie in B dataset will be calculated using this

formula:

∑

similarityscore ∗ blockrank

To get the score that A1 is matched with B1,

blocks are being compared against each other. So, in

case there is a match the block rank will be multiplied

by one and in case there is no match the block rank

will be multiplied by zero as follows:

ProbabilitythatA1matchesB1 =

1 ∗ 4 + 1 ∗ 4 + 1 ∗ 3 + 1 ∗ 3 + 0 ∗ 2 + 1 ∗ 2 + 1 ∗ 1 + 1 ∗ 1

= 18

Using the same rule for the remaining comparison

pairs, we can generate the following results regarding

the matching algorithm score, which accounts for the

block rank. (See Table 1.)

Table 1: Scoring matrix table.

A1, B1 (2*4) +(2*3) +(1*2) +(2*1) 18

A1, B2 (2*4) +(1*3) +(0*2) +(0*1) 11

A1, B3 (2*4) +(0*3) +(0*2) +(0*1) 8

A2, B1 (2*4) +(1*3) +(1*2) +(0*1) 13

A2, B2 (2*4) +(2*3) +(0*2) +(0*1) 14

A2, B3 (2*4) +(1*3) +(1*2) +(0*1) 13

A3, B1 (2*4) +(0*3) +(0*2) +(0*1) 8

A3, B2 (2*4) +(1*3) +(0*2) +(0*1) 11

A3, B3 (2*4) +(2*3) +(2*2) +(2*1) 20

The maximum score per each node in A, B shows

that (A1, B1), (A2, B2) and (A3, B3) are matched

even if the compared names are very similar or there

is a missing name.

Using the graph interactions between nodes,

we can group related objects in the same cluster

(O.Hassanzadeh, 2009), which means that the pos-

sibility of a match for records is proportional with

nodes that have dense connections. In our study,

we identiﬁed the weights assigned to interactions

between nodes based on the frequency of interac-

tions with the parent node in our data sources. The

higher value presents a stronger connection between

the nodes and a higher block rank (a scale from 0 to

100) which is the ceiling of the frequency percent-

age against the overall interactions to the next higher

block rank value. Block rank is dependent on the

blocking interval being used for example, using an in-

terval size of ﬁve will result into twenty blocks to be

used. So, a frequency of 89 is assigned to block rank

90 in the previous assumption.

Our algorithm uses matched pairs of nodes (par-

ent nodes) that could be a result of a previous linkage

process to explore the neighbors (child nodes) of such

nodes and the degree of relationships between them.

We propose a blocking technique to divide the nodes

based on their relation degrees with parent nodes. The

matching will be calculated based on string similar-

ity and block rank. Below, we try to explore our

algorithm on how to link network based graph data

sources with each other:

Input:

Two graphs (G1, G2) consisted of a set

of nodes (N1, N2, .), (M1, M2, ).

Nodes consist of (Parent rank with Node,

Name Attribute).

Clink - A Novel Record Linkage Methodology based on Graph Interactions

167

------------------------------------------

Output:

A similarity score matrix

between nodes from different graphs.

------------------------------------------

get list of initial nodes where parent

= 0

LOOP through each initial node

IF (child node N. Name is NULL) OR

(child node M. Name is NULL) with the

same parent nodes

THEN calculate similarity using the

formula:

similarity score = Weight*(100-abs (G1. Common

parent rank with Node N- G2. Common

parent rank with Node M)) -(10- (Average

(G1. Common parent rank with Node N,

G2. Common parent rank with Node M)/10)

END IF

Calculate similarity score for child

node N from graph G1 against child node

M from graph G2 with the same parent

and with the same Nodes in the same block

using the formula:

similarity score = Weighted Average((Average(

Cross similarity,Sentence similarity)* 10),

(100- ABS(G1. Common parent rank

with Node N - G2. Common parent rank

with Node M)))

-(10-(Average (G1. Common parent rank

with Node N, G2. Common parent rank

with Node M)/10))

WHILE there is no match with nodes with

the current block rank

LOOP calculate similarity score for

child node N from graph G1 against

child node M from graph G2 for next

block ranks (upper, lower) using the formula:

similarity score = Weighted Average((Average(

Cross similarity,Sentence similarity)* 10),

(100- ABS(G1. Common parent rank

with Node N - G2. Common parent

rank with current Node)))

-(10-(Average (G1. Common parent rank

with Node N, G2. Common parent

rank with current Node)/10))

END LOOP

We proposed two types of similarity to calculate

string similarity since the two strings are not with

equal number of words, which are the similarity be-

tween words in the two sentences (cross similarity:

max similarity per words of the fewer sentence) and

the similarity between the full two sentences (sen-

tence similarity).

For example, to calculate the similarity between

(Barack Obama) and (Barack Hussein Obama) ﬁrst,

the cross similarity will be calculated depending on

the smaller sentence as:

Table 2: Cross-words similarity.

Barack Barack 1

Barack Hussein 0

Barack Obama 0.58

Obama Barack 0.58

Obama Hussein 0

Obama Obama 1

So, cross Similarity = (1+1)/2 (max similarity per

words of the fewer sentence), and the sentence Sim-

ilarity = similarity (Sentence1, Sentence2) which is

0.81. The ﬁnal string similarity score combined will

be (0.81+1)/2 = 0.91.

And, the ﬁnal similarity score will be dependent

on the string similarity and the block rank with the

parent node in the all data sources using the below

formula:

SimilarityScore =

WeightedAverage(

(Average(Crosssimilarity,Sentencesimilarity) ∗ 10),

(100 − ABS(G1.CommonparentrankwithNodeN

− G2.CommonparentrankwithNodeM))

)

And to indicate that higher block ranks is better

than lower ones we added this portion to our equa-

tion:

SimilarityScore =

WeightedAverage(

(Average(Crosssimilarity,Sentencesimilarity) ∗ 10),

(100 − ABS(G1.CommonparentrankwithNodeN

− G2.CommonparentrankwithNodeM))

)

− (10 − (Average(

G1.CommonparentrankwithNodeN,

G2.CommonparentrankwithNodeM)/10))

Our algorithm only compares nodes within the

same blocks, and in some cases with next subsequent

blocks (in case there is no match within the same

block). So, it reduces the total number of required

comparisons in regard of comparing whole graphs.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

168

However, it requires pre-time for forming the graph

and calculating block rank per each node, which is an

ofﬂine operation that will be conducted once as a step

of data preprocessing to format and prepare data to be

used as input for the matching process.

4 IMPLEMENTATION AND

EXPERIMENTATIONS

In this section, we presented our approach. and ex-

plained the results of experiments to prove the rele-

vance of our proposal.

4.1 Datasets

This study was conducted using Vodafone Egypt cor-

porate data (approximately 40 million records) and

data from Facebook related to the fan page (approx-

imately 6 million records) for social data integra-

tion. Both the data sources have (name, gender, in-

teractions) to be used as matching attributes. Each

data source has its own interactions between entities.

Vodafone has call-data records (CDRs) like voice call

and SMS, and for Facebook, there are interactions

such as comments and likes. Table 3 represents the

common attributes in both data sets. Figure 2 repre-

sents the interactions inside the two graphs.

For initial parent nodes and for testing results, we

used social media registered customers using their lo-

cal proﬁle (approximately 1.2 million records).

Table 3: Datasets common attributes.

Birthday

Current city

Emails

Gender

Hometown

Language

Name

Religion

4.2 Evaluation Strategy

4.2.1 Data Preperation

We applied a set of data cleansing steps to enhance the

data quality, and to avoid any misleading behavior, we

used rosette API for names’ translation to unify the

language across the whole data sets (

https://developer.rosette.com/api-doc/name-translation/

runNameTranslation

Figure 2: Facebook vs. CDR Graphs.

Then a set of data cleansing steps conducted to

generate the analytic data that will be used as input

for the matching process.

• Spell checking to avoid structural problems that

may arise due to spelling errors. For example, a

name can be written as Ahmed or Ahmet.

• Words representation improvement by capturing

different representations of a single word with the

same meaning or the same name. For example, a

name can be written as Mohamed or Muhammed.

4.2.2 Building the Graph and Assigning Block

Rank

We used Facebook API to get public posts for the

parent nodes to draw interactions to assign the block

rank between nodes. Using parent nodes which are

the matched set, or result from a previous matching

algorithm, we calculated the block rank for all the

descending child nodes in the two graphs based on

the total number of interactions (likes, comments and

shares) in Facebook graph. (Check Figure 3 we used

User 2 as the parent node).

4.2.3 Similarity Score

Using the block rank and applying Clink methodolo-

gies we conducted our similarity score between the

Vodafone base customers and Facebook users’ pro-

ﬁles. Also, we selected a different ﬁve nodes from

Vodafone data sets that happens to have all of its child

nodes and 3rd level child nodes to have a Facebook

proﬁle. First we applied the total similarity score

based on string similarities between records that be-

long to the same cluster (are child or grandchild nodes

for the same parent node) and secondly we added a

condition to have a similar network topological graph

Clink - A Novel Record Linkage Methodology based on Graph Interactions

169

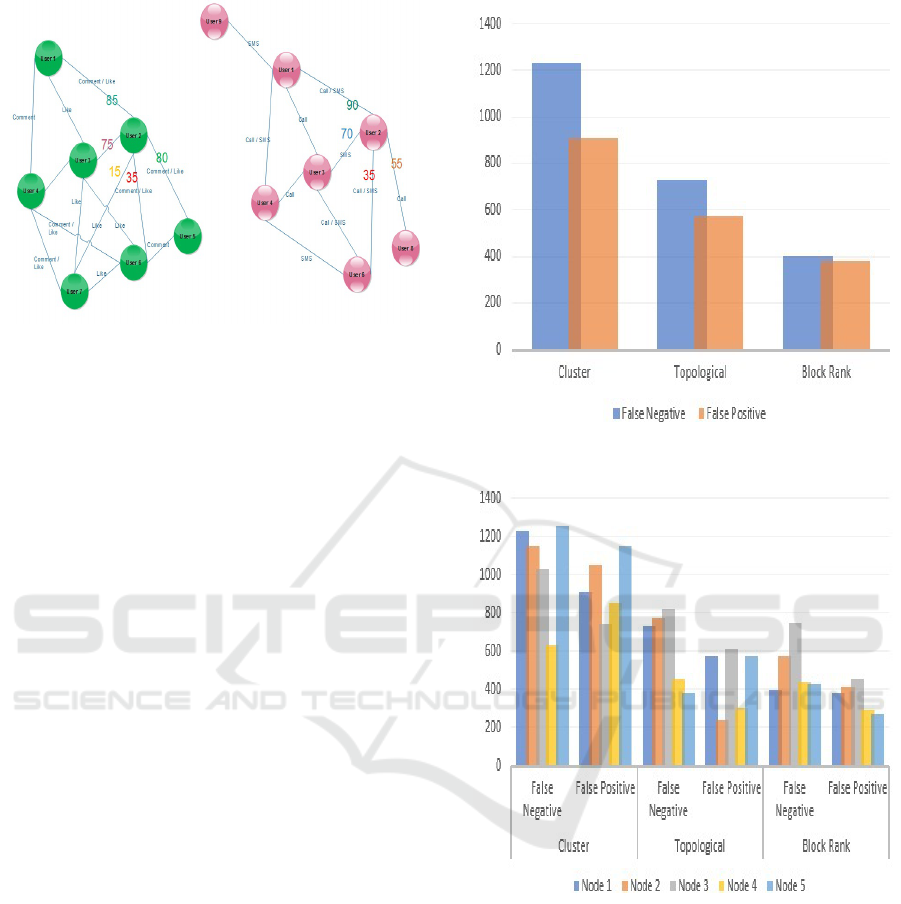

Figure 3: Block ranks.

(that have at least 3 mutual nodes or 1 mutual nodes

and 4 mutual of mutual nodes) and at last we calcu-

lated the similarity score based on the string similarity

and the block rank, as records that exceeds a similarity

threshold of 90 % are considered as new parents for

next step and records that exceeds the threshold are

considered to be a potential match (to be conﬁrmed

based on the number of co-occurrence using a differ-

ent parent). we used a cutoff threshold of 40 % to

consider the records as a match or not.

4.2.4 Results

For assessment, we divided the pre-matched accounts

into two sets (training 40 %-testing 60 %). Then we

calculated the percentage of successful matches ap-

plying text similarity on the testing set and it was

36.3 %. And used the training set as parent nodes

to calculate similarity and it showed that over 62.2%

are matched correctly. Also, we picked ﬁve ran-

dom nodes to draw more comparisons between dif-

ferent techniques and assessed the results based on the

number of false results (false positive -false negative)

found in the results. (check ﬁgures 4, 5). First, we cal-

culated similarity only based on text similarity within

the same cluster (all nodes that interact with the par-

ent node), Then we applied more graph exploration

and calculated text similarity if the nodes are in the

same cluster and share at least two common Childs,

Last, we calculated similarity using text similarity and

block rank within the parent cluster. With topologi-

cal graph similarity, we managed to decrease the to-

tal error rate, but more data are required to achieve

good results and the graph size should be similar in

the two sets. Results shows even when the number of

attributes is limited block rank can represent differ-

ent societies interactions in a uniﬁed form that helps

to enhance the linkage results using only one level of

graph exploration.

Figure 4: Single sample result.

Figure 5: Overall results.

5 CONCLUSION

In the era of big data, data is being generated each

minute in many formats and in different sources, such

as e-mails, tweets, SMSs, blog posts, social media

content, and ﬁnancial, medical, shopping, and travel

transactions. Yet it belongs to the same entities that

would reﬂect the local cooperate customers, and with

advances in modern computer systems, it is applica-

ble to link data from those sources to gain better in-

sight into and understanding of these entities. The

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

170

major challenge is that there are no unique identiers

between the huge data sources that have different At-

tributes. By applying graph analysis, the two sources

can be joined together by removing the records that

are obviously not a match or by proposing records that

appear together many times, which indicate potential

matching.

Our proposed solution enhances the quality of re-

sults and reduces the total number of required com-

parisons by using the weights and frequency relations

between nodes to decide whether there is a match.

The total number is signiﬁcantly reduced since the

comparing step is not against the whole cluster. Using

record linkage, along with graph analysis, shows a lot

of opportunities and a very promising area of study.

6 FUTURE STUDIES

Using the block rank shows a lot of potential opportu-

nities, yet it will be further explored and investigated

to enhance the overall similarity score by ﬁnding the

best formula of the weighted average between string

similarity and block rank similarity, depending on the

availability and rareness of attributes being matched.

Also, we will enhance the block rank ranges which

will divide the whole space to several blocks, we will

try to ﬁnd a relation between the ranges and the nodes

interactions within the graph.

REFERENCES

Bhattacharya, I. and Getoor, L. (2007). Collective entity

resolution in relational data. ACM Transactions on

Knowledge Discovery from Data.

Blakely, T. and Salmond, C. (2002). Probabilistic record

linkage and a method to calculate the positive predic-

tive value. International Journal of Epidemiology.

D. Dey, V. M. and Liu, D. (2011). efﬁcient techniques for

online record linkage. IEEE Transactions on Knowl-

edge and Data Engineering.

D. Zhang, B. R. and Gemmell, J. (2015). Principled

graph matching algorithms for integrating multiple

data sources. IEEE Transactions on Knowledge and

Data Engineering.

Dunn, H. (1946). Record linkage. American Journal of

Public Health and the Nations Health.

G. You, S. Hwang, Z. N. and Wen, J. (2011). Socialsearch

enhancing entity search with social network matching.

In Proceedings of the 14th International Conference

on Extending Database Technology.

Goga, O. (2014). Matching user accounts across online so-

cial networks methods and applications. Laboratoire

d’Informatique de Paris.

J. Mugan, R. Chari, L. H. E. M. M. S. Y. Q. and Coffman, T.

(2014). Entity resolution using inferred relationships

and behavior. IEEE International Conference on Big

Data (Big Data).

Jupin, J. and Shi, J. (2015). A proposition for resilient

graph-based record linkage using parallel processing

on distributed networks. Resilience Week.

Kalashnikov, D. and Mehrotra, S. (2006). Domain-

independent data cleaning via analysis of entity-

relationship graph. ACM Transactions on Database

Systems.

L. Ding, L. Zhou, T. F. and Joshi, A. (2005). How the

semantic web is being used an analysis of foaf doc-

uments. in Proceedings of the 38th Annual Hawaii

International Conference on System Sciences.

L. Gu, R. Baxter, D. V. and Rainsford, C. (2003). Record

linkage: Current practice and future directions. Com-

monwealth Scientiﬁc and Industrial Research Organi-

sation, Mathematical and Information Sciences.

M. Balduzzi, C. T. E. D. and C.Kruegel (2010). Abusing

social networks for automated user proling. Springer

Recent Advances in Intrusion Detection.

M. Bilgic, L. Licamele, L. G. and Shneiderman, B. (2006).

D-dupe: an interactive tool for entity resolution in so-

cial networks. IEEE Symposium on Visual Analytics

Science and Technology.

O. Peled, M. Fire, L. R. and Elovici, Y. (2015). En-

tity matching in online social networks. International

Conference on Social Computing.

O.Hassanzadeh (2009). Framework for evaluating

clustering algorithms in duplicate detection.

Proc.VLDBEndowment2.

Rowe, M. and Ciravegna, F. (2008). Disambiguating iden-

tity through social circles and social data. in Collective

Intelligence Workshop ESWC 2008.

S. Liu, S. Wang, F. Z. J. Z. and Krishnan, R. (2014). Hydra

large scale social identity linkage via heterogeneous

behavior modeling. In Proceedings of ACM SIGMOD

International Conference on Management of Data.

S. Randall, J. Boyd, A. F. and Semmens, J. (2014).

Use of graph theory measures to identify errors in

record linkage. Computer Methods and Programs in

Biomedicine.

S. Vosoughi, H. Z. and Roy, D. (2015). Digital stylometry

linking proles across social networks. International

Conference on Social Informatics.

T. Iofciu, P. Fankhauser, F. A. and Bischo, K. (2011). Identi-

fying users across social tagging systems. In ICWSM.

Veldman, I. (2009). Matching proles from social network

sites. University of Twent.

Y. Wang, J. Li, Q. L. and Ren, Y. (2015). Prediction of

purchase behaviors across heterogeneous social net-

works. Supercomput.

Clink - A Novel Record Linkage Methodology based on Graph Interactions

171
