Program Execution Analysis using UserAssist Key in Modern Windows

Bhupendra Singh and Upasna Singh

Department of Computer Science and Engineering, Defence Institute of Advanced Technology (DU), 411025, Pune,

Maharashtra, India

Keywords:

UserAssist, Windows Registry Forensics, User Activity Analysis, Program Execution Analysis, Malware

Analysis.

Abstract:

The construction of user activity timeline related to digital incident being investigated is part of most of the

forensic investigations. Sometimes, it is desirable to know the programs executed on a system, and more

importantly, when and from where these programs were launched. Program execution analysis is very mean-

ingful effort both for forensic and malware analysts. The UserAssist key, a part of Microsoft Windows registry,

records the information related to programs run by a user on a Windows system. This paper seeks thorough

investigation of UserAssist key, as a resource for program execution analysis. In this paper, the binary struc-

ture of UserAssist key in modern Windows (Windows 7/8/10) is presented and compared with that in older

versions of Windows (e.g., Windows XP). Several experiments were carried out to record the behavior of

UserAssist key when programs were executed from various sources, such as USB device, Windows store and

shared network. These artifacts were found to persist even after the applications have been uninstalled/deleted

from the system. In the area of program execution analysis, the paper highlights the forensic capability of

UserAssist key and compares it with that from similar sources, such as IconCache.db, SRUDB.dat, Prefetch,

Amcache.hve and Shortcut (.lnk) ﬁles, in order to summarize what information can and cannot be determined

from these sources.

1 INTRODUCTION

In digital forensic investigations, it is sometimes es-

sential to carry out program execution analysis on a

suspected system to know recently run programs and

their execution history. Program execution analysis

is helpful in detection of anti-forensic tools executed

to thwart forensic examinations. Malware programs

have to run before hiding or sending data remotely,

thus, program execution analysis may be an impor-

tant asset to identify them. The UserAssist key, a part

of Windows registry, is a very useful resource in the

area of program execution analysis to analyze what

programs were recently run and their executions his-

tory (Carvey, 2005), (Carvey, 2011). The information

obtained from UserAssist key can also be leveraged

in construction of forensic timeline of user activities.

Program execution analysis and their usefulness

in forensic investigations have been widely discussed

in various literature published. The evidence of run-

ning programs on a Windows system can be found

in numerous log ﬁles including Prefetch, Pageﬁle.sys,

Event logs, NTFS USN journal, Registry keys, Jump

Lists etc. (Eterovic-Soric et al., 2017). The pat-

terns of anti-forensic tools designed to delete artifacts

or prevent artifacts can also be determined using the

NTFS USN change journal (Lees, 2013) (Talebi et al.,

2015). The authors in (Singh and Singh, 2016a) have

shown the traces of recently accessed ﬁles and run ap-

plications in Jump Lists on Windows 10 system. They

demonstrated that the traces of run applications per-

sist even after the applications are removed from the

system. In (Wong, 2007), the author has described

that numerous artifacts related to run programs on

Windows system are recorded in UserAssist registry

key. According to (Carvey, 2016), not all applica-

tions create their existence in the Windows registry.

For instance, some peer-to-peer applications do not

rely on registry to store information, instead, they use

conﬁgurations ﬁles due to the fact that these appli-

cations are cross-platform and Java-based. The au-

thors in (Mee and Jones, 2005), (Carvey and Altheide,

2005), and (Mee et al., 2006) have investigated the

UserAssist key to identify the external devices that

have been connected to the system in order to run a

malware program or an anti-forensic tool. In (Col-

lie, 2013), the author has examined the evidential po-

tential of Windows IconCache.db ﬁle and found that

420

Singh, B. and Singh, U.

Program Execution Analysis using UserAssist Key in Modern Windows.

DOI: 10.5220/0006416704200429

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 420-429

ISBN: 978-989-758-259-2

IconCache.db ﬁle stores artifacts related to executable

ﬁles when they are present on or run from USB con-

nectable devices. Further, The author in (Lee and

Lee, 2014) identiﬁed the structure and highlighted

the importance of IconCache.db ﬁle in forensic in-

vestigations. The authors demonstrated that Icon-

Cache.db ﬁle stores full ﬁle paths for executable ﬁles

that have been run, viewed, or installed on a Windows

system. In (Khatri, 2015) the author examined the

SRUDB.dat ﬁle in Windows 8, as a new database for

tracking user activities and linking launched programs

by users. The author has demonstrated the usefulness

of SRUDB.dat database in forensic investigations by

tracking Windows store app runs, tracking processes

run from external media devices, tracing deleted pro-

cesses and anti-forensic tools. In (Singh and Singh,

2016b), the authors demonstrated the traces of run ap-

plications in Windows Amcache.hve registry hive and

their utilization in forensic investigations.

2 UserAssist KEY IN WINDOWS

Microsoft Windows OS implements various logging

and error reporting mechanisms to have a record

of how system is being used. This information is

logged at numerous hidden locations on hard drive to

make OS more interactive and user-friendly. These

logs can serve as forensic “nuggets” to analysts to

exploit. The UserAssist key, a part of Windows

registry, was ﬁrst introduced in Windows NT4 and

continued in later versions of Windows including

Windows 10. The UserAssist key is maintained by

Microsoft in each user’s NTUSER.DAT hive ﬁle at

the following ﬁle path (on all versions of Windows):

Software\Microsoft\Windows\CurrentVersion

\Explorer\UserAssist or, on live com-

puter system, at \HKCU\Software\Microsoft

\Windows\CurrentVersion\Explorer \UserAssist.

Beneath the UserAssist key, there are atleast two

subkeys (same across platform, but may be more in

different version of Windows) which represent glob-

ally unique identiﬁers (GUIDs). Each GUID key con-

tains a subkey called ‘Count’ under which the ac-

tual values are stored in obfuscated manner (Stevens,

2010). There is no available Microsoft document

detailing inside the method and the purpose of ob-

fuscating the values inside Count subkey; however,

researchers (AccessData, 2008) in forensic commu-

nity have identiﬁed that these values can be decoded

into readable format using ROT-13 algorithm. There

are publicly available script and GUI tools (Stevens,

2006) (Carvey, 2013) (Zimmerman, 2015) to parse

the UserAssist key. The UserAssist key, its subkeys,

and their analysis in Windows XP and Windows 7

have been widely discussed in (AccessData, 2008)

(Pullega, 2013).

The next subsections describe about the GUIDs

and their meaning, followed by the comparison of bi-

nary data structure of UserAssist key in different ver-

sions of Windows.

2.1 Windows XP and Vista

In Windows XP and Vista, UserAssist keys bi-

nary data contains information for the applications

launched by a user only via Windows Explorer. In

these versions of Windows, following GUIDs key

were observed beneath UserAssist key which are

common across the same platform:

• {0D6D4F41-2994-4BA0-8FEF-

620E43CD2812}- A key that appears to be

speciﬁc to Internet Explorer 7 (IE7).

• {5E6AB780-7743-11CF-A12B-

00AA004AE837}- IE favorites and other IE

toolbar objects.

• {75048700-EF1F-11D0-9888-

006097DEACF9}- A list of applications,

ﬁles, links, and other objects that have been

accessed.

Below is the list of few frequently used UEME-

strings in Windows XP (Pullega, 2013):

• UEME CTLSESSION: This entry is for the ses-

sion ID, it does not hold data about executed pro-

grams.

• UEME

UIQCUT: This entry counts the programs

launched via Quick launch menu shortcut.

• UEME UISCUT: This entry counts the programs

launched via Desktop shortcut.

• UEME RUNCPL: This entry keeps data about ex-

ecuted control applets (.cpl).

• UEME RUNPATH: This entry keeps data about

executed programs.

• UEME RUNPIDL: This entry keeps data about

executed PIDLs.

• UEME UITOOLBAR: This entry keeps data

about clicks on the Windows Explorer Toolbar

buttons.

In Windows XP and Vista, it is easier to de-

termine how an application was launched. For

instance, the path information for cmd.exe when

decoded using ROT-13 method, was recorded un-

der UserAssist key value as UEME RUNPATH:

C\Windows\system32\cmd.exe.

Program Execution Analysis using UserAssist Key in Modern Windows

421

2.2 Windows 7 and Higher Versions

On a Windows 7 system, only two GUID keys (differ-

ent from Windows XP) were observed as below:

1. {CEBFF5CD-ACE2-4F4F-9178-

9926F41749EA}- A list of applications, ﬁles,

links, and other objects that have been accessed.

2. {F4E57C4B-2036-45F0-A9AB-

443BCFE33D9F}- Lists the shortcut links

used to start programs.

However, on Windows 8 and higher versions, nine

GUID keys including above two keys, were ob-

served under UserAssist key. The UEME-strings

are reduced in Windows Vista and further re-

duced in Windows 7 and higher versions. Only

two UEME-strings: UEME CTLCUACount:ctor and

UEME CTLSESSION are remained in Windows 7-10.

2.3 Structure of Binary Data

The most signiﬁcant change of UserAssist keys in

Windows 7 was a new format for binary data. In Win-

dows 7, the size of the binary data was observed to be

72 bytes as opposed to 16 bytes in Windows XP/Vista

(Stevens, 2010). This structure appears to be same

in modern Windows (Windows 7-10). Figure 1 illus-

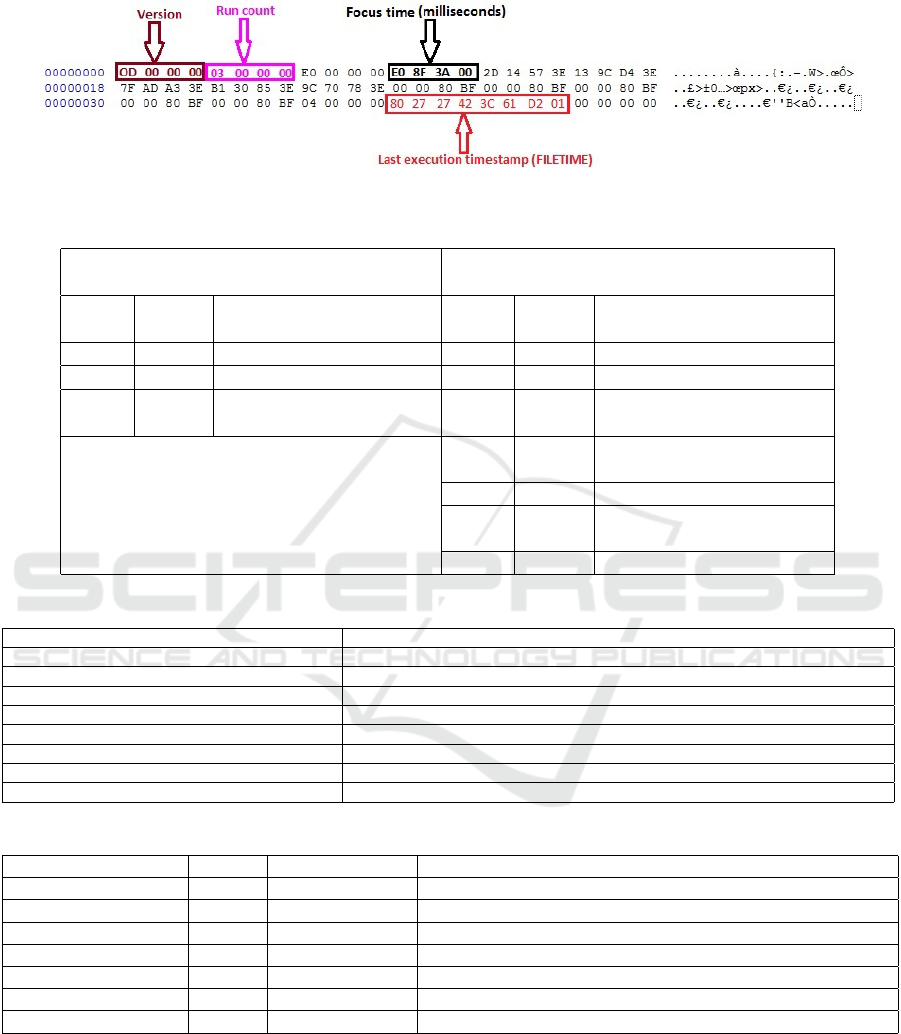

trates the binary structure of a UserAssist key entry in

Windows 10 Pro v1607 system and compares it with

that in Windows XP (refer to, Table 1). The newly

added ﬁelds can signiﬁcantly effect the investigations,

as the new binary structure contains a great deal of

information. The ﬁrst four bytes identiﬁes a session

that appears to vary across same platform. The next

four bytes starting at offset 4, represents a counter that

increments upon program execution. Thus, this at-

tribute can supply background information on the fre-

quency applications have been executed on the sys-

tem. For a certain application, this value differs from

corresponding Prefetch ﬁle run count, as UserAssist

key is user-speciﬁc while Prefetch is not. On a Win-

dows XP/Vista machine, the run count starts with the

number ‘5’ as default value. So if we are manually

parsing this data, remember to subtract 5 from the run

counter when dealing with these machines. The new

structure can reveal the focus time (in milliseconds)

an application had. This can provide information of

how long a program (benign or evil) was being ex-

ecuted on the system by a particular user. The last

execution timestamp (in FILETIME) when decoded

can provide the date and time when the application

was last time executed.

In modern Windows, the UserAssist key also

keeps track of applications how they were launched.

For instance, the path information for cmd.exe

when decoded using ROT-13 method, is recorded

under UserAssist key value as 1AC14E77-02E7-

4E5DB744-2EB1AE5198B7\cmd.exe. Unlike in

Windows XP, UEME RUNPATH: strings appeared

to be missing in modern Windows. However, new

GUIDs were introduced to keep track of applica-

tions how they were launched. 1AC14E77-02E7-

4E5DB744-2EB1AE5198B7 GUID corresponds to

C:\Windows\System32. Table 2 presents the List of

known folders and their associated GUIDs in modern

Windows.

3 METHODOLOGY

The following subsections describe the objective of

the study, research methodology, tools, and the exper-

iments formulated in accordance with the objective.

3.1 Objective

The objective of this study is to investigate the behav-

ior of the UserAssist key, as a result of installing or

launching applications from various possible ways. It

will also examine the artifacts being created and re-

tained in UserAssist key when application are exe-

cuted from Window store (in Windows 8+) and shared

network. The effects of anti-forensic activities on

UserAssist key are also taken into consideration.

3.2 Research Methodology

The research in this article was approached through

observation and experimentation. For analyzing the

behavior of UserAssist key, several experiments were

conducted on six test computers (three hosts and

three virtual machines) running different versions of

Windows system including Windows 7 Professional

SP1, Windows 8 Pro and Windows 10 Pro v1607.

The clean environment for each virtual machine

was created using VMWare Workstation v11.1.0.

NTUSER.DAT ﬁle from each virtual machine was ex-

tracted from virtual hard disk using FTK imager while

the same from each host machine was extracted using

a live boot USB of Ubuntu 16.04 LTS following the

system shutdown. This is authors opinion that this is

the best method to analyze the behavior of UserAs-

sist key due to the fact that installing (and hence for

analysis) any forensic tool, such as FTK, Encase etc.

would modify the content of UserAssist key.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

422

Figure 1: Binary data structure of a UserAssist key entry in Windows 10 Pro v1607 system.

Table 1: Comparison of UserAssist key binary data structure in older and modern Windows.

Binary data structure in Windows XP Binary data structure in Windows 7-10

Offset

Size

(bytes)

Description Offset

Size

(bytes)

Description

0-3 4 Identiﬁes a session 0-3 4 Identiﬁes a session

4-7 4 Run count (starts at 5) 4-7 4 Run counter (starts at zero)

8-15 8

Last execution timestamp

(in FILETIME)

8-11 4 Focus count

12-15 4

Total time an application

had focus (milliseconds)

16-59 44 Unknown

60-67 8

Last execution timestamp

(in FILETIME)

68-72 4 Always ‘0x00000000’

Table 2: List of known folders and their associated GUIDs in modern Windows.

GUIDs Corresponding Folders

1AC14E77-02E7-4E5D-B744-2EB1AE5198B7 C:\Windows\System32

6D809377-6AF0-444B-8957-A3773F02200E C:\Program Files

7C5A40EF-A0FB-4BFC-874A-C0F2E0B9FA8E C:\Program Files (x86)

F38BF404-1D43-42F2-9305-67DE0B28FC23 C:\Windows

0139D44E-6AFE-49F2-8690-3DAFCAE6FFB8 C:\ProgramData\Microsoft\Windows \Start Menu\Programs

9E3995AB-1F9C-4F13-B827-48B24B6C7174 %AppData%\Roaming\Microsoft\Internet Explorer\Quick Launch\User Pinned

A77F5D77-2E2B-44C3-A6A2-ABA601054A51 %AppData%\Roaming\Microsoft\Windows \Start Menu\Programs

D65231B0-B2F1-4857-A4CE-A8E7C6EA7D27 C:\Windows\SysWOW64

Table 3: Software tools used in study.

Software tool Version Developer Purpose

VMWare Workstation 11.1.0 VMWare To create a virtual machine of Windows operating systems

FTK imager 3.4.2.6 AccessData To extract NTUSER.DAT ﬁle from virtual hard disk

Registry Explorer 0.8.1.0 Eric Zimmerman To parse and view the contents of ofﬂine NTUSER.DAT ﬁle

UserAssist 2.6.0.0 Didier Stevens To parse and view contents of UserAssist key of a live system

Registry Editor 5.00 Microsoft To modify or delete registry subkeys and values

DCode

4.02a DCode Solutions To calculate date/time values from binary data

HxD Hex Editor

1.7.7.0 Mael Horz To view/modify raw content of Amcache.hve ﬁle

Available from: http://www.digital-detective.net/digital-forensic-software/free-tools/

Available from: https://mh-nexus.de/en/hxd/

Program Execution Analysis using UserAssist Key in Modern Windows

423

3.3 Tools Used in Study

The software tools used in this research and their pur-

pose are summarized in Table 3.

3.4 Experiments

A number of experiments were formulated to ascer-

tain information required for the objective. These ex-

periments were performed on both type of systems to

validate the results highlighted in the subsequent sec-

tion. Below are the research questions that need to

answer through experiments and observations:

• What information is stored when host-based ap-

plications are executed?

• What are the effects of installing or uninstalling

applications on UserAssist key?

• What information is stored when portable appli-

cations are run from various sources such as USB

drives and shared network?

• What are the effects of anti-forensic attempts per-

formed on UserAssist key?

• What are the effects of creating a new user ac-

count?

3.4.1 Experiment 1 - Running Host-based

Applications

This experiment was performed to determine the ef-

fects on UserAssist key when host-based applica-

tions are run on a Windows system. For this, we

executed different host-based applications, such as

Notepad, Wordpad, Run, Microsoft Edge, Windows

Media Player etc. via all possible ways of launching.

Note that the applications used are merely examples

and can be substituted with countless others. These

possible ways of launching a host-based application

(Notepad, for our analysis) and its effects on UserAs-

sist key are provided in subsection 4.1.

3.4.2 Experiment 2 - Installing and Uninstalling

Applications

For conducting this experiment, we installed differ-

ent user applications from various sources, such as

USB device, Windows store etc., and subsequently

launched them to know whether the UserAssist key

for these applications behaves differently from host-

based applications. To show our analysis, we consid-

ered an executable (MyPublicWiFi.exe, for example)

which was installed with default settings from a USB

device and a Windows Store App (Facebook, for ex-

ample) which was installed from Windows Store in

Windows 10. Following the installation, these appli-

cations were run for multiple times and ﬁnally unin-

stalled from the system.

3.4.3 Experiment 3 - Running Portable

Applications

This experiment was conducted to know whether in-

formation related to program executions are stored

in UserAssist key when portable programs are exe-

cuted from external devices and shared network. We

executed portable applications from a USB device

and a shared network. To perform the experiment,

the public folder containing various portable applica-

tions (in example, rufus1.4.12.exe) within user’s pub-

lic proﬁle of a computer with computer-name as John

was shared over a network. Subsequently, in another

computer, these applications were executed from the

shared folder.

3.4.4 Experiment 4 - Anti-forensic Attempts

This experiment was designed to observe the behavior

of UserAssist key when anti-forensic attempts such as

modiﬁcation and deletion of certain or all UserAssist

entries are carried out by a suspected user in order to

hide/delete the traces of run applications. Users can

modify or delete any entry from UserAssist key using

the Registry Editor (regedit.exe) application by right-

clicking the entry and selecting ‘Modify Binary Data’

or ‘Delete’ option. Users can also use UserAssist tool

to delete particular entries or all. In one experiment,

we modify binary data of certain entries including run

count, focus count, focus time, and last timestamp of

execution. In other experiment, we deleted certain

entries from UserAssist key and executed the appli-

cations for which the entries were deleted. Before

deleting any entry, we noted binary data of that en-

try to see the changes in binary data after the dele-

tion. One more experiment was conducted in which

all UserAssist entries were deleted from the system

to know how entries in UserAssist key are populated

when applications are executed.

3.4.5 Experiment 5 - Adding a New User

Account

This experiment was conducted to investigate the ef-

fects of creating a new user account in different ver-

sions of Windows system including Windows 7 Pro-

fessional SP1, Windows 8 Pro and Windows 10 Pro

v1607. A standard user account on each considered

system was created without signing in with Microsoft

account (for Windows 8 and 10). NTUSER.DAT ﬁle

from each virtual machine was extracted from virtual

SECRYPT 2017 - 14th International Conference on Security and Cryptography

424

hard disk using FTK imager following the system

shutdown. For parsing and viewing UserAssist key,

UserAssist tool was used.

4 RESULTS

This section describes outcomes of the experiments

designed in the previous section.

4.1 Running Host-based Applications

Below are the possible ways of launching a host-

based application (Notepad, for our analysis) and

their effect on UserAssist key.

Action #1: Click Notepad via Start Menu.

When Notepad application is run via Start Menu then

two entries are created; one beneath ‘Count’ subkey

of {CEBFF5CD-ACE2-4F4F-9178-9926F41749EA}

and other beneath ‘Count’ subkey of {F4E57C4B-

2036-45F0-A9AB-443BCFE33D9F}. When

decoded, ﬁrst entry is created as 1AC14E77-02E7-

4E5D-B744-2EB1AE5198B7\notepad.exe, while

other entry is created as A77F5D77-2E2B-44C3-

A6A2-ABA601054A51\Accessories\Notepad.lnk.

The subsequent runs of the considered application

update the binary data of both entries but differently.

For instance, focus time in ﬁrst entry is the total time

Notepad applications had focus, in contrast, focus

time in other entry was always appeared as zero.

Action #2: Notepad via Shortcut. When

the application is run using by doble-clicking

%AppData%\Roaming\Microsoft\Windows

\StartMenu\Programs\Accessories \Notepad.lnk

then behavior of UserAssist key was found to be

same as for Action #1.

Action #3: Run Directly by Double-

clicking on Notepad.exe. When notepad ap-

plication is run directly by double-clicking on

C:\Windows\System32\notepad.exe, then informa-

tion is updated only for 1AC14E77-02E7-4E5D-

B744-2EB1AE5198B7\notepad.exe entry.

Action #4: Notepad >‘Run as Administrator’

via Start Menu. When notepad application is run

as administrator then for entry 1AC14E77-02E7-

4E5D-B744-2EB1AE5198B7\notepad.exe run count

increments by three, while for entry A77F5D77-

2E2B-44C3-A6A2-ABA601054A51\Accessories

\Notepad.lnk, run count increments only by one.

Action #5: Notepad via Start Menu >Run...

dialog. When notepad application is run via

Start Menu >Run... dialog, then information

is updated only for 1AC14E77-02E7-4E5D-B744-

2EB1AE5198B7\notepad.exe entry.

Action #6: Notepad via Taskbar. For this,

notepad application is added to Taskbar by

clicking Notepad >‘Pin to Taskbar’ and sub-

sequently run from Taskbar. When Notepad

is ﬁrst time launched via Taskbar then run

count increments by one for 1AC14E77-02E7-

4E5D-B744-2EB1AE5198B7\notepad.exe entry

and new entry 9E3995AB-1F9C-4F13-B827-

48B24B6C7174\TaskBar\Notepad.lnk is created

with run count as 1, and focus counter as 0 and focus

time as 1.

Action #7: Notepad via MFU Start Menu Item.

When the application is run using clicking notepad in

Most used list, then UserAssist key behaves same as

for Start Menu.

4.2 Installing and Uninstalling

Applications

The results of the conducted experiment are as fol-

lows:

• If an application is installed on a system,

a UserAssist key entry beneath the ‘Count’

subkey of {CEBFF5CD-ACE2-4F4F-9178-

9926F41749EA} GUID key is created for that

application. The value name for the entry when

decoded using ROT-13, represents the complete

ﬁle path from where the application was installed.

The run counter value was found one while focus

time and focus counter values were observed as

zero. The last execution timestamp represents

the date and time the application was installed.

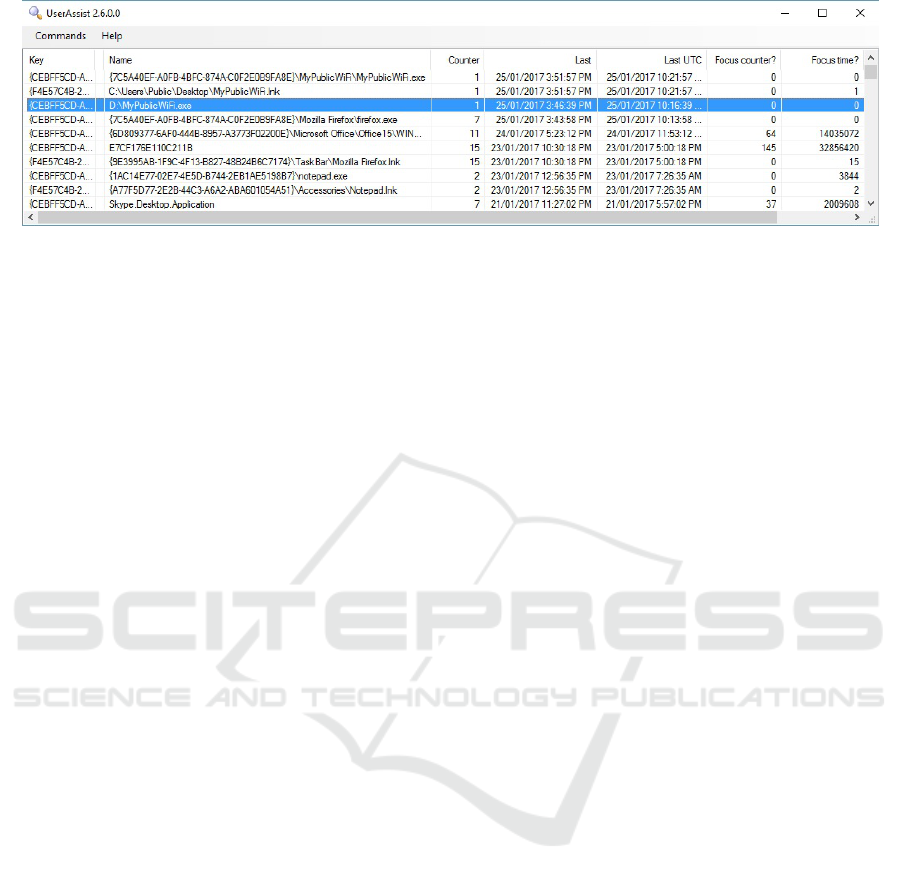

Figure 2, illustrates that MyPublicWiFi.exe appli-

cation was installed from D drive at timestamp

25/01/2017 3:46:30 PM (in time zone of local

system).

• When any user application, following the instal-

lation, is run for the ﬁrst time then two more

UserAssist entries are created for that applica-

tion. The value name of the entry which is

created beneath {CEBFF5CD-ACE2-4F4F-9178-

9926F41749EA} GUID key signiﬁes ﬁle path

where the application was installed. While,

the entry which is created beneath {F4E57C4B-

2036-45F0-A9AB-443BCFE33D9F} GUID key

signiﬁes the ﬁle path to Shortcut (.lnk) ﬁle

for that application (for our analysis, refer

ﬁrst and second entries in Figure 2). Sub-

sequent runs of an application always update

the binary data for key under {CEBFF5CD-

ACE2-4F4F-9178-9926F41749EA} GUID; how-

ever, it may not always update the binary data

for key under {F4E57C4B-2036-45F0-A9AB-

443BCFE33D9F} GUID, due to that fact that the

Program Execution Analysis using UserAssist Key in Modern Windows

425

Figure 2: Parsing UserAssist key using UserAssist tool.

application can be run by other ways instead of

double-clicking the .lnk ﬁle.

• It was observed that when a user application is

launched by the possible ways as listed in Action

#1, behavior of the UserAssist entry for that ap-

plication is reported same as for host-based appli-

cations.

• When any user application is uninstalled from the

system then the UserAssist entry associated with

that application still persists at the same loca-

tion. If the application was uninstalled by Control

Panel >Programs and Features >Uninstall, then

binary data for that UserAssist entry is not up-

dated with new timestamp. In contrast, if the ap-

plication was uninstalled by selecting the ‘Unin-

stall’ option on the application selected for dele-

tion in Start Menu (or Start Menu >Uninstall),

then binary data is updated to record the new

timestamp. Thus, the UserAssist key may or may

not be helpful in determining the uninstall times-

tamp for the user applications.

• If any Windows store app is installed on a system,

no UserAssist entry is created for it even after the

system reboot or shutdown. The UserAssist entry

for the installed app is created only when the app

is run for the ﬁrst time. Subsequent runs of the app

update the binary data for the UserAssist entry as

usual.

• When any Windows store app is uninstalled from

the system then the UserAssist entry associated

with that app still persists at the same location

and is not updated with new timestamp. Thus,

only last execution timestamp but not the unin-

stall timestamp could be determined for Windows

store apps from UserAssist key.

4.3 Running Portable Applications

Below are the results when the portable applications

are run from a shared network, or a USB drive:

• The information related to portable applications is

also recorded under {CEBFF5CD-ACE2-4F4F-

9178-9926F41749EA} GUID of UserAssist key.

• The decoded value names refer the complete

ﬁle path from which the portable applications

were executed including the computer-name of

the shared computer over a network (e.g., refer to

Figure 3).

• USB drive properties such as drive name and se-

rial number is not recorded in UserAssist key.

• Only the drive letter was observed in the value

names of the UserAssist key but not the drive

name.

• Other important information such as last execu-

tion timestamp and frequency of execution are

also recorded that can be helpful in timeline anal-

ysis to reconstruct the event.

4.4 Anti-forensic Attempts

Following are the observed effects of anti-forensic at-

tempts performed on UserAssist entries:

• When an entry from UserAssist key is deleted, it

was not recreated upon Windows restart or shut-

down.

• Entries were recreated only when the applications

associated with those entries were executed fol-

lowing the deletion.

• The modiﬁcations in binary data of entries per-

sisted until the applications associated with those

entries were not executed again.

• The run count, focus count and focus time values

were reset when entries were recreated (refer to,

Table 4).

• On subsequent runs of applications, binary data of

entries were updated as usual.

• When all entries are deleted from UserAssist key,

then entries are populated when the applications

SECRYPT 2017 - 14th International Conference on Security and Cryptography

426

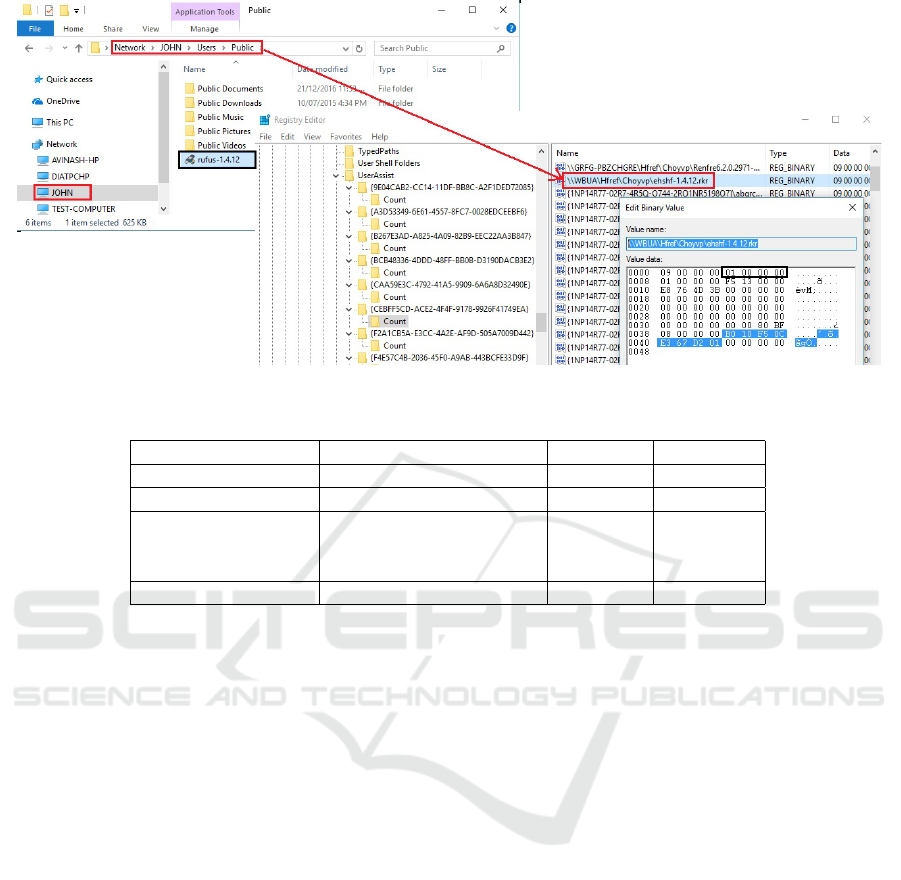

Figure 3: Artifacts of program run from a shared network in UserAssist key.

Table 4: Changes to binary data in UserAssist key entry for WordPad application.

Activities Timestamp Run count Focus time

Run wordpad.exe 25/01/2017 10:43:21 AM 12 67162

Run again 25/01/2017 10:46:11 AM 13 69012

Delete UserAssist

entry@11:48, run

wordpad.exe@11:49

25/01/2017 10:49:32 AM 1 2926

Run again 25/01/2017 10:51:22 AM 2 4571

are ﬁrst time executed following the deletions.

The information in binary data was reset.

4.5 Adding a New User Account

The observed effects of adding a new user account are

as follows:

• Setting up a new user account in a Windows sys-

tem results in creation of NTUSER.DAT hive ﬁle

in their proﬁle. The location of UserAssist key

was observed same as for original users.

• The contents of new UserAssist key was found

different from the UserAssist key for the original

user.

• The last execution timestamp in entries of de-

fault applications was observed same which is the

timestamp of setting up the new user account.

• The creation of new user account did not affect the

content of UserAssist key for the original user.

5 DISCUSSION

The research into the forensic usefulness of various

resources related to program execution analysis in

Windows has been conducted actively in digital foren-

sics community. This section presents and com-

pares the forensic capabilities of such resources in-

vestigated in published research articles and blog

posts. Six sources of program executions namely,

IconCache.db (Collie, 2013) (Lee and Lee, 2014),

Shortcut (Singh and Singh, 2016a) (Parsonage, 2008),

Prefetch (Wade, 2010), SRUDB.dat (Khatri, 2015),

Amcache.hve (Singh and Singh, 2016b) and UserAs-

sist key are taken into consideration..

The IconCache.db ﬁles store information of ﬁle

paths of applications that have been installed, run,

copied or viewed by a user on Windows systems. The

information related to timestamp of installed or ex-

ecuted applications is not recorded in IconCache.db

ﬁles. Shortcut (.lnk) ﬁles record information related

to applications including created, accessed and mod-

iﬁed timestamps (in UTC), full ﬁle path, drive type,

serial number, and the volume name from which the

applications were run. However, Shortcut (.lnk) ﬁles

do not store any information related to run count of

applications. A Prefetch ﬁle can provide information

of ﬁle path from which the application was executed,

timestamps of the ﬁrst and the last execution, and the

number of times certain application has been executed

on system (Wade, 2010). However, Prefetch ﬁles are

not always created for Window store apps as many

apps are not associated to an executable ﬁle. Also, if

Program Execution Analysis using UserAssist Key in Modern Windows

427

Table 5: Comparison of artifacts stored in IconCache.db, Prefetch, Shortcut, SRUDB.dat, Amcache.hve and UserAssist.

Full execution

ﬁle path

Installed

timestamp

Last run

timestamp

Run

count

Uninstall

timestamp

Traces of

deleted applications

Traces of Windows

Store App runs

IconCache.db X × × × × ? ×

Prefetch X × X X × X ?

Shortcut (.lnk) X X X × × × ×

SRUDB.dat X × X X × × X

Amcache.hve X X X × X X ×

UserAssist X ? X X ? X X

X– can be determined, ×– cannot be determined, ?– may or may not be determined

the applications are deleted from the system, Prefetch

ﬁles do not record timestamp of deletions of applica-

tions. It is important to note that UserAssist key run

count differs from Prefetch run count, as UserAssist

key is user-speciﬁc. The SRUDB.dat ﬁle in Windows

8 was ﬁrst investigated in (Khatri, 2015), as a forensic

resource that can be useful in tracking in tracking ex-

ternal or deleted applications, Windows store app runs

and user process mapping. However, the information

in this database lasts only for one month. By combin-

ing information from SRUDB.dat and Prefetch ﬁle for

a certain application, forensic analysts can estimate

how long the process was running and know the user

who launched it. The Amcache.hve is a registry hive

ﬁle that can reveal information such as install times-

tamp of applications, full execution path, timestamp

of the last time certain application was run, traces

of deleted applications, including the timestamp of

deletions. However, the run count of applications is

not recorded in this artifact. Fortunately, the UserAs-

sist key records more information of program execu-

tions than any other source considered. For example,

UserAssist key can provide information of an appli-

cation’s run count and the traces of deleted applica-

tions including the timestamp of deletions for portable

executable ﬁles, package applications and Windows

store apps, which cannot be gathered from any other

considered source. Nevertheless, the UserAssist key

cannot always reveal the timestamps when the certain

application was installed or uninstalled from the Win-

dows system. Thus, forensic analysts are suggested

to combine and correlate the information from above-

mentioned sources for better tracking of program ex-

ecutions.

6 CONCLUSIONS

Program execution analysis often proves to be a

meaningful effort that unravels the story of what hap-

pened on a system, including the furtive behaviors

meant to complicate the investigations. The UserAs-

sist key records information related to programs exe-

cuted on a Windows system that can be helpful while

investigating cases related to digital forensics and in-

cident response.

The number and type of UserAssist key entries

can reveal a lot more about a user who is using Win-

dows system. For instance, if the UserAssist key en-

tries are relatively less (about ten to ﬁfteen) then in-

vestigator can infer that the system is relatively new

and only a few applications have been executed. Typ-

ically, this condition may be of a normal Windows

user. In contrast, if the UserAssist key entries are rel-

atively more than of a normal user then analysts can

infer that the system has been extensively used and

numerous different applications have been executed

over a short or long period of time. This situation is

indicative that the user is a technical user. Thus, the

number and type of UserAssist key entries can help in

identifying users- proﬁling the user’s technical capa-

bilities. For example, the existence of programming

applications such as Perl, Ruby or Python would be

indicative that the user is highly technical while the

existence of vulnerability analysis programs such as

Metasploit, netcat, nmap can reveal the nature and

possibly, the intention of the Windows user.

The paper presents the binary structure of UserAs-

sist key in modern Windows and compares it with that

in older version of Windows (e.g., Windows XP). A

number of experiments were conducted to investigate

the behavior of UserAssist key when applications are

executed from different sources, such as external de-

vice, Windows store, and shared network. The be-

havior of UserAssist key will have direct implications

on forensic investigations involving program execu-

tion analysis as a subject of interest. The UserAs-

sist key records a great deal of information that can

be extremely useful evidence in digital investigations,

where program execution analysis is of investigators’

prime interest. The information from UserAssist key,

such as run count and focus time can provide clue on

the frequency and the total time an evil program was

executed on the system in question. We found that

evidence of program execution persisted in UserAs-

sist key even after the target applications have been

removed from the system. Further, we discussed that

UserAssist key can be a useful resource for proﬁling

SECRYPT 2017 - 14th International Conference on Security and Cryptography

428

the user’s technical capability, based on the number

and the type of applications installed on the system.

The paper also provides the comparison of foren-

sic capabilities of various sources of program execu-

tion analysis, namely, IconCache.db, Prefetch, Short-

cut (.lnk), SRUDB.dat, Amcache.hve, and UserAs-

sist. This is intended to help analysts to combine and

correlate the information from these sources for better

tracking of applications. However, analysts are sug-

gested to corroborate the ﬁndings from other sources,

such as Jump Lists, AppCompatFlags, AppCompat-

Cache, Event Logs, Pageﬁle.sys, and USN Journal.

REFERENCES

AccessData (2008). Understanding the userassist

registry key. https://ad-pdf.s3.amazonaws.com/

UserAssist%20Registry%20Key%209-8-08.pdf. [ac-

cessed 12-Jan-2017].

Carvey, H. (2005). The windows registry as a forensic re-

source. Digital Investigation, 2(3):201–205.

Carvey, H. (2011). Windows registry forensics: Advanced

digital forensic analysis of the windows registry. El-

sevier.

Carvey, H. (2013). Regripper. https://code.google.com/

archive/p/regripper/downloads. [accessed 26-Jan-

2017].

Carvey, H. (2016). Windows registry forensics: Advanced

digital forensic analysis of the windows registry. El-

sevier, 2nd edition.

Carvey, H. and Altheide, C. (2005). Tracking usb storage:

Analysis of windows artifacts generated by usb stor-

age devices. Digital Investigation, 2(2):94–100.

Collie, J. (2013). The windows iconcache.db: A resource

for forensic artifacts from usb connectable devices.

Digital Investigation, 9(3):200–210.

Eterovic-Soric, B., Choo, K.-K. R., Mubarak, S., and Ash-

man, H. (2017). Windows 7 antiforensics: A review

and a novel approach. Journal of Forensic Sciences.

Khatri, Y. (2015). Forensic implications of system resource

usage monitor (srum) data in windows 8. Digital In-

vestigation, 12:53–65.

Lee, C.-Y. and Lee, S. (2014). Structure and application of

iconcache.db ﬁles for digital forensics. Digital Inves-

tigation, 11(2):102–110.

Lees, C. (2013). Determining removal of forensic artefacts

using the usn change journal. Digital Investigation,

10(4):300–310.

Mee, V. and Jones, A. (2005). The windows operating sys-

tem registry–a central repository of evidence. In Pro-

ceedings from e-crime and computer evidence confer-

ence, volume 2005.

Mee, V., Tryfonas, T., and Sutherland, I. (2006). The win-

dows registry as a forensic artefact: Illustrating evi-

dence collection for internet usage. digital investiga-

tion, 3(3):166–173.

Parsonage, H. (2008). The meaning of link ﬁles in forensic

examinations. Computer Forensic misCellany.

Pullega, D. (2013). Userassist forensics (timelines, interpre-

tation, testing, & more). http://www.4n6k.com/2013/

05/userassist-forensics-timelines.html. [accessed 29-

Dec-2016].

Singh, B. and Singh, U. (2016a). A forensic insight into

windows 10 jump lists. Digital Investigation, 17:1–

13.

Singh, B. and Singh, U. (2016b). Leveraging the windows

amcache.hve ﬁle in forensic investigations. The Jour-

nal of Digital Forensics, Security and Law: JDFSL,

11(4).

Stevens, D. (2006). Userassist. https://blog.

didierstevens.com/programs/userassist/. [accessed

02-Dec-2016].

Stevens, D. (2010). Windows 7 userassist registry keys.

https://intotheboxes.ﬁles.wordpress.com/2010/04/

intotheboxes 2010 q1.pdf. [accessed 02-Feb-2017].

Talebi, J., Dehghantanha, A., and Mahmoud, R. (2015). In-

troducing and analysis of the windows 8 event log for

forensic purposes. In Computational Forensics, pages

145–162. Springer.

Wade, M. A. (2010). Decoding prefetch ﬁles for forensic

purposes. Harris Corporation.

Wong, L. W. (2007). Forensic analysis of the windows reg-

istry. Forensic Focus, 1.

Zimmerman, E. (2015). Registry explorer/recmd version

0.7.1.0. https://ericzimmerman.github.io/. [accessed

26-Jan-2017].

Program Execution Analysis using UserAssist Key in Modern Windows

429
