Metamodeling Approach for Hazard Management Systems

Anca Daniela Ionita

and Mariana Mocanu

Department of Automation and Industrial Informatics, University Politehnica of Bucharest,

Spl. Independentei 313, 060042, Bucharest, Romania

Department of Computing Science, University Politehnica of Bucharest,

Spl. Independentei 313, 060042, Bucharest, Romania

Keywords: Metamodeling, Modeling Environments, Hazard Management.

Abstract: The management of natural and human-caused hazards is performed by reuniting a large variety of

stakeholders, non-homogeneous collections of data, and systems that may not have been conceived for

interoperability. The interdependency between hazards and the need of coordinated response also lead to the

necessity to develop multi-hazard solutions, resulting in systems with a high complexity. This paper presents

a metamodeling approach for hazard management systems, and a specific modeling environment, which

considers the hazard, emergency, and geospatial views. The use of the model editor is exemplified on a system

for early warning in case of accidental water pollution.

1 INTRODUCTION

Model Driven Engineering (MDE) may represent a

solution for managing complex systems (Hossu et al.,

2009) and coping with some of their critical

properties, like size, heterogeneity, or the autonomy

of their components (Bézivin et al., 2008).

Furthermore, MDE was also found useful in case

these complex systems are resulted from the

integration of several legacy systems (Clavreul,

Barais & Jézéquel, 2010).

This paper is focused on a kind of complex

systems developed for prevention, early warning, and

emergency action in case of natural or human-caused

hazards. There have been several attempts to specify

generic architectural frameworks for hazard

management systems. Yet, there is no initiative of

standardization that is independent of the type of

hazard; the operating frameworks are preponderantly

focused on a single hazard.

An important step towards unification within this

domain was realized through the scientific reviews

containing comparative analyses, according to

criteria like: alarm levels, risk classes, event severity

and likelihood, remaining time to hazard occurrence

or arrival in the studied area (Villagrán de León,

Pruessner, & Breedlove, 2013). There were also

several attempts to specify frameworks generally

appropriate for early warning systems, by defining

guiding principles, stakeholders, preconditions, and

strategies (UNDP, 2013). The United Nations

adopted The Sendai Framework for Disaster Risk

Reduction 2015-2030 (UNISDR, 2015) where

priorities are specified at national and local levels.

At the technical level, diverse modeling

approaches have been experienced, like the IDEF0

function modeling methodology and the EXPRESS

language for data modeling (Fortier & Dokas, 2008).

Variants for specific monitoring solutions like

crowdsourcing also exist in the literature (Meissen &

Fuchs-Kittowski, 2014). A very important progress

has been made with the INSPIRE European directive

regarding the spatial data infrastructure, meant to

support interoperation at the level of data, metadata,

monitoring and reporting (Bartha & Kocsis, 2011).

Still, there is no reference architecture for this

domain, to increase the degree of reusability and to

support the integration of existing systems.

The work presented here resulted in the definition

of a metamodel and a modeling environment for the

architecture of hazard management systems. Our

research started with the identification of common

and specific artefacts for hazard management

systems, first for our research projects, then for other

examples described in the publicly available

documentation: systems in use, prototypes,

conceptual frameworks etc. This led to the definition

of a metamodel and of a modeling environment, used

Ionita, A. and Mocanu, M.

Metamodeling Approach for Hazard Management Systems.

DOI: 10.5220/0006417702570264

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 257-264

ISBN: 978-989-758-262-2

257

for representing a variety of existing systems, and

upgraded to support all the required links between

artefacts, and to offer multiple views.

Section 2 presents the research method applied for

metamodeling the hazard management domain.

Section 3 explains the modeling paradigm – the

metamodel and the hazard-specific modeling

environment, which is applied for representing a

water pollution early warning system.

2 RESEARCH METHOD

2.1 Study Hazard Management

Domain

2.1.1 Study Documentation

The first step of our research, Study Documentation

(see Figure 1), consisted of:

 Documenting the architecture of two hazard

management systems developed in research

projects we were involved to, the former for

accidental river pollution (Ionita & Mocanu,

2015), and the latter for territorial

vulnerabilities induced by nuclear facilities

(N-WATCHDOG, 2017);

 Analyzing existing ontologies for hazards or

vulnerabilities, like VuWiki (2016);

 Studying survey documents, including

exhaustive classifications of hazards and a

large set of examples that describe the current

state of practice, e.g. (UNEP, 2012);

 Comparing the technology and the

functionality through the examination of public

documentation about systems in use for:

disseminating alerts, e.g. Mobile Emergency

Alert Systems (MEAS) (Park, Choi & Seo,

2014), and for early warning, e.g. (Kaku &

Held, 2013);

 Studying scientific papers that propose new

solutions and / or integratory approaches for the

domain; our search was focused on multi-

hazard systems and generic frameworks, e.g.

(Balis et al., 2011);

 Looking for standards that have to be respected

when implementing this kind of systems, e.g.

INSPIRE or Common Alerting Protocol (CAP)

(OASIS, 2010).

2.1.2 Collection of Conceptual Models

For a selection of the systems mentioned above, the

study included:

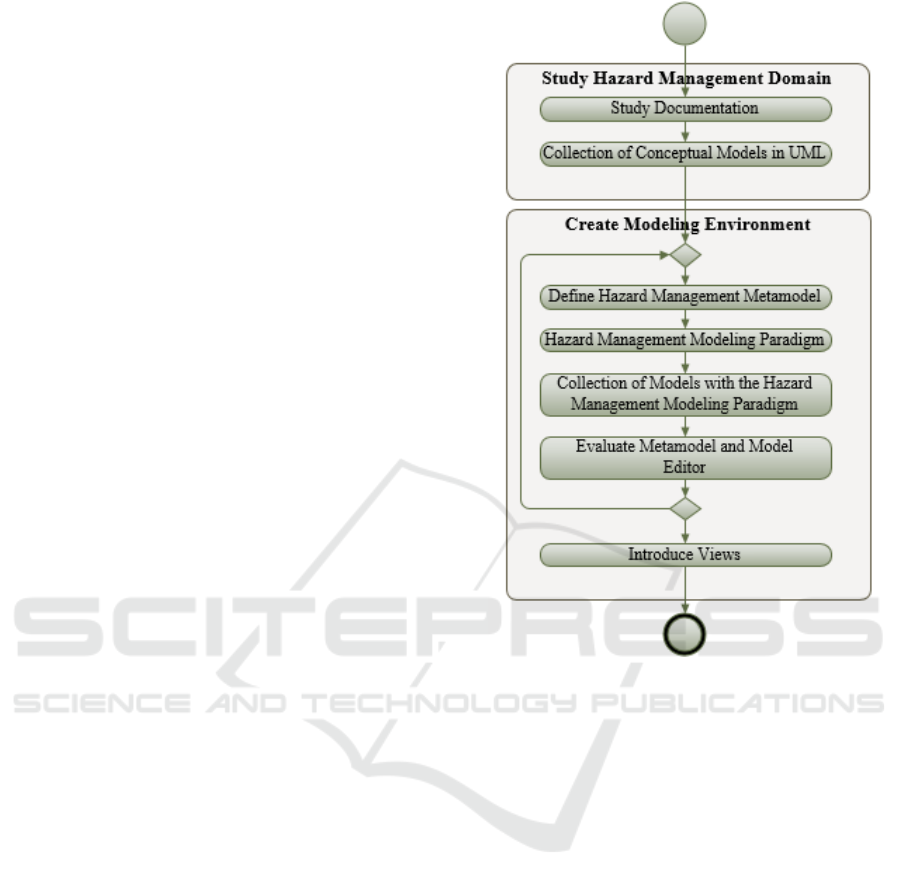

Figure 1: Research Method.

 Identification of the most important artifacts,

i.e. modules, devices, stakeholders, concepts,

with their relevant properties and functionality;

 Identification of dependencies between the

artifacts mentioned above.

They were used to create a Collection of

Conceptual Models in UML (Unified Modeling

Language). UML was selected because it is a general-

purpose modeling language, and it is object-oriented,

similarly to the metamodel we were going to define.

The collection currently contains about fifty models.

2.2 Create Modeling Environment

The steps for creating the modeling environment,

presented below, were reiterated several times, for

being capable to model all the studied systems.

2.2.1 Define Hazard Management

Metamodel

Define Hazard Management Metamodel was the first

step that succeeded the Study of Hazard Management

ICSOFT 2017 - 12th International Conference on Software Technologies

258

Domain. It started with a collaborative session, where

several persons who studied examples of hazard

management systems presented them to their

colleagues. Each example was accompanied by a

UML class diagram, showing the most important

elements necessary to characterize that system. The

goals of a collaborative session were:

 to identify the concepts that are common within

the conceptual models;

 to make lists of terms with similar meaning;

 for each list, to find a term that abstracts the

meaning of all the concepts within that list;

 to identify common properties of these

concepts;

 to identify common relationships between

them.

Afterwards, these elements were used for a first

representation of the hazard management systems

metamodel, based on the notation of UML class

diagrams. This makes sense, as MOF (Meta Object

Facility), the metamodel of UML, also uses the UML

concrete syntax for its specification.

2.2.2 Hazard Management Modeling

Paradigm

For creating modeling tools, we used Generic

Modeling Environment (GME) (2017) and we built

the Hazard Management Modeling Paradigm.

In the GME vocabulary, a paradigm is equivalent

to a modeling language for the given application

domain - in our case for hazard management systems.

Thus, we formalized the abstract syntax, by mapping

the UML metamodel (resulted at 2.2.1) to the

metamodeling language supported by GME, i.e.

compositions remained the same, associations

became GME Connections, and classes became either

Atoms or Models.

The concrete syntax of the language was also

defined, by introducing icons specific to the new

metamodel objects. They were used for configuring

the model editor generated from the paradigm.

2.2.3 Collection of Models with the Hazard

Management Modeling Paradigm

The editor was used for obtaining the Collection of

Models with the Hazard Management Modeling

Paradigm, i.e. all the models of systems initially

represented with a general modeling language, UML,

were transformed into GME models, conforming to

the new paradigm / metamodel. In practice, they did

not correspond to a single version of the paradigm, as

it was upgraded over several iterations.

2.2.4 Evaluate Metamodel and Model Editor

The representation of models gave the opportunity to

get to the next step: Evaluate Metamodel and Model

Editor. The attempt to use the first version of a

modeling language is not always successful; this is

the moment to discover whether:

 a connection is missing;

 a modeling element has not been associated to

an aspect and therefore it is not visible;

 two objects that should be connected belong to

metamodel classes from different

encapsulation levels;

 a part has not been included into a model;

 there are properties or concepts that cannot be

instantiated from the existing metamodel, so

new elements should be included.

Therefore, new versions of the modeling

environment were necessary, and the steps for

creating the modeling environment were re-iterated.

2.2.5 Introduce Views

The idea was to organize the architectural artefacts

following the example of Enterprise Architecture

(EA), considered as “Information Systems

Architecture”. The reasons why a hazard

management system can be addressed within the EA

field are: the necessity to have a holistic approach,

and the challenge of complex IT systems and

organizational structures to meet business goals

(Sessions, 2007).

As in hazard management, the fields of interest in

EA cover more than software development, usually

approached with view models (May, 2005). In the

Zachman Framework classification (Zachman, 2016),

the design artefacts are organized as a matrix, where

the rows correspond to perspectives that represent the

viewpoints of diverse stakeholders, including

planner, owner, operator etc. Although Zachman talks

about “views” and “aspects” without associating

them with precise semantics, a perspective

corresponds to an architectural viewpoint that

governs an architectural view, composed of one or

more architecture models, as defined by the

ISO/IEC/IEEE 42010 standard (2011). Still within

EA, the Treasury Enterprise Architecture Framework

(TEAF) also included Functional, Information,

Organizational and Infrastructure views

(Urbaczewski & Mrdalj, 2006), which might be of

interest for hazard management too.

Therefore, we looked for a framework that can

depict the hazard management systems in a similar

way, and group the metamodel abstract concepts. We

identified three important views:

Metamodeling Approach for Hazard Management Systems

259

 Hazard View – embracing the concerns about

the hazard itself, with its specific physical

phenomena, theory, mathematical tools and

techniques; this view should contain models for

data collections, prediction, decision support

and acquisition;

 Emergency View – regarding the viewpoint of

the emergency professionals, who have to

monitor the risk and take actions when

necessary; it includes representations of the

warning software and of the warning devices;

 GIS View - concerning geospatial distributions,

collections of data, and visualization

capabilities; for this view, one needs models for

Geographical Information Systems (GIS) and

Global Positioning Systems (GPS).

3 MODELING PARADIGM

3.1 Metamodel

The resulted metamodel contains a general part, for

modeling the architecture inside a hazard

management subsystem (as a graph of computing

units connected through their interfaces), plus three

parts that define specific models for the previously

identified views, Hazard, Emergency, and GIS (see

Section 2.2.5.) - and presented below.

We used the metamodeling language provided by

Generic Modeling Environment, where an Atom is an

indivisible modeling element, and a Model can

contain other GME elements, to which it is connected

through a line starting with a black diamond. An

association that is not a containment is a Connection.

The notation is similar to UML class diagrams.

3.1.1 Hazard View

The abstract syntax for the Hazard view, represented

in Figure 2, considers that a hazard management

system is composed of a model that characterizes the

hazard, and of multiple models, correspondent to

subsystems specific for managing the hazard,

connected to each other.

Our study led to the identification of four kinds of

models, all derived from

HazardManagementSubsystem:

 Data Collection, corresponding to: assemblies

of historical data on hazard events or

demographic data, results of the vulnerable

regions monitoring, scientific data, etc.;

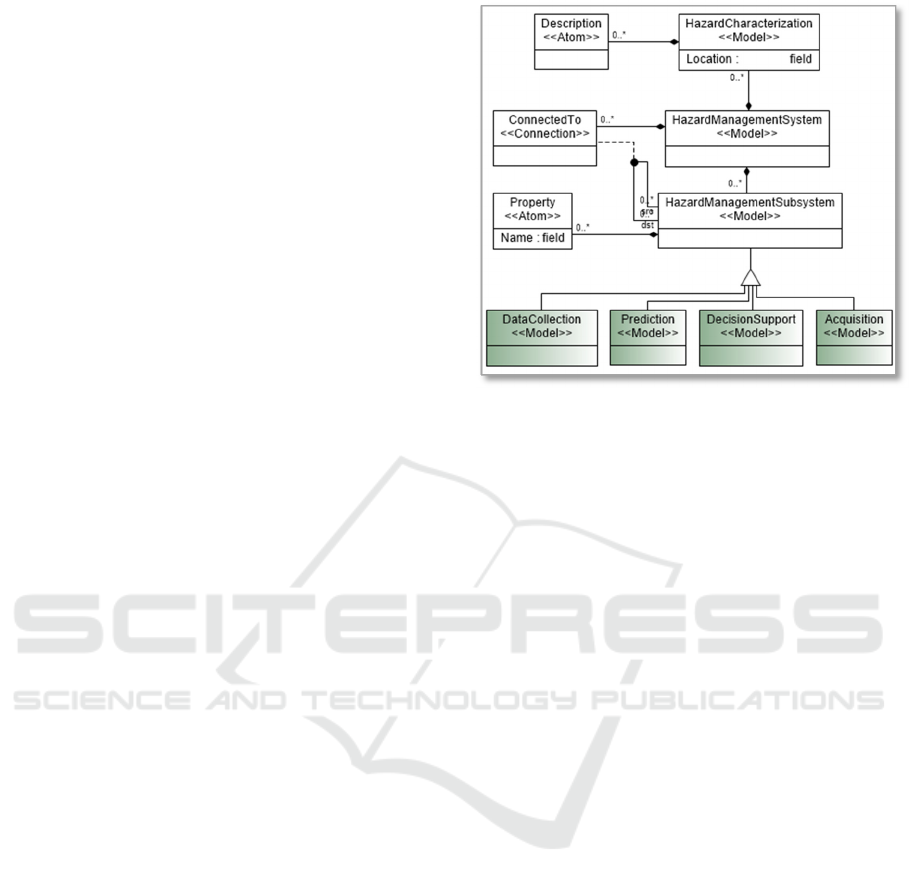

Figure 2: Metamodel for the Hazard View.

 Prediction, for subsystems that model the

physical phenomena that drive the hazard and

introduce predictive functionality;

 Acquisition, containing data acquisition

subsystems, whose outputs are afterwards

stored into Data Collection subsystems; they

may be measuring devices, sensor networks,

satellites etc. (Ionita & Olteanu, 2014);

 Decision Support, with units that analyze the

available data and recommend predictive or

response actions, which are transmitted to the

subsystems pertaining to the Emergency view.

3.1.2 Emergency View

The abstract syntax for the Emergency view (see

Figure 3) introduces two other kinds of models:

 Warning Software – meant for the efficient

management of notifications sent to various

actors and organizations, which represent

potentially affected parts of emergency

personnel; a Notification can be of type:

Information, Warning, Alert, Red Alert, in

respect with the severity of the hazard event;

 Warning Device – i.e. television set, radio set,

telephone, computer, speaking-tube etc.

The organizations authorized to deal with

emergency situations generally respect very strict

processes; that is why the metamodel also contains an

Activity model, with types that are specific to the

emergency life cycle: Preparedness, Response,

Recover and Mitigation, according to the

classification adopted by the Federal Emergency

Management Agency (FEMA) (Lindsay, 2012).

ICSOFT 2017 - 12th International Conference on Software Technologies

260

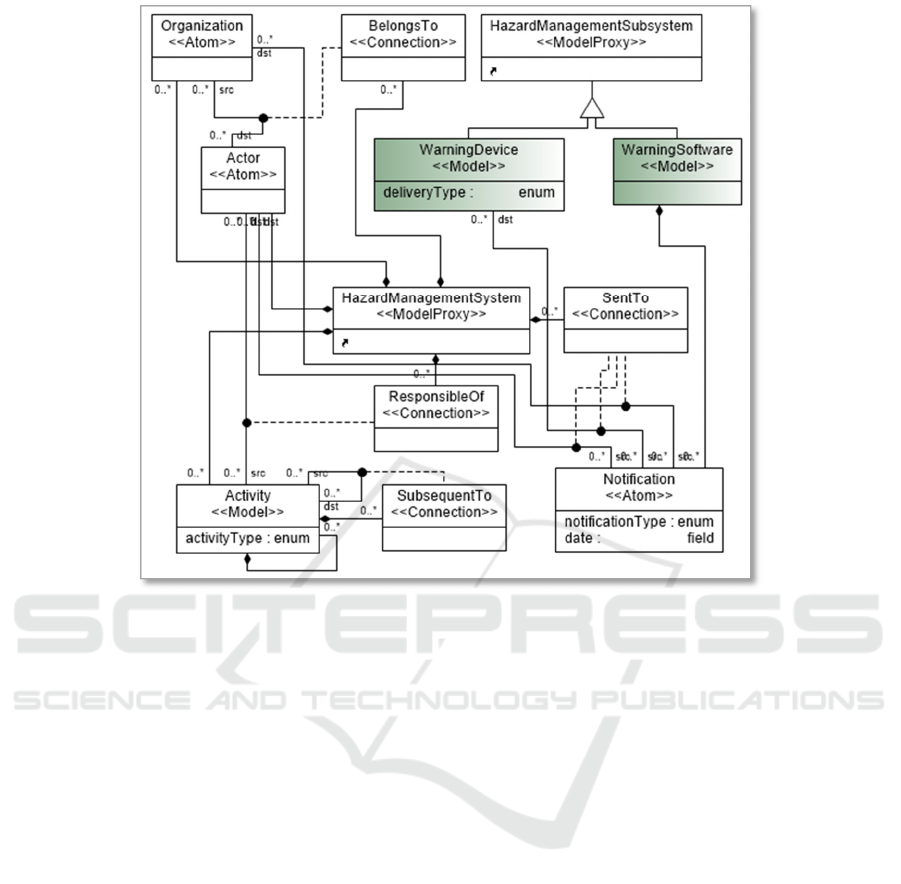

Figure 3: Metamodel for the Emergency View.

3.1.3 GIS View

For the GIS view, the metamodel introduces two

models derived from HazardManagementSubsystem:

 GeographicalInformationSystem, which may

contain ComputingUnit and DataStore objects,

necessary for processing geospatial data and

for representing geological, hydrological, or

topological maps;

 GlobalPositioningSystem, for the physical

system that provides geolocation data.

3.2 Hazard-Specific Environment

3.2.1 Modeling Editor

The metamodel, represented as a GME paradigm, was

interpreted to generate a specific modeling editor for

hazard management systems. For the configuration of

its concrete syntax we introduced specific icons for

all the metamodel elements described at 3.1. (see the

Part Browser on the left side of Figure 4).

For each of the GME objects of type Model, like

Prediction, Acquisition etc., the editor allows one to

open a new tab with an editing pane, and represent a

diagram for its internal structure, which is thus

encapsulated; an exception was made for the objects

of type Interface, which appear on the upper level, as

ports. Thus, the editor supports several levels of

encapsulation for describing a model.

For implementing the Hazard, Emergency, and

GIS views, we introduced and configured three

specific aspects; an Aspect is a GME concept used for

controlling the modeling elements visibility. Thus, it

is possible to draw the diagrams separately for each

aspect (Hazard, Emergency, and GIS), to reduce the

model complexity and allow a domain expert to see

just the concepts for the correspondent viewpoint.

Afterwards, if one gets to the General aspect, it is

possible to see the entire model and to make

connections between objects from different views.

3.2.2 Example of Model

Figure 4 presents a model edited with the hazard-

specific environment, for a prototype that monitors

the water quality of a river and recommends decisions

to be taken in case one detects an accidental pollution

(Ciolofan et al., 2013).

Metamodeling Approach for Hazard Management Systems

261

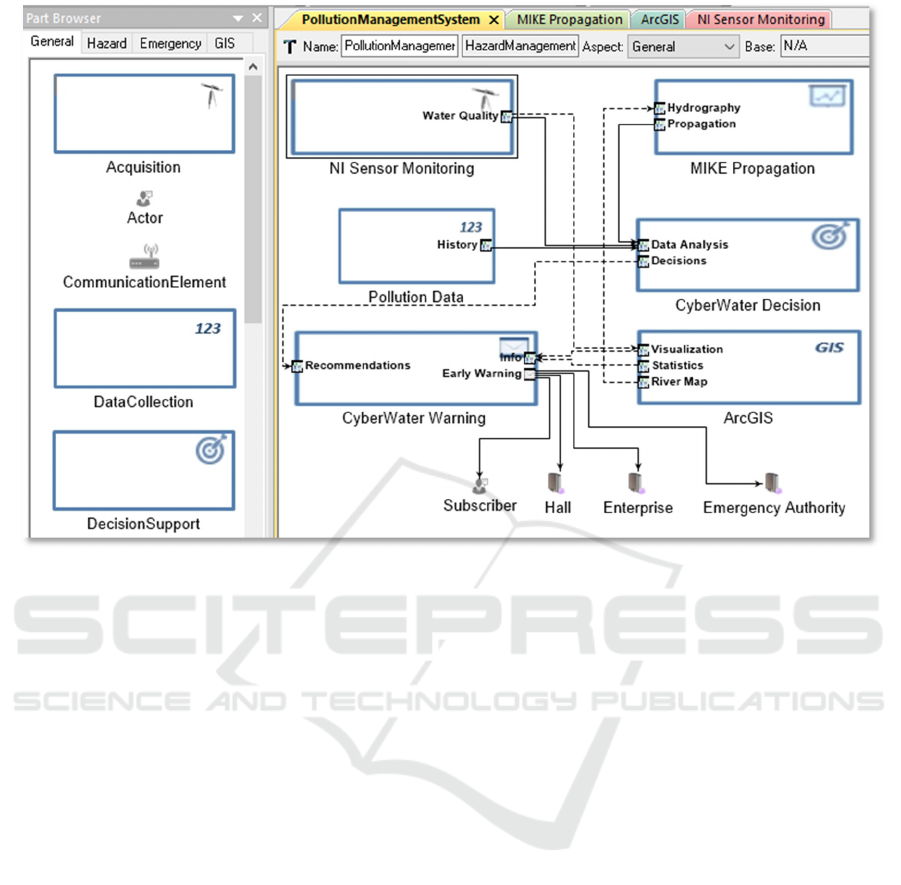

Figure 4: Pollution Management System Represented with the Hazard Management Editor.

The image presents the General aspect, but the

model was realized as follows. Within the Hazard

aspect, there are the following subsystems:

 NI Sensor Monitoring – a model of kind

Acquisition, representing a wireless sensor

network with a star topology, realized with

National Instruments components, meant to

collect surrogate data to be further processed

for estimating the values for a set of physical

quantities;

 MIKE Propagation – a model of kind

Prediction, corresponding to a subsystem

based on the MIKE environment (2017),

capable to calibrate and execute the model for

the propagation of a pollutant downstream; the

purpose is to predict the moment a pollutant

arrives at the localities downstream and what is

its concentration; its inputs are real data on the

shape of the river bed, and on the initial

location of the pollutant detection;

 CyberWater Decision – a model of kind

DecissionSupport, containing a rule engine and

storing a collection of rules, activities, and

threshold values; the decisions depend on the

water quality detected by the sensor network,

the predictions resulted from the simulations

with MIKE, and the historical data;

 Pollution Data – a model of kind

DataCollection, comprising data about

previous pollution events in the area of interest.

Then, for the Emergency aspect, the metamodel

contains:

 CyberWater Warning – a model of kind

WarningSoftware, meant to transmit

notifications towards private subscribers,

organizations that represent local authorities,

(e.g. village halls), industrial players (i.e.

enterprises whose activity may be affected by

the pollution) and, last but not least, to

organizations that have the authority to take

action in case of emergency situations;

 Enterprise, Hall, and Emergency Authority –

atoms of kind Organization, receiving

notifications from the warning subsystem;

 Subscriber – atom of kind Actor, representing

a person that receives early warning

notifications.

In the GIS aspect, we represented:

 ArcGIS – a GeographicalInformationSystem

model, containing ArcToolbox, ArcCatalog

and ArcMap (with the hydrographic basin

maps) and exposing interfaces for

visualization, statistics, and geospatial data

related to the river.

ICSOFT 2017 - 12th International Conference on Software Technologies

262

Table 1: Summary of the objects of type Model, from the model represented in GME with the HazardManagement paradigm.

Aspect

Metamodel Level Model Level

Kind Model Port Connected Port

Hazard

Acquisition NI Sensor Monitoring Water Quality

Visualization

Data Analysis

Prediction MIKE Propagation

Hydrography River Map

Propagation Data Analysis

DecisionSupport CyberWater Decision

Data Analysis

Water Quality

History

Propagation

Decisions Recommendations

DataCollection Pollution Data History Data Analysis

Emergency

WarningSoftware CyberWater Warning

Recommendations Decisions

Early Warning

Subscriber

Hall / Enterprise

Info

Statistics

Visualization

GIS

GeographicalInformationSystem ArcGIS

Visualization

Water Quality

Info

Statistics Info

River Map Hydrography

Each of these subsystems is a model whose

structure is represented inside and is not visible at the

first level, except from the interfaces. Thus, in the

General aspect we also connected interfaces of

subsystems defined in different views. For instance,

the Hydrohraphy interface from MIKE_Propagation

- a model of type Prediction, which is part of the

Hazard view - depends on the RiverMap interface of

ArcGIS - a model from the GIS view. These

connections are represented with dotted lines.

Table 1 summarizes the most important elements

of this model, with their components that are visible

as ports, and the ports from other models they are

connected to. For each aspect, it presents the main

objects of type Model (in the GME metamodeling

language), with the metamodel entities they were

instantiated from (i.e. the Kind in GME).

Note that the connections that transverse the

views are easier to visualize in the GME diagram than

in the tabular form. Moreover, one can select one of

the three aspects, and visualize exclusively the parts

of the model that correspond to them, thus obtaining

a simplified diagram, and having the opportunity to

reflect on further details that need to be represented.

4 CONCLUSIONS

For managing natural or human-caused hazards, there

is a large variety of systems in place, and the trend is

to introduce new infrastructure for monitoring the

environment, and more efficient support for

transmitting notifications when an undesired event

happens. There is an increased interest to make

exiting systems interoperate and to manage multiple

types of hazards in an integrated way. This leads to

the increase in complexity and non-homogeneity.

The paper proposed a metamodeling approach,

which identified types of artifacts that are recurrent

within hazard management systems, and used them

for defining a metamodel and for configuring a

specific modeling environment. The editor supports

several levels of encapsulation in the representation

of a hazard system, which is composed of various

kinds of models that can be further described in

separate diagrams, showing their inner parts and the

connections between them. We also introduced the

Hazard, Emergency, and GIS views, to reduce the

complexity of modeling; one can represent diagrams

correspondent to each view, and then visualize the

elements situated at the top level of encapsulation,

and introduce connections between them.

The approach has potential to be extended by

composition with other metamodels and by adding

model interpreters.

ACKNOWLEDGEMENTS

The work was realized within the Partnerships in

Priority Areas Program - PN II, supported by MEN-

UEFISCDI under the project number 298/2014.

Metamodeling Approach for Hazard Management Systems

263

REFERENCES

Balis, B, Kasztelnik, M, Bubak, M, Bartyński, T, Gubała,

T, Nowakowski, P. & Broekhuijsen, J. (2011) The

UrbanFlood Common Information Space for Early

Warning Systems. Procedia Computer Science. 4.

Elsevier, pp. 96-105. Available from: https://doi.org/

10.1016/j.procs.2011.04.011 [Accessed 14th May

2017].

Bartha, G. & Kocsis, S. (2011) Standardization of

Geographic Data: The European INSPIRE Directive.

European Journal of Geography, 2, 79-89.

Bézivin, J., Paige, R.F., Aßmann, U., Rumpe, B. &

Schmidt, D. (2008) Manifesto - Model Engineering for

Complex Systems. In: Dagstuhl Seminar Proceedings.

Perspectives Workshop: Model Engineering of

Complex Systems (MECS). Schloss Dagstuhl: Leibniz-

Zentrum fuer Informatik, Germany. Available from:

https://arxiv.org/abs/1409.6591 [Accessed 12th March

2017]

Ciolofan, S.N., Mocanu, M. & Ionita, A.D. (2013)

Distributed Cyberinfrastructure for Decision Support in

Risk Related Environments, In 12th International

Symposium on Parallel and Distributed Computing,

Bucharest, IEEE. pp. 109-115.

Clavreul, M., Barais, O. & Jézéquel, JM. (2010) Integrating

legacy systems with MDE, In: 32nd ACM/IEEE

International Conference on Software Engineering.

Cape Town: IEEE, pp. 69-78.

Fortier, S.C. & Dokas, I.M. (2008) Setting the Specification

Framework of an Early Warning System Using IDEF0

and Information Modeling. In: 5th International

ISCRAM Conference Information Systems for Crisis

Response and Management, Washington, D.C.:

ISCRAM, pp. 441-450.

GME (2017) Generic Modeling Environment. Available

from: http://www.isis.vanderbilt.edu/projects/ gme/

[Accessed 10th March 2017].

Hossu, D., Humaila, H., Mocanu, S. & Saru, D. (2009)

Complex networks to model the economic

globalization process, In: IFAC Proceedings Volumes,

42(25): Elsevier, pp. 62-67.

Ionita, A.D. & Olteanu, A. (2014). Domain specific models,

knowledge and tools to support multiple learning styles

for engineering students, Revue Roumaine des Sciences

Techniques – Série Electrotechnique et Energétique, 59

(4), 423-432.

Ionita, A.D. & Mocanu, M. (2015) Multiple Modeling

Paradigms Applied for Accidental Pollution

Management, Environmental Engineering and

Management Journal, 14(9), 2051-2060.

ISO/IEC/IEEE (2011). Systems and software engineering

— Architecture description. ISO/IEC/IEEE Standard

42010:2011.

Kaku, K. & Held, A. (2013) Sentinel Asia: A space-based

disaster management support system in the Asia-Pacific

region. International Journal of Disaster Risk

Reduction, 6, pp. 1–17.

Lindsay, B.R. (2012) Federal Emergency Management: A

Brief Introduction. Congressional Research Service.

Available from: https://fas.org/sgp/crs/homesec/

R42845.pdf [Accessed 18th March 2017].

May, N. (2005) A survey of software architecture viewpoint

models, In: Sixth Australasian Workshop on Software

and System Architectures. Brisbane, pp. 13-24.

Meissen, U. & Fuchs-Kittowski, F. (2014) Crowdsourcing

in Early Warning Systems. In: 7

International

Congress on Environmental Modelling and Software.

San Diego, California: Elsevier, pp. 326-332.

MIKE, (2017) MIKE 11. River Modelling Unlimited.

[online] Available from: https://www.mikepoweredby

dhi .com/products/mike-11 [Accessed 1st March 2017].

N-WATCHDOG Project. (2017) Early Warning and

Decision Support Soft System for the Anticipative

Assessment of the Fast Dynamics of Territorial

Vulnerabilities Induced by Nuclear Facilities.

Available from: http://proiecte.nipne.ro/pn2/155-

proiecte.html [Accessed 14th May 2017]

OASIS, (2010) Common Alerting Protocol Version 1.2.

Available from: http://docs.oasis-open.org/emergency/

cap/ v1.2/CAP-v1.2-os.pdf [Accessed 18th March

2017].

Park, S.H., Choi, J.R. & Seo, J. (2014) A Pragmatic Media-

Sharing Device for ATSC Mobile DTV Broadcasting.

International Journal of Advances in Soft Computing

and Its Applications, 6(3), 72-81.

Sessions, R. (2007) A Comparison of the Top Four

Enterprise-Architecture Methodologies [online]

Available from: https://msdn.microsoft.com/en-

us/library/bb466232.aspx [Accessed 15th March 2017].

UNDP, (2013) Early Warning Systems Framework. Civil

Defence Commission, Guyana, United Nations

Development Programme, Available from http://www.

undp. org [Accessed 2nd February 2017].

UNEP, (2012) Early Warning Systems: A State of the Art

Analysis and Future Directions. Division of Early

Warning and Assessment (DEWA), United Nations

Environment Programme (UNEP), Nairobi.

UNISDR, (2015) The Sendai Framework for Disaster Risk

Reduction 2015-2030. United Nations Office for

Disaster Risk Reduction.

Urbaczewski, L. & Mrdalj, S. (2006) A Comparison of

Enterprise Architecture Frameworks, Issues in

Information Systems, VII (2), 18-23.

Villagrán de León, J. C., Pruessner, I., & Breedlove, H.

(2013) Alert and Warning Frameworks in the Context

of Early Warning Systems. A Comparative Review.

Intersections. 12. Bonn: United Nations University

Institute for Environment and Human Security.

VuWiki, (2017) Vulnerability Ontology. [online] Available

from: http://www.vuwiki.org/index.php?title =Vulnera

bility_Ontology [Accessed 10th March 2017].

Zachman, J.A. (2016) The Framework for Enterprise

Architecture: Background, Description and Utility,

[online] Available from: https://www.zachman.com/

resources/ea-articles-reference/327-the-framework-for

-enterprise-architecture-background-description-and-ut

ility-by-john-a-zachman [Accessed 2nd September

2016].

ICSOFT 2017 - 12th International Conference on Software Technologies

264
