An Evaluation of Variability Mechanisms to Manage Cloud Services

Ateeq Khan, Matthias Pohl, Veit K

oppen, Gunter Saake and Klaus Turowski

University of Magdeburg, Germany

Keywords:

Variability Questionnaire, Cloud Computing, Service Models, Evaluation Criteria.

Abstract:

There is an increasing demand for customizable services by consumers in service-oriented or cloud computing

domain. Service providers have to provide various kinds of variability in their services. However, there is a

lack of information which illustrates how practitioners and providers cope with the variability problem in the

service domain. We conduct a survey to get insights from participants what kind of variability exists and

how to provide/manage variability for service-oriented domain. We also analyze the importance of criteria

for variability mechanisms and discuss it in this paper. In short, we reveal the understanding of variability

between survey participants and which criteria are important when choosing an approach to provide variability

in services domain.

1 INTRODUCTION

In today’s dynamic environment, enterprises are in-

terested in making their IT landscape ﬂexible, from

applications to infrastructure. Enterprises prefer to

consume those services which are adaptable and align

better to fulﬁll requirements of their business. Cloud

computing is an architectural option that gained popu-

larity in the last decade to host and build applications,

platforms, and computing environments.

Cloud service providers face several challenges to

meet the changing functional and non-functional de-

mands of customers. They have to provide solutions

for these requirements to retain customers and to re-

main competitive. Variability is the ability of a sys-

tem to extend, modify, customize, or conﬁgure the

functionality for a particular context (Svahnberg et al.,

2005).

There are numerous approaches(Pohl et al., 2005)

and tools (K

astner et al., 2009; Beuche, 2012) to

manage variable requirements, which are discussed in

the software product lines (SPL) domain. In (Bogart

et al., 2016), authors survey the change management

approaches in three software eco-systems. However,

such requirements are also present in services, which

are often not discussed, especially in the cloud com-

puting domain. There are also surveys (Villela et al.,

2014; Berger et al., 2013; Chen and Ali Babar, 2011;

Hubaux et al., 2011) about variability management in

SPL and in software engineering process. However,

only few empirical studies address variability issue is

service domain.

There is lack of information how variability is

offered and managed in service-oriented computing

(SOC) projects, so we address this issue. Variability

management is a key activity in SPL domain, which

enables organizations to manage variability. We be-

lieve that variability approaches from SPL, e.g., fea-

ture modeling, can be used in SOC domain. There are

existing works, which address the issue from limited

perspective. For example, in (Khan et al., 2011b), au-

thors classify various types of variability in different

layers.

In this paper, we want to get feedback from par-

ticipants and highlight how diverse requirements are

managed in a service domain. To ﬁll the gap, we

use quantitative research method (Posavac, 2015) to

gather the feedback from participants and analyzing it

with statistical methods. For statistical analysis pur-

pose, we use R to analyze the data. We use SOC term

to represent the service-orientation options whether it

is from SOC, cloud computing or for web applications

based on services.

The primary objective of our survey is to provide

empirical data on how participants manage variability

in SOC domain. We also get the feedback from re-

spondents regarding important criteria for variability

mechanisms in SOC domain. At the end of our sur-

vey, we aim to get the feedback from the users, which

service variability patterns (as discussed in (Khan

et al., 2011a)) users already know and how they rate

those patterns from various evaluation criteria per-

spectives. We use 25 responses from the respondents.

We argue, variability management plays an important

100

Khan, A., Pohl, M., Köppen, V., Saake, G. and Turowski, K.

An Evaluation of Variability Mechanisms to Manage Cloud Services.

DOI: 10.5220/0006421401000107

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 2: ICE-B, pages 100-107

ISBN: 978-989-758-257-8

role to manage variability in SOC. More focus or at-

tention is required for its utilization by offering more

tools and methods.

2 QUESTIONNAIRE STRUCTURE

The questionnaire comprises of four sections. In the

ﬁrst section, we gather general information about our

participants, e.g., age range, gender, qualiﬁcation.

Section 2 questions the participant’s experience, role,

and size of the projects, and how development is done

in SOC domain. For our questionnaire, we use SOC

or services as an umbrella term for service-oriented

system engineering, cloud computing, and develop-

ment related to web applications.

Section 3 corresponds to the type of variability in

SOC, what kind of approaches users apply to manage

variability and weighting for variability mechanisms.

In Section 4, we collect feedback on an existing pat-

tern catalog (Khan et al., 2011a). We brieﬂy explain

the variability patterns and ask participants to rate

them against selected evaluation criteria. Detailed re-

sults are described in Section 4. The questionnaire is

available online on this

website.

Questionnaire is a data collection technique in

quantitative research. We use the questionnaire as

a technique to collect data, which contain questions

in a pre-deﬁned way. Awareness of different types

of questions is vital for the design of a question-

naire (Dillman et al., 2008). There are different types

of questions, e.g., open-ended, close-ended, which we

ask in our questionnaire. Some of them are close-

ended questions and some are open-ended questions.

Open-ended questions provide the participants the

opportunity to give feedback instead of selecting pre-

deﬁned options. We use a Likert scale (Likert, 1932)

for some questions. Likert scale enables us to get the

ratings of particular questions from the survey partic-

ipants. The feedback results in ordinal data.

For Likert scale, we use 3-point and 5-point scale

which we afterward code into numbers. We use quan-

titative techniques for the questions where applicable.

In next section, we provide detailed descriptions of

our analysis techniques.

3 METHODOLOGY

Asking right questions is a challenging task, as the

outcome depends on the question posed (Bradburn

et al., 2004). For the preparation of our questionnaire,

www.bit.do/vmcloud1

we use a three-step approach. Firstly, we design

the complete questionnaire. Secondly, we use a pre-

testing method expert review (Rothgeb et al., 2007;

Presser and Blair, 1994; Presser et al., 2004a; Presser

et al., 2004b) on the questionnaire to check for nec-

essary modiﬁcations, problematic questions, or to re-

move the ambiguity. It is an important step, because

small changes or questions wording have also impact

on outcomes as described in (Bradburn et al., 2004).

We do not ask the reviewers to ﬁll the resulting ques-

tionnaire. Lastly, we distribute our questionnaire to

experts by sharing the link. Some of the participants

ﬁll the questionnaire using a traditional method, e.g.,

by ﬁlling the printed questionnaire with a pen. After

observing the distribution of responses, it is suitable

to get a view of the mean value over all participants

feedback.

In order to present the data in an appreciate

manner, we use plotRadarPerformanceTable function

from R package MCDA and barplot from core R.

R is an environment

for statistical computing and

also used for data analysis. Numerous packages

are available through Comprehensive R Archive Net-

work. There are a lot of discussions about the usage of

mean, median or mode in statistical analysis. Within

the receiving of ordinal data (Likert Scale) median or

mode should be preferred. However the choice de-

pends on the given data (Campbell, 2009). For data

presentation, we use mean values.

Though descriptive analysis (µ, σ, etc.) is not de-

sirable, we receive signiﬁcance by testing for the hy-

pothesis H

: µ ≤ δ with the alternative hypothesis

: µ > δ , where δ describes the medium level at a

survey question q. In all these cases we use Wilcoxon-

Mann-Whitney-Test(Mann and Whitney, 1947) that is

suitable for ordinal data (Gehan, 1965). The Student’s

T-Test, which is widely used (Vale et al., 2012), can-

not be applied, because we cannot guarantee the nor-

mality assumption.

4 RESULTS

We received 25 responses from all contacted experts.

All participants have worked on projects in SOC do-

main. In this section, we present some results on

all question sections. The participants had to rate

the answer options for several questions. These an-

swer options differ between {Very Rare, Rare, Some-

times, Often, Very Often}, {Very low, Low, Neutral,

High, Very high}, {Easy, Medium, Hard} and {Low,

Medium, High}.

https://www.r-project.org/

An Evaluation of Variability Mechanisms to Manage Cloud Services

101

Table 1: Wilcoxon-Test results of ”‘How development was done in SOC projects?”’.

How development was done in SOC projects? W p-value H

Design or developing applications from scratch 193 0.00177 0 1

Reusing own existing artifacts 81 0.02892 0 1

Open-source code without major changes 73 0.7207 1 0

Open source code with major changes 41 0.7716 1 0

Finally, we substitute given answers by a rating

of numbers (1-5 or 1-3), where 5 or 3 is the highest

rating depending on the question. In all ﬁgures shown

in this paper, we use mean values of the observations

on the x-axis.

4.1 General Information

The majority of the participants (52%) work for com-

panies. 42% of the participants belongs to universities

or research organization (only 28% were from the uni-

versities), while only 8% of the participants belongs

to others or mixed category. This seems fairly repre-

sentative.

4.2 Service-oriented Computing

In this section, we asked numerous questions related

to SOC domain including participants experience and

roles in the domain. One of the important question

was “How development was done in those projects?”,

the response is shown in Figure 1. Only one expert

uses the partially closed-ended question option and

gave an option that Sometimes they also use customer

code.

Figure 1: How development was done in SOC projects.

In Table 1, one ﬁnds the corresponding Wilcoxon-

Test results (W), testing for H

: µ ≤ 3 with H

: µ > 3.

From the above section 4, one considers that 3 is a

code for answer Sometimes, so we test if an option is

used less equal or more than Sometimes. Table 1 pro-

vides the test-statistic W that is evaluated with spe-

ciﬁc probability distribution to obtain p-value. On

this basis, we can decide whether to accept null or

alternative hypothesis. Applications in SOC will be

developed more often from scratch or on reusing own

existing artifacts than based on open source code.

4.3 Variability

In this section, we ask about how they manage vari-

ability in the project. The responses were mostly by

experienced employees (shown in Figure 2), which

indicates that there is no speciﬁc methodology or tool

used for such a purpose. The Wilcoxon test results are

depicted in Table 2. It is also a challenge for organiza-

tions when an employee changes the project or quits

the job, because he/she also takes tacit knowledge.

Figure 2: How to manage variability.

Next, we asked questions related to variability

in SOC environment: “What kind of changes (or at

which layer) are usually requested?”. Here, we iden-

tify in which layer changes are requested. Results are

shown in Figure 3. The responses show that changes

at user-interface layer are common to occur.

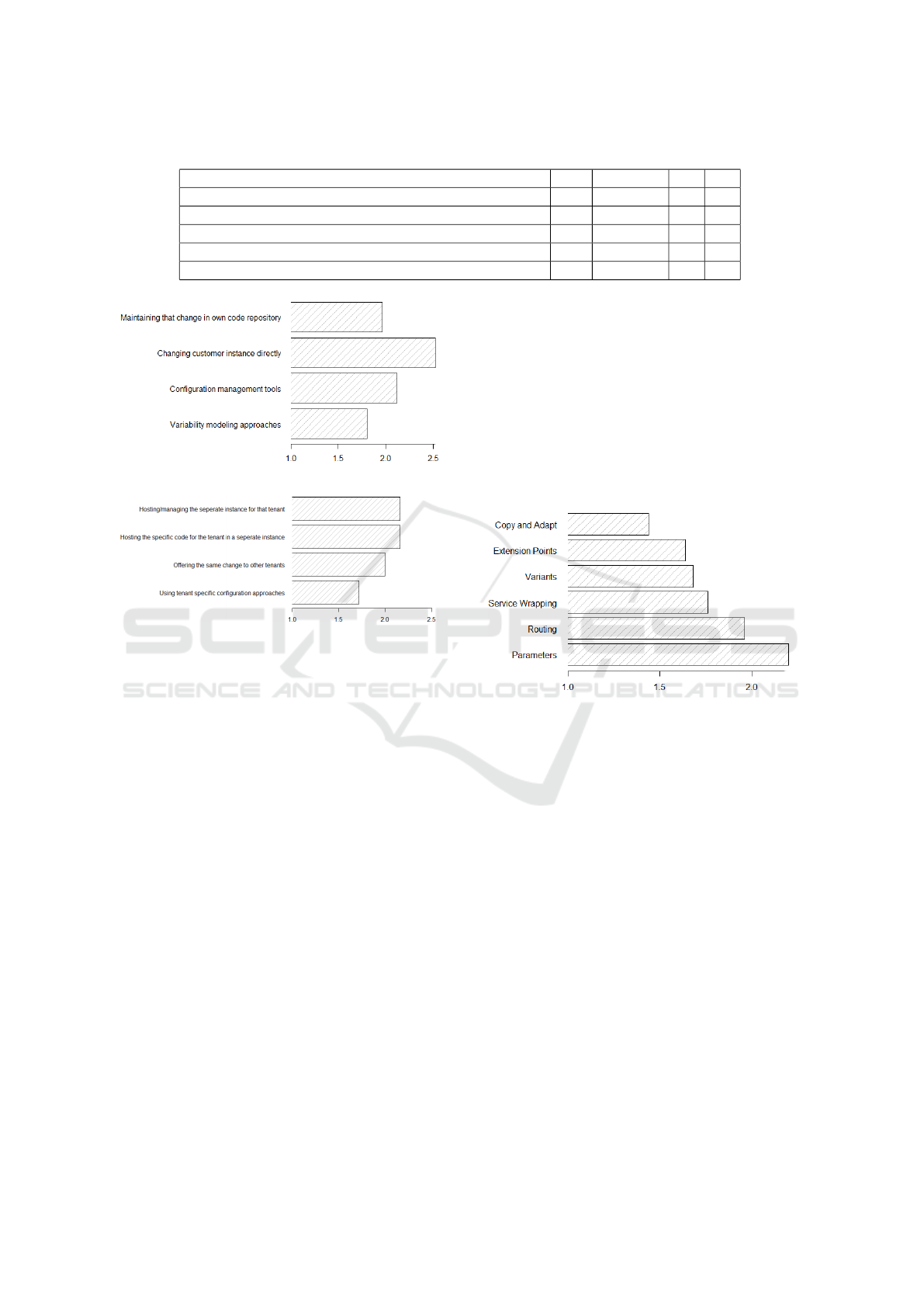

Figure 3: Layers with provided variability.

“How do you provide variability in single-tenant

cases?” Feedback is presented in Figure 4, and cus-

tomer changes are directly incorporated in their cor-

responding instance in case of single tenant environ-

ment.

“How do you provide variability in multi-tenant

cases?” Feedback output is shown in Figure 5. It does

not give a clear picture.

ICE-B 2017 - 14th International Conference on e-Business

102

Table 2: Wilcoxon-Test results testing for H

: µ ≤ 3 with H

: µ > 3.

How to manage variability? W p-value H

Variability modeling approaches 30 0.9617 1 0

Conﬁguration management tools 43 0.5722 1 0

Change management approaches 57 0.198 1 0

Using well-managed documentation after change request 49 0.5921 1 0

From employee experience 198 0.001214 0 1

Figure 4: Providing variability in single tenant case.

Figure 5: Providing variability in multi-tenant case.

“How do you rate the importance of following cri-

teria for variability mechanism in SOC?”. We provide

various criteria as options and conclude in Figure 7.

4.4 Service Pattern Catalog

In this section of the questionnaire, we describe vari-

ous existing methods from literature in form of a pat-

tern catalog to provide variability. We asked our par-

ticipants for rating of each pattern to manage vari-

ability from different perspectives (called evaluation

criteria for each pattern). The outcome is summa-

rized and depicted in Figure 13. First of all, we query

whether the participants know the above-described

patterns. Afterward, we ask them whether they have

used these patterns to provide variability in their

projects. In the end, we seek answers to the following

questions from our participants regarding six evalua-

tion characteristics.

Required changes characteristic refers to the num-

ber of changes or effort needed to use a pattern in a

given situation or to fulﬁll a variability requirement.

From a developer perspective, less effort or low num-

ber of changes are desirable. If a developer has to

perform a lot of changes, then she/he has to put more

effort and may make the pattern error prone.

We asked the following question: “How do you

rate the following patterns from the change required

perspective?”. The feedback of this questions is in

Figure 6. Flexibility criterion is used to assess how

much ﬂexibility a pattern or approach offer to the de-

veloper when he chooses a selected approach. High

ﬂexibility means the approach can be used to offer

various kinds of variability. Low ﬂexibility means

the approach does not provide much freedom to meet

variability requirement.

Figure 6: Patterns from change perspective.

The question asked is: “How do you rate the fol-

lowing patterns from the ﬂexibility perspective?”. As,

it is evident from Figure 8, Copy and Adapt pattern

provides more ﬂexibility than the other patterns.

Scalability criterion measures the scalability of

technique. Whether the technique is scalable on a

larger scale or not?. Does it scale, can we use it in a

complex situation or can we use the pattern if we are

scaling up the application. From a stakeholder per-

spective, high scalability is preferred vs. low scalabil-

ity. The related question is as follows: “How do you

rate the following patterns from the scalability per-

spective?”. The response is highlighted in Figure 9.

The criterion risk is used to assess whether the se-

lected mechanism or approach introduce risks or vul-

nerabilities in the system. Risks can also be consid-

ered from a security perspective. If a technique is

more vulnerable, then it is less preferred vs. a less

vulnerable technique. So, a technique with a high risk

is considered as not preferred. We asked the follow-

ing question: “How do you rate the following patterns

from the risk perspective?” Figure 10 shows our re-

An Evaluation of Variability Mechanisms to Manage Cloud Services

103

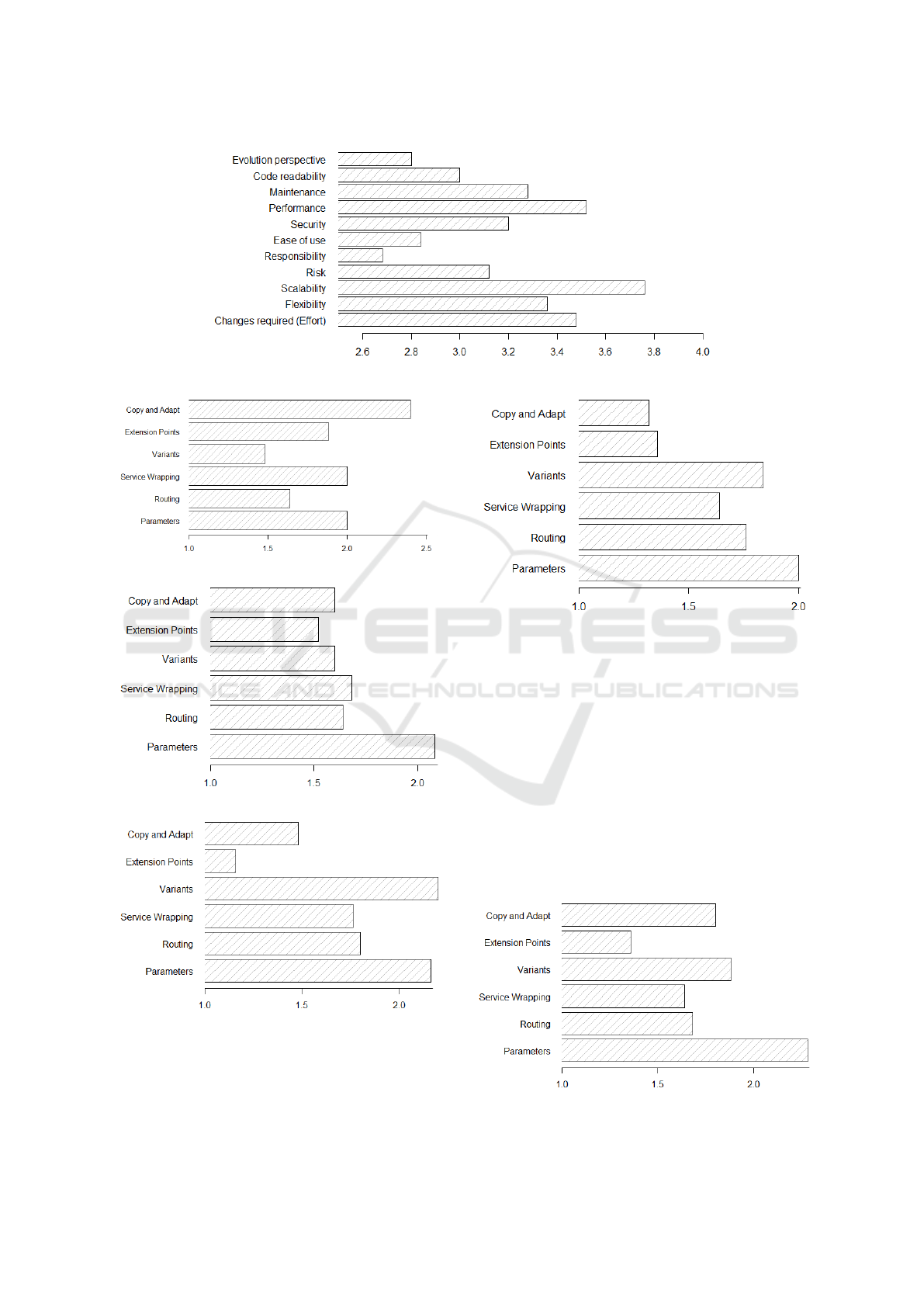

Figure 7: Importance of criteria.

Figure 8: Patterns from the ﬂexibility perspective.

Figure 9: Patterns from the scalability perspective.

Figure 10: Patterns from the risk perspective.

sults.

The criterion maintenance is used to deﬁne how

easy or difﬁcult a technique is when the developer has

to perform changes afterwards. Whether it is easy to

Figure 11: Patterns from maintenance perspective.

perform changes, e.g. from repairing, debugging or

refactoring perspectives. A technique which is easier

to maintain is preferred from developers. The ques-

tion is:

“How do you rate the following patterns from the

maintenance perspective?”. The output is depicted in

Figure 11.

The implementation perspective is used to assess

whether the pattern or technique is easy to implement,

use and understand. A pattern easily implementable

is desirable from the developer perspective.

“How do you rate the following patterns from

implementation perspective?” Figure 12 shows the

trend.

Figure 12: Patterns from implementation perspective.

ICE-B 2017 - 14th International Conference on e-Business

104

Parameters

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

Routing

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

Service Wrapping

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

Variants

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

Extension Points

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

Copy and Adapt

Change Requirement

Flexibility

Scalability

Risk

Maintenance

Implementation

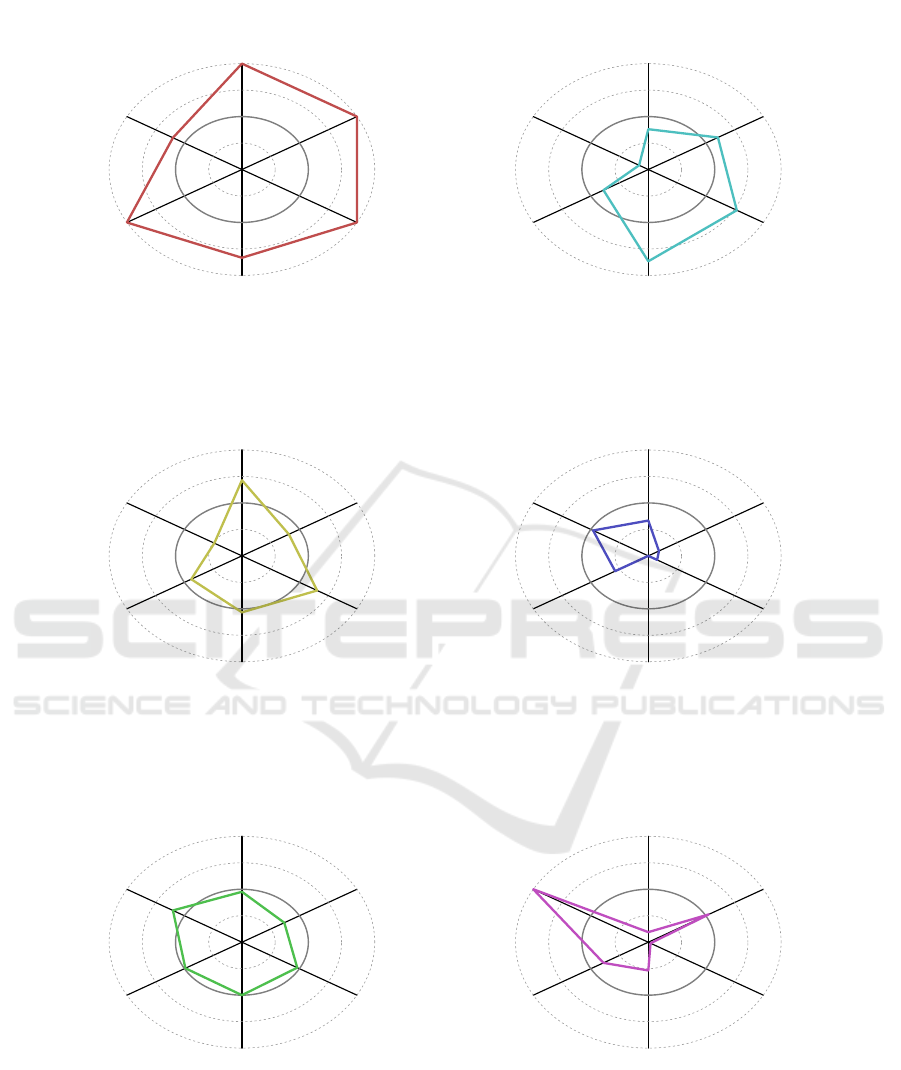

Figure 13: Comparison of Patterns against Evaluation Criteria.

An Evaluation of Variability Mechanisms to Manage Cloud Services

105

5 DISCUSSION

Although, as described in the literature, the shorter

questionnaire are better in terms of response rate, We

asked 49 questions in the questionnaire which makes

it quite long and required 10-15 minutes for ﬁlling

it, but we asked only those experts who know this

before and really willing to provide feedback in our

questionnaire. The questionnaire results reveal that

the variability management or mechanisms are rarely

used in SOC projects.

For the purpose of graphical representation of par-

ticipants feedback about our service patterns and se-

lected evaluation criteria, we use a radar chart. Radar

plots compare multiple quantitative variables, in our

case these variables are evaluation criteria, and suit-

able for a limited number of variables. Dotted points

in radar plot are data points. Circles represent the axis

and scale. In Figure 13, the scale is the mean value

of the evaluation criteria and range from a minimum

value of all variable to the maximum value of all vari-

able.

The outcome of all questions in this section is

summarized using radar plot for each pattern and de-

picted in Figure 13 (for clear representation we do

not show the values on circle axis).

As we can see from Figure 13, the parameter pat-

tern can be considered as a candidate after consider-

ing the feedback from experts because of the values of

evaluation criteria. Service wrapping pattern is also a

candidate to provide variability in most of the cases.

6 LIMITATIONS

We used printed and web-based methods to conduct

our questionnaire. However, there are some problems

and disadvantages we faced. For example for printed

or written questionnaire, participants can go through

the whole questionnaire ﬁrst (which is not possible in

our designed questionnaire, only one section is avail-

able at one time), or may not prefer to write answers

by hand. Furthermore, using a questionnaire tech-

nique to collect data has other limitations. For exam-

ple, how to ensure that the participant is given right or

truthful information.

The Likert Scale has a disadvantage that a partici-

pant may follow a speciﬁc pattern to ﬁll other options

or questions, e.g., being neutral or selecting extreme

values from both sides.

There are also some challenges in processing the

feedback, e.g., possibility of misreading the text for

the hand-ﬁlled questionnaire, typing or coding mis-

takes when transferring data from paper based form

to a computer for analysis.

We did not include six responses from the experts

because responses were not complete due to numer-

ous reasons (e.g., Google form did not respond when

some participants submit the response or submitted

a blank feedback, internet connection problems, the

questionnaire was not completely ﬁlled due to lack of

interest of some of the participants).

7 SUMMARY AND FUTURE

WORK

We aim to ﬁnd out how practitioners manage variabil-

ity in SOC and what criteria is important when select-

ing or choosing a technique to provide variability. The

data gathered from the contacted experts in the form

of questionnaire feedback enable us to provide some

insights about this topic. We also got the feedback

regarding our existing patterns to provide variability.

The questionnaire results reveal that the variability

management or mechanisms are rarely used in SOC

projects.

In future, we want to include the feedback of par-

ticipants what are their experience and more insights

they gain when they use our patterns in real projects.

From the questionnaire perspective, it would be inter-

esting to ﬁnd about the inﬂuence of the order of posed

questions and whether there would be the tendency to-

ward the middle or not in the case of an uneven Likert

scale.

REFERENCES

Berger, T., Rublack, R., Nair, D., Atlee, J. M., Becker, M.,

Czarnecki, K., and Wkasowski, A. (2013). A Survey

of Variability Modeling in Industrial Practice. In Va-

MoS’13, p. 7:1–7:8. ACM.

Beuche, D. (2012). Modeling and Building Software Prod-

uct Lines with pure::variants. In SPLC’12, p. 255.

ACM.

Bogart, C., K

astner, C., Herbsleb, J., and Thung, F. (2016).

How to Break an API: Cost Negotiation and Commu-

nity Values in Three Software Ecosystems. In FSE

2016, p. 109–120. ACM.

Bradburn, N., Sudman, S., and Wansink, B. (2004). Ask-

ing Questions: The Deﬁnitive Guide to Questionnaire

Design – For Market Research, Political Polls, and

Social and Health Questionnaires. Research Methods

for the Social Sciences. John Wiley & Sons, 2

edi-

tion.

Campbell, M. J. (2009). Statistics at Square One. John

Wiley & Sons.

Chen, L. and Ali Babar, M. (2011). A Systematic Review

of Evaluation of Variability Management Approaches

ICE-B 2017 - 14th International Conference on e-Business

106

in Software Product Lines. Information and Software

Technology, 53(4):344–362.

Dillman, D. A., Smyth, J. D., and Christian, L. M. (2008).

Internet, Mail, and Mixed-Mode Surveys: The Tai-

lored Design Method. John Wiley & Sons, 3

edition.

Gehan, E. A. (1965). A Generalized Wilcoxon Test

for Comparing Arbitrarily Singly-Censored Samples.

Biometrika, 52(1-2):203–223.

Hubaux, A., Xiong, Y., and Czarnecki, K. (2011). Conﬁgu-

ration Challenges in Linux and eCos: A survey. Tech.

Rep. GSDLAB-TR, University of Waterloo.

astner, C., Th

um, T., Saake, G., Feigenspan, J., Leich, T.,

Wielgorz, F., and Apel, S. (2009). FeatureIDE: A tool

framework for feature-oriented software development.

In ICSE, p. 611–614. IEEE.

Khan, A., K

astner, C., K

oppen, V., and Saake, G. (2011a).

Service Variability Patterns. In Variability@ER,

LNCS vol. 6999, p. 130–140. Springer.

Khan, A., K

astner, C., K

oppen, V., and Saake, G. (2011b).

The Pervasive Nature of Variability in SOC. In

FIT’11, p. 69–74. IEEE.

Likert, R. (1932). A Technique for the Measurement of

Attitudes. Archives of Psychology.

Mann, H. B. and Whitney, D. R. (1947). On a Test of

Whether one of Two Random Variables is Stochasti-

cally Larger than the Other. The Annals of Mathemat-

ical Statistics, 18(1):50–60.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering: Foundations, Princi-

ples, and Techniques. Springer.

Posavac, E. (2015). Program Evaluation: Methods and

Case Studies. Taylor & Francis.

Presser, S. and Blair, J. (1994). Survey Pretesting: Do Dif-

ferent Methods Produce Different Results? Sociolog-

ical methodology, p. 73–104.

Presser, S., Couper, M. P., Lessler, J. T., Martin, E., Martin,

J., Rothgeb, J. M., and Singer, E. (2004). Methods

for Testing and Evaluating Survey Questions. Public

Opinion quarterly, 68(1):109–130.

Presser, S., Rothgeb, J. M., and Couper, M. P. (2004). Meth-

ods for Testing and Evaluating Survey Questionnaires.

Wiley-Interscience.

Rothgeb, J. M., Willis, G., and Forsyth, B. (2007). Ques-

tionnaire Pretesting Methods: Do Different Tech-

niques and Different Organizations Produce Simi-

lar Results? Bulletin of sociological methodology,

BMS(96):5–31.

Svahnberg, M., van Gurp, J., and Bosch, J. (2005). A Tax-

onomy of Variability Realization Techniques. Soft-

ware - Practice and Experience, 35(8):705–754.

Vale, T., Figueiredo, G. B., de Almeida, E. S., and

de Lemos Meira, S. R. (2012). A Study on Service

Identiﬁcation Methods for Software Product Lines. In

SPLC’12, p. 156–163ACM.

Villela, K., Silva, A., Vale, T., and de Almeida, E. S. (2014).

A Survey on Software Variability Management Ap-

proaches. In SPLC ’14, p. 147–156. ACM.

An Evaluation of Variability Mechanisms to Manage Cloud Services

107
