A New Particle Weighting Strategy for Robot Mapping FastSLAM

Luciano Buonocore

, Sérgio R. Barros dos Santos

, Areolino de Almeida Neto

Alexandre C. M. Oliveira

and Cairo L. Nascimento Jr.

Department of Electrical Engineering, Federal University of Maranhão, São Luís, MA, Brazil

Division of Electronic Engineering, Instituto Tecnológico de Aeronáutica, São José dos Campos, SP, Brazil

Department of Informatics, Federal University of Maranhão, São Luís, MA, Brazil

Keywords:

FastSLAM Filter, Particle Weighting, Mobile Robot.

Abstract:

Nowadays, FastSLAM ﬁlters are the most widely used methods to solve the Simultaneous Localization and

Mapping (SLAM) problem. In general, these approaches can use complex matrix formulation for computing

the particle weighting procedure, during the execution of the SLAM algorithm. In this paper, we describe

a new particle weight strategy for the FastSLAM ﬁlter, which can maintain the generation of particles in its

most simpliﬁed form. Thus, this approach tries to estimate the robot poses and build the environment map

using a simple geometric formulation for executing the particle weighting procedure. This method is capable

of reducing the processing time and keeping the accuracy of the robot pose. Both simulation and experimental

results demonstrate the feasibility of the proposed approach at enabling a robotic vehicle to accomplish the

mapping of an unknown environment and also navigate through it.

1 INTRODUCTION

In the past two decades, Simultaneous Localization

and Mapping (SLAM) approaches have been widely

employed due to, in part, the advances of sensors and

electronic devices (Castellanos, 1999),(Jessup, 2015).

Generally, SLAM is an approach in which mobile

robots can build a feasible map of the environment

and, at the same time, use this map for estimating its

localization. Note that the pose of the robot is com-

posed by information about its position and orienta-

tion (Dissanayake, 2001).

The major goal of SLAM is ﬁnding a suitable rep-

resentation of the environment, assuming that both the

map and robot pose are unknown. In this situation, the

vehicle must be able to move through the unexplored

environment which is populated with obstacles. Since

the vehicle has known motion and measurement mod-

els, the robot pose and obstacle locations can be suit-

ably estimated by the SLAM algorithm (Montemerlo,

2003b). For such, it is required the use of an appro-

priate sensory system for performing measurements

of the relative location between the vehicle itself and

obstacles (Brenneke, 2003).

The main contribution of this works is to propose a

direct approach to solve the particle weighting proce-

dure of a FastSLAM ﬁlter, using a simple mathemat-

ical formulation. Normally, the traditional methods

discussed in the literature involve complex matrix op-

eration, which takes into account the measurements

obtained at the current state and maintained by the

map (Montemerlo, 2003a).

In our proposal, we seek to reduce the complexity

of the weighting process by a simple veriﬁcation of

the measured data. Several circles with different ra-

dius whose centers are deﬁned by the raw measures

are used to accomplish the comparison between the

sensor data at each state of the ﬁlter and the raw mea-

surements stored by each particle. Observe that the

circles are employed because the 2D mapping are ap-

plied to produce the environment map.

Hence, if a measure obtained at a given state

is within the circle then the matching occur, i.e.,

the probability (weight) of the particle is increased.

Through this procedure, it is possible to deﬁne the

best relationship between the processing time and ac-

curacy of the contours of the map incurred during the

environment mapping.

This paper is organized as follows. In Section

2, we describe the general concepts involved in the

problem. Section 3 discusses the probabilistic mo-

tion model used. Section 4 introduces the proposed

weighting strategy to estimate the probability of each

particle. Subsequently, in Section 5 is presented the

322

Buonocore, L., Santos, S., Neto, A., Oliveira, A. and Jr., C.

A New Particle Weighting Strategy for Robot Mapping FastSLAM.

DOI: 10.5220/0006421903220328

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 2, pages 322-328

ISBN: Not Available

obtained outcomes in both simulated and experimen-

tal trials. Finally, the conclusions and future work are

presented in Section 6.

2 PRELIMINARIES

2.1 FastSLAM Filter Overview

In the mobile robotics literature, two FastSLAM ﬁlter

approaches are addressed to solve the mapping and

localization problems. These approaches are classi-

ﬁed as FastSLAM 1.0 and 2.0. The essential differ-

ence between them is that the version 2.0 has a model

of particle generation more complex than version 1.0

(due to the fact that this algorithm includes the mea-

surements performed at each sampling stage) which

results in a higher computational cost. Other major

aspects of both FastSLAM algorithms are described

in (Montemerlo, 2003a), (Thrun, 2004) and (Monte-

merlo, 2003c) .

Actually, some recent works use an open-source

algorithm based on Rao-Blackwellized Particle Filter

(known as Gmapping) for creating 2D occupancy grid

maps from laser scanner data and also to estimate the

robot pose in a target environment (Santos, 2013).

In this research, we use the FastSLAM 1.0 due

to this approach allows to maintain the generation of

particles in its most simpliﬁed form. The used Fast-

SLAM algorithm is represented by 100 particles.

In general, the FastSLAM 1.0 is composed by four

stages brieﬂy described below:

1. Particle sampling: At this stage, the particles are

sampled based on a speciﬁc Probability Density

Function (PDF);

2. Particle weighting: Each sampled particle is

weighted according to the current environmental

measurements;

3. Map Update: The embedded map in the particles

are updated using the measurements (generated

by the sampling process) at each pose in the en-

vironment;

4. Particle Resampling: The particles are redis-

tributed based on their weights. The goal is to

keep only the set of particle associated with the

greater weights (probabilities).

The FastSLAM ﬁlter can be used to deal with the

noises resulting from the motion of the robot. These

noises are generated through the kinematic motion

model described in section 3 and are used to estab-

lish the new set of particles.

The measurements obtained from the current

robot pose are processed by the ﬁlter to deﬁne the

weight of each particle. This weight reﬂects the prob-

ability value related to each one of the particles. Note

that the probability represents each hypothesis chosen

by the algorithm (i.e., the quality of the pose repre-

sentation). In this work, we propose a new particle

weighting strategy (described in section 4) to deter-

mine the weight of each particle that composes the

FastSLAM algorithm.

2.2 Mapping Representation

In this work, SLAM problem for medium-scale envi-

ronments based on metric map representation is inves-

tigated. In our proposed solution, the location-based

map (deﬁned by a 2D occupancy grid) is used to build

the map of the environment. This approach uses the

position information of each feature in the environ-

ment to deﬁne the map. In practice, each cell of the

map can assume three different representations: the

cells previously investigated by the robot is denomi-

nated as free or occupied space and is represented by

0 or 1, respectively; and the cells that have not yet

been veriﬁed by the robot is denominated as unknown

space and is represented by 0.5.

2.3 Simulation and Experimental

Context

This research was divided into two distinct phases:

simulation evaluation and experimental validation. In

the ﬁrst stage, we conduct the evaluation trial by a

simulation setup. This setup consist of a computer

used to simultaneously run the SLAM algorithm (im-

plemented in the Matlab), and also the dynamic model

of the robot (KUKA youBot) and environment (im-

plemented in the Virtual Robot Experimentation Plat-

form - VREP). The interface between both software

was performed using the Robot Operating System

(ROS) network.

In the second stage, the developed SLAM algo-

rithm (implemented in Matlab) is validated using the

real robot (KUKA youBot) equipped with a Laser

Scanner (Hokuyo URG-04LX-UG01). The data ex-

change between the Matlab and the KUKA youBot is

performed by the ROS Network. The experimental

environment was equipped with four infrared camera.

These cameras were used to detect the robot pose in

relation to the global reference frame.

Both setups (Matlab/V-REP and Matlab/real

robot) provide an easy-to-use interface that allow

evaluating the FastSLAM algorithm in simulation,

A New Particle Weighting Strategy for Robot Mapping FastSLAM

323

and then export the code (ﬁlter algorithm) to the ac-

tual robot for performing the ﬁnal veriﬁcation.

3 PROBABILISTIC MOTION

MODELS

Let us consider a motion model given by (1) to es-

timate the robot pose at each instant of time (Thrun,

2005). In this approach, we use the motion model

based on velocity-based model which depends on

the speed and time elapsed during the route (Thrun,

2005).

p(x

t−1

) (1)

where t is the discrete time to estimate the next

state, x

t−1

is the previous particle state (pose and

map), u

is the command to move the robot and x

the next particle state. Note that noises are considered

during robot motions.

3.1 Velocity Motion Model

The amount of time to perform the commanded move-

ment is fundamental to predict the robot displace-

ment. In this approach, we estimate the probability

of the next pose over a ﬁxed interval of time.

Let u

be the robot control input composed by two

different commands. v

is used to perform the lin-

ear movements and ω

is used to execute the angu-

lar movements. These parameters can be related as

shown in (2).





(2)

The use of velocity-based model allows generat-

ing curved paths whereas the odometry-based models

only produce simple linear or angular motions (this

feature precludes the application of a planning tra-

jectory algorithm) (Thrun, 2005). In order to use the

velocity motion models, it is necessary to deﬁne the

noises relative to the linear and angular motions, and

also the ﬁnal orientation error at the pose.

4 PARTICLE WEIGHTING

APPROACH

In this section, we present the proposed strategy for

performing the particle weighting using the sensor

data and raw measurements obtained from the en-

vironment. Initially, the set of particles is gener-

ated (particle sampling) using a Gaussian function.

Hence, the weighting process can be executed from

the sampled particles. The Box-muller function also

was tested in the algorithm. However, the Box-muller

function has not presented good estimation.

The particle weighting procedure is accomplished

by a matching process which uses the raw measure-

ments acquired at the current state to verify whether

the measures (obtained by the robot sensor) are al-

ready stored in each one of the generated particles.

Thus, if this condition is true, the weight of the parti-

cles increases. Otherwise, the weight is not changed

and the measures (which have not been veriﬁed) are

included to the raw measurements of the evaluated

particle.

In this approach, the measures (acquired at the

current state and also stored in the particles) are de-

rived from the raw measurements. The raw measure-

ments are obtained from the laser scanner (consider-

ing the particle bearing), and are represented by the X

and Y coordinates in relation to the global reference

frame. In practice, the raw measurements are consid-

ered to estimate the weight of the set of particles.

Let us consider that each one of the particles i =

{

1,...,100

}

generated at a speciﬁc state s can be de-

ﬁned as,

(s) =

{

,ω

,γ

}

∀s = {1, ...,N} (3)

where α corresponds to the pose vector deﬁned



1:s



, ω is the vector used to keep

the raw measurements obtained from the environment

and γ refers to the local occupancy grid (metric map),

which is deﬁned by a matrix of 200 x 200. Note that

the subscript (1 : s) of the pose vector corresponds to

the set of measures of all observed states.

In this proposal, we consider that the local occu-

pancy grid is composed by cells that have 10 cm of

side length. All particles are composed by the same

map representation, which are updated during the ex-

ploration process. This approach can be extended for

large environments through the hybrid map scheme

discussed in (Stachniss, 2006).

Observe that the updating time (of the global map)

is related to the size of the environment and the num-

ber of particles used at each state.

Let us consider that the robot moves from an ini-

tial pose to the next pose using the velocity-based

motion model, and then executes the measurements

using the laser scanner. The measurements are per-

formed through a scanning of 180 degree at the pose.

The obtained raw measures are used to accomplish the

weighting procedure through the matching function.

The match function is used to select the most

promising measures stored by the particles using the

measurements (obtained by the laser scanner) at the

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

324

current pose. The veriﬁcation of this measures (for

each particle i) is realized using a simple geometric

formulation described in (4), which employs a set of

circles whose centers are deﬁned by the raw mea-

sures. Note that these circles can assume different

radius values.

(

1 i f m(.) ∈ f (c, r)

0 i f m(.) /∈ f (c, r)

(4)

where j = {0, 1, 2,...,N

} denotes the vector

length and N

is the total number of elements of the

vector ω (see (3)). m refers to the raw measures ac-

quired from the laser scanner sensor, f (c,r) is the

circle function that depends on the center c and radius

r. In this work, the radius of the circle can be referred

by radius matching.

The radius values were deﬁned using the good ac-

curacy of laser scanner measurements. The selected

values for performing the matching procedures were

0.1, 1 and 2. Observe that r can be tuned to obtain

the best relationship between the processing time and

accuracy of the map contours.

Then, if ϑ = 1, the measure is within the circle

and the matching occur. On the other hand, if ϑ = 0,

the measure is out of the circle and the matching does

not occur. Thus, the measures that receive ϑ = 0 are

included in the vector (ω) of raw measurements of the

evaluated particle. Note that the vector (ω) grows up

with the time of exploration and with the use of small

radius matching values.

The quantity of matching occurred in a speciﬁc

particle i can be computed as follows:

∑

j=1

(5)

where η

is the quantity of matching occurred in a

particle i.

The weight of each particle is calculated through

the relation between the amount of matching occurred

in the particle i and the total amount of matching of

all particles of the ﬁlter. Let us deﬁne this procedure

as follows:

= η

/η (6)

where w

is the weight of the particle i and η is the

total number of matching obtained by the particles of

the fastSLAM ﬁlter.

After ﬁnishing the weighting process, the local oc-

cupancy grid map of the particles is updated, and then

all promising hypotheses (resampling procedure) are

used by new set of particles (that are generated at the

next states).

5 EVALUATION AND

DISCUSSION

In this section, we present the results obtained during

the evaluation of the FastSLAM ﬁlter which employs

the particle weighting strategy developed in section 4.

The trials were divided into two distinct parts: simu-

lation and experimental analysis. In both case, we use

the same scenario, sensors and robot to conduct the

trials. Note that the simulated and experimental envi-

ronments were described in section 2.3.

5.1 Simulation Results

The aim of simulation trial is to demonstrate the eval-

uation of the particle weighting strategy in relation to

the general aspects of the FastSLAM ﬁlter. In this sec-

tion, we analyze the accuracy of the poses and built

map, the number of the raw measures stored by the

particles and the processing time of the ﬁlter. The

simulation tests were performed using three different

values for the matching radius - see (4). These param-

eters were adjusted to 0.1, 1 and 2 cm.

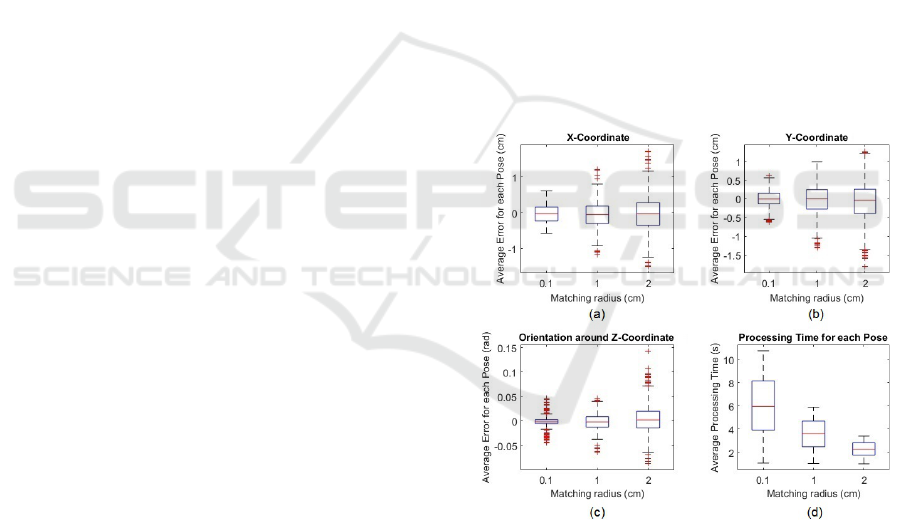

Figure 1: Box plot of the average pose errors and processing

time.

The datasets obtained through 10 different trials

were used to evaluate the FastSLAM algorithm. The

box plot in Figure 1 illustrates the average errors and

the average processing time distributions incurred by

each one of the matching radius. Note that the av-

erage error refers to the difference between the pose

estimated by the ﬁlter and the exact pose provided by

the V-REP simulator, during the exploration process.

Figures 1(a)(b)(c) show that the obtained average

pose error (X and Y coordinate and orientation) grows

up with the increasing of the matching radius value.

A New Particle Weighting Strategy for Robot Mapping FastSLAM

325

Table 1: Numerical Comparison between the Simulation and Experimental data for the matching radius of 1 cm.

Mapping and Localization Data

X-Position error Y-Position error Bearing error

Measures

Simulation

Trial

Experimental

Trial

Simulation

Trial

Experimental

Trial

Simulation

Trial

Experimental

Trial

Mean -0.05799 0.2540 -0.03063 -0.2836 -0.001688 -0.002091

Std. Dev. 0.3942 1.5785 0.4289 1.5202 0.01679 0.04551

Lower Value -1.1743 -2.6433 -1.3089 -2.6264 -0.06331 -0.09424

Upper Value 1.2104 2.6223 0.9856 2.3699 0.04635 0.1189

Observe that the smallest error occurs when is used

the matching radius of 0.1 cm. Note that the accu-

racy of the map is related to the value of the matching

radius selected by the user.

Through the trial results, we observe that the use

of matching radius equal to 1 cm provides a accept-

able average error and, respectively, a good accuracy

of the map for the navigation purpose. This condi-

tion is not observed for matching radius values greater

than 1 cm.

Table 1 presents the results obtained for the

matching radius of 1 cm. Note that the average error

presents (Table 1) small variation between the lower

and upper values and also small standard deviation for

the X and Y coordinate and orientation.

However, in Figure 1(d), it can be seen that the av-

erage time processing for each pose has an opposite

effect to the others shown in Figures 1(a)(b)(c). This

is due to the variation of the radius using in the match-

ing process, deﬁned by (4). Thus, it is possible assert

that the time processing is reduced in function of the

increasing of the matching radius, since the amount

of stored measures by the particles at each pose is

also reduced. Note that the higher average process-

ing times occur when is used a radius of 0.1 cm.

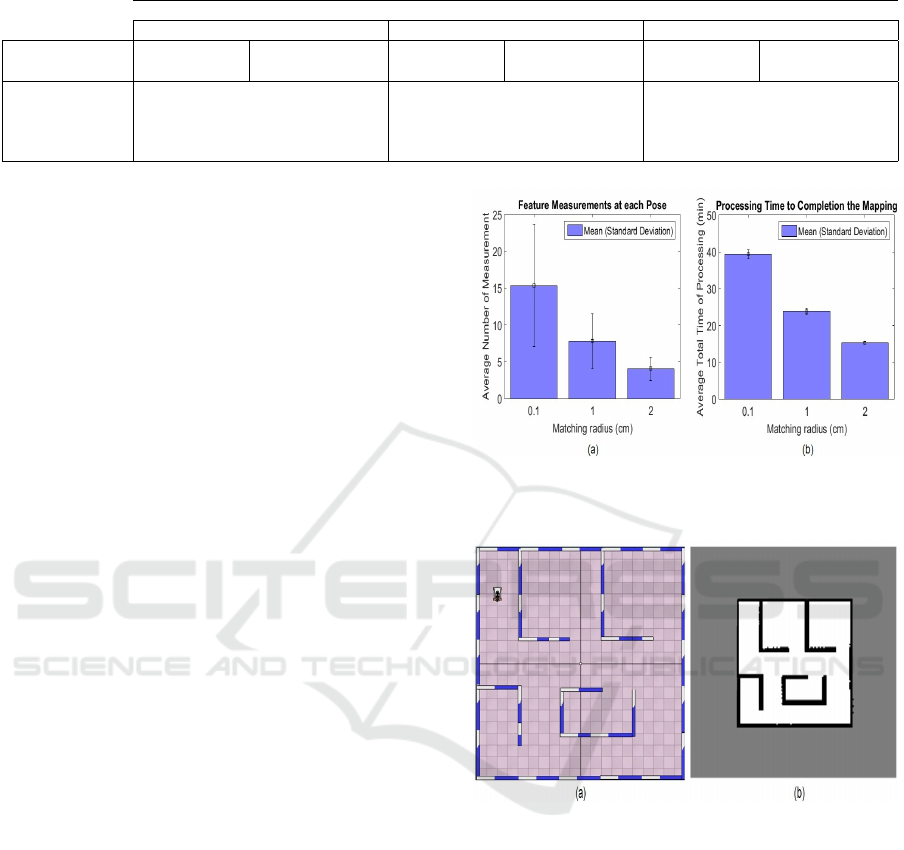

Figure 2 shows the average number of measure-

ments accomplished at each pose and the average pro-

cessing time to completion the build of the environ-

ment map. Observe that, the amount of measure-

ments performed by the robot and the time required

to execute the exploration are reduced according to

the matching radius. These parameters have greater

values when was used radius of 0.1 cm.

The choice of the appropriate radius matching

must be done so that maximizes the accuracy of the

estimated poses and minimizes the total processing

time of the ﬁlter (cost of processing - overhead).

In Figure 2, we can see that the most promising

solution occurs when the radius is equal to 1 cm. Fig-

ure 3 illustrates the environment (with area of 100 m

)

used in simulation and the map built by the ﬁlter based

on location-based approach (using radius of 1 cm to

perform the weighting of the particle).

Now, we are going to present the experimental re-

sults of the FastSLAM ﬁlter using the proposed par-

Figure 2: Number of measurements performed by the robot

and the total processing time for the exploration and map-

ping.

Figure 3: Visual representation: (a) Simulated environment

and (b) Built map.

ticle weighting process. The experimental trial was

performed using the matching radius of 1 cm. This

value was chosen based on evaluation of the simula-

tion results.

5.2 Experimental Results

The aim of experimental trial was to demonstrate the

feasibility of the particle weighting strategy in SLAM

System. In order to evaluate the outcomes result-

ing from the exploration and mapping procedures, we

carry out 10 experiments in an actual environment.

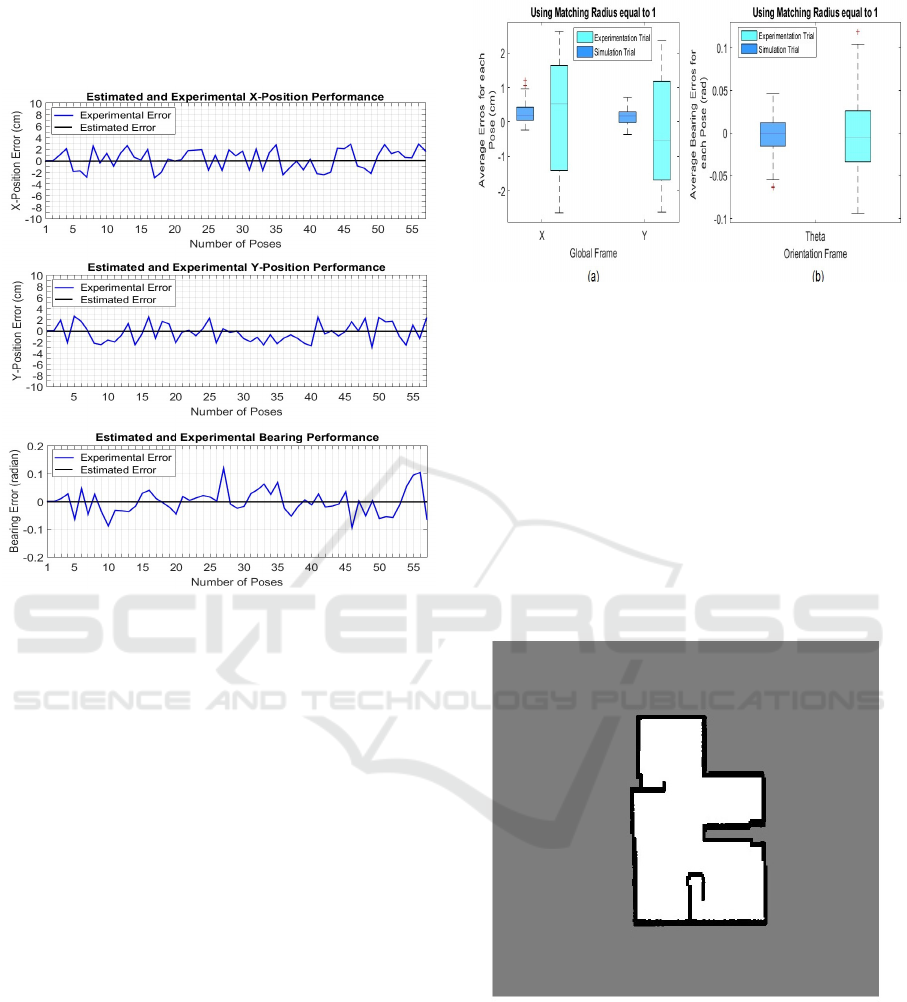

Figure 4 shows the results obtained from one of the

performed trials. These graphs display the relative er-

ror between the actual and estimated poses in the X

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

326

and Y coordinates and orientation. Observe that the

actual poses of the robot was obtained through the use

of a motion capture system based on infrared cameras.

Figure 4: Errors between actual and estimated poses.

Although the errors (for each pose) obtained from

the actual experiments (around +/- 3 cm for position

and +/- 0.12 degree for orientation) are higher than

the acquired from the simulation, the real results re-

mained within acceptable limits to execute the navi-

gation by the environment.

The box plot in Figure 5 presents the comparison

between the average errors for each pose. Figure 5(a)

illustrates the average errors in X and Y coordinates

while in Figure 5(b) displays the errors produced by

the orientation measurements. Note that the orien-

tation error have similar mean values in both trials.

However, the lower and upper values of the actual

bearing errors are greater than the bearing error ac-

quired by the simulations.

In respect to the average pose error (Figure5(a)),

we can assert that the difference of magnitude be-

tween the simulation and experimentation trials is

caused by the motion noises generated by the actual

robot.

The numerical values of the average error ac-

quired from the experimental trials are summarized

in Table 1. Note that the experiments have a low stan-

dard deviation for all parameters. This situation indi-

cates that the set of data are bunched up and close to

the mean. In other words, at any time incurred dur-

ing the experiments, the ﬁlter has not produced errors

Figure 5: Average errors obtained in X and Y axes and ori-

entation.

with outliers much larger than the general averages.

From this data, we can say that the ﬁlter is capable of

providing consistent results and also it is possible to

assert that the ﬁlter has not diverged during its time

operation.

Figure 6 displays the map built from the real en-

vironment using the FastSLAM ﬁlter which uses the

new approach to accomplish the weighting of the par-

ticles. In actual experiments, we use an environment

setup with reduced dimensions in comparison to the

simulated environment. It was necessary due to the

restriction of range of the employed cameras system.

Figure 6: Estimated map obtained by the FastSLAM ﬁlter

during the experimental validation.

6 CONCLUSIONS AND FUTURE

WORKS

In this paper was presented a new particle weight-

ing approach for FastSLAM ﬁlter which uses a sim-

ple geometric veriﬁcation to determine the robot pose

A New Particle Weighting Strategy for Robot Mapping FastSLAM

327

and build the environment map. From this method,

the raw measures stored by the particles can be eas-

ily evaluated using the measurements obtained by the

robot sensor. Moreover, this approach enables to

implement several path planning techniques for the

robot to autonomously execute the exploration of the

environment.

Future works in this research include applying

optimization and artiﬁcial intelligence techniques for

generation of the path planning and for merging mul-

tiple sensor data. Our goal is to investigate a meta-

heuristic method which is capable of producing the

optimal paths to perform the SLAM and use a neural

network to merge the kinect and laser scanner data.

Thus, the system will be able to detect multi-sized ob-

jects present in the environment.

Other work alternatives include: a) the use of

metaheuristics to deﬁne the value of the radius of the

circle (matching phase); and b) evaluate the perfor-

mance of the proposed ﬁlter in larger scale environ-

ments and then to compare the real and estimated

maps.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge the support for

this research provided by FAPEMA (Research Grant

No 44/2013-APCInter) and Federal University of

Maranhão (UFMA).

REFERENCES

Brenneke, C.; Wulf, O. W. B. (2003). Using 3d laser range

data for slam in outdoor environments. In IEEE Intel-

ligent Robots and Systems, pp. 188-193.

Castellanos, J.; Montiel, J. N. J. T.-J. (1999). The SPmap: A

probabilistic framework for simultaneous localization

and map building. IEEE Transactions on Robotics and

Automation, vol. 15, no. 5, pp. 948–953.

Dissanayake, M.; Newman, P. C. S. D.-W. H. C. M. (jun.

2001). A solution to the simultaneous localisation and

map building (SLAM) problem. IEEE Transactions on

Robotics and Automation, vol. 17, no. 3, pp. 229-241.

Jessup, J.; Givigi, S. B. A. (April 2015). Robust and Efﬁ-

cient Multirobot 3-D Mapping Merging with Octree-

Based Occupancy Grids. IEEE Systems Journal.

Montemerlo, M. (2003a). FastSLAM: A Factored Solution

to the Simultaneous Localization and Mapping Prob-

lem with Unknown Data Association. Ph.D. disser-

tation, Dept. Elect. Eng., Robotics Institute, Carnegie

Mellon University.

Montemerlo, M.; Thrun, S. (2003b). Simultaneous local-

ization and mapping with unknown data association

using fastslam. In IEEE International Conference on

Robotics and Automation, pp. 1985–1991.

Montemerlo, M.; Thrun, S. K. D. W.-B. (2003c). Fast-

slam 2.0: An improved particle ﬁltering algorithm for

simultaneous localization and mapping that provably

converges. In International Joint Conference on Arti-

ﬁcial Intelligence, pp. 1151–1156.

Santos, J.; Portugal, D. R. R. (2013). An evaluation of 2d

slam techniques available in robot operating system.

In IEEE International Symposium on Safety and Res-

cue Robotics, pp.1-6.

Stachniss, C. (Apr. 2006). Exploration and Mapping

with Mobile Robots. Albert Ludwigs University of

Freiburg, PhD Thesis.

Thrun, S.; Montemerlo, M. K. D. W.-B. N. J. N. E. (2004).

An Efﬁcient Solution to the Simultaneous Localization

and Mapping Problem with Unknown Data Associa-

tion. Journal of Machine Learning Research,.

Thrun, S.; Burgard, W. F. D. (2005). Probabilistic Robotics.

The MIT Press.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

328
