Mobile Silent and Continuous Authentication using Apps Sequence

Gerardo Canfora

, Giovanni Cappabianca

, Pasquale Carangelo

, Fabio Martinelli

Francesco Mercaldo

, Ernesto Rosario Russo

and Corrado Aaron Visaggio

Department of Engineering, University of Sannio, Benevento, Italy

Institute for Informatics and Telematics, National Research Council of Italy (CNR), Pisa, Italy

Keywords:

Continuous Authentication, Silent Authentication, Security, Behavioral Models, Android.

Abstract:

The last years have seen a growing explosion of the use of mobile devices. As matter of fact “smart” devices

are used for a plethora of activities: from spending leisure time on social networks to e-banking. For these

reasons smart devices hold huge volumes of private and sensitive user data and allow the access to critical

applications in terms of privacy and security. Currently mobile devices provide an authentication mechanism

based on the login: they do not continuously verify the identity of the user while sensitive activities are

performed. This mechanism may allow an adversary to access sensitive information about users and to replace

them during sensitive tasks, once they have obtained the user’s credentials. To mitigate this risk, in this paper

we propose a method for the silent and continuous authentication. Considering that each user typically runs

recurrently a certain set of applications in every-day life, our method extracts this characterizing sequences

of apps for proﬁling the user and recognizing the user of the device that is not the owner. Using machine

learning techniques several classiﬁers have been trained and the effectiveness of the proposed method has

been evaluated by modeling the user behavior of 15 volunteer participants. Encouraging results have been

obtained, i.e. a precision in distinguishing an impostor from the owner equal to 99%. The main beneﬁt of this

method is that is does not use sensitive data, nor biometrics, which, if compromised, cannot be replaced.

1 INTRODUCTION

The most widespread method for authenticating users

on mobile devices consists of inserting a password or

a secret pattern. This mechanism is weak for many

reasons: users often choose very simple and easily

guessable passwords (Clarke and Furnell, 2005); pat-

terns can be deduced with special lighting and high-

resolution photography (Aviv et al., 2010). Finally

recent studies (Harbach et al., 2014) revealed that

about 34% users did not use any form of authen-

tication on their devices, while 24% consider lock-

ing screens unnecessary. Consequently, unauthorized

individuals may obtain access to the device, install

malware or have access to a user’s personal infor-

mation. To overcome this problem continuous au-

thentication, also known as active authentication was

proposed (Guidorizzi, 2013), which essentially makes

use of physiological and behavioral biometrics us-

ing built-in sensors and accessories such as the gy-

roscope, touch screen, accelerometer, orientation sen-

sor, and pressure sensor, to continuously monitor user

identity. Examples of physiological biometrics are the

picture of the face or the ﬁngerprint, while behavioral

biometrics are gait, touch gestures and hand move-

ment. Authors in literature have used interchange-

ably also the terms implicit authentication (Jakobs-

son et al., 2009), (Shi et al., 2010), and transparent

authentication (Clarke, 2011). The methods for con-

tinuous authentication developed till now have dif-

ferent limitations: biometric data at enrollment time

may have different characteristics than those pre-

sented during authentication. This problem is known

as domain adaptation (Patel et al., 2015), and affect

mainly face recognition. Many biometrics for contin-

uous authentication raise issues of privacy disclosure

(

Sed

enka et al., 2015). Some of the physiological

and behavioral biometrics based continuous authen-

tication are vulnerable to spooﬁng, mimic, statistic,

or digital replay attacks (Smith et al., 2015). Most

continuous and authentication methods ignore usabil-

ity and acceptability issues (Patel et al., 2016); ﬁnally,

while a compromised password or a smart card can be

revoked, a biometric is permanently associated with a

user, so that when compromised cannot be replaced.

In order to overcome all these limitations, we propose

Canfora, G., Cappabianca, G., Carangelo, P., Martinelli, F., Mercaldo, F., Russo, E. and Visaggio, C.

Mobile Silent and Continuous Authentication using Apps Sequence.

DOI: 10.5220/0006424200790091

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 79-91

ISBN: 978-989-758-259-2

a method for continuous authentication that identi-

ﬁes those sequences of apps that characterize the way

each user uses the smartphones. The idea arises from

the observation that the smartphone is becoming a

tool that accompanies the everyday life, since we use

smartphones for a lot of activities, and each person

stabilizes certain recurrent habits in the use of the

apps. Some apps are used in precise moments of the

day or are not used in other moments. For example,

Alex goes to run at 6 o’clock of Monday, Wednesday

and Friday, and in that time, for one hour he launches

”runtastic” and ”spotify” apps. During ofﬁce time

Lisa doesn’t use to see the email on the smartphone,

but on the pc, thus she does never access Gmail app

during work time. Standing these considerations, the

authentication can be done on the basis of some char-

acterizing sequences of apps that the user launches

on the smartphone and that occur with a signiﬁcant

recursion. When an expected sequence of apps is not

observed or when an unexpected sequence occurs, the

system can rise an alarm or mark as ”suspicious” the

event on a log. The method is able to overcome the

limitations of the traditional mechanisms of contin-

uous authentication, as it does not affect the user’s

privacy nor requires biometrics and the experimenta-

tion demonstrated that it is able to produce an EER

that is very competitive if compared with that of the

other methods. The research question that we wish

to answer is: ”Can the sequence of apps launched by

a smartphone’s user distinguish the legitimate owner

from an impostor?”. The proposed mechanism should

work as an anomaly detector, rather than in a positive

recognition of the user, i.e. when the behavior of the

user does not complain with the user proﬁle, the sys-

tem should signal an anomaly, with the purpose of

logging ”suspicious” activities or verifying the iden-

tity of the user with a stronger authentication mecha-

nism.

The rest of the paper is organized as follows:

Section 2 discusses related work, Section 3 presents

the proposed approach, Section 4 evaluates the effec-

tiveness of the approach and, ﬁnally, conclusion are

drawn in Section 5.

2 RELATED WORK

Continuous authentication has been largely investi-

gated and literature is plenty of a great variety of fea-

tures that are collected for recognizing the user.

Gait’s recognition consists of identifying a person

by the walking way. Benabdelkader et al. (BenAb-

delkader et al., 2002) demonstrated that a person’s

height and stride allow to recognize correctly a per-

son with 49% probability. Mantyjarvi et al. (Man-

tyjarvi et al., 2005) used three approaches of gait’s

recognition, namely correlation, frequency domain

and data distribution statistics, producing respectively

an EER of 7%, 10%, and 19%. Gafurov et al. (Ga-

furov et al., 2006) applied histogram similarity and

cycle length, by achieving an EER of 5% and 9% re-

spectively. Derawi et al. (Derawi et al., 2010) applied

preprocessing, cycle detection and recognition anal-

ysis to the acceleration signal, obtaining an EER of

20%.

Touch gestures track the user’s unique touch fea-

tures, such as ﬁnger pressure and trajectory, the speed

and acceleration of movement, and how the person in-

teracts with the mobile device. Saevanee et al (Saeva-

nee and Bhatarakosol, 2008) explored the use of three

behavioral biometrics: the hold-time, the inter-key

behavior, and the ﬁnger pressure. They found that the

only usage of ﬁnger pressure produced an accuracy of

99%, similar to the results obtained with the combi-

nation of hold-time and ﬁnger pressure. Frank et al.

(Frank et al., 2013) investigated 30 behavioral touch

features, obtaining an EER of 0% for intra-session au-

thentication, 2%-3% for inter-session authentication

and below 4% when the authentication test was run

one week after the enrollment phase. Li et al. (Li

et al., 2013) proposed a system that learn the ﬁnger

movements’ patterns: the sliding up gesture produced

an accuracy of 95.78%, the sliding down 95.30%, the

sliding left 93.06%, the sliding right 92.56%, the up

and tap 93.02%, the down and tap 89.25%, the left

and tap 88.28% and the right and tap 89.66%. Sitov

et al. (Zhao et al., 2013), proposed Hand Movement,

Orientation, and Grasp (HMOG), a set of behavioral

features which capture micro-movement and orienta-

tion dynamics for continuous authentication. They

obtained an EER of 7.16% when the user’s walking,

and 10.05% when sitting. Buriro et al. (Buriro et al.,

2016), introduced a system for proﬁling a user based

on how he holds the phone by taking into account

the micro-movements of a phone and the movements

of the user’s ﬁnger when interacting with the touch-

screen. With Multilayer Perceptron 1-class veriﬁer,

they obtained 95% True Acceptance Rate (TAR) with

3.1% False Acceptance Rate (FAR) on a dataset of 30

volunteers.

Authors in (Canfora et al., 2016) propose a con-

tinuous and authentication method for Android smart-

phones that consider as discriminating features the de-

vice orientation, the touch and the cell tower. They

obtain a precision in distinguishing an impostor from

the owner between 99% and 100%.

Multimodal is the combination of different bio-

metric features. Kim et al (Kim et al., 2010) proposed

SECRYPT 2017 - 14th International Conference on Security and Cryptography

a fusion of face, teeth and voice modalities. The val-

idation produced an EER of 1.64%. Bo et al. (Bo

et al., 2013) proposed a system for continuous au-

thentication that exploits dynamics mined from the

user walking patterns in combination with the touch

behavior bio-metrics and the micro-movement of the

mobile device caused by users screen-touch actions.

They showed that the user identiﬁcation accuracy was

over 99%. Zheng et al. (Zheng et al., 2014), proposed

a mechanism using the fusion of four features (accel-

eration, pressure, size, and time) extracted from smart

phone sensors (accelerometer, gyroscope, and touch

screen sensors). Experimentation showed an EER of

3.65%

Some authors investigated the way user performs

the input, like Seo et al. (Seo et al., 2012) and Shen

et al. (De Luca et al., 2012), obtaining an accuracy

of respectively 100%, 77%, and the third one a false

rejection rate of 6.85%, and a false-acceptance rate of

5.01%

Power consumption was also investigated as iden-

tiﬁer of a user as in Murmuria et al. (Murmuria

et al., 2012), which used power consumption along

with touch gestures and physical movements, obtain-

ing an EER varying between 6.1% and 6.9%. Li et

al. (Shye et al., 2009) explored the usage of applica-

tion (application time, name and time of application

usage), obtaining an EER of 13.5%. A behavior pro-

ﬁling method based on application usage, Bluetooth

sightings and Wi-Fi access point sightings was pre-

sented in (Neal et al., 2015): authors reported average

identiﬁcation rates of 80%, 77%, 93%, and 85%.

Different solutions where also proposed for face

recognition (Hadid et al., 2007) (producing and av-

erage authentication rate between 82% and 96%),

(Fathy et al., 2015) (showing a recognition rate of

95%), (Crouse et al., 2015) (with an EER between

13% and 30%), and (Abeni et al., 2006) (EER be-

tween 3.95% and 7.92%).

Differently from these methods, the method pro-

posed in this paper collects only recurring sequence

of apps that can identify the owner behavior, thus does

not collect sensitive data nor user biometrics, and pro-

duce a very low EER, competitive with the best results

recorded in literature.

3 THE METHOD

The proposed approach consists of extracting a set of

features, captured directly on the device during its us-

age, which are intended to characterize the user be-

haviour.

The features’ set considered is a sequence of ap-

plications that show some recurrent usage patterns,

i.e. are launched (or never launched) in precise mo-

ments of the day or in a certain order. In order to

gather these information, an application has been de-

veloped that must be installed on the smartphone or

the tablet where the user must be authenticated.

The proposed method takes into account the ap-

plication sequences related to: (i) Activities: an ac-

tivity is one of the fundamental building blocks of an

Android app. It is the entry point for a user’s interac-

tion with an app, and it plays also a central role in the

user navigation of an app (with the Back button) or

between apps (with the Recents button); (ii) Services:

a service allows an application component to perform

long-running operations in background, without pro-

viding a user interface. Another application compo-

nent can start a service, while it continues to run in

background even if the user switches to another appli-

cation. Since there are many versions of the Android

operating system released by Google, causing con-

sequent changes of the API, different methods have

been used to retrieve the sequence of applications

(i.e., Activities and Services) launched by the user.

With regards to the Activities gathering, for

the operating system versions before Android M,

the getRunningAppProcesses() method belonging

to the ActivityManager class

was used: this

method is able to return a list of application pro-

cesses that are running on the device. In order to

solve the compatibility problems with the operating

system versions after Android M, the “Android tool-

box”

utility was leveraged, that is a multi-function

program: it encapsulates the functionality of many

common Linux commands (and some special An-

droid ones) into a single binary. This makes it more

compact than having all those other commands in-

stalled individually. However, the toolbox versions

of these commands (e.g. ’ps’, or ’ls’) have less func-

tionality than their full-sized Linux counterparts. The

actual toolbox binary is often located in /system/bin

directory on an Android system, and the commands

that it supports are listed as symlinks within /sys-

tem/bin/toolbox. The ps command provided by the

tool was used for displaying information about the ac-

tive processes.

For the several Android operating system ver-

sions, the recognition of the duration of a foreground

activities was possible by detecting, for each de-

vice, a list of launchers so as to precisely determine

the instant when the user changes the context. In

order to gather invoked Services, for Android ver-

https://developer.android.com/reference/android/app/

ActivityManager.html

http://elinux.org/Android toolbox

Mobile Silent and Continuous Authentication using Apps Sequence

sions with operating system versions equal to 4.4 or

less, the getServices() method belonging to the

ActivityManager class was used to extrapolate the

services in execution.

By using the ad-hoc developed app, it is possible

to retrieve the raw user traces, containing the list of

the ﬁrst 1000 invoked Activities and Services. Start-

ing from the raw traces, the relevant transitions be-

tween activities and services for each user are built,

as the tree in Figure 1 outlines.

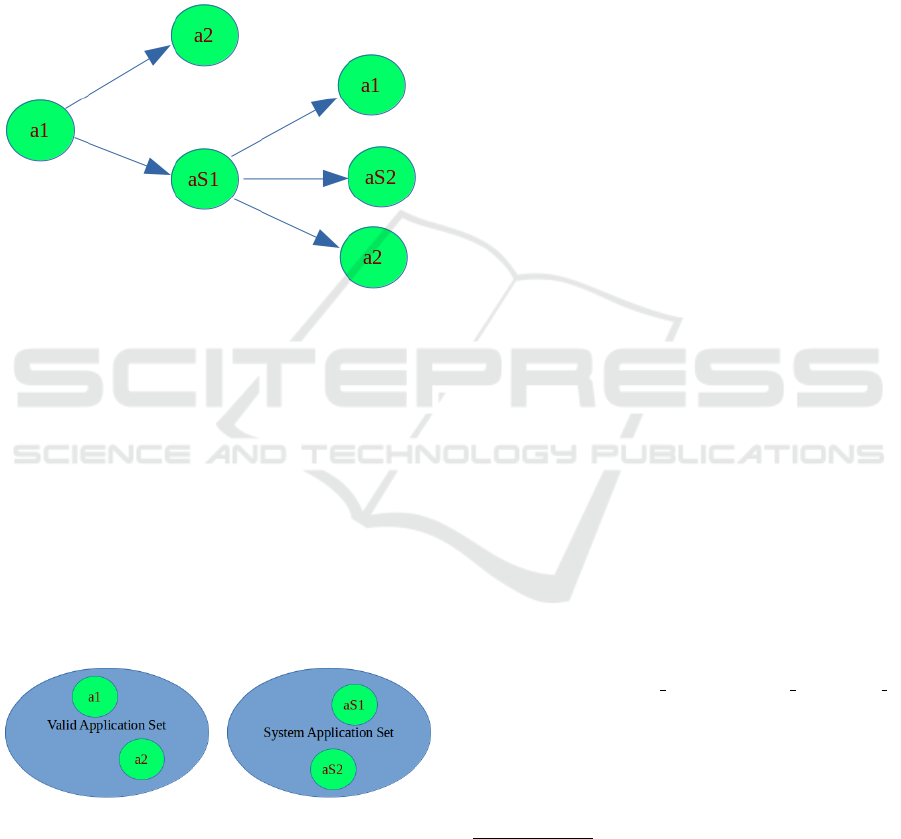

Figure 1: The valid applications set and the system one.

Fig.1 shows that the observed user invokes ﬁrst

the a1 application, then the a2, thus the user comes

back to the a1 application. The user invokes the aS1

application and start, respectively, the a1, the aS2 and

the a2 applications.

The tree is built from the Activities and the Ser-

vices invoked by the user in a time-window of 1 day.

From the traces, we obtained two sets of applica-

tions: the ﬁrst set is represented by the valid applica-

tions (i.e., the applications effectively invoked by the

user), while the second one includes the system appli-

cations set which are discarded because does not pro-

vide helpful information for our aims, as Fig.2 shows.

Figure 2: The valid applications set and the system applica-

tions set.

In the tree shown in Figure 1, a1 and a2 represent

the valid applications, while aS1 and aS2 the system

applications: the last ones are excluded by the analy-

sis. System applications are not included in the fea-

tures set because they add only noise in the data, as

these applications are launched by many different ap-

plications and are scarcely explicative of the user’s

behavior.

The system applications which are discarded are:

(i) com.google.android.gms.persistent: it is part of

Google Play Services, and it enables the user to

beneﬁt of Google-powered features, such as Maps,

Google+, with automatic platform updates distributed

through the Google Play store

; (ii) system:ui: it rep-

resents the process responsible for the system bars,

i.e. screen areas dedicated to the display of notiﬁca-

tions, communications of the device status, and the

device navigation. Typically the system bars are dis-

played concurrently with the running application; (iii)

android:ui: it is the process responsible to manage

the user interface and a variety of pre-built UI com-

ponents such as structured layout objects and UI con-

trols as dialogs, notiﬁcations, and menus provided by

Android. When the user receives a notiﬁcation from

an application that is not running in foreground, the

related Service is gathered also if the user does not

run the application. Considering that the messaging

applications like WhatsApp

and Telegram

typically

send a great number of notiﬁcations and such notiﬁca-

tions create noise, notiﬁcations received by this kind

of applications have been excluded.

In order to correctly identify the application of the

Communication category

(in order to exclude from

the analysis the notiﬁcation Service, but not the Ac-

tivity invoked by the user for running the application),

an open-source API for the Google Play market

has

been used. This API allows to mine the ofﬁcial mar-

ket servers for retrieving apps and the related meta-

data: speciﬁcally, the API was used for identifying the

category of the application that sends the notiﬁcation,

excluding the application belonging the the Commu-

nication category.

In order to gather the application Service respon-

sible for sending the notiﬁcation, the developed ap-

plication needs to change the correspondent setting.

At the ﬁrst start the application, by using the an-

droid.settings. ACTION NOTIFICATION LISTENER

SETTINGS implicit intent the user is redirected to the

operating system settings, which allows to activate

the correspondent ﬂag (this procedure is necessary

only with operating system version equal to 5.0 and

higher).

https://play.google.com/store?hl=it

https://play.google.com/store/apps/details?id=com.

whatsapp&hl=it

https://play.google.com/store/apps/details?id=org.telegram.

messenger&hl=it

https://play.google.com/store/apps/category/COMMUNI

CATION

https://github.com/jberkel/android-market-api

SECRYPT 2017 - 14th International Conference on Security and Cryptography

The developed application does not re-

quire root privileges, but it requires the fol-

lowing permissions: (i) android.permission.

WRITE EXTERNAL STORAGE: this permission

enables the application to write to external stor-

age; this permission needs to store on the external

device memory the raw traces of the user; (ii) an-

droid.permission. READ CONTACTS: this permission

allows the application to read the user’s contacts

data: this permission lets to identify the user; (iii)

android.permission.RECEIVE BOOT COMPLETED:

this permission enables the application to know

when the device is booted: this permission lets the

developed application to be run at device boot time.

The developed application sends the raw traces to a

NoSQL database. The database is managed with the

Google App Engine

, a platform for building scalable

web applications and mobile backends.

4 THE EVALUATION

An experiment has been designed and carried out

for evaluating the effectiveness of the proposed tech-

nique.

More speciﬁcally, the experiment is aimed at ver-

ifying whether the features representing the sequence

of the applications invoked by the user are able to dis-

criminate the device owner by an impostor.

The classiﬁcation of owner and impostor is done

with several state of the art machine learning classi-

ﬁers built with the features.

The evaluation consists of three stages: (i) a com-

parison of descriptive statistics of the populations of

application sequences; (ii) hypotheses testing, to ver-

ify whether the features have different distributions

for the populations of impostors and owner; and (iii)

a classiﬁcation analysis aimed at assessing whether

the features are able to correctly classify the device

user as impostor or owner.

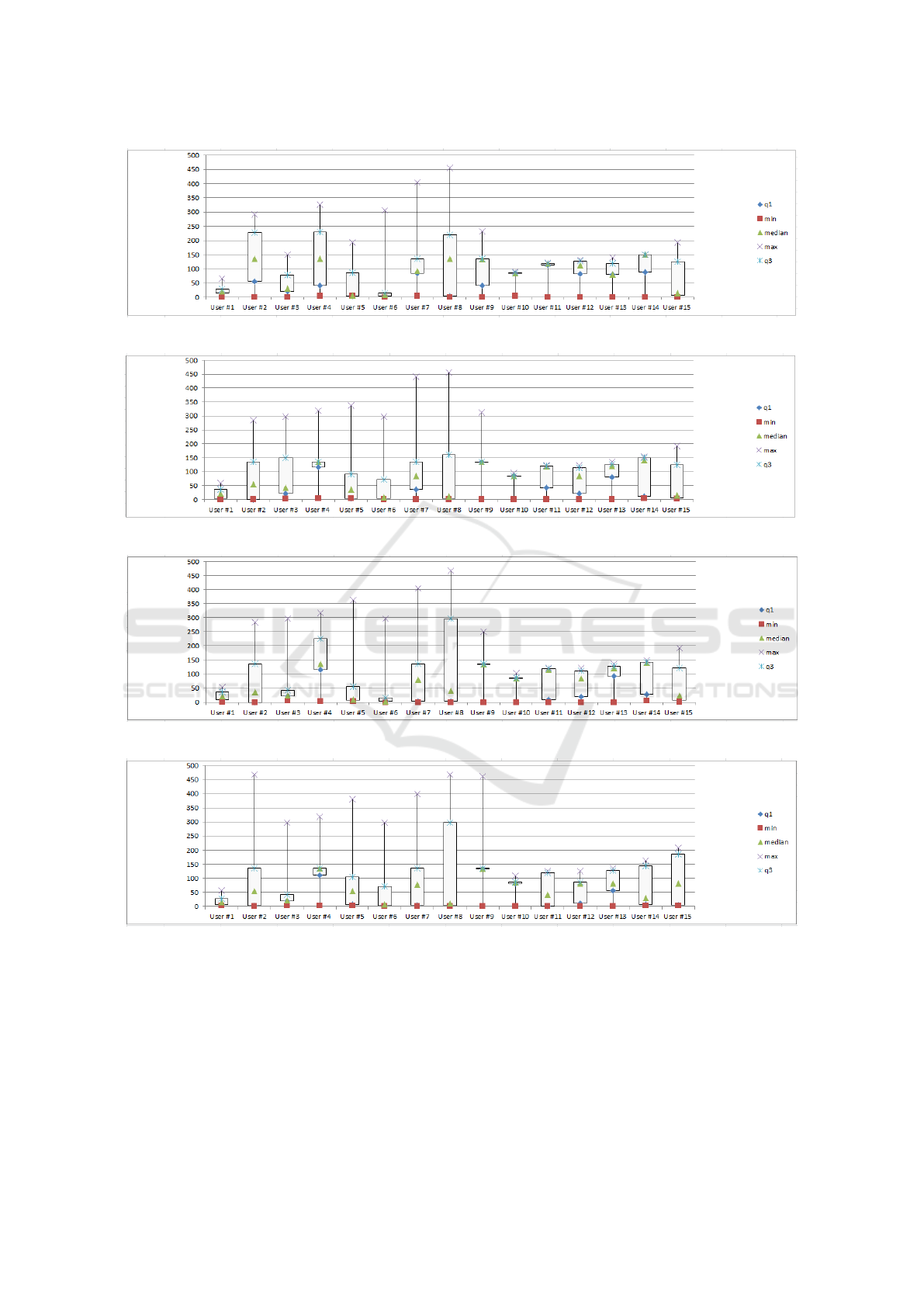

We provide the descriptive statistics with the box

plots of the distributions of impostors and owners, in

order to demonstrate that they belong to different pop-

ulations.

With regards to the hypotheses testing, the null hy-

pothesis to be tested is:

: ‘impostor and owner have similar values of

the considered features’.

The null hypothesis was tested with Mann-

Whitney (with the p-level ﬁxed to 0.05) and with

Kolmogorov-Smirnov Test (with the p-level ﬁxed to

0.05). Two different tests are run with the aim of

https://cloud.google.com/appengine/

enforcing the conclusion validity.

The purpose of these tests is to determine the level

of signiﬁcance, i.e., the risk (the probability) that er-

roneous conclusions be drawn: in our case, the sig-

niﬁcance level is set to .05, which means that it is ac-

cepted to make mistakes 5 times out of 100.

The classiﬁcation analysis was aimed at assessing

whether the features where able to correctly classify

impostors and owner. Six algorithms of classiﬁca-

tion were used: J48, LADTree, RandomForest, Ran-

domTree, RepTree and SimpleCart. These algorithms

were applied to the feature vector.

The classiﬁcation analysis was accomplished with

Weka

, a suite of machine learning software, largely

employed in data mining for scientiﬁc research.

More speciﬁcally, the experiment is aimed at veri-

fying whether the features are able to classify a behav-

ior trace as performed by the owner or by an impostor.

For the sake of clarity, the results of the evalua-

tion will be discussed reﬂecting the data analysis’ or-

ganization in the three phases: descriptive statistics,

hypotheses testing and classiﬁcation.

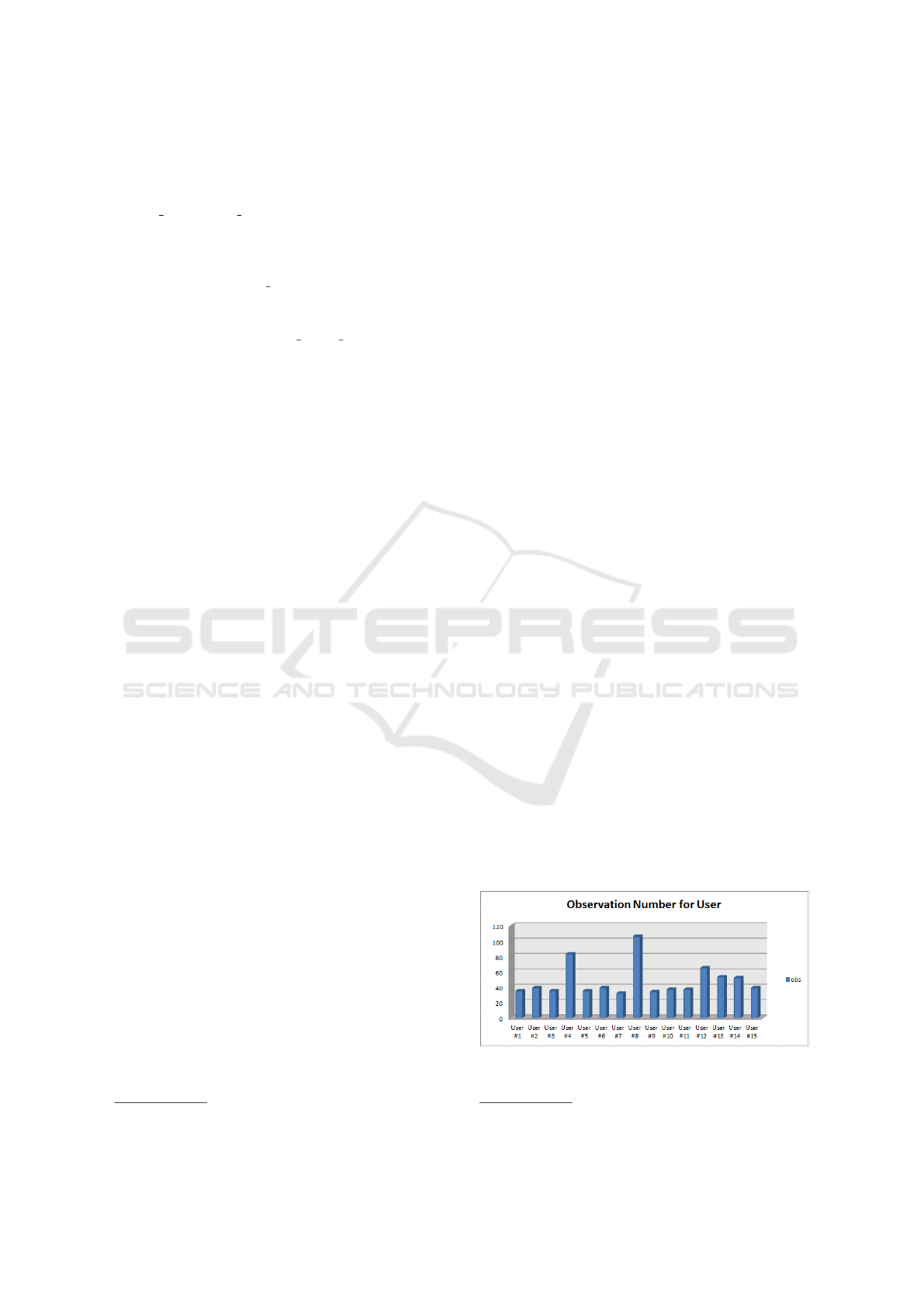

We observed 15 users for 21 days: the evaluation

time window began on March 13, 2016 and ﬁnished

on April 4, 2016. We collected the ﬁrst 1000 applica-

tions for device each usage session ran by each user

under analysis during a 1-day temporal window, and

we consider the sequence of these 1000 applications

as the feature vector. Each application invoked rep-

resents a feature: we indicate with FX the X feature,

where 1 ≤ X ≤ 1000 (i.e., X represents the X-th ap-

plication invoked by the user under analysis).

Table 1 provides the details of the observed de-

vices used to evaluate the proposed method: in the

experiment both smartphones and tablets are used as

experimental environments.

Figure 3 shows the number of observations col-

lected for each user involved in the experiment, i.e.

the number of traces (i.e., the user usage sessions)

gathered from each single device.

Figure 3: Number of observations for each users involved

in the study.

http://www.cs.waikato.ac.nz/ml/weka/

Mobile Silent and Continuous Authentication using Apps Sequence

Table 1: Devices involved in the evaluation with owner characterization.

User Sex Age Vendor Model O.S. version Smartphone Tablet

#1 F 20 Samsung S4 mini 4.4.2 X

#2 M 24 LG Nexus 5 6.0.1 X

#3 M 54 Samsung Galaxy J1 4.4.2 X

#4 F 24 LG Nexus 5 6.0.1 X

#5 M 16 Asus Zenfone 2 5.0 X

#6 F 30 Samsung Galaxy grand prime 5.1.0 X

#7 M 26 Asus Zenfone 2 5.1.0 X

#8 M 28 Samsung S6 6.0.1 X

#9 M 24 LG Nexus 5 6.0.1 X

#10 F 24 Asus Zenfone 2 5.1.0 X

#11 F 50 Asus Zenpad 7 4.4.2 X

#12 F 50 Asus Zenfone 5 4.4.2 X

#13 F 14 Samsung Tab 2 4.4.2 X

#14 M 55 Samsung Galaxy note 3 4.4.2 X

#15 M 27 Samsung S3 4.3 X

The user with the longest trace number in the

dataset is the user #8, but all the users involved in the

experiment presents a number of observations rang-

ing between 20 and 40: this is symptomatic of the fact

that the users effectively use the device in the every-

day life during the time-window of the experiment.

4.1 Descriptive Statistics

The analysis of box plots related to the feature vector

helps to identify whether the features are helpful to

discriminate the behavior of users or not. For reasons

of space the boxplots related to the F1 (in Figure 4),

F2 (in Figure 5), F3 (in Figure 6)and F4 (in Figure

7)features are reported.

The boxplots related to F1 feature are shown in

Fig 4. It arises that Users #2, #4 and #8 exhibit a

similar distribution, while Users #1,#3,#5,#6, #7, #9,

#10, #11, #12, #13, #14 and #15 present a different

distribution. This suggests that most of users involved

in the experiment usually run different applications

(i.e., 12 Users on 15).

The boxplots related to the F2 feature, are shown

in Fig 5, and indicate that Users #2, #3, #7, #11, #12,

#14 and #15 present a similar distribution of the fea-

tures, while the distribution of Users #1, #4, #5, #6,

#8, #9, #10 behaviors is less varying if compared with

the previous users. As a matter of fact, users exhibit

an evident diversity among each others, which is rep-

resented by the different level of medians for each

user and by the variability of the box plots’ width.

The boxplots related to the F3 feature, are shown

in Fig 6. Users #2, #4, #7, #11, #12, #14 and #15

exhibit a similar distribution that is different from the

one exhibited by the remaining users. As matter of

fact, Users #1, #3, #5, #6 have a tiny distribution,

Users #9 and #10 the thinnest, while User #8 the

widest one.

The boxplots related to the F4 feature, is shown

in Fig 7. Users #2, #4, #7, #11, #12, #14 and #15

exhibit a similar distributions that is different from the

one exhibit by the remaining users. As matter of fact,

Users #1, #3, #5, #6 exhibit a tiny distribution, Users

#9 and #10 the thinnest, while User #8 the widest one.

Very thin distributions are exhibited by users #1,

#3, #6, #9, # 10 and #13, while the widest one corre-

sponds to the Users #8 (as in the previous boxplot in

Fig. 6 representing the distribution of the F3 feature).

The remaining Users i.e. #2, #4, #5, #7, #11, #12, #14

and #15 are pretty similar.

From the boxplot analysis it is possible to con-

clude that from a statical point of view the extracted

features can be a good candidate to discriminate be-

tween users; as a matter of fact, in each box plot dif-

ferent groups of users exhibit different distributions.

This result is indicative that a single application is

not able to distinguish the individual user, but a se-

quence of applications may be able to uniquely iden-

tify the owner, and then to discriminate the impostors

from the owner. The classiﬁcation analysis will com-

plete the picture, by indicating that the combination

of all the measures can successfully help to identify

correctly the impostors.

4.2 Hypothesis Testing

The hypothesis testing aims at evaluating if the fea-

tures produce different distributions for the popula-

tions of users with statistical evidence.

The results are assumed valid when the null hy-

pothesis is rejected by both the tests performed.

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Figure 4: Boxplots related to the distribution of F1 feature.

Figure 5: Boxplots related to the distribution of F2 feature.

Figure 6: Boxplots related to the distribution of F3 feature.

Figure 7: Boxplots related to the distribution of F4 feature.

Mobile Silent and Continuous Authentication using Apps Sequence

Table 2 shows the results of hypothesis testing: the

null hypothesis H

can be rejected for all the features

i.e., there is statistical evidence that the feature vec-

tor is a potential candidate for correctly classifying a

device’s owner.

Table 2: Results of the test of the null hypothesis H

Variable Mann-Whitney Kolmogorov-Smirnov

F1 0,000000 p < .001

F2 0,000000 p < .001

F3 0,000000 p < .001

F4 0,000000 p < .001

For reasons of spaces, Table 2 shows the result of

the Hypothesis testing for the ﬁrst four features evalu-

ated, but also the remaining features passed the Mann-

Whitney and Kolmogorov-Smirnov tests successfully.

This result will provide an evaluation of the risk

to generalize the fact that the selected features pro-

duce values which belong to two different distribu-

tions (i.e., the one related to the impostors and the

owner).

4.3 Classiﬁcation Analysis

Seven metrics were used to evaluate the classiﬁca-

tion results: Precision, Recall, F-Measure, ROC Area,

FRR, FAR and ERR.

The precision has been computed as the propor-

tion of the examples that truly belong to class X

among all those which were assigned to the class. It

is the ratio of the number of relevant records retrieved

to the total number of irrelevant and relevant records

retrieved:

Precision =

t p

t p+ f p

where tp indicates the number of true positives

and fp indicates the number of false positives.

The recall has been computed as the proportion

of examples that were assigned to class X, among all

the examples that truly belong to the class, i.e., how

much part of the class was captured. It is the ratio of

the number of relevant records retrieved to the total

number of relevant records:

Recall =

t p

t p+ f n

where tp indicates the number of true positives

and fn indicates the number of false negatives.

The F-Measure is a measure of a test’s accuracy.

This score can be interpreted as a weighted average of

the precision and recall:

F-Measure = 2 ∗

Precision∗Recall

Precision+Recall

The Roc Area is deﬁned as the probability that a

positive instance randomly chosen is classiﬁed above

a negative randomly chosen.

The last three metrics considered are used in bio-

metrics in order to verify the instance of a security

system that incorrectly identiﬁes an unauthorized per-

son: FAR, FRR and EER.

The FAR (i.e., false acceptance rate) is the

measure of the likelihood that the biometric security

system will incorrectly accept an access attempt by

an unauthorized user. A system’s FAR typically is

stated as the ratio of the number of false acceptances

(fa) divided by the number of impostor attempts (ia):

False Acceptance Rate =

f a

The FAR spans in the interval [0,1]: closer to 0

the FAR is the better is the capability to recognize

correctly the impostor.

The FRR (i.e., false recognition rate) is the mea-

sure of the likelihood that the biometric security sys-

tem will incorrectly reject an access attempt by an au-

thorized user. A system’s FRR typically is stated as

the ratio of the number of false rejections (fr) divided

by the number of owner attempts (oa).

The FRR is deﬁned as:

False Rejection Rate =

f r

The best FRR has the value of 0, while the worst

FRR has the values of 1.

The EER (i.e. equal error rate) of a system can

be used to give a threshold independent performance

measure: it represents a biometric security system

algorithm used to predetermines the threshold values

for its false acceptance rate and its false rejection

rate. When the rates are equal, the common value is

referred to as the equal error rate. The value indicates

that the proportion of false acceptances is equal to

the proportion of false rejections. The lower the EER

is, the better is the system’s performance, as the total

error rate which is the sum of the FAR and the FRR at

the point of the EER decreases. The EER is deﬁned

as:

Equal Error Rate =

FAR+FRR

The classiﬁcation analysis consisted of building

classiﬁers in order to evaluate the features vector ac-

curacy to distinguish between impostors and owner.

For training the classiﬁer, T is a set of labelled

behavior traces (BT, l), where each BT is associated to

SECRYPT 2017 - 14th International Conference on Security and Cryptography

a label l ∈ {impostor, owner}. For each BT a feature

vector F ∈ R

is built, where y is the number of the

features used in training phase (y=1000).

For the learning phase, a k-fold cross-validation

was used: the dataset is randomly partitioned into k

subsets. A single subset is retained as the validation

dataset for testing the model, while the remaining k-

1 subsets of the original dataset are used as training

data. The process is repeated for k=10 times; each one

of the k subsets has been used once as the validation

dataset. To obtain a single estimate, the average of the

k results is computed from the folds.

The effectiveness of the classiﬁcation method is

evaluated with the following procedure:

1. build a training set T⊂D;

2. build a testing set T’ = D÷T;

3. run the training phase on T;

4. apply the learned classiﬁer to each element of T’.

A 10-fold cross validation was performed: the

four steps are repeated 10 times, varying the compo-

sition of T (and hence of T’), classifying the full set

of features.

Each classiﬁcation was performed using 20% of

the dataset as training dataset and 80% as testing

dataset.

u,s

is the set of the classiﬁcations performed,

where u identiﬁes the user (1≤u≤15).

For sake of clarity an example will explain the

method adopted: C

classiﬁcation means that the

traces related to the user #2 are labeled as owner

traces, while the traces of the other user as impostor.

The results obtained with this procedure are

shown in Table 3 and Table 4.

The classiﬁcation results suggest that frequently

recurrent sequences of apps can be good features to

recognize the legitimate device owner from an impos-

tor, as for most experimental subjects, the precision

and the recall range between 92% and 99%. The gap

between the two interval’s edges is about 7 percent-

age points, which is pretty wide. This could indicate

that some users have certain sequences of apps that

are more recurrent than other users.

What is worth attention is the obtained EER,

which ranges from 0.045 to 0.476: this result is the

main relevant ﬁnding of the experimentation, since it

is very low, especially if compared with the EER pro-

duced by other methods of continuous authentication,

discussed in the section of Related Work.

In order to measure the performance of the pro-

posed method, the average times employed for the

classiﬁcation task was measured, for each classiﬁca-

tion algorithm run obtaining: 0.82 s with J48, 6.74 s

with LADTree, 0.3 s with RandomForest, 0.5 s with

RandomTree, 0.25 s with REPTree and 1.49 s with

SimpleCart algorithm. The machine used was an In-

tel Core i5 desktop with 4 gigabyte RAM, equipped

with Linux Mint 15.

In the light of the obtained results, it is possible

to conclude that recurrent sequences of apps could be

a good candidate indicator for recognizing the legiti-

mate owner of the device. This method does not im-

pact the privacy of the owner, as it does not elaborate

users’ data, nor biometrics (which if compromised

cannot be replaced). Moreover the method demon-

strated to be not particularly costly in terms of com-

putational resources. The only limitation of the exper-

iment stands in the number of experimental subjects,

which is not very high, even if the time window for

collecting the observations is quite wide. For this rea-

son, the validation should be considered as a prelim-

inary exploration of the effectiveness of the method

and deserves further replications in huger contexts.

5 CONCLUSION AND FUTURE

WORKS

The current authentication mechanisms provided by

the mobile operating systems are not able to ensure

that an adversary may have access to another user’s

smartphone. As matter of fact, once the user has un-

locked the device by entering the PIN code, the oper-

ating system does not perform any checks on the user

of the device. In order to overcome this limitation this

paper proposes a method able to silently and continu-

ously authenticate the user. A features vector consist-

ing in the sequence of the recurring apps is used for

proﬁling the user; with machine learning techniques

such a vector is applied for distinguishing the impos-

tors from the legitimate user. Results are signiﬁcantly

better than those reported in current literature: a preci-

sion and a recall equal to 0.99 collecting data from 15

volunteer participants in a 21-day time window have

been obtained. As future work, we plan to correlate

the apps sequence with the activation of resources as

Wi-ﬁ, bluetooth and gps in order to enforce the con-

tinuous and silent authentication mechanism.

ACKNOWLEDGEMENTS

This work has been partially supported by H2020

EU-funded projects NeCS and C3ISP and EIT-Digital

Project HII.

Mobile Silent and Continuous Authentication using Apps Sequence

Table 3: Classiﬁcation results for Users #1, #2, #3, #4, #5, #6 and #7: Precision, Recall, F-Measure, RocArea, FRR, FAR and

ERR for classifying the feature set, computed with six different classiﬁcation algorithms. The Time column represents the

time in seconds taken to build the model.

Category Algorithm Precision Recall F-Measure Roc Area FRR FAR ERR

J48 0.968 0.964 0.966 0.778 0.036 0.246 0.141

LADTree 0.976 0.975 0.975 0.858 0.028 0.218 0.123

User #1 RandomForest 0.994 0.994 0.994 0.995 0.004 0.082 0.045

RandomTree 0.982 0.979 0.98 0.935 0.021 0.110 0.065

REPTree 0.967 0.967 0.967 0.881 0.033 0.327 0.18

SimpleCart 0.976 0.976 0.976 0.84 0.024 0.272 0.148

J48 0.902 0.906 0.903 0.809 0.094 0.329 0.211

LADTree 0.901 0.907 0.902 0.853 0.094 0.36 0.231

User #2 RandomForest 0.923 0.926 0.921 0.926 0.071 0.348 0.209

RandomTree 0.896 0.899 0.897 0.796 0.101 0.330 0.215

REPTree 0.886 0.896 0.885 0.809 0.104 0.471 0.28

SimpleCart 0.9 0.907 0.901 0.786 0.093 0.391 0.242

J48 0.964 0.963 0.963 0.83 0.068 0.643 0.355

LADTree 0.937 0.942 0.939 0.837 0.058 0.674 0.366

User #3 RandomForest 0.967 0.965 0.956 0.94 0.051 0.898 0.474

RandomTree 0.951 0.95 0.951 0.736 0.074 0.699 0.385

REPTree 0.933 0.945 0.938 0.758 0.055 0.898 0.476

SimpleCart 0.908 0.953 0.93 0.463 0.047 0.953 0.5

J48 0.931 0.932 0.932 0.652 0.068 0.643 0.355

LADTree 0.924 0.938 0.93 0.902 0.062 0.77 0.416

User #4 RandomForest 0.934 0.95 0.934 0.889 0.051 0.898 0.474

RandomTree 0.927 0.926 0.927 0.629 0.074 0.669 0.371

REPTree 0.917 0.945 0.926 0.613 0.055 0.898 0.476

SimpleCart 0.927 0.949 0.926 0.545 0.051 0.923 0.487

J48 0.928 0.933 0.931 0.567 0.067 0.694 0.380

LADTree 0.921 0.936 0.928 0.636 0.062 0.796 0.429

User #5 RandomForest 0.9 0.947 0.923 0.89 0.051 0.949 0.5

RandomTree 0.93 0.928 0.929 0.642 0.072 0.643 0.357

REPTree 0.953 0.95 0.927 0.632 0.5 0.923 0.486

SimpleCart 0.9 0.949 0.924 0.47 0.051 0.949 0.5

J48 0.928 0.933 0.93 0.76 0.067 0.436 0.251

LADTree 0.938 0.943 0.938 0.946 0.057 0.449 0.253

User #6 RandomForest 0.928 0.935 0.924 0.941 0.061 0.547 0.304

RandomTree 0.929 0.924 0.926 0.797 0.076 0.326 0.201

REPTree 0.925 0.929 0.927 0.832 0.071 0.423 0.247

SimpleCart 0.929 0.933 0.93 0.829 0.067 0.422 0.244

J48 0.897 0.92 0.905 0.565 0.69 0.771 0.425

LADTree 0.882 0.904 0.892 0.605 0.096 0.807 0.451

User #7 RandomForest 0.934 0.939 0.921 0.856 0.062 0.735 0.398

RandomTree 0.897 0.9 0.898 0.61 0.1 0.668 0.384

REPTree 0.879 0.921 0.893 0.586 0.079 0.892 0.485

SimpleCart 0.858 0.926 0.891 0.479 0.074 0.926 0.5

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Table 4: Classiﬁcation results for Users #8, #9, #10, #11, #12, #13, #14 and #15: Precision, Recall, F-Measure, RocArea,

FRR, FAR and ERR for classifying the feature set, computed with six different classiﬁcation algorithms. The Time column

represents the time in seconds taken to build the model.

Category Algorithm Precision Recall F-Measure Roc Area FRR FAR ERR

J48 0.924 0.933 0.927 0.622 0.067 0.59 0.328

LADTree 0.948 0.953 0.948 0.867 0.01 0.411 0.21

User #8 RandomForest 0.972 0.971 0.967 0.941 0.032 0.41 0.221

RandomTree 0.949 0.95 0.95 0.802 0.05 0.341 0.195

REPTree 0.932 0.942 0.933 0.679 0.058 0.608 0.333

SimpleCart 0.935 0.943 0.932 0.643 0.057 0.643 0.35

J48 0.943 0.945 0.944 0.681 0.055 0.511 0.283

LADTree 0.947 0.95 0.948 0.801 0.05 0.511 0.280

User #9 RandomForest 0.95 0.956 0.944 0.845 0.049 0.849 0.449

RandomTree 0.911 0.908 0.91 0.561 0.092 0.779 0.435

REPTree 0.946 0.954 0.943 0.727 0.046 0.728 0.387

SimpleCart 0.958 0.961 0.953 0.737 0.039 0.631 0.335

J48 0.968 0.968 0.968 0.876 0.032 0.292 0.162

LADTree 0.955 0.958 0.956 0.879 0.035 0.413 0.224

User #10 RandomForest 0.965 0.967 0.961 0.914 0.029 0.485 0.257

RandomTree 0.948 0.953 0.95 0.704 0.047 0.535 0.291

REPTree 0.965 0.965 0.965 0.874 0.035 0.316 0.175

SimpleCart 0.957 0.961 0.958 0.856 0.039 0.486 0.262

J48 0.976 0.972 0.974 0.939 0.028 0.164 0.096

LADTree 0.968 0.968 0.968 0.911 0.032 0.327 0.179

User #11 RandomForest 0.968 0.971 0.968 0.967 0.026 0.354 0.19

RandomTree 0.964 0.964 0.964 0.805 0.036 0.354 0.195

REPTree 0.975 0.972 0.973 0.923 0.028 0.191 0.109

SimpleCart 0.968 0.968 0.968 0.955 0.032 0.327 0.179

J48 0.934 0.936 0.935 0.878 0.064 0.281 0.172

LADTree 0.937 0.94 0.936 0.941 0.06 0.354 0.207

User #12 RandomForest 0.95 0.951 0.948 0.941 0.05 0.31 0.405

RandomTree 0.921 0.921 0.921 0.807 0.079 0.304 0.191

REPTree 0.925 0.931 0.926 0.917 0.069 0.386 0.227

SimpleCart 0.945 0.947 0.944 0.862 0.053 0.3 0.176

J48 0.95 0.954 0.952 0.848 0.046 0.545 0.295

LADTree 0.945 0.953 0.948 0.86 0.047 0.626 0.336

User #13 RandomForest 0.938 0.953 0.939 0.868 0.046 0.816 0.431

RandomTree 0.946 0.945 0.945 0.713 0.055 0.518 0.286

REPTree 0.95 0.957 0.952 0.843 0.043 0.599 0.321

SimpleCart 0.948 0.957 0.948 0.742 0.043 0.707 0.375

J48 0.977 0.978 0.976 0.796 0.022 0.34 0.181

LADTree 0.966 0.968 0.967 0.893 0.032 0.34 0.186

User #14 RandomForest 0.961 0.96 0.948 0.89 0.047 0.825 0.436

RandomTree 0.927 0.914 0.92 0.664 0.086 0.585 0.335

REPTree 0.965 0.968 0.966 0.815 0.032 0.413 0.222

SimpleCart 0.969 0.971 0.97 0.826 0.029 0.34 0.184

J48 0.931 0.922 0.926 0.68 0.078 0.719 0.398

LADTree 0.933 0.945 0.938 0.681 0.055 0.777 0.416

User #15 RandomForest 0.937 0.956 0.937 0.825 0.044 0.956 0.5

RandomTree 0.931 0.933 0.932 0.593 0.067 0.748 0.407

REPTree 0.959 0.957 0.937 0.632 0.043 0.926 0.484

SimpleCart 0.929 0.954 0.936 0.529 0.046 0.926 0.486

Mobile Silent and Continuous Authentication using Apps Sequence

REFERENCES

Abeni, P., Baltatu, M., and D’Alessandro, R. (2006). Nis03-

4: Implementing biometrics-based authentication for

mobile devices. In Global Telecommunications Con-

ference, 2006. GLOBECOM’06. IEEE, pages 1–5.

IEEE.

Aviv, A. J., Gibson, K. L., Mossop, E., Blaze, M., and

Smith, J. M. (2010). Smudge attacks on smartphone

touch screens. Woot, 10:1–7.

BenAbdelkader, C., Cutler, R., and Davis, L. (2002). Person

identiﬁcation using automatic height and stride esti-

mation. In Pattern Recognition, 2002. Proceedings.

16th International Conference on, volume 4, pages

377–380. IEEE.

Bo, C., Zhang, L., Li, X.-Y., Huang, Q., and Wang, Y.

(2013). Silentsense: silent user identiﬁcation via

touch and movement behavioral biometrics. In Pro-

ceedings of the 19th annual international conference

on Mobile computing & networking, pages 187–190.

ACM.

Buriro, A., Crispo, B., Delfrari, F., and Wrona, K. (2016).

Hold and sign: A novel behavioral biometrics for

smartphone user authentication. In Security and Pri-

vacy Workshops (SPW), 2016 IEEE, pages 276–285.

IEEE.

Canfora, G., Di Notte, P., Mercaldo, F., and Visaggio, C. A.

(2016). Silent and continuous authentication in mobile

environment. In SECRYPT.

Clarke, N. (2011). Transparent user authentication: bio-

metrics, RFID and behavioural proﬁling. Springer

Science & Business Media.

Clarke, N. L. and Furnell, S. M. (2005). Authentication of

users on mobile telephones–a survey of attitudes and

practices. Computers & Security, 24(7):519–527.

Crouse, D., Han, H., Chandra, D., Barbello, B., and Jain,

A. K. (2015). Continuous authentication of mobile

user: Fusion of face image and inertial measurement

unit data. In Biometrics (ICB), 2015 International

Conference on, pages 135–142. IEEE.

De Luca, A., Hang, A., Brudy, F., Lindner, C., and Huss-

mann, H. (2012). Touch me once and i know it’s you!:

implicit authentication based on touch screen patterns.

In Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, pages 987–996. ACM.

Derawi, M. O., Nickel, C., Bours, P., and Busch, C. (2010).

Unobtrusive user-authentication on mobile phones us-

ing biometric gait recognition. In Intelligent Informa-

tion Hiding and Multimedia Signal Processing (IIH-

MSP), 2010 Sixth International Conference on, pages

306–311. IEEE.

Fathy, M. E., Patel, V. M., and Chellappa, R. (2015). Face-

based active authentication on mobile devices. In

Acoustics, Speech and Signal Processing (ICASSP),

2015 IEEE International Conference on, pages 1687–

1691. IEEE.

Frank, M., Biedert, R., Ma, E., Martinovic, I., and Song, D.

(2013). Touchalytics: On the applicability of touch-

screen input as a behavioral biometric for continu-

ous authentication. IEEE transactions on information

forensics and security, 8(1):136–148.

Gafurov, D., Helkala, K., and Søndrol, T. (2006). Biometric

gait authentication using accelerometer sensor. JCP,

1(7):51–59.

Guidorizzi, R. P. (2013). Security: active authentication. IT

Professional, 15(4):4–7.

Hadid, A., Heikkila, J., Silv

en, O., and Pietikainen, M.

(2007). Face and eye detection for person authenti-

cation in mobile phones. In Distributed Smart Cam-

eras, 2007. ICDSC’07. First ACM/IEEE International

Conference on, pages 101–108. IEEE.

Harbach, M., Von Zezschwitz, E., Fichtner, A., De Luca,

A., and Smith, M. (2014). Itsa hard lock life: A ﬁeld

study of smartphone (un) locking behavior and risk

perception. In Symposium on usable privacy and se-

curity (SOUPS), pages 213–230.

Jakobsson, M., Shi, E., Golle, P., and Chow, R. (2009). Im-

plicit authentication for mobile devices. In Proceed-

ings of the 4th USENIX conference on Hot topics in

security, pages 9–9. USENIX Association.

Kim, D.-J., Chung, K.-W., and Hong, K.-S. (2010). Per-

son authentication using face, teeth and voice modali-

ties for mobile device security. IEEE Transactions on

Consumer Electronics, 56(4).

Li, L., Zhao, X., and Xue, G. (2013). Unobservable re-

authentication for smartphones. In NDSS.

Mantyjarvi, J., Lindholm, M., Vildjiounaite, E., Makela,

S.-M., and Ailisto, H. (2005). Identifying users of

portable devices from gait pattern with accelerome-

ters. In Acoustics, Speech, and Signal Processing,

2005. Proceedings.(ICASSP’05). IEEE International

Conference on, volume 2, pages ii–973. IEEE.

Murmuria, R., Medsger, J., Stavrou, A., and Voas, J. M.

(2012). Mobile application and device power usage

measurements. In Software Security and Reliability

(SERE), 2012 IEEE Sixth International Conference

on, pages 147–156. IEEE.

Neal, T. J., Woodard, D. L., and Striegel, A. D. (2015). Mo-

bile device application, bluetooth, and wi-ﬁ usage data

as behavioral biometric traits. In Biometrics Theory,

Applications and Systems (BTAS), 2015 IEEE 7th In-

ternational Conference on, pages 1–6. IEEE.

Patel, V. M., Chellappa, R., Chandra, D., and Barbello,

B. (2016). Continuous user authentication on mobile

devices: Recent progress and remaining challenges.

IEEE Signal Processing Magazine, 33(4):49–61.

Patel, V. M., Gopalan, R., Li, R., and Chellappa, R. (2015).

Visual domain adaptation: A survey of recent ad-

vances. IEEE signal processing magazine, 32(3):53–

69.

Saevanee, H. and Bhatarakosol, P. (2008). User authentica-

tion using combination of behavioral biometrics over

the touchpad acting like touch screen of mobile de-

vice. In Computer and Electrical Engineering, 2008.

ICCEE 2008. International Conference on, pages 82–

86. IEEE.

Sed

enka, J., Govindarajan, S., Gasti, P., and Balagani, K. S.

(2015). Secure outsourced biometric authentication

with performance evaluation on smartphones. IEEE

SECRYPT 2017 - 14th International Conference on Security and Cryptography

Transactions on Information Forensics and Security,

10(2):384–396.

Seo, H., Kim, E., and Kim, H. K. (2012). A novel biometric

identiﬁcation based on a user’s input pattern analysis

for intelligent mobile devices. International Journal

of Advanced Robotic Systems, 9(2):46.

Shi, E., Niu, Y., Jakobsson, M., and Chow, R. (2010). Im-

plicit authentication through learning user behavior.

In International Conference on Information Security,

pages 99–113. Springer.

Shye, A., Scholbrock, B., and Memik, G. (2009). Into

the wild: studying real user activity patterns to guide

power optimizations for mobile architectures. In

Microarchitecture, 2009. MICRO-42. 42nd Annual

IEEE/ACM International Symposium on, pages 168–

178. IEEE.

Smith, D. F., Wiliem, A., and Lovell, B. C. (2015). Binary

watermarks: a practical method to address face recog-

nition replay attacks on consumer mobile devices. In

Identity, Security and Behavior Analysis (ISBA), 2015

IEEE International Conference on, pages 1–6. IEEE.

Zhao, X., Feng, T., and Shi, W. (2013). Continuous mo-

bile authentication using a novel graphic touch ges-

ture feature. In Biometrics: Theory, Applications and

Systems (BTAS), 2013 IEEE Sixth International Con-

ference on, pages 1–6. IEEE.

Zheng, N., Bai, K., Huang, H., and Wang, H. (2014). You

are how you touch: User veriﬁcation on smartphones

via tapping behaviors. In Network Protocols (ICNP),

2014 IEEE 22nd International Conference on, pages

221–232. IEEE.

Mobile Silent and Continuous Authentication using Apps Sequence
