Validating ETL Patterns Feasability using Alloy

Bruno Oliveira

and Orlando Belo

CIICESI, School of Management and Technology, Porto Polytechnic, Felgueiras, Portugal

ALGORITMI R&D Centre, University of Minho, Campus de Gualtar, 4710-057 Braga, Portugal

Keywords: Data Warehousing Systems, ETL Patterns, ETL Component-reuse, Software Engineering, Formal

Specification and Validation, BPMN, Alloy.

Abstract: The ETL processes can be seen as typical data-oriented workflows composed of dozens of granular tasks that

are responsible for the integration of data coming from different data sources. They are one of the most

important components of a data warehousing system, strongly influenced by the complexity of business

requirements, their changing, and evolution. To facilitate the planning and ETL implementation, a set of

patterns specially designed to map standard ETL procedures is presented. They provide a simpler and

conceptual perspective that can enrich to enable the generation of execution primitives. Generic models can

be built, simplifying process views and providing methods for carrying out the acquired expertise to new

applications using well-proven practices. This work demonstrates the fundaments of an ETL pattern-based

approach for ETL development, its configuration and validation trough a set of Alloy specifications used to

express its structural constraints and behaviour.

1 INTRODUCTION

Even now, the development of data warehouses

populating processes – ETL – remains a challenge in

the area, engaging very diversified personnel with

specific expertise and specific computational

resources. Due to its complexity and heterogeneous

nature, ETL systems development process addresses

very challenging problems ranging from simple

access to information sources to complex strategies

for conciliating data and ensure their quality.

Usually, ETL architects and engineers start by

initial drafts and models, getting a system overview

with the main requirements that need to be validated

before its implementation. Additionally, they need to

know the data they are bringing from data sources as

well establish the techniques applied in data

extraction, transformation, and load phases. Abstract

models are very useful even for initial versions since

they have the ability to describe the system we want

to implement, regardless of the methodology or

technology used in its implementation. They

revealing project needs in a very clear and precise

way, representing “first picture” of the system, very

useful for project discussion and planning (Losavio et

al., 2001).

Abstract models can include the representation of

software components that are frequently used for

software modelling to describe common and well-

known techniques that are used to describe specific

system parts. The component reuse helps to produce

software with better quality, faster and with lower

costs since coarse grain components based on well-

known design techniques are used. We believe that

the pattern-oriented approach can be applied as well

to ETL development, enabling its reuse in many

different scenarios to solve recurring problems.

In this paper, we designed and developed a set of

Alloy language specifications (Jackson, 2012) for

expressing ETL patterns’ structural constraints and

behaviour. The Alloy is a declarative specification

language that supports problem structural modelling

and validation, helping to avoid process

inconsistencies or architectural contradictions.

We selected one of the most relevant ETL

patterns: The Data Conciliation and Integration

(DCI), which has a set of operational requirements

that are presented using the Alloy language. After this

first introductory part, we present next to a briefly

related work (section 2), and the ETL meta model

designed for ETL patterns formalization with the DCI

pattern specification as an example (section 3). The

exception and log handling mechanisms that support

each pattern operationally are also explored (Section

200

Oliveira, B. and Belo, O.

Validating ETL Patterns Feasability using Alloy.

DOI: 10.5220/0006428002000207

In Proceedings of the 6th International Conference on Data Science, Technology and Applications (DATA 2017), pages 200-207

ISBN: 978-989-758-255-4

4), as well with a specific example applied to the DCI

pattern (Section 5). Finally, in Section 6, we evaluate

the work done so far, pointing out some research

guidelines for future work.

2 RELATED WORK

After producing an initial plan using more abstract

models, the selection of an ETL tool to support the

system implementation appears quite naturally.

Complex software pieces are usually supported by

development processes covering all development

stages: from requirements identification to the

implementation and maintenance phases. The design

task (conceptual and logical) supports the

development team, identifying how the system

should meet customer requirements and to determine

how the system should be effective and efficient. The

use of a design methodology to support ETL

implementation using a specific tool was proposed by

Vassiliadis and Simitsis (Vassiliadis et al., 2003,

2000). Several authors explored the ETL design

phases using different approaches, languages and

notations. The use of UML (Unified Modelling

Language) (Trujillo and Luján-Mora, 2003) and

BPMN (Business Process Model and Notation) (El

Akkaoui and Zimanyi, 2009) are just two examples.

The works presented by Munoz (Muñoz et al., 2009)

and Akkaoui (El Akkaoui et al., 2011) revealed as

very important contributions to our work, revelling

important aspects to cover models translation to

executable code, providing a way to describe the

structure and semantic to produce final systems

guided from more abstract models.

With this work, we propose a method to

encapsulate patterns behaviour inside components

that can be reused and mapped to more detailed

primitives using a generator-based reuse approach

(Biggerstaff, 1998). Based on pre-configured

parameters, the generator produces a specific pattern

instance that can represent the complete system or

part of it, leaving physical details to further

development phases. The use of software patterns to

build ETL processes was first explored by Köppen

(Köppen et al., 2011) that proposed a pattern-oriented

approach to support ETL development, providing a

general description for a set of patterns such as

aggregator, history and duplicate elimination. The

patterns are presented only at conceptual level,

lacking to describe how they can be mapped to

execution primitives. The approach presented in this

paper works with high level components instead of

using very granular tasks such as joins, union,

Figure 1: Basic Alloy specification to support ETL patterns.

abstract sig Field{}

sig KeyField extends Field

sig PKField, SKField, FKField extends KeyField{}

sig ControlField, VariationField, DescriptiveField extends Field{}(...)

sig DataObject{fields: some Field,keys: some SKField}

fact dataObjectKeyFields {all o: DataObject | o.keys in o.fields(...)}

sig Mapping {inData: one DataObject,outData: one DataObject,association: Field

-> Field}

fact consistentMapping {

all m: Mapping | m.association in m.inData.fields -> m.outData.fields

(...)}

abstract sig PatternCore{sourceToTarget: some Mapping}

abstract sig Throwable{sourceToThrowable: some Mapping}

abstract sig Log{sourceToLog: some Mapping}

abstract sig Pattern{

coreComponent:one PatternCore,

throwableComponent: set Throwable,

logComponent: set Log}

fact consistentPattern {(...)}

abstract sig Extract, Transform, Load extends

PatternCore{}(...)

enum Rule{DELETE, PRESERVE}

sig IntegrationRules{associationFields : some Mapping,rule: one Rule,

condition: one ConditionalOperator}

sig DCI extends Transform{rules: some IntegrationRules,compensationPattern:

lone Transform}

fact DCISameOutput{(...)}

{}

Validating ETL Patterns Feasability using Alloy

201

projections or selections. As well happens in other

software areas, the use of abstraction techniques can

be used to provide a simpler view over ETL

conceptual models, and at the same time provide a

flexible approach to enrich conceptual models in

further stages. All this considering and using the

efforts done in earlier stages. Thus, we believe that a

formal model that describes model constraints and

behaviour is needed to support the physical

generation of ETL processes. We have been working

in the last years in a pattern-oriented approach for

ETL development (Belo et al., 2014; Oliveira et al.,

2014). We already identified a set of ETL patterns

that can be used to support all ETL development

phases. Recently, we introduce the use of Alloy

Language to formalize ETL patterns behaviour

(Oliveira et al., 2016), showing the specification of

one common ETL procedure: The Slowly Changing

Dimension (SCD) pattern. In this work, we extend the

work presented through the extension of pattern main

components for exception and log handling, and with

the DCI pattern specification.

3 ETL META MODEL FOR

PATTERNS DEFINITON

The Model-driven techniques are being developed for

several software areas and are used not only to

support models development but also to cover code

generation as well as model synchronization between

physical models and abstract models. Whether being

conceptual or logical, ETL models cover specific data

requirements that reveal a symbiotic relationship

between business requirements and process

implementation. This means that each ETL is

different even under the same domain, which

compromises its reusability outside problem scope.

To minimize such problems, an ETL framework

covering a set of most common ETL procedures used

is proposed.

The ETL pattern concept is represented by a

“core” that encapsulates all pattern rules to support

operational requirements and the logic behind it, the

internal input and output interfaces to communicate

both with ETL workflow and with the data layer to

produce specific instances and the communication

layer with other patterns. Additional ETL metadata is

also preserved in the data layer, supporting the error

and log strategies to handle errors and pattern events.

Specific instances of “Throwable” and “Log” pattern

components communicate with each associated

pattern, encapsulating all logic behind error and log

handling. The “Throwable” pattern component uses

the input configuration to handle error or exception

scenarios through the application of specific recovery

strategies previously configured using pattern

metadata. The unexpected scenarios that cause

system critical failure can be configured to use

specific procedures to maintain data consistency. For

example, if some error compromises the ETL

execution, the process can be aborted using a rollback

procedure, maintaining data in a consistent state. The

“Log” pattern stores ETL main events timeline to

identify data lineage, bottlenecks, and errors. Thus,

the ETL process can be analysed to identify error

trends and to apply specific strategies to minimize

them and eventually reduce ETL resources needed for

subsequent loads.

In Figure 1, a set of formal specifications in Alloy

is presented to express patterns structural constraints

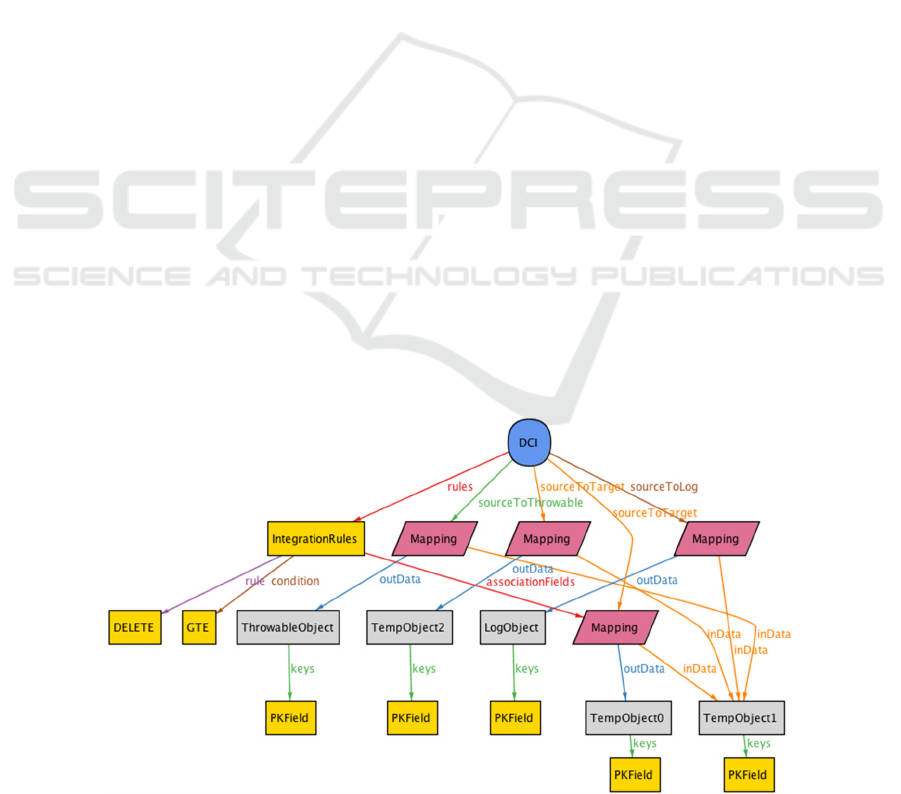

Figure 2: Pattern instance generated by the Alloy Engine Analyser.

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

202

and behaviour. The concepts hierarchy is described

using Alloy signatures that introduce sets of elements

of a certain type in the model. Abstract signatures are

used to describe abstract concepts that should be

refined by more specific elements, which is the case

of top-level signatures, for example: “Field”

representing patterns configuration properties and

“DataObject” representing the type of data

repositories related to the “Pattern” concept. The

“Field” signature can be specialized in control fields

(“ControlField”) to descriptive properties that store

useful metadata related to each handled schema. For

example: the date fields (“DateField”), describing

temporal data; or the the log fields (“LogField”),

describing specific metadata related to store the

action performed during ETL execution.

The “PatternCore” signature represents the most

general concept used, while the “Extraction”,

“Transform” and “Load” signatures represent the

three types of patterns that are intrinsically associated

with each typical phase of an ETL process. The

“Extraction” class instances are used to extract data

from data sources using a specific data object (e.g. a

table or file), representing typical extraction data

processes and algorithms applied to specific data

structures. The “Transformation” class represents

patterns that are used in ETL transformation phase

(Rahm and Do, 2000) to align source data schema

requirements to the target DW schema requirements.

This pattern category represents a large variety of

procedures that are often applied in DWS, such as the

application of data variation policies (SCD),

generation of surrogate keys or schema

transformations. Patterns of this class can also be

specialized in concrete procedures considering its

decomposition properties. For example, the “Data

Quality Enhancement” (DQE) pattern can be

specialized to the “Normalization” pattern that

represents the set of tasks needed whenever it is

necessary to standardize or correct data according to

a given set of mapping rules. Thus, all the most

frequent ETL patterns can be represented along with

all its operational stages. Finally, the “Load” class

represents patterns used to load data to the target DW

repository, encapsulating efficient algorithms for data

loading or index creation and maintenance. The

“Intensive Data Loading” (IDL) signature represents

the “Load” signature specialization, embodying the

necessary operational requirements to load data to a

target DW schema considering the schema

restrictions followed.

The “Mapping” signature represents the

association between fields, establishing the

relationship between attributes from two different

sources through the binary field association between

fields (a->b). Additional constraints impose

(“consistentMapping” fact), for example, that a

mapping is only valid if it associated fields from the

input (“inData”) and the output (“outData”) data

sources. The “Pattern” signature is composed of a set

of three different mappings (“Mapping” signature):

− “sourceToTarget”: describing the set of

relationships between source and target fields for

pattern application;

− “sourceToThrowable”: describing the set of

relationships between the source fields and

exception/error support fields;

− “sourceToLog”: describing the set of field

relationships between the source schema and

target log structures.

Each “PatternCore” specialization should preserve

additional constraints over the arity of the fields to

serve particular requirements. Signatures may contain

fields of arbitrary arity that will embody the

associations between the different artifacts. For

example, the “DataObject” signature represent data

repositories that contain a set of field declarations

shared by its extensions: each “DataObject” element

is related to a non-empty set of “Field” elements

(imposed by the keyword “some”). A set of

“SKField” elements ae also used to express the

surrogate key fields.

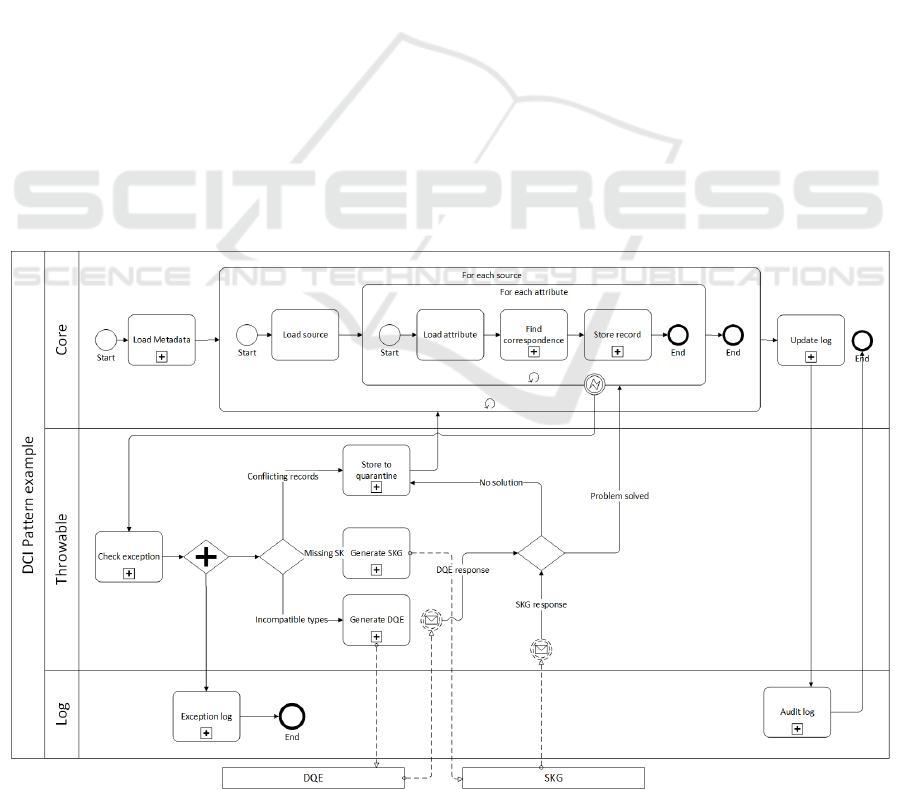

The DCI pattern is a “Pattern” specialization that

involves the integration of data about the same

subject from several data source. Thus, several

conflicts can occur that should be properly handled to

provide consistent data view to reporting tools. Thus,

it is necessary to integrate some related data (data

from the same entity) coming from different data

sources. The data integration should be accomplished

using binding logic procedures that should be

implemented to specify how related fields could be

linked together. The Figure 1 presents an Alloy

specification with the main concepts and

relationships to support the DCI rules. The “DCI

“signature represents the DCI pattern structure to

support the logical mappings between each data

source and target data objects for a given

configuration. Several “sourceToTarget” mappings

can be provided, however, the output data object

should be only one, which is forced by the

“DCISameOutput” fact. This means that for each

object that we need to integrate data, a specific DCI

instance should be used. For that, specific integration

rules (“IntegrationRules” signature) should be

provided to identify the action that should be applied

to each field association. Thus, when multiple sources

Validating ETL Patterns Feasability using Alloy

203

are used, conflicts can be avoided using specific rules

(“Rule” enumeration) to decide which fields from a

specific data object are used to populate the target

DW object. The “consistentDCI” fact enforces

several constraints to guarantee the DCI consistency.

For example, the fields associations used for rules

configuration should be defined in “sourceToTarget”

mappings. A predicate is then defined to embody the

notion of consistent DCI: in this case, checking

whether the mappings of DCI are themselves

consistent according to the rules defined above. This

property can then be automatically processed by the

Alloy Analyser, either to simulate instances that

conform to the specification or to check for the

correctness of concrete instances. The Figure 2

presents a random, consistent, instance, composed by

two “sourceToTarget” mappings and one

“sourceToLog” and “sourceToThrowable” mapping.

4 THE THROWABLE AND LOG

PATTERNS

The ETL implementation and management deal with

several problems that can compromise all process

activities. Data coming from operational systems can

suffer from inconsistencies related to bad data input

or even from changes performed to cover new

business needs. Using specific “throwable”

components for each pattern instance allows for the

definition of specific strategies to plan and deal with

recurring problems, anticipating them and provide

suitable recovery strategies. However, stopping all

process every time an unexpected situation occurs can

be impractical. For that reason, a more flexible

approach should be followed to prevent process

failure, providing a way to separate inconsistent

records from ETL normal flow or, if possible, correct

them at execution time.

The Figure 3 represents the main concepts related

to the “throwable” pattern using Alloy primitives.

The “Exception” signature represent data errors that

do not compromise ETL execution and for that

reason, can be handled or avoided using specific

routines. Incoherent records are moved to quarantine

(“Quarantine” signature) data objects, whose

structure is determined according to each pattern

configuration. The quarantine meta data structure is

generally composed by a “Key” attribute identifying

each quarantine row and a set of control attributes

(“controlAtt”) that are used to tag each row with

additional metadata that can be provided by the

exception handler mechanisms. The temporal data

(“Temporal” signature), the source object

(“objectDescription”) where the exceptions are

found, the triggered exception (“Throwable”), the

action that triggered the exception (“event”), the

evaluation state (“State”, by default ‘invalid’) and the

exception severity (“severityScore”) are some

examples of possible control fields used to store

errors metadata. Additionally, descriptive attributes

are used to represent non-structured data to enrich the

quarantine objects with information that can be used

for human interpretation, while the record

identification (“recordId”) is used to identify source

records stored in quarantine object.

Figure 3: Alloy specification describing “throwable” and “Log” patterns.

(...)

enum SeverityCode{LOW, MEDIUM, HIGH}

sig ThrowableField, StageField extends Field{}

sig ThrowableMetaData {

temporalData:some DateField, objectDescription:one Field, (...)}

sig QuarantineData extends DataObject{metaData:one ThrowableMetaData & fields}

abstract sig Throwable extends Pattern{sourceToThrowable:some Mapping, log:one

LogPattern}

sig Exception extends Throwable{quarantineObject:one

QuarantineData,correctionProcedure:one DQE}

sig Error extends Throwable{metadata:one ThrowableMetaData}(...)

-- Log specification

abstract sig LogField extends Field{}

abstract sig EventLogField extends LogField{}

sig CompensationField, ErrorLogField, CheckPointField

extends EventLogField{}

sig SequenceField, PerformanceField extends LogEventField{}

enum LogLevel{EXCEPTION, FATAL, INFO}

sig LogObject extends DataObject{temporalData:some DateField & fields,(...)}

abstract sig Log extends Pattern{sourceToLog: some Mapping}(...)

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

204

The “Error” class represents serious data errors

that cannot be handled automatically, compromising

all ETL flow. When errors are detected, rollback

mechanisms can be configured to reverse all

operations done so far and return data to a consistent

state. Otherwise, the process can be cancelled,

leaving data at the current state. Additionally, to the

ability to track error or unexpected situations, the

ETL process must detect data inconsistent states to

avoid its progression to DW system. The transaction

logs files are a common strategy used by many

software systems to collect data about the

events/transactions that occurred during system daily

operations. All the performed actions can be stored to

provide a system picture in a specific time-window.

For that, critical tasks should be monitored to ensure

quality/performance measures, identifying

bottlenecks and errors that can influence the DW

operationally. For example, log mechanisms can be

used to control the performance or quality measures

for specific tasks and check process consistency

based on the execution history. Strong variations in

the results can point to source systems anomalies that

should be investigated.

The log structure can also be used to support

recovery mechanisms that are used to protect ETL

procedures against critical failures, providing a way

to rollback ETL data to a consistent state. The “Log”

pattern is composed by specific mappings

(“sourceToLog”) that relate the field association

between the source object and target log Object

(“LogObject”). The log objects use specific fields to

check quality parameters such as the temporal

(“temporalData”) and performance data

(“taskDescription” using specific

“performanceFields”) about process tasks. The

number of records processed and the time needed to

perform particular tasks are just some example of

possible performance fields that can be used. The log

level (“LogLevel” enumeration) describes the type of

log used. For example, information log can represent

its entries as information logs (‘INFO’), which are

useful to describe informational messages that

highlight progress tasks, or fatal logs (‘FATAL’) that

describe critical error events that lead the process to

abort. The log description (“logDescription”)

describes the event that originates the log entry,

which can be an exception, error or a state indicating

task finishing. Finally, the key referencing the source

object and the sequence of log entries (primary key)

can be described using “sequence” fields.

5 A DCI PATTERN EXAMPLE

The Figure 4 presents a BPMN algorithm with the

Figure 4: BPMN example algorithm for DCI instantiation.

Validating ETL Patterns Feasability using Alloy

205

main tasks to support the DW data load process,

involving a “Product” dimension. Considering that

several data sources are used to populate the

“Product” dimension without the guaranty of well-

conformed data, a specific DCI instance was

configured to deal with such scenario. The BPMN

process describes two cyclic structures to handle each

input source (“Load source” sub process) and the

records they bring, respectively. For each record

(“load record” sub process), the mappings that

preserve the binding rules (derived from

“sourceToTarget” Mapping) must be used to

identified to enable the integration logic. Thus, for

each processed record, a specific lookup process over

the mapping table is performed to find the

correspondent plan name (“Find correspondence” sub

process). When records are stored (“Store record” sub

process), specific events can be triggered to identify

three possible exception scenarios (“Throwable”

pool):

− “Missing SK” referring to the new records

without correspondent SK;

− “Incompatible types” for data type

incompatibilities between the product id attribute

from source and target repositories;

− “Contradictory records” for product names with

contradictory values.

While for the contradictory values, records are stored

in quarantine objects using “Store quarantine” sub

process, for the “Missing SK” and “Incompatible

types” exceptions, specific Surrogate Key Generator

(“Generate SKG” sub process) pattern instance and

DQE instances (“Generate DQE” sub process) are

generated to deal with each scenario. The logic

between each pattern handling is represented using

collapsed BPMN pools (“SKG” and “DQE”,

respectively). Then, “Throwable” instances, specific

resources can be instantiated and invoked to correct

wrong values before proceeding to its storage. When

the conflict is successfully managed, records are

reintroduced to regular ETL flow. If the conflict

persists, the quarantine table is updated with all

conflicting records (a BPMN conditional gateway is

used to select the right path) and a specific log entry

is registered.

The “Log” pool presents two configured

scenarios, representing the “Exception log” and the

“Audit log” sub processes. The logic behind each one

is straightforward, consisting of the identification of

several control attributes to identify complementary

data about the actions performed in the remaining

BPMN lanes and its storage according to its purpose:

the “Exception Log” stores “Throwable” events while

the “Audit Log” stores checkpoint events triggered

when the populating processes reaches a specific

milestone. In this case, the “throwable” configuration

was configured with a log component (“log” field),

allowing the communication between the

components. That way, when “throwable” events are

triggered, the exception and error logs can be properly

updated.

The DCI pattern instance presented was generated

based on the specification principles presented in

Figure 1 and Figure 3. Based on the Alloy

specification, a specific generator engine can be used

to support the generation of specific instances through

the use of the Alloy Analyzer, validating the

constraints previously defined (similar approaches

for different domains were already presented (Khalek

et al., 2011) or following a test automation approach

(Sullivan et al., 2014). However, to support code

generation, an easy and understandable language

should be provided to simplify the configuration of

each component. In previous works (Oliveira et al.,

2015; Oliveira and Belo, 2015), specific grammar

components were described to configure patterns

metadata. An automated approach is planned to use

the Alloy can be used to check model consistency

through a process that translates grammar primitives

to Alloy primitives to check design errors. Based on

this configuration, code generators to a specific

language or specific file structure that can be

interpreted by a specific commercial tool can be used

to create the full ETL package.

6 CONCLUSIONS AND FUTURE

WORK

Because of the existence of more data and more

complex business processes, the data processing

demands have increasing the ETL development

complexity has been studied with the goal to simplify

its development and reduce the potential risks to its

implementation. The efforts did so far help in the

identification of recurrent problems and respective

strategies to solve them. Still, ETL systems are

considered very time-consuming, error-prone and

complex systems since each DW deals with their own

data with specific requirements. With the use of

Patterns, these strategies can be encapsulated and

parameterized, providing a powerful groundwork for

process validation and allowing for the identification

of the most important parts of a system to be built.

The Pattern-oriented approach presented relies on

the use of software components that represent a

DATA 2017 - 6th International Conference on Data Science, Technology and Applications

206

template of how a specific problem can be solved. To

formalize the pattern structure as well its operational

constraints, a specific Alloy model is proposed to

guarantee some level of confidence for the generation

of physical instances through the use of a simulation

engine that searches for instances representing false

assertions according to a specific set of conditions.

Thus, since models can be checked before its

execution, a new integrity level is sustained, ensuring

that pattern structure is consistent with their

specification. The DCI pattern, was presented along

with its skeleton, keeping a specific template and

instance as separated layers. For pattern instantiation,

the physical objects should be described at structural

terms. Thus, a specific generator is being developed

(Oliveira et al., 2015) to generate the respective code

based on the primitives previously established

The presented specification only covers the

patterns static representation, however, as future

work, we intend to enrich this specification with

behavioural specification, covering the main

operations and states related to each pattern

application. We intend to enrich this specification

with behavioural specification and assertion checking

based on the main pattern components and states,

including the “Throwable” and ”Log” components

configuration.

REFERENCES

Belo, O., Cuzzocrea, A., Oliveira, B., 2014. Modeling and

Supporting ETL Processes via a Pattern-Oriented,

Task-Reusable Framework. In: IEEE 26th

International Conference on Tools with Artificial

Intelligence.

Biggerstaff, T.J., 1998. A perspective of generative reuse.

Ann. Softw. Eng. 5, 169–226.

El Akkaoui, Z., Zimanyi, E., 2009. Defining ETL

worfklows using BPMN and BPEL. In: Proceeding of

the ACM Twelfth International Workshop on Data

Warehousing and OLAP DOLAP 09. pp. 41–48.

El Akkaoui, Z., Zimànyi, E., Mazón, J.-N., Trujillo, J.,

2011. A Model-driven Framework for ETL Process

Development. In: Proceedings of the ACM 14th

International Workshop on Data Warehousing and

OLAP, DOLAP ’11. ACM, New York, NY, USA, pp.

45–52.

Jackson, D., 2012. Software Abstractions: Logic,

Language, and Analysis. MIT Press.

Khalek, S.A., Yang, G., Zhang, L., Marinov, D., Khurshid,

S., 2011. TestEra: A tool for testing Java programs

using alloy specifications. 2011 26th IEEE/ACM Int.

Conf. Autom. Softw. Eng. ASE 2011, Proc. 608–611.

Köppen, V., Brüggemann, B., Berendt, B., 2011. Designing

Data Integration: The ETL Pattern Approach. Eur. J.

Informatics Prof. XII, 49–55.

Losavio, F., Chirinos, L., Pérez, M.A., 2001. Quality

Models to Design Software Architectures. In:

Technology of Object-Oriented Languages and

Systems. TOOLS 38. IEEE Computer Society, Zurich,

pp. 123–135.

Muñoz, L., Mazón, J.-N., Trujillo, J., 2009. Automatic

Generation of ETL Processes from Conceptual Models.

In: Proceedings of the ACM Twelfth International

Workshop on Data Warehousing and OLAP, DOLAP

’09. ACM, New York, pp. 33–40.

Oliveira, B., Belo, O., 2015. A Domain-Specific Language

for ETL Patterns Specification in Data Warehousing

Systems. In: Springer (Ed.), 17th Portuguese

Conference on Artificial Intelligence (EPIA‘2015).

Coimbra, pp. 597–602.

Oliveira, B., Belo, O., Cuzzocrea, A., 2014. A pattern-

oriented approach for supporting ETL conceptual

modelling and its YAWL-based implementation. 3rd

Int. Conf. Data Manag. Technol. Appl. DATA 2014

408–415.

Oliveira, B., Belo, O., Macedo, N., 2016. Towards a Formal

Validation of ETL Patterns Behaviour. In: Bellatreche,

L., Pastor, Ó., Almendros Jiménez, J.M., Aït-Ameur, Y.

(Eds.), Model and Data Engineering: 6th International

Conference, MEDI 2016, Almer{í}a, Spain, September

21-23, 2016, Proceedings. Springer International

Publishing, Cham, pp. 156–165.

Oliveira, B., Santos, V., Gomes, C., Marques, R., Belo, O.,

2015. Conceptual-physical bridging - From BPMN

models to physical implementations on kettle. In:

CEUR Workshop Proceedings. pp. 55–59.

Rahm, E., Do, H., 2000. Data cleaning: Problems and

current approaches.

IEEE Data Eng. Bull. 23, 3–13.

Sullivan, A., Zaeem, R.N., Khurshid, S., Marinov, D., 2014.

Towards a Test Automation Framework for Alloy. In:

Proceedings of the 2014 International SPIN

Symposium on Model Checking of Software, SPIN

2014. ACM, New York, NY, USA, pp. 113–116.

Trujillo, J., Luján-Mora, S., 2003. A UML based approach

for modeling ETL processes in data warehouses. In:

International Conference on Conceptual Modeling. pp.

307–320.

Vassiliadis, P., Simitsis, A., Georgantas, P., Terrovitis, M.,

2003. A framework for the design of ETL scenarios. In:

Proceedings of the 15th International Conference on

Advanced Information Systems Engineering,

CAiSE’03. Springer-Verlag, Berlin, Heidelberg, pp.

520–535.

Vassiliadis, P., Vagena, Z., Skiadopoulos, S., Karayannidis,

N., Sellis, T., 2000. ARKTOS: A tool for data cleaning

and transformation in data warehouse environments.

IEEE Data Eng. Bull 23, 42–47.

Validating ETL Patterns Feasability using Alloy

207
