Aligning Requirements-driven Software Processes with IT Governance

Vu H. A. Nguyen

, Manuel Kolp

, Yves Wautelet

and Samedi Heng

LouRIM-CEMIS, Universit

e Catholique de Louvain, Belgium

KULeuven, Faculty of Economics and Business, Belgium

Keywords:

IT Governance, Software Process, Requirements Engineering.

Abstract:

Requirements Engineering is closely intertwined with Information Technology (IT) Governance. Aligning

IT Governance principles with Requirements-Driven Software Processes allows then to propose governance

and management rules for software development to cope with stakeholders’ requirements and expectations.

Typically, the goal of IT Governance in software engineering is to ensure that the results of a software organi-

zation business processes meet the strategic requirements of the organization. Requirements-driven software

processes, such as (I-)Tropos, are development processes using high-level social-oriented models to drive the

software life cycle both in terms of project management and forward engineering techniques. To consolidate

both perspectives, this paper proposes a process framework called GI-Tropos to extend I-Tropos allowing to

align requirements-driven software processes with IT governance.

1 INTRODUCTION

Requirements Engineering and, particularly, the man-

agement of requirements through the software en-

gineering life-cycle is closely interconnected with

Information Technology (IT) Governance practices

and frameworks (Kalumbilo and Finkelstein, 2014)

such as CobiT (Isaca, 2012). IT Governance is de-

rived from the underlying corporate governance ob-

jectives and reﬂects the alignment of IT strategy

with the organization strategy to provide value-added

for business (Weill, 2004). Software engineering

(Sommerville, 2010) follows development opportu-

nities corresponding to the evolution of IT and sup-

ply software to encounter demands for progressively

broader and sophisticated business applications (Ban-

nerman, 2009). Software engineering is, addition-

ally, through requirements engineering techniques,

dedicated to support human activities and to deal

with socio-intentional problems (Wautelet and Kolp,

2016).

The goal of IT governance in software engineer-

ing is to ensure that “the results of a software or-

ganizations business processes meet the strategic re-

quirements of the organization” (Chulani et al., 2008).

However, few speciﬁc research has been completed

on software processes governance since most gov-

ernance works have focused on more wide-ranging

ﬁelds than software engineering.

In software engineering, requirements engineer-

ing tasks (van Lamsweerde, 2009) are undertaken

during the early phase of the system life-cycle that

enables collecting and analyzing stakeholders’ needs

and expectations with the aim of adequately specify-

ing the future system. Requirements engineering in-

cludes not only understanding the needs of stakehold-

ers and the scope of the system-to-be, but also analyz-

ing the strategic goals and relationships of each orga-

nizational actor at different levels. It is an instrument

to answer the intentions behind an organization’s de-

cisions.

Goal oriented modeling (Dardenne et al., 1993)

frameworks such as i* (Yu et al., 2011; Dalpiaz et al.,

2016) or KAOS (van Lamsweerde and Letier, 2002)

support the expression and reasoning of the inten-

tional aspects of goals and relations of organizational

actors. For instance, the i* framework has been used

for requirements engineering, business process re-

engineering, organizational impact analysis, and soft-

ware process modeling. It focuses on the notion of

intentional actor and dependency. i* consists of two

main models: Strategic Dependency (SD) and Strate-

gic Rationale (SR). The SD model represents the in-

tentional level of a system that contains actors and

dependencies in terms of Resource, Task, Goal, and

Quality dependums. SR models are used to discover

the rationale behind the actors, which can be explic-

itly described also in the same terms of Goals, Qual-

ities, Tasks, and Resources, and relationships among

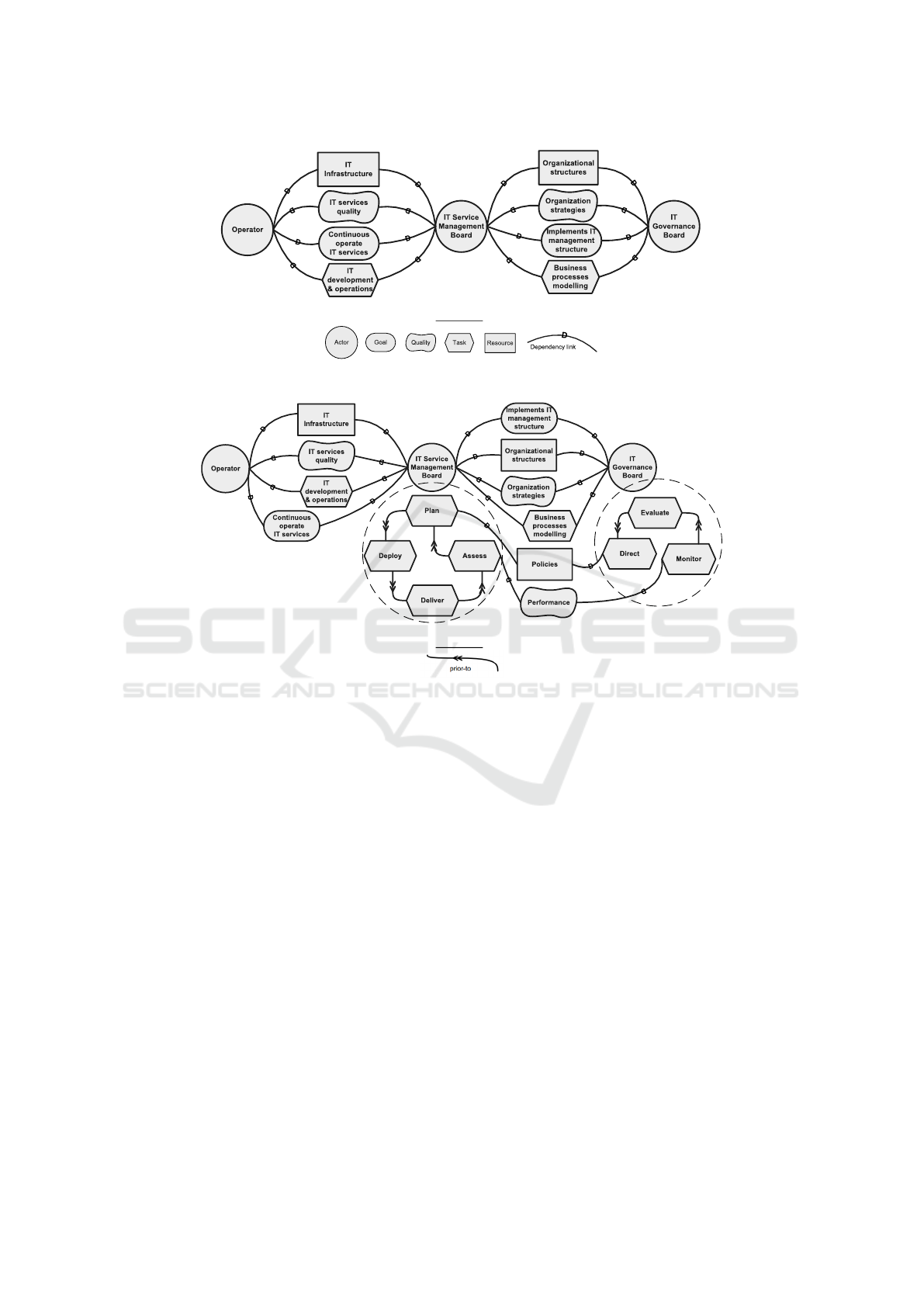

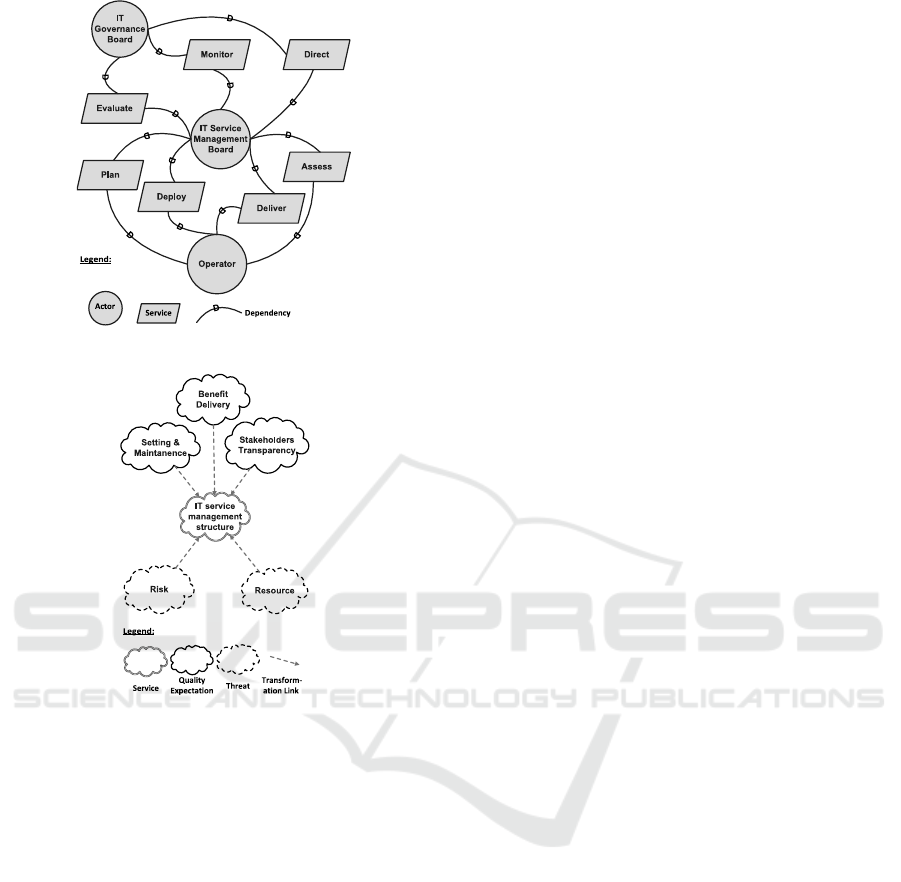

them. An extension of i*, the Strategic Service (SS)

model (Wautelet et al., 2008) allows the stakehold-

ers to have a higher comprehensive view of the soft-

338

Nguyen, V., Kolp, M., Wautelet, Y. and Heng, S.

Aligning Requirements-driven Software Processes with IT Governance.

DOI: 10.5220/0006431303380345

In Proceedings of the 12th International Conference on Software Technologies (ICSOFT 2017), pages 338-345

ISBN: 978-989-758-262-2

ware system for adequate understanding of IT gover-

nance and management. It enables the stakeholders

to share a common comprehensive view of what the

governance and management processes should pro-

pose plus their dependency relationships.

The purpose of this paper is to align requirements-

driven software processes with IT governance rules

and constraints by using strategic modeling organi-

zation speciﬁcations. To this end, we propose GI-

Tropos, an iterative process framework for a proper

governance and management of requirements-driven

software processes from strategic to operational lev-

els. In this framework, we use strategic modeling

techniques to represent the organizational setting and

also governance and management structures. Then

we will discuss the use of these models within par-

ticular processes in order to align IT governance and

management with requirements-driven software life-

cycle and disciplines.

This paper is organized as follows. Section 2

overviews the proposed development template called

Governance I-Tropos (GI-Tropos) for requirements-

driven software process and IT governance alignment.

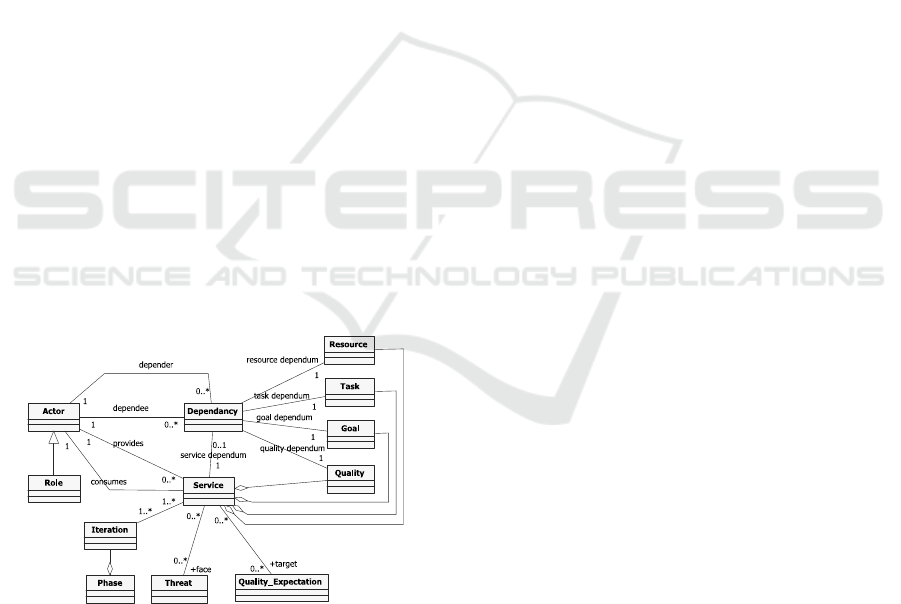

Section 3 proposes the meta-model while section

4 overviews the alignment between requirements-

driven software development process and IT gover-

nance. Finally, Section 5 concludes the paper and

points out further work.

2 REQUIREMENTS-DRIVEN

DEVELOPMENT & GI-TROPOS

Requirements-driven development methodologies

have been presenting great interest since they satisfy

the increasing complexity and ﬂexibility fo require-

ments for systems development (Wautelet and Kolp,

2011). Using the i* modeling framework, Tropos,

a requirements-driven development methodology

(Kolp and Mylopoulos, 2001), provides guidance for

the development of the systems based on agent from

early and late requirements analysis through architec-

tural and detailed design to test and implementation.

The methodology relates to a formal speciﬁcation

language called Formal Tropos (Fuxman et al., 2004)

to capture the semantics of the subject domain to the

graphical models, which can be validated, by adding

constraints, invariants, pre- and post-conditions (Cas-

tro et al., 2002). Tropos consists of ﬁve phases: Early

Requirements, Late Requirements, Architectural

Design, Detailed Design and Implementation. These

phases are not following the traditional sequence of

requirements analysis, design, coding, integration,

and test. Thus, a Tropos phase can actually be

deﬁned as a collection of activities that are all related

to a major ‘area of concern’ – i.e., a discipline – in

iterative development such as I-Tropos described just

below.

Iterative-Tropos (I-Tropos) (Wautelet and Kolp,

2016) is a development process using coarse grained

(i.e., high-level) and social-oriented requirement

models, to drive the software development both in

terms of project management (PMI, 2013) and for-

ward engineering (transformational) techniques. I-

Tropos is an extension of the Tropos methodology

that supports iterative (Kruchten, 2003) and agent

development (Kolp et al., 2002; Mylopoulos et al.,

2002). With the aim of being compliant with the

most generic terminology, traditional Tropos phases

are considered as groups of iterations that are work-

ﬂows with a minor milestone. In I-Tropos, the Or-

ganizational Modeling and Requirements Engineer-

ing disciplines respectively correspond to Tropos’

Early and Late Requirements phases. The Architec-

tural and Detailed Design disciplines correspond to

the same stages of the traditional Tropos process. I-

Tropos not only includes core disciplines (i.e., Orga-

nizational Modeling, Requirements Engineering, Ar-

chitectural Design, Detailed Design, Implementation,

Test and Deployment) but also supports disciplines to

handle Risk Management, Time Management, Qual-

ity Management and Software Process Management

(Wautelet, 2008).

We propose, hereby an extension of I-Tropos

named GI-Tropos for aligning requirements-driven

software processes with IT governance. This ex-

tension aims to enable governing and managing

requirements-driven software processes to cope with

stakeholders’ requirements and expectations in the

context of business aspects. From a systems develop-

ment perspective, GI-Tropos takes up the ﬁve phases

of I-Tropos for software engineering process (i.e.,

Setting, Blueprinting, Building, Setuping, and Oper-

ation) but also adds up core processes of governance

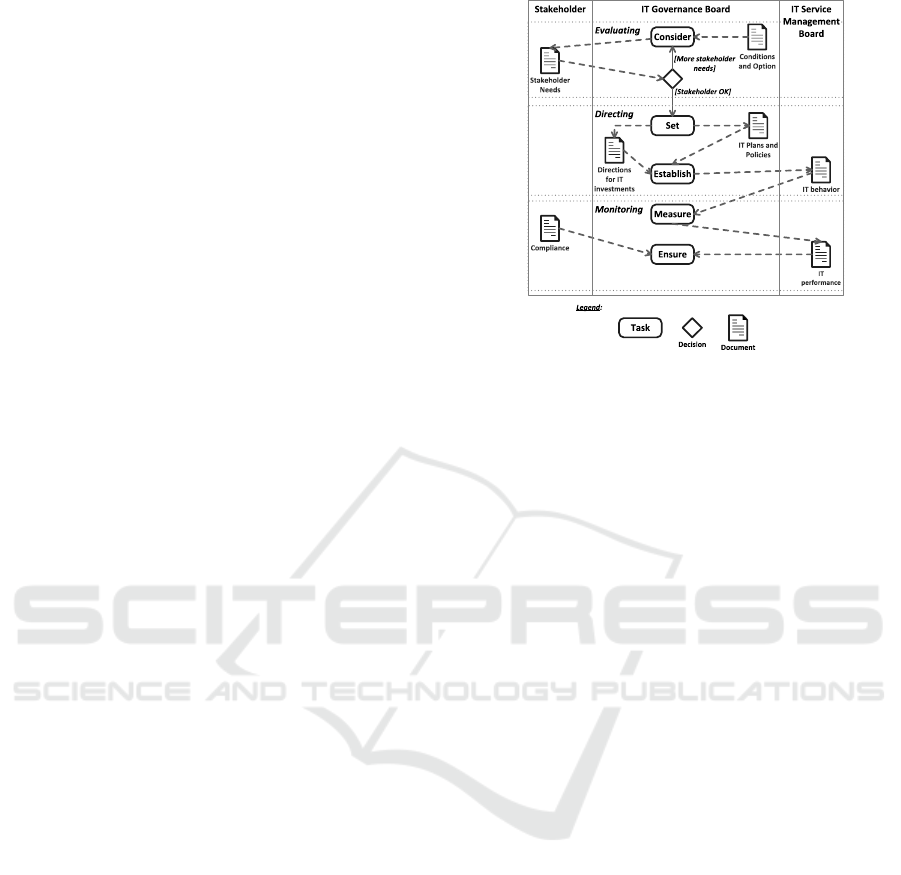

(i.e., Evaluate, Direct, and Monitor) and management

(i.e., Plan, Deploy, Deliver, and Assess).

Figure 1 illustrates the GI-Tropos process in a

classical iterative perspective. It has been built based

on a series of disciplines represented in the vertical

dimension and a series of phases represented in the

horizontal dimension. The GI-Tropos’ disciplines are

grouped in each phase. Several iterations can be de-

ployed by phase depending on each software project

characteristics. Therefore, GI-Tropos’ disciplines can

be repeated iteratively and the effort spent on each

discipline can differ from one iteration to another.

Vertically, GI-Tropos includes all disciplines of I-

Tropos (Wautelet, 2008) plus four new ones; they are:

Aligning Requirements-driven Software Processes with IT Governance

339

PHASES

Disciplines

Setting Blueprinting Building Setuping Operation

Organizational

modeling

Organizational

modeling

Organizational

modeling

Organizational

modeling

Organizational

modeling

Organizational

modeling

Organizational

modeling

Organizational

modeling

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Requirements

Engineering

Architectural

Design

Architectural

Design

Architectural

Design

Architectural

Design

Architectural

Design

Architectural

Design

Architectural

Design

Architectural

Design

Detailed Design Detailed Design Detailed Design Detailed Design Detailed Design Detailed Design Detailed Design

Detailed Design

Implementation

Test Test Test Test Test Test Test Test

Deployment Deployment Deployment Deployment Deployment Deployment Deployment Deployment

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Project

Management

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Software

Processes

Governance

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Change & Risk

Management

Quality

Management

Quality

Management

Quality

Management

Quality

Management

Quality

Management

Quality

Management

Quality

Management

Quality

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Knowledge

Management

Specify

Requirements

Produce

Architecture

Go-live

Release

Framework

Figure 1: GI-Tropos iterative process framework.

• Software Processes Governance: Ensuring soft-

ware processes are evaluated, directed and mon-

itored to meet stakeholders’ requirements and to

achieve value added by aligning requirements-

driven software processes with IT governance

rules and constraints;

• Change & Risk Management: Identifying, ana-

lyzing, assessing change and risk as well as devel-

oping strategies to manage them;

• Quality Management: Ensuring that quality

expected and contracted with stakeholders is

achieved throughout the system;

• Knowledge Management: Acquiring, storing

and utilizing knowledge for such things as prob-

lem solving, dynamic learning, strategic planning,

decision making and business processes.

Horizontally, GI-Tropos has the four following

phases redeﬁning and improving those of I-Tropos

plus a new one, Operation, to operate the system in

the perspective of IT enterprise governance and man-

agement.

3 META-MODEL

The SS model in Figures 2 - 3 is used to represent all

governance and management processes as services.

This model has three main actors (Operator, IT Ser-

vice Management Board, and IT Governance Board)

and core services of governance (Evaluate, Direct,

and Monitor) and management (Plan, Deploy, De-

liver, and Assess). Moreover, it also illustrates threats

(Risk and Resource) and quality expectations (Setting

and Maintenance, Beneﬁt Delivery, and Stakeholders

Transparency) explained as follows:

• Setting and Maintenance represents quality ex-

pectations from analyzing and articulating re-

quirements for governance of IT enterprise, to put

in place and maintain enabling structures, prin-

ciples, processes and practices, deﬁning clear re-

sponsibilities and authorities.

• Beneﬁt Delivery represents quality expectations

from securing optimal value from IT enabled ac-

tivities, services and assets, optimizing the contri-

bution and value of IT to the business.

• Stakeholders Transparency represents quality

expectations from communicating effectively and

timely to stakeholders, transparently measuring

ICSOFT 2017 - 12th International Conference on Software Technologies

340

Figure 2: GI-Tropos Strategic Service model (a).

Figure 3: GI-Tropos Strategic Service model (b).

and reporting IT performance and conformance,

for instance, stakeholder approval of goals and

metrics.

• Risk represents threats from IT related risks.

• Resource represents threats from inadequate and

insufﬁcient people, processes and technology to

support enterprise objectives.

This model allows all stakeholders to share a com-

mon aggregate view of the services including their

dependency relationships. The IT Service Manage-

ment Board is the responsible actor for governance

services (Evaluate, Direct, Monitor) while the Oper-

ator is the responsible actor for management services

(Plan, Deploy, Deliver, Assess). Each service repre-

sents a dependency graph summarized as follows:

• The Evaluate service represents the processes

that examine and judge current and future use

of IT, include strategy proposals, supply arrange-

ments, consider internal and external pressures,

evaluate continuously, consider current and future

business needs and objectives: competitive advan-

tage and speciﬁc strategies;

• The Direct service represents the processes that

assign responsibility, direct preparation and im-

plementation of IT plans and policies, set direc-

tions for IT investments, establish sound behavior

in IT use through policies, properly plan transition

of project to operational status, encourage culture

of good IT governance, direct submission of pro-

posals identifying needs;

• The Monitor service represents the processes that

monitor and measure IT performance, assure that

performance is in accordance with plans and busi-

ness objectives, ensure that IT conforms with ex-

ternal obligations (regulatory, legislation, com-

mon law, and contractual), ensure that IT con-

forms with internal work practices;

• The Plan service represents the processes that

cover the use of information and technology and

how best it can be used in an organization to help

achieve the organization’s goals and objectives. It

also highlights the organizational and infrastruc-

tural form IT is to take in order to achieve the

optimal results and to generate the most beneﬁts

from the use of IT;

• The Deploy service represents the processes that

identify IT requirements, acquire the technology,

and implement it within the enterprise’s current

business processes;

• The Deliver service represents the processes that

focus on the delivery aspects of the information

technology. It covers areas such as the execution

of the software system within the IT system and

its results, in addition to, the support processes

that enable the effective and efﬁcient execution of

these IT systems;

• The Assess service represents the processes that

deal with an enterprise’s strategy in assessing the

needs of the enterprise and whether or not the cur-

rent IT system still meets the objectives for which

it was designed and the controls necessary to com-

ply with regulatory requirements. It also covers

the issue of an independent assessment of the ef-

fectiveness of IT system in its ability to meet busi-

ness objectives and the enterprise’s control pro-

cesses by internal and external auditors.

Figure 6 presents the SR model of GI-Tropos. It

is reﬁned from the SS and the SD models. The IT

Governance Board performs three tasks (Evaluate,

Direct, and Monitor) correspond to the three core ser-

vices of governance (Evaluate, Direct, and Monitor)

respectively. The IT Service Management Board

Aligning Requirements-driven Software Processes with IT Governance

341

performs four tasks (Plan, Deploy, Deliver and As-

sess) correspond to the four core services of gov-

ernance (Plan, Deploy, Deliver and Assess) respec-

tively. The Plan task depends on the Direct task

based on the Policies resource and the Monitor task

depends on the Assess task based on the Perfor-

mance quality.

Figure 4 illustrates the main meta-classes and re-

lationships of the GI-Tropos process in the context of

requirements-driven software processes governance

and management. The meta-classes are:

• Service represents the core processes of gover-

nance (Evaluate, Direct, and Monitor) and man-

agement (Plan, Deploy, Deliver, and Assess);

• Dependency represents all dependencies;

• Actor represents all actors;

• Role represents all roles;

• Resource represents all resources;

• Task represents all tasks;

• Goal represents all goals;

• Quality represents all qualities;

• Threat represents all threats;

• Quality Expectation represents all quality expec-

tations;

• Iteration represents all iteration plans;

• Phase represents the ﬁve phases of the iterative

software engineering process: Setting, Blueprint-

ing, Building, Setuping, and Operation.

Figure 4: GI-Tropos meta-model.

The main actor function is to provide services

achievement through an iteration plan. The actor

has to perform a number of governance/management

tasks to achieve a goal/quality with the resource de-

pendency. Those tasks include the evaluation of

factors such as risk, the limit of resource, setting

and maintenance, beneﬁt delivery, stakeholders trans-

parency.

Figure 5 depicts the SD model of GI-Tropos. It

has three main actors (Operator, IT Service Manage-

ment Board, IT Governance Board), resources (Orga-

nizational structures, IT infrastructure), goals (Imple-

menting IT management structure, Continuous oper-

ating IT services), qualities (Organization strategies,

IT services quality), and tasks (Business processes

modeling, IT development & operations). Moreover,

it also illustrates the dependencies between actors.

In the Strategic Dependency model, the IT Ser-

vice Management Board depends on the IT Gover-

nance Board to implement IT management structure

based on organizational structures. The IT Gover-

nance Board depends on the IT Service Manage-

ment Board to perform business processes model-

ing to achieve organization strategies. The Opera-

tor depends on the IT Service Management Board

to operate IT services continuously based on the IT

infrastructure. The IT Service Management Board

depends on the Operator to perform IT development

and operations to achieve IT services quality.

4 ALIGNMENT

This section summarizes aligning requirements-

driven software processes with IT governance rules

and constraints. In our GI-Tropos proposal, Disci-

plines have now to ensure the following:

• Organizational Modeling has to ensure that

stakeholders agreed on direction and objectives;

deﬁne project roadmap and resource constraints;

identify delivery timeline and risks.

• Requirements Engineering has to identify solu-

tions and analyze requirements to ensure that they

correspond to business processes, applications, in-

formation/data, infrastructure, services; coordi-

nate with affected stakeholders the review of fea-

sible option and proposed solutions.

• Architectural Design has to develop and docu-

ment architectural designs using agreed-on and

appropriate phased or agile development tech-

niques; ensure alignment with the IT strategy and

enterprise architecture; review and update the de-

signs when signiﬁcant issues occur during de-

tailed design or building phases or as the solution

evolves; ensure that stakeholders actively partici-

pate in the design and approve each version.

• Detailed Design has to develop, document and

elaborate detailed designs gradually using agreed-

on and appropriate phased or agile development

techniques, addressing all components; ensure

ICSOFT 2017 - 12th International Conference on Software Technologies

342

Legend:

Figure 5: GI-Tropos Strategic Dependency model.

Legend:

Figure 6: GI-Tropos Strategic Rationale model.

that the detailed design includes internal and ex-

ternal service-level agreements and operational-

level agreements.

• Implementation has to develop solution compo-

nents progressively in accordance with detailed

designs following development methods and doc-

umentation standards quality assurance require-

ments, and approval standards; ensure that all

controlled requirements are addressed; install and

conﬁgure solutions and integrate with business

process activities; implement control, security and

auditability measures during conﬁguration; pro-

tect resources and ensure availability and data in-

tegrity during integration of hardware and infras-

tructural software; update the services catalog to

reﬂect the new solutions.

• Test has to establish a test plan and required en-

vironments to test the individual and integrated

solution components; execute testing continually

during development, including control testing, in

accordance with the deﬁned test plan and develop-

ment practices in the appropriate environment; en-

gage business process owners and end users in the

test team; identify, log and prioritize errors and

issues identiﬁed during testing.

• Deployment has to track the status of individual

requirements including all rejected requirements

throughout the project life-cycle and manage the

approval of changes to requirements; develop and

execute a plan for the maintenance of the solution

and infrastructure components; include periodic

reviews against business needs and operational re-

quirements; deﬁne and agree on new or changed

IT services and service level options; document

new or changed service deﬁnitions and service

level options to be updated in the services port-

folio.

• Software Project Management has to provide

a structure of processes to direct and control the

governance of the IT project including risk, qual-

ity, cost and time management.

• Software Processes Governance has to ensure IT

governance rules and constraints alignment and

mainly control the business process described in

Aligning Requirements-driven Software Processes with IT Governance

343

Figure 7 explained below.

Similarly, GI-Tropos phases have also to consider

new dimensions. In the Setting and Blueprinting

phases, this alignment ensures controlling the opera-

tional environment, comprehending the stakeholders’

requirements and expectations, gathering system re-

quirements, deﬁning the project scope, assessing an

initial risk, and establishing an initial baseline for

the software system architecture. It includes describ-

ing an information architecture, forming framework

for technology planning, deﬁning organization and

processes, describing development investment frame-

work, managing human resources, developing qual-

ity management system, developing project manage-

ment framework. It also measures, estimates and min-

imizes development risks and plans for compliance.

In the Building phase, the alignment ensures im-

plementing software system counterparts totally the

stakeholders’ requirements and expectations. It con-

sists of managing business goals and requirements

continuously, designing and developing resource, val-

idating and measuring quality, measuring develop-

ment and ongoing costs, estimating value, measuring

and reviewing risk with different stakeholders based

on initial prototyping result. It also manages projects

based on alignment between goals and software engi-

neering concerns.

In the Setuping phase, this alignment ensures de-

livering software system counterparts totally imple-

menting the stakeholders’ requirements and expecta-

tions. It comprises monitoring and managing effort

and other metrics to enable control and future plan-

ning, managing applications and information to max-

imize usage and ﬂexibility, prioritizing risks, track-

ing actual values of effort, encountering compliance

needs.It also manages projects based on alignment be-

tween goals and software engineering concerns.

The workﬂow of tasks performed during the align-

ment of requirements-driven software processes with

IT governance rules and constraints is presented in

Figure 7. These tasks are assumed by the IT Gover-

nance Board in interaction with the Stakeholder and

IT Service Management Board. They are sorted in

three groups (Evaluating, Directing, and Monitoring)

correspond to the three core service of governance

(Evaluate, Direct, and Monitor) respectively. Each

task is summarized as follow:

• Consider: Examine and judge current and fu-

ture use of IT include strategy proposals, sup-

ply arrangements; considering internal and exter-

nal pressures (technological changes, economic

trends, social trends, and political inﬂuences);

evaluating continuously; considering current and

future business needs and objectives: competitive

Figure 7: IT Governance Workﬂow.

advantage and speciﬁc strategies.

• Set: Assign responsibility and directing prepara-

tion and implementation of IT plans and policies;

setting directions for IT investments.

• Establish: Establish sound behavior in IT use

through policies; properly plan transition of

project to operational status; encouraging culture

of good IT governance; direct submission of pro-

posals identifying needs.

• Measure: Monitor and measure IT performance.

• Ensure: Assure that performance is in accordance

with plans and business objectives; ensure that

IT conforms with external obligations (regulatory,

legislation, common law, and contractual); ensur-

ing that IT conforms with internal work practices.

5 CONCLUSION

In today’s software engineering and IT project meth-

ods, the management of requirements all along the life

cycle and IT governance principles are closely inter-

twined. Aligning them allows governance and man-

agement rules for software development to cope with

stakeholders’ requirements and expectations. Contri-

butions of this paper consist of a framework includ-

ing a meta-level speciﬁcation to emphasize integra-

tion and alignment of requirements-driven software

processes with IT governance rules and constraints.

Using strategic modeling organization speciﬁcations,

we have proposed an extension of I-Tropos, called GI-

Tropos, customized on the application of IT gover-

nance principles to software processes driven by re-

quirements. The main objective of this extension has

been to deliver an efﬁcient governance for software

ICSOFT 2017 - 12th International Conference on Software Technologies

344

development that meets stakeholders’ needs and ex-

pectations. The strengths of I-Tropos is to offer sys-

tematically structure and direction through the whole

software development process and enable tailoring

the process to the project needs. However, I-Tropos

does not point out how to establish governance rules

to the software processes while IT governance con-

tains the principles of governance to apply in the soft-

ware processes. The GI-Tropos extension also deliv-

ers a sequence of phases for a collaborative software

development environment.

Further works point to other additional practices

that need to be integrated in this extension to propose

a completed aligned framework taking into consid-

eration, for instance, project management and agile

practices (Ambler and Lines, 2012; Kruchten, 2013)

for managing the day-to-day activities and reacting

to changing requirements and feedback. Moreover,

mapping processes that integrate relevant practices

(IT governance, IT management, software project and

program management and software development pro-

cesses) to GI-Tropos should also be performed. In

addition, a CASE tool should be developed to help

designing and implementing all the models deﬁned in

this paper.

REFERENCES

Ambler, S. W. and Lines, M. (2012). Disciplined Agile De-

livery: A Practitioner’s Guide to Agile Software De-

livery in the Enterprise. IBM Press, 1st edition.

Bannerman, P. L. (2009). Software development gover-

nance: A meta-management perspective. In 2009

ICSE Workshop on Software Development Gover-

nance, pages 3–8.

Castro, J., Kolp, M., and Mylopoulos, J. (2002). To-

wards requirements-driven information systems engi-

neering: the Tropos project. Inf. Syst., 27(6):365–389.

Chulani, S., Williams, C., and Yaeli, A. (2008). Software

development governance and its concerns. In Pro-

ceedings of the 1st International Workshop on Soft-

ware Development Governance, SDG ’08, pages 3–6,

New York, NY, USA. ACM.

Dalpiaz, F., Franch, X., and Horkoff, J. (2016). istar 2.0

language guide. CoRR, abs/1605.07767.

Dardenne, A., van Lamsweerde, A., and Fickas, S. (1993).

Goal-directed requirements acquisition. Science of

Computer Programming, 20(1-2):3–50.

Fuxman, A., Liu, L., Mylopoulos, J., Pistore, M., Roveri,

M., and Traverso, P. (2004). Specifying and analyzing

early requirements in tropos. Requirements Engineer-

ing, 9(2):132–150.

Isaca (2012). Cobit 5. ISA.

Kalumbilo, M. and Finkelstein, A. (2014). Linking strategy,

governance, and performance in software engineer-

ing. In Proceedings of the 7th International Workshop

on Cooperative and Human Aspects of Software En-

gineering, CHASE 2014, pages 107–110, New York,

NY, USA. ACM.

Kolp, M., Giorgini, P., and Mylopoulos, J. (2002). Organi-

zational multi-agent architectures: a mobile robot ex-

ample. In First I. Joint Conf. on Autonomous Agents &

Multiagent Systems, AAMAS 2002, July 15-19, 2002,

Bologna, Italy, pages 94–95.

Kolp, M. and Mylopoulos, J. (2001). Software architec-

tures as organizational structures. In Proc. ASERC

Workshop on The Role of Software Architectures in

the Construction, Evolution, and Reuse of Software

Systems, Edmonton, Canada.

Kruchten, P. (2003). The Rational Uniﬁed Process: An In-

troduction. Addison-Wesley, 3rd edition.

Kruchten, P. (2013). Contextualizing agile software devel-

opment. Journal of Software: Evolution and Process,

25(4):351–361.

Mylopoulos, J., Kolp, M., and Giorgini, P. (2002). Agent-

oriented software development. In Hellenic Confer-

ence on Artiﬁcial Intelligence, pages 3–17. Springer

Berlin Heidelberg.

PMI (2013). A Guide To The Project Management Body Of

Knowledge. Project Management Institute.

Sommerville, I. (2010). Software Engineering. Addison-

Wesley Publishing Company, USA, 9th edition.

van Lamsweerde, A. (2009). Requirements Engineering:

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley Publishing, 1st edition.

van Lamsweerde, A. and Letier, E. (2002). From object

orientation to goal orientation: A paradigm shift for

requirements engineering. In Radical Innovations of

Software and Systems Engineering in the Future, 9th

International Workshop, RISSEF 2002, Venice, Italy,

October 7-11, 2002, Revised Papers, pages 325–340.

Wautelet, Y. (2008). A goal-driven project management

framework for multiagent software development: The

case of I-Tropos. PhD thesis, Universite catholique de

Louvain.

Wautelet, Y., Achbany, Y., and Kolp, M. (2008). A service-

oriented framework for MAS modeling. In ICEIS

2008 - Proc. of the 10th Int. Conf. on Enterprise In-

formation Systems, Volume ISAS-1, Barcelona, Spain,

June 12-16, 2008, pages 120–128.

Wautelet, Y. and Kolp, M. (2011). Goal driven iterative

software project management. In ICSOFT 2011 - Pro-

ceedings of the 6th International Conference on Soft-

ware and Data Technologies, Volume 2, Seville, Spain,

18-21 July, 2011, pages 44–53.

Wautelet, Y. and Kolp, M. (2016). Business and model-

driven development of BDI multi-agent systems. Neu-

rocomputing, 182:304–321.

Weill, P., R. J. (2004). IT governance: How Top Perform-

ers Manage IT Decision Rights for Superior Results,

Watertown, MA: Harvard Business School Press.

Yu, E., Giorgini, P., Maiden, N., and Mylopoulos, J. (2011).

Social Modeling for Requirements Engineering. The

MIT Press.

Aligning Requirements-driven Software Processes with IT Governance

345
