A Card-less TEE-based Solution for Trusted Access Control

Mohamed Amine Bouazzouni

, Emmanuel Conchon

, Fabrice Peyrard

and Pierre-Franc¸ois Bonnefoi

University of Toulouse, INP Toulouse, Department IRIT, 2, rue Charles Camichel BP 7122, 31400, Toulouse, France

University of Limoges, XLIM, 123, avenue Albert Thomas, 87060, Limoges, France

Keywords:

Secure Access Control, Trusted Execution Environments (TEE), Identity Based Encryption, IBAKE.

Abstract:

In this paper, we present a new card-less access control system aiming to replace existing systems based on

vulnerable contact-less cards. These existing systems have many vulnerabilities which makes them not secure

enough to be deployed to protect restricted areas. We propose to deploy a new access control architecture

based on the use of a smartphone to remove the physical card. Our secure access control system is based on

Trusted Execution Environment (TEE) in the cloud and Identity Based Encryption (IBE) mechanisms. The

authentication protocol deployed on our architecture is based on IBAKE. Finally, a performance evaluation of

the protocol is provided.

1 INTRODUCTION

Contact-less tags using Near Field Communication

(NFC) or Radio Frequency IDentiﬁcation (RFID)

technologies are used for access control for several

years now. However, the ﬁrst generation of these

tags comes with a very small set of security mech-

anisms and the conﬁdence they can provide is then

limited. Indeed, the main security aspect they pro-

vide is their capacity to provide a unique identiﬁer

that is stored in a non-rewritable memory. But, as

presented in (Mitrokotsa et al., 2011) these contact-

less tags can be cloned. To address these security is-

sues, the cards manufacturers developed a new gen-

eration of cards with more security capabilities. For

instance, the MIFARE DESFIRE card supports Ad-

vanced Encryption Standard (AES) encryption algo-

rithm that allows to deploy authentication algorithms

between the card and the reader for secure communi-

cation. However, almost all these authentication algo-

rithms are based on the shared secret paradigm, which

means that the reader and the card are sharing a secret

(a pool of encryption keys in some implementations)

prior to the communication. Furthermore, some DES-

FIRE cards are sensitive to side channel attacks like

exposed in (Oswald and Paar, 2011).

To overcome these issues, we propose a new au-

thentication scheme based on the emulation of the

physical card on a smartphone. The smartphone stor-

age and computation capabilities allow to deploy

complex authentication algorithms avoiding the use

of a shared secret. However, smartphones can not be

considered as trusted devices. Thereby, all sensitive

operations such as key generation, key storage and en-

cryption/decryption operations need to be supported

by secure components.

In order to satisfy these security constraints, sev-

eral trusted mobile computing solutions have been

proposed (Asokan et al., 2014; Bouazzouni et al.,

2016) among which is the Trusted Execution Environ-

ment (TEE): a combination of a hardware part (pro-

cessor) and a software part (Secure Operating Sys-

tem).

A main drawback of TEE is the use of a hardware

component that is fully controlled by the manufac-

turer. Indeed, it does not allow the user to deploy

trusted application on this component in an easy way

and often requires a manufacturer agreement prior de-

ployment. However, new fully software based so-

lutions such as OP-TEE can be used to bypass this

agreement.

Section 2 presents the smart campus context in

which this works is performed. In section 3, we

present the identity-based authentication schemes that

will be used in the proposition. In section 5, we

present and discuss our solution to address access

control on a smart-campus. Then, an evaluation is

given in section 6 before concluding.

456

Bouazzouni, M., Conchon, E., Peyrard, F. and Bonnefoi, P-F.

A Card-less TEE-based Solution for Tr usted Access Control.

DOI: 10.5220/0006431704560461

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 4: SECRYPT, pages 456-461

ISBN: 978-989-758-259-2

2 CONTEXT AND PROBLEM

STATEMENT

The work presented in this paper is a part of a global

smart campus project called neoCampus that aims at

designing a modern and green campus thanks to a va-

riety of new sensors and softwares. So far, both cam-

pus employees and students have Mifare classic 1K

NFC cards that they use to access various services.

For instance, to access a restricted area such as a lab

or a meeting room, the user has to authenticate using

a contact-less card to a reader. If he is authorized,

the system opens the door otherwise the door remains

closed.

Since these cards have vulnerabilities allowing

an attacker to clone it (see (Mitrokotsa et al., 2011;

Mitrokotsa et al., 2010), the university is now switch-

ing these cards for DESFIRE NFC cards. These cards

are more secure than the previous one and can per-

form symmetric cryptographic operations and to de-

ploy simple authentication algorithms based on the

shared secret paradigm. However, there are still two

major drawbacks: deployment costs and user authen-

tication. Indeed, when a Mifare 1K costs in average

0.02$, a DESFIRE card is three times more expen-

sive. Also, Oswalds et al. pointed in (Oswald and

Paar, 2011) that these cards are vulnerable to a low

cost side channel attack allowing the attacker to re-

cover the encryption key.

In this paper, we propose a secure access control

system for a smart campus to replace the existing one

that relies on vulnerable MIFARE cards without dis-

rupting the platform currently deployed.

3 ID-BASED SOLUTIONS

The current access control systems based on contact-

less cards are using the UUID of the card in the au-

thentication process. In order to remove the physi-

cal card and deploy a more secure access control sys-

tem using the identity, it is necessary to rely on cryp-

tographic mechanisms dealing with the identity of a

user.

The authentication protocols based on identity

mainly rely on a Public Key Infrastructure. The PKI

is an organization that can register users and provide

them a key pair composed of a private and a public

one that can be used in the authentication process. If

a user wants to get a key pair for a HTTPS connec-

tion for instance, he has to register his identity in the

PKI. He has also to provide many information about

him and his organization. At the end of the process,

he will get his key pair and will be able to execute

authentication protocols based on asymmetric cryp-

tography.

However, this process is heavy and expensive and

requires the user to give a lot of information about

him and his organization. Moreover, this system re-

lies on the use of certiﬁcates to prove the identity of

the key owner. Exchanging, storing and processing

certiﬁcates induce an overhead in the system perfor-

mances. Indeed, the number of certiﬁcates to store

grows according to the number of users. To deal

with these issues, a new mechanism was introduced

by Shamir (Shamir, 1984): The Identity Based En-

cryption (IBE) in which the identity can be viewed as

a public key in public key cryptography.

This approach is a trade-off between a straightfor-

ward process of binding an identity to an asymmetric

pair of keys and the usage of a new kind of trusted

third-party acting as a mandatory key escrow (i.e. ca-

pable of producing every pair of cryptographic keys).

The ﬁrst IBE scheme fully satisfactory in terms

of security and performances has been proposed by

Boneh and Franklin (Boneh and Franklin, 2001) in

2001. Therefore, IBE schemes based on existing

cryptographic standards haveemerged such as the one

proposed by Callas (Callas, 2005) that is based on

RSA.

4 TRUSTED EXECUTION

ENVIRONMENT

As the smartphones are considered untrusted, the

Trusted Execution Environment(TEE) was developed

to secure the data storage and to process sensitive op-

eration such as cryptographic operations. The TEE

consists of a hardware part and a software part. The

hardware part is embedded in the processor and pro-

vides a set of secure operations. The software part is

split into two separate execution environments: REE

and TEE. The Rich Execution Environment (REE)

(a.k.a Normal World) represents the standard operat-

ing system (Rich OS) of the smartphone such as An-

droid for instance. The TEE represents the Secure OS

and is responsible for performing sensitive processing

and secure Input/Output.

OP-TEE (Linaro And STMicroelectronics, 2017)

is a Linaro/STMicroelectronics project with the ob-

jective to release a totally virtualized and open source

TEE. It also can be used as a secure OS on the top

of a physical TEE. OP-TEE provides an Application

Programming Interface (API) to invokecertiﬁed cryp-

tographic operations

in the Secure World side (TEE).

Libtomcrypt : http://www.libtom.com/

A Card-less TEE-based Solution for Trusted Access Control

457

In this paper, for our implementation, we use a JUNO

board which is a physical TEE and a virtualized TEE

using FVP which is an hypervisor running on the top

of a Debian-based OS.

5 TRUSTED ACCESS CONTROL

ARCHITECTURE

In this section we present the solution that we pro-

pose. We ﬁrst start by presenting the general architec-

ture, we follow by exposing the threats we identiﬁed

and our security hypothesis and ﬁnish by describing

the authentication protocol.

5.1 General Architecture

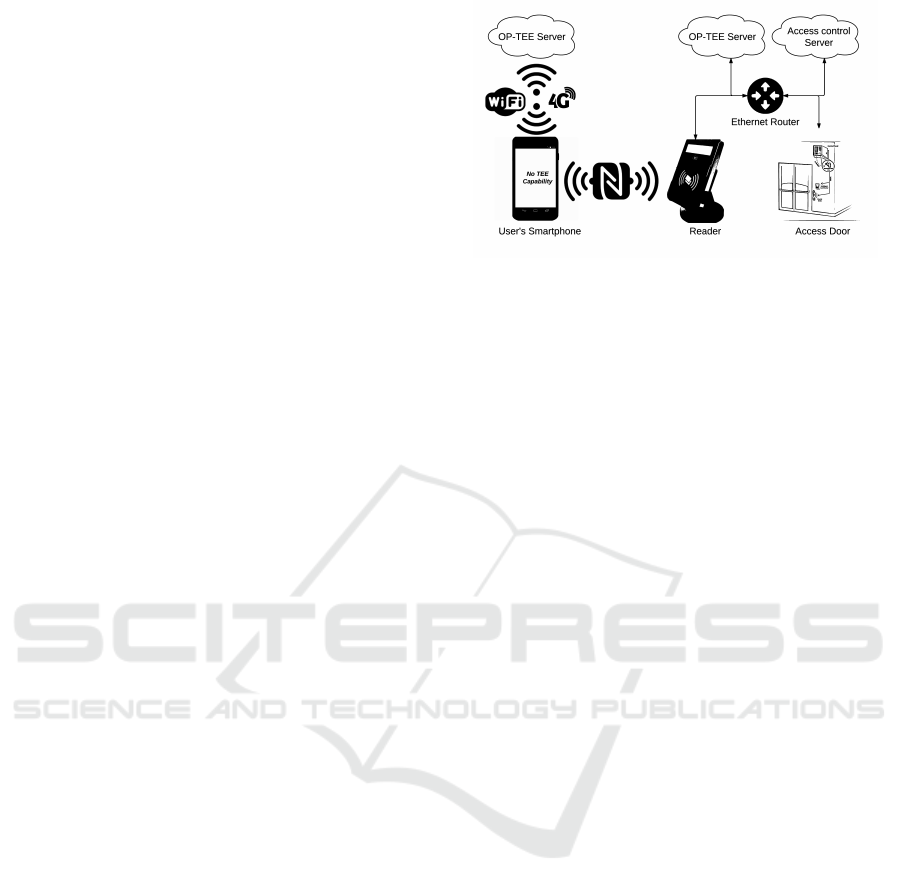

To perform a secure access control on a smart cam-

pus, we propose the architecture presented in Figure 1

where a user tries to access a restricted area.

This architecture is composed of a smartphone

with NFC capabilities, a NFC reader and for each de-

vice, a remote TEE deployed in a dedicated secure

cloud and an access control server.

The smartphone is used to initiate the authentica-

tion process by taping a NFC reader. We suppose that

the smartphone has no TEE capabilities. It communi-

cates with a remote TEE in the cloud to perform the

authentication process and the cryptographic opera-

tion.

The NFC reader represents a wall reader installed

close to each door. It is a cheap device with no secure

processing capabilities that is already present in every

campus. It is assumed that all readers have an Ether-

net connection with an access control server thereby

our solution does not modify the current infrastruc-

ture. The only modiﬁcation to existing infrastructures

is that now all NFC reader will communicate with a

secure cloud to perform the authentication process.

The secure cloud consists of one or several TEE

accessible through the Internet. This cloud re-

ceives messages from the two previous devices and

is in charge of executing sensitive operations such

as encryption, decryption and signatures for instance.

From a practical standpoint, there are two separate se-

cure cloud: one for the user, one for the smart campus

infrastructure which can be viewed as a private cloud.

The access control server is in charge of checking

the user’s credentials in order to grant the access or

not. It’s already a part of the existing infrastructure of

most university campus and can be viewed as a ser-

vice offered by the private cloud of the university. No

modiﬁcations are made on this part.

Figure 1: Trusted access control architecture based on IBE.

The use of a TEE in the cloud is based on the con-

sideration that at the time of writing, only few smart-

phones have TEE capabilities. Therefore, to provide

the TEE secure storage and secure processing capa-

bilities for any user, a cloud-based solution seems to

be the best candidate.

Indeed, severalalternativesto the architecture pro-

posed in Figure 1 have been considered. First was

investigated the possibility to use TEE on the smart-

phone TEE for the end user and a private cloud-based

TEE for the reader. Even if the overall performances

are better, this solution has not been selected for the

above reasons. Second, is the possibility to rely on a

single cloud-based TEE that limits the overall com-

plexity of the architecture but with less ﬂexibility for

the end user. Indeed, the readers secure cloud is a part

of the overall smart campus and can be viewed as a

private cloud. In order to allow the use of the pro-

posed solution in other contexts beside smart campus

it seems more relevant to have a dedicated cloud-base

TEE for end users.

5.2 Threats Identiﬁcation

In the proposed architecture, every parties involved

are assumed to be honest and will not deviate from

the proposed protocol. Likewise, end-users’ smart-

phones, readers and cloud servers only exchange valid

information. Furthermore, cloud servers are assumed

to be secure and no information can be leaked from a

user to another. Cloud security is out of the scope of

this paper. Smartphones are assumed to have NFC ca-

pabilities to emulate contact-less cards. No assump-

tion are made on the communication links.

However, several threats can be identiﬁed. First is

the classical passive attacker that will eavesdrop com-

munications to discover access credentials. To avoid

this, every communication has to be cyphered and

have to provide mechanisms to avoid replay. Second

are threats targeting the smartphone of the end-user.

Indeed, these terminals are vulnerable to malwares or

trojans that can intercept sensitive information during

SECRYPT 2017 - 14th International Conference on Security and Cryptography

458

both communications and processing. Rooted termi-

nals are even weaker in terms of security as malicious

softwares can potentially have access to the overall

ﬁle system . Therefore, no sensitive operation neither

critical credentials can be performed or stored on the

smartphone. Every smartphone is considered as an

untrusted device.

In the proposed architecture, every cryptographic

operation are assumed to be realized in the secure

cloud. A secure identiﬁcation between the end-user

and the secure cloud has then to be performed. In the

remaining of the paper, we will focus on the authen-

tication of the user against the access control server

and therefore consider that this cloud authentication

has already been realized. Please also note that this

cloud authentication can be performed prior to the ac-

cess control and does not have to be performed again

as long as the connectivity with the secure cloud is

active.

5.3 Protocol Description

The overall protocol is composed of an ID-Based

authentication protocol IBAKE (Cakulev and Sun-

daram, 2012), that is adapted to the cloud-based en-

vironment. In our architecture, every cryptographic

operation and every secure storage are performed in

TEEs that are hosted in the secure cloud and please

note that, as discussed previously, the user is securely

authenticated in the cloud prior to the proposed pro-

tocol.

The IBAKE protocol allows both entities (i.e. the

user and the reader) to agree on a session key that will

then be used to encrypt the subsequent exchanges.

The IBAKE protocol has been implemented in OP-

TEE based on Callas’s IBE in which the identity is

hashed so that it can be used with a regular RSA.

The overall protocol, depicted in Figure 2, is com-

posed of 8 steps as given in the following:

• 1 - Initiate the Authentication Process. When

a user wants to get access to a restricted area, he

has to tap his smartphone against the wall-reader.

• 2 - Request Challenge. When a user requests an

access to the restricted area, the reader communi-

cates with its cloud to request an encrypted chal-

lenge.

• 3-6 - IBAKE Messages.

This part of corre-

sponds to the IBAKE key exchange protocol exe-

cution. At the end of this process, the two devices

agree on a session key x∗ y∗ P. From this session

key, an AES symmetric key is derived. An AES

Dashed lines are indirect messages.

encrypted channel communication is then set up

where every other exchanges will take place.

• 7-8 - AuthenticatedAccess Control. The user re-

quests an access to a restricted area and sends his

credentials encrypted with the session key to the

reader which forwards them to the access control

server. Upon reception, the server uses the OP-

TEE server to decipher the message and grants or

refuses the access based on the credentials.

Smartphone’s

Cloud Smartphone Reader

Reader’s

Cloud

Access Control

Server

1- Initiate

authentication

2- Request

Challenge

3- IBAKE

(x∗ P)

4- IBAKE

(x∗ P, y ∗ P)

5- IBAKE

(y∗ P) or KO

6- Session key

OK or KO

7- Request

Access

8- Access

Response

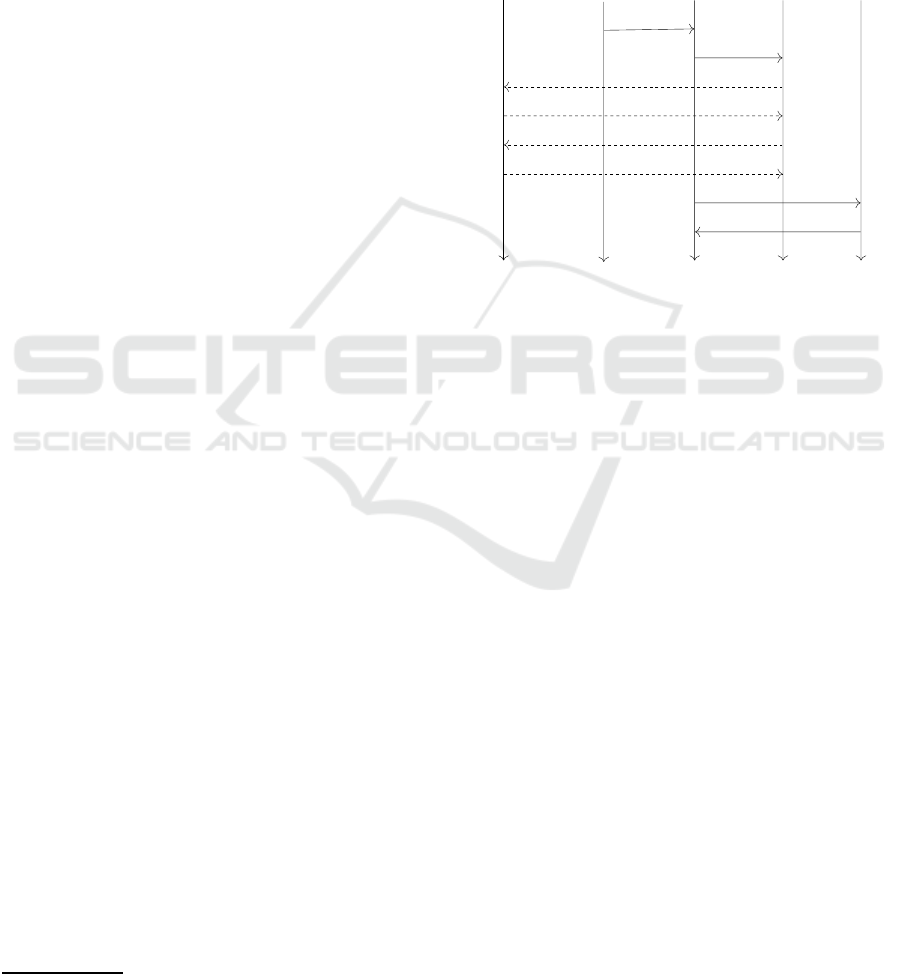

Figure 2: Chronogram of the proposed access control pro-

tocol.

6 PERFORMANCE EVALUATION

In this performance evaluation, we will focus on the

time taken by the cryptographic operations as it will

be the most time consuming part of the process. In-

deed, since the size of the IBAKE packet payload

does not exceed 64 bytes, the time taken by network

communications is not signiﬁcant. The most time

consuming communication part is the NFC link be-

tween the smartphone and the reader (i.e.: 53 kBps)

which takes around 1ms for a single packet and can

therefore be neglected from a usability standpoint.

6.1 Experimental Setup

To evaluate the performance of the cryptographic op-

eration in the secure cloud, experiments have been

made with both virtualized and hardware TEE.

The virtualized TEE consists of a virtual machine

with an Intel I7 processor with 1 GByte of dedi-

cated RAM (Random Access Memory) hosting the

OP-TEE emulated environment.

The hardware TEE consists of an ARM develop-

ment card called the ARM JUNO Board: a develop-

ment card provided by ARM to develop applications

that need to use some proprietary features that are

usually locked in smarpthones. In our case, it enables

A Card-less TEE-based Solution for Trusted Access Control

459

the deployment of OP-TEE granting it access to the

TrustZone features provided by the embedded proces-

sor. From a technical standpoint, the board consists of

a complete development kit with a dual core Cortex-

A57 MPCore processors, Random Access Memory

(RAM) and input/output peripherals such as USB and

Ethernet ports. For comparison, the provided proces-

sors are the same as the one that equip the Samsung

Galaxy S6 and note 5, the LG G4 and the HTC M8.

6.2 Experimental Results

The ﬁrst thing to evaluate is the time taken by the IBE

key generation process to evaluate if it’s possible to

do it online or if the key pair has to be generated and

stored prior to the authentication.

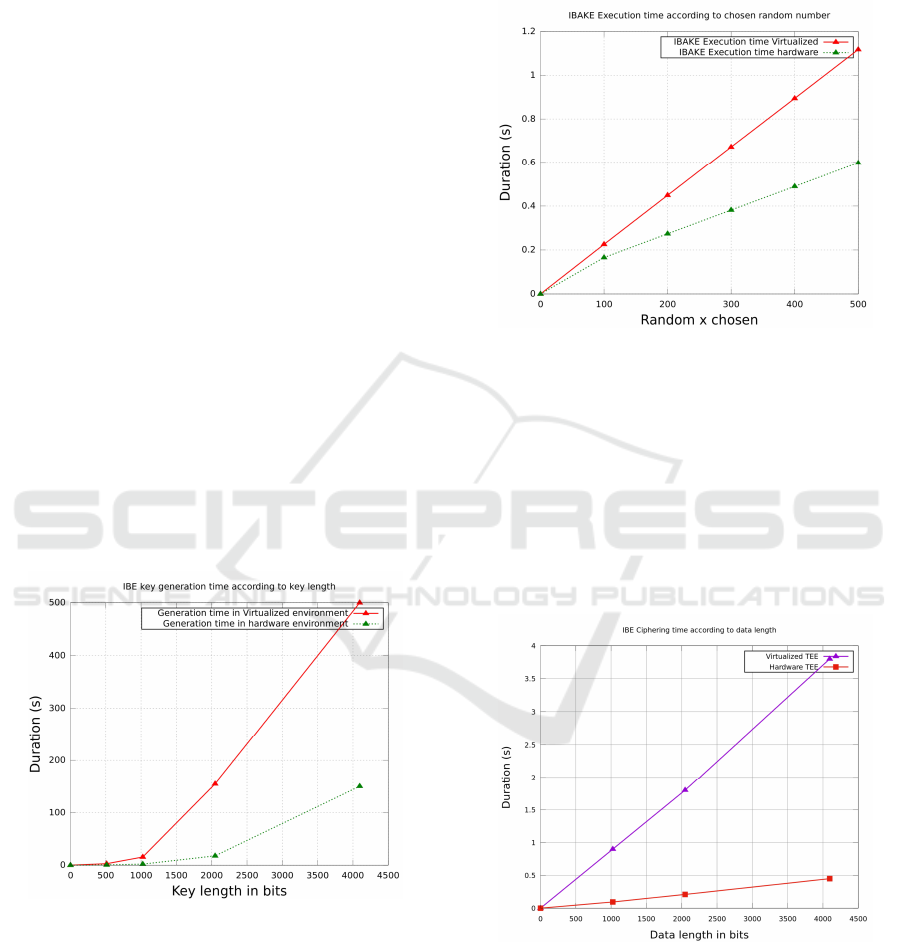

Figure 3 shows the time taken by the virtualized

and the hardware TEE to perform an IBE key pair

generation. We observe that this time grows expo-

nentially according to the key size. For instance, for

a 1024 bits key-pair, the virtualized TEE takes about

16 seconds when the hardware TEE takes 2.09 sec-

onds. The performances are 8 times better in av-

erage between the two environments. However, the

time taken by this process is not in adequacy with the

constraint of a real time authentication protocol. For

these reasons, the generation process have to be done

ofﬂine and the key pair has then to be stored in the

secure cloud.

Figure 3: RSA-based IBE key pair generation time.

Figure 4 shows the time taken by both virtual-

ized OP-TEE and hardware OP-TEE to compute x∗P

and y ∗ P of the IBAKE authentication process un-

til the agreement on the session key. With the vir-

tualized OP-TEE, we observe that the authentication

time evolves linearly according to the random num-

bers generated. Below a value of 400, the processing

time is under 1 second. With the hardware OP-TEE,

the performances are 2 times better comparing to the

virtualized environment. For instance, with a random

value x = 500, the virtualized OP-TEE takes 1.1 sec-

onds where the hardware environment takes 0.59 sec-

onds.

Figure 4: IBAKE computation time.

Every IBAKE exchanged messages are ciphered

with an IBE algorithm. Figure 5 depicts the time

taken by both virtualized and hardware TEE to ci-

pher such messages with a Callas IBE. We observe

that the hardware TEE performance are times better

than the one of the virtualized one. For instance, with

1024 bits of data (128 Bytes), which is more than our

packet size, the hardware TEE takes less than 0.1 sec-

onds. It is a very acceptable performance for our pro-

tocol.

Figure 5: RSA-based IBE ciphering time.

After agreeing on a session key (x∗ y∗ P), the user

sends his credentials to the access control server to re-

quest the access to the restricted area. The credentials

are encrypted with AES-256 to avoid eavesdropping.

The AES key used is derived from IBAKE session

key.

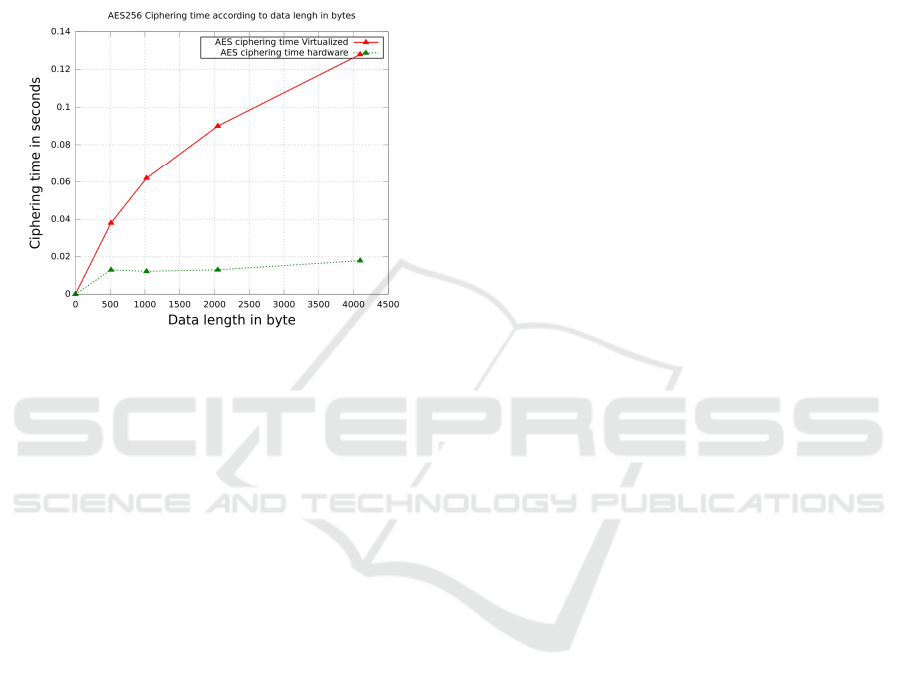

Figure 6 shows the time taken by AES-256 to en-

SECRYPT 2017 - 14th International Conference on Security and Cryptography

460

crypt different size of messages. We observe that the

ciphering time is less than 0.14 seconds with virtu-

alized OP-TEE for 4096 bytes of data which is very

quick regarding to the overall protocol time. As ex-

pected, the hardware environment performs better as,

for the same amount of data (4096 bytes in this case),

the gain is about 10 times regarding to the virtualized

environment (less than 0.02 seconds).

Figure 6: AES ciphering time.

To conclude, the most efﬁcient solution is to use

an hardware based TEE in the secure cloud and to

rely on symmetric algorithm for the secure exchanges

that follow the IBAKE authentication. Based on the

provided measurements, it is possible to estimate the

time taken by the whole protocol. Indeed, we have

6 ciphering operations with IBE that takes 0.05 sec-

onds (i.e. for a 64 byte packet) each giving a total

of 0.30 seconds. We have also to add the IBAKE key

agreement according to the random number choice. In

the worst case , this operation takes 0.6 seconds. Fi-

nally, the AES-256 encryption of the credential take

less than 0.01 seconds to perform which gives a total

of 0.9 seconds for the authentication process.

7 CONCLUSION

In this paper, we propose and evaluate a secure access

control protocol based on TEE and IBE. First, we de-

scribed the current access control systems based on

contact-less cards and pointed out their vulnerabili-

ties. Then, we described identity-based authentica-

tion schemes followedby a focus on ID-Based crypto-

graphic solutions. We also exposed our solution based

on IBAKE and on the use of a cloud-based TEE to

secure the overall access control protocol and gave a

performance evaluation of the TEE in terms of time

to perform the different cryptographic operations in-

volved in the protocol. This evaluation highlights the

viability of the solution.

In future works, it is investigated to test to evalu-

ate the use of another TEE: Intel SGX to compare the

performance between this technology and our remote

TEE. A scalability evaluation of our protocol will be

performed to evaluate the impact of the numberof stu-

dents on the system and a real deployment will be per-

formed in the framework of neOCampus.

REFERENCES

Asokan, N., Ekberg, J.-E., Kostiainen, K., Rajan, A., Rozas,

C. V., Sadeghi, A.-R., Schulz, S., and Wachsmann, C.

(2014). Mobile trusted computing. Proceedings of the

IEEE, 102(8):1189–1206.

Boneh, D. and Franklin, M. K. (2001). Identity-based en-

cryption from the weil pairing. In Advances in Cryp-

tology, Proceedings of CRYPTO 2001, Santa Barbara,

California, USA, August 19-23, 2001, volume 2139 of

Lecture Notes in Computer Science, pages 213–229.

Springer.

Bouazzouni, M. A., Conchon, E., and Peyrard, F. (2016).

Trusted mobile computing: An overview of existing

solutions. Future Generation Computer Systems.

Cakulev, V. and Sundaram, G. (2012). Ibake:

Identity-based authenticated key exchange.

https://tools.ietf.org/html/rfc6539.html.

Callas, J. (2005). Identity-based encryption with conven-

tional public-key infrastructure. PGP Corporation

Palo Alto, California, USA jon@ pgp. com.

Linaro And STMicroelectronics (2017).

OP-TEE ofﬁcial wiki page.

https://wiki.linaro.org/WorkingGroups/Security/OP-

TEE. Online; accessed 29 January 2017.

Mitrokotsa, A., Beye, M., and Peris-Lopez, P. (2011).

Unique Radio Innovation for the 21st Century, chap-

ter Security Primitive Classiﬁcation of RFID Attacks,

pages 39–63. Springer.

Mitrokotsa, A., Rieback, M. R., and Tanenbaum, A. S.

(2010). Classifying RFID attacks and defenses. In-

formation Systems Frontiers, 12(5):491–505.

Oswald, D. and Paar, C. (2011). Breaking mifare desﬁre

mf3icd40: Power analysis and templates in the real

world. In International Workshop on Cryptographic

Hardware and Embedded Systems, pages 207–222.

Springer.

Shamir, A. (1984). Identity-based cryptosystems and sig-

nature schemes. In Advances in Cryptology, Proceed-

ings of CRYPTO’84, Santa Barbara, California, USA,

August 19-22, 1984, volume 196 of Lecture Notes in

Computer Science, pages 47–53. Springer.

A Card-less TEE-based Solution for Trusted Access Control

461
