SLAM Algorithm by using Global Appearance of Omnidirectional

Images

Yerai Berenguer, Luis Pay

a, Adri

an Peidr

o and Oscar Reinoso

Departamento de Ingenier

ıa de Sistemas y Autom

atica, Miguel Hern

andez University, Spain

Keywords:

SLAM, Global Appearance, Omnidirectional Images, Vision systems, Image description, Loop Closure

Abstract:

This work presents a SLAM algorithm to estimate the position and orientation of a mobile robot while simulta-

neously creating the map of the environment. It uses only visual information provided by a catadioptric system

mounted on the robot formed by a camera pointing towards a convex mirror. It provides the robot with omni-

directional images that contain information with a ﬁeld of view of 360 degrees around the camera-mirror axis.

Each omnidirectional scene acquired by the robot is described using global appearance descriptors. Thanks to

their compactness, this kind of descriptors permits running the algorithm in real time. The method consists of

three different steps. First, the robot calculates the pose of the robot (location and orientation) and creates a

new node in the map. This map is formed by connected nodes between them. Second, it detects loop closures

between the new node and the nodes of the map. Finally, the map is optimized by using an optimization

algorithm and the detected loop closures. Two different sets of images have been used to test the effectiveness

of the method. They were captured in two real environments, while the robot traversed two paths. The results

of the experiments show the effectiveness of our method.

1 INTRODUCTION

The Simultaneous Localization and Mapping

(SLAM) has been regarded as one of the most impor-

tant technologies in mobile robot research during the

last few years (Munguia et al., 2016; Whelan et al.,

2016). Many of these works are focused on the use

of visual information to carry out SLAM algorithms,

due to the rich information provided by the visual

sensors.

In addition to this, visual sensors can be con-

ﬁgured in different ways like conventional cameras,

stereo systems, array of cameras and catadioptric sys-

tems. This last conﬁguration is formed by a single-

viewpoint camera pointing towards a convex mirror

(Nagahara et al., 2007). The resulting image captured

by this last kind of camera contains information on a

ﬁeld of view of 360 degrees around the camera-mirror

axis. They are named omnidirectional images.

In the ﬁeld of SLAM, omnidirectional images

have many advantages because they contain informa-

tion with a ﬁeld of view of 360 degrees around the

mirror axis and the robot does not need to rotate. We

can ﬁnd many previous works that use omnidirec-

tional images in mapping and localization tasks. For

example, Valiente et al. (Valiente et al., 2014) present

a comparison between two different visual SLAM

methods using omnidirectional images and Garcia et

al. (Garcia-Fidalgo and Ortiz, 2015) make a survey

of vision-based topological mapping and localization

methods.

Traditionally, the developments in mobile robots

using visual sensors are based on the extraction and

description of some landmarks from the scenes, such

as SIFT (Scale-Invariant Feature Transform) (Lowe,

1999) and SURF (Speeded-Up Robust Features) (Bay

et al., 2006) descriptors. This approach presents some

disadvantages: the computational time to calculate

and compare the descriptors is usually high, and it

leads to relatively complex mapping and localization

algorithms. As an advantage, only few positions need

to be stored in the map to make the localization pro-

cess possible.

More recently, some works propose using the

global information to describe the scenes, creating a

unique descriptor per image. These techniques have

demonstrated to be a good option to solve the local-

ization and navigation problems when the movement

of the robot is contained in the ﬂoor plane. For ex-

ample, Chang et al. (Chang et al., 2010) presents a

vision-based navigation and localization system using

the gist descriptor, Pay

a et al. (Pay

a et al., 2010) use

382

Berenguer, Y., Payá, L., Peidró, A. and Reinoso, O.

SLAM Algorithm by using Global Appearance of Omnidirectional Images.

DOI: 10.5220/0006434503820388

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 2, pages 382-388

ISBN: Not Available

a descriptor based on the Fourier signature in Monte

Carlo localization tasks, and Wu et al. (Wu et al.,

2014) propose an efﬁcient visual loop closure detec-

tion method. In (Pay

a et al., 2014), several methods

to obtain global descriptors from panoramic scenes

are analyzed and compared to demonstrate their va-

lidity in map building and localization. The majority

of these global appearance descriptors can be used in

real time because the computational time to calculate

and handle them is low, and they usually lead to more

straightforward mapping and localization algorithms.

Sometimes, the mapping process produces an er-

ror measure in each map position due to the itera-

tive calculation of new poses of the robot. This can

be a big problem in extensive environments when the

robot has to calculate many new poses because the er-

ror is increasing in each iteration. This uncertainty

can be reduced by detecting loop closures and us-

ing optimization algorithms to relocate each previous

pose. This problem is thoroughly studied in this work.

The contribution of this work is the creation of a

method to carry out SLAM tasks by only using vi-

sual information of the environment and global ap-

pearance descriptors. Each omnidirectional scene ac-

quired by the robot is described using global appear-

ance descriptors. The method consists of three differ-

ent steps: calculating the pose of the robot (location

and orientation), detecting loop closures (by compar-

ing global appearance descriptors) and optimizing the

map (by using the G2O optimization algorithm). The

optimization algorithm used in the presented paper is

named G2O and it was presented by K

umerle et al.

ummerle et al., 2011).

The experiments have been carried out with two

different sets of images captured while the robot tra-

versed two real working environments. The ﬁrst one

has been taken following a rectangular path indoors.

The second one has been captured following a real

path including several rooms in a building.

The remainder of this paper is structured as fol-

lows. Section 2 introduces some preliminary con-

cepts about image description and graph optimization.

Section 3 presents the SLAM algorithm we have im-

plemented to solve the simultaneous localization and

mapping problem. Section 4 describes our databases

used to carry out the experiments and presents the ex-

periments and results. At last, section 5 outlines the

conclusions.

2 PRELIMINARIES

Along the paper, two methods are used to describe

the global appearance of scenes: the Radon transform

and the Histogram of Oriented Gradients (HOG). This

section includes some information on them. Also,

we present the fundamentals of the methods used to

calculate the difference between two images captured

from different locations. At last, we describe the op-

timization algorithm used to recalculate the previous

map positions after detecting loop closures.

2.1 Global Appearance Descriptors

Methods based on the global appearance of the scenes

constitute a robust alternative to methods based on

landmark extraction and description. This is because

global appearance descriptors represent the environ-

ment through high level features that can be inter-

preted and handled easily.

This subsection presents the image descriptors we

have used to describe the omnidirectional images.

Both of them are based on global appearance, with-

out any segmentation or local landmark extraction.

2.1.1 Radon Transform

The Radon transform was described initially in

(Radon, 1917). Previous research demonstrates the

efﬁcacy of this descriptor in shape description and

segmentation such as (Hoang and Tabbone, 2010) and

(Hasegawa and Tabbone, 2011). Hoang et al. (Hoang

and Tabbone, 2010) present a shape descriptor, invari-

ant to geometric transformations, based on the Radon,

Fourier and Mellin transforms, and Hasegawa et al.

(Hasegawa and Tabbone, 2011) describe a shape de-

scriptor combining the histogram of the Radon trans-

form, the logarithmic-scale histogram and the phase-

only correlation. Berenguer et al. (Berenguer et al.,

2015) present a 2D localization method using a global

appearance descriptor based on the Radon transform.

They demonstrate the effectiveness and robustness of

this descriptor.

Mathematically, the Radon transform of an image

im(i, j) ∈ R

KxL

along the line c

(φ, d) (Figure 1) can

be obtained as:

R {im(i, j)} = λ

(φ, d) =

im(d cos φ − j

sinφ, d sin φ + j

cosφ) dj

(1)

where R is the Radon transform operator. im(i, j) is

the image to transform. λ

is the transformed func-

tion, which depends on two new variables: the dis-

tance from the line c

to the origin d and the angle

between the x axis and the i

axis, φ (Figure 1). j

axis

is parallel to the c

line.

By considering different values for d and φ in

Equation (1), the transformed function λ

(φ, d) will

SLAM Algorithm by using Global Appearance of Omnidirectional Images

383

become a matrix with M rows and N columns. M is

the number of orientations considered (normally cho-

sen to cover the whole circumference), and N is the

number of parallel lines considered at each orienta-

tion (to cover the whole image). The distance between

each pair of consecutive lines is considered constant.

i’

j’

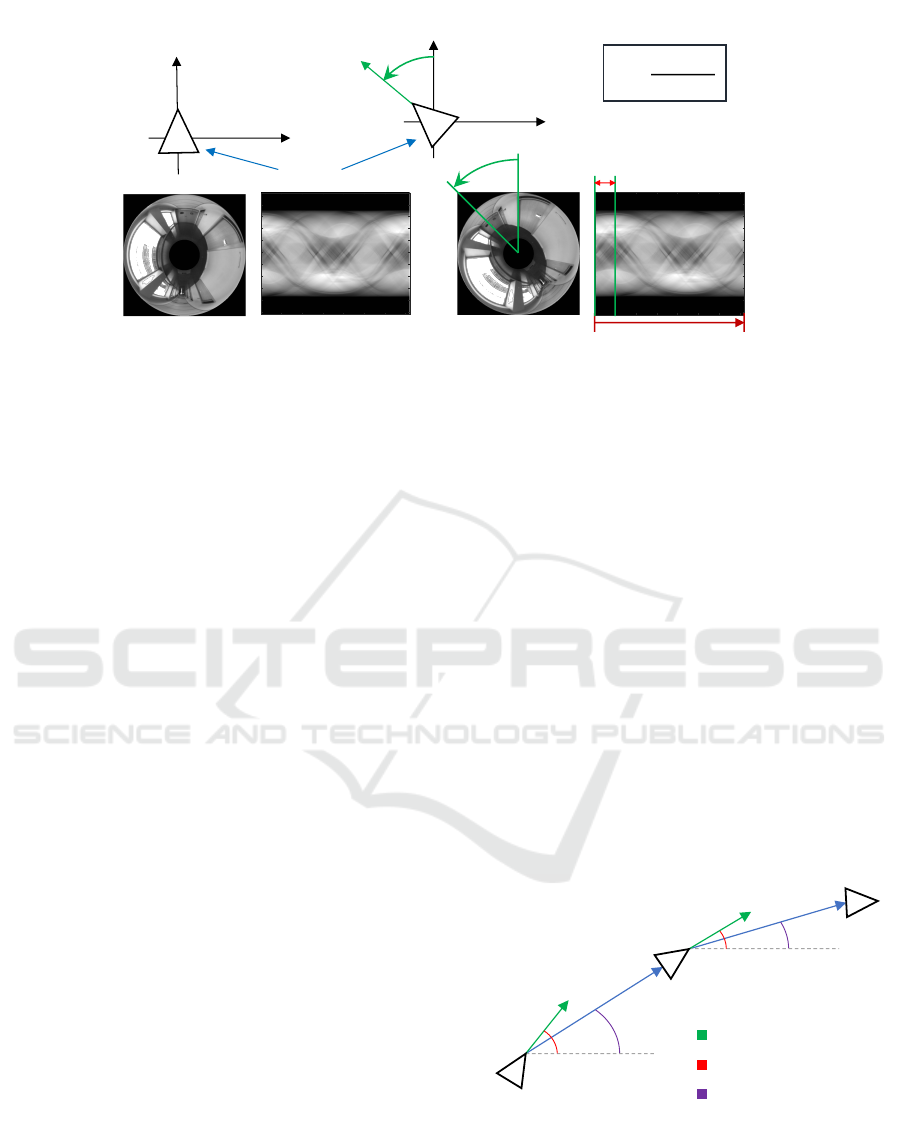

Figure 1: Line parametrization through the distance origin

d and the angle between the normal line and the i axis, φ.

When the Radon transform is applied to an image,

it calculates the image projections along the speciﬁed

directions through a cluster of line integrals along par-

allel lines in this direction. The distance between the

parallel lines is usually one pixel.

2.1.2 Histogram of Oriented Gradients (HOG)

HOG has been used traditionally as a description

method in the ﬁeld of object detection. It was initially

described by (Dalal and Triggs, 2005). They used it

in people detection tasks. However, there are several

researches in which this description method has been

improved, such as (Zhu et al., 2006), who improve the

accuracy and the computational cost.

The basic implementation consists in dividing the

image in small connected cells and the histogram of

gradient orientations is calculated in each cell. Then,

the descriptor is composed of these histograms ar-

ranged in a single vector.

Fernandez et al. (Fern

andez et al., 2016) analyze

this kind of descriptor in outdoor localization tasks.

Furthermore, they make a comparative analysis be-

tween several methods to describe outdoor panoramic

images.

2.2 Phase Only Correlation (POC)

In this subsection we present the method used to com-

pare the Radon transform of two images. It provides a

measurement of difference between the visual appear-

ance of two locations and estimation of the change of

orientation of the robot between these locations.

POC (Phase Only Correlation), proposed in

(Kuglin and Hines, 1975), is an operation made in the

frequency domain that provides a correlation coefﬁ-

cient between two images (Kobayashi et al., 2004).

In our case we compare two Radon transforms but

this does not affect the POC performance because the

Radon transform can be interpreted as an image. In

general, it permits obtaining both the relative orien-

tation between two different Radon transforms and

a similitude coefﬁcient between them, as shown in

(Berenguer et al., 2015).

The correspondence between two images im

(i, j)

and im

(i, j) calculated by POC is given by the fol-

lowing equation:

C(i, j) = F

−1



(u, v) · IM

∗

(u, v)

(u, v) · IM

∗

(u, v)



(2)

Where IM

is the Fourier transform of the image

1 and IM

∗

is the conjugate of the Fourier transform

of the image 2. F

−1

is the inverse Fourier transform

operator.

To estimate the distance between the two images

(im

and im

) we have used the following expression:

dist(im

, im

) = 1 − max{C(i, j)} (3)

max{(C(i, j)} is a coefﬁcient that takes values in

the interval [0, 1] and it measures the similitude be-

tween the two images im

andim

This operation is invariant against shifts of the im-

ages along the i and j axes. Furthermore, it is possible

to estimate these shifts ∆

and ∆

along both axes by:

(∆

, ∆

) = argmax

(i, j)

{C(i, j)} (4)

If we compare the Radon transforms of two omni-

directional images using POC, the value ∆

is propor-

tional to the relative orientation α of the robot when

capturing the images according to Equation (5). The

Figure 2 shows the Radon transforms of two different

omnidirectional images captured from the same point

, y

, z

) but with different robot orientation with

respect to the z

axis, θ (Figure 2).

α =

∆

· 2π

(5)

This way, POC is able to compare two images in-

dependently on the orientation and it is also able to

estimate this change in orientation.

2.3 Optimization Algorithm: G2O

G2O is an optimization algorithm described in

ummerle et al., 2011). This method was created

for optimizing graph-based nonlinear error functions.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

384

50 100 150 200 250 300 350

100

200

300

400

500

600

700

800

900

1000

50 100 150 200 250 300 350

100

200

300

400

500

600

700

800

900

1000

⍺

Robot

1 N

⍺ =

∆

· 2𝜋

𝑁

(a)

(b)

Δx

Figure 2: (a) Omnidirectional image captured from a speciﬁc position of a virtual environment and its Radon transform. (b)

Omnidirectional image taken from the same location changing only the robot orientation around the z

axis, and its Radon

transform. A change in the robot orientation around the z

axis produces a shift in the columns of the Radon transform, ∆x.

In the ﬁeld of SLAM, the robot has to calculate

its pose when it takes every new image with respect

to the previous poses included in the map. This oper-

ation has an error associated that increments in each

pose calculation, so we need to correct the poses to

decrease this deviation. G2O is able to recalculate

each pose of the map using new pose restrictions. One

of these restrictions can be obtained when loop clo-

sures between one pose of the existing map and the

new pose of the robot occur. Then, G2O relocates

each pose of the map gradually modifying them to

fulﬁll the loop closure restriction.Then, the new pose

is located the same position than the equivalent pose

stored in the map.

3 SLAM METHOD

In this section, we introduce our visual SLAM ap-

proach. The robot goes through the environment and

captures images from some positions. Every time a

new image arrives, the robot includes a new node in-

side the map. This map is formed by nodes. Then, the

SLAM problem is solved, following these three steps:

First, the robot calculates two descriptors of the

image: the Radon transform and the HOG descriptor;

and stores them in the node. Then, the robot creates

a new node and locates it inside the map calculating

the position and orientation of the new node with re-

spect to the previously added node, and both nodes

are connected. This localization process is carried out

by using only visual information.

Second, the robot checks the existence of possi-

ble loop closures comparing the new scene with the

previous scenes stored in the map.

Finally, the map is optimized by using the G2O al-

gorithm with the loop closures detected. This process

is repeated in each new location.

3.1 Creating the Map

This subsection presents the method proposed to cal-

culate the coordinates of each new node location.

These new poses are estimated by calculating the dis-

tance and the angle between scenes. For each new

node, the robot stores the Radon descriptor and the

HOG descriptor of the new omnidirectional image

taken to do possible the localization of it.

Figure 3 shows a scheme of the mapping process.

It consist of the calculation of the (x

, y

) coordinates

of each new node. These coordinates are calculated

from the distance and angle between poses.

⍺

)

Robot.orientation

Orientation angle

Angle between locations

Figure 3: Mapping process scheme.

The distance between locations is calculated us-

ing the Equation 3. It is an image distance and is not

a metric distance, i.e. this distance is not an actual

measurement unit, but it is proportional to the metric

distance.

SLAM Algorithm by using Global Appearance of Omnidirectional Images

385

The calculation of the angle between node posi-

tions is an approximation, because we consider that

the angle between locations, β

, is approximately the

orientation angle, α

, computed using Equation 5:

≈ α

(6)

The closer the poses are, the more accurate the

approximation is. It is because the robot orientation

change is smaller, and the error made in the approxi-

mation is reduced. However, it will be reduced in the

optimization process.

Finally, the node coordinates (x

, y

) are calcu-

lated by these equations:

= dist(im

k−1

, im

) · cos(α

) (7)

= dist(im

k−1

, im

) · sin(α

) (8)

where dist(im

k−1

, im

) is the POC distance between

two consecutive images, calculated by using the

Equation 3. And α

is the orientation angle of the

k node, calculated by using Equation 5.

3.2 Loop Closures

The next step of the algorithm consists in detect loop

closures, i.e. comparing the HOG descriptor of the

new image taken by the robot with the HOG descrip-

tors stored in the map. To calculate the distance be-

tween HOG descriptors we use the cosine similarity

between them to calculate the distance:

dist(

−→

) = 1 −

−→

(

−→

)(

−→

)

(9)

where

−→

and

−→

are the HOG descriptors of two dif-

ferent images.

The loop closures have to be determined by deﬁn-

ing a maximum threshold of distance,W (Equation

10). This threshold is deﬁned as a constant in the be-

ginning of the SLAM process. If the distance is lower

than this threshold, the two poses compared will be

considered as the same location (x,y), but the orienta-

tion of the robot can be different.

i f (HOG

distance

< W ) → loop closure (10)

3.3 Optimization of the Map

Taking the detected loop closures into account, the

robot uses this information to optimize the stored

map. This optimization is made by using the G2O

optimization algorithm.

When the robot detects a loop closure, it has to

relocate all previous nodes to reduce the error associ-

ated in each node position. This process modiﬁes all

the node positions in the map to accomplish the new

restriction calculated by the loop closure detection.

The nodes location modiﬁcation is made by the

G2O algorithm. It receive as input all the node po-

sitions of the map and the loop closure restriction.

Then, G2O gives as an output the new recalculated

node positions.

Therefore, the two nodes of the loop closure are

localized in the same position and the coordinates of

the rest of the map nodes are modiﬁed.

4 EXPERIMENTS

This subsection presents the different sets of omnidi-

rectional images used to test our method and the re-

sults obtained in these experiments.

4.1 Databases

In order to check the performance of the proposed

technique, two sets of images captured by ourselves

are used. To capture the ﬁrst set, the robot was tele-

operated to follow a rectangular path. The second set

was captured while the robot followed a more com-

plicated path through several rooms inside a building.

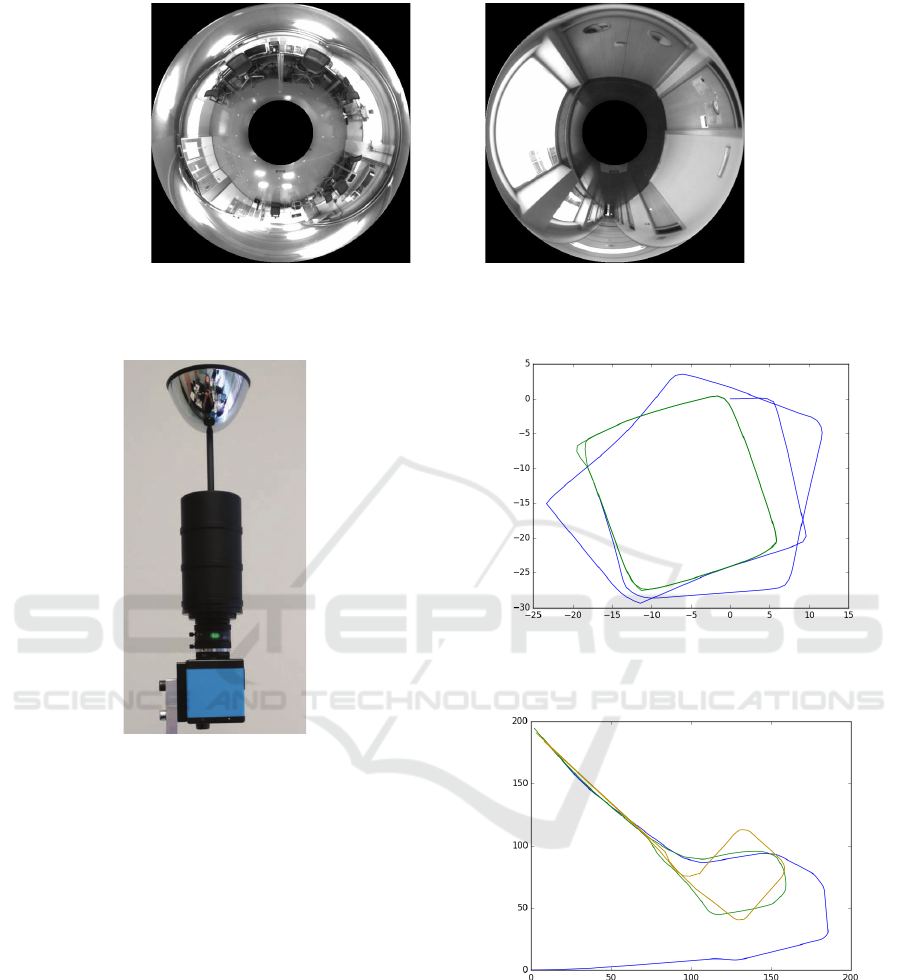

Figure 4 shows a sample omnidirectional image of

each environment.

These two databases have been created taking

one new omnidirectional image every 40 cm approx-

imately. The Figure 5 shows the omnidirectional ac-

quisition system used to capture the omnidirectional

images, formed by the camera (model: DFK-41BF02)

and the hyperbolic mirror (model: Eizo Wide70).

4.2 Results

In this section the results of the experiments with our

SLAM algorithm are shown. The two databases de-

scribed in section 4.1 have been used to carry out

these experiments.

The maximum threshold of distance between

HOG descriptors is an important parameter to tune.

To do that, we have made some tests and chosen the

best value to detect loop closures. After these tests we

consider a threshold equal to 0.006 as a good value of

distance between HOG descriptors.

Figure 6 shows the results of the SLAM algorithm

after incorporating the ﬁnal position of the ﬁrst path.

The blue line is the map created without optimization

and the green line is the same map optimized. This

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

386

(a) (b)

Figure 4: (a) Sample omnidirectional image of the rectangular path. (b) Sample image of the second path.

Figure 5: Omnidirectional acquisition system.

optimization is made in each iteration but the map

without any optimization is shown to view the differ-

ence. As we can see, the green line is a square path.

Figure 7 shows the same results than in Figure 6

but using the second path. The blue line is the map

created without optimization, the green line is the

same map optimized and the yellow line is the ground

truth.

As for the computational time, the robot spends an

average of 0.65 seconds in each iteration of the SLAM

process. This time is increasing in each iteration be-

cause the map is formed by larger amount of nodes

and the loop closure detection needs to compare an

higher number of HOG descriptors.

5 CONCLUSIONS

In this paper we have presented a SLAM method to

estimate the position and orientation of a mobile robot

Figure 6: Map created using the ﬁrst path. The blue line is

the map created without optimization and the green line is

the same map optimized.

Figure 7: Map created using the real path. The blue line is

the map created without optimization, the green line is the

same map optimized and the yellow line is the ground truth.

in an environment while the robot is creating the map.

We use two different global appearance descriptors to

carry out the SLAM process and the map is formed by

these two descriptors of each image. At last, the algo-

rithm has been tested with two sets of images captured

in two different indoor environments.

The results have demonstrated the accuracy of the

method. As for the values of the parameters, the max-

SLAM Algorithm by using Global Appearance of Omnidirectional Images

387

imum threshold of distance between HOG descriptors

is the main tuning parameter in this method.

The results presented in this paper show the effec-

tiveness of the global appearance descriptors of omni-

directional images to do SLAM thanks to the richness

of the information they contain. We are now work-

ing to improve this method and we are trying to esti-

mate more accurately the relative orientation between

nodes. Furthermore, we are implementing a cluster-

ing method to reduce the computational time to detect

loop closures when the number of nodes is increased.

ACKNOWLEDGEMENTS

This work has been supported by the Spanish

government through the project DPI2016-78361-R

(AEI/FEDER, UE) “Creaci

on de Mapas Mediante

etodos de Apariencia Visual para la Navegaci

on de

Robots’.”

REFERENCES

Bay, H., Tuytelaars, T., and Gool, L. (2006). Surf:

Speeded up robust features. Computer Vision at

ECCV, 3951:404–417.

Berenguer, Y., Pay

a, L., Ballesta, M., and Reinoso, O.

(2015). Position estimation and local mapping us-

ing omnidirectional images and global appearance de-

scriptors. Sensors, 15(10):26368.

Chang, C., Siagian, C., and Itti, L. (2010). Mobile

robot vision navigation and localization using gist and

saliency. In IROS 2010, International Conference on

Intelligent Robots and Systems, pages 4147–4154.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In 2005 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR’05), volume 1, pages 886–893

vol. 1.

Fern

andez, L., Pay

a, L., Reinoso, O., Jim

enez, L., and

Ballesta, M. (2016). A study of visual descriptors for

outdoor navigation using google street view images.

Journal of Sensors, 2016.

Garcia-Fidalgo, E. and Ortiz, A. (2015). Vision-based topo-

logical mapping and localization methods: A survey.

Robotics and Autonomous Systems, 64:1 – 20.

Hasegawa, M. and Tabbone, S. (2011). A shape descrip-

tor combining logarithmic-scale histogram of radon

transform and phase-only correlation function. In

2011 International Conference on Document Analysis

and Recognition (ICDAR), pages 182–186.

Hoang, T. and Tabbone, S. (2010). A geometric invari-

ant shape descriptor based on the radon, fourier, and

mellin transforms. In 20th International Conference

on Pattern Recognition (ICPR), pages 2085–2088.

Kobayashi, K., Aoki, T., Ito, K., Nakajima, H., and Higuchi,

T. (2004). A ﬁngerprint matching algorithm using

phase-only correlation. IEICE Transactions on Fun-

damentals of Electronics, Communications and Com-

puter Sciences, pages 682–691.

Kuglin, C. and Hines, D. (1975). The phase correlation

image alignment method. In In Proceedings of the

IEEE, International Conference on Cybernetics and

Society, pages 163–165.

ummerle, R., Grisetti, G., Strasdat, H., Konolige, K.,

and Burgard, W. (2011). G2o: A general framework

for graph optimization. In 2011 IEEE International

Conference on Robotics and Automation, pages 3607–

3613.

Lowe, D. (1999). Object recognition from local scale-

invariant features. In ICCV 1999, International Con-

ference on Computer Vision, volume 2, pages 1150–

1157.

Munguia, R., Urzua, S., and Grau, A. (2016). Delayed

monocular slam approach applied to unmanned aerial

vehicles. PLOS ONE, 11(12):1–24.

Nagahara, H., Yoshida, K., and Yachida, M. (2007). An

omnidirectional vision sensor with single view and

constant resolution. In 2007 IEEE 11th International

Conference on Computer Vision, pages 1–8.

Pay

a, L., Amor

os, F., Fern

andez, L., and Reinoso, O.

(2014). Performance of global-appearance descrip-

tors in map building and localization using omnidi-

rectional vision. Sensors, 14(2):3033–3064.

Pay

a, L., Fern

andez, L., Gil, L., and Reinoso, O. (2010).

Map building and monte carlo localization using

global appearance of omnidirectional images. Sen-

sors, 10(12):11468–11497.

Radon, J. (1917). Uber die bestimmung von funktio-

nen durch ihre integralwerte langs gewisser mannig-

faltigkeiten. Berichte Sachsische Akademie der Wis-

senschaften, 69(1):262–277.

Valiente, D., Gil, A., Fern

andez, L., and Reinoso, O. (2014).

A comparison of ekf and sgd applied to a view-based

slam approach with omnidirectional images. Robotics

and Autonomous Systems, 62(2):108 – 119.

Whelan, T., Salas-Moreno, R. F., Glocker, B., Davi-

son, A. J., and Leutenegger, S. (2016). Elasticfu-

sion: Real-time dense slam and light source estima-

tion. The International Journal of Robotics Research,

35(14):1697–1716.

Wu, J., Zhang, H., and Guan, Y. (2014). An efﬁcient visual

loop closure detection method in a map of 20 million

key locations. In 2014 IEEE International Conference

on Robotics and Automation (ICRA), pages 861–866.

Zhu, Q., Yeh, M.-C., Cheng, K.-T., and Avidan, S. (2006).

Fast human detection using a cascade of histograms

of oriented gradients. In 2006 IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion (CVPR’06), volume 2, pages 1491–1498.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

388
