QoS Analysis on Cable Video Delivery Networks

Hiroaki Shikano

, Takeshi Shibata

, Qifeng Shen

, Miyuki Hanaoka

, Mariko Miyaki

Masahide Ban

, Prasad Rallapalli

and Yukinori Sakashita

R&D Group, Hitachi, Ltd., Yokohama, Kanagawa, Japan

R&D Division, Hitachi America, Ltd., Santa Clara, CA, U.S.A.

Keywords:

Quality of Service Analysis, Cable Video Network, Multicast.

Abstract:

Telecommunication service providers are now using analytics to differentiate their network services with better

Quality of Service (QoS) and Quality of Experience (QoE) as well as to increase operational efﬁciency. Cable

service providers have complex video delivery IP networks, and efﬁcient management of such networks as

well as reduction of service impairment time are imperative. We have developed a new cable service QoS

analysis solution that provides an end-to-end view of the control and data-plane ﬂows associated with delivery

of a video channel and shows identiﬁed failure points. Initial evaluation revealed that the solution can reduce

the service down time to 62.3% of what it would be without the solution.

1 INTRODUCTION

Various web services - such as video streaming ser-

vices, voice services, and IoT (Internet of Things) ser-

vices - are achieved on IP networks. Global IP trafﬁc

has increased more than ﬁve-fold in the past 5 years

and is forecasted to increase nearly three-fold over

the next 5 years (Cisco, 2014). Trafﬁc management

is essential for telecommunication service providers

because heavy trafﬁc loads affect Quality of Service

(QoS) and Quality of Experience (QoE). Users are

now more aware of the quality of services they re-

ceive, and bad service quality can result in churn.

Network management, however, is becoming

more complex and difﬁcult as network infrastructure

evolves (Kim and Feamster, 2013). As a result, ser-

vice providers are demanding service assurance man-

agement in order to prevent churn as well as to im-

prove operational efﬁciency by reducing operating

cost. To cope with these demands, collection and

analysis of big data generated from network, network-

related systems and equipment are necessary for net-

work and service operations management (Liu, 2014;

Garg and Bindal, 2015). Network analytics therefore

plays an important role in helping service providers

differentiate their network services, address both rev-

enue and monetization needs, and increase opera-

tional efﬁciency.

This paper focuses on cable service providers

(CSPs) using IP networks to transmit hundreds of TV

channels to tens of millions of subscribers in nation-

wide markets. These providers are also facing difﬁ-

culty in managing complex networks (Vasudevan and

Ogozaly, 2009; Kalyur, 2009). This difﬁculty origi-

nates in using different video delivery protocols (i.e.,

multicasting), different TV channel distribution and

advertisement insertion in different markets. The con-

tribution of this paper is to provide a solution improv-

ing cable service quality as well as shortening service

down time (i.e., time to identify problems and restore

services) by performing QoS analysis of cable service

networks.

2 CABLE SERVICES AND

OPERATIONS

2.1 Cable Services

Cable service providers (CSPs) offer a variety of

video services in multiple markets. There are three

types of video services:

1. TV Broadcast service (also known as VOBB;

Video over Broadband) is the delivery of tradi-

tional broadcast television channels ranging from

those distributed by national networks to those

distributed by local afﬁliates of these national net-

works, as well as locally produced channels such

as those showing local city government events or

Shikano, H., Shibata, T., Shen, Q., Hanaoka, M., Miyaki, M., Ban, M., Rallapalli, P. and Sakashita, Y.

QoS Analysis on Cable Video Delivery Networks.

DOI: 10.5220/0006436600850092

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 1: DCNET, pages 85-92

ISBN: 978-989-758-256-1

sports events. These are encoded with MPEG and

delivered using IP multicast routing protocols on

a routing network to maximize throughput, and

they are sent all the way over HFC (Hybrid Fiber-

Coaxial) systems to all the subscribers (end users)

in all markets regardless of whether or not they

are watching.

2. Switched Digital Video (SDV) service is not

broadcast but selectively transmitted by a user’s

subscription. It is also delivered using IP multi-

cast routing protocols.

3. Video on Demand (VoD) service is subscriber-

selected video content delivered using IP unicast

routing protocols.

This paper focuses on TV broadcast service be-

cause it is a fundamental service for cable service

providers.

2.2 Cable Video Delivery Network

Figure 1 is a linear schematic view of the ﬂow of

video packets delivered from satellite or other links

at a super head end (SHE) all the way to the edge

of the IP network (EQAM; Edge Quadrature Ampli-

tude Modulation) via backbone routers (BBR), core

routers (CRR), distribution routers (DTR), and access

routers (ACR). Our focus is on IP network from head

ends to EQAM.

The detailed topology of the routing network in

one regional and local network in a market is shown

in Figure 2. The super head end is connected to the

backbone network via BBR. A video stream comes

from a SHE via BBR, CRR, DTR, and ACR to the

EQAM, which is the edge of the routing network and

is where packets are converted to the broadcasting

stream delivered to subscribers. If local advertise-

ment needs to be inserted, a video stream comes to

an ad-insertion appliance, and the stream with local

advertisement inserted comes to the EQAM. For re-

dundancy it is also sent to the neighboring local head

ends via CRR.

Video streams are delivered by multicast from an

SHE to multiple local head ends. Multicast pro-

vides optimal routing for servicing millions of end

users who may want to concurrently watch the same

video broadcast channel. Typically a multicast group

(e.g., TV channel) is uniquely identiﬁed by the source

IP and group IP as (S, G). Cable service providers

usually use PIM-SSM (Protocol Independent Multi-

cast - Source Speciﬁc Multicast) and IGMPv3 (Inter-

net Group Management Protocol version 3) protocols

(B. Fenner and Kouvelas, 2006; Holbrook and Cain,

2006; Cain and Deering, 2002). PIM-SSM builds

National

backbone

Local

head end /

hub

Regional

head end

Super

head end

(SHE)

Outside

plant

BBR

BBRBBR BBR

BBR

CRR

VoD VOBB

National

insertion

DTR

Regional

insertion

ACR

EQAM

Local

insertion

Outside

plant

CRR

Super

head

end

Regional

head

end

CRR

HFC

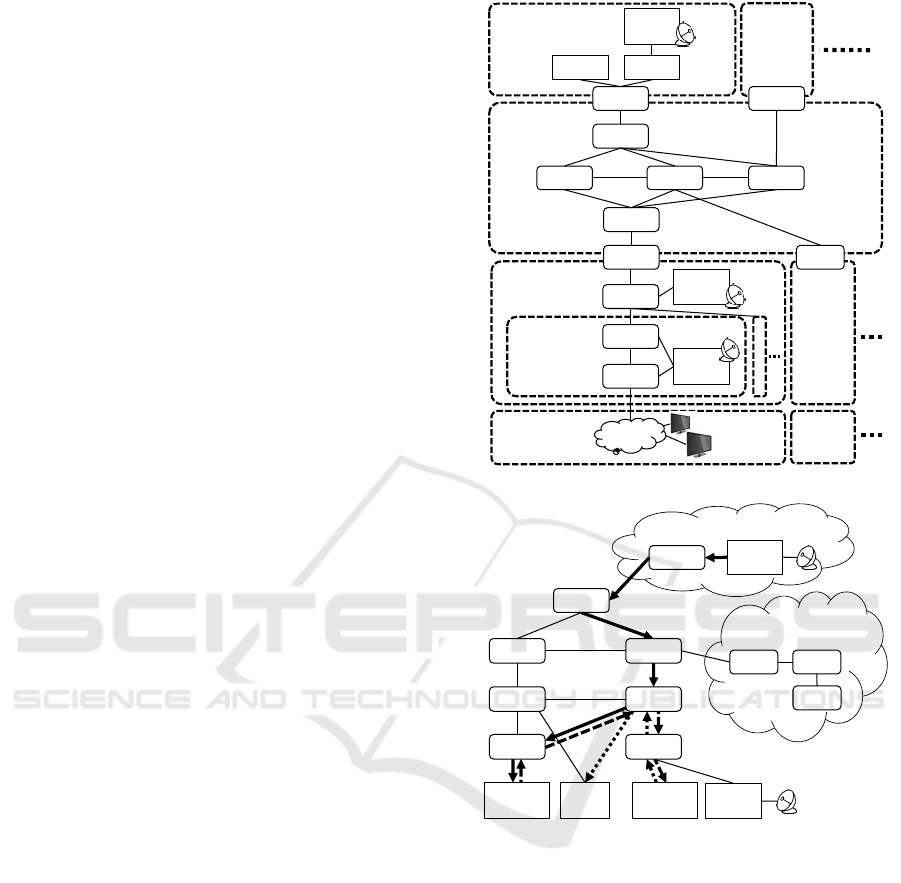

Figure 1: Overview of video service delivery network.

Aggregator

EQAM

converter

BBR01

CRR01 CRR02

DTR01

ACR01

Backbone, super HE

BBRs

Regional / local

network

CRRx DTRx

insertion

ACR02

DTR02

ACRx

converter

Figure 2: Example of multicast delivery of one channel.

multicast trees that are rooted in just one source, of-

fering a more secure and scalable model for a limited

amount of applications, mostly broadcasting of con-

tent. Therefore, it suits cable video delivery because

the IP source of video streams is known. It enables

on-demand “join” to the multicast video service (S,

G). At periodic intervals a heartbeat mechanism en-

sures that the feed continues to ﬂow. This signaling

(or control-plane trafﬁc) is independent of the actual

video streams also known as data-plane trafﬁc.

Figure 2 also shows an example of multicast de-

livery of one channel (national broadcasting). In this

example, the video stream is delivered with local ad-

vertisement insertion and aggregation, which makes

the management complex. For example, a multicast

video stream from the SHE goes into the aggrega-

tor via BBR01, CRR02, DTR02, and ACR01, and it

DCNET 2017 - 8th International Conference on Data Communication Networking

terminates on the aggregator. Then another multicast

stream is generated and goes into the ad inserter via

ACR01, DTR02, and ACR02. Ads are inserted into

the incoming second multicast stream, and thereafter

a third multicast stream is generated and goes into the

EQAM via ACR02 and DTR02. The third stream ter-

minates on the EQAM, which ultimately reaches the

subscriber.

2.3 Video Service Operations and

General Issues

The current state of video service operations is not

healthy, with a large number of video service impair-

ments taking a long time for troubleshooting. Accord-

ing to our survey on a cable service provider, about

60% of the incidents that occurred were due to video

processing and transport. The average duration of an

incident was 231 minutes. The video service deliv-

ery problems result in service impairments such as

blackout caused by video stream outage, video qual-

ity degradation (e.g., block noises on the screen), and

frame drops caused by packet loss or packet delivery

delay. Such problems usually originate in cable cuts

(intentional or accidental), hardware/software failure

or misconﬁguration of routers, link equipment, or ser-

vice appliances such as ad-inserters, aggregators, etc.,

failed failover of routers, and router or link capacity

overload resulting from failover.

The followings are the dominant factors that lead

to a long mean time for troubleshooting (i.e. detecting

and repairing) video service delivery problems in the

routing network.

• Limited end-to-end visibility for simple ﬂows

A CSP’s network operations center (NOC) does

not have accurate real-time, end-to-end visibility

of the network ﬂows involved in video service de-

livery. This results in a lot of guesswork based

on sketchy information despite there being many

kinds of probes and monitoring systems in place.

• Silos (“tribal knowledge”) - no complete picture

of current/future state

Due to many factors such as complexity of the

multiple types of technology stacks (networking

gear, protocols), incomplete monitoring systems,

insufﬁcient documentation and ongoing standard-

ization, loss/movement of technical personnel,

etc., there is no complete picture of the current

or future state of the system.

• Complex video services and routing ﬂows

IP multicast video routing generally uses ar-

cane and complex technology with many im-

plementation variations in terms of network-

ing protocols. There are multiple tech-

nology stacks, and there are no standard

books/recipes that can help operators troubleshoot

video service delivery problems more efﬁciently.

Bundling/aggregating/multiplexing channels to

reduce bandwidth further complicates the picture

because internal systems do not alert the NOC

based on their internal monitoring, and usually the

ﬁrst sign of trouble is customer care getting calls

from customers or getting news from social me-

dia. Furthermore, local advertisement insertion

results in even more complexity.

2.4 Problem Statement and Goals

The goal is to reduce service impairment time; which

is equal to the customer-experienced service interrup-

tion time. This will result in the improvement of cus-

tomer satisfaction as well as network operation ef-

ﬁciency, which means the operating team will have

more time for planning future network improvements

or considering new services less time will be spent

troubleshooting. To shorten service impairment time,

we need to reduce both the time need to identify issues

(MTTD; mean time to detect) and the time to restore

services (MTTR; mean time to restore/resolve/repair)

as described in Figure 3. We set the goal for reduc-

tion of the current service impairment time to 50%

that with our proposed solution as the cable service

provider requested.

3 CABLE NETWORK QoS

ANALYSIS SOLUTION

3.1 High-level Description

As stated in Section 2.4, the goal is to reduce

MTTD/MTTR of issues on a cable service network

with limited end-to-end visibility complex network

technologies, complex video services, and a complex

routing network. We developed a new analytics solu-

tion that supports two main use cases listed as follows.

(1) Topology Discovery and Visualization

The solution provides network topology diagram

views highlighting multicast trees of a video stream

for a speciﬁc channel (i.e., a single-program trans-

port stream) or a bundle of channels (i.e., a multiple-

program transport stream). To speed issue identiﬁca-

tion, these views include both the multicast tree vi-

sualized on a physical topology diagram in multiple

QoS Analysis on Cable Video Delivery Networks

Service interrupted Service restored

Cause identified

Mean time to

restore/resolve/repair

(MTTR)

Mean time

to detect

(MTTD)

Customer experienced service interruption

Figure 3: Problem statement.

hierarchical levels (i.e. nationwide, regional and lo-

cal) and the end-to-end schematic diagram from the

super head end (i.e. satellite signal receiver) to the

EQAM (subscriber-side terminal of IP network).

For topology discovery and visualization, the sub

use cases are:

(1-1) Describing Layer-2 / Layer-3 network topology

(1-2) Describing multicast tree topology by channel

or bundle of channels on (1-1)

(2) Failure Detection / Identiﬁcation based on

Topology

Operators currently spend much time identifying is-

sues after the ﬁrst sign of trouble is reported (by cus-

tomers calling customer care). The solution provides

detection of failure and identiﬁcation of failure points

in the cable service network, and it shows the iden-

tiﬁed failure points on the topology diagram as de-

scribed in (1).

The detection and identiﬁcation is realized by the

interplay between control (signaling) and data ﬂows,

e.g., by correlating the multicast signaling (PIM-

SSM, IGMP) protocol related ﬂows to the actual ﬂow

of the video packets. Additionally monitoring the

video ﬂow utilization in near-real time is also essen-

tial because a sudden drop in utilization usually signi-

ﬁes trouble.

For failure detection and identiﬁcation, the sub use

cases are:

(2-1a) Identifying total failure (e.g., video blackout)

after a customer reports a problem

(2-1b) Identifying partial failure (e.g., video quality

degradation) after a customer reports a problem

(2-2a) Identifying total failure before a customer re-

ports a problem

(2-2b) Identifying partial failure before a customer

reports a problem

3.2 Solution Architecture

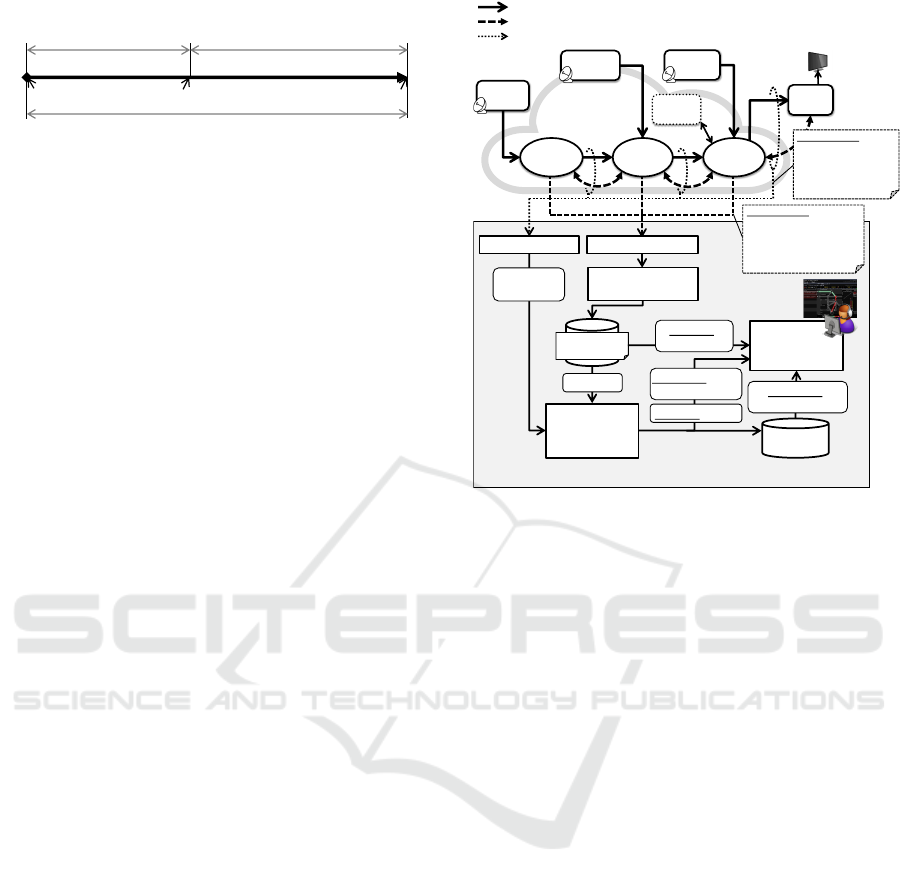

Figure 4 illustrates the overall architecture of our so-

lution. The solution utilizes a platform supporting

real-time analytics and visualization. The system col-

lects router information including conﬁgurations such

Multicast tree

generator

RDB

Stream

processing

(correlation

analysis)

Time-series

database

Multicast tree

structure

User

Interface

Output 1:

Tree structure

Path info

Output 2-1: Real-

time statistics

Output 3: Alerts

Output 2-2:

Historical statistics

QoS Alert

& Drill Down

Data source 1: Multicast

routing table and traffic

statistics in each router

(SNMP request

periodically e.g. 15 mins)

SNMP adaptor

Probe adaptor

Decoded

packet header

Cable IP

network

(multicast)

Video stream (multicast tree)

Insert

BBR/

CRR

DTR

ACR

Subscribers

Super

Regional

Local

Control packet (multicast routing control & management)

SNMP / Probe data

EQAM

Data source 2: Line

rate packet capture

(Video stream, PIM-

SSM, IGMP v3 packet

headers from probe)

Real-time analytics & visualization platform

Figure 4: Architecture of cable service QoS analysis solu-

tion.

as IP addresses, unicast routing tables (RIB), and mul-

ticast routing tables (MRIB) and performance metrics

such as utilization via SNMP (Simple Network Man-

agement Protocol). It also utilizes packet informa-

tion obtained from probes attached to links between

routers.

Table 1 and Table 2 list the use cases described in

Section 3.1 and the data sources utilized by each use

case. We use SNMP MIB information for multicast

tree discovery and use passive probes to monitor data-

plane and control-plane ﬂows. Existing technology

for discovering L2/L3 network topology(Breibart,

2000; Puneet Sharma and Malpani, 2003) is utilized

for use case (1-1). The following section describes

how the use cases listed in Table 1 and Table 2 are

implemented.

3.2.1 Multicast Tree View for Use Case (1-2)

For multicast tree discovery, the system will query

SNMP MIB based on control-plane monitoring; it can

get the multicast routing table from a speciﬁc router

and for a speciﬁc multicast group on-demand when

it ﬁnds a join or prune packet than results in a multi-

cast routing table change. Given the intricacies of the

multicast protocols, we have a subsystem to discover

and visualize the multicast trees for a given multicast

group and a separate subsystem to analyze the data-

plane trafﬁc.

DCNET 2017 - 8th International Conference on Data Communication Networking

Table 1: Use cases of topology discovery and visualization, and data sources.

Use cases Input data

(1-1) Underlying L2/L3 network topology - IP address of each router

- Unicast routing table (RIB) in each router

(1-2) Multicast tree topology by channel - Unicast topology (1-1 above)

- Multicast routing table (MRIB) in each router

Table 2: Use cases of failure detection / identiﬁcation, and data sources.

Use cases

Input data

C-plane: Multicast D-plane: Statistics D-plane: Packet

tree (1-2)

(2-1a) Identify TOTAL failure after customer call X X

(2-1b) Identify PARTIAL failure after customer call X X

(2-2a) Detect TOTAL failure before customer call X X

(2-2b) Detect PARTIAL failure before customer call X X

3.2.2 Correlating Multicast Tree and Data Plane

Flows (C-D Plane Correlation) for Use

Cases (2-1a) and (2-2a)

Using multicast tree topology, the system compares

utilizations before and after those of particular router,

or both edges of particular link, for each multicast

group and checks whether the utilization is the same.

If data (video stream) is not ﬂowing even though the

multicast tree exists, that will be a problem triggering

an error and will be shown on a user interface. In this

use case, we use two data sources: 1) the multicast

tree discovered above and 2) data-plane ﬂow informa-

tion (i.e., utilization). Data-plane utilization will be

obtained from probes rather than routers using SNMP

since data from probes can offer ﬁner time granular-

ity (1 sec granularity) whereas with SNMP the time

between polls is usually 15 minutes.

3.2.3 Correlating Multicast Tree and Control

Plane Flows (C-C Plane Correlation) for

Use Cases (2-1b) and (2-2b)

Control packets are sent to generate a multicast tree

and are also used to maintain an existing multicast

path. By monitoring control packets, we can detect

some abnormal states even the end-user is not aware

of them and can identify their possible causes. As in

the data-plane ﬂow monitoring for multicast trees, we

use two data sources: 1) the multicast tree discovered

and 2) control-plane packets (PIM and IGMP pack-

ets).

Keep-alive Join:

Join packets are usually sent every minute to keep

the multicast path. If a router receives no pack-

ets for 210 seconds (B. Fenner and Kouvelas,

2006), the corresponding multicast entry will be

removed. The monitoring system will generate er-

ror alert if there are no join packets in 210 seconds

even if a multicast path exists. It also generates

warning if there are no join packets in 120 sec-

onds.

Warning for Join if Multicast Tree Does Not Exist:

Join packets should be sent only if a multicast

path exists; therefore this will be a warning.

Warning on Prune:

If prune packets are sent, the system ﬁrst gets

SNMP info for that multicast group and regener-

ate a tree; therefore this will be a warning.

Incomplete Multicast Tree:

During multicast tree generation, we can identify

an incomplete multicast tree; paths are generated

from source to somewhere, and somewhere else

to EQAM (end of IP), although source to EQAM

is not connected end-to-end. If join packets are

NOT sent for the “not-connected path”, the router

that should send join packets may have problem.

If join packets are sent but a multicast table does

not exist (and consequently, a multicast tree is not

generated), then the router that receives join pack-

ets may have problem.

3.2.4 Correlating Pre and Post Ad Insertion

Flows

Once we identify the mapping between pre- and post-

ad-insertion ﬂows, correlating end-to-end tree and

data-/control-plane ﬂows will be similar to that de-

scribed above. The only difference is that the size is

not an exact match. For the ﬁrst version of the solu-

tion, we detect only outage of a post-multicast stream,

QoS Analysis on Cable Video Delivery Networks

which makes a certain amount of difference in utiliza-

tion between pre- and post-ad-insertion ﬂows. There-

fore the system creates an alert if that difference ex-

ceeds a threshold value that may be given manually.

3.3 User Interfaces and Interactions

NOC operators monitor cable network status and

troubleshoot network-related issues in collaboration

with customer care personnel who receive customer

calls, service operators who monitor cable service

quality, and local network engineers stationed at ser-

vice sites such as head ends. Our solution’s UI has the

components described as follows, supporting the two

main use cases: (1) topology discovery and visualiza-

tion, and (2) failure detection/identiﬁcation based on

topology as stated in Section 3.1.

Dashboard

Operators need to know which channels in which

areas have alerts immediately. The system offers

a channel and market status overview screen de-

scribing which areas/channels have alerts as well

as a channel status screen describing which chan-

nels in a speciﬁc market have alerts. Operators

can directly move to a live multicast tree view of

a market by clicking market/channel. If there are

alerts on a speciﬁc channel in a speciﬁc market,

operators can drill down to the multicast tree view

corresponding to the alerts on that channel in that

market.

Hierarchical Tree View and Linear Schematic

View

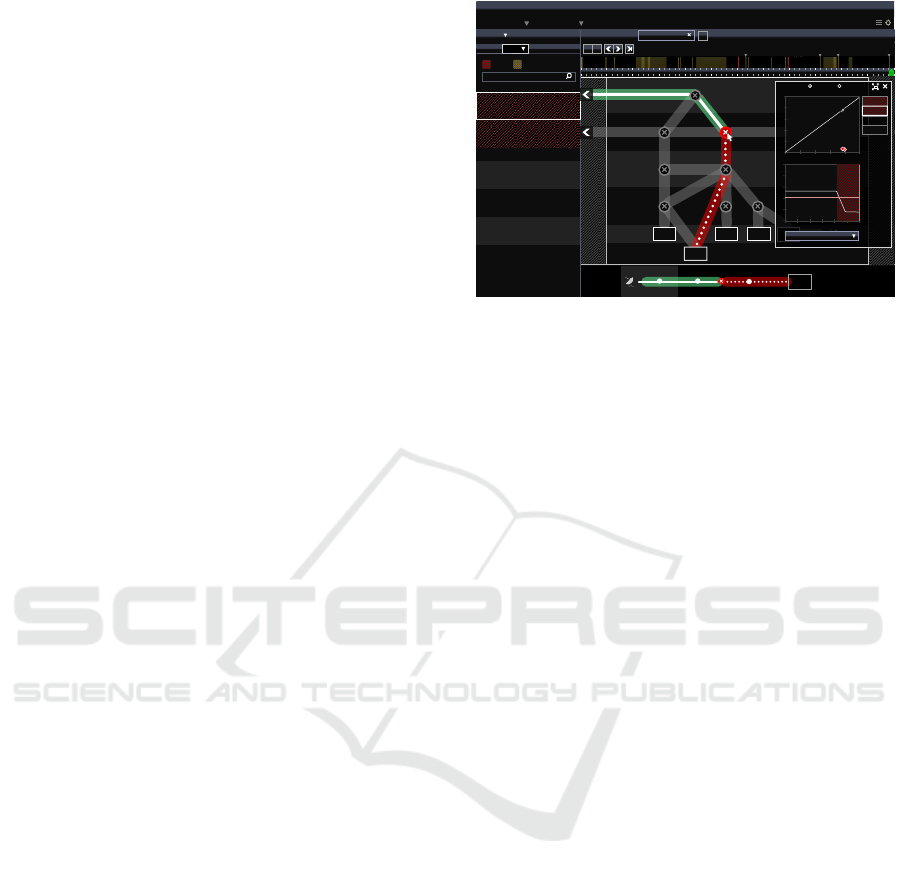

Figure 5 shows a UI mockup screen with a hierar-

chical tree view that enables operators to quickly

grasp the current actual conﬁguration of the net-

work, including multicast paths and differences

from what ought to be, and to recognize which

points of the network (node/link) have issues.

It also shows the screen with a linear schematic

view that enables operators to quickly grasp

which points of a network delivering a speciﬁc

channel to a speciﬁc customer have issues by pro-

viding an end-to-end view of the network topol-

ogy. This view can be utilized for reducing MTTD

when customers report service troubles. Opera-

tors ﬁrst specify customer identiﬁcation informa-

tion to identify which EQAM covers that cus-

tomer and then specify a channel in trouble to

identify the source (head-end) of the channel or

multicast group.

Alerts Driven Interaction

Alerts are important for operators to start iden-

tifying problems. The UI visualizes alerts as a

U pda te d: 6:4 5:00 P M 9/22/2015 E DT

BBR (Backbone Router)

CRR (Core Router)

DTR

ACR

(Access Router)

Service

EQAM

BBR01

CRR01 CRR02

DTR01 DTR02

NXS01 ACR08

Aggregate

NXS02

+ -

E nte r C ha nnel, Dat e or a ny t ext.

0 All: 2

Events

LinkAll

Router

Customer

Aggregate

9/22/2015

7:00p 3:00a 6:00a 9:00a 11:00a 3:00p 5:00p9:00p 11:00p

9/22 1:00a

1:00p

Market AAA

Cable Video QoS Analysis

Events

T ime : 6 :5 0:0 3 PM 0 9/22/20 15 EDT

Lo gi n U s er : User name

City BBB>

Customer View

City BBB

Back bone

BBR(S) BBR01 CRR02 DTR02

E QA M

A pe x

#0001223

Customer ViewCustomer View

18:48:51 Channel A C-D Correlation

Error i n correlation anal ysis of …

18:48:55 Channel C CRR02 C-D

Correl ation

Error i n correlation anal ysis of …

EQAM

Loca l

Sate llite

ASI-IP

Convert

Loca l

Sate llite

ASI-IP

Convert

Channel C

Channel D

Channel B

Channel A

P re-se t Command

End to End Corre lated video flow

Utilization PPS

In [Mbps]

Out [Mbps]

6:50p6:30p6:10p5:50p

Utilization [Mbps]

Channel (bundled)

Channel A

Figure 5: UI screen mockup: topology view with correla-

tion and performance graphs overlaid.

list with necessary information such as the time

the alert occurs, which channel is related, which

router/link has a potential cause, alert severity (er-

ror or warning), the reason the alert was created,

and a description of potential cause. If an alert has

effects on multiple channels, operators can rec-

ognize what channels are affected. By selecting

one alert row, operators will have actual multicast

topology on the above map and routers/links pos-

sibly causing that alert. Operators can see with

the map view which nodes/channels are being af-

fected, and they also can narrow down the list by

time or severity so that they easily understand the

priorities of alerts.

Drill Down - Correlation & Performance Graphs

Operators can drill down to a correlation graph

describing a potential cause of the alert as shown

in Figure 5. For example, suppose a video stream

does not go through one router because of router

trouble even though there is a multicast path

between one input port and one output port of

the router. The system creates an alert for this

incident based on correlation analysis of the input

and output ports on the router. Operators can drill

down to the actual correlation graph causing this

alert by mouse-focusing the router icon to see

how much correlation value is out and how long

the incident continues.

Operators can further drill down to performance

graph with statistical information of network

ﬂows on the target router to understand cause of

the issue. This view has utilization/packet counts

for all the streams ﬂowing on the router, and those

for a speciﬁc channel stream can be selected by

clicking one line of the channel stream in the mid-

dle graph or by entering the channel name in a

search box.

DCNET 2017 - 8th International Conference on Data Communication Networking

Drill Down - Command Execution

Operators identify which router has an issue, and

they need to manipulate that router to obtain more

details (such as detailed status, conﬁgurations,

and logs) by executing commands. This takes

time and can cause human-error issues such as

command misexecution. The UI has an execu-

tion interface of pre-ﬁxed commands. Operators

can select a preﬁxed command from a list shown

on the router icon and get the output of command

execution on the same screen.

4 EVALUATION OF CABLE

NETWORK QoS ANALYSIS

SOLUTION

For initial evaluation of the proposed solution, we ex-

amined network operations at a cable service provider

and classiﬁed the types of the operations performed in

the event of IP-related incidents (which the proposed

solution can detect and identify) into the following

four categories:

(A) Rebooted: Issues repaired by rebooting equip-

ment.

(B) Operated: Issues repaired by operating equip-

ment (e.g., by hardware/software operations ef-

fected by issuing commands or interacting with

a GUI).

interface card) or equipment.

(D) Recovered: Problems were identiﬁed but had

been resolved at the time of operations. (i.e., issue

cleared while being investigated.)

Table 3 describes the percentage of each catego-

rized operation over all the IP-related incidents oc-

curred during a certain period. It also shows average

time to close one incident by each categorized opera-

tion. About a half of the incidents were solved mostly

by operating equipment (B), which took 3 hours 49

minutes on average per incident, and 22% were re-

solved by rebooting (A) taking 1 hour 43 minutes and

replacing (C) taking 4 hours 9 minutes. 5% of the

incidents were resolved in 44 minutes without any

operations (D). Though there were no speciﬁc data

showing a breakdown of MTTD and MTTR, it can

be guessed that identifying an issue takes the same

amount of time as spontaneous recovery (D). So we

assume average MTTD for all the incidents is 44 min-

utes. The left part of Table 4 describes MTTD and

MTTR calculated using the average times shown in

Table 3 as current values.

Table 3: Type of operations for troubleshooting and average

time to repair.

Operation type Portion in all Avg. time

incidents [min]

(A) Rebooted 22.9% 163

(B) Operated 48.6% 229

(D) Recovered 5.7% 44

We then calculated MTTD and MTTR when the

proposing solution is introduced. The right part of

Table 4 shows the average MTTD and MTTR of each

categorized operation with our solution applied. In

our supposition for MTTD, the average time to detect

and identify an incident with the proposing solution is

set to 15 minutes for all the incidents, as SNMP infor-

mation is collected every 15 minutes and IP-related

issues are notiﬁed to operators with failure point as

soon as they are detected by the system. For MTTR

the average times to reboot, operate, and replace were

set to 67 minutes, 100 minutes, and 249 minutes, re-

spectively. For the MTTR of the replacing, the time

consumed is based on physical operations and there-

fore the proposed method does not reduce the time.

Therefore we used the same MTTR with the current

one. For the MTTR of the rebooting and the operat-

ing, the proposed method has a function to remotely

execute typical commands to supported equipment.

We supposed that half of the incidents can be handled

by remote operations, which are assumed to take 15

minutes, and we took the average values of 15 min-

utes and the current MTTR values for the rebooting

and the operating.

The average impairment time (i.e., MTTD +

MTTR) is reduced to 62.3% of that without the pro-

posed solution, which is shown at the bottom of Ta-

ble 4 as total reduction by considering weight of each

categorized operation. Looking at the incidents that

happened more frequently (i.e., the ones resolved by

rebooting and operating, which were 70% of the to-

tal incidents), the average impairment time can be re-

duced to 50%, which satisﬁes our goal set in Section

2.4. However, for the incidents resolved by Replace-

ment, the reduction is low. This is because more time

is consumed in direct operations or local works the

solution does not cover.

5 CONCLUSION

Cable service providers are facing difﬁculty in man-

aging service assurance due to their complex net-

works. We have recognized that limited end-to-

end visibility of multicast video streams, operators’

QoS Analysis on Cable Video Delivery Networks

Table 4: Evaluation of MTTD and MTTR by classiﬁed resolutions.

Avg. time based on survey [min] Avg. time w/ proposal [min] Reduction

Operation type % (a) MTTD MTTR Sum (b) MTTD MTTR Sum (c) (c/b)*a

(A) Rebooted 22.9% 44 119 163 15 67 82 50.3%

(B) Operated 48.6% 44 185 229 15 100 115 50.2%

(D) Recovered 5.7% 44 0 44 15 0 15 34.3%

Total reduction by considering weight of each categorized operation (a) 62.3%

knowledge, and complexity of video services and

routing ﬂows lead to a long mean time for trou-

bleshooting service delivery problems in the routing

network. We have developed cable service QoS anal-

ysis solution that provides an end-to-end view of the

control and data-plane ﬂows associated with delivery

of a video channel and shows identiﬁed failure points

on the view. The solution supports topology discovery

and visualization of the network and multicast trees,

and it detects and identiﬁes failure points by correlat-

ing multicast tree data and data/control-plane ﬂows.

Therefore operators can quickly identify issues and

service impairment time is shortened.

We examined a list of the incidents at customer

sites and evaluated the effectiveness of the proposed

solution. Our initial evaluation revealed that it can de-

tect all the IP-network related incidents, and the aver-

age service impairment time can be reduced to 62.3%

of what it would be without the solution. For the in-

cidents that happened most frequently, i.e., the ones

resolved by rebooting and operating (70% of the to-

tal incidents), the average impairment time can be re-

duced to 50%, which satisﬁes our goal. Future works

include development of the prototype system and ver-

iﬁcation of the solution in an actual environment.

REFERENCES

B. Fenner, M. Hadley, H. H. and Kouvelas, T. (2006). Pro-

tocol independent multicast – sparse mode (PIM-SM)

protocol speciﬁcation (revised). In RFC4601. PIM-

WG, IETF.

Breibart, Y. (2000). Topology discovery in heterogeneous

IP networks. In INFOCOM 2000, pages 26–30.

Cain, B. and Deering, S. (2002). Internet group manage-

ment protocol, version 3. In RFC3376. IETF.

Cisco (2014). Cisco visual networking index: Forecast and

methodology. In Cisco White Paper.

Garg, A. and Bindal, M. (2015). Enhancing QoS and QoE

using big data in IPTV domain. In Proc. of 2015 In-

ternational Conference on Soft Computing Techniques

and Implementations (ISCTI), pages 163–165.

Holbrook, H. and Cain, B. (2006). Source-speciﬁc multicast

for IP. In RFC4607. IETF.

Kalyur, A. (2009). Video quality assurance across IP net-

works: Challenges, requirements & winning strate-

gies. In NCTA Technical Papers, pages 20–24. The

Internet & Television Association (NCTA).

Kim, H. and Feamster, N. (2013). Improving network man-

agement with software deﬁned networking. In IEEE

Communication Magazine, pages 114–119.

Liu, J. (2014). Monitoring and analyzing big trafﬁc data of

a large-scale cellular network with Hadoop. In IEEE

Network, volume 28, pages 32–29.

Puneet Sharma, E. P. and Malpani, R. (2003). IP multi-

cast operational network management: Design, chal-

lenges, and experiences. In IEEE Network, volume 17,

pages 49–55.

Vasudevan, S. and Ogozaly, R. W. (2009). The headend re-

visited: A multi-service video data center for the mod-

ern MSO. In NCTA Technical Papers, pages 25–38.

The Internet & Television Association (NCTA).

DCNET 2017 - 8th International Conference on Data Communication Networking
