Arbitrary Trajectory Foot Planner for Bipedal Walking

Ramil Khusainov

, Artur Sagitov

, Alexandr Klimchik

and Evgeni Magid

Intelligent Robotic Systems Laboratory, Innopolis University, Innopolis City, Russian Federation

Higher Institute of Information Technology & Information Systems, Kazan Federal University, Kazan,

Russian Federation

Keywords: Foot Planner, Zero Moment Point, Preview Control.

Abstract: This paper presents a foot planner algorithm for bipedal walking along an arbitrary curve. It takes a

parametrically defined desired path as an input and calculates feet positions and orientations at each step.

Number of steps that are required to complete the path depends on a maximum step length and maximum foot

rotation angle at each step. Provided with results of the foot planner, our walking engine successfully performs

robot locomotion. Verification tests were executed with AR601M humanoid robot.

1 INTRODUCTION

Nowadays the interest to humanoid robots rapidly

increases. A significant number of successful

humanoid solutions and experiments have been

demonstrated in the past decades by different research

groups and companies, including such as ASIMO

(Sakagami et al., 2002), ATLAS (Feng et al., 2015),

HRP-4C (Kajita et al., 2010), Wabian (Ogura et al.,

2006), AR601M (Khusainov et al., 2015) and others

(Shamsuddin et al., 2011) (Ha et al., 2011). However,

bipedal robot walking still remains a challenging

research topic due to its complexity. One of the most

ambitious goals is creating a universal robot that

could operate in dynamic environments and replace a

human in dangerous operations, e.g., supporting

astronauts during space flights or acting in a

proximity of a nuclear energy source, chemically or

biologically contaminated environments. An obvious

advantage of anthropomorphic robots is their ability

to apply humanlike skills in order to utilize existing

human-oriented technologies and devices. Thus,

robust omnidirectional locomotion of a bipedal robot

in environments with obstacles becomes crucial to

perform such operations effectively.

Robot autonomous performance is another

important issue since human teleoperation is not

always possible. In order to increase robot

capabilities different simultaneous localization and

mapping (SLAM) algorithms are used (Stasse et al.,

2006). Robot stereo cameras or laser scanners are

used to detect surrounding objects and find robot

relative position. Such algorithms can generate an

optimal and safe trajectory from an initial location to

a goal location (Figure1). Next, the robot should

generate steps’ pattern along the given trajectory

based on robot kinematic constraints so that a walking

engine could utilize this pattern to perform stable

locomotion.

For example in (Strom et al., 2010) authors

demonstrated an omnidirectional walking foot

planner for NAO robot. In (Zhao et al., 2012) 3D foot

planner was demonstrated, which enables robot to

maneuver through 3D structures. In (Chestnutt et al.,

2005) authors present a footstep planner for the

Honda ASIMO robot. However, the effect of

kinematic limits in robot leg joints on step parameters

has not been studied thoroughly.

In our work we developed an algorithm that

generates desired foot positions of the robot for any

given trajectory of motion taking into account

kinematic limits in robot legs. Then a foot pattern is

fed to preview control approach based walking

engine, which provides walking along arbitrary

trajectory. Additionally, we estimate errors in

position and orientation upon reaching the goal

location.

The rest of the paper is organized as following.

Section 2 describes a foot planner algorithm. Section

3 presents a biped robot walking engine. Section 4

demonstrates experiment results. Finally, Section 5

presents conclusions and future work.

Khusainov, R., Sagitov, A., Klimchik, A. and Magid, E.

Arbitrary Trajectory Foot Planner for Bipedal Walking.

DOI: 10.5220/0006442504170424

In Proceedings of the 14th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2017) - Volume 2, pages 417-424

ISBN: Not Available

417

2 FOOT PLANNER

Multiple robot motion planning approaches exist.

One of them computes velocity vector and future foot

positions based on a current state and desired walking

velocity vector (Shafii et al., 2015) (Strom et al.,

2010). However, this approach becomes invalid in the

presence of obstacles on the robot path, and thus a

foot planner algorithm could be applied only after

safe path calculation.

An effective foot planner algorithm should be

capable to process a trajectory of any complexity with

an arbitrary number of obstacles. A desired robot

trajectory serves as an input to our algorithm, while

foot patterns - positions and orientations of feet for

each step along the path - are its output. We present

the desired path parametrically with functions x(t)

and y(t), defining points on the curve for each

1,2...tN

, where N is the number of points (Figure

1).

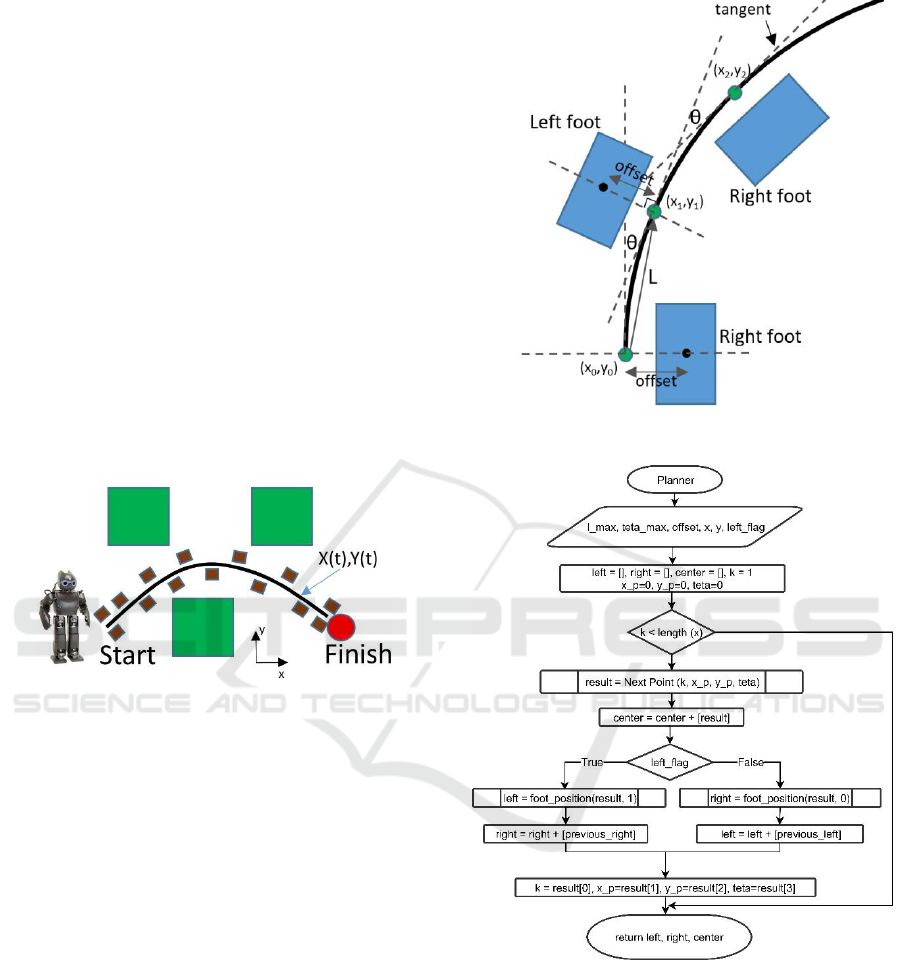

Figure 1: Desired trajectory as an input to foot planner.

Other input parameters for the foot planner are

maximum step length L

max

, maximum rotation angle

for a single step θ

max

, and a distance between foot

center and a closest point on the desired path. These

values are determined by robot’s kinematic

constraints. In Figure 2 step length is L, rotation angle

is θ and distance between feet is offset. Also, it is

required to determine stepping order, i.e. which foot

makes a first step.

The flowcharts of the proposed foot planner

algorithm are presented in Figures 3-4. Here Planner

is a main function that defines step sequence. It

begins with initializing empty arrays for left and right

foot coordinates and a center point (x_p, y_p, teta),

which is located on a desired curve. Let k be the value

of t parameter for point (x_p, y_p). At the beginning

of the curve x_p=0, y_p=0, k=1. In other words, a

desired path always starts from point (0,0) with zero

orientation.

We are moving along the curve by calling

NextPoint function, which calculates next reachable

center point position and orientation. The idea of

Figure 2: Foot planner parameters.

Figure 3: Foot planner flowchart: Planner function (main).

NextPoint function is to decrease step length

gradually from L

max

to 0 by 1 cm until the difference

of orientation angles between the current point and

previous point becomes lower or equal to θ

max

. If step

length decreases to 0, we make only rotation by angle

max

with no change in position. For the known center

point coordinates, foot_position function allows us to

compute positions of left/right foot center. Planner

function stops when we get to the last point of the

curve.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

418

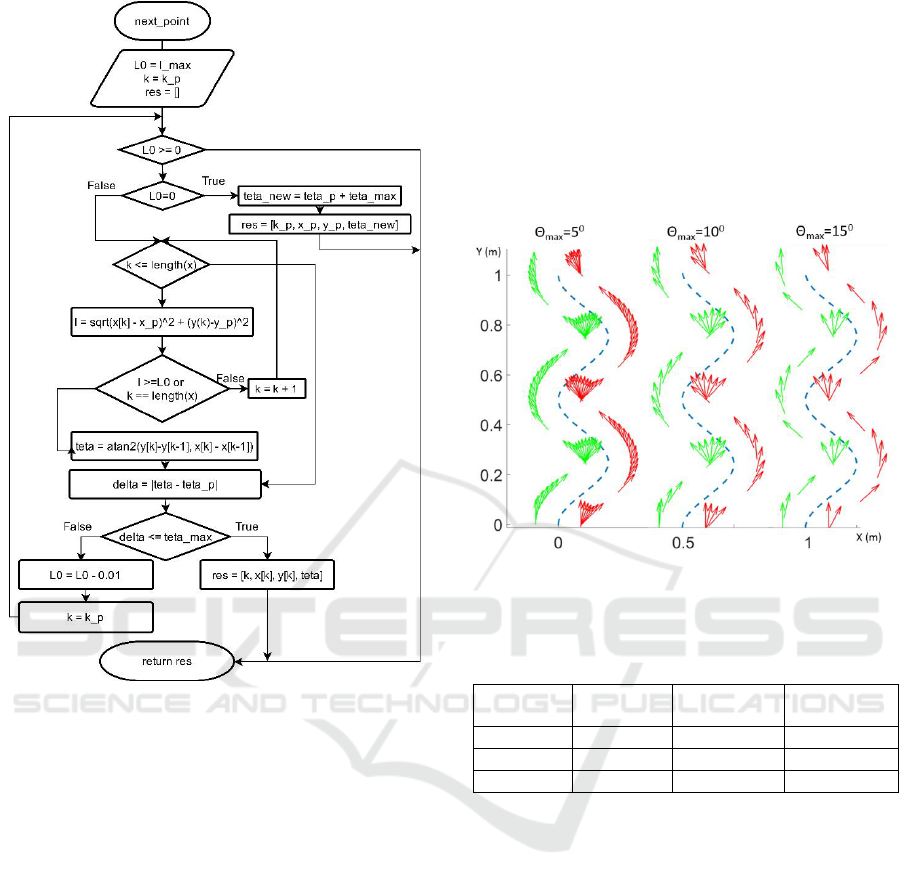

Figure 4: Foot planner flowchart: next_point function.

function foot_position(left,x,y,teta)

if left==true

x=x-offset*cos(teta)

y=y-offset*sin(teta)

else

x=x-offset*cos(teta)

y=y-offset*sin(teta)

return (x, y, teta)

end function

To illustrate the algorithm, let us consider a

sinusoidal curve and run the foot planner for different

maximum rotation angle per step θ

max

. In this case, the

desired path is defined as the following:

 

1,2..100

0.1 0.1 4 /

0.01

( (100))

x cos t









(1)

Simulation results of step planner for θ

max

, 10

and 15

are shown in Figure 6. Here foot positions and

orientations are presented as vectors. When

maximum rotation angle increases, less steps are

required to overcome motion direction change and

complete the path. Table 1 shows number of steps

required to complete the considered path for various

maximum step lengths and rotation angles. The

results highlight stronger dependence of the number

of steps (which is proportional to motion time) on the

rotation angle than on the step length. The direct

correlation between path complexity (convolution

and curvature) and stronger dependency on maximum

rotation angle is obvious.

Figure 5: Foot patterns for different maximum rotation

angles.

Table 1: Number of steps for different parameters of foot

planner so it is centered.

max

=10

max

=15 cm

max

=20 cm

max

=5°

109 steps

101 steps

85 steps

max

=10°

54 steps

46 steps

max

=15°

37 steps

33 steps

We emphasize that the foot planner is a part of robot

locomotion control. It defines foot positions but does

not determine robot motion between the consequent

steps and does not consider walking stability. The

latter problem is in the focus of the walking engine,

which we describe in the next section. Also, it should

be noted that the process of trajectory generation is

not in the focus of this work. The algorithm

considered in the paper deals with pre-defined

trajectory.

3 WALKING ENGINE

To achieve walking functional, we decompose the

engine into several modules and consider each

module independently. Figure 7 shows all modules

and interaction between them; description of each

module is given below.

Arbitrary Trajectory Foot Planner for Bipedal Walking

419

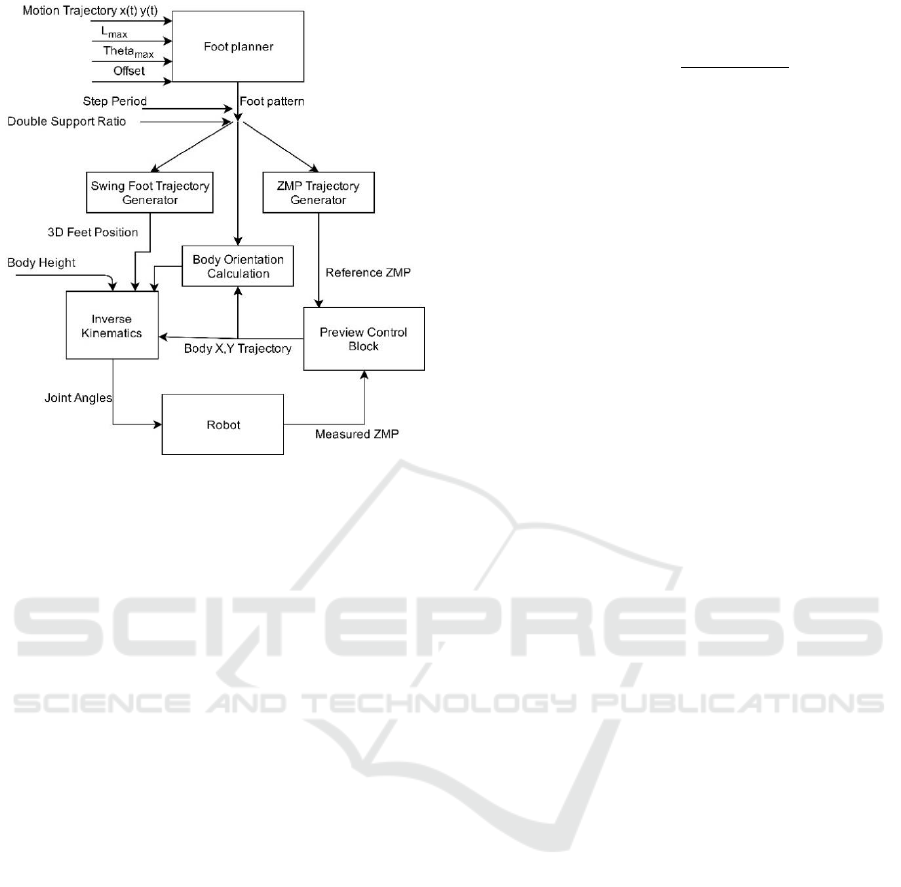

Figure 6: Architecture of walking engine.

3.1 Foot Planner

Foot planner workflow was described in previous

section. We initialize it with a desired path and step

parameters and it returns a set of feet center positions

and orientations along the desired path.

3.2 Swing Foot Trajectory Generator

To generate swing foot trajectory, we need

coordinates and orientation at the beginning and at the

end of the step, which are provided by the foot

planner. The aim of a swing foot trajectory generator

is to obtain time dependant functions for the Cartesian

coordinates x, y, z, θ, where θ corresponds to the foot

rotation around z axis. There are many ways to do it.

For example in (Rai and Tewari) authors use a

polynomial interpolation to obtain a swing leg

trajectory. In (Khusainov et al., 2016) optimal swing

leg trajectory is obtained, taking into account joint

kinematic limits. Here we used trigonometric

functions to build trajectory profile, since they are

simple and can provide zero velocities at contact

moments. Assuming that x

and x

are coordinates at

start and end of a step calculated by the foot planner,

is double support phase time, t

ver

is vertical motion

time, t

is step time, x(t) can be written as:

 

0.5 1 ,

f s s

ds ver

f ve

x x cos x

t t t

if t t t t

x x if t t t

x x if t t













  



  



  





(1)

At the end of the step there is an interval t

ver

with

no motion in x-direction. We introduced this to ensure

strictly vertical motion of the swing foot before

touching the surface and to avoid horizontal

momentum at a contact. Also, it should be noted that

cosine function gives zero velocity values at the

beginning and at the end of motion. Equations for y(t)

and θ(t) are similar, while z(t) coordinate function is

presented as:

   

 

0.5 1 / ,

s ds

h cos t t t t













(2)

where h is a step height. In this work we assume that

the swing foot is always parallel to the ground.

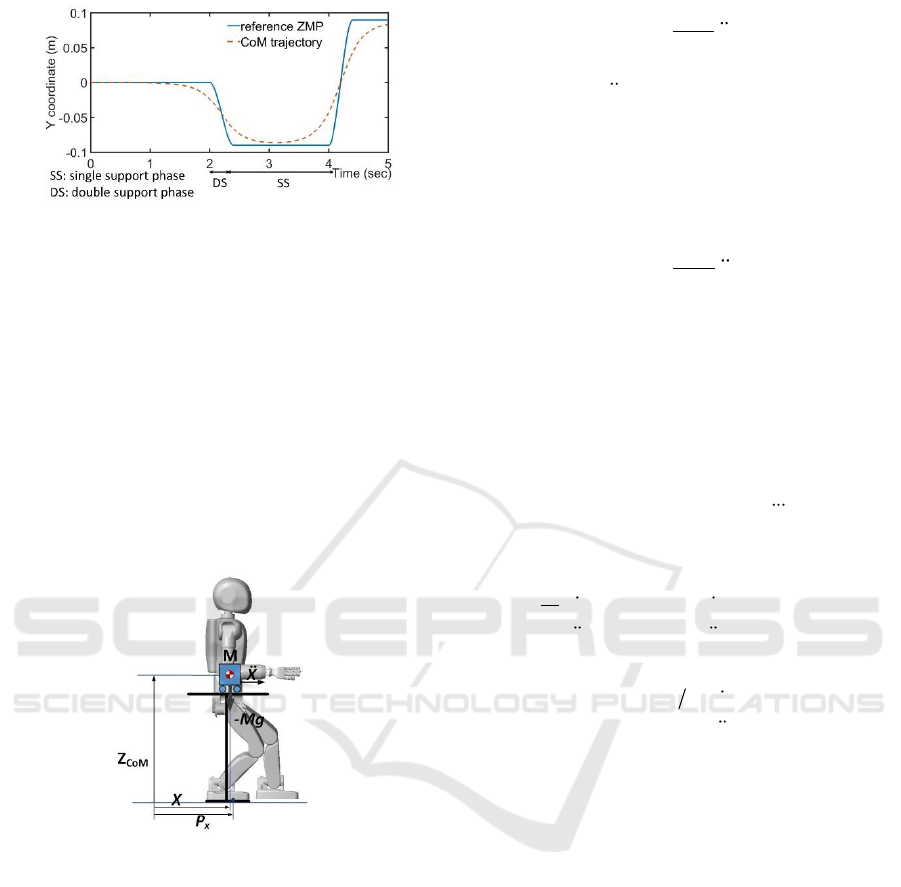

3.3 ZMP Trajectory Generator

A zero-moment point (ZMP) criterion is widely used

as a stability measure in the literature (Vukobratović

and Borovac, 2004) (Lee et al., 2015). To ensure

stable locomotion of the robot, a ZMP point should

lie within supporting polygon, which is the convex

hull of supporting feet area (Vukobratović and

Stepanenko, 1972). Therefore, we can introduce some

reference ZMP trajectory, which always lies within

supporting polygon and compute feasible robot center

of mass (CoM) trajectory so that its ZMP follows the

reference ZMP. Reference ZMP functions for x and y

coordinates, which are the input values for the

controller, are computed from supporting foot center

coordinates, which in turn is calculated from foot

positions and step time. Suppose that robot starts

walking straight ahead with a distance of 20 cm

between the feet. In Figure 8 the reference ZMP is

initially located in the center of right foot (supporting

foot) with coordinate -10 cm, then moves to the center

of left foot with coordinate +10 cm and so on.

Duration of ZMP change is defined by double support

phase time during which both legs are on the ground.

To obtain smooth change of ZMP value we used

cubic spline in a double support phase.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

420

Figure 7: Reference ZMP and CoM trajectory in sagittal

plane.

3.4 Preview Control Block

Preview control block generates CoM trajectory

based on the reference ZMP and active balance

feedback loop. The CoM trajectory can be calculated

by a simple physical model approximating the bipedal

robot dynamics. In our work we use preview control

approach (Kajita et al., 2003) and describe robot

dynamics by inverted pendulum model with

additional constraint on mass height, i.e., three-

dimensional linear inverted pendulum model. There

are several assumptions in this model.

Figure 8: Cart-table model for bipedal locomotion.

The first assumption is that all mass is concentrated

in CoM point, which means that we neglect mass

distribution and suppose that leg’s mass is relatively

small. Although this assumption seems to differ from

reality, effect of leg’s mass can be neglected at a first

approximation, since robot’s trunk is much heavier

than a leg. The second assumption is that CoM

always keeps a constant height. This assumption

significantly simplifies dynamics equations. A cart-

table model, shown in Figure 9, corresponds to the

described model. The cart with mass M moves on a

table with a negligible mass. ZMP coordinate in this

case can be written as:

CoM

p x x



(3)

where

x and x

are CoM coordinate and

acceleration, g is gravity constant,

CoM

is CoM

height. For 3D walking we use two cart-table models,

one is for motion in a sagittal plane, the other is for

motion in a frontal plane. Therefore, y coordinate

equation could be written similarly to (4):

CoM

p y y



(4)

If CoM trajectory is given, we can easily calculate

ZMP by using ZMP equations (4) and (5). On the

other hand, for stable motion ZMP should always lie

under a supporting foot. Therefore, we can determine

reference ZMP trajectory knowing supporting foot

coordinates as a function of time. Hence, we have an

inverse problem, where CoM trajectory is calculated

from reference ZMP trajectory.

If we define new variable as

ux

, equation (4)

can be rewritten as dynamical system equation:

 

0 1 0 0

0 0 1 0

0 0 0 1

x CoM

x x u

p z g x

       

       



       

       











(5)

Then the system can be discretized as

( 1) ( ) ( )

( ) ( )

x k Ax k Bu k

p k Cx k

  



(6)

where A, B and C matrices are found from (6), k is a

discrete time, x is a state vector, u is a jerk and p is a

ZMP coordinate. (Katayama et al., 1985) presented a

preview control approach that uses a desired future

value of the ZMP coordinates. Authors showed that

the optimal controller for the system with given

reference ZMP p

ref

and previewing N future steps can

be written as:

( ) ( ) ( ) ( ) ( )

i x p ref

u k G e k G x k G j p k j



    



(7)

where G

, G

and G

(j) are gains that are calculated

from controller weights,

     

ref

e k p k p k

is a

ZMP error. Thus, the preview controller consists of

three terms: the integral error of ZMP, the state

feedback (that is proportional to a current state vector

Arbitrary Trajectory Foot Planner for Bipedal Walking

421

x) and the preview action, which takes into account

future values of the desired ZMP position with the

sum running over N future values. Figure 8 shows

reference ZMP and calculated CoM trajectory in the

frontal plane. Here CoM starts moving before a sharp

change of reference ZMP, which is an effect of

previewing the future reference.

3.5 Body Orientation

Preview controller computes x

CoM

and y

CoM

of the

body with z

CoM

being fixed. There remains 3 DoF for

body orientation definition and 6 DoF undetermined

for swing foot. We put some additional constraints on

the system by setting to zero trunk Y axis rotation,

which means there is no forward-backward

inclination of the trunk. Trunk X axis rotation is

defined by its side inclination. This is done because

of kinematic limits in hip and ankle roll joints.

Suppose that robot stands with parallel feet on the

ground. If we start moving trunk to its right and

remain it upright, at some point we will hit kinematic

limits (marked red in Figure 10).

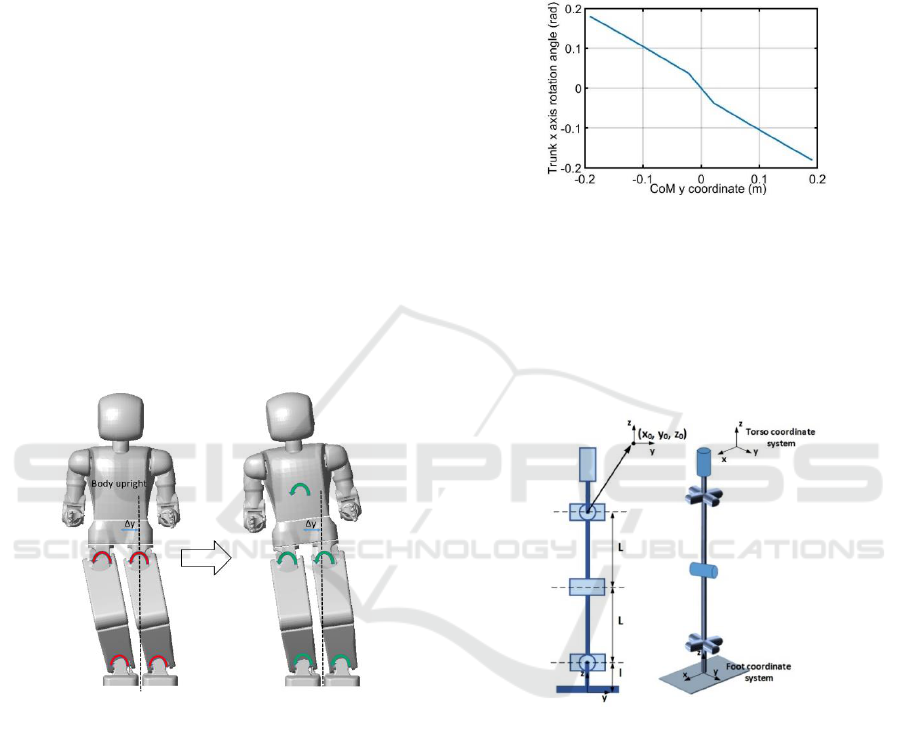

Figure 9: Body orientation in frontal plane.

Therefore, we should rotate trunk around X axis. To

find the rotation angle we first calculated all possible

trunk rotation angles for a given joint limits and trunk

y coordinate by applying inverse kinematic problem

(see section 3.5). Then we took the middle value of

interval as the best rotation angle. Figure 11 shows

trunk X axis rotation angle as a function of trunk y

coordinate. z

CoM

was set to 0.7 m, maximum hip roll

rotation angles were 0.2 rad for inward and 0.3 rad for

outward rotation. We see piecewise linear uneven

function which can be approximated as:

 

1.67 , 0.0228

0.8295 0.0228 0.038076,

0.0228

y if y

if y



  

   



(8)

Function (9) gives us optimal trunk rotation angle

for given CoM y coordinate.

Figure 10: Dependency of optimal rotation angle on CoM y

coordinate.

3.6 Inverse Kinematics

After we have fully defined all 6 DoF for each leg the

next step is to solve inverse kinematics problem for

each leg, i.e. to find joint angles given the position

and orientation of foot and torso.

Figure 11: Leg kinematic scheme.

(Peiper, 1968) showed that if three adjacent joint axes

intersect in a single point, there exists closed-form

solution of the inverse kinematics problem. In our

scheme (Figure 12) we have this condition for hip

joints. Given transformation matrix from global

coordinate system (CS) to torso CS is T

and from

global CS to foot CS is T

, then we can write

transformation matrix from foot to torso system is

ft t f

T TT





. At the same time

1 1 2 2 3 3 4 4 5 5 6 6

( ) ( ) ( ) ( ) ( ) ( )

T T T T T T T

     



(9)

where

...



are joint angles, starting from ankle roll

angle. Since last three rotations do not effect on hip

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

422

joints center position, we firstly find

1 2 3

  

angles.

After that we substitute calculated angles into (10)

and compare rotation matrices of T

matrix and

product matrix to find remaining three angles. There

are totally eight possible solutions of inverse

kinematics problem so we choose appropriate one.

4 EXPERIMENTAL RESULTS

To demonstrate the proposed algorithm efficiency we

verified its performance with AR-601M bipedal robot

(Figure 13). The robot has totally 41 active degrees of

freedom (DoF), 6 of which are located in each leg:

three joint axes are in the hip, two joints are at the

ankle and one in the knee. The total mass of the robot

is 65 kg and the height is 1442 mm. Further details

about AR-601M are available in (Khusainov et al.,

2015).

Figure 12: Humanoid robot AR601M.

Two trajectories were tested in experimental study.

The first experiment was walking for 2 m distance

along a straight line. The robot’s step length was set

to 15 cm with the step period of 3 seconds. Figure 14

shows foot pattern, CoM trajectory and ZMP

trajectory measured with force sensors. The second

trajectory was defined as sinusoid curve. Step length

was set to 15 cm, maximum rotation angle to 10

, and

the step period to 3 seconds and the experimental data

is presented in Figure 15.

Results for average coordinate errors with respect

to the desired goal position are given in Table 2.

These differences were mainly caused by compliance

in actuator joints and errors (and noise) of the sensors.

Yet, these errors are acceptable for the considered

distances and do not overcome 3%. For larger

distances, these errors should be compensated by

external position control, e.g., SLAM methods.

Figure 13: Experimental results: walking on a straight line.

Figure 14: Experimental results: walking along a curve.

Table 2: Average error for position and orientation.

x

y





deg

Straight line

1.5

5°

Along a curve

5°

5 CONCLUSIONS

This paper presents the foot planner algorithm for

biped walking along an arbitrary curve. Together with

the walking engine, it enables the robot to move along

a desired path with acceptable position and

orientation errors. Preview control method was used

as a walking engine balance controller.

The presented biped locomotion approach was

verified with a AR601M robot. Experimental results

illustrated successful performance of the proposed

foot planner method and walking engine architecture.

However, because of accumulated errors of different

nature, for large walking distances our algorithm

would require additional external system to measure

position error, which could provide a feedback loop

and significantly increase position accuracy.

Arbitrary Trajectory Foot Planner for Bipedal Walking

423

ACKNOWLEDGEMENTS

This research has been supported by the grant of

Russian Ministry of Education and Science 2017-14-

576-0053-7882 and Innopolis University.

REFERENCES

Chestnutt, J., Lau, M., Cheung, G., Kuffner, J., Hodgins, J.

and Kanade, T. 'Footstep Planning for the Honda

ASIMO Humanoid'. Proceedings of the 2005 IEEE

International Conference on Robotics and Automation,

18-22 April 2005, 629-634.

Feng, S., Whitman, E., Xinjilefu, X. and Atkeson, C. G.

(2015) 'Optimization‐ based Full Body Control for the

DARPA Robotics Challenge', Journal of Field

Robotics, 32(2), pp. 293-312.

Ha, I., Tamura, Y., Asama, H., Han, J. and Hong, D. W.

'Development of open humanoid platform DARwIn-

OP'. 2011: IEEE, 2178-2181.

Kajita, S., Kanehiro, F., Kaneko, K., Fujiwara, K., Harada,

K., Yokoi, K. and Hirukawa, H. (2003) 'Biped walking

pattern generation by using preview control of zero-

moment point'. Robotics and Automation, 2003.

Proceedings. ICRA '03. IEEE International Conference

on, 14-19 Sept. 2003, 1620-1626 vol.2.

Kajita, S., Morisawa, M., Miura, K., Nakaoka, S. i., Harada,

K., Kaneko, K., Kanehiro, F. and Yokoi, K. 'Biped

walking stabilization based on linear inverted

pendulum tracking'. 2010: IEEE, 4489-4496.

Katayama, T., Ohki, T., Inoue, T. and Kato, T. (1985)

'Design of an optimal controller for a discrete-time

system subject to previewable demand', International

Journal of Control, 41(3), pp. 677-699.

Khusainov, R., Klimchik, A. and Magid, E. 'Swing leg

trajectory optimization for a humanoid robot

locomotion'. Informatics in Control, Automation and

Robotics (ICINCO), 2016 13th International

Conference on.

Khusainov, R., Shimchik, I., Afanasyev, I. and Magid, E.

'Toward a human-like locomotion: Modelling

dynamically stable locomotion of an anthropomorphic

robot in simulink environment'. Informatics in Control,

Automation and Robotics (ICINCO), 2015 12th

International Conference on, 21-23 July 2015, 141-

148.

Lee, D.-W., Lee, M.-J. and Kim, M.-S. 'Whole body

imitation of human motion with humanoid robot via

ZMP stability criterion'. 2015: IEEE, 1003-1006.

Ogura, Y., Aikawa, H., Shimomura, K., Kondo, H.,

Morishima, A., Lim, H.-o. and Takanishi, A. (2006)

'Development of a new humanoid robot WABIAN-2'.

2006: IEEE, 76-81.

Peiper, D. L. (1968) The kinematics of manipulators under

computer control: DTIC Document.

Rai, J. K. and Tewari, R. 'Quintic polynomial trajectory of

biped robot for human-like walking'. 2014: IEEE, 360-

363.

Sakagami, Y., Watanabe, R., Aoyama, C., Matsunaga, S.,

Higaki, N. and Fujimura, K. 'The intelligent ASIMO:

System overview and integration'. 2002: IEEE, 2478-

2483.

Shafii, N., Abdolmaleki, A., Lau, N. and Reis, L. P. (2015)

'Development of an Omnidirectional Walk Engine for

Soccer Humanoid Robots'.

Shamsuddin, S., Ismail, L. I., Yussof, H., Zahari, N. I.,

Bahari, S., Hashim, H. and Jaffar, A. 'Humanoid robot

NAO: Review of control and motion exploration'. 2011:

IEEE, 511-516.

Stasse, O., Davison, A. J., Sellaouti, R. and Yokoi, K. 'Real-

time 3D SLAM for Humanoid Robot considering

Pattern Generator Information'. 2006 IEEE/RSJ

International Conference on Intelligent Robots and

Systems, Oct. 2006, 348-355.

Strom, J., Slavov, G. and Chown, E. (2010)

'Omnidirectional Walking Using ZMP and Preview

Control for the NAO Humanoid Robot', in Baltes, J.,

Lagoudakis, M., Naruse, T. & Ghidary, S. (eds.)

RoboCup 2009: Robot Soccer World Cup XIII Lecture

Notes in Computer Science: Springer Berlin

Heidelberg, pp. 378-389.

Vukobratović, M. and Borovac, B. (2004) 'Zero-moment

point — thirty five years of its life', International

Journal of Humanoid Robotics, 01(01), pp. 157-173.

Vukobratović, M. and Stepanenko, J. (1972) 'On the

stability of anthropomorphic systems', Mathematical

biosciences, 15(1-2), pp. 1-37.

Zhao, Y. and Sentis, L. 'A three dimensional foot placement

planner for locomotion in very rough terrains'. 2012

12th IEEE-RAS International Conference on Humanoid

Robots (Humanoids 2012), Nov. 29 2012-Dec. 1 2012,

726-733.

ICINCO 2017 - 14th International Conference on Informatics in Control, Automation and Robotics

424
