Extending Sensitive Business Process Modeling with Functional

Dimension for Knowledge Identification

Mariam Ben Hassen, Mohamed Turki and Faïez Gargouri

University of Sfax, ISIMS, MIRACL Laboratory - B.P. 242, 3021 Sfax, Tunisia

Keywords: Knowledge Management, Knowledge Identification, Sensitive Business Process Modeling, DOLCE, Core

Domain Ontologies, BPMN 2.0, Extension Mechanism.

Abstract: This paper presents a rigorous conceptual specification of sensitive business processes (SBPs) to improve

the localization and identification of crucial knowledge mobilized and created by these processes. It covers

all relevant aspects relating to business process modeling and knowledge management (BPM-KM), i.e. the

functional, the organizational, the behavioral, the informational, the intentional and the knowledge

dimensions. In this research work, we focus more specifically on the description of the « Functional

Dimension», which represents the core dimension in SBP modeling. Precisely, we present BPMN4FM, an

extension of the most suitable business process modeling formalism BPMN 2.0 to explicitly represent,

integrate and implement the functional dimension of SBP, exploring the collaboration, interaction and

knowledge aspects. Besides, we evaluate the relevance of BPMN4FM concepts through a real SBP scenario

from medical domain.

1 INTRODUCTION

Nowadays, modern organizations have become

aware of the necessity to identify and model the

Sensitive Business Processes (SBPs) to improve the

management of their individual and collective

knowledge. These processes are characterized by a

high number of critical activities with intensive

acquisition, sharing, storage and (re)use of very

specific knowledge «crucial knowledge», high

degree of internal/tacit knowledge created and

exchanged among experts (who carry out actions

with high levels of expertise, creativity and

innovation), diversity of knowledge sources

consigning a great amount of very important

heterogeneous knowledge, high dynamic conversion

of knowledge and high degree of collaboration and

interactions (intra/inter-organizational) between a

wide range of agents. In addition, an SBP is

typically an unstructured or semi-structured BP,

requires substantial flexibility, encompassing a

highly dynamic complexity. Besides, its contribution

to reach strategic objectives of the organization and

its cost are very important. However, the BP type

typically lacks a rigorous conceptual specification

and clarity in the representation of its important

features. BPM formalisms that are widely-followed

in current research and practice scenarios (such as

RAD, eEPC UML AD, BPMN 2.0.2, KMDL 2.2

and DCR Graphs) did not include all the required

characteristics to describe an SBP, as discussed in

(Ben Hassen et al; 2016b; Ben Hassen et al., 2017).

In order to improve a SBP representation, we

propose a generic BP meta-model common to these

BPM formalisms which ensures the best suitability

to model SBP, entitled «BPM4KI: Business Process

Meta-Model for Knowledge Identification».

BPM4KI describes the key concepts and

relationships that characterize an SBP. It integrates

all relevant aspects/dimensions relating to BPM-

KM, i.e. the functional, the organizational, the

behavioral, the informational, the intentional and the

knowledge perspectives. BPM4KI is semantically

rich and well-based on «core» domain ontologies

(Gangemi and Borgo, 2004) (which are based on top

of the DOLCE foundational ontology (Masolo et al.,

2004)).

In this research work, we focus more on the

description of the «Functional Perspective» which

represents the central aspect of SBP modeling,

exploring the collaboration, interaction and

knowledge aspects and all relevant SBP elements.

We point out that this dimension (supporting the

new SBP modeling requirements) has not yet,

however, explicited and fully supported by BPs

models and BPM formalisms. So, we aim at

Hassen, M., Turki, M. and Gargouri, F.

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation.

DOI: 10.5220/0006459900380051

In Proceedings of the 14th International Joint Conference on e-Business and Telecommunications (ICETE 2017) - Volume 2: ICE-B, pages 38-51

ISBN: 978-989-758-257-8

incorporating this dimension in SBP models. In this

paper, we propose to extend one of the best known

modeling formalism, the Business Process Modeling

Notation (BPMN 2.0) (OMG, 2013), with the

functional dimension in order to explicitly incorporate

all relevant interaction aspects within SBPs models to

improve the localization and identification of crucial

knowledge mobilized and created by these processes

activities. The proposed extension, called

«BPMN4FM» is designed methodically by applica-

tion of the extension mechanisms of BPMN 2.0.

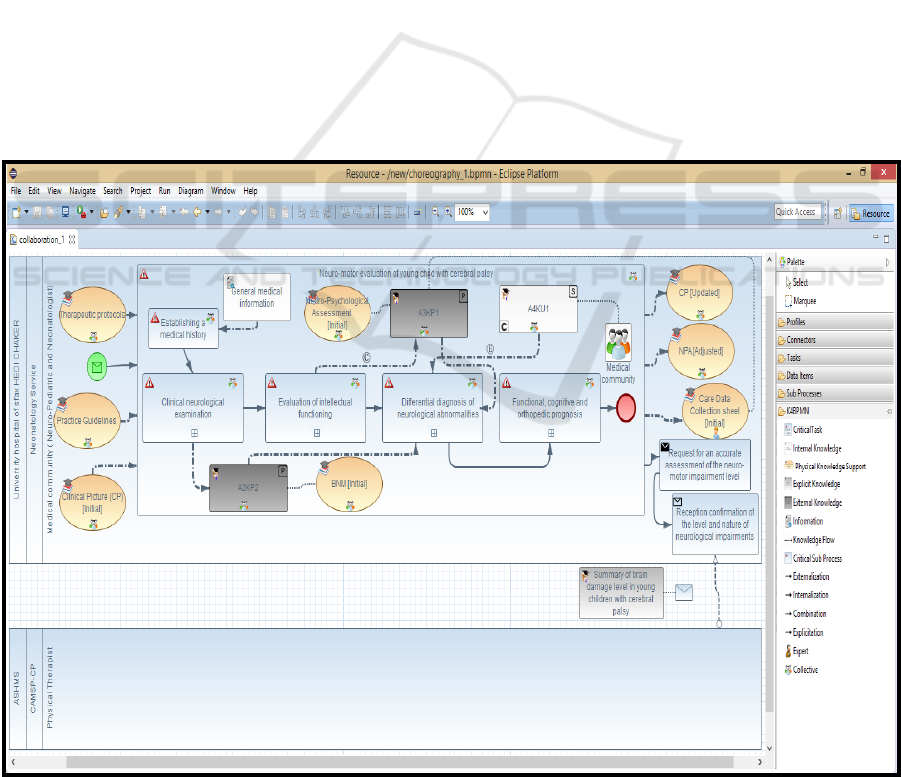

Furthermore, we develop a specific plug-in based on

the Eclipse platform, called K4BPMN Modeler,

implementing and supporting the BPMN4FM.

The remainder of this paper is organized as

follows: section 2 presents a specification of SBP,

describing its main characteristics. Section 3 presents

the central concepts that describe the functional

dimension of SBP modeling. Section 4 presents the

proposed approach for extending BPMN 2.0 with the

functional dimension. Section 5 illustrates the

application of some BPMN4FM concepts based on a

real case study. Section 6 concludes the paper and

underlines some future research topics.

2 SENSITIVE BUSINESS

PROCESS SPECIFICATION

In order to enhance the SBP modeling, we propose a

semantically rich conceptualization for specifying a

SBP organized in a new generic meta-model of BP

representation, the Business Process Meta-model for

Knowledge Identification (BPM4KI). The enriched

meta-model serves two purposes: (i) to deepen the

elements and dimensions defining a SBP, by offering

a coherent conceptual specification for this BP type,

and (ii) to develop a rich and expressive graphical

representation of SBPs to improve the localization

and identification of crucial knowledge mobilized and

created by these processes. The new extended

BPM4KI, which is a continuation of previous works

(Ben Hassen et al., 2016a), is well founded meta-

model whose concepts (and the relationships between

them) are semantically enriched by the «core» domain

ontologies (Masolo et al., 2004; Gangemi, 2006).

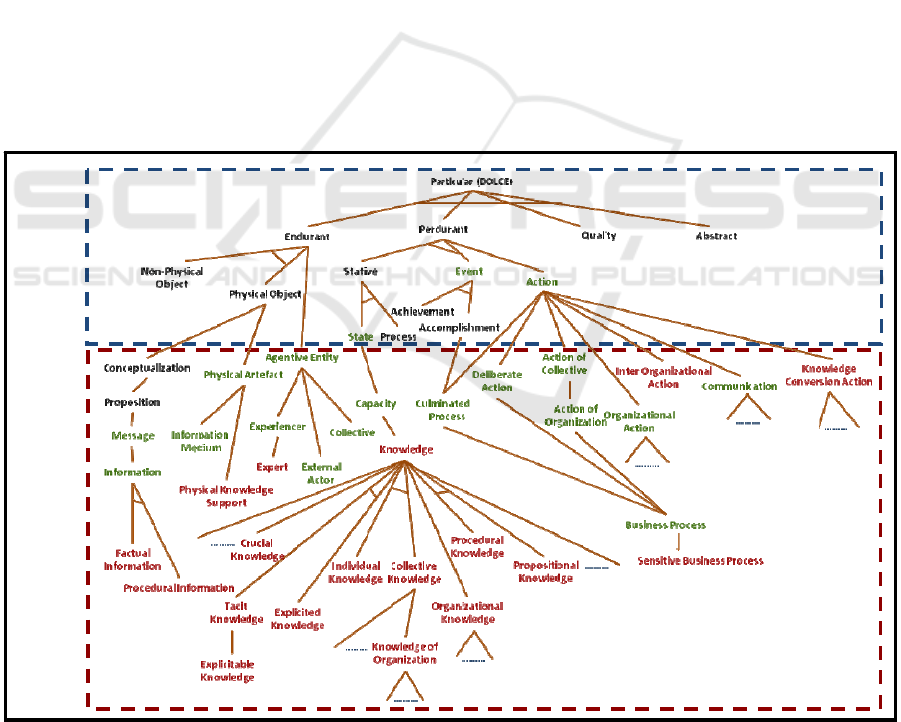

Figure 1: An extract of taxonomy of the main concepts defining our ontological framework to build BPM4KI. A descending

edge between two concepts represents a subsumption link. A horizontal line between edges from a father concept indicates

that the sibling concepts are incompatible.

Core domain ontology

High level ontology

(

DOLCE

)

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

2.1 Our Reference Ontological

Framework

To conceptualize SBPs and build our BPM4KI

meta-model, we adopted a formal approach multi-

layer and multi-component already used to structure

the ontological resources of the OntoSpec method

(Kassel, 2005). The set of all these resources

constitutes a global and consistent ontology (named

by the same name of the method). The OntoSpec

ontology is indeed organized into sub-ontologies

(modules) situated at different levels of abstraction.

Schematically, three levels are identified: (1) At the

most abstract level, the foundational DOLCE

ontology (Masolo et al., 2004) (see http://www.loa-

cnr.it/DOLCE.html) provides a set of abstract

concepts and relations for structuring (by

specialization) any domain. Indeed, DOLCE’s

domain is that of Particulars, that is to say

entities that cannot be instantiated rather than

universals. Four sub-domains of Particulars are

distinguished:

Endurants, Perdurants, Qualities and

Abstract (see Figure 1). (2) At an intermediate

level, ‘core’ domain ontologies (Gangemi and

Borgo, 2004) define, for each domain concerned, a

minimal set of generic and central concepts. (3)

Lastly, at the most specific level, core domain

ontologies are in their turn refined to introduce, by

specialization, domain specific concepts. Our

proposal is based on the reuse and the specialization

of concepts defined in different OntoSpec’s

ontological modules (http://home.mis.u-

picardie.fr/~site-ic/site/spip.php?article53):

Particular-OS (DOLCE), Action-OS, Action of

Organization-OS, Partcipation-role-OS, Agentive

Entity-OS, Organization-OS, Function & Artefact-

OS, Capacity-OS, Artefact-OS, Resource-OS,

Communication-OS, I&DA-OS (Information and

Discourse Acts) and Action Model-OS. The new

ontological modules used to construct BPM4KI

specialize concepts presented in OntoSpec’s

modules situated at the foundational level and the

intermediate level. The concepts that are used in the

BPM4KI perspectives (dimensions) are marked in

green. Besides, the new extended concepts related to

the SBP notion are marked in red (see Figure 1).

Concretely, our approach for building the new

extended version of BPM4KI meta-model is jointly

supported, on the one hand, by the specialization of

the DOLCE foundational ontology (Masolo et al.,

2004), to specify and define the invariant generic BP

concepts, including SBPs, and on the other hand, by

the conception of Ontological Design Patterns

(ODP) (Gangemi, 2006) which are based on the

reuse and the specialization of ontological modules

relating to the «core» domain ontologies (Kassel,

2005; Gangemi, 2006; Kassel, 2010; Kassel et al.,

2012; Turki et al., 2016) (see Figure 1). These

ontologies offer repositories of generic concepts and

relationships semantically rich and consensual which

we reused, firstly, to broaden and deepen the

elements of SBP definition, and on the other hand, to

characterize the useful concepts for a rigorous

specification and an enriched SBP modeling.

2.2 Our BPM4KI Meta-Model

The current version of BPM4KI offers a referential

of generic and central concepts and semantic

relationships relevant to the BPM-KM domain for

conceptualizing SBPs in various contexts. It is

categorized in six perspectives (see Table 1)

represented in the form of Ontological Design

Patterns (ODP). The different BPM4KI perspectives

are complementary and essential for a comprehen-

sive and expressive characterization and representa-

tion of an SBP. With respect to the limited space of

this paper, the definition of core BPM4KI concepts

from several perspectives cannot be presented.

A whole class of BPs and activities, especially

the complex, collaborative and knowledge-intensive

ones, as SBPs, depend on (human) interactions,

which are responsible to a high degree for

knowledge development in an organization.

Therefore, in this paper, we focus on the analysis of

the functional dimension/perspective which repre-

sents the core and the most relevant aspect in SBP

modeling, exploring the collaboration and dynamic

aspects of SBPs (e.g. collective dimension of

activities, knowledge intensive activities, collabora-

tion and interaction among collective of human

agents with exchange, transfer and creation of

knowledge and/or information, knowledge conver-

sion actions, etc.) in greater detail. These aspects are

useful and required to characterize the SBPs, due to,

for instance, the high degree of knowledge

exchanged and developed and shared among agents

through intra/inter-organizational collaboration, also

due to its frequent evolution along time. However,

we point out that the functional dimension

(supporting the new SBP modeling requirements) is

not yet, however, fully supported and integrated

neither in BP meta-models, or in any of the BPM

formalisms (e.g. EPC, UML AD, BPMN 2.0) and

knowledge modeling approaches and notations (e.g.

GPO-WM, PROMOTE, KMDL 2.2).

ICE-B 2017 - 14th International Conference on e-Business

Table 1: SBP specification: the six BPM4KI perspectives (dimensions).

BPM4KI

Perspectives

Description BPM4KI concepts

Functional

Perspective

Represents the BP elements which are being

performed

Action, Deliberate Action, Individual Action, Action

of Collective, Action of Organization, Organizational

Action, Communication, Knowledge Conversion

Action, Organizational Critical Activity, etc.

Organizational

Perspective

Represents the participants invoked in the

execution of BP elements as well as the agent

types that interact during a SBP.

Agentive Entity, Collective, Organization, Informal

Group, Organization Unit, Human, Experiencer,

Expert, Internal Actor and External Actor.

Behavioural

Perspective

Represents why and how the several

executions of a SBP vary. It depicts the

concepts that effect, trigger or control the

flows of activities.

Flow Element, Control Flow, Flow Node, Connecting

Object, Association, Sequence Flow, Message Flow,

Contingency, Conditional Control Flow, Control

Node, Exclusive Decision, Complex Decision, etc.

Informational

Perspective

Describes the informational entities that are

generated, consumed and exchanged in a BP.

It represents inputs and outputs of a BP,

messages or communications/conversations

exchanged between different agentive entities

involved in the BP.

Data, Data Object, Information, Factual Information,

Procedural Information, Information Medium,

Message, Physical Artefact, Input, Output, Data

Association, Material Resource, Immaterial

Resource, Event, Contingency, Artefact of

Communication, Discourse, Informal Exchange, etc.

Intentional

Perspective

Provides an overview perspective of the

process and describes major BP

characteristics. It captures important BP

context/intentional information.

Intention, Objective, Distal Intention, Collective

Objective, Culminated Process, Client, Sensitive

Business Process, Knowledge Intensive Process,

External Process, Core Process, Strategic Process, etc.

Knowledge

Perspective

Addresses all relevant aspects related to KM.

It describes the organizational and individual

knowledge mobilized and created by a BP,

the knowledge flow and the dynamics of

acquisition, conversion, transfer, sharing,

development, and (re) use of knowledge

within and between BPs/organizations.

Crucial Knowledge, External Knowledge, Internal

knowledge, Tacit Knowledge, Explicited Knowledge

Explicitable Knowledge, Individual Knowledge,

Collective Knowledge, Organizational Knowledge,

Procedural Knowledge, Propositional Knowledge,

Strategic Knowledge, Operational Knowledge,

Physical Knowledge Support, Knowledge Flow, etc.

3 FUNCTIONAL DIMENSION

REPRESENTATION IN

SENSITIVE BUSINESS

PROCESS MODELS

To address the different issues in SBP modeling, this

section presents an extended version of the «

Functional Perspective» related to the proposed

BPM4KI meta-model, considering all relevant SBP

elements. We aim at incorporating relevant issues at

the intersection of KM and BPM to enrich the SBP

representation and improve the identification of

crucial knowledge.

In particular, we apply our ontological

framework and specialize some concepts present in

different core domain ontologies (i.e. Action-OS and

Action of Organization-OS COOP), in order to

specify and define new concepts related to the SBP

notion (see Figure 2). Our proposal, presented in the

form of a Functional ODP (see Figure 3) reuses and

specifies the central generic concepts (and the

relationships between them) defined in different

OntoSpec ontological modules: Action-OS, Action of

Organization-OS, COOP (Core Ontology of

Organization’s Processes), Participation-role-OS,

Organization-OS, Function &Artefact-OS, Artefact-

OS, Resource-OS, Communication-OS, Action

Model-OS and I&DA-OS. Figure 3 organizes and

explicit the central concepts of the functional

perspective (marked in gray), in addition to inter-

aspects relationships (the various concepts are

recognizable by their thicker borders) giving a view

of all relevant aspects of the BPM4KI meta-model

as a whole. (The new extended concepts related to

the SBP notion are marked in blue). In this meta-

model, an Action can be either Individual

Action, Action Of Collective,

Deliberate Action, Communication,

Inter Organizational Action or

Knowledge Conversion Action.

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

Figure 2: Extension of the ontological module Action OS for modeling the functional dimension of SBP.

Figure 3: BPM4KI Meta-model: Conceptual Ontology design Pattern relating to the Functional Perspective/Dimension of

SBP (with inter-aspects relationships).

Action-OS: :Intention

Act ion-OS : : Act ion

Act ionOfOrganization-OS: :Act ionOfCollectiveAct ionOfOrganization-OS: :IndividualAct ion

Agentive Entity-OS: :AgentiveEntity

COOP : :Act ionOfOrganizat ion

COOP: :Int erOrganizat ionalAction

COOP: :BusinessProcess

COOP: :Organizat ionalAct ion

Kn ow ledg eInt ensiveA ct ivit y

CriticalOrganizationalActivity

Co llabo rativeOrganizat ionalAct ivit y

1..*

isControlledBy

hasForProperPart

2..*

{overlapping, incomplete}

COOP: :Organizat ionalUnit Act ion

COOP : :Organ izat ion alIndividu alA ct ion

COOP: :Task

COOP: :Organizat ionalSubProcess

hasForProperPart

1..*

2..*

Action-OS: :Deliberat eAction

isProperPartOf

isCarryOutBy/hasForAgent

COOP : :Organ izat ion alInf ormalGrou pA ct ion

COOP: :Compound OrganizationalIndividualAction

{incomplete}

{disjoin t, co mple t e}

Action-OS: :Communication

1..*

Socialization

Communication-OS: :ReceivingAnInformation

KnowledgeConversionAction

Internalization

Externalization

Combination

Explicitat ion

{disjoint, complete}

Communication-OS: :ObtainingAnInformation

Communication-OS: :ProvidingAnInformation

Co mmunicatio n-OS : :DiscourseAct

{overlapping, incomplete}

{disjoint}

Organization-OS: : Collective Organization-OS: :ExternalActor

Action-OS: :DistalIntention

SensitiveBusinessProcess

I&D-OS: :Message

InformalExchange

I&D-OS : :Informat ion

allowsCarryingOut

1..*

occursIn

Flo w Nod e

Knowledge

TacitKnowledge

ExplicitedKnowledge

Explicit ab leKn o wledg e

IndividualKnowledge

Collect iveKno wledge

1..*

hasForResult

isSocializedIn

isTra nsmissedIn

hasForResult

1..*

isEx plicit e dIn

isCombinedIn/is Ex t e rnalize dIn

isInternalize dIn

isCombinedIn

participatesIn

hasForProperPart

OrganizationalKnowledge

1..*

Communication-OS: :Informing

1..*

allowsToCarryOut

hasForProperPart

1..*

{incomplete}

Organization-OS: : Organizat ion

Consious Knowledge

ICE-B 2017 - 14th International Conference on e-Business

Moreover, in SBPs, humans

collaborate/cooperate through interactions. The

different interactions and the coordination of SBP

activities occur with the exchange and transfer of

knowledge and information. This is form the basis

for knowledge creation and sharing. The

Knowledge Conversion Action concept is

required to model, on the one hand, humans

interactions in SBP, and on the other hand, the

dynamics of knowledge, i.e., all of conversion,

transmission, sharing, and creation of knowledge

among the different sources and SBP activities.

Table 2 presents the core functional perspective

concepts definitions.

Besides, it is important that an appropriate BPM

formalism provides explicit representation of the

different issues related to the functional dimension

in BPM. In this context, the SBPs can be graphically

represented, using the well-known standard for

BPM, BPMN 2.0.2 (OMG, 2013), in order to

localize and identify the knowledge that is mobilized

and created by different activities of these processes.

BPMN 2.0 was selected as the most suitable BPM

notations for SBP representation, because it

addresses the highest representation coverage of the

set of BPM4KI concepts and incorporates

requirements for SBP modeling better than other

formalisms (Ben Hassen et al., 2016b; Ben Hassen

et al., 2017). However, BPMN 2.0 diagrams are not

adequate for the new SBP modeling requirements.

So, to overcoming the shortcomings of BPMN 2.0,

some of its concepts must be adapted and extended

to be convenient for a rich and expressive

representation of SBPs, including all or at least most

of the relevant issues at the intersection of KM and

BPM. The following section explains our extension

proposal for including the functional dimension in

SBP modeling.

4 BPMN4FM: BPMN EXTENSION

FOR MODELING THE

FUNCTIONAL DIMENSION

IN SBP

While importance of interaction and collaborative

aspects related to the functional dimension is well

recognized, there is no clear theoretical background

and successful practical experiments of inclusion,

support and implementation of this dimension in BP

meta-models and BPM approaches/formalisms.

Existing formalisms do not specify how do

interactions occur in a SBP. Indeed, extending BP

models with the functional dimension would provide

the following benefits:

• Possibility to differentiate individual action

from collective action during BP modeling. In

fact, this dimension is very important in our

research context, the localization and

identification of knowledge. This knowledge

taken in the action may be either individual or

collective (tacit or explicit).

• Opportunity to enable modeling the critical and

knowledge intensity dimensions of

organizational activities to determine the

crucial knowledge mobilized and created by

these activities.

• Opportunity to consider the roles of humans in

BP activities, be it as humans or collective,

etc., who interact, communicate, exchange,

share and create knowledge and/or information.

• Ability to model collaborative BPs (including

the visualization of human interactions), during

which the agents interact and exchange

information and knowledge, share knowledge

and generate new ones.

• Possibility to model the collective distal

intentions to achieve a collective objective.

• Possibility to specify the different opportunities

of knowledge conversion actions.

Despite its expressiveness, BPMN 2.0 does not yet

explicitly represent the key concepts of the

Functional perspective (such as Action of

Collective, Critical Organizational

Activity, Knowledge Conversion

Action, etc.). So, in order to remedy at this lack, in

this section, we try to extend this specification to

include all or at least most of the relevant SBP

elements.

4.1 Mapping BPMN&BPM4KI

Meta-models: Analysis of BPMN

Support for the Functional

Dimension Concepts

As shown in Table 2 BPMN lacks support for

several concepts of the functional aspect meta-model

(Figure 3). Therefore, to overcoming existing

limitations, we define an extension of the BPMN

specification, called BPMN4FM, which introduces

the functional dimension aspects and provides a rich

and expressive representation of SBPs to identify

and localize the crucial knowledge mobilized by

these BPs. In fact, we argue that an extension should

widely make use of standard elements in order to

exhaust the vocabulary of BPMN and reduce new

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

elements to a minimum. Based on both the specific

SBP domain concepts and requirements, the compa-

rison with standard BPMN is conducted in order to

identify a reasonable need for extension. According

to the presented functional ODP (Figure 3), each

concept is examined regarding its semantically

equivalence with standard elements. Therefore, the

respective element descriptions, rules and

explanations within the BPMN specification (OMG,

2013) were analyzed in-depth. This leads implicitly

to the derivation of the BPMN4KM meta-model and

its stereotypes. According to (Braun et al., 2015), the

following rules are defined for the equivalence

check (correspondence between concepts of the

functional perspective meta-model and the BPMN

meta-model):

- Equivalence: There is a semantically

equivalent construct in the BPMN in the sense of a

permitted combination of elements or just a single

element. In this case, no extension is necessary and

the domain concept is represented as BPMN

concept.

- Conditional Equivalence: There is no obvious

semantic matching with standard elements, but

rather situational discussion is necessary in order to

provide arguments for a possible mapping or to

explain why it is not feasible. This situation is

caused by the partial under specification of BPMN

elements (OMG, 2013). Consequently, the concept

is either treated as equivalent concept or as non-

equivalent concept.

- No Equivalence: There is no equivalence to

any standard element for three reasons: First, the

entire concept is missing. In this case, the domain

concept is represented as Extension Concept in the

BPMN4FM meta-model. Second, a relation between

two concepts is missing. Therefore, an association

between the affected concepts is constructed in the

BPMN4FM meta-model. Third, properties of a

concept are missing. Then, an owned property is

assigned to the element in the extended model.

Table 2 provides the conducted equivalence check

and its implications for the extended BPMN meta-

model. As result of the correspondence check, the

concepts of the BPMN4FM meta-model are

classified/characterized as BPMN Concepts or as

Extension Concepts. Note that, due to space

limitations, the concepts semantics and the

equivalence check is limited to the functional

dimension.

4.2 Abstract Syntax: The BPMN4FM

Meta-Model

The BPMN meta-model can be extended by

integrating new domain-specific concepts to

standard and predefined BPMN elements. This is

supported by a standard extension mechanism

consisting of four elements: (1)

ExtensionDefinition- defines and groups

additional attributes that can be added to BPMN

elements. (2)

ExtensionAttributeDefinition - defines

new attributes that can be added to BPMN

elements. (3) ExtensionAttributeValue -

contains the attribute value. (4) Extension-

binds/imports an Extension Definition

element and its attributes to a BPMN model

definition.

Despite the fact that BPMN offers a well-defined

extension interface, only very few BPMN extensions

make use of it (Braun and Esswein, 2014), what

hampers comprehensibility, comparability between

developed extensions and impedes the

straightforward integration of extensions in

modeling tools. We suppose, that the missing

procedure model for extension building in BPMN

causes this lack of rigor. Based on the model

transformation rules stated in Stroppi et al. (2011),

we define the BPMN4FM extension model

(BPMN+X model). Figure 4 below presents the

resulting extended BPMN meta-model. In this figure

only the relevant standard BPMN classes are shown

in white. The BPMN4FM concepts are shown in

grey. We associate Action concept with the

RootElement of the BPMN specification. The

semantics and the abstract syntax of the BPMN4FM

elements are based on the specification of the

BPMN extension mechanism. BPMNElement

allows representing an original element of the

BPMN meta-model. ExtensionElement allows

representing a new Action concept with the

RootElement of the BPMN specification. The

semantics and the abstract syntax of the BPMN4FM

elements are based on the specification of the

BPMN extension mechanism. BPMNElement

allows representing an original element of the

BPMN meta-model. ExtensionElement allows

representing a new element in the extension model

which is not defined in the BPMN meta-model (such

as Distal Intension, Knowledge).

ExtensionDefinition allows specifying a named

group of attributes which are jointly added to the

original BPMN elements (such as Action Of

ICE-B 2017 - 14th International Conference on e-Business

Table 2: Analysis of the BPMN support for the Functional dimension ODP/ meta-model (with relevant inter aspects

relationships) and derivation of concepts for the Extended BPMN meta-model.

Functional

Perspective

Concepts

Semantics

Equivalence

Check/BPMN Concept

Support

Level

Extended

BPMN

Meta-model

Action

Accomplishment that exemplifies the intention of an agent

(Masolo et al., 2003).

Conditional equivalence

 Activity

Partly Extension

Concept

Deliberate

Action

An Action premeditated which isControlledBy a Distal

Intention (Kassel et al., 2012).

No equivalence - Extension

Concept

Individual

Action

An Action which isCarriedOutBy (performed by) a single

individual (a Human).

No equivalence (no

appropriate Marker)

Extension

Concept

Action of

Collective

A group of several individual actions combining their effects

(Kassel et al., 2012). It isCarriedOutBy a Collective,

controlledBy a Collective Intention and

hasForProperPart at least two Individual Actions

contributing to it (Turki et al., 2016). It can be either an

ction

Of Organization, or an Informal Group Action.

Conditional equivalence

 Process. Process

cannot be used to specify

the actions that can be

carried out collectively

by the individuals

making up the

Collective.

Partly Extension

Concept

Action of

Organization

An Action of Collective which isCarriedOutBy by

a group of individuals affiliated with the organization. It

isControlledBy an Organizational Distal

Intention.

Equivalence 

Process

BPMN

Concept

Informal

Group Action

An Organizational Action performed by an Informal

Group and which contributes to an

ction of

Organization (it is an Organizational Action).

No equivalence

Extension

Concept

Organizational

Unit Action

An Action performed by an Organization Unit and

which contribute to an Action of Organization (it is

therefore an Organizational Action).

Conditional equivalence

 Sub Process,

Lane Set

Partly Extension

Concept

Organizational

Sub Process

An Organizational Unit Action (which

isCarriedOutBy an Organization Unit) which is

aProperPartOf a Business Process.

Equivalence Sub

Process, Lane

BPMN

Concept

Organizational

Activity

An Action which is aProperPart of an

ction of

Organization. It can be either an Organizational

Individual Action or an Organizational Unit

Action.

Equivalence 

Activity, Task, Sub

Process

BPMN

Concept

Organizational

Individual

Action

An Action which isCarriedOutBy a Human affiliated to the

Organization (it is an Individual Action) and which

contributes to an Action Of Organization (it is an

Organizational Action).

Conditional equivalence

 Activity, Task

Partly Extension

Concept

Compound

Organizational

Individual

Action

An Organizational Individual Action which

hasForProperPart at least one Organizational

Individual Action.

No equivalence - Extension

Concept

Task

An Organizational Individual Action which hasn’t for proper part

any Action (it is an Atom).

Equivalence  Task

BPMN

Concept

Critical

Organizational

Activity

An Organizational Action which hasForproperPart

different types of Knowledge (which may be crucial): (i)

imperfect individual and collective knowledge (i.e. missing,

poorly mastered, incomplete, uncertain, etc.) which are necessary

for solving critical determining problems; (ii) a great amount of

heterogeneous knowledge recorded on diverse knowledge sources

(dispersed and sometimes lacking accessibility); (iii) rare

knowledge held by a very small number of experts; (v) flexible

knowledge owned by experts; (iv) very important tacit

organizational knowledge.

No equivalence - Extension

Concept

Collaborative

Organizational

Activity

An Action of Collective carried out collectively by the

individuals making up the Collective (at least two Humans),

internal or external to an organization, that collaborate to achieve

an Objective intentionally defined. This activity mobilizes,

shares and exchanges Information and Knowledge and

generates new Collective Knowledge through interactions

between Agentive Entities.

Conditional equivalence

 Activity,

Choreography

Activity,

Collaboration

Partly Extension

Concept

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

Table 2: Analysis of the BPMN support for the Functional dimension ODP/ meta-model (with relevant inter aspects

relationships) and derivation of concepts for the Extended BPMN meta-model (cont.).

Functional

Perspective

Concepts

Semantics

Equivalence

Check/BPMN

Concept

Support

Level

Extended

BPMN

Meta-model

Knowledge

Intensive

Activity

A special type of process activity that is not enough specified to be

systematically executed. Its execution is based on previous experiences

and tacit knowledge from its executor, may comprise innovation, or may

involve complex making decisions. It is unpredictable and defined at

runtime (Netto et al., 2013).

No equivalence - Extension

Concept

Communica-

tion

An Action (which can be either Receiving an Information,

Obtaining an Information, or Providing an Information)

is a transfer of Information (which is a Message) between two or more

Agentive Entities that affects their knowledge state.

Conditional equiva-

lence 

Activity,

Send Task, Receive

Task, Choreography

Activity

Partly Extension

Concept

Receiving An

Information

A Communication which hasForProperPart an Informing

such that the agent of the Receiving An Information is the

addressee of the Informing.

Equivalence 

Receive Task

+ BPMN

Concept

Knowledge

Conversion

Action

An Action during which different types of

gentive

Entities(playing the role of Senders and Receivers) interact,

exchange and share different types of Knowledge through Messages,

contributing to the creation and acquisition of new Knowledge from the

Message content. Every Knowledge Conversion Action is a

Deliberate Action which can be either a Socialization, an

Internalization, an Externalization or a Combination.

No equivalence

Extension

Concept

Socialization

A Knowledge Conversion Action (which is a Deliberate

Action) which hasForAgent a Collective (which

hasForProperPart at least two Humans) and hasForResult

new Tacit Knowledge (mental models). It may involve the

participation of External Actors. During a Socialization,

Individual Tacit Knowledge isTransmittedIn

Collective Tacit Knowledge through practice, sharing of

experiences, constructive discussions or in a learning-by-doing situation.

No equivalence

Extension

Concept

Internaliza-

tion

A Knowledge Conversion Action which is a Deliberate

Action converts Explicited Knowledge (Individual and/or

Collective) to Tacit Knowledge. That leads to an integration of

experiences and competences in your own mental model.

Internalization hasForAgent an Agentive Entity (an Human

or a Collective), which hasForResult Tacit Knowledge.

No equivalence

Extension

Concept

Externaliza-

tion

A Knowledge Conversion Action which is a Deliberate

Action, during which several Tacit Knowledge

areExternalizedTo to divers Collective Explicited

Knowledge (or Information) and leads to detached knowledge (as

seen from the perspective of the human being). Collective

Explicited areBorneBy organizational memory systems (i.e.,

Physical Knowledge Supports)). Externalization

hasForAgent an Human or a Collective and hasForResult

Collective Explicited Knowledge.

No equivalence

Extension

Concept

Combination

A Knowledge Conversion Action which is a Deliberate

Action, which combines existing Explicited Knowledge in new

forms (complex). Combination hasForAgent one or more

Humans, and hasForResult new Explicited Knowledge

(Individual and/or Collective). Explicited Knowledge of several

Humans are exchanged, combined to produce, by induction and

deduction new Explicited Knowledge.

No equivalence

Extension

Concept

Discourse Act

A Discourse Act (Authorizing, Asking, Defining, Describing or

Informing) is a Communication, which is a Deliberate Action,

which consists in creating a Discourse, that is an Expression which

expresses a Message (Fortier and Kassel, 2004).

Conditional equivalen-

ce  Send Task,

Receive Task,

Choreography

Activity

Partly Extension

Concept

Inter

Organiza-

tional Action

An Action which isCarriedOutBy at least two Organizations.

No equivalence

Extension

Concept

ICE-B 2017 - 14th International Conference on e-Business

Crit icalOrg anizat ionalA ctivit y

<<ExtensionDefinition>>

+malfunctions: String[1..*]

+determiningProblems: String[1..*]

IndividualA ctio n

<<ExtensionDefinition>>

Process

<<BPMNElement>>

+pro ce ssT yp e : P ro ce ssT yp e

+isClosed: Boolean

+isExecutable: Boolean

CollaborativeOrganizationalActivity

<<ExtensionDefinition>>

Activity

<<BPMNElement>>

Action

<< Ext en sionDe finit ion> >

+name : S tring

isProperPartOf

<<ExtensionAttrDefinition>>

1..*

2..*

Ext ernalA ctor

<<ExtensionDefinition>>

Co llect ive

<<Ext en sio nDe finit ion> >

AgentiveEntity

<<Ext ensionDefinit ion>>

<<ExtensionAttributeDefinition>>+name: String

<<ExtensionAttributeDefinition>>+role: String

<<ExtensionAttributeDefinit ion>>+origine: String

<<ExtensionAttributeDefinition>>+localisation: String

Organization

<<ExtensionDefinition>>

isAgentOf / isCapableToPerformer

1..*

FlowElement

<<BPMNElement>>

+name : St ring

Message

<<BPMNElement>>

+name : St ring

DiscourseAct

<< Ext e nsionDe finit ion> >

Co mmunicat ion

<< Ext en sio nDe fin it io n> >

Flo wNo de

<<BPMNElement>>

Sensit iveBu sinessPro cess

<<Ext ensionDefinit ion>>

<<ExtensionAttributeDefinition>>+issues: String[1..*]

DistalInt ention

<<ExtensionElement>>

Tacit Kno wledge

<< Ext e nsionEle me nt >>

Exp licit edKnow ledg e

<<ExtensionElement>>

Kno wled g e

<<ExtensionElement>>

<<ExtensionAttributeDefinition>>+name: String

<<ExtensionAttributeDefinition>>+nature: String

<<ExtensionAttributeDefinition>>+domain: St ring

<<ExtensionAttributeDefinition>>+isIndividual: Boolean

<<ExtensionAttributeDefinition>>+isCollective: Boolean

Knowledge Flow

<<ExtensionDefinition>>

isSoc ialized In

Socializat ion

<<ExtensionDefinition>>

Co mbinat ion

<<Ext en sio nDefinit ion> >

Explicitat ion

<<Ext en sio nDefinit ion> >

Int ernalizat ion

<<ExtensionDefinition>>

Ext ern alizat ion

<<Ext en sio nDefinit ion> >

KnowledgeInt ensiveAct ivity

<<ExtensionDefinition>>

Know ledg eCon versio n A ctio n

<< Ext e nsionDe finit ion> >

hasFo rResult

1..*

hasForResult

1..*

ProcessType

<<enumeration>>

+none

+execu table

+non-e xe cut able

+public

Root Element (from Foundation)

<<BPMNElement>>

Deliberat eAct ion

<<Ext ensionDefinit ion> >

Act ionOfCo llect ive

<<ExtensionDefinition>>

hasForProperPart

2..*

Inf ormat io n

<<Ext en sio nEle ment >>

<<ExtensionDefinition>>+isFactual: Boolean

<<Ext ensio nDe finit ion> > +isPro c ed ural: Boo le an

Objective

<< Ext e nsionEle me nt >>

Discourse

<< Ext en sionDe finit ion> >

<<ExtensionAttributeDefinition>> is InternalizedIn

<<ExtensionAttributeDefinition>>

{incomplete}

<<ExtensionAttributeDefinit ion>>isInternalizedIn

isCombinedIn/isExternalizedIn

<< Ext en sio nA tt rib ut eDe fin itio n> >isE xp licit ed In

<<ExtensionAttributeDefinition>>

hasForResult

<<ExtensionAttributeDefinition>>

{d isjo int , co mp let e }

BaseElement

<<BPMNElement>>

+id: St ring

Definitions

<<BPMNElement>>

+d e fin it io n

+rootElements

OrganisationalKno wledge

<<ExtensionElement>>

ResourceRole

<<BPMNElement>>

+name : St ring

HumanPerformer

<<BPMNElement>>

Performer

<<BPMNElement>>

+resources

0..1

{incomplete}

2.*

<<ExtensionAttributeDefinition>>hasForProperPart

1..*

<<ExtensionAttributeDefinition>>

<<ExtensionRelationship>>

<<ExtensionAttributeDefinit ion>>

<<ExtensionRelationship>>

1..*

isCo n t rolle dBy

1..*1..*

hasForContent

<<ExtensionRelationship>>

isCo mbine dIn

<<ExtensionAttributeDefinition>>

1..*

<<ExtensionAttributeDefinition>>allow ToCarryOut

<<ExtensionAttributeDefinition>>

isExpressedBy

ChoreographyActivity

<<BPMNElement>>

<<ExtensionRelationship>>

+source Ref

+out going

+inc oming +t arge tRe f

<<ExtensionAttributeDefinition>>

<<ExtensionAttributeDefinition>>creates

<<ExtensionAttributeDefinition>>

1..*

<<ExtensionAttributeDefinition>>

hasForPropoerPart

Message Flow

<<BPMNElement>>

+messageRef

0..1

+messageFlowRef

1..2

0..1

Exp licitableKno wled ge

<< Ex t en sio nE leme nt >>

<<ExtensionAttributeDefinition>>+isConscious: Boolean

1..*

1.. *

1..*

hasForResult

1..*

hasForResult

SubProcess

<<BPMNElement>>

CallAct ivit y

<<BPMNElement>>

Task

<<BPMNElement>>

ReceiveTask

<<BPMNElement>>

SendTask

<<BPMNElement>>

ChoreographyTask

<<BPMNElement>>

ChoreographySubProcess

<<BPMNElement>>

Part icipant

<<BPMNElement>>

+name : S tring

PartnerEntity

<<BPMNElement>>

+name : St ring

PartnerRole

<<BPMNElement>>

+nama: St ring

-partnerEntityRef0..1

-part ne rRoleRef

0..1

LaneSt

<<BPMNElement>>

+parent Lane: Lane[0..1]

Lane

<<BPMNElement>>

+name : St ring

-laneSet

+lanes

Int erOrg anizat ionalA ctio n

<< Ext e nsionDe finit ion> >

OrganizationalUnitAction

<<ExtensionDefinition>>

OrganizationalInformalGroupAction

<<Ext ensionDefinit ion> >

OrganizationalIndividualAction

<<ExtensionDefinition>>

CompoundOrganizationalIndividualAction

<<ExtensionDefinition>>

{incomplete}

<<ExtensionRelationship>>

{incomplete}

FlowElement Co ntainer

<<BPMNElement>>

+container

+flowElement s

collabo rat ion

<<BPMNElement>>

+name : St ring

+isClosed: Boolean

+definitiona lC ollaborationRef

0..1

+resources

+supports

+laneSets

0..1

+participantRefs

2..*

+initiatingParticipantRef

Choreography

<<BPMNElement>>

<<ExtensionRelationship>>

{d isjo int }

<<ExtensionAttributeDefinition>>

InformalExchange

<<ExtensionDefinition>>

<<ExtensionAttributeDefinition>>isCarriedOutBy

1..*

+choreographyActivity

+messageFlowRef

0.. 1

1.. *

SequenceFlow

<<BPMNElement>>

+outgoing

+sourceRef

+incoming

+targetRef

Figure 4: Abstract syntax of the BPMN4FM extension.

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

Collective, Inter Organizational

Action, Critical Organizational

Activity, Collaborative

Organizational Activity, Knowledge

Conversion Action, Socialization,

Sensitive Business Process,

Collective, etc.). ExtensionDefinition has the

same meaning than the ExtensionDefinition element

of the BPMN metamodel. The semantics defined by

the ExtensionAttributeDefinition element of the

BPMN meta-model is captured by the Property

metaclass of the UML metamodel. Thus,

ExtensionAttributeDefinition is represented in

BPMN4FM models by UML properties, either

owned by the ExtensionDefinition elements or

navigable from them through associations. The

properties of ExtensionDefinition and

ExtensionElement elements can be typed as a

BPMNElement, ExtensionElement, BPMNEnum,

ExtensionEnum or UML primitive type. Finally,

ExtensionRelationship specifies a conceptual link

between a BPMNElement and an

ExtensionDefinition element aimed to extend it. The

BPMN extension mechanism cannot express the

BPMN element to be extended by an extension

definition. Thus, the definition of an

ExtensionRelationship does not produce any effect

in the resulting BPMN extension.

ExtensionRelationship is provided to help

conceptualizing extensions since extensions are

generally defined to customize certain elements of

the BPMN meta-model. With respect to the limited

space of this paper, the application of each applied

transformation rule cannot be presented.

4.3 Concrete Syntaxes and Editor

We proposed an advanced concrete syntax that

defines new and specific graphical representation for

the new concepts of BPMN4FM as illustrated in

Table 3. For instance, the Action element is

specified by new markers for representing

Individual Action, Action of

Collective and Critical

Organizational Activity. Furthermore, we

have incorporated new notational elements with

specific properties for Knowledge typologies, for

Knowledge Conversions Flows,

Physical Knowledge Supports and

Agentive Entities.

Table 3: Concrete syntax of BPMN4KM.

Modeling Notation

BPMN4FM

Elements

Organizational

Critical Activity

(Individual/

Collective)

Collective

Tacit Knowledge

Explicit

Knowledge

conversion/

creation

Socialization

(Flow)

Internalization

(Flow)

Explicitation

(Flow)

Externalization

(Flow)

Physical

Knowledge

Support

(Individual/

Collective)

We have implemented an editor supporting this

syntax as shown in Figure 5. More precisely, we

have developed a specific Eclipse plug-in, entitled «

K4BPMN: Knowledge for Business Process

Modeling Notation », to integrate and represent all

relevant aspects related to the knowledge dimension

in SBP models (to improve the localization of

crucial knowledge that is mobilized and created by

these processes). This plug-in extends the open

source editor Eclipse BPMN2 Modeler plug-in

(BPMN2 Modeler, 2016): it completes this later by

integrating new attributes, properties, elements and

specific icons for introduce new SBP semantics.

ICE-B 2017 - 14th International Conference on e-Business

5 ILLUSTRATIVE EXAMPLE OF

THE USE OF EXTENDED

BPMN4FM

The research project presented in this paper has been

done in the context of the Association of Protection

of the Motor-disabled of Sfax-Tunisia (ASHMS)

(Ben Hassen et al., 2017). This organization is

characterized by highly dynamic, unpredictable,

complex and highly intensive knowledge processes.

We intend to apply some concepts proposed by

BPMN4FM meta-model to evaluate their practical

utility and suitability in providing an expressive

representation of an SBP. Particularly, we are

interested in the early care of the disabled children

with cerebral palsy (CP). An depth analysis of this

care has been made by Ben Hassen et al. (2017). The

created knowledge stems from the interaction of a

large number of multidisciplinary healthcare

professionals with heterogeneous skills, expertise

and specialties (such as neonatology, neuro-

pediatrics and physical therapy). The global care

process of the disabled children with CP consists of

a succession of many actions in the form of medical

and paramedical examinations and evaluations of

children with cerebral palsy in different specialties.

The different sub-processes (e.g. process related to

neonatology care, process related to neuro-pediatric

care, etc.) require certain medical information and

knowledge. In this study, we take into consideration

the results of experimentation of the multi-criteria

Sensitive Organization's Process Identification

Methodology (SOPIM) proposed by Turki et al.

(2014) which was validated in the ASHMS and aims

at evaluating and identifying SBPs for knowledge

localization. We have opted for the SBP « Process of

initial neuro-motor evaluation of a child with CP».

In Figure 5, we illustrate an extract of BPMN SBP

model of the initial evaluation process extended and

enriched with some extended concepts related to the

functional and knowledge dimensions. During our

experimentation, we have identified different types

of medical knowledge mobilized and created by

each critical activity related to the SBP. For

instance, the knowledge A2Kp2 related to « Result

of the evaluation of neuro-cognitive, psycho-

cognitive and sensory development of the young

children with CP and their disorders» is produced by

Figure 5: Fragment of SBP model related to the initial neuro-motor evaluation of a child with CP using Extended BPMN2

Modeler.

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation

the critical activity A2 «Clinical neurological

examination». A2Kp1 is an external and

propositional knowledge which is collective. It is

stored in the following physical media: the

neurological and neuro-motor assessment sheets

(BNM).These physical media of knowledge are

located within the Neonatology service unit in the

University Hospital Hedi Chaker. A2Kp2 is of a

scientific and measure nature which is related to

patients. A2Kp2 is mobilized by the activity

A4 «Differential diagnosis of neurological

abnormalities».

It is important to mention that not all Functional

Perspective concepts are applicable and must be

instantiated in every SBP scenario. The graphical

representation of SBP is in its experimental stage.

6 CONCLUSION AND

PERSPECTIVES

This research work presented, firstly, BPM4KI-a

generic BPs meta-model that covers all relevant

perspectives for a complete and precise

conceptualization of SBP. We focused, specifically,

on the description of the «Functional Perspective»,

exploring the collaboration, interaction and

knowledge aspects in greater detail. The SBP

modeling dimension is semantically rich and well-

based on «core» domain ontologies. Secondly, we

presented BPMN4FM: a BPMN 2.0 extension,

integrating all relevant aspects related to the

functional dimension in SBP models in order to

improve the localization and identification of crucial

knowledge mobilized and created by these

processes. Furthermore, we developed a specific

Eclipse plug-in implementing BPMN4FM. Besides,

we illustrated the application of some extended

concepts on a model of medical care process. Our

current research activities focus on achieving the

implementation of aspects related to all BPM4KI

dimensions. As further work, we aim at proposing a

framework based on MDA (Model-Driven

Architecture) to automatically generate SBP models

and enhance the knowledge identification.

REFERENCES

Ben Hassen, M., Turki, M., Gargouri, F., (2016a). A

Business Process Meta-Model for Knowledge

Identification Based on a Core Ontology. In

International Symposium on Business Modeling and

Software Design. Revised Selected Papers (Book

Chapter). Lecture Notes in Business Information

Processing, 257, Springer, pp.37–61.

Ben Hassen, M., Turki, M., Gargouri, F., (2016b).

Choosing a Sensitive Business Process Modeling

Formalism for Knowledge Identification. Procedia

Computer Science, vol 100 (2016a) 1002–1015.

Ben Hassen, M., Turki, M., Gargouri, F., (2017). Sensitive

Business Processes Representation: A Multi-

Dimensional Comparative Analysis of Business

Process Modeling Formalisms. In International

Symposium on Business Modeling and Software

Design. Lecture Notes in Business Information

Processing, Springer, pp. 83-118.

Braun, R., Esswein, W., (2014). Classification of Domain-

Specific BPMN Extensions. In Frank, U., Pastor, O.,

Petrounias, I. (Eds.) Lecture Notes in Business

Information Processing, 197, pp. 42-57.

Braun, R., Schlieter, H., Burwitz, M., & Esswein, W.,

(2015). Extending a Business Process Modeling

Language for Domain-Specific Adaptation in

Healthcare. In Wirtschaftsinformatik, pp. 468-481.

BPMN2 Modeler. [Online]. Available: http://www.eclipse.

org/bpmn2-modeler/

Fortier J.-Y., & Kassel G. (2004). Managing knowledge at

the information level: An ontological approach. In

Proceeding of the ECAI’2004 workshop on knowledge

management and organizational memories. Spain, pp.

39–45.

Gangemi A., Borgo S. (Eds.), (2004). Proc. of the 14th

International Conference on Knowledge Engineering

and Knowledge Management, Workshop on Core

Ontologies in Ontology Engineering.http://ceur-ws.org

(Vol-118).

Gangemi A., (2006). Ontology Design Patterns: A primer,

with applications and perspectives. Tutorial on ODP.

Laboratory for Applied Ontology Institute of Cognitive

Sciences and Technology CNR, Rome, Italy.

Kassel, G., (2005). Integration of the DOLCE top-level

ontology into the OntoSpec methodology.

Kassel, G, Turki, M, Saad, I, Gargouri, F., (2012). From

collective actions to actions of organizations: an

ontological analysis. In Symposium Understanding

and Modelling Collective Phenomena, University of

Birmingham, England.

Kassel, G., (2010). A formal ontology of artefacts.

Applied Ontology 5(3-4) pp.223-246.

Masolo, C., Vieu, L., Bottazzi, E., Ferrario, R., Gangemi,

A., Guarino, N., (2004). Social roles and their

descriptions, In Dubois D., Welty C. (eds.), Proc. of

the Ninth International Conference on the Principles

of Knowledge Representation and Reasoning, pp. 267-

277.

Netto, J. M, Franca, J. B. S., Baião, F. A., Santoro, F. M.,

(2013). A Notation for Knowledge-Intensive

Processes. In IEEE 17th International Conference on

Computer Supported Cooperative Work in

Design,Vol.1, pp.1–6.

OMG (2013). Business Process Model and Notation

(BPMN), Version 2.0.2 http://www.omg.org/spec/

BPMN/2.0.2/pdf/

ICE-B 2017 - 14th International Conference on e-Business

Turki M., Saad I., Gargouri F. and Kassel G., (2014). A

Business Process Evaluation Methodology for

Knowledge Management based on multi-criteria

decision making approach. Information systems for

knowledge management. ISBN: 978-1-84821-664-8,

Wiley-ISTE.

Turki, M., Kassel, G., Saad, I., Gargouri, F., (2016). A

Core Ontology of Business Processes Based on

DOLCE. J. Data Semantics. 5(3), pp.165-177.

Extending Sensitive Business Process Modeling with Functional Dimension for Knowledge Identiﬁcation
